The document discusses different types of electronic components, focusing on capacitors and inductors. It defines a capacitor as a device that stores electrical energy in an electric field and lists common capacitor types like ceramic, film, and electrolytic. It also outlines several applications of capacitors like energy storing, smoothing, and filtering. Inductors are defined as components that store energy in a magnetic field when current flows through them. The document provides brief information on AC and DC circuits involving capacitors and inductors.

1. Electronics
Mohamed Abd El-Ghaffar

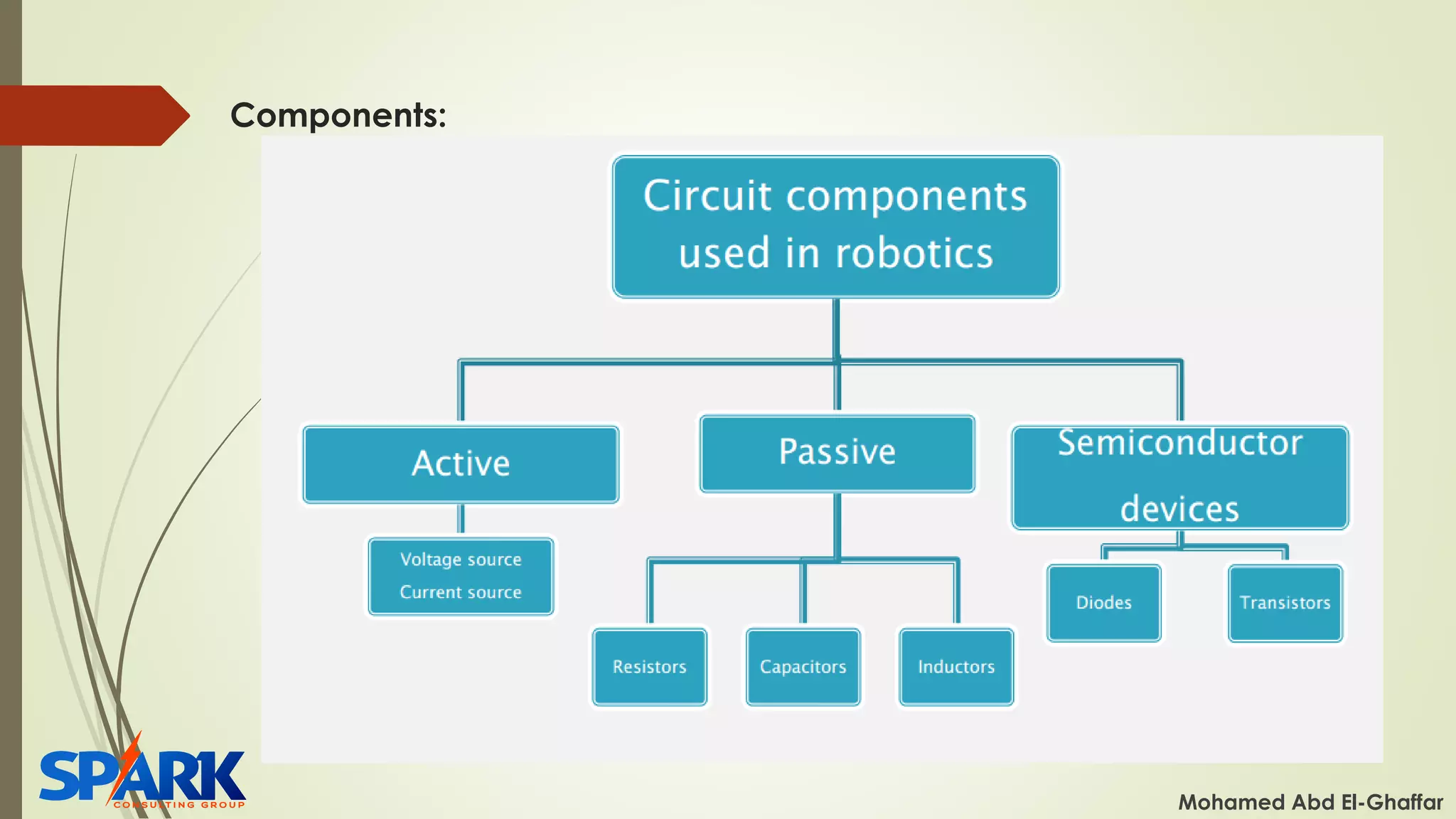

2. Components:
Mohamed Abd El-Ghaffar

3. Capacitors :
Mohamed Abd El-Ghaffar

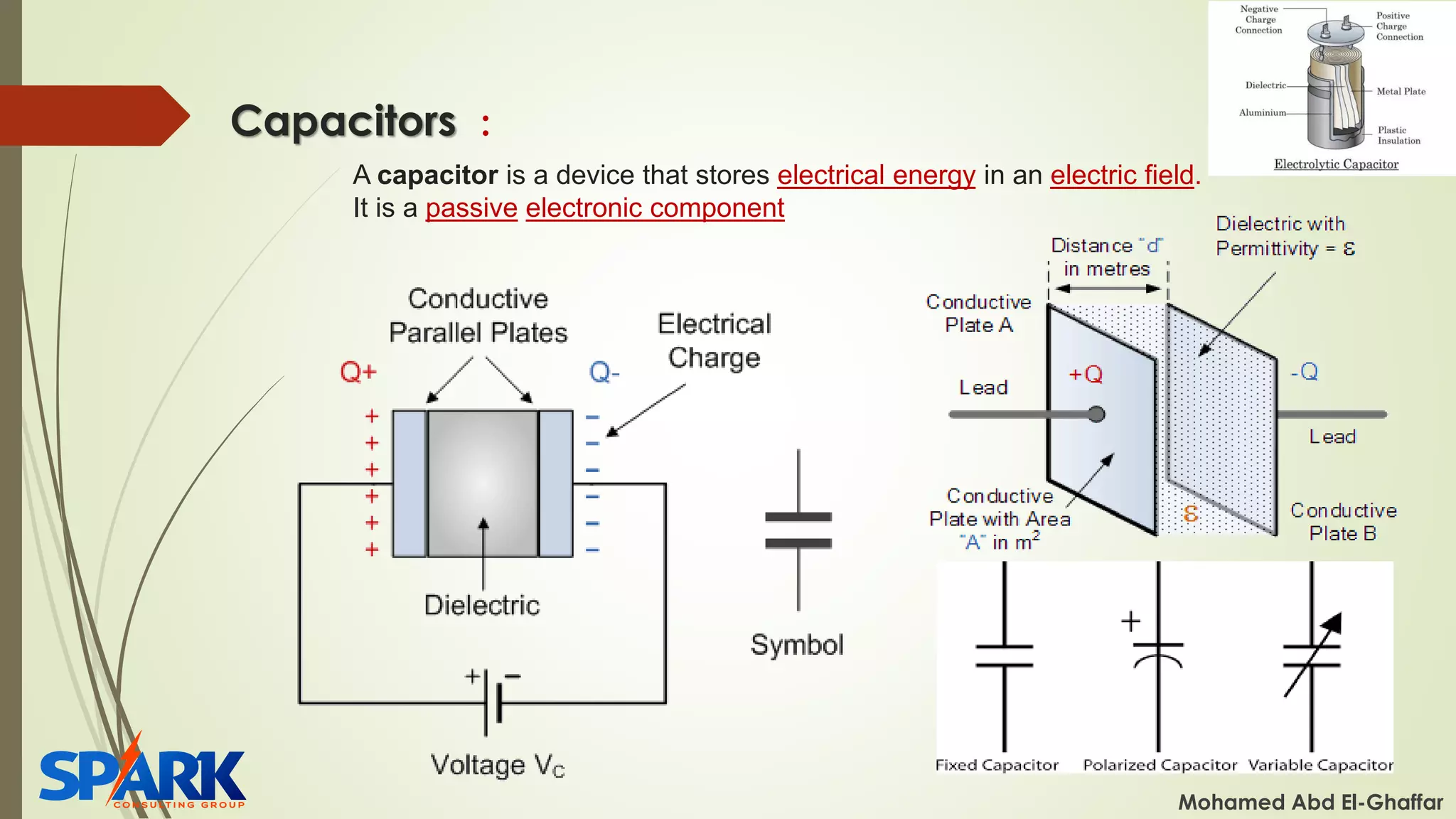

A capacitor is a device that stores electrical energy in an electric field.
It is a passive electronic component

4. Capacitors :
Mohamed Abd El-Ghaffar

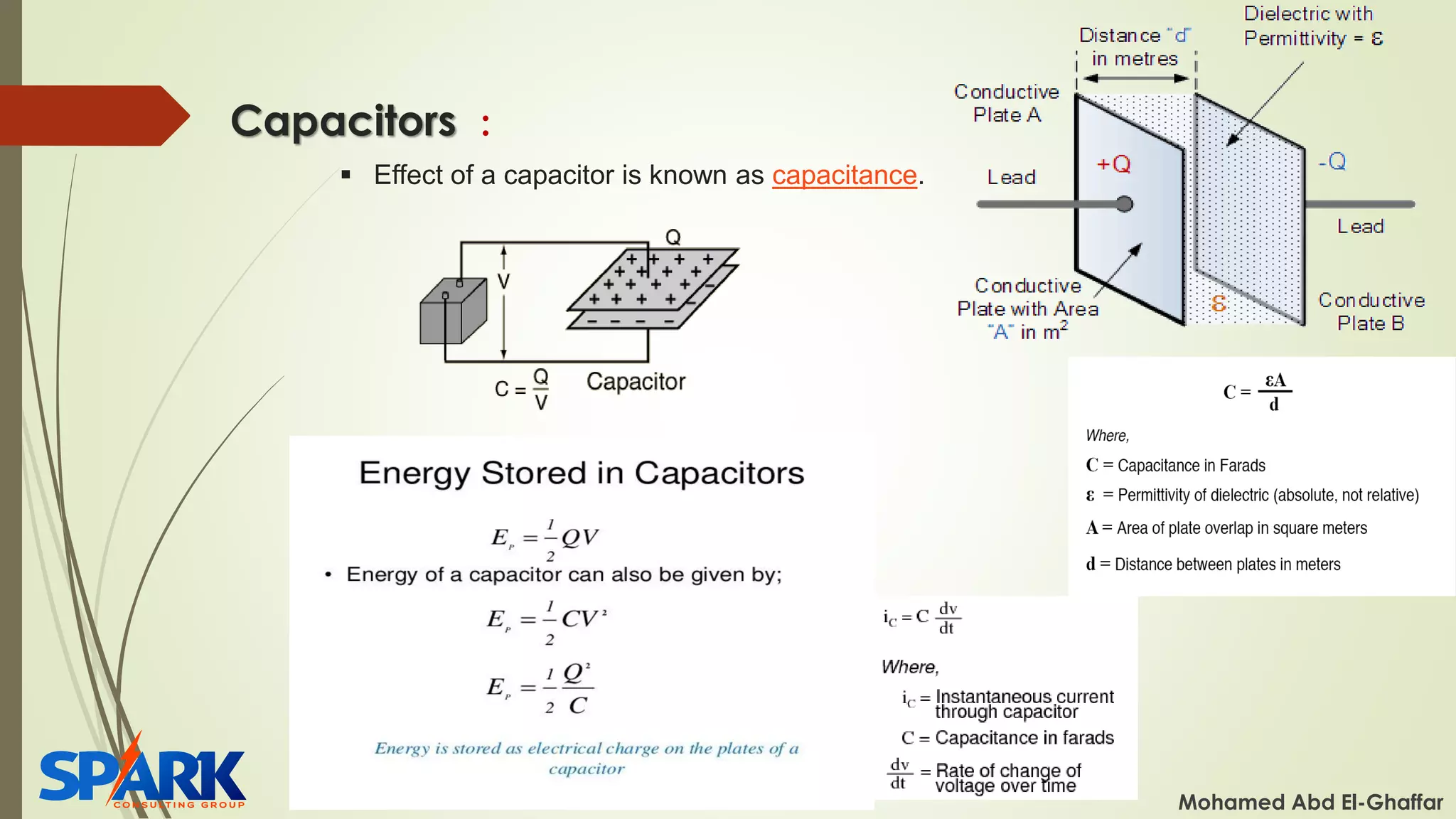

▪ Effect of a capacitor is known as capacitance.

5. Capacitors :
Mohamed Abd El-Ghaffar

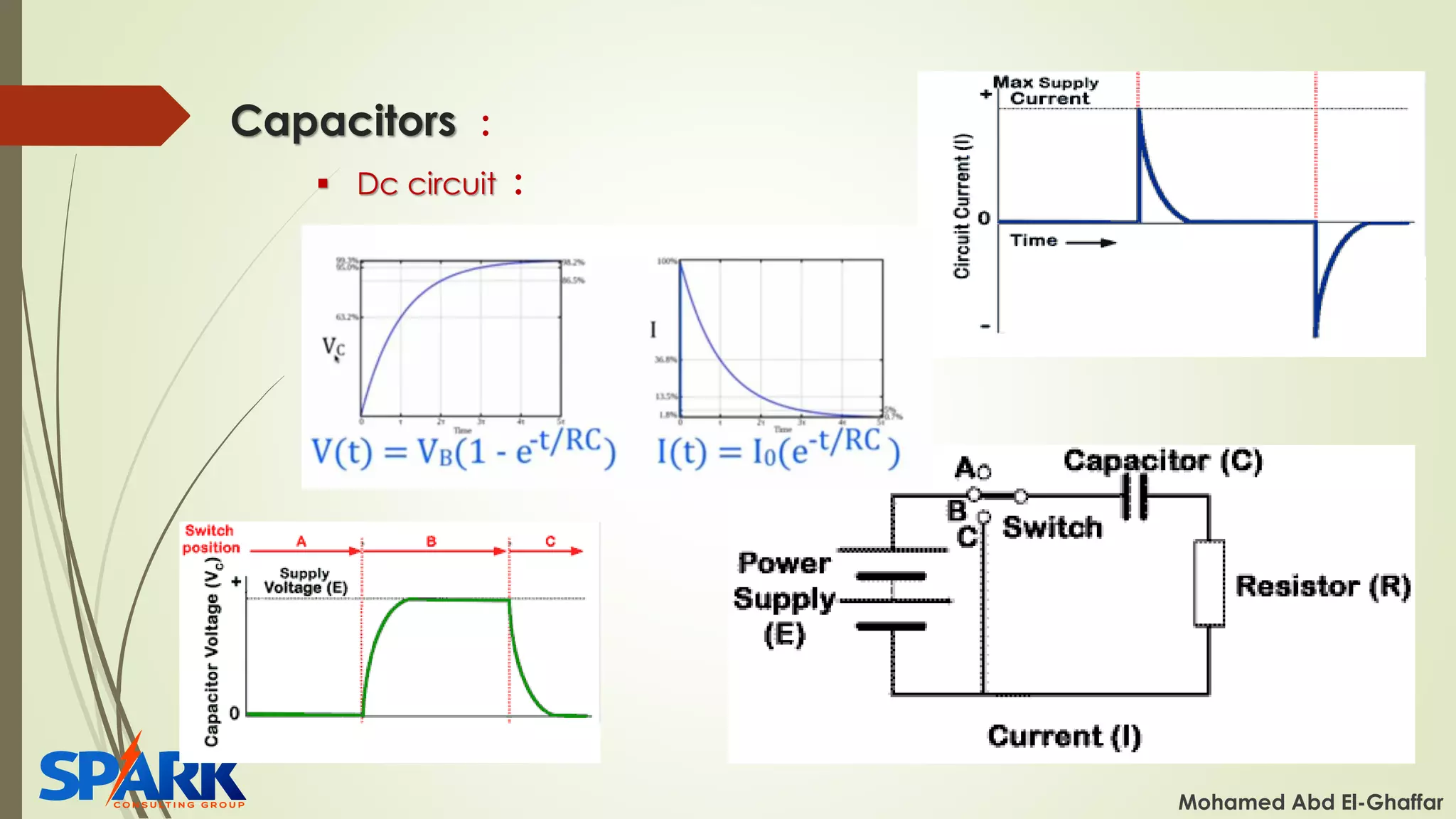

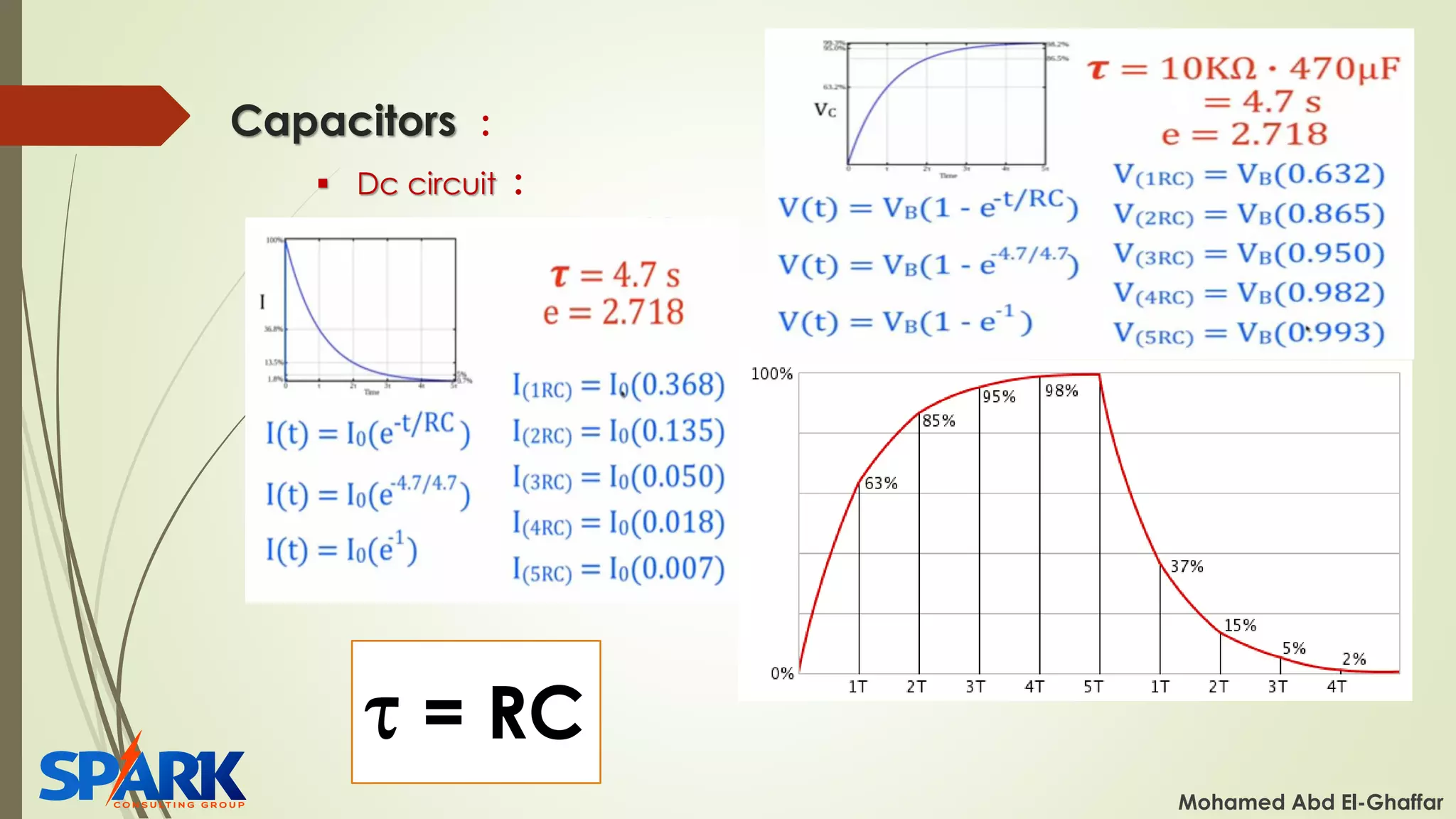

▪ Dc circuit :

6. Capacitors :
Mohamed Abd El-Ghaffar
▪ Dc circuit :
τ = RC

7. Capacitors :
Mohamed Abd El-Ghaffar

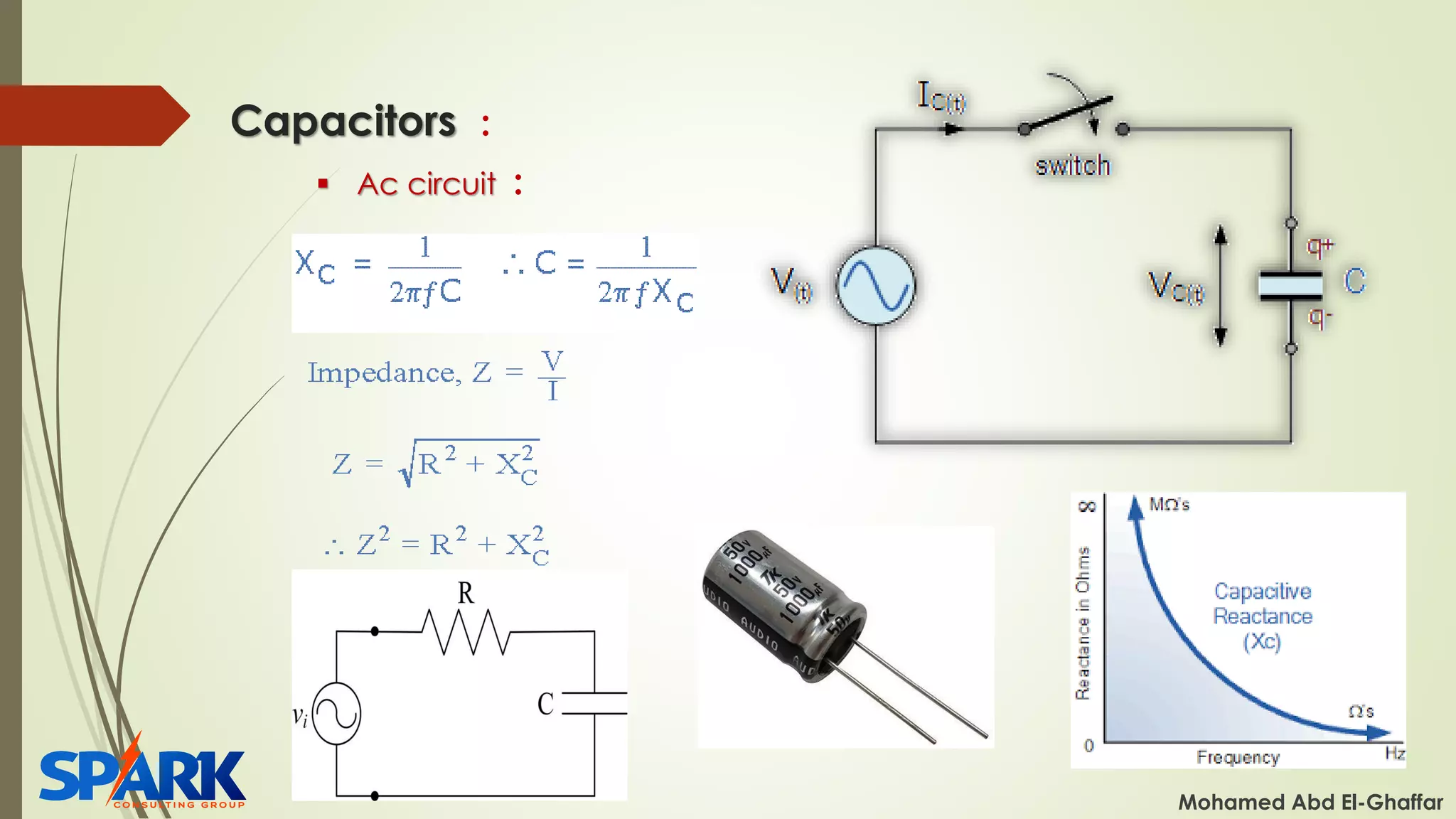

▪ Ac circuit :

8. Capacitors :
Mohamed Abd El-Ghaffar

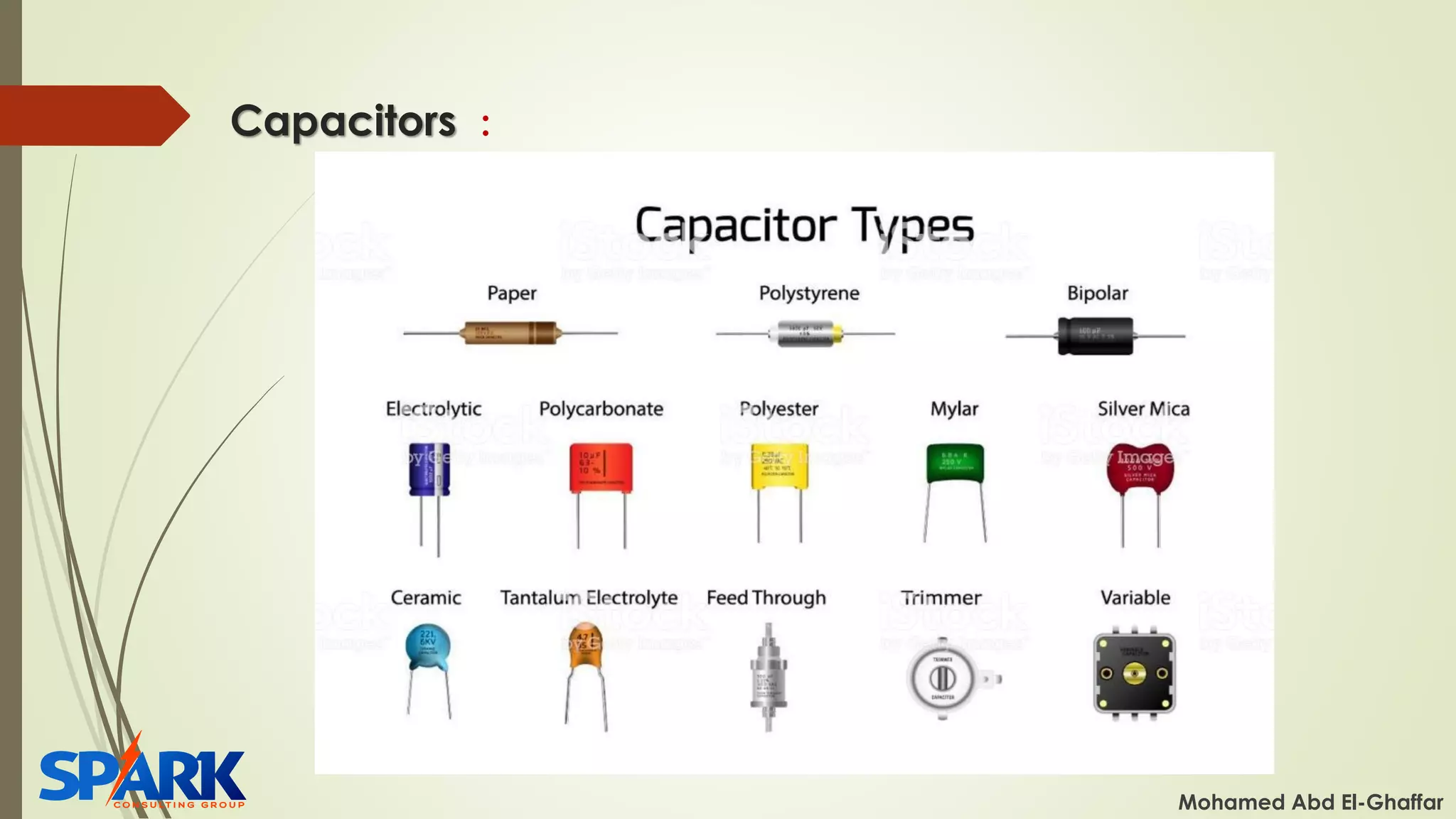

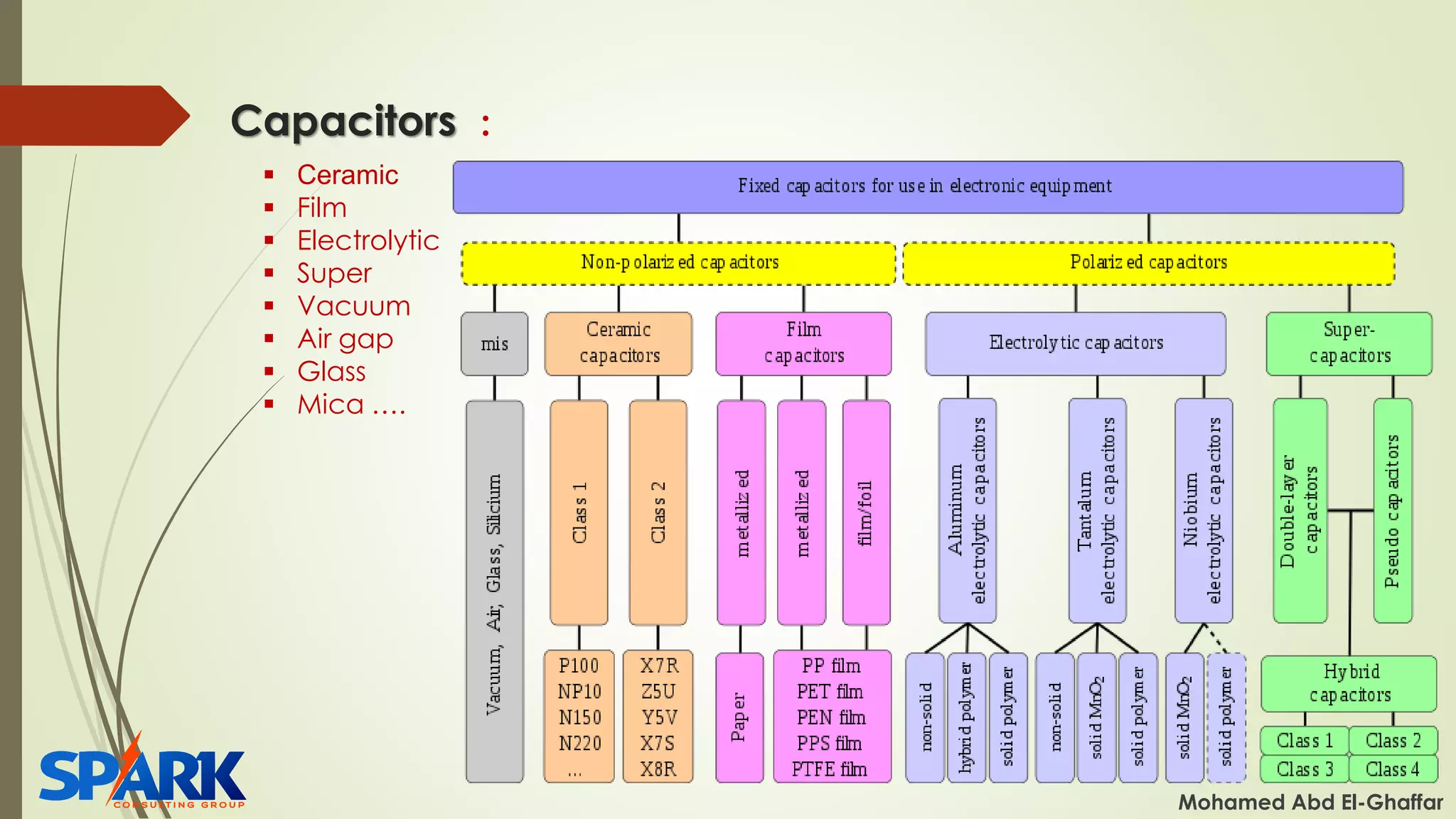

▪ Ceramic
▪ Film
▪ Electrolytic
▪ Super
▪ Vacuum
▪ Air gap
▪ Glass
▪ Mica ….

9. Capacitors :
Mohamed Abd El-Ghaffar

10. Capacitors :
Mohamed Abd El-Ghaffar

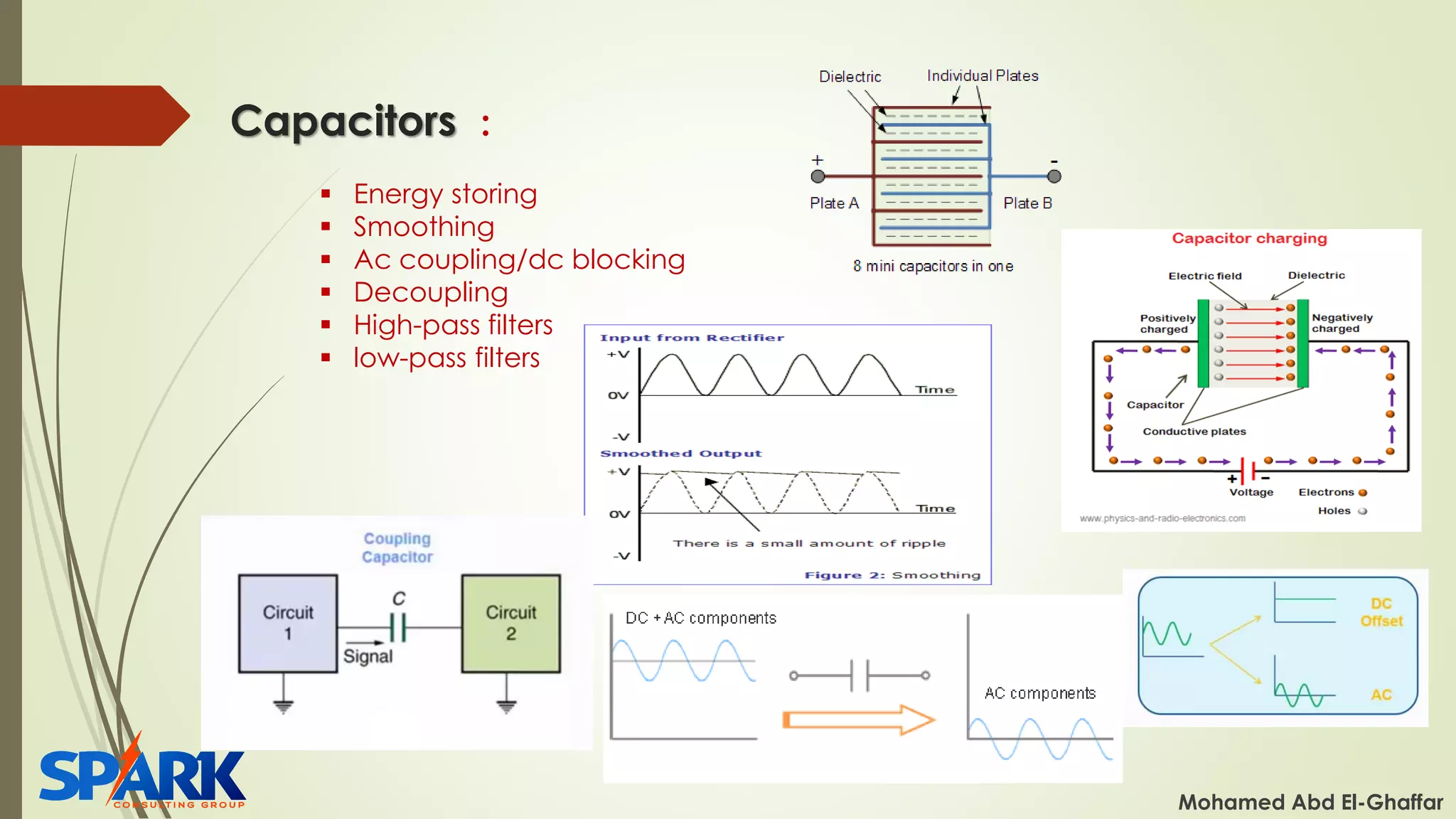

▪ Energy storing
▪ Smoothing
▪ Ac coupling/dc blocking
▪ Decoupling
▪ High-pass filters
▪ low-pass filters

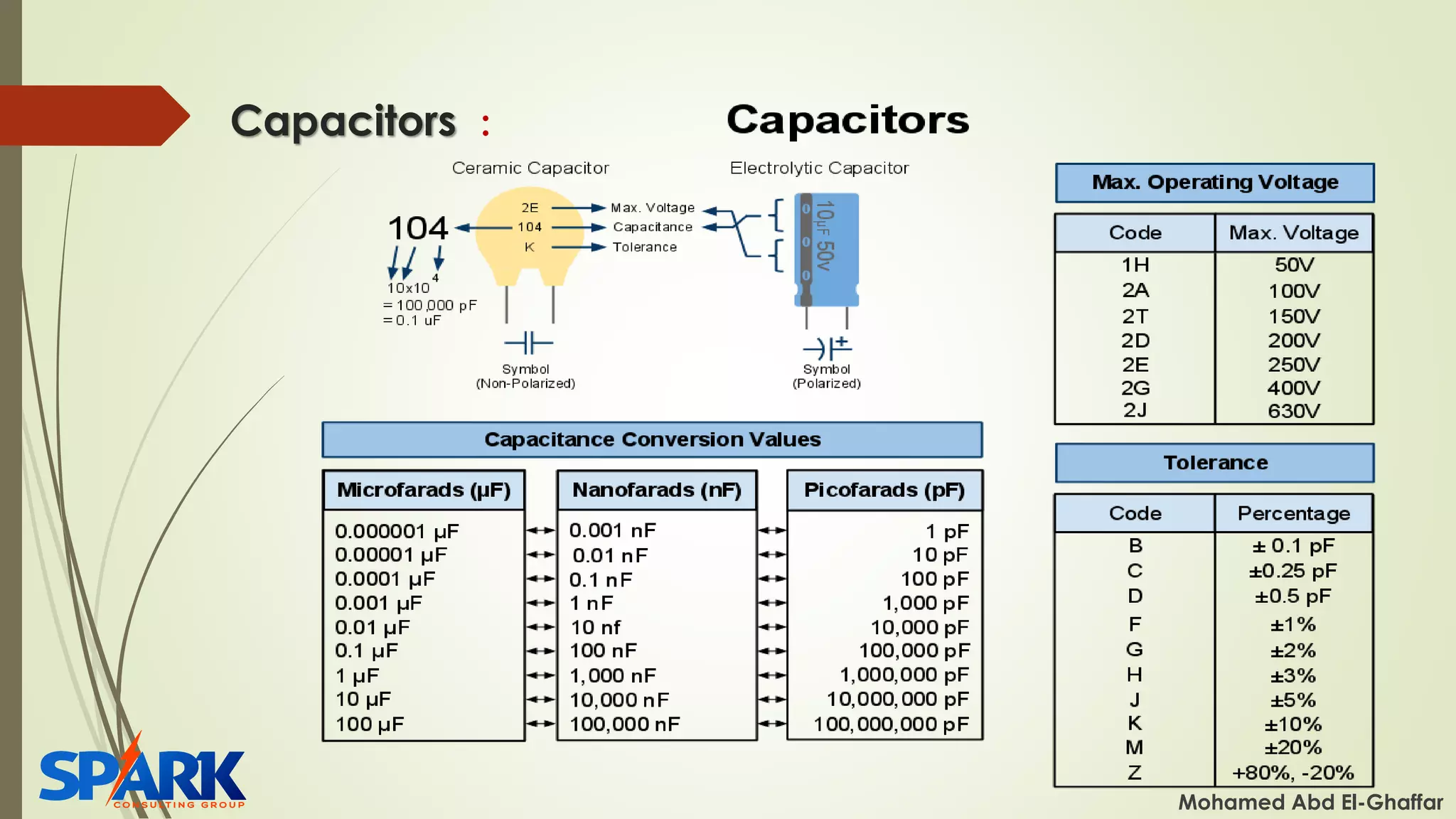

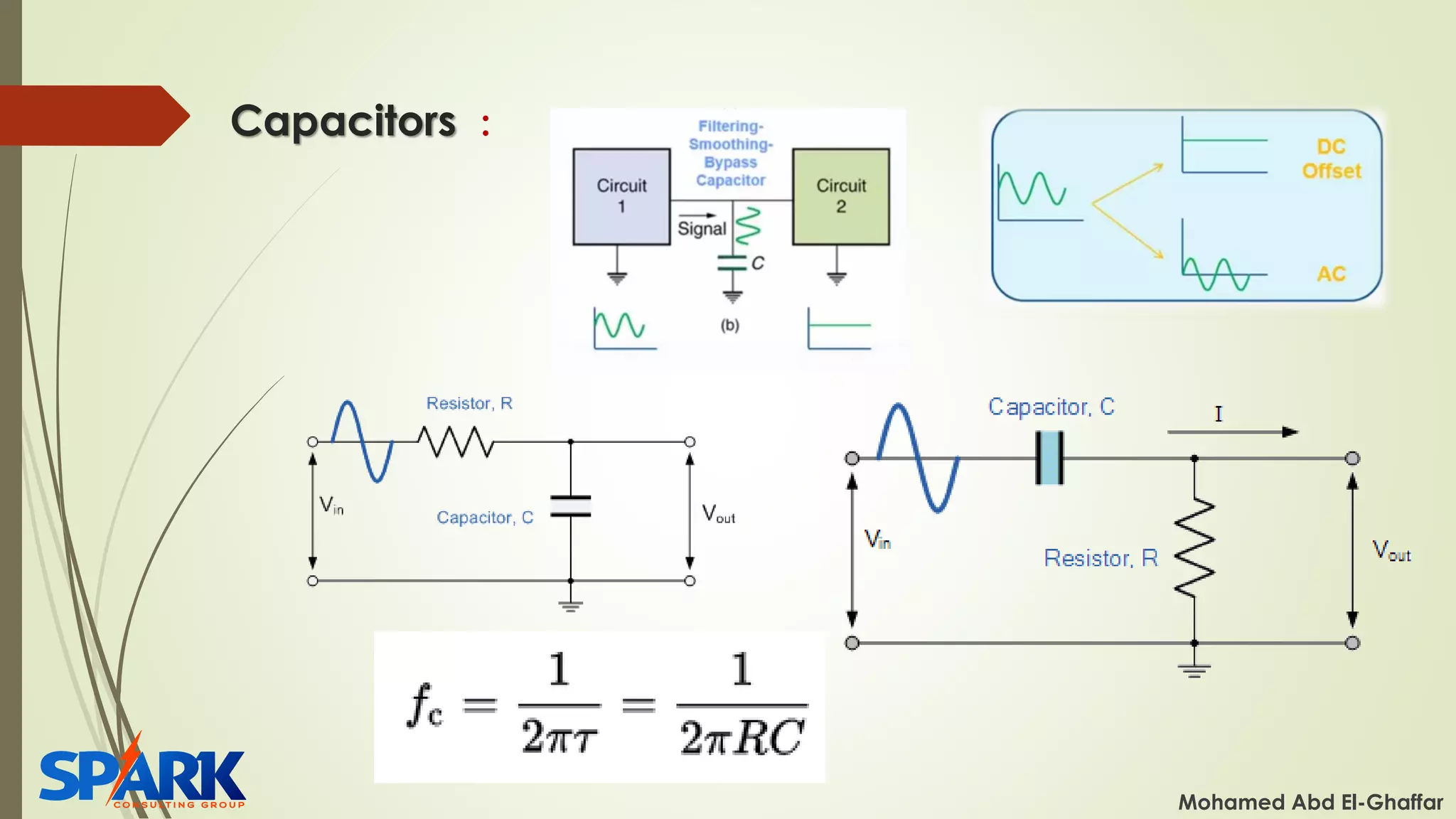

11. Capacitors :
Mohamed Abd El-Ghaffar

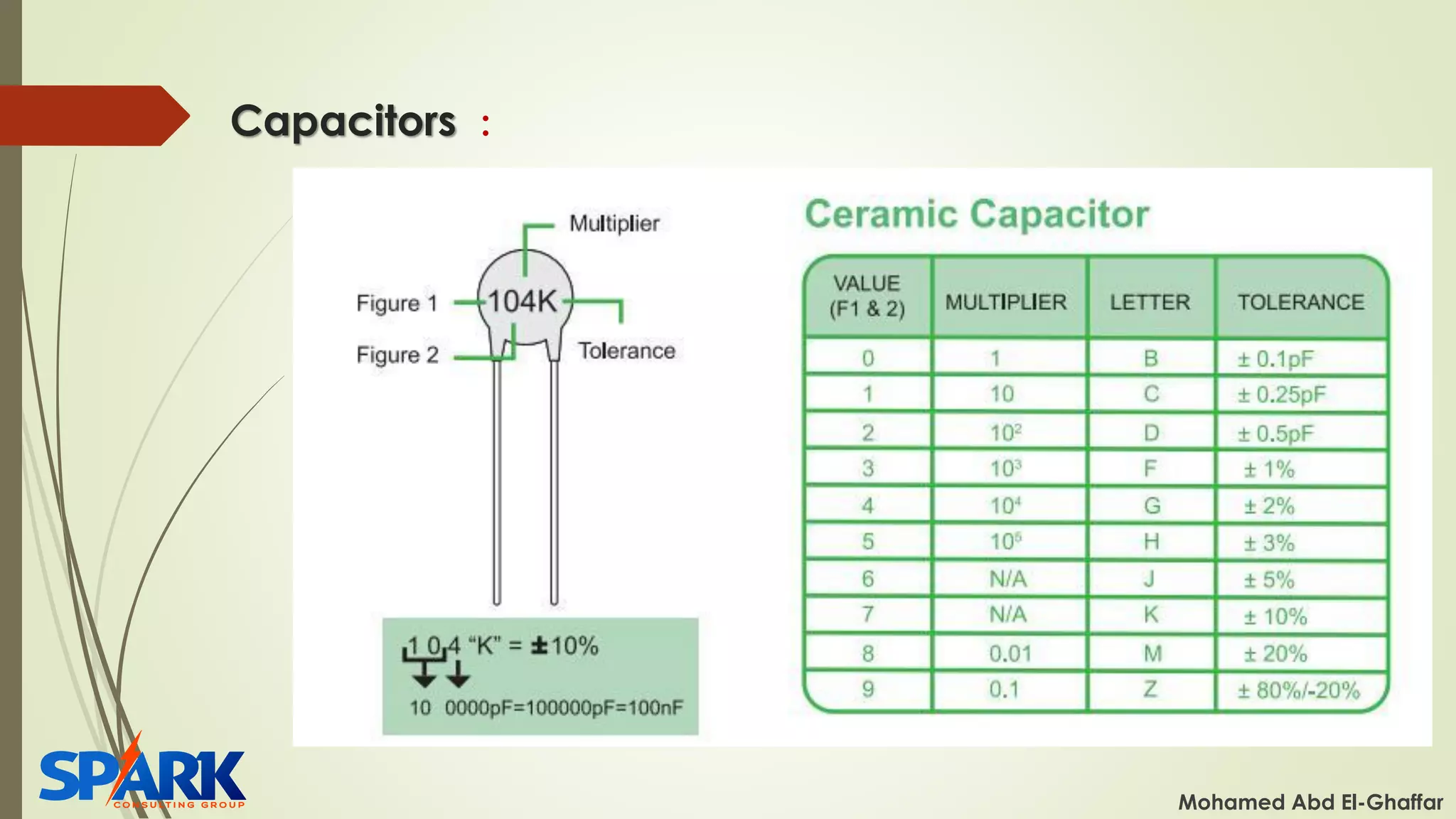

12. Capacitors :
Mohamed Abd El-Ghaffar

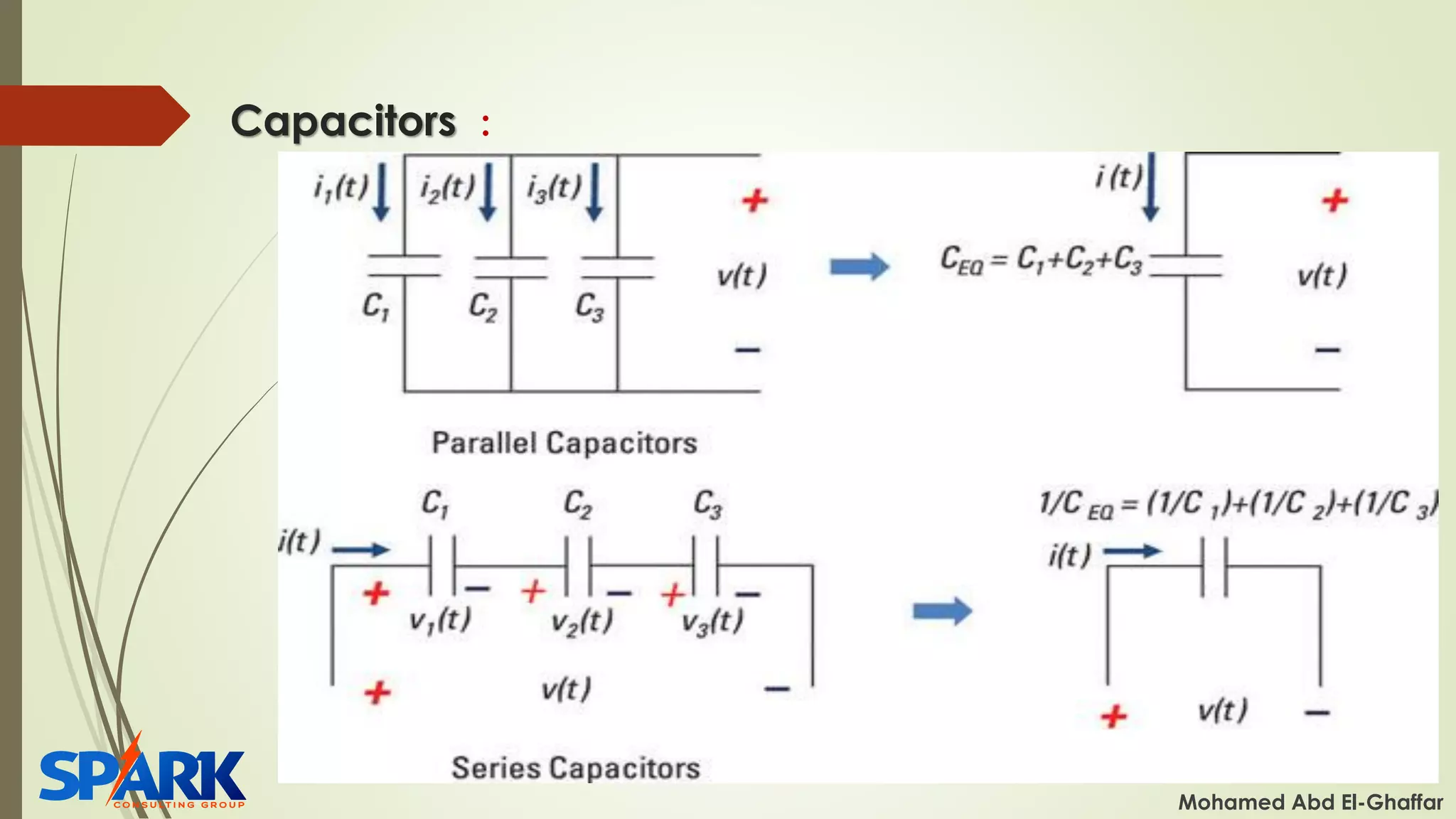

13. Capacitors :
Mohamed Abd El-Ghaffar

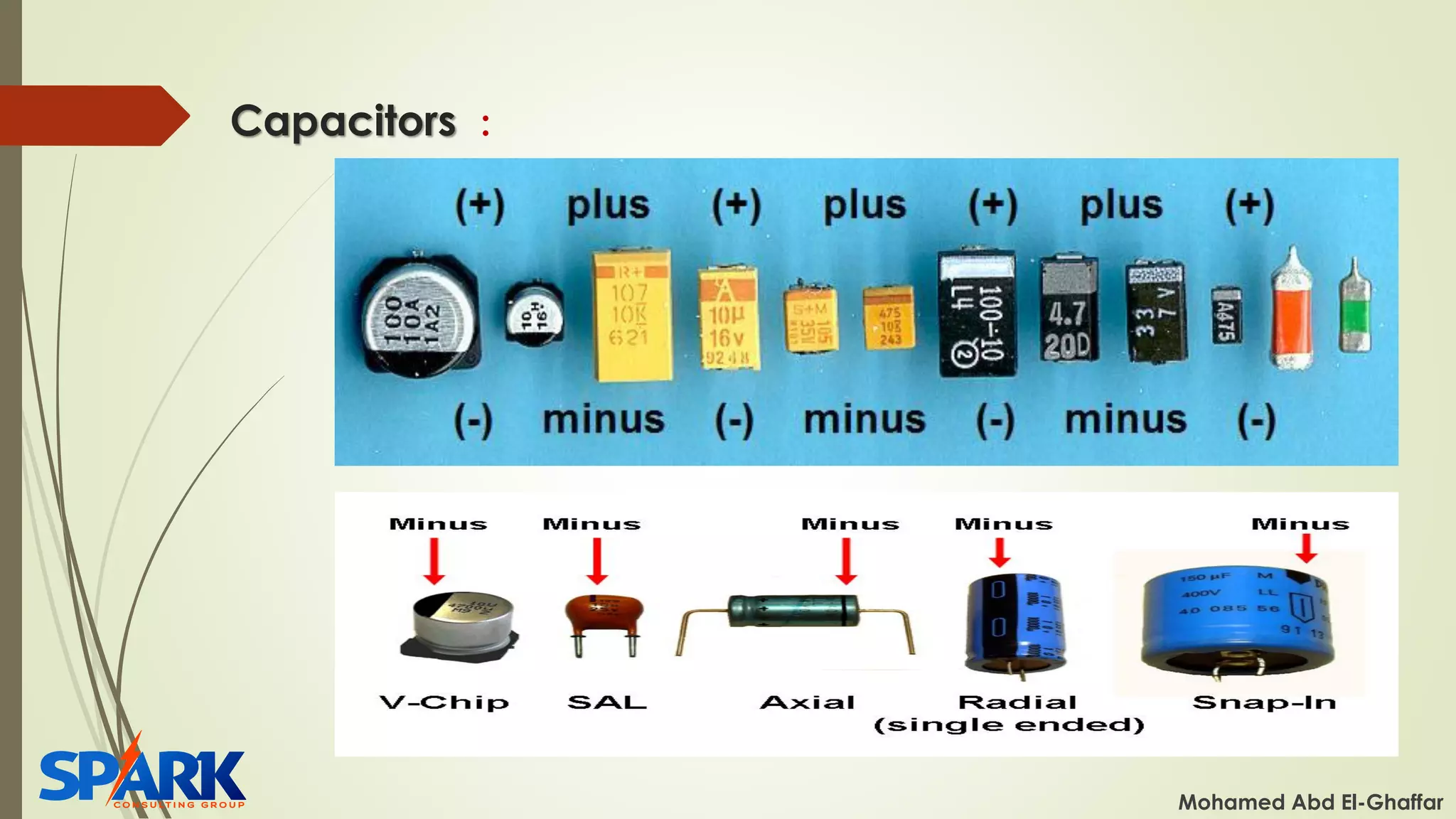

14. Capacitors :
Mohamed Abd El-Ghaffar

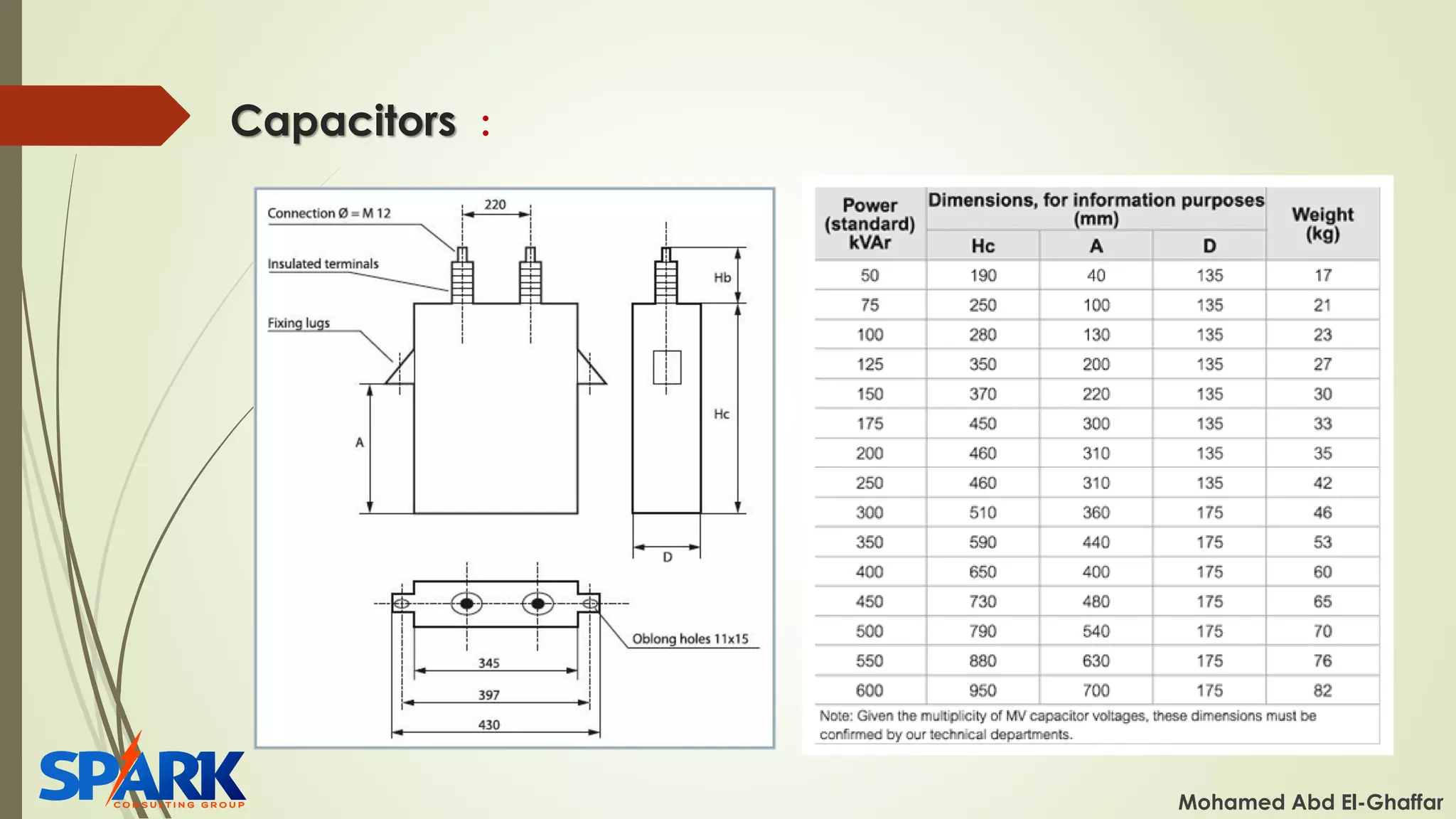

15. Capacitors :
Mohamed Abd El-Ghaffar

16. Capacitors :
Mohamed Abd El-Ghaffar

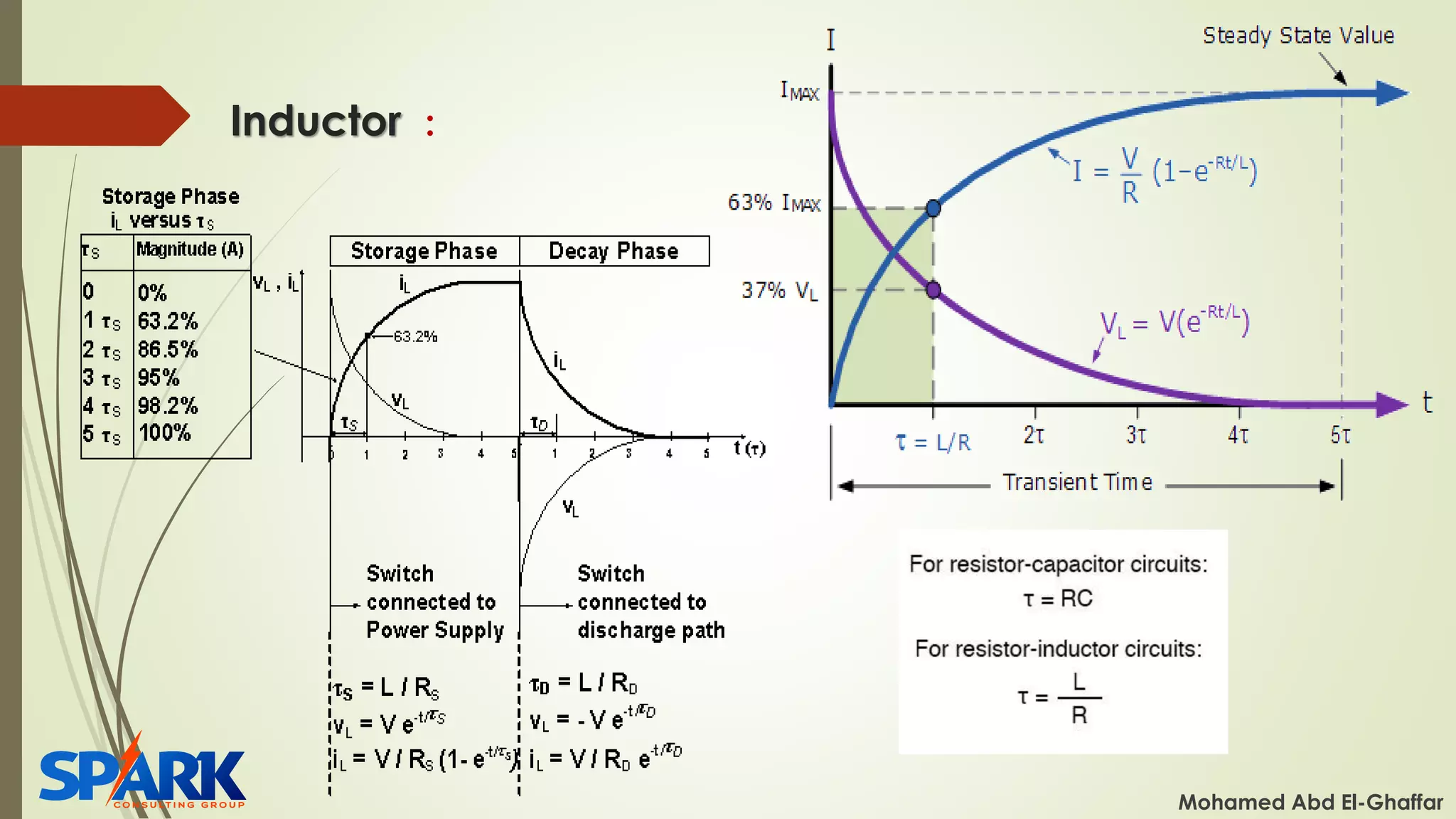

17. Inductor :
Mohamed Abd El-Ghaffar

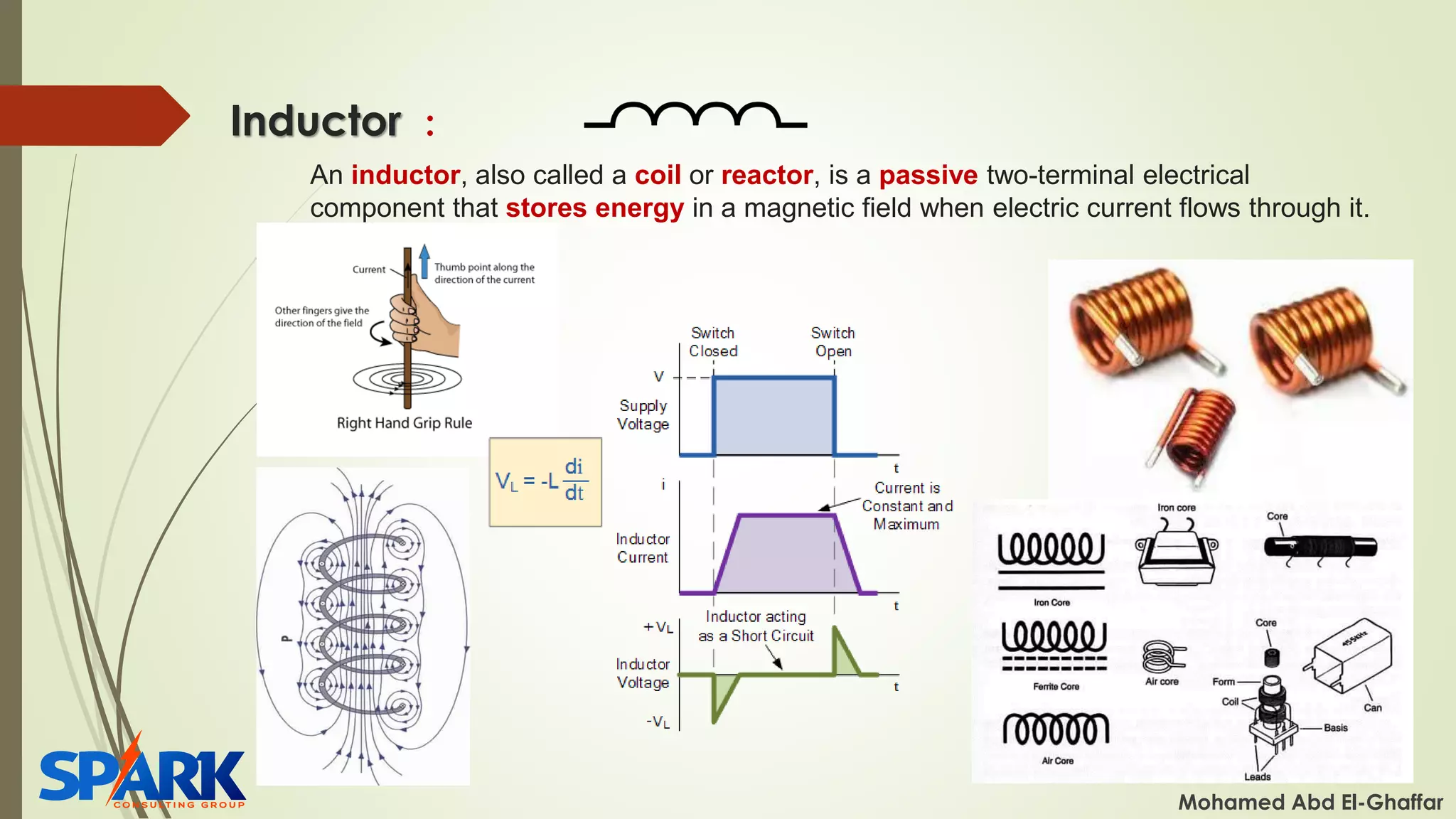

An inductor, also called a coil or reactor, is a passive two-terminal electrical
component that stores energy in a magnetic field when electric current flows through it.

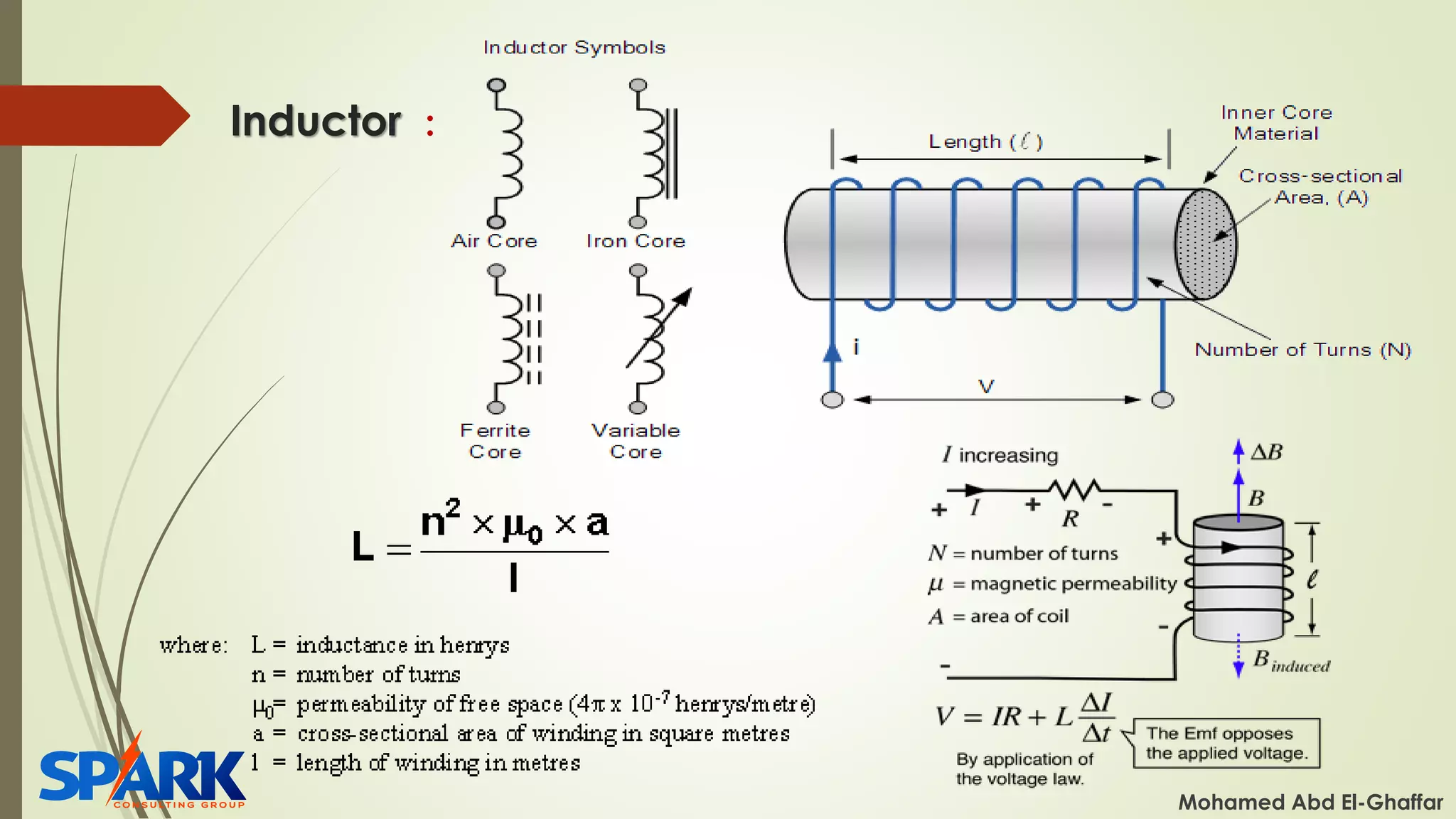

18. Inductor :
Mohamed Abd El-Ghaffar

19. Inductor :
Mohamed Abd El-Ghaffar

20. Inductor :
Mohamed Abd El-Ghaffar

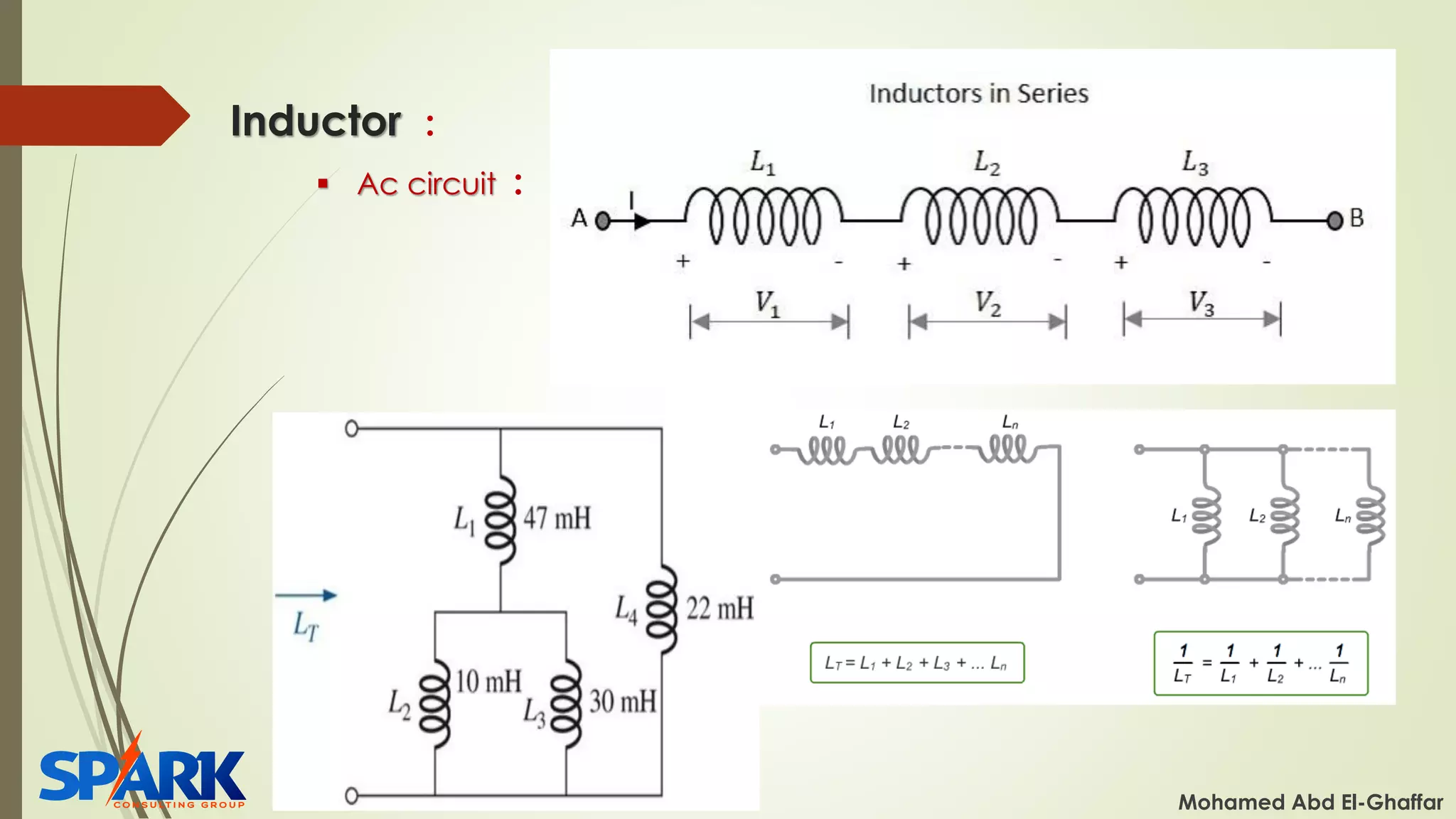

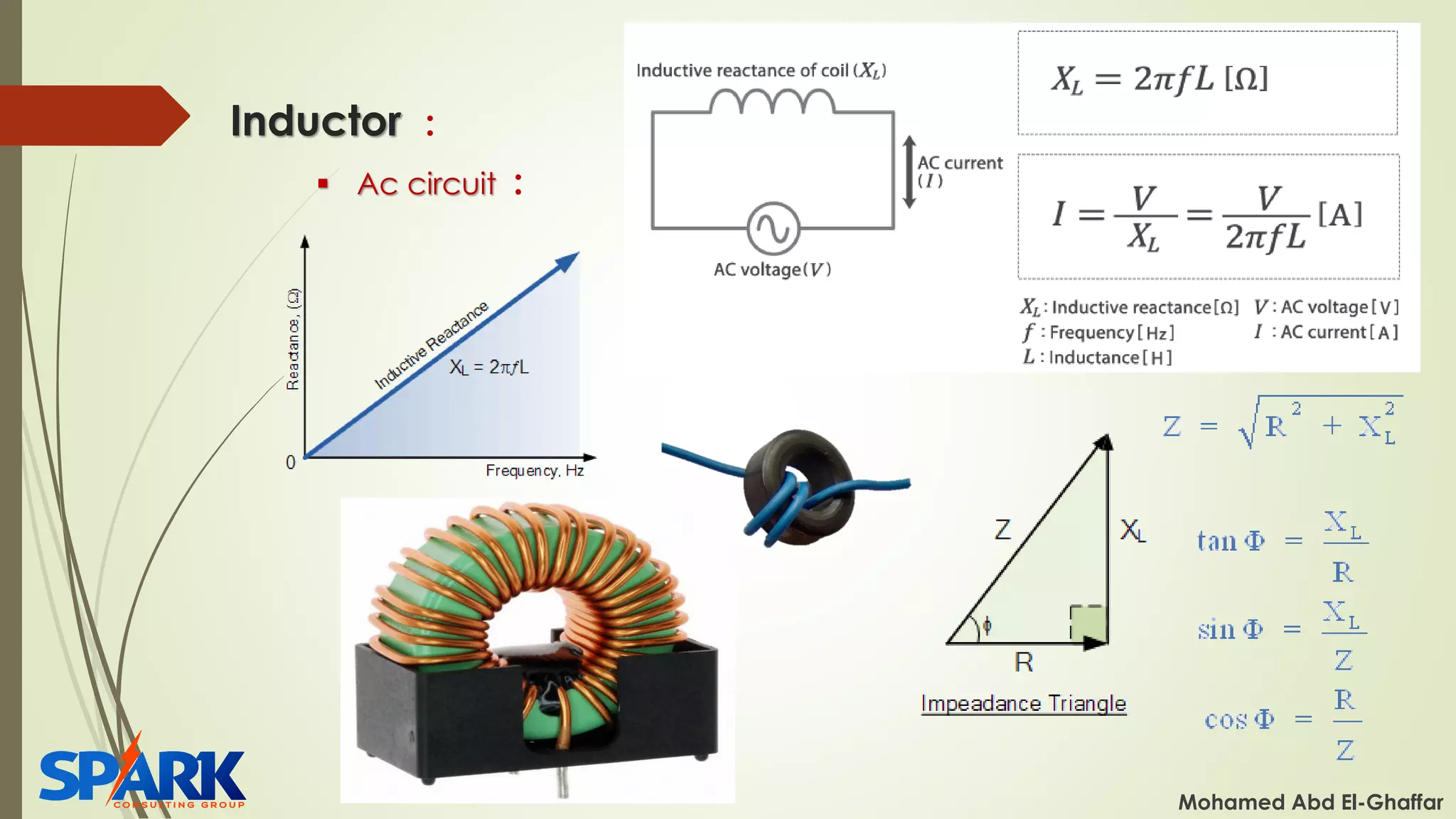

▪ Ac circuit :

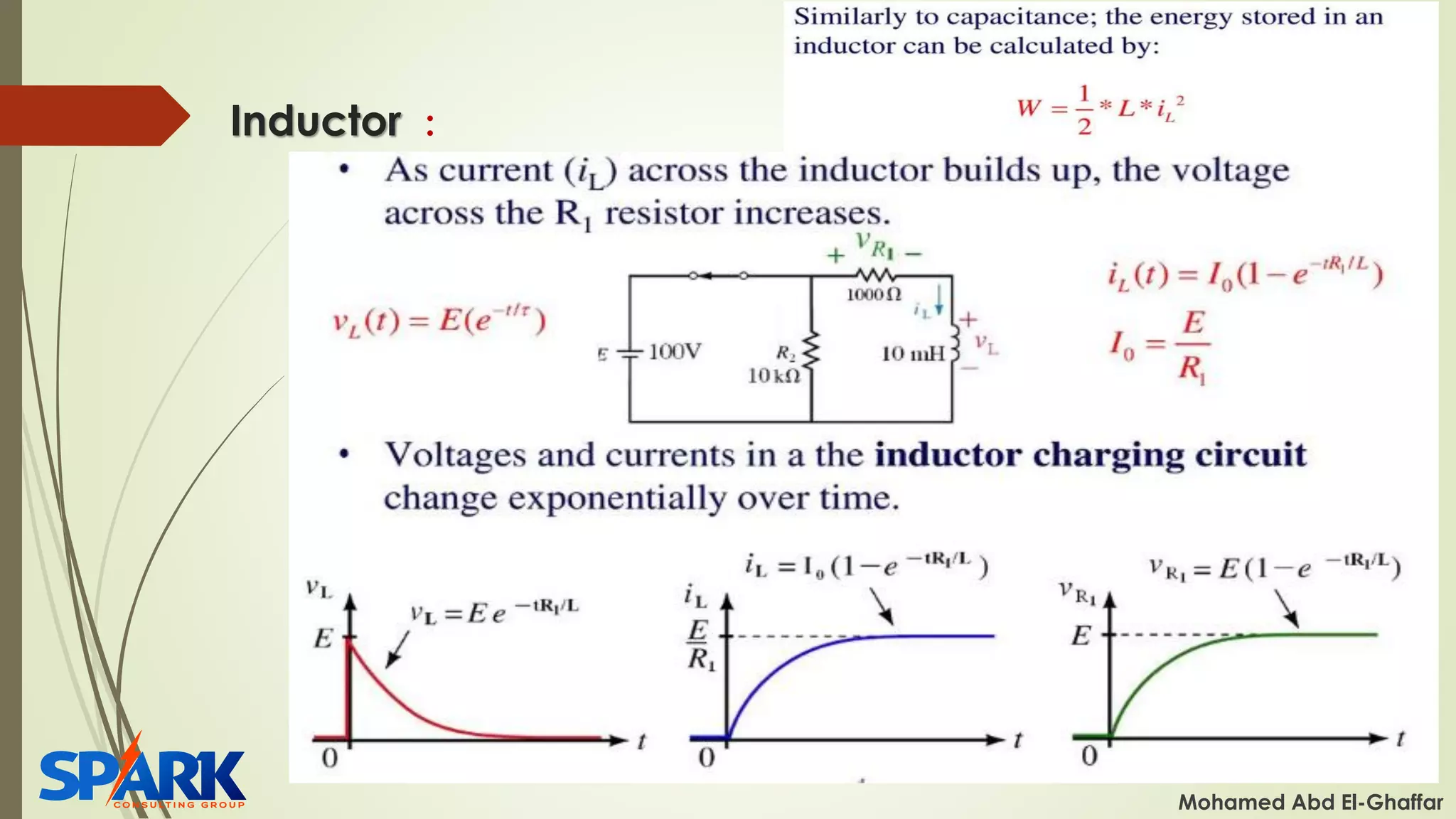

21. Inductor :
Mohamed Abd El-Ghaffar

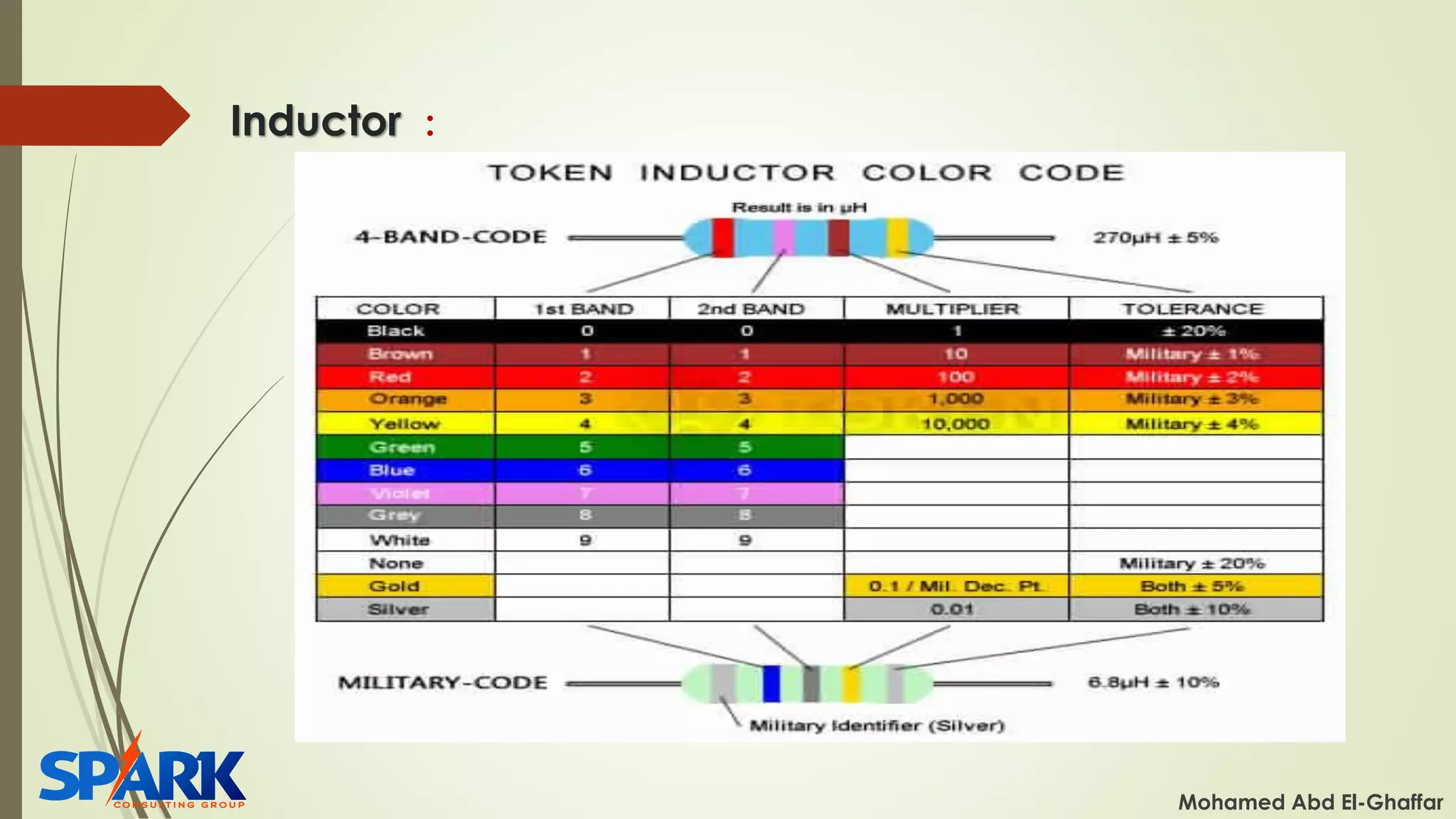

22. Inductor :
Mohamed Abd El-Ghaffar

23. Inductor :
Mohamed Abd El-Ghaffar
▪ Ac circuit :

24. Inductor :
Mohamed Abd El-Ghaffar

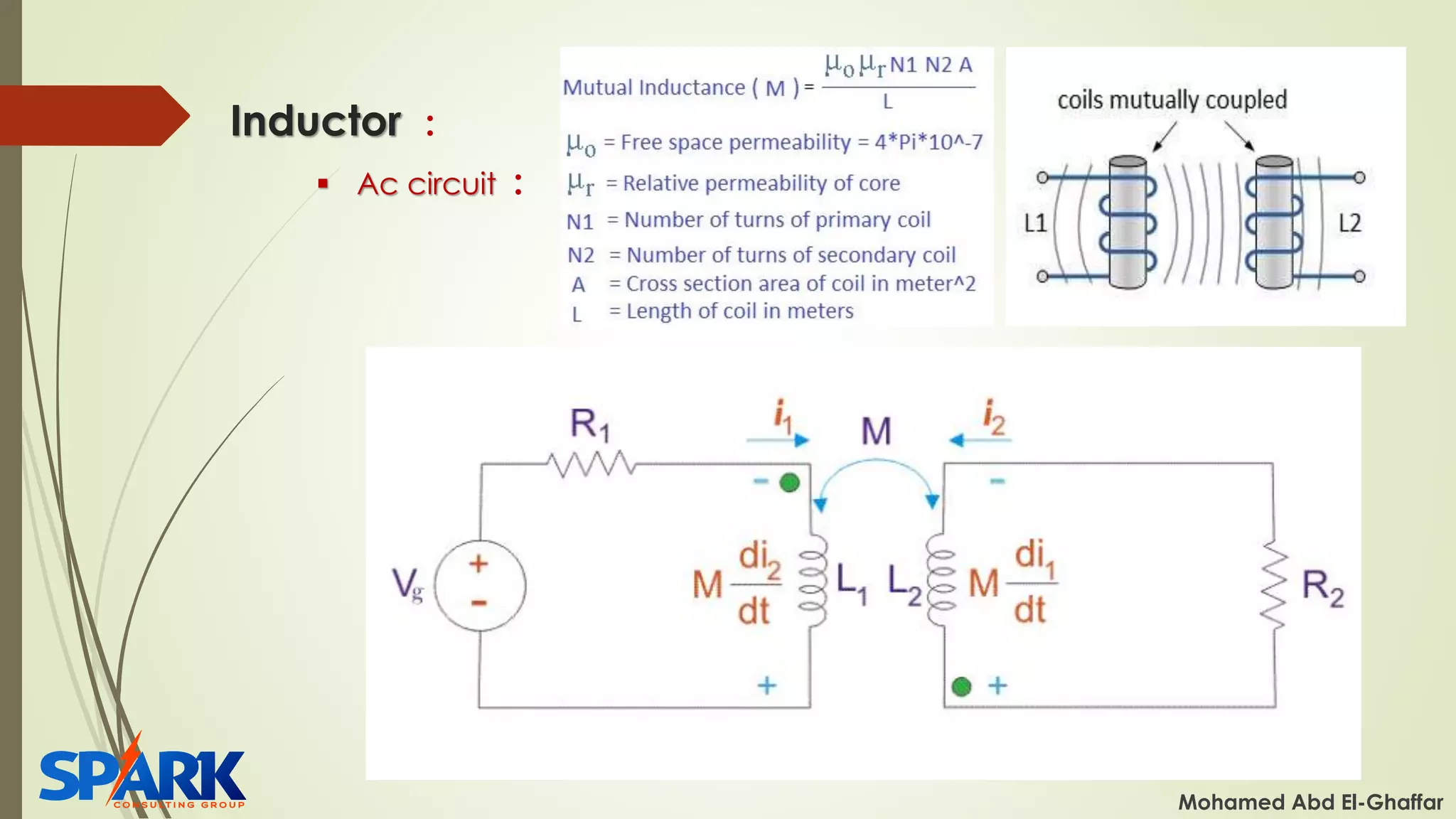

▪ Ac circuit :

25. Inductor :
Mohamed Abd El-Ghaffar

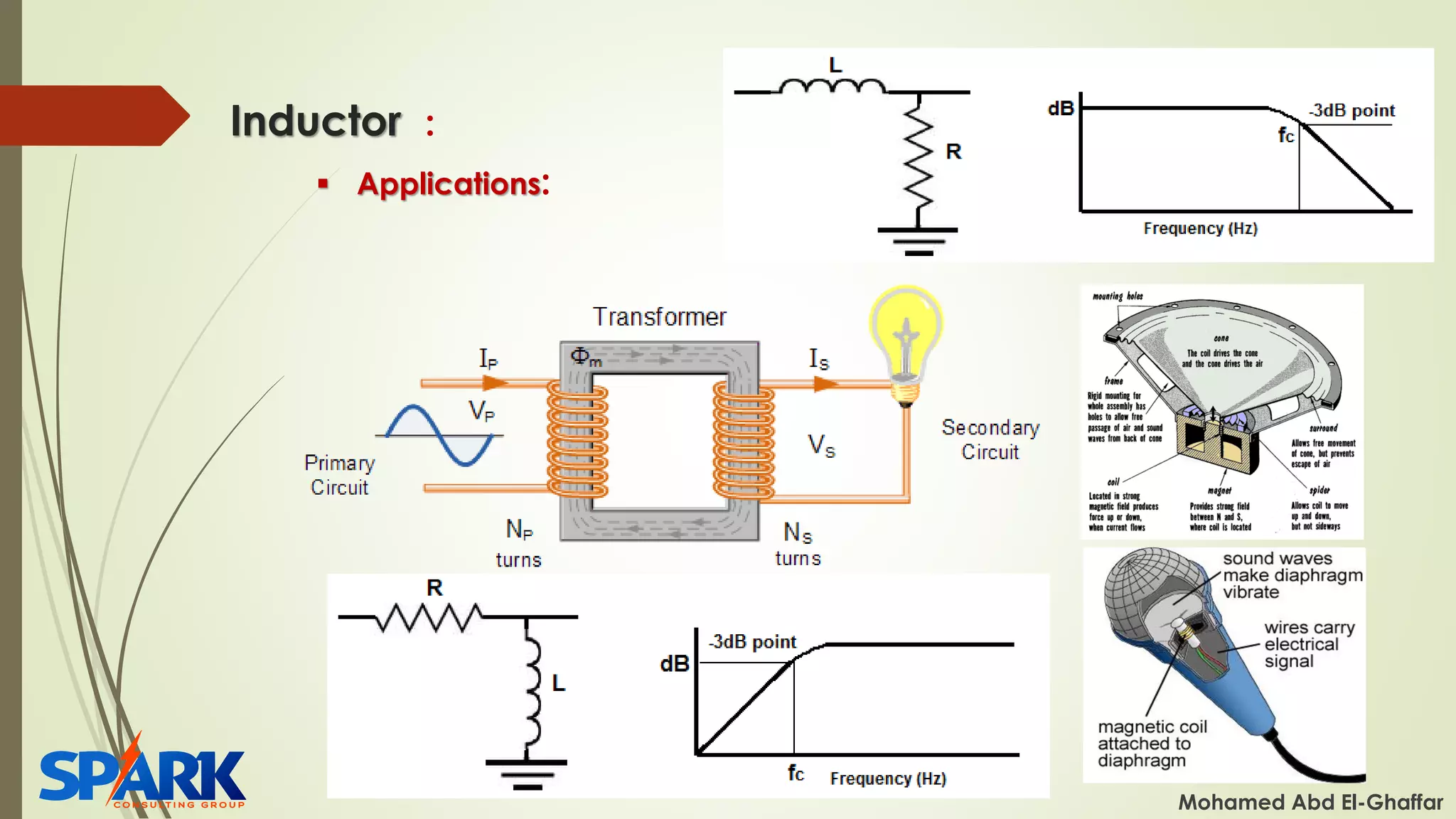

▪ Applications:
