Introduction to Capacitors Capacitors are passive electronic components that store electrical energy in an electric field. They are found in a wide range of electronic circuits, from simple circuits to complex systems.
What is a capacitor? A capacitor is essentially a device made up of two conductive plates separated by a non-conductive material called a dielectric. The dielectric's ability to store energy within an electric field is what allows the capacitor to store charge. 1 Energy Storage Capacitors store energy by accumulating an electric charge on their plates. The energy is stored in the electric field that exists between the plates. 2 Electric Field The dielectric material between the plates is crucial as it allows for the creation of an electric field, which is the key to the capacitor's function. 3 Polarity Capacitors can have a positive or negative polarity, depending on the direction of the electric field between their plates. 4 Voltage The voltage across a capacitor is directly proportional to the amount of charge stored on its plates.
How capacitors store energy When a voltage is applied across a capacitor, the electric field between the plates causes charge to accumulate on the plates. The amount of charge stored is proportional to the applied voltage and the capacitance of the device. Voltage Application A voltage is applied across the capacitor, causing electrons to flow from one plate to the other. Charge Accumulation Electrons build up on one plate, creating a negative charge, while positive ions accumulate on the other plate. Electric Field Formation The separation of charge creates an electric field between the plates, storing energy in the field.
Capacitance and its formula Capacitance is a measure of a capacitor's ability to store electrical charge. It is defined as the amount of charge that can be stored on the capacitor per unit voltage applied. Formula C = Q/V C Capacitance (Farads, F) Q Charge (Coulombs, C) V Voltage (Volts, V)
Factors affecting capacitance Several factors can influence the capacitance of a capacitor. By understanding these factors, you can choose the right capacitor for your application or design a capacitor with desired capacitance values. Plate Area Increasing the area of the plates increases the capacitance. This is because a larger area allows for more charge to be stored on the plates. Distance Between Plates Decreasing the distance between the plates increases capacitance. A smaller distance allows for a stronger electric field and greater charge storage. Dielectric Constant The dielectric constant of the material between the plates affects capacitance. Higher dielectric constant materials can store more charge for a given voltage.

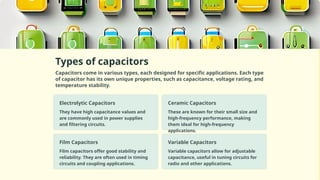

Types of capacitors Capacitors come in various types, each designed for specific applications. Each type of capacitor has its own unique properties, such as capacitance, voltage rating, and temperature stability. Electrolytic Capacitors They have high capacitance values and are commonly used in power supplies and filtering circuits. Ceramic Capacitors These are known for their small size and high-frequency performance, making them ideal for high-frequency applications. Film Capacitors Film capacitors offer good stability and reliability. They are often used in timing circuits and coupling applications. Variable Capacitors Variable capacitors allow for adjustable capacitance, useful in tuning circuits for radio and other applications.
Charging and discharging a capacitor Capacitors are charged by applying a voltage across them. As charge accumulates, the voltage across the capacitor increases. Discharging is the opposite process, where the capacitor releases stored energy. 1 Charging When a voltage is applied, charge flows into the capacitor, and the voltage across it rises. 2 Equilibrium The capacitor eventually charges to the applied voltage, reaching a steady state with no further current flow. 3 Discharging When a path is provided, the stored charge flows out of the capacitor, causing the voltage across it to decrease.
40.64 Applications of capacitors Capacitors have a wide range of applications in electronics. They are used in circuits for filtering, timing, energy storage, and coupling. Filtering Capacitors can remove unwanted noise or AC components from signals, allowing only the desired DC component to pass through. Timing Capacitors, along with resistors, can create timing circuits for controlling the duration of events or generating specific time delays. Energy Storage Capacitors can store energy for short periods of time, providing backup power in cases of power outages or fluctuations. Coupling Capacitors can be used to transfer signals between stages of an amplifier or other circuits, preventing DC components from passing between stages.
Advantages and disadvantages of capacitors Capacitors are versatile components with many advantages, but they also have some drawbacks. Understanding their strengths and weaknesses can help you make informed design decisions. Advantages • High charge storage capacity • Fast charging and discharging rates • Wide range of sizes and values • Low cost Disadvantages • Limited energy storage compared to batteries • Voltage drop over time during discharge • Potential for leakage current • Temperature sensitivity
Conclusion and key takeaways Capacitors are essential components in modern electronics, with their ability to store energy and influence the behavior of electric circuits. 1 Energy Storage Capacitors store energy in the electric field between their plates, providing a mechanism for temporary energy storage. 2 Types Capacitors come in various types, each designed for specific applications, with different capacitance values, voltage ratings, and temperature stability. 3 Applications They are used in a wide range of applications, including filtering, timing, energy storage, and coupling, making them vital for many electronic devices. 4 Advantages and Disadvantages Capacitors offer high charge storage capacity and fast charging/discharging rates, but they also have drawbacks such as limited energy storage and voltage drop over time.
