Electronica Mechatronics (EMS), established in 1980 in Pune, India, specializes in designing and manufacturing encoders for position and motion control, prioritizing customer focus and teamwork. The company offers a variety of precision measurement products including height gauges, coordinate measuring machines, and vision measuring machines, along with linear and rotary encoders. EMS continues to innovate and improve its products to meet changing market demands.

1. www.electronicaems.com

2. About Us
• Electronica Mechatronics ( I) Pvt. Ltd. , known in Indian
Machine Tool Market as EMS, was established in 1980 in
Pune, India.
• The company is engaged in designing and manufacturing
encoders for precise position and motion control.
• Having Customer focus and team work as core values, EMS
has innovated and continually improved their products to
offer an optimal solutions to changing markets.
www.electronicaems.com

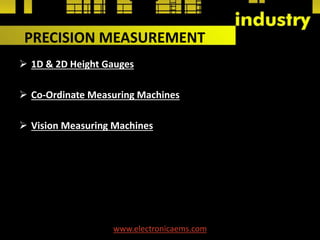

4. PRECISION MEASUREMENT
 1D & 2D Height Gauges
 Co-Ordinate Measuring Machines
 Vision Measuring Machines
www.electronicaems.com

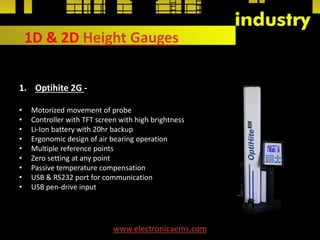

5. 1D & 2D Height Gauges
1. Optihite 2G -
• Motorized movement of probe
• Controller with TFT screen with high brightness
• Li-Ion battery with 20hr backup
• Ergonomic design of air bearing operation
• Multiple reference points
• Zero setting at any point
• Passive temperature compensation
• USB & RS232 port for communication
• USB pen-drive input
www.electronicaems.com

6. 1D & 2D Height Gauges
2. Optima X
• Manual movement of probe
• Controller with graphic display
• Ergonomic design of air bearing operation
• Multiple reference points
• Zero setting at any point
• Passive temperature compensation
• USB & RS232 port for communication
www.electronicaems.com

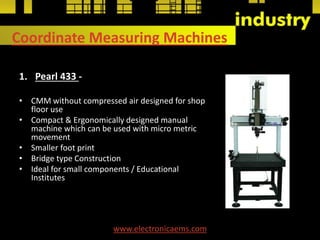

7. Coordinate Measuring Machines
1. Pearl 433 -
• CMM without compressed air designed for shop
floor use
• Compact & Ergonomically designed manual
machine which can be used with micro metric
movement
• Smaller foot print
• Bridge type Construction
• Ideal for small components / Educational
Institutes
www.electronicaems.com

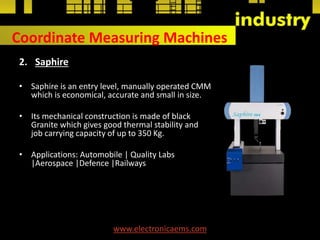

8. Coordinate Measuring Machines
2. Saphire
• Saphire is an entry level, manually operated CMM
which is economical, accurate and small in size.
• Its mechanical construction is made of black
Granite which gives good thermal stability and
job carrying capacity of up to 350 Kg.
• Applications: Automobile | Quality Labs
|Aerospace |Defence |Railways
www.electronicaems.com

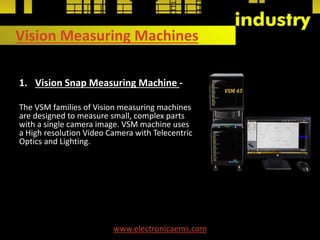

9. Vision Measuring Machines
1. Vision Snap Measuring Machine -
The VSM families of Vision measuring machines
are designed to measure small, complex parts
with a single camera image. VSM machine uses
a High resolution Video Camera with Telecentric
Optics and Lighting.
www.electronicaems.com

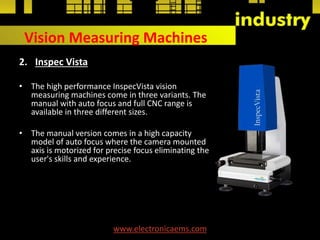

10. Vision Measuring Machines
2. Inspec Vista
• The high performance InspecVista vision
measuring machines come in three variants. The
manual with auto focus and full CNC range is
available in three different sizes.
• The manual version comes in a high capacity
model of auto focus where the camera mounted
axis is motorized for precise focus eliminating the
user's skills and experience.
www.electronicaems.com

11. Position and Motion control
 Optical Linear Encoders
 Magnetic Linear Encoders
 Magnetic Rotary Encoders
 Digital Readout Systems
 DRO Kits
www.electronicaems.com

12. Optical Linear Encoders
1. GS212 -
• GS212 is linear bearing scale based on optical
principle. It offers resolutions down to 0.1�,
with repeat accuracy of one count. It
possesses IP54 rating.
• This compact design helps in easy mounting
in congested spaces. Offering lengths from
70mm to 2040mm, this scale is a preferred
choice for high accuracy machining and
metrology applications.
www.electronicaems.com

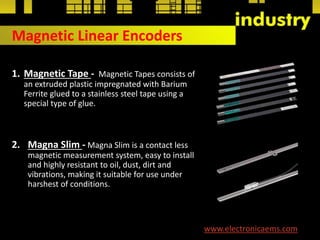

13. Magnetic Linear Encoders
1. Magnetic Tape - Magnetic Tapes consists of
an extruded plastic impregnated with Barium
Ferrite glued to a stainless steel tape using a
special type of glue.
2. Magna Slim - Magna Slim is a contact less
magnetic measurement system, easy to install
and highly resistant to oil, dust, dirt and
vibrations, making it suitable for use under
harshest of conditions.
www.electronicaems.com

14. Magnetic Rotary Encoders
1. MDB20 - MDB20 magnetic rotary encoder
module has a precision sensor having an
integrated Hall element for scanning a
permanent Dipole magnet. MDB20 module is a
20mm PCB assembly which can be used in any
small designs with ease of installation.
2. MDB28 - MDB28 magnetic rotary encoder
module has a precision sensor having an
integrated Hall element for scanning a
permanent Dipole magnet. MDB28 module is
a 28mm PCB assembly which has a wide
operating voltage range suitable for many
applications
www.electronicaems.com

15. Digital Readout Systems
1. MB100 - MB100 DRO is 1 Axis Digital Measuring
System which replaces old and worn outs ruler
measurement guides, making it suitable for use in
table saw, wall saw, pillar drills etc.
2. EL10 - EL10 DRO is suitable for automation. It has
DIN standard enclosure for panel mounting. It also
has soft touch keyboard which provides ease of
operation and long life of keyboard. EL10 DRO is
suitable for linear and rotary measurements.
Optical and magnetic encoders are compatible
with EL10 DRO.
www.electronicaems.com

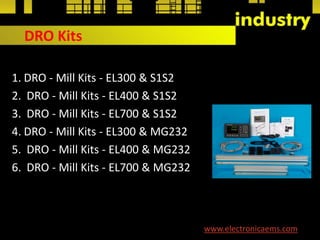

16. DRO Kits
1. DRO - Mill Kits - EL300 & S1S2
2. DRO - Mill Kits - EL400 & S1S2
3. DRO - Mill Kits - EL700 & S1S2
4. DRO - Mill Kits - EL300 & MG232
5. DRO - Mill Kits - EL400 & MG232
6. DRO - Mill Kits - EL700 & MG232
www.electronicaems.com

17. Contact Us
Address
37 & 44, Electronic Co-op. Estate, Pune-Satara Road, Pune 411
009. (INDIA)
Contact No.
+91 20 24229398, 24222293
Email: enquiry@electronicaems.com
Web: www.electronicaems.com
