1. 2D Measurement - Platina

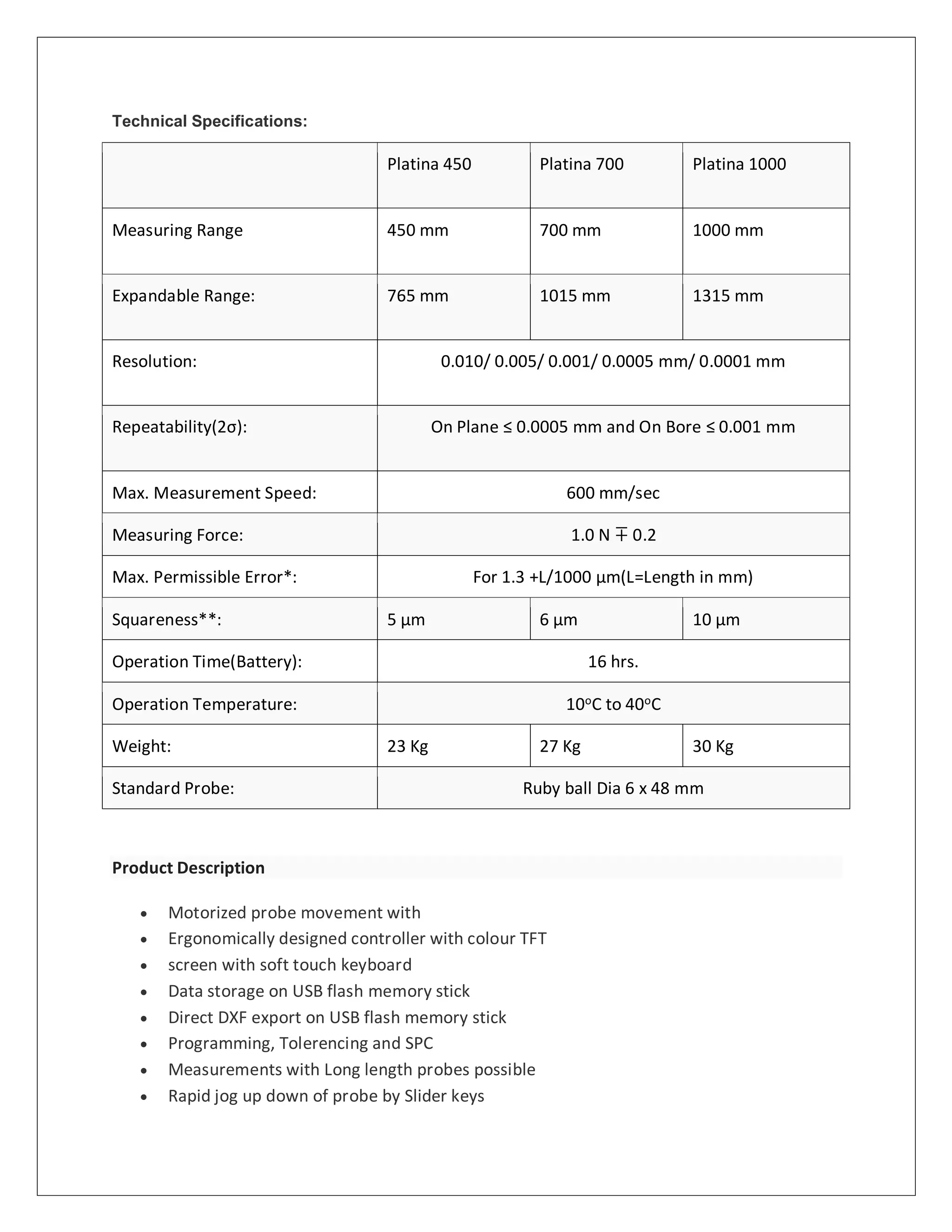

2. Technical Specifications:
Platina 450 Platina 700 Platina 1000
Measuring Range 450 mm 700 mm 1000 mm
Expandable Range: 765 mm 1015 mm 1315 mm
Resolution: 0.010/ 0.005/ 0.001/ 0.0005 mm/ 0.0001 mm
Repeatability(2σ): On Plane ≤ 0.0005 mm and On Bore ≤ 0.001 mm
Max. Measurement Speed: 600 mm/sec
Measuring Force: 1.0 N ∓ 0.2
Max. Permissible Error*: For 1.3 +L/1000 μm(L=Length in mm)
Squareness**: 5 μm 6 μm 10 μm
Operation Time(Battery): 16 hrs.
Operation Temperature: 10oC to 40oC
Weight: 23 Kg 27 Kg 30 Kg
Standard Probe: Ruby ball Dia 6 x 48 mm
Product Description
 Motorized probe movement with
 Ergonomically designed controller with colour TFT
 screen with soft touch keyboard
 Data storage on USB flash memory stick
 Direct DXF export on USB flash memory stick
 Programming, Tolerencing and SPC
 Measurements with Long length probes possible
 Rapid jog up down of probe by Slider keys

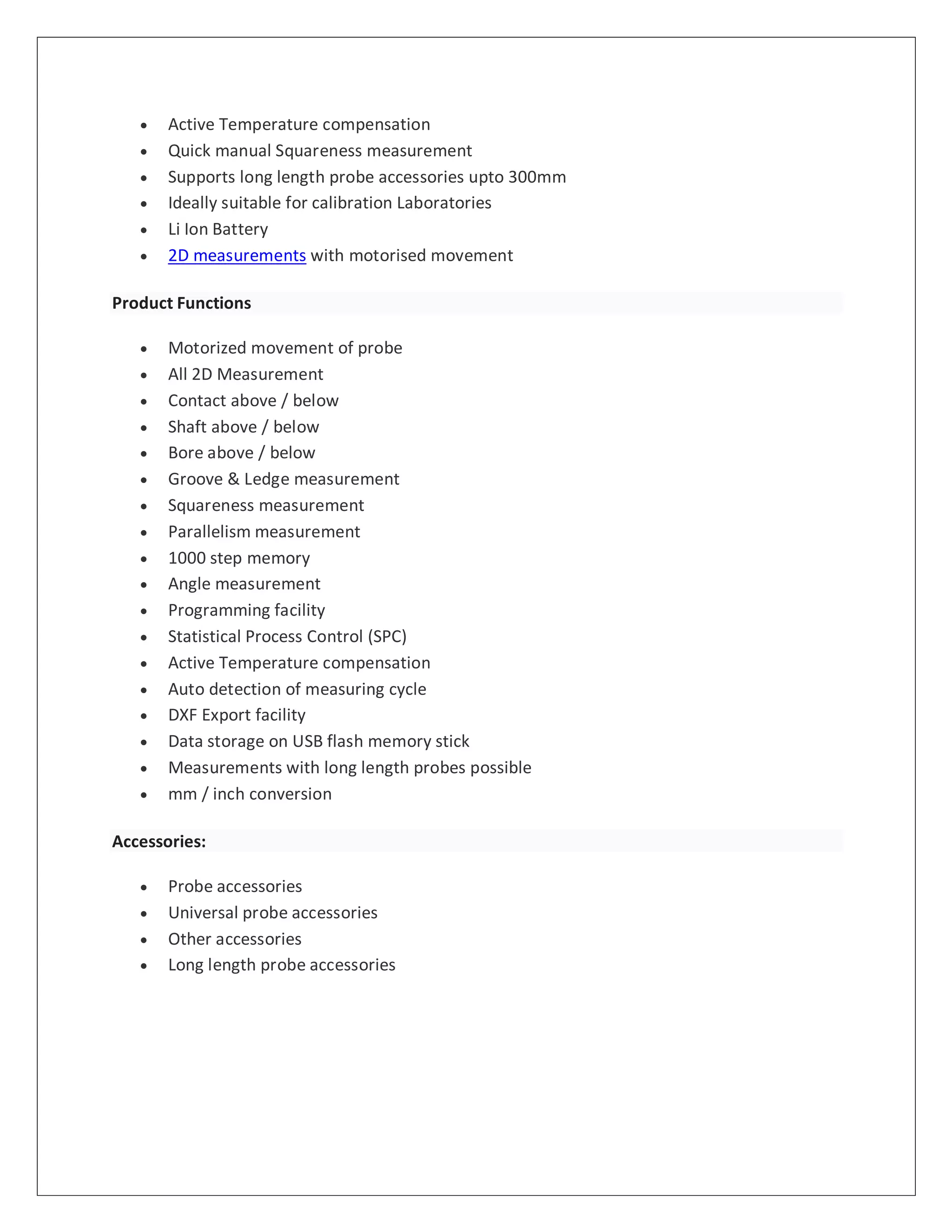

3.  Active Temperature compensation
 Quick manual Squareness measurement
 Supports long length probe accessories upto 300mm
 Ideally suitable for calibration Laboratories
 Li Ion Battery
 2D measurements with motorised movement
Product Functions
 Motorized movement of probe
 All 2D Measurement
 Contact above / below
 Shaft above / below
 Bore above / below
 Groove & Ledge measurement
 Squareness measurement
 Parallelism measurement
 1000 step memory
 Angle measurement
 Programming facility
 Statistical Process Control (SPC)
 Active Temperature compensation
 Auto detection of measuring cycle
 DXF Export facility
 Data storage on USB flash memory stick
 Measurements with long length probes possible
 mm / inch conversion
Accessories:
 Probe accessories
 Universal probe accessories
 Other accessories
 Long length probe accessories
