Electric cars are automobiles, which are powered by the electric engine and electric energy. The development of the electric vehicles is a very perspective and important process. Scientists and engineers managed to create electric engines which are no less effective than the ordinary engines used today. It is obvious that electric cars are more ecologically safe and require less energy for work. EVs provide fast acceleration by delivering power instantly to the wheels by providing high torque at low speeds; they give a feel of smooth and quick responsiveness (Technology).

1. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[1]

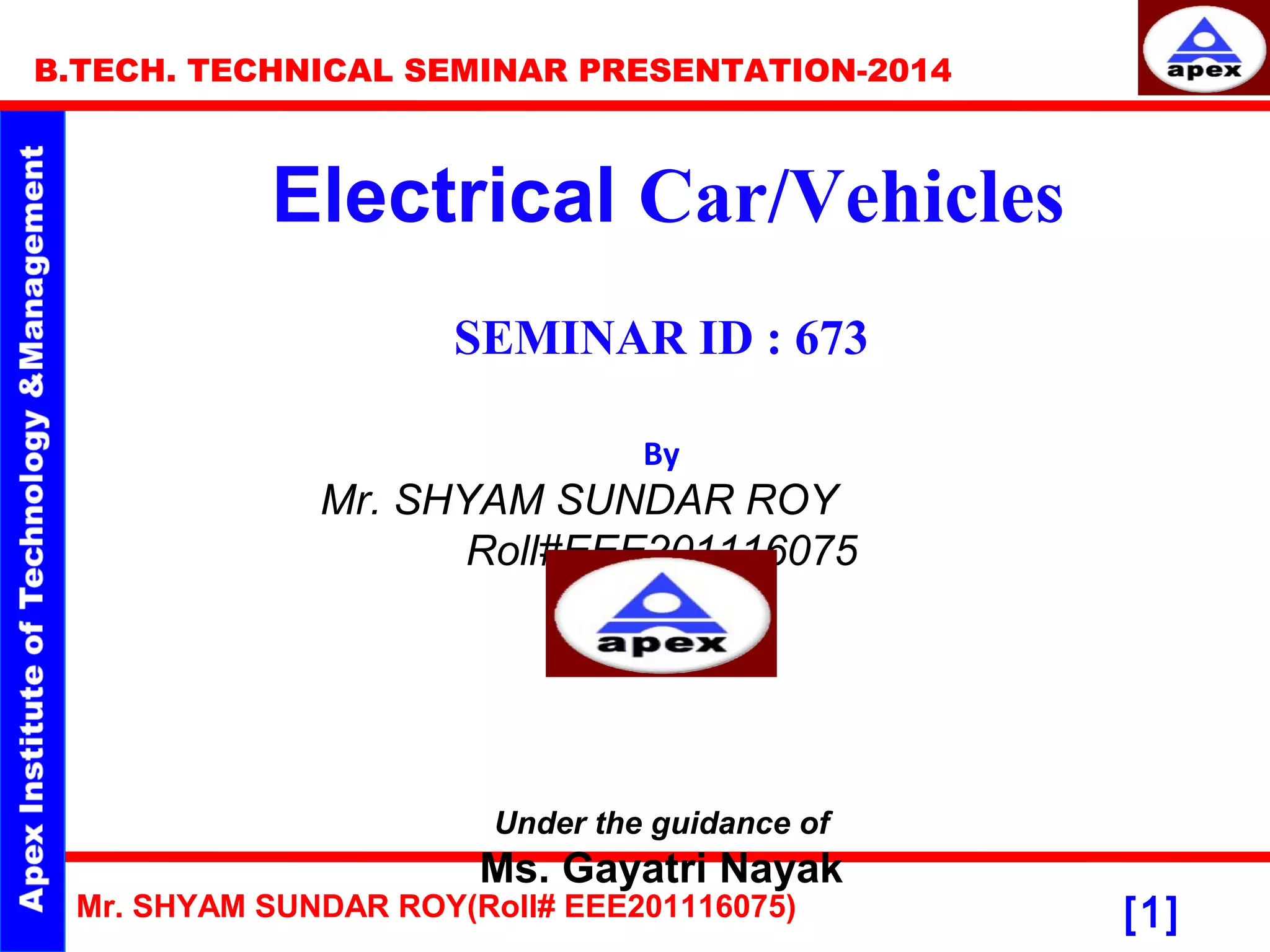

Electrical Car/Vehicles
SEMINAR ID : 673
By
Mr. SHYAM SUNDAR ROY
Roll#EEE201116075
Under the guidance of
Ms. Gayatri Nayak

2. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[2]
Introduction
Electric cars are automobiles, which are powered by
the electric engine and electric energy.
The development of the electric vehicles is a very
perspective and important process.
 EVs, are vehicles that are powered by an electric
motor instead of an internal combustion engine.

3. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[3]

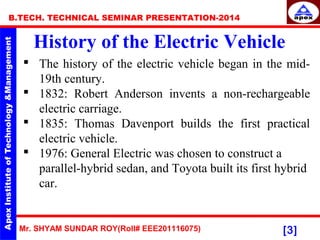

History of the Electric Vehicle
 The history of the electric vehicle began in the mid-
19th century.
 1832: Robert Anderson invents a non-rechargeable
electric carriage.
 1835: Thomas Davenport builds the first practical
electric vehicle.
 1976: General Electric was chosen to construct a
parallel-hybrid sedan, and Toyota built its first hybrid
car.

4. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[4]
Components
Motor
Controller
Charger
DC/DC Converter
Contactors
Batteries

5. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[5]
Motor
 Generally the Brushless DC Motor is used.
 Simpler to maintain, More durable, Smaller.
 85%–90% more efficient.
 Able to self-start.

6. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[6]
Controller
 Control the BLDC motor.
 Increase efficiency, reliability and extended battery
life time.

7. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[7]

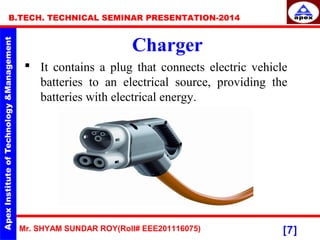

Charger
 It contains a plug that connects electric vehicle
batteries to an electrical source, providing the
batteries with electrical energy.

8. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[8]

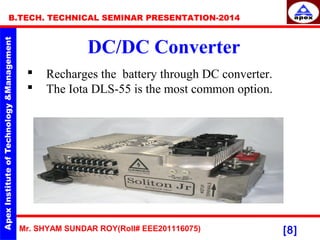

DC/DC Converter
 Recharges the battery through DC converter.
 The Iota DLS-55 is the most common option.

9. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[9]

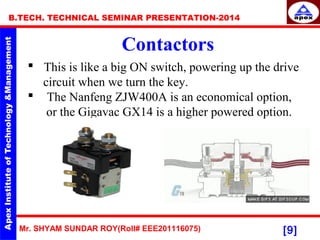

Contactors
 This is like a big ON switch, powering up the drive
circuit when we turn the key.
 The Nanfeng ZJW400A is an economical option,
or the Gigavac GX14 is a higher powered option.

10. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[10]
Batteries for the EV
The batteries that are used for electric cars are
rechargeable.

11. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[11]

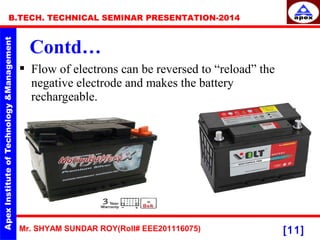

Contd…
 Flow of electrons can be reversed to “reload” the
negative electrode and makes the battery
rechargeable.

12. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[12]

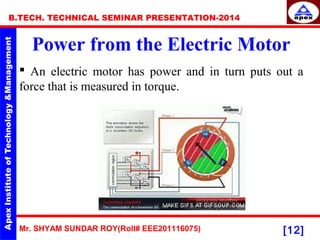

Power from the Electric Motor
 An electric motor has power and in turn puts out a
force that is measured in torque.

13. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[13]
Contd…
The basic equation for power is:
P = Tw (1)
For a basic motor there are two parameters that can
help show how the motor works.
 Velocity function: P (w) = - (Ts / wn) w2
+ Ts w (2)
 Torque function : P (w) = - (wn/ Ts) T2
+ wnT (3)

14. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[14]
Contd…
The electric motor controller takes the power from the
batteries and delivers it to the motor.

15. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[15]
Contd…
 Working of electric engine and BLDC motor.

16. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[16]
Various EV

17. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[17]
Advantages
 Reduce dependences on oil and
gasoline.
 Pollutants and noise free.
 Recyclable batteries.
 No fire hazards.
 Low maintenance and operation
cost.

18. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[18]

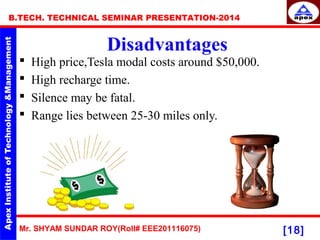

Disadvantages
 High price,Tesla modal costs around $50,000.
 High recharge time.
 Silence may be fatal.
 Range lies between 25-30 miles only.

19. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[19]

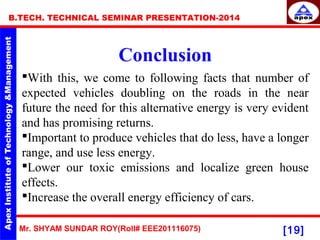

Conclusion
With this, we come to following facts that number of
expected vehicles doubling on the roads in the near
future the need for this alternative energy is very evident
and has promising returns.
Important to produce vehicles that do less, have a longer
range, and use less energy.
Lower our toxic emissions and localize green house
effects.
Increase the overall energy efficiency of cars.

20. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[20]

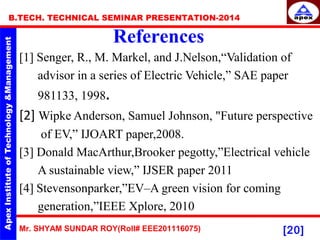

References
[1] Senger, R., M. Markel, and J.Nelson,“Validation of
advisor in a series of Electric Vehicle,” SAE paper
981133, 1998.
[2] Wipke Anderson, Samuel Johnson, "Future perspective
of EV,” IJOART paper,2008.
[3] Donald MacArthur,Brooker pegotty,”Electrical vehicle
A sustainable view,” IJSER paper 2011
[4] Stevensonparker,”EV–A green vision for coming
generation,”IEEE Xplore, 2010

21. Mr. SHYAM SUNDAR ROY(Roll# EEE201116075)
B.TECH. TECHNICAL SEMINAR PRESENTATION-2014
[21]
