Slides from a webinar October 2021. This webinar tells the story of Earnestine from starting her new job as an Enterprise Architect to having set up an impactful collaborative Enterprise Architecture (EA) practice that spans the whole company. Using this story, recurring Enterprise Design Patterns, typical blockers and proven solution strategies are presented in an easy-to-understand way. You will learn: - How to set up a continuous, collaborative EA process? - How to build the relationships with the many stakeholders? - How do you get the management support you need? - Which EA maps and tools are valuable in which context? - How to integrate EA with multi-project management and corporate strategy?

2. X Railways
Chapter 1
“Where it all began”
March 1st, 2021

3. X Railways

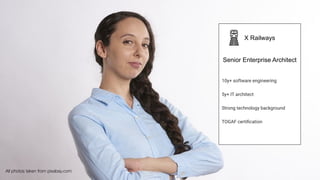

Senior Enterprise Architect
10y+ software engineering
5y+ IT architect
Strong technology background
TOGAF certification
All photos taken from pixabay.com

4. Manage application portfolio
Application repository -> EA tool
Reduce complexity of IT landscape
Software architectures for big projects
Introduce new technologies
Create a target application architecture
The briefing by Chris the CIO

5. Earnestine’s Enterprise Architecture Vision
Collaborative Enterprise Architecture
Many co-architects at the business
Focus on business structures
Reveil and deal with politics
-> prerequisites for Chris’ demands

6. X Railways
Chapter 1
“Where it all began”
● EA is still an IT discipline
● not well established in the organisation
● don’t follow the goals of the CIO blindly,
follow the goals of the enterprise

7. X Railways
Chapter 2
“Explore Existing Wisdom”
March - May 2021

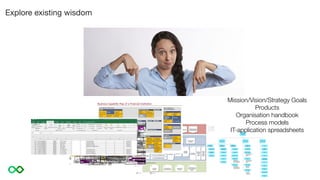

8. Explore existing wisdom
Mission/Vision/Strategy Goals
Products
Organisation handbook
Process models
IT-application spreadsheets

9. Existing Organisation Description

10. Terminology Glossary

11. First sketches - terms and their relations

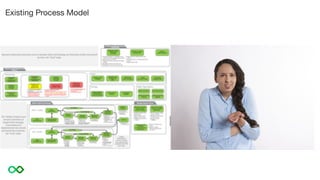

12. Existing Process Model

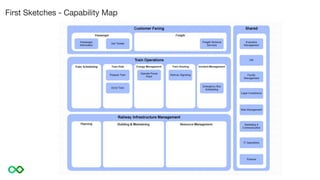

13. First Sketches - Capability Map

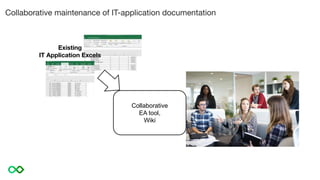

14. Collaborative maintenance of IT-application documentation
Existing
IT Application Excels
Collaborative
EA tool,
Wiki

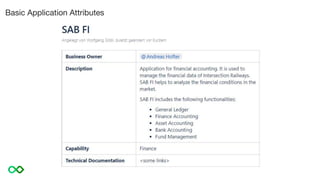

15. Basic Application Attributes

16. Existing Projects

17. X Railways

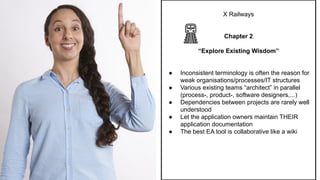

Chapter 2
“Explore Existing Wisdom”
● Inconsistent terminology is often the reason for
weak organisations/processes/IT structures
● Various existing teams “architect” in parallel
(process-, product-, software designers,...)
● Dependencies between projects are rarely well
understood
● Let the application owners maintain THEIR
application documentation
● The best EA tool is collaborative like a wiki

18. And a lot of questions
?
?
?
?
Millions of open questions

19. X Railways
Chapter 3
“Coming out into the open”
June 2021 - Sept. 2021

20. Drink coffee with the seasoned outliers

21. Earnestine uses all of her personal skills….

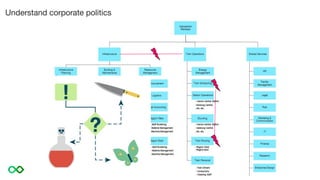

22. Understand corporate politics

23. Talk to managers of top 10 strategic projects

24. Find friends in the software engineering department

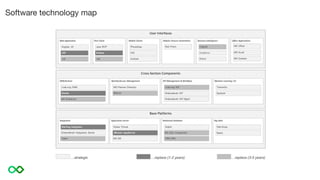

25. Software technology map

26. X Railways
Chapter 3
“Coming out into the open”
● Corporate politics put constraints on EA
● Build trust and coalitions (and get information)
● Indications of flaws in the org chart can be
found talking to seasoned experts easily.
● Find friends with software technology skills

27. X Railways
Chapter 4
“Design a safe negotiation
space”
October 2021 - October 2022

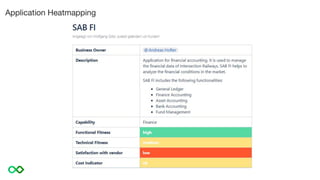

30. Application Heatmapping

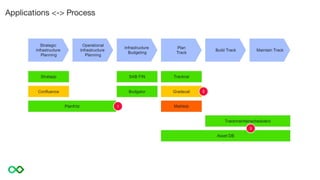

31. Applications <-> Process

32. Applications <-> Capabilities

33. Look what I’ve found in business (& IT)
We need a mandate to work on these issues
Please help me setup clear
accountabilities / board structures
The next regular meeting with Chris….

34. Board for governing cross-department process & IT change initiatives

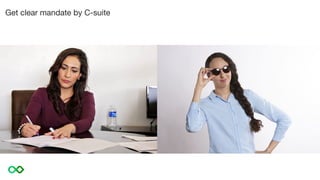

35. Get clear mandate by C-suite

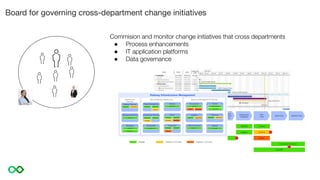

36. Board for governing cross-department change initiatives
Commision and monitor change initiatives that cross departments
● Process enhancements
● IT application platforms
● Data governance

37. X Railways
Chapter 4
“Design a safe negotiation space”
● Invite all relevant people to the co-design
● Hint, don’t tell or lecture
● Get the help of the C-suite once you have good
examples
● Establish a clear decision process

38. X Railways

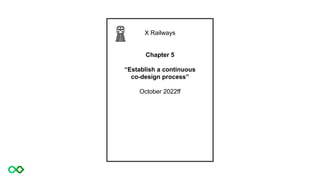

Chapter 5
“Establish a continuous
co-design process”
October 2022ff

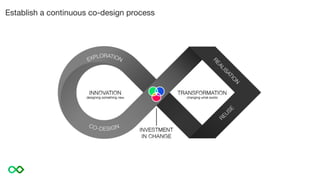

39. Establish a continuous co-design process

40. X Railways

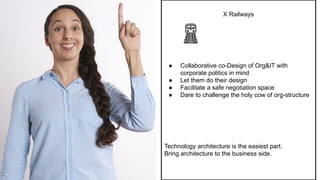

● Collaborative co-Design of Org&IT with
corporate politics in mind
● Let them do their design
● Facilitate a safe negotiation space
● Dare to challenge the holy cow of org-structure
Technology architecture is the easiest part.
Bring architecture to the business side.

41. X Railways

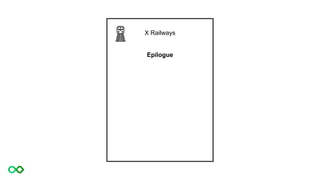

Epilogue

42. O.M.G!
I forgot something!!

43. More to come….

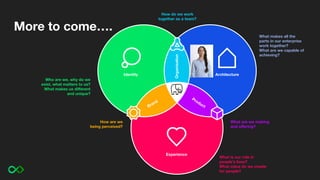

Product
Organisation
How are we
being perceived?
What are we making
and offering?
How do we work
together as a team?
Who are we, why do we
exist, what matters to us?
What makes us different
and unique?
What makes all the
parts in our enterprise
work together?
What are we capable of
achieving?
What is our role in
people’s lives?
What value do we create
for people?
Brand
Identity Architecture
Experience

44. Weekly Wednesday Webinars
https://intersection.group/events

45. www.intersection.group

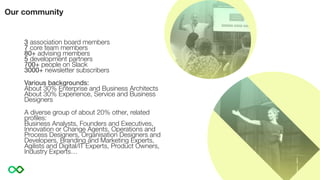

46. 3 association board members
7 core team members
80+ advising members
5 development partners
700+ people on Slack
3000+ newsletter subscribers
Various backgrounds:
About 30% Enterprise and Business Architects
About 30% Experience, Service and Business
Designers
A diverse group of about 20% other, related
profiles:
Business Analysts, Founders and Executives,
Innovation or Change Agents, Operations and
Process Designers, Organisation Designers and
Developers, Branding and Marketing Experts,
Agilists and Digital/IT Experts, Product Owners,
Industry Experts…
Our community

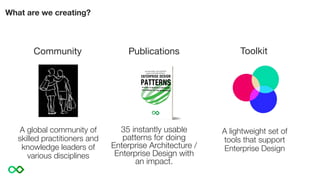

47. What are we creating?
