Dthreads is an efficient deterministic multithreading system for unmodified C/C++ applications that replaces the pthreads library. Dthreads enforces determinism in the face of data races and deadlocks. It is easy to use: just link your program with -ldthread instead of -lpthread. Dthreads can be downloaded from its source code repo on GitHub (https://github.com/plasma-umass/dthreads). A technical paper describing Dthreads appeared at SOSP 2012 (https://github.com/plasma-umass/dthreads/blob/master/doc/dthreads-sosp11.pdf?raw=true). Multithreaded programming is notoriously difficult to get right. A key problem is non-determinism, which complicates debugging, testing, and reproducing errors. One way to simplify multithreaded programming is to enforce deterministic execution, but current deterministic systems for C/C++ are incomplete or impractical. These systems require program modification, do not ensure determinism in the presence of data races, do not work with general-purpose multithreaded programs, or run up to 8.4× slower than pthreads. This talk presents Dthreads, an efficient deterministic multithreading system for unmodified C/C++ applications that replaces the pthreads library. Dthreads enforces determinism in the face of data races and deadlocks. Dthreads works by exploding multithreaded applications into multiple processes, with private, copy-on-write mappings to shared memory. It uses standard virtual memory protection to track writes, and deterministically orders updates by each thread. By separating updates from different threads, Dthreads has the additional benefit of eliminating false sharing. Experimental results show that Dthreads substantially outperforms a state-of-the-art deterministic runtime system, and for a majority of the benchmarks we evaluated, matches and occasionally exceeds the performance of pthreads.

1. Tongping Liu, Charlie Curtsinger, Emery Berger
DTHREADS: Efficient Deterministic
Multithreading
Insanity: Doing the same
thing over and over again
and expecting different
results.

2. 2
In the Beginning…

3. 3

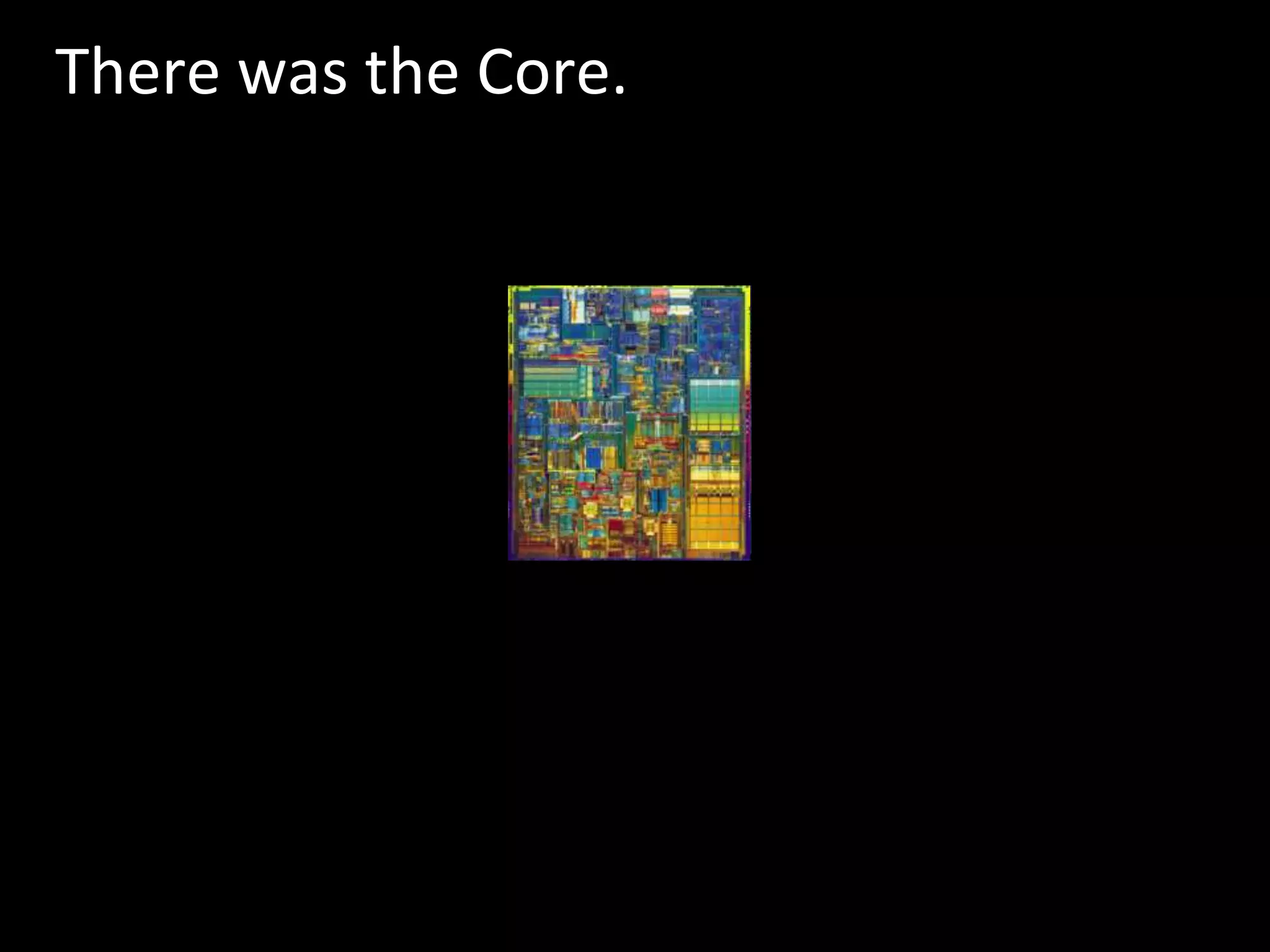

There was the Core.

4. 4

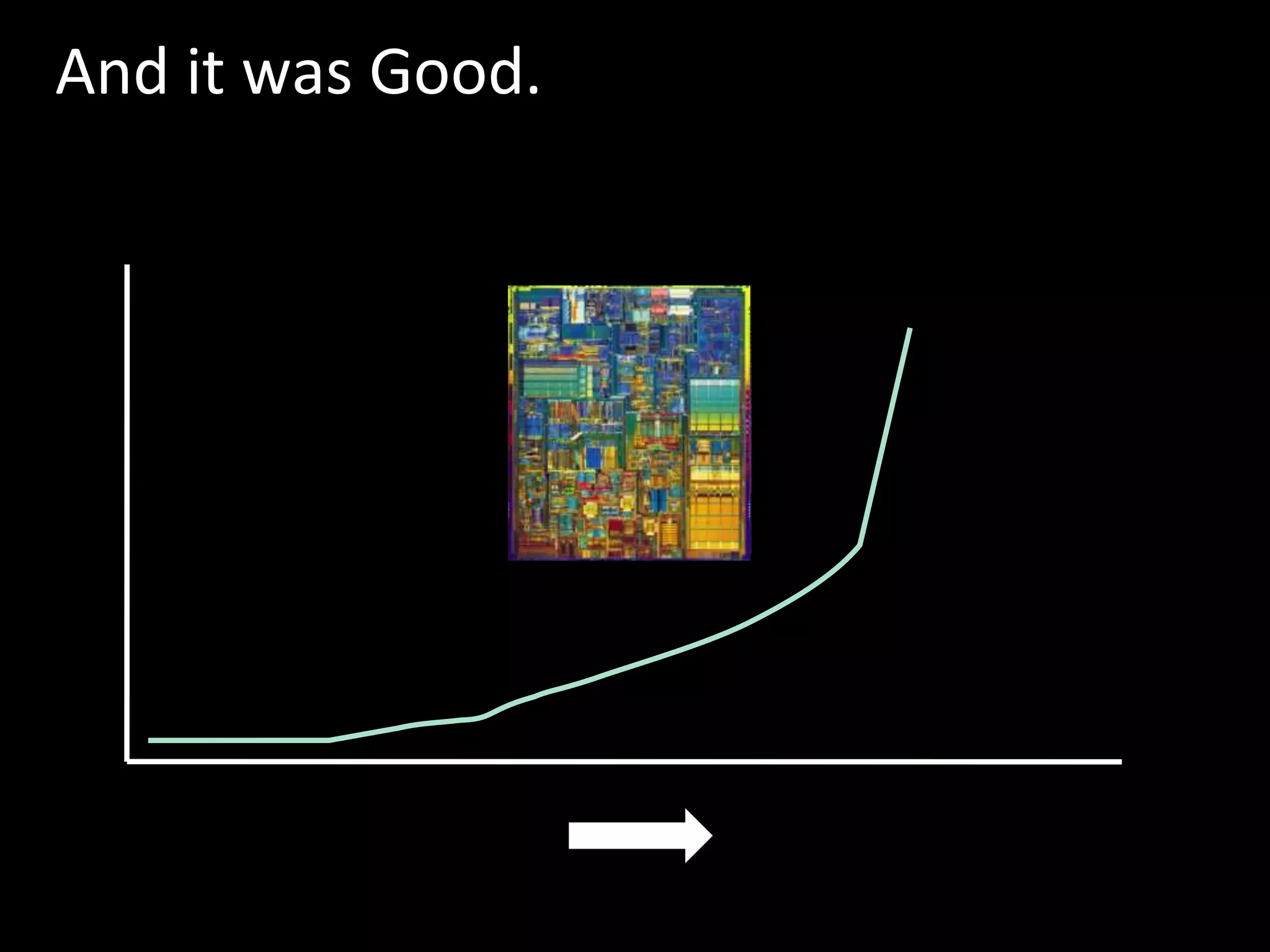

And it was Good.

5. 5
It gave us our Daily Speed.

6. 6

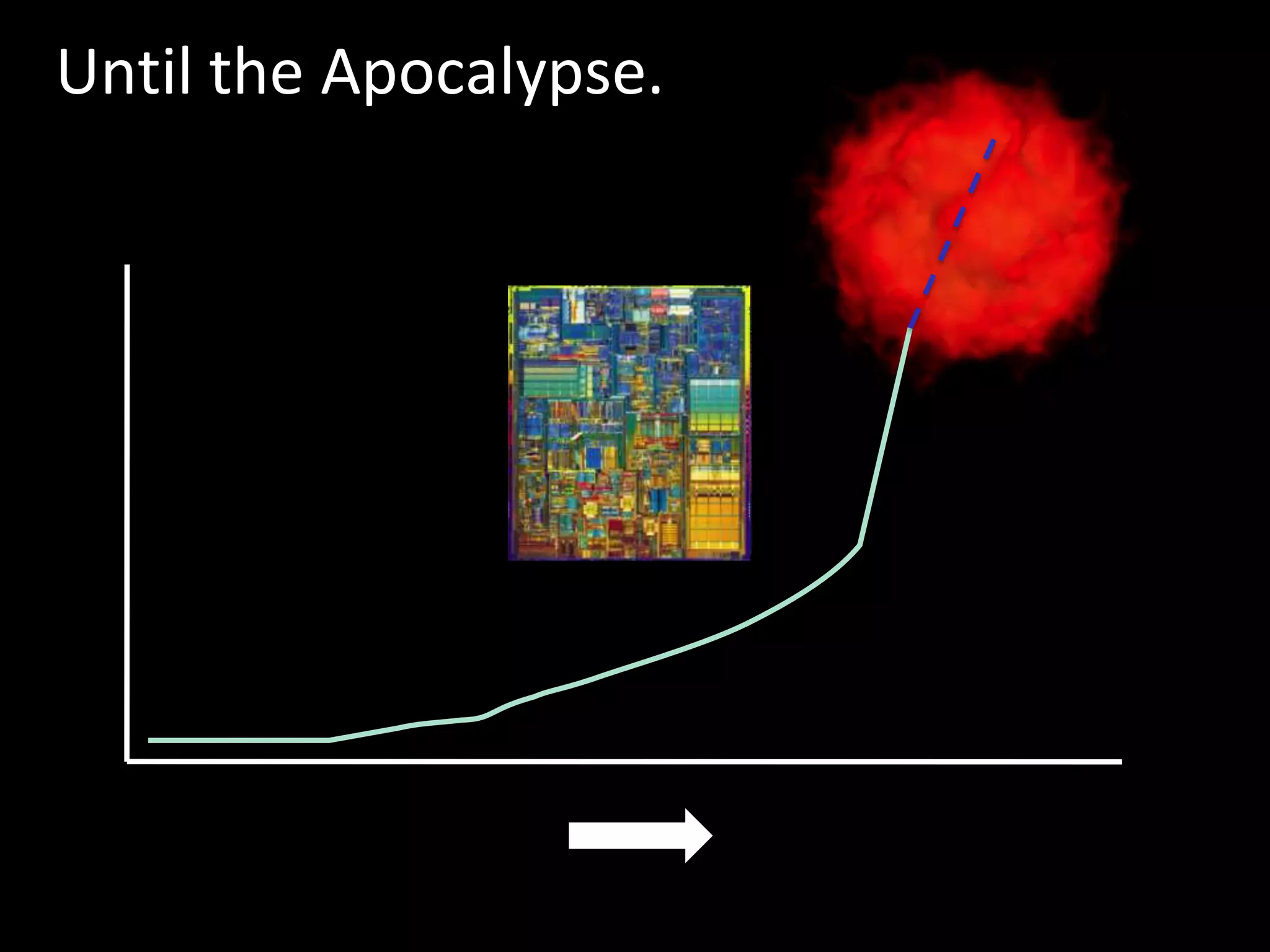

Until the Apocalypse.

7. 7

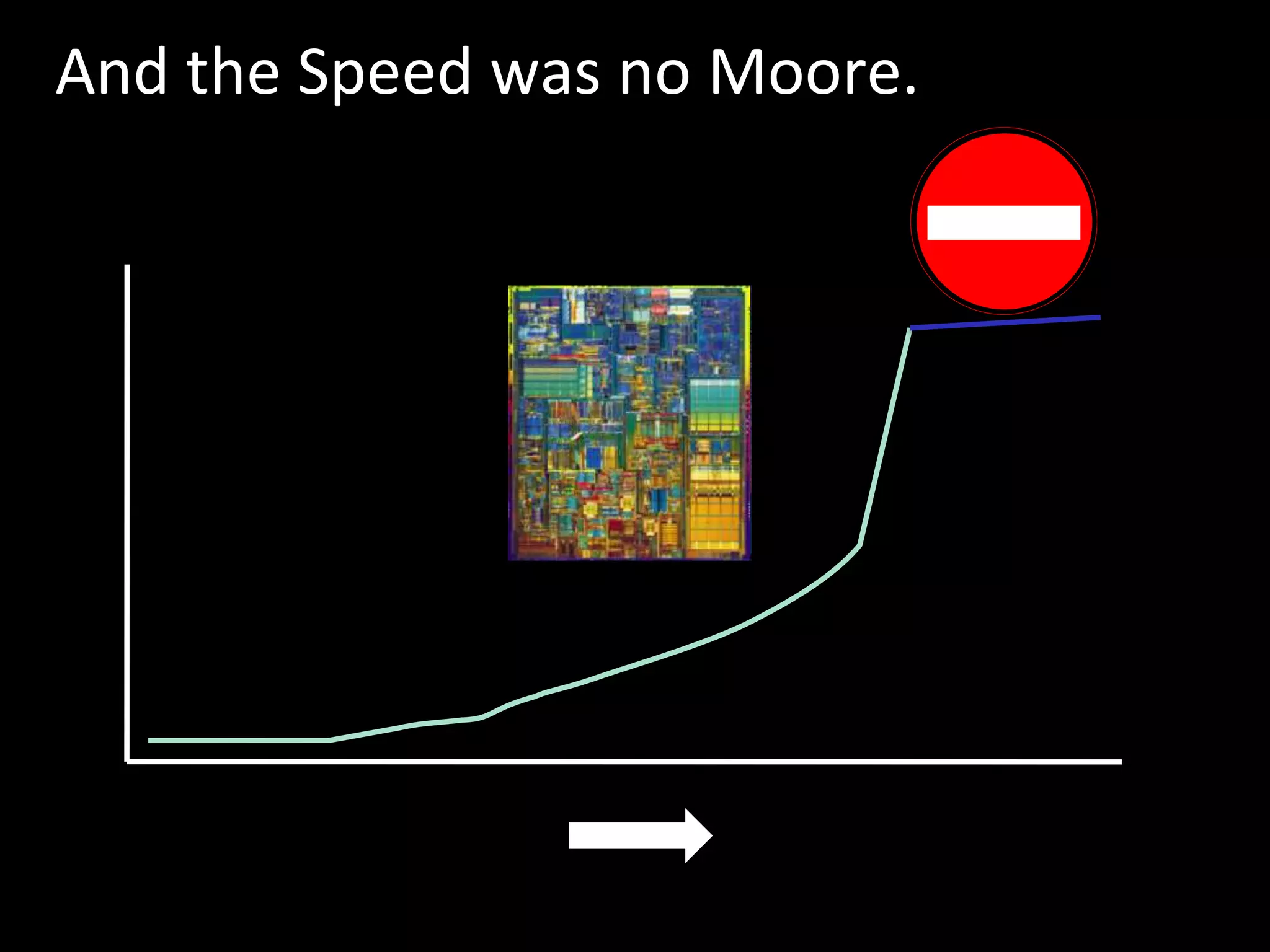

And the Speed was no Moore.

8. 8

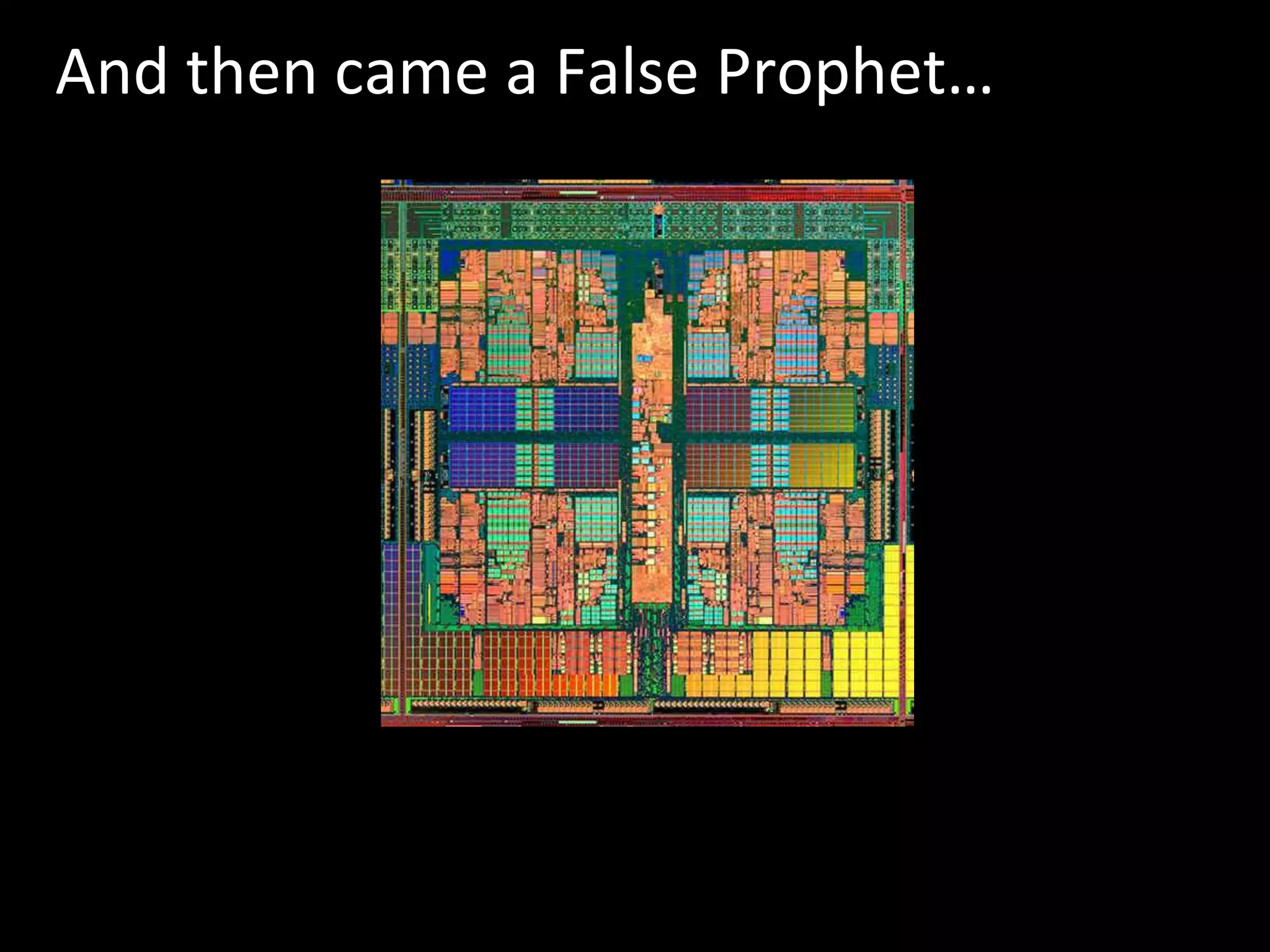

And then came a False Prophet…

9. 9

10. 10
Want speed?

11. 11
I BRING YOU THE GIFT OF PARALLELISM!

12. 12

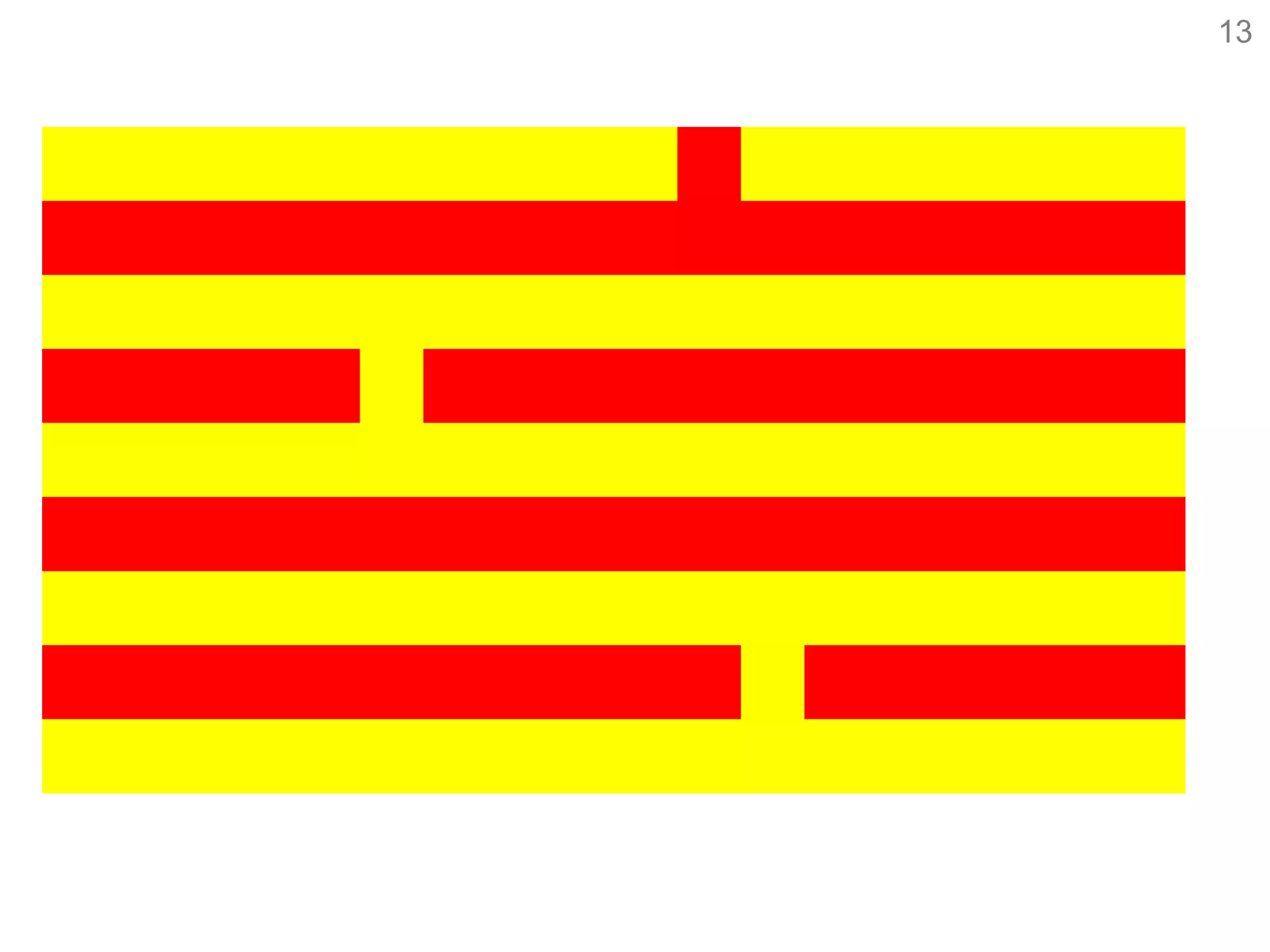

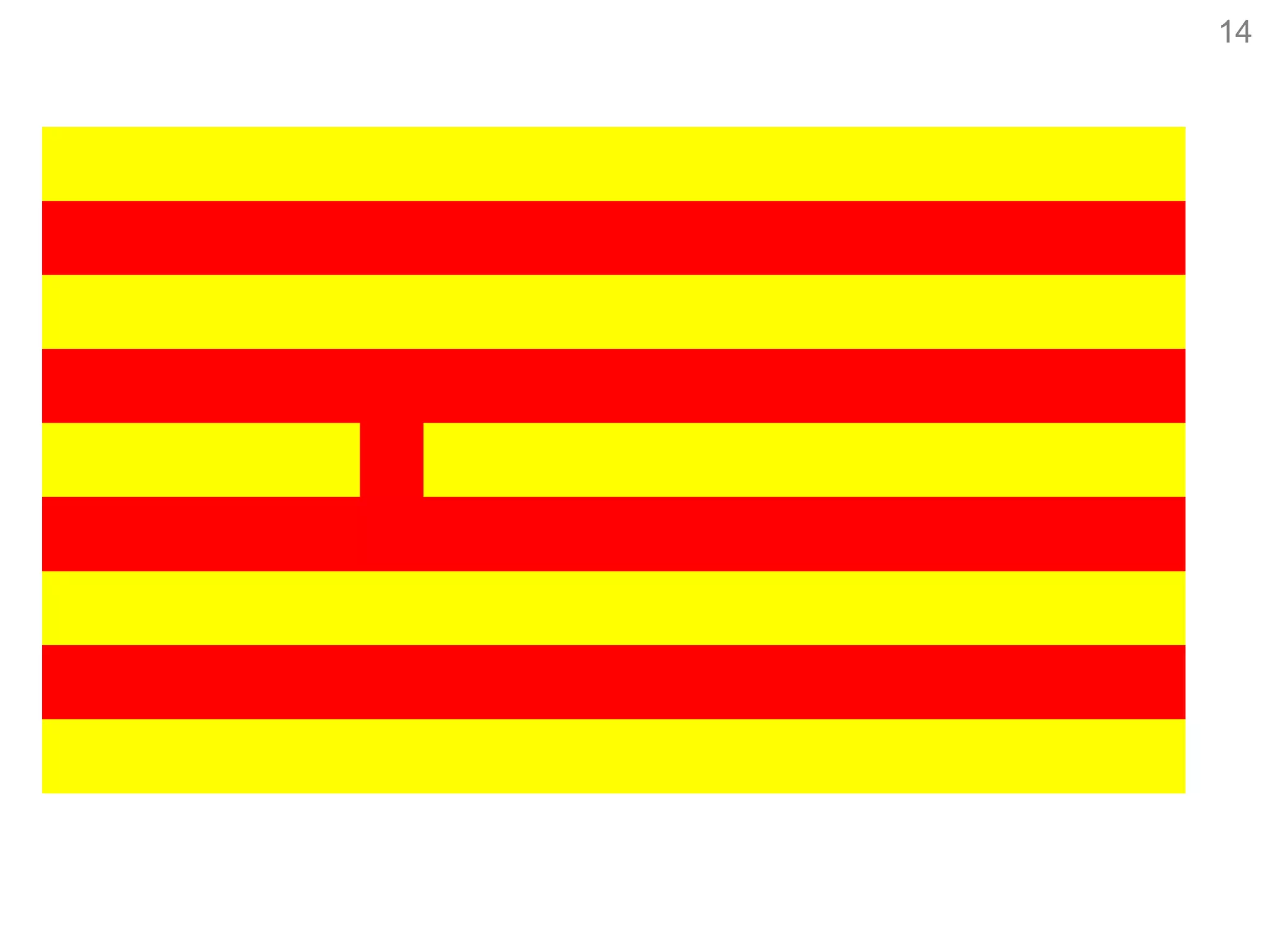

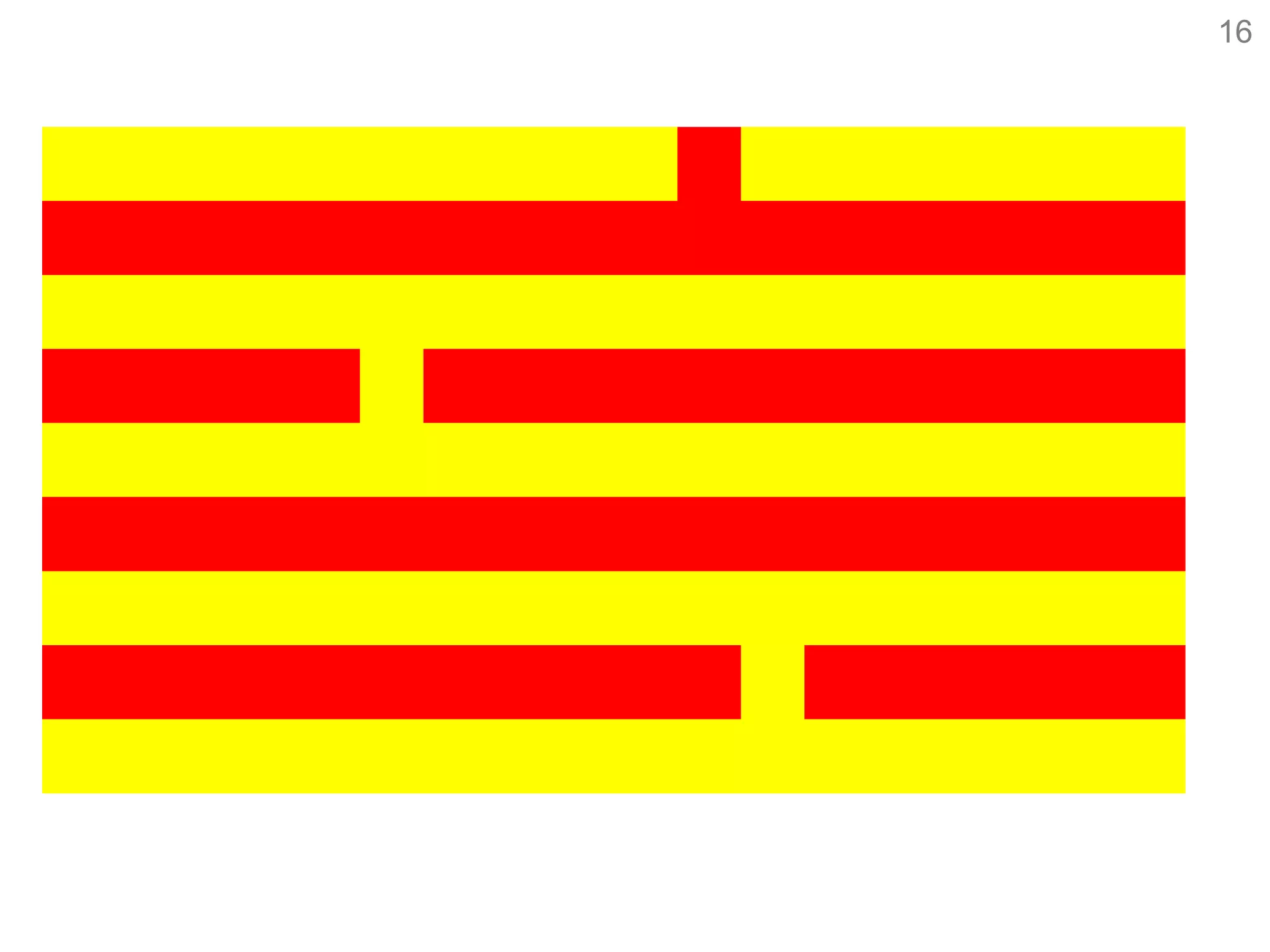

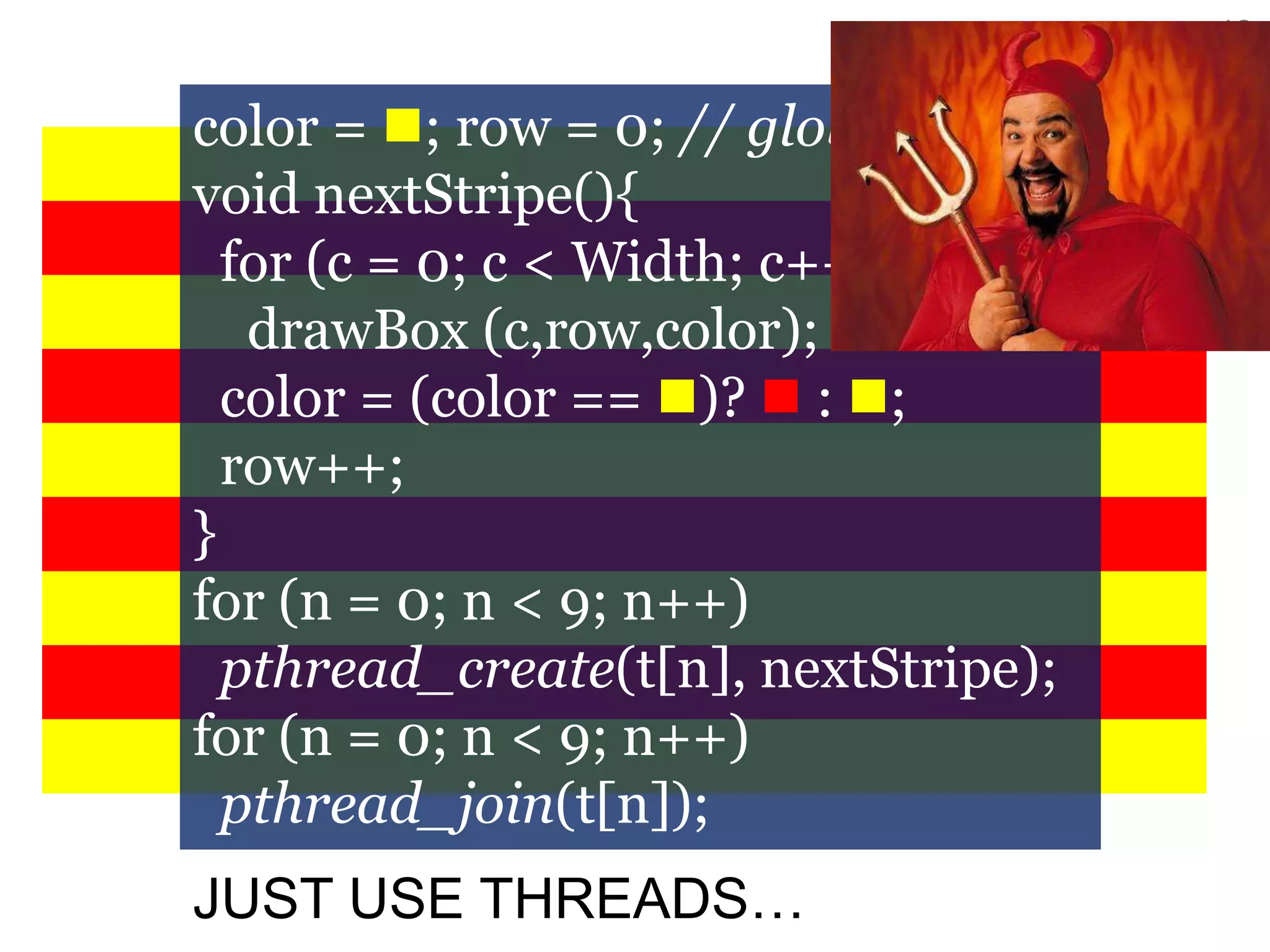

color = ; row = 0; // globals
void nextStripe(){
for (c = 0; c < Width; c++)
drawBox (c,row,color);
color = (color == )?  : ;
row++;
}
for (n = 0; n < 9; n++)
pthread_create(t[n], nextStripe);
for (n = 0; n < 9; n++)
pthread_join(t[n]);
JUST USE THREADS…

13. 13

14. 14

15. 15

16. 16

17. 17

18. 18

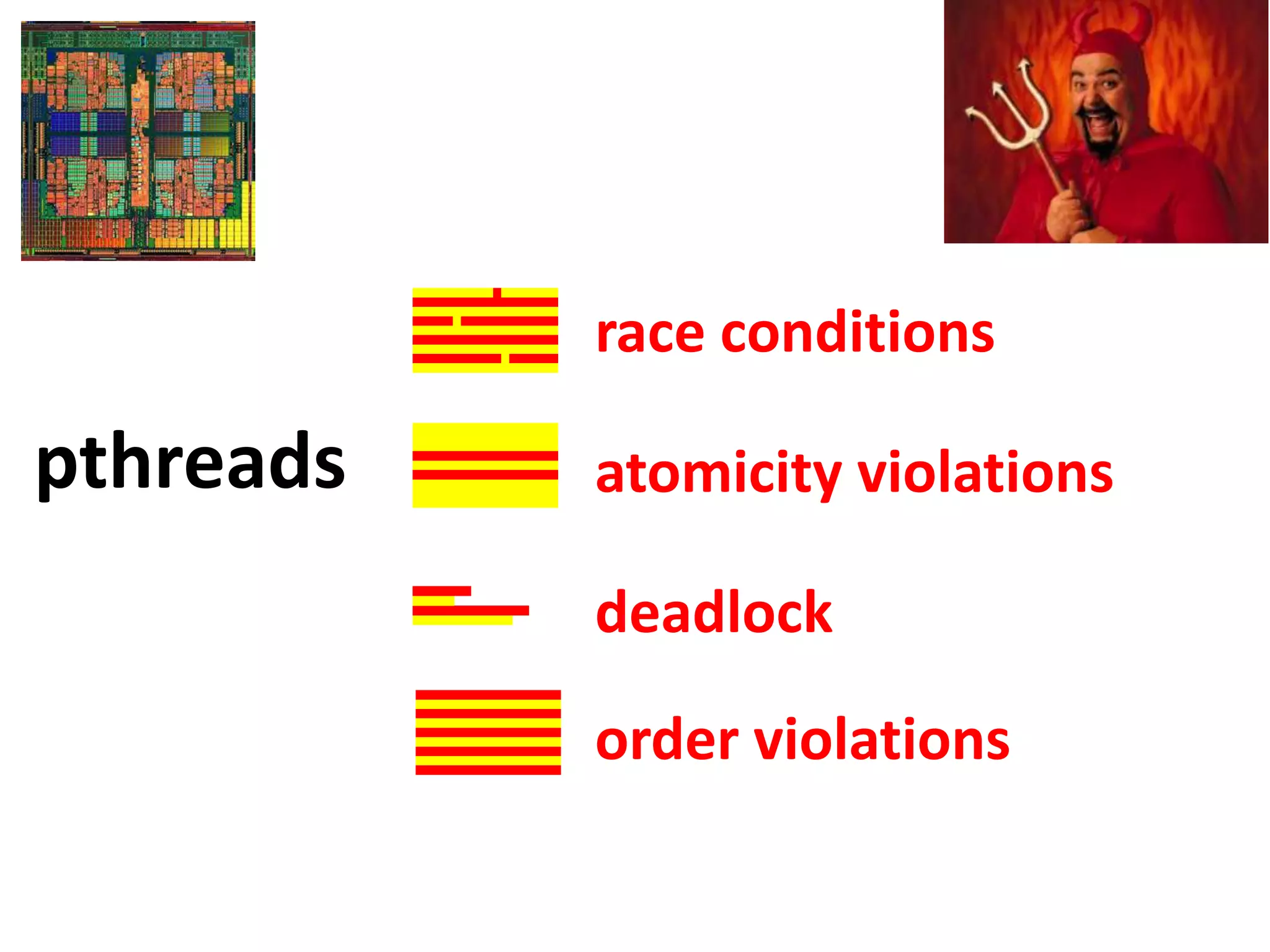

pthreads
race conditions
atomicity violations
deadlock
order violations

19. 19
Salvation?

20. 20

21. 21

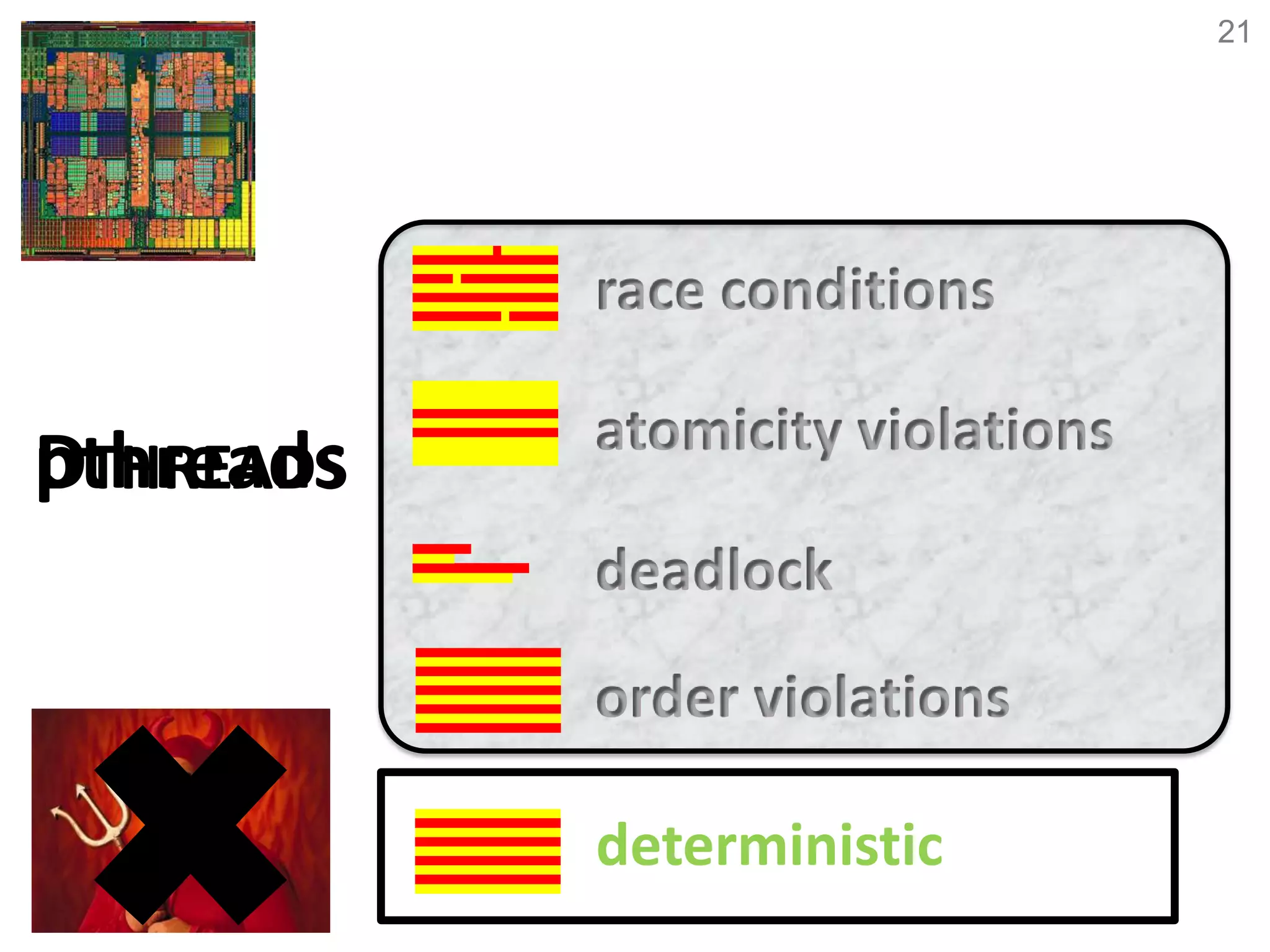

pthreads
race conditions
atomicity violations
deadlock
order violations
DTHREADS
deterministic
race conditions
atomicity violations
deadlock
order violations

22. 22
DTHREADS Enables…
Race-free Executions
Replay Debugging w/o Logging
Replicated State
Machines

23. 23
0
1
2
3
4
5
6
runtimerelativetopthreads
CoreDet dthreads pthreads
8.47.8

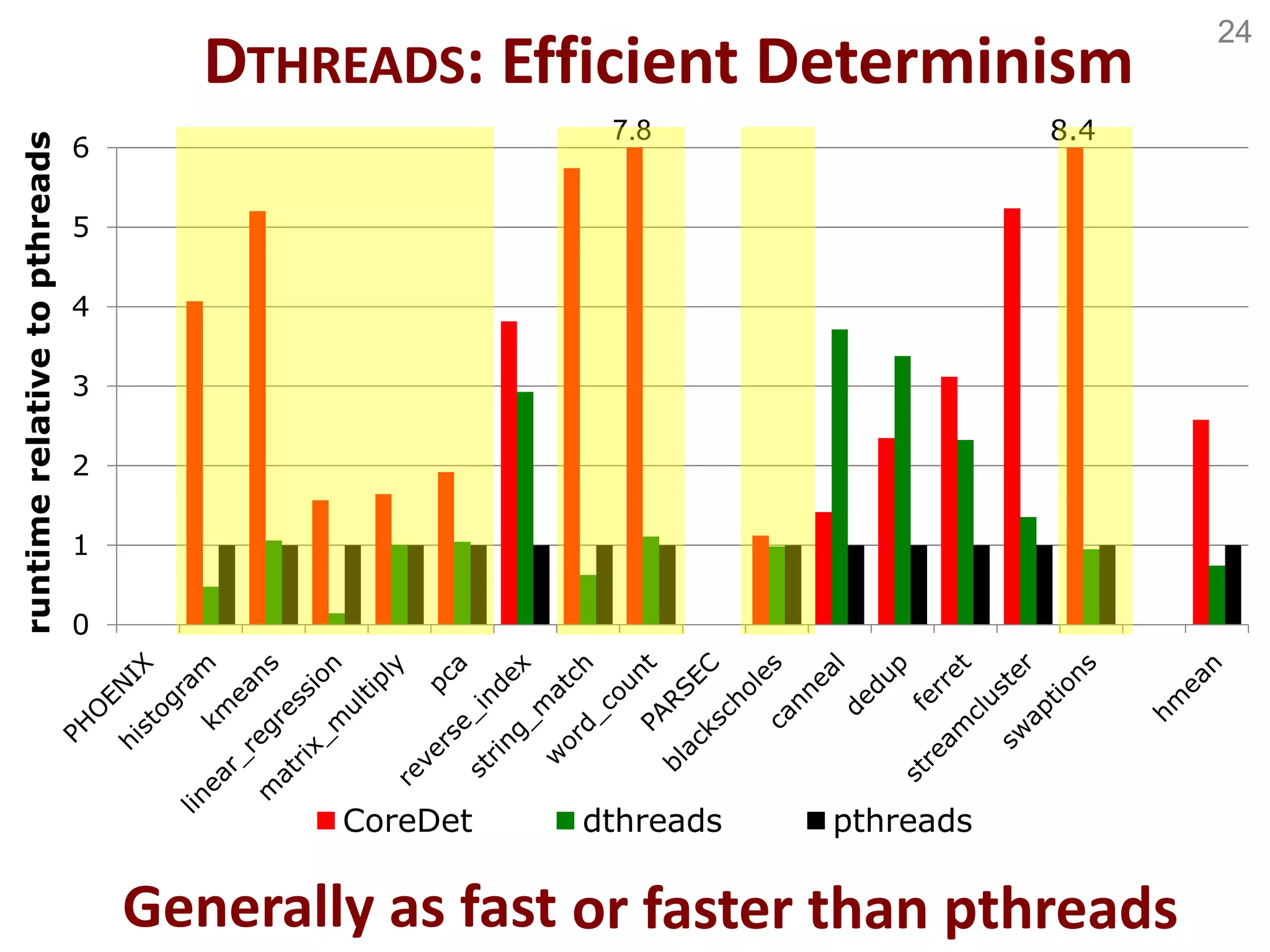

DTHREADS: Efficient Determinism
Usually faster than the state of the art

24. 24
0
1
2
3
4
5
6
runtimerelativetopthreads
CoreDet dthreads pthreads
8.47.8
DTHREADS: Efficient Determinism
Generally as fast or faster than pthreads

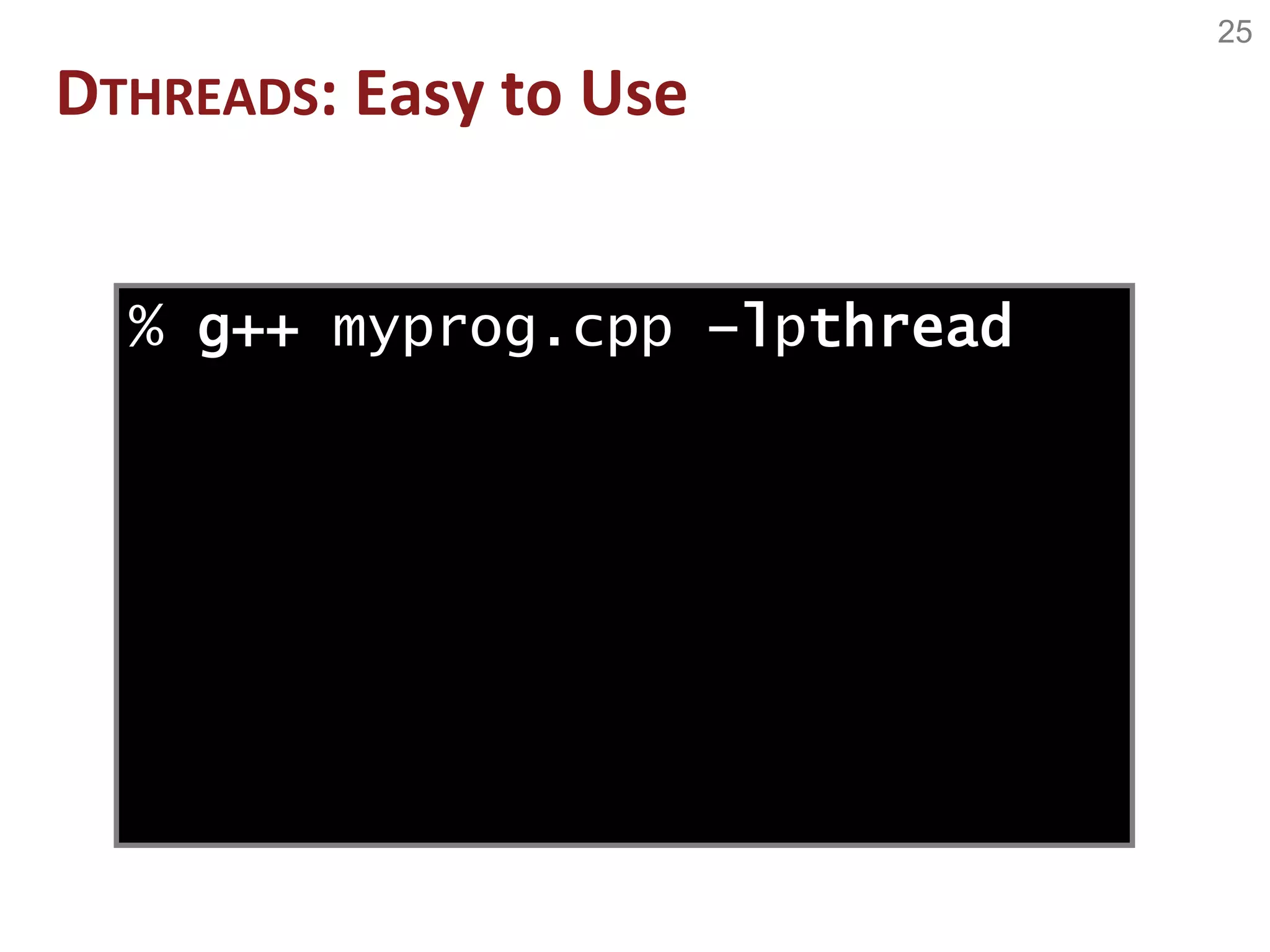

25. 25
% g++ myprog.cpp –l thread
DTHREADS: Easy to Use
p

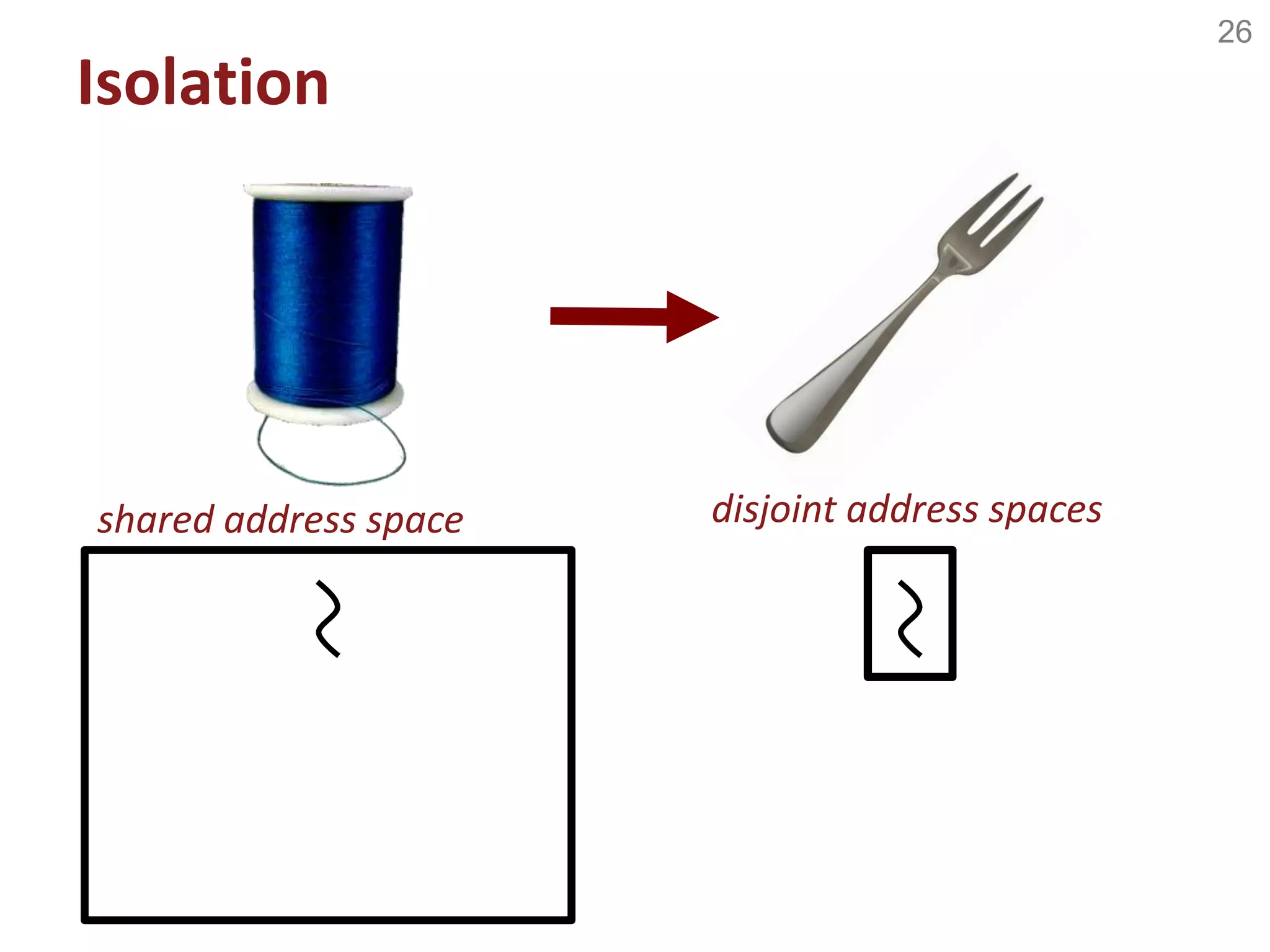

26. 26
Isolation
shared address space disjoint address spaces

27. 27

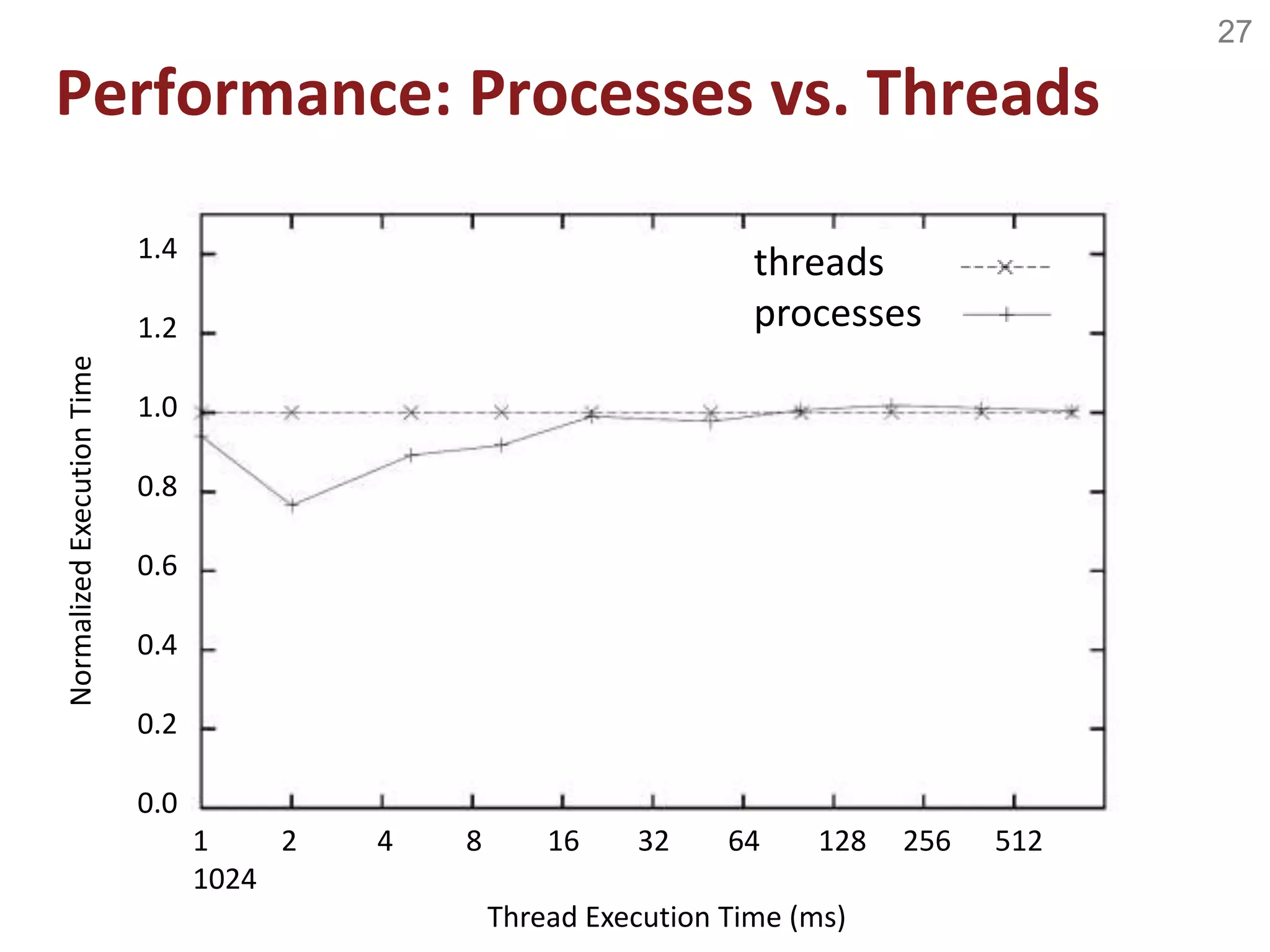

Performance: Processes vs. Threads
threads
processes
1 2 4 8 16 32 64 128 256 512
1024
Thread Execution Time (ms)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
NormalizedExecutionTime

28. 28

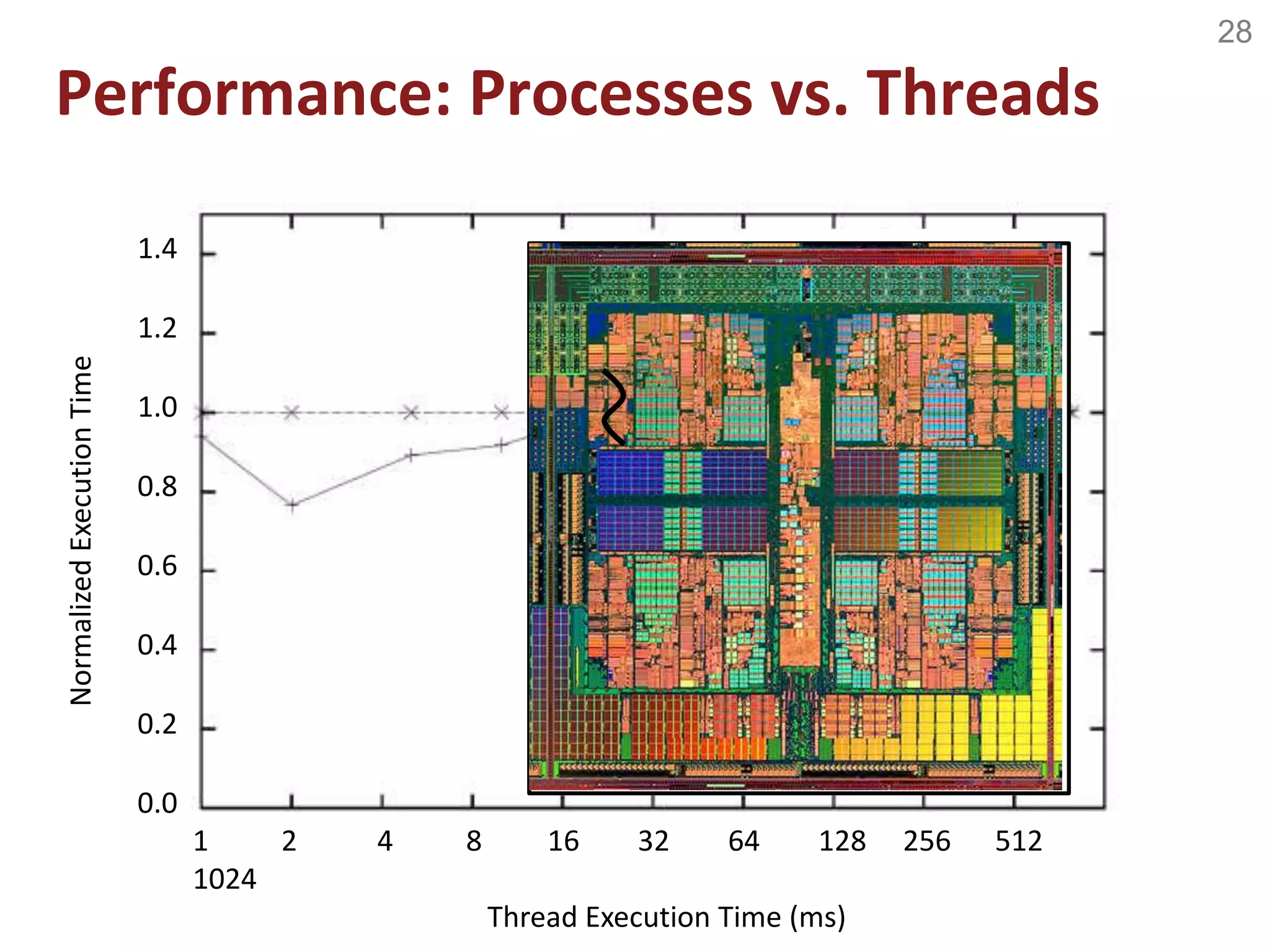

Performance: Processes vs. Threads
threads
processes
1 2 4 8 16 32 64 128 256 512
1024
Thread Execution Time (ms)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
NormalizedExecutionTime

29. 29

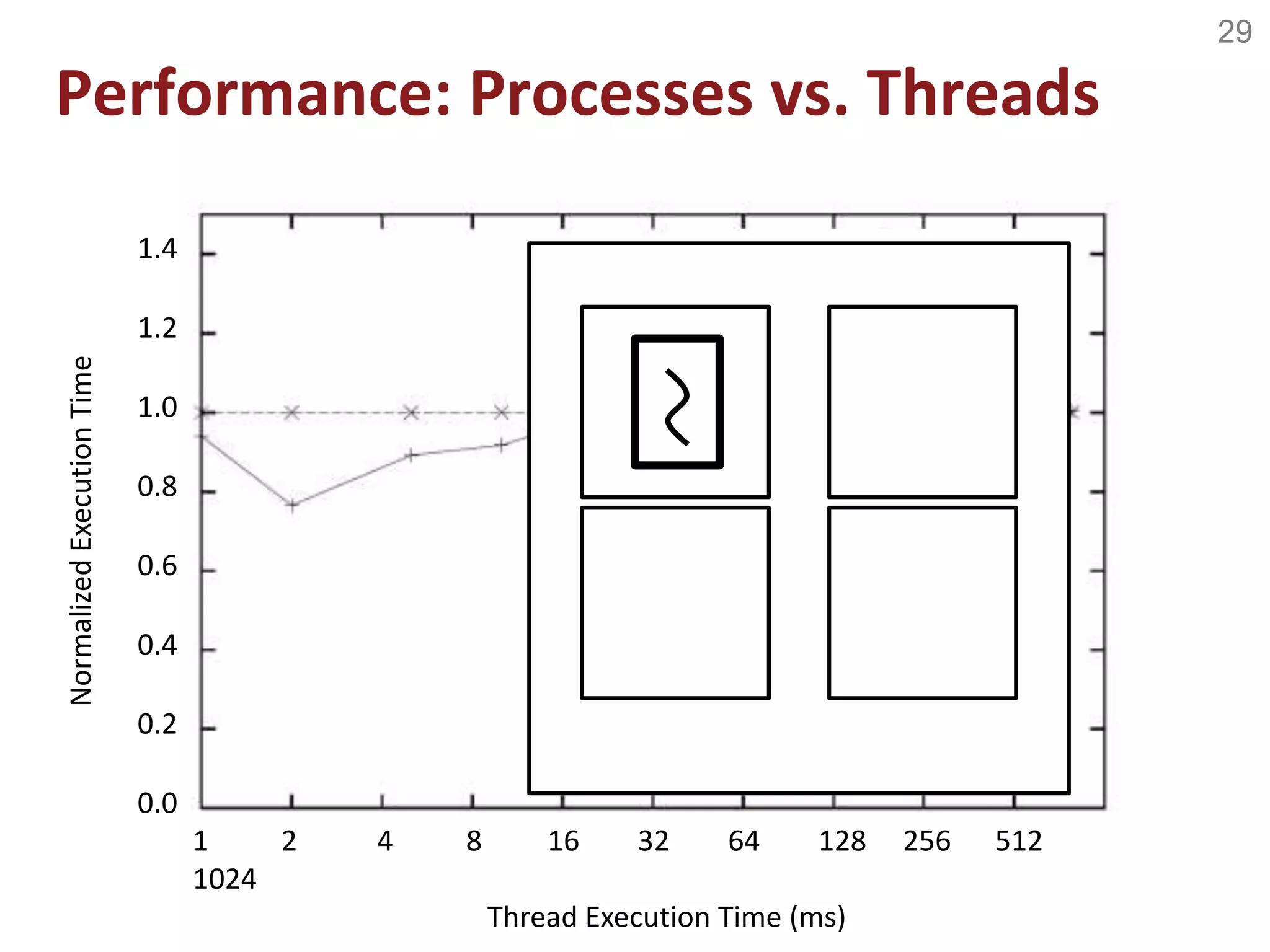

Performance: Processes vs. Threads
threads
processes
1 2 4 8 16 32 64 128 256 512
1024
Thread Execution Time (ms)
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
NormalizedExecutionTime

30. 30
“Shared Memory”

31. 31
Snapshot pages
before modifications
“Shared Memory”

32. 32
Write back diffs
“Shared Memory”

33. 33
“Thread” 1
“Thread” 2
“Thread” 3
Parallel Serial

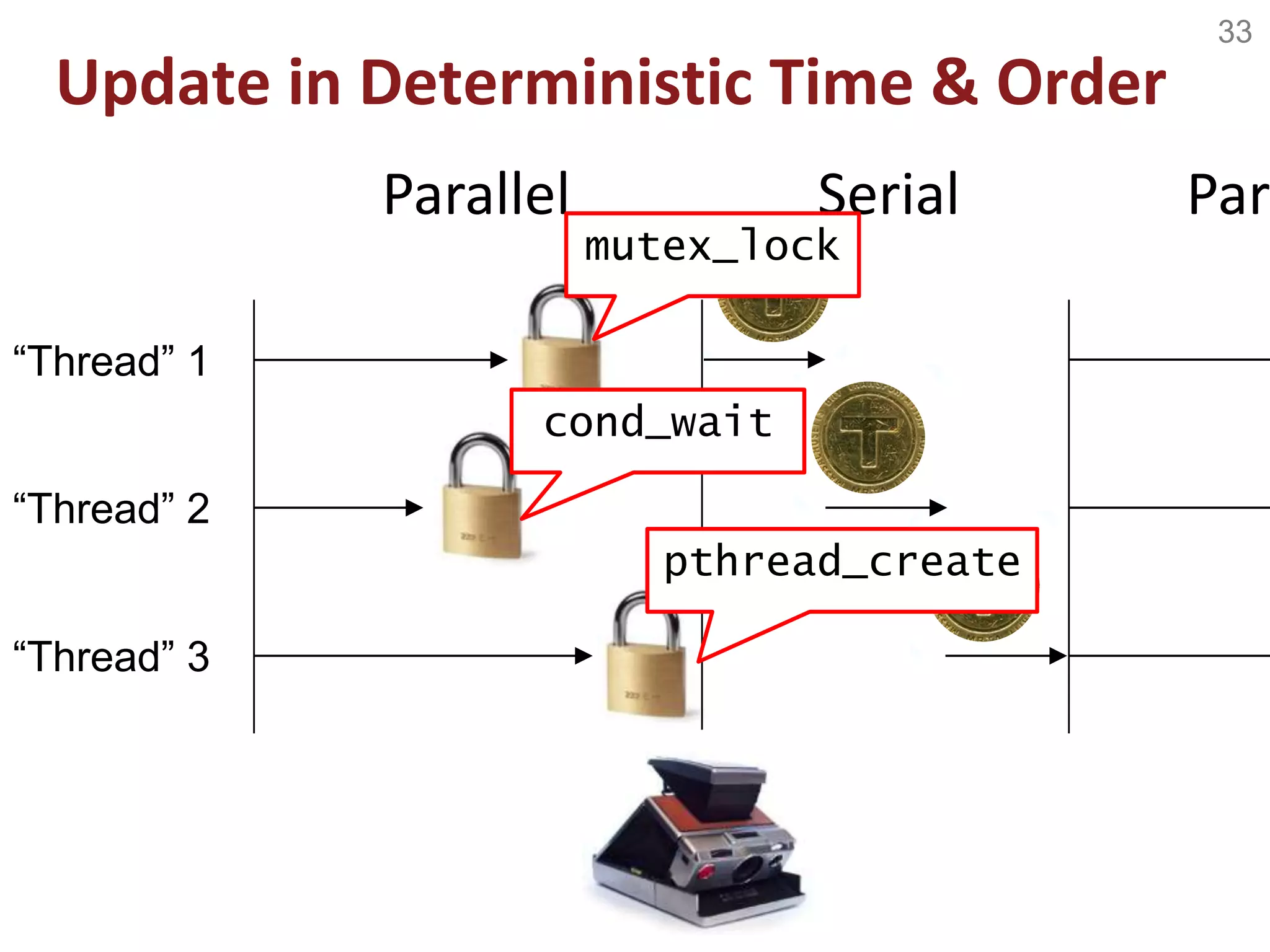

Update in Deterministic Time & Order
Para
mutex_lock
cond_wait
pthread_create

34. 34
0
1
2
3
4
runtimerelativetopthreads
dthreads pthreads

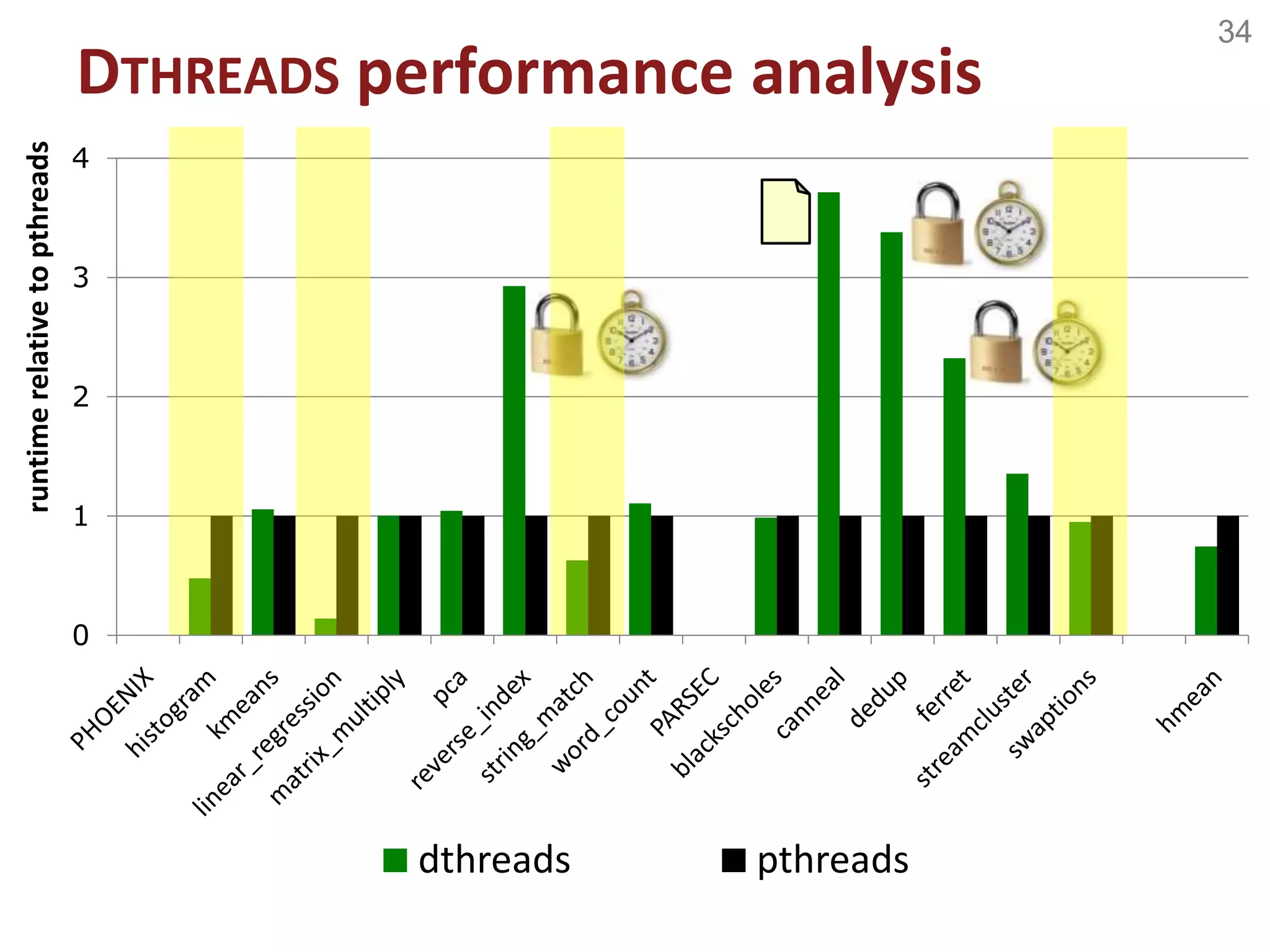

DTHREADS performance analysis

35. 35
Thread 1
Main Memory
Core 1
Thread 2
Core 2
Invalidate

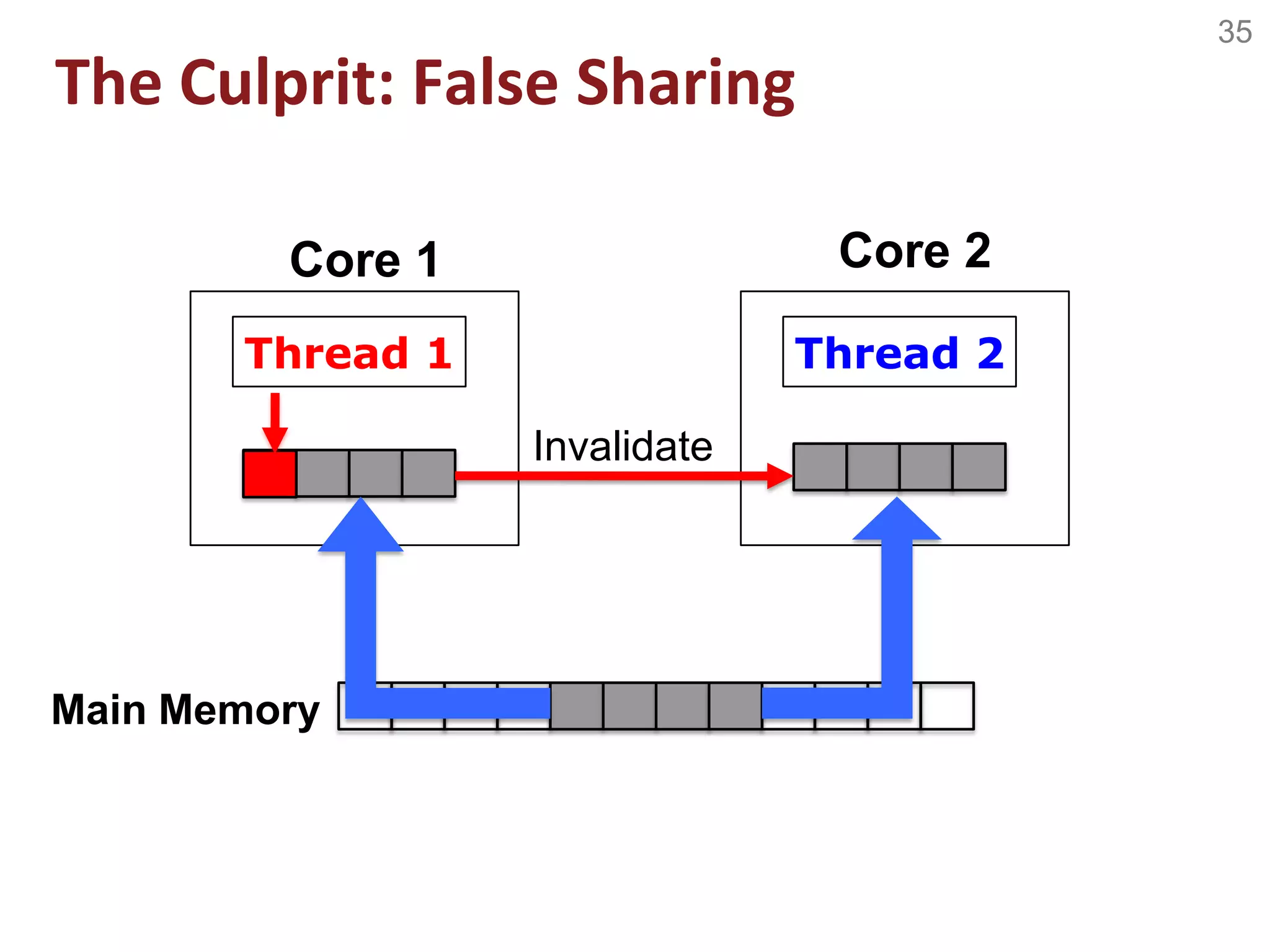

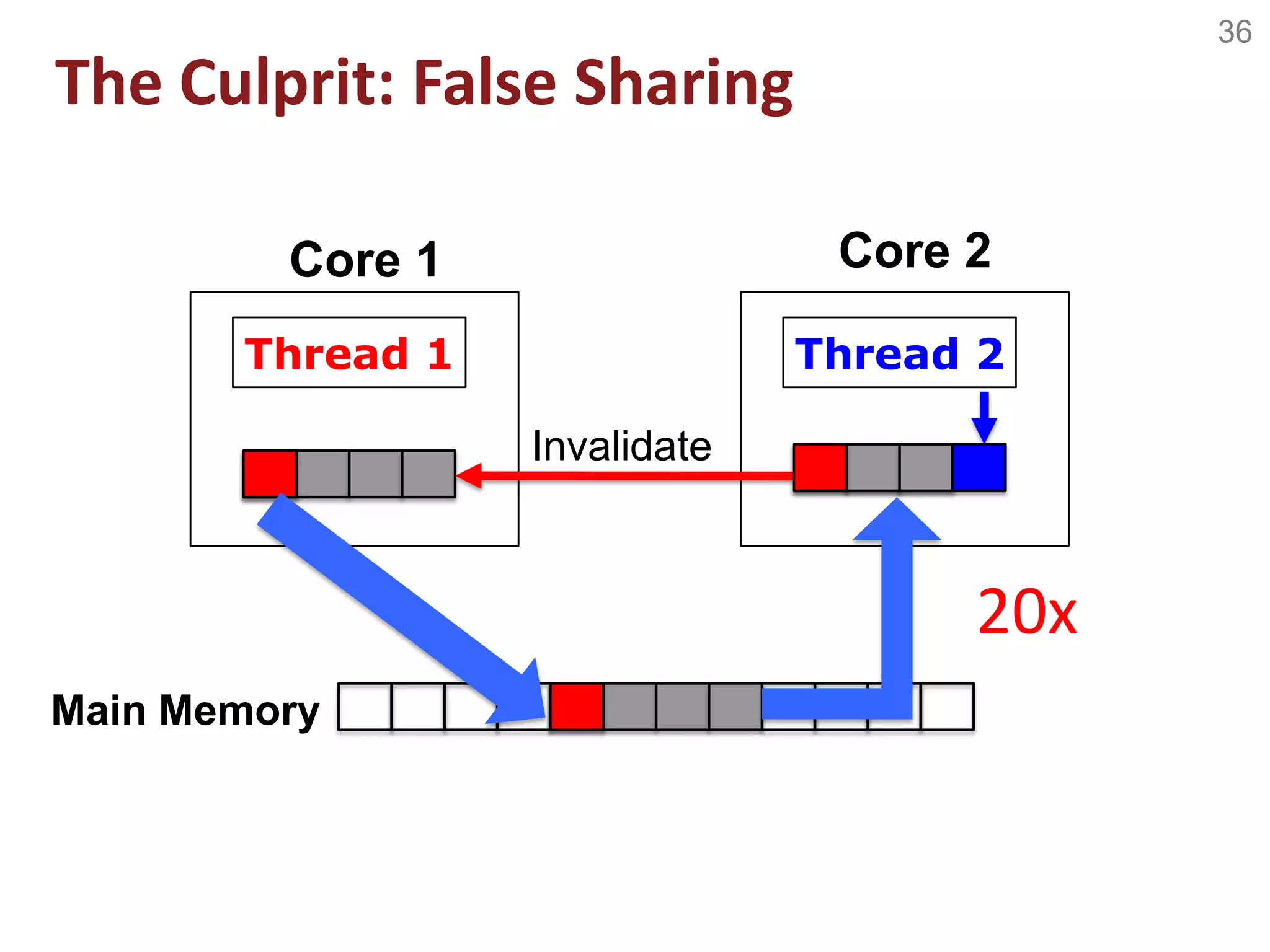

The Culprit: False Sharing

36. 36
Thread 1 Thread 2
Invalidate
Main Memory
Core 1 Core 2
The Culprit: False Sharing
20x

37. 37
Process 1 Process 2
Global State
Core 1 Core 2
Process 2
Process 1

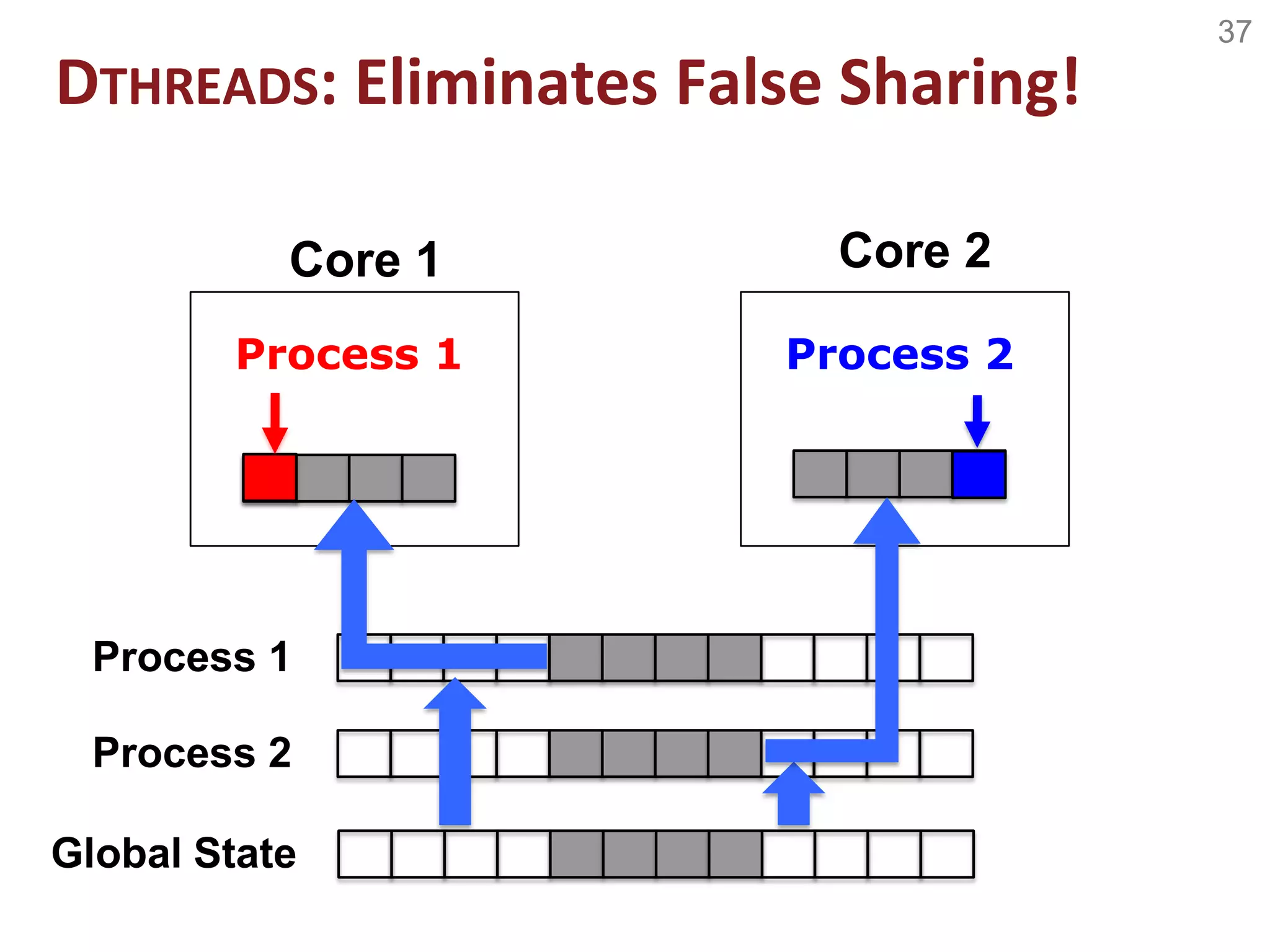

DTHREADS: Eliminates False Sharing!

38. 38
0
1
2
3
4
5
6
runtimerelativetopthreads
ordering only isolation only dthreads

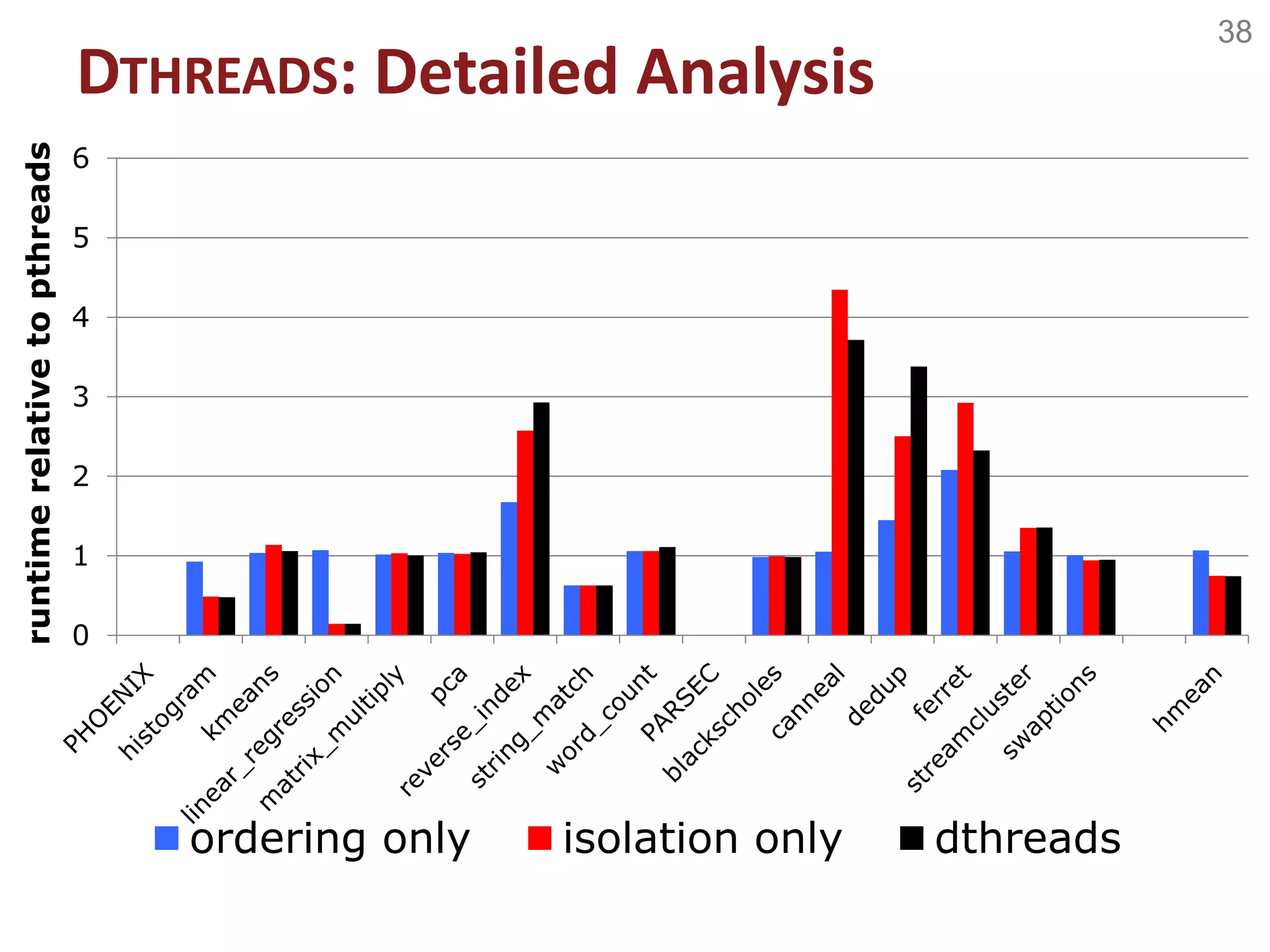

DTHREADS: Detailed Analysis

39. 39
0
1
2
3
4
5
6
runtimerelativetopthreads
ordering only isolation only dthreads

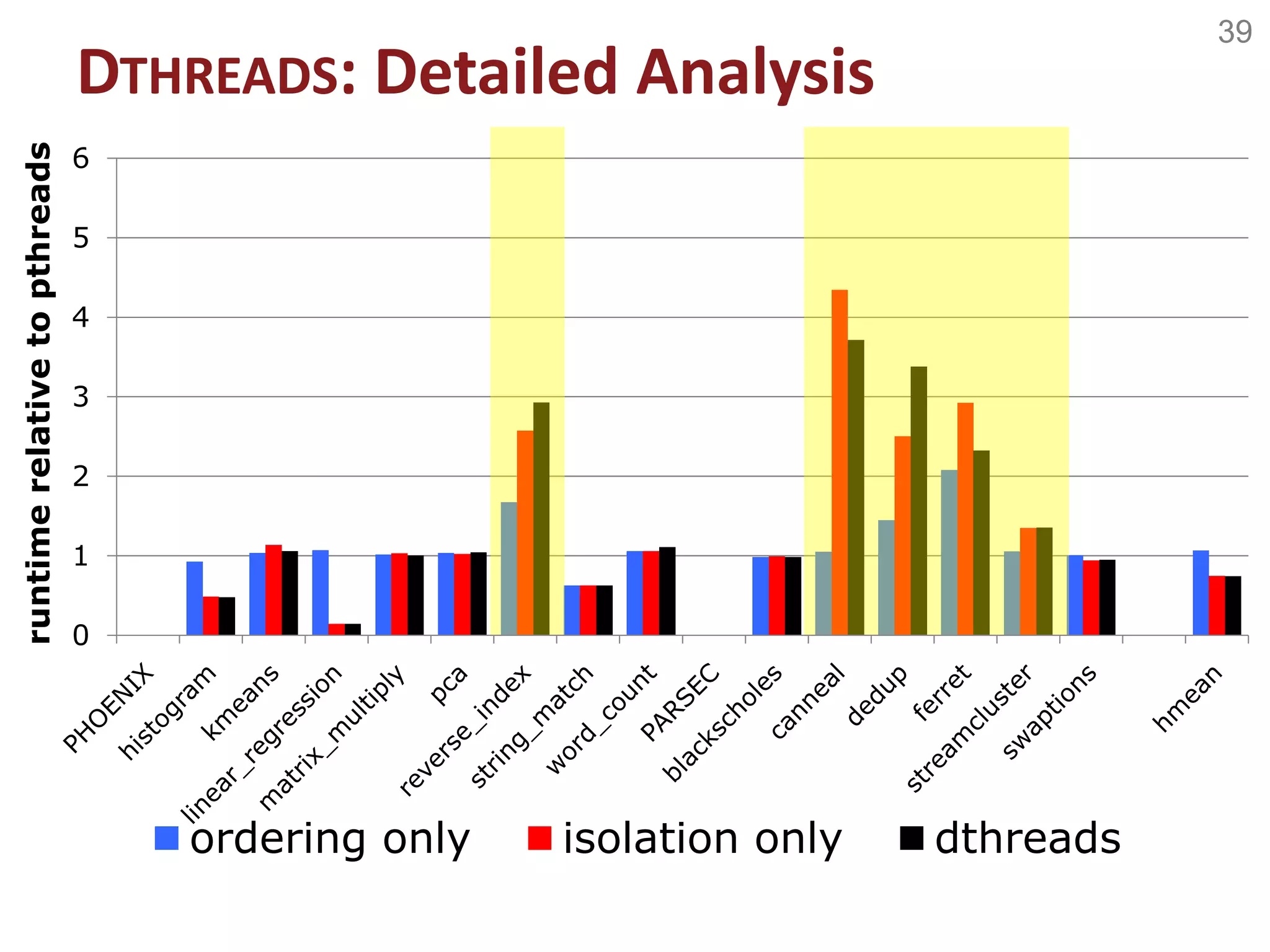

DTHREADS: Detailed Analysis

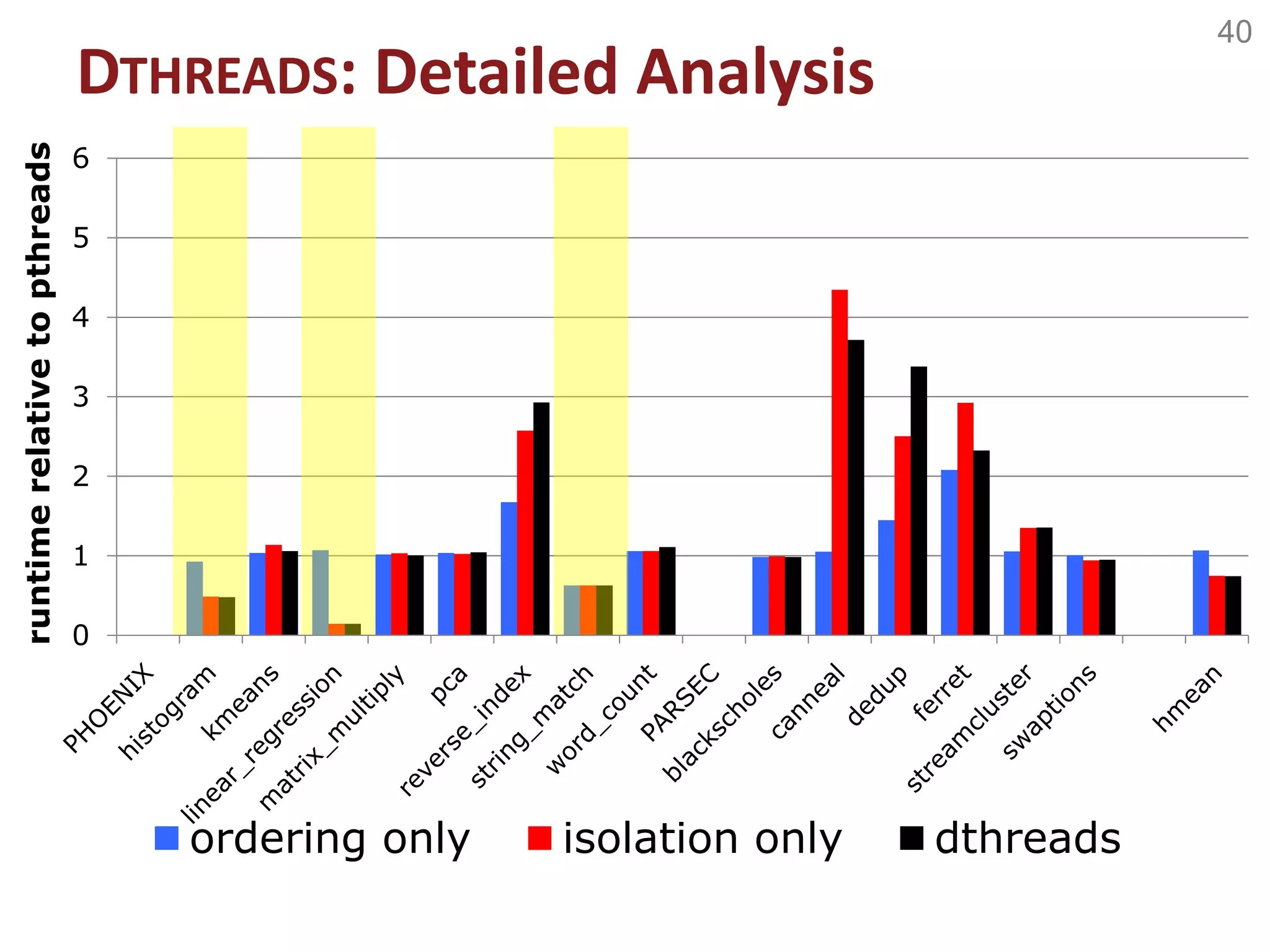

40. 40
0
1
2
3
4
5
6
runtimerelativetopthreads
ordering only isolation only dthreads
DTHREADS: Detailed Analysis

41. 41
0
1
2
3
4
speedupof8coresover2cores
CoreDet dthreads pthreads

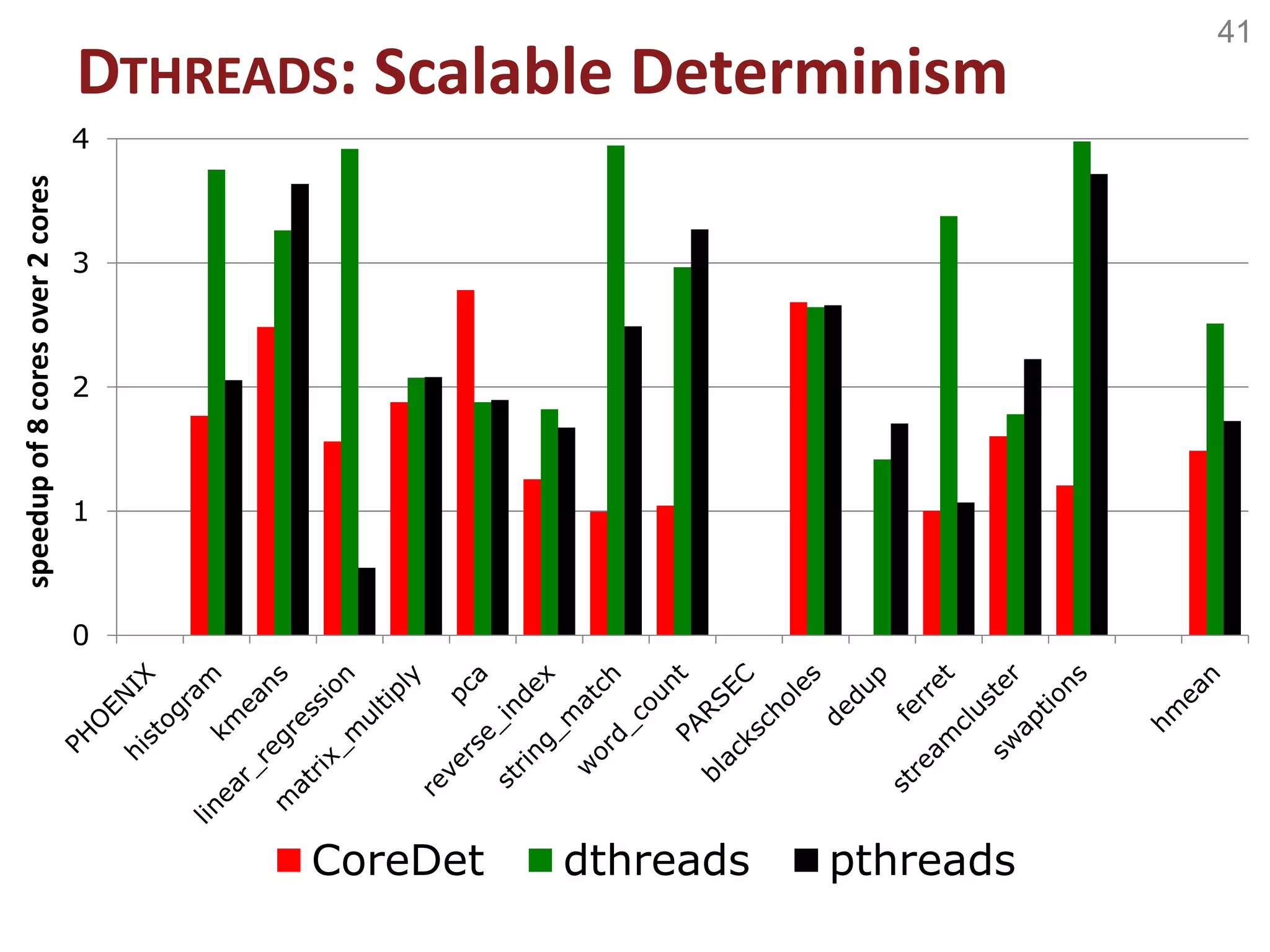

DTHREADS: Scalable Determinism

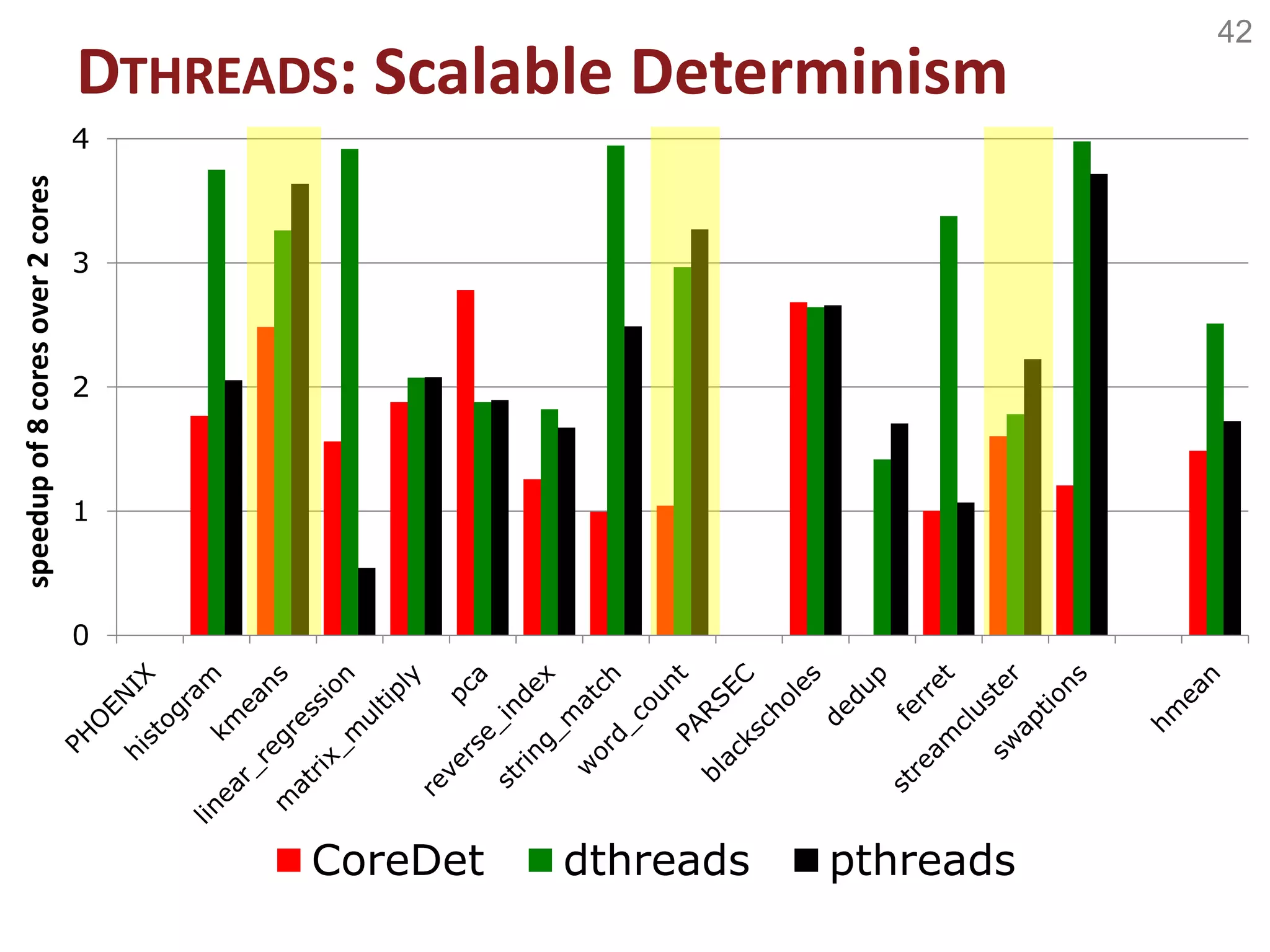

42. 42
0
1
2
3
4
speedupof8coresover2cores
CoreDet dthreads pthreads
DTHREADS: Scalable Determinism

43. 43
0
1
2
3
4
speedupof8coresover2cores
CoreDet dthreads pthreads

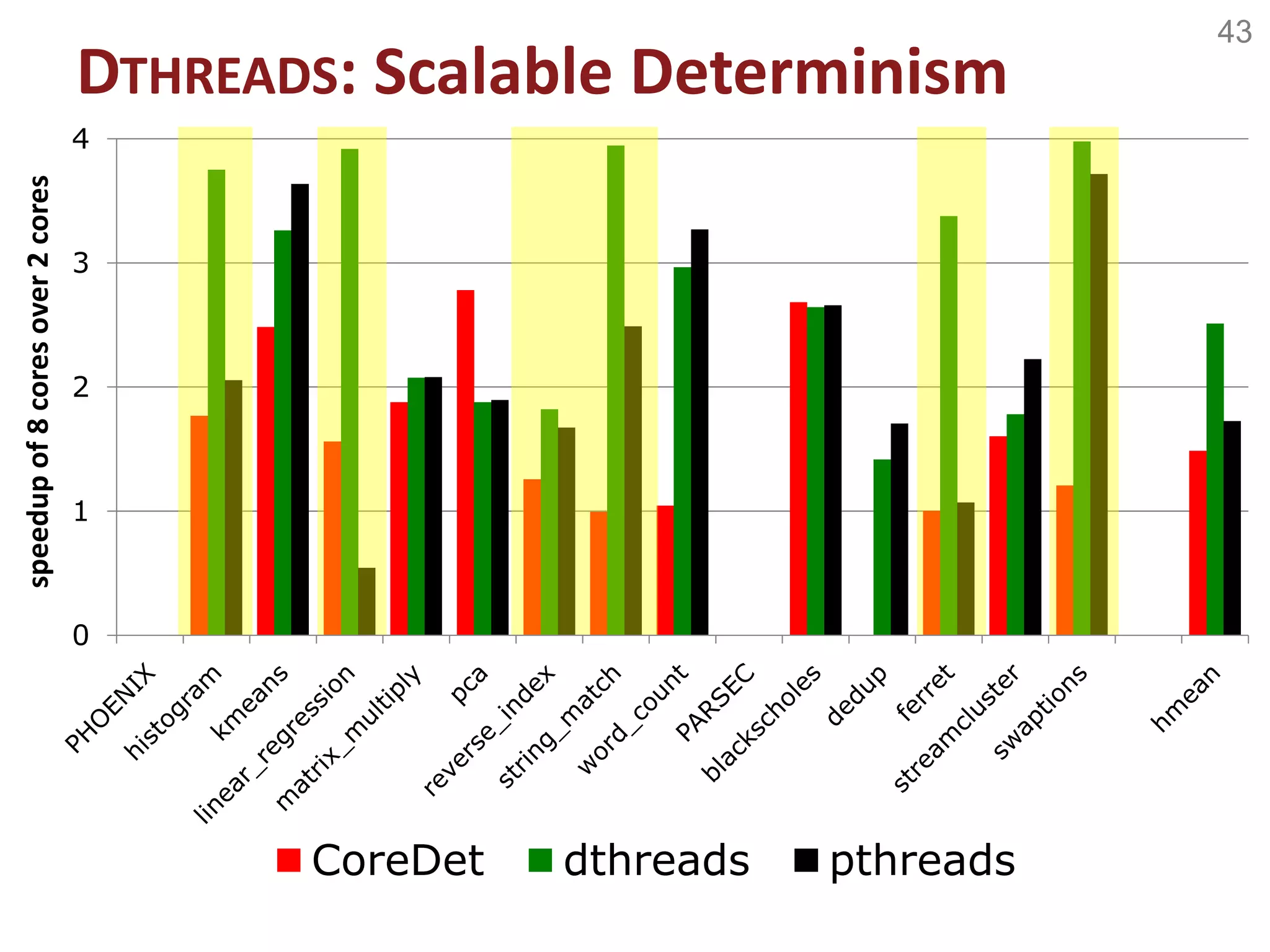

DTHREADS: Scalable Determinism

44. 44

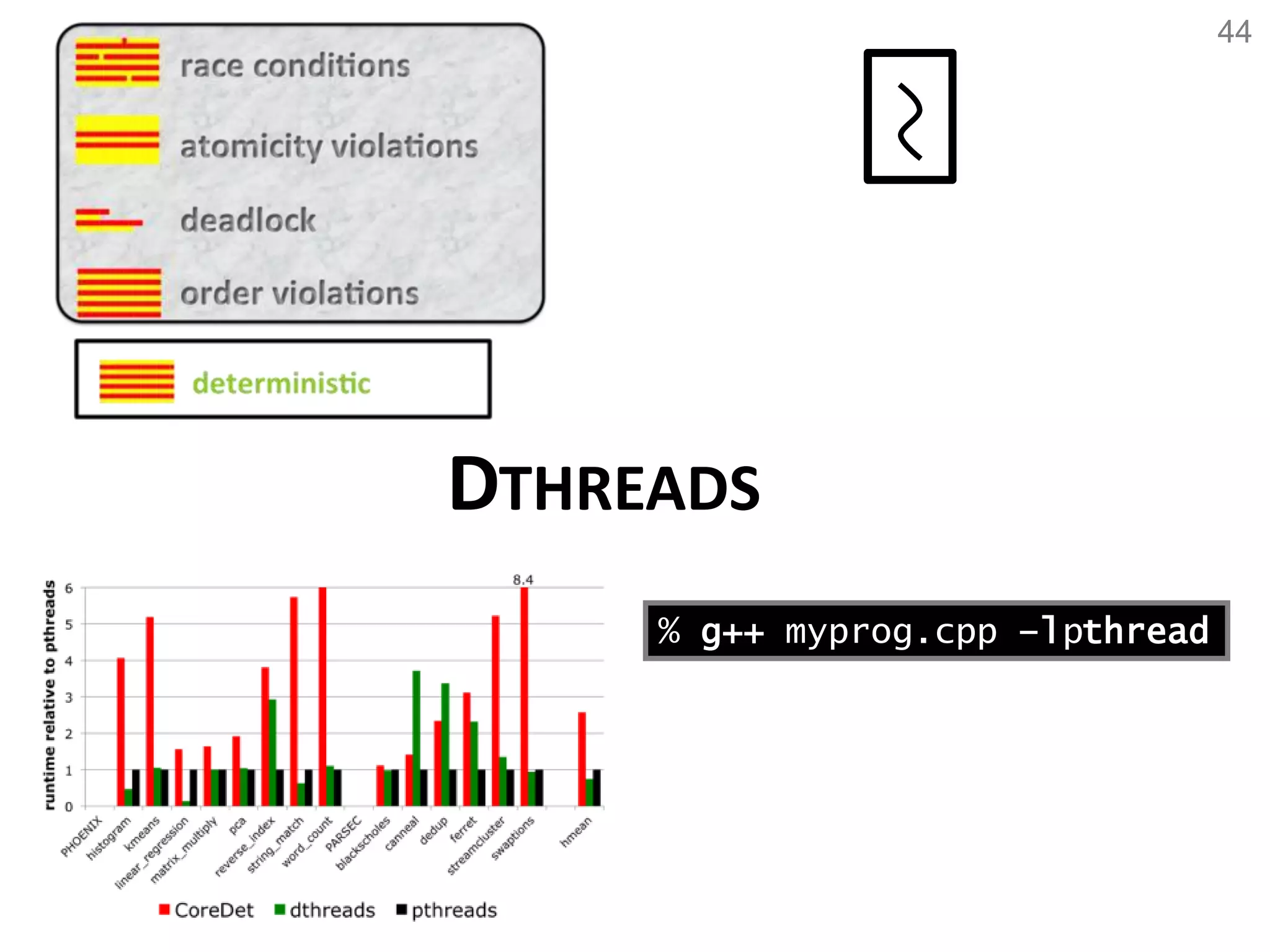

DTHREADS
% g++ myprog.cpp –l threadp
