Coding for multiple cores
- 1. Coding for Multiple Cores Bruce Dawson & Chuck Walbourn Programmers Game Technology Group

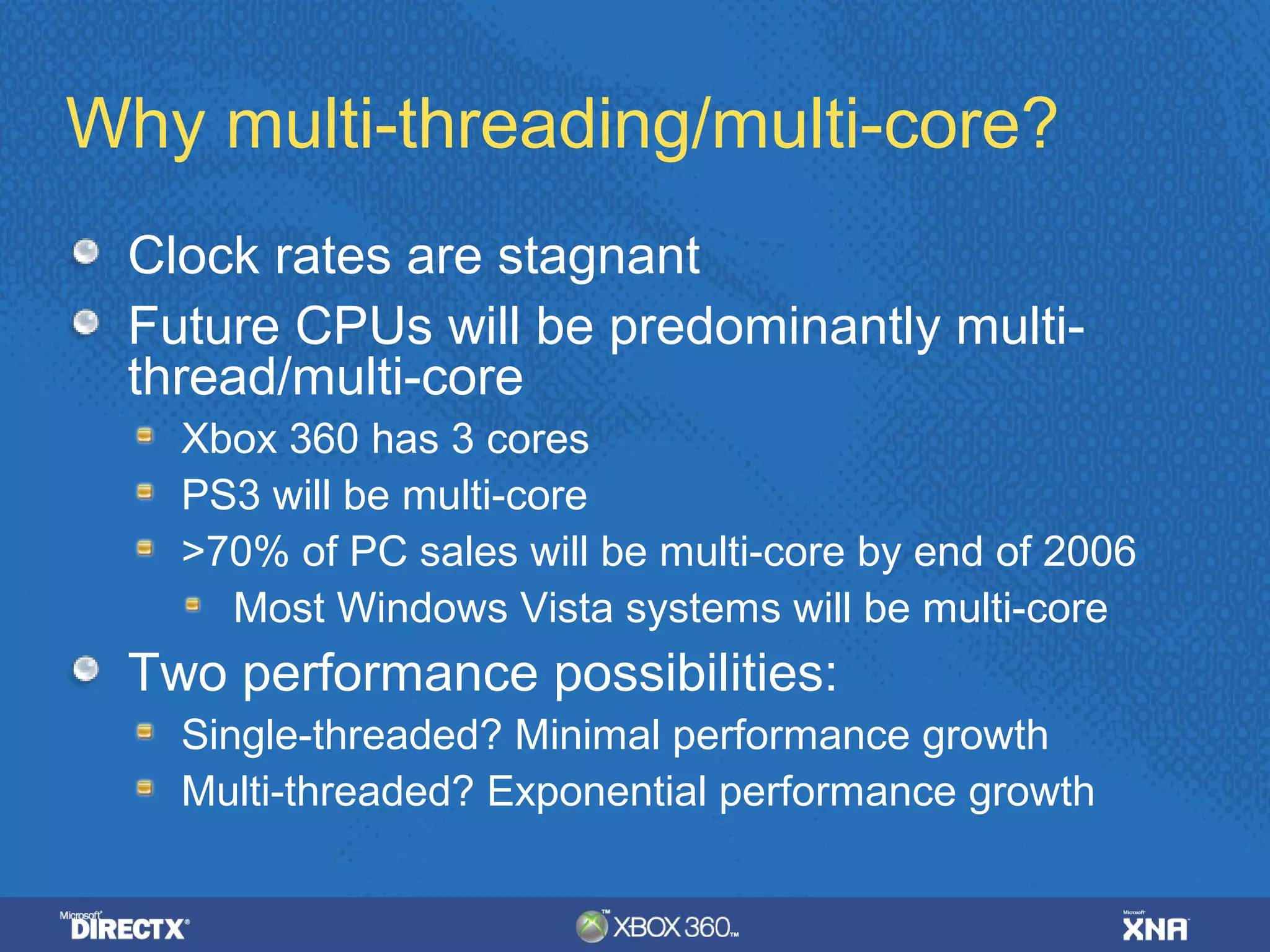

- 2. Why multi-threading/multi-core? Clock rates are stagnant Future CPUs will be predominantly multi-thread/ multi-core Xbox 360 has 3 cores PS3 will be multi-core >70% of PC sales will be multi-core by end of 2006 Most Windows Vista systems will be multi-core Two performance possibilities: Single-threaded? Minimal performance growth Multi-threaded? Exponential performance growth

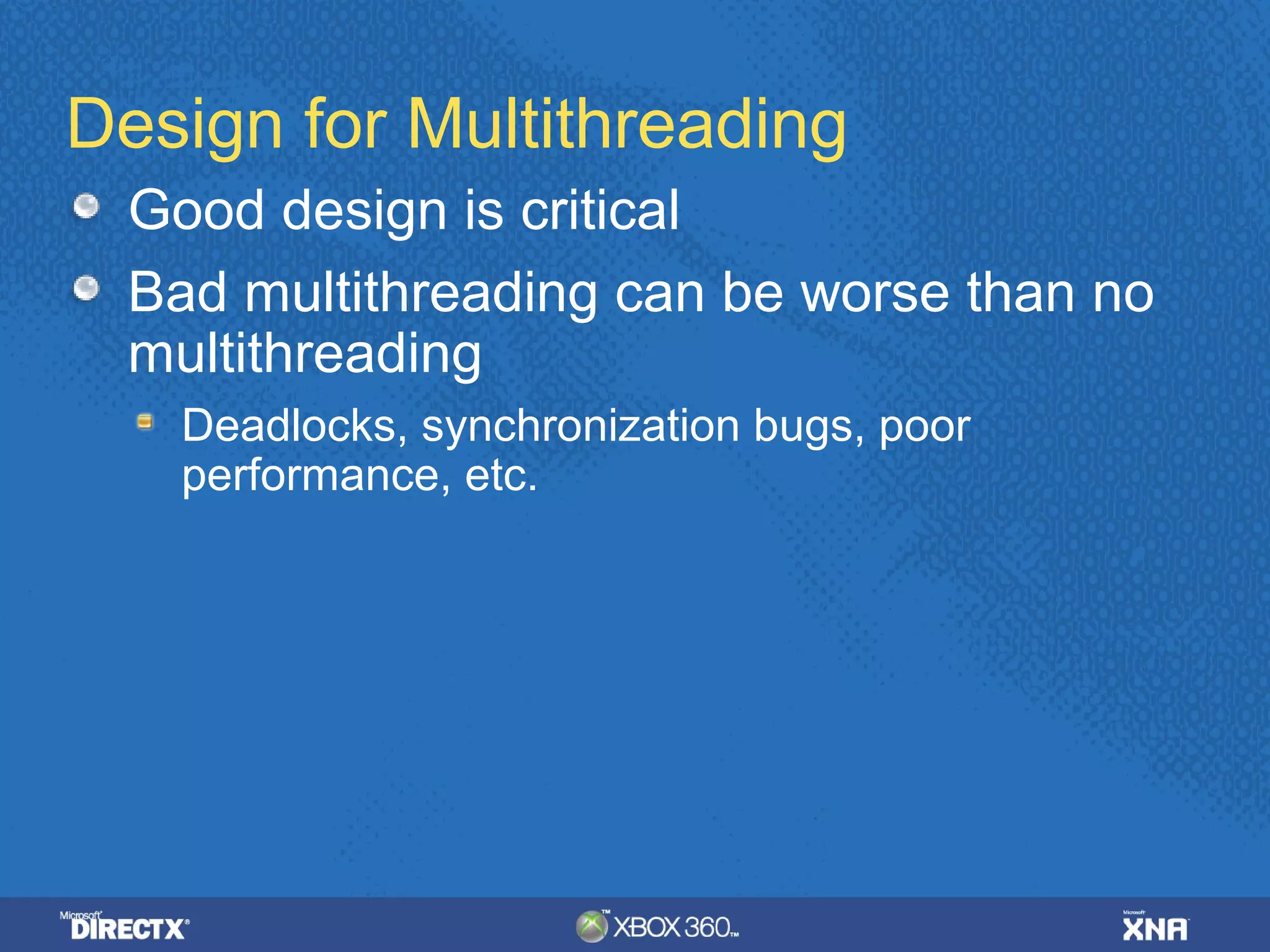

- 3. Design for Multithreading Good design is critical Bad multithreading can be worse than no multithreading Deadlocks, synchronization bugs, poor performance, etc.

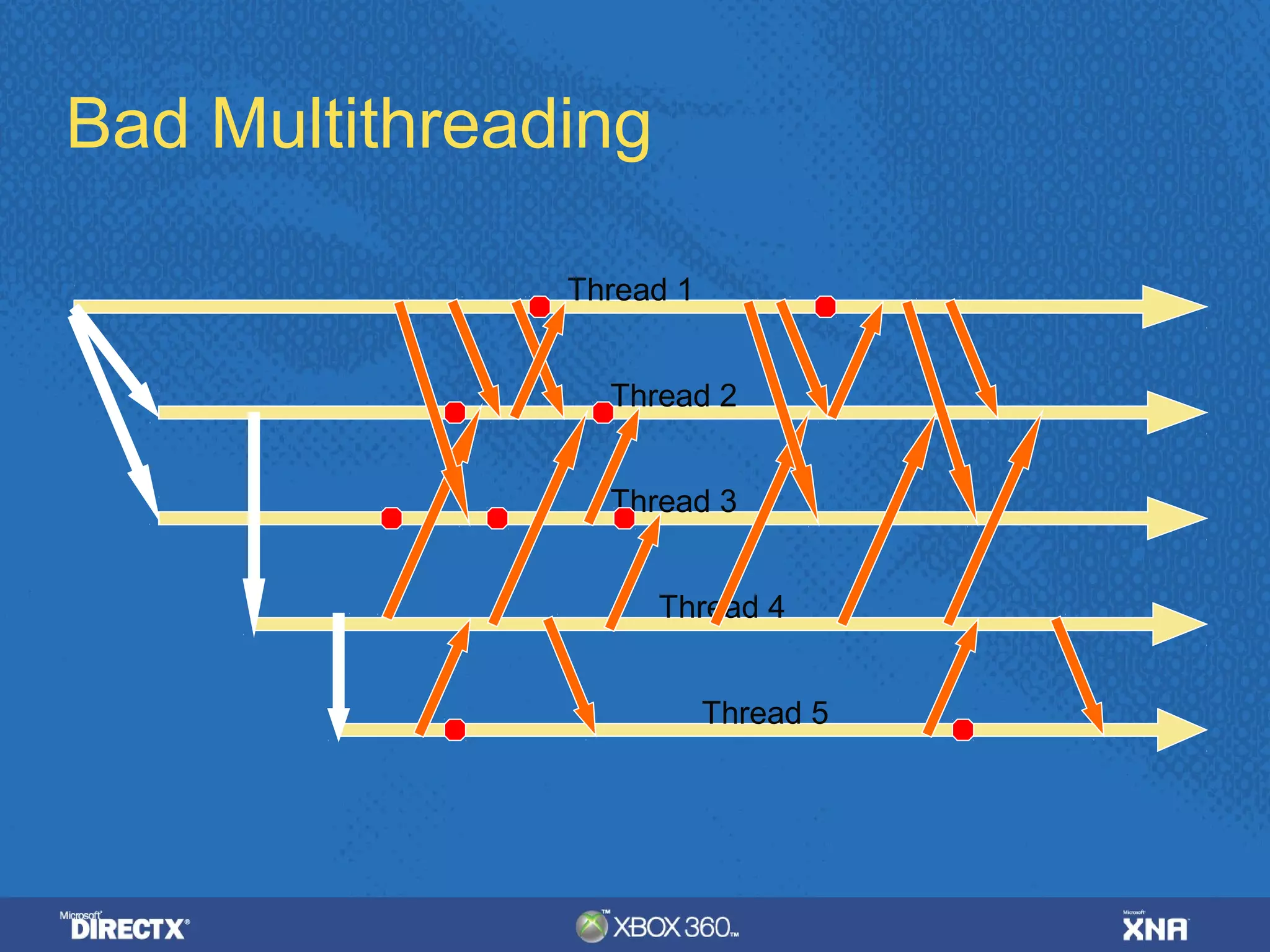

- 4. Bad Multithreading Thread 1 Thread 2 Thread 3 Thread 4 Thread 5

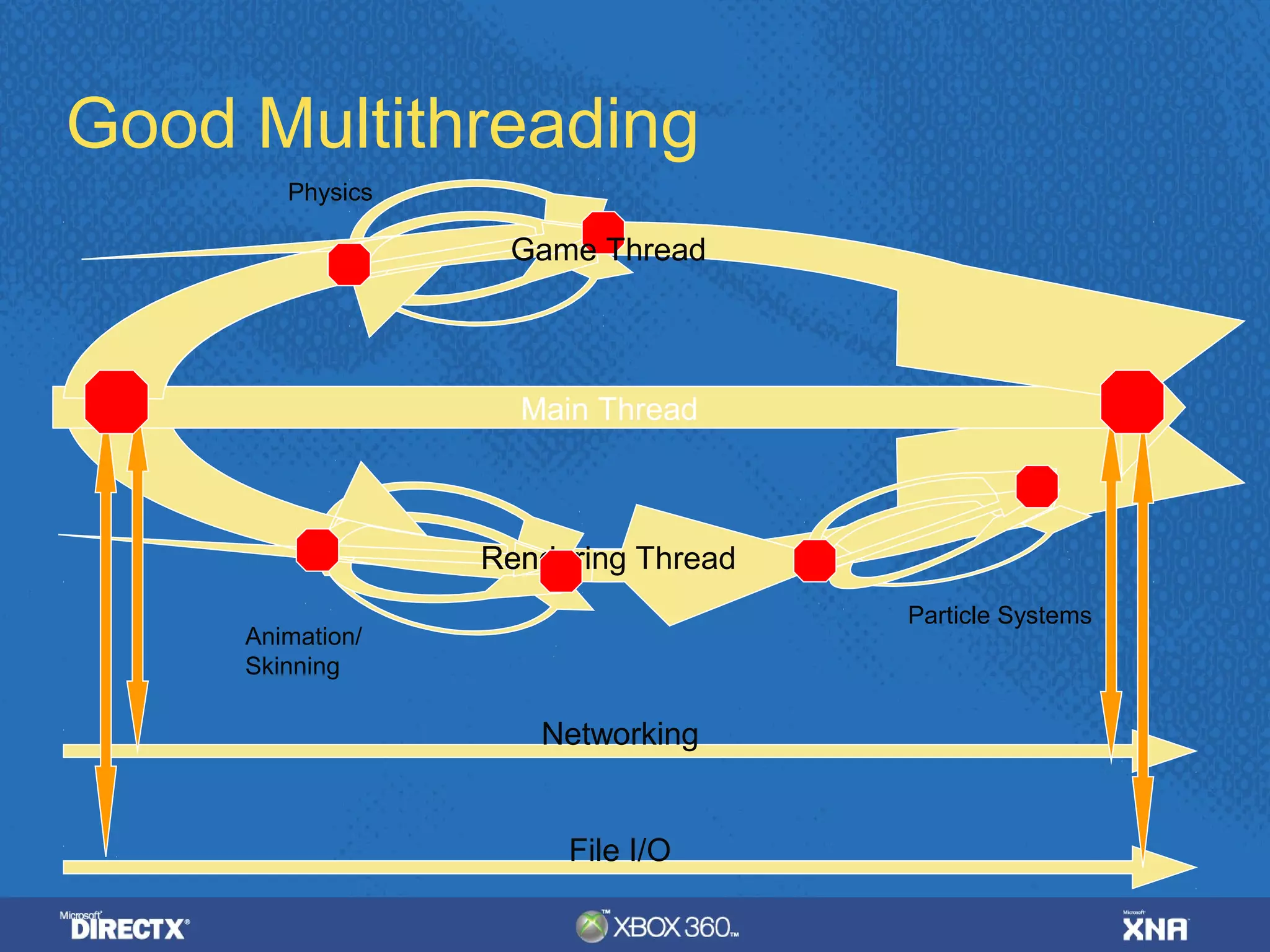

- 5. Good Multithreading Game Thread Main Thread RRReeennndddeeerrriiinnnggg TTThhhrrreeeaaaddd Physics Rendering Thread Animation/ Skinning Particle Systems Networking File I/O

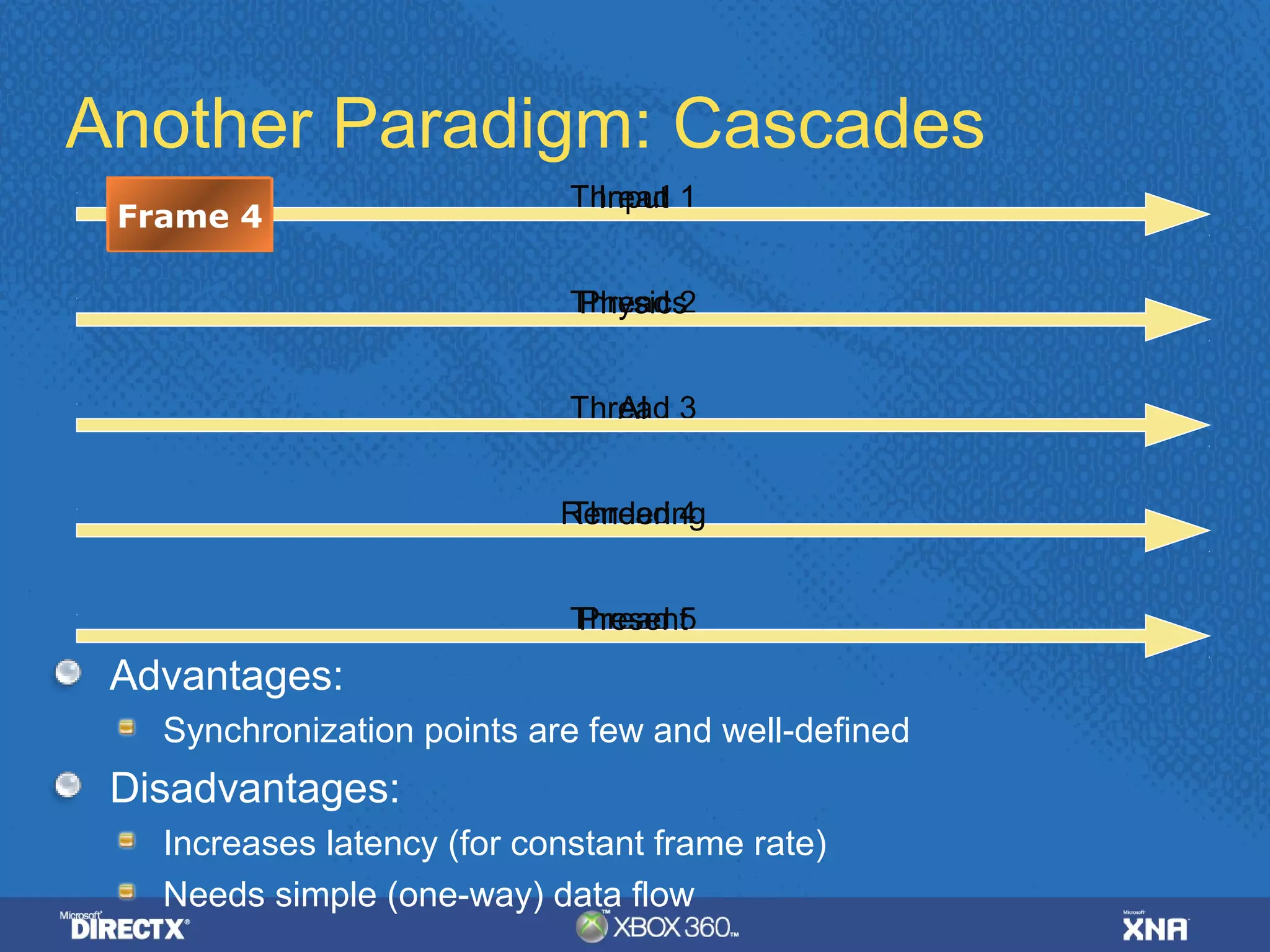

- 6. Another Paradigm: Cascades Thread Input 1 Thread Physics 2 Thread AI 3 Rendering Thread 4 Thread Present 5 FFFFrrrraaaammmmeeee 1243 Advantages: Synchronization points are few and well-defined Disadvantages: Increases latency (for constant frame rate) Needs simple (one-way) data flow

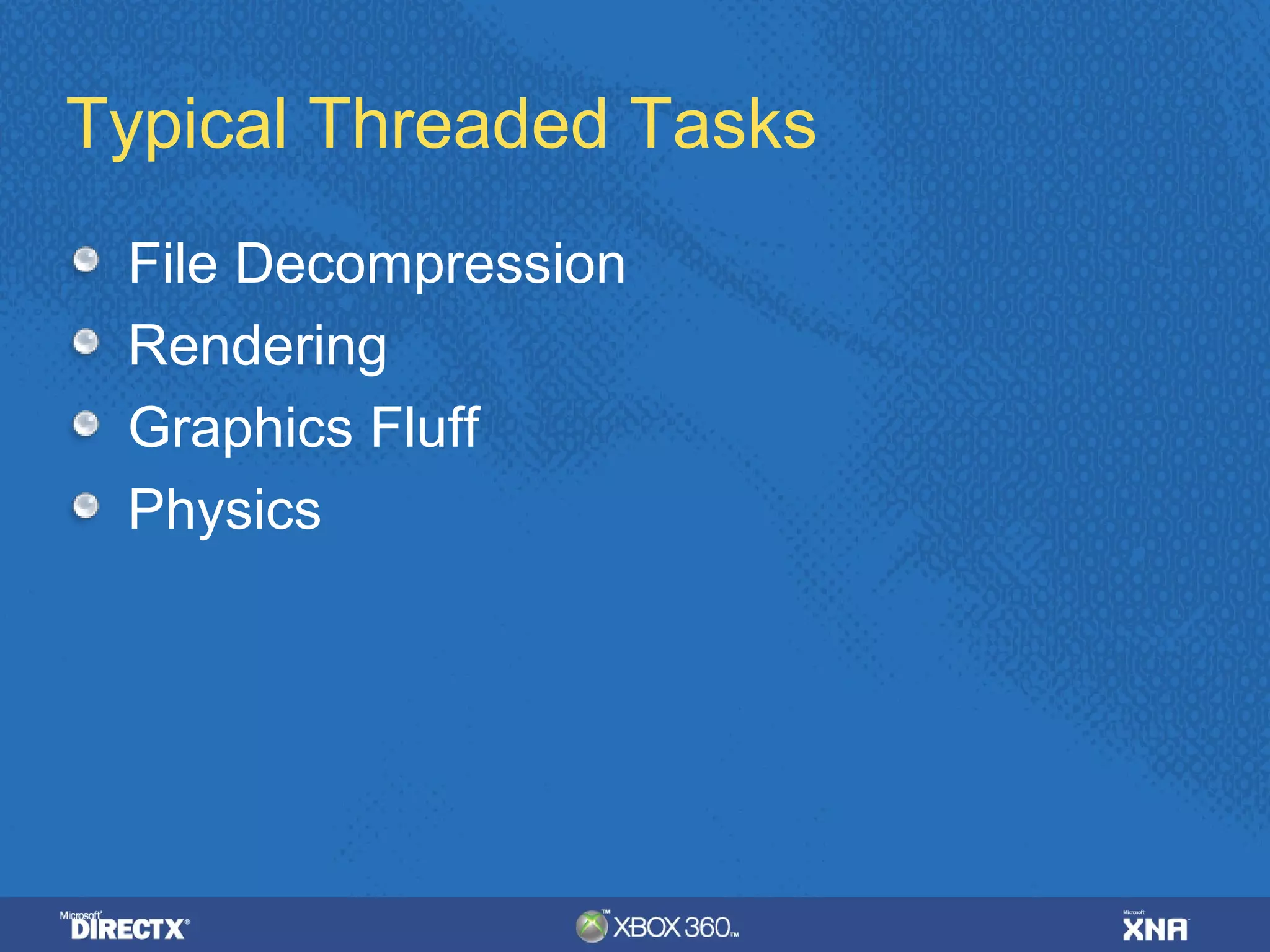

- 7. Typical Threaded Tasks File Decompression Rendering Graphics Fluff Physics

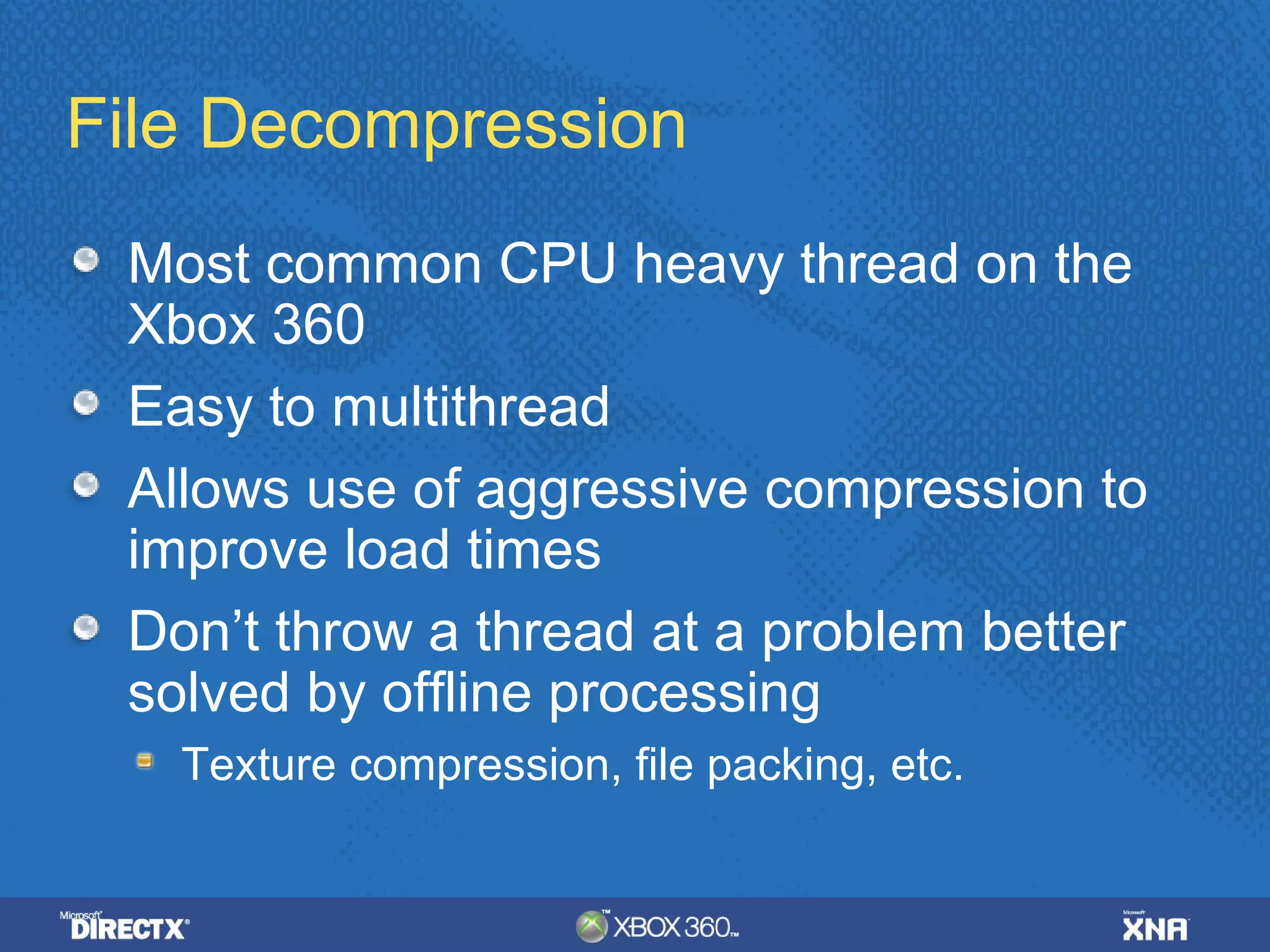

- 8. File Decompression Most common CPU heavy thread on the Xbox 360 Easy to multithread Allows use of aggressive compression to improve load times Don’t throw a thread at a problem better solved by offline processing Texture compression, file packing, etc.

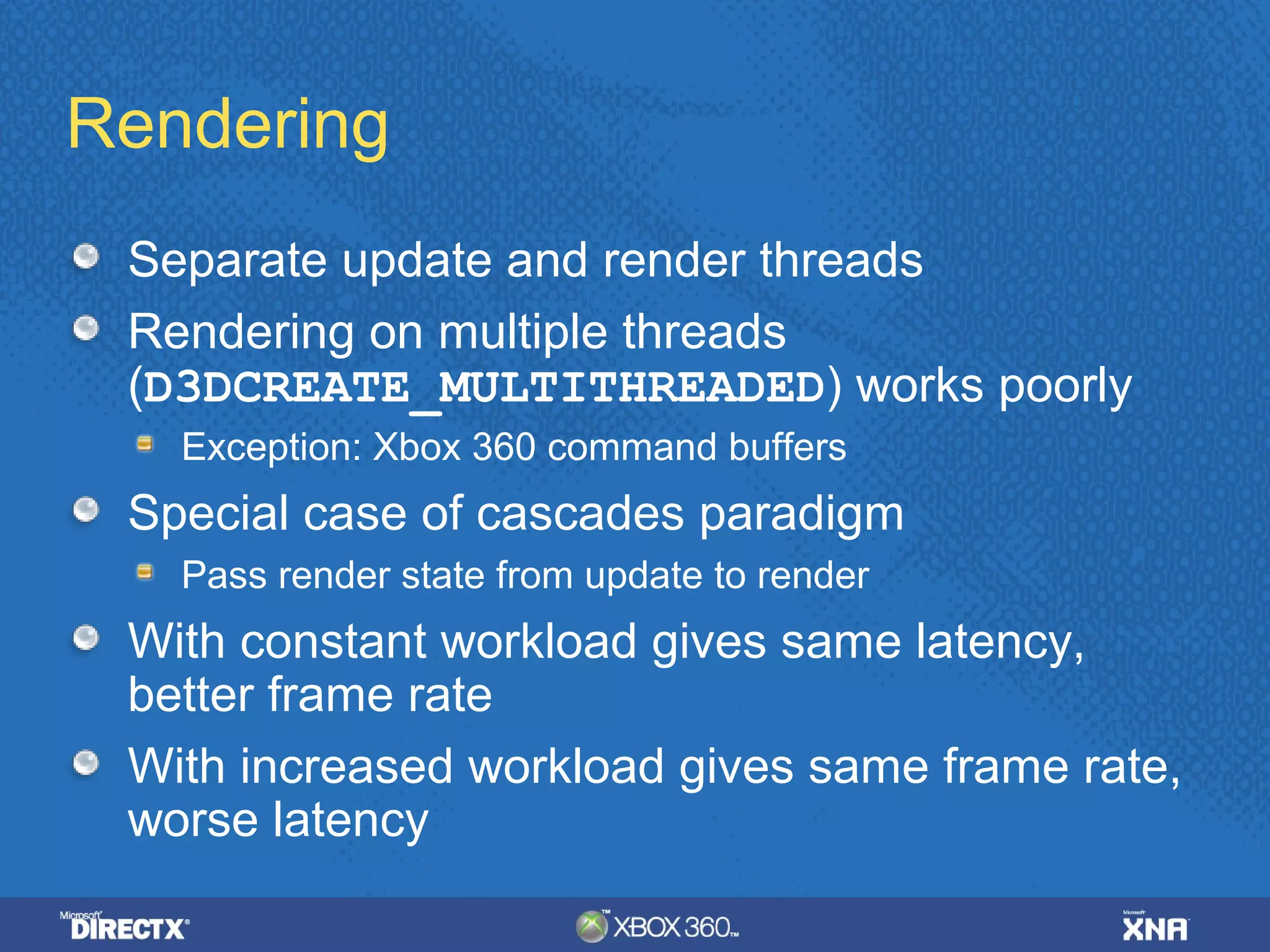

- 9. Rendering Separate update and render threads Rendering on multiple threads (D3DCREATE_MULTITHREADED) works poorly Exception: Xbox 360 command buffers Special case of cascades paradigm Pass render state from update to render With constant workload gives same latency, better frame rate With increased workload gives same frame rate, worse latency

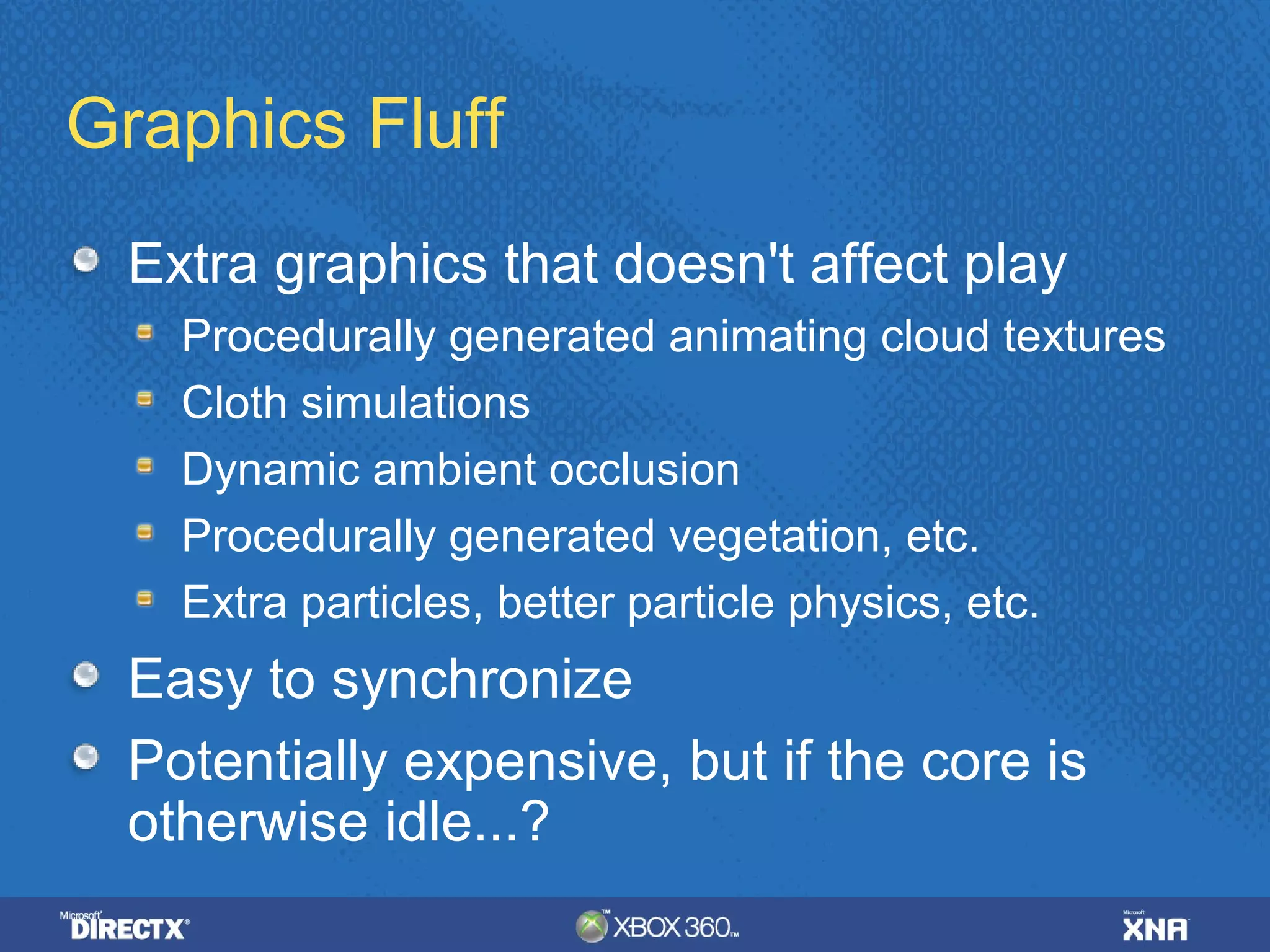

- 10. Graphics Fluff Extra graphics that doesn't affect play Procedurally generated animating cloud textures Cloth simulations Dynamic ambient occlusion Procedurally generated vegetation, etc. Extra particles, better particle physics, etc. Easy to synchronize Potentially expensive, but if the core is otherwise idle...?

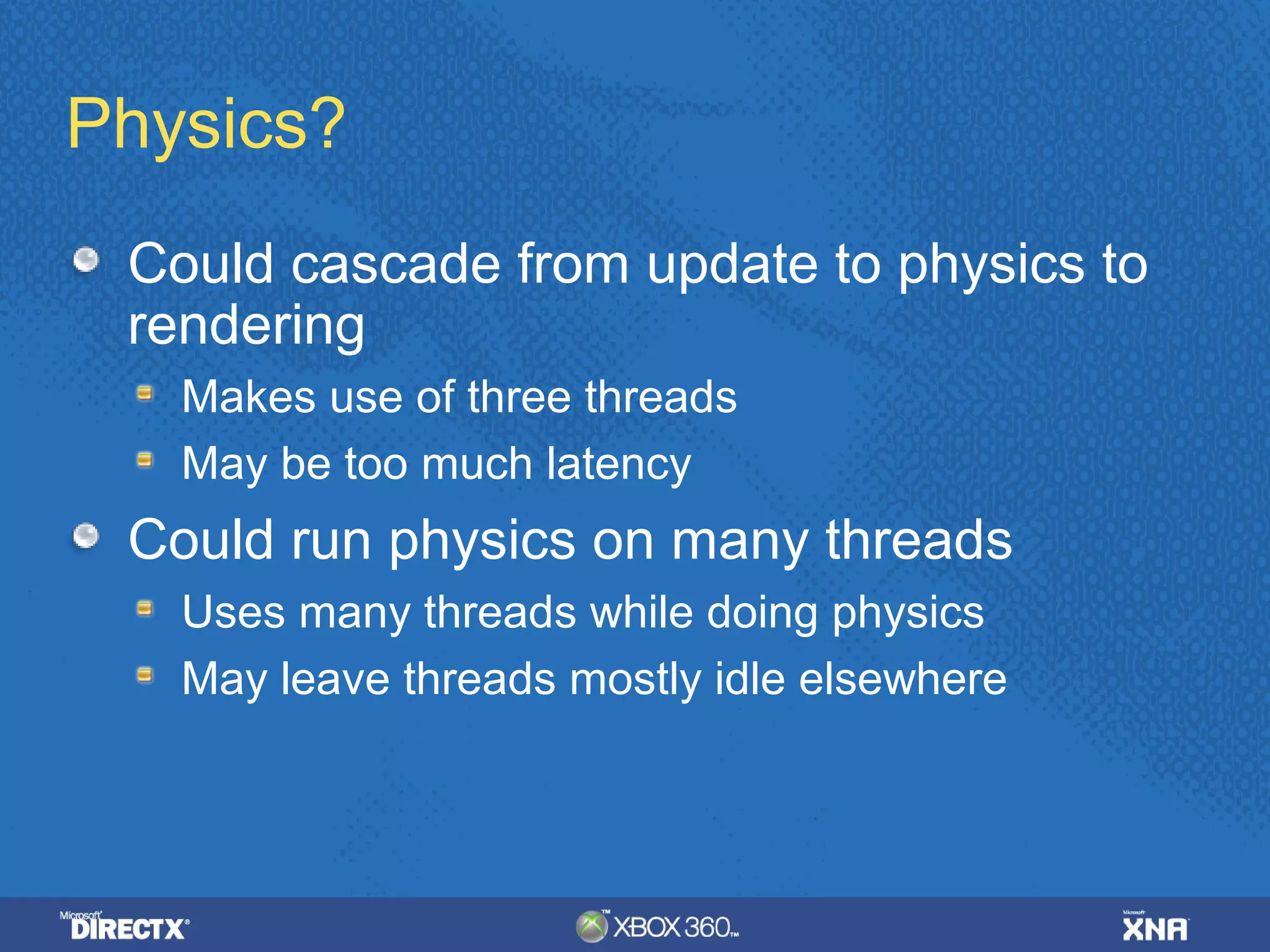

- 11. Physics? Could cascade from update to physics to rendering Makes use of three threads May be too much latency Could run physics on many threads Uses many threads while doing physics May leave threads mostly idle elsewhere

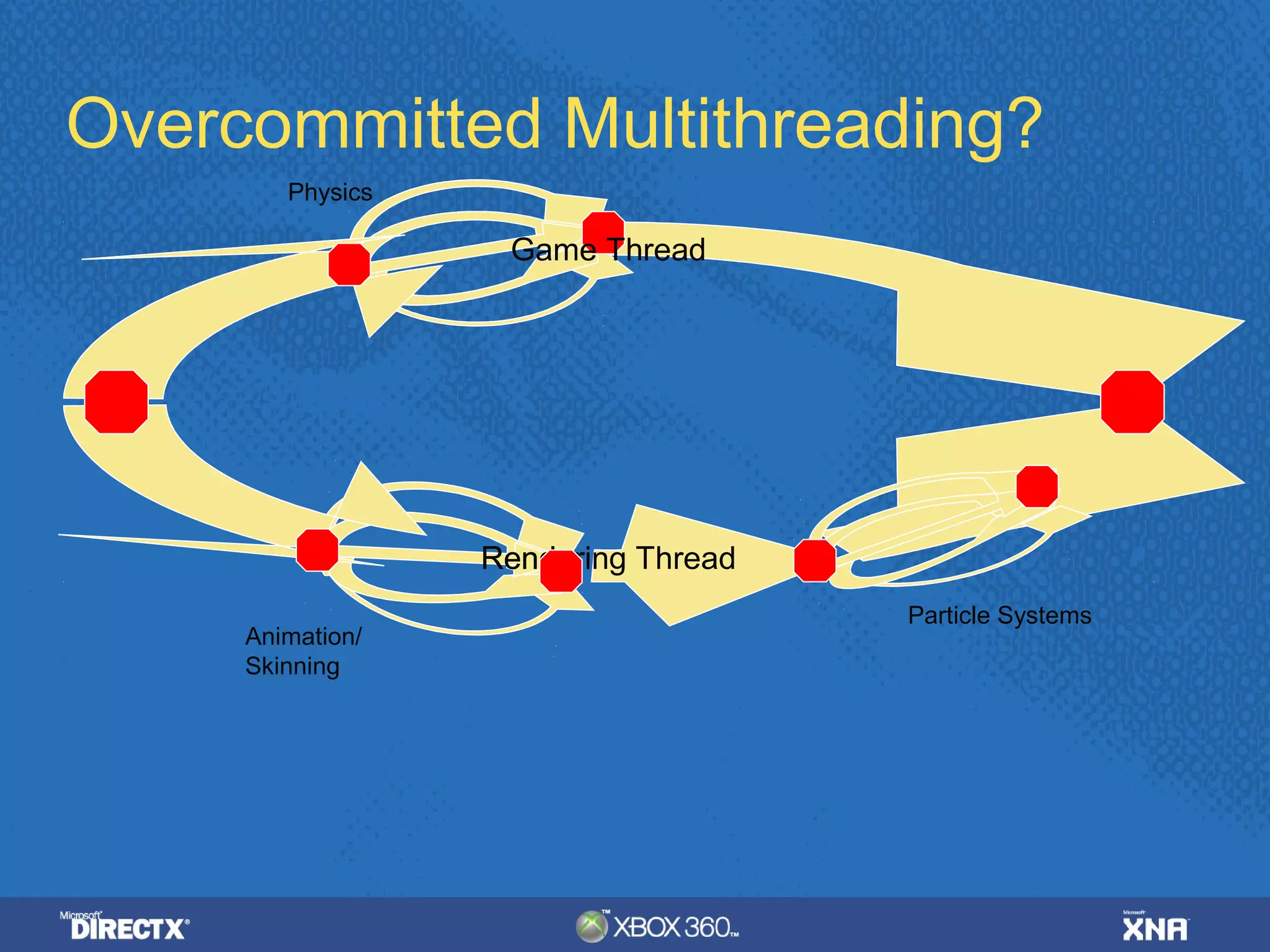

- 12. Overcommitted Multithreading? RReennddeerriinngg TThhrreeaadd Physics Rendering Thread Animation/ Skinning Particle Systems Game Thread

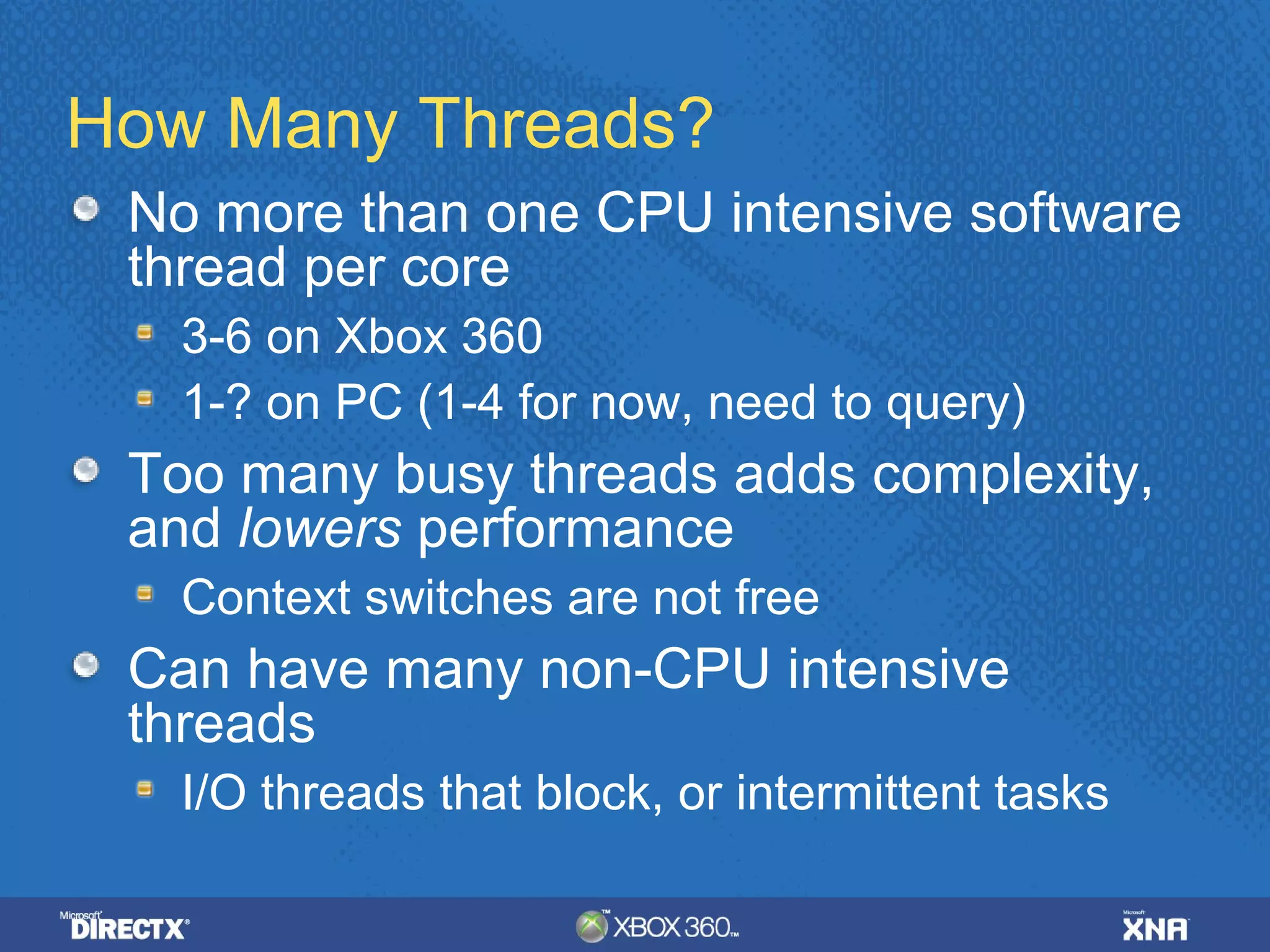

- 13. How Many Threads? No more than one CPU intensive software thread per core 3-6 on Xbox 360 1-? on PC (1-4 for now, need to query) Too many busy threads adds complexity, and lowers performance Context switches are not free Can have many non-CPU intensive threads I/O threads that block, or intermittent tasks

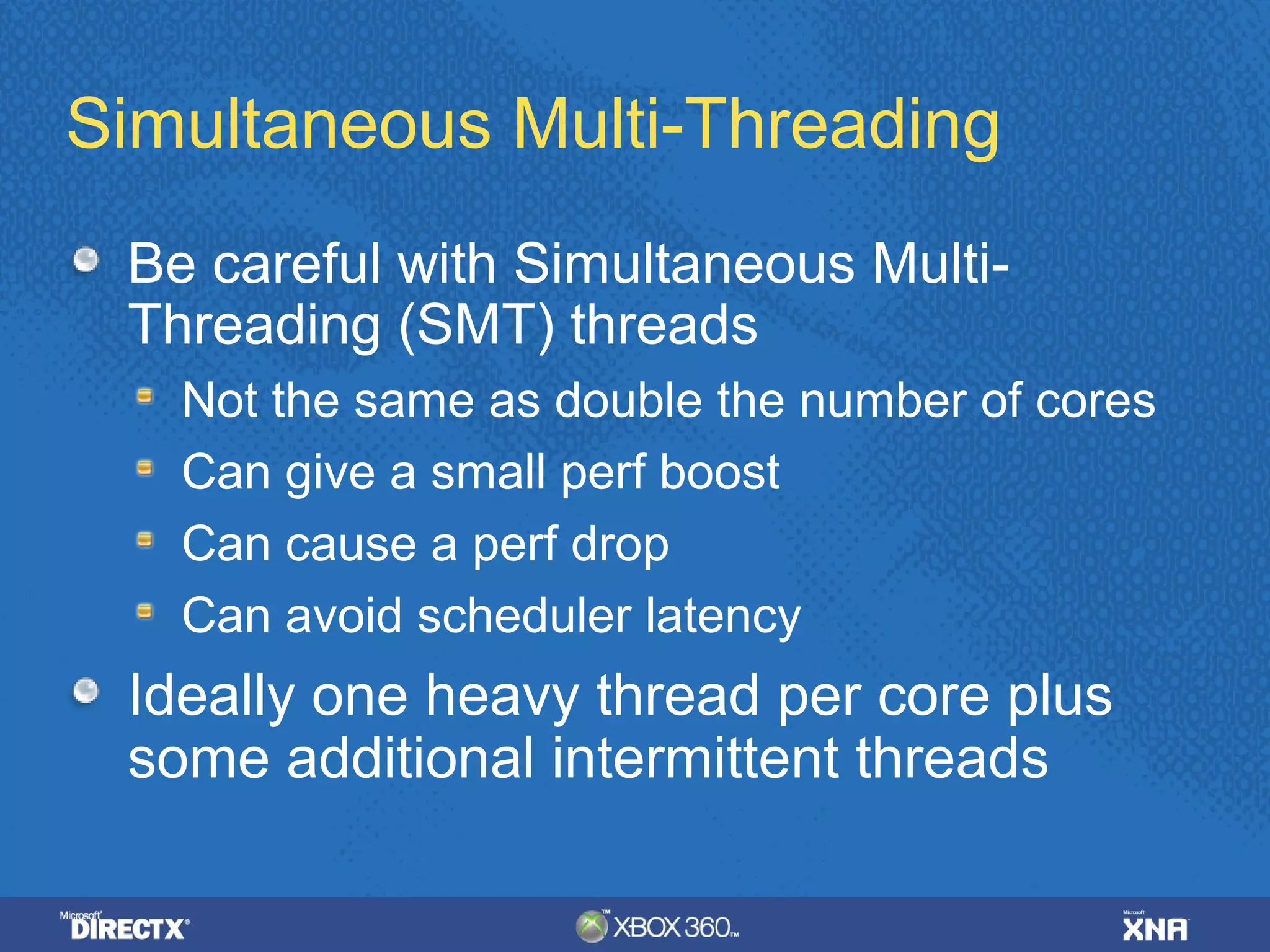

- 14. Simultaneous Multi-Threading Be careful with Simultaneous Multi- Threading (SMT) threads Not the same as double the number of cores Can give a small perf boost Can cause a perf drop Can avoid scheduler latency Ideally one heavy thread per core plus some additional intermittent threads

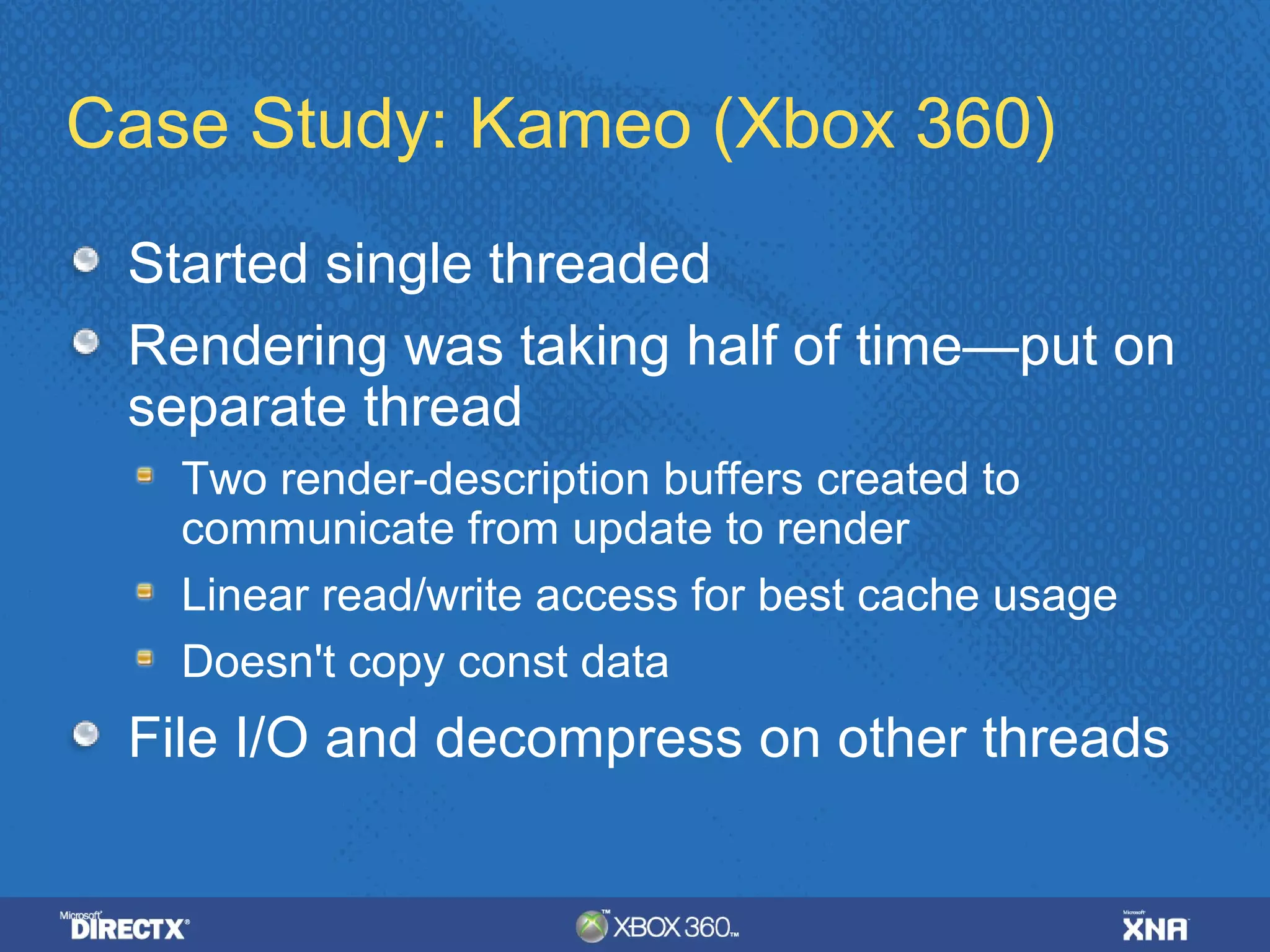

- 15. Case Study: Kameo (Xbox 360) Started single threaded Rendering was taking half of time—put on separate thread Two render-description buffers created to communicate from update to render Linear read/write access for best cache usage Doesn't copy const data File I/O and decompress on other threads

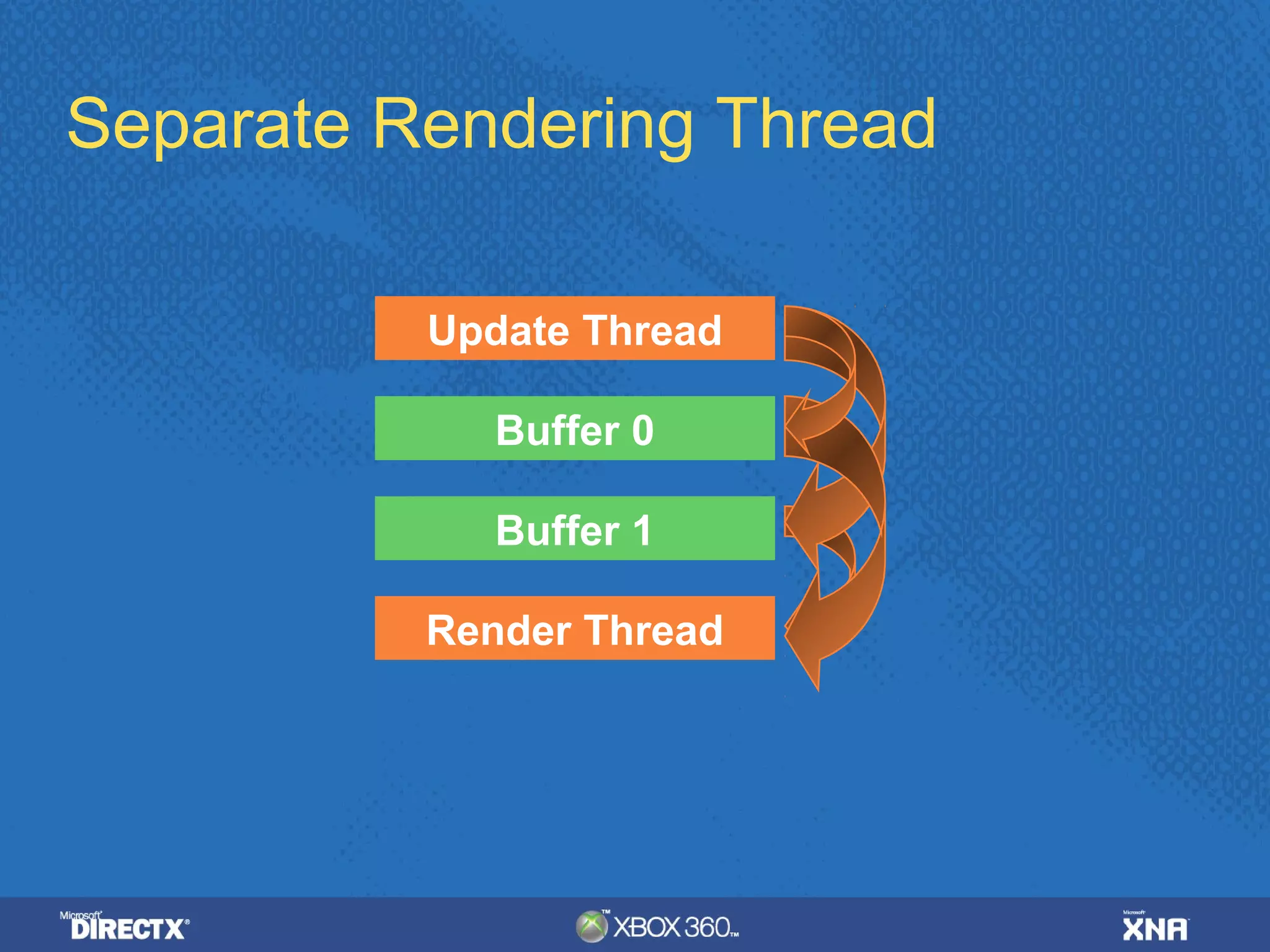

- 16. Separate Rendering Thread Update Thread Buffer 0 Buffer 1 Render Thread

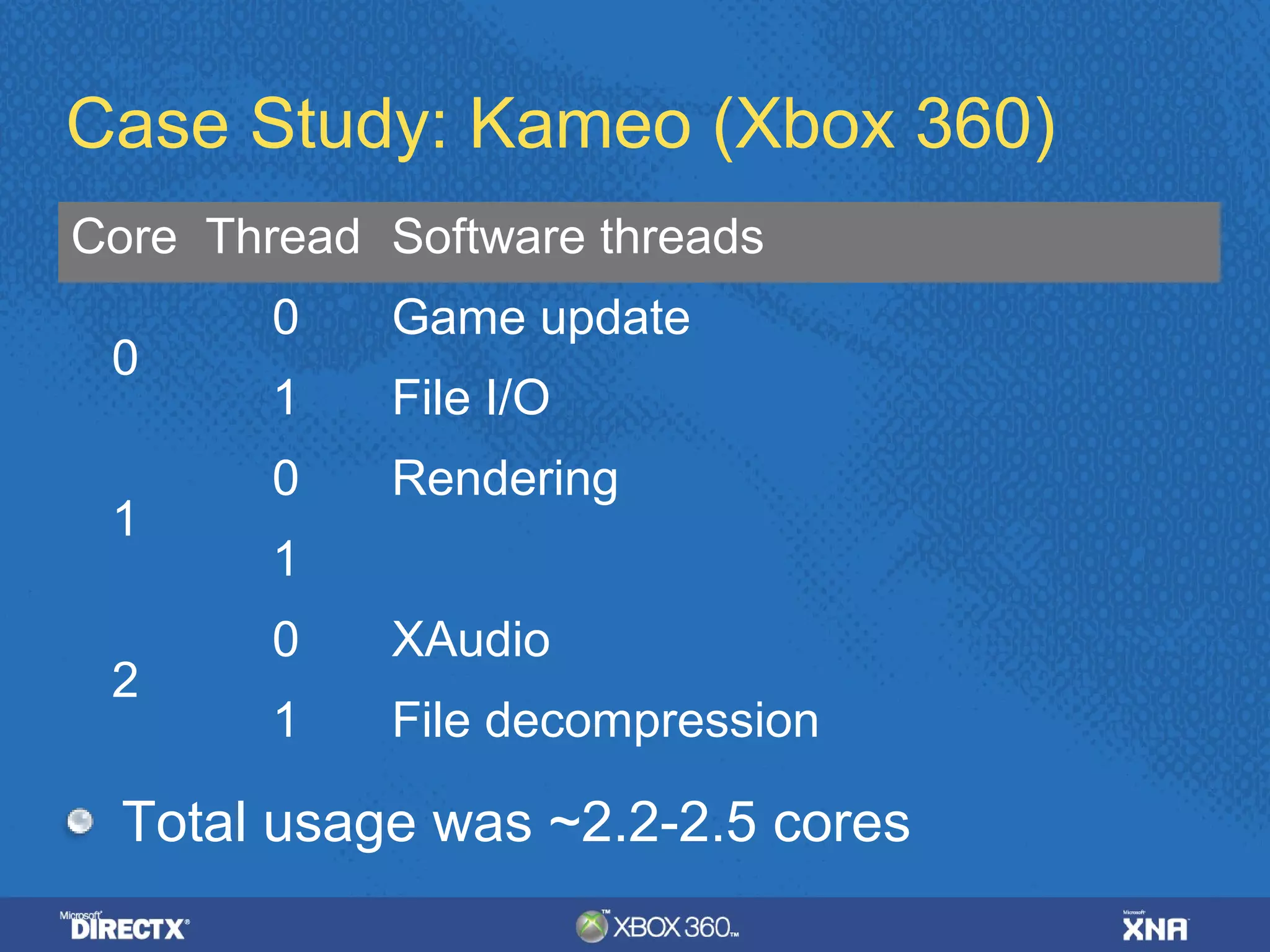

- 17. Case Study: Kameo (Xbox 360) Core Thread Software threads 0 0 Game update 1 File I/O 1 0 Rendering 1 2 0 XAudio 1 File decompression Total usage was ~2.2-2.5 cores

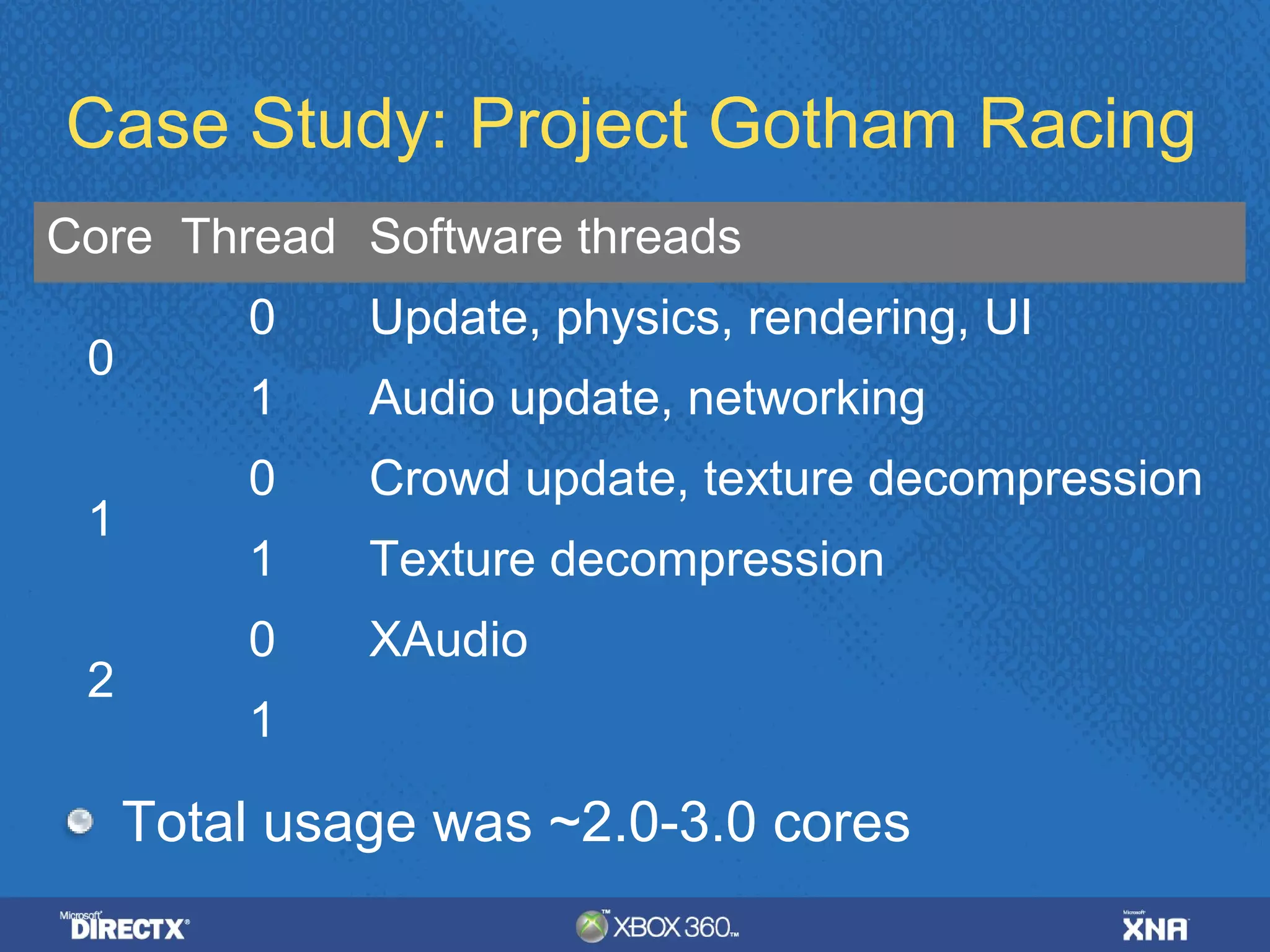

- 18. Case Study: Project Gotham Racing Core Thread Software threads 0 0 Update, physics, rendering, UI 1 Audio update, networking 1 0 Crowd update, texture decompression 1 Texture decompression 2 0 XAudio 1 Total usage was ~2.0-3.0 cores

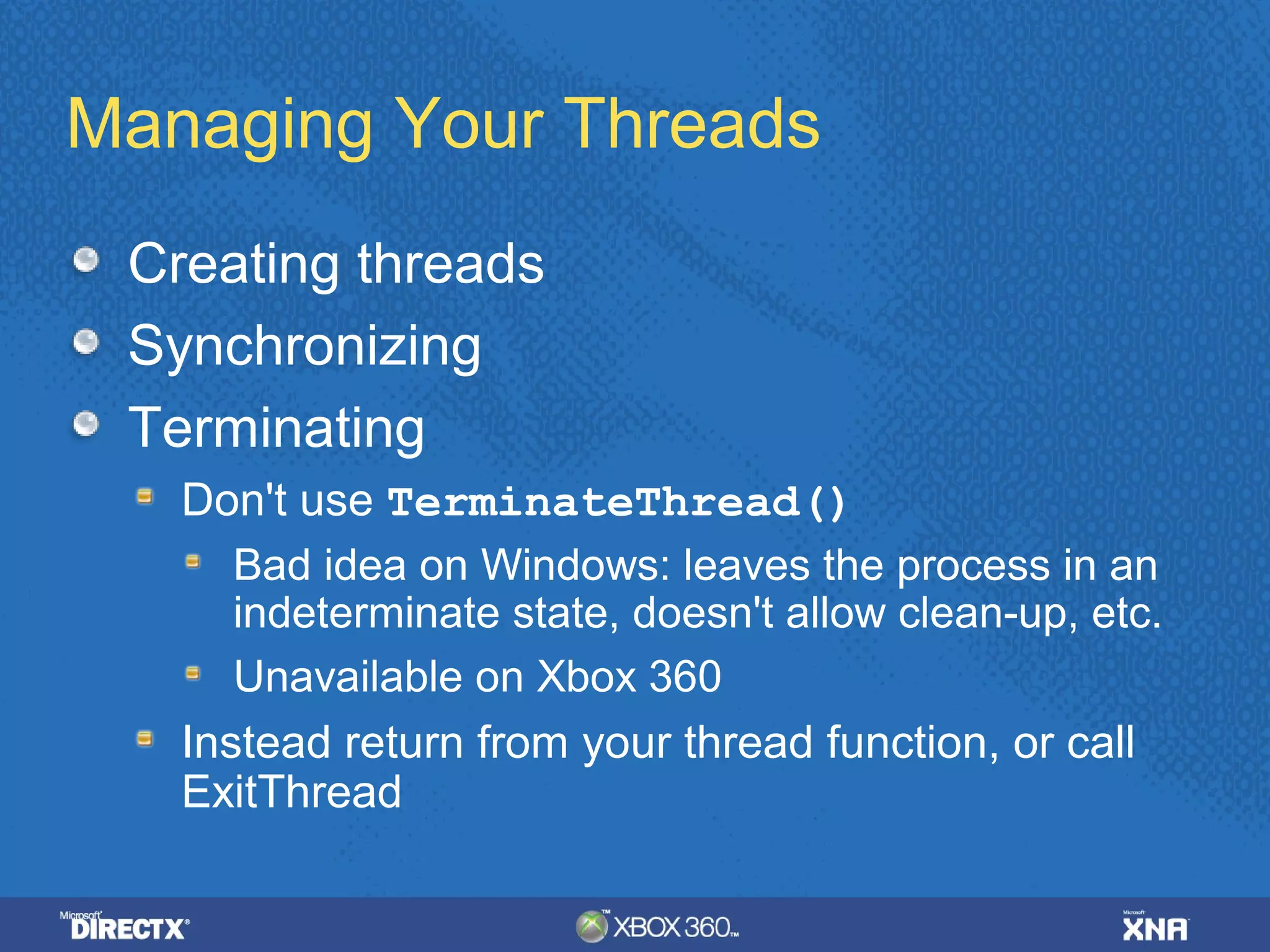

- 19. Managing Your Threads Creating threads Synchronizing Terminating Don't use TerminateThread() Bad idea on Windows: leaves the process in an indeterminate state, doesn't allow clean-up, etc. Unavailable on Xbox 360 Instead return from your thread function, or call ExitThread

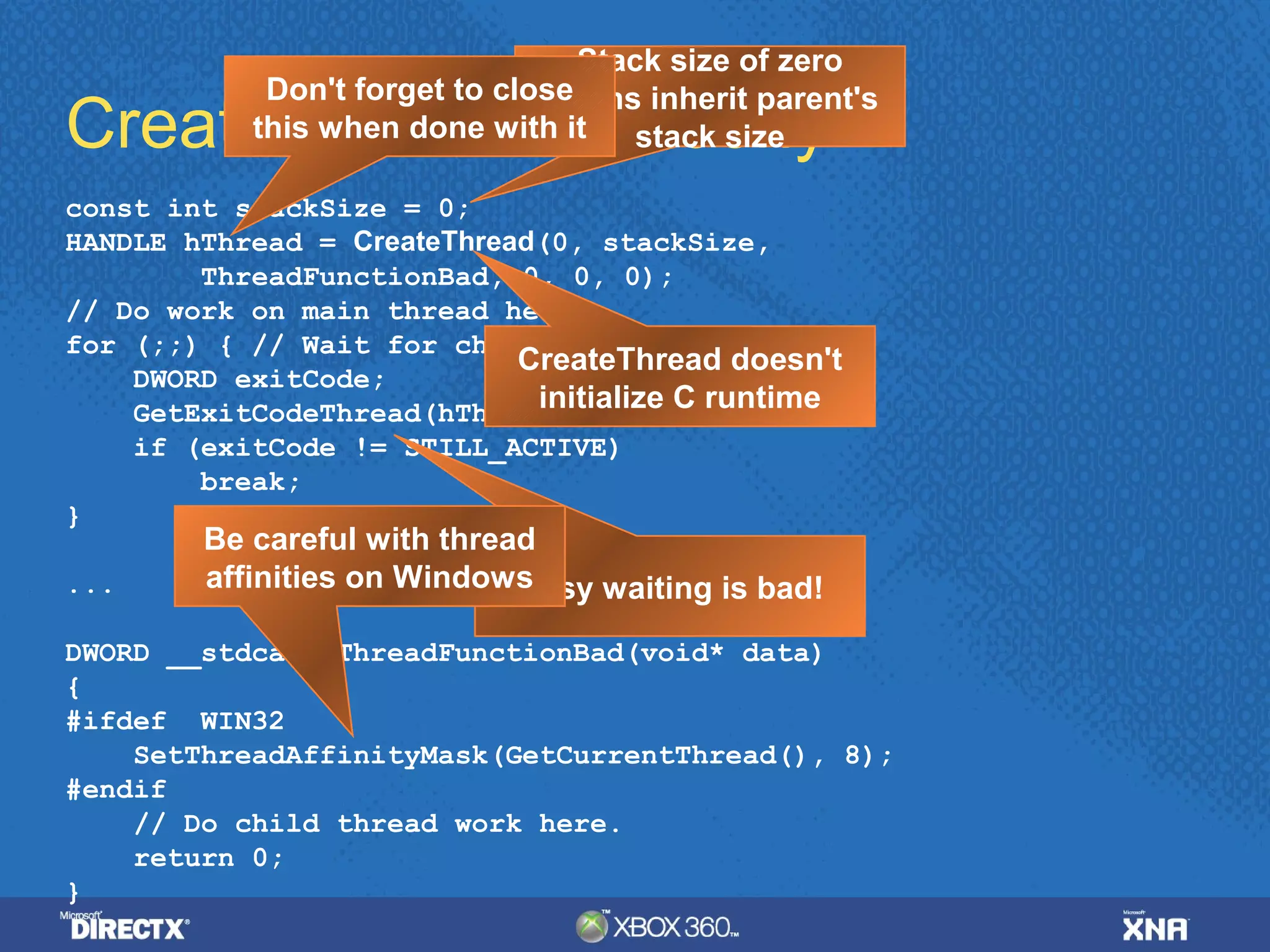

- 20. Stack size of zero means inherit parent's Don't forget to close this when done with it Creating Threads Poorly stack size const int stackSize = 0; HANDLE hThread = CreateThread(0, stackSize, ThreadFunctionBad, 0, 0, 0); // Do work on main thread here. for (;;) { // Wait for child thread to complete DWORD exitCode; GetExitCodeThread(hThread, &exitCode); if (exitCode != STILL_ACTIVE) break; } ... Be careful with thread affinities on Windows DWORD __stdcall ThreadFunctionBad(void* data) { #ifdef WIN32 SetThreadAffinityMask(GetCurrentThread(), 8); #endif // Do child thread work here. return 0; } CreateThread doesn't initialize C runtime Busy waiting is bad!

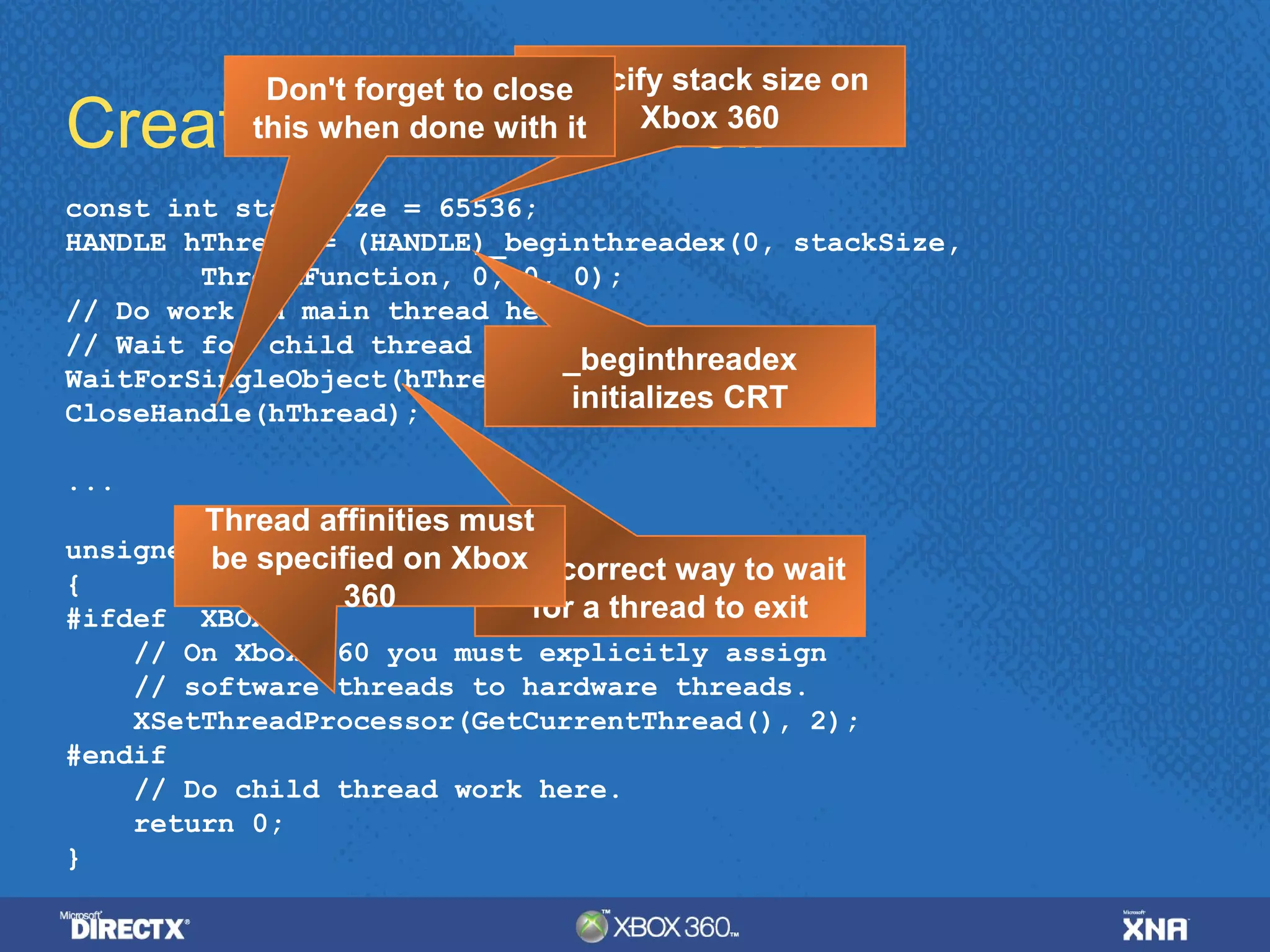

- 21. Specify stack size on Don't forget to close this when done with it Creating Threads Well const int stackSize = 65536; HANDLE hThread = (HANDLE)_beginthreadex(0, stackSize, ThreadFunction, 0, 0, 0); Xbox 360 // Do work on main thread here. // Wait for child thread to complete WaitForSingleObject(hThread, INFINITE); CloseHandle(hThread); ... Thread affinities must be specified on Xbox unsigned __stdcall ThreadFunction(void* data) { #ifdef XBOX // On Xbox 360 you must explicitly assign // software threads to hardware threads. XSetThreadProcessor(GetCurrentThread(), 2); #endif // Do child thread work here. return 0; } _beginthreadex initializes CRT The correct way to wait for a thread to exit 360

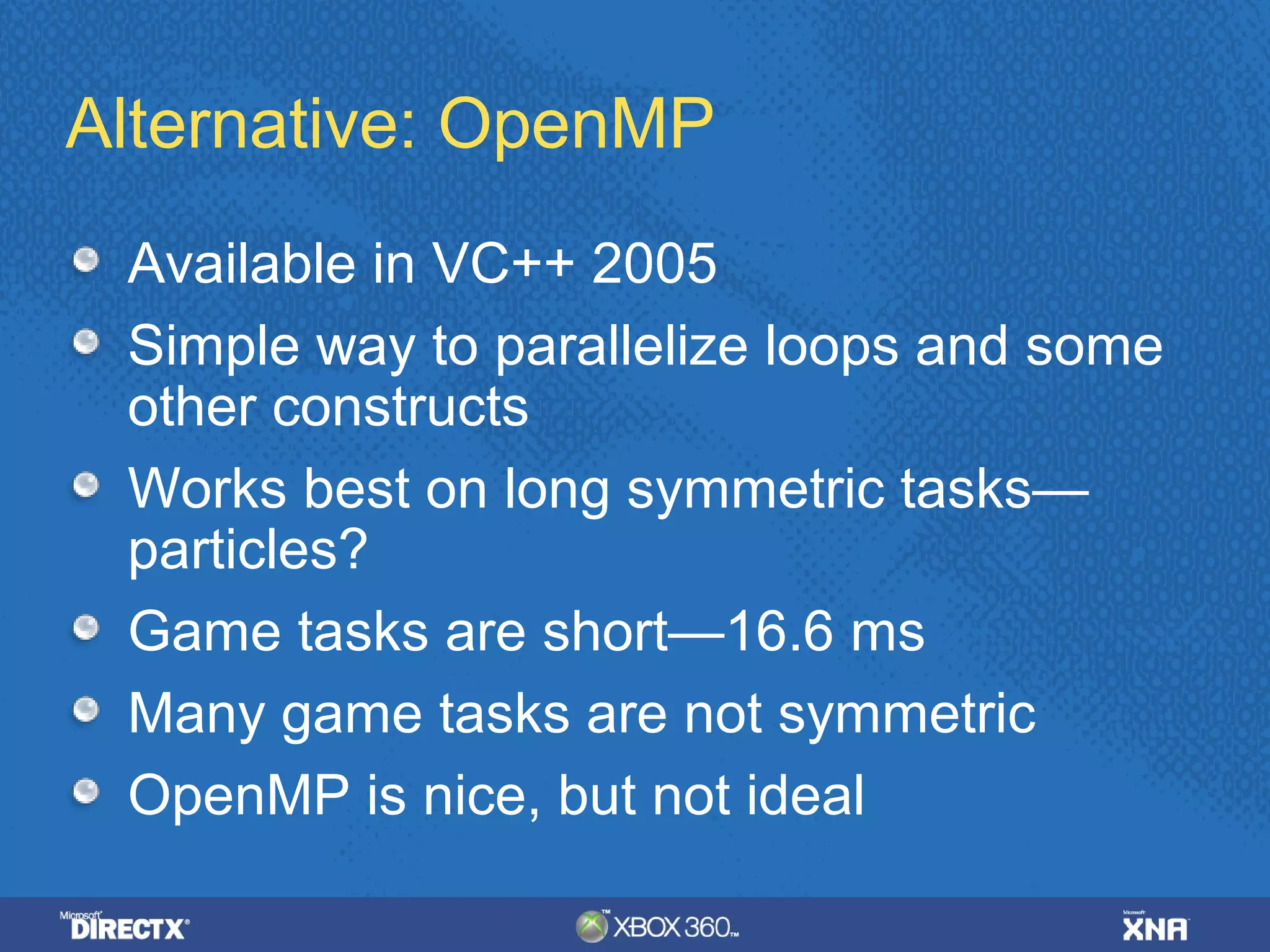

- 22. Alternative: OpenMP Available in VC++ 2005 Simple way to parallelize loops and some other constructs Works best on long symmetric tasks— particles? Game tasks are short—16.6 ms Many game tasks are not symmetric OpenMP is nice, but not ideal

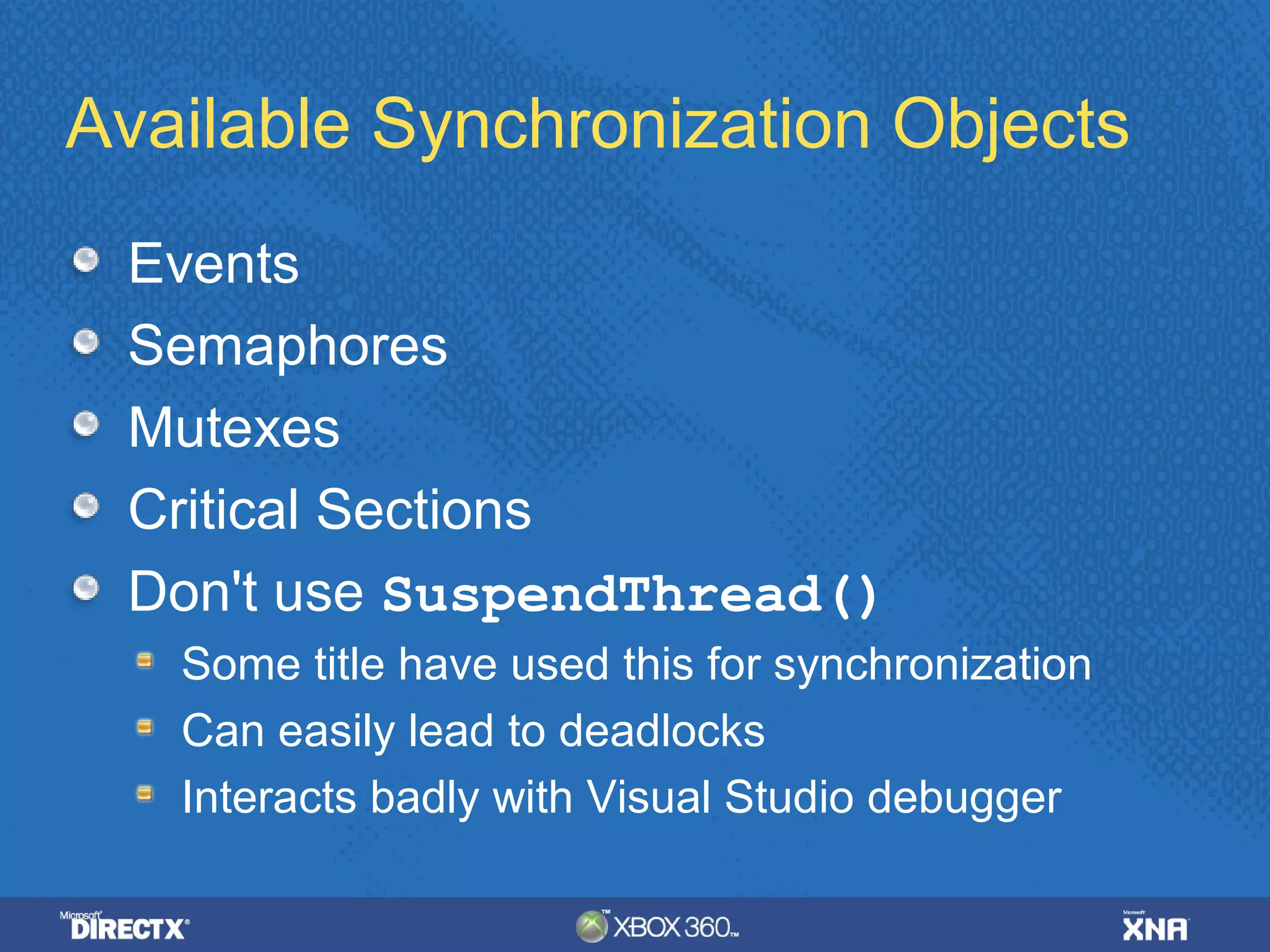

- 23. Available Synchronization Objects Events Semaphores Mutexes Critical Sections Don't use SuspendThread() Some title have used this for synchronization Can easily lead to deadlocks Interacts badly with Visual Studio debugger

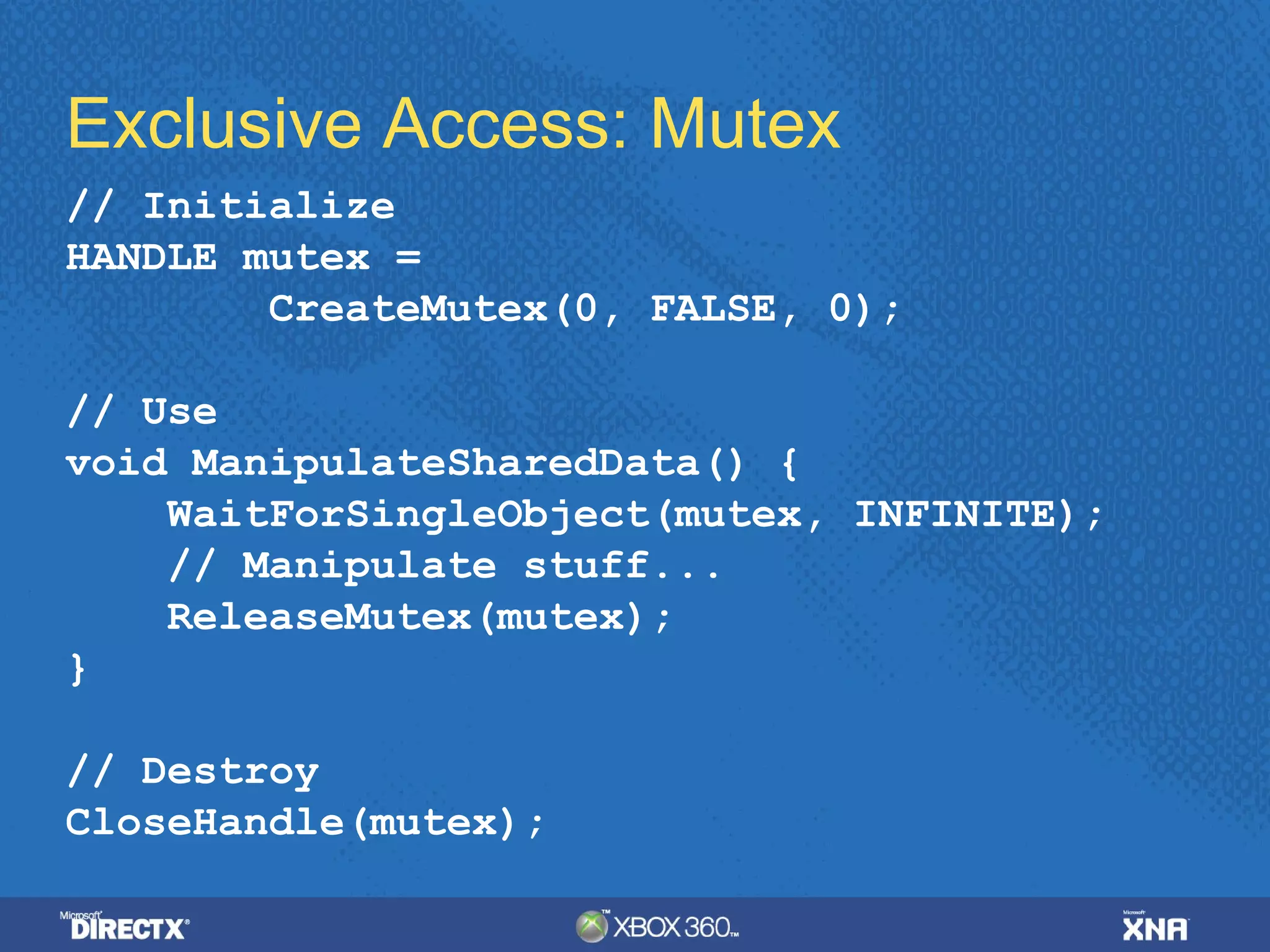

- 24. Exclusive Access: Mutex // Initialize HANDLE mutex = CreateMutex(0, FALSE, 0); // Use void ManipulateSharedData() { WaitForSingleObject(mutex, INFINITE); // Manipulate stuff... ReleaseMutex(mutex); } // Destroy CloseHandle(mutex);

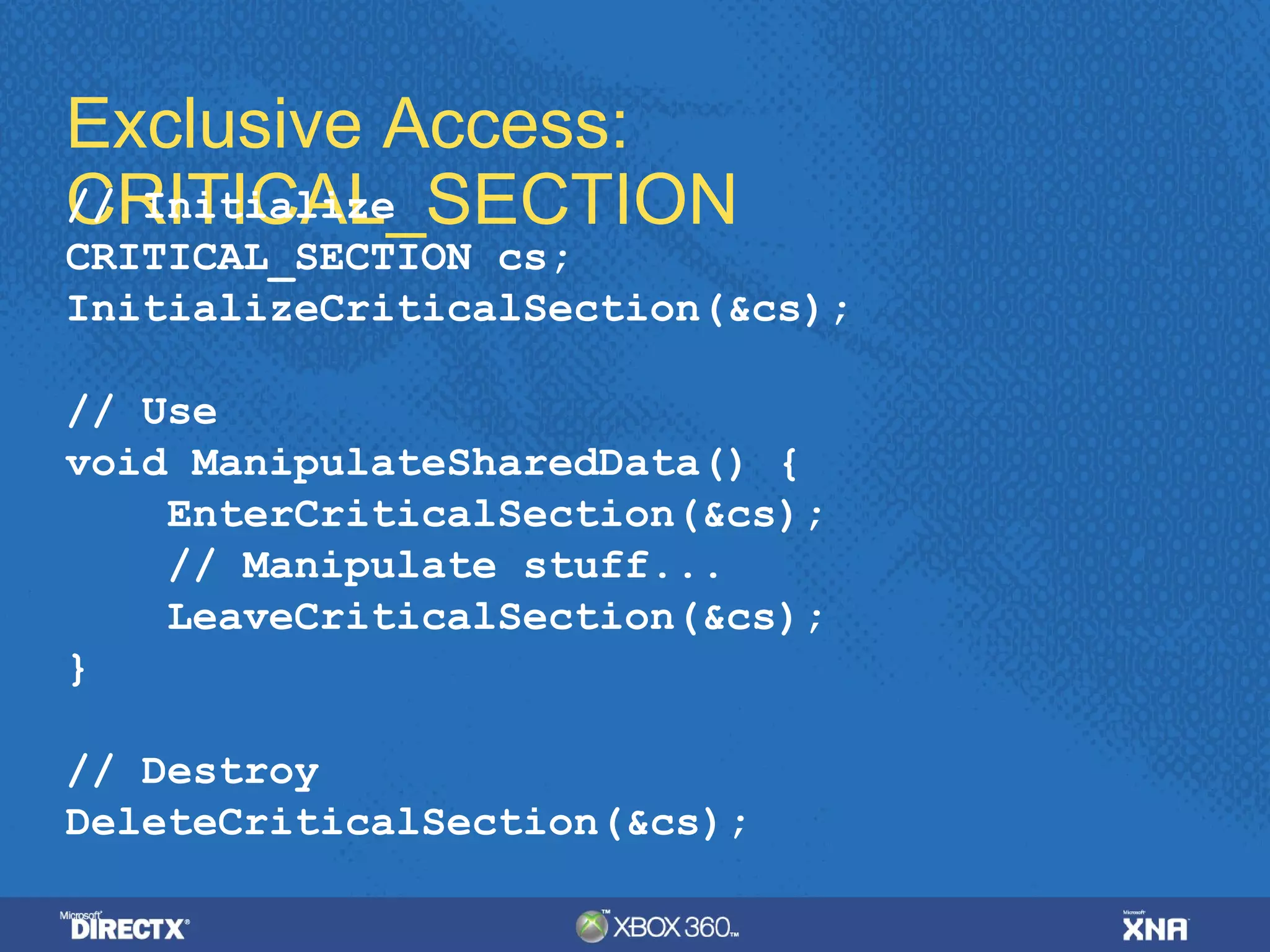

- 25. Exclusive Access: /C/R IInTitIiCalAizLe_SECTION CRITICAL_SECTION cs; InitializeCriticalSection(&cs); // Use void ManipulateSharedData() { EnterCriticalSection(&cs); // Manipulate stuff... LeaveCriticalSection(&cs); } // Destroy DeleteCriticalSection(&cs);

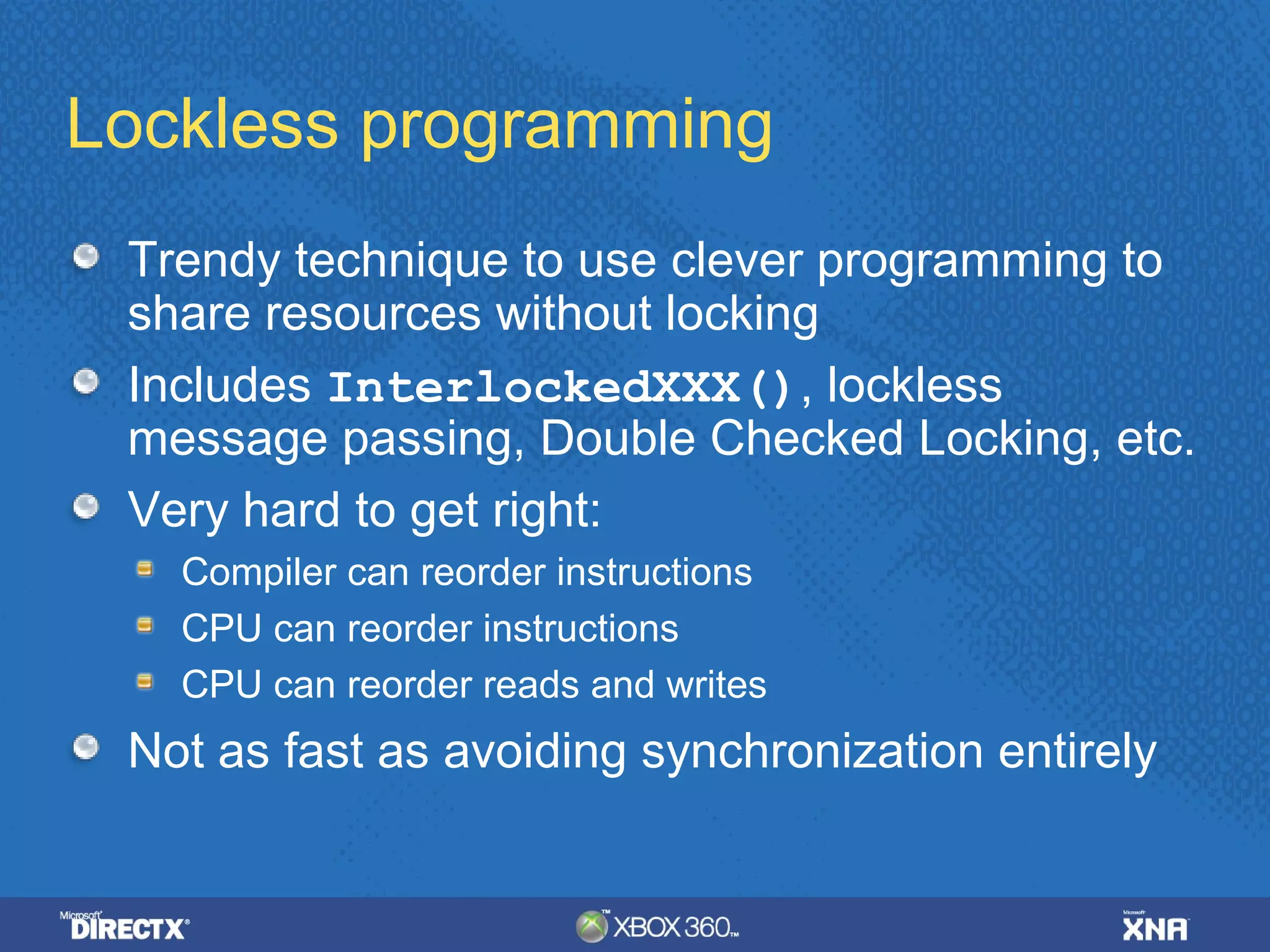

- 26. Lockless programming Trendy technique to use clever programming to share resources without locking Includes InterlockedXXX(), lockless message passing, Double Checked Locking, etc. Very hard to get right: Compiler can reorder instructions CPU can reorder instructions CPU can reorder reads and writes Not as fast as avoiding synchronization entirely

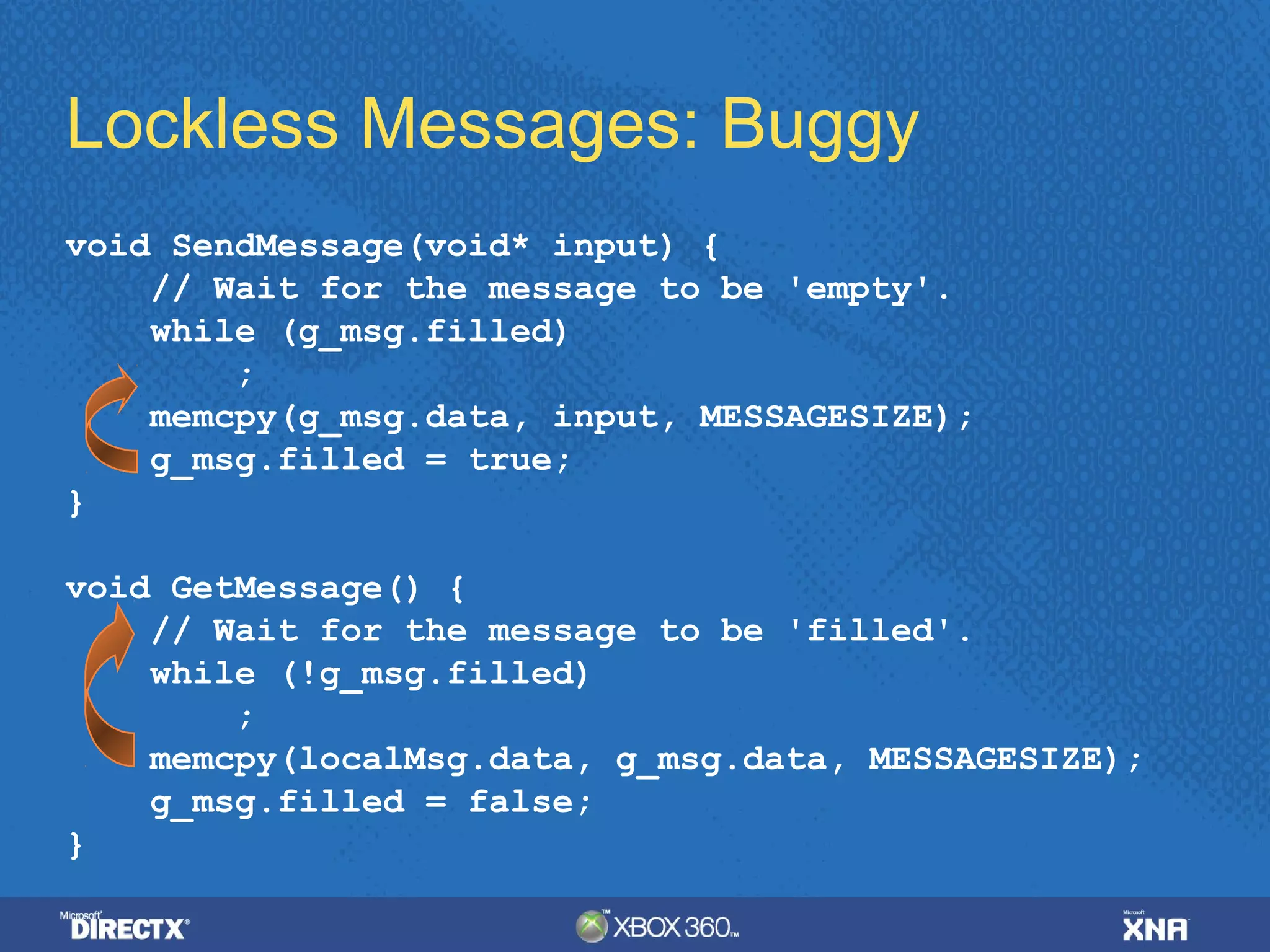

- 27. Lockless Messages: Buggy void SendMessage(void* input) { // Wait for the message to be 'empty'. while (g_msg.filled) ; memcpy(g_msg.data, input, MESSAGESIZE); g_msg.filled = true; } void GetMessage() { // Wait for the message to be 'filled'. while (!g_msg.filled) ; memcpy(localMsg.data, g_msg.data, MESSAGESIZE); g_msg.filled = false; }

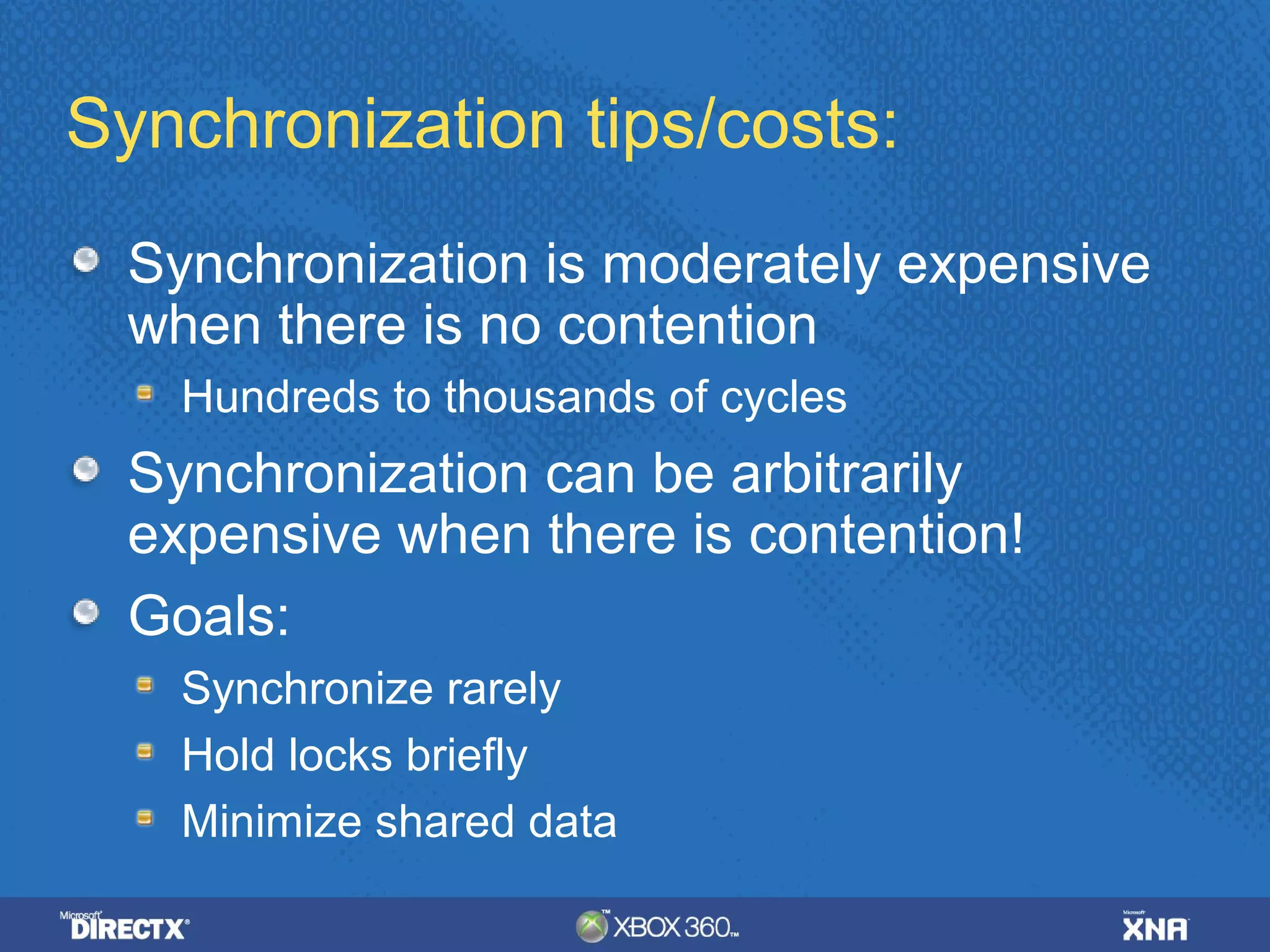

- 28. Synchronization tips/costs: Synchronization is moderately expensive when there is no contention Hundreds to thousands of cycles Synchronization can be arbitrarily expensive when there is contention! Goals: Synchronize rarely Hold locks briefly Minimize shared data

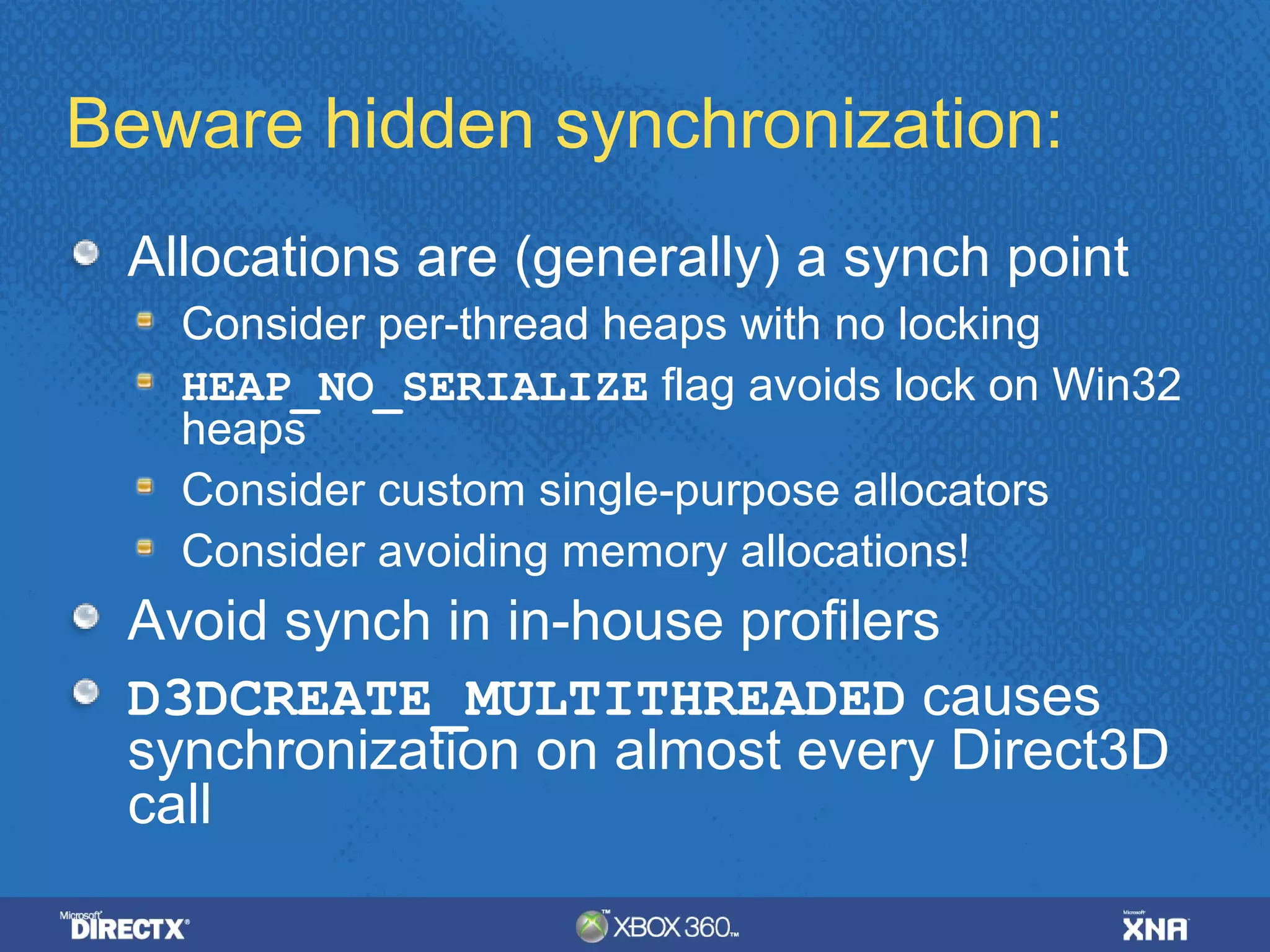

- 29. Beware hidden synchronization: Allocations are (generally) a synch point Consider per-thread heaps with no locking HEAP_NO_SERIALIZE flag avoids lock on Win32 heaps Consider custom single-purpose allocators Consider avoiding memory allocations! Avoid synch in in-house profilers D3DCREATE_MULTITHREADED causes synchronization on almost every Direct3D call

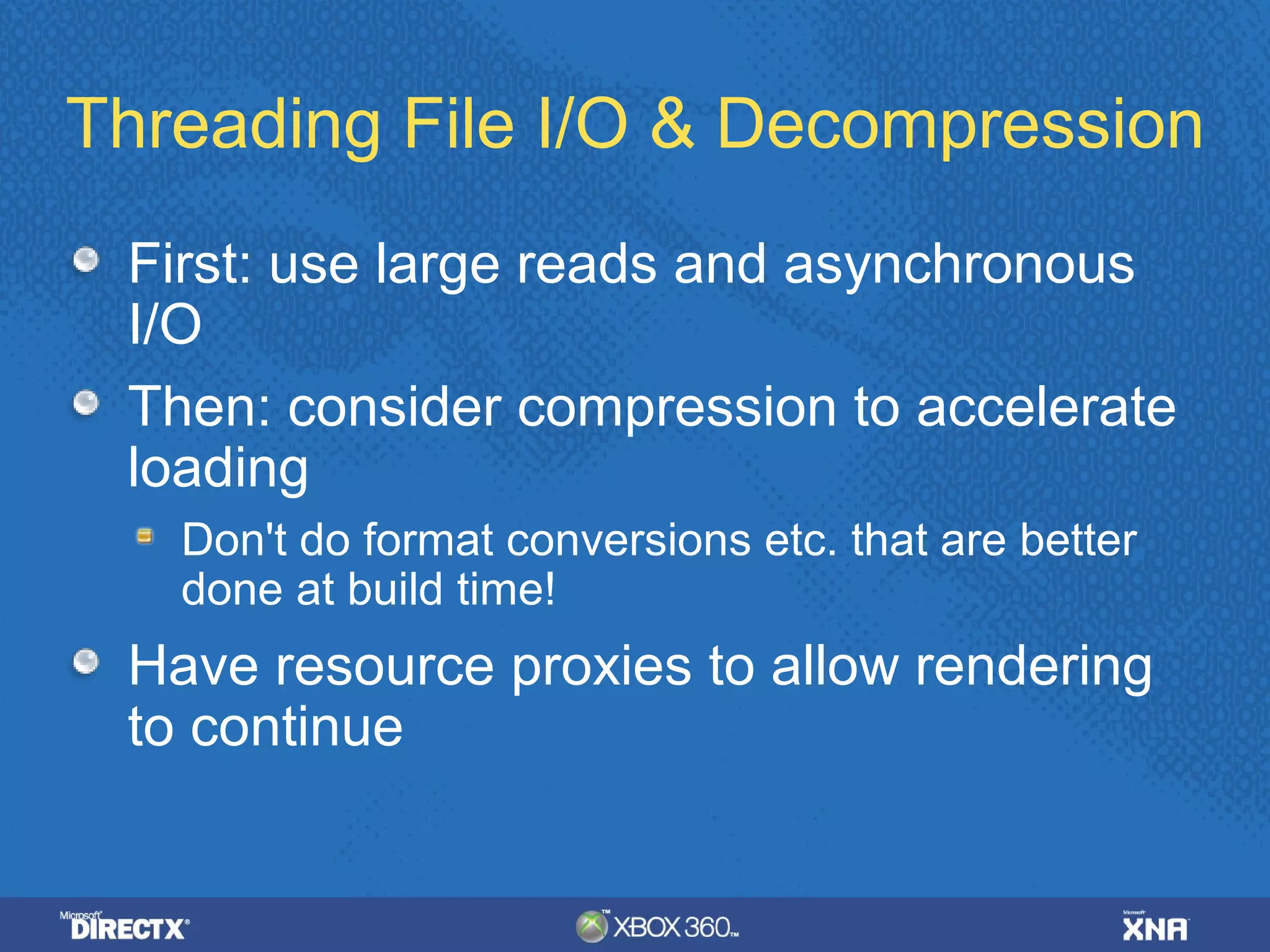

- 30. Threading File I/O & Decompression First: use large reads and asynchronous I/O Then: consider compression to accelerate loading Don't do format conversions etc. that are better done at build time! Have resource proxies to allow rendering to continue

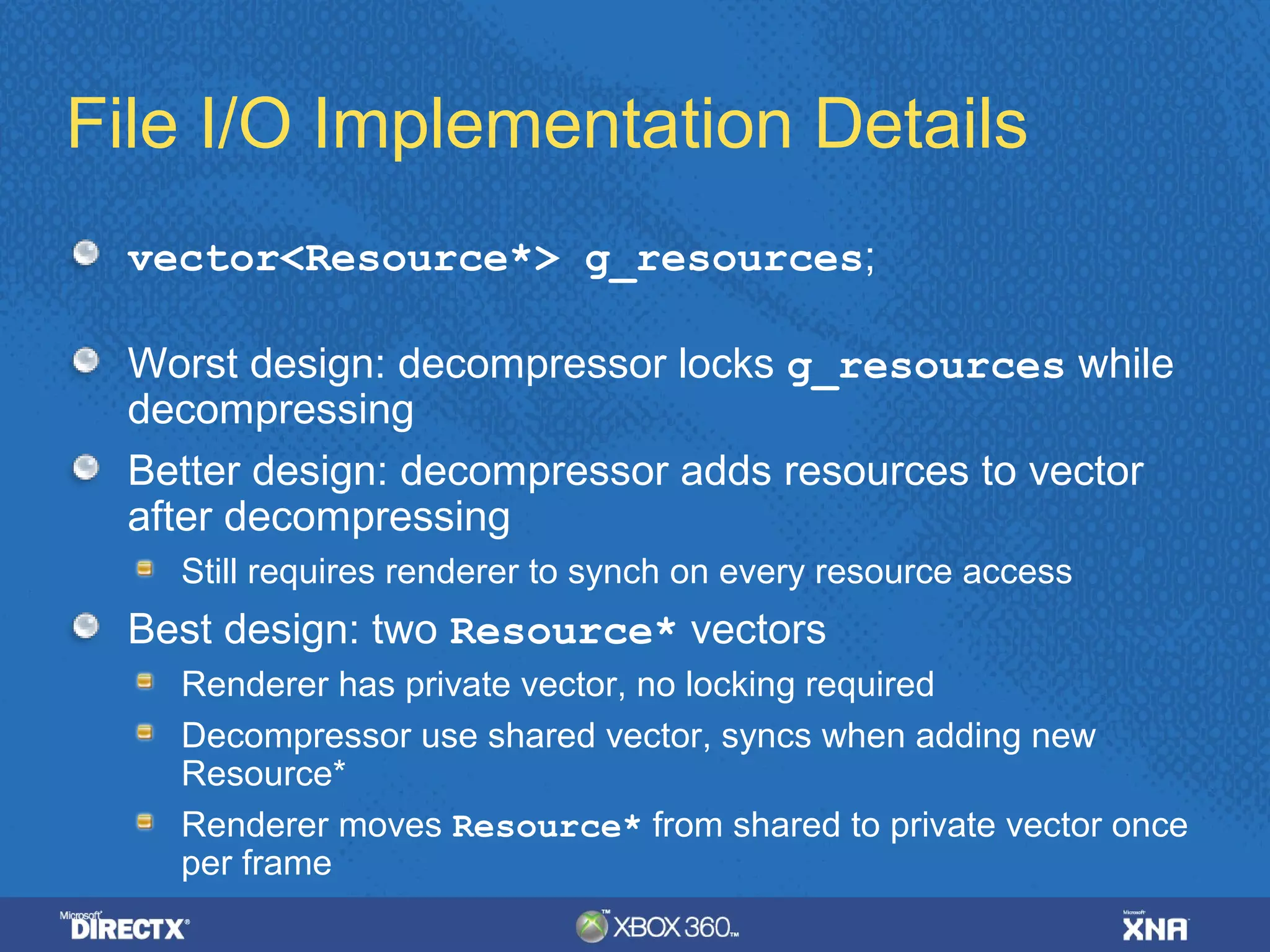

- 31. File I/O Implementation Details vector<Resource*> g_resources; Worst design: decompressor locks g_resources while decompressing Better design: decompressor adds resources to vector after decompressing Still requires renderer to synch on every resource access Best design: two Resource* vectors Renderer has private vector, no locking required Decompressor use shared vector, syncs when adding new Resource* Renderer moves Resource* from shared to private vector once per frame

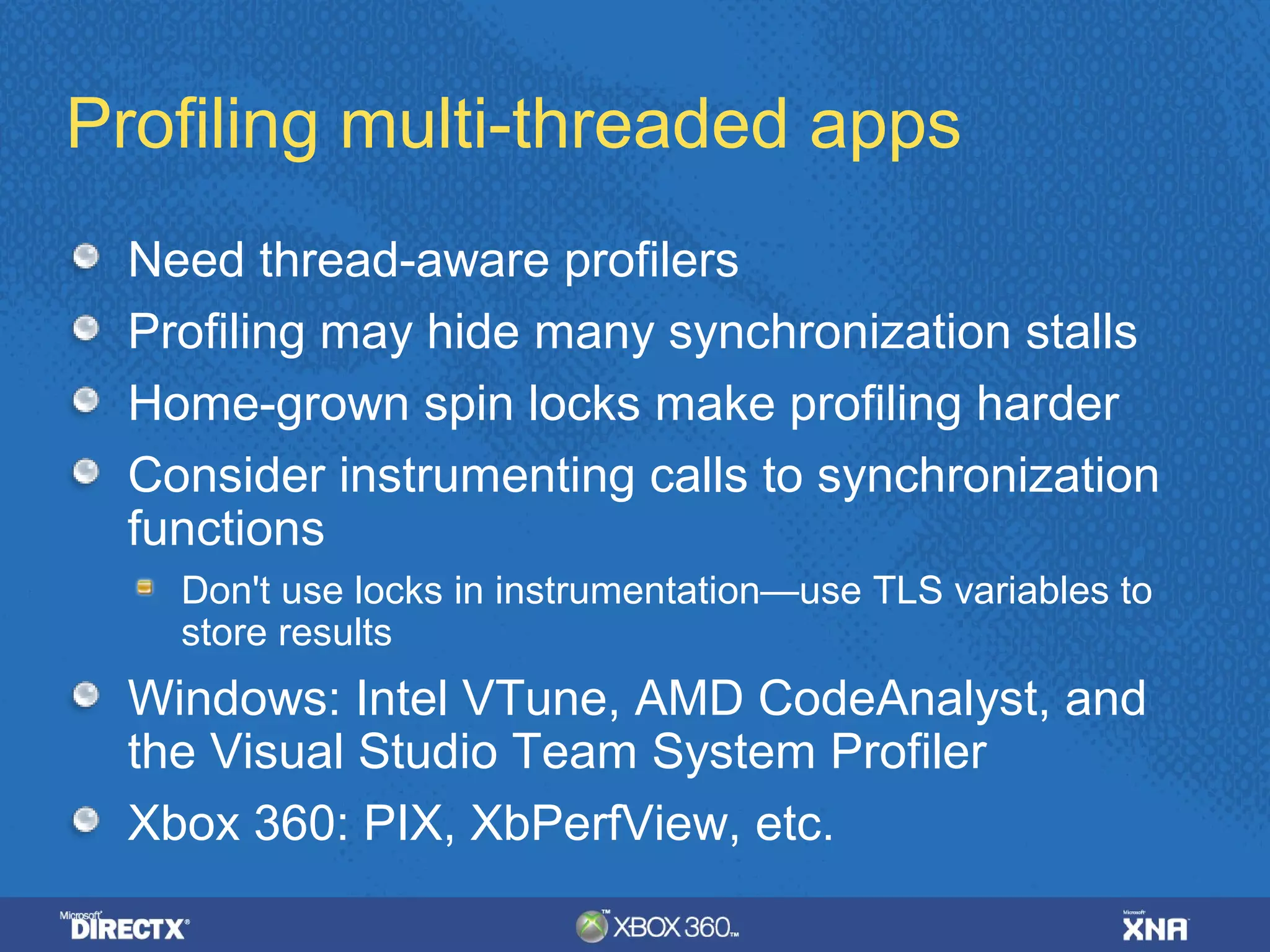

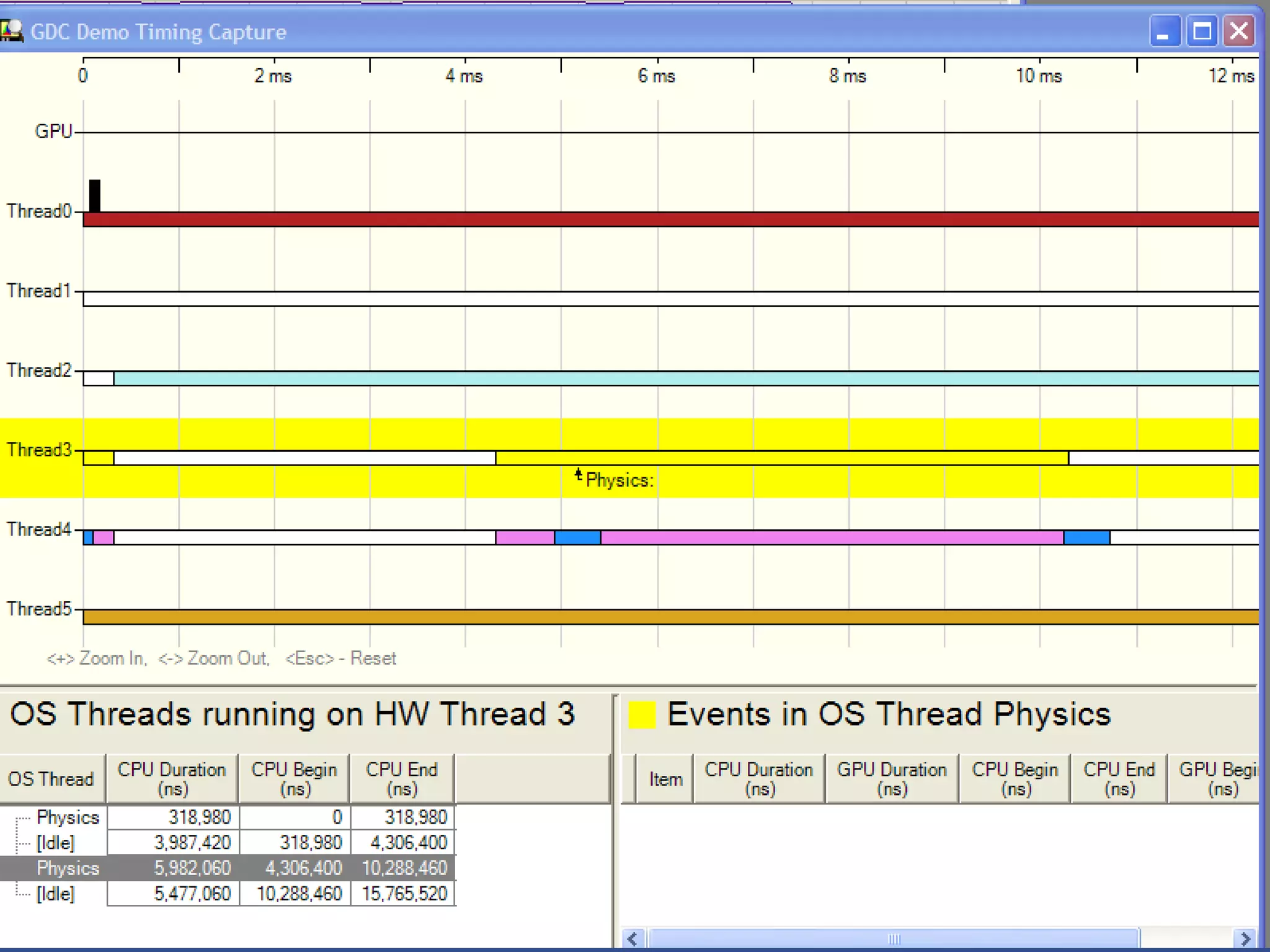

- 32. Profiling multi-threaded apps Need thread-aware profilers Profiling may hide many synchronization stalls Home-grown spin locks make profiling harder Consider instrumenting calls to synchronization functions Don't use locks in instrumentation—use TLS variables to store results Windows: Intel VTune, AMD CodeAnalyst, and the Visual Studio Team System Profiler Xbox 360: PIX, XbPerfView, etc.

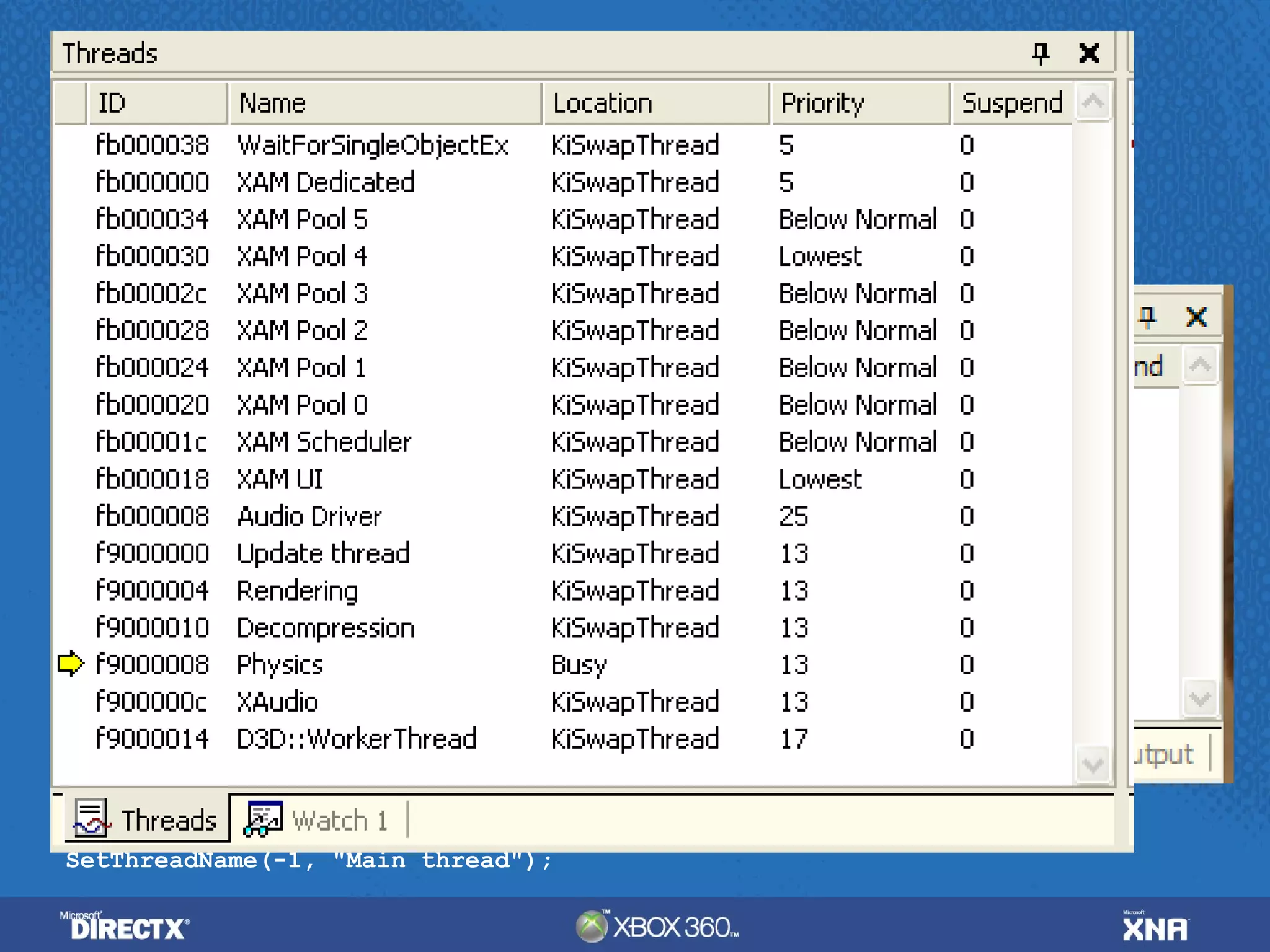

- 34. Naming Threads typedef struct tagTHREADNAME_INFO { DWORD dwType; // must be 0x1000 LPCSTR szName; // pointer to name (in user addr space) DWORD dwThreadID; // thread ID (-1=caller thread) DWORD dwFlags; // reserved for future use, must be zero } THREADNAME_INFO; void SetThreadName( DWORD dwThreadID, LPCSTR szThreadName) { THREADNAME_INFO info; info.dwType = 0x1000; info.szName = szThreadName; info.dwThreadID = dwThreadID; info.dwFlags = 0; __try { RaiseException( 0x406D1388, 0, sizeof(info)/sizeof(DWORD), (DWORD*)&info ); } __except(EXCEPTION_CONTINUE_EXECUTION) { } } SetThreadName(-1, "Main thread");

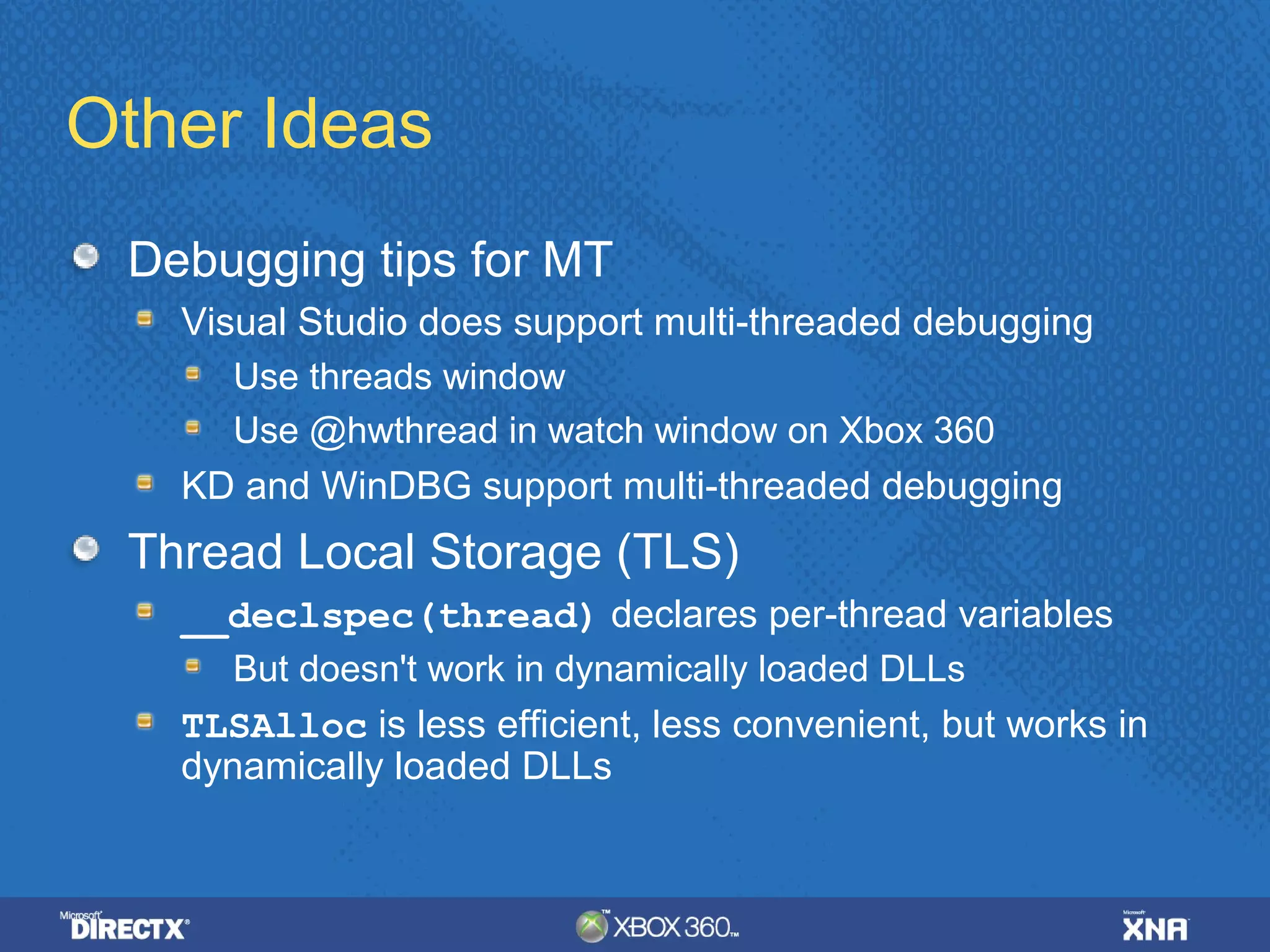

- 35. Other Ideas Debugging tips for MT Visual Studio does support multi-threaded debugging Use threads window Use @hwthread in watch window on Xbox 360 KD and WinDBG support multi-threaded debugging Thread Local Storage (TLS) __declspec(thread) declares per-thread variables But doesn't work in dynamically loaded DLLs TLSAlloc is less efficient, less convenient, but works in dynamically loaded DLLs

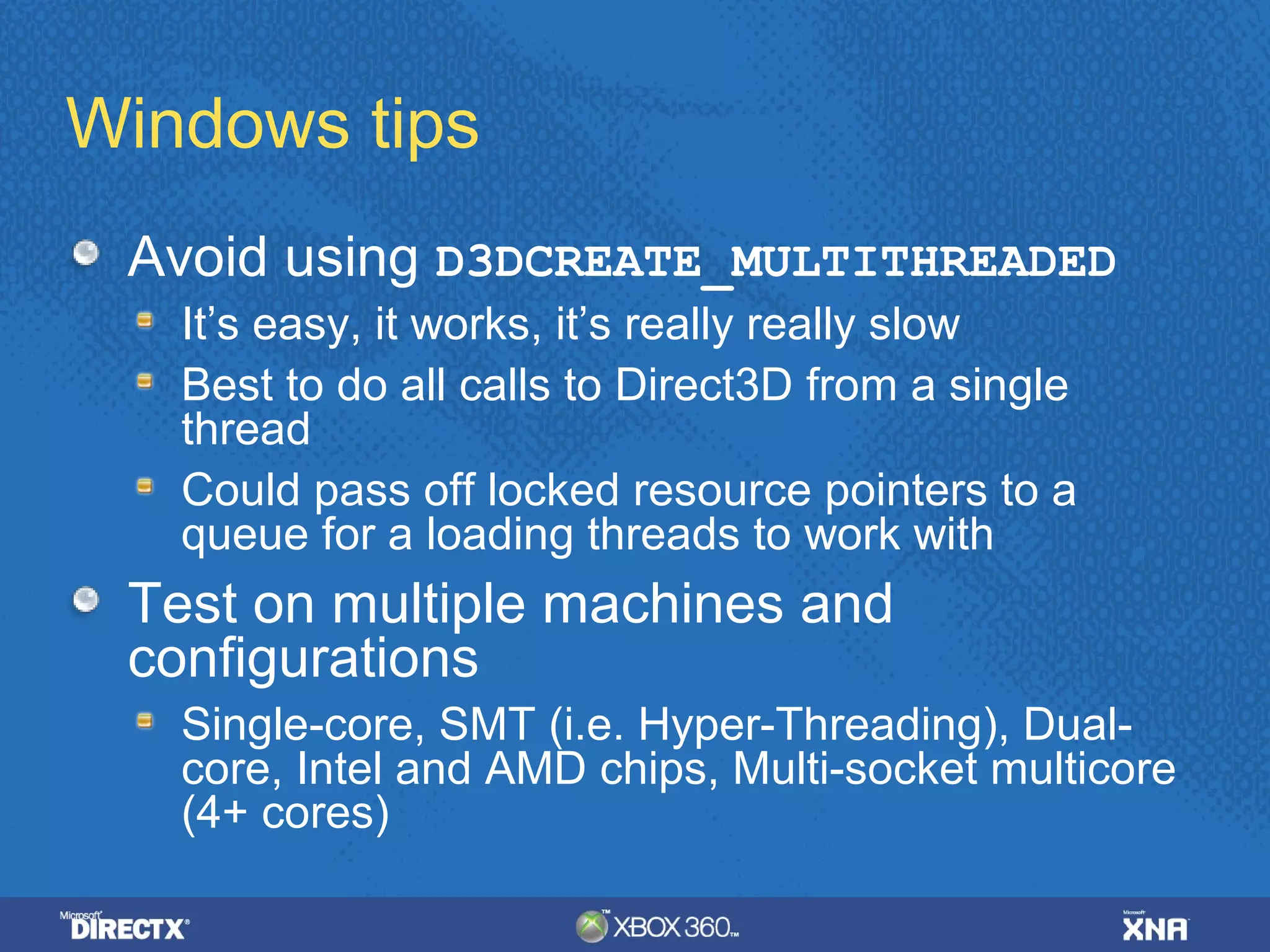

- 36. Windows tips Avoid using D3DCREATE_MULTITHREADED It’s easy, it works, it’s really really slow Best to do all calls to Direct3D from a single thread Could pass off locked resource pointers to a queue for a loading threads to work with Test on multiple machines and configurations Single-core, SMT (i.e. Hyper-Threading), Dual-core, Intel and AMD chips, Multi-socket multicore (4+ cores)

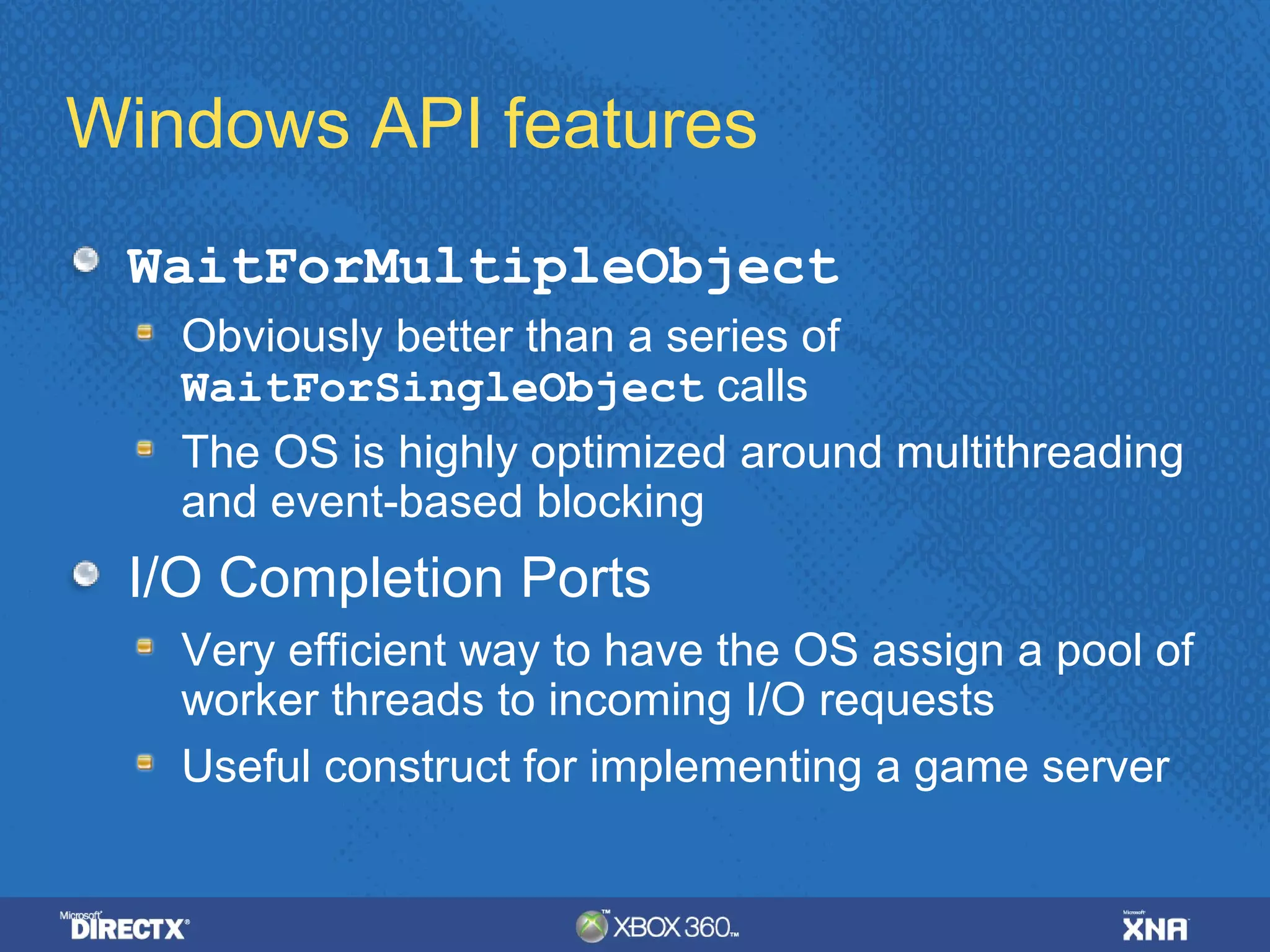

- 37. Windows API features WaitForMultipleObject Obviously better than a series of WaitForSingleObject calls The OS is highly optimized around multithreading and event-based blocking I/O Completion Ports Very efficient way to have the OS assign a pool of worker threads to incoming I/O requests Useful construct for implementing a game server

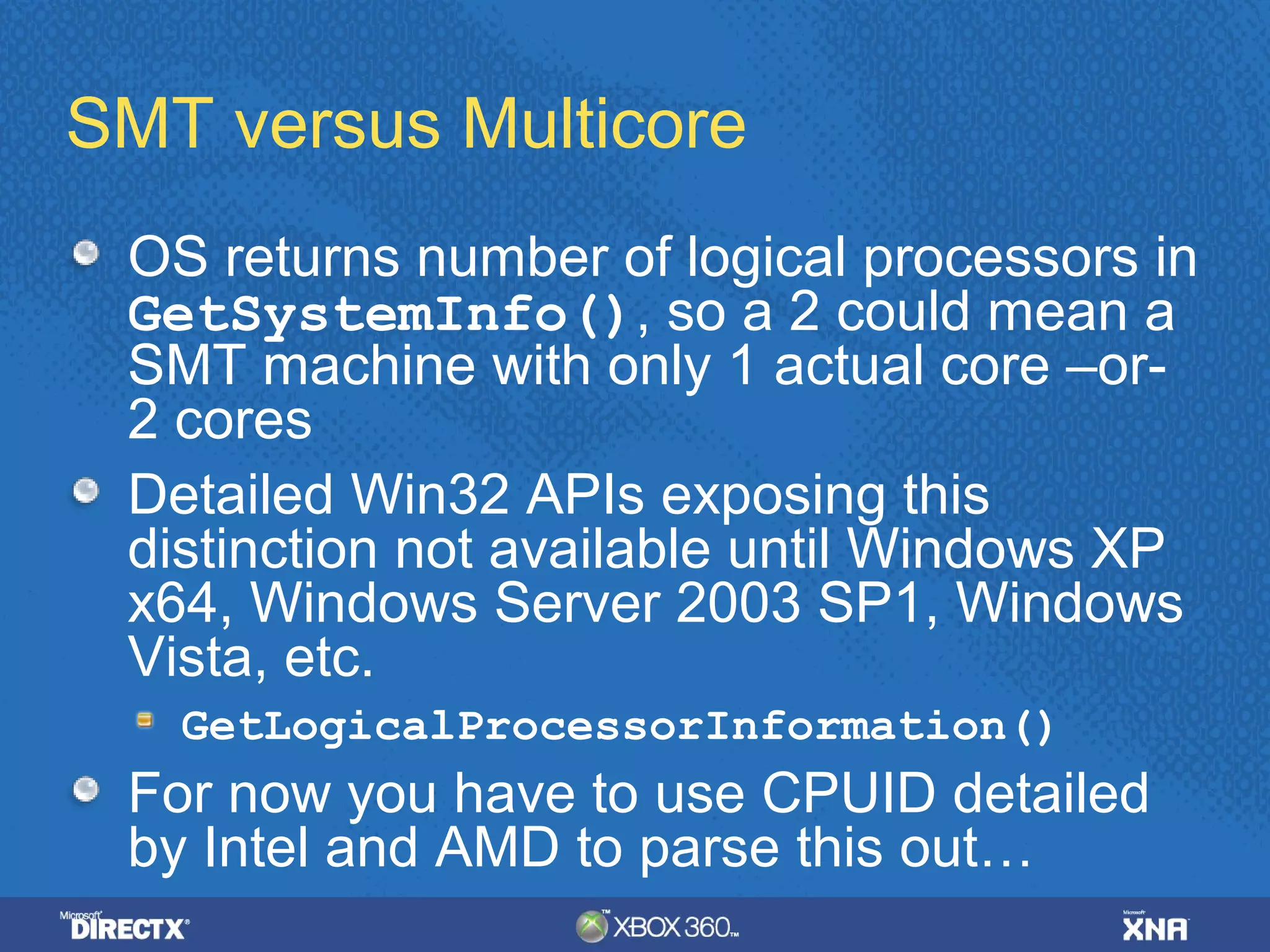

- 38. SMT versus Multicore OS returns number of logical processors in GetSystemInfo(), so a 2 could mean a SMT machine with only 1 actual core –or- 2 cores Detailed Win32 APIs exposing this distinction not available until Windows XP x64, Windows Server 2003 SP1, Windows Vista, etc. GetLogicalProcessorInformation() For now you have to use CPUID detailed by Intel and AMD to parse this out…

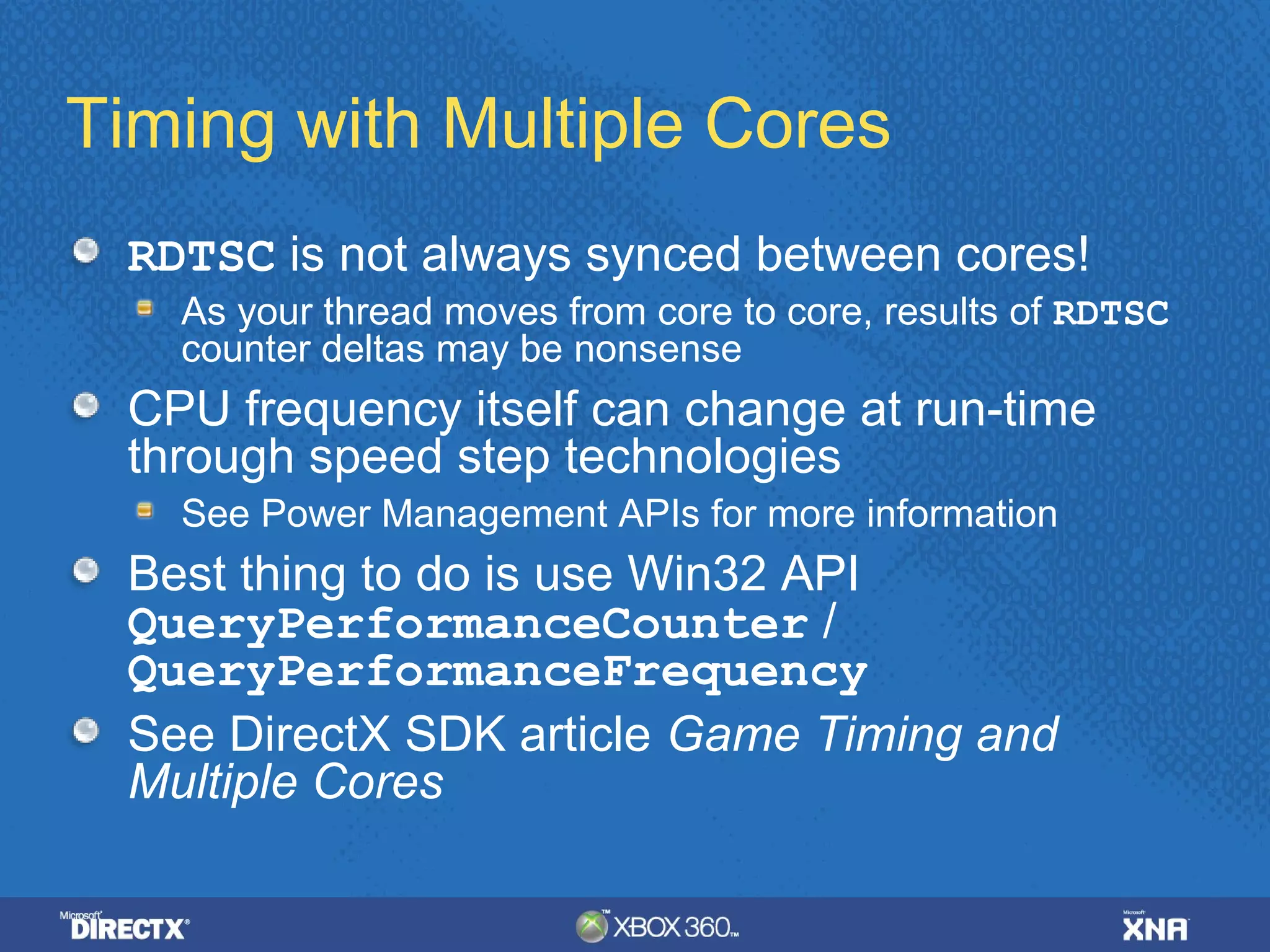

- 39. Timing with Multiple Cores RDTSC is not always synced between cores! As your thread moves from core to core, results of RDTSC counter deltas may be nonsense CPU frequency itself can change at run-time through speed step technologies See Power Management APIs for more information Best thing to do is use Win32 API QueryPerformanceCounter / QueryPerformanceFrequency See DirectX SDK article Game Timing and Multiple Cores

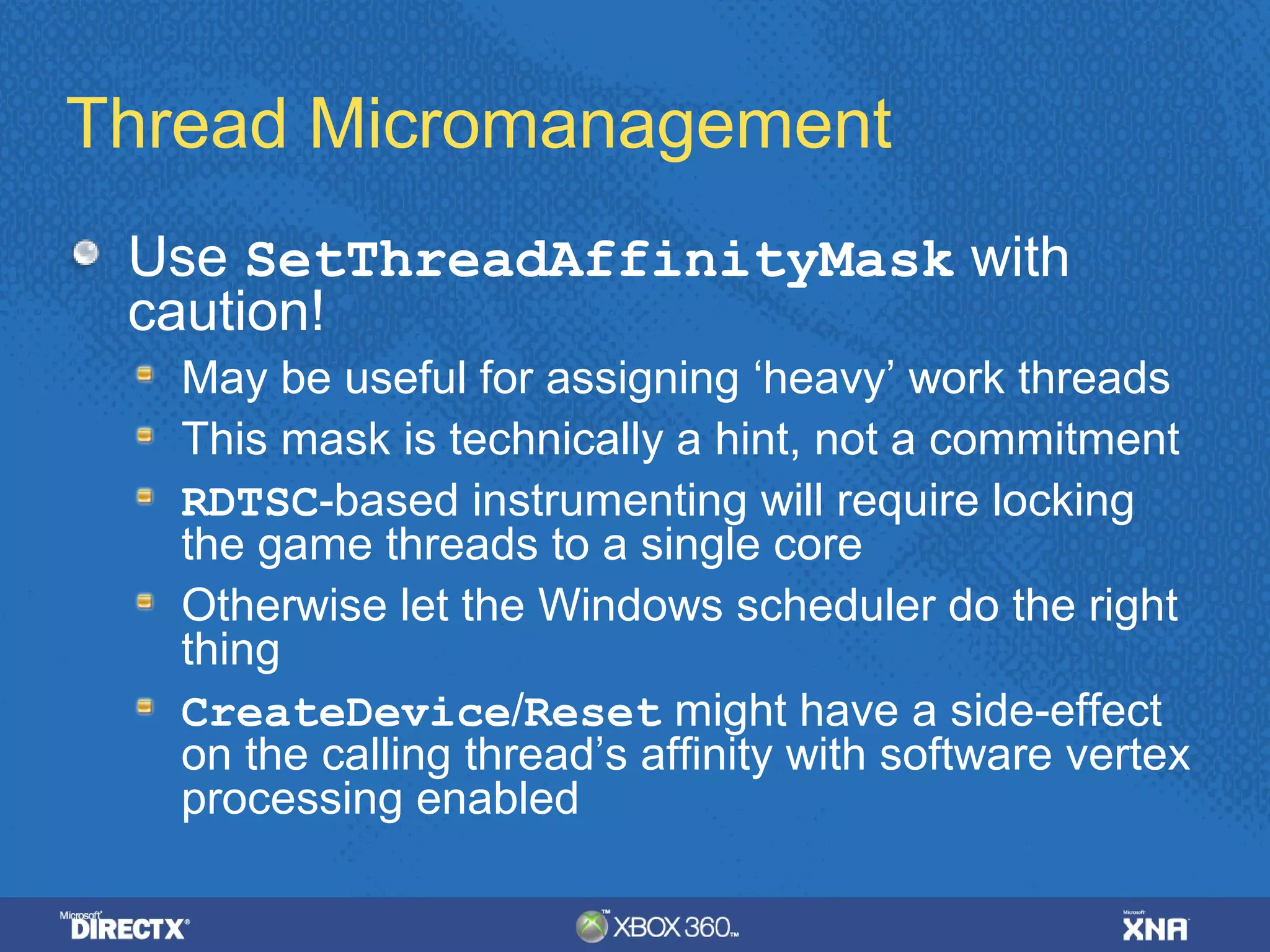

- 40. Thread Micromanagement Use SetThreadAffinityMask with caution! May be useful for assigning ‘heavy’ work threads This mask is technically a hint, not a commitment RDTSC-based instrumenting will require locking the game threads to a single core Otherwise let the Windows scheduler do the right thing CreateDevice/Reset might have a side-effect on the calling thread’s affinity with software vertex processing enabled

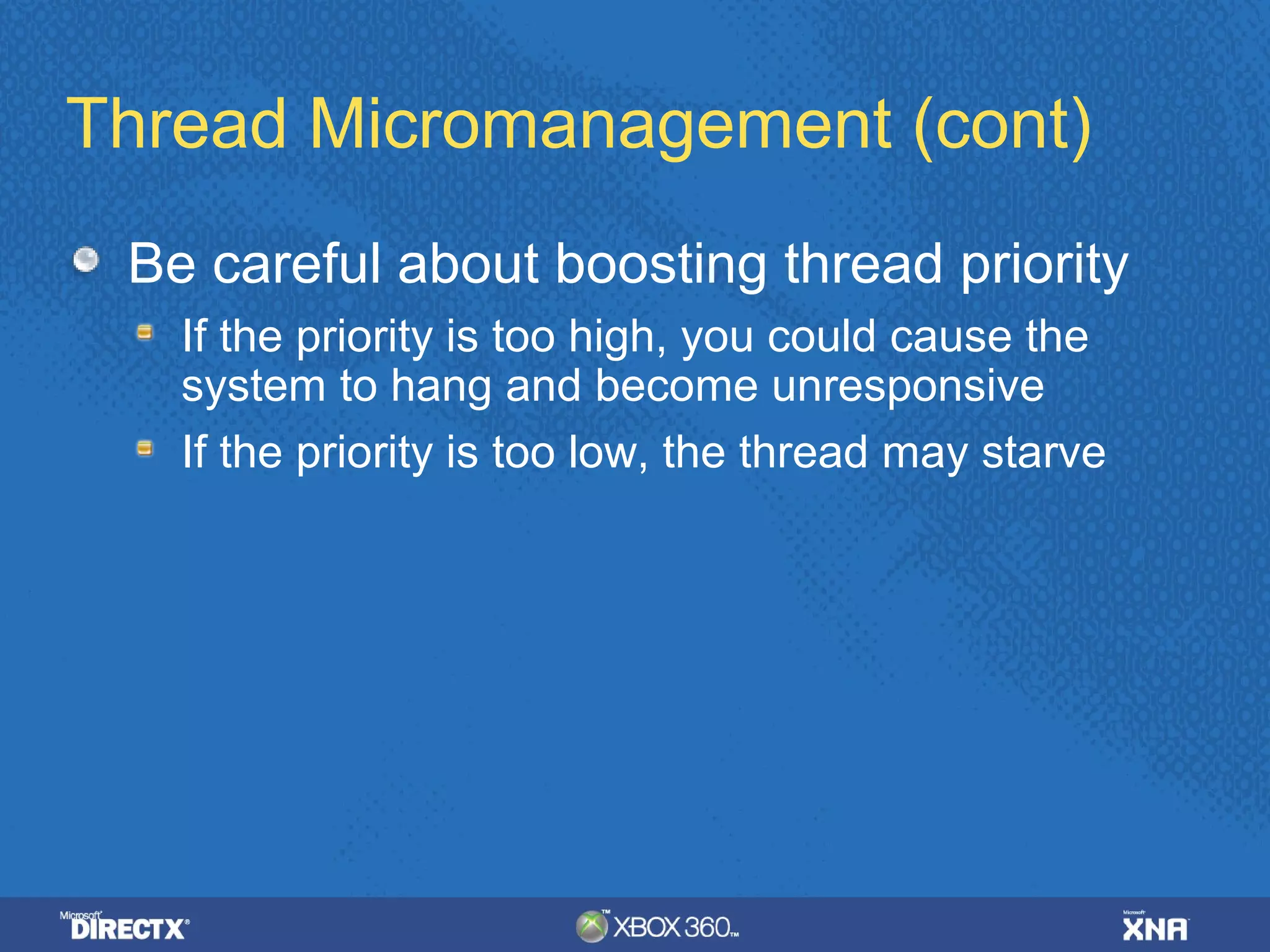

- 41. Thread Micromanagement (cont) Be careful about boosting thread priority If the priority is too high, you could cause the system to hang and become unresponsive If the priority is too low, the thread may starve

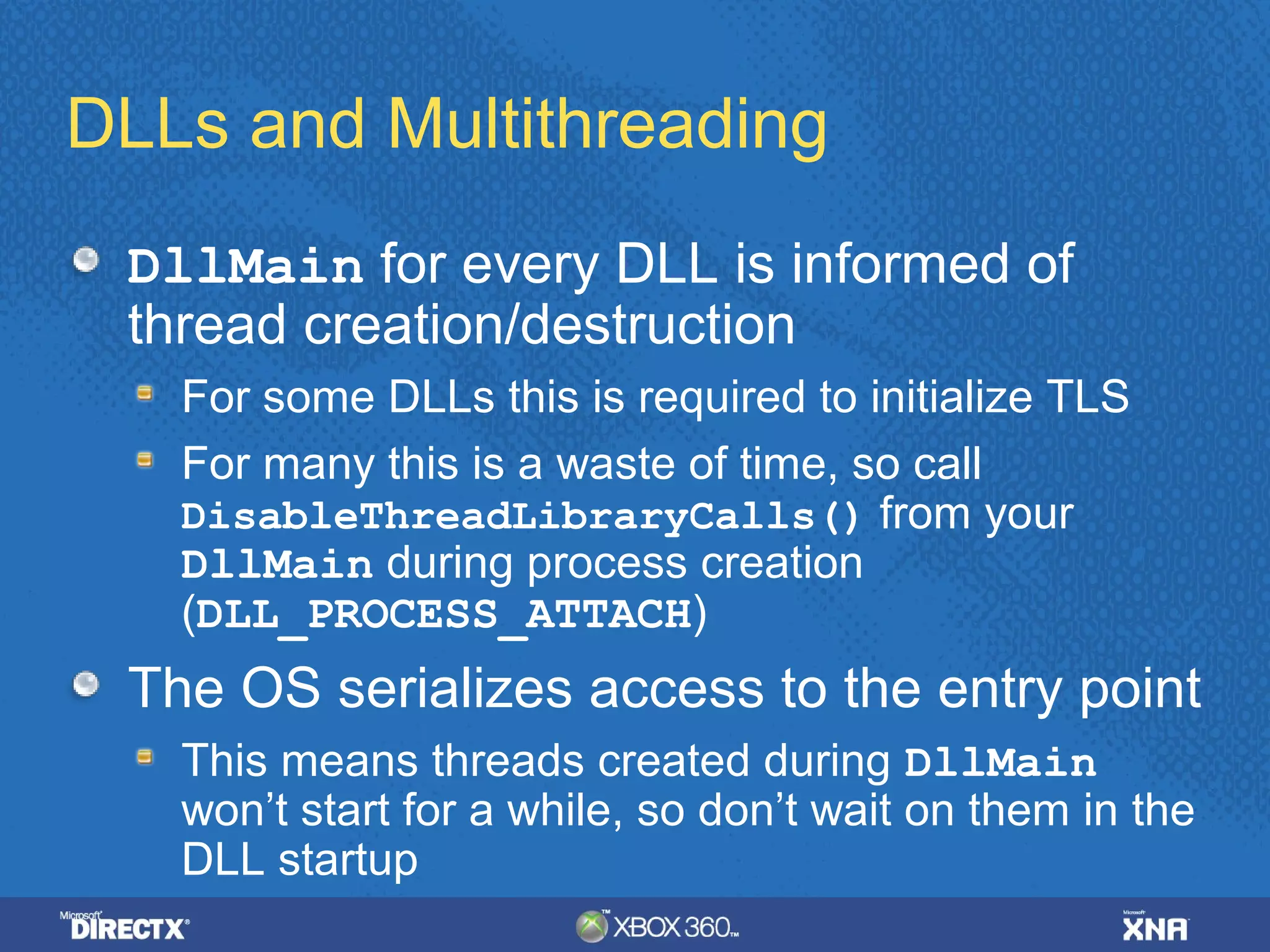

- 42. DLLs and Multithreading DllMain for every DLL is informed of thread creation/destruction For some DLLs this is required to initialize TLS For many this is a waste of time, so call DisableThreadLibraryCalls() from your DllMain during process creation (DLL_PROCESS_ATTACH) The OS serializes access to the entry point This means threads created during DllMain won’t start for a while, so don’t wait on them in the DLL startup

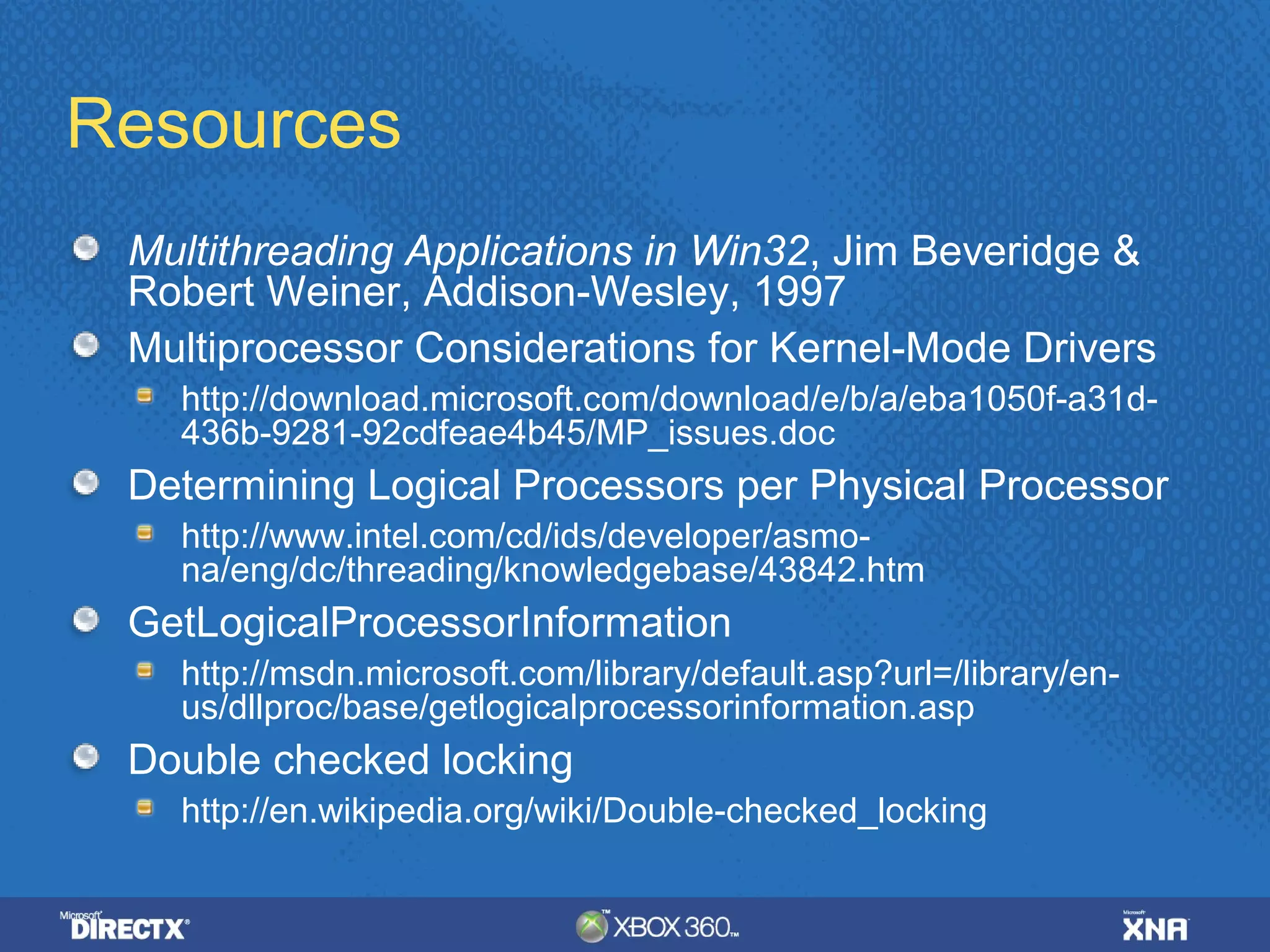

- 43. Resources Multithreading Applications in Win32, Jim Beveridge & Robert Weiner, Addison-Wesley, 1997 Multiprocessor Considerations for Kernel-Mode Drivers http://download.microsoft.com/download/e/b/a/eba1050f-a31d- 436b-9281-92cdfeae4b45/MP_issues.doc Determining Logical Processors per Physical Processor http://www.intel.com/cd/ids/developer/asmo-na/ eng/dc/threading/knowledgebase/43842.htm GetLogicalProcessorInformation http://msdn.microsoft.com/library/default.asp?url=/library/en-us/ dllproc/base/getlogicalprocessorinformation.asp Double checked locking http://en.wikipedia.org/wiki/Double-checked_locking

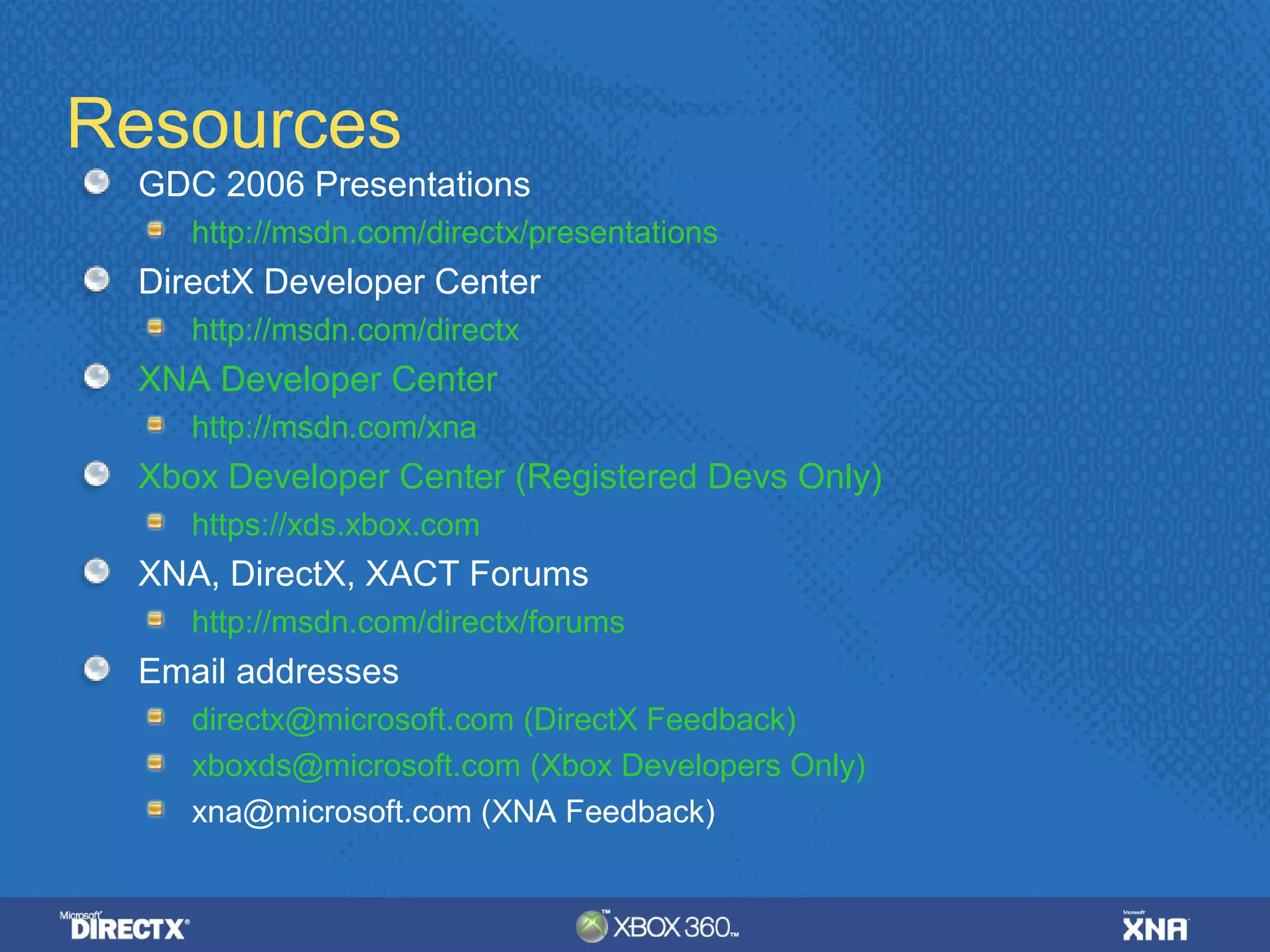

- 44. Resources GDC 2006 Presentations http://msdn.com/directx/presentations DirectX Developer Center http://msdn.com/directx XNA Developer Center http://msdn.com/xna Xbox Developer Center (Registered Devs Only) https://xds.xbox.com XNA, DirectX, XACT Forums http://msdn.com/directx/forums Email addresses directx@microsoft.com (DirectX Feedback) xboxds@microsoft.com (Xbox Developers Only) xna@microsoft.com (XNA Feedback)
- 45. © 2006 Microsoft Corporation. All rights reserved. Microsoft, DirectX, Xbox 360, the Xbox logo, and XNA are either registered trademarks or trademarks of Microsoft Corporation in the United Sates and / or other countries. This presentation is for informational purposes only. Microsoft makes no warranties, express or implied, in this summary.
Editor's Notes
- Good afternoon. My name is Bruce Dawson, and this is Chuck Walbourn. We work together in the Microsoft Game Technology Group. My specialty is Xbox 360, and Chuck&apos;s specialty is Windows. We&apos;re here today to give you some thoughts on how to take advantage of multi-core processors.
- This topic is important because the free ride is over... Per hardware thread performance is stagnant, but processor improvement continues &lt;SWIPE&gt; &gt;70% figure applies to servers (&gt;85%), desktop, and laptops—everything Celeron dual-core! Moore&apos;s law lives, but since we can&apos;t increase single-proc clocks our transistor counts much more... &lt;SWIPE&gt; More performance requires multi-threading Multi-core penetration figures: http://cache-www.intel.com/cd/00/00/23/54/235413_235413.pdf
- Why this talk? Multi-threading is hard—to get benefit you need to plan for it, and you will hit subtle bugs. Effective multi-threading can be really hard. You may hit problems where threading is actually hurting performance. Done properly—huge benefits Good multi-threading always starts with good design.
- Haphazard design Start with one thread, it spawns a couple more Then they spawn a couple more Then you start adding communication between threads And more communication between threads And still more communication between threads Then you add synchronization points, where threads need data from other threads or shared resources End result: a lot of your threads spend a lot of time waiting, you need a lot of synchronization objects, you’re prone to resource contention and synch bugs
- Start with main thread, look for major tasks Split out into Game/Rendering Add synch points… other than at those points, both threads can run independently Look for additional parallelizable tasks… physics might be a good candidate Synch points before and after Break out other parallelizable tasks Look for tasks that can run independently of main threads… service requests Add communication but keep it to a minimum
- Also, each chunk size must be same as largest. Probably not well-suited for games Can work if you have very few stages. At 30Hz, intolerable latency
- Update loop should generally be single threaded. May be able to pull out some parts, like path-finding, but synchronization concerns limit your options.
- File I/O is something that is often put on a separate thread. This can avoid stalls that asynchronous I/O can&apos;t always hide. Normally file I/O is not CPU heavy. That can change now. File read/write is cheap, but spare threads allows use of aggressive compression
- Rendering is usually quite expensive. D3D overhead adds up, and scene traversal costs also Limited number of primitives per second (On Modern Windows machines, we recommend expecting about 300 draws per frame for 60 FPS) Simple in theory: double-buffer all state that affects rendering. Sometimes complicated in practice. Synchronize once per frame
- Graphics fluff is a good candidate because it has few interactions with other data. May not need to run at same frame-rate as game. Some games are spending 100% of a core on cloth animation. &quot;That&apos;s crazy!&quot;, or is it brilliant? The main loop of your game may be impossible to multi-thread, in which case the other threads will sit idle unless you add new features. On PC, graphics fluff can be dropped on single-core machines without affecting game-play. Can be replaced with cheaper alternatives.
- This diagram does show good multithreading, but probably not perfect. It relies on spawning extra threads for physics, animation, and particle systems. It could turn out that this system demands ten hardware threads at some times, and two hardware threads at others. Ideally you should try to have the same number of CPU heavy threads running at all times. Amdahl&apos;s law—speeding up part of your calculations just leaves the remainder as the single-threaded bottleneck Middle-ware needs to be flexible enough to adapt to the needs of different games. Physics may be allowed one core—or not.
- It is reasonable to have additional threads that are not CPU intensive—blocking on I/O Seque: One per hardware thread, or one per core
- SMT means that two hardware threads are sharing execution resources. They share L1 caches and execution units, but have independent register sets. If first thread is under utilizing these resources (too many dependency stalls) then another thread can share the resources and total throughput increases. If first thread is heavily utilizing these resources (well scheduled code) then SMT can&apos;t help much. Cache is often a problem—L1 is small, and two threads may fight over it. Worst case, adding a second thread may reduce performance. How to tell? Measure. Easy on Xbox 360, trickier on PC. Scheduler latency is when you have a thread that is ready to run but the OS waits for the current scheduling quantum to expire before running the thread. If you put a thread on its own hardware thread—even just an SMT thread—then it can wake up faster. This works well if you have a thread that mostly sleeps but needs to wake quickly on demand. There can be multiple threads per core, multiple cores per chip, multiple chips per socket, and multiple sockets per computer. Identifying shared L1 caches can help with decisions about how many processors to use. The non-uniformity of hardware threads is one reason why setting thread affinity is problematic on PC. Now, some examples.
- Almost finished on Xbox in August 2004—then moved to Xbox 360 Mostly single-threaded game CPU usage split was 51/49 for update/render—perfect 3-MB buffer to describe rendering (not always filled), took ~1-2 ms to fill buffer, ~33 ms to render Decompression thread saved space on DVD and improved load times, cost was some spare CPU cycles. Actually two threads for file I/O—one for reading, one for decompressing, because some calls can block for ~0.5s doing directory lookups
- First the update thread fills buffer 0. The render thread is idle. Then the update thread fills buffer 1. While it is doing this the render thread can run, reading from buffer 0. Then the threads swap buffers. This process continues (go back and forth with the arrow keys).
- Multi-threading was added very late—~6 months before launch—but it worked This shows the distribution of threads to cores and hardware threads. Note that one hardware thread is unused. That&apos;s okay—it ensures that rendering runs at top speed. There were a few other threads (audio processing, etc.) but not many—roughly one CPU intensive thread per core Cores 0 and 1 were ~80-99% utilized, and core 2 was typically 50% utilized, for total CPU usage of ~2.2-2.5 cores, or ~7-8 GHz
- This title is also on Xbox 360. Things to notice: rendering on same thread as update. Two decompression threads. One unused thread, to leave all cycles to audio. Audio was a problem in this title. The update thread and crowd update threads both need to trigger sounds, which required grabbing a critical section that the Audio update thread was often holding.
- Things to point out: _beginthreadex is required on Windows to ensure that the CRT is initialized with any TLS required. Optional on Xbox 360 (can use CreateThread, only difference is return type of thread-creation function and thread function) Specifying the stack size is important on Xbox 360 to avoid wasting memory. Should generally always be a multiple of 64-KB. Waiting on the thread handle is how you tell when a thread has terminated—don&apos;t busy wait for this! Return value is a thread handle, must be closed when not needed anymore. Thread affinity is completely manual on Xbox 360. Generally best to let OS do it on Windows, unless you really know what you&apos;re doing. Can easily reduce performance by poor understanding of processor topology (overusing two hardware threads on one core, while leaving a thread idle), or by poor interactions with other processes—your threads unable to run despite having idle hardware threads.
- Thread creation is expensive. Don&apos;t do it often. If a thread is temporarily unneeded, leave it waiting on an event or semaphore. This code specifies the stack size, uses _beginthreadex, properly waits for the child to terminate, closes the handle, and specifies the thread affinity on Xbox 360 but not Win32. Perfection! If you don&apos;t need the handle, close it immediately.
- Some areas where OpenMP has been used include: Particles Skinning Physics Usually minimal benefit, due to limited scope
- This guarantees that ManipulateSharedData() is only executed by one thread at a time. But, mutexes are not the cheapest option...
- Critical sections are much cheaper. On Xbox 360 and on Windows they run roughly 20x faster. Two restrictions: cannot be used between processes, and cannot be used with WaitForMultipleObjects Mutexes are kernel objects, so they require a kernel transition, whereas critical sections are user-space objects. Mutexes are more robust in the face of thread death. CRITICAL_SECTION is a good optimization but... key optimization is don&apos;t synchronize too often
- x86 CPUs can reorder reads Xbox 360 CPUs can reorder reads and writes—despite being in-order CPUs
- g_message.filled must be marked volatile or else both loops will tend to spin forever. Even then, with many compiler/platform pairs there is nothing to stop the write to g_message.filled from being reordered. In SendMessage the write to g_message.filled might be visible before the write to g_message.data is visible. Similarly in GetMessage the reads in process message might come from L2 before the read of g_message.filled. Both types of reordering can happen on the Xbox 360 CPU, and on many compilers. Different hardware threads don&apos;t talk to each other directly—they talk to shared memory/shared L2. Thus, if you prevent reordering in SendMessage that guarantees that the writes get to L2 in order. However, you still have to separately guarantee that reads come from L2 in order in GetMessage. Crucial observation: Lockless programming can be fast, but it is still a type of synchronization, and is more expensive than no synchronization Particularly tricky prior to VS 2005—poorly defined guarantees from volatile Particularly tricky on Xbox 360—volatile and InterlockedXxx semantics are slightly different and don&apos;t prevent CPU reorganization of reads and writes—need explicit memory barriers.
- Requiring exclusive access to a popular resource can make multi-threading a complex way of doing single-threading on multiple threads Ideally you want to use synchronization primitives to guarantee multiple threads won&apos;t modify resources simultaneously, while designing so that they generally won&apos;t anyway. Sometimes it is worth doing a short spin-lock on resources that are likey to be held for only a short time. InitializeCriticalSectionAndSpinCount supports this.
- g_resources holds a list of pointers to all loaded resources. It is referenced frequently by the render thread as it needs meshes, textures, shaders, etc. The load thread needs to make resources available once they are loaded. If the decompression thread locks g_resources while it decompresses, or while it does file I/O, then the render thread may be locked out for long periods. If g_resources is shared at all, then every reference by the render thread requires synchronization, wasting time on acquiring and releasing locks. Best design is two (or more) vectors, to insulate threads from each other. Private data is good.
- Anecdote about profile capture completely hiding critical issue (code was waiting on GPU, but only when not profiling. Same thing happened waiting on load thread) I actually saw a title that had instrumented a ton of functions but then stored the results to a shared array, using critical sections to guard it. About 90% of their synchronization was in the profile functions. Synchronization stalls are hard to locate Use Timing Capture on Xbox 360 to visualize threading behavior Add instrumentation to make visualization easier
- This wacky trick makes the name available for Visual Studio, WinDBG, etc, on Xbox 360 and on Windows. It also makes the name available to some other tools, like the PIX timing capture. The VS screenshot of a Windows app shows just two threads (named), and the VS screenshot of an Xbox 360 app shows... more.
- If your multi-threaded code is not tested on multi-proc systems, it will fail!
- Mention that this is complicated by the fact that some early releases of processor drivers have bugs where QPC/QPF relies on RDTSC and therefore exhibits the problem. The fix is to get the latest processor driver from AMD website.
