This talk describes CRIU (checkpoint/restore in userspace) software, used to checkpoint, restore, and live migrate Linux containers and processes. It describes the live migration, compares it to that of VM, and shows other uses for checkpoint/restore.

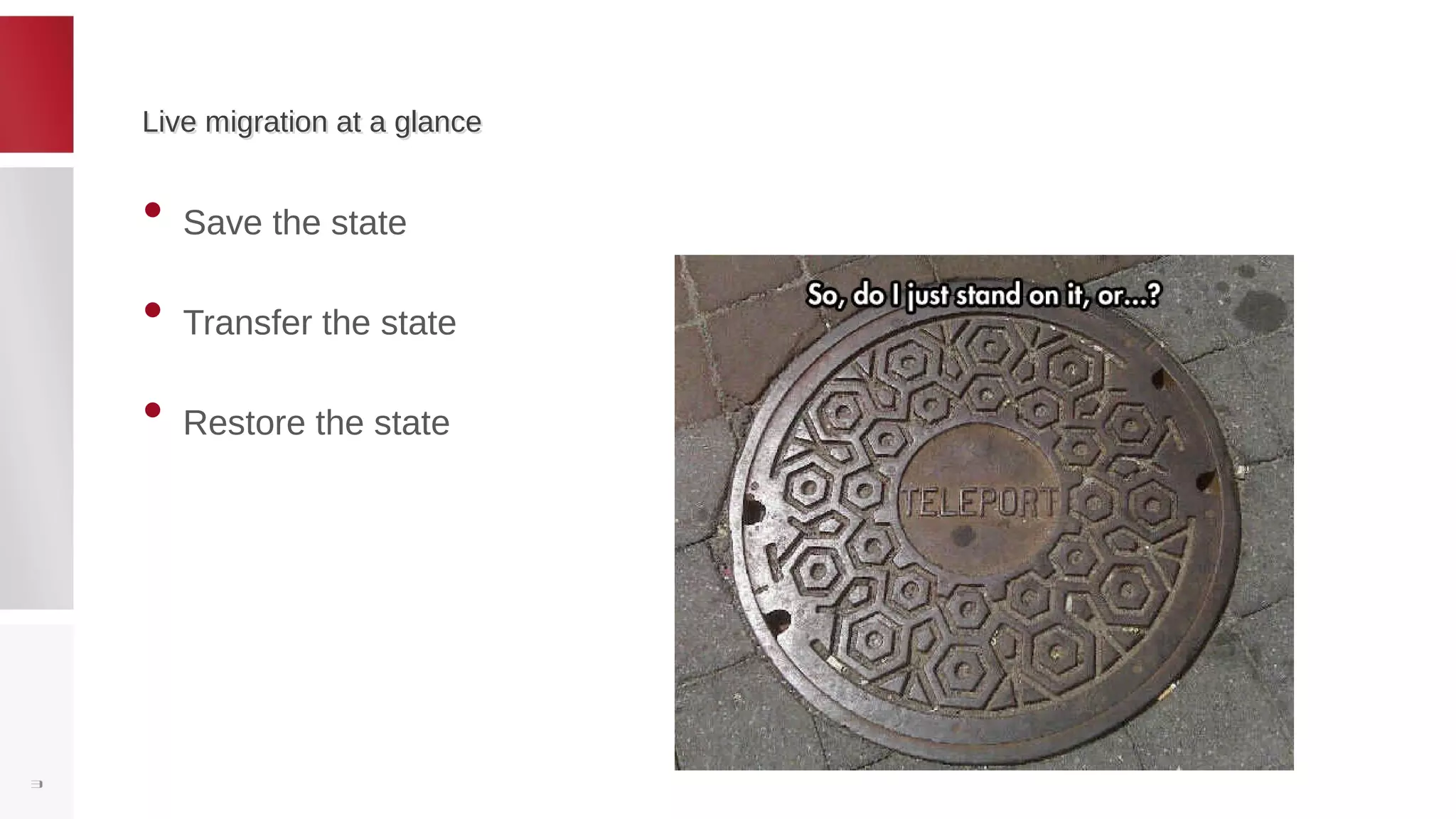

5. Why would we want to migrate containers?Why would we want to migrate containers?
• It's awesome!
• Load balancing in a cluster
• Kernel upgrade
– Can be done without migration
• Hardware upgrade
5
6. Why wouldn't we want to live migrate containers?Why wouldn't we want to live migrate containers?
6

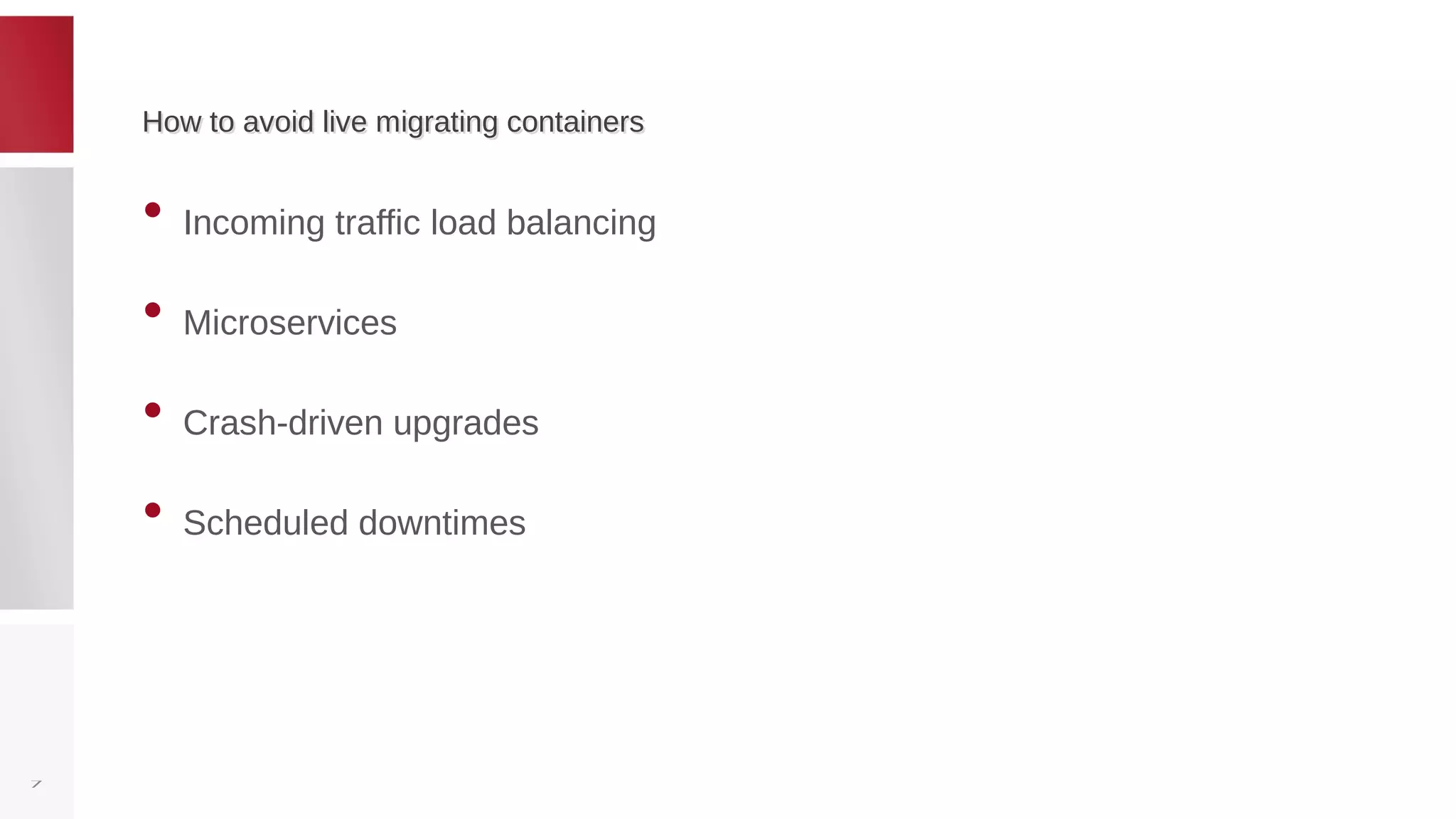

7. How to avoid live migrating containersHow to avoid live migrating containers
• Incoming traffic load balancing
• Microservices
• Crash-driven upgrades
• Scheduled downtimes
7

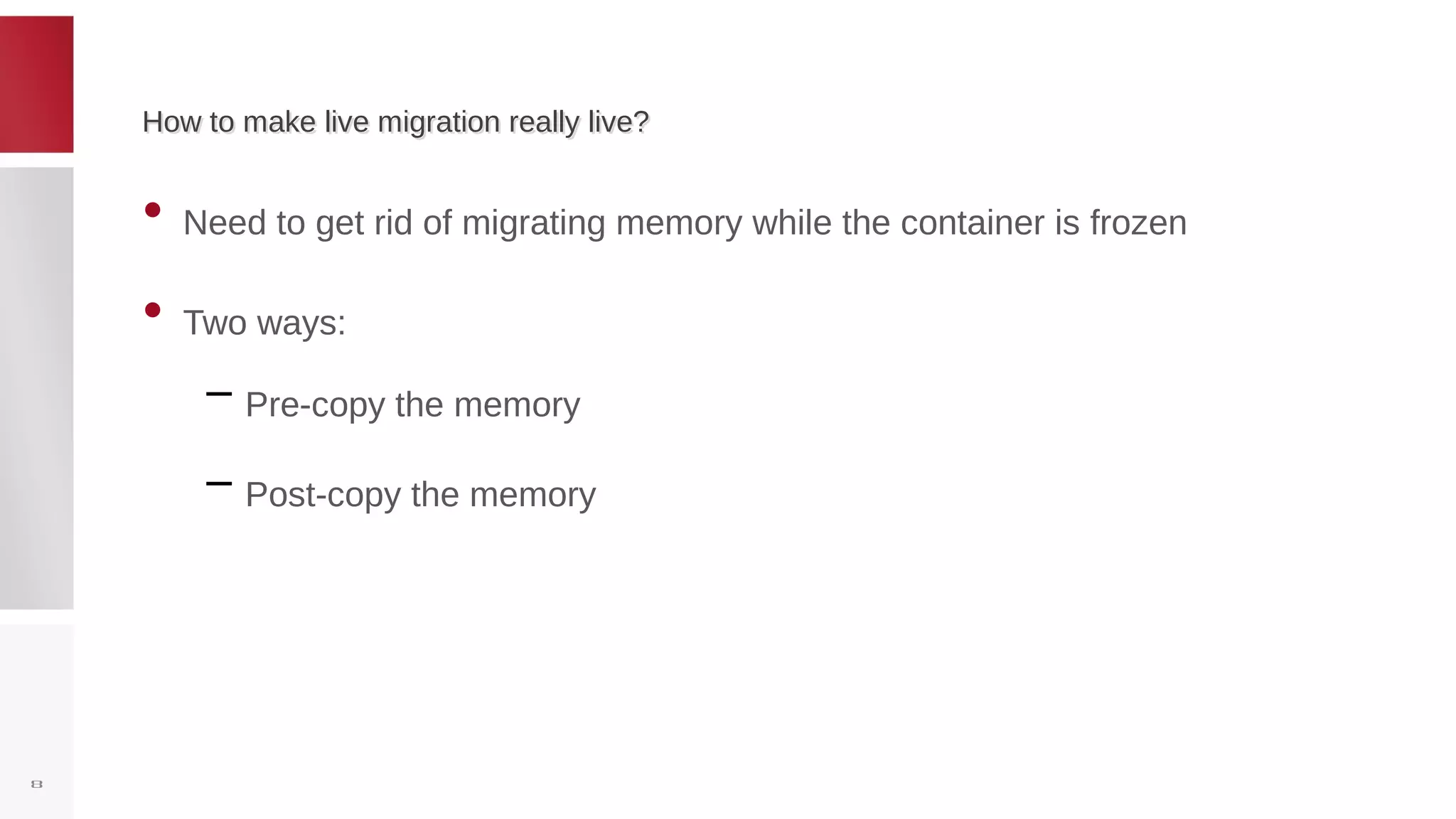

8. How to make live migration really live?How to make live migration really live?
• Need to get rid of migrating memory while the container is frozen
• Two ways:
– Pre-copy the memory
– Post-copy the memory
8

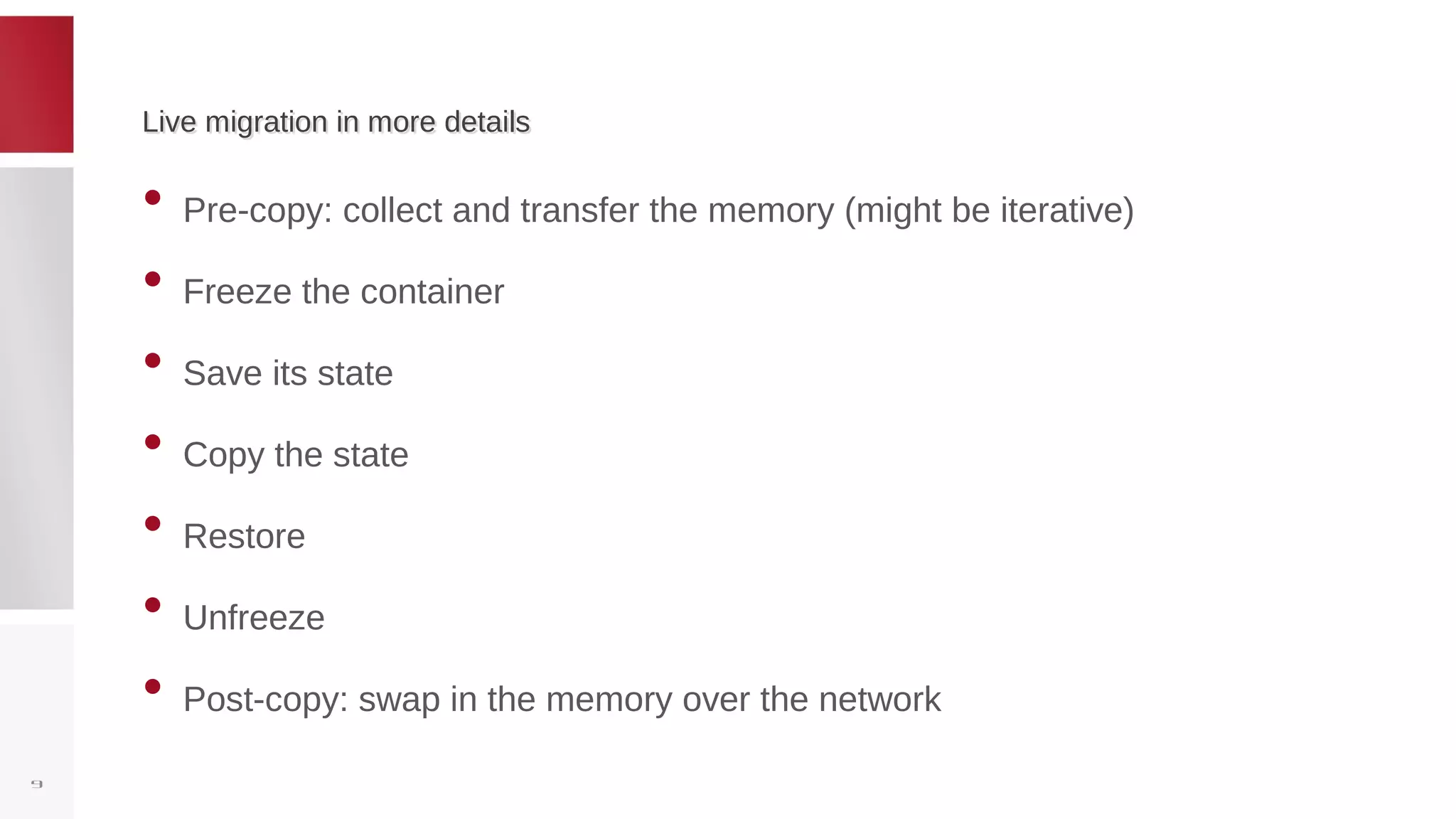

9. Live migration in more detailsLive migration in more details
• Pre-copy: collect and transfer the memory (might be iterative)
• Freeze the container
• Save its state
• Copy the state
• Restore
• Unfreeze
• Post-copy: swap in the memory over the network
9

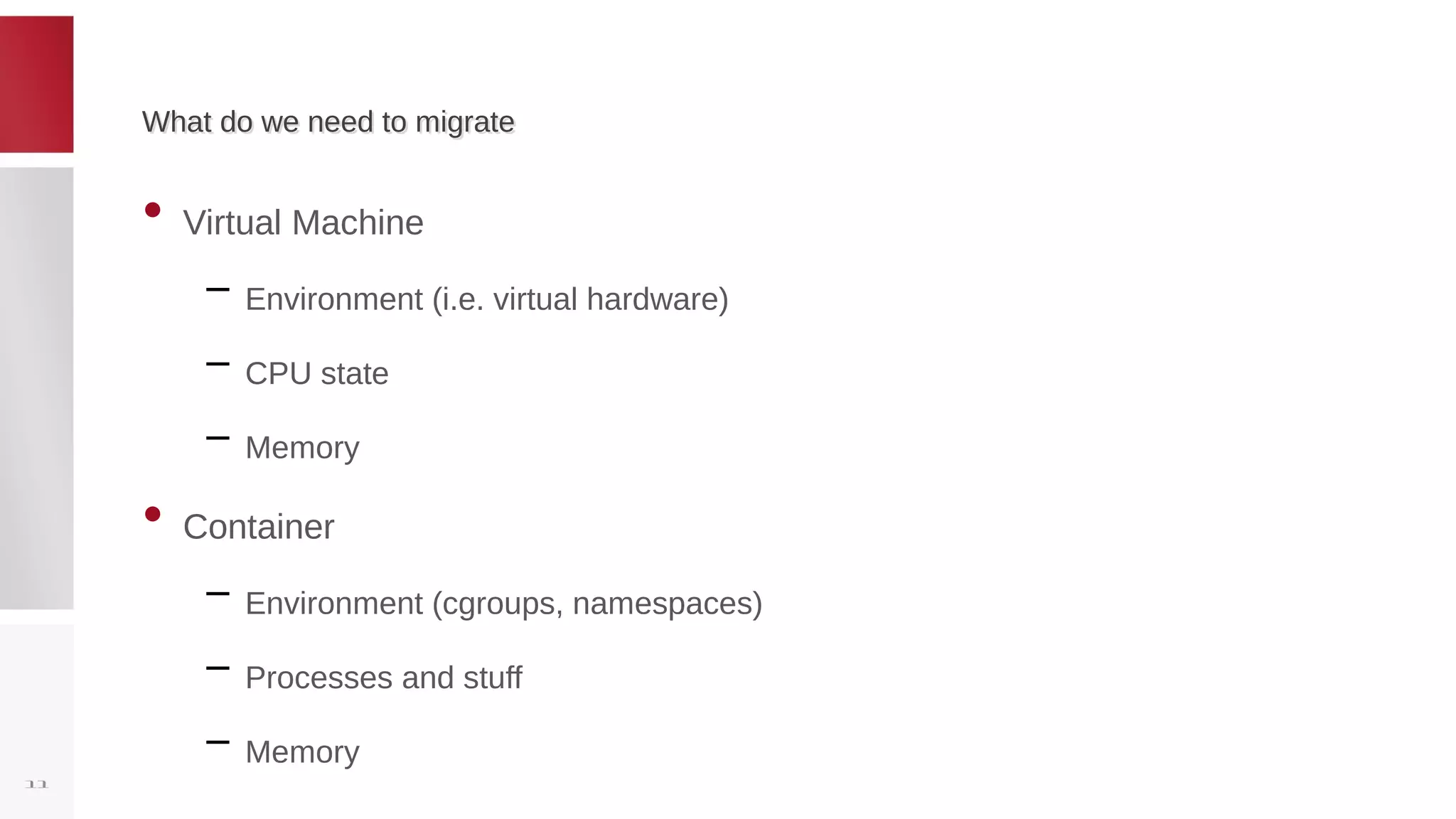

11. What do we need to migrateWhat do we need to migrate
• Virtual Machine
– Environment (i.e. virtual hardware)
– CPU state
– Memory
• Container
– Environment (cgroups, namespaces)
– Processes and stuff
– Memory
11

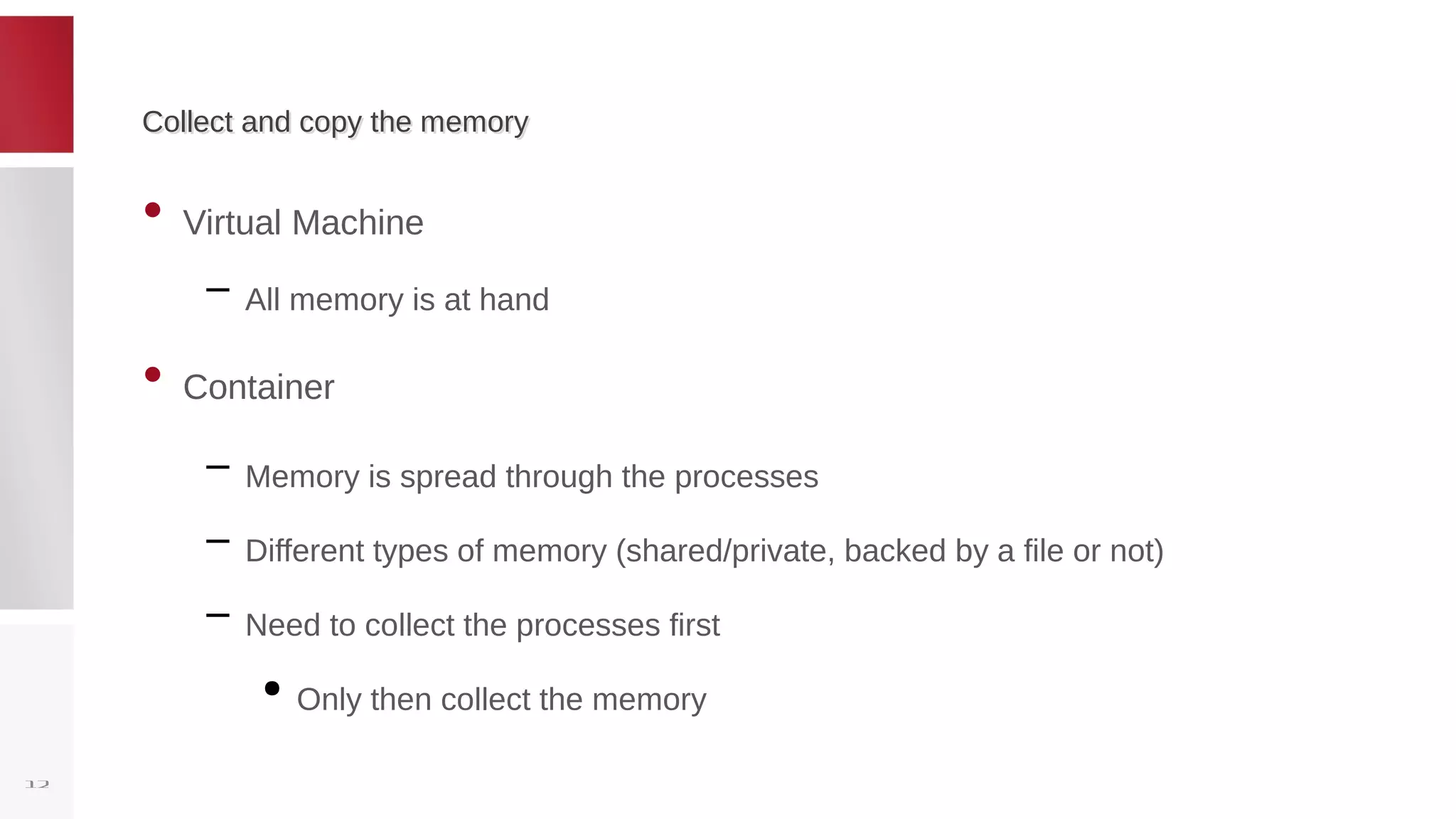

12. Collect and copy the memoryCollect and copy the memory
• Virtual Machine
– All memory is at hand
• Container
– Memory is spread through the processes
– Different types of memory (shared/private, backed by a file or not)
– Need to collect the processes first
●
Only then collect the memory
12

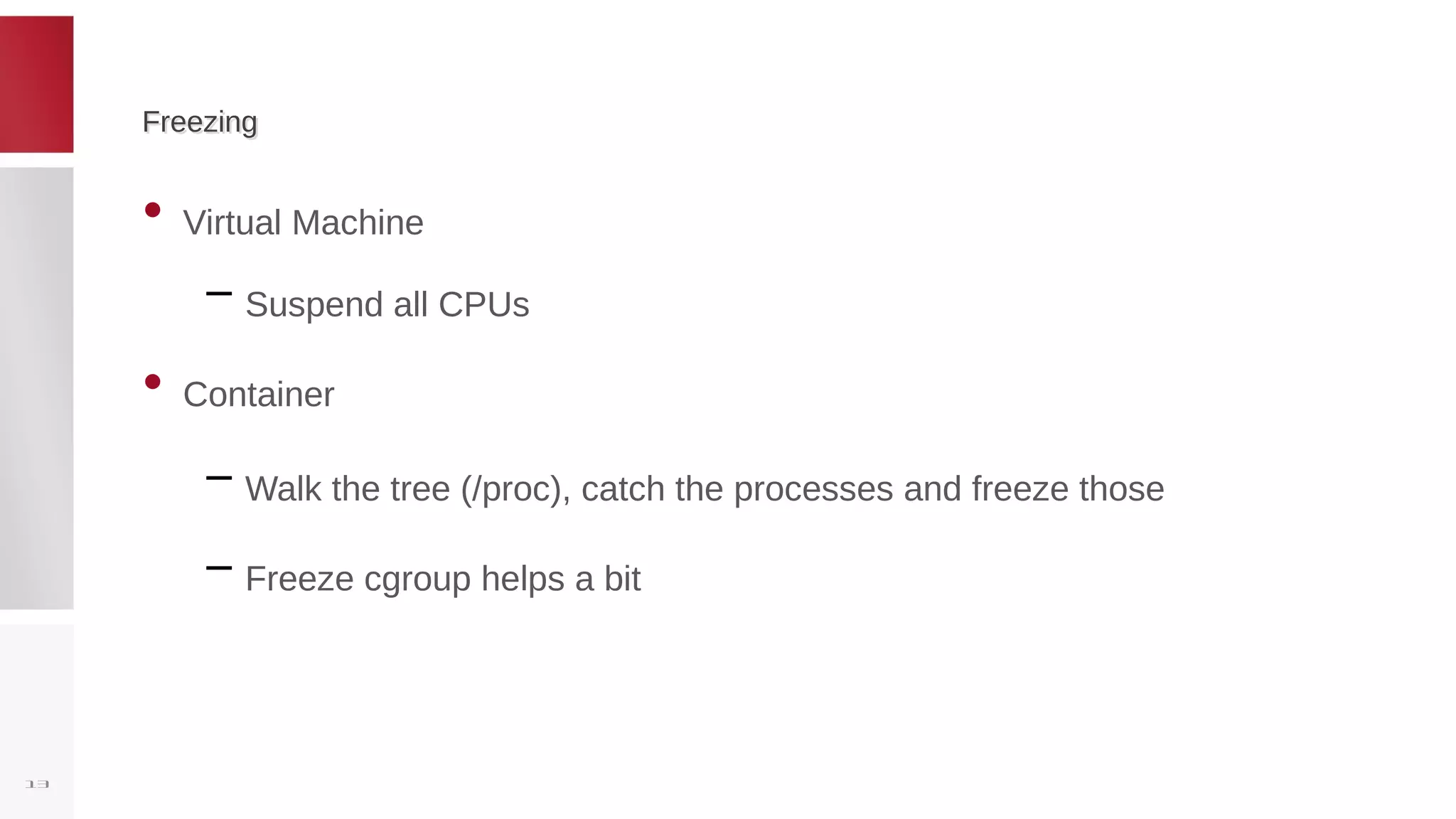

13. FreezingFreezing
• Virtual Machine
– Suspend all CPUs
• Container
– Walk the tree (/proc), catch the processes and freeze those
– Freeze cgroup helps a bit
13

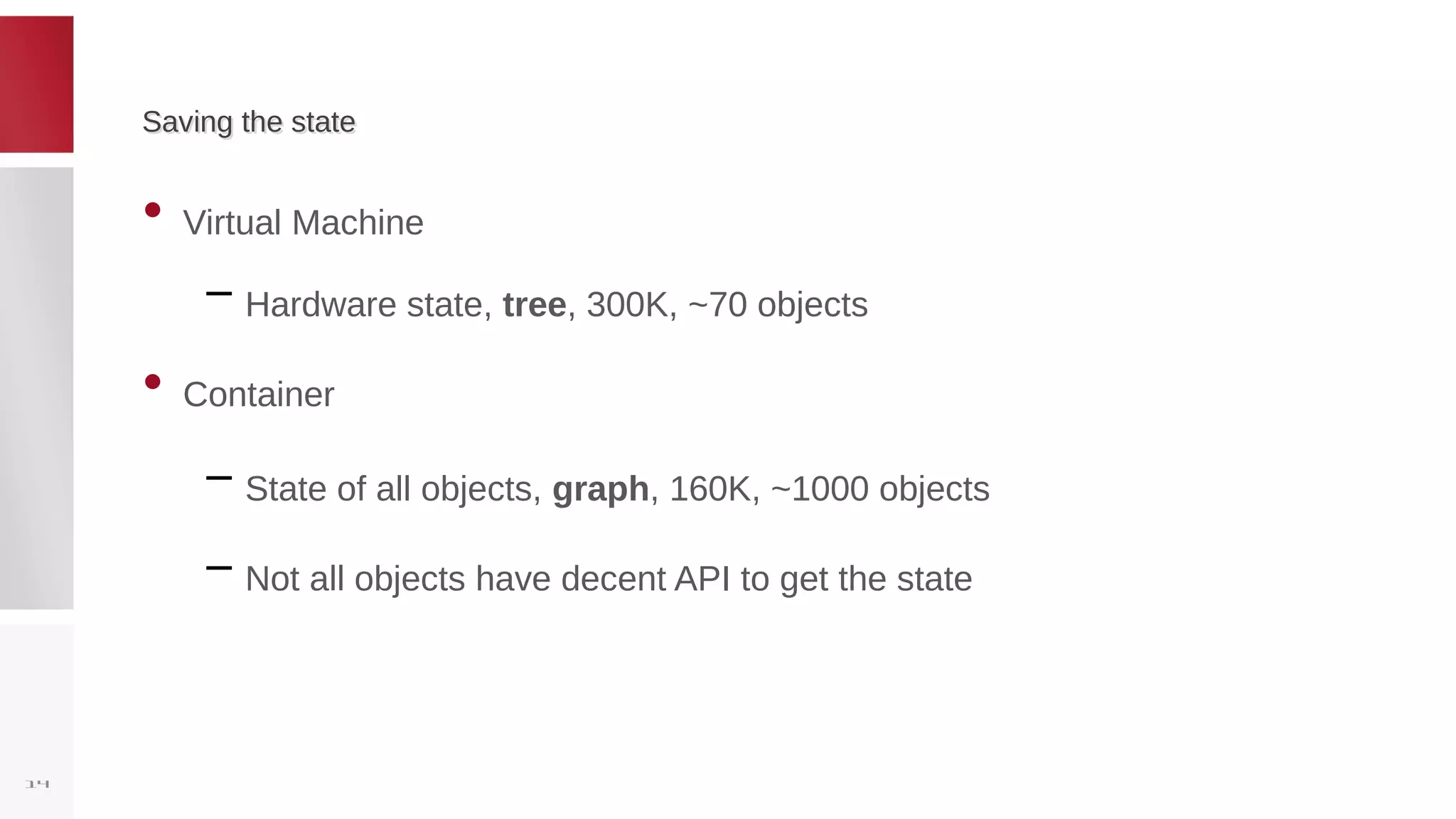

14. Saving the stateSaving the state
• Virtual Machine
– Hardware state, tree, 300K, ~70 objects
• Container
– State of all objects, graph, 160K, ~1000 objects
– Not all objects have decent API to get the state
14

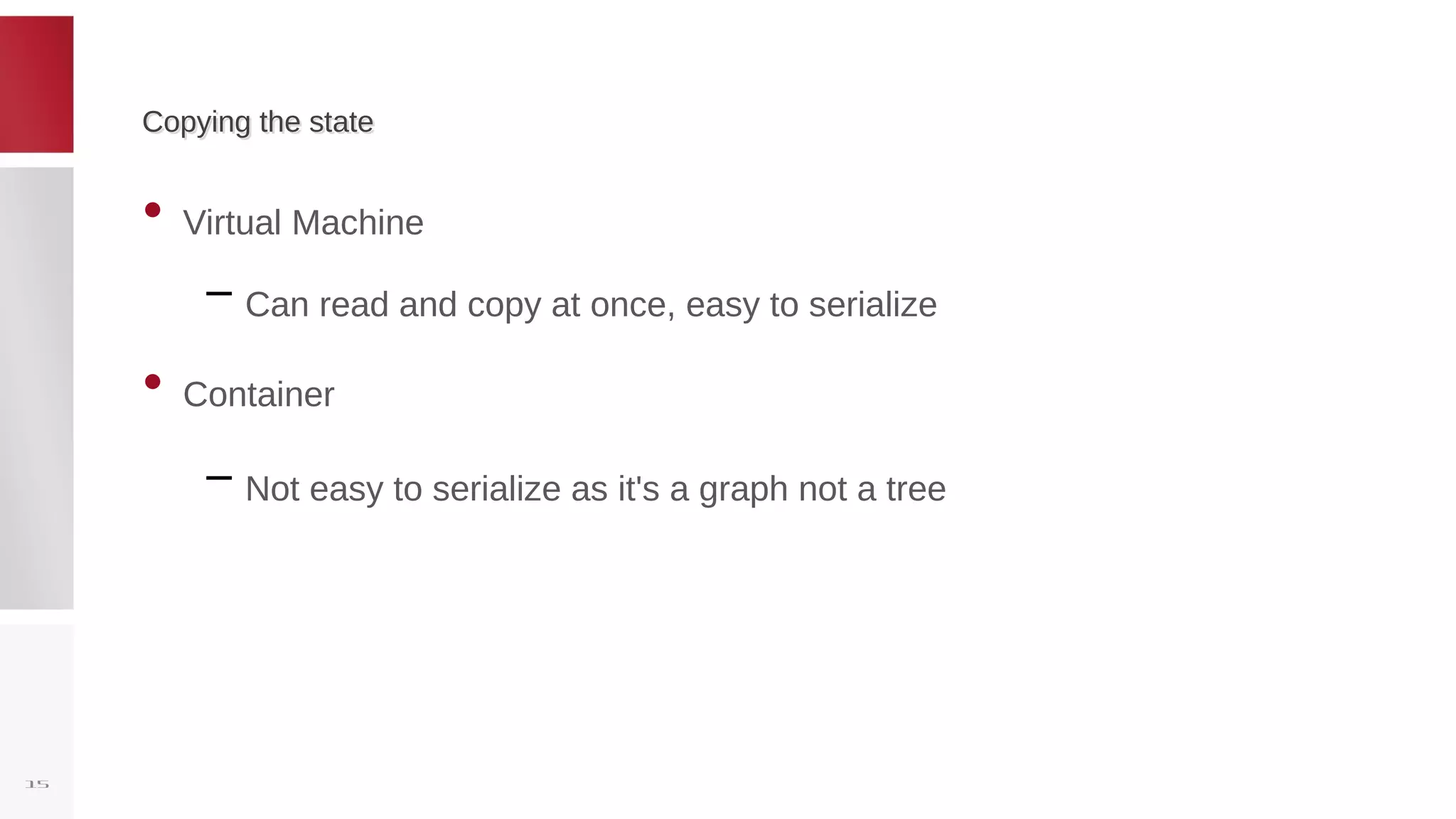

15. Copying the stateCopying the state
• Virtual Machine
– Can read and copy at once, easy to serialize
• Container
– Not easy to serialize as it's a graph not a tree
15

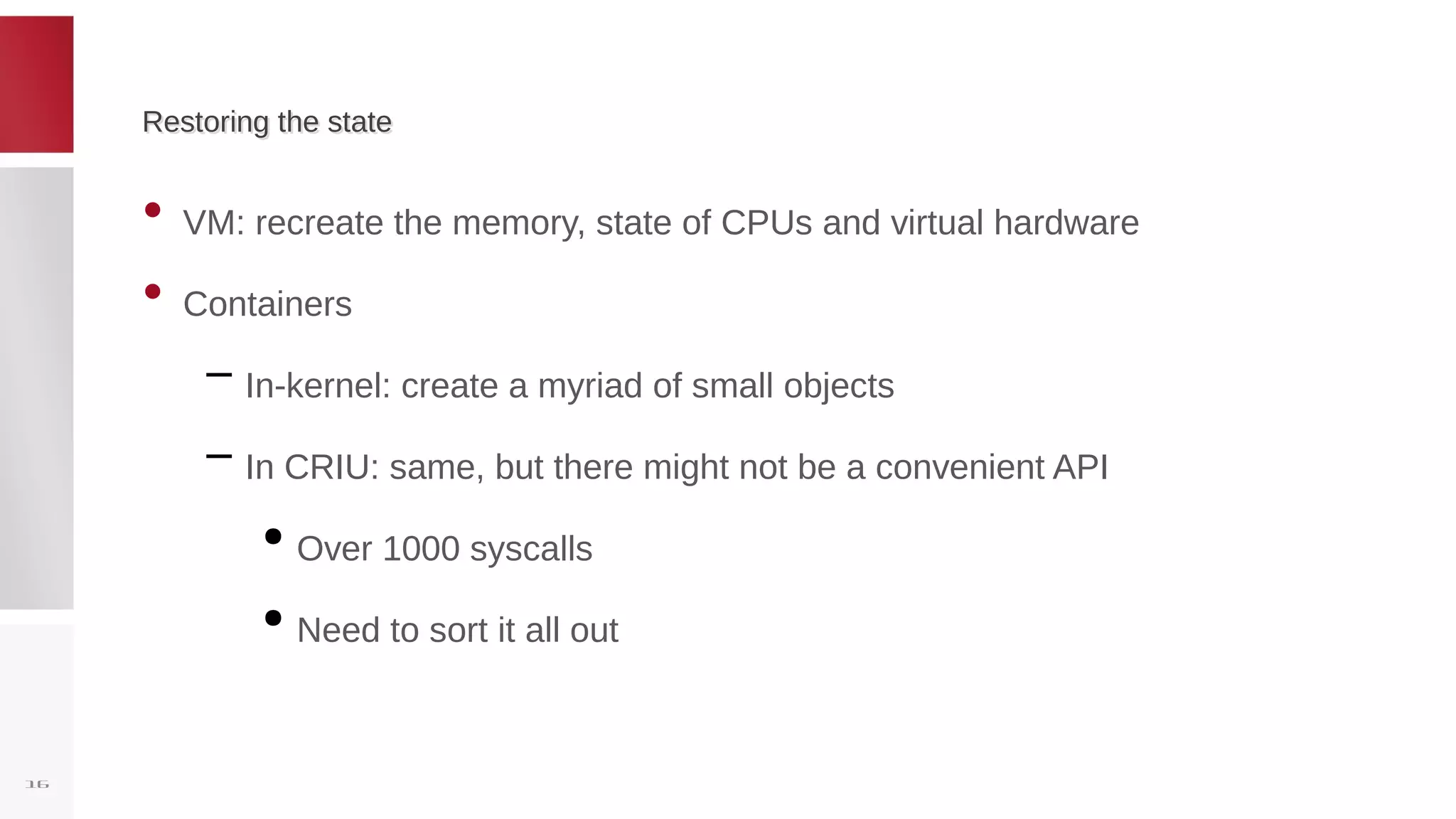

16. Restoring the stateRestoring the state
• VM: recreate the memory, state of CPUs and virtual hardware
• Containers
– In-kernel: create a myriad of small objects
– In CRIU: same, but there might not be a convenient API
●
Over 1000 syscalls
●
Need to sort it all out
16

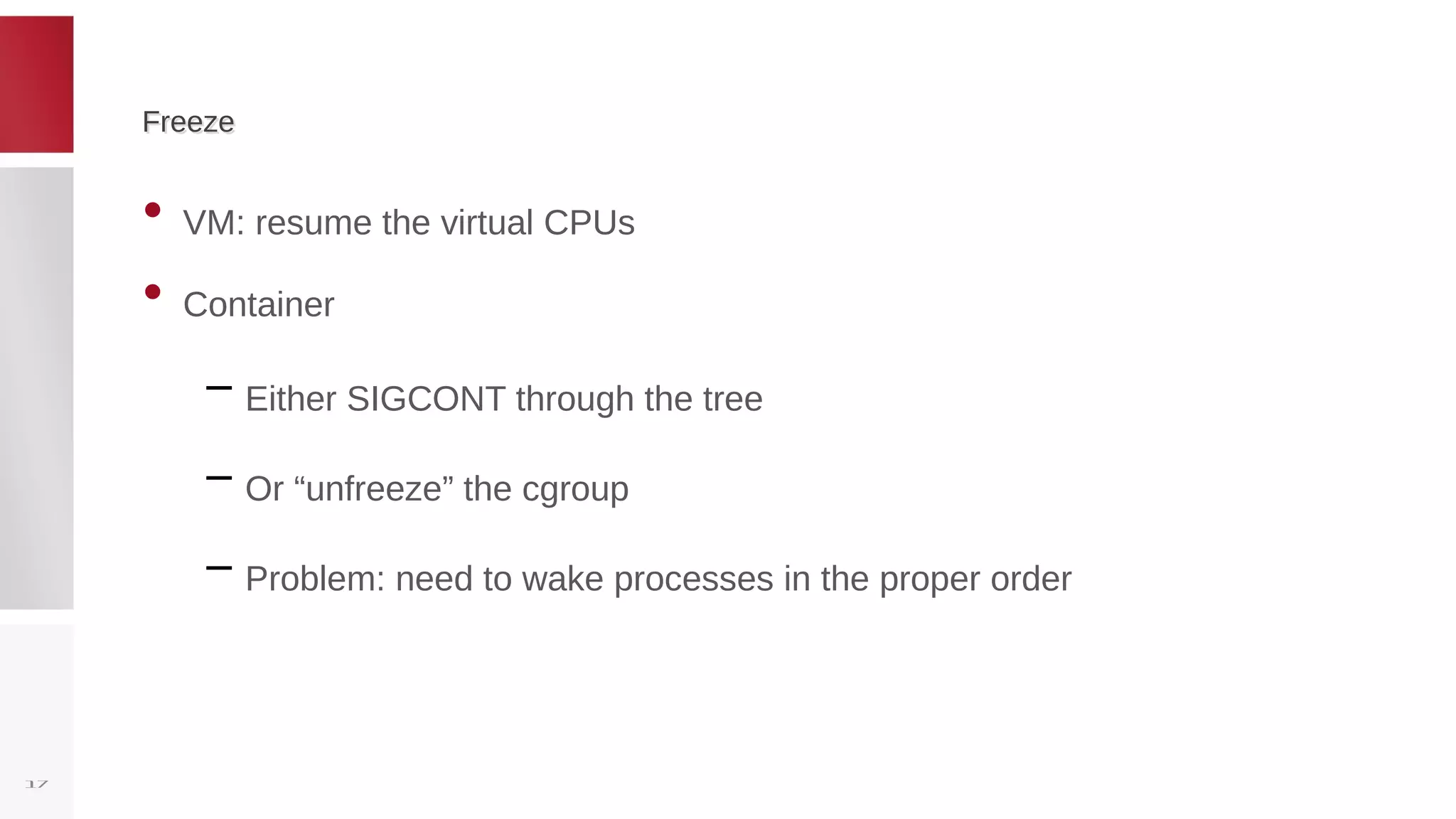

17. FreezeFreeze
• VM: resume the virtual CPUs
• Container
– Either SIGCONT through the tree
– Or “unfreeze” the cgroup
– Problem: need to wake processes in the proper order
17

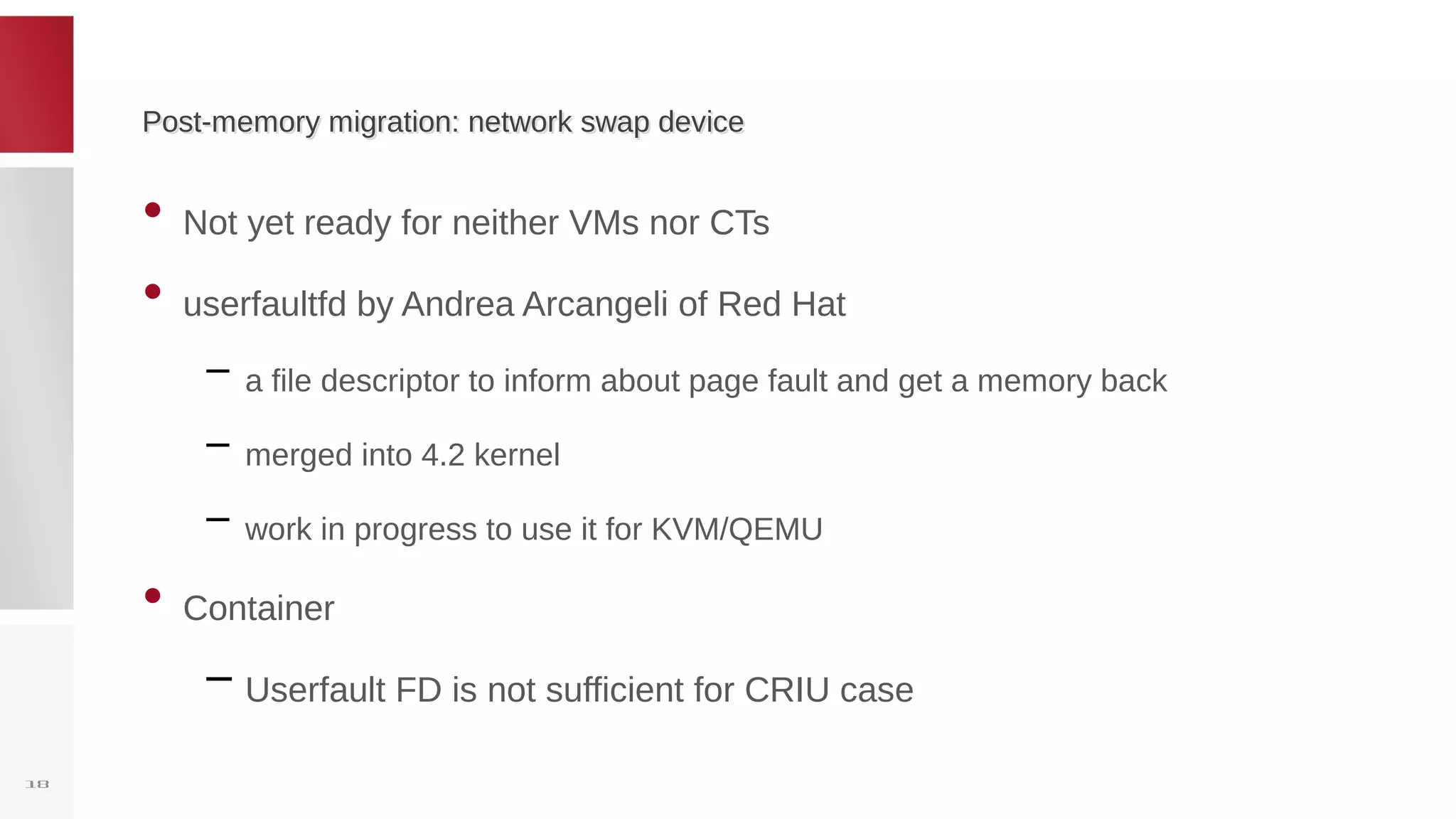

18. Post-memory migration: network swap devicePost-memory migration: network swap device
• Not yet ready for neither VMs nor CTs
• userfaultfd by Andrea Arcangeli of Red Hat
– a file descriptor to inform about page fault and get a memory back
– merged into 4.2 kernel
– work in progress to use it for KVM/QEMU
• Container
– Userfault FD is not sufficient for CRIU case
18

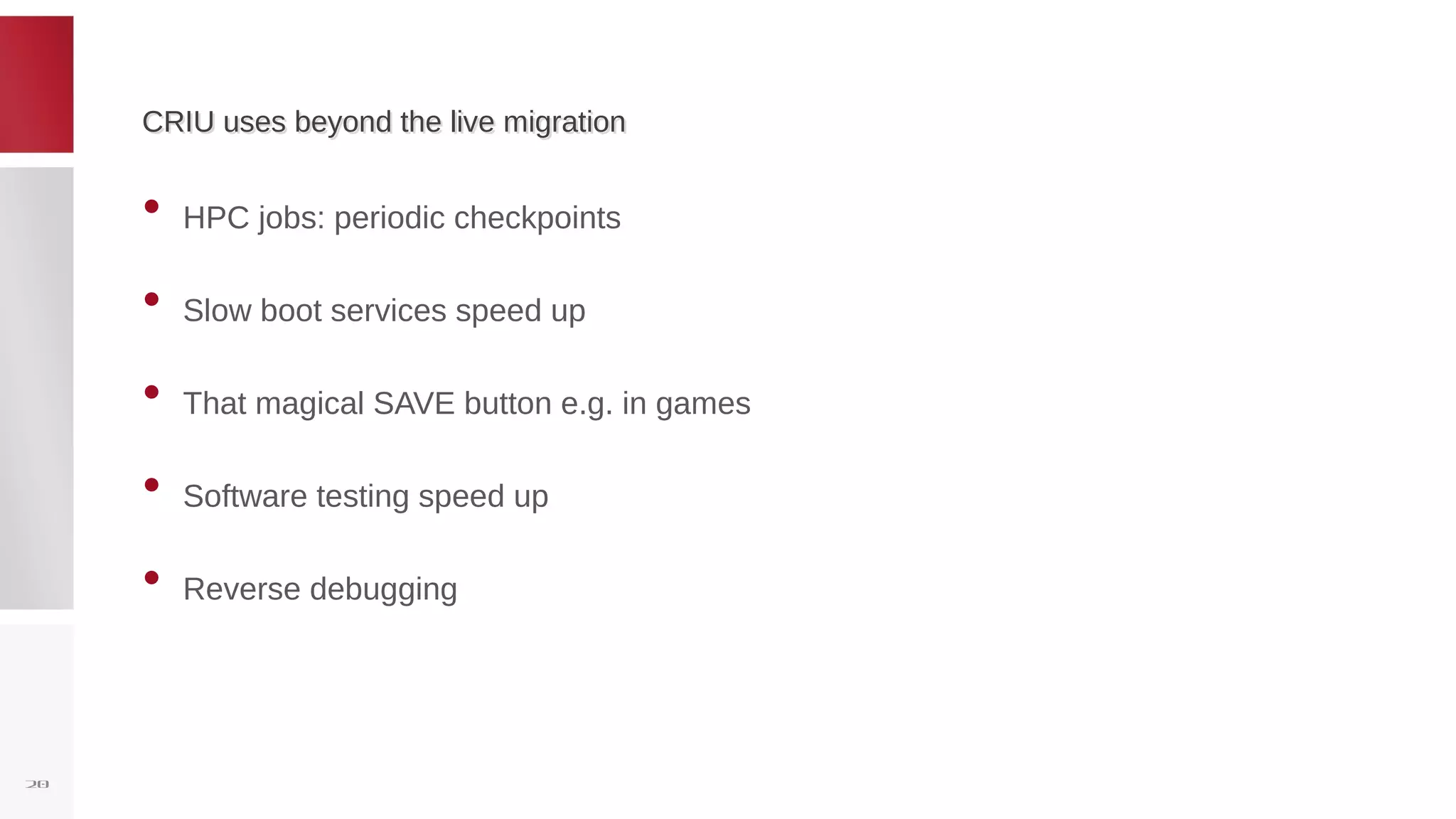

20. CRIU uses beyond the live migrationCRIU uses beyond the live migration
• HPC jobs: periodic checkpoints
• Slow boot services speed up
• That magical SAVE button e.g. in games
• Software testing speed up
• Reverse debugging
20
