Spanner is Google's globally distributed database that provides ACID transactions across data centers. It uses TrueTime to assign timestamps for distributed transactions, ensuring consistency. A Spanner deployment consists of servers organized into zones across datacenters, with a universe master and placement driver coordinating. Transactions are executed across servers and committed using time-based consensus. Evaluation shows Spanner provides low-latency reads and commits at large scale for Google applications.

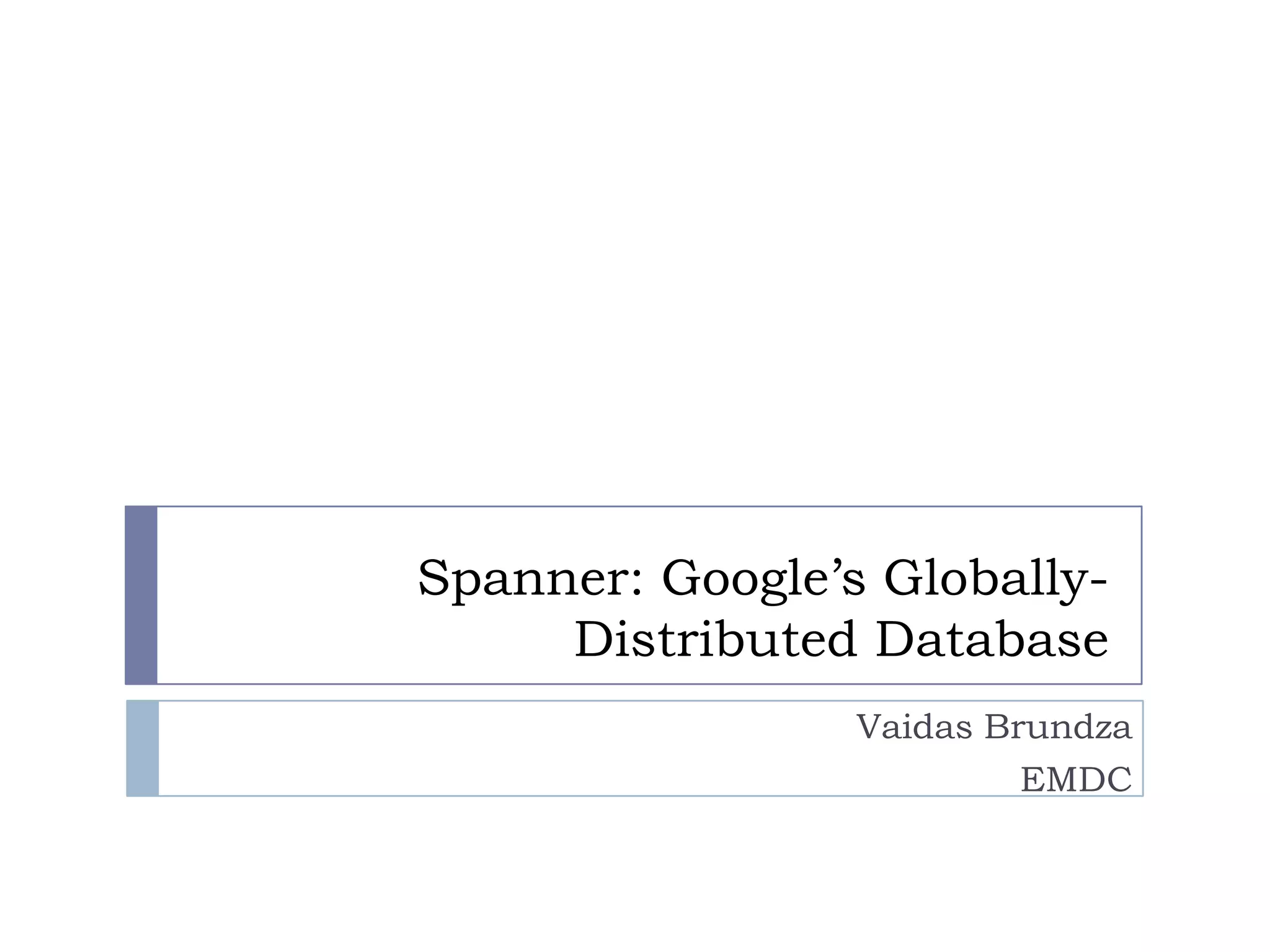

1. Spanner: Google’s Globally-
Distributed Database
Vaidas Brundza
EMDC

2. What is Spanner ?
2
o Globally distributed multi-version database
 General-purpose transactions (ACID)
 SQL-like query language
 Schematized semi-relational tables
o Currently running in production
 Storage for Google’s F1 adv. backend data
 Replaced a sharded MySQL database

3. Overview
3
o Lock-free distributed read transactions
o Global external consistency of distributed
transactions
o Used technologies: concurrency control, replication,
2PC and 2PL
o The key technology:TrueTime service

4. Overview
3
o Lock-free distributed read transactions
o Global external consistency of distributed
transactions
 Same as linearizability: if a transaction T1 commits before
another transaction T2 starts,then T1’s commit timestamp is
smaller than T2’s.
o Used technologies: concurrency control, replication,
2PC and 2PL
o The key technology:TrueTime service

5. Spanner server organization
4
o A Spanner deployment is called an
universe
o It have two singletons: the universe
master and the placement driver

6. Spanner server organization
4
o A Spanner deployment is called an
universe
o It have two singletons: the universe
master and the placement driver
o Can have up to several thousands
spanservers

7. Spanner server organization
4
o A Spanner deployment is called an
universe
o It have two singletons: the universe
master and the placement driver
o Can have up to several thousands
spanservers
o Organized as a set of zones

8. Datacenter
in US
Datacenter
in Spain
Datacenter
in Sweden
Datacenter
in Russia
Serving data from multiple datacenters
5
Data from
US
Data from
Spain
Data from
Sweden
Data from
Russia
Get the complete
data set
Block
writes

9. Datacenter
in US
Datacenter
in Spain
Datacenter
in Sweden
Datacenter
in Russia
Serving data from multiple datacenters
5
Data from
US
Data from
Spain
Data from
Sweden
Data from
Russia
Get the complete
data set

10. Serving data from multiple datacenters
5
Data from
US
Data from
Spain
Data from
Sweden
Data from
Russia
Get the complete
data set

11. Serving data from multiple datacenters
5
Data from
US
Data from
Spain
Data from
Sweden
Data from
Russia
Get the complete
data set

12. Transaction example
6
Tc
TP1
TP2

13. Transaction example
6
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks

14. Transaction example
6
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each

15. time
earliest latest
2*ɛ
TT.now()
True Time API
7
o Provides an absolute time denoted
as „Global wall-clock time“.
o Has bounded uncertainty ɛ, which
varies between 1 to 7 ms over
each poll interval
o Values derived from the worst
case local-clock drift scenario
Method Returns
TT.now() TTinterval:[earliest, latest]
TT.after(t) true if t has definitely passed
TT.before(t) true if t has definitely not arrived

16. time
earliest latest
2*ɛ
TT.now()
True Time API
7
o Provides an absolute time denoted
as „Global wall-clock time“.
o Has bounded uncertainty ɛ, which
varies between 1 to 7 ms over
each poll interval
o Values derived from the worst
case local-clock drift scenario
Method Returns
TT.now() TTinterval:[earliest, latest]
TT.after(t) true if t has definitely passed
TT.before(t) true if t has definitely not arrived

17. time
earliest latest
2*ɛ
TT.now()
True Time API
7
o Provides an absolute time denoted
as „Global wall-clock time“.
o Has bounded uncertainty ɛ, which
varies between 1 to 7 ms over
each poll interval
o Values derived from the worst
case local-clock drift scenario
o Magic number:200 μs/s
Method Returns
TT.now() TTinterval:[earliest, latest]
TT.after(t) true if t has definitely passed
TT.before(t) true if t has definitely not arrived

18. True Time Architecture
8
GPS
timemaster
GPS
timemaster
GPS
timemaster
Atomic-clock
timemaster
Atomic-clock
timemaster
GPS
timemaster
Client
Datacenter 1 Datacenter 2 Datacenter n…
now = reference now + local-clock offset
ɛ = reference ɛ + worst-case local-clock drift

19. True Time Architecture
8
GPS
timemaster
GPS
timemaster
GPS
timemaster
Atomic-clock
timemaster
Atomic-clock
timemaster
GPS
timemaster
Client
Datacenter 1 Datacenter 2 Datacenter n…
now = reference now + local-clock offset
ɛ = reference ɛ + worst-case local-clock drift

20. Transaction example
9
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each

21. Transaction example
9
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging

22. Spanserver software stack
10
o Tablet implements mappings:
(key, timestamp) -> string

23. Spanserver software stack
10
o Tablet implements mappings:
(key, timestamp) -> string
o The Paxos state machine for
replication support
o Writes initiate the Paxos
protocol at the leader
o Focuses on long-lived
transactions

24. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging

25. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging

26. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging
Prepared+ ts

27. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging
Prepared+ ts
Compute overall ts

28. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging
Prepared+ ts
Compute overall ts
Commit wait done

29. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging
Prepared+ ts
Compute overall ts
Commit wait done
Release locks

30. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging
Prepared+ ts
Compute overall ts
Commit wait done
Release locks
Committed
Send overall ts

31. Transaction example
11
Tc
TP1
TP2
Acquired locks
Acquired locks
Acquired locks
Compute ts for
each
Start logging Done logging
Prepared+ ts
Compute overall ts
Commit wait done
Release locks
Release locks
Release locks
Committed
Send overall ts

32. Additional uncovered bits
12
 Supports atomic schema changes
 Non-blocking snapshot reads in the past
 How to read at the present time
 Paxos protocol restriction
 Does not support in-Paxos configuration changes

33. Evaluation: TrueTime uncertainty
13
Distribution of TrueTime ɛ values, sampled right after time-slave daemon
polls the time masters

34. Evaluation: F1 study case
14
# fragments # directories
1 >100M
2-4 341
5-9 5336
10-14 232
15-99 34
100-500 7
operation
latency (ms)
countmean std dev
all reads 8,7 376,4 21,5B
single-site commit 72,3 112,8 31,2M
multi-site commit 103,0 52,2 32,1M

35. Evaluation: F1 study case
14
# fragments # directories
1 >100M
2-4 341
5-9 5336
10-14 232
15-99 34
100-500 7
operation
latency (ms)
countmean std dev
all reads 8,7 376,4 21,5B
single-site commit 72,3 112,8 31,2M
multi-site commit 103,0 52,2 32,1M
Distribution of directory-fragment counts

36. Evaluation: F1 study case
14
# fragments # directories
1 >100M
2-4 341
5-9 5336
10-14 232
15-99 34
100-500 7
operation
latency (ms)
countmean std dev
all reads 8,7 376,4 21,5B
single-site commit 72,3 112,8 31,2M
multi-site commit 103,0 52,2 32,1M
Distribution of directory-fragment counts
Perceived operation latencies
(over 24 hour course)

37. Evaluation: Microbenchmarks
15
replicas
latency (ms) throughput (Kops/sec)
write read-only
transactions
snapshot read write read-only
transactions
snapshot read
1D 9,4±0,6 - - 4,0±0,3 - -
1 14,4±1,0 1,4±0,1 1,3±0,1 4,1±0,05 10,9±0,4 13,5±0,1
3 13,9±0,6 1,3±0,1 1,2±0,1 2,2±0,5 13,8±3,2 38,5±0,3
5 14,4±0,4 1,4±0,05 1,3±0,04 2,8±0,3 25,3±5,2 50,0±1,1

38. Evaluation: Microbenchmarks
15
replicas
latency (ms) throughput (Kops/sec)
write read-only
transactions
snapshot read write read-only
transactions
snapshot read
1D 9,4±0,6 - - 4,0±0,3 - -
1 14,4±1,0 1,4±0,1 1,3±0,1 4,1±0,05 10,9±0,4 13,5±0,1
3 13,9±0,6 1,3±0,1 1,2±0,1 2,2±0,5 13,8±3,2 38,5±0,3
5 14,4±0,4 1,4±0,05 1,3±0,04 2,8±0,3 25,3±5,2 50,0±1,1
participants
latency (ms)
mean 99th percentile
1 17,0±1,4 75,0±34,9
2 24,5±2,5 87,6±35,9
5 31,5±6,2 104,5±52,2
10 30,0±3,7 95,6±25,4
25 35,5±5,6 100,4±42,7
50 42,7±4,1 93,7±22,9
100 71,4±7,6 131,2±17,6
200 150,5±11,0 320,3±35,1

39. Conclusion
16
 The first service to provide global externally consistent
multi-version database
 Relies on novel timeAPI (TrueTime)
 Improvements introduced over previous services
