The document discusses queuing systems and networks. It describes how queuing networks can model concurrent systems with nodes that include queues and servers. Key concepts discussed include arrival and service rates, stable systems where arrival equals departure rates, and Little's Law relating queue length, arrival rate, and wait time. The document also introduces Flux, a programming language for building high-performance concurrent servers by combining sequential components with defined flows and atomicity.

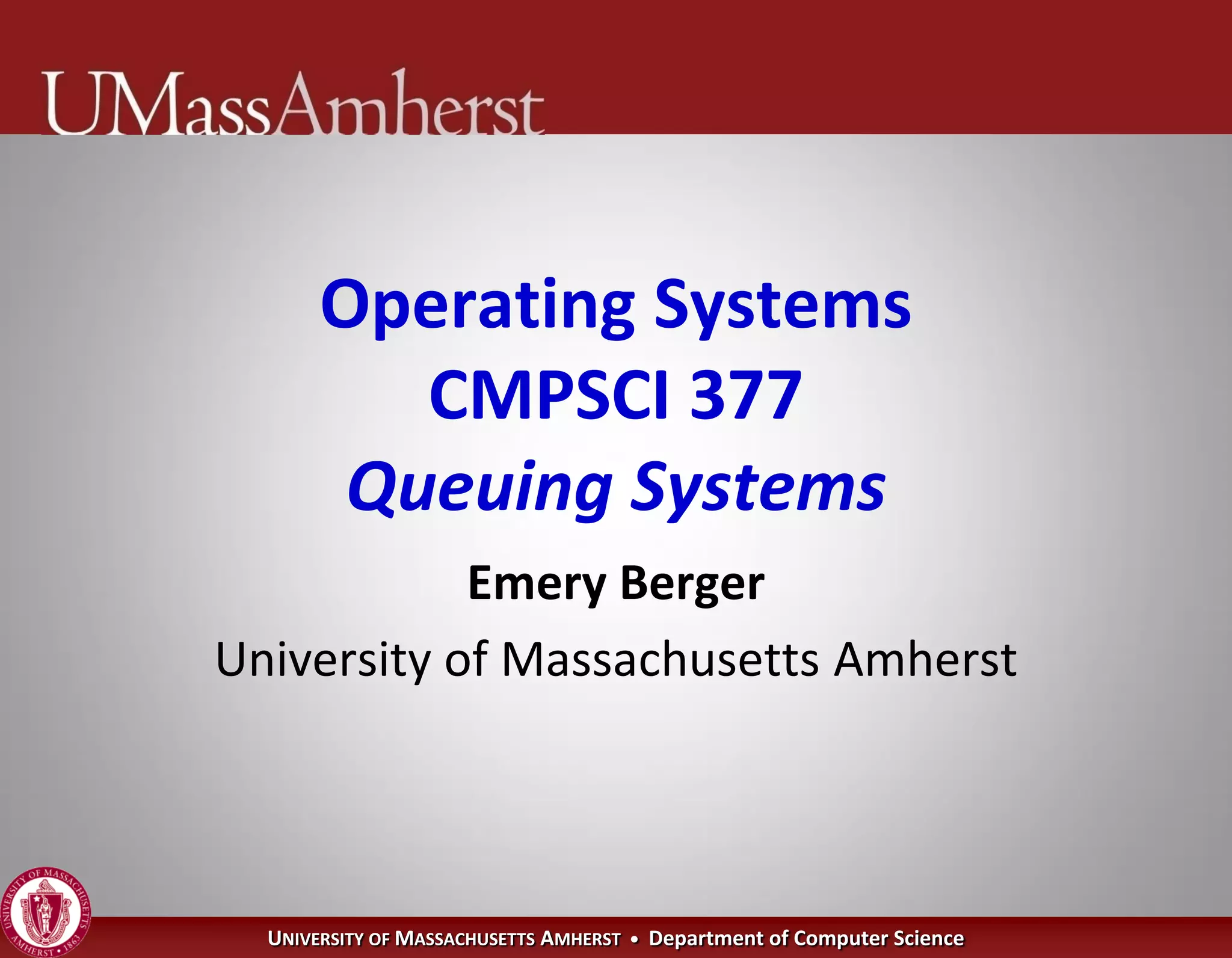

1. Operating Systems
CMPSCI 377
Queuing Systems
Emery Berger
University of Massachusetts Amherst
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

2. Queuing Systems & Servers
Queuing systems

High-level model of concurrent applications

Flux

Language for building servers

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 2

3. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 3

4. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 4

5. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 5

6. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 6

7. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

arrival rate
()
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 7

8. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

waiting time
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 8

9. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

service time
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 9

10. Queuing Networks
Model of tasks or services

Node includes queue (line) & server

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 10

11. Stable Systems
Stable queuing system:

arrival rate = departure rate
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 11

12. Stable Systems
Stable queuing system:

arrival rate = departure rate
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 12

13. Stable Systems
Stable queuing system:

arrival rate = departure rate
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 13

14. Stable Systems
Stable queuing system:

arrival rate = departure rate
What happens if  > departure rate?

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 14

15. Stable Systems
Stable queuing system:

arrival rate = departure rate
What happens if  > departure rate?

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 15

16. Stable Systems
Stable queuing system:

arrival rate = departure rate
What happens if  > departure rate?

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 16

17. Stable Systems
Stable queuing system:

arrival rate = departure rate
What happens if  > departure rate?

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 17

18. Networks of Queues
Can build system from connected servers

Latency = time for one thing to get through

Throughput = service rate

5/sec 5/sec 5/sec
Throughput?

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 18

19. Networks of Queues
Can build system with numerous

connected servers
Latency = time for one thing to get through

Throughput = service rate

5/sec 1/sec 5/sec
Throughput?

Lowest throughput = bottleneck

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 19

20. Little’s Law
Little’s Law – applies to any “blackbox”

server
Queue length (N) =

arrival rate () * average waiting time (T)
N=T

N
 T
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 20

21. Applications of Little’s Law
Compute waiting time to get into

restaurant, bar, etc.
If N = 20 people in front of you,

 = departure rate = 1 / 5 min.,
how long will you wait in line?
N=T
N
 T
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 21

22. Applications of Little’s Law
Required service time?

Arrival rate = one job @ 500 ms

Average queue length = 10

T=?

What’s the average latency?

N=T
N
 T
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 22

23. Applications of Little’s Law
Required service time?

Arrival rate = one job @ 500 ms

Average queue length = 5

T=?

What’s the average latency?

N=T
N
 T
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 23

24. Motivating Example: Image Server
server
Client

Requests image @ desired

quality, size not found
Server

Images: RAW

http://server/Easter-bunny/
200x100/75
Compresses to JPG

Caches requests

Sends to client

client
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

25. Problem: Concurrency
Could write sequential code server

but…
More clients (latency)

Bigger server

Multicores, multiprocessors

One approach: threads

Limit reuse,

risk deadlock,
burden programmer
Complicate debugging

Mixes program logic &

concurrency control clients
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

26. The Flux Programming Language
High-performance & deadlock-free
concurrent programming w/ sequential components
Flux = Components + Flow + Atomicity

Components unmodified C, C++ (or Java)

Flow implicitly || path thru components

Atomicity high-level mutual exclusion

Compiler generates:

Deadlock-free, runtime-independent server

Threads, thread pools, events, …

Path profiling

Discrete event simulator

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

27. Flux Outline
Intro to Flux: building a server

Components

Flows

Atomicity

Performance results

Server performance

Performance prediction (QNMs)

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

28. Flux Server “Main”
Source nodes originate flows

Conceptually in separate thread

Executes inside implicit infinite loop

Here: initiates flow for each image request

source Listen  Image;
Listen
image server
ReadRequest Compress Write Complete
ReadRequest Compress Write Complete
ReadRequest Compress Write Complete
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

29. Flux Image Server
Basic image server requires:

HTTP parsing (http)

 Socket handling (socket)
 JPEG compression (libjpeg)
 All UNIX-style C libraries
Abstract node = flow across nodes

Concrete or abstract

Image = ReadRequest  Compress  Write  Complete;
image server
ReadRequest Compress Write Complete
http libjpeg socket http
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

30. Control Flow
Direct flow via user-supplied predicate types

Type test applied to output

Note: no variables – dispatch on output “type”

Here: cache frequently requested images

typedef hit TestInCache;
Handler:[_,_,hit] = ;
Handler:[_,_,_] = ReadFromDisk  Compress  StoreInCache;
hit handler
ReadRequest CheckCache Write Complete
Listen
handler
StoreInCache
ReadInFromDisk Compress
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

31. Supporting Concurrency
Many clients = concurrent flows

Must keep cache consistent

Atomicity constraints

Same name = mutual exclusion

Apply to nodes or whole flow (abstract node)

atomic CheckCache {};
{, };
atomic Complete
atomic StoreInCache {};
CheckCache hit
ReadRequest Write Complete
CheckCache hit hit
ReadRequest Write Complete
CheckCache hit Writehandler
ReadRequest Complete
Listen ReadInFromDisk Compress StoreInCache
ReadRequest CheckCache StoreInCache Write Complete
ReadInFromDisk Compress
ReadInFromDisk Compress StoreInCache
handler
StoreInCache
ReadInFromDisk Compress
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

32. More Atomicity
Reader / writer constraints

Multiple readers or single writer (default)

atomic ReadList: {listAccess?};
atomic AddToList: {listAccess!};
Per-session constraints

User-supplied function ≈ hash on source

Added to flow ≈ chooses from array of locks

atomic AddHasChunk: {chunks(session)};
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

33. Preventing Deadlock
Naïve execution can deadlock

atomic A: {z,y}; atomic A: {y,z};
atomic B: {y,z}; atomic B: {y,z};
Establish canonical lock order

Partial order

Alphabetic by name

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 33

34. Preventing Deadlock, II
Harder with abstract nodes

A = B;
C = D;
A:{z}
A
A{z}
atomic A{z}; C{y}
C
B
atomic B{y};
atomic C{y,z};
Solution: Elevate constraints; fixed point

A = B;
C = D; A{y,z}
C
atomic A{y,z};
B
atomic B{y};
atomic C{y,z};
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 34

35. Handling Errors
What if image requested doesn’t exist?

Error = negative return value from component

Remember – nodes oblivious to Flux

Solution: error handlers

Go to alternate paths on error

Possible extension – can match on error paths

handle error ReadInFromDisk  FourOhFour;
hit
handler
ReadRequest CheckCache Write Complete
Listen handler
StoreInCache
ReadInFromDisk Compress
FourOhFour
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

36. Almost Complete Flux Image Server
source Listen  Image;
Image =
ReadRequest  CheckCache  Handler  Write  Complete;
Handler[_,_,hit] = ;
Handler[_,_,_] = ReadFromDisk  Compress  StoreInCache;
atomic CheckCache: {cacheLock};
atomic StoreInCache: {cacheLock};
atomic Complete: {cacheLock};
handle error ReadInFromDisk  FourOhFour;
Concise, readable expression of server logic

No threads, etc.: simplifies programming, debugging

image hit
handler
server ReadRequest CheckCache Write Complete
Listen
handler
StoreInCache
ReadInFromDisk Compress
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

37. Flux Outline
Intro to Flux: building a server

Components, flow

Atomicity, deadlock avoidance

Performance results

Server performance

Performance prediction

Future work

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science

38. Flux Results
Four servers:

Image server (+ libjpeg) [23 lines of Flux]

Multi-player online game [54]

BitTorrent (2 undergrads: 1 week!) [84]

Web server (+ PHP) [36]

Evaluation

Benchmark: variant of SPECweb99

Three different runtimes here

Thread: one per connection

Thread pool: fixed max # threads

Event-driven: helper threads for blocking calls

Compared to Capriccio [SOSP03], SEDA [SOSP01]

UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 38

39. Web Server
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 39

40. Performance Prediction
observed
parameters
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 40

41. Performance Prediction
observed
parameters
UNIVERSITY OF MASSACHUSETTS AMHERST • Department of Computer Science 41
