Circulatory System 19.1-19.2

The document provides an overview of the heart and circulatory system. It describes the pulmonary and systemic circuits, with the pulmonary circuit carrying deoxygenated blood to the lungs and returning it oxygenated to the left side of the heart. The systemic circuit then supplies oxygenated blood to the entire body from the left side of the heart. It details the flow of blood through the heart chambers, with the right side receiving deoxygenated blood and pumping it to the lungs, and the left side receiving oxygenated blood and pumping it out to the body. The heart is enclosed within the pericardial sac and has three layers: epicardium, myocardium, and endocardium.

Embed presentation

Downloaded 63 times
THE HEART H E A T H E R L D R A K E N E W Y O R K C H I R O P R A C T I C C O L L E G E , 2 0 1 3 S A L A D I N , “ U N I T Y O F F O R M A N D F U N C T I O N ” The Circulatory System

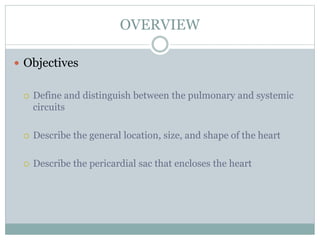

OVERVIEW  Objectives  Define and distinguish between the pulmonary and systemic circuits  Describe the general location, size, and shape of the heart  Describe the pericardial sac that encloses the heart

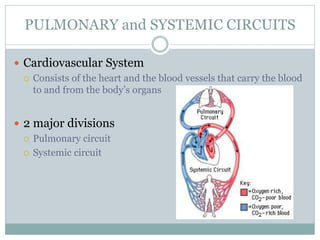

PULMONARY and SYSTEMIC CIRCUITS  Cardiovascular System  Consists of the heart and the blood vessels that carry the blood to and from the body’s organs  2 major divisions  Pulmonary circuit  Systemic circuit

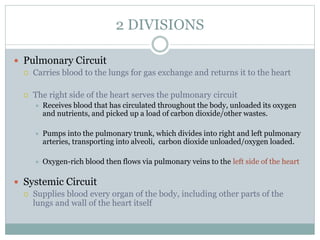

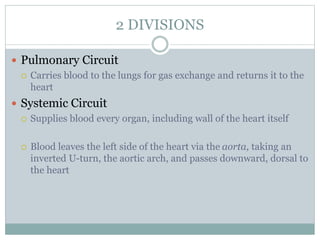

2 DIVISIONS  Pulmonary Circuit  Carries blood to the lungs for gas exchange and returns it to the heart  The right side of the heart serves the pulmonary circuit  Receives blood that has circulated throughout the body, unloaded its oxygen and nutrients, and picked up a load of carbon dioxide/other wastes.  Pumps into the pulmonary trunk, which divides into right and left pulmonary arteries, transporting into alveoli, carbon dioxide unloaded/oxygen loaded.  Oxygen-rich blood then flows via pulmonary veins to the left side of the heart  Systemic Circuit  Supplies blood every organ of the body, including other parts of the lungs and wall of the heart itself

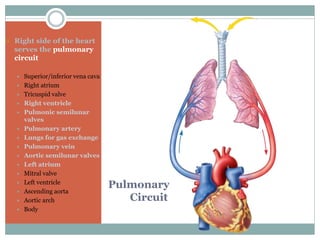

Pulmonary Circuit  Right side of the heart serves the pulmonary circuit  Superior/inferior vena cava  Right atrium  Tricuspid valve  Right ventricle  Pulmonic semilunar valves  Pulmonary artery  Lungs for gas exchange  Pulmonary vein  Aortic semilunar valves  Left atrium  Mitral valve  Left ventricle  Ascending aorta  Aortic arch  Body
2 DIVISIONS  Pulmonary Circuit  Carries blood to the lungs for gas exchange and returns it to the heart  Systemic Circuit  Supplies blood every organ, including wall of the heart itself  Blood leaves the left side of the heart via the aorta, taking an inverted U-turn, the aortic arch, and passes downward, dorsal to the heart

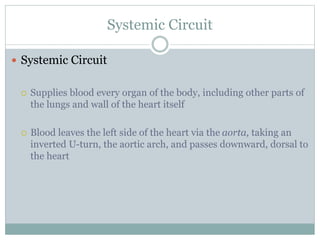

Systemic Circuit  Systemic Circuit  Supplies blood every organ of the body, including other parts of the lungs and wall of the heart itself  Blood leaves the left side of the heart via the aorta, taking an inverted U-turn, the aortic arch, and passes downward, dorsal to the heart

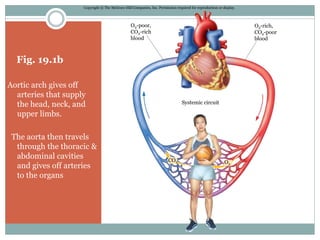

Fig. 19.1b Aortic arch gives off arteries that supply the head, neck, and upper limbs. The aorta then travels through the thoracic & abdominal cavities and gives off arteries to the organs Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. O2-poor, CO2-rich blood O2-rich, CO2-poor blood Systemic circuit O2 CO2
Systemic Circuit Supplies: -- Every organ -- Heart muscle - Parts of the lungs  Systemic Circuit  After circulating through the body, the now-deoxygenated systemic blood returns to the right side of the heart mainly via:  Superior vena cava (draining the head, neck, upper limbs and thoracic organs)  Inferior vena cava (drains organs below the diaphragm)

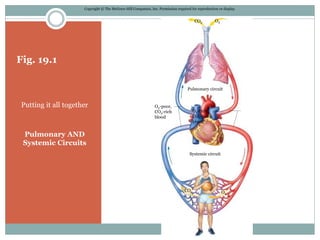

Fig. 19.1 Putting it all together Pulmonary AND Systemic Circuits Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. O2 O2CO2 Pulmonary circuit O2-poor, CO2-rich blood O2-rich, CO2-poor blood Systemic circuit CO2

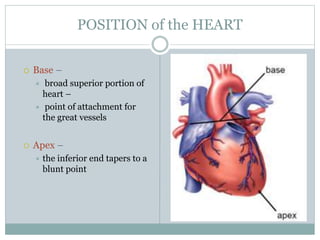

POSITION of the HEART  Base –  broad superior portion of heart –  point of attachment for the great vessels  Apex –  the inferior end tapers to a blunt point

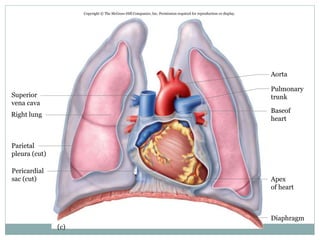

Fig. 19.2c Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Superior vena cava Right lung Parietal pleura (cut) Pericardial sac (cut) Aorta Pulmonary trunk Baseof heart Apex of heart Diaphragm (c)

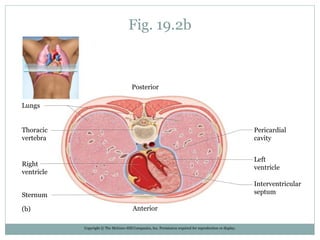

Fig. 19.2b Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Posterior Lungs Pericardial cavity Left ventricle Interventricular septum Anterior Sternum Right ventricle Thoracic vertebra (b)

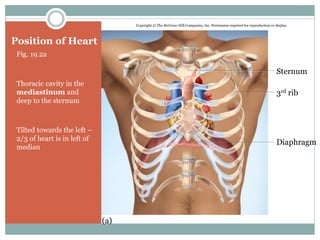

Position of Heart Fig. 19.2a Thoracic cavity in the mediastinum and deep to the sternum Tilted towards the left – 2/3 of heart is in left of median Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. (a) Sternum 3rd rib Diaphragm

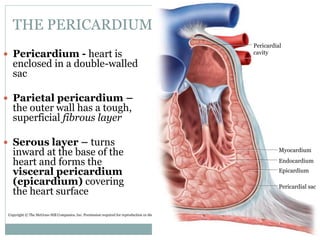

THE PERICARDIUM  Pericardium - heart is enclosed in a double-walled sac  Parietal pericardium – the outer wall has a tough, superficial fibrous layer  Serous layer – turns inward at the base of the heart and forms the visceral pericardium (epicardium) covering the heart surface Fig. 19.3a Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Pericardial cavity Myocardium Endocardium Epicardium Pericardial sac

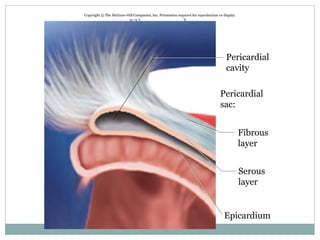

Fig. 19.3b Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Pericardial cavity Pericardial sac: Fibrous layer Serous layer Epicardium

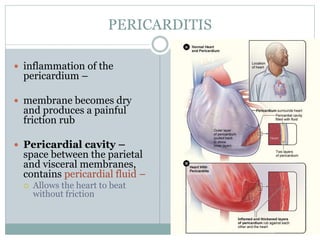

PERICARDITIS  inflammation of the pericardium –  membrane becomes dry and produces a painful friction rub  Pericardial cavity – space between the parietal and visceral membranes, contains pericardial fluid –  Allows the heart to beat without friction

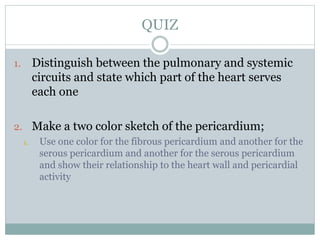

QUIZ 1. Distinguish between the pulmonary and systemic circuits and state which part of the heart serves each one 2. Make a two color sketch of the pericardium; 1. Use one color for the fibrous pericardium and another for the serous pericardium and another for the serous pericardium and show their relationship to the heart wall and pericardial activity

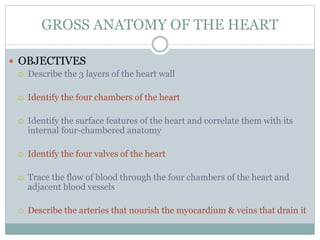

GROSS ANATOMY OF THE HEART  OBJECTIVES  Describe the 3 layers of the heart wall  Identify the four chambers of the heart  Identify the surface features of the heart and correlate them with its internal four-chambered anatomy  Identify the four valves of the heart  Trace the flow of blood through the four chambers of the heart and adjacent blood vessels  Describe the arteries that nourish the myocardium & veins that drain it

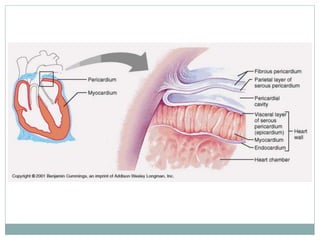

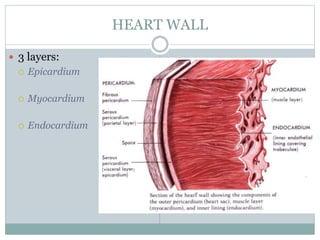

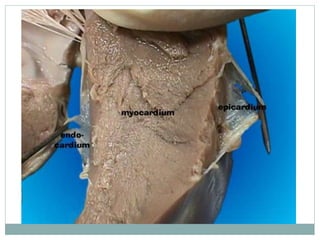

HEART WALL  3 layers:  Epicardium  Myocardium  Endocardium

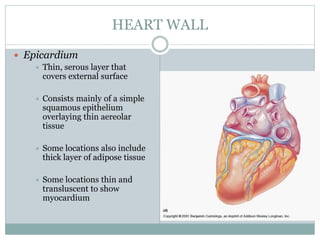

HEART WALL  Epicardium  Thin, serous layer that covers external surface  Consists mainly of a simple squamous epithelium overlaying thin aereolar tissue  Some locations also include thick layer of adipose tissue  Some locations thin and transluscent to show myocardium

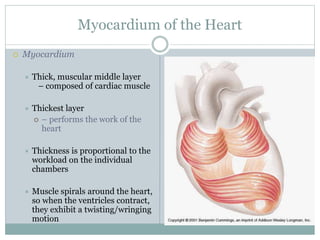

Myocardium of the Heart  Myocardium  Thick, muscular middle layer – composed of cardiac muscle  Thickest layer  – performs the work of the heart  Thickness is proportional to the workload on the individual chambers  Muscle spirals around the heart, so when the ventricles contract, they exhibit a twisting/wringing motion

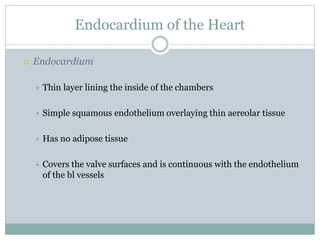

Endocardium of the Heart  Endocardium  Thin layer lining the inside of the chambers  Simple squamous endothelium overlaying thin aereolar tissue  Has no adipose tissue  Covers the valve surfaces and is continuous with the endothelium of the bl vessels
ANIMATION OF BLOOD FLOW THROUGH HEART  http://www.wellesley.edu/Biology/Courses/111/Adu ltHeart.gif

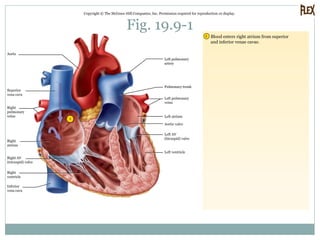

Fig. 19.9-1 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 1 1 Blood enters right atrium from superior and inferior venae cavae. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium

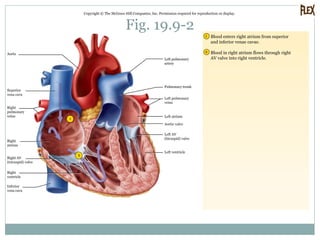

Fig. 19.9-2 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 2 1 2 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium

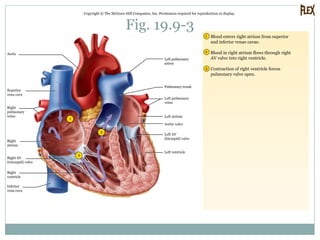

Fig. 19.9-3 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 2 1 2 3 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Aorta Superior vena cava Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium Right pulmonary veins

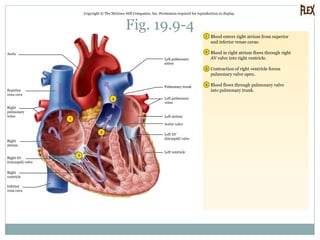

Fig. 19.9-4 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 4 2 1 2 3 4 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Aorta Superior vena cava Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium Right pulmonary veins

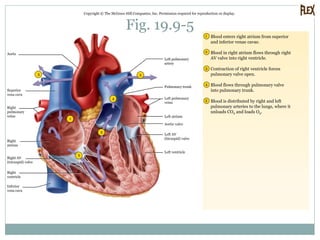

Fig. 19.9-5 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 4 55 2 1 2 3 4 5 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Aorta Superior vena cava Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Aortic valve Left atrium Right pulmonary veins Left ventricle Left AV (bicuspid) valve

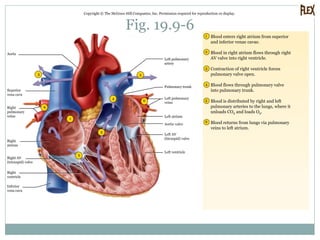

Fig. 19.9-6 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 6 4 55 2 1 6 2 3 4 5 6 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Blood returns from lungs via pulmonary veins to left atrium. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium
Fig. 19.9-7 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 6 4 55 2 1 7 6 2 3 4 5 6 7 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Blood returns from lungs via pulmonary veins to left atrium. Blood in left atrium flows through left AV valve into left ventricle. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium
Fig. 19.9-8 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 6 4 55 2 1 7 8 6 2 3 4 5 6 7 8 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Blood returns from lungs via pulmonary veins to left atrium. Blood in left atrium flows through left AV valve into left ventricle. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium Contraction of left ventricle (simultaneous with step 3 ) forces aortic valve open.

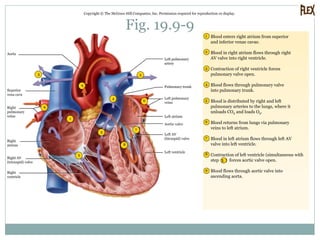

Fig. 19.9-9 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 6 4 55 2 1 7 8 9 6 2 3 4 5 6 7 8 9 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Blood returns from lungs via pulmonary veins to left atrium. Blood in left atrium flows through left AV valve into left ventricle. Blood flows through aortic valve into ascending aorta. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium Contraction of left ventricle (simultaneous with step 3 ) forces aortic valve open.

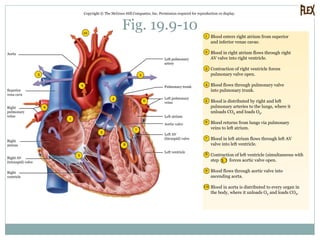

Fig. 19.9-10 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 6 4 55 2 1 7 8 9 6 2 3 4 5 6 7 8 9 1 0 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Blood returns from lungs via pulmonary veins to left atrium. Blood in left atrium flows through left AV valve into left ventricle. Blood flows through aortic valve into ascending aorta. Blood in aorta is distributed to every organ in the body, where it unloads O2 and loads CO2. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle 10 Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium Contraction of left ventricle (simultaneous with step 3 ) forces aortic valve open.
Fig. 19.9 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 3 6 4 55 2 1 7 8 9 6 2 3 4 5 6 7 8 9 1 0 1 Blood enters right atrium from superior and inferior venae cavae. Blood in right atrium flows through right AV valve into right ventricle. Contraction of right ventricle forces pulmonary valve open. Blood flows through pulmonary valve into pulmonary trunk. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2. Blood returns from lungs via pulmonary veins to left atrium. Blood in left atrium flows through left AV valve into left ventricle. Blood flows through aortic valve into ascending aorta. Blood in aorta is distributed to every organ in the body, where it unloads O2 and loads CO2. Blood returns to heart via venae cavae. Aorta Superior vena cava Right pulmonary veins Right atrium Right AV (tricuspid) valve Right ventricle Inferior vena cava 11 10 11 Left pulmonary artery Pulmonary trunk Left pulmonary veins Left ventricle Left AV (bicuspid) valve Aortic valve Left atrium 11 Contraction of left ventricle (simultaneous with step 3 ) forces aortic valve open.

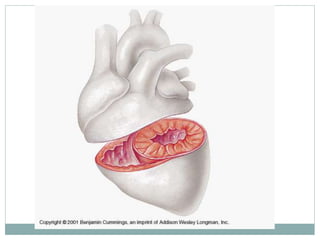

HEART – FIBROUS SKELETON  Has a meshwork of collagenous and elastic fibers that make up a fibrous skeleton  Fibrous rings have multiple functions:  Structural support for heart, esp around valves and openings of great vessels  Anchors the myocytes and gives them something to pull against  Serves as electrical insulation b/w atria and ventricles, so the atria cannot stimulate the ventricles directly  Elastic recoil aids in refilling the heart

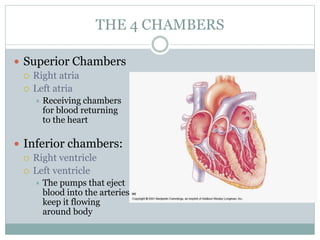

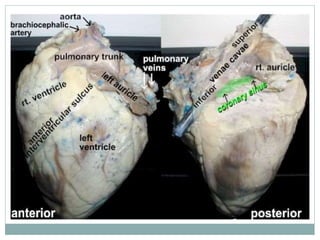

THE 4 CHAMBERS  Superior Chambers  Right atria  Left atria  Receiving chambers for blood returning to the heart  Inferior chambers:  Right ventricle  Left ventricle  The pumps that eject blood into the arteries keep it flowing around body

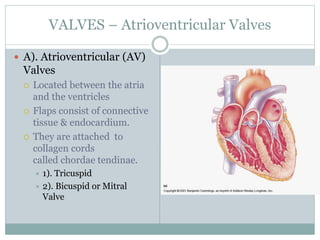

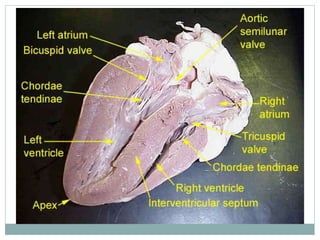

VALVES – Atrioventricular Valves  A). Atrioventricular (AV) Valves  Located between the atria and the ventricles  Flaps consist of connective tissue & endocardium.  They are attached to collagen cords called chordae tendinae.  1). Tricuspid  2). Bicuspid or Mitral Valve

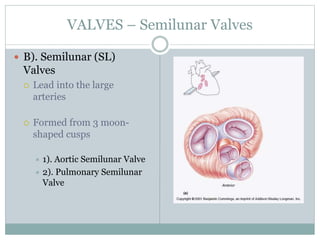

VALVES – Semilunar Valves  B). Semilunar (SL) Valves  Lead into the large arteries  Formed from 3 moon- shaped cusps  1). Aortic Semilunar Valve  2). Pulmonary Semilunar Valve
BLOOD FLOW – AV Valves - STEP 1  When the heart is relaxed, the AV flaps hang open

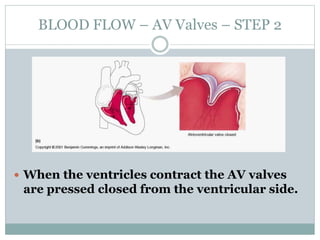

BLOOD FLOW – AV Valves – STEP 2  When the ventricles contract the AV valves are pressed closed from the ventricular side.

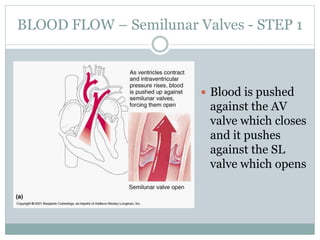

 Blood is pushed against the AV valve which closes and it pushes against the SL valve which opens BLOOD FLOW – Semilunar Valves - STEP 1

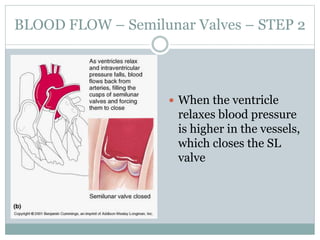

 When the ventricle relaxes blood pressure is higher in the vessels, which closes the SL valve BLOOD FLOW – Semilunar Valves – STEP 2

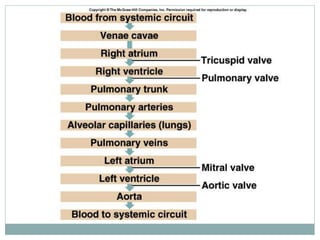

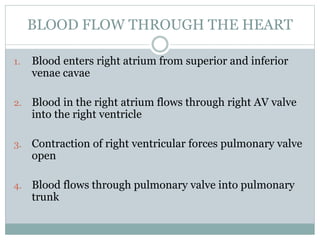

BLOOD FLOW THROUGH THE HEART 1. Blood enters right atrium from superior and inferior venae cavae 2. Blood in the right atrium flows through right AV valve into the right ventricle 3. Contraction of right ventricular forces pulmonary valve open 4. Blood flows through pulmonary valve into pulmonary trunk

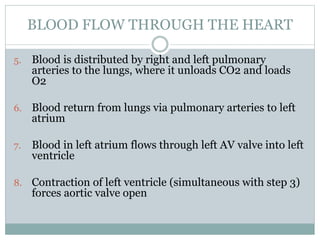

5. Blood is distributed by right and left pulmonary arteries to the lungs, where it unloads CO2 and loads O2 6. Blood return from lungs via pulmonary arteries to left atrium 7. Blood in left atrium flows through left AV valve into left ventricle 8. Contraction of left ventricle (simultaneous with step 3) forces aortic valve open BLOOD FLOW THROUGH THE HEART

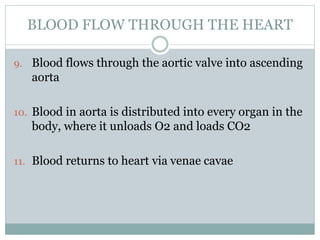

9. Blood flows through the aortic valve into ascending aorta 10. Blood in aorta is distributed into every organ in the body, where it unloads O2 and loads CO2 11. Blood returns to heart via venae cavae BLOOD FLOW THROUGH THE HEART

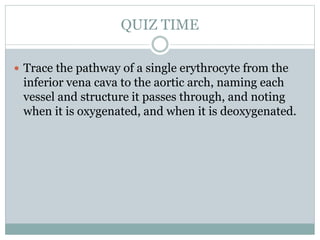

QUIZ TIME  Trace the pathway of a single erythrocyte from the inferior vena cava to the aortic arch, naming each vessel and structure it passes through, and noting when it is oxygenated, and when it is deoxygenated.

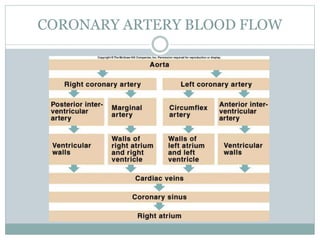

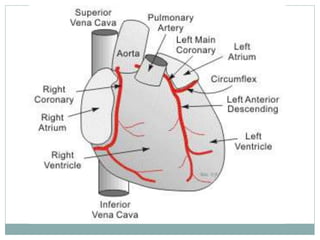

CORONARY ARTERY BLOOD FLOW

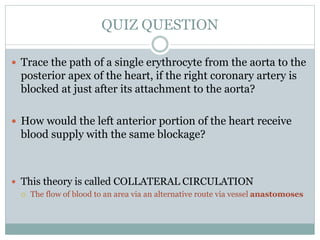

QUIZ QUESTION  Trace the path of a single erythrocyte from the aorta to the posterior apex of the heart, if the right coronary artery is blocked at just after its attachment to the aorta?  How would the left anterior portion of the heart receive blood supply with the same blockage?  This theory is called COLLATERAL CIRCULATION  The flow of blood to an area via an alternative route via vessel anastomoses

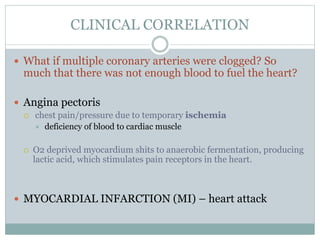

CLINICAL CORRELATION  What if multiple coronary arteries were clogged? So much that there was not enough blood to fuel the heart?  Angina pectoris  chest pain/pressure due to temporary ischemia  deficiency of blood to cardiac muscle  O2 deprived myocardium shits to anaerobic fermentation, producing lactic acid, which stimulates pain receptors in the heart.  MYOCARDIAL INFARCTION (MI) – heart attack

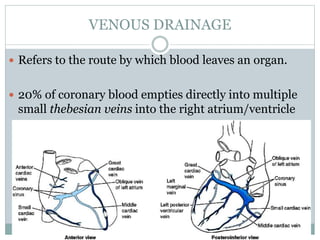

VENOUS DRAINAGE  Refers to the route by which blood leaves an organ.  20% of coronary blood empties directly into multiple small thebesian veins into the right atrium/ventricle

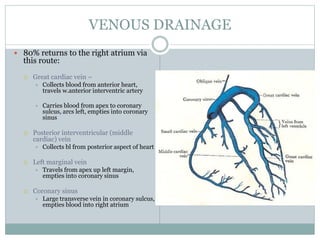

VENOUS DRAINAGE  80% returns to the right atrium via this route:  Great cardiac vein –  Collects blood from anterior heart, travels w.anterior interventric artery  Carries blood from apex to coronary sulcus, arcs left, empties into coronary sinus  Posterior interventricular (middle cardiac) vein  Collects bl from posterior aspect of heart  Left marginal vein  Travels from apex up left margin, empties into coronary sinus  Coronary sinus  Large transverse vein in coronary sulcus, empties blood into right atrium
QUIZ 3. Name the three layers of the heart and describe their structural differences 4. What are the functions of the fibrous skeleton? 5. Trace the flow of blood through the heart, naming each chamber and valve in order 6. What are the three principle branches of the left coronary artery? Where are they located on the heart surface? What are the branches of the right coronary artery, and where are they located?

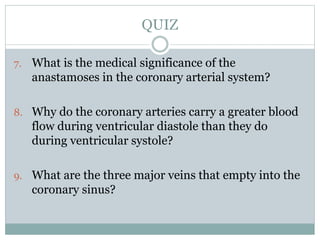

7. What is the medical significance of the anastamoses in the coronary arterial system? 8. Why do the coronary arteries carry a greater blood flow during ventricular diastole than they do during ventricular systole? 9. What are the three major veins that empty into the coronary sinus? QUIZ

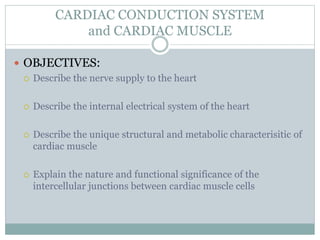

CARDIAC CONDUCTION SYSTEM and CARDIAC MUSCLE  OBJECTIVES:  Describe the nerve supply to the heart  Describe the internal electrical system of the heart  Describe the unique structural and metabolic characterisitic of cardiac muscle  Explain the nature and functional significance of the intercellular junctions between cardiac muscle cells

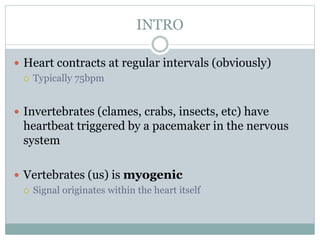

INTRO  Heart contracts at regular intervals (obviously)  Typically 75bpm  Invertebrates (clames, crabs, insects, etc) have heartbeat triggered by a pacemaker in the nervous system  Vertebrates (us) is myogenic  Signal originates within the heart itself

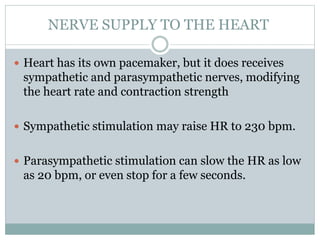

NERVE SUPPLY TO THE HEART  Heart has its own pacemaker, but it does receives sympathetic and parasympathetic nerves, modifying the heart rate and contraction strength  Sympathetic stimulation may raise HR to 230 bpm.  Parasympathetic stimulation can slow the HR as low as 20 bpm, or even stop for a few seconds.

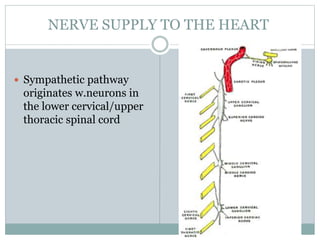

NERVE SUPPLY TO THE HEART  Sympathetic pathway originates w.neurons in the lower cervical/upper thoracic spinal cord

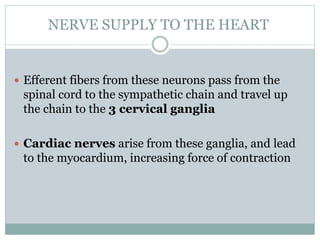

 Efferent fibers from these neurons pass from the spinal cord to the sympathetic chain and travel up the chain to the 3 cervical ganglia  Cardiac nerves arise from these ganglia, and lead to the myocardium, increasing force of contraction NERVE SUPPLY TO THE HEART

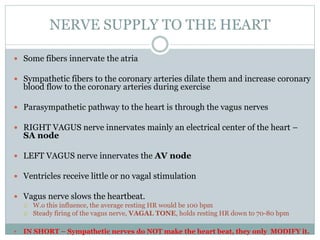

NERVE SUPPLY TO THE HEART  Some fibers innervate the atria  Sympathetic fibers to the coronary arteries dilate them and increase coronary blood flow to the coronary arteries during exercise  Parasympathetic pathway to the heart is through the vagus nerves  RIGHT VAGUS nerve innervates mainly an electrical center of the heart – SA node  LEFT VAGUS nerve innervates the AV node  Ventricles receive little or no vagal stimulation  Vagus nerve slows the heartbeat.  W.o this influence, the average resting HR would be 100 bpm  Steady firing of the vagus nerve, VAGAL TONE, holds resting HR down to 70-80 bpm  IN SHORT – Sympathetic nerves do NOT make the heart beat, they only MODIFY it.

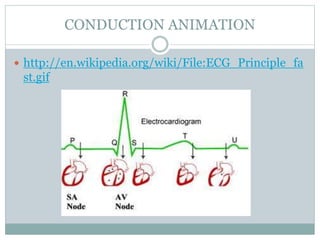

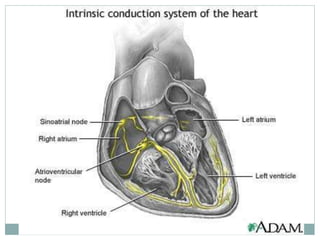

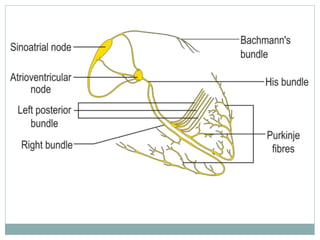

CONDUCTION ANIMATION  http://en.wikipedia.org/wiki/File:ECG_Principle_fa st.gif

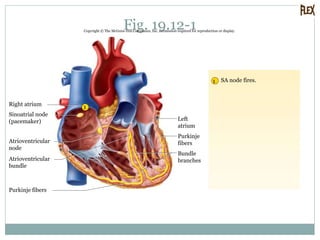

Fig. 19.12-1Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 1 1 SA node fires. Purkinje fibers Atrioventricular bundle Atrioventricular node Sinoatrial node (pacemaker) Right atrium Bundle branches Left atrium Purkinje fibers
Fig. 19.12-2Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 2 1 1 2 2 SA node fires. Excitation spreads through atrial myocardium. Purkinje fibers Atrioventricular bundle Atrioventricular node Sinoatrial node (pacemaker) Right atrium Bundle branches Left atrium Purkinje fibers

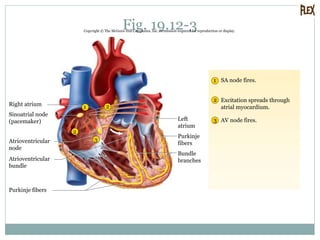

Fig. 19.12-3Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 2 3 1 1 2 3 2 SA node fires. Excitation spreads through atrial myocardium. AV node fires. Purkinje fibers Atrioventricular bundle Atrioventricular node Sinoatrial node (pacemaker) Right atrium Bundle branches Left atrium Purkinje fibers

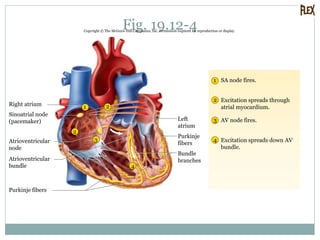

Fig. 19.12-4Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 2 3 4 1 1 2 3 4 2 SA node fires. Excitation spreads through atrial myocardium. AV node fires. Excitation spreads down AV bundle. Purkinje fibers Atrioventricular bundle Atrioventricular node Sinoatrial node (pacemaker) Right atrium Bundle branches Left atrium Purkinje fibers

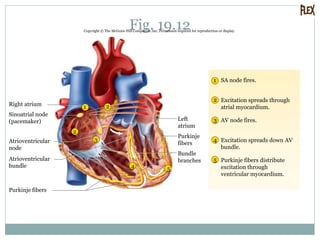

Fig. 19.12Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 2 3 4 5 1 1 2 3 4 5 2 SA node fires. Excitation spreads through atrial myocardium. AV node fires. Excitation spreads down AV bundle. Purkinje fibers distribute excitation through ventricular myocardium. Purkinje fibers Atrioventricular bundle Atrioventricular node Sinoatrial node (pacemaker) Right atrium Bundle branches Left atrium Purkinje fibers

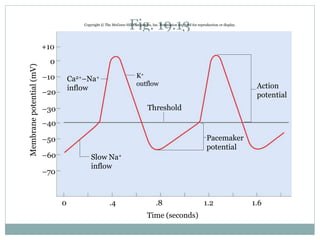

Fig. 19.13Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 0 0 .8.4 Membranepotential(mV) +10 –10 –20 –30 –40 –50 –60 –70 1.61.2 Time (seconds) Pacemaker potential Action potential Threshold K+ outflow Slow Na+ inflow Ca2+–Na+ inflow

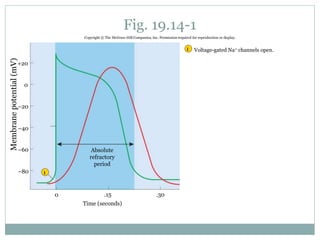

Fig. 19.14-1 0 Voltage-gated Na+ channels open.1 1 Membranepotential(mV) 0 +20 –20 –40 –60 –80 .30 Time (seconds) .15 Absolute refractory period Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.
Fig. 19.14-2 0 Voltage-gated Na+ channels open. Na+ inflow depolarizes the membrane and triggers the opening of still more Na+ channels, creating a positive feedback cycle and a rapidly rising membrane voltage. 1 2 1 2 Membranepotential(mV) 0 +20 –20 –40 –60 –80 .30 Time (seconds) .15 Absolute refractory period Myocardial contraction Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

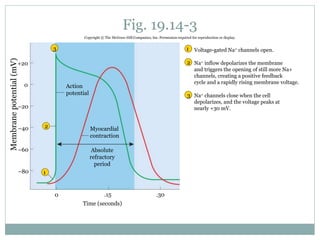

Fig. 19.14-3 0 Voltage-gated Na+ channels open. Na+ inflow depolarizes the membrane and triggers the opening of still more Na+ channels, creating a positive feedback cycle and a rapidly rising membrane voltage. Na+ channels close when the cell depolarizes, and the voltage peaks at nearly +30 mV. 1 2 3 1 2 3 Membranepotential(mV) 0 +20 –20 –40 –60 –80 .30 Time (seconds) .15 Absolute refractory period Myocardial contraction Action potential Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

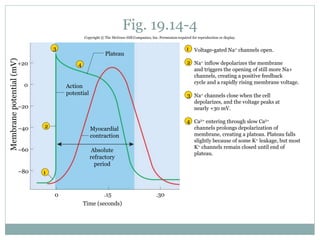

Fig. 19.14-4 0 Voltage-gated Na+ channels open. Na+ inflow depolarizes the membrane and triggers the opening of still more Na+ channels, creating a positive feedback cycle and a rapidly rising membrane voltage. Na+ channels close when the cell depolarizes, and the voltage peaks at nearly +30 mV. Ca2+ entering through slow Ca2+ channels prolongs depolarization of membrane, creating a plateau. Plateau falls slightly because of some K+ leakage, but most K+ channels remain closed until end of plateau. 1 2 3 4 1 2 3 4 Membranepotential(mV) 0 +20 –20 –40 –60 –80 Plateau .30 Time (seconds) .15 Absolute refractory period Myocardial contraction Action potential Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

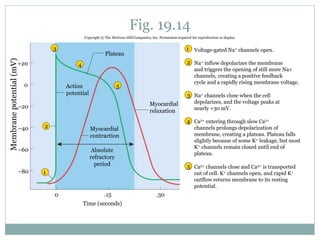

Fig. 19.14 0 Voltage-gated Na+ channels open. Na+ inflow depolarizes the membrane and triggers the opening of still more Na+ channels, creating a positive feedback cycle and a rapidly rising membrane voltage. Na+ channels close when the cell depolarizes, and the voltage peaks at nearly +30 mV. Ca2+ entering through slow Ca2+ channels prolongs depolarization of membrane, creating a plateau. Plateau falls slightly because of some K+ leakage, but most K+ channels remain closed until end of plateau. Ca2+ channels close and Ca2+ is transported out of cell. K+ channels open, and rapid K+ outflow returns membrane to its resting potential. 1 2 3 4 5 1 2 3 4 5 Membranepotential(mV) 0 +20 –20 –40 –60 –80 Plateau Myocardial relaxation .30 Time (seconds) .15 Absolute refractory period Myocardial contraction Action potential Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display.

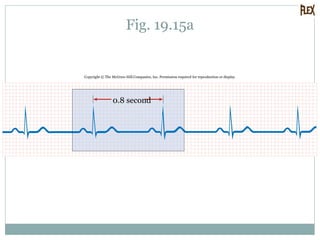

Fig. 19.15a Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 0.8 second

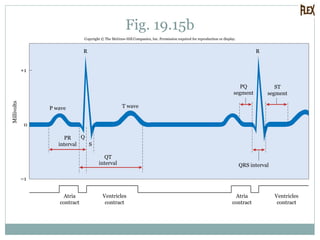

Fig. 19.15b Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 0 Millivolts R R Q S +1 –1 Atria contract Ventricles contract Atria contract Ventricles contract ST segment PQ segment QRS interval T waveP wave PR interval QT interval

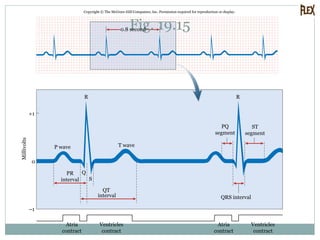

Fig. 19.15 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 0 Millivolts R R Q S 0.8 second +1 –1 Atria contract Ventricles contract Atria contract Ventricles contract ST segment PQ segment QRS interval T waveP wave PR interval QT interval

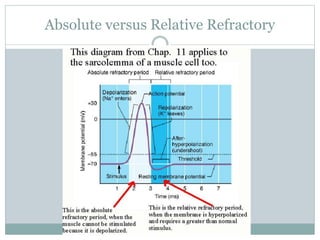

Absolute versus Relative Refractory
Fig. 19.16-1 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 1 P Wave of depolarization Wave of repolarization Atria begin depolarizing. Key

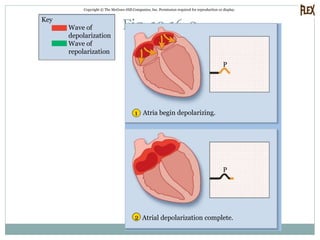

Fig. 19.16-2 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 1 2 P P Wave of depolarization Wave of repolarization Atria begin depolarizing. Atrial depolarization complete. Key

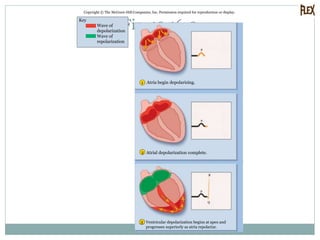

Fig. 19.16-3 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 1 2 Q R P P P 3 Wave of depolarization Wave of repolarization Atria begin depolarizing. Atrial depolarization complete. Ventricular depolarization begins at apex and progresses superiorly as atria repolarize. Key

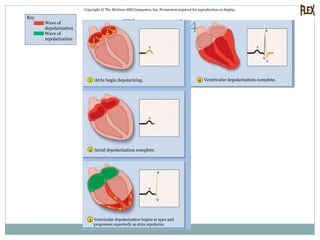

Fig. 19.16-4 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 1 4 2 S Q R P Q R P P P 3 Wave of depolarization Wave of repolarization Atria begin depolarizing. Atrial depolarization complete. Ventricular depolarization begins at apex and progresses superiorly as atria repolarize. Ventricular depolarization complete. Key

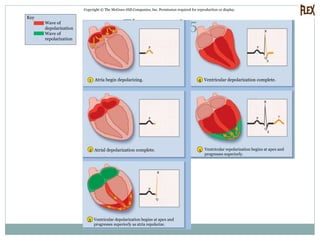

Fig. 19.16-5 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 5 1 4 2 T S Q R P S Q R P Q R P P P 3 Wave of depolarization Wave of repolarization Atria begin depolarizing. Atrial depolarization complete. Ventricular depolarization begins at apex and progresses superiorly as atria repolarize. Ventricular repolarization begins at apex and progresses superiorly. Ventricular depolarization complete. Key

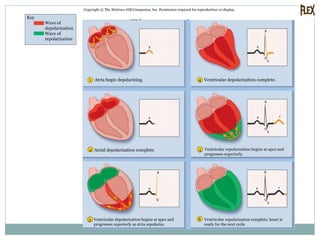

Fig. 19.16 Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. 5 6 1 4 2 T S Q R P T S Q R P S Q R P Q R P P P 3 Wave of depolarization Wave of repolarization Atria begin depolarizing. Atrial depolarization complete. Ventricular depolarization begins at apex and progresses superiorly as atria repolarize. Ventricular repolarization complete; heart is ready for the next cycle. Ventricular repolarization begins at apex and progresses superiorly. Ventricular depolarization complete. Key

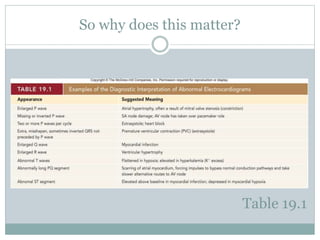

So why does this matter? Table 19.1

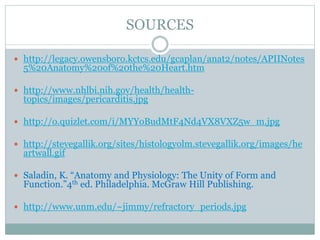

SOURCES  http://legacy.owensboro.kctcs.edu/gcaplan/anat2/notes/APIINotes 5%20Anatomy%20of%20the%20Heart.htm  http://www.nhlbi.nih.gov/health/health- topics/images/pericarditis.jpg  http://o.quizlet.com/i/MYYoBudMtF4Nd4VX8VXZ5w_m.jpg  http://stevegallik.org/sites/histologyolm.stevegallik.org/images/he artwall.gif  Saladin, K. “Anatomy and Physiology: The Unity of Form and Function.”4th ed. Philadelphia. McGraw Hill Publishing.  http://www.unm.edu/~jimmy/refractory_periods.jpg
