Roving Frame is machine of Spinning section. The roving frame is an intermediate engine between draw frame and ring frame. Main objective of this machine is to change sliver in to thinner sliver for the convenience of subsequent processes. The sliver we get from draw frame is still thicker sliver which is not good for yarn manufacture.

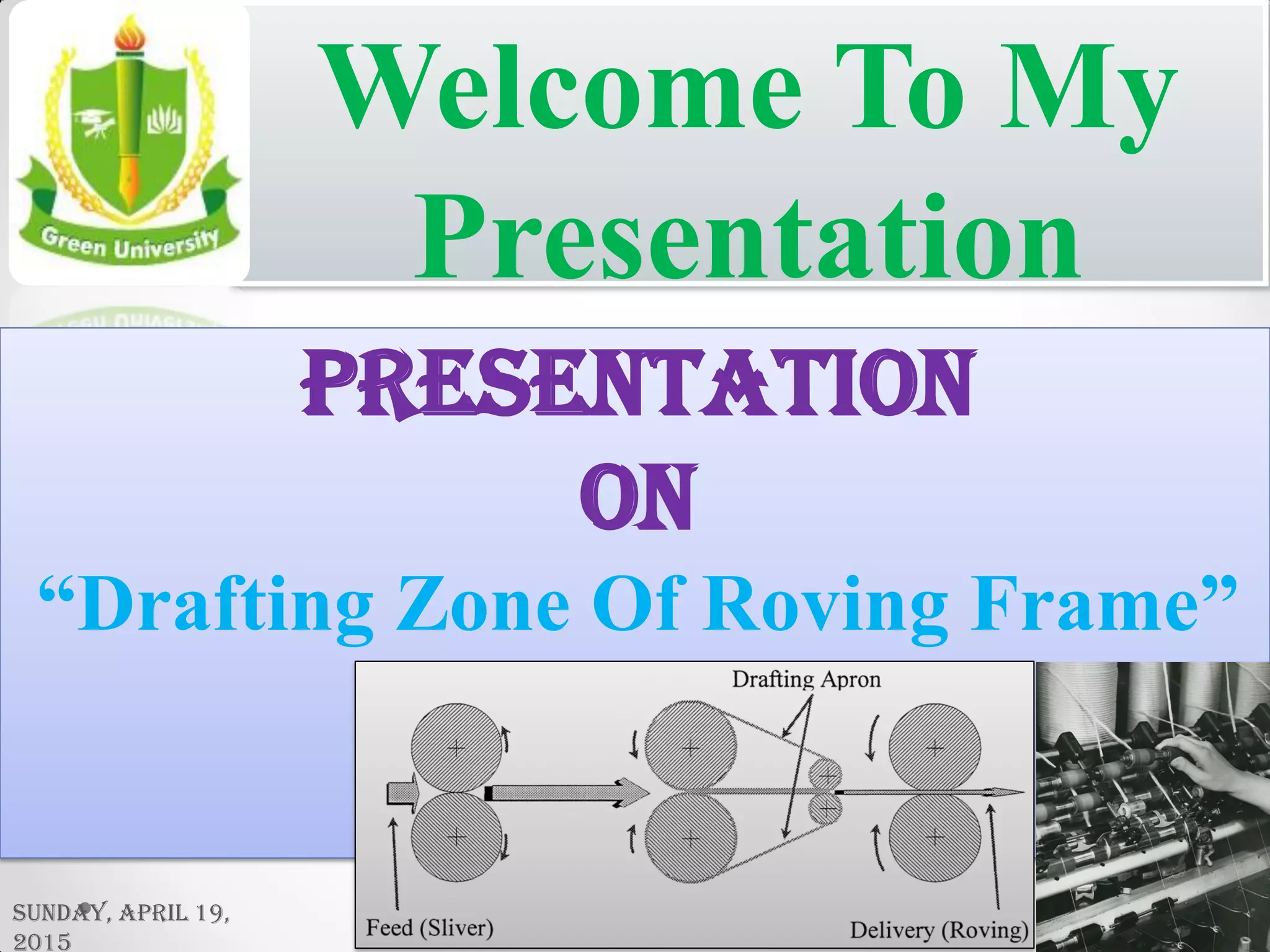

1. Welcome To My
Presentation
Presentation
ON
“Drafting Zone Of Roving Frame”
Sunday, April 19,
2015 1

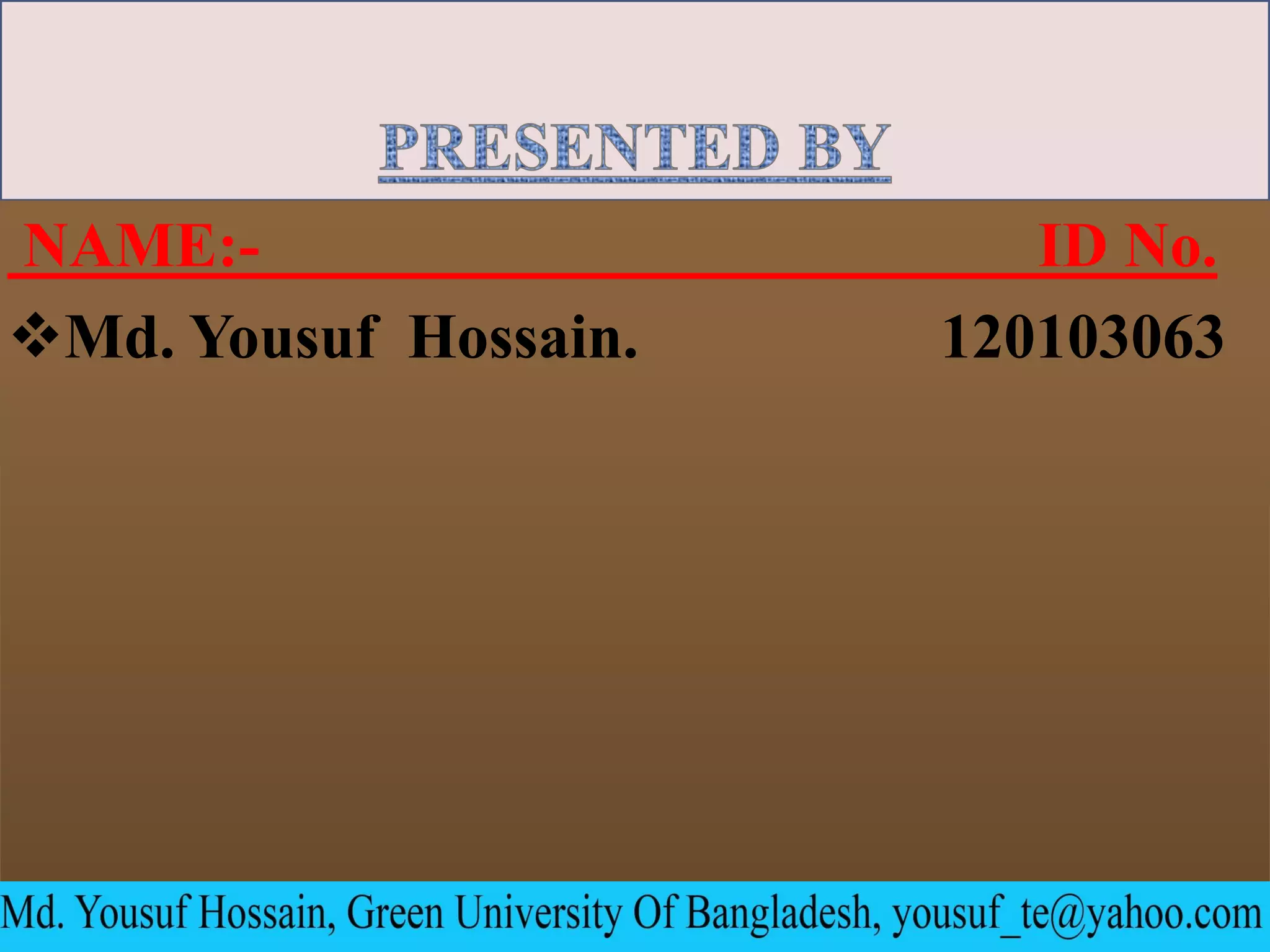

2. NAME:- ID No.
Md. Yousuf Hossain. 120103063
Sunday, April 19, 2015
2

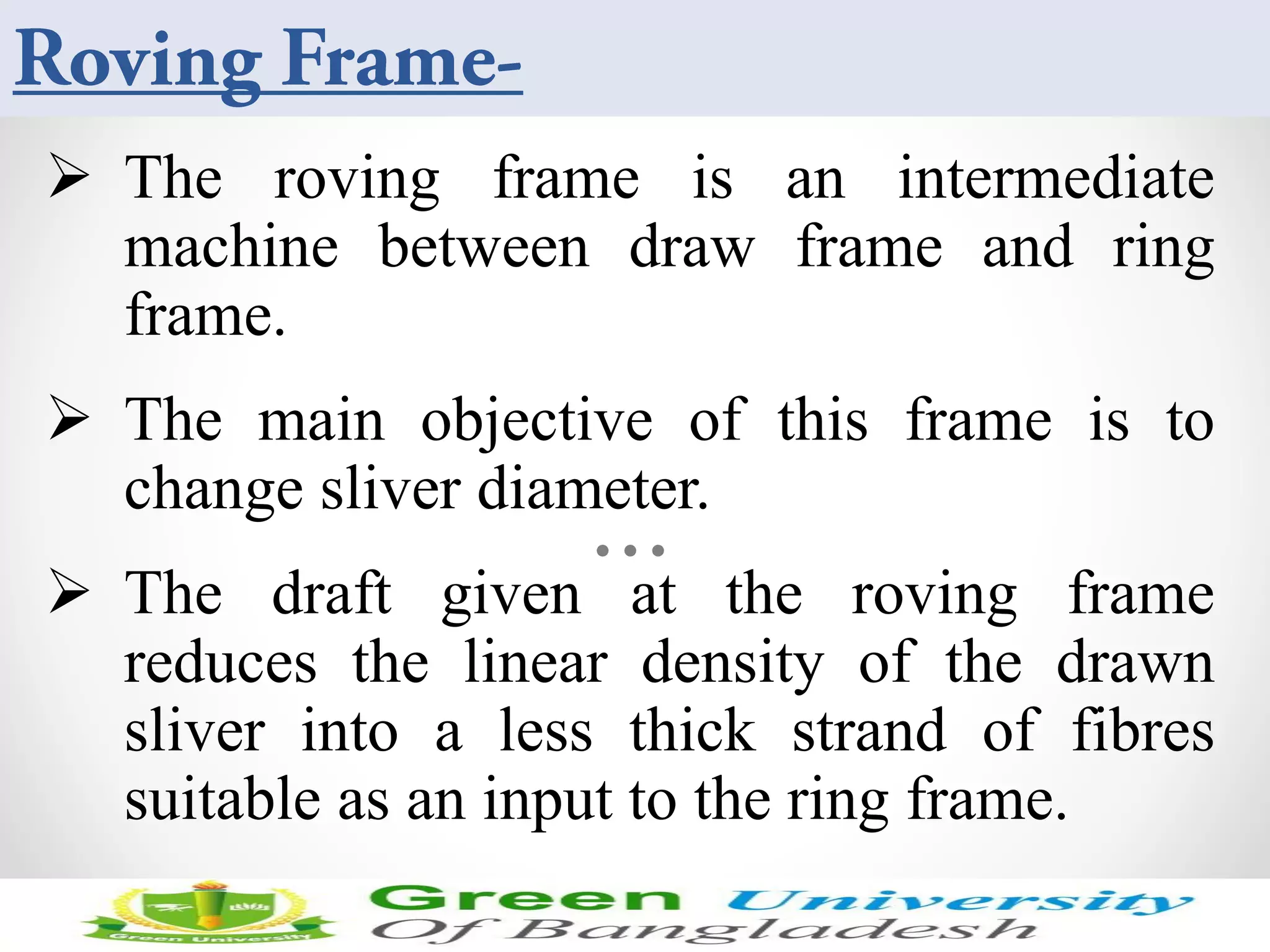

3.  The roving frame is an intermediate
machine between draw frame and ring
frame.
 The main objective of this frame is to
change sliver diameter.
 The draft given at the roving frame
reduces the linear density of the drawn
sliver into a less thick strand of fibres
suitable as an input to the ring frame.
Sunday, April 19, 2015 3

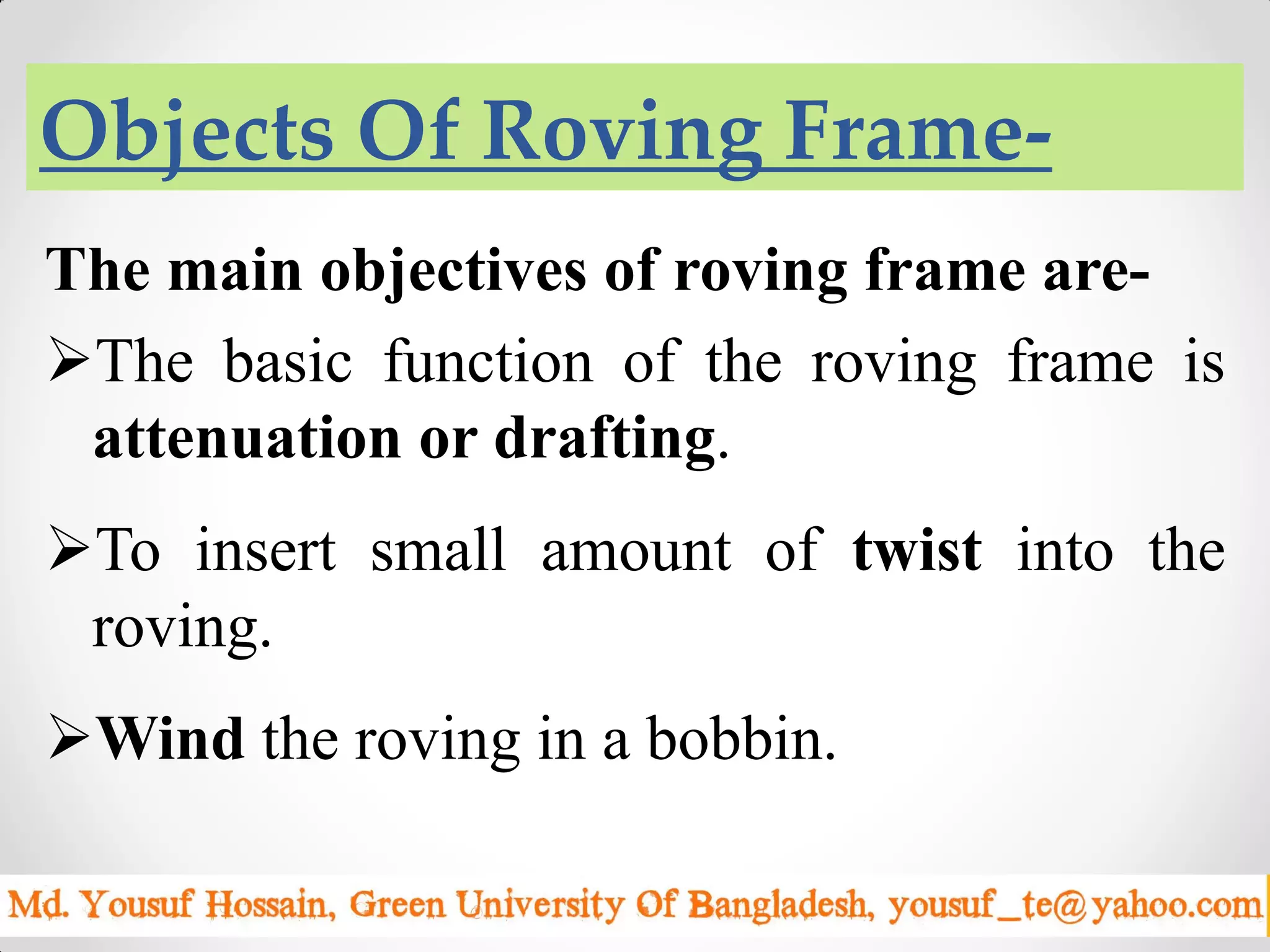

4. Objects Of Roving Frame-
The main objectives of roving frame are-
The basic function of the roving frame is
attenuation or drafting.
To insert small amount of twist into the
roving.
Wind the roving in a bobbin.
Sunday, April 19, 2015 4

5. Drafting
• Drafting is the reduction of mass per unit
length of the sliver.
• In this engine the drafting is very high than
any of other machine.
• The drafting section of the roving frame
may be 3 over 3 or 4 over 4 roller
arrangement.
Sunday, April 19, 2015 5

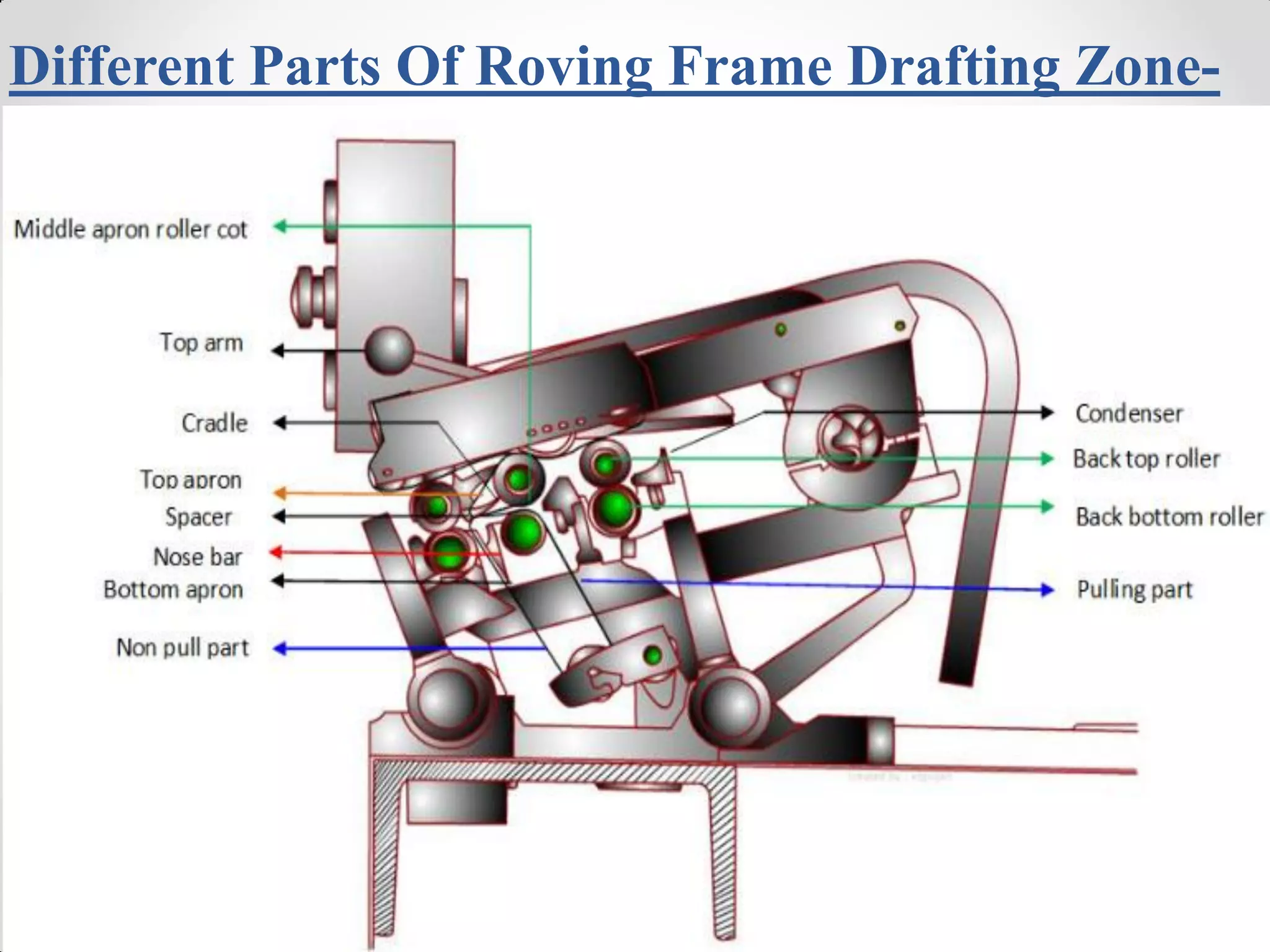

6. Different Parts Of Roving Frame Drafting Zone-
Sunday, April 19, 2015 6

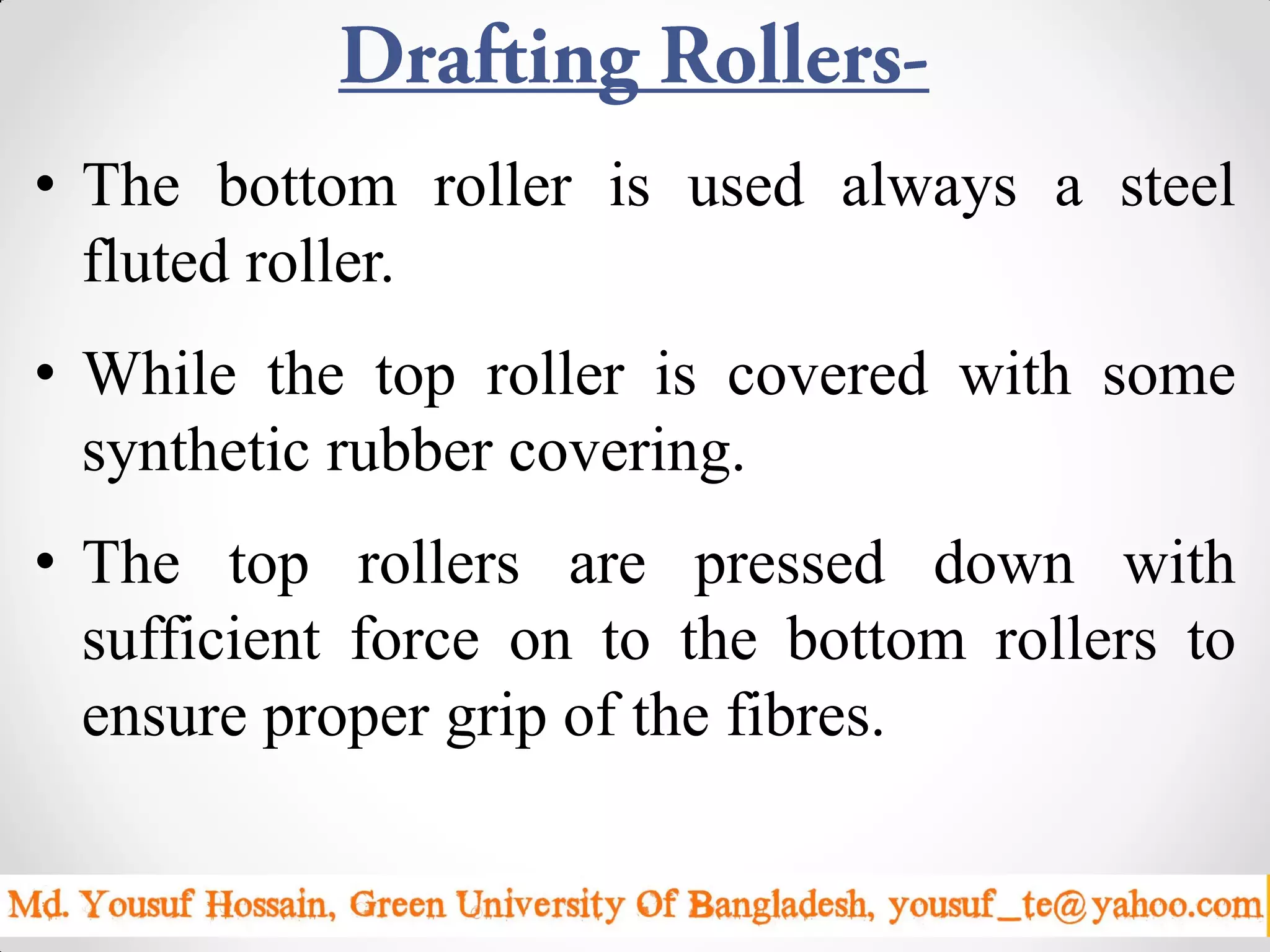

7. • The bottom roller is used always a steel
fluted roller.
• While the top roller is covered with some
synthetic rubber covering.
• The top rollers are pressed down with
sufficient force on to the bottom rollers to
ensure proper grip of the fibres.
Sunday, April 19, 2015 7

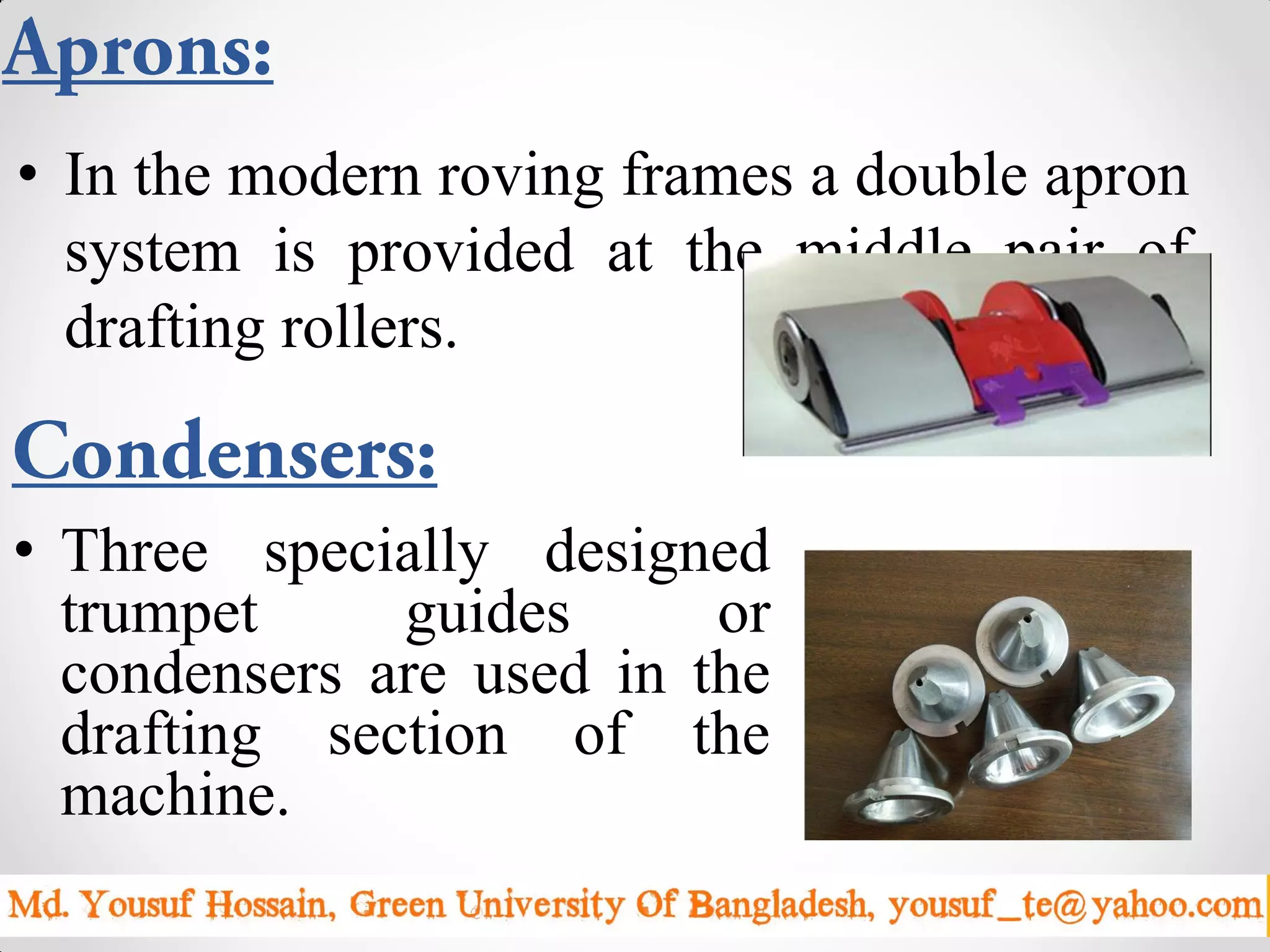

8. • Three specially designed
trumpet guides or
condensers are used in the
drafting section of the
machine.
Sunday, April 19, 2015 8
• In the modern roving frames a double apron
system is provided at the middle pair of
drafting rollers.

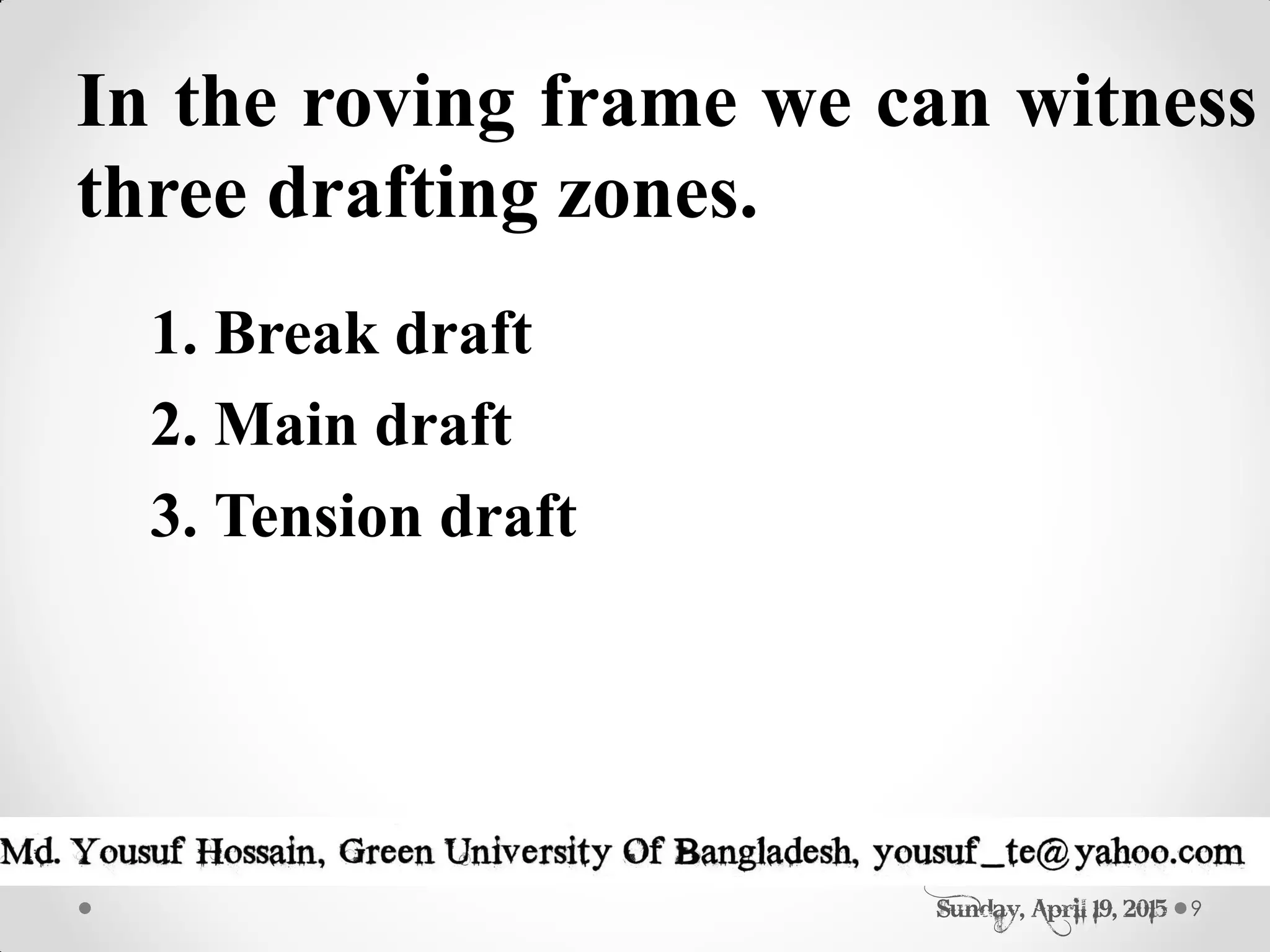

9. In the roving frame we can witness
three drafting zones.
1. Break draft
2. Main draft
3. Tension draft
Sunday, April 19, 2015 9

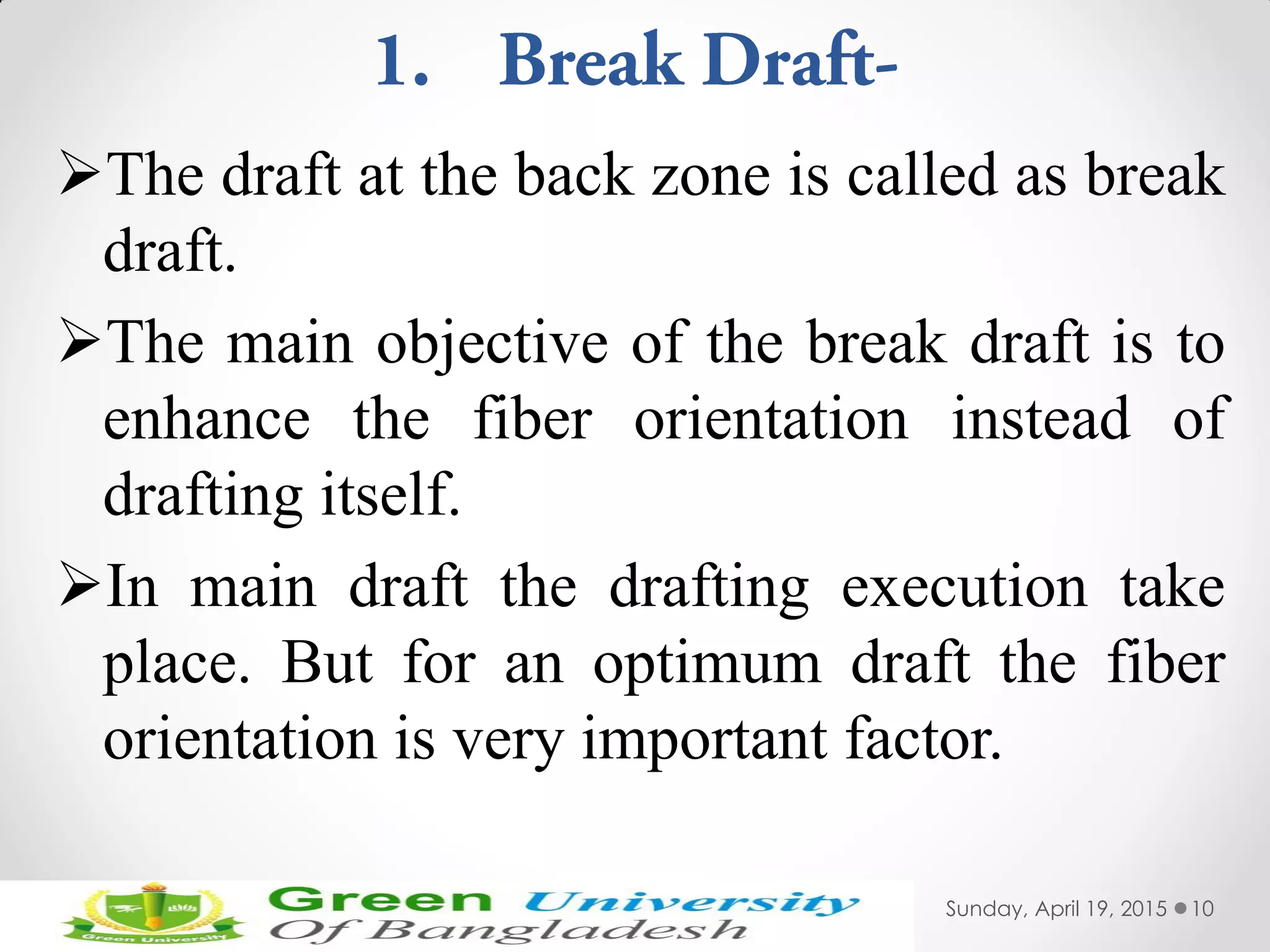

10. The draft at the back zone is called as break
draft.
The main objective of the break draft is to
enhance the fiber orientation instead of
drafting itself.
In main draft the drafting execution take
place. But for an optimum draft the fiber
orientation is very important factor.
Sunday, April 19, 2015 10

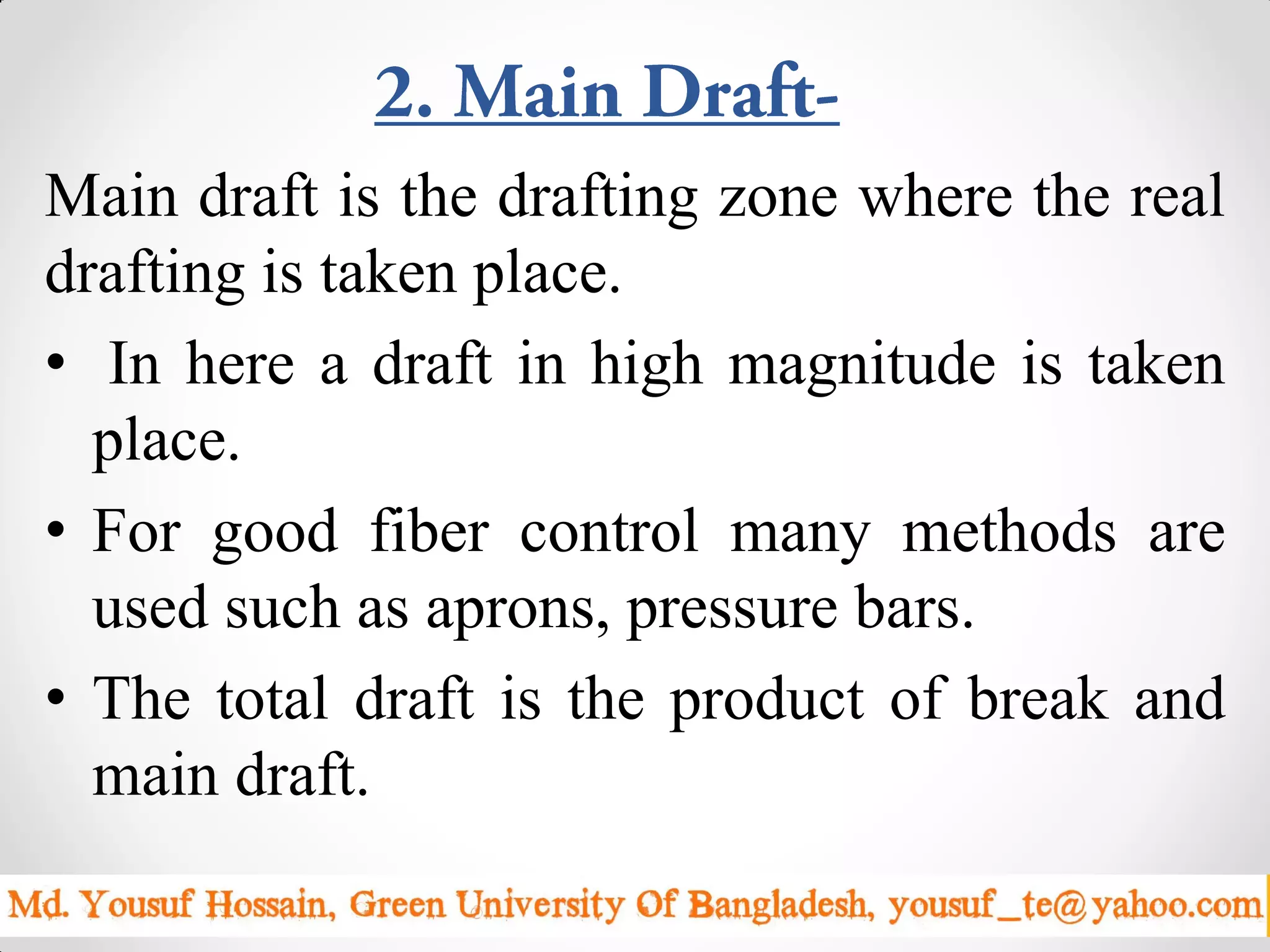

11. Main draft is the drafting zone where the real
drafting is taken place.
• In here a draft in high magnitude is taken
place.
• For good fiber control many methods are
used such as aprons, pressure bars.
• The total draft is the product of break and
main draft.
Sunday, April 19, 2015 11

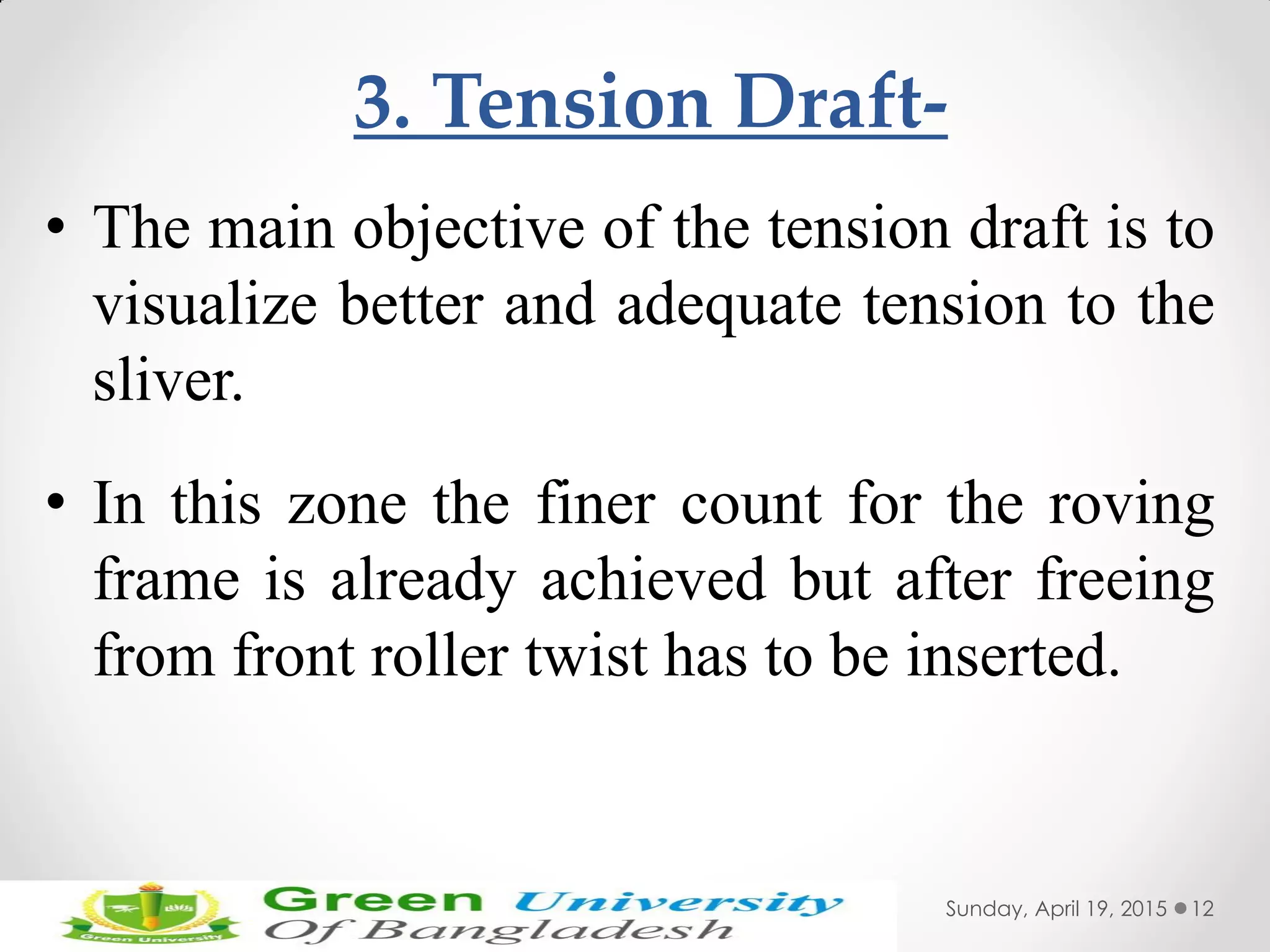

12. 3. Tension Draft-
• The main objective of the tension draft is to
visualize better and adequate tension to the
sliver.
• In this zone the finer count for the roving
frame is already achieved but after freeing
from front roller twist has to be inserted.
Sunday, April 19, 2015 12

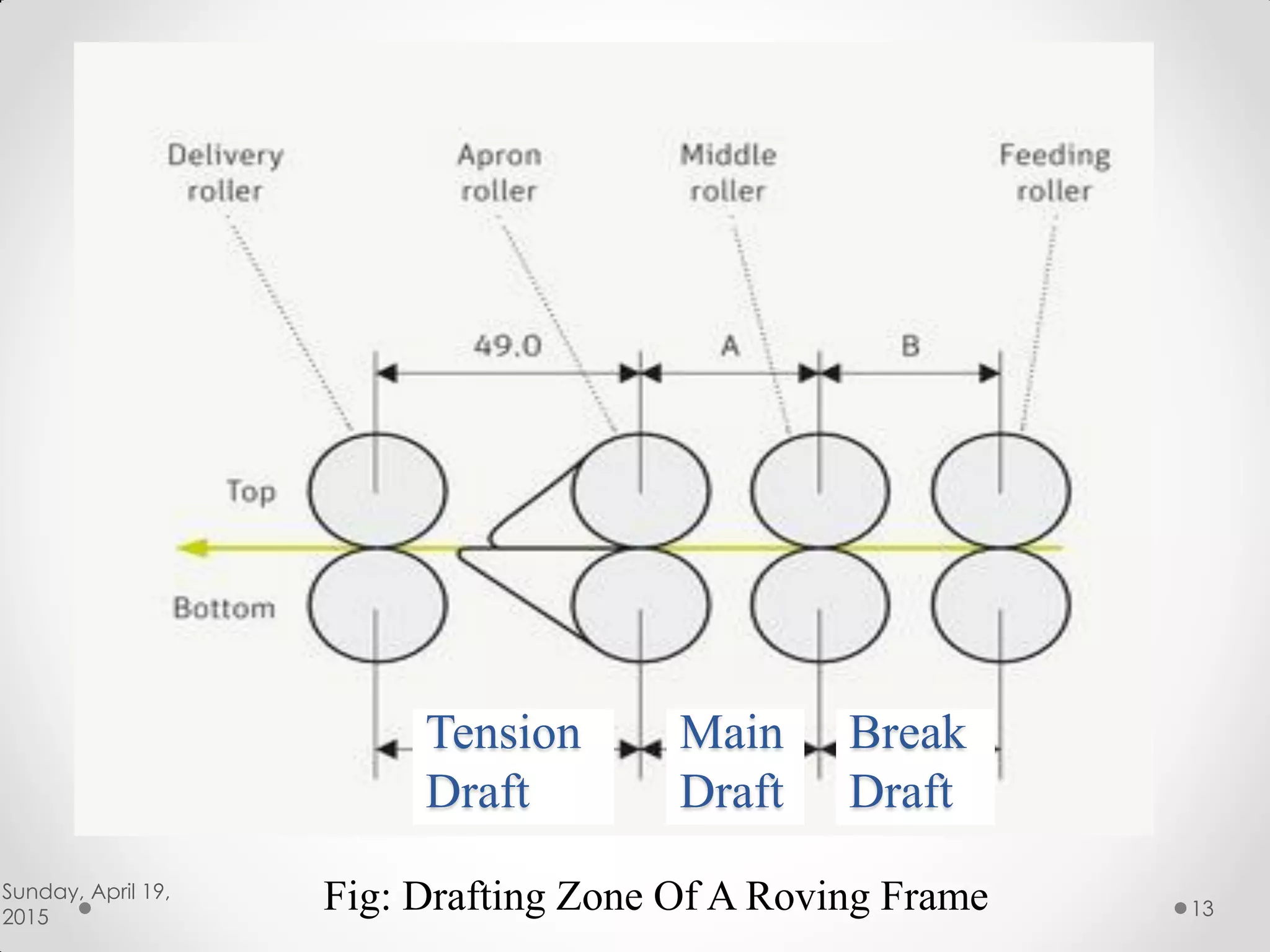

13. Fig: Drafting Zone Of A Roving Frame
Main
Draft
Break
Draft
Tension
Draft
Sunday, April 19,
2015 13
