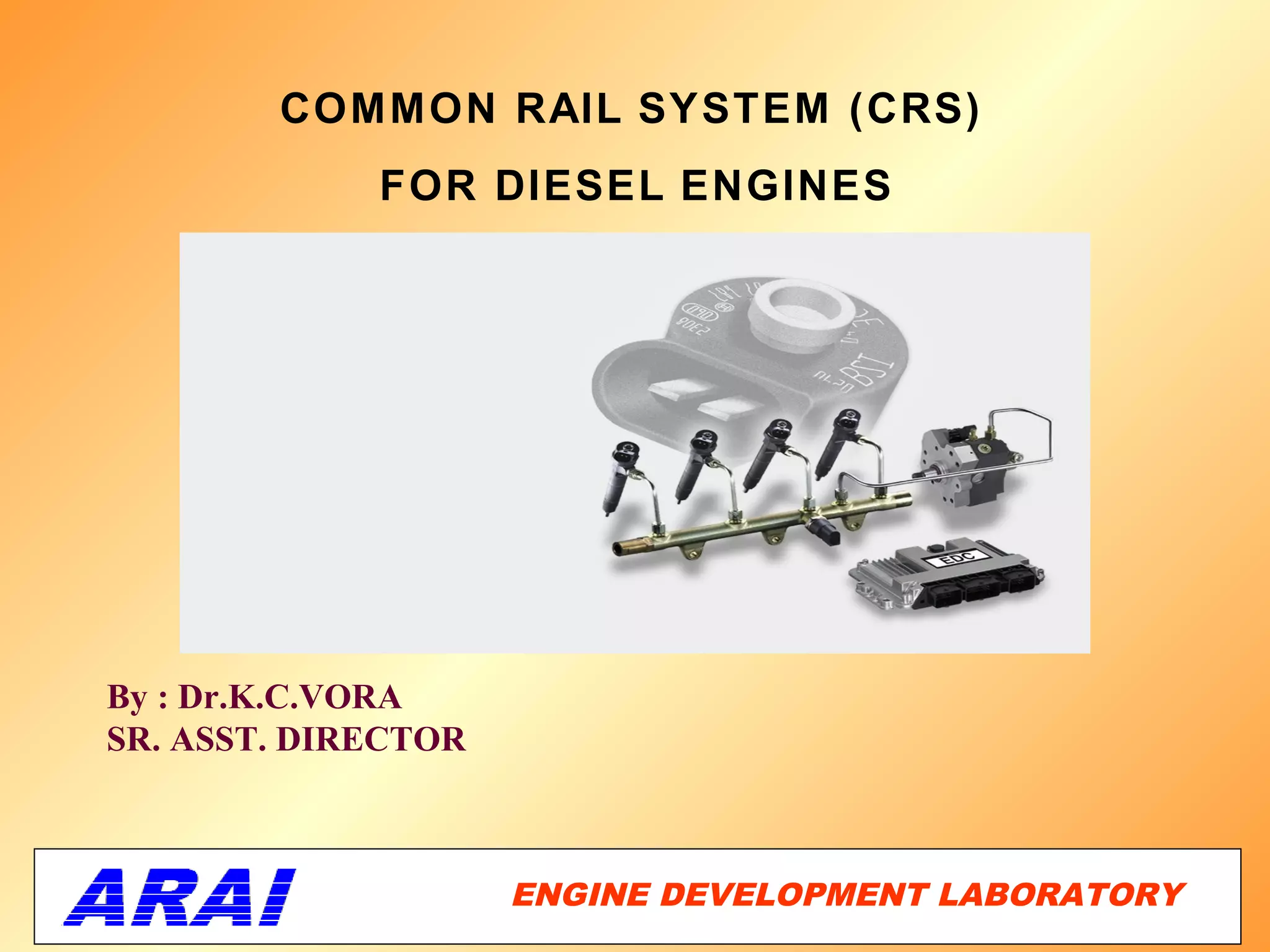

1. COMMON RAIL SYSTEM (CRS)
FOR DIESEL ENGINES
By : Dr.K.C.VORA
SR. ASST. DIRECTOR
ENGINE DEVELOPMENT LABORATORY
1

2. CONTENTS
Introduction
System types & Generation
Common Rail & emission strategy
System Validation & tests
Project milestones
ENGINE DEVELOPMENT LABORATORY
2

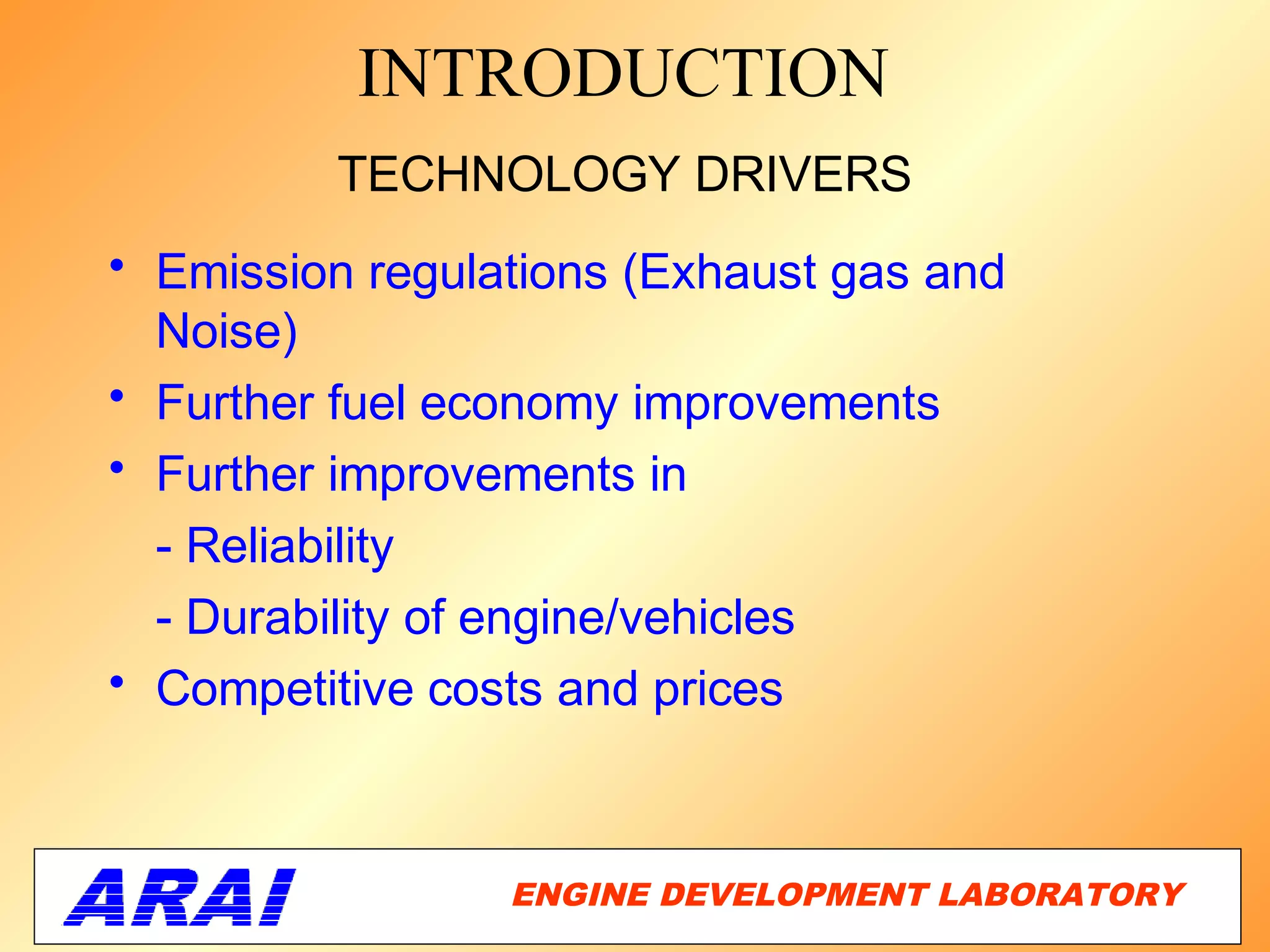

3. INTRODUCTION
TECHNOLOGY DRIVERS
• Emission regulations (Exhaust gas and
Noise)
• Further fuel economy improvements
• Further improvements in
- Reliability
- Durability of engine/vehicles
• Competitive costs and prices
ENGINE DEVELOPMENT LABORATORY
3

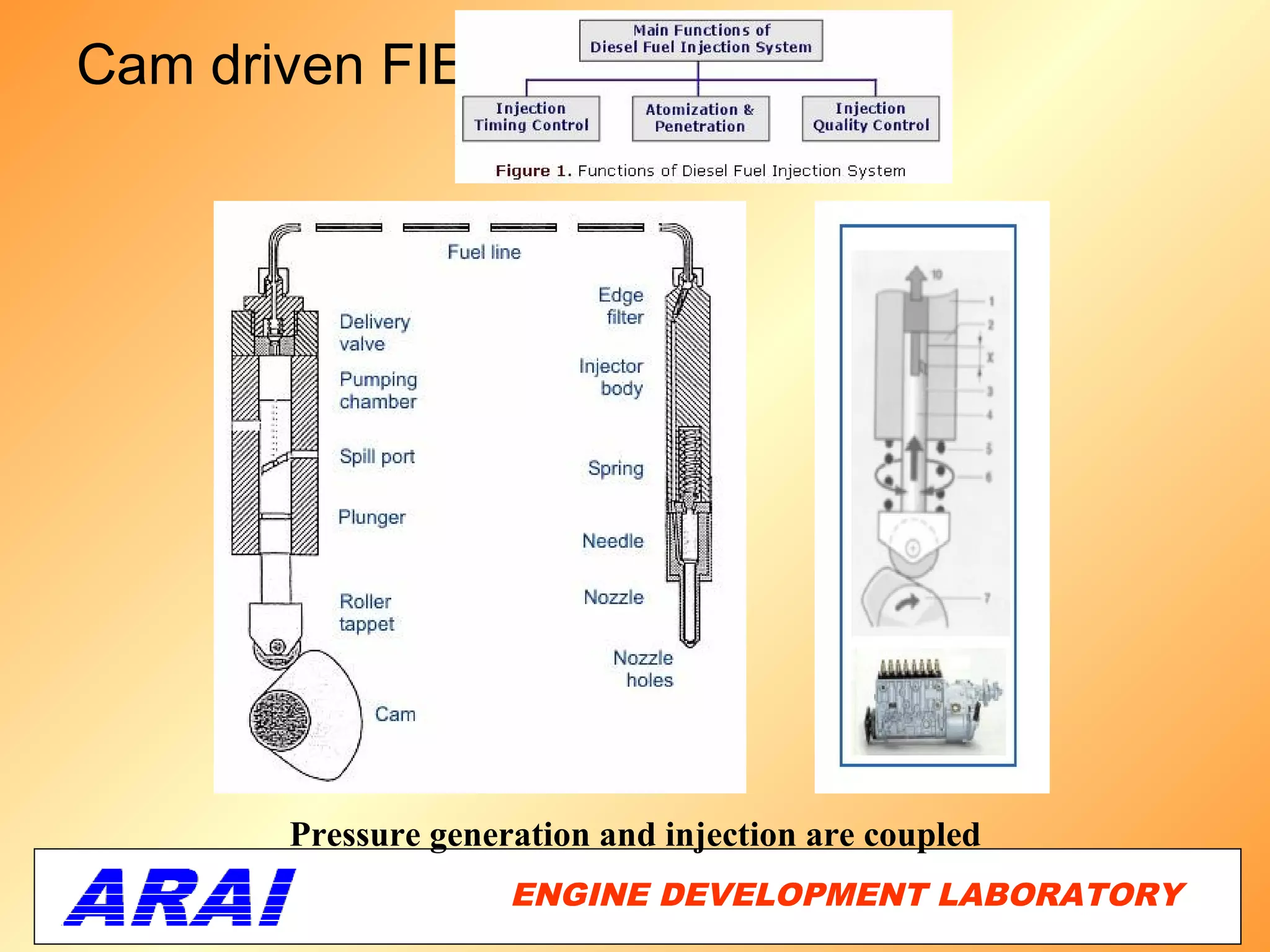

4. Cam driven FIE
Pressure generation and injection are coupled
ENGINE DEVELOPMENT LABORATORY
4

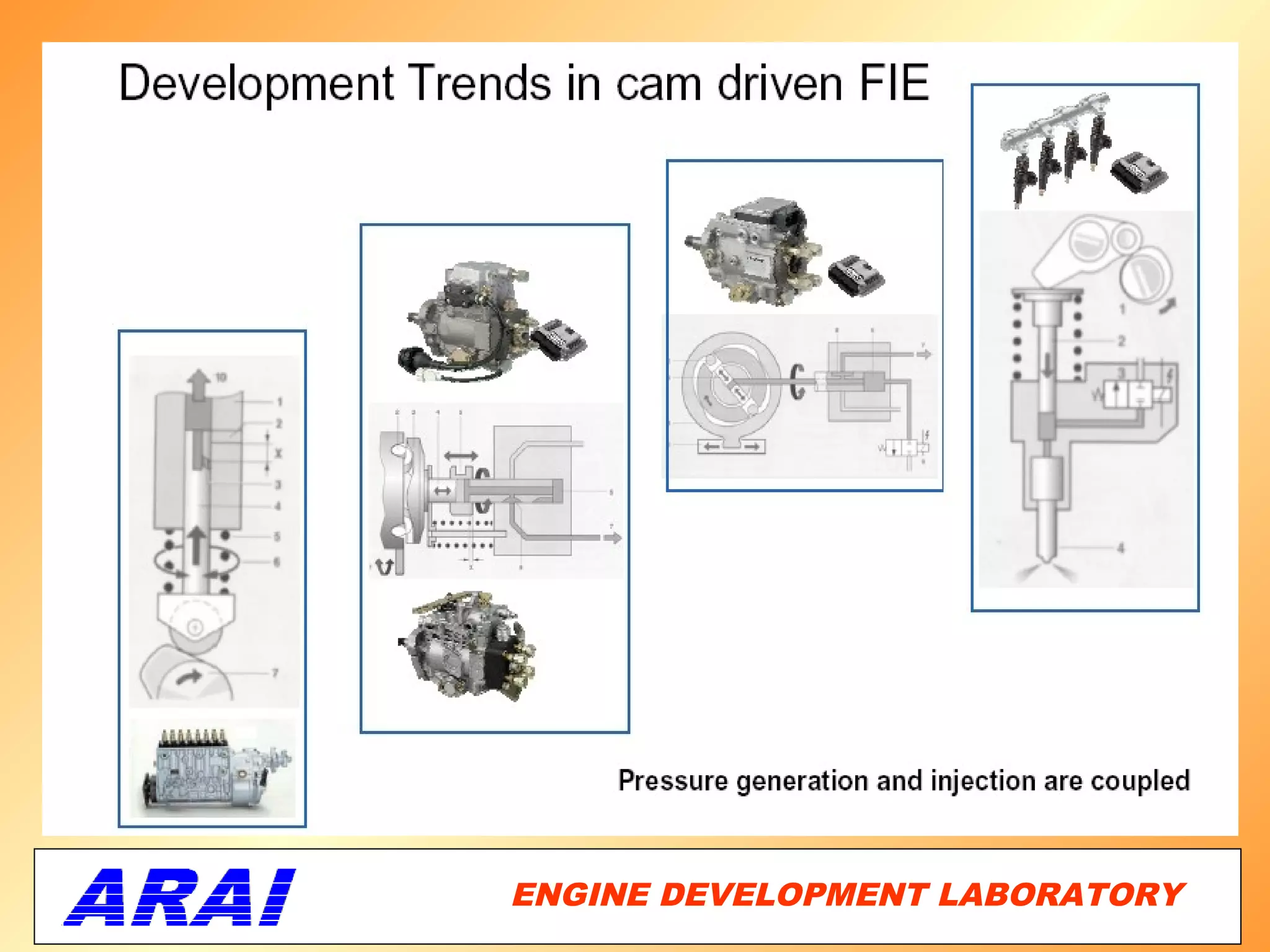

5. ENGINE DEVELOPMENT LABORATORY
5

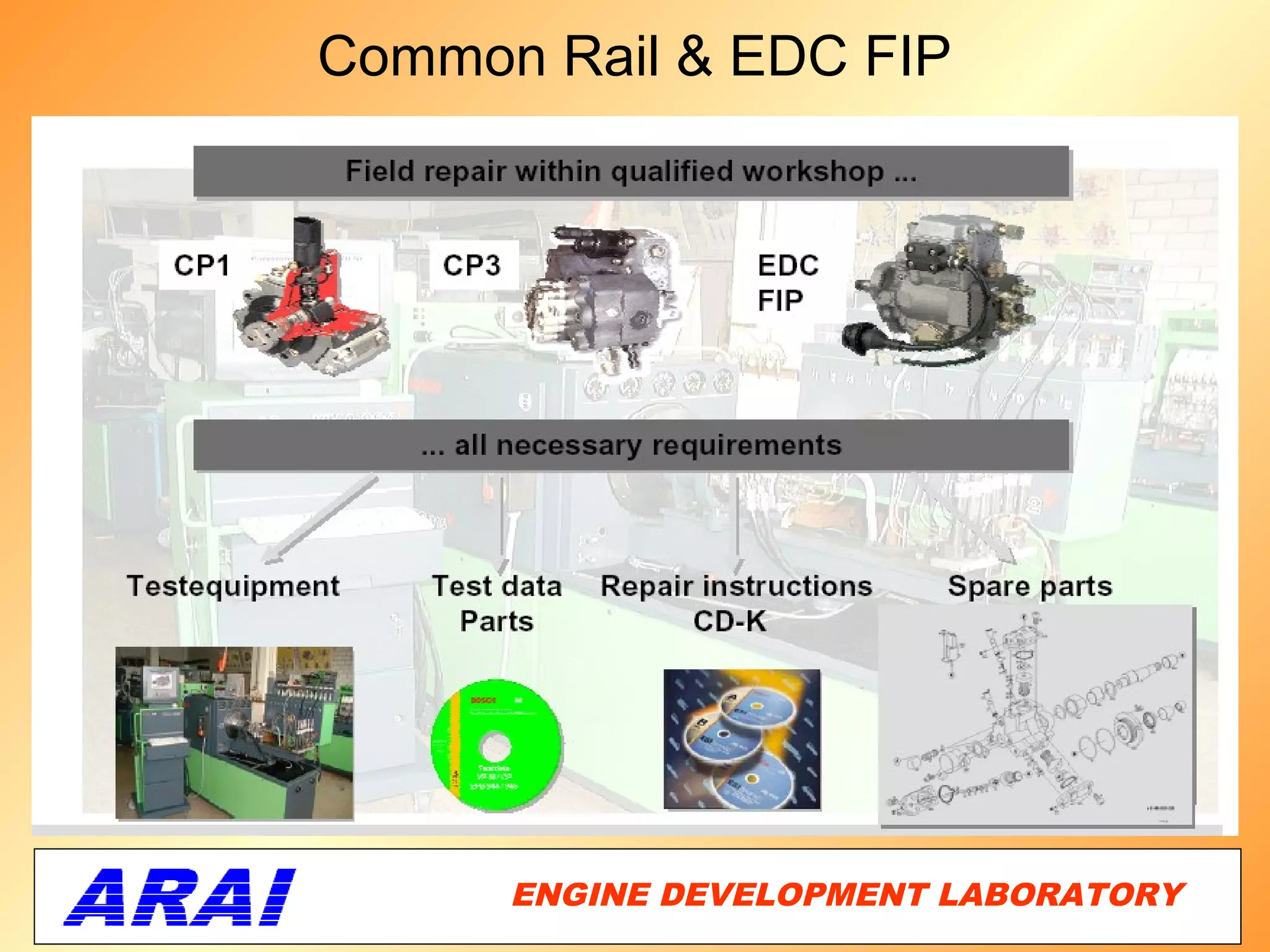

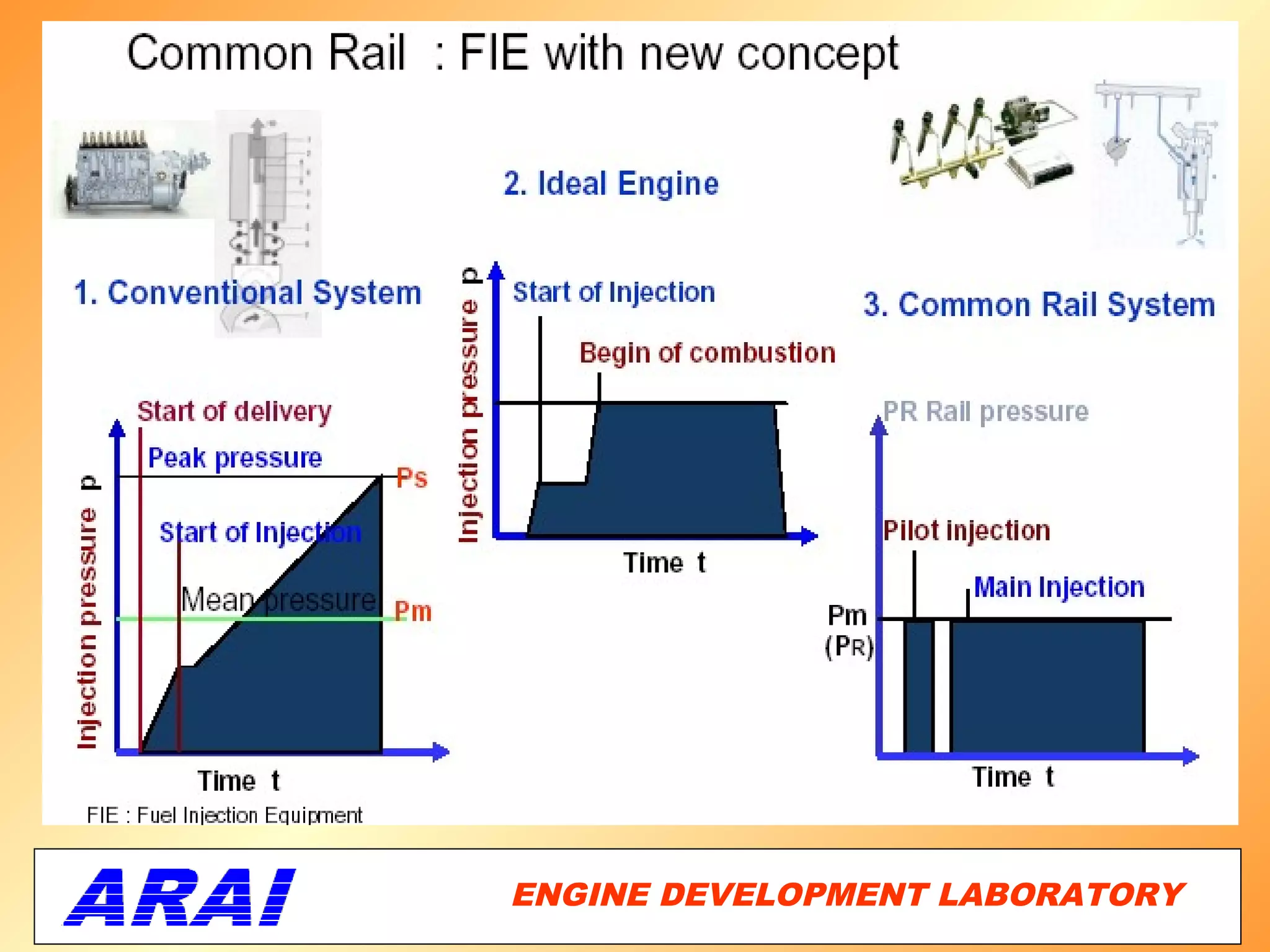

6. Common Rail & EDC FIP
ENGINE DEVELOPMENT LABORATORY
6

7. ENGINE DEVELOPMENT LABORATORY
7

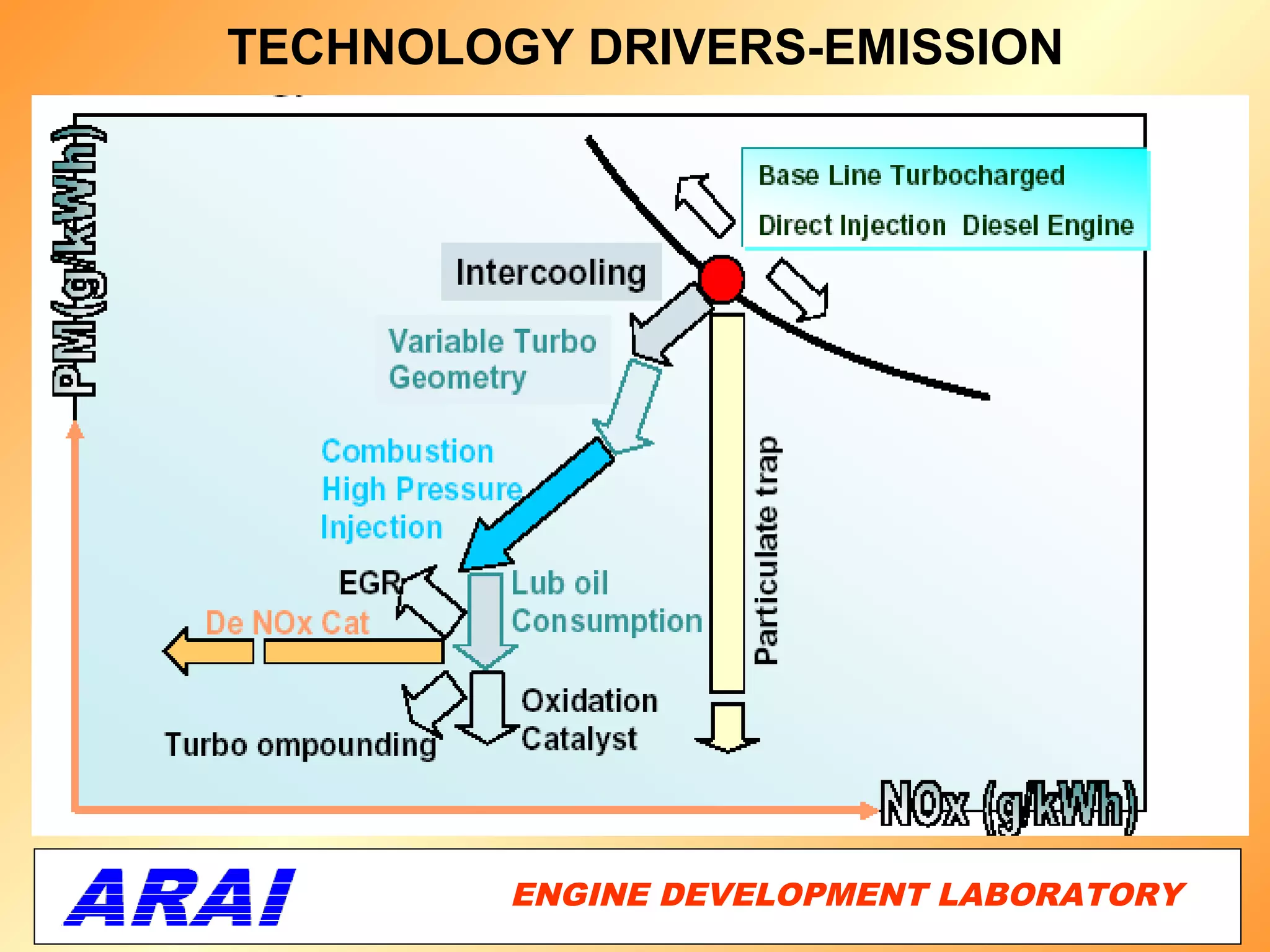

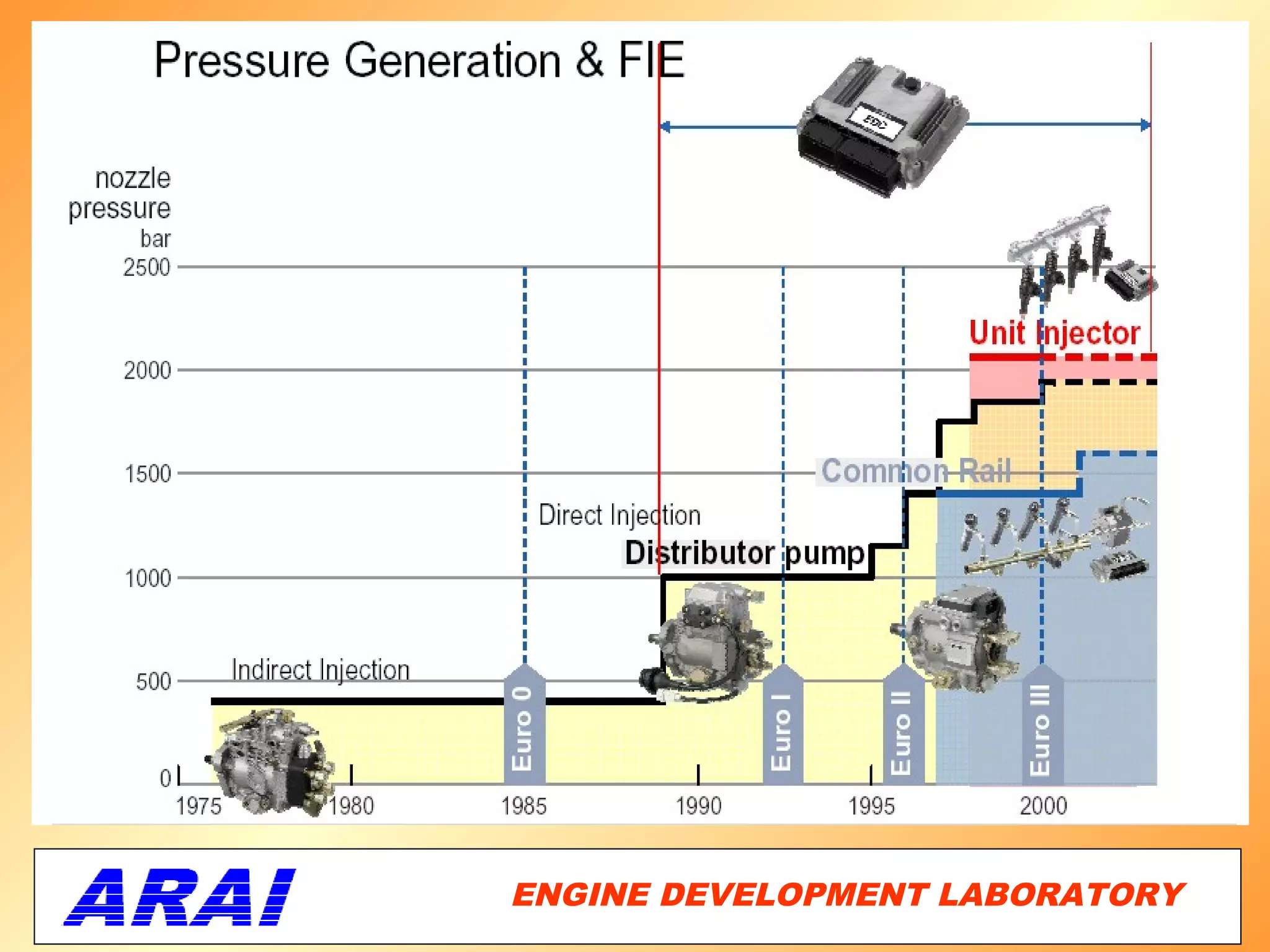

8. TECHNOLOGY DRIVERS-EMISSION
ENGINE DEVELOPMENT LABORATORY
8

9. TECHNOLOGY DEMANDS ON FIE
• High pressure potential (> 2000 bars)
• Realisation of the “ideal” rate of injection via pressure modulation
alone
• Capability of realising staged (boot) as well as pilot injection
where pilot is separated from the main injection
• Flexibility of selecting start of injection as well as end of injection
• Moderate initial rise of main injection
• Sharp cut off of the injection end
• Flexibility of selecting peak injection pressure
• Provide option to automatically change rate shape according to
engine speed and load
ENGINE DEVELOPMENT LABORATORY
9

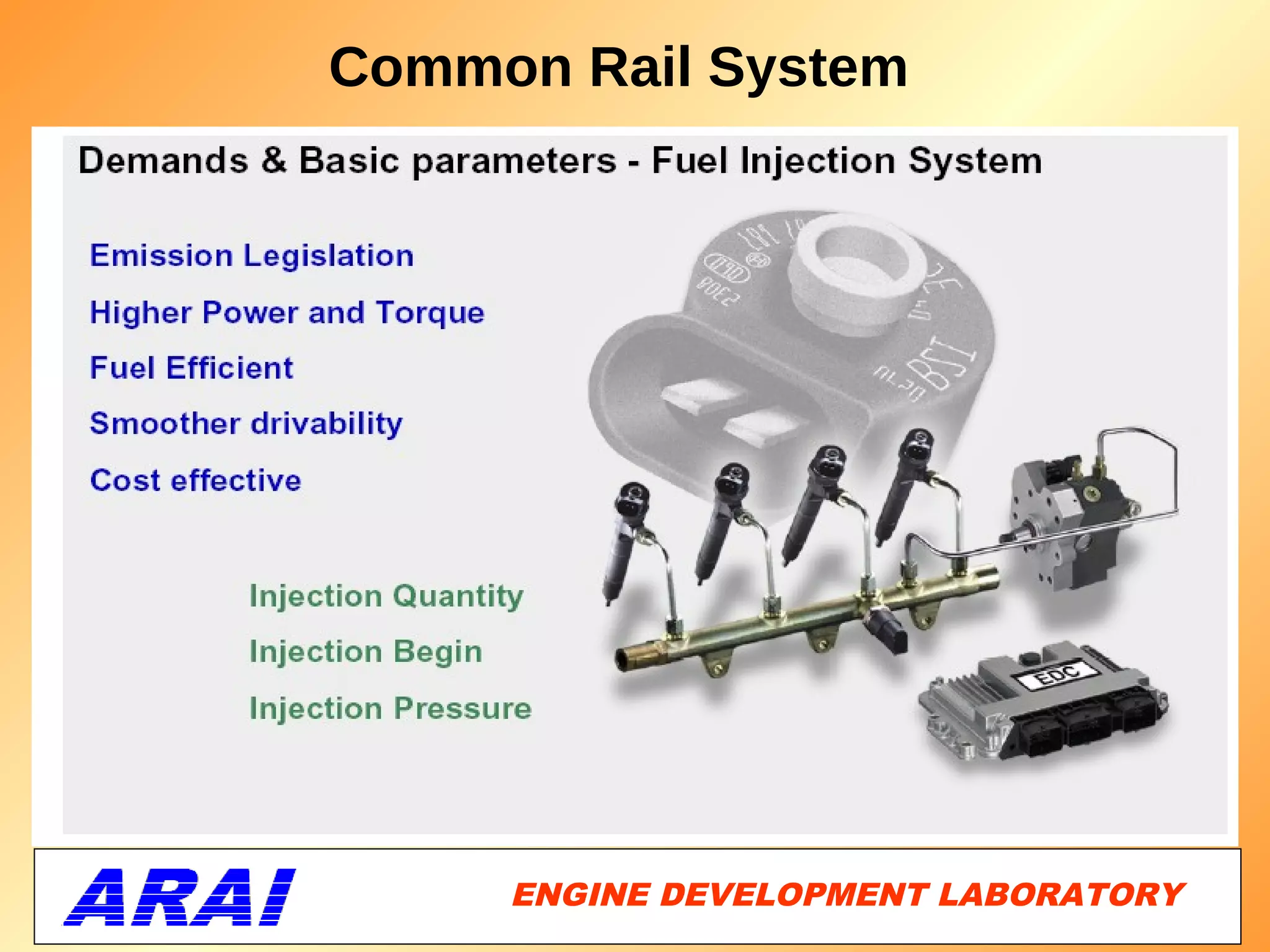

10. Common Rail System
ENGINE DEVELOPMENT LABORATORY
10

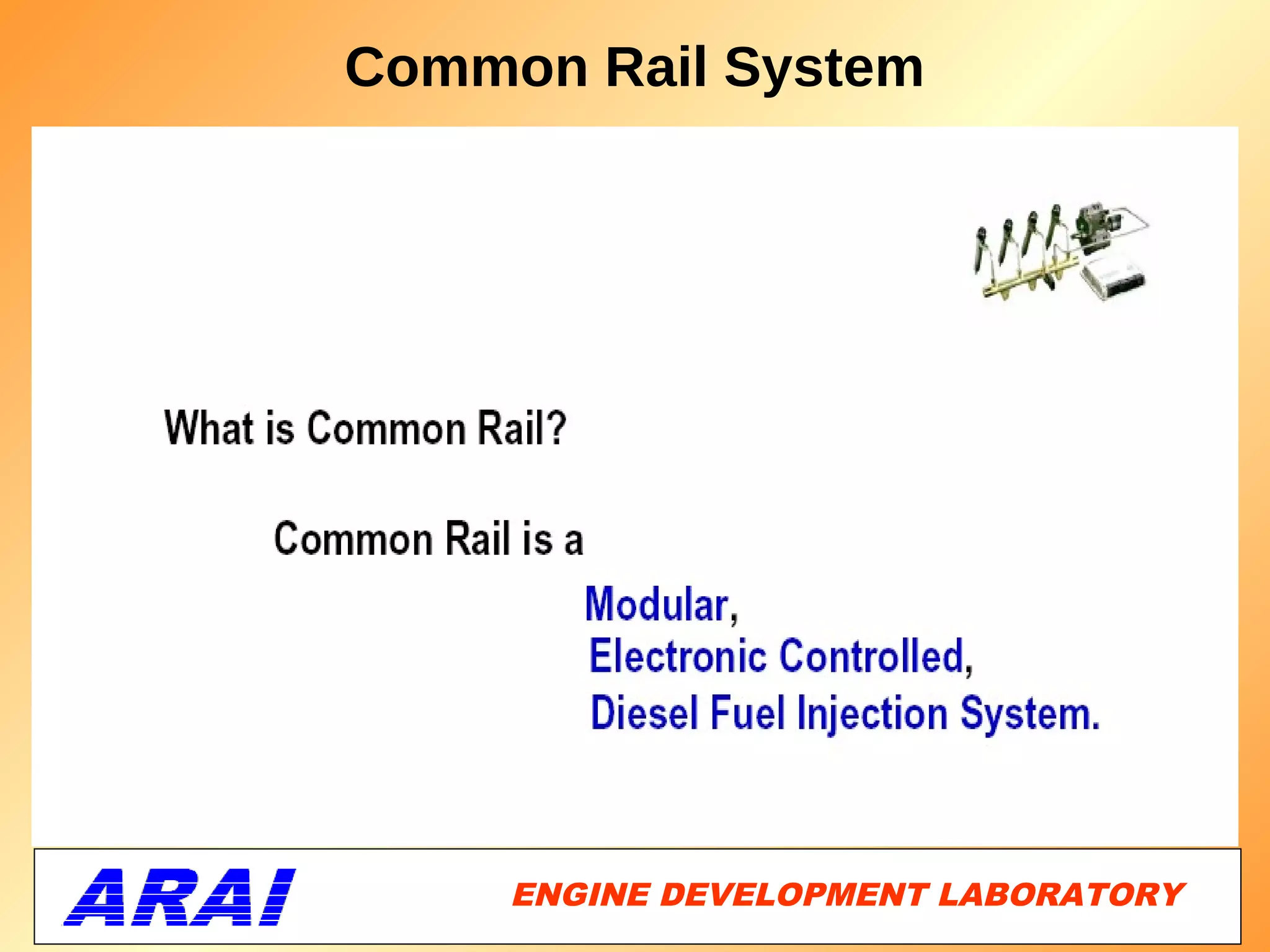

11. Common Rail System
ENGINE DEVELOPMENT LABORATORY
11

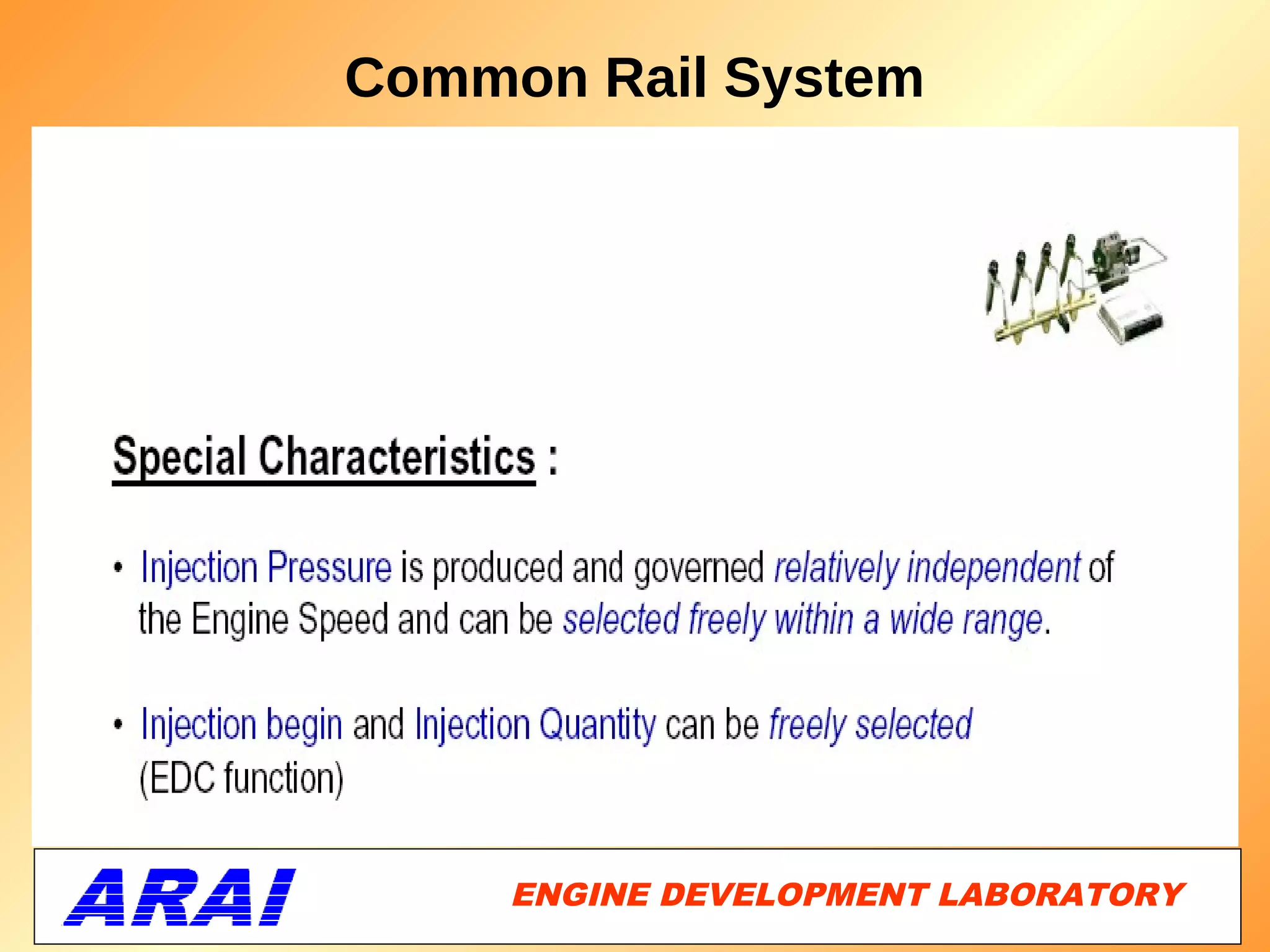

12. Common Rail System
ENGINE DEVELOPMENT LABORATORY
12

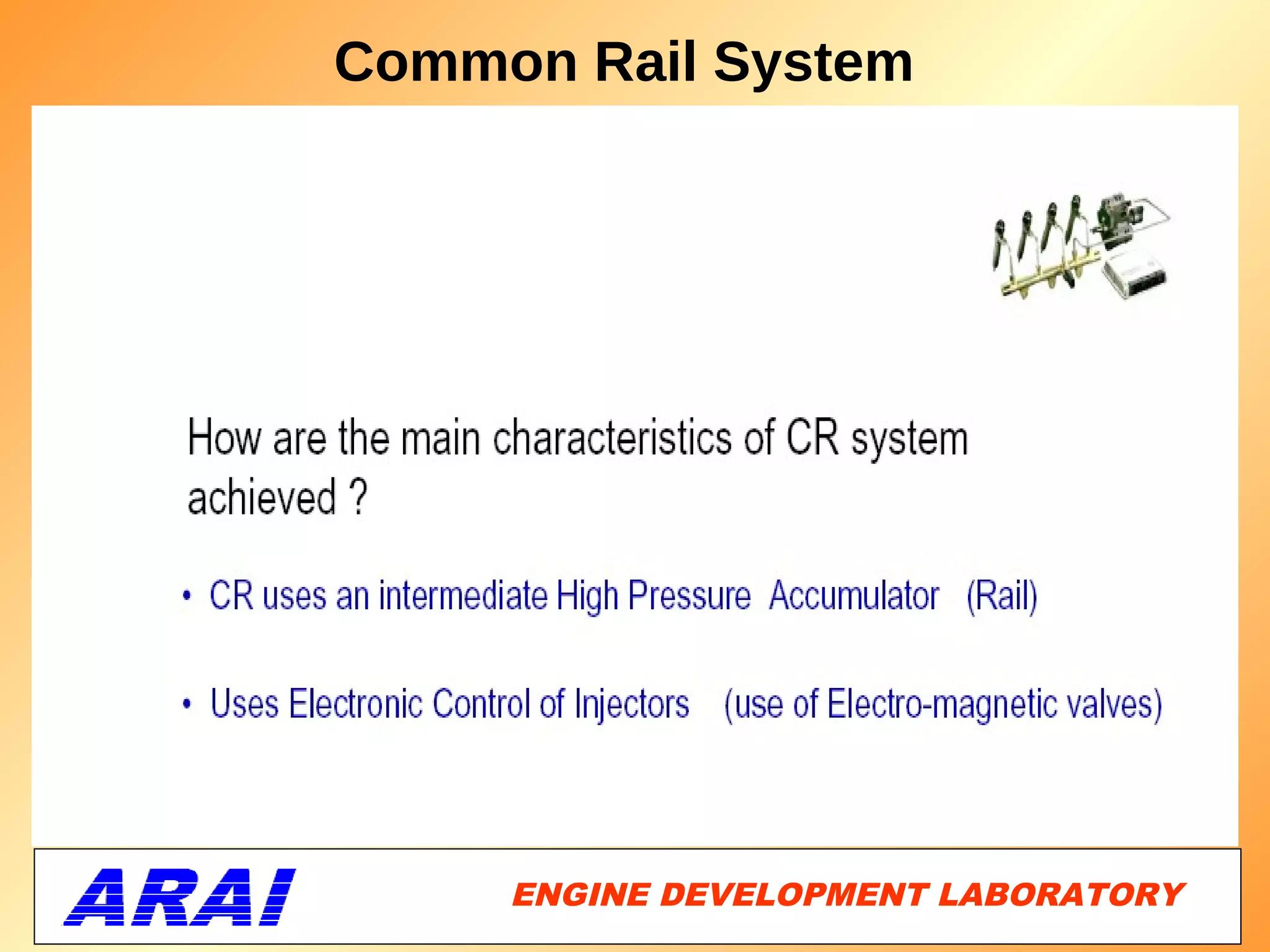

13. Common Rail System
ENGINE DEVELOPMENT LABORATORY
13

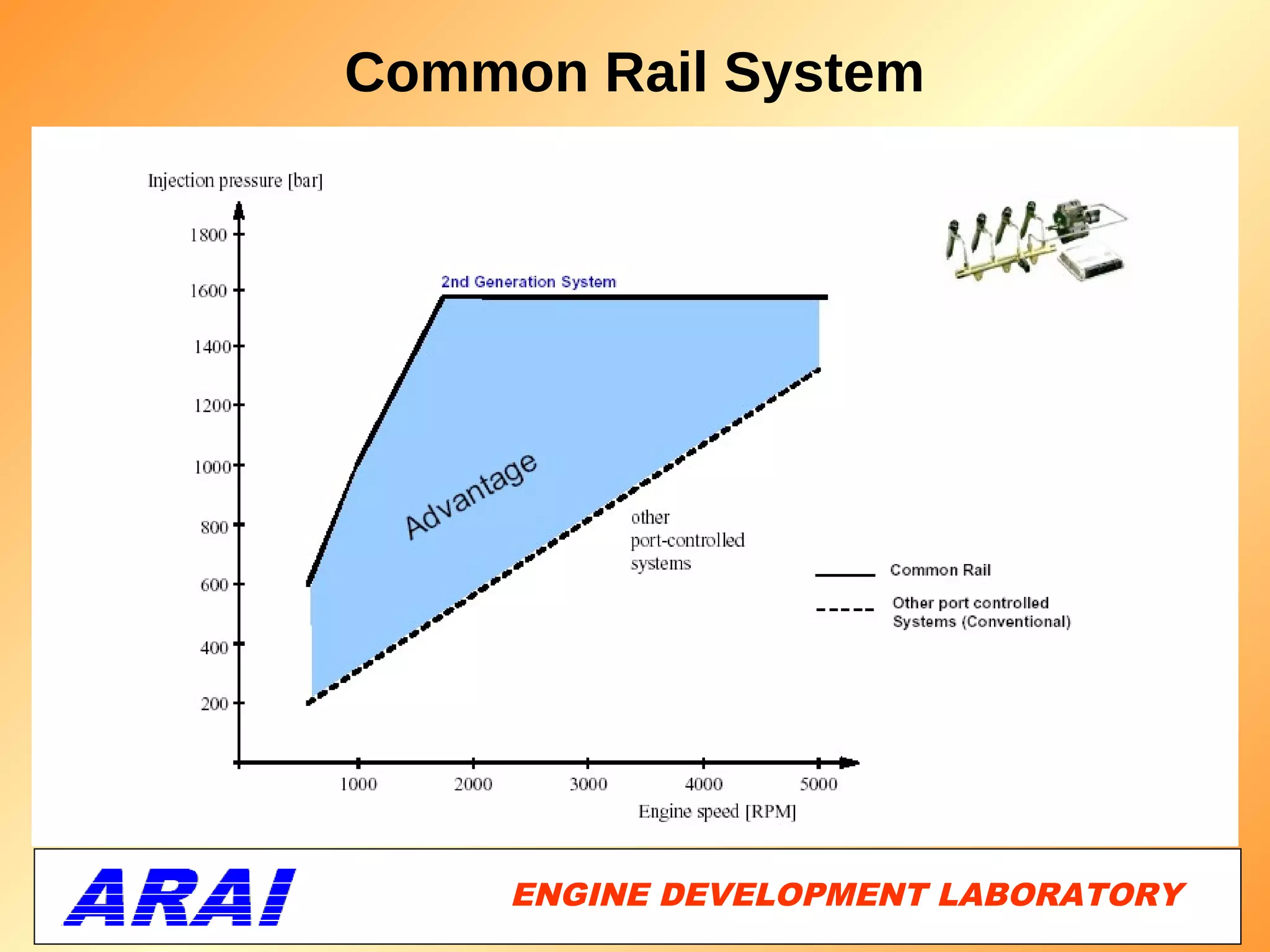

14. Common Rail System
ENGINE DEVELOPMENT LABORATORY
14

15. ENGINE DEVELOPMENT LABORATORY
15

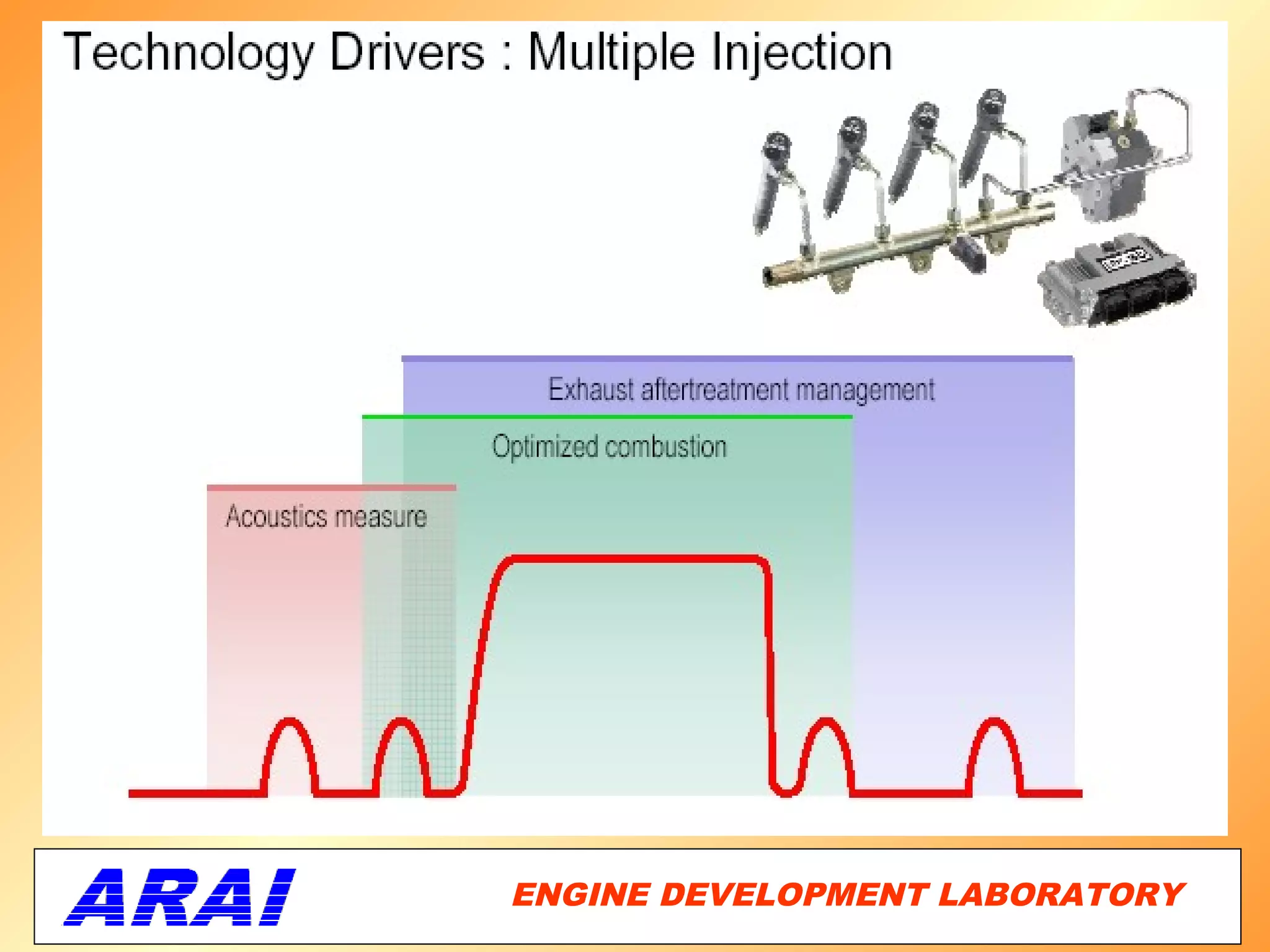

16. ENGINE DEVELOPMENT LABORATORY
16

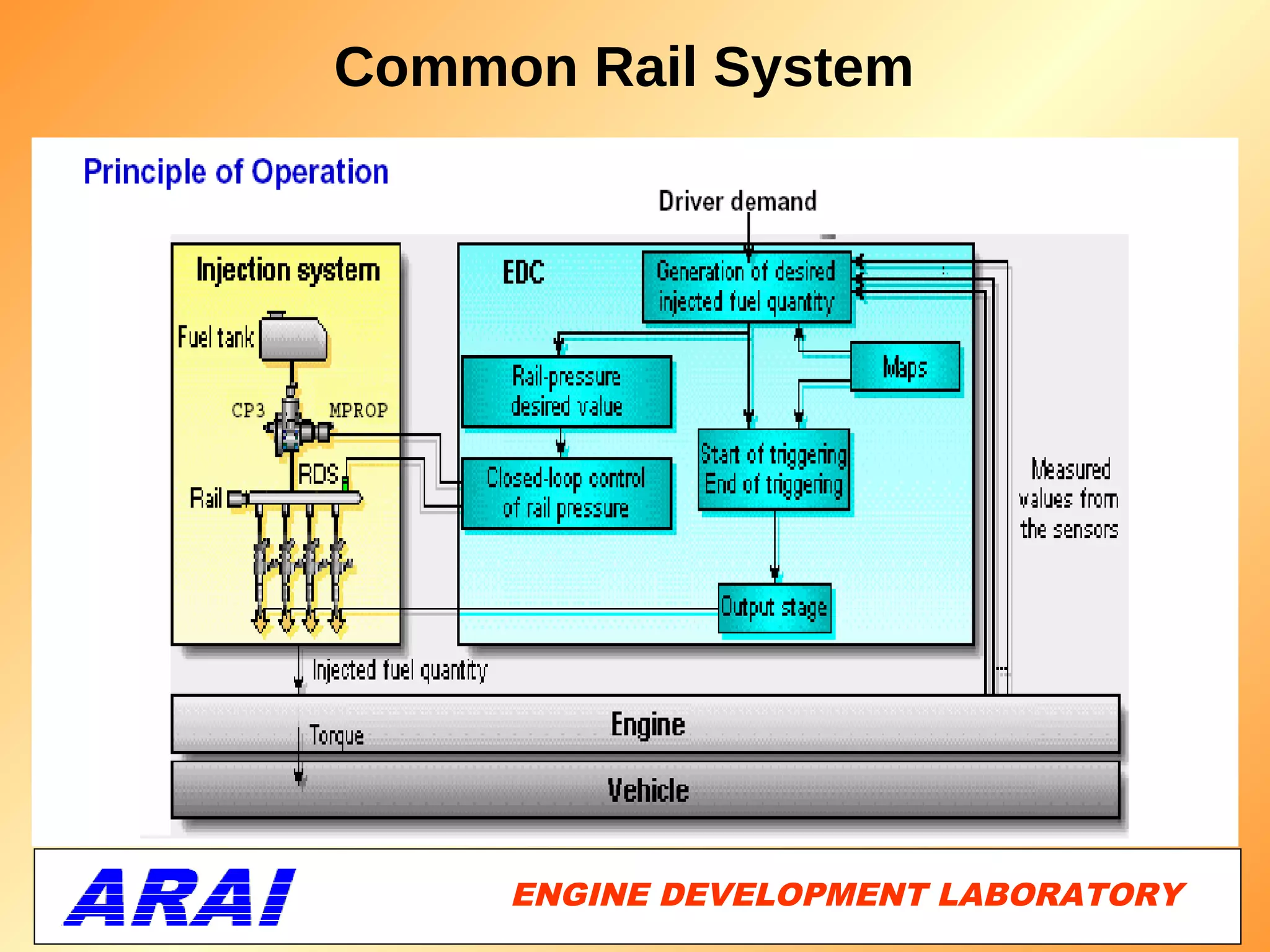

17. Common Rail System
ENGINE DEVELOPMENT LABORATORY
17

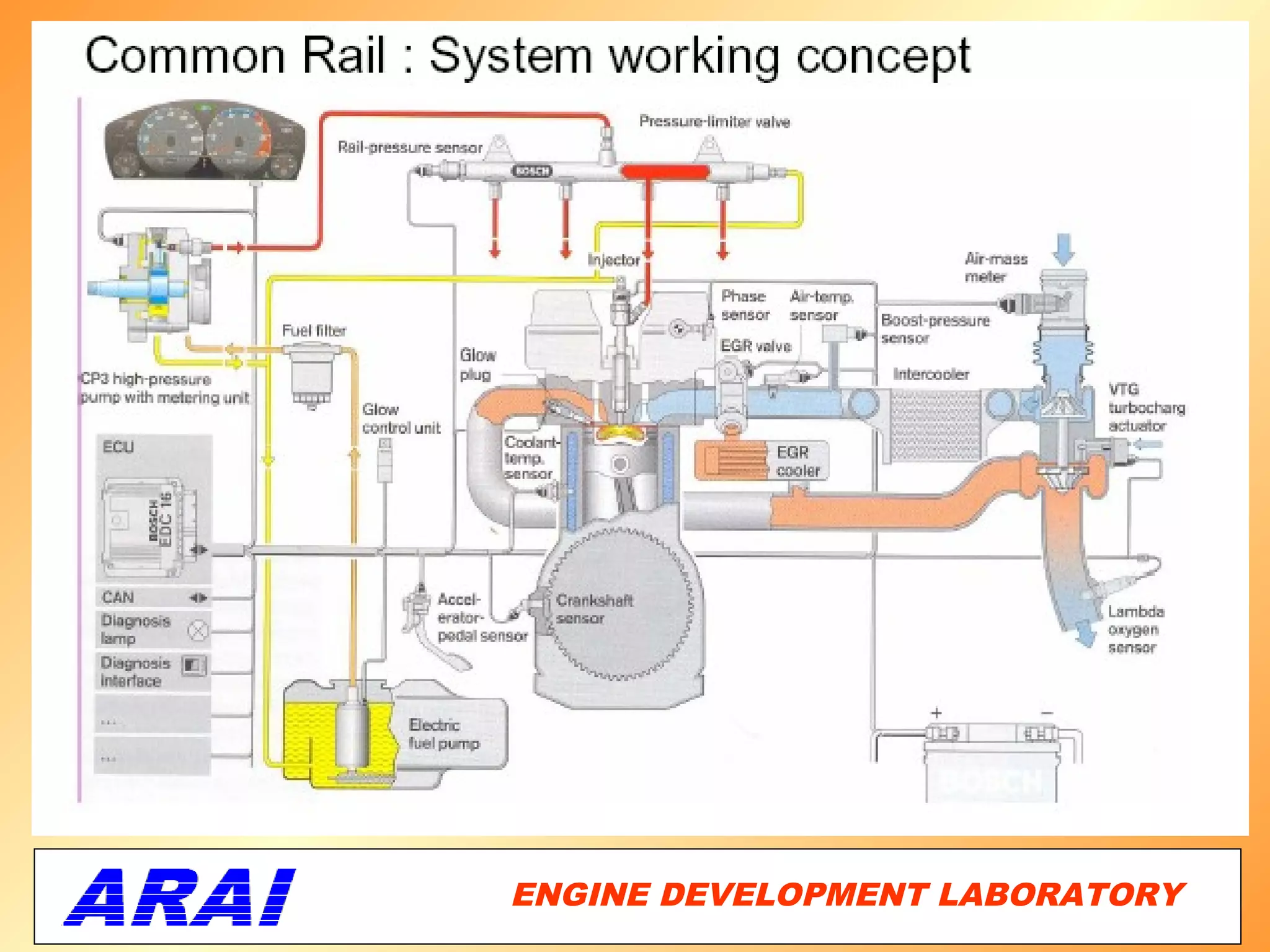

18. ENGINE DEVELOPMENT LABORATORY
18

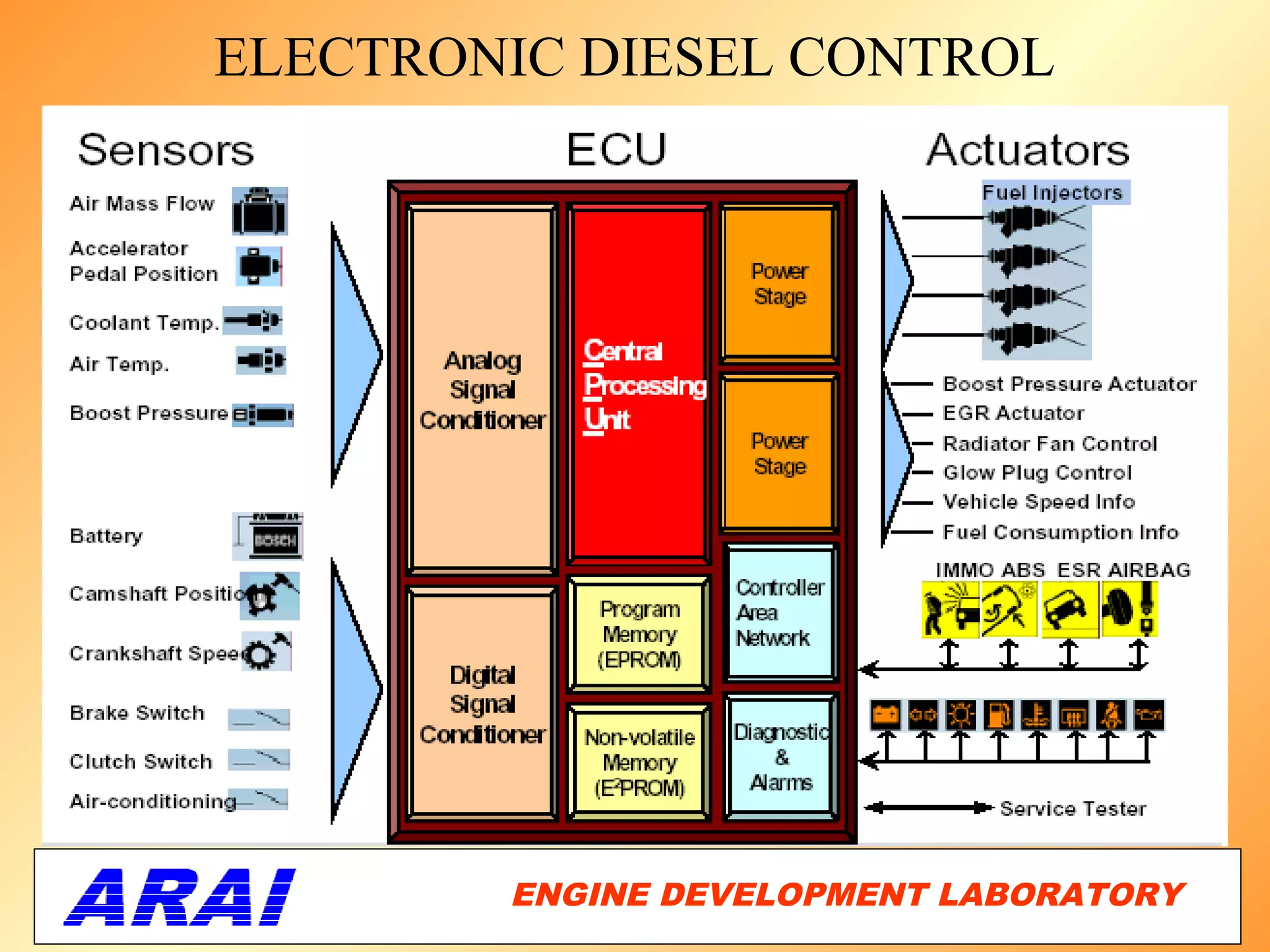

19. ELECTRONIC DIESEL CONTROL
ENGINE DEVELOPMENT LABORATORY
19

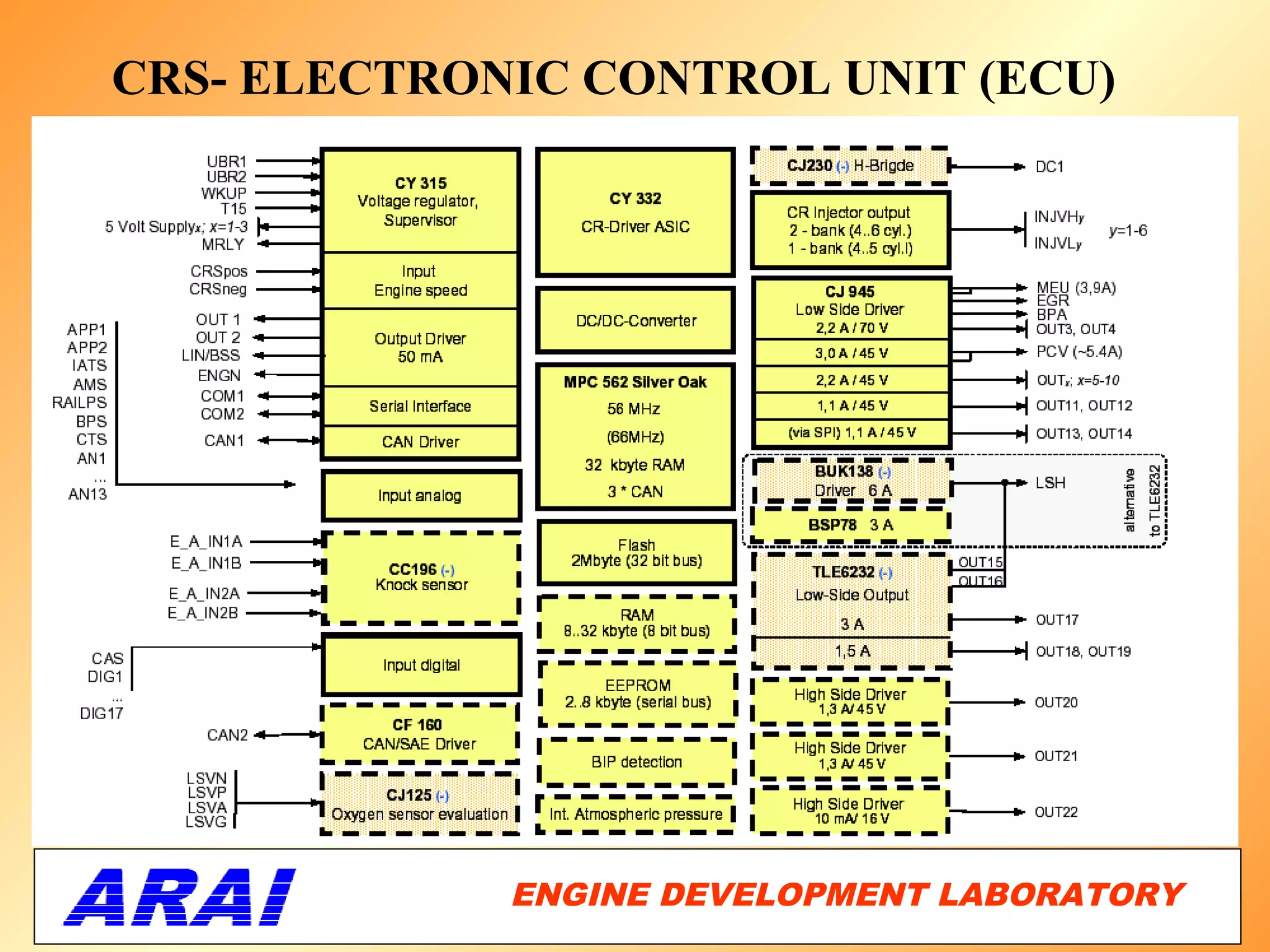

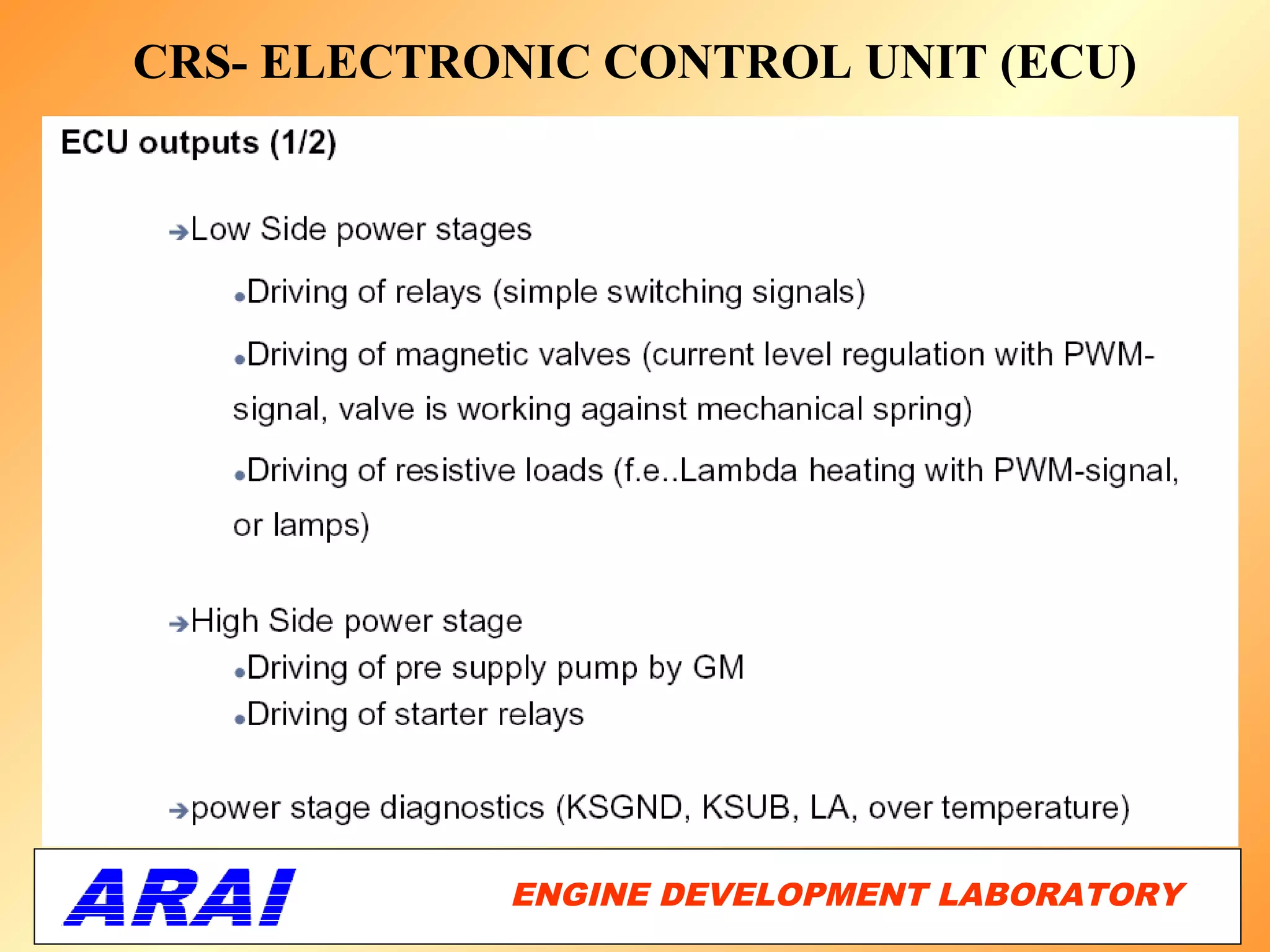

20. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
20

21. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
21

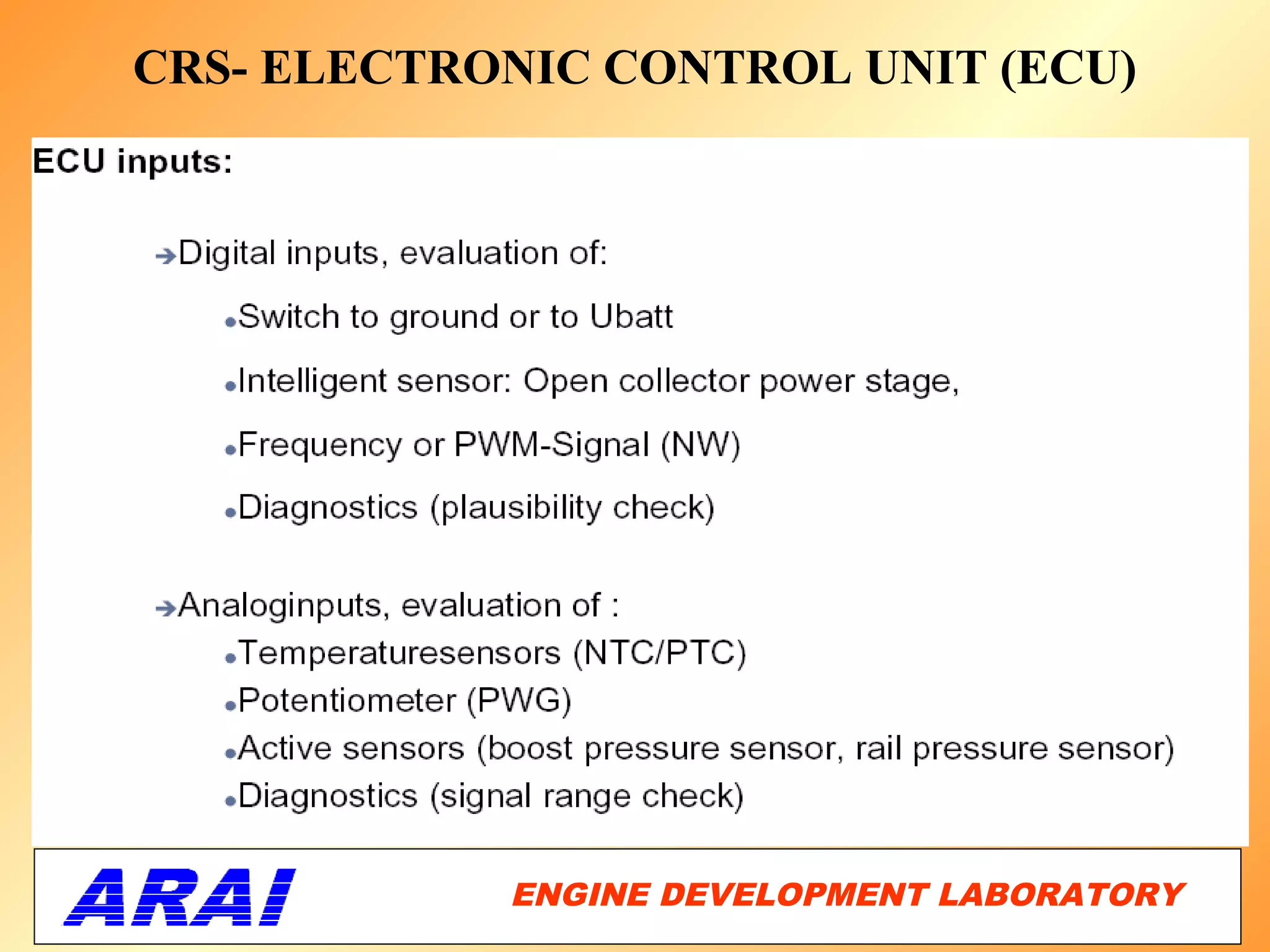

22. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
22

23. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
23

24. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
24

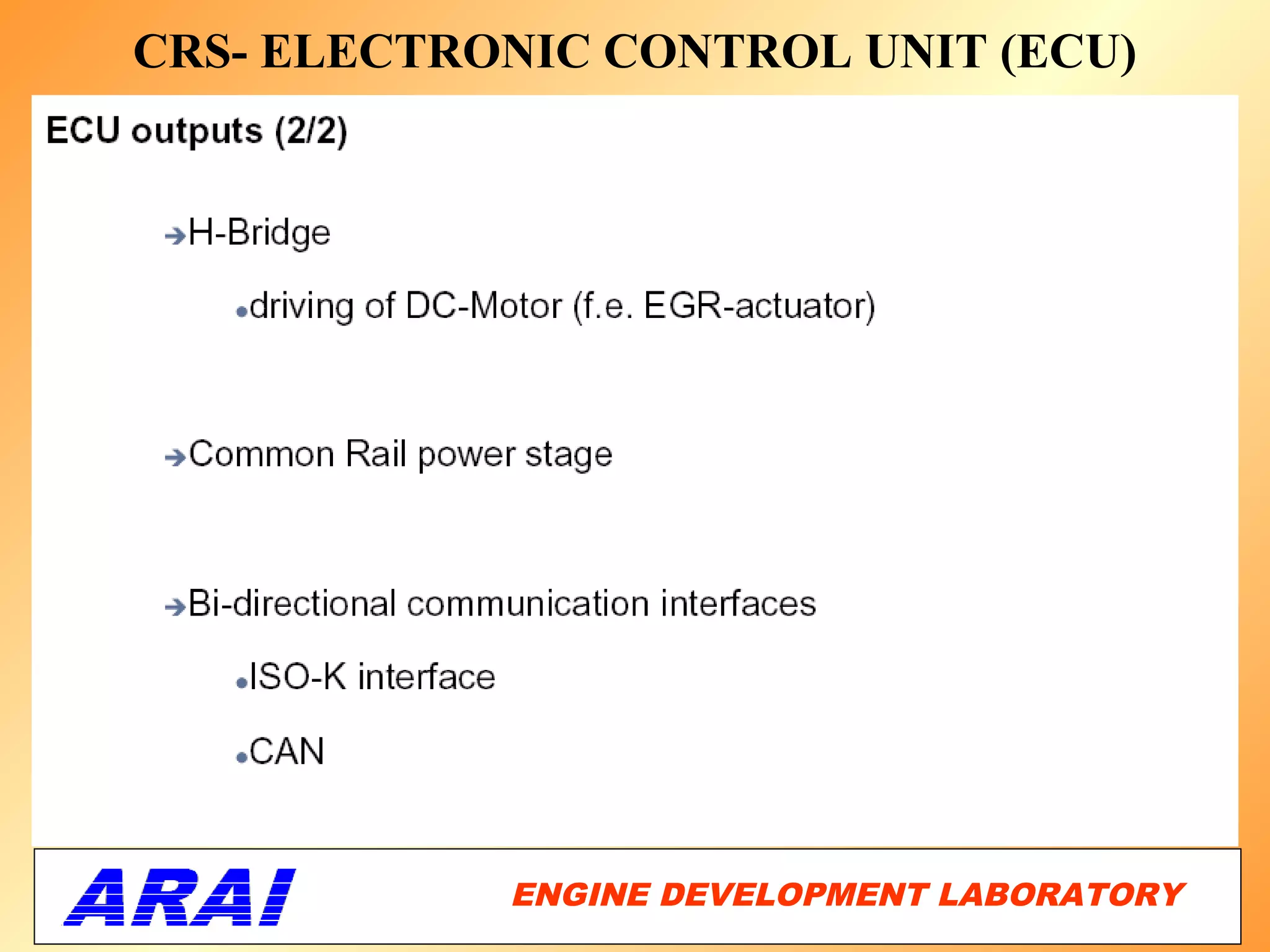

25. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
25

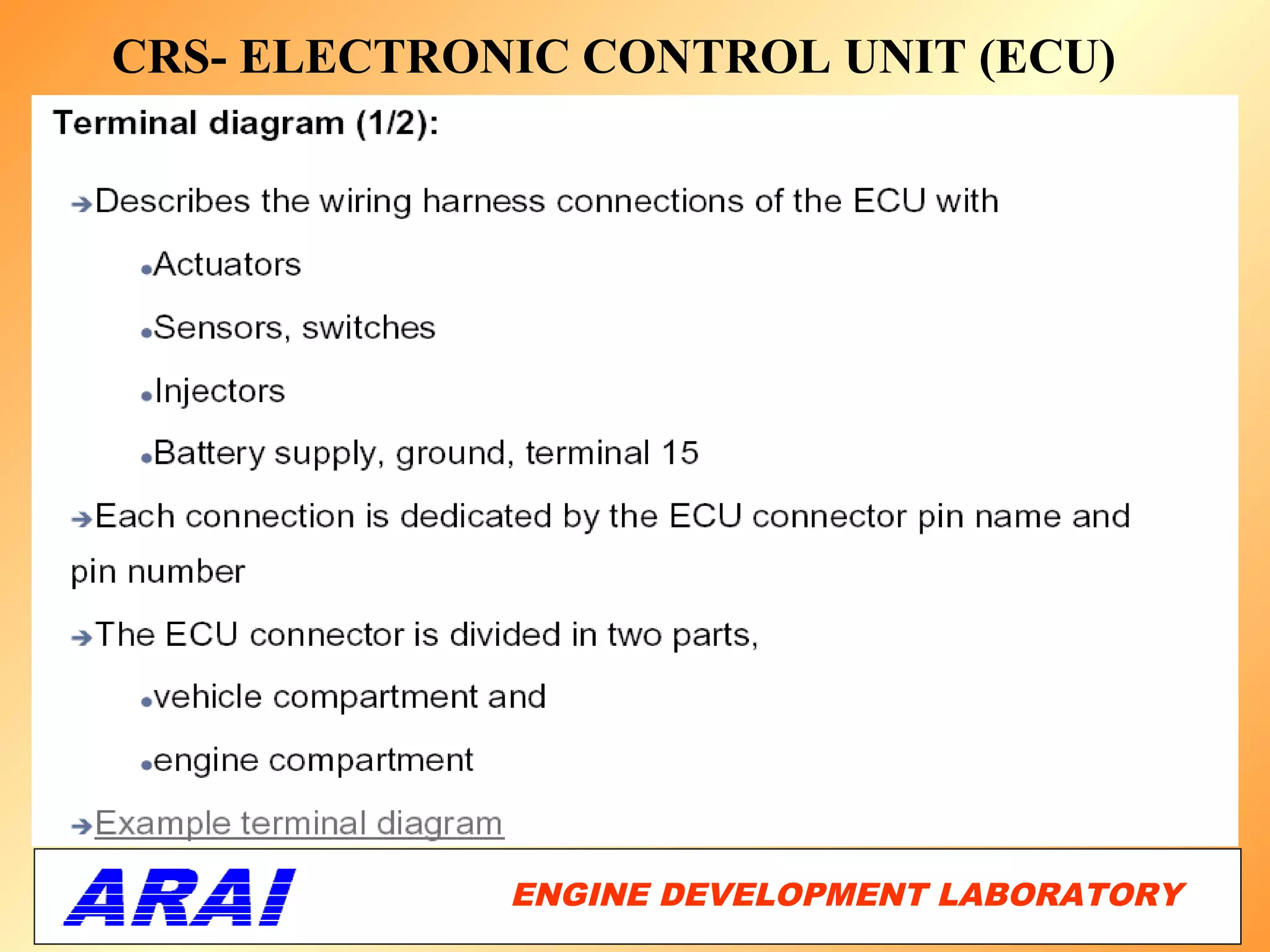

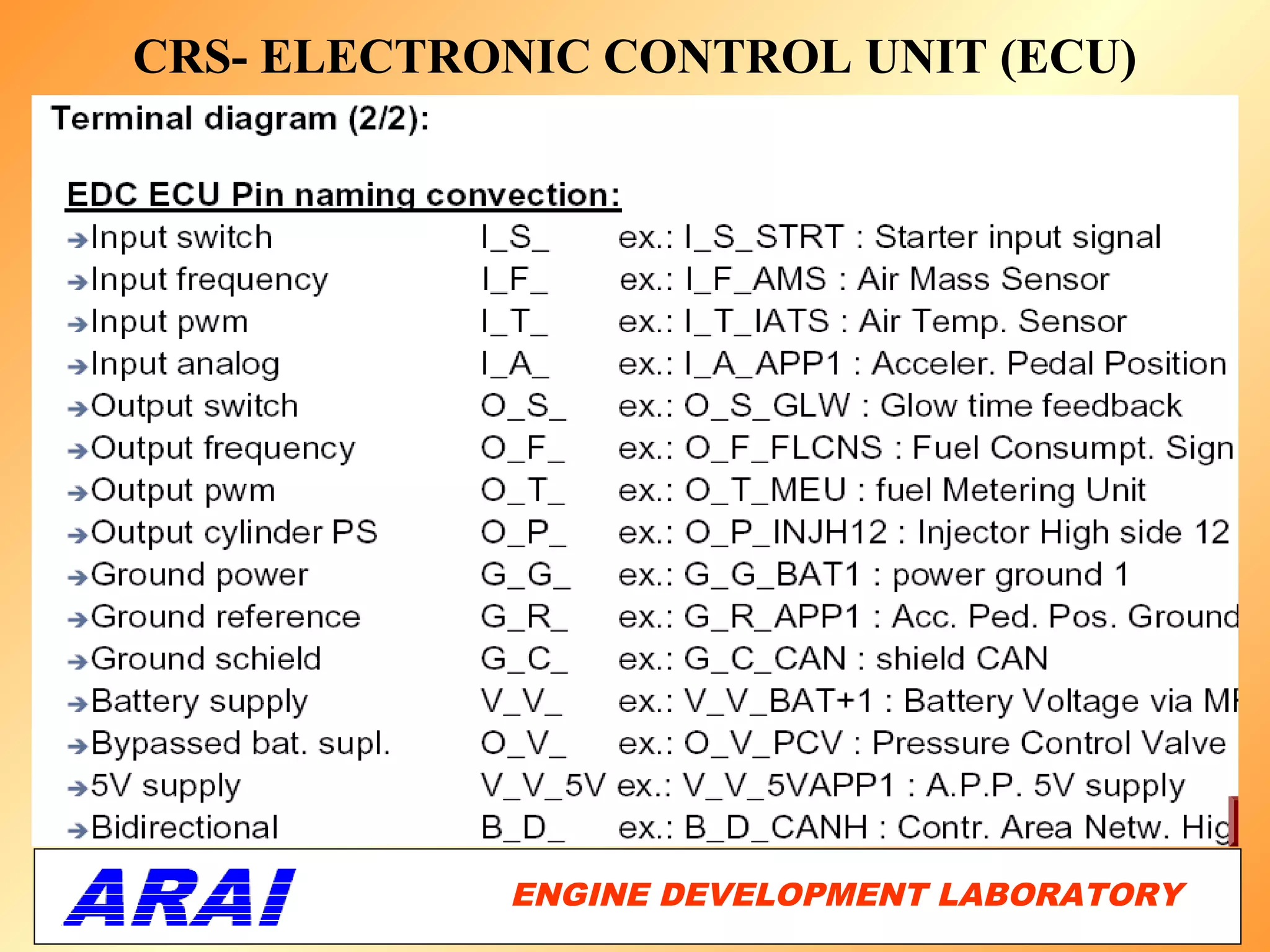

26. CRS- ELECTRONIC CONTROL UNIT (ECU)
ENGINE DEVELOPMENT LABORATORY
26

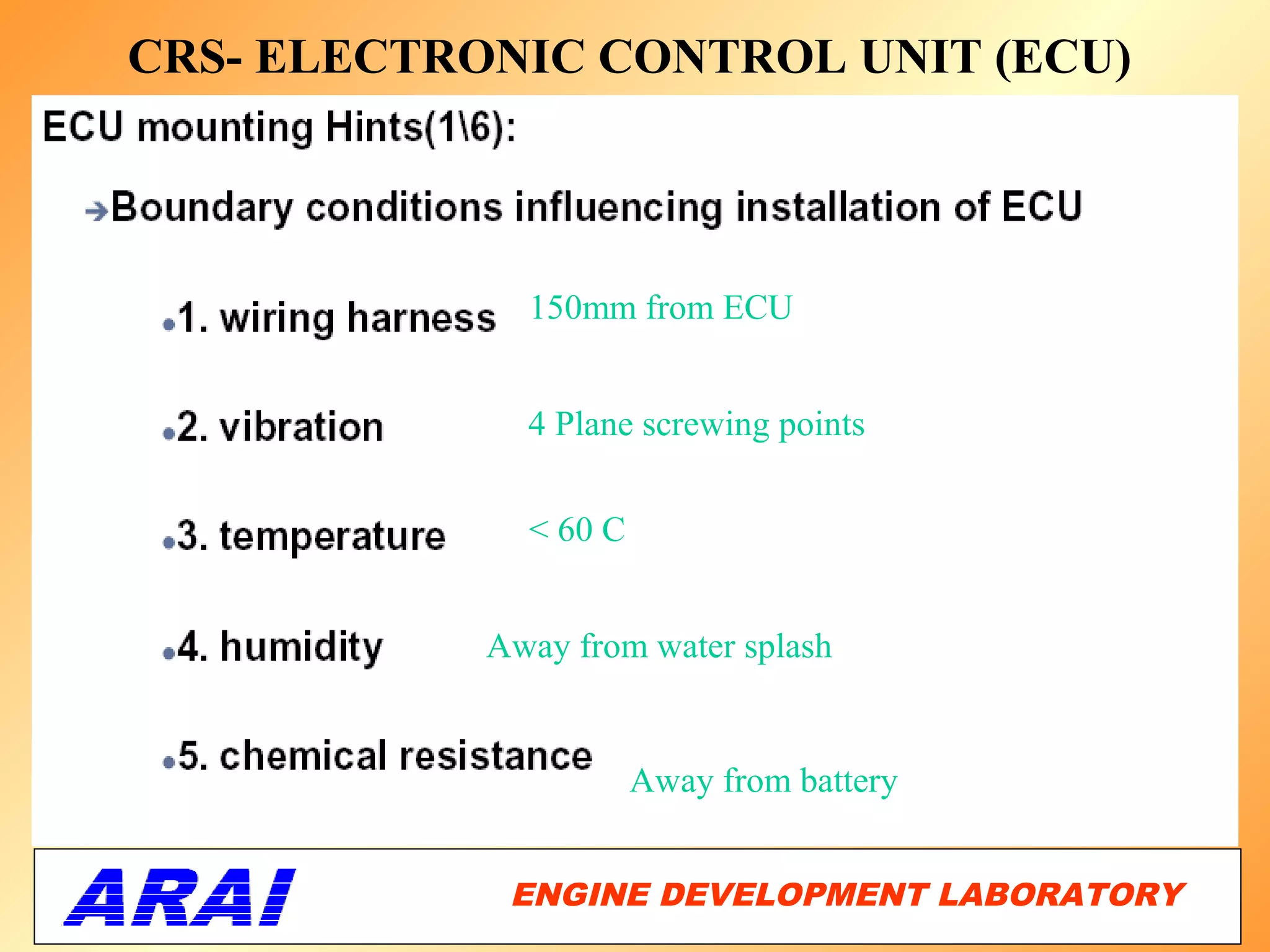

27. CRS- ELECTRONIC CONTROL UNIT (ECU)
150mm from ECU
4 Plane screwing points
< 60 C
Away from water splash
Away from battery
ENGINE DEVELOPMENT LABORATORY
27

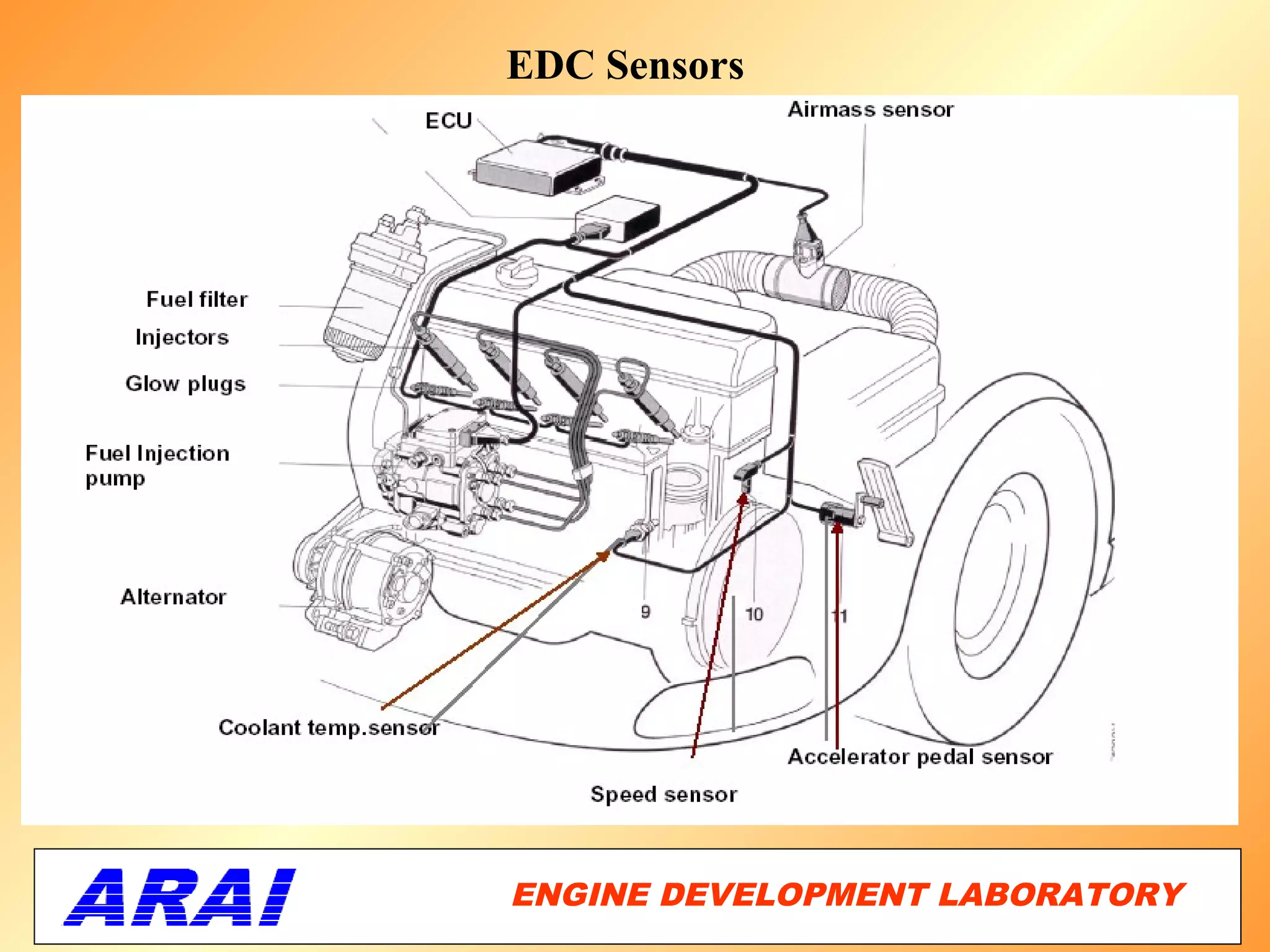

28. EDC Sensors
ENGINE DEVELOPMENT LABORATORY
28

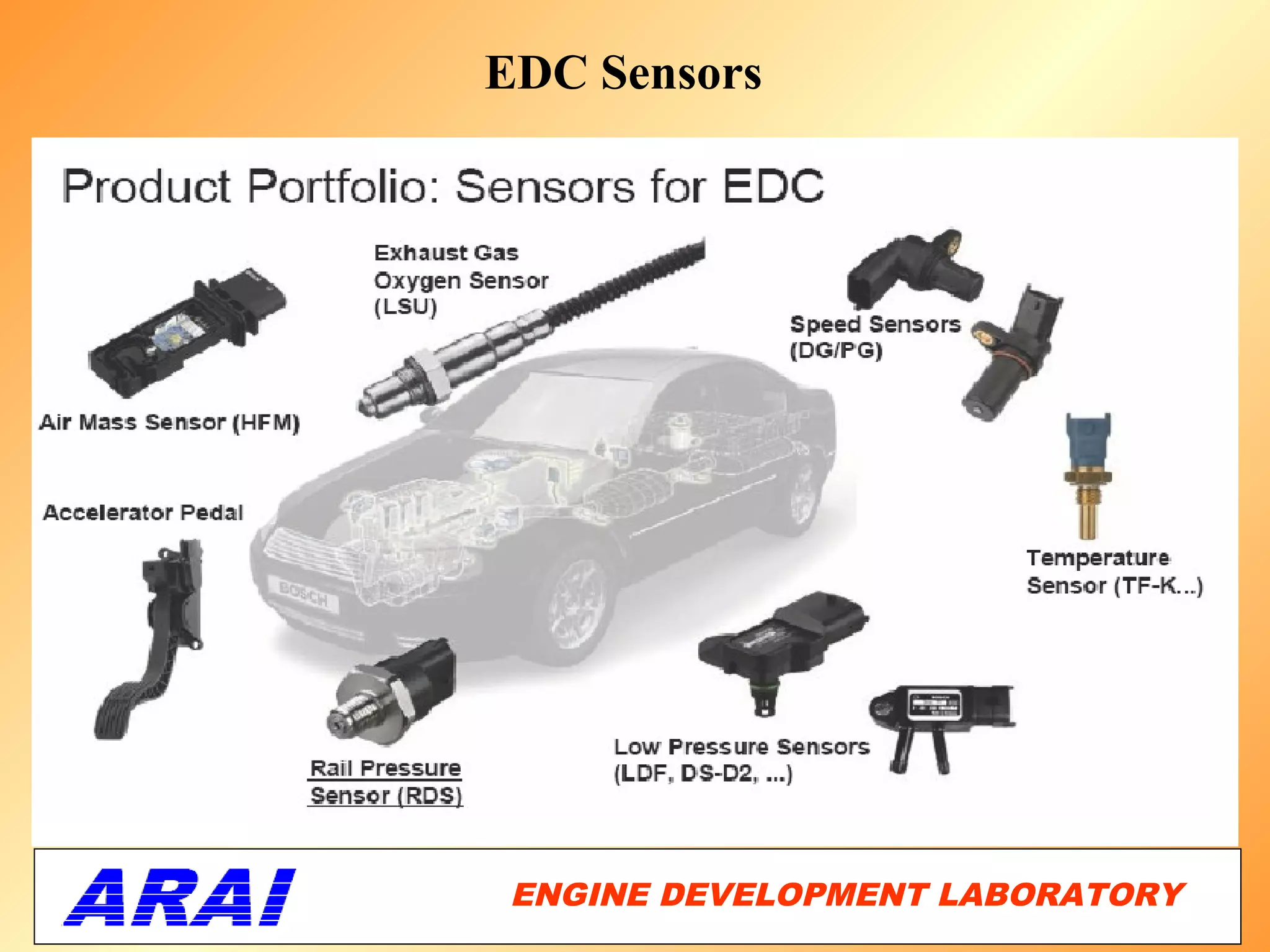

29. EDC Sensors
ENGINE DEVELOPMENT LABORATORY
29

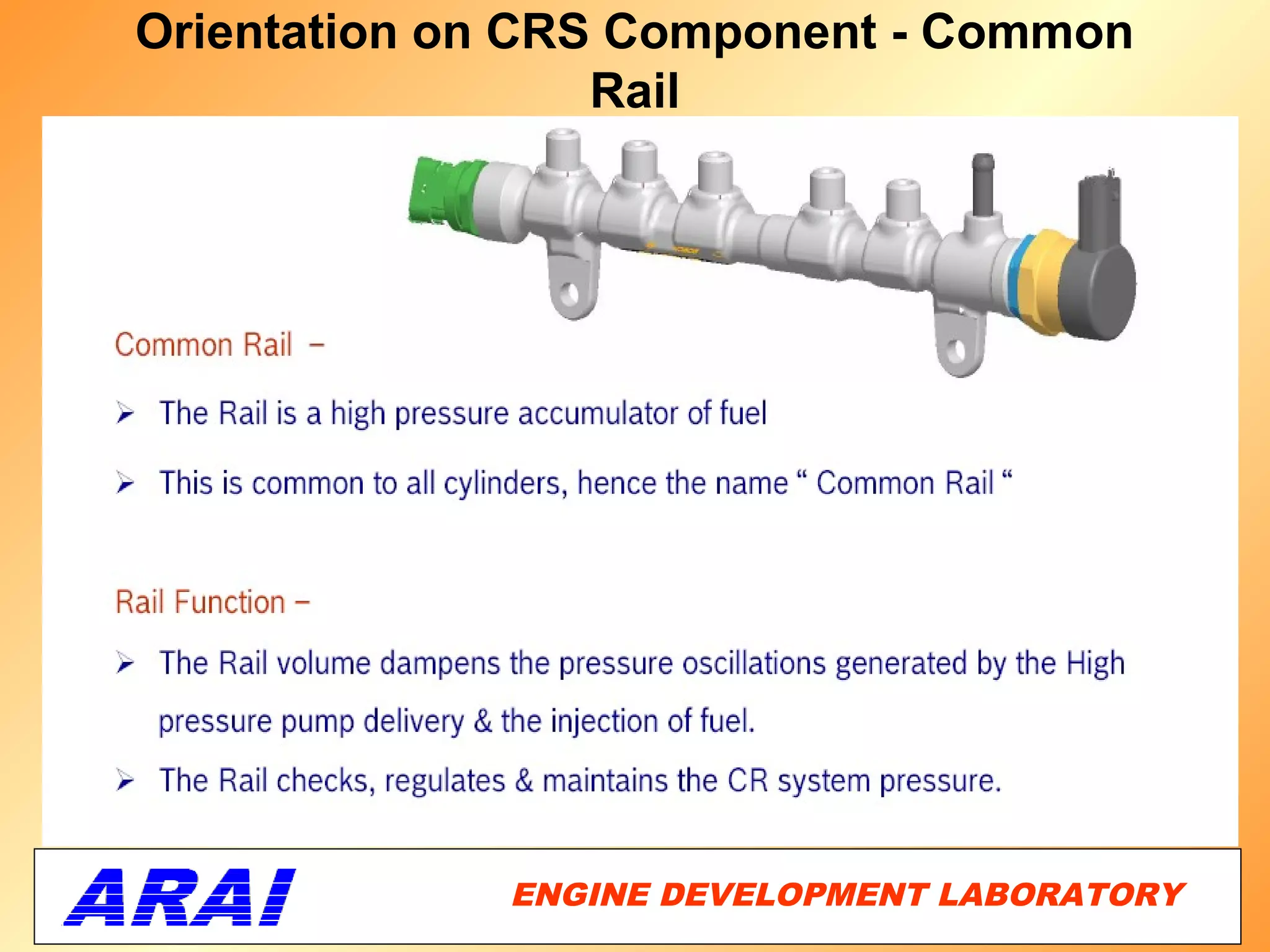

30. Orientation on CRS Component - Common
Rail
ENGINE DEVELOPMENT LABORATORY
30

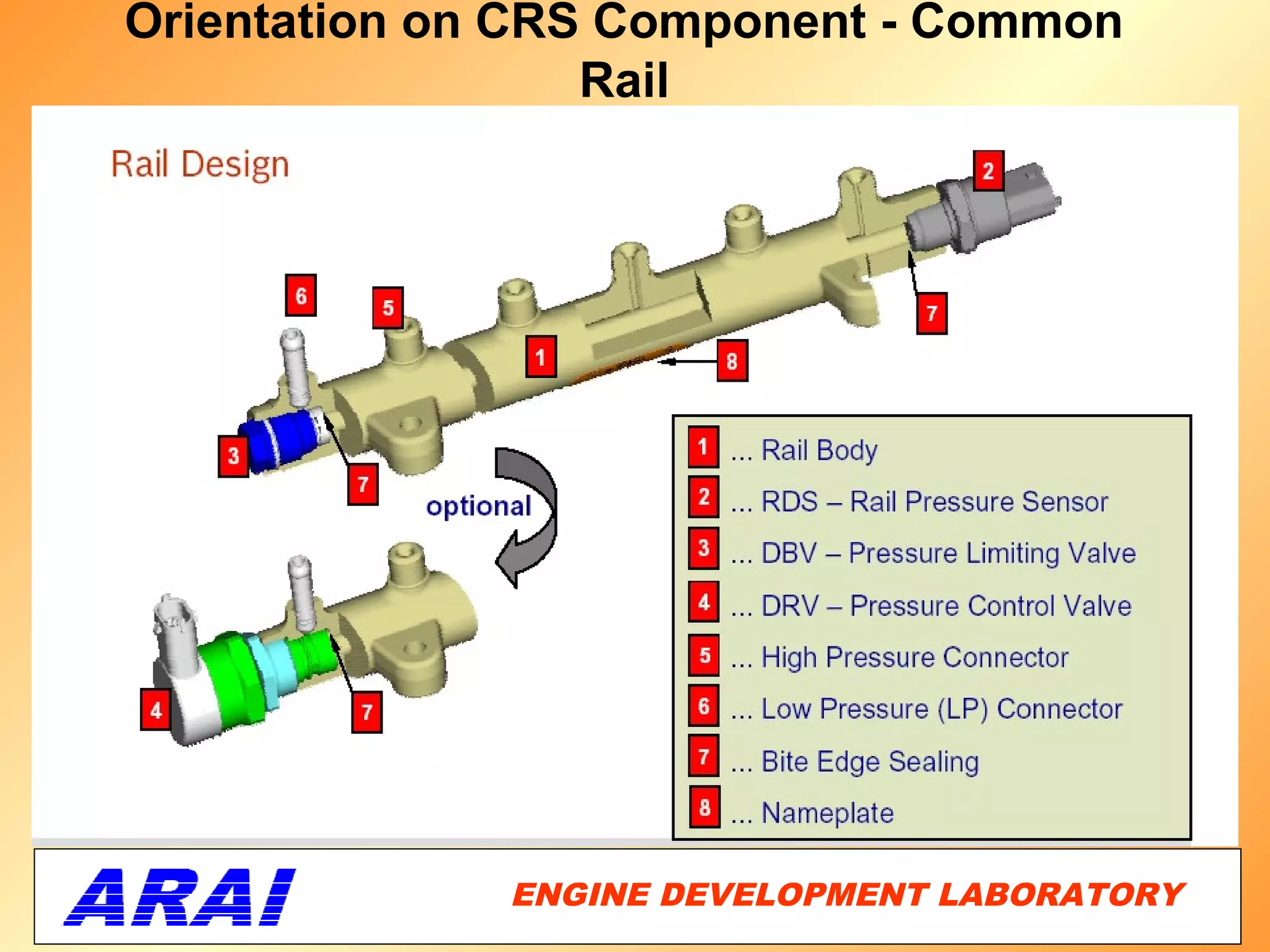

31. Orientation on CRS Component - Common
Rail
ENGINE DEVELOPMENT LABORATORY
31

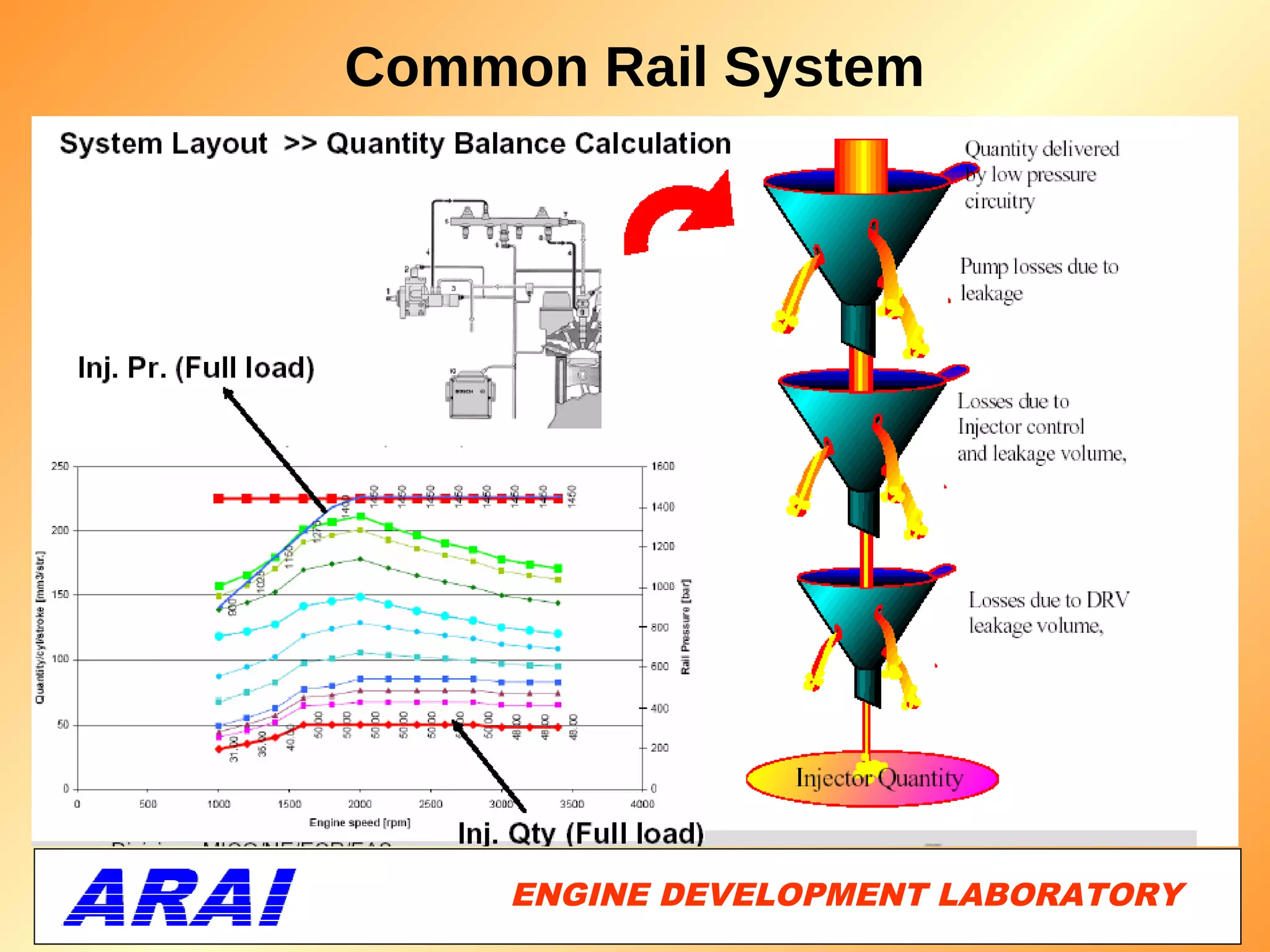

32. Common Rail System
ENGINE DEVELOPMENT LABORATORY
32

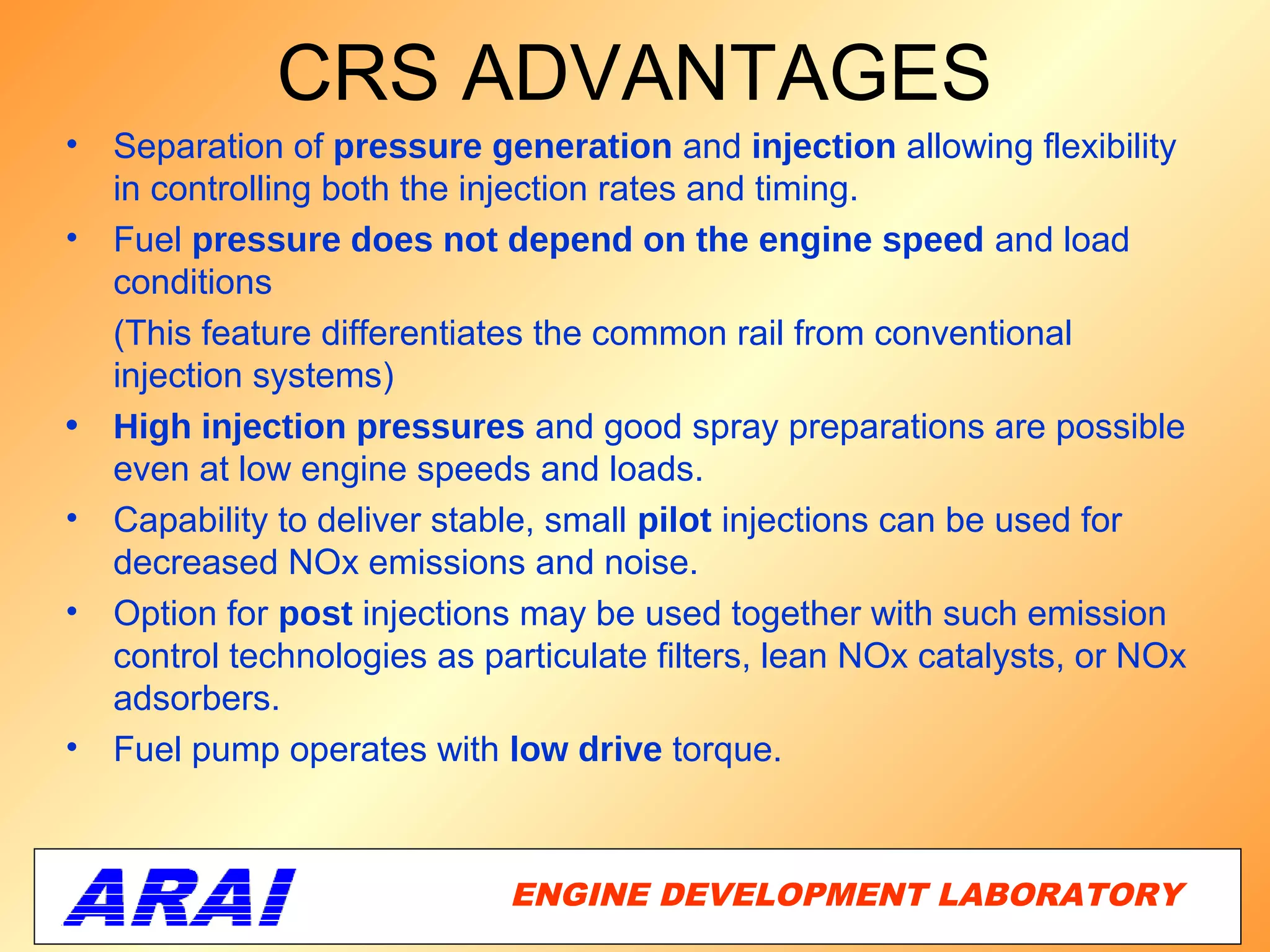

33. CRS ADVANTAGES
• Separation of pressure generation and injection allowing flexibility
in controlling both the injection rates and timing.
• Fuel pressure does not depend on the engine speed and load
conditions
(This feature differentiates the common rail from conventional
injection systems)
• High injection pressures and good spray preparations are possible
even at low engine speeds and loads.
• Capability to deliver stable, small pilot injections can be used for
decreased NOx emissions and noise.
• Option for post injections may be used together with such emission
control technologies as particulate filters, lean NOx catalysts, or NOx
adsorbers.
• Fuel pump operates with low drive torque.
ENGINE DEVELOPMENT LABORATORY
33

34. CONTENTS
Introduction completed.
System types & Generation
Common Rail & emission strategy
System Validation & tests
Project milestones
ENGINE DEVELOPMENT LABORATORY
34

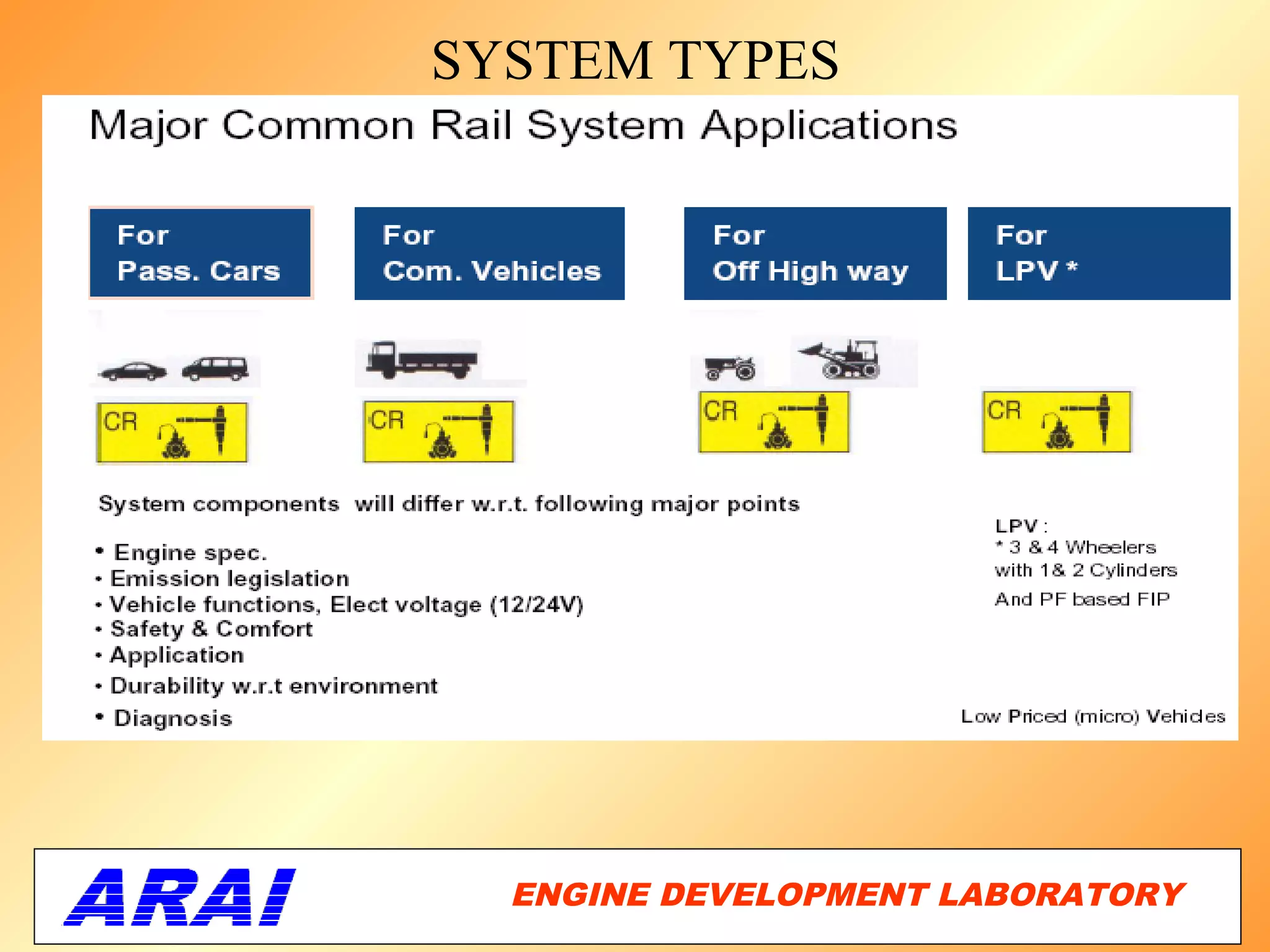

35. SYSTEM TYPES
ENGINE DEVELOPMENT LABORATORY
35

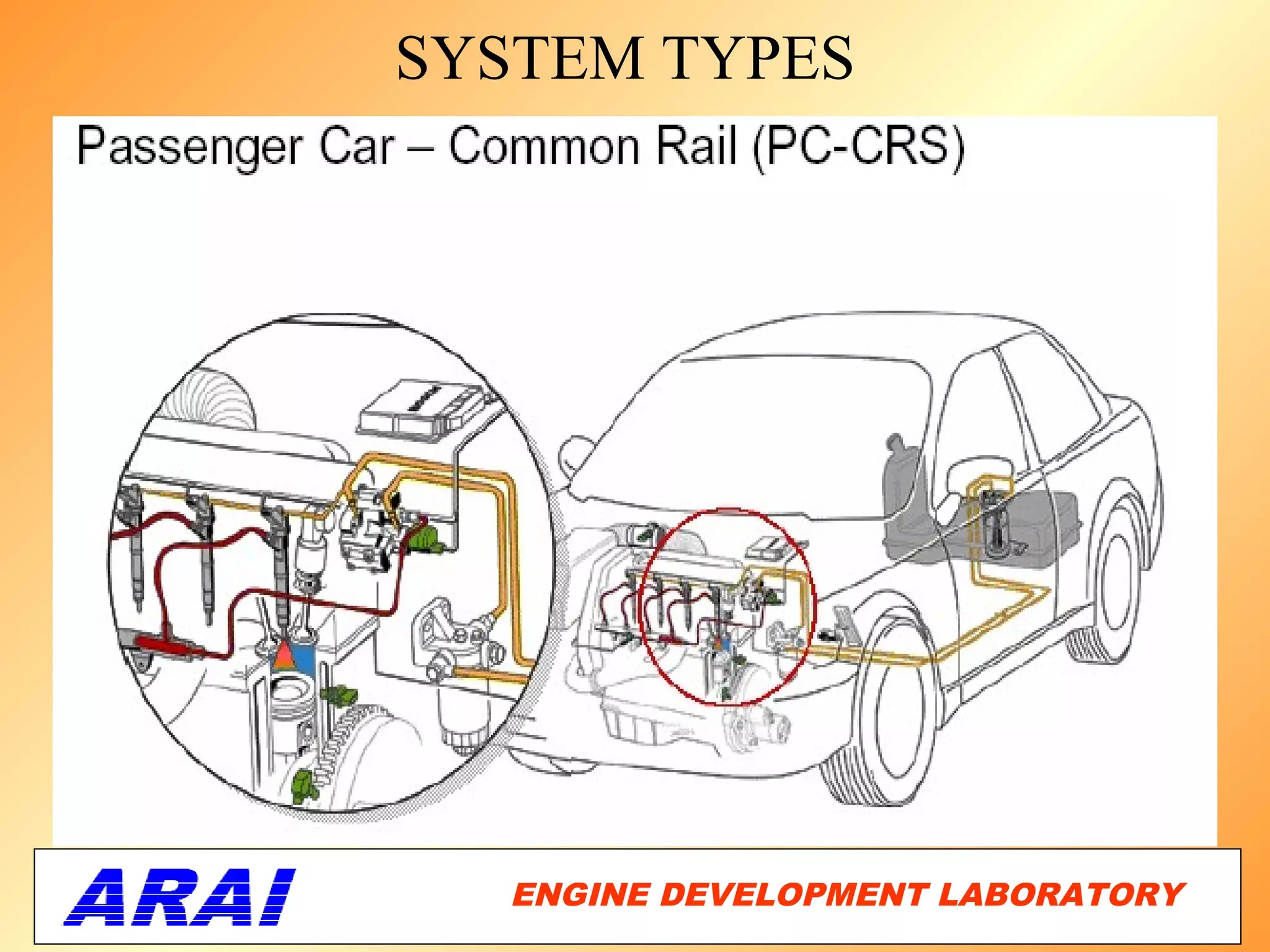

36. SYSTEM TYPES
ENGINE DEVELOPMENT LABORATORY
36

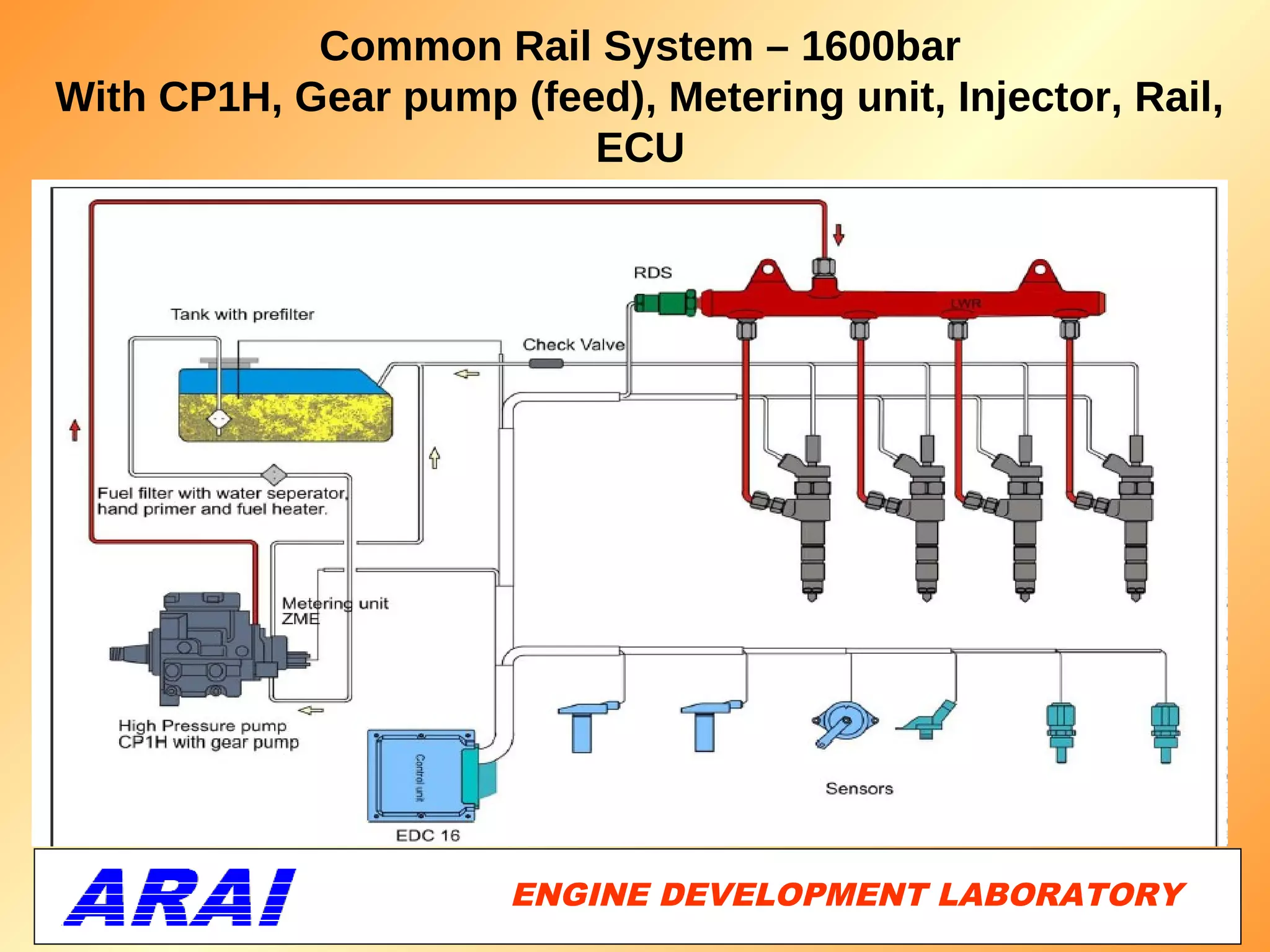

37. Common Rail System – 1600bar
With CP1H, Gear pump (feed), Metering unit, Injector, Rail,
ECU
ENGINE DEVELOPMENT LABORATORY
37

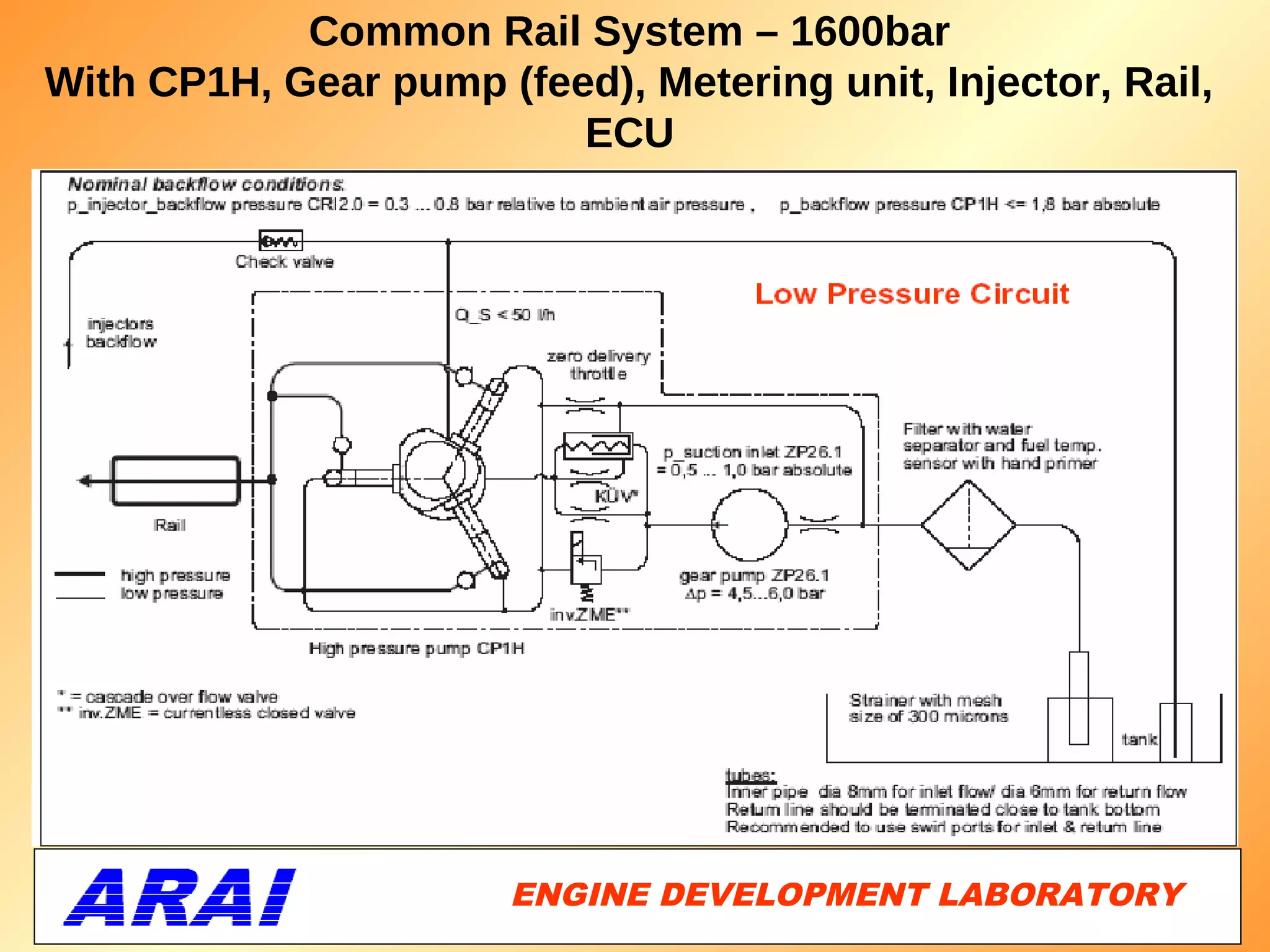

38. Common Rail System – 1600bar
With CP1H, Gear pump (feed), Metering unit, Injector, Rail,
ECU
ENGINE DEVELOPMENT LABORATORY
38

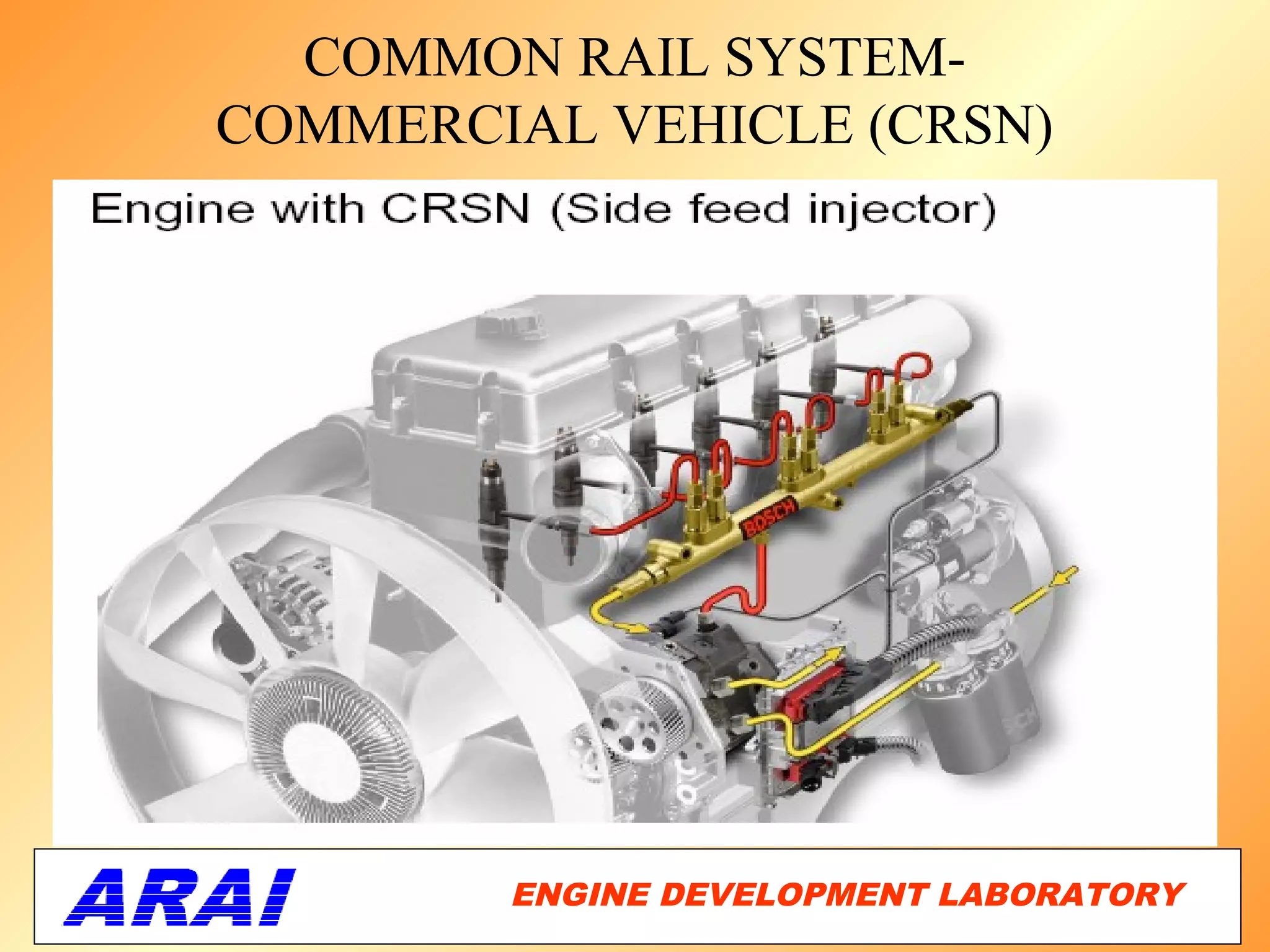

39. COMMON RAIL SYSTEM-
COMMERCIAL VEHICLE (CRSN)
ENGINE DEVELOPMENT LABORATORY
39

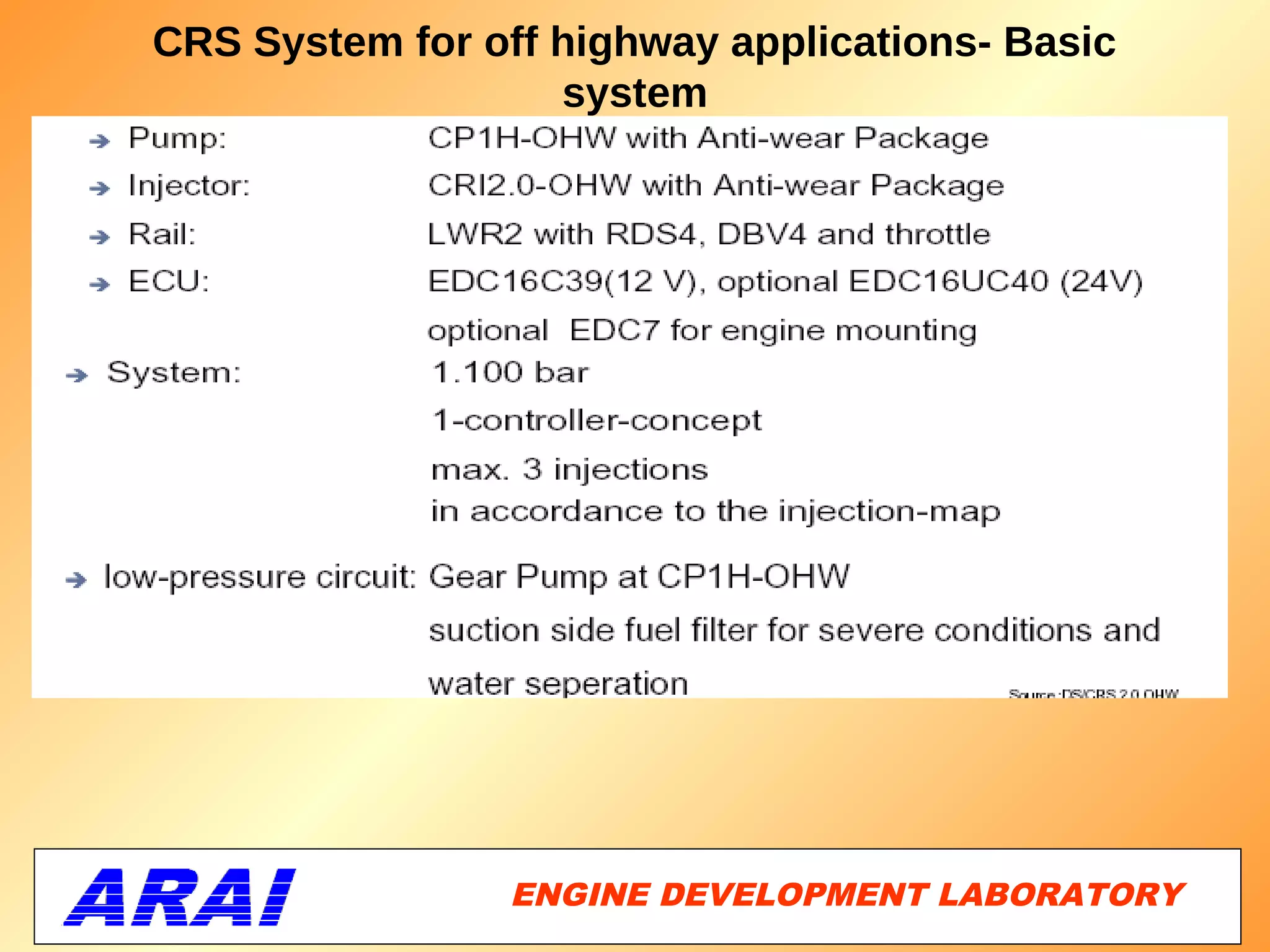

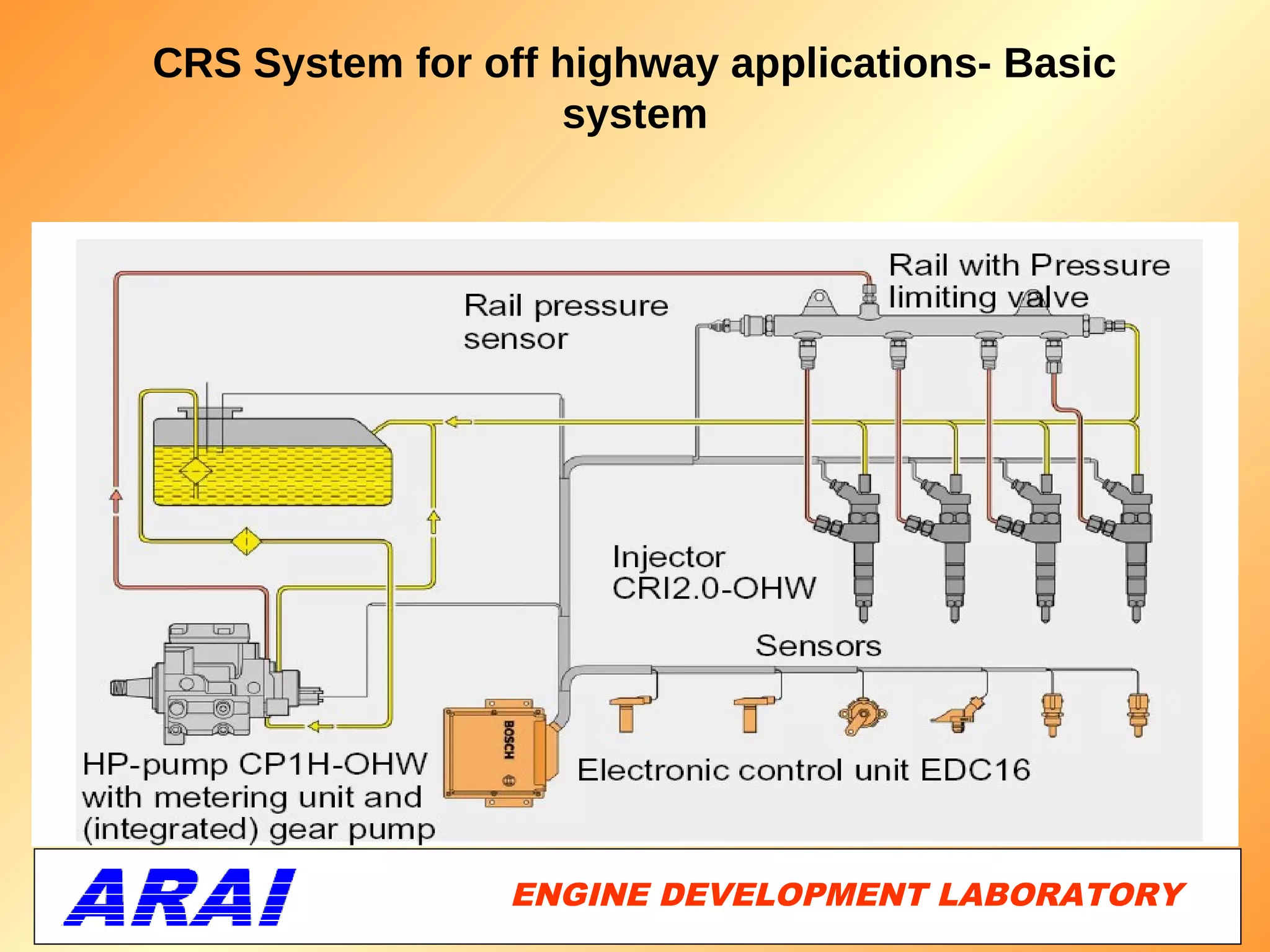

40. CRS System for off highway applications- Basic
system
ENGINE DEVELOPMENT LABORATORY
40

41. CRS System for off highway applications- Basic
system
ENGINE DEVELOPMENT LABORATORY
41

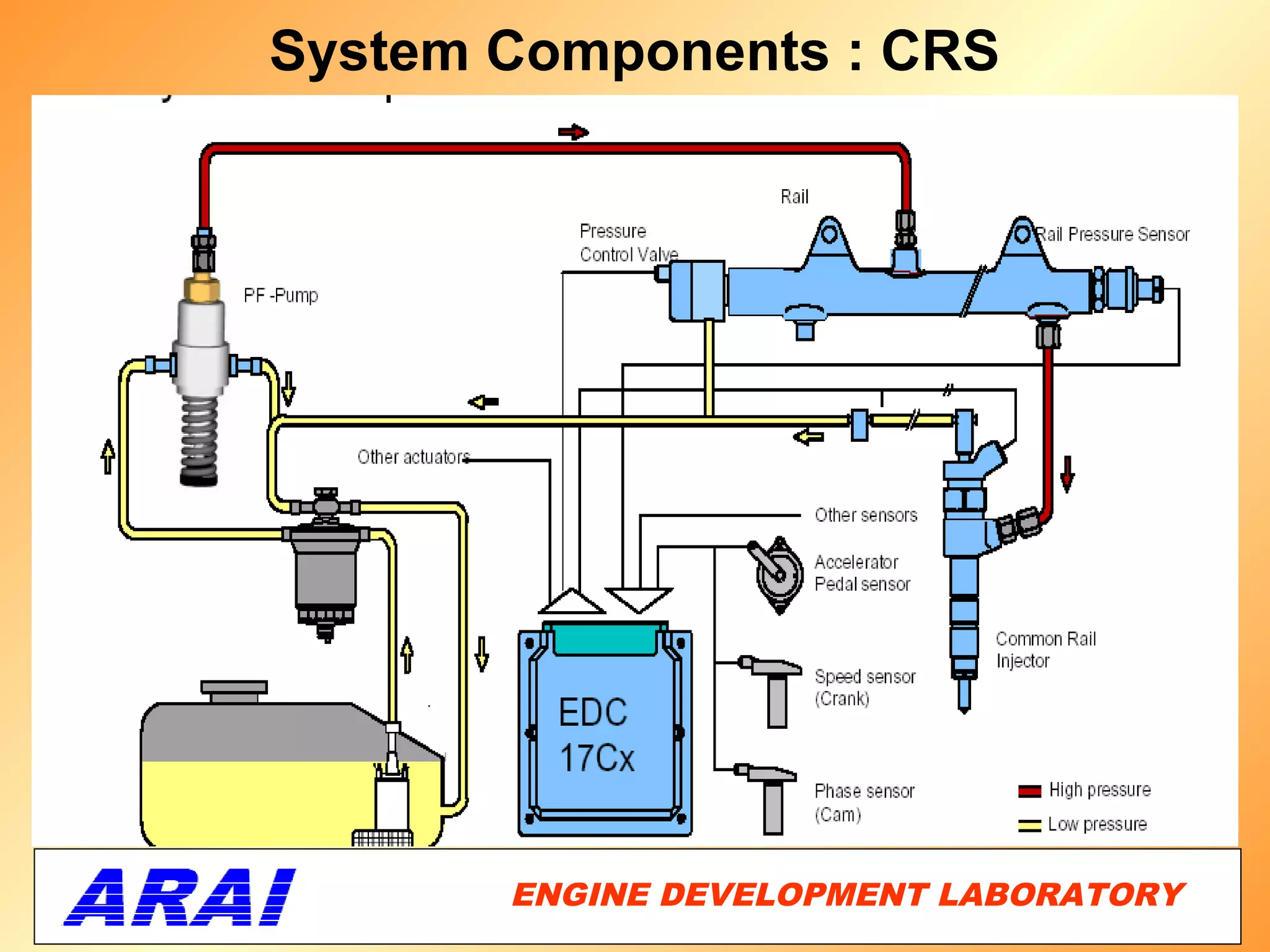

42. System Components : CRS
ENGINE DEVELOPMENT LABORATORY
42

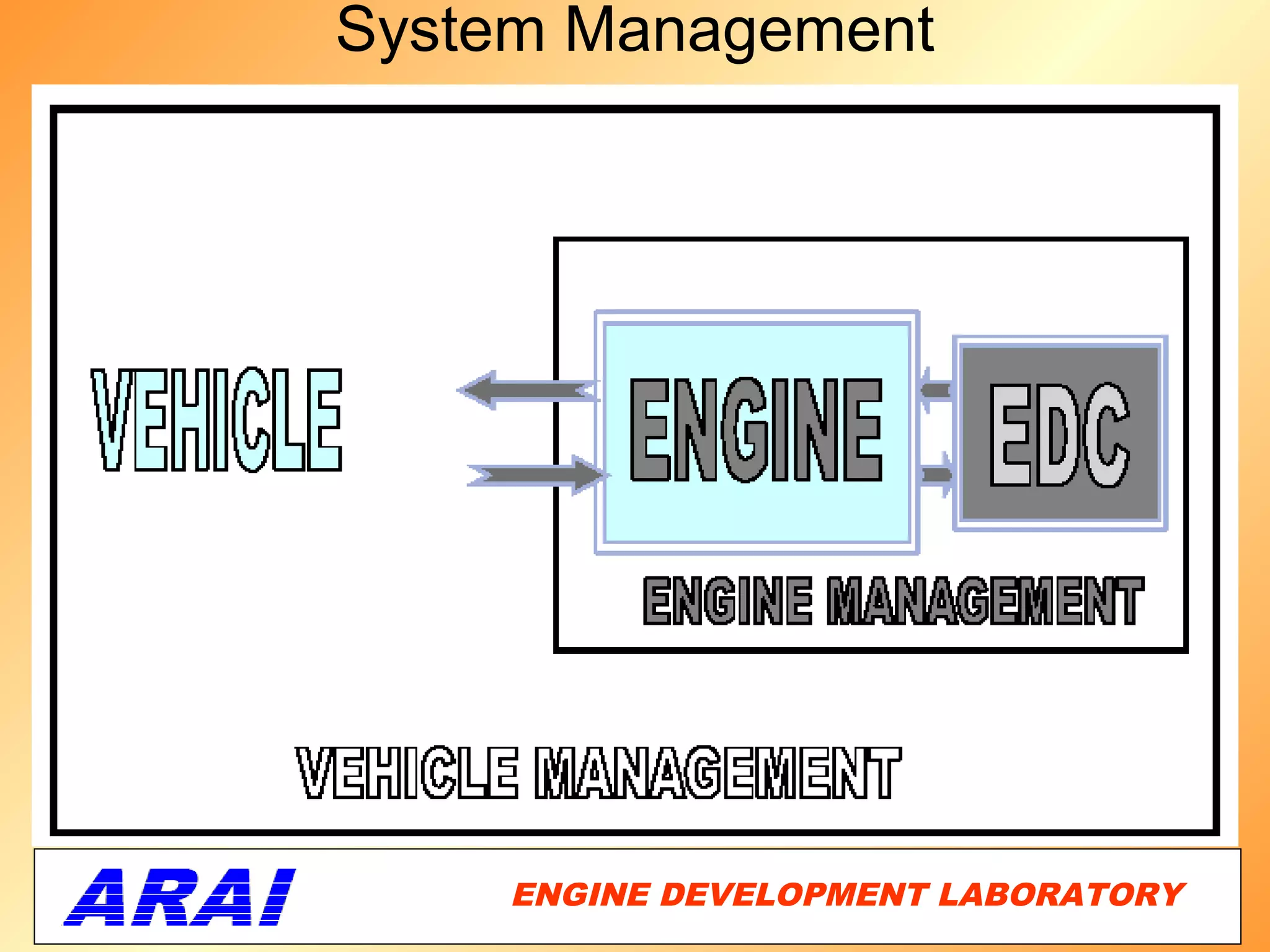

43. System Management
ENGINE DEVELOPMENT LABORATORY
43

44. Theory 1: Introduction to Common Rail
System
ENGINE DEVELOPMENT LABORATORY
44

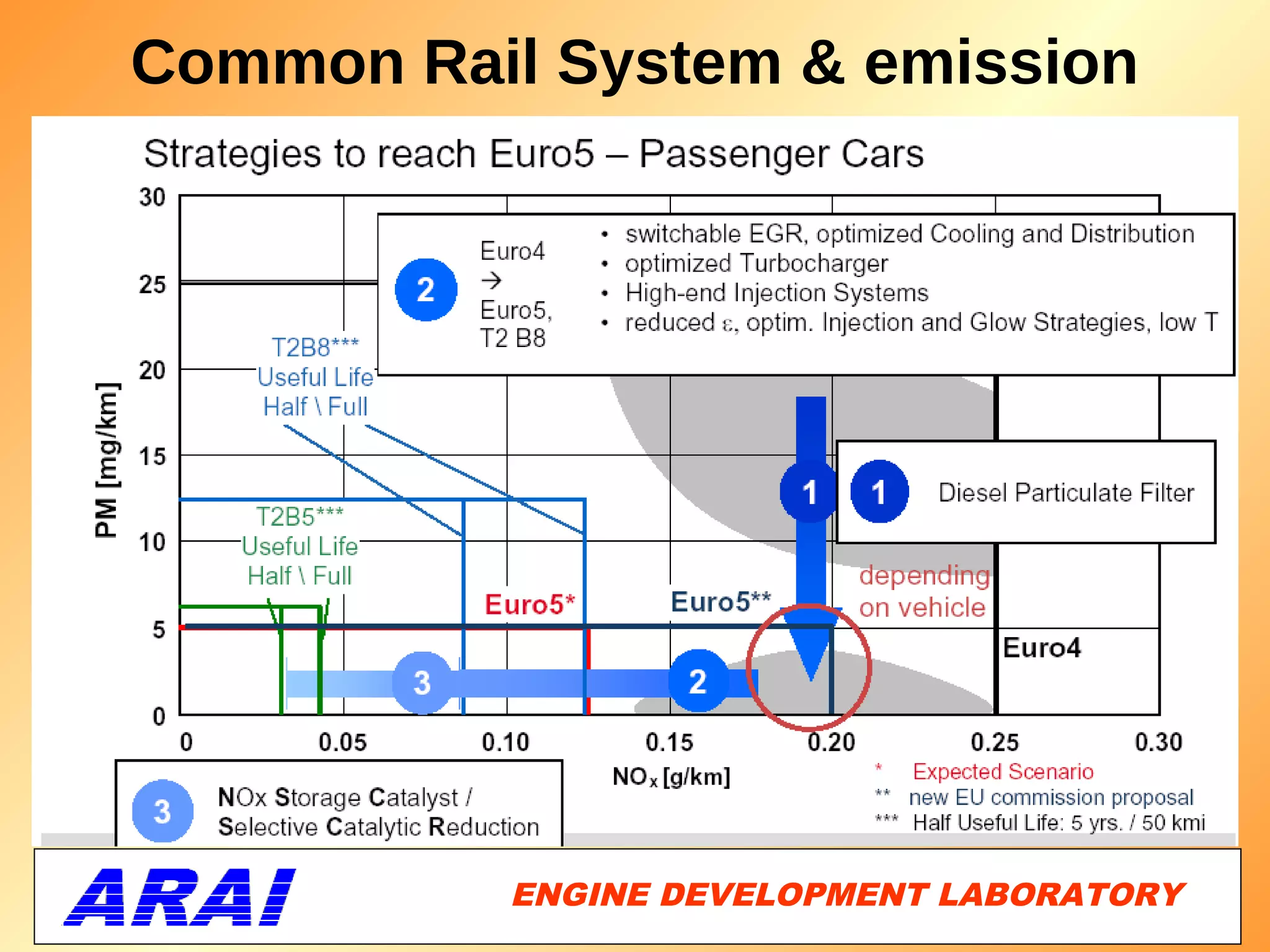

45. Common Rail System & emission
ENGINE DEVELOPMENT LABORATORY
45

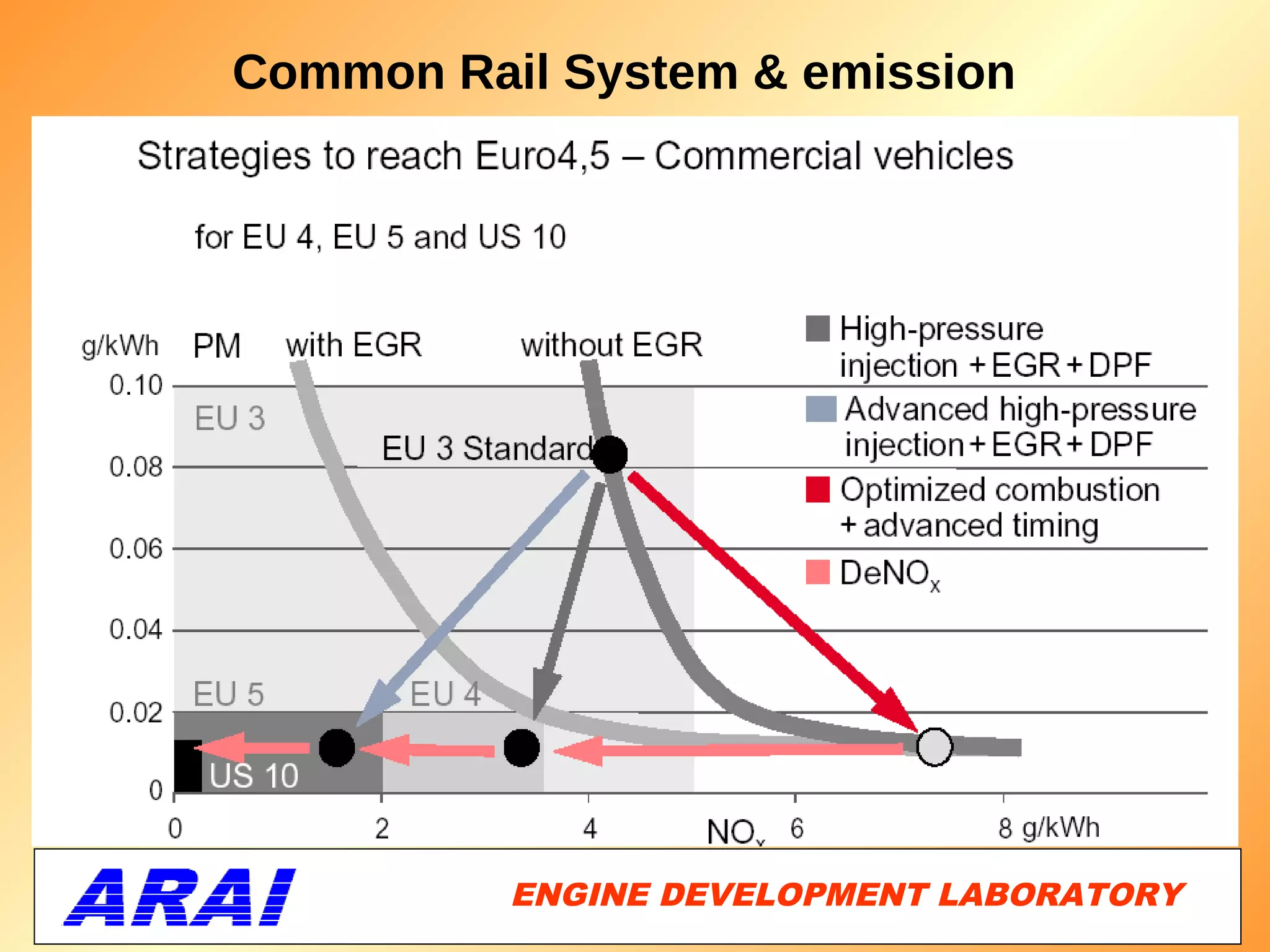

46. Common Rail System & emission
ENGINE DEVELOPMENT LABORATORY
46

47. Theory 1: Introduction to Common Rail System
ENGINE DEVELOPMENT LABORATORY
47

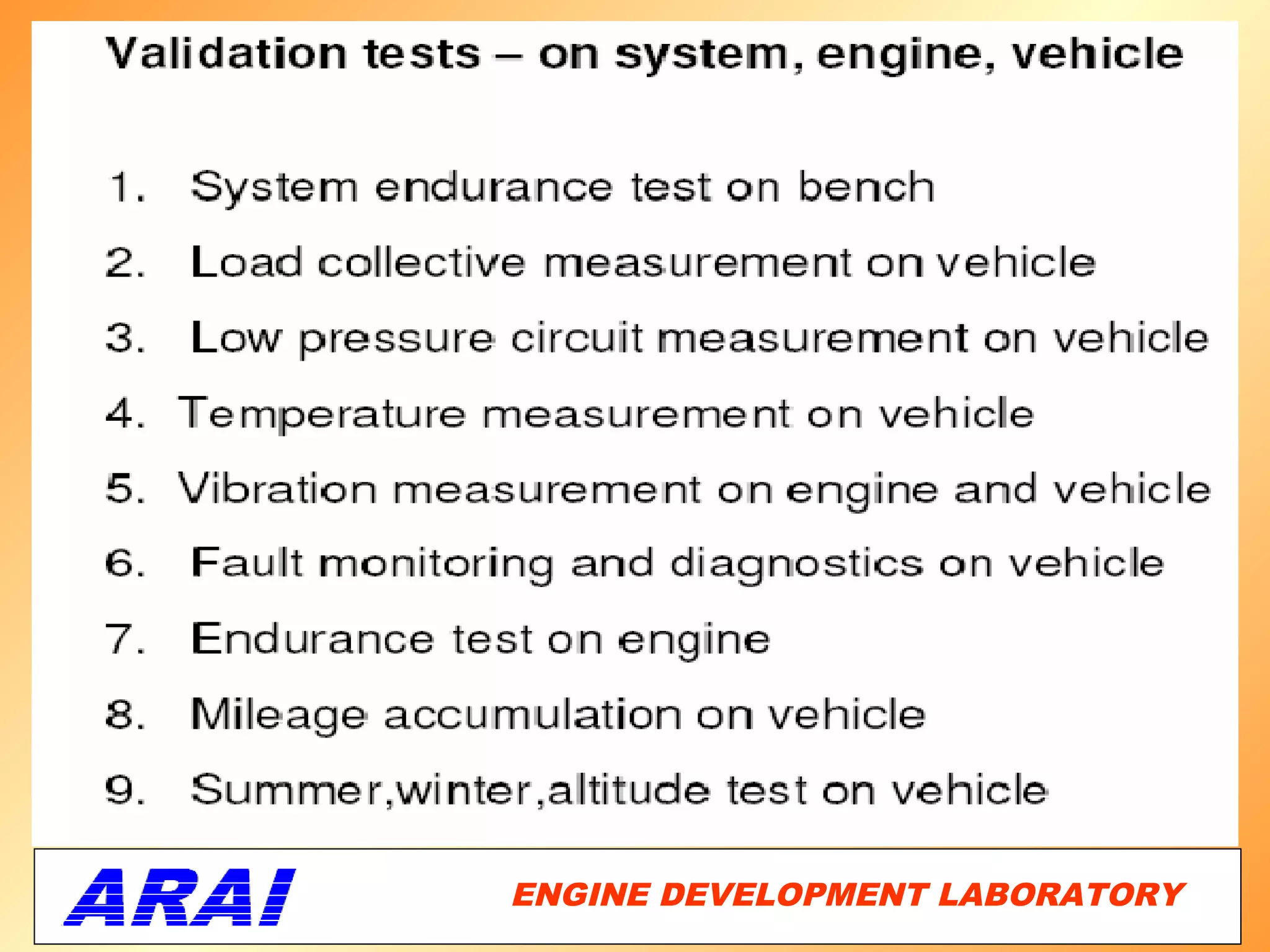

48. ENGINE DEVELOPMENT LABORATORY
48

49. Common Rail System

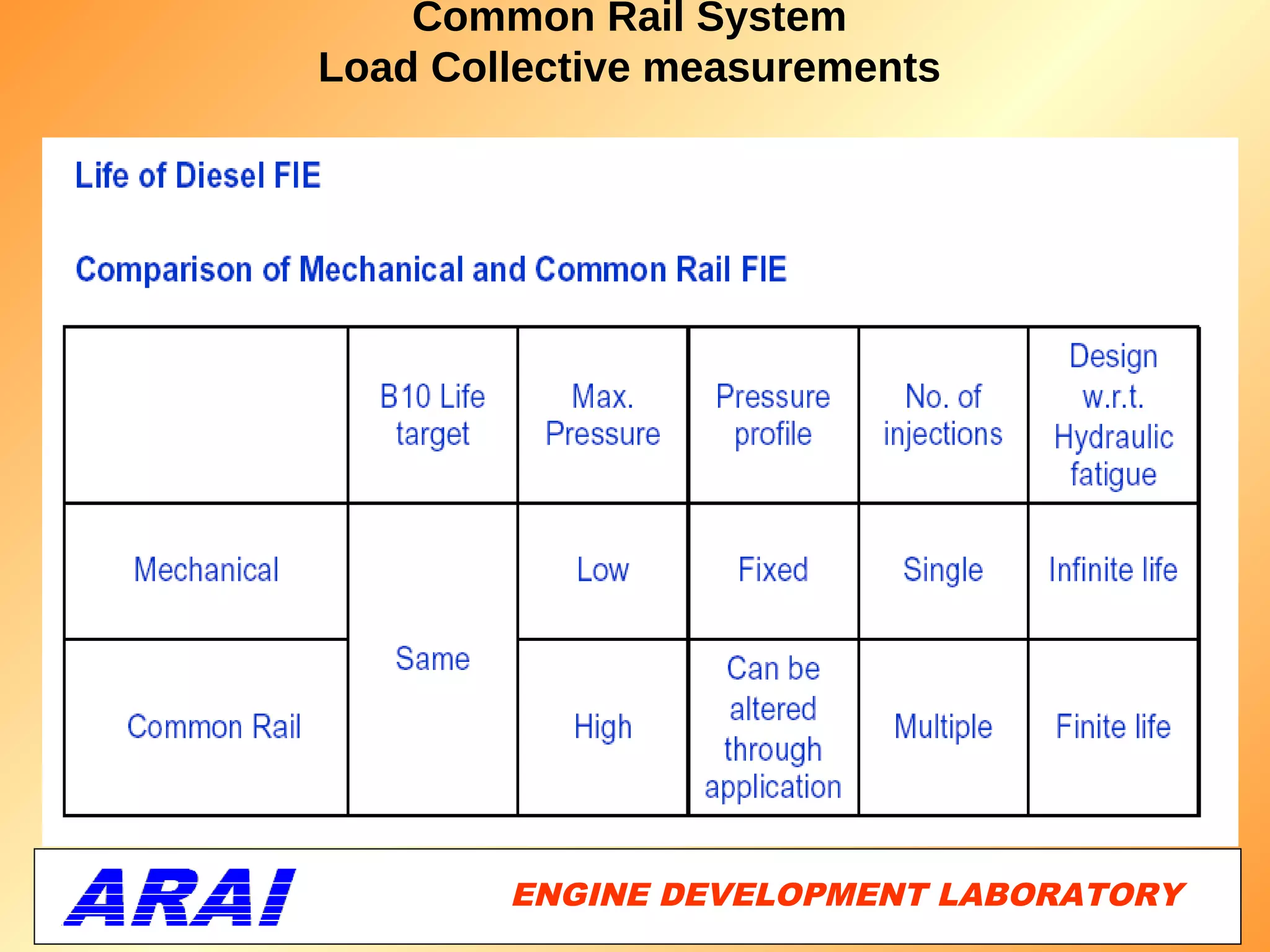

Load Collective measurements
ENGINE DEVELOPMENT LABORATORY
49

50. Theory 1: Introduction to Common Rail System
ENGINE DEVELOPMENT LABORATORY
50

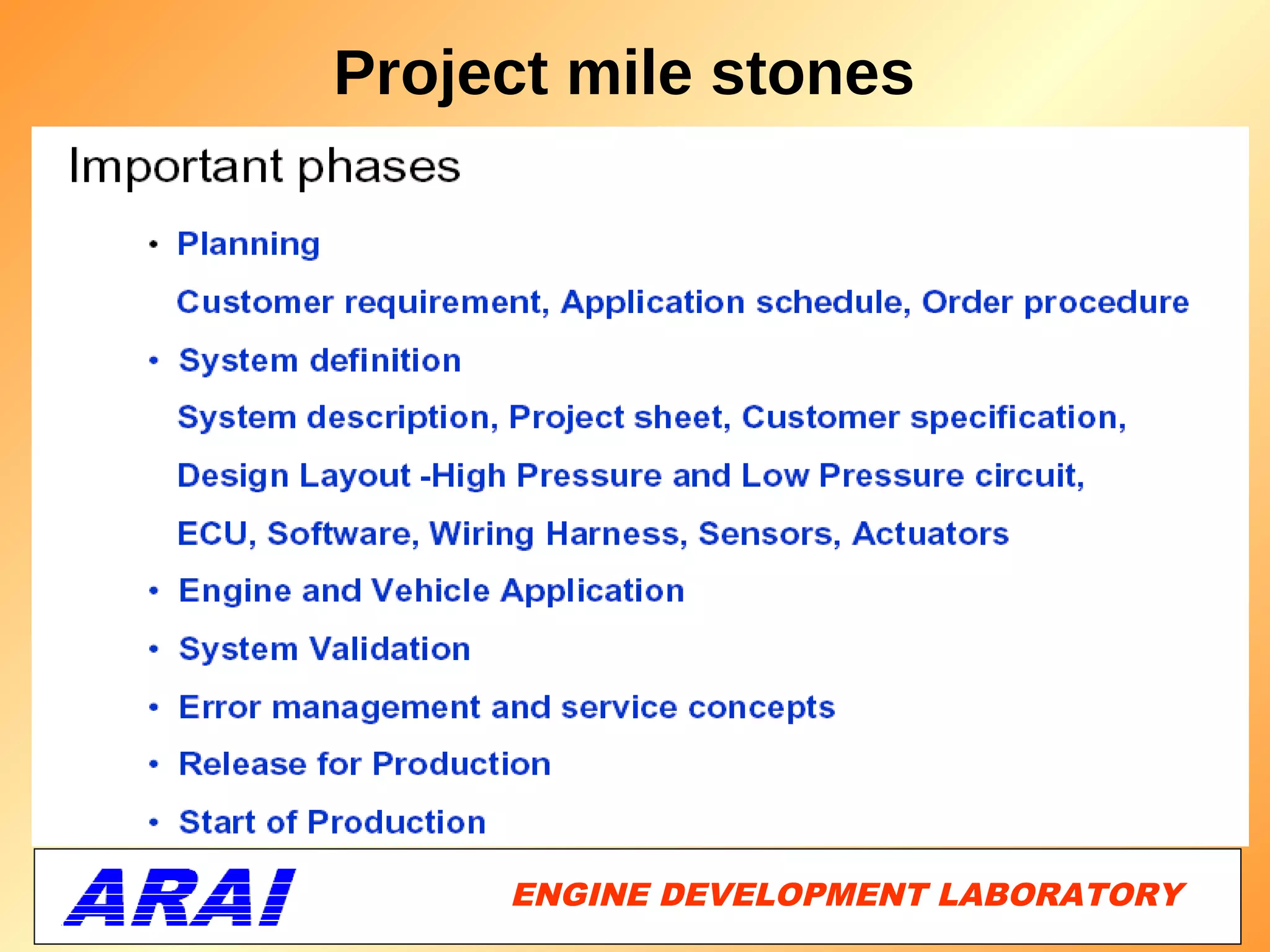

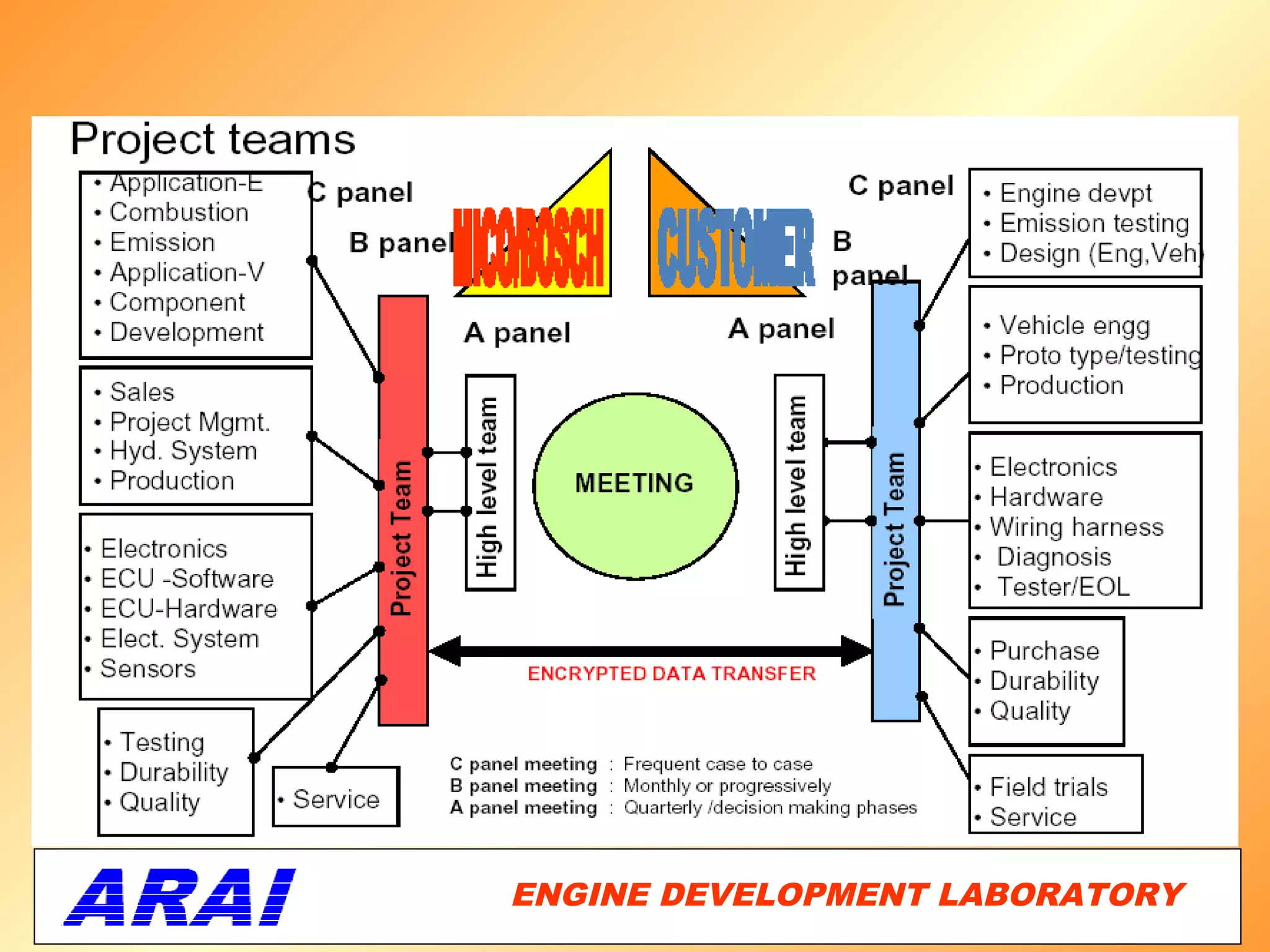

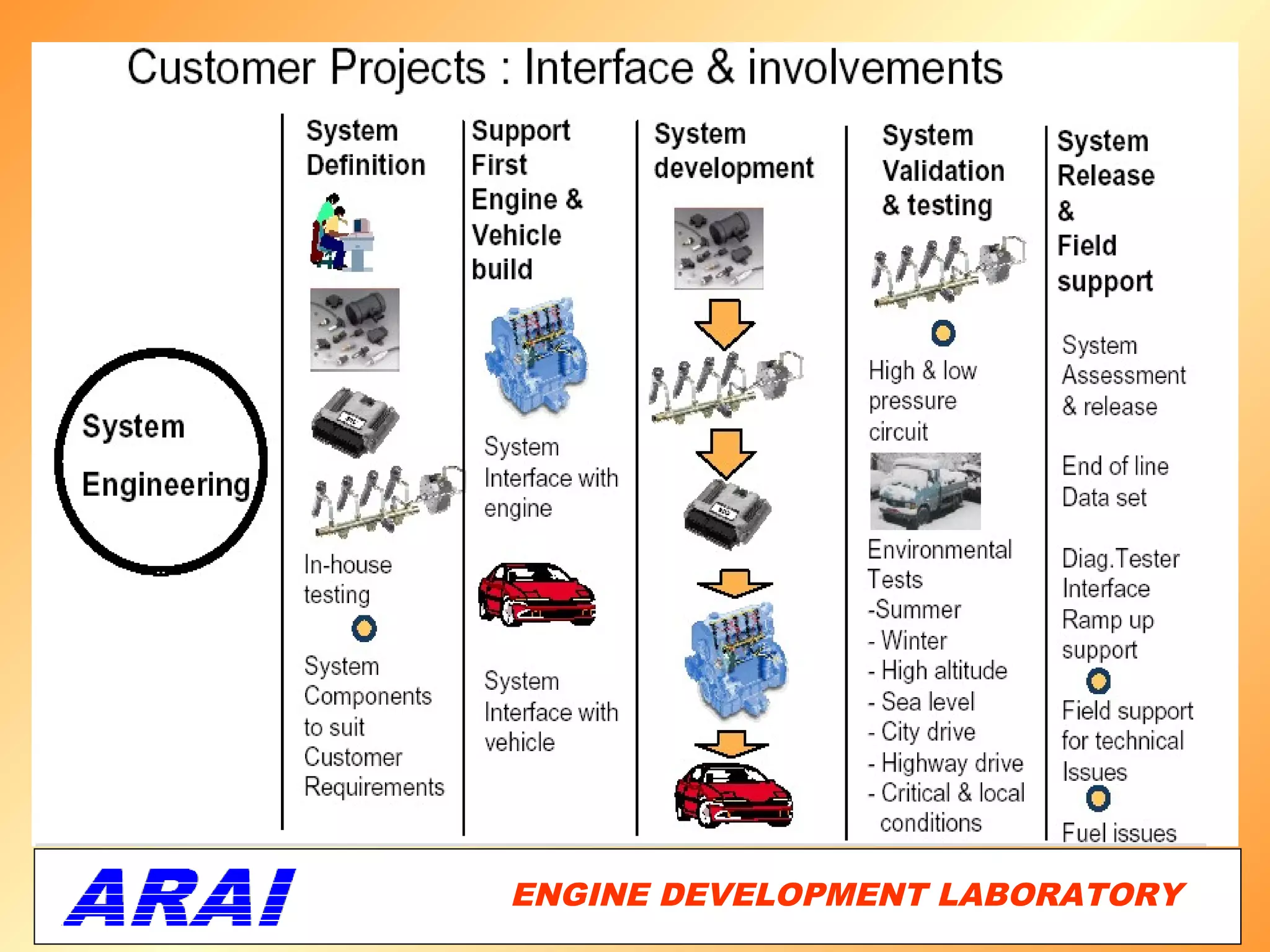

51. Project mile stones
ENGINE DEVELOPMENT LABORATORY
51

52. ENGINE DEVELOPMENT LABORATORY
52

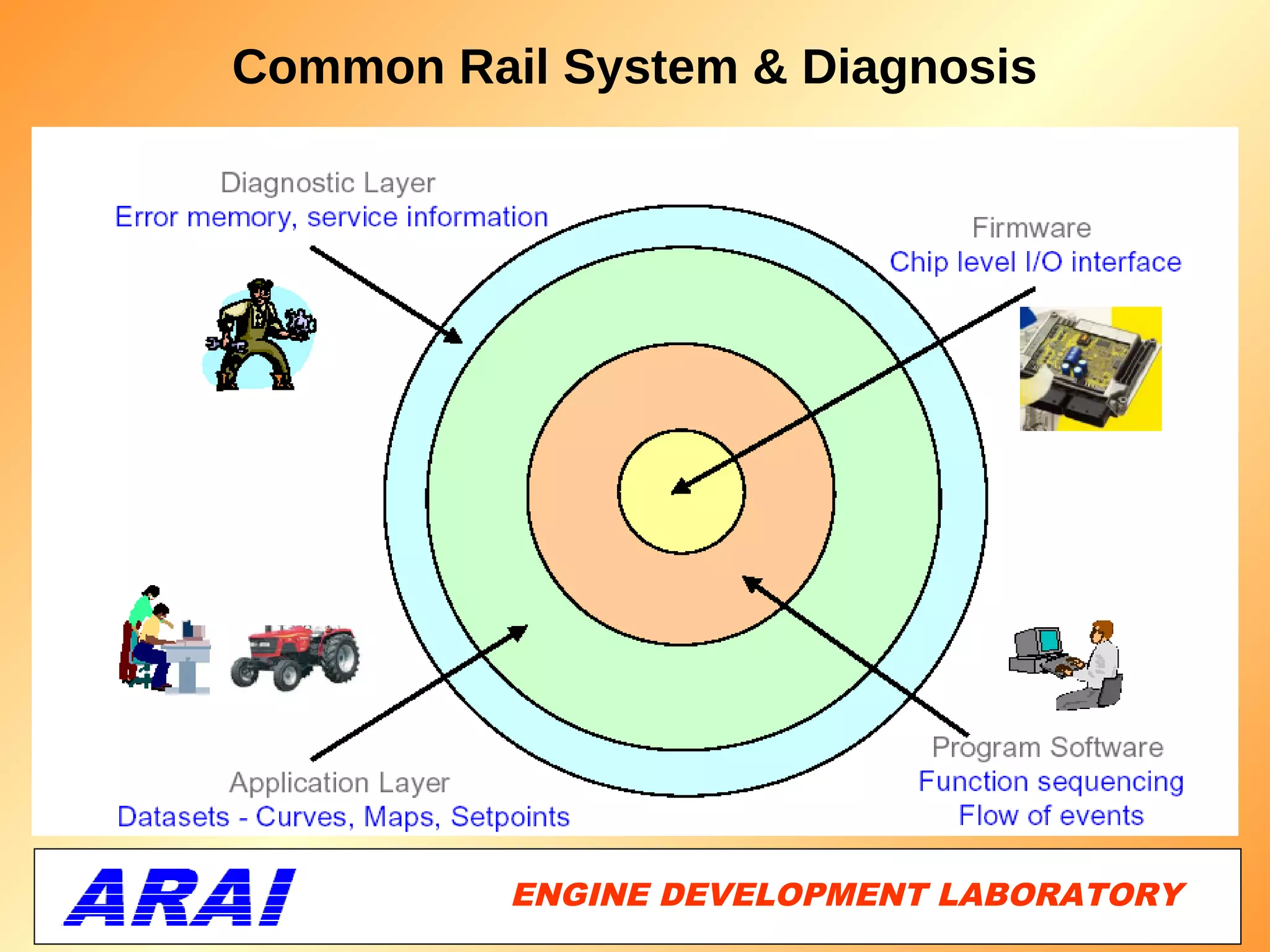

53. Common Rail System & Diagnosis
ENGINE DEVELOPMENT LABORATORY
53

54. ENGINE DEVELOPMENT LABORATORY
54

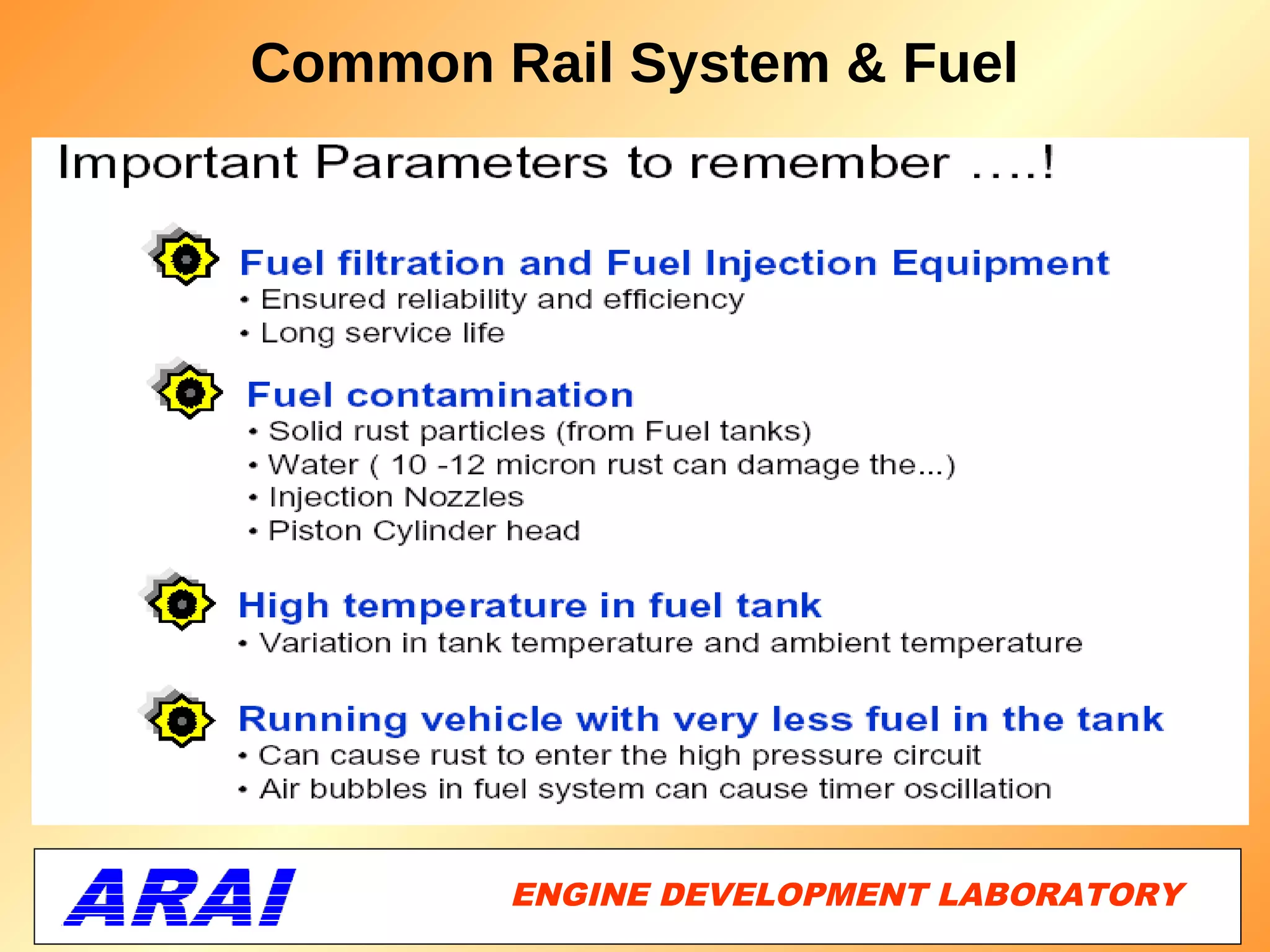

55. Common Rail System & Fuel
ENGINE DEVELOPMENT LABORATORY
55

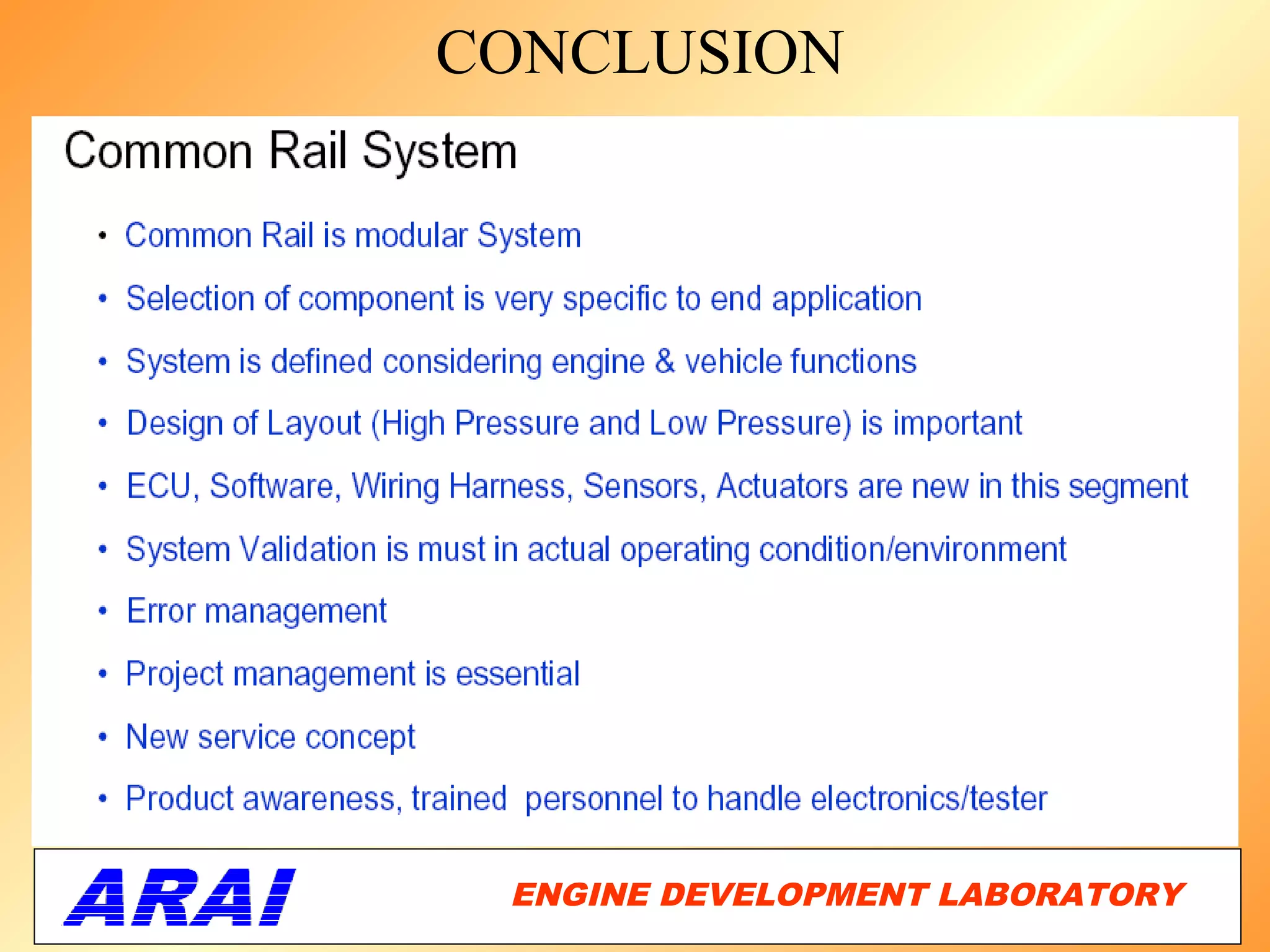

56. CONCLUSION
