Southern Electronics (Bangalore) Private Limited is an avionics company located in Bangalore, India. It has developed several avionics systems including a fire detection and warning system, high energy ignition unit, standby centralised warning panel, intercom systems, digital clocks, illuminated lighting panels, and fire warning control boxes. It also provides test and ground support equipment, designs switches, and has infrastructure like humidity and temperature chambers for testing. Southern Electronics works with major defense organizations in India like Hindustan Aeronautics Limited and has design organization approvals to certify its avionics systems.

1. SOUTHERN ELECTRONICS (BANGALORE) PRIVATE LIMITED
16-A, Peenya Industrial Area, Phase-1, Peenya, Bangalore – 560 058
Tel No : 91 80 39280341/42, Fax No : 91 80 39280365
Email : southern@vsnl.com / seonics@airtelmail.in
Website : www.seonics.co.in
February 3, 2013

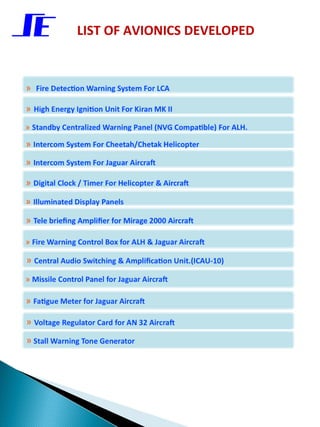

5. LIST OF AVIONICS DEVELOPED

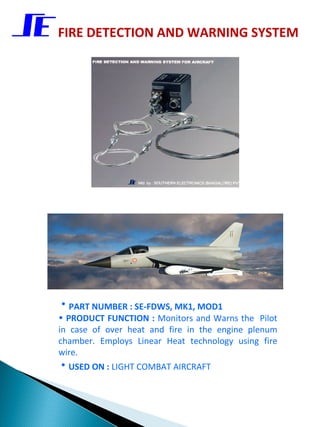

6. FIRE DETECTION AND WARNING SYSTEM
• PART NUMBER : SE-FDWS, MK1, MOD1
• PRODUCT FUNCTION : Monitors and Warns the Pilot
in case of over heat and fire in the engine plenum
chamber. Employs Linear Heat technology using fire
wire.
• USED ON : LIGHT COMBAT AIRCRAFT

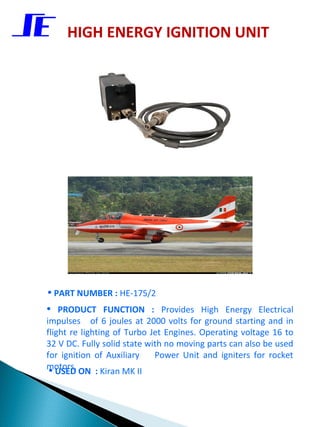

7. HIGH ENERGY IGNITION UNIT
• PART NUMBER : HE-175/2
• PRODUCT FUNCTION : Provides High Energy Electrical
impulses of 6 joules at 2000 volts for ground starting and in
flight re lighting of Turbo Jet Engines. Operating voltage 16 to
32 V DC. Fully solid state with no moving parts can also be used
for ignition of Auxiliary Power Unit and igniters for rocket
motors.
• USED ON : Kiran MK II

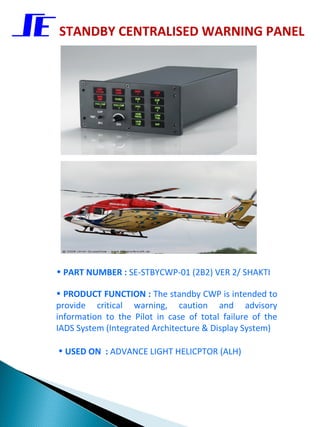

8. STANDBY CENTRALISED WARNING PANEL
• PART NUMBER : SE-STBYCWP-01 (2B2) VER 2/ SHAKTI
• PRODUCT FUNCTION : The standby CWP is intended to
provide critical warning, caution and advisory
information to the Pilot in case of total failure of the
IADS System (Integrated Architecture & Display System)
• USED ON : ADVANCE LIGHT HELICPTOR (ALH)

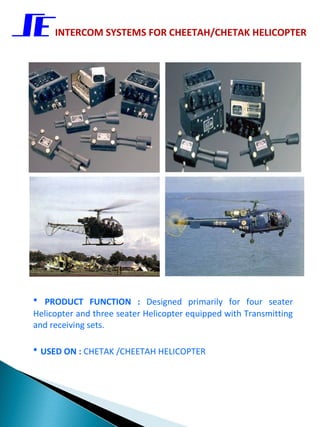

9. INTERCOM SYSTEMS FOR CHEETAH/CHETAK HELICOPTER
• PRODUCT FUNCTION : Designed primarily for four seater
Helicopter and three seater Helicopter equipped with Transmitting
and receiving sets.
• USED ON : CHETAK /CHEETAH HELICOPTER

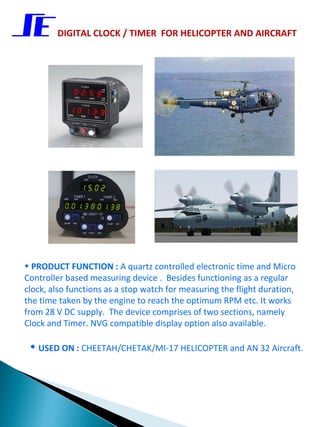

10. DIGITAL CLOCK / TIMER FOR HELICOPTER AND AIRCRAFT
• PRODUCT FUNCTION : A quartz controlled electronic time and Micro
Controller based measuring device . Besides functioning as a regular
clock, also functions as a stop watch for measuring the flight duration,
the time taken by the engine to reach the optimum RPM etc. It works
from 28 V DC supply. The device comprises of two sections, namely
Clock and Timer. NVG compatible display option also available.
• USED ON : CHEETAH/CHETAK/MI-17 HELICOPTER and AN 32 Aircraft.

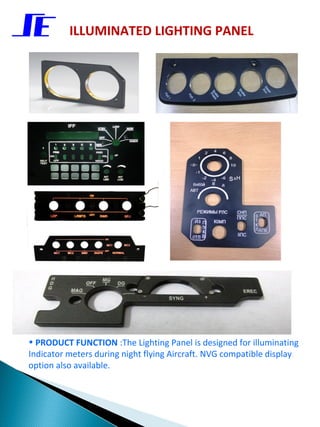

11. ILLUMINATED LIGHTING PANEL
• PRODUCT FUNCTION :The Lighting Panel is designed for illuminating
Indicator meters during night flying Aircraft. NVG compatible display
option also available.

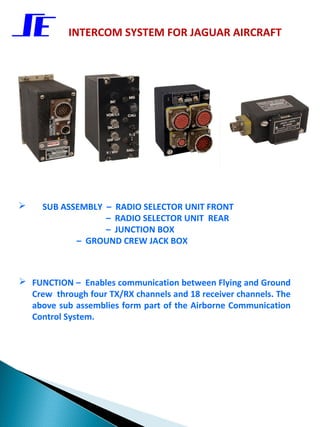

12. INTERCOM SYSTEM FOR JAGUAR AIRCRAFT
 SUB ASSEMBLY – RADIO SELECTOR UNIT FRONT
– RADIO SELECTOR UNIT REAR
– JUNCTION BOX
– GROUND CREW JACK BOX
 FUNCTION – Enables communication between Flying and Ground
Crew through four TX/RX channels and 18 receiver channels. The
above sub assemblies form part of the Airborne Communication
Control System.

13. FIRE WARNING CONTROL BOX FOR
ALH AND JAGUAR AIRCRAFT
• PRODUCT FUNCTION : The Fire Warning Control unit forms part of
Fire Detector system. The Fire Detectors are thermostatic switches,
which sends signals to Fire Warning Control Unit when heated. Fire
Warning Unit processes the received signals, activates the relay and
sends warning signals

16. TEST AND GROUND SUPPORT EQUIPMENTS DEVELOPED

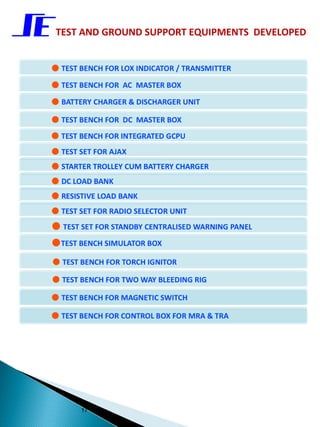

17. TEST AND GROUND SUPPORT EQUIPMENTS DEVELOPED
17

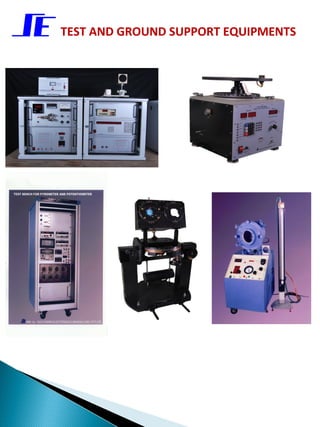

18. TEST AND GROUND SUPPORT EQUIPMENTS

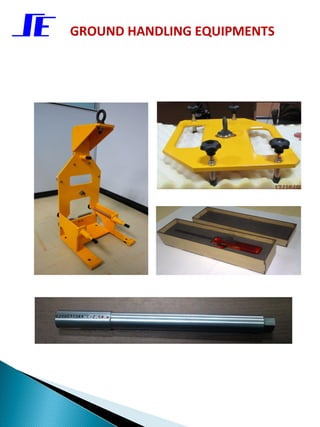

19. GROUND HANDLING EQUIPMENTS

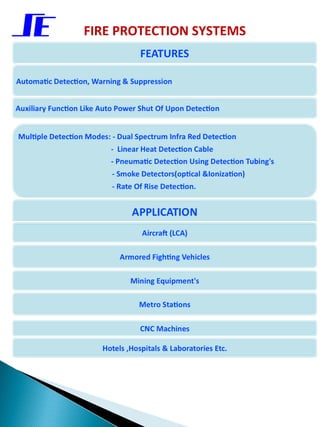

20. FIRE PROTECTION SYSTEMS

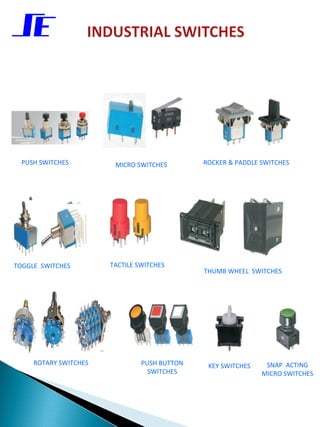

21. PUSH SWITCHES MICRO SWITCHES ROCKER & PADDLE SWITCHES
TOGGLE SWITCHES TACTILE SWITCHES
THUMB WHEEL SWITCHES
ROTARY SWITCHES PUSH BUTTON KEY SWITCHES SNAP ACTING
SWITCHES MICRO SWITCHES

26. INFRASTRUCTURE

27. • Humidity Chamber : -40 to + 120 Deg C
: Ambient to 98% RH
• Hot and Cold Chamber : -55 to +90 Deg C,

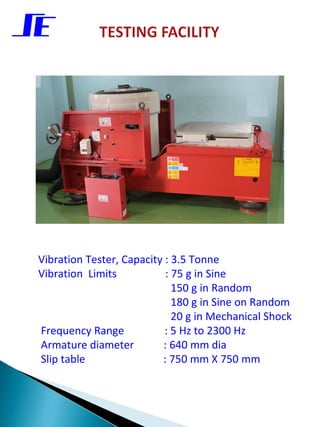

28. Vibration Tester, Capacity : 3.5 Tonne
Vibration Limits : 75 g in Sine
150 g in Random
180 g in Sine on Random
20 g in Mechanical Shock
Frequency Range : 5 Hz to 2300 Hz
Armature diameter : 640 mm dia
Slip table : 750 mm X 750 mm

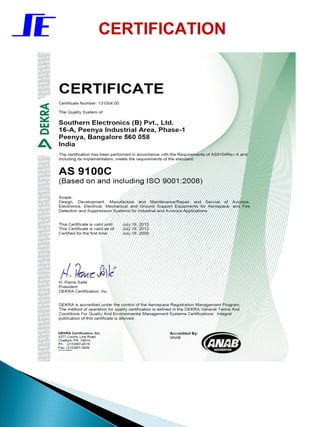

29. CERTIFICATION

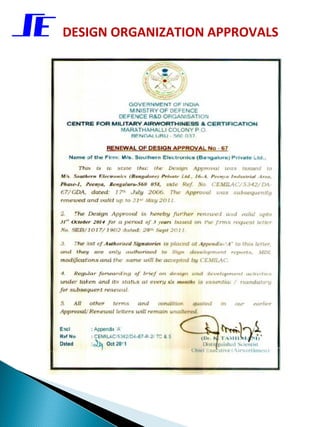

30. DESIGN ORGANIZATION APPROVALS

33. CUSTOMER LIST
 Hindustan Aeronautics Limited (HAL)
 Bharat Earth Movers Limited (BEML)
 Indian Space Research Organization (ISRO)
 Bharat Electronics Limited (BEL)
 Centre for Fire, Explosive and Environment Safety
 National Aeronautical Laboratory (NAL)
 Defense Research and Development Laboratory
 Indian Air Force
 Indian Army
 Indian Navy
 Delhi Metro Rail Corporation (DMRC)
 NMDC
 Axis Aerospace & Technology ltd.
33

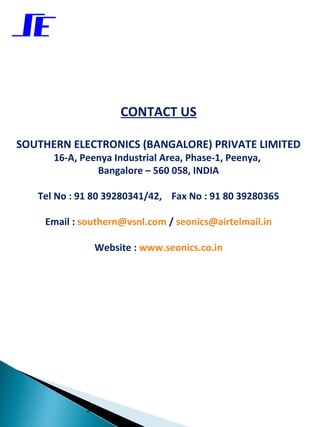

34. CONTACT US
SOUTHERN ELECTRONICS (BANGALORE) PRIVATE LIMITED
16-A, Peenya Industrial Area, Phase-1, Peenya,
Bangalore – 560 058, INDIA
Tel No : 91 80 39280341/42, Fax No : 91 80 39280365
Email : southern@vsnl.com / seonics@airtelmail.in
Website : www.seonics.co.in
