1. Vagrant

2. Agenda
• Introduction to Vagrant
• Create VM
• Provisioning
• plugins
2/17/2014
Copyright 2013 Trend Micro Inc.

3. Introduction
2/17/2014
Copyright 2013 Trend Micro Inc.

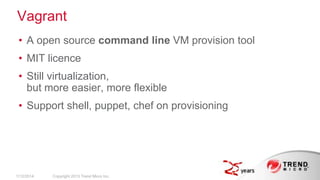

4. Vagrant
• A open source command line VM provision tool
• MIT licence
• Still virtualization,
but more easier, more flexible
• Support shell, puppet, chef on provisioning
2/17/2014
Copyright 2013 Trend Micro Inc.

5. Easy to use and share
http://www.vagrantbox.es/
http://puppet-vagrant-boxes.puppetlabs.com/
2/17/2014
Copyright 2013 Trend Micro Inc.

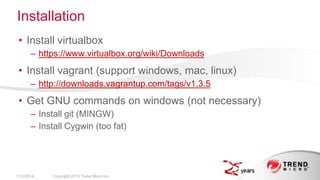

6. Installation
• Install virtualbox
– https://www.virtualbox.org/wiki/Downloads
• Install vagrant (support windows, mac, linux)
– http://downloads.vagrantup.com/tags/v1.3.5
• Get GNU commands on windows (not necessary)
– Install git (MINGW)
– Install Cygwin (too fat)
2/17/2014
Copyright 2013 Trend Micro Inc.

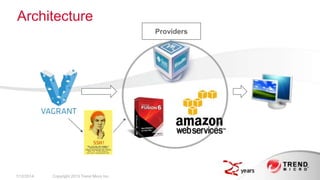

7. Architecture
Providers
2/17/2014
Copyright 2013 Trend Micro Inc.

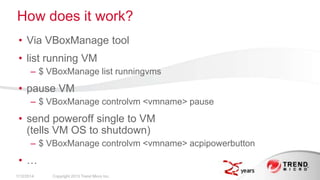

8. How does it work?
• Via VBoxManage tool
• list running VM
– $ VBoxManage list runningvms
• pause VM
– $ VBoxManage controlvm <vmname> pause
• send poweroff single to VM
(tells VM OS to shutdown)
– $ VBoxManage controlvm <vmname> acpipowerbutton
• …
2/17/2014
Copyright 2013 Trend Micro Inc.

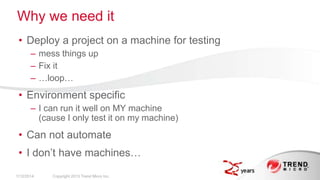

9. Why we need it
• Deploy a project on a machine for testing
– mess things up
– Fix it
– …loop…
• Environment specific
– I can run it well on MY machine
(cause I only test it on my machine)
• Can not automate
• I don‟t have machines…
2/17/2014
Copyright 2013 Trend Micro Inc.

10. Problem to solve
• Provisioning:
– automate trivial things
• install httpd, mysql, config, config, config…
• reuse:
– Package configured VM as a “box”
• testing:
– clean environment for testing
• Portable:
– one box file
– local machine
2/17/2014
Copyright 2013 Trend Micro Inc.

11. Create VM
2/17/2014
Copyright 2013 Trend Micro Inc.

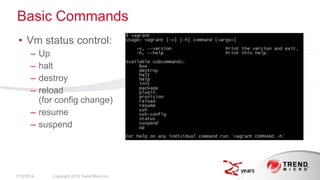

12. Basic Commands
• Vm status control:
–
–
–
–
Up
halt
destroy
reload
(for config change)
– resume
– suspend
2/17/2014
Copyright 2013 Trend Micro Inc.

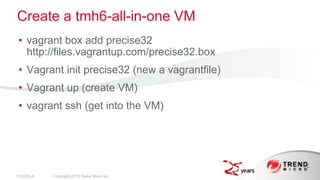

13. Create a VM
• vagrant box add precise32
http://files.vagrantup.com/precise32.box
• Vagrant init precise32 (new a vagrantfile)
• Vagrant up (create VM)
• vagrant ssh (get into the VM)
2/17/2014
Copyright 2013 Trend Micro Inc.

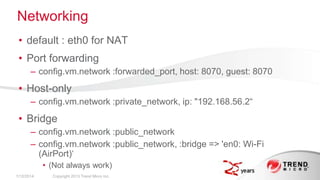

14. Networking
• default : eth0 for NAT
• Port forwarding
– config.vm.network :forwarded_port, host: 8070, guest: 8070
• Host-only
– config.vm.network :private_network, ip: "192.168.56.2“
• Bridge
– config.vm.network :public_network
– config.vm.network :public_network, :bridge => 'en0: Wi-Fi
(AirPort)„
• (Not always work)
2/17/2014
Copyright 2013 Trend Micro Inc.

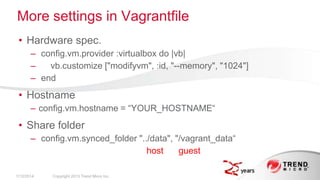

15. More settings in Vagrantfile
• Hardware spec.
– config.vm.provider :virtualbox do |vb|
–
vb.customize ["modifyvm", :id, "--memory", "1024"]
– end
• Hostname
– config.vm.hostname = “YOUR_HOSTNAME“
• Share folder
– config.vm.synced_folder "../data", "/vagrant_data“
host
guest
2/17/2014
Copyright 2013 Trend Micro Inc.

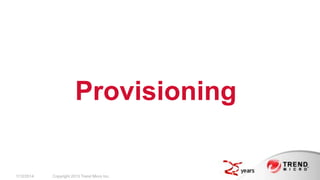

16. Provisioning
2/17/2014
Copyright 2013 Trend Micro Inc.

17. Shell
• Auto execute the shell script as root
• Vagrantfile syntax:
– config.vm.provision :shell, :path => "bootstrap.sh"
• Command
– $ vagrant provision –provision-with shell
2/17/2014
Copyright 2013 Trend Micro Inc.

18. Puppet
• Auto apply a puppet script
• Vagrantfile syntax:
– config.vm.provision :puppet do |puppet|
– puppet.manifests_path = "manifests"
– puppet.manifest_file = "init.pp"
– end
• Folder structure:
– Vagrantfile
– Manifests
– Init.pp
2/17/2014
Copyright 2013 Trend Micro Inc.

19. Plugins
• vagrant plugin install vagrant-vbox-snapshot
• vagrant plugin install vagrant-vbguest
2/17/2014
Copyright 2013 Trend Micro Inc.

20. Q&A
2/17/2014
Copyright 2013 Trend Micro Inc.

21. Backup Slides
2/17/2014
Copyright 2013 Trend Micro Inc.

22. Get ssh command on windows
• ssh
– Install git (MINGW)
– Install Cygwin (too fat, I think)
• There‟re many ways you can do to achieve this goal,
My suggestion is to install git on your windows
– Download git
– 6 page quick tutorial
• Then use putty to ssh in.
2/17/2014
Copyright 2013 Trend Micro Inc.

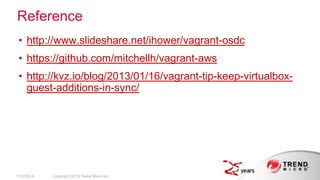

23. Reference
• http://www.slideshare.net/ihower/vagrant-osdc
• https://github.com/mitchellh/vagrant-aws
• http://kvz.io/blog/2013/01/16/vagrant-tip-keep-virtualboxguest-additions-in-sync/
