1. Using Docker in The Real World
PHP Craft 2015
Tim Haak
tim@haak.co @tim_haakhttps://github.com/timhaak

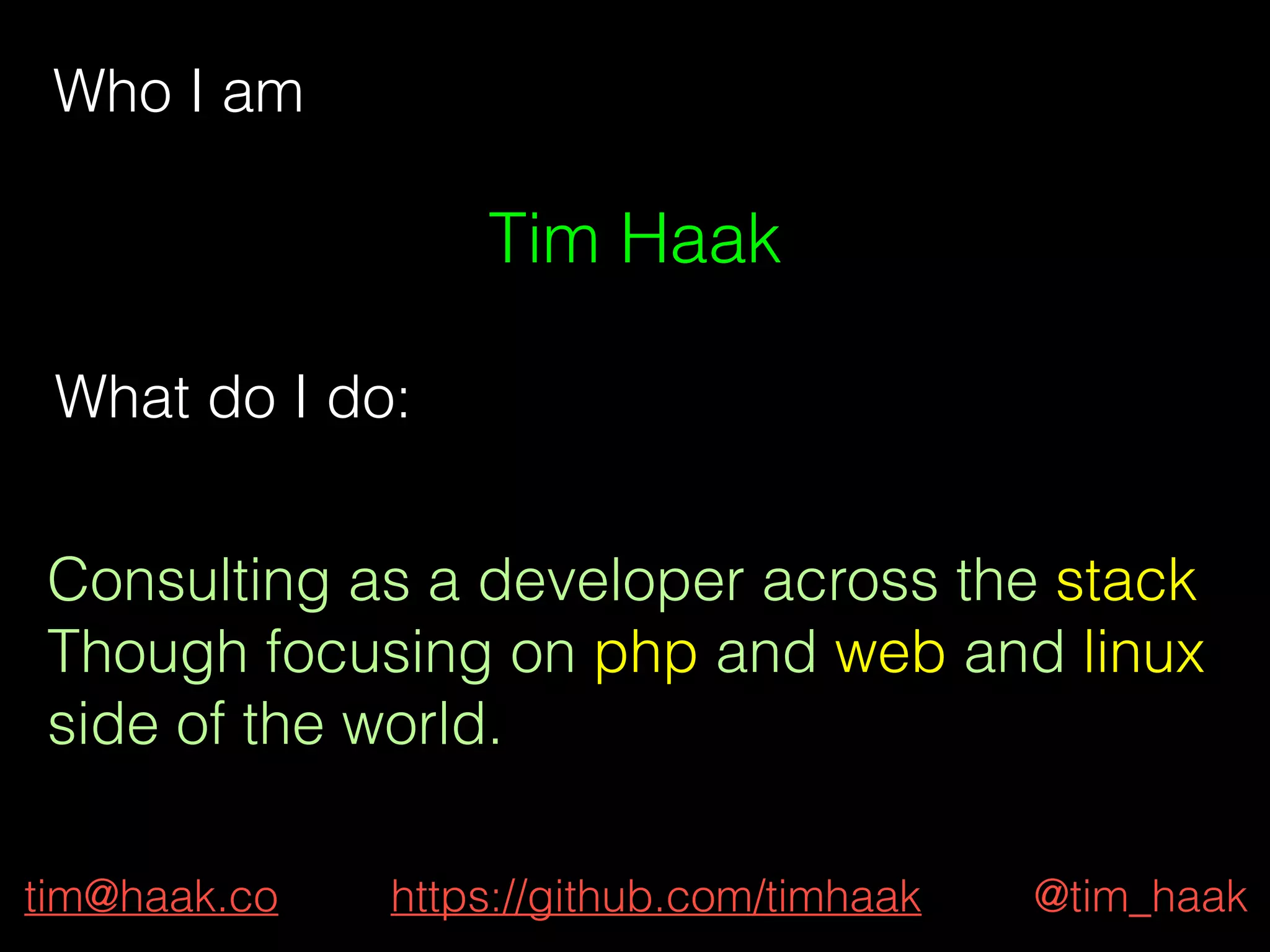

2. Who I am
Tim Haak
What do I do:
Consulting as a developer across the stack
Though focusing on php and web and linux
side of the world.
tim@haak.co @tim_haakhttps://github.com/timhaak

3. So you heard docker was
great

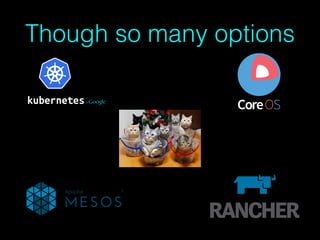

4. Though so many options

5. Why would you want docker
Repeatability
Can allow simpler scaling
No difference of libraries between dev and live
Shrink wrapping
Versioning
Simple rollback of libraries programs
Multiple version of programs on the same pc
Isolation
More lightweight that virtualization

6. What doesn't it solve
Replication/Resiliency
Bad code
Its a tool that help with specific problems
Its not a magic bullet

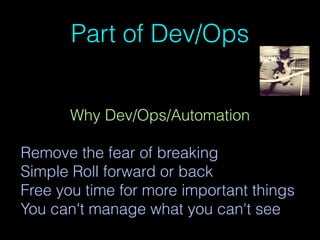

7. Part of Dev/Ops
Why Dev/Ops/Automation
Remove the fear of breaking
Simple Roll forward or back
Free you time for more important things
You can't manage what you can't see

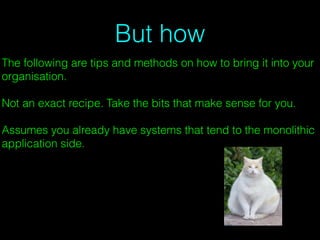

8. But how
The following are tips and methods on how to bring it into your
organisation.
Not an exact recipe. Take the bits that make sense for you.
Assumes you already have systems that tend to the monolithic
application side.

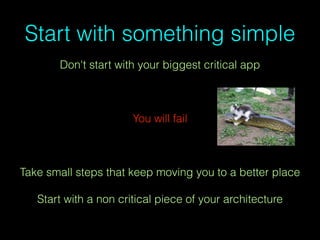

9. Start with something simple
Don't start with your biggest critical app
You will fail
Take small steps that keep moving you to a better place
Start with a non critical piece of your architecture

10. Examples
Log processing ?
Dashboard ?
Basically something that if its off while your working things out
will not be a problem

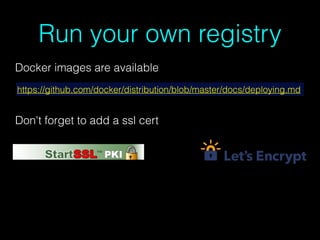

11. Run your own registry
https://github.com/docker/distribution/blob/master/docs/deploying.md
Docker images are available
Don't forget to add a ssl cert

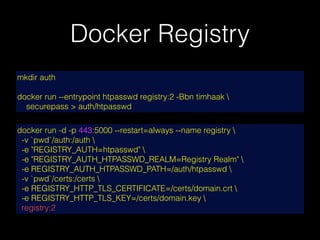

12. Docker Registry
docker run -d -p 443:5000 --restart=always --name registry
-v `pwd`/auth:/auth
-e "REGISTRY_AUTH=htpasswd"
-e "REGISTRY_AUTH_HTPASSWD_REALM=Registry Realm"
-e REGISTRY_AUTH_HTPASSWD_PATH=/auth/htpasswd
-v `pwd`/certs:/certs
-e REGISTRY_HTTP_TLS_CERTIFICATE=/certs/domain.crt
-e REGISTRY_HTTP_TLS_KEY=/certs/domain.key
registry:2
mkdir auth
docker run --entrypoint htpasswd registry:2 -Bbn timhaak
securepass > auth/htpasswd

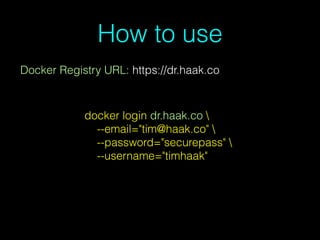

13. How to use
Docker Registry URL: https://dr.haak.co
docker login dr.haak.co
--email="tim@haak.co"
--password="securepass"
--username="timhaak"

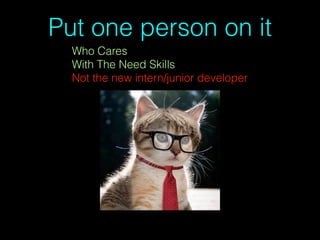

14. Put one person on it
Who Cares
With The Need Skills
Not the new intern/junior developer

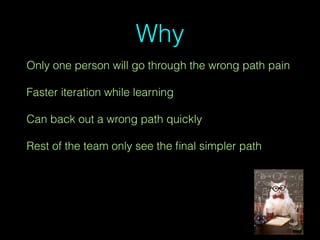

15. Why
Only one person will go through the wrong path pain
Faster iteration while learning
Can back out a wrong path quickly
Rest of the team only see the final simpler path

16. Store configs externally
While your starting mount the configs etc via a volume
into the container
Easier debugging
You don't have to rebuild the container to update
Other members of your team can just edit the file
Allows you to use something like Ansible to generate the
configs

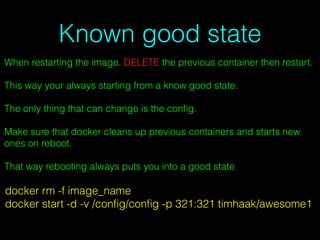

17. Known good state
When restarting the image. DELETE the previous container then restart.
This way your always starting from a know good state.
The only thing that can change is the config.
Make sure that docker cleans up previous containers and starts new
ones on reboot.
That way rebooting always puts you into a good state
docker rm -f image_name
docker start -d -v /config/config -p 321:321 timhaak/awesome1

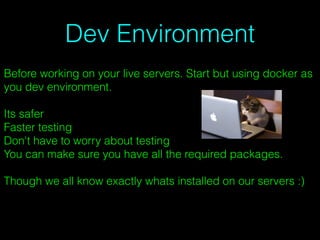

18. Dev Environment
Before working on your live servers. Start but using docker as
you dev environment.
Its safer
Faster testing
Don't have to worry about testing
You can make sure you have all the required packages.
Though we all know exactly whats installed on our servers :)

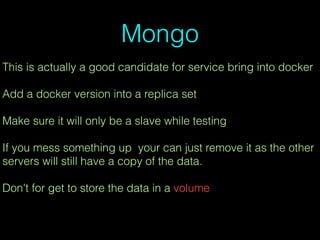

19. Mongo
This is actually a good candidate for service bring into docker
Add a docker version into a replica set
Make sure it will only be a slave while testing
If you mess something up your can just remove it as the other
servers will still have a copy of the data.
Don't for get to store the data in a volume

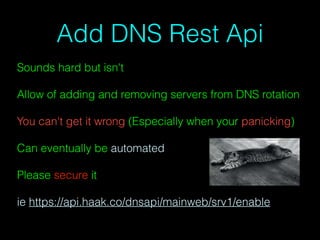

20. Add DNS Rest Api
Sounds hard but isn't
Allow of adding and removing servers from DNS rotation
You can't get it wrong (Especially when your panicking)
Can eventually be automated
Please secure it
ie https://api.haak.co/dnsapi/mainweb/srv1/enable

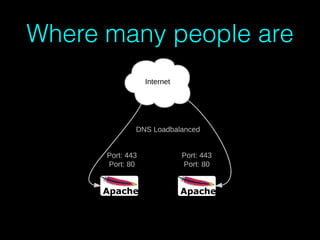

21. Where many people are

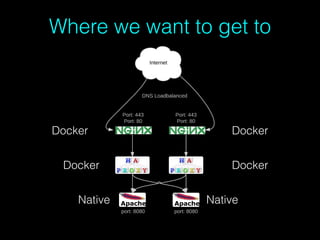

22. Where we want to get to
DockerDocker
Docker Docker
Native Native

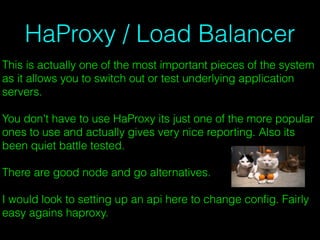

23. HaProxy / Load Balancer
This is actually one of the most important pieces of the system
as it allows you to switch out or test underlying application
servers.
You don't have to use HaProxy its just one of the more popular
ones to use and actually gives very nice reporting. Also its
been quiet battle tested.
There are good node and go alternatives.
I would look to setting up an api here to change config. Fairly
easy agains haproxy.

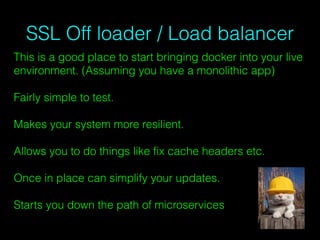

24. SSL Off loader / Load balancer
This is a good place to start bringing docker into your live
environment. (Assuming you have a monolithic app)
Fairly simple to test.
Makes your system more resilient.
Allows you to do things like fix cache headers etc.
Once in place can simplify your updates.
Starts you down the path of microservices

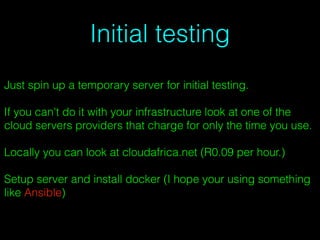

25. Initial testing
Just spin up a temporary server for initial testing.
If you can't do it with your infrastructure look at one of the
cloud servers providers that charge for only the time you use.
Locally you can look at cloudafrica.net (R0.09 per hour.)
Setup server and install docker (I hope your using something
like Ansible)

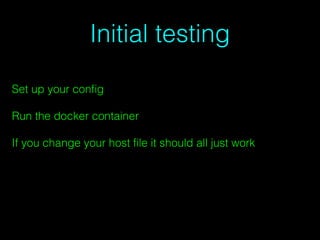

26. Initial testing
Set up your config
Run the docker container
If you change your host file it should all just work

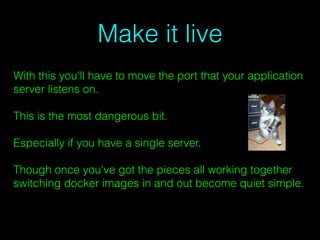

27. Make it live
With this you'll have to move the port that your application
server listens on.
This is the most dangerous bit.
Especially if you have a single server.
Though once you've got the pieces all working together
switching docker images in and out become quiet simple.

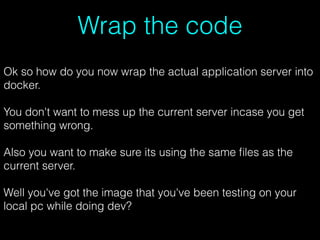

28. Wrap the code
Ok so how do you now wrap the actual application server into
docker.
You don't want to mess up the current server incase you get
something wrong.
Also you want to make sure its using the same files as the
current server.
Well you've got the image that you've been testing on your
local pc while doing dev?

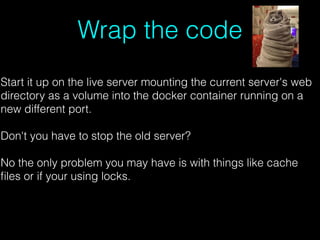

29. Wrap the code
Start it up on the live server mounting the current server's web
directory as a volume into the docker container running on a
new different port.
Don't you have to stop the old server?
No the only problem you may have is with things like cache
files or if your using locks.

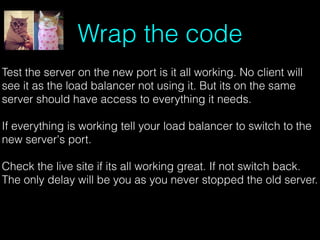

30. Wrap the code
Test the server on the new port is it all working. No client will
see it as the load balancer not using it. But its on the same
server should have access to everything it needs.
If everything is working tell your load balancer to switch to the
new server's port.
Check the live site if its all working great. If not switch back.
The only delay will be you as you never stopped the old server.

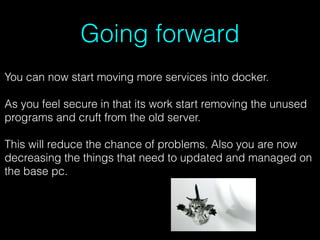

31. Going forward
You can now start moving more services into docker.
As you feel secure in that its work start removing the unused
programs and cruft from the old server.
This will reduce the chance of problems. Also you are now
decreasing the things that need to updated and managed on
the base pc.

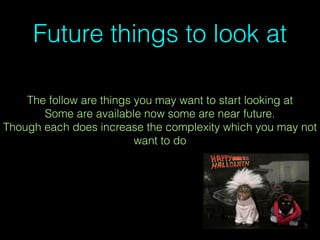

32. Future things to look at
The follow are things you may want to start looking at
Some are available now some are near future.
Though each does increase the complexity which you may not
want to do

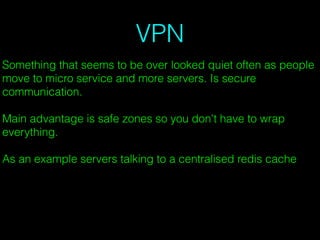

33. VPN
Something that seems to be over looked quiet often as people
move to micro service and more servers. Is secure
communication.
Main advantage is safe zones so you don't have to wrap
everything.
As an example servers talking to a centralised redis cache

34. Link your servers
docker run -d
--name tinc
--net=host
--device=/dev/net/tun
--cap-add NET_ADMIN
--volume /srv/tinc:/etc/tinc
jenserat/tinc start -D
http://tinc-vpn.org/

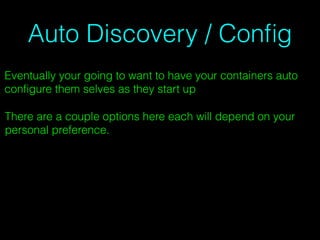

35. Auto Discovery / Config
Eventually your going to want to have your containers auto
configure them selves as they start up
There are a couple options here each will depend on your
personal preference.

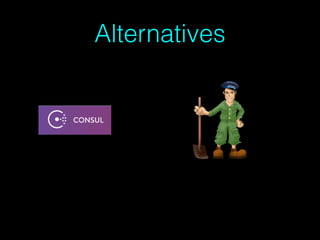

37. Alternatives

38. Tools On Top
SkyDNS2 - DNS Discovery
curl -XPUT
http://etcd1/v2/keys/skydns/local/skydns/dns/ns/ns1
-d value='{"host":"192.168.0.1"}'
https://github.com/kelseyhightower/confd
confd - config generation/update

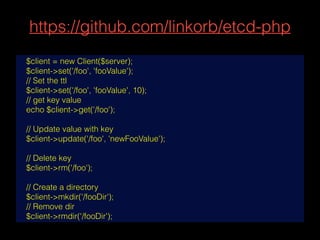

39. https://github.com/linkorb/etcd-php
$client = new Client($server);
$client->set('/foo', 'fooValue');
// Set the ttl
$client->set('/foo', 'fooValue', 10);
// get key value
echo $client->get('/foo');
// Update value with key
$client->update('/foo', 'newFooValue');
// Delete key
$client->rm('/foo');
// Create a directory
$client->mkdir('/fooDir');
// Remove dir
$client->rmdir('/fooDir');

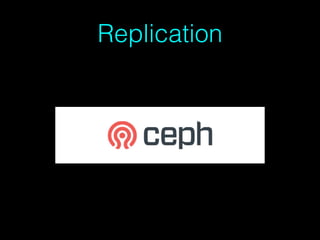

40. Replication

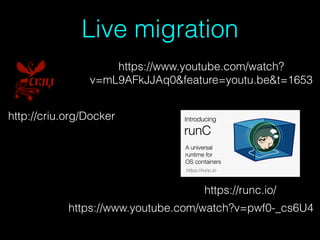

41. Live migration
http://criu.org/Docker
https://www.youtube.com/watch?v=pwf0-_cs6U4
https://runc.io/
https://www.youtube.com/watch?
v=mL9AFkJJAq0&feature=youtu.be&t=1653

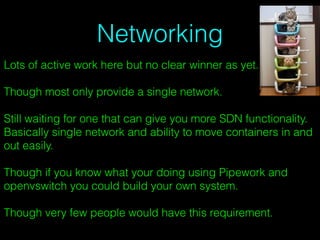

42. Networking
Lots of active work here but no clear winner as yet.
Though most only provide a single network.
Still waiting for one that can give you more SDN functionality.
Basically single network and ability to move containers in and
out easily.
Though if you know what your doing using Pipework and
openvswitch you could build your own system.
Though very few people would have this requirement.

45. tim@haak.co @tim_haakhttps://github.com/timhaak
Thanks
