1. How We Lose Etu Hadoop
Competition
Evans Ye
2014.6.16
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 1

2. This April, a Hadoop Competition hosted by Etu
was announced
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

3. It’s about hadoop deployment
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

4. I have a dream…
to win that 150 grand
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 4

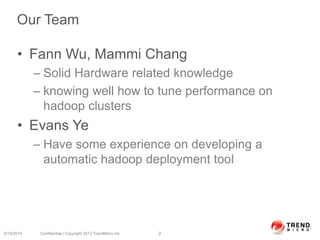

5. Our Team
• Fann Wu, Mammi Chang
– Solid Hardware related knowledge
– knowing well how to tune performance on
hadoop clusters
• Evans Ye
– Have some experience on developing a
automatic hadoop deployment tool
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

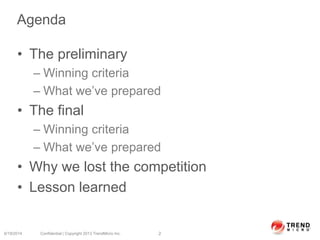

6. Agenda
• The preliminary
– Winning criteria
– What we’ve prepared
• The final
– Winning criteria
– What we’ve prepared
• Why we lost the competition
• Lesson learned
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

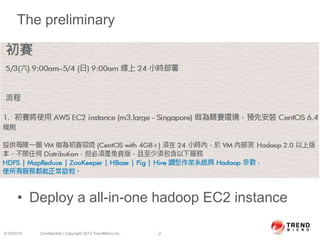

7. The preliminary
• Deploy a all-in-one hadoop EC2 instance
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

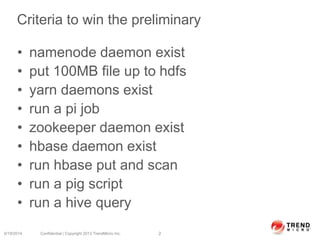

8. Criteria to win the preliminary
• namenode daemon exist
• put 100MB file up to hdfs
• yarn daemons exist
• run a pi job
• zookeeper daemon exist
• hbase daemon exist
• run hbase put and scan
• run a pig script
• run a hive query
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

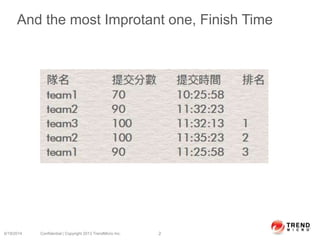

9. And the most Improtant one, Finish Time
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

10. Prepare for the fight
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 10

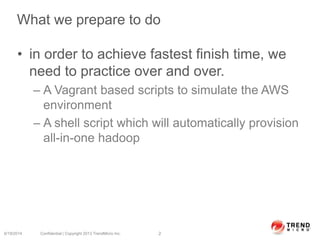

11. What we prepare to do
• in order to achieve fastest finish time, we
need to practice over and over.
– A Vagrant based scripts to simulate the AWS
environment
– A shell script which will automatically provision
all-in-one hadoop
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

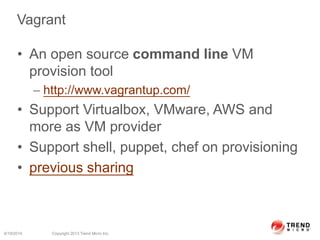

12. Vagrant
• An open source command line VM
provision tool
– http://www.vagrantup.com/
• Support Virtualbox, VMware, AWS and
more as VM provider
• Support shell, puppet, chef on provisioning
• previous sharing
6/19/2014 Copyright 2013 Trend Micro Inc.

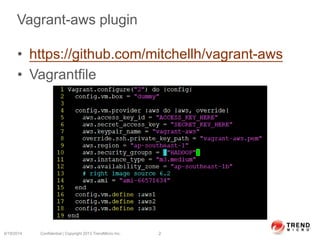

13. Vagrant-aws plugin
• https://github.com/mitchellh/vagrant-aws
• Vagrantfile
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

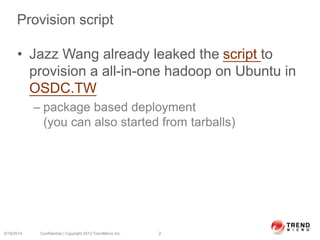

14. Provision script
• Jazz Wang already leaked the script to
provision a all-in-one hadoop on Ubuntu in
OSDC.TW
– package based deployment
(you can also started from tarballs)
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

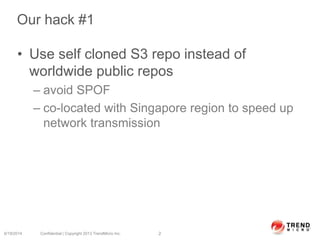

15. Our hack #1
• Use self cloned S3 repo instead of
worldwide public repos
– avoid SPOF
– co-located with Singapore region to speed up
network transmission
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

16. Our hack #2
• the evil /usr/lib/hadoop/libexec/init-hdfs.sh
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

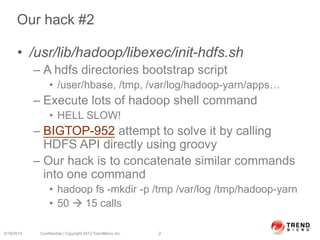

17. Our hack #2
• /usr/lib/hadoop/libexec/init-hdfs.sh
– A hdfs directories bootstrap script
• /user/hbase, /tmp, /var/log/hadoop-yarn/apps…
– Execute lots of hadoop shell command
• HELL SLOW!
– BIGTOP-952 attempt to solve it by calling
HDFS API directly using groovy
– Our hack is to concatenate similar commands
into one command
• hadoop fs -mkdir -p /tmp /var/log /tmp/hadoop-yarn
• 50  15 calls
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

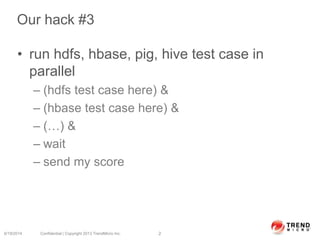

18. Our hack #3
• run hdfs, hbase, pig, hive test case in
parallel
– (hdfs test case here) &
– (hbase test case here) &
– (…) &
– wait
– send my score
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

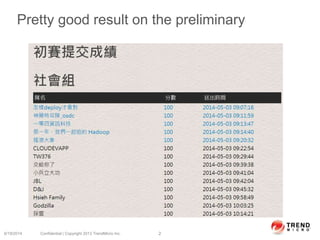

19. Pretty good result on the preliminary
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

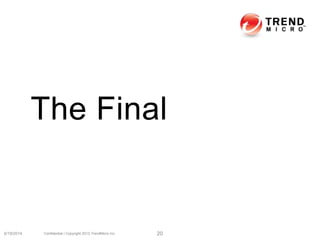

20. The Final
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 20

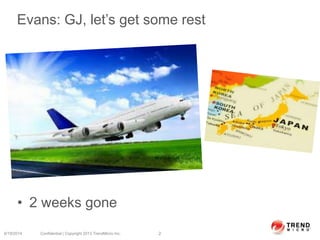

21. Evans: GJ, let’s get some rest
• 2 weeks gone
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

22. The Final
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 22

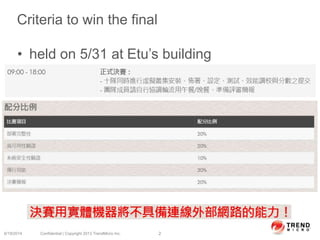

23. Criteria to win the final
• held on 5/31 at Etu’s building
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

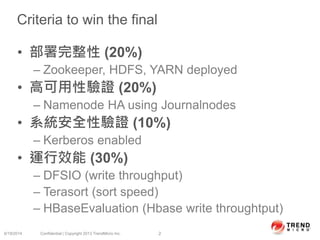

24. Criteria to win the final
• 部署完整性 (20%)
– Zookeeper, HDFS, YARN deployed
• 高可用性驗證 (20%)
– Namenode HA using Journalnodes
• 系統安全性驗證 (10%)
– Kerberos enabled
• 運行效能 (30%)
– DFSIO (write throughput)
– Terasort (sort speed)
– HBaseEvaluation (Hbase write throughtput)
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

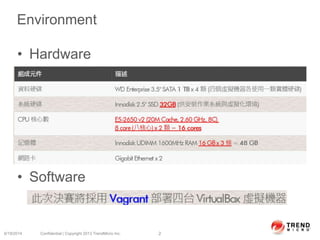

25. Environment
• Hardware
• Software
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

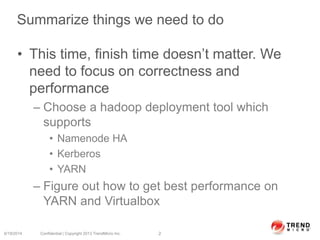

26. Summarize things we need to do
• This time, finish time doesn’t matter. We
need to focus on correctness and
performance
– Choose a hadoop deployment tool which
supports
• Namenode HA
• Kerberos
• YARN
– Figure out how to get best performance on
YARN and Virtualbox
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

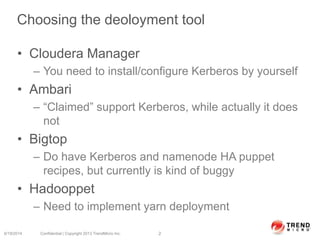

27. Choosing the deoloyment tool
• Cloudera Manager
– You need to install/configure Kerberos by yourself
• Ambari
– “Claimed” support Kerberos, while actually it does
not
• Bigtop
– Do have Kerberos and namenode HA puppet
recipes, but currently is kind of buggy
• Hadooppet
– Need to implement yarn deployment
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

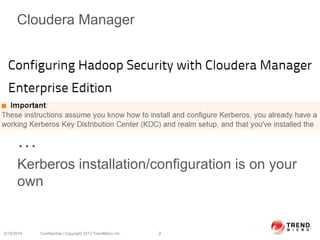

28. Cloudera Manager
…
Kerberos installation/configuration is on your
own
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

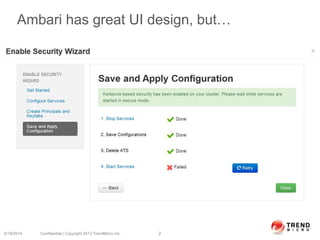

29. Ambari has great UI design, but…
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

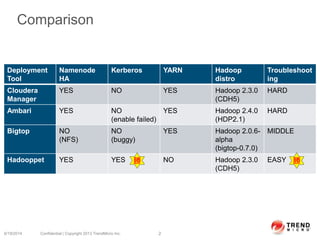

30. Comparison
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2
Deployment
Tool
Namenode
HA
Kerberos YARN Hadoop
distro
Troubleshoot
ing
Cloudera
Manager
YES NO YES Hadoop 2.3.0
(CDH5)
HARD
Ambari YES NO
(enable failed)
YES Hadoop 2.4.0
(HDP2.1)
HARD
Bigtop NO
(NFS)
NO
(buggy)
YES Hadoop 2.0.6-
alpha
(bigtop-0.7.0)
MIDDLE
Hadooppet YES YES NO Hadoop 2.3.0
(CDH5)
EASY勝 勝

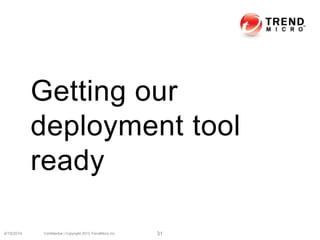

31. Getting our
deployment tool
ready
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 31

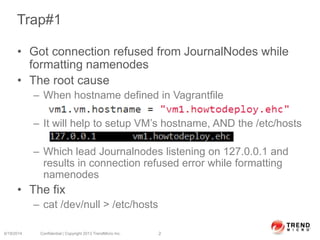

32. Trap#1
• Got connection refused from JournalNodes while
formatting namenodes
• The root cause
– When hostname defined in Vagrantfile
– It will help to setup VM’s hostname, AND the /etc/hosts
– Which lead Journalnodes listening on 127.0.0.1 and
results in connection refused error while formatting
namenodes
• The fix
– cat /dev/null > /etc/hosts
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

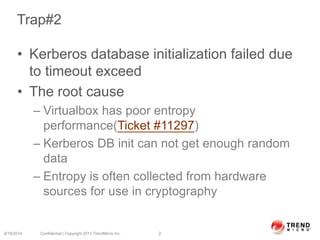

33. Trap#2
• Kerberos database initialization failed due
to timeout exceed
• The root cause
– Virtualbox has poor entropy
performance(Ticket #11297)
– Kerberos DB init can not get enough random
data
– Entropy is often collected from hardware
sources for use in cryptography
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

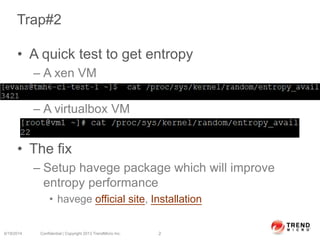

34. Trap#2
• A quick test to get entropy
– A xen VM
– A virtualbox VM
• The fix
– Setup havege package which will improve
entropy performance
• havege official site, Installation
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

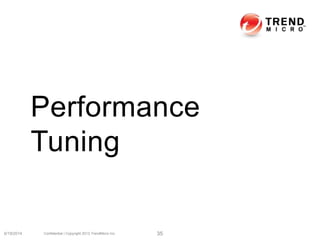

35. Performance
Tuning
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 35

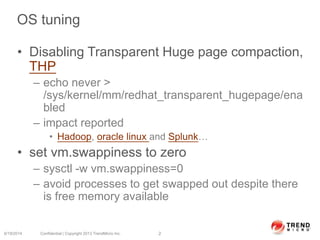

36. OS tuning
• Disabling Transparent Huge page compaction,
THP
– echo never >
/sys/kernel/mm/redhat_transparent_hugepage/ena
bled
– impact reported
• Hadoop, oracle linux and Splunk…
• set vm.swappiness to zero
– sysctl -w vm.swappiness=0
– avoid processes to get swapped out despite there
is free memory available
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

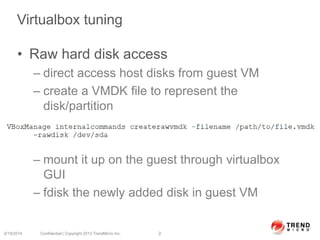

37. Virtualbox tuning
• Raw hard disk access
– direct access host disks from guest VM
– create a VMDK file to represent the
disk/partition
– mount it up on the guest through virtualbox
GUI
– fdisk the newly added disk in guest VM
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

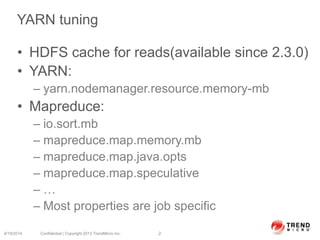

38. YARN tuning
• HDFS cache for reads(available since 2.3.0)
• YARN:
– yarn.nodemanager.resource.memory-mb
• Mapreduce:
– io.sort.mb
– mapreduce.map.memory.mb
– mapreduce.map.java.opts
– mapreduce.map.speculative
– …
– Most properties are job specific
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

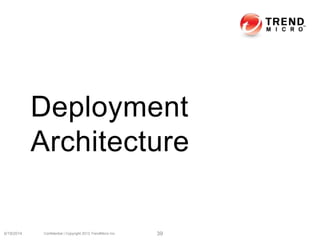

39. Deployment
Architecture
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 39

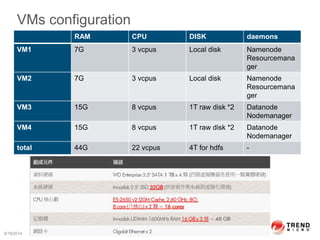

40. VMs configuration
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2
RAM CPU DISK daemons
VM1 7G 3 vcpus Local disk Namenode
Resourcemana
ger
VM2 7G 3 vcpus Local disk Namenode
Resourcemana
ger
VM3 15G 8 vcpus 1T raw disk *2 Datanode
Nodemanager
VM4 15G 8 vcpus 1T raw disk *2 Datanode
Nodemanager
total 44G 22 vcpus 4T for hdfs -

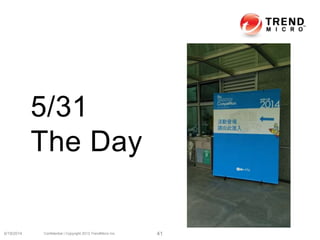

41. 5/31
The Day
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 41

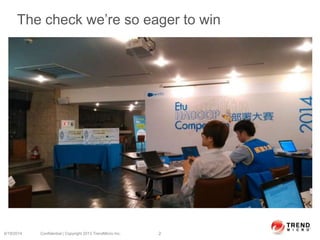

42. The check we’re so eager to win
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

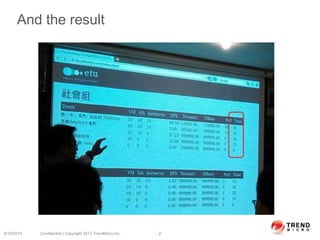

43. And the result
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

44. WE LOST
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 44

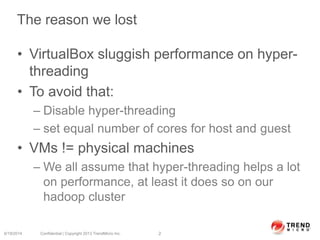

45. The reason we lost
• VirtualBox sluggish performance on hyper-
threading
• To avoid that:
– Disable hyper-threading
– set equal number of cores for host and guest
• VMs != physical machines
– We all assume that hyper-threading helps a lot
on performance, at least it does so on our
hadoop cluster
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

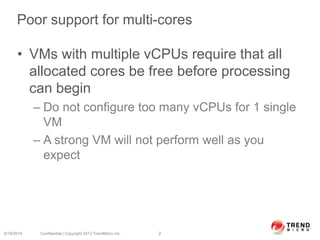

46. Poor support for multi-cores
• VMs with multiple vCPUs require that all
allocated cores be free before processing
can begin
– Do not configure too many vCPUs for 1 single
VM
– A strong VM will not perform well as you
expect
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

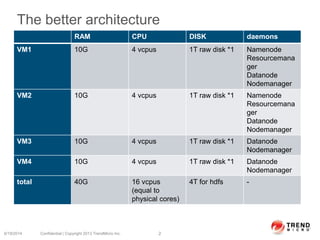

47. The better architecture
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2
RAM CPU DISK daemons
VM1 10G 4 vcpus 1T raw disk *1 Namenode
Resourcemana
ger
Datanode
Nodemanager
VM2 10G 4 vcpus 1T raw disk *1 Namenode
Resourcemana
ger
Datanode
Nodemanager
VM3 10G 4 vcpus 1T raw disk *1 Datanode
Nodemanager
VM4 10G 4 vcpus 1T raw disk *1 Datanode
Nodemanager
total 40G 16 vcpus
(equal to
physical cores)
4T for hdfs -

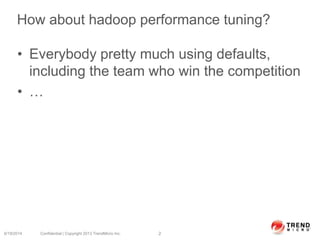

48. How about hadoop performance tuning?
• Everybody pretty much using defaults,
including the team who win the competition
• …
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

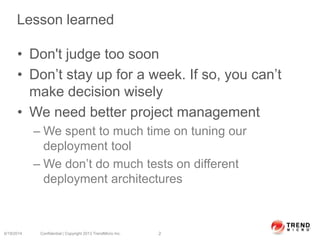

49. Lesson learned
• Don't judge too soon
• Don’t stay up for a week. If so, you can’t
make decision wisely
• We need better project management
– We spent to much time on tuning our
deployment tool
– We don’t do much tests on different
deployment architectures
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2

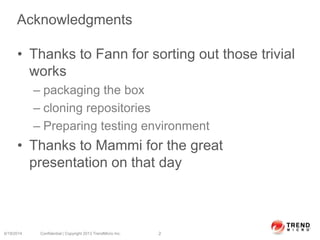

50. Acknowledgments
• Thanks to Fann for sorting out those trivial
works
– packaging the box
– cloning repositories
– Preparing testing environment
• Thanks to Mammi for the great
presentation on that day
6/19/2014 Confidential | Copyright 2013 TrendMicro Inc. 2
