Vagrant

Vagrant allows users to define and configure lightweight virtual development environments. It uses VirtualBox to run virtual machines from a Vagrantfile configuration. The document discusses how Vagrant abstracts hardware, allows multiple operating systems to run concurrently on virtual hardware, and is limited by physical resources. It also outlines how in 3 lines users can download a base box, initialize a new Vagrant project, and boot the virtual machine. Key benefits of Vagrant include quick setup for new team members, ability to version control server configurations, and easy switching between projects.

Technology◦
Downloaded 107 times
Vagrant: virtualise your development environment Michael Peacock August 2012, SuperMondays
About Me @michaelpeacock Head Developer @ Ground Six Leading the development team and managing the development process We are a tech investment company: you bring ideas, we partner and build the product Author Occasional Speaker

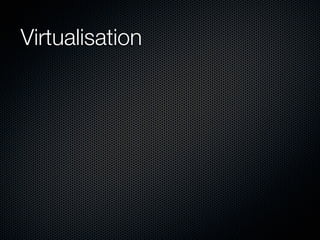

Virtualisation

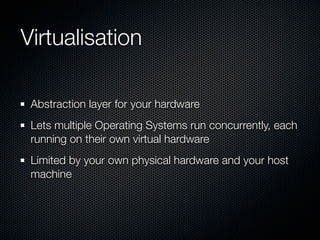

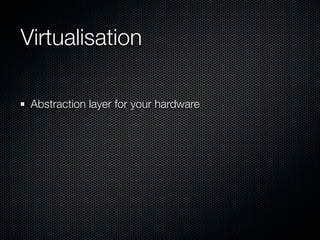

Virtualisation Abstraction layer for your hardware
Virtualisation Abstraction layer for your hardware Lets multiple Operating Systems run concurrently, each running on their own virtual hardware
Virtualisation Abstraction layer for your hardware Lets multiple Operating Systems run concurrently, each running on their own virtual hardware Limited by your own physical hardware and your host machine

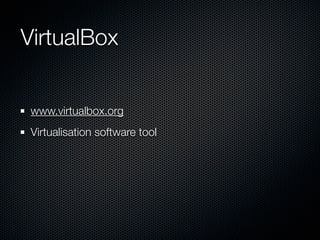

VirtualBox

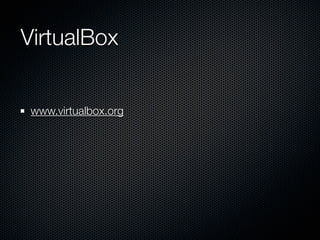

VirtualBox www.virtualbox.org
VirtualBox www.virtualbox.org Virtualisation software tool

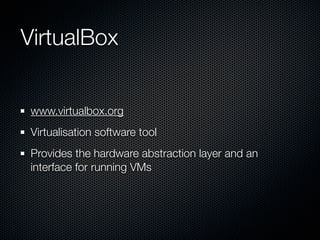

VirtualBox www.virtualbox.org Virtualisation software tool Provides the hardware abstraction layer and an interface for running VMs
Vagrant

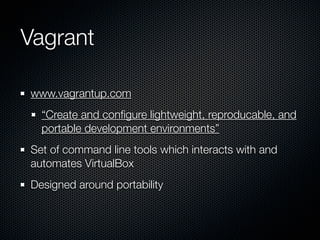

Vagrant www.vagrantup.com “Create and configure lightweight, reproducable, and portable development environments”
Vagrant www.vagrantup.com “Create and configure lightweight, reproducable, and portable development environments” Set of command line tools which interacts with and automates VirtualBox
Vagrant www.vagrantup.com “Create and configure lightweight, reproducable, and portable development environments” Set of command line tools which interacts with and automates VirtualBox Designed around portability

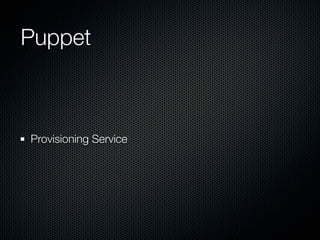

Puppet Provisioning Service

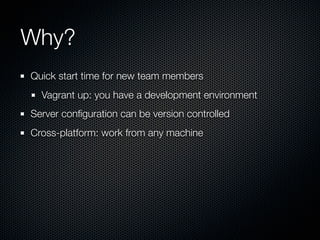

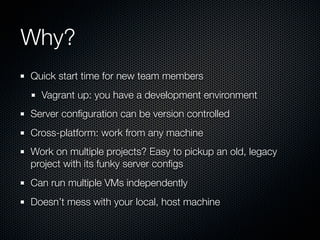

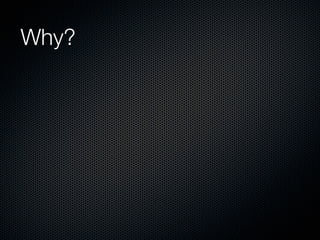

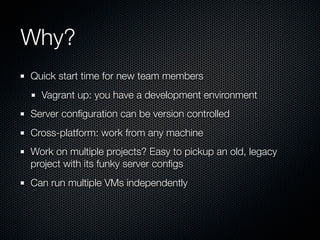

Why?

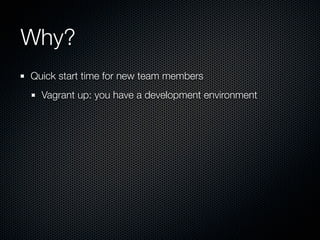

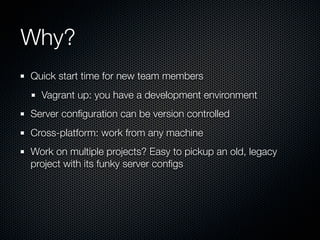

Why? Quick start time for new team members Vagrant up: you have a development environment

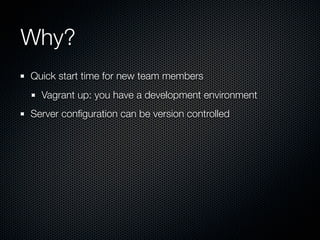

Why? Quick start time for new team members Vagrant up: you have a development environment Server configuration can be version controlled
Why? Quick start time for new team members Vagrant up: you have a development environment Server configuration can be version controlled Cross-platform: work from any machine
Why? Quick start time for new team members Vagrant up: you have a development environment Server configuration can be version controlled Cross-platform: work from any machine Work on multiple projects? Easy to pickup an old, legacy project with its funky server configs
Why? Quick start time for new team members Vagrant up: you have a development environment Server configuration can be version controlled Cross-platform: work from any machine Work on multiple projects? Easy to pickup an old, legacy project with its funky server configs Can run multiple VMs independently
Why? Quick start time for new team members Vagrant up: you have a development environment Server configuration can be version controlled Cross-platform: work from any machine Work on multiple projects? Easy to pickup an old, legacy project with its funky server configs Can run multiple VMs independently Doesn’t mess with your local, host machine

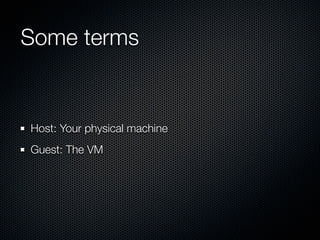

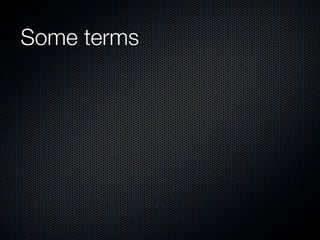

Some terms
Some terms Host: Your physical machine
Some terms Host: Your physical machine Guest: The VM

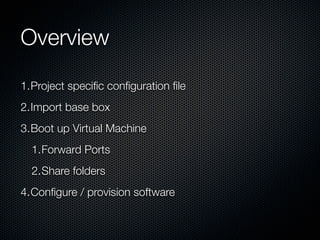

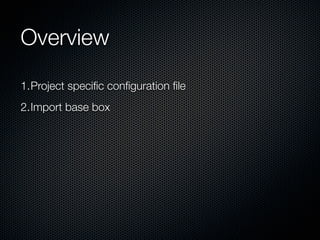

Overview

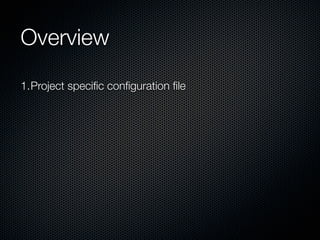

Overview 1.Project specific configuration file
Overview 1.Project specific configuration file 2.Import base box

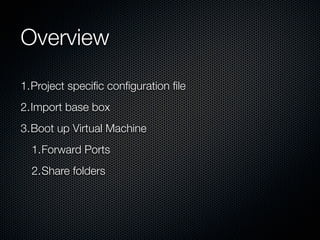

Overview 1.Project specific configuration file 2.Import base box 3.Boot up Virtual Machine 1.Forward Ports 2.Share folders
Overview 1.Project specific configuration file 2.Import base box 3.Boot up Virtual Machine 1.Forward Ports 2.Share folders 4.Configure / provision software

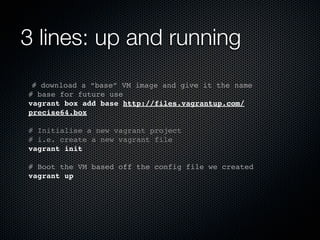

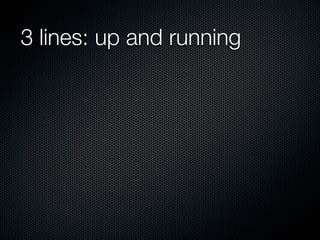

3 lines: up and running

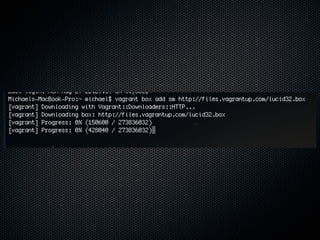

3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up
3 lines: up and running # download a “base” VM image and give it the name # base for future use vagrant box add base http://files.vagrantup.com/ precise64.box # Initialise a new vagrant project # i.e. create a new vagrant file vagrant init # Boot the VM based off the config file we created vagrant up

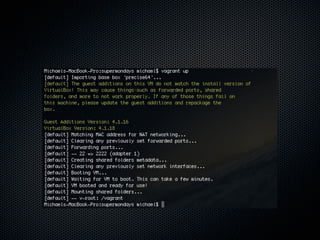

Let’s try it...

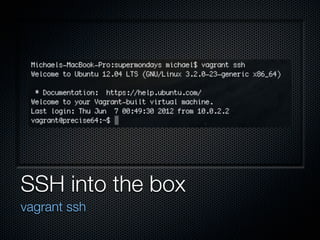

SSH into the box vagrant ssh

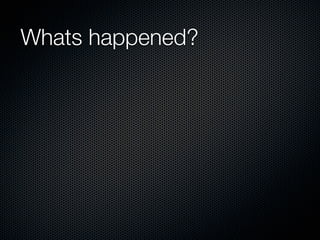

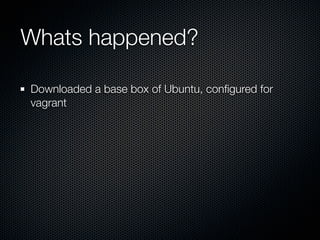

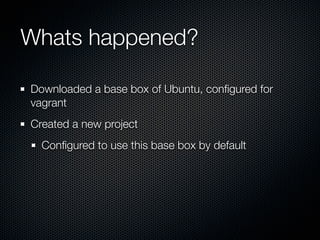

Whats happened?
Whats happened? Downloaded a base box of Ubuntu, configured for vagrant
Whats happened? Downloaded a base box of Ubuntu, configured for vagrant Created a new project Configured to use this base box by default

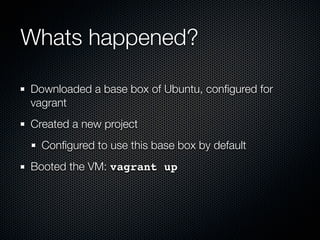

Whats happened? Downloaded a base box of Ubuntu, configured for vagrant Created a new project Configured to use this base box by default Booted the VM: vagrant up
Whats happened? Downloaded a base box of Ubuntu, configured for vagrant Created a new project Configured to use this base box by default Booted the VM: vagrant up Connected into the VM: vagrant ssh

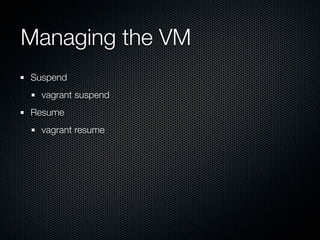

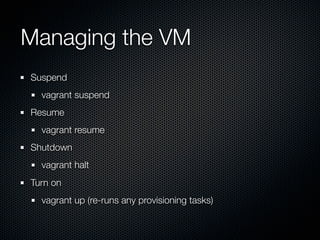

Managing the VM

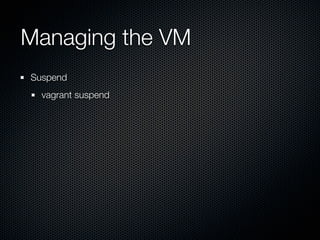

Managing the VM Suspend vagrant suspend
Managing the VM Suspend vagrant suspend Resume vagrant resume

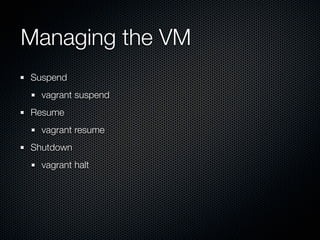

Managing the VM Suspend vagrant suspend Resume vagrant resume Shutdown vagrant halt
Managing the VM Suspend vagrant suspend Resume vagrant resume Shutdown vagrant halt Turn on vagrant up (re-runs any provisioning tasks)
Lets try it

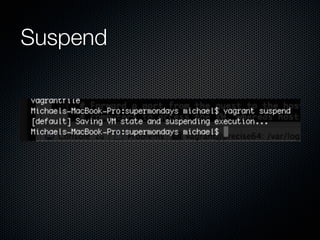

Suspend

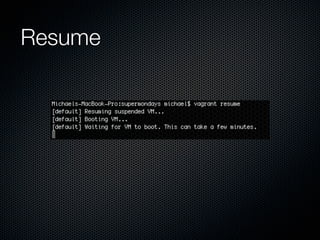

Resume

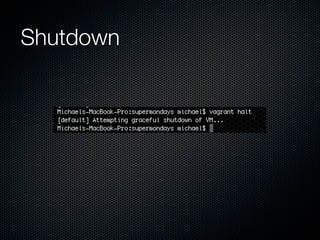

Shutdown
When shit hits the fan vagrant destroy

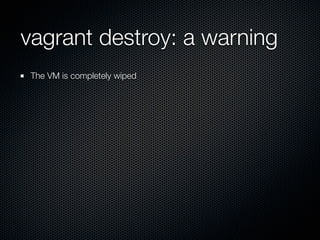

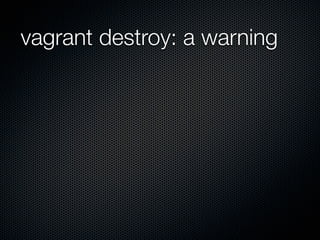

vagrant destroy: a warning
vagrant destroy: a warning The VM is completely wiped
vagrant destroy: a warning The VM is completely wiped Anything that can’t be replicated from: Your project folder (shared folder) Vagrant base box Vagrant File Puppet Manifests
vagrant destroy: a warning The VM is completely wiped Anything that can’t be replicated from: Your project folder (shared folder) Vagrant base box Vagrant File Puppet Manifests WILL BE LOST FOREVER E.g. Databases (hint: use a DB patching or versioning tool in your project folder)

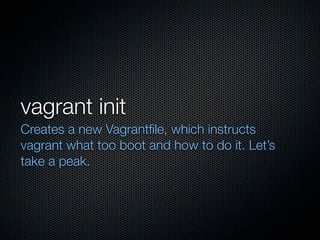

vagrant init Creates a new Vagrantfile, which instructs vagrant what too boot and how to do it. Let’s take a peak.

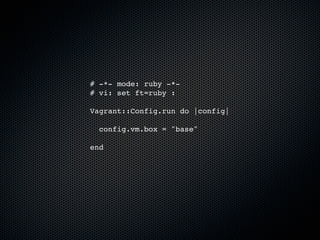

# -*- mode: ruby -*- # vi: set ft=ruby : Vagrant::Config.run do |config| config.vm.box = "base" end

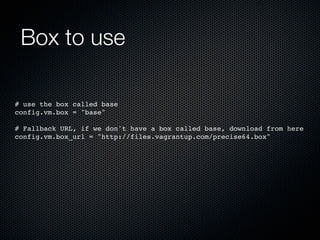

Box to use # use the box called base config.vm.box = "base" # Fallback URL, if we don't have a box called base, download from here config.vm.box_url = "http://files.vagrantup.com/precise64.box"

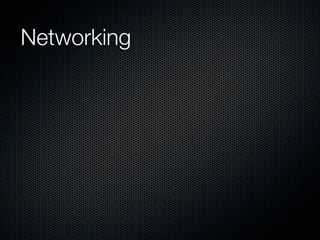

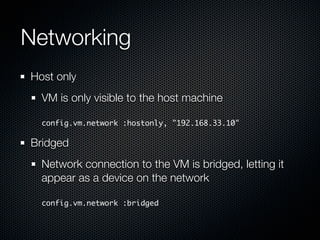

Networking

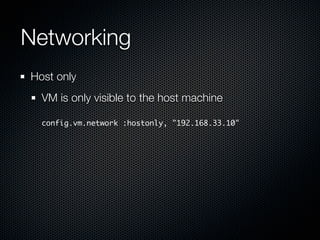

Networking Host only VM is only visible to the host machine config.vm.network :hostonly, "192.168.33.10"
Networking Host only VM is only visible to the host machine config.vm.network :hostonly, "192.168.33.10" Bridged Network connection to the VM is bridged, letting it appear as a device on the network config.vm.network :bridged
Ports

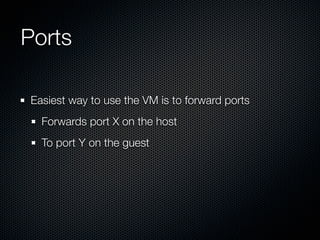

Ports Easiest way to use the VM is to forward ports Forwards port X on the host To port Y on the guest

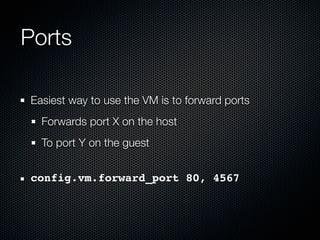

Ports Easiest way to use the VM is to forward ports Forwards port X on the host To port Y on the guest config.vm.forward_port 80, 4567

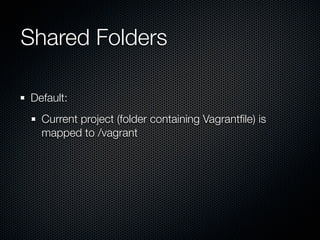

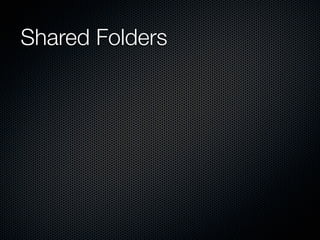

Shared Folders
Shared Folders Default: Current project (folder containing Vagrantfile) is mapped to /vagrant

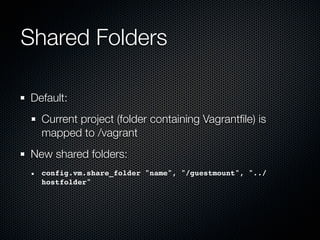

Shared Folders Default: Current project (folder containing Vagrantfile) is mapped to /vagrant New shared folders: config.vm.share_folder "name", "/guestmount", "../ hostfolder"
Provisioning So far: we can build and d

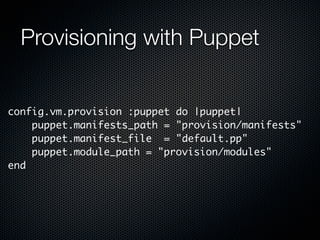

Provisioning with Puppet config.vm.provision :puppet do |puppet| puppet.manifests_path = "provision/manifests" puppet.manifest_file = "default.pp" puppet.module_path = "provision/modules" end

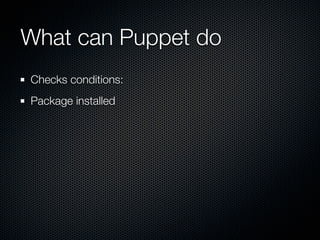

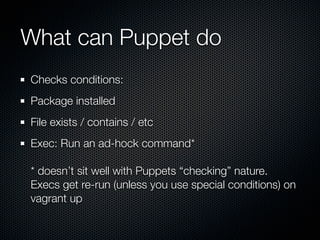

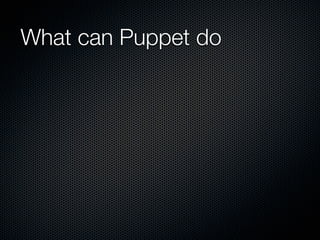

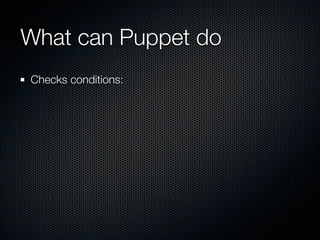

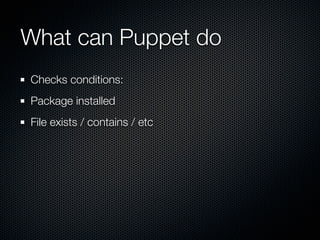

What can Puppet do
What can Puppet do Checks conditions:
What can Puppet do Checks conditions: Package installed
What can Puppet do Checks conditions: Package installed File exists / contains / etc
What can Puppet do Checks conditions: Package installed File exists / contains / etc Exec: Run an ad-hock command* * doesn’t sit well with Puppets “checking” nature. Execs get re-run (unless you use special conditions) on vagrant up

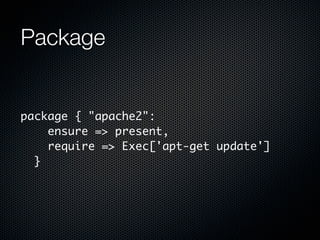

Package package { "apache2": ensure => present, require => Exec['apt-get update'] }

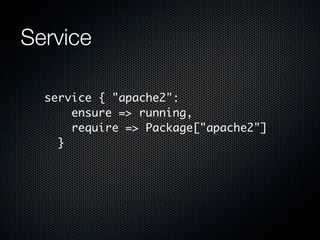

Service service { "apache2": ensure => running, require => Package["apache2"] }

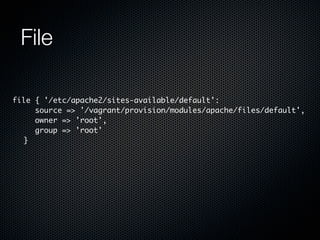

File file { '/etc/apache2/sites-available/default': source => '/vagrant/provision/modules/apache/files/default', owner => 'root', group => 'root' }

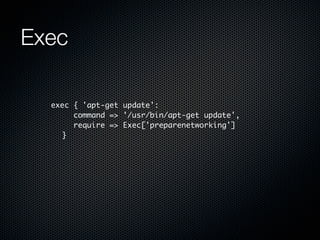

Exec exec { 'apt-get update': command => '/usr/bin/apt-get update', require => Exec['preparenetworking'] }

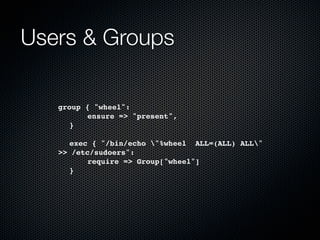

Users & Groups group { "wheel": ! ensure => "present", ! } ! ! exec { "/bin/echo "%wheel ALL=(ALL) ALL" >> /etc/sudoers": ! require => Group["wheel"] ! }

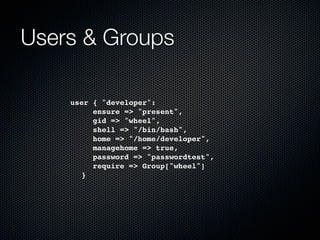

Users & Groups user { "developer": ! ! ensure => "present", ! ! gid => "wheel", ! ! shell => "/bin/bash", ! ! home => "/home/developer", ! ! managehome => true, ! ! password => "passwordtest", ! ! require => Group["wheel"] ! }

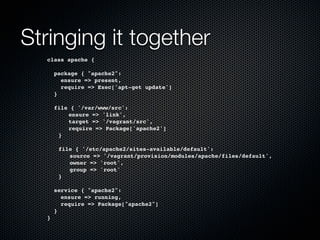

Stringing it together class apache { package { "apache2": ensure => present, require => Exec['apt-get update'] } file { '/var/www/src': ! ensure => 'link', ! target => '/vagrant/src', ! require => Package['apache2'] ! } ! ! file { '/etc/apache2/sites-available/default': ! ! source => '/vagrant/provision/modules/apache/files/default', ! ! owner => 'root', ! ! group => 'root' ! } service { "apache2": ensure => running, require => Package["apache2"] } }

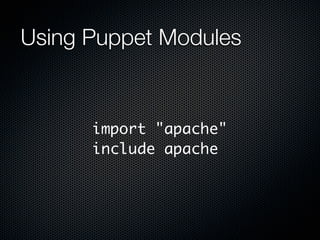

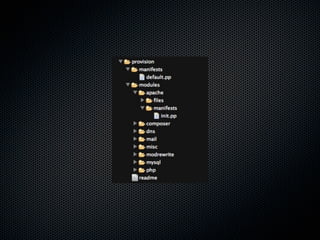

Using Puppet Modules import "apache" include apache

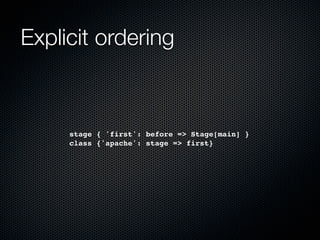

Explicit ordering stage { 'first': before => Stage[main] } class {'apache': stage => first}

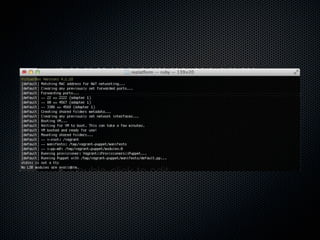

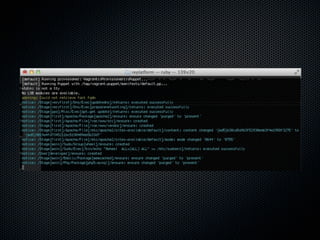

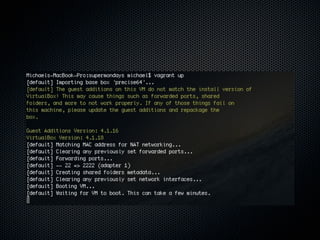

Vagrant up
