A brief introduction to docker. Demo: Run Bottle, a simple python web framework, in a docker container

1. Introduction to Docker
Willy Kuo
Feb 25, 2013

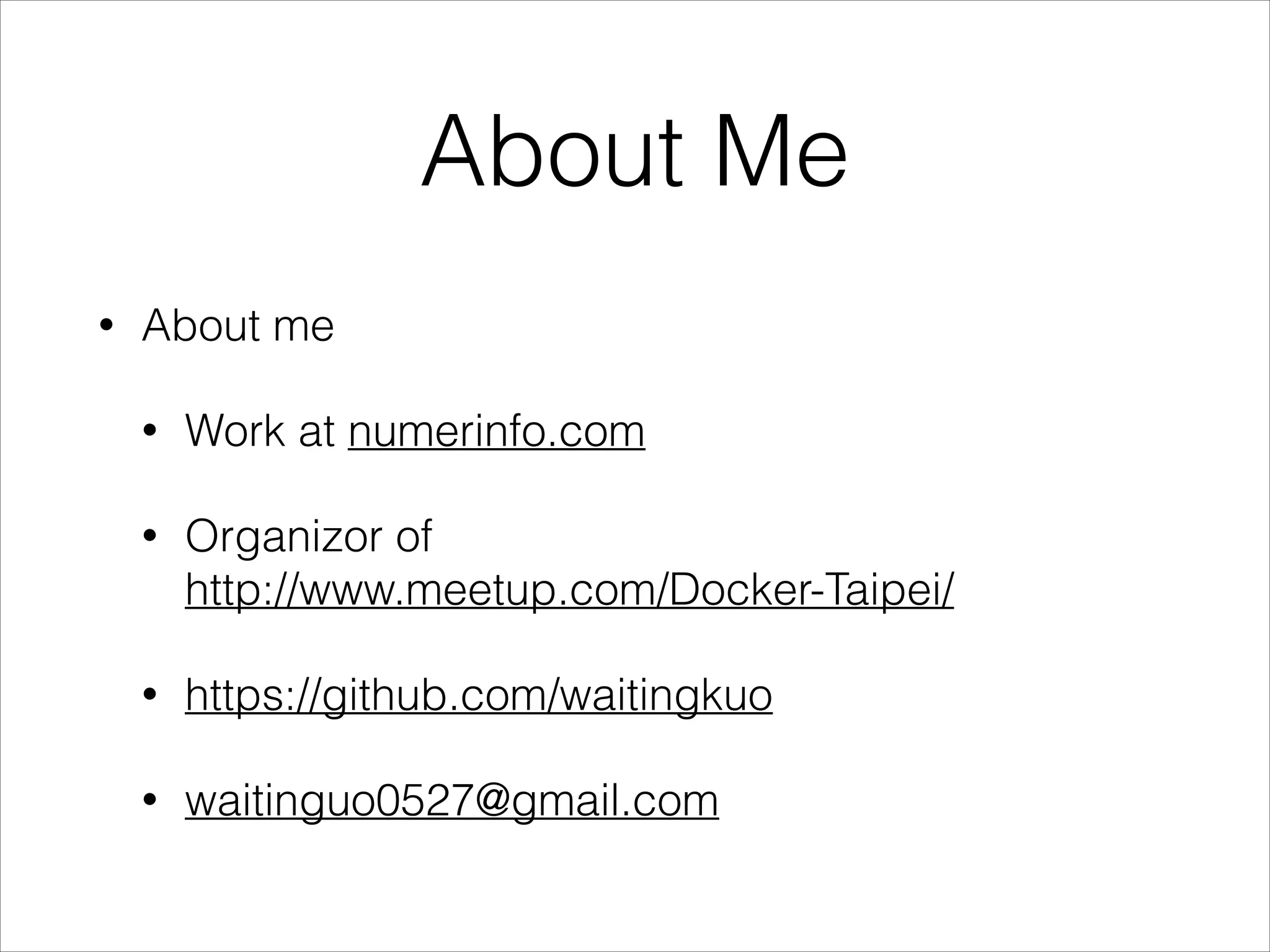

2. About Me
•
About me
•
Work at numerinfo.com
•
Organizor of
http://www.meetup.com/Docker-Taipei/
•
https://github.com/waitingkuo
•
waitinguo0527@gmail.com

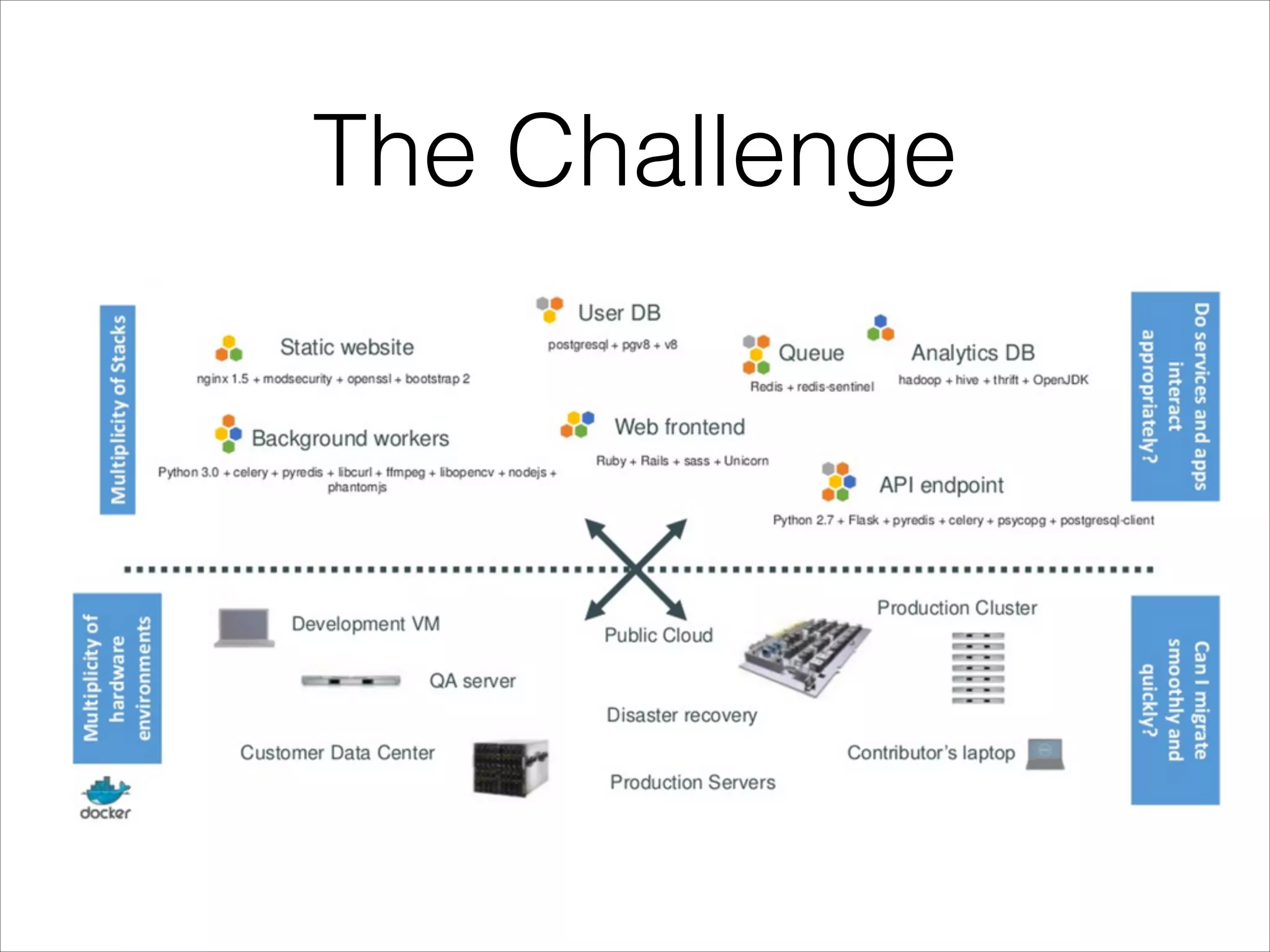

3. The Challenge

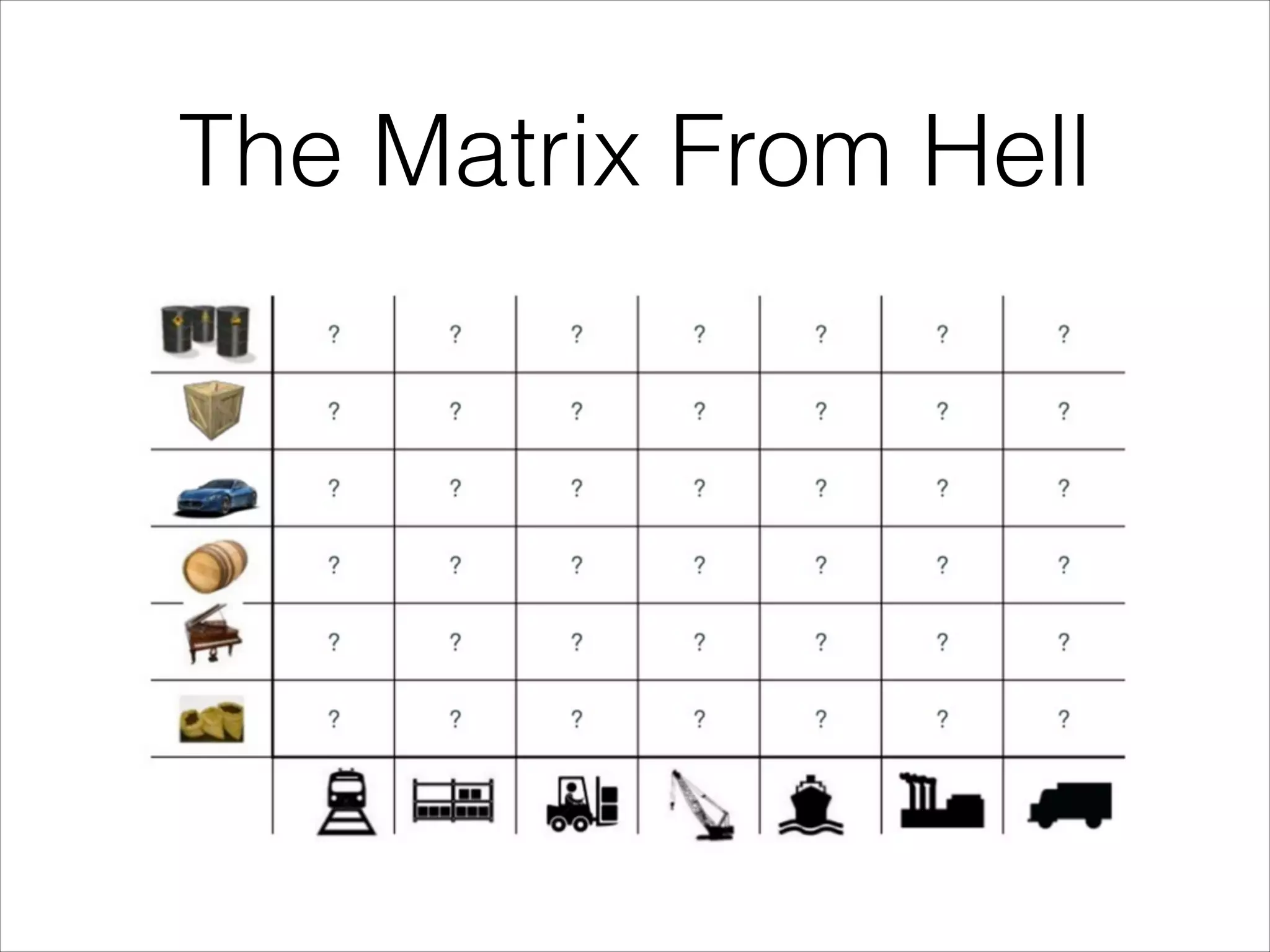

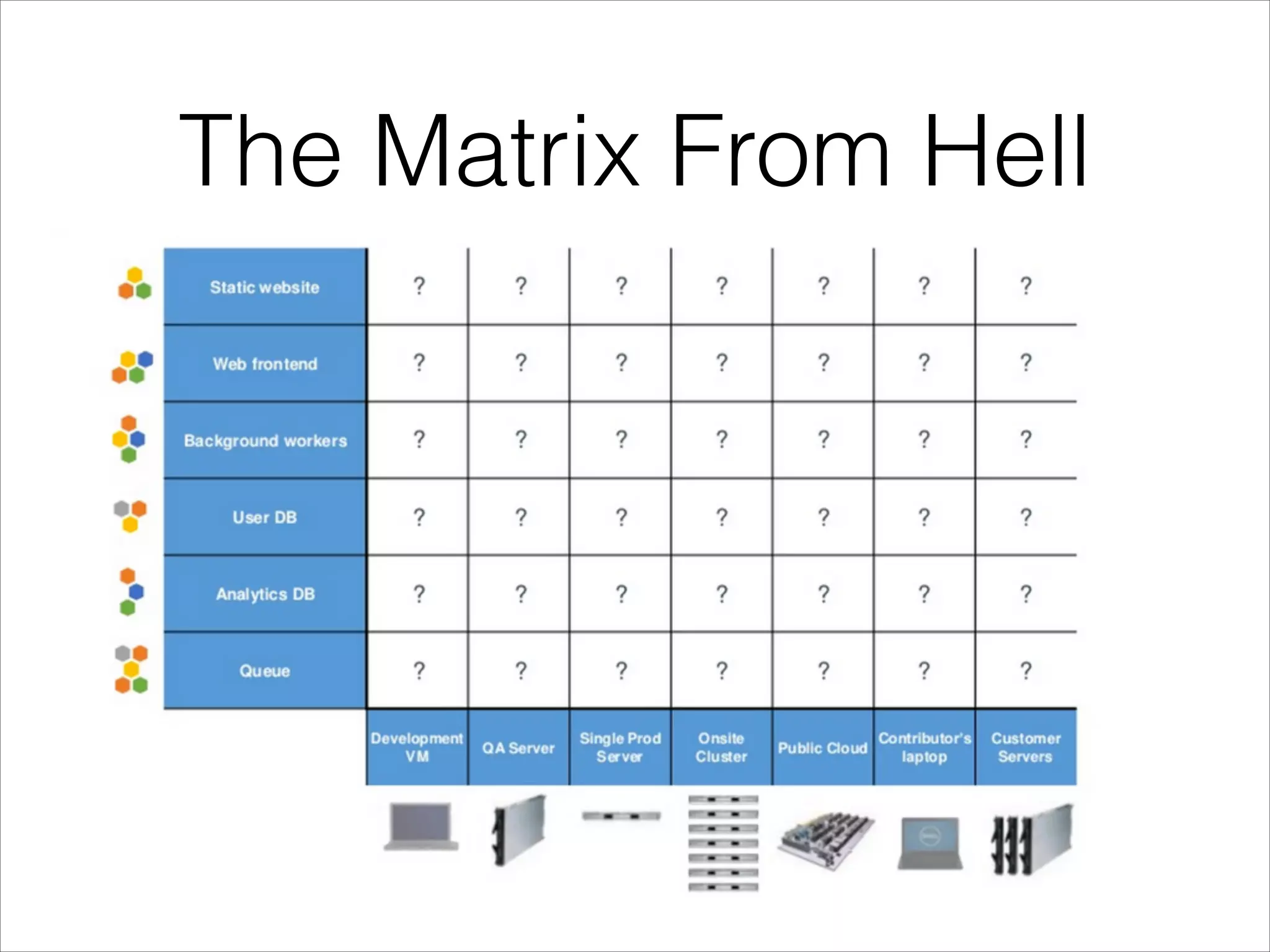

4. The Matrix From Hell

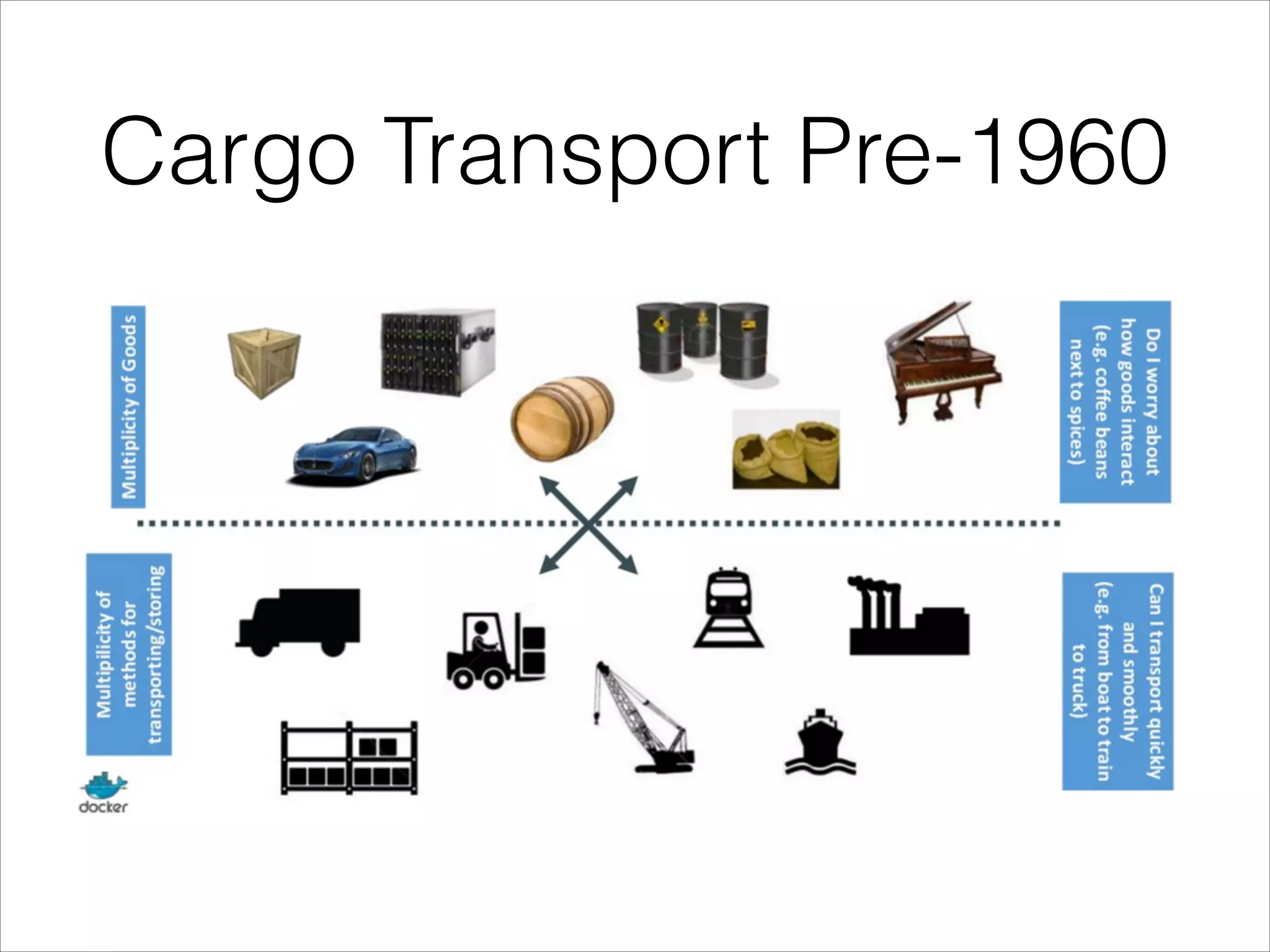

5. Cargo Transport Pre-1960

6. The Matrix From Hell

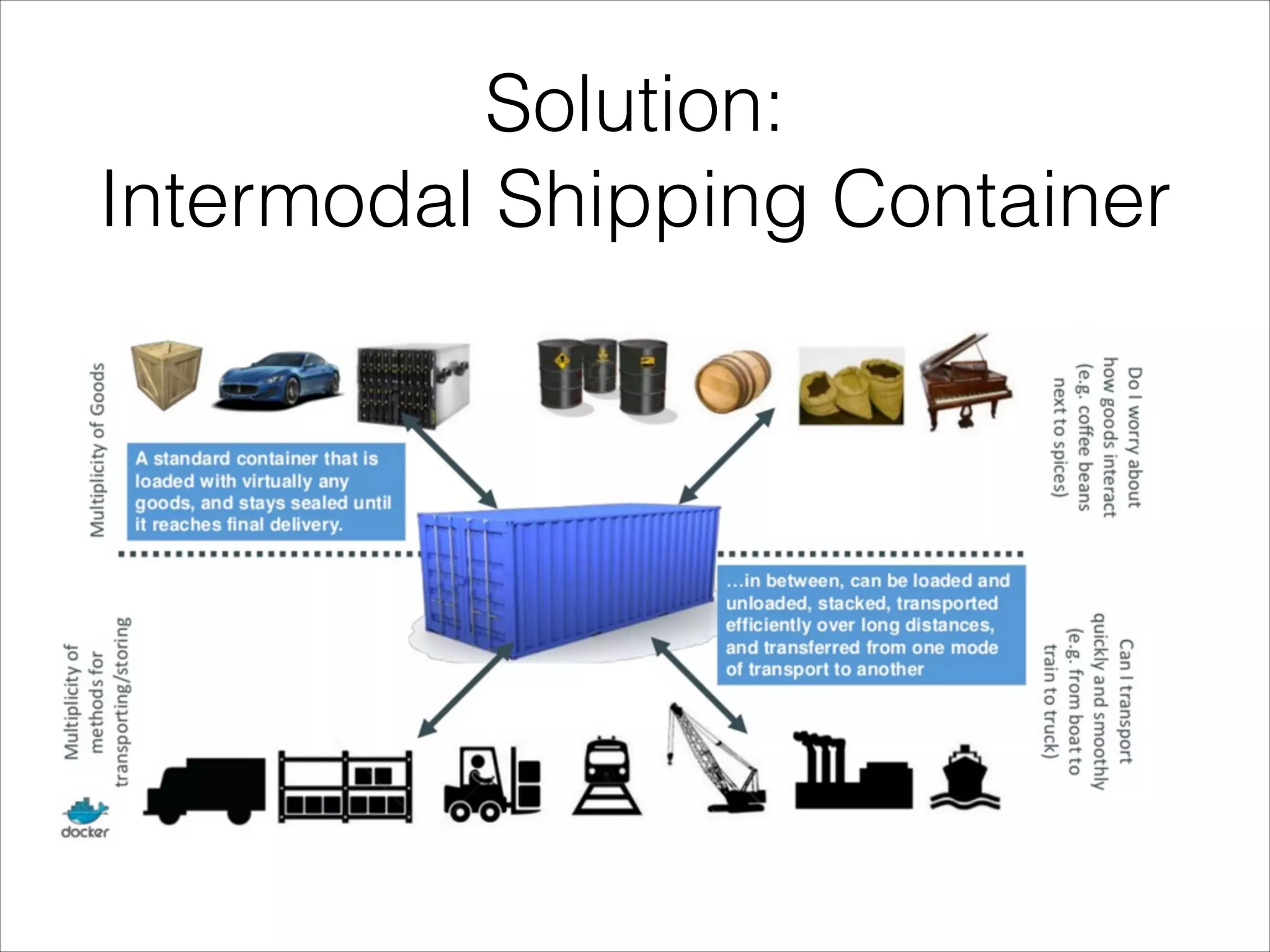

7. Solution:
Intermodal Shipping Container

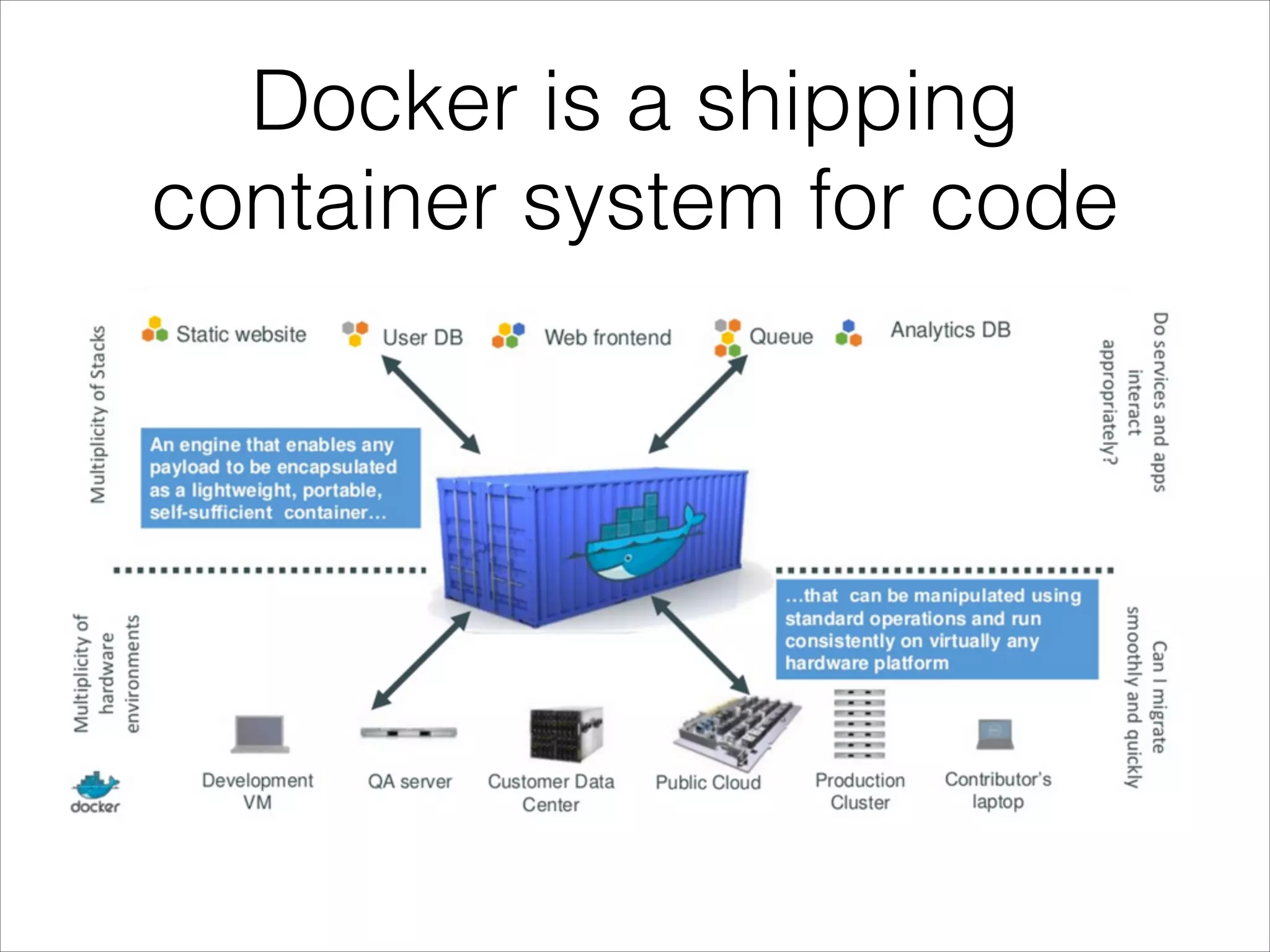

8. Docker is a shipping
container system for code

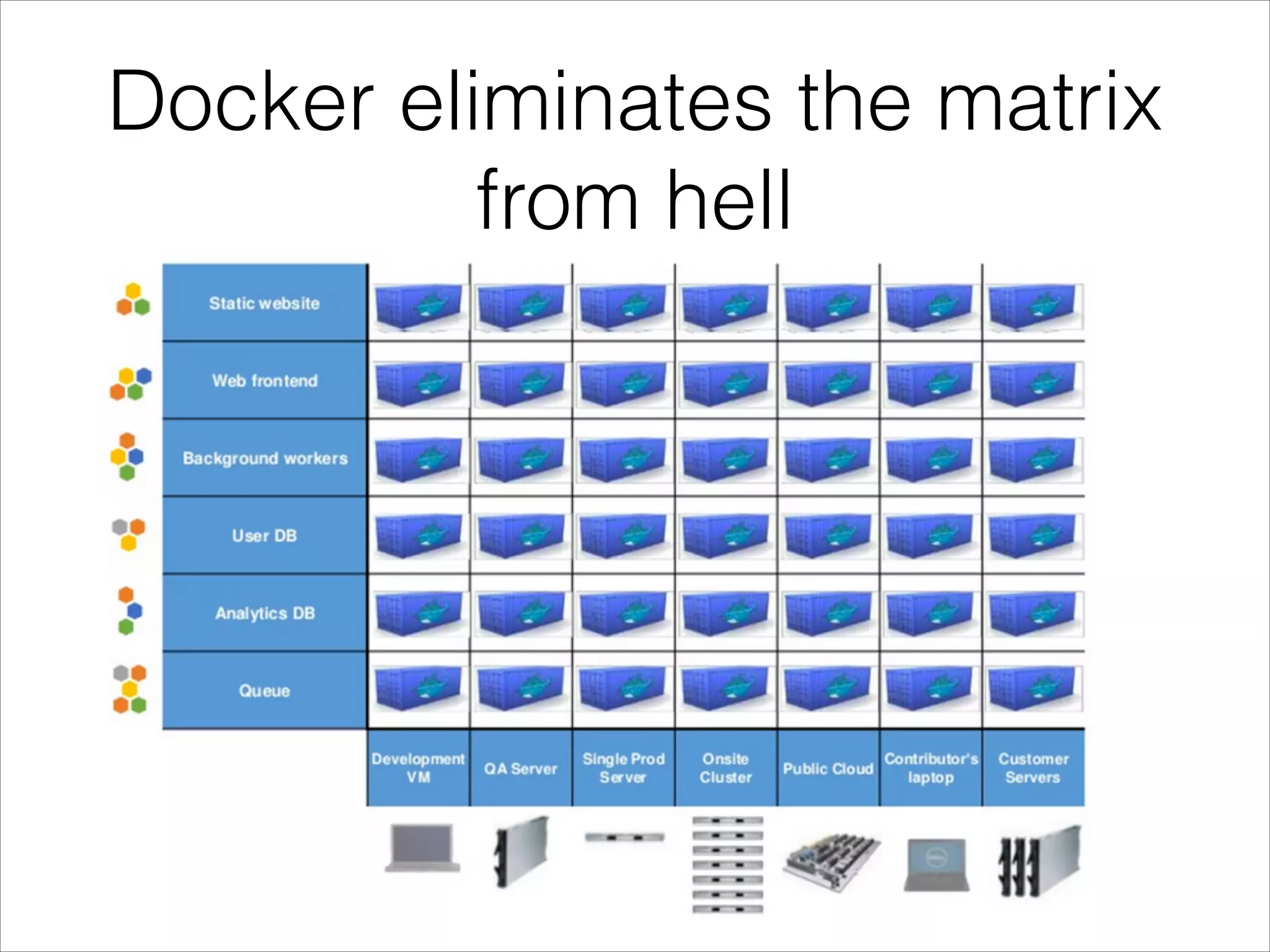

9. Docker eliminates the matrix
from hell

10. Deploy to almost anywhere
OK
Soon
Soon
?

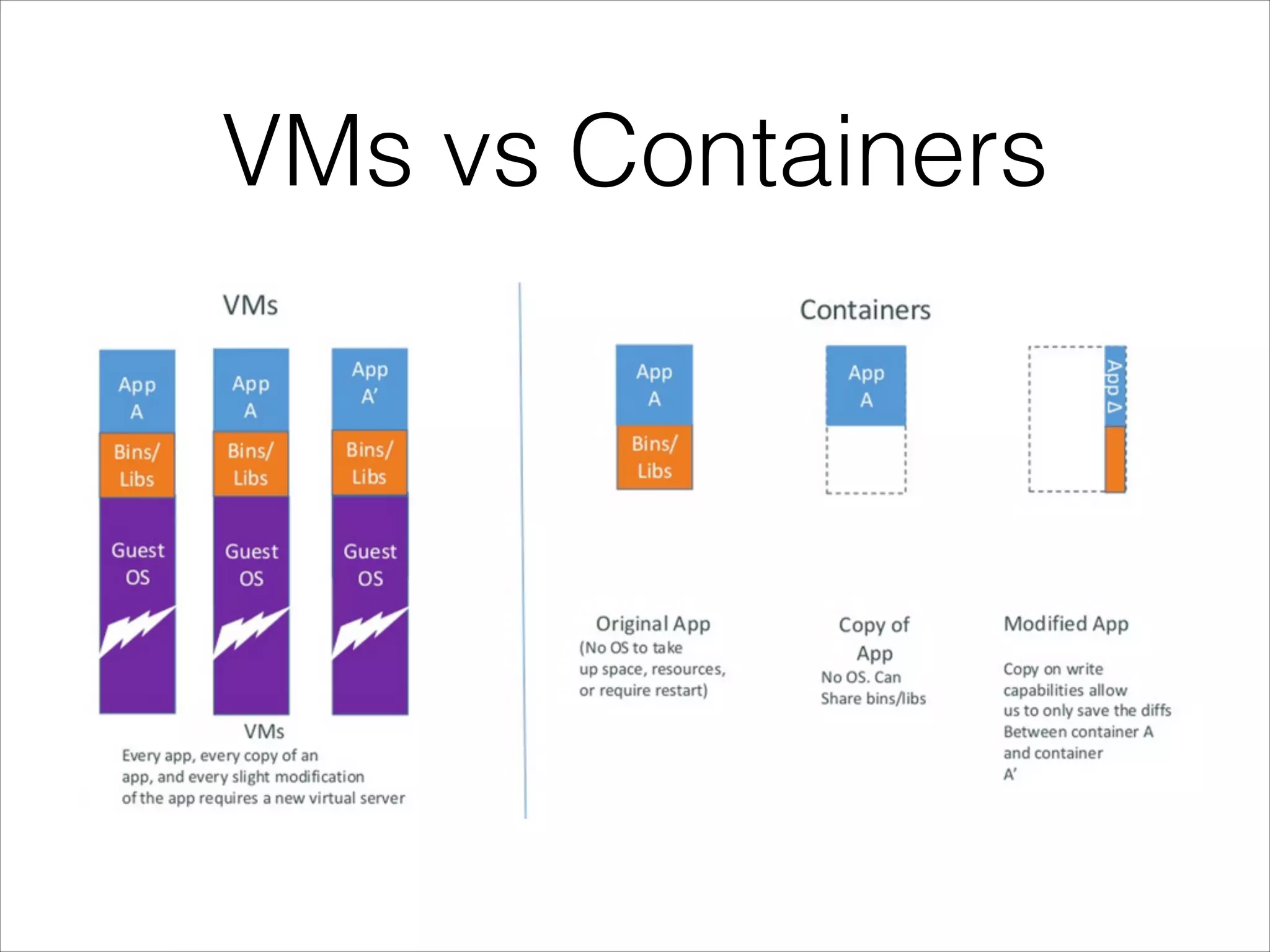

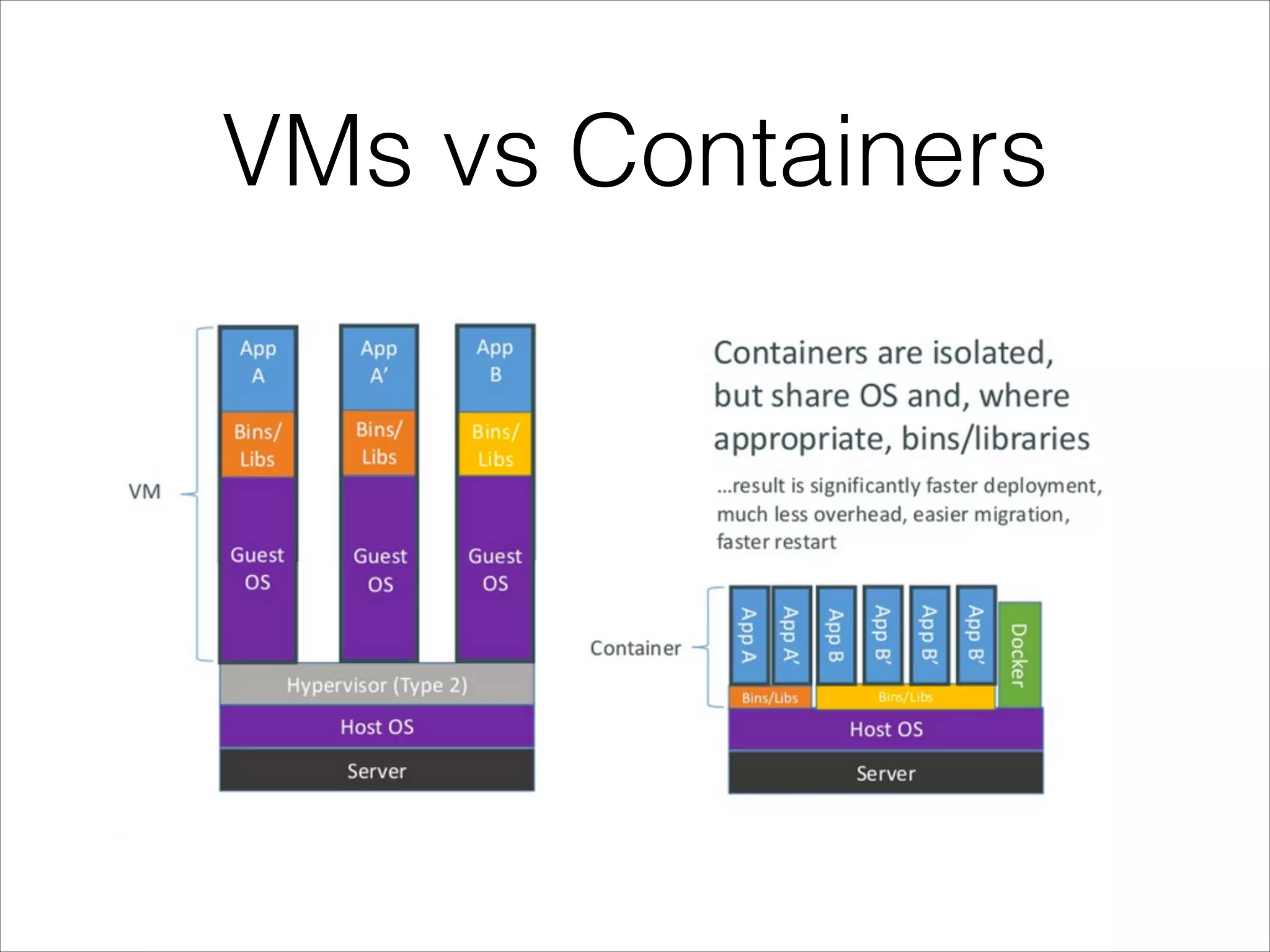

11. VMs vs Containers

12. VMs vs Containers

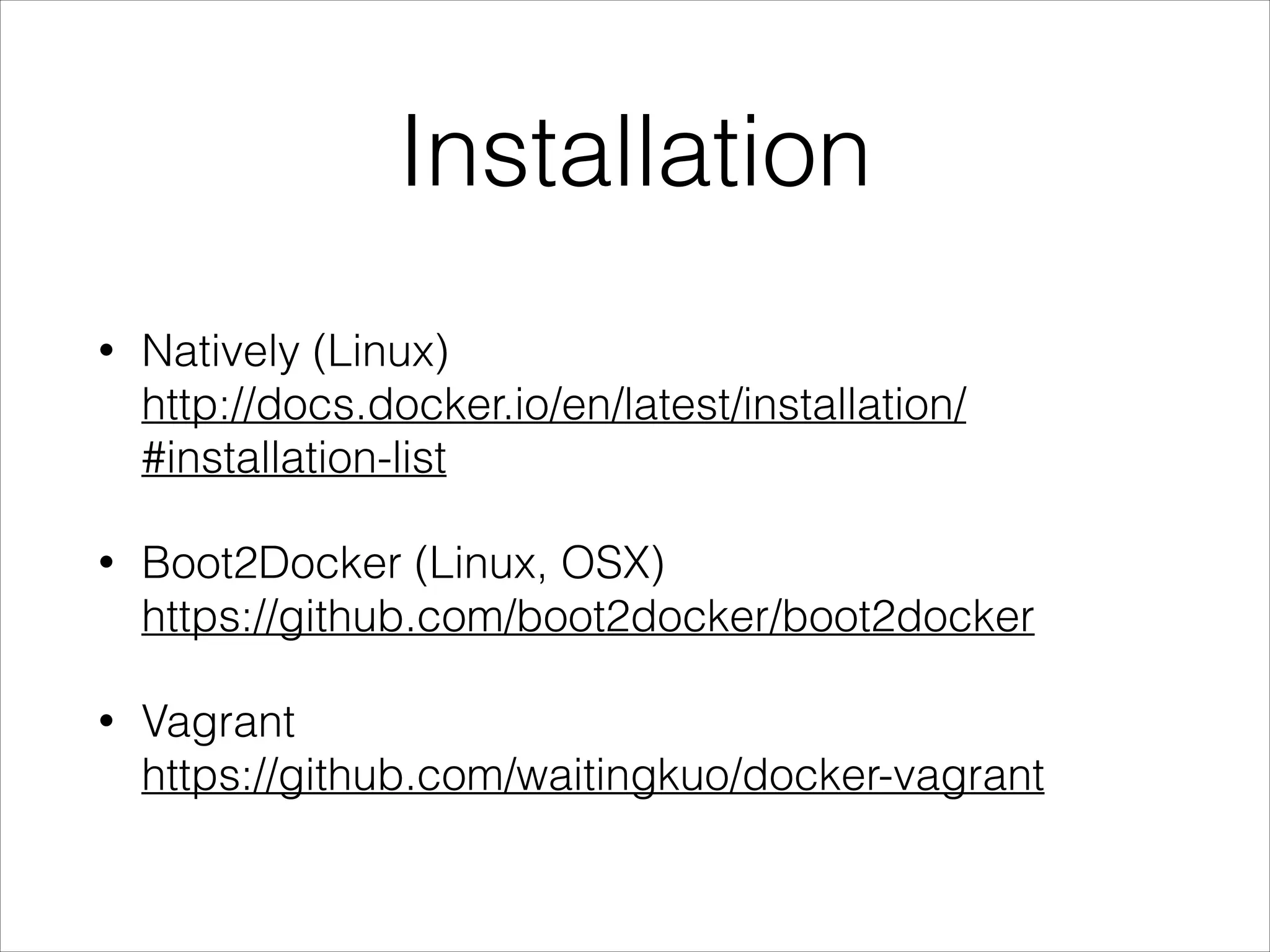

13. Installation
•
Natively (Linux)
http://docs.docker.io/en/latest/installation/
#installation-list
•
Boot2Docker (Linux, OSX)
https://github.com/boot2docker/boot2docker
•
Vagrant
https://github.com/waitingkuo/docker-vagrant

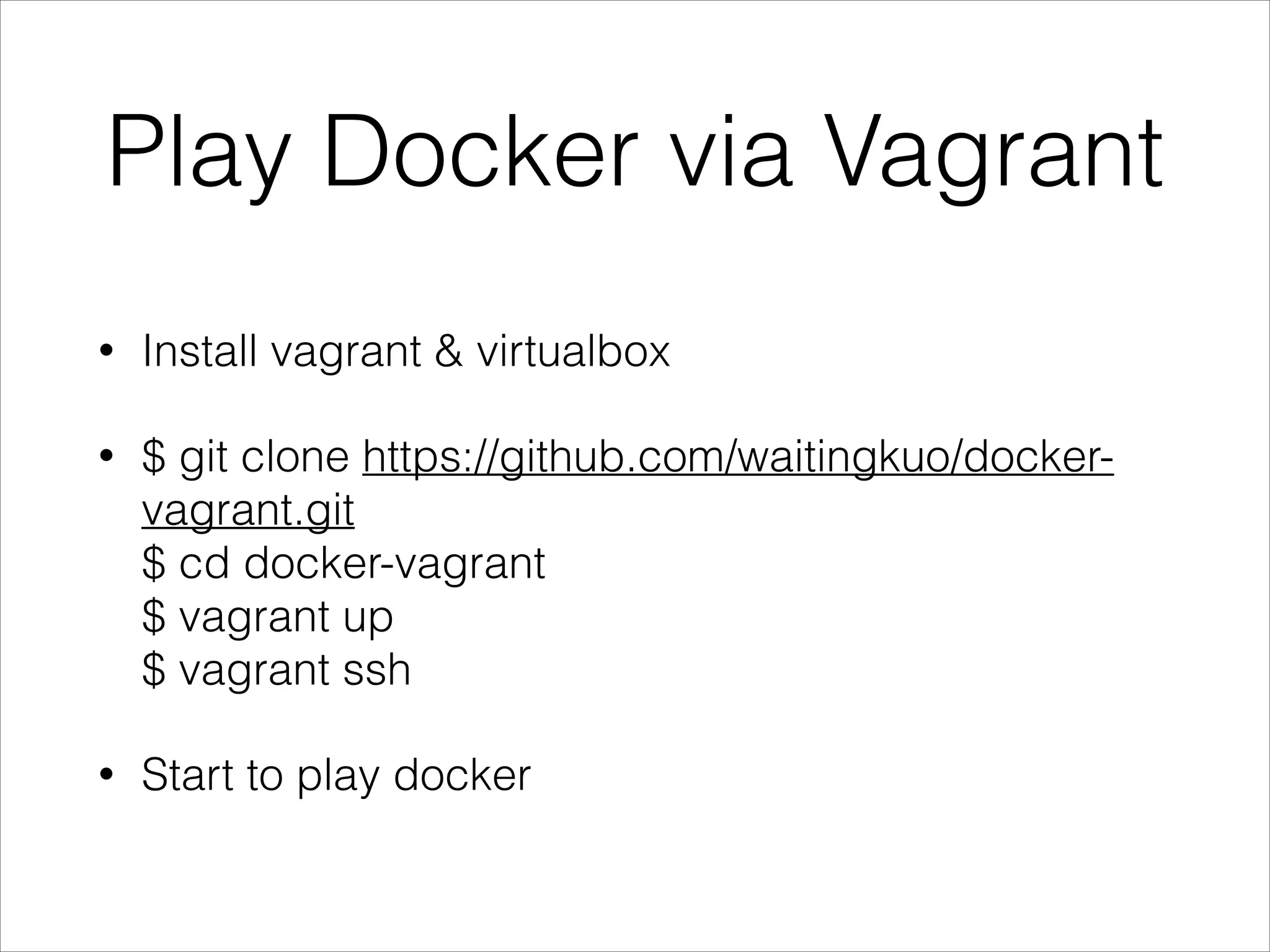

14. Play Docker via Vagrant
•
Install vagrant & virtualbox
•
$ git clone https://github.com/waitingkuo/dockervagrant.git
$ cd docker-vagrant
$ vagrant up
$ vagrant ssh
•
Start to play docker

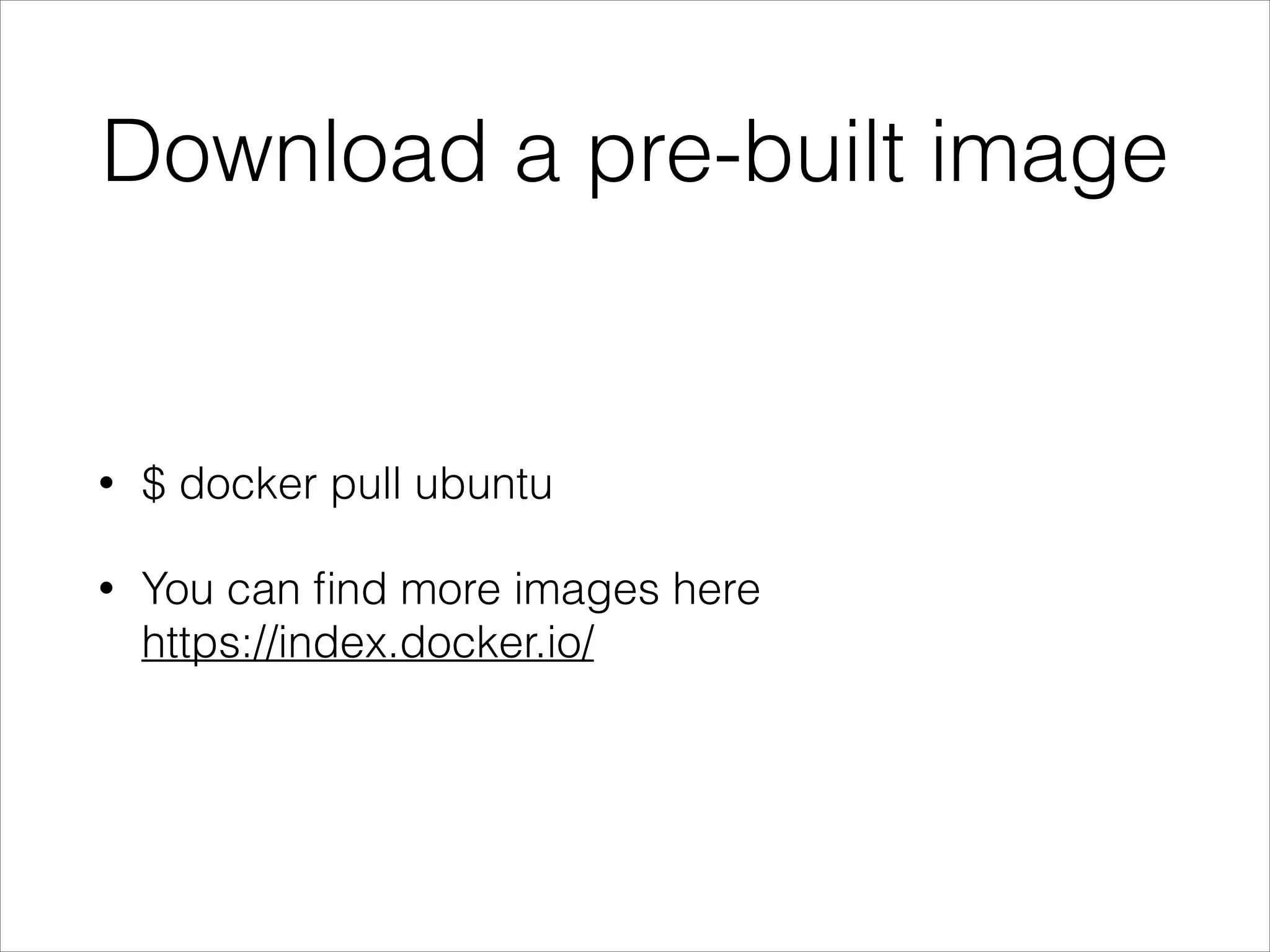

15. Download a pre-built image
•
$ docker pull ubuntu
•
You can find more images here
https://index.docker.io/

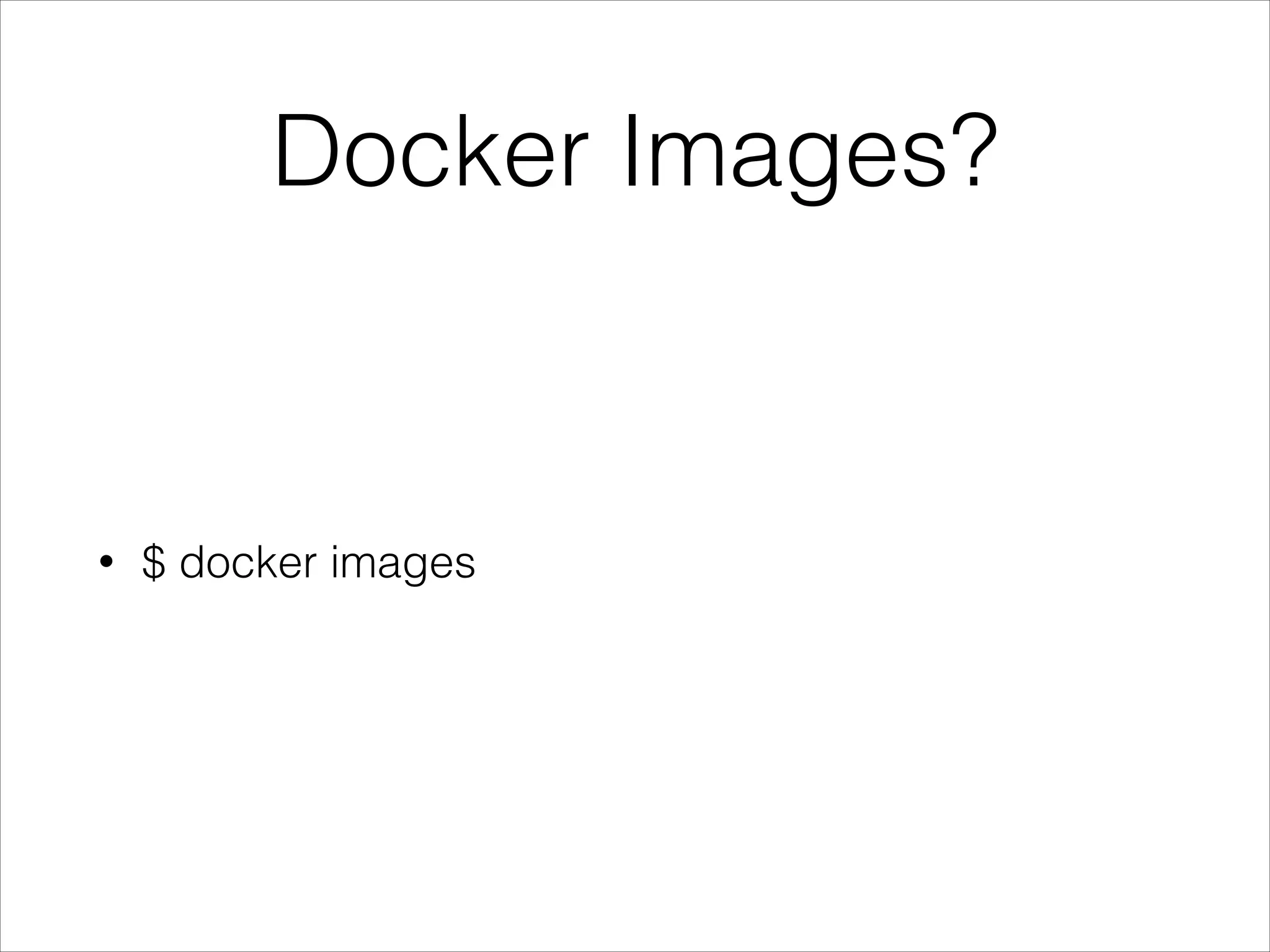

16. Docker Images?
•
$ docker images

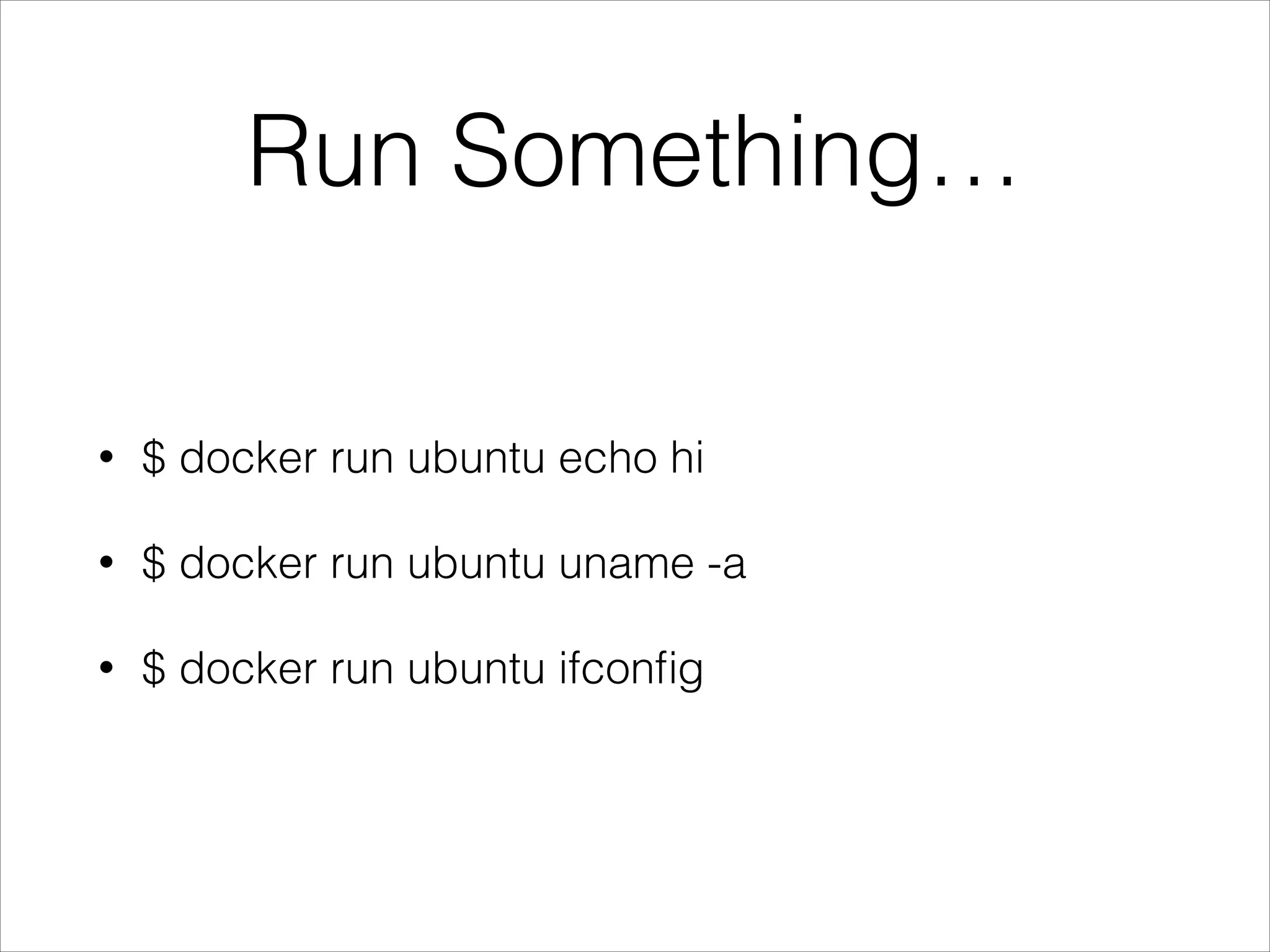

17. Run Something…
•
$ docker run ubuntu echo hi
•
$ docker run ubuntu uname -a
•
$ docker run ubuntu ifconfig

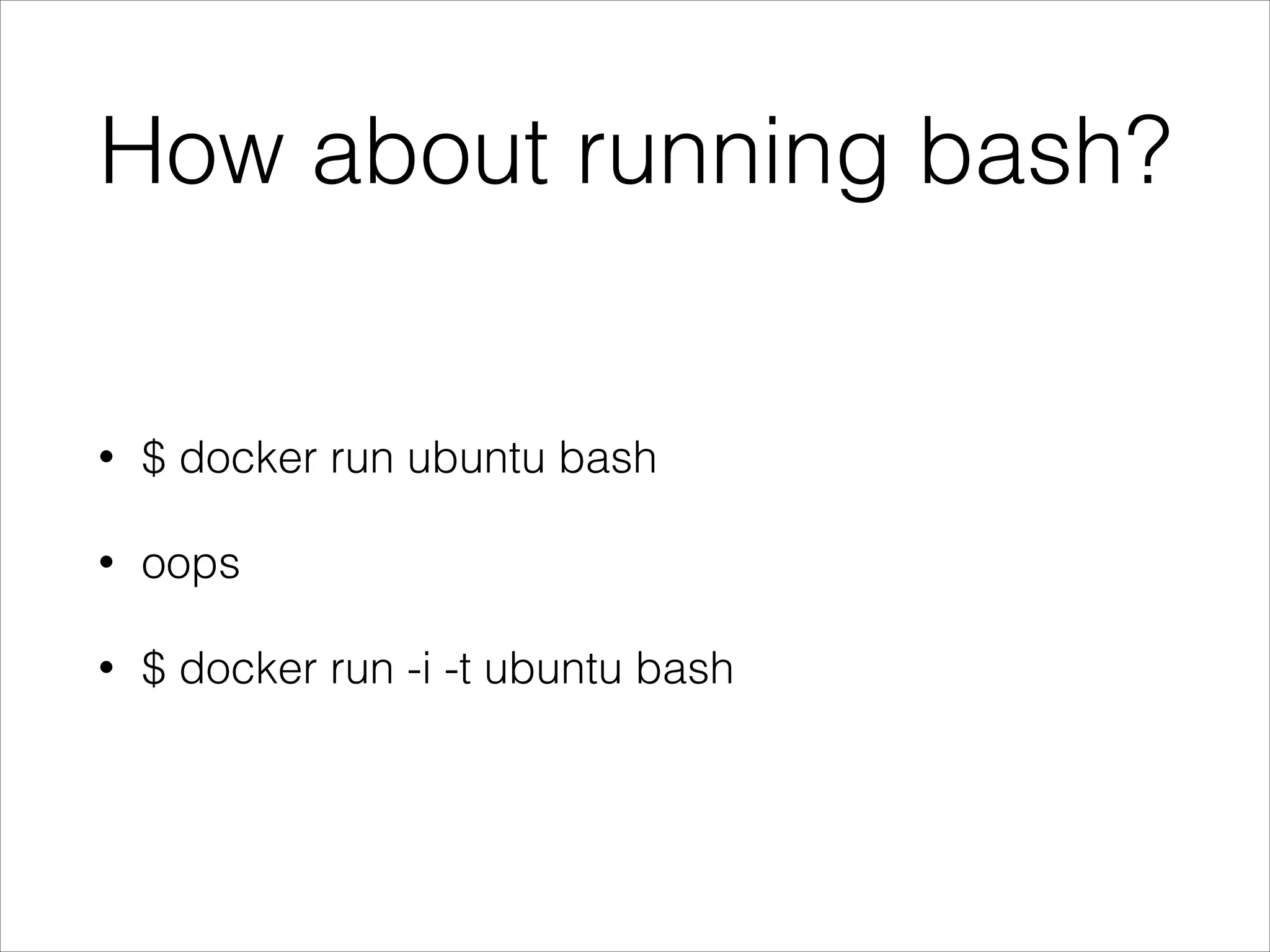

18. How about running bash?
•
$ docker run ubuntu bash
•
oops
•
$ docker run -i -t ubuntu bash

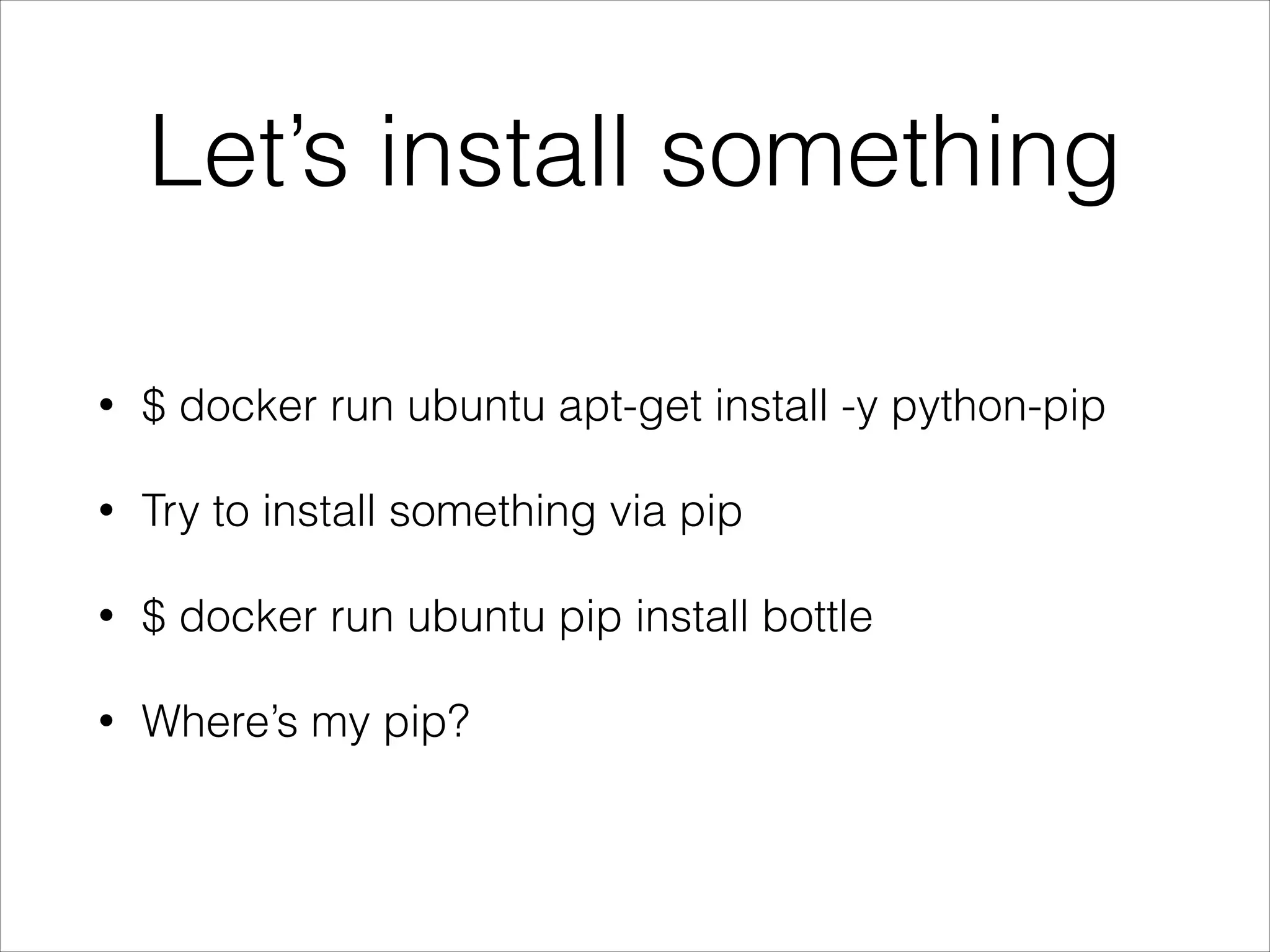

19. Let’s install something
•
$ docker run ubuntu apt-get install -y python-pip
•
Try to install something via pip
•
$ docker run ubuntu pip install bottle
•
Where’s my pip?

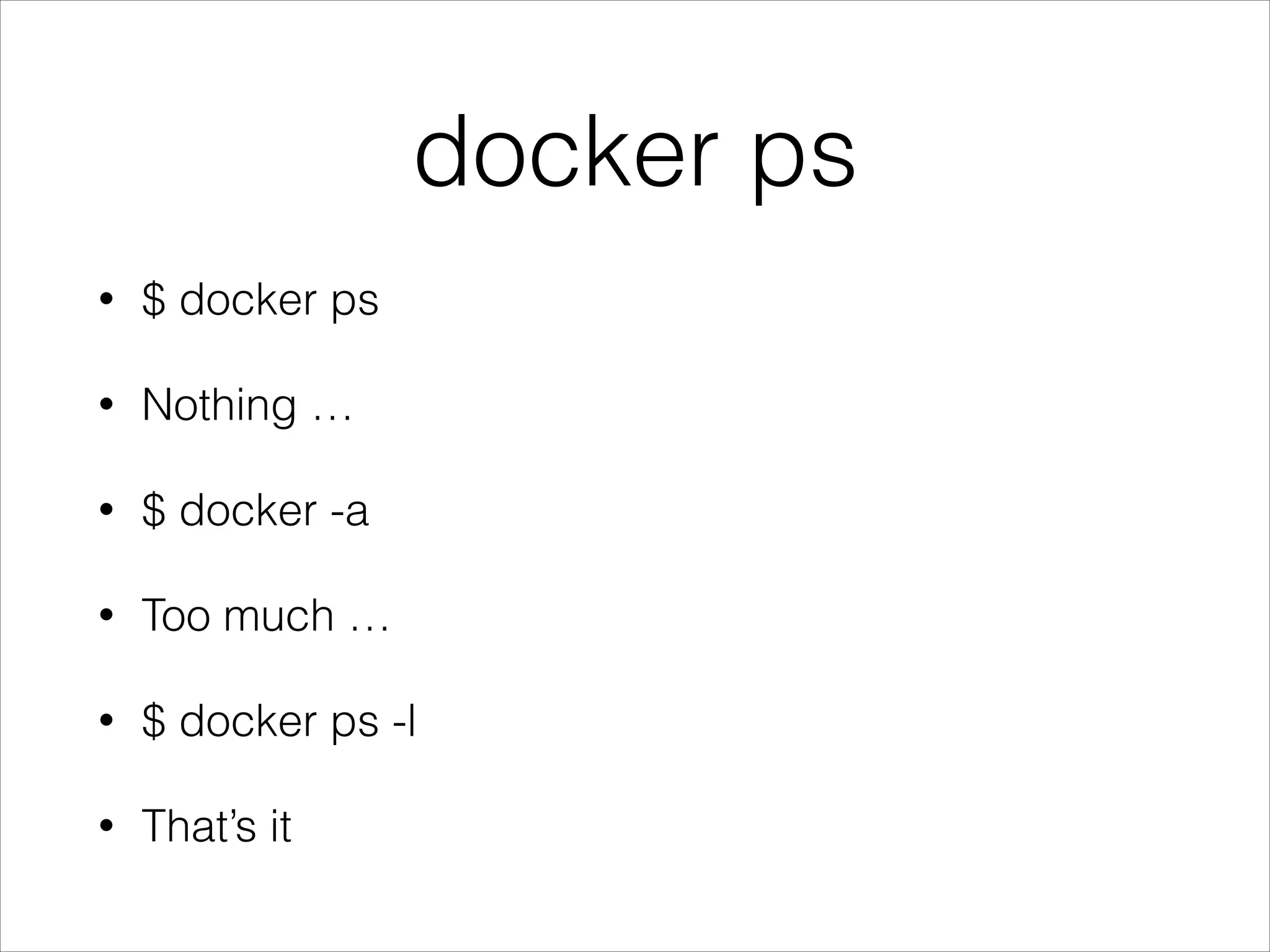

20. docker ps
•
$ docker ps
•
Nothing …
•
$ docker -a
•
Too much …
•
$ docker ps -l
•
That’s it

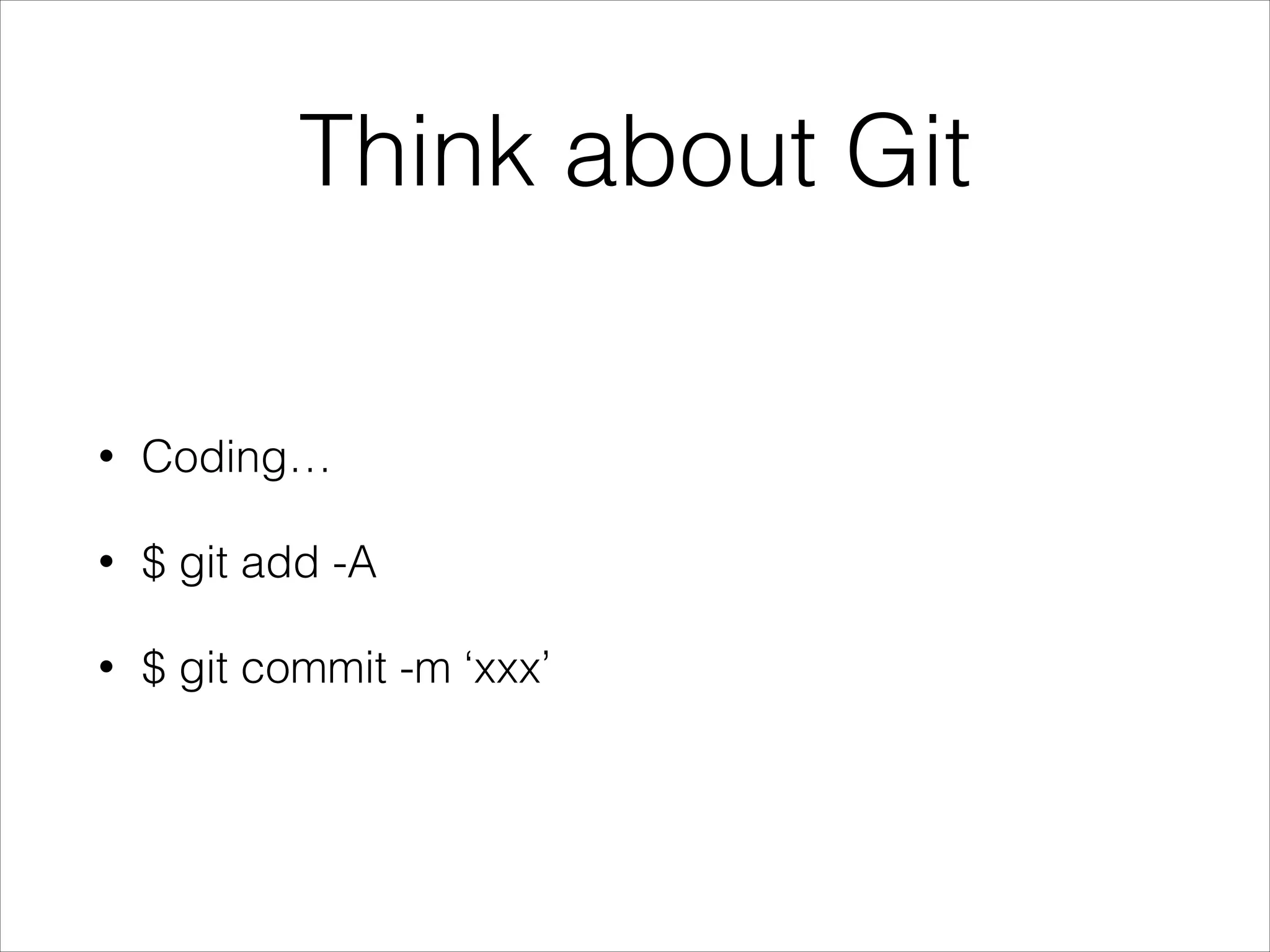

21. Think about Git
•
Coding…
•
$ git add -A
•
$ git commit -m ‘xxx’

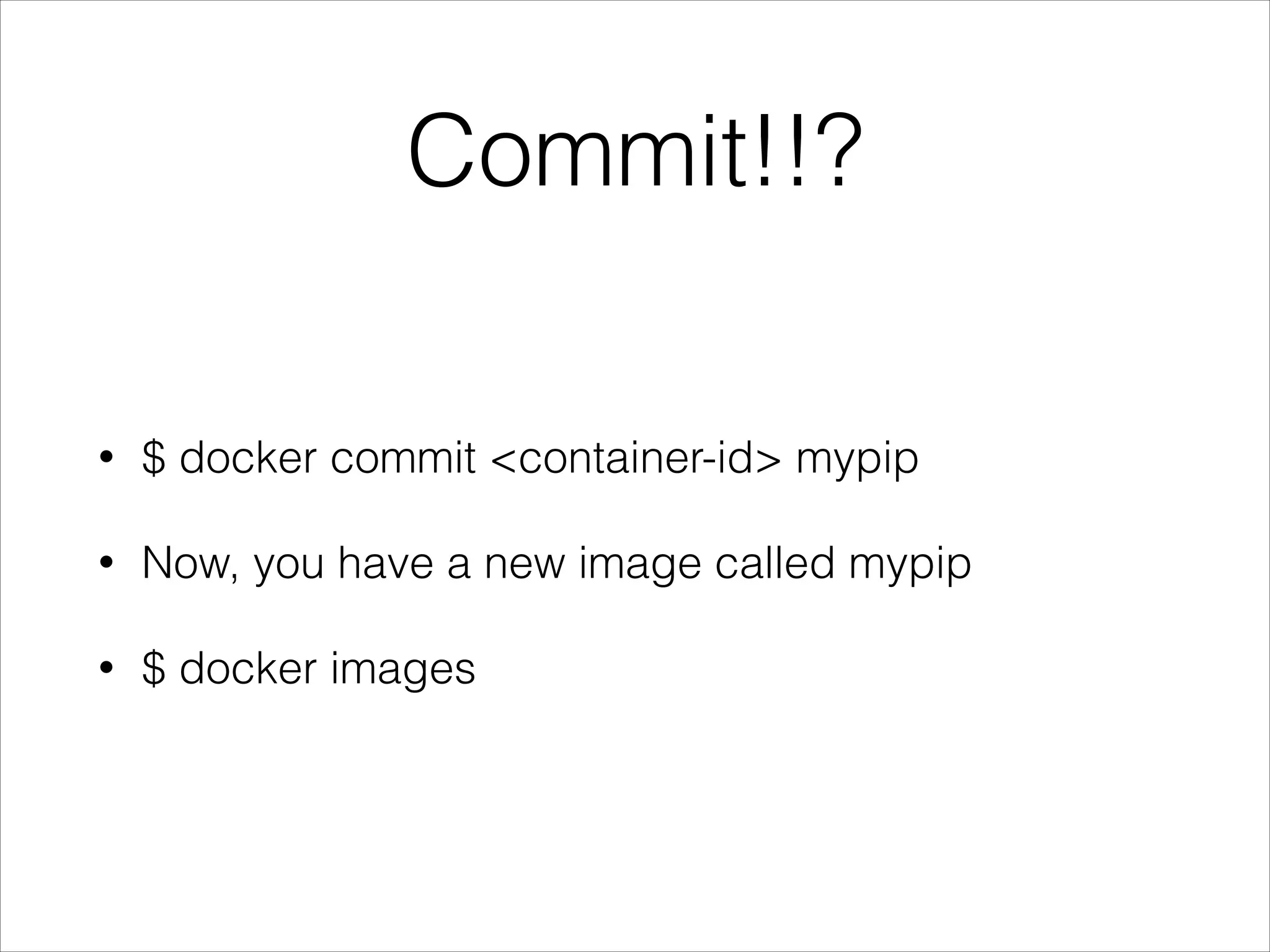

22. Commit!!?
•
$ docker commit <container-id> mypip
•
Now, you have a new image called mypip
•
$ docker images

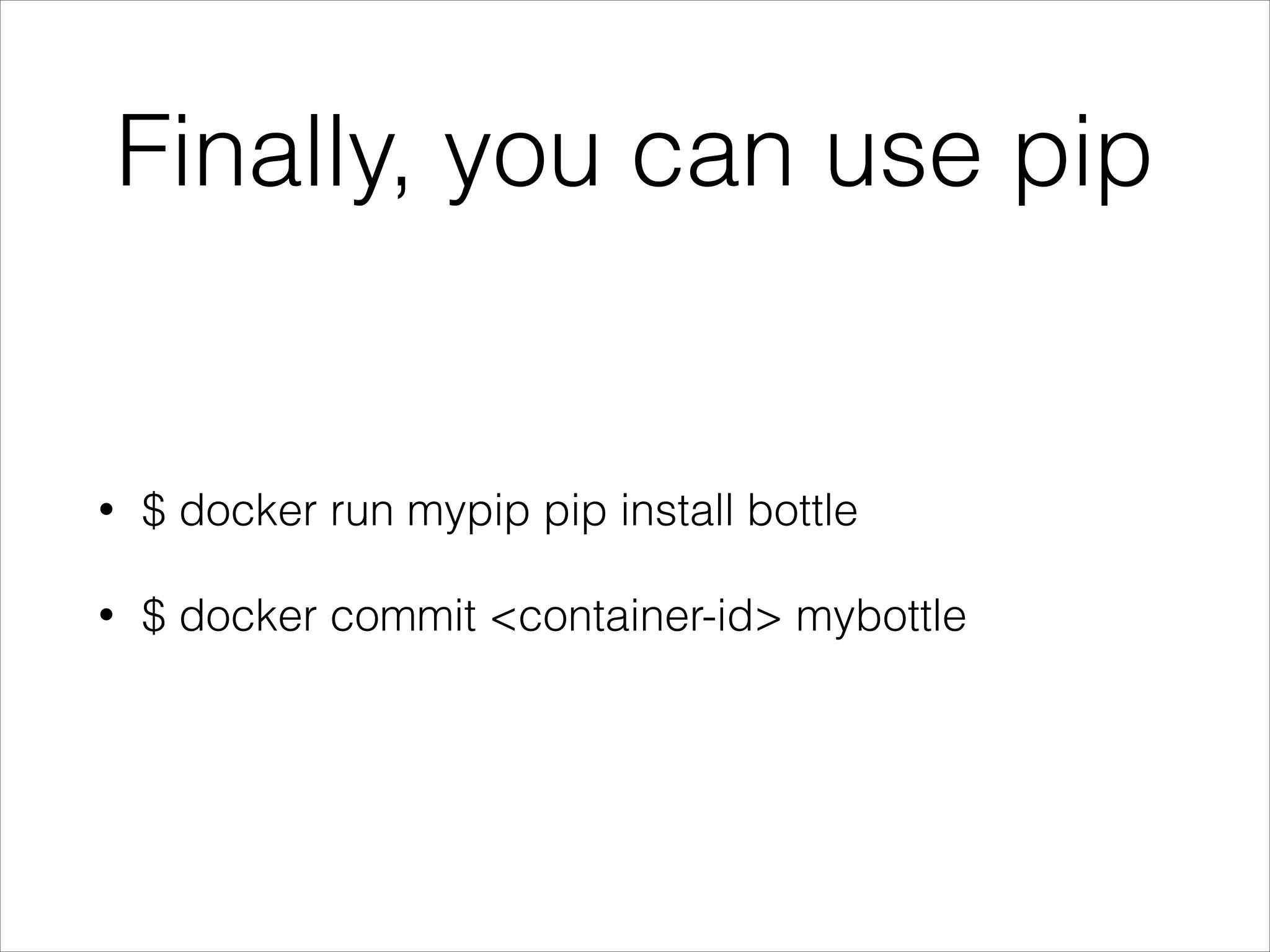

23. Finally, you can use pip
•
$ docker run mypip pip install bottle
•
$ docker commit <container-id> mybottle

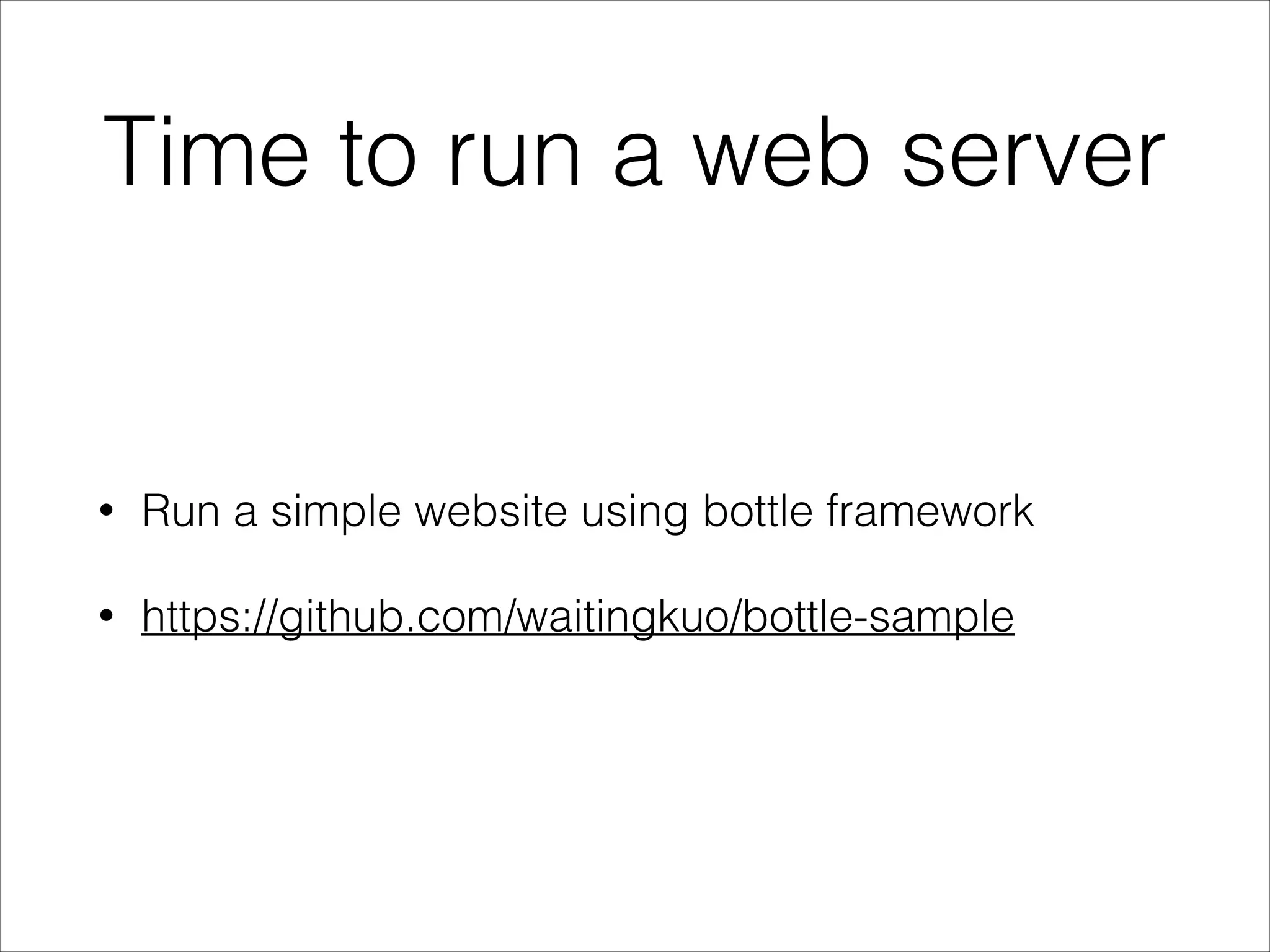

24. Time to run a web server
•
Run a simple website using bottle framework
•
https://github.com/waitingkuo/bottle-sample

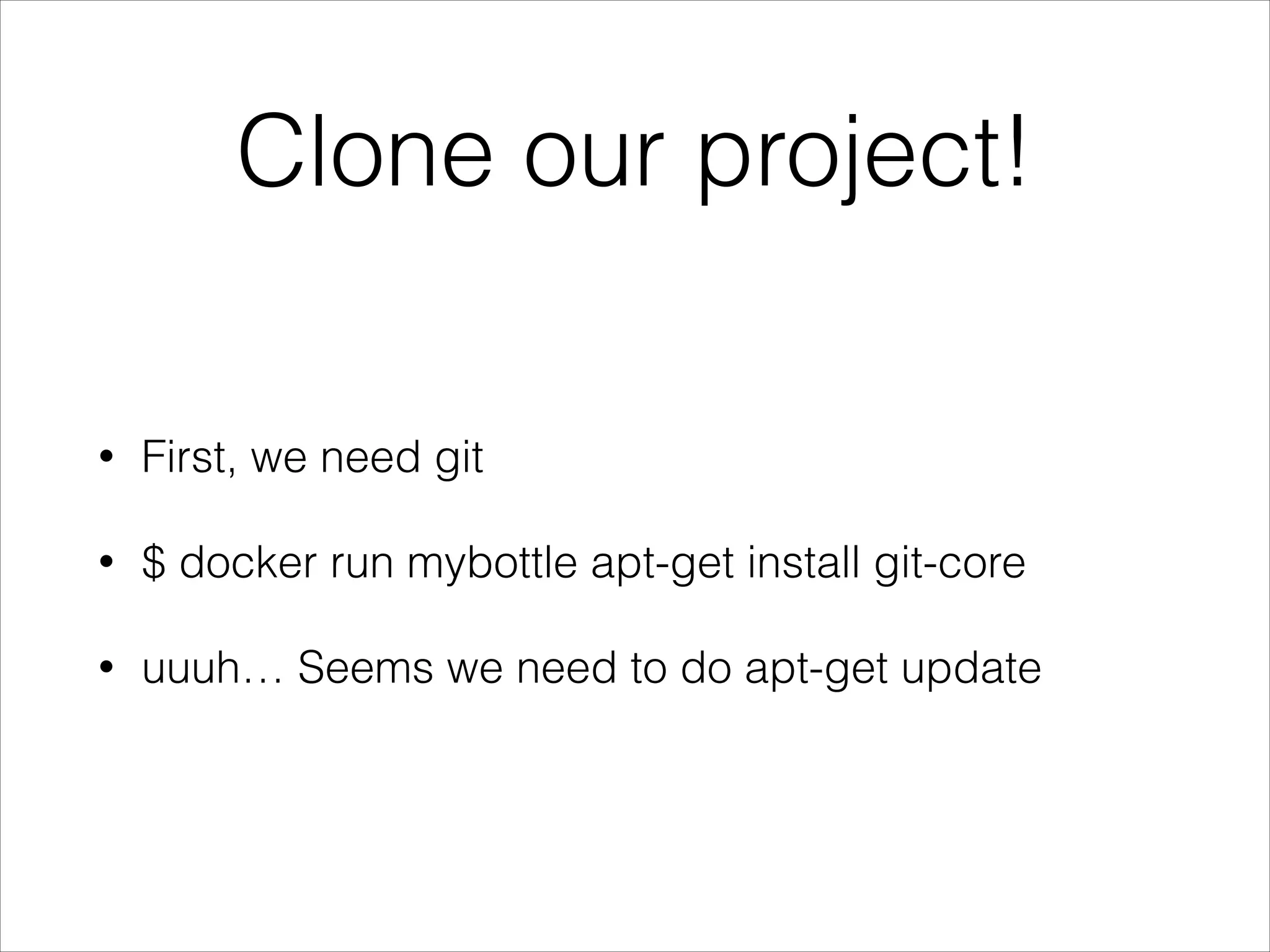

25. Clone our project!
•
First, we need git
•
$ docker run mybottle apt-get install git-core
•
uuuh… Seems we need to do apt-get update

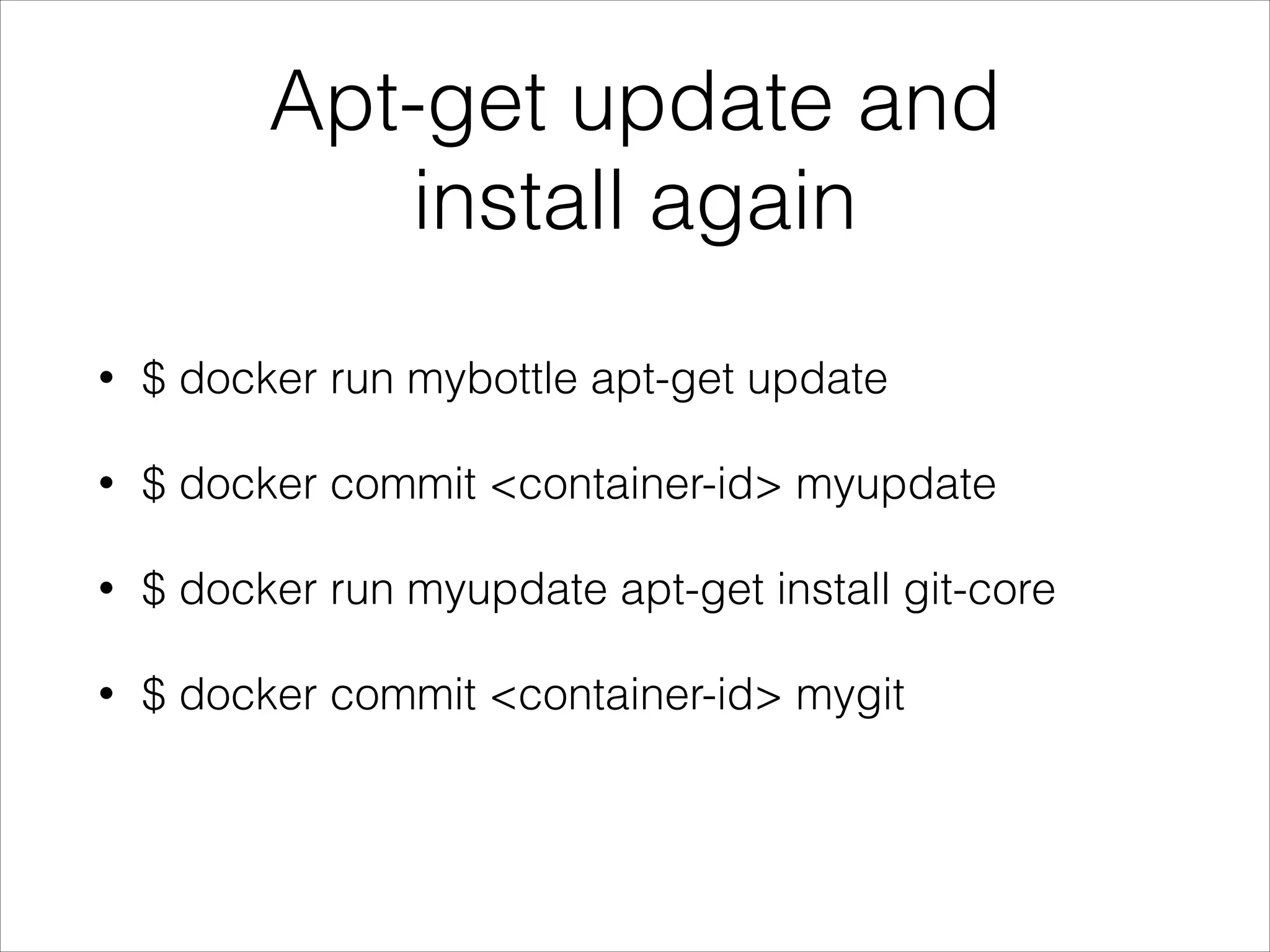

26. Apt-get update and
install again
•
$ docker run mybottle apt-get update
•
$ docker commit <container-id> myupdate
•
$ docker run myupdate apt-get install git-core
•
$ docker commit <container-id> mygit

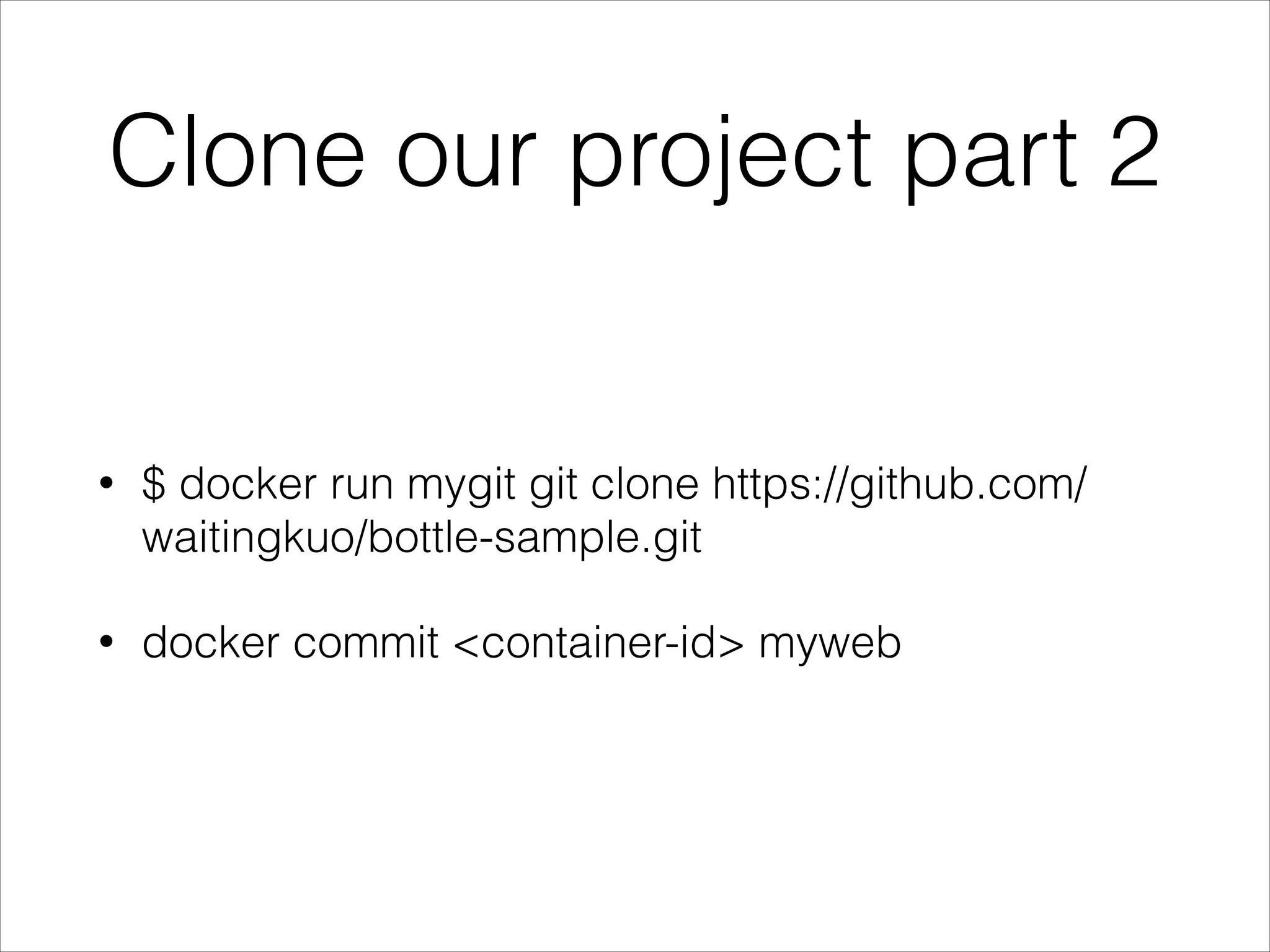

27. Clone our project part 2
•
$ docker run mygit git clone https://github.com/
waitingkuo/bottle-sample.git
•
docker commit <container-id> myweb

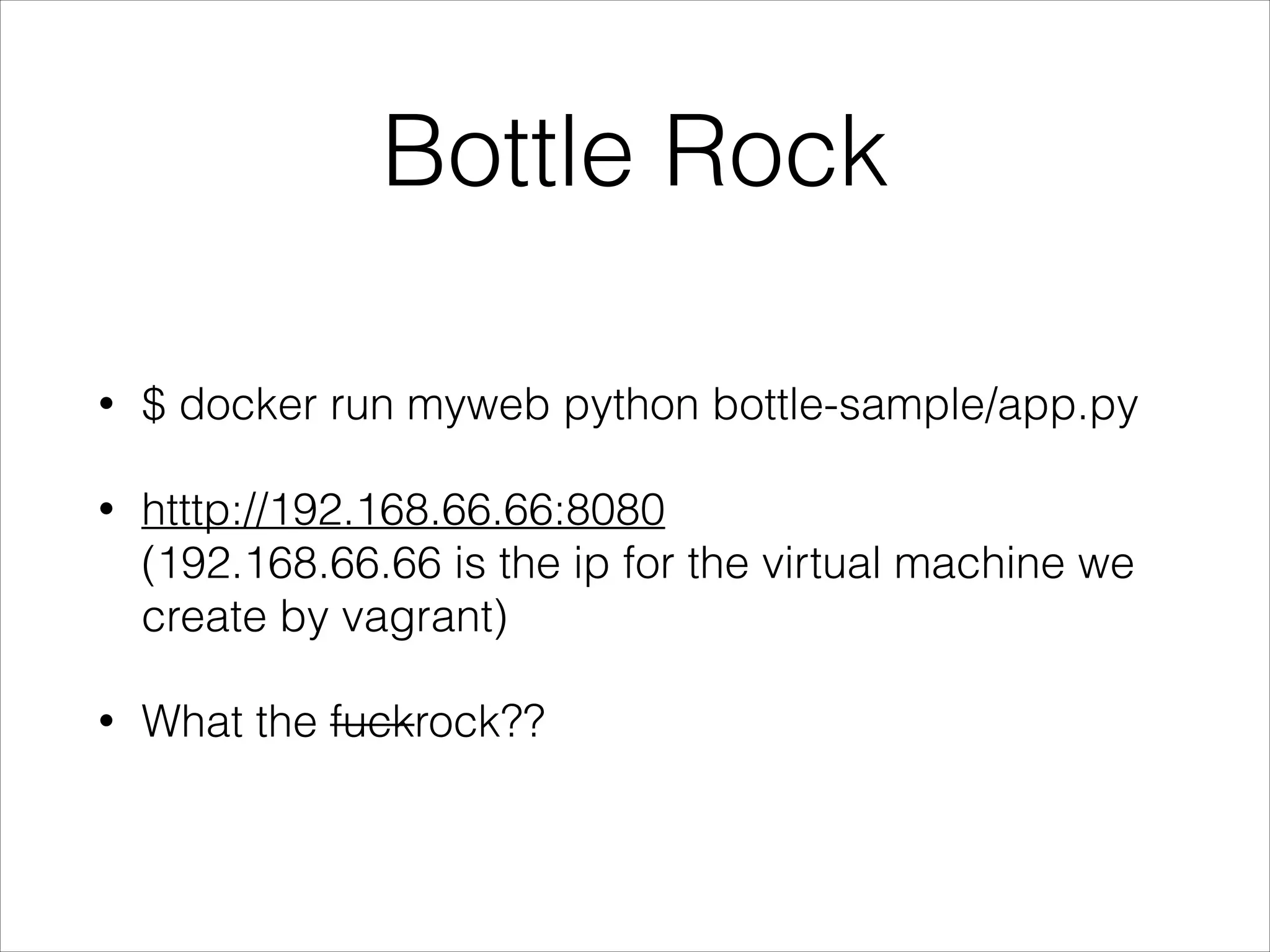

28. Bottle Rock
•
$ docker run myweb python bottle-sample/app.py
•
htttp://192.168.66.66:8080
(192.168.66.66 is the ip for the virtual machine we
create by vagrant)
•
What the fuckrock??

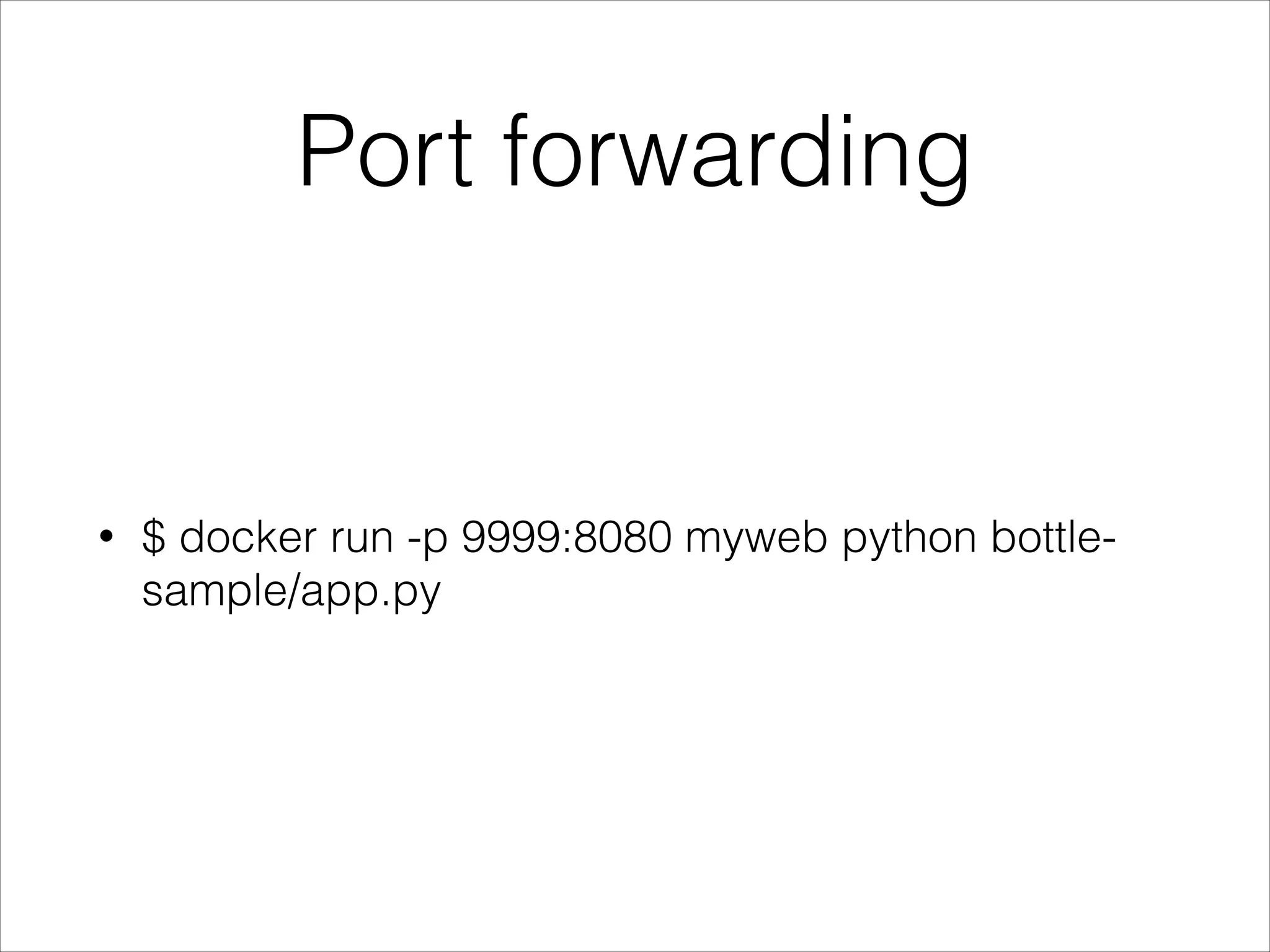

29. Port forwarding
•
$ docker run -p 9999:8080 myweb python bottlesample/app.py

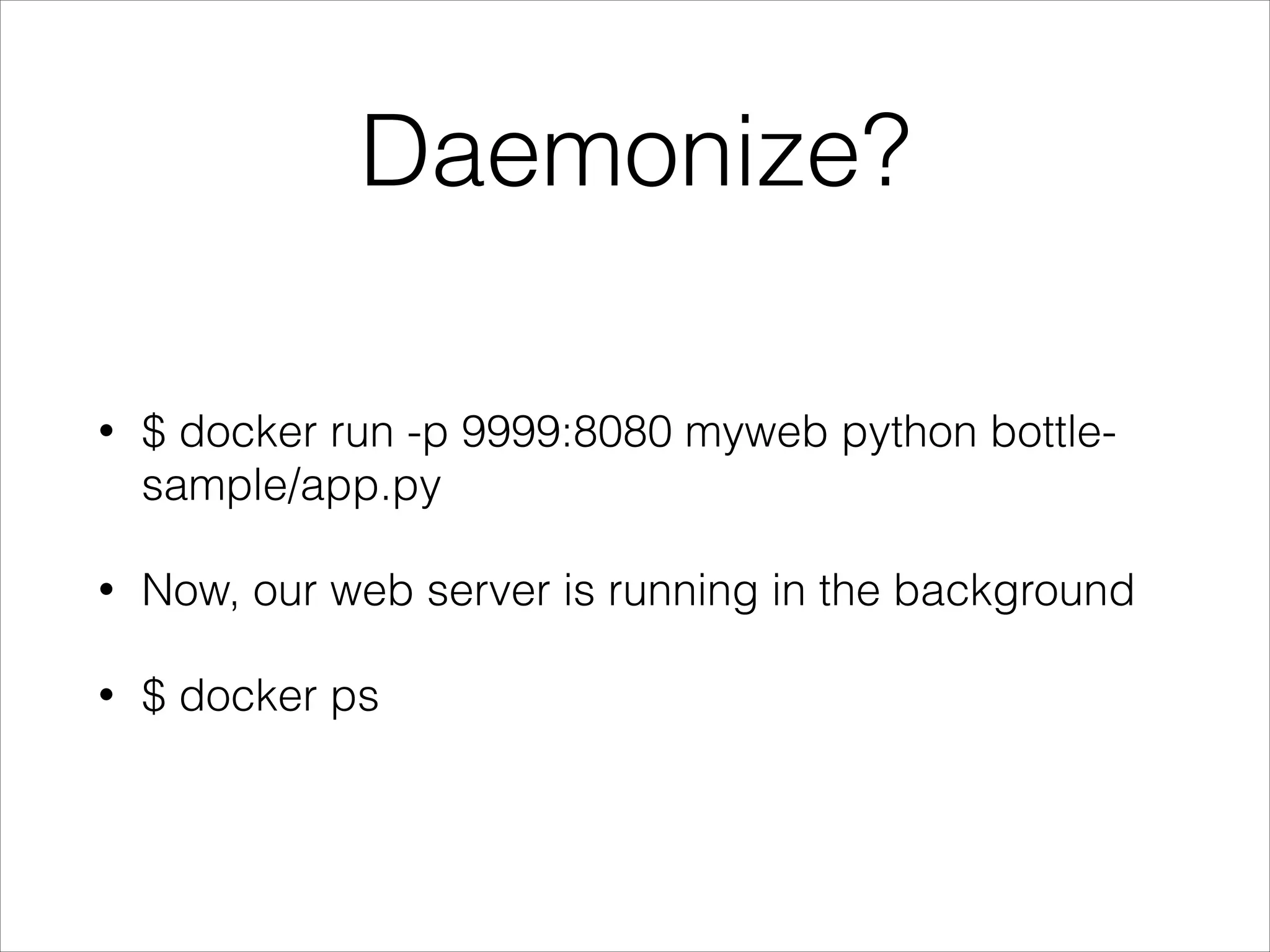

30. Daemonize?
•
$ docker run -p 9999:8080 myweb python bottlesample/app.py
•
Now, our web server is running in the background
•
$ docker ps

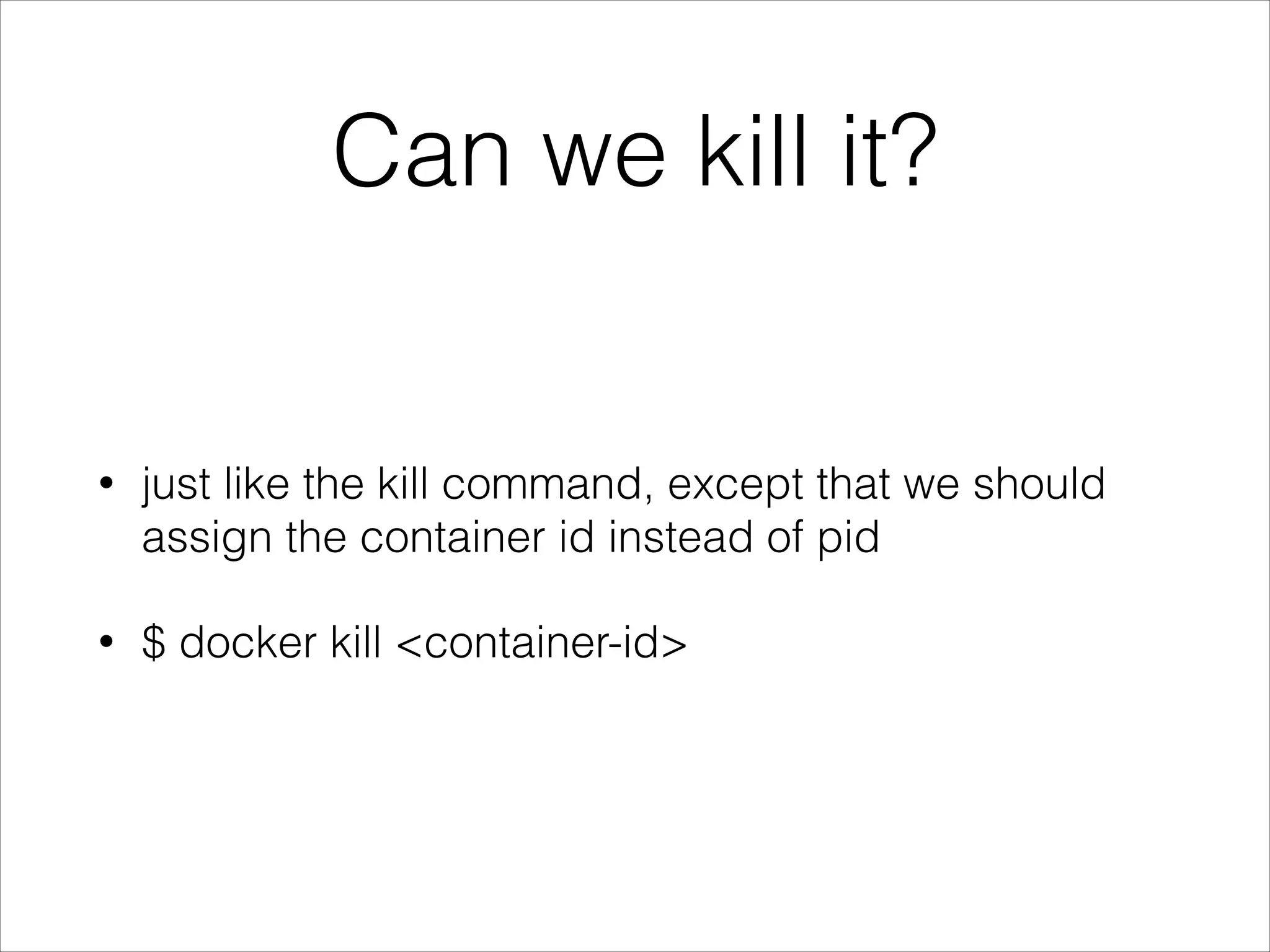

31. Can we kill it?
•
just like the kill command, except that we should
assign the container id instead of pid
•
$ docker kill <container-id>

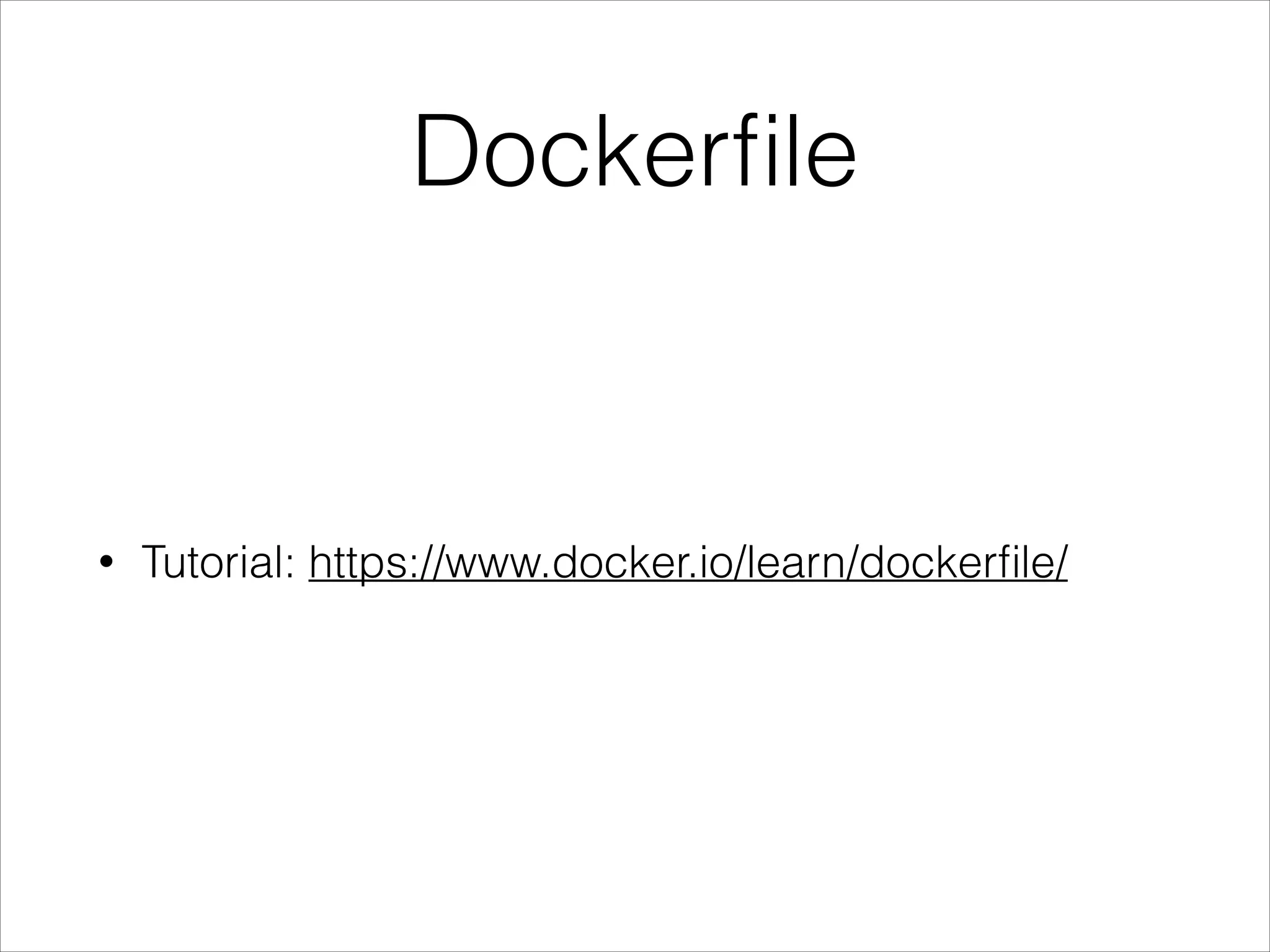

32. Dockerfile
•
Tutorial: https://www.docker.io/learn/dockerfile/

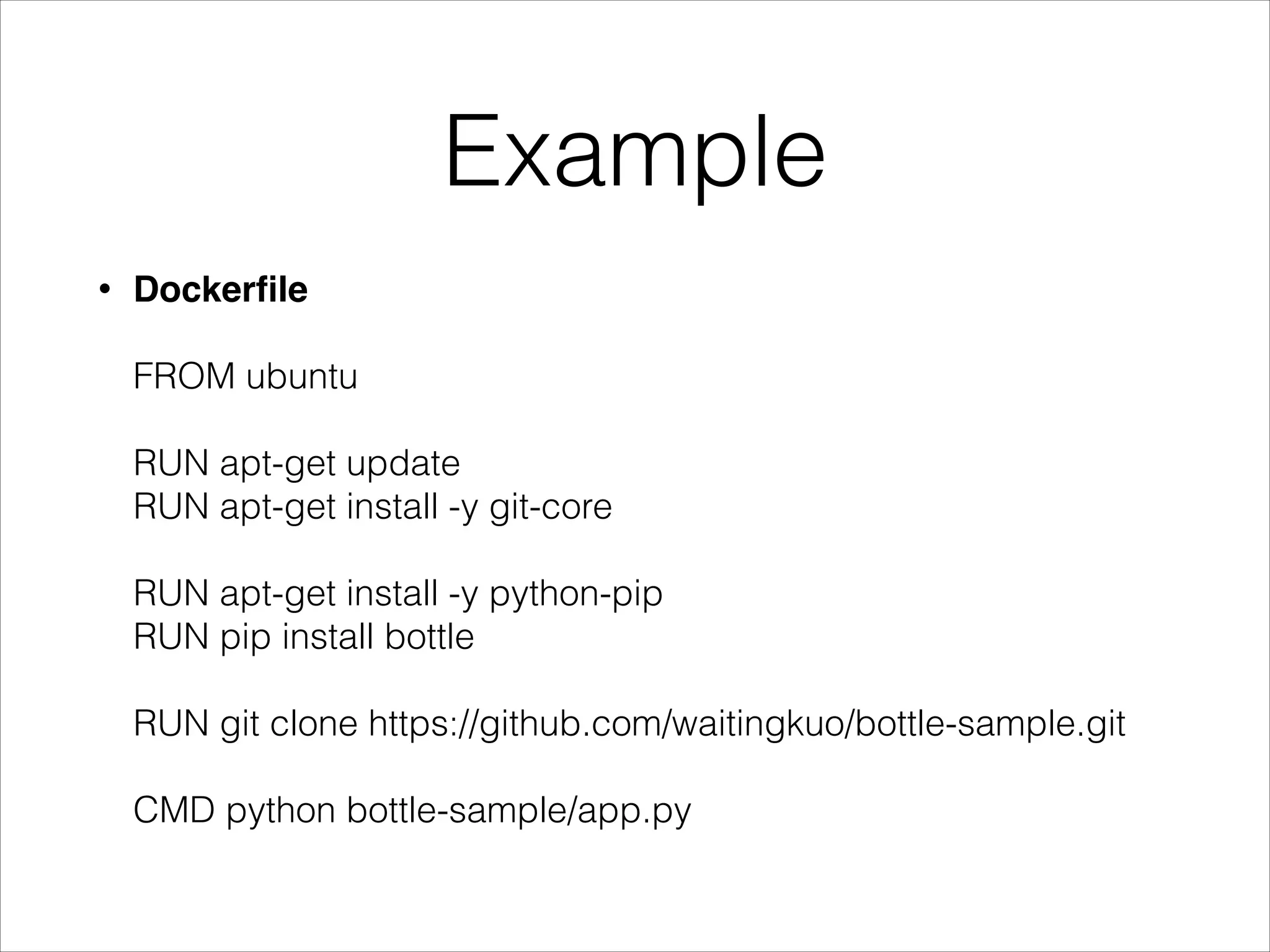

33. Example
Dockerfile
•
FROM ubuntu
RUN apt-get update
RUN apt-get install -y git-core
RUN apt-get install -y python-pip
RUN pip install bottle
RUN git clone https://github.com/waitingkuo/bottle-sample.git
CMD python bottle-sample/app.py

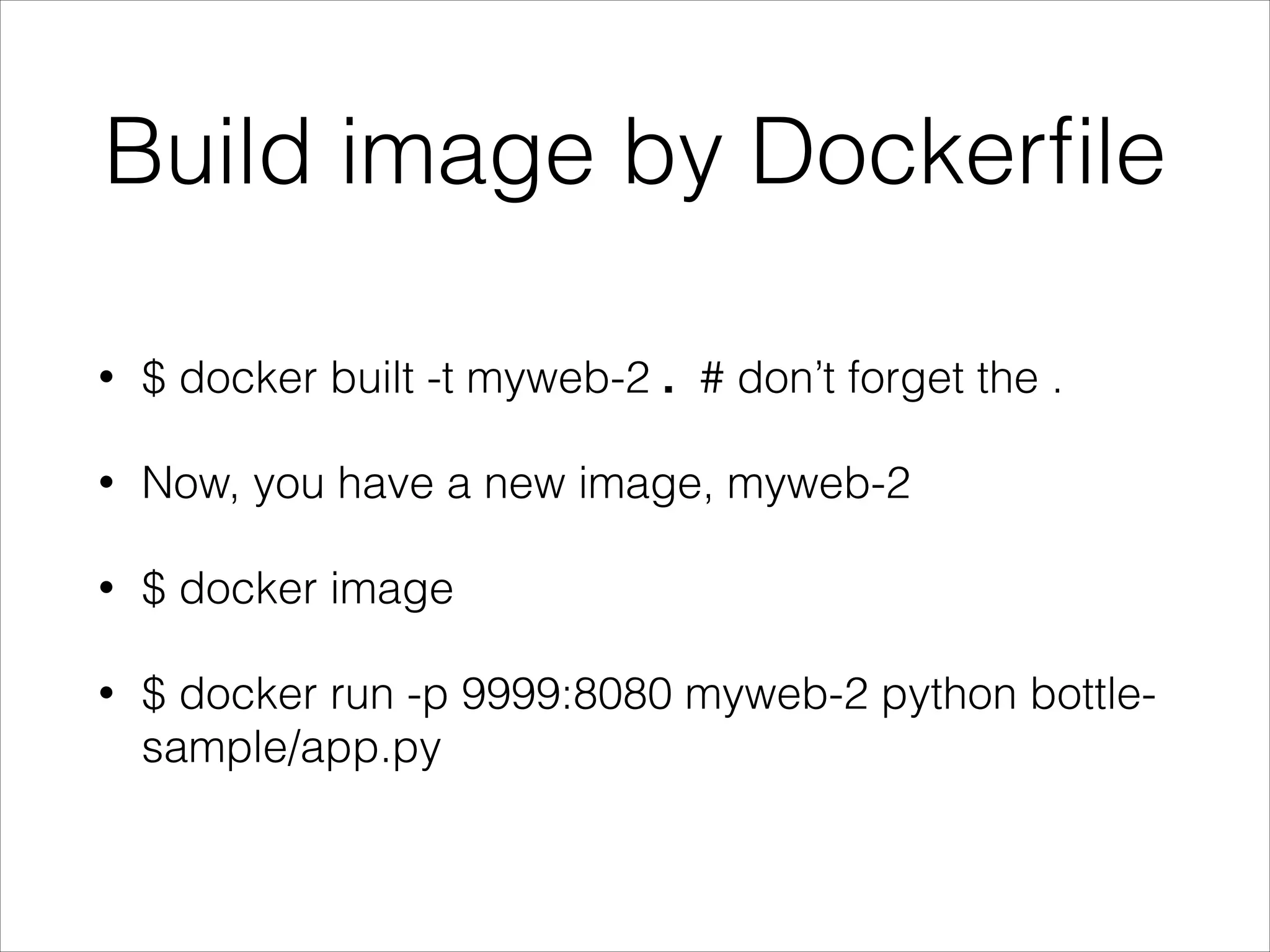

34. Build image by Dockerfile
•
$ docker built -t myweb-2 . # don’t forget the .
•
Now, you have a new image, myweb-2
•
$ docker image
•
$ docker run -p 9999:8080 myweb-2 python bottlesample/app.py

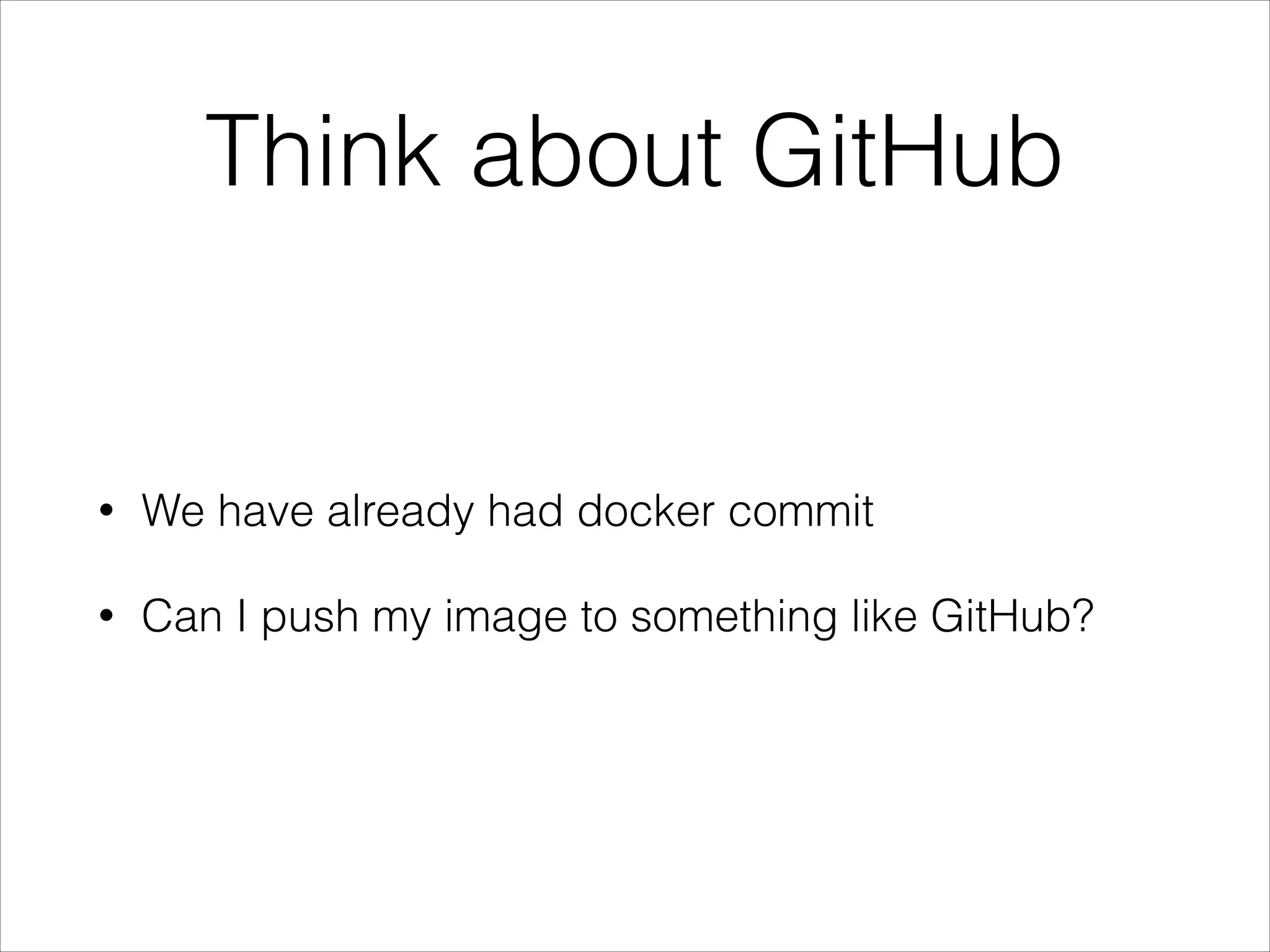

35. Think about GitHub
•
We have already had docker commit
•
Can I push my image to something like GitHub?

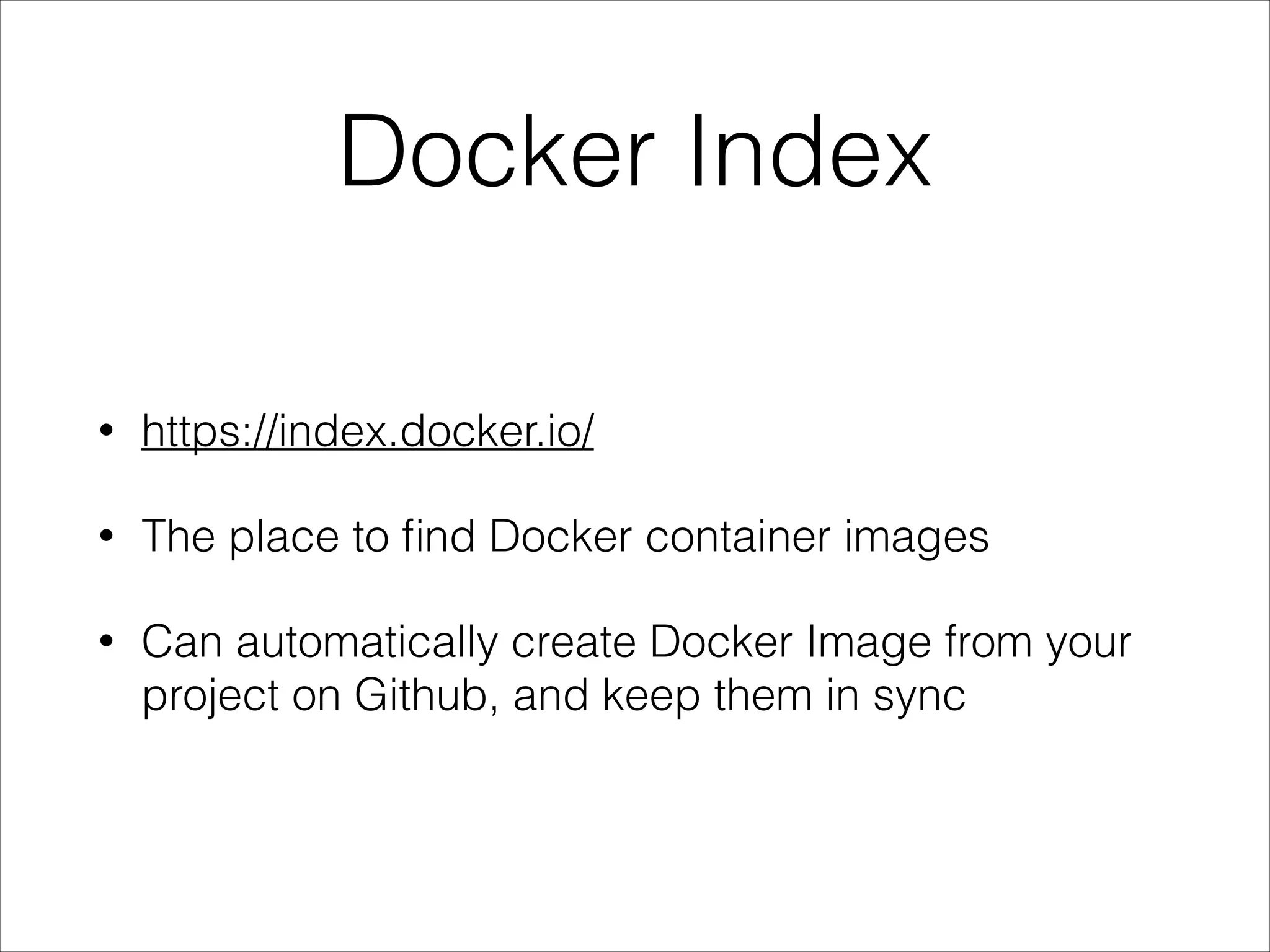

36. Docker Index
•
https://index.docker.io/
•
The place to find Docker container images
•
Can automatically create Docker Image from your
project on Github, and keep them in sync

37. The basics of the
Docker System

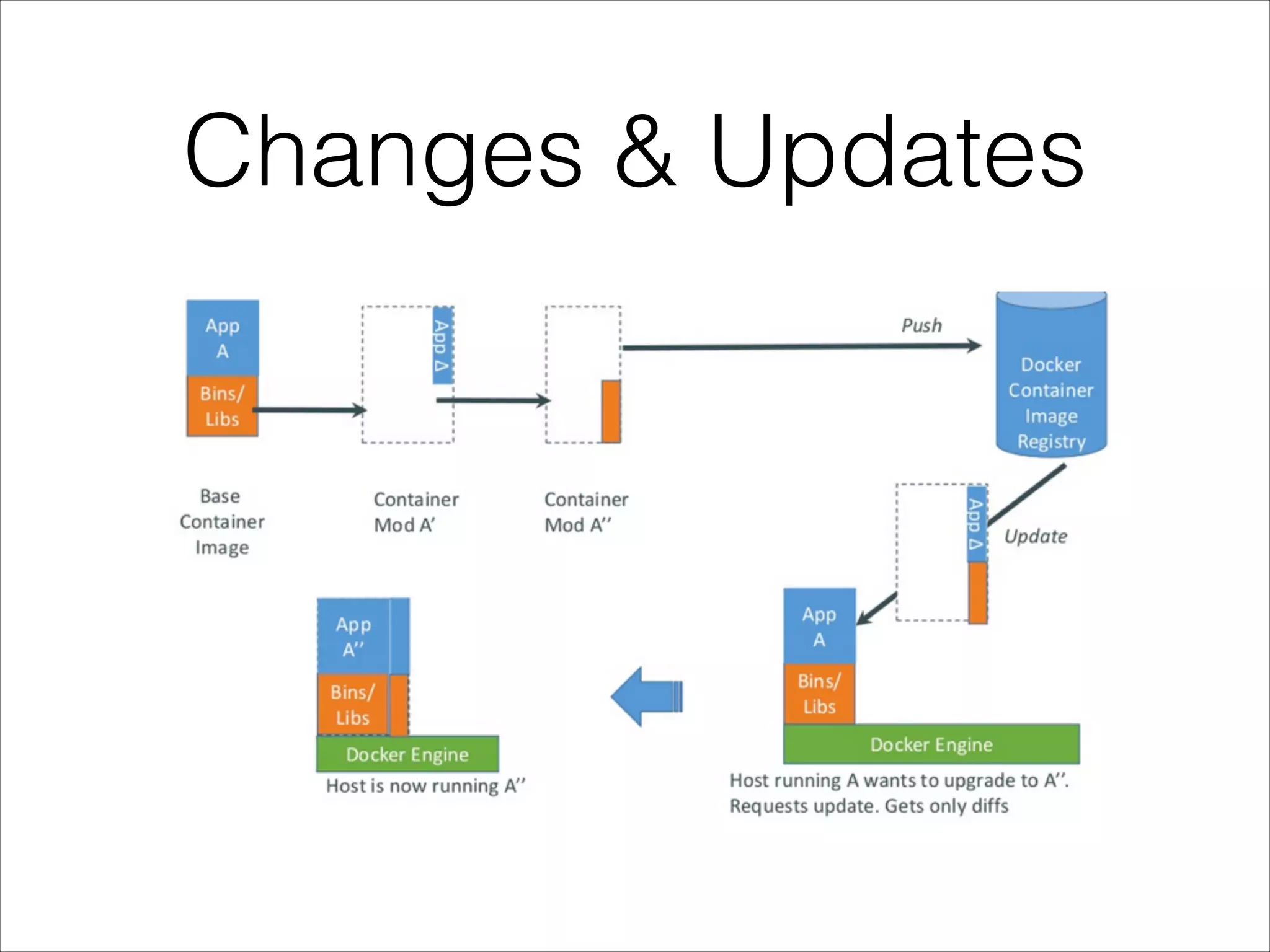

38. Changes & Updates

39. Example Deploy Mongodb
•
https://index.docker.io/u/waitingkuo/mongodb/
•
The Dockfile is hosted on Github
https://github.com/waitingkuo/dockerfiles/blob/
master/dockerfiles/mongodb/Dockerfile
•
$ docker run -d -p 27017:27017 -p 28017:28017
waitingkuo/mongodb
•
Mongodb is running
http://192.168.66.66:28017/

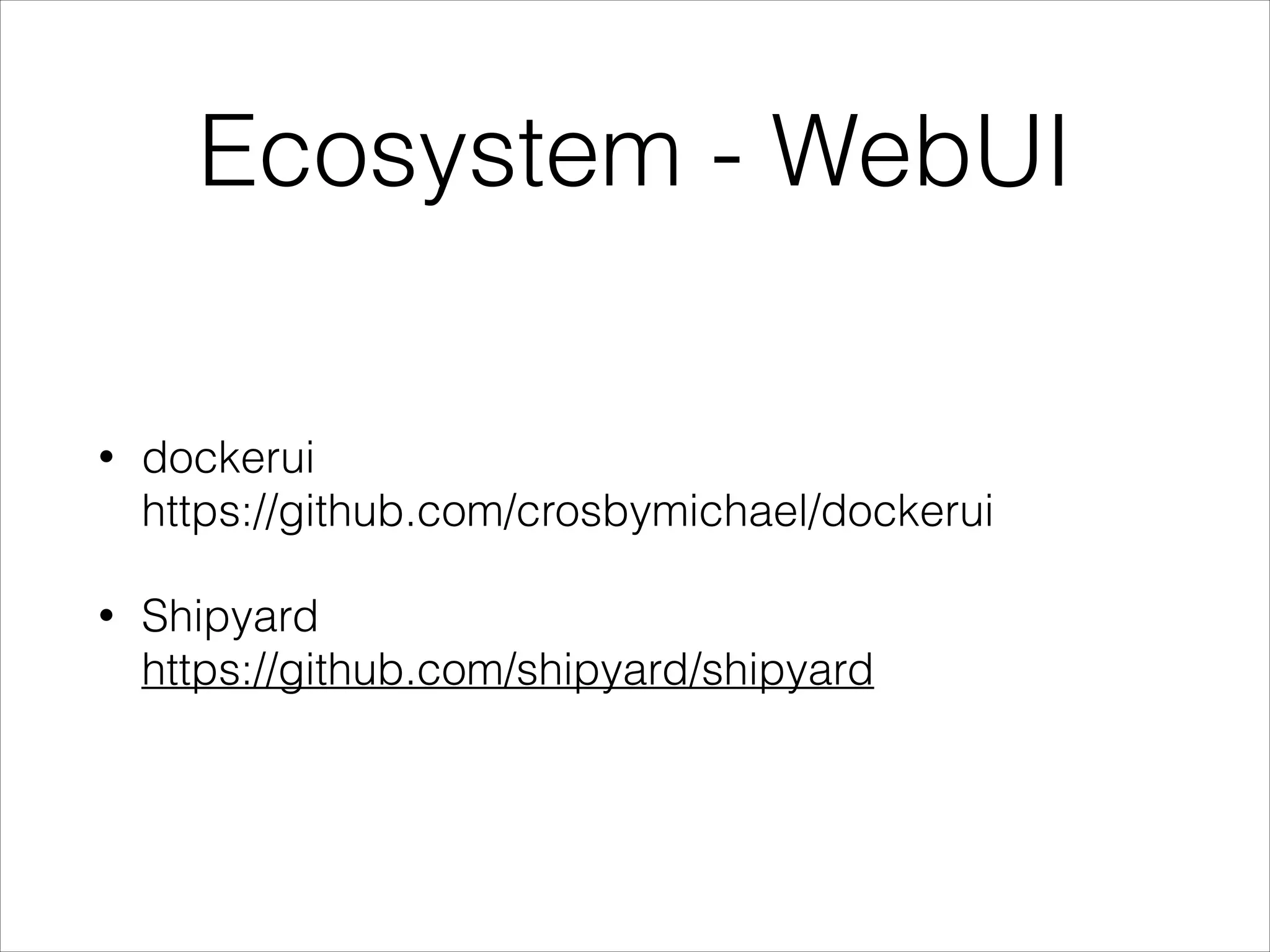

40. Ecosystem - WebUI
•
dockerui
https://github.com/crosbymichael/dockerui
•
Shipyard
https://github.com/shipyard/shipyard

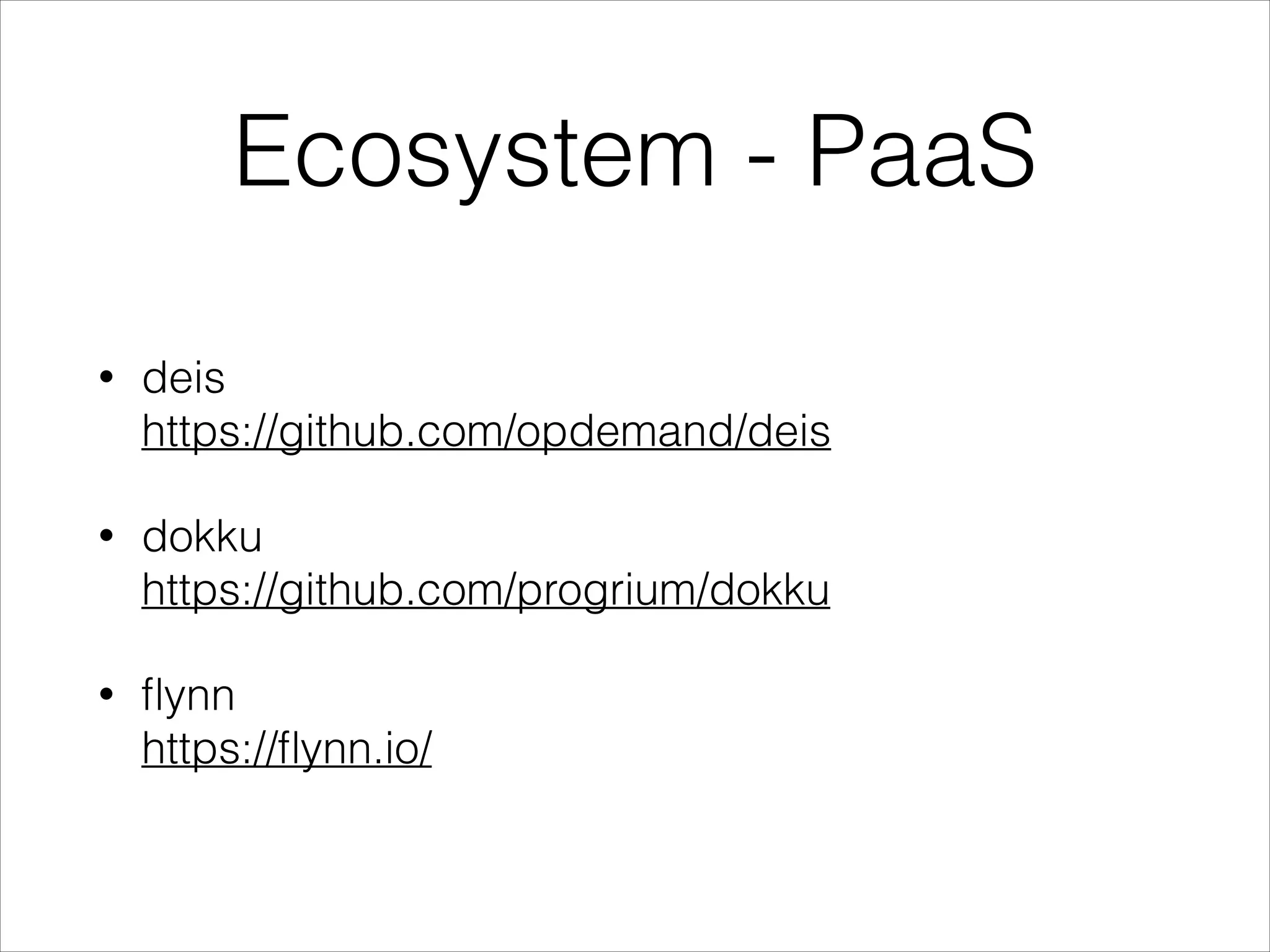

41. Ecosystem - PaaS
•
deis
https://github.com/opdemand/deis
•
dokku
https://github.com/progrium/dokku
•
flynn
https://flynn.io/

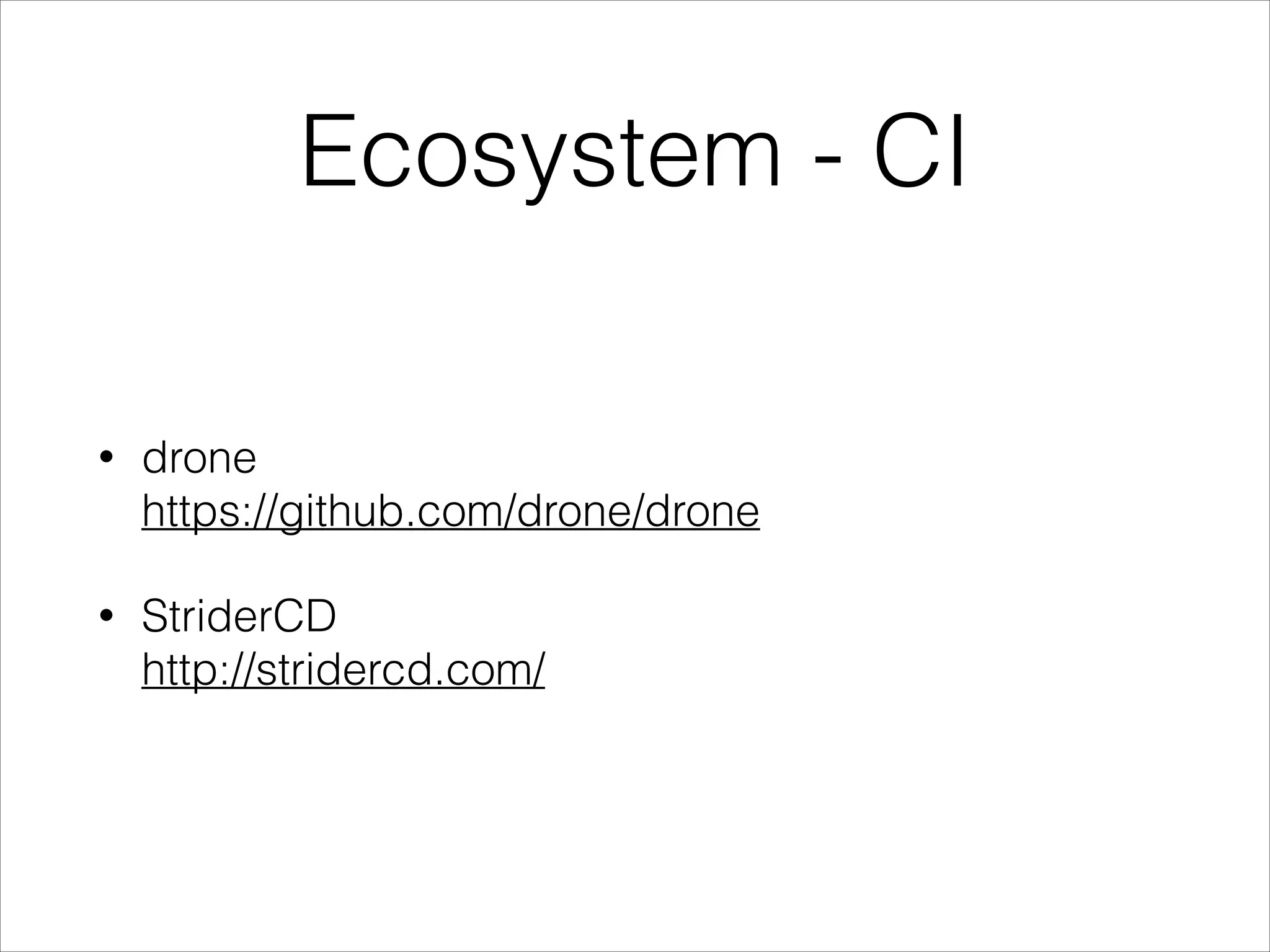

42. Ecosystem - CI
•
drone
https://github.com/drone/drone
•
StriderCD
http://stridercd.com/

43. Thank you!
