This is an introduction to Docker & Ansible. It shows how Ansible can be used as orchestration too for Docker. There are 2 real world examples included with code examples in a Gist.

1. Infrastructure Deployment with

2. Who I am?
• Robert Reiz
• Software Developer
• I started VersionEye
• Software Dev since 1998

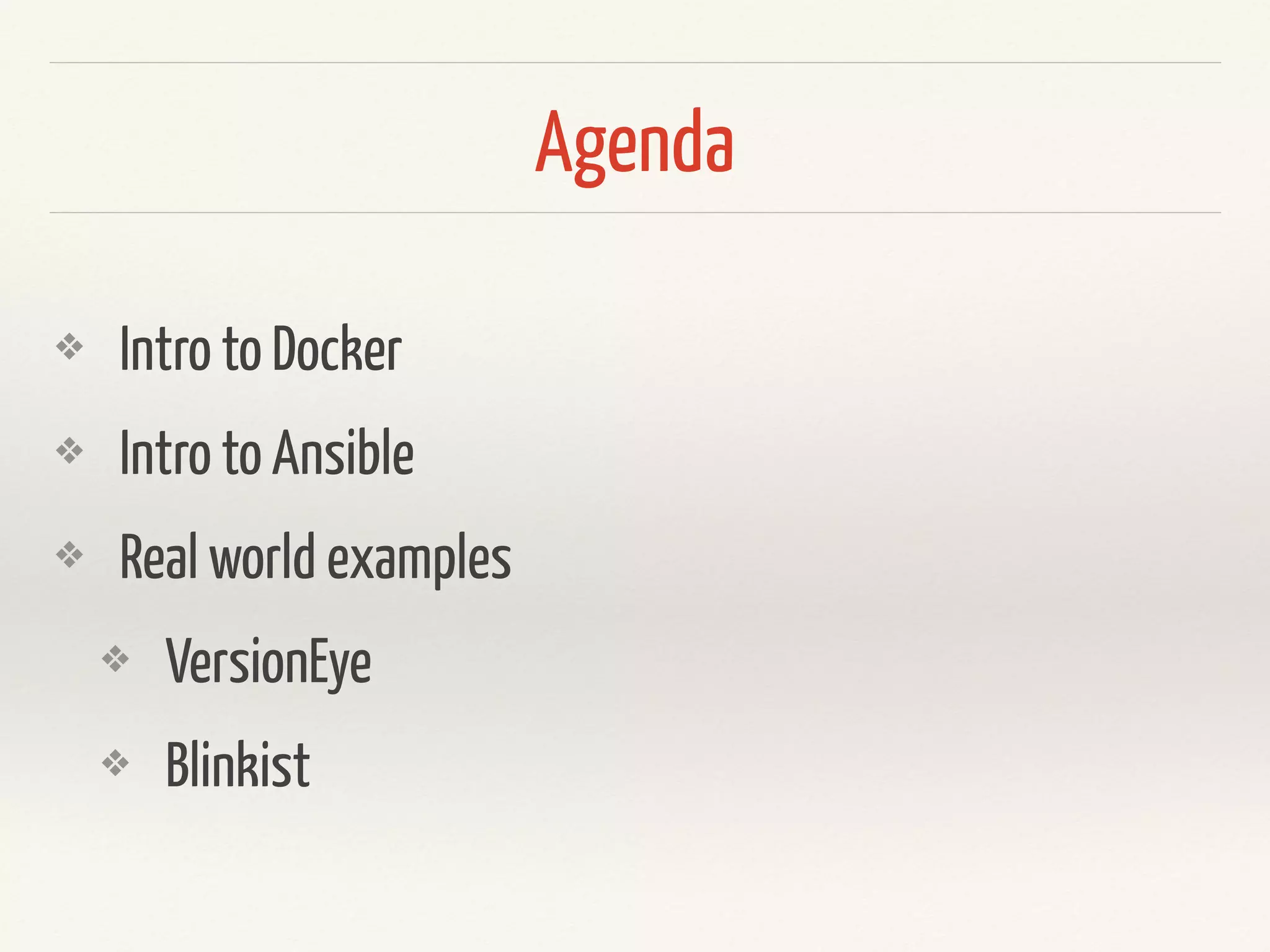

3. Agenda
❖ Intro to Docker
❖ Demo
❖ Intro to Ansible
❖ Demo

4. Shipment
without
Containers

5. 1956 Malcom McLean introduced the 40’Container - ISO 668.
> 15 Million inst.
2/3
of global trade run
over 40’Containers!

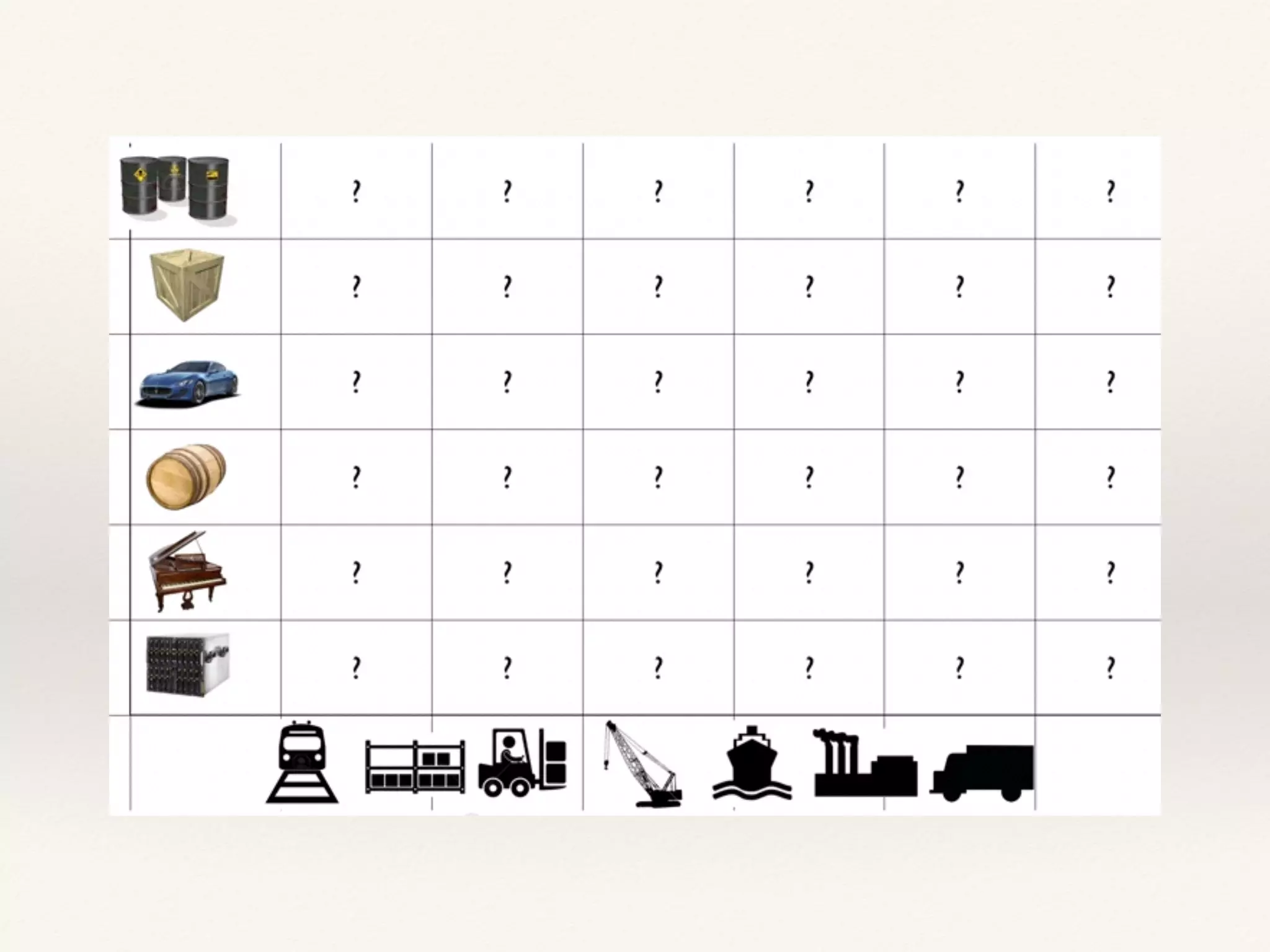

6. The Logistic Problem

9. Same Problem in Software Dev.

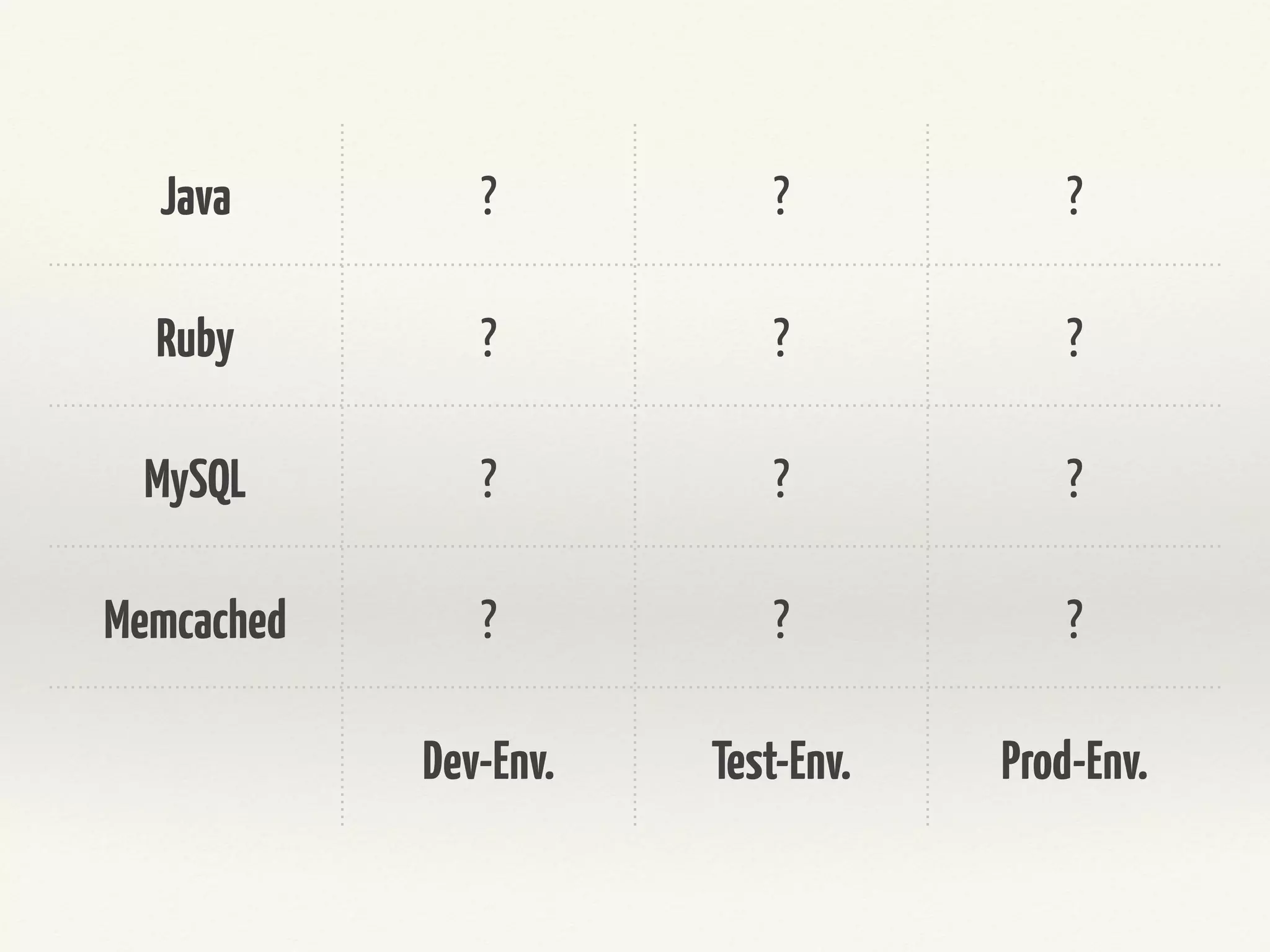

10. Java ? ? ?
Ruby ? ? ?
Node.JS ? ? ?
MySQL ? ? ?
Dev-Env. Test-Env. Prod-Env.

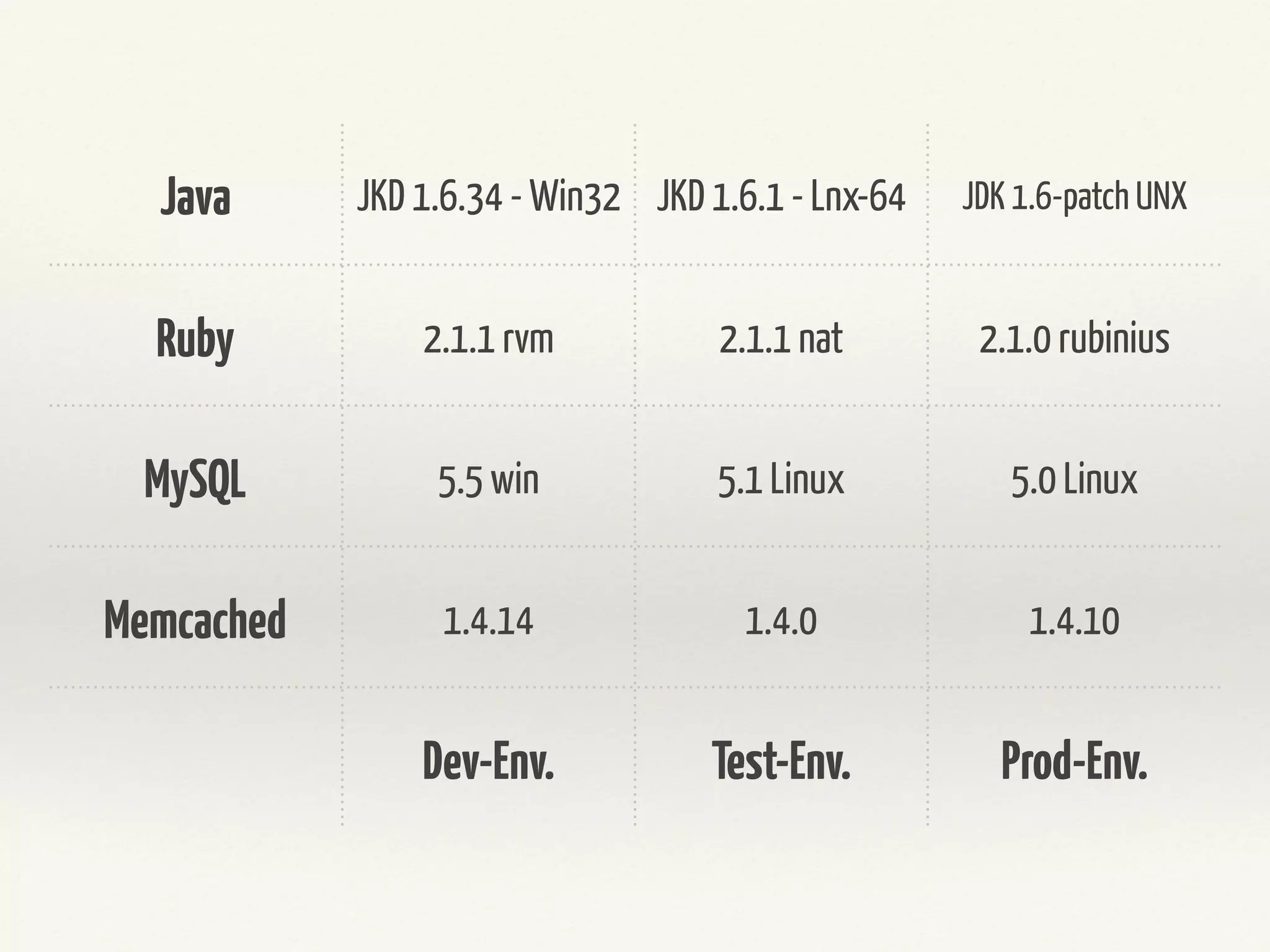

11. Java JKD 1.8.14 - Win32 JKD 1.8.1 - Lnx-64 JDK 1.7-patch UNX
Ruby 2.2.2 rvm 2.2.1 nat MRI 2.1.0 rubinius
Node.JS 4.0 win 4.0 Linux 4.0 Linux
MySQL 5.5 win 5.0 Linux 5.0 Linux
Dev-Env. Test-Env. Prod-Env.

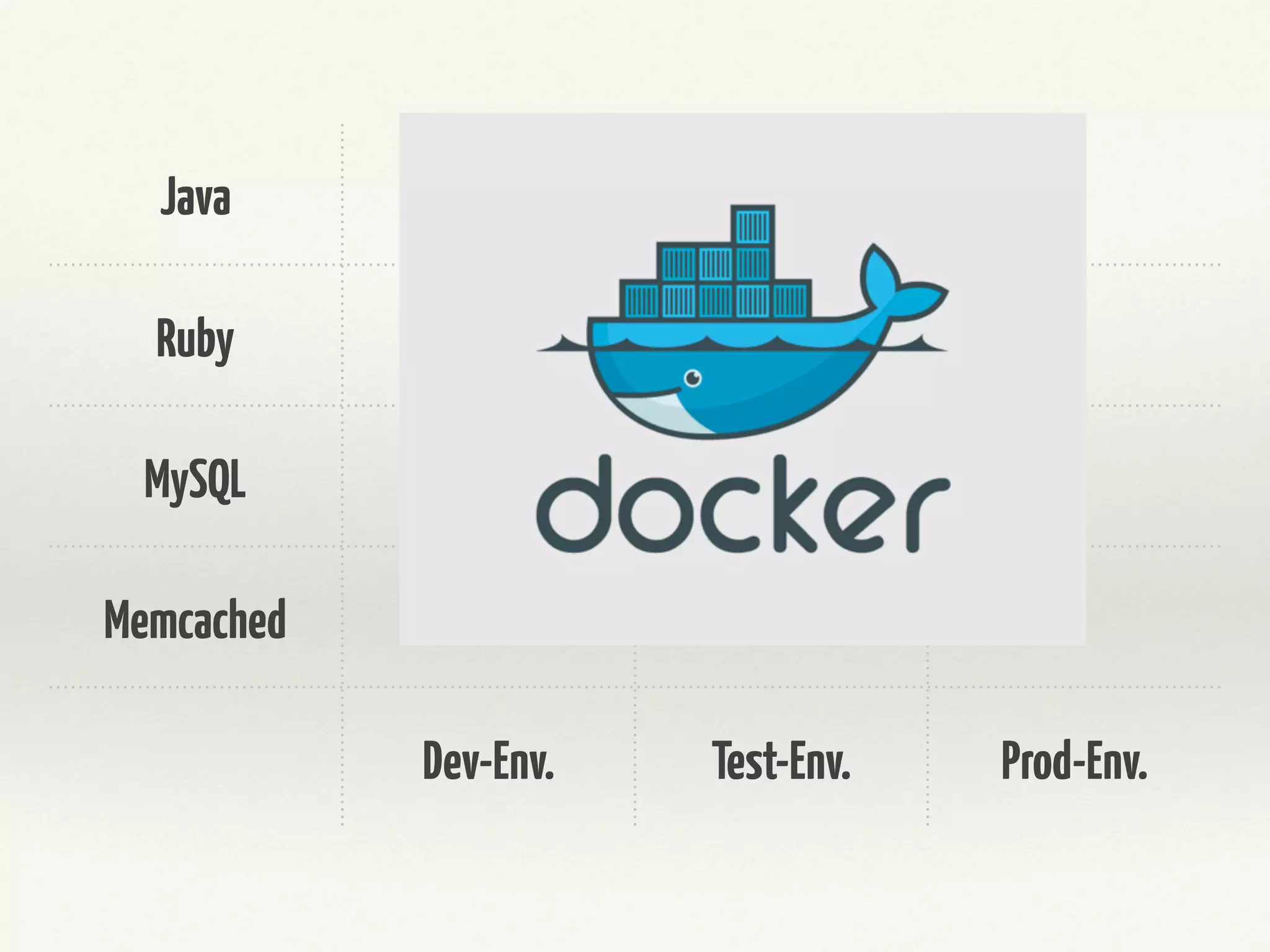

12. Java
Ruby
Node.JS
MySQL
Dev-Env. Test-Env. Prod-Env.

13. What is Docker?

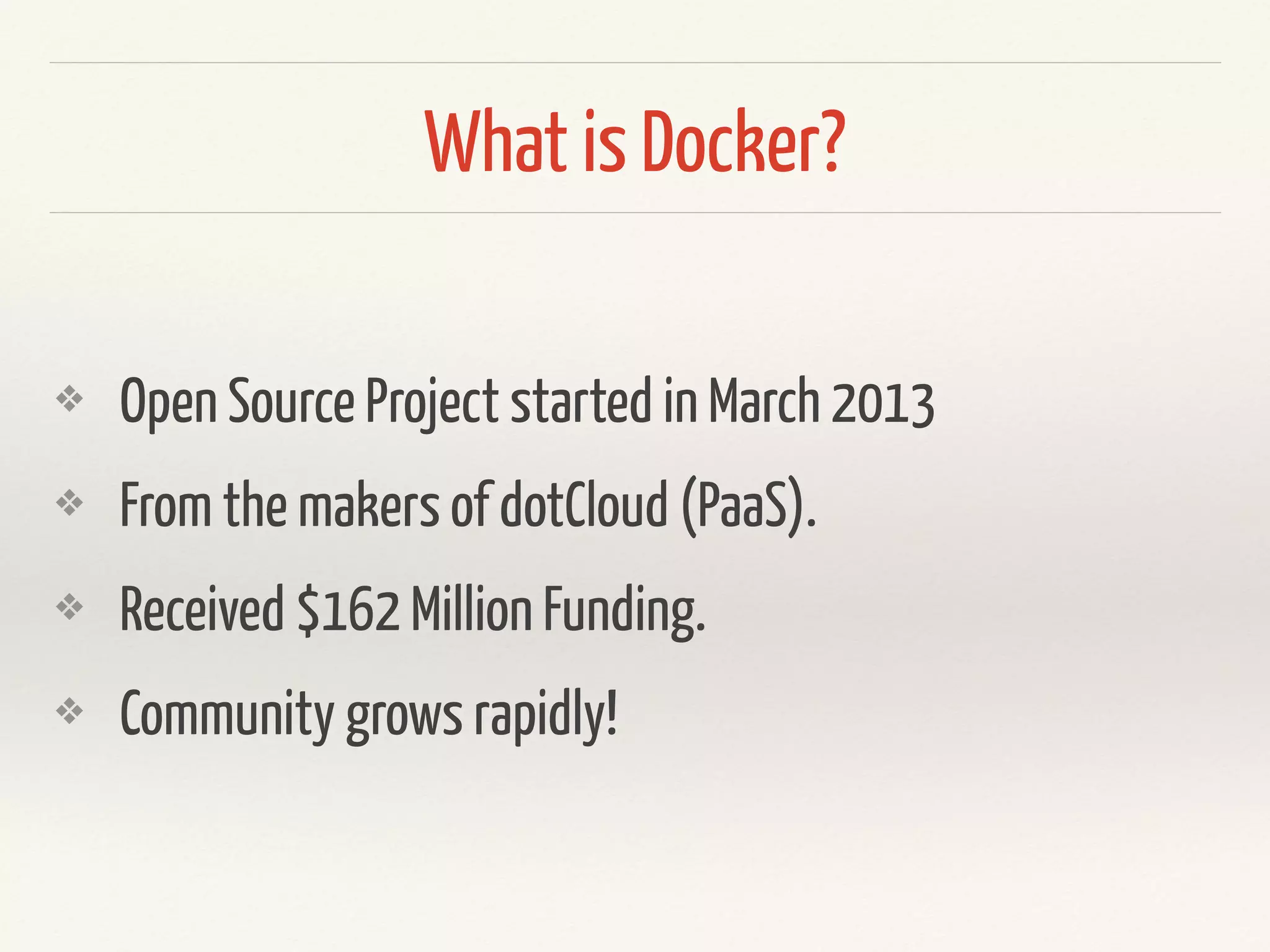

14. What is Docker?
❖ Open Source Project started in March 2013
❖ From the makers of dotCloud (PaaS).
❖ Received $162 Million Funding.
❖ Community grows rapidly!

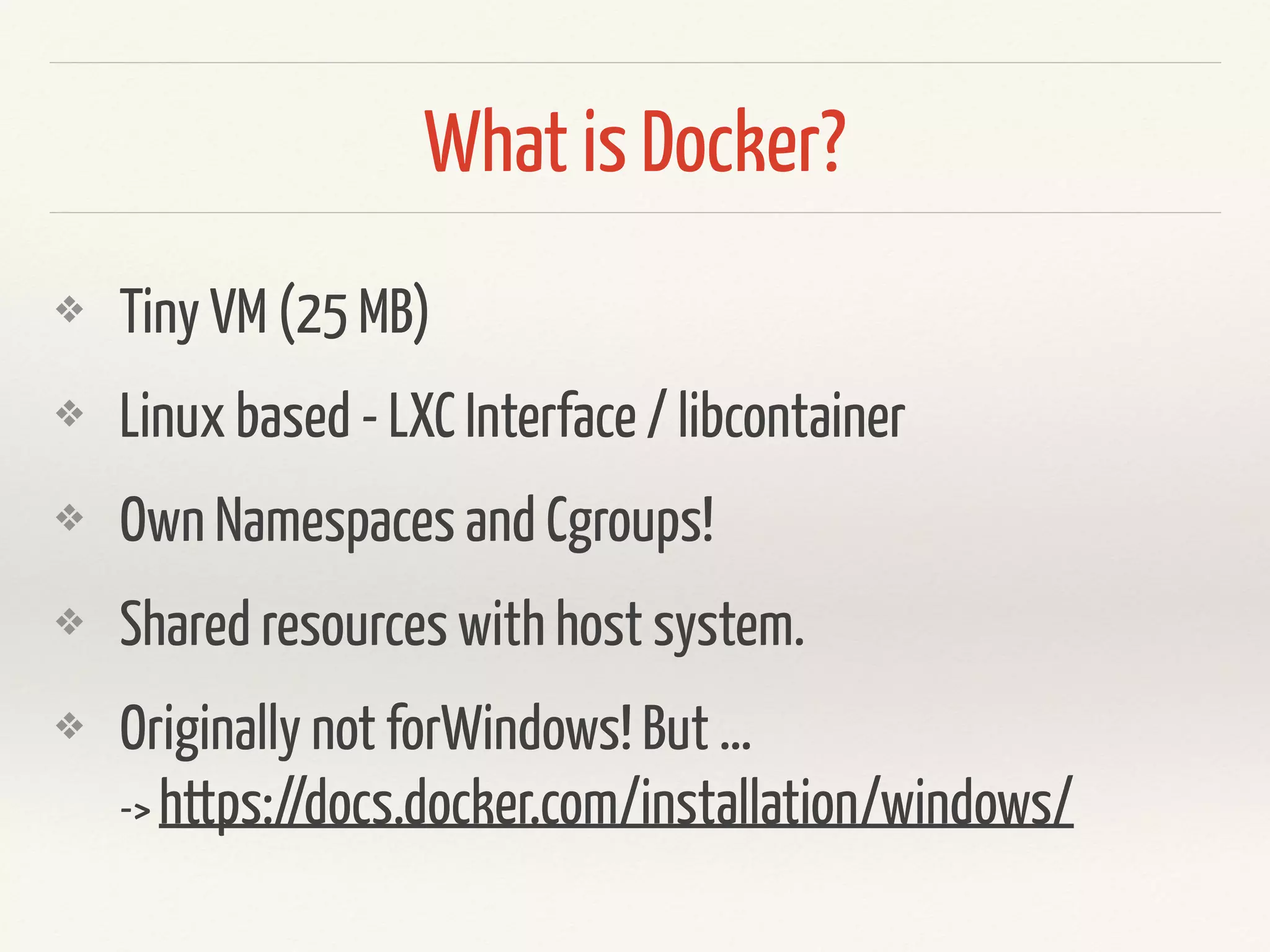

15. What is Docker?
❖ Tiny VM (25 MB)
❖ Linux based - LXC Interface / libcontainer
❖ Own Namespaces and Cgroups!
❖ Shared resources with host system.
❖ Changes changed in Layers. Similar to Git!
❖ Originally not for Windows & Mac ! But …
->https://docs.docker.com/installation/windows/
-> https://blog.docker.com/2016/03/docker-for-mac-windows-beta/

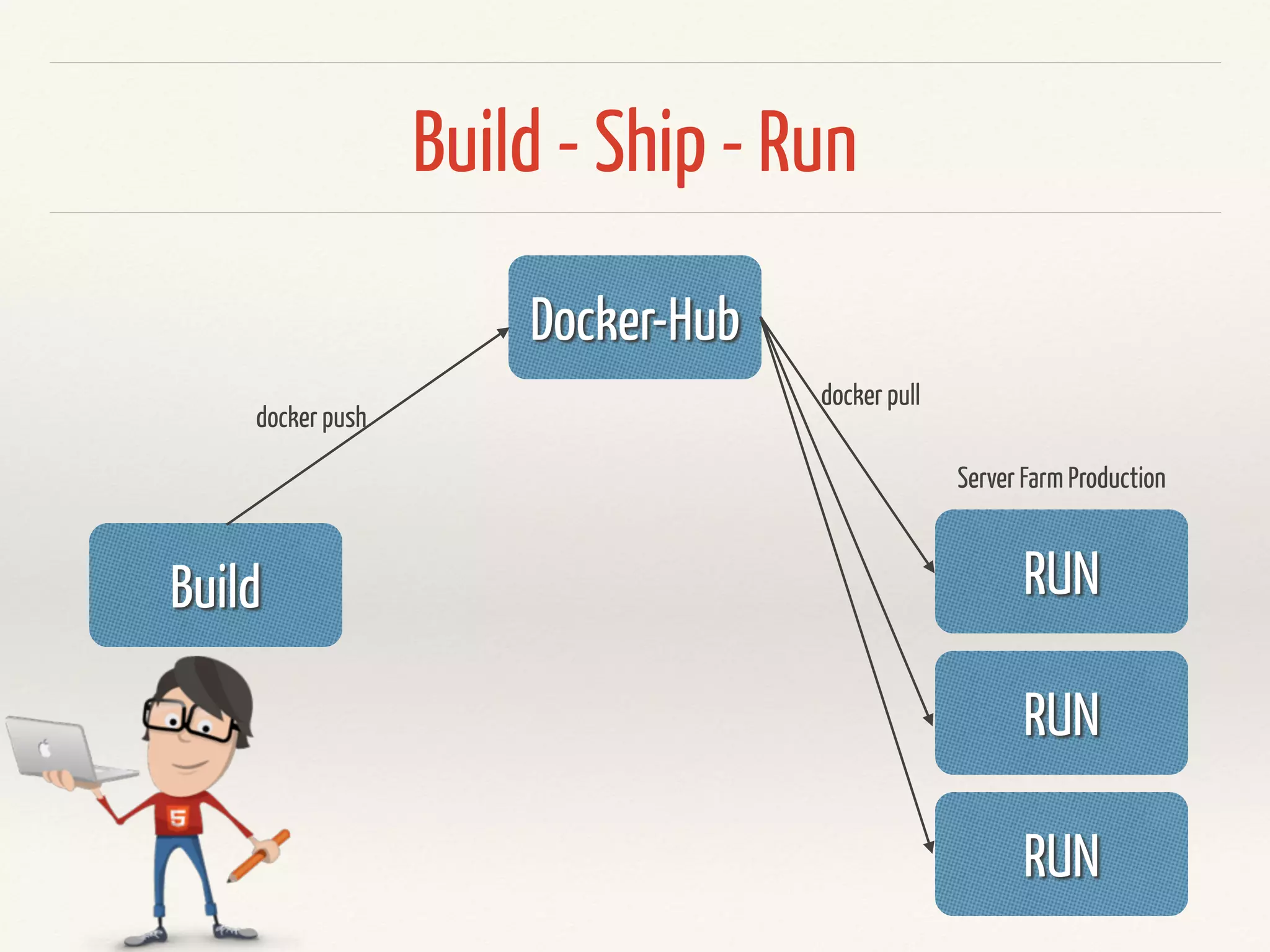

16. Build - Ship - Run
Docker-Hub
Build RUN
RUN
RUN
docker push
docker pull
Server Farm Production

17. Build

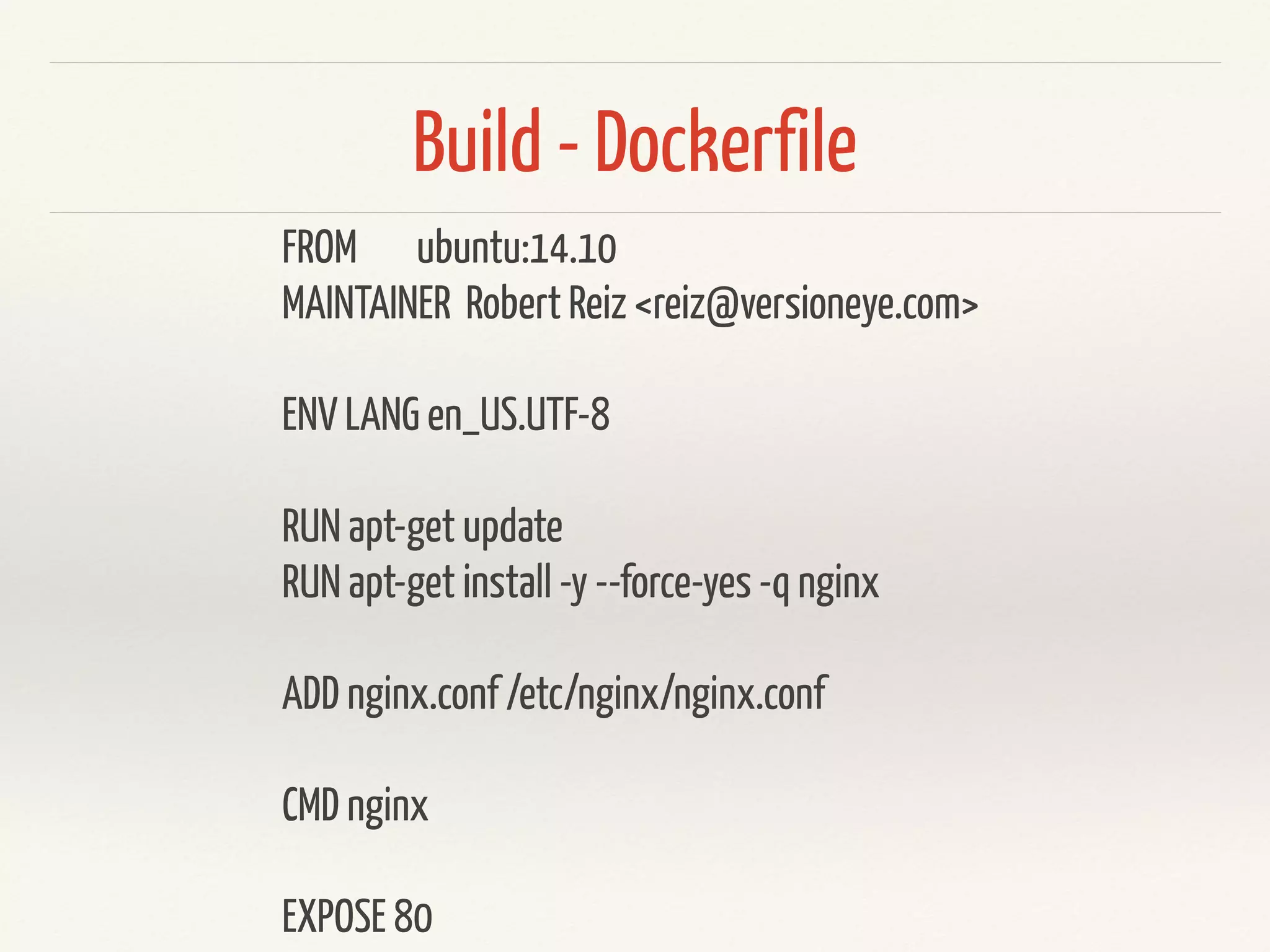

18. Dockerfile
FROM ubuntu:14.10
MAINTAINER Robert Reiz <reiz@versioneye.com>
ENV LANG en_US.UTF-8
RUN apt-get update
RUN apt-get install -y --force-yes -q nginx
ADD nginx.conf /etc/nginx/nginx.conf
CMD nginx
EXPOSE 80

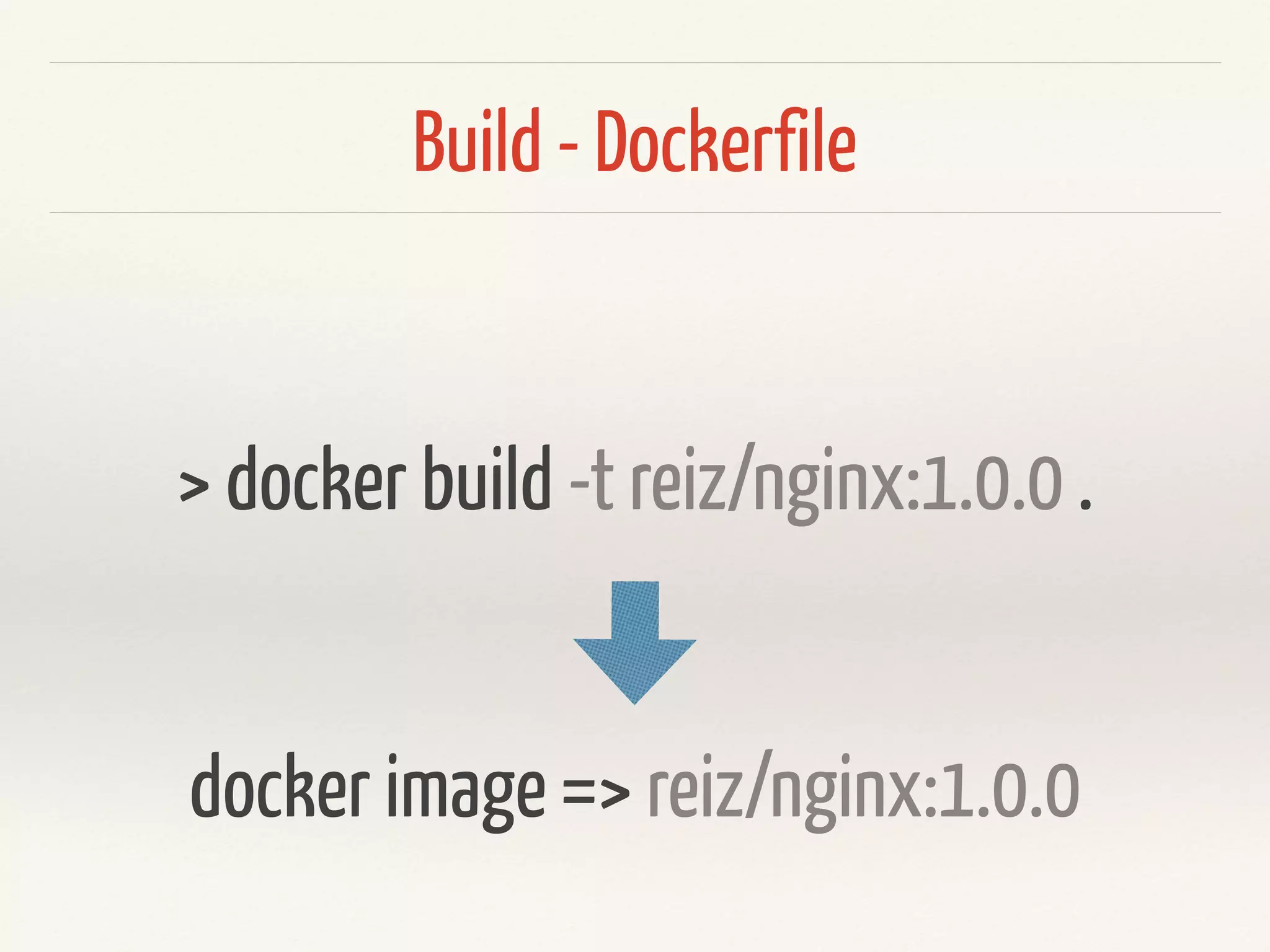

19. Build - Dockerfile
> docker build -t reiz/nginx:1.0.0 .
docker image => reiz/nginx:1.0.0

20. Ship

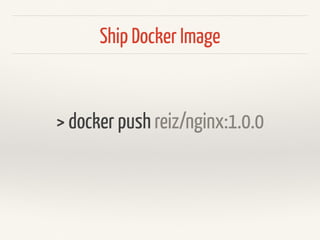

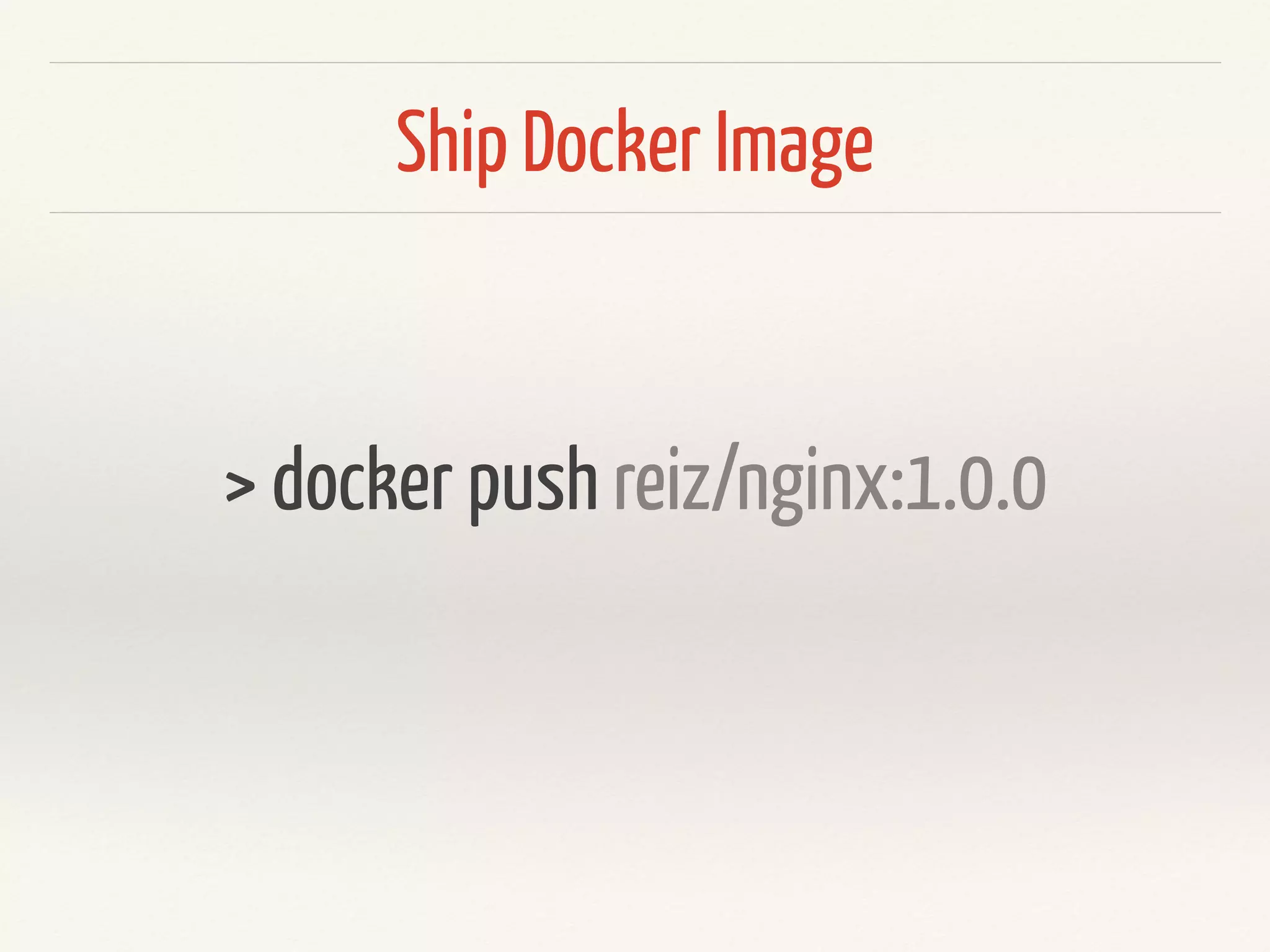

21. Ship Docker Image
> docker push reiz/nginx:1.0.0

22. Run

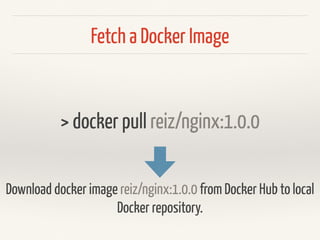

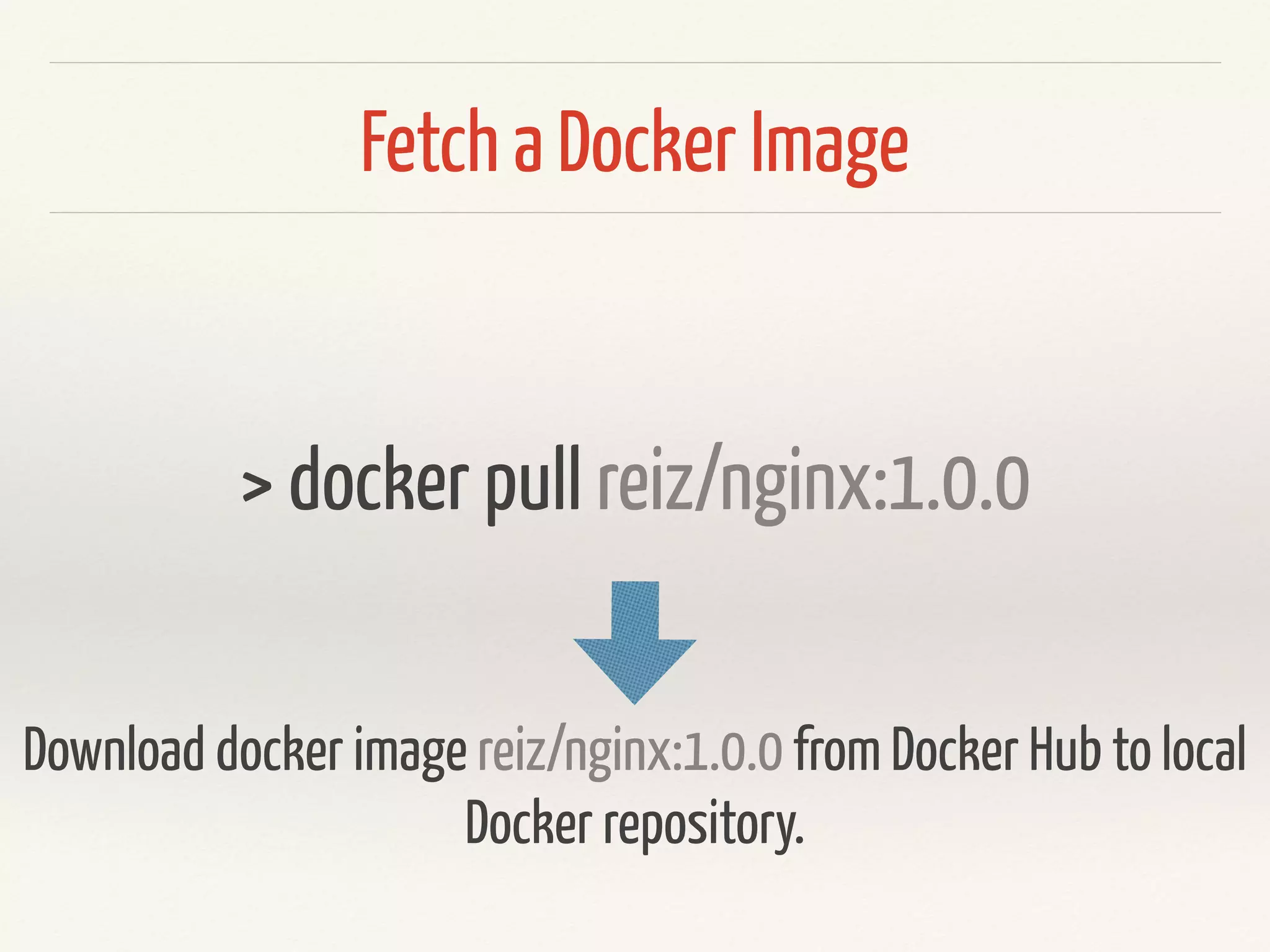

23. Fetch a Docker Image
> docker pull reiz/nginx:1.0.0
Download docker image reiz/nginx:1.0.0 from Docker Hub to local
Docker repository.

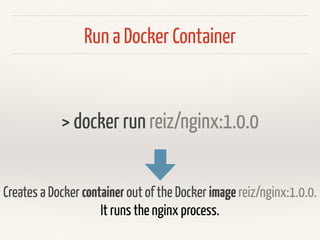

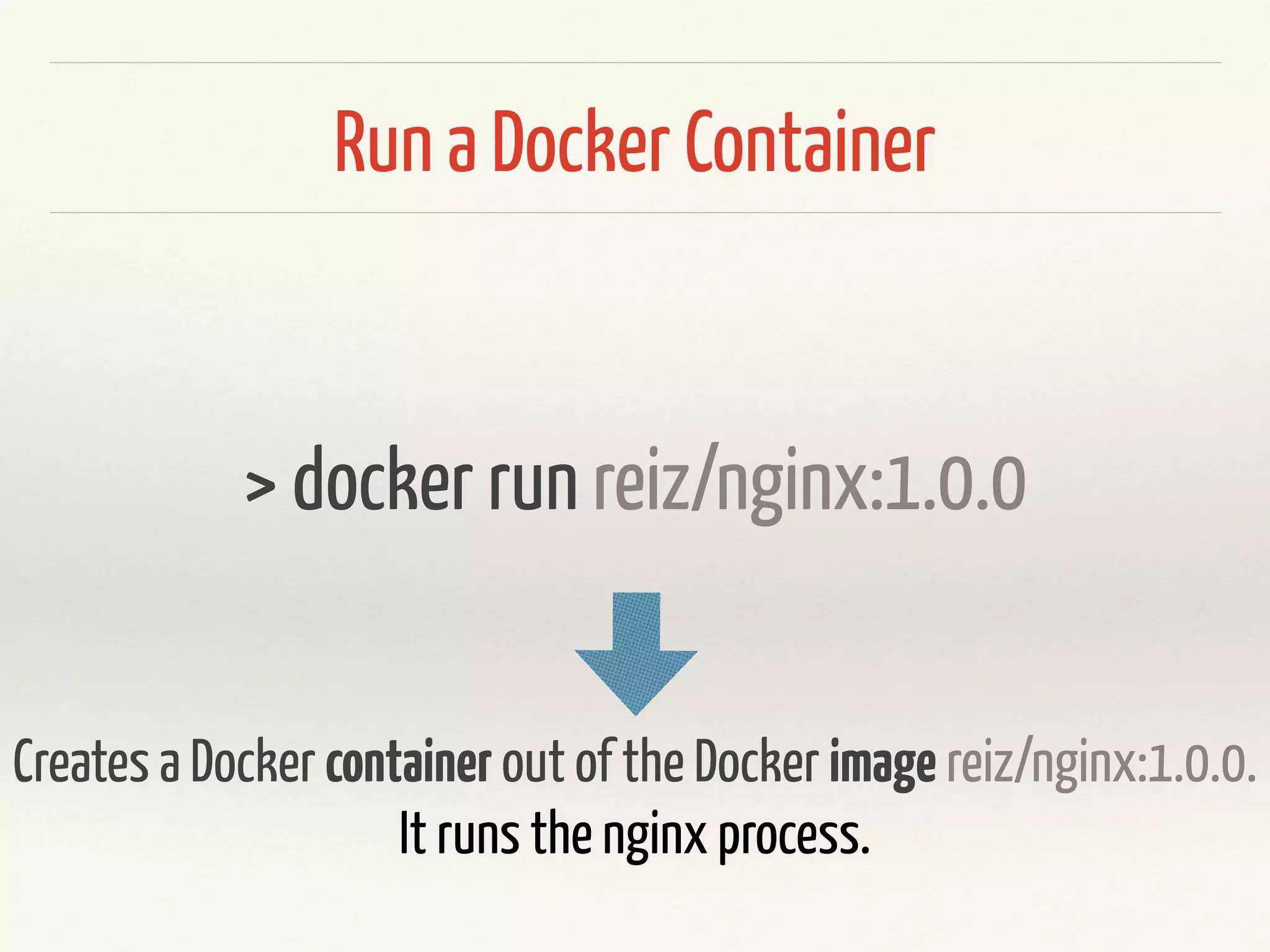

24. Run a Docker Container
> docker run reiz/nginx:1.0.0
Creates a Docker container out of the Docker image reiz/nginx:1.0.0.
It runs the nginx process.

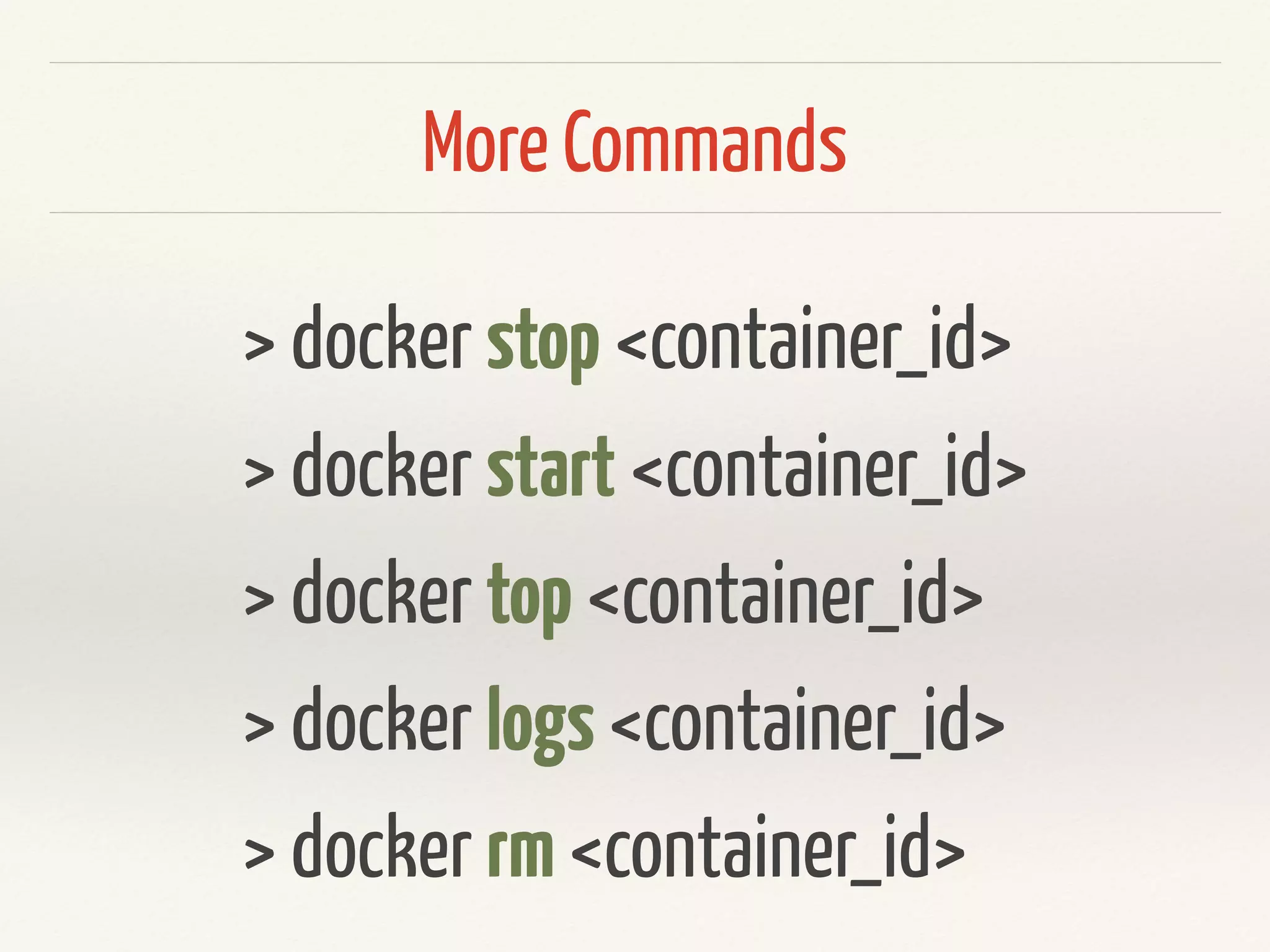

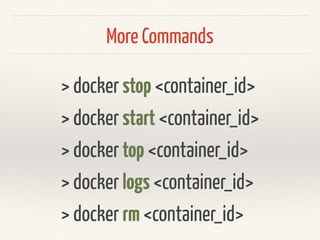

25. More Commands
> docker stop <container_id>
> docker start <container_id>
> docker top <container_id>
> docker logs <container_id>
> docker rm <container_id>

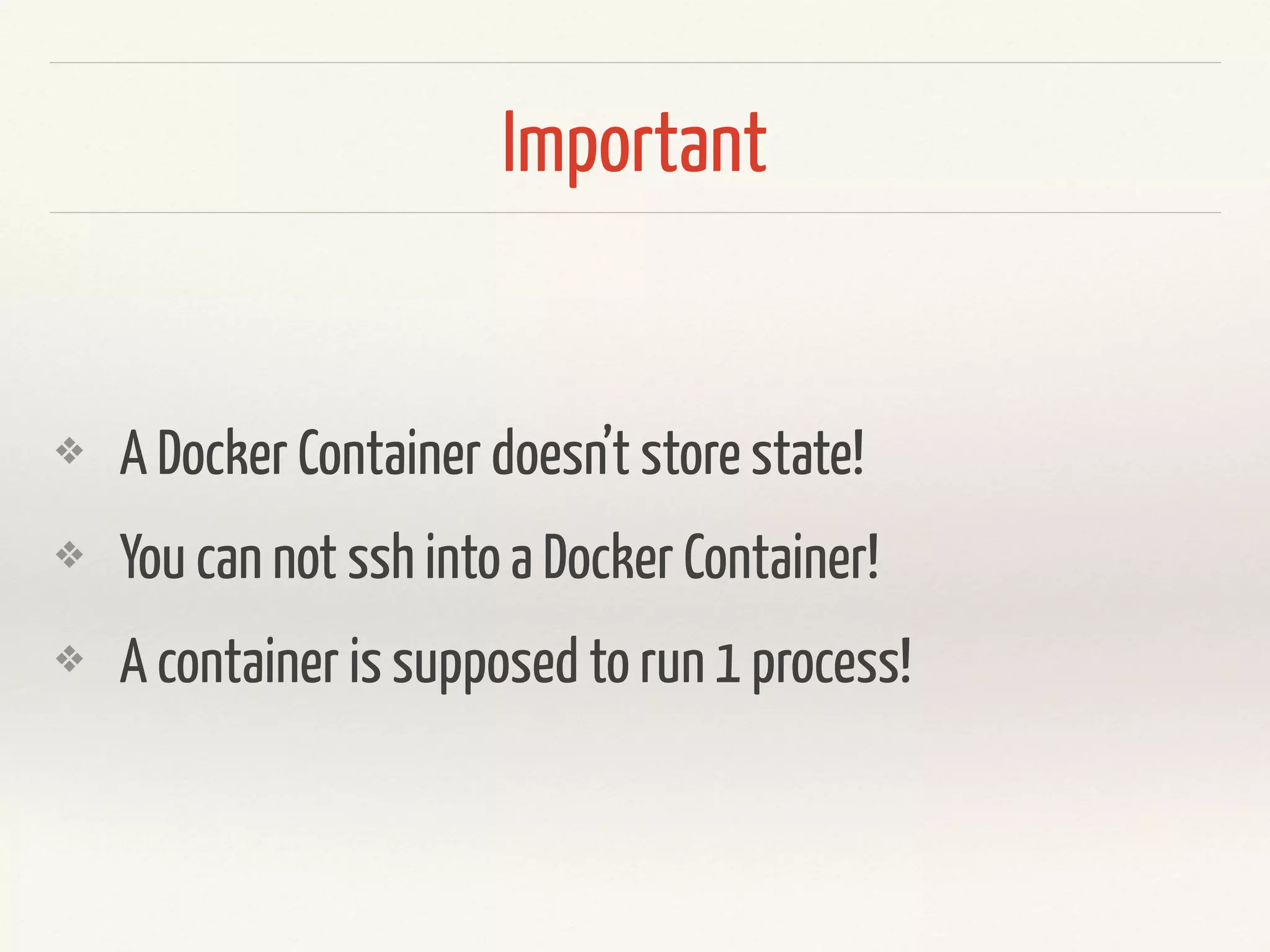

26. Important
❖ A Docker Container doesn’t store state!
❖ You can not ssh into a Docker Container!
❖ A container is supposed to run 1 process!

27. Shell

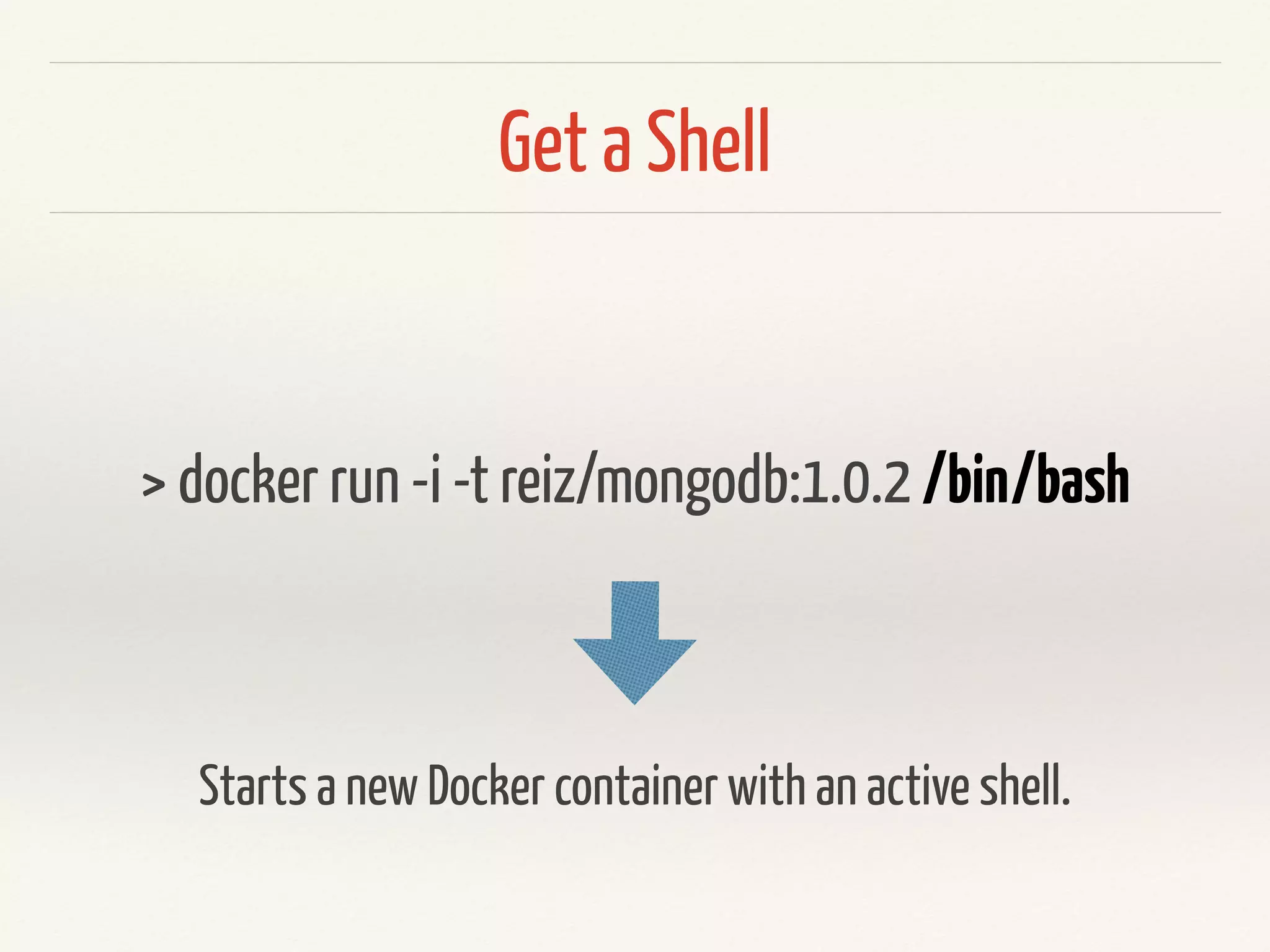

28. Get a Shell
> docker run -it reiz/mongodb:3.2.0 /bin/bash
Starts a new Docker container with an active shell.

29. Volumes

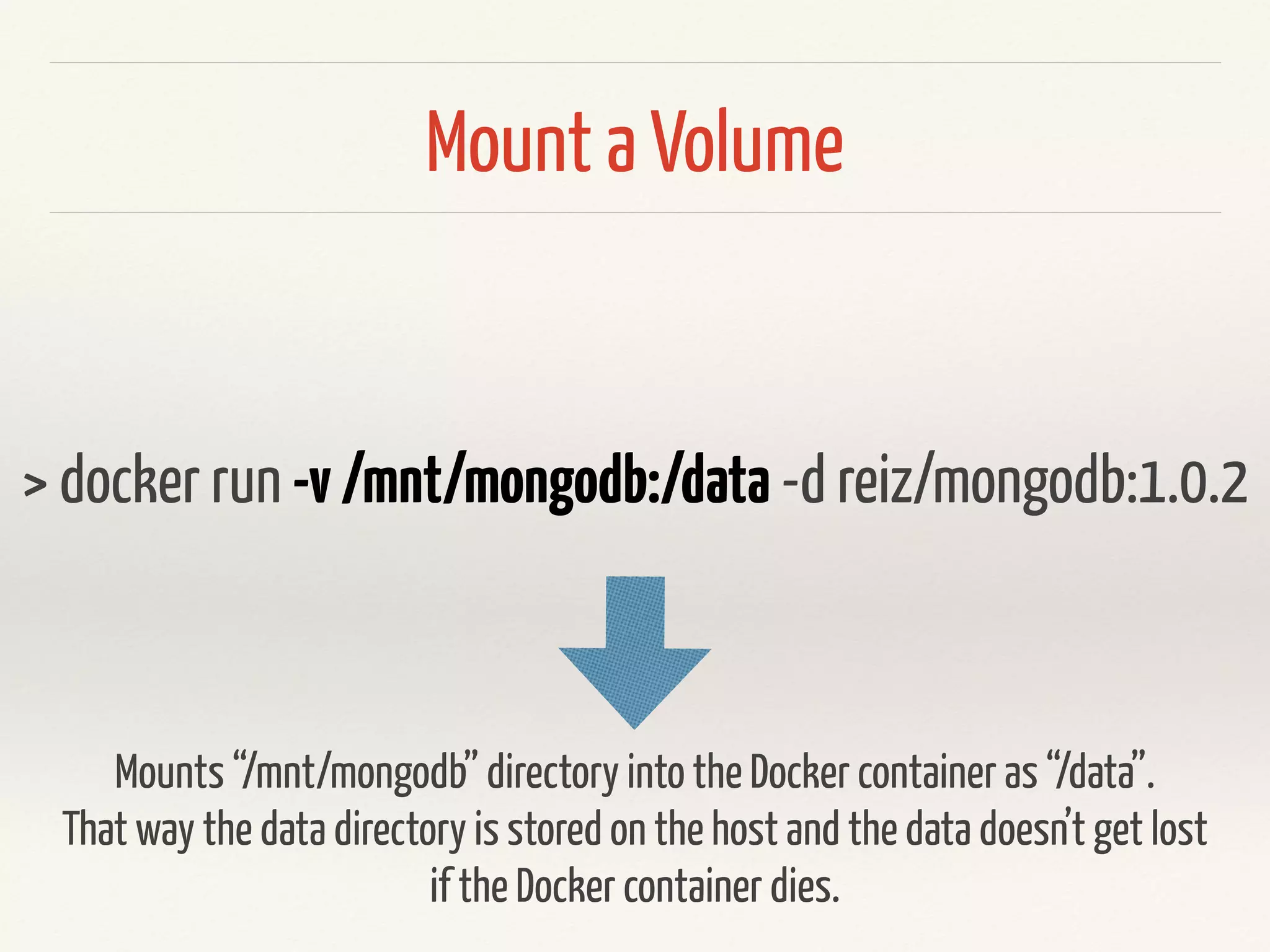

30. Mount a Volume
> docker run -v/mnt/mongodb:/data -d reiz/mongodb:3.2.0
Mounts “/mnt/mongodb” directory into the Docker container as “/data”.
Keep the data on the host. That’s how you keep data persisted.

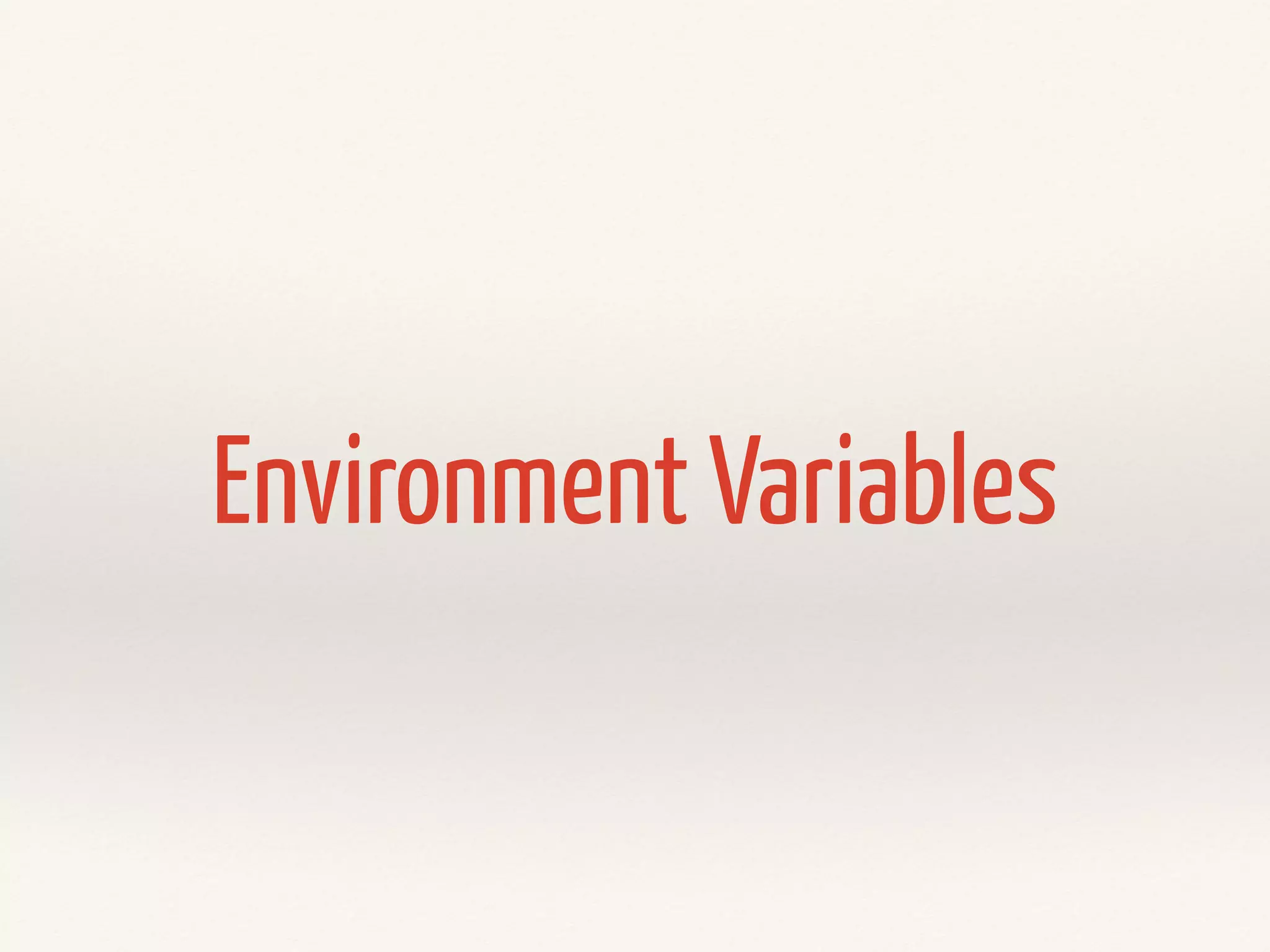

31. Environment Variables

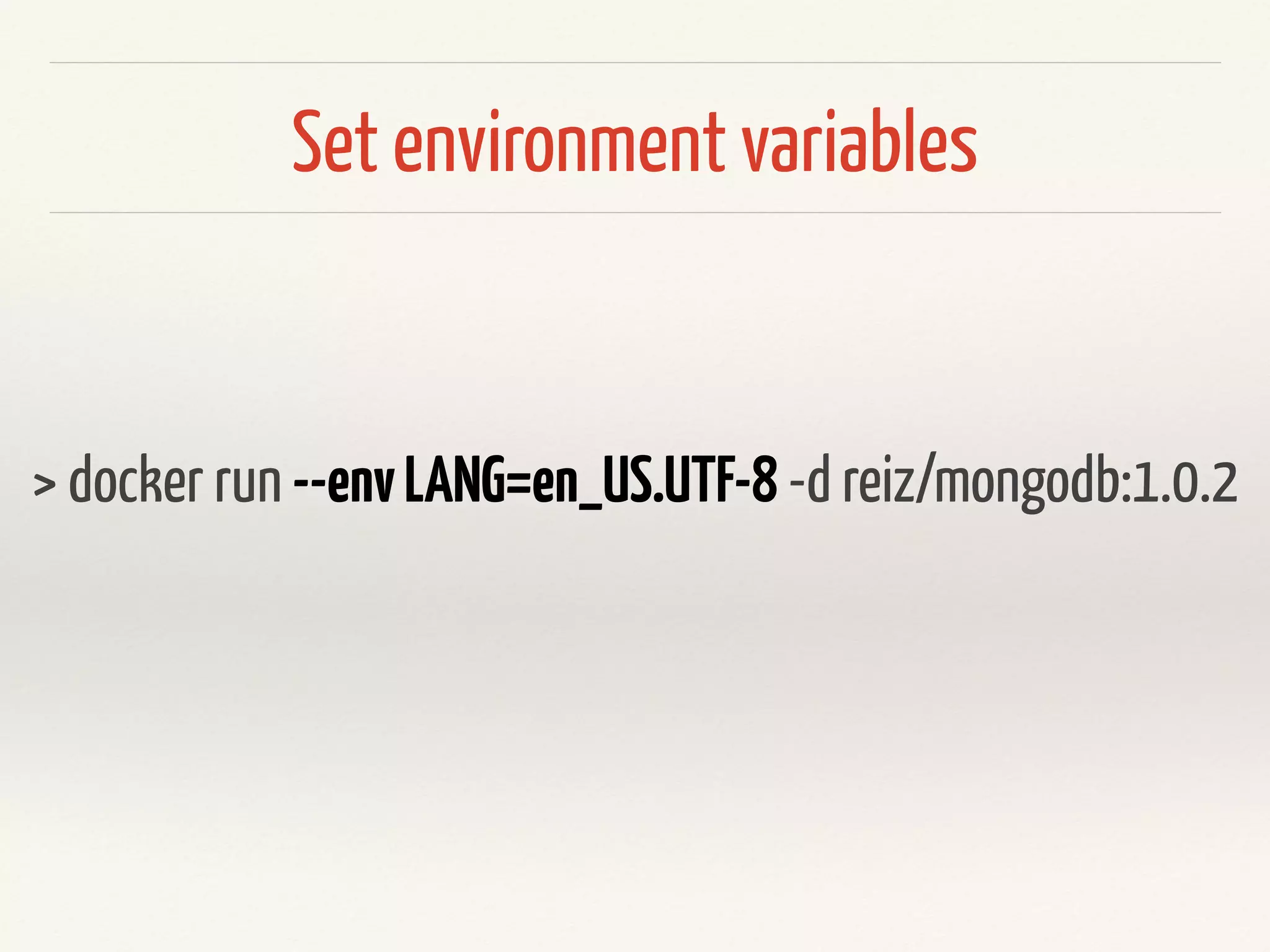

32. Set environment variables
> docker run --envLANG=en_US.UTF-8 -d reiz/mongodb:3.2.0
You can overwrite ENV variables from the Dockerfile here and also define
completely new ones.

33. Links

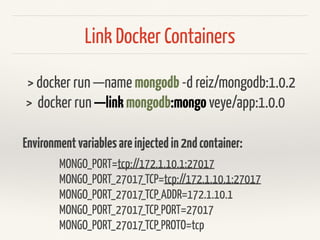

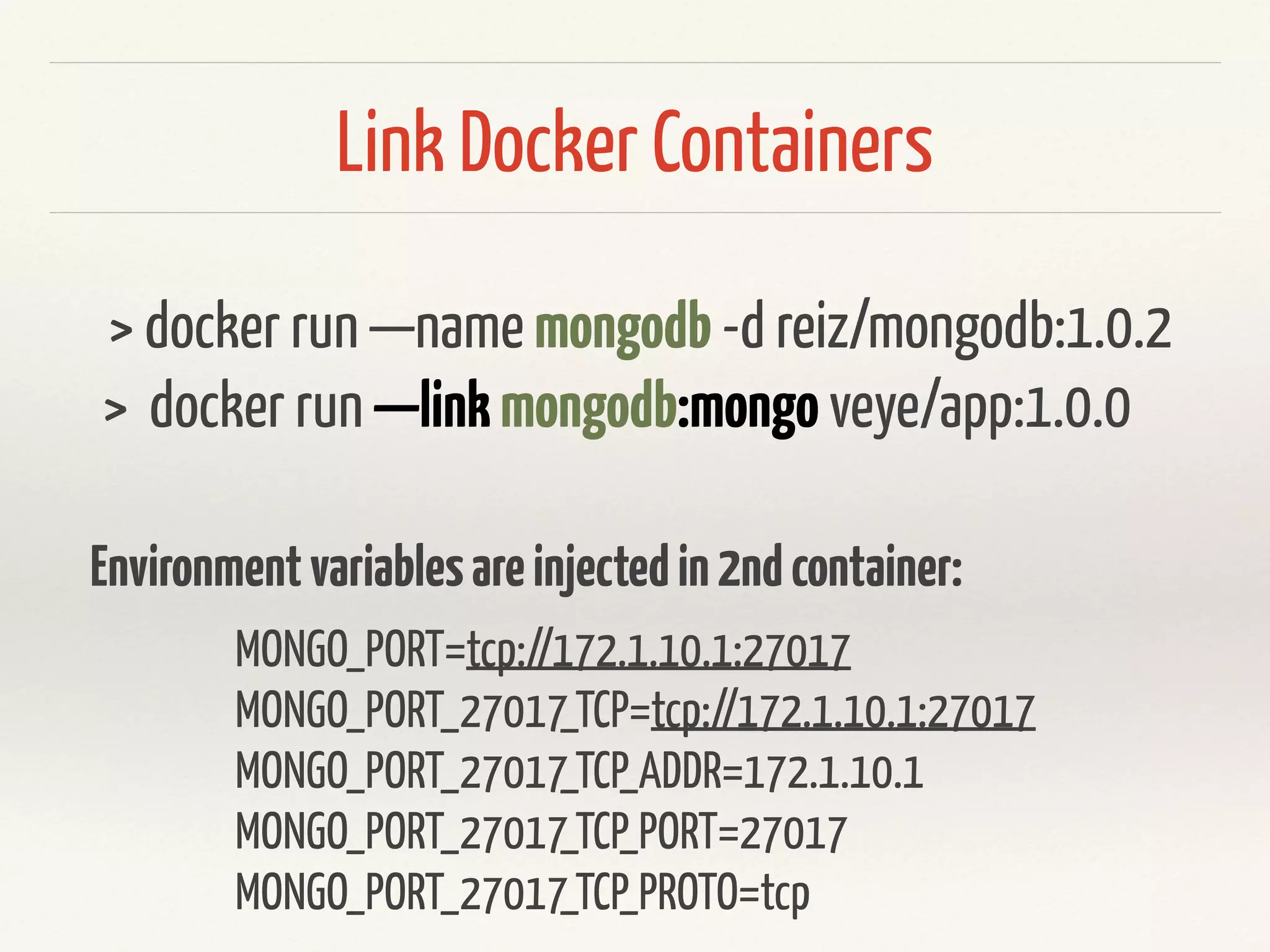

34. Link Docker Containers
> docker run —name mongodb -d versioneye/mongodb:1.0.2
> docker run —linkmongodb:mongo versioneye/api:1.0.0
MONGO_PORT=tcp://172.1.10.1:27017
MONGO_PORT_27017_TCP=tcp://172.1.10.1:27017
MONGO_PORT_27017_TCP_ADDR=172.1.10.1
MONGO_PORT_27017_TCP_PORT=27017
MONGO_PORT_27017_TCP_PROTO=tcp
Environmentvariablesareinjectedin2ndcontainer:

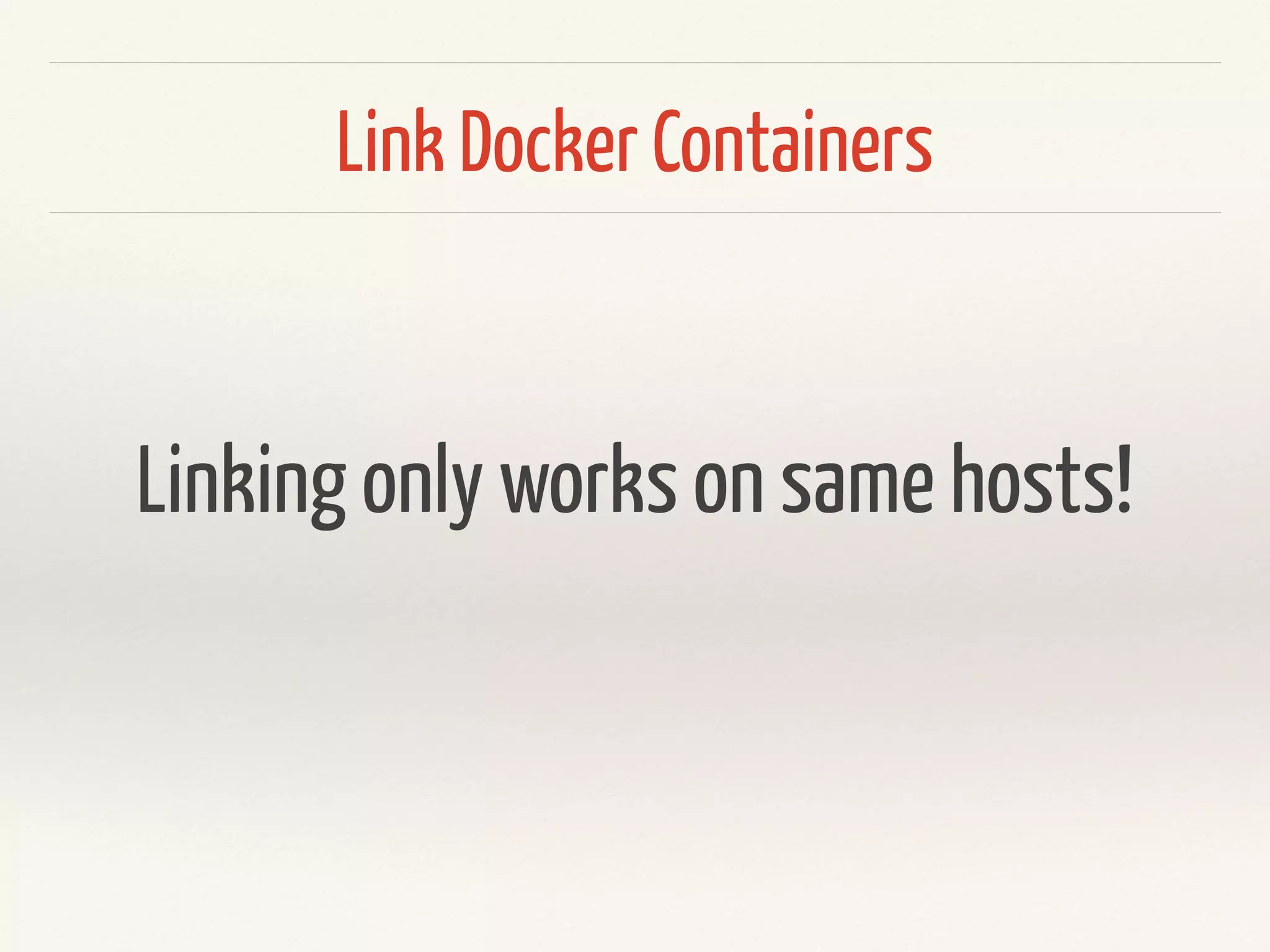

35. Link Docker Containers
Linking only works on same hosts!

36. Docker Compose
api:
image: versioneye/rails_api:2.5.7
ports:
- "9090:9090"
container_name: "api"
links:
- mongodb:db
- elasticsearch:es
mongodb:
image: reiz/mongodb:2.6.6_2
container_name: “mongodb"
elasticsearch:
image: reiz/elasticsearch:0.9.1
container_name: "elasticsearch"
docker-compose.yml
describes a whole
set of Docker
containers

37. Docker Compose
> docker-compose up -d
> docker-compose ps
> docker-compose stop

38. Docker Compose
> docker-compose build api
> docker-compose up --no-deps -d api
Updating a single container, not ALL of them.

39. Docker Compose
> docker-compose scale worker=3
Scaling up containers

40. DEMO

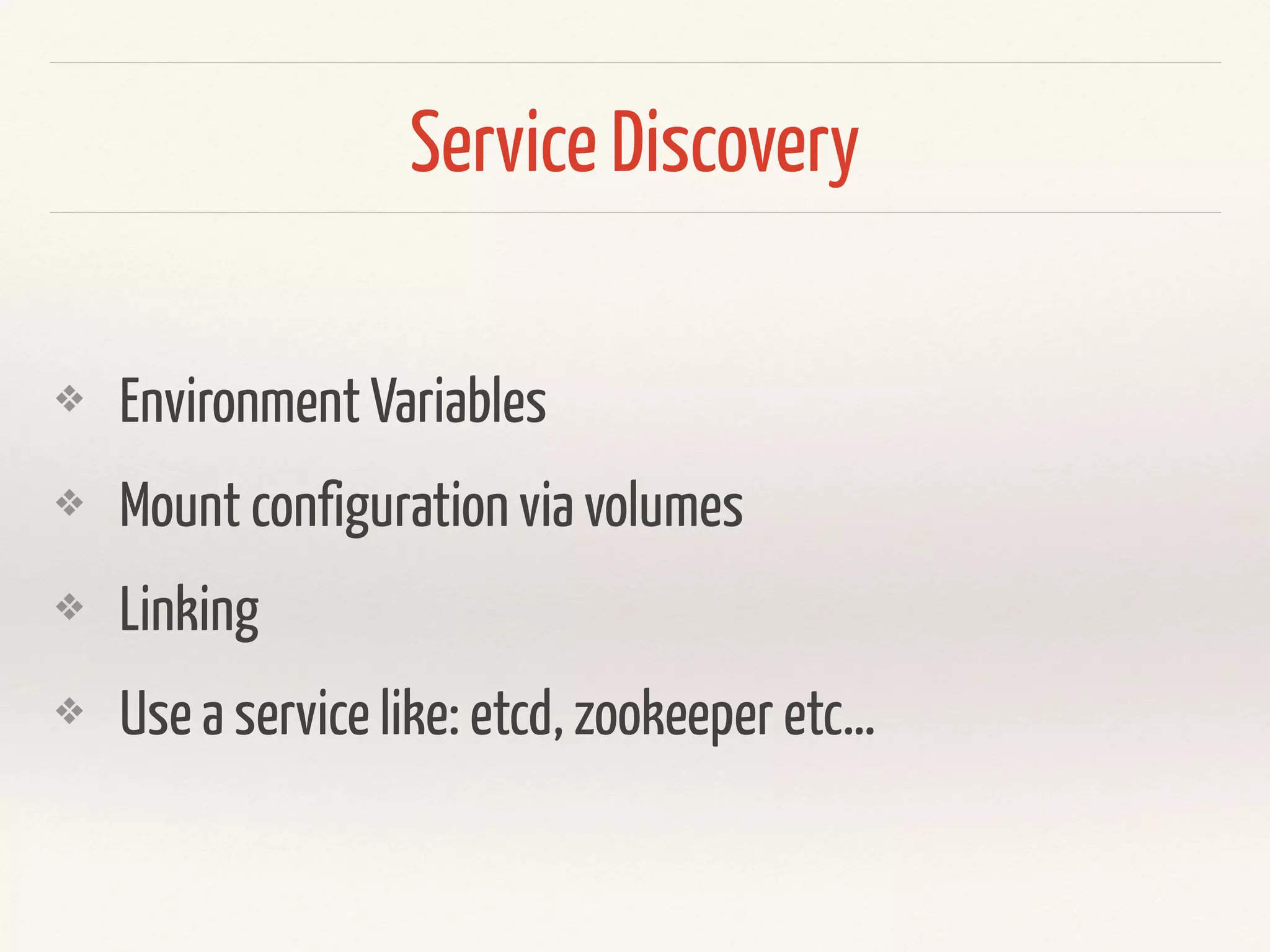

41. Service Discovery

42. Service Discovery
❖ Environment Variables
❖ Mount configuration via volumes
❖ Linking
❖ Use a service like: etcd, zookeeper etc…

43. Orchestration

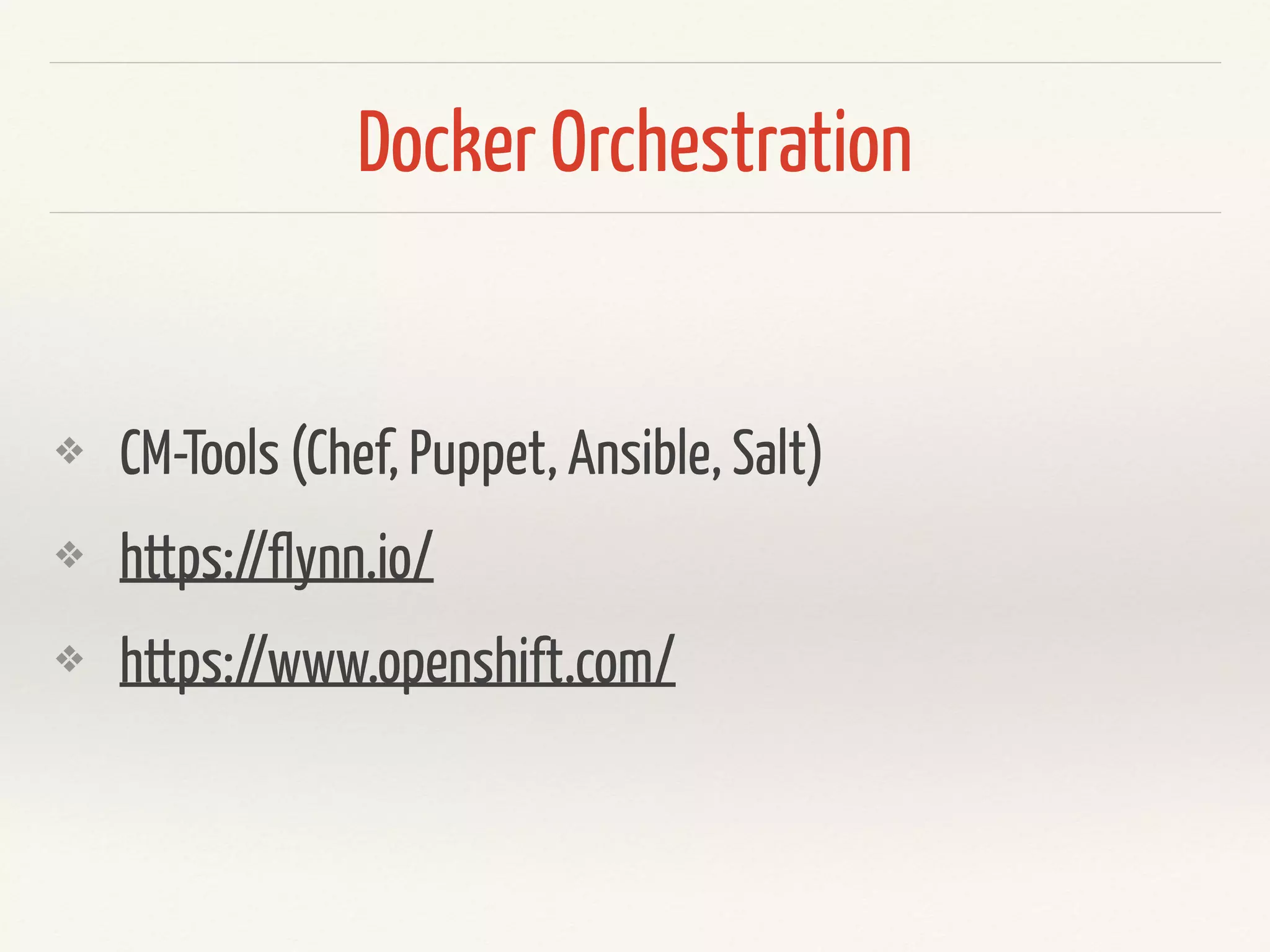

44. Docker Orchestration
❖ CM-Tools (Chef, Puppet, Ansible, Salt)
❖ http://kubernetes.io/
❖ https://coreos.com/
❖ https://docs.docker.com/swarm/
❖ https://www.openshift.com/

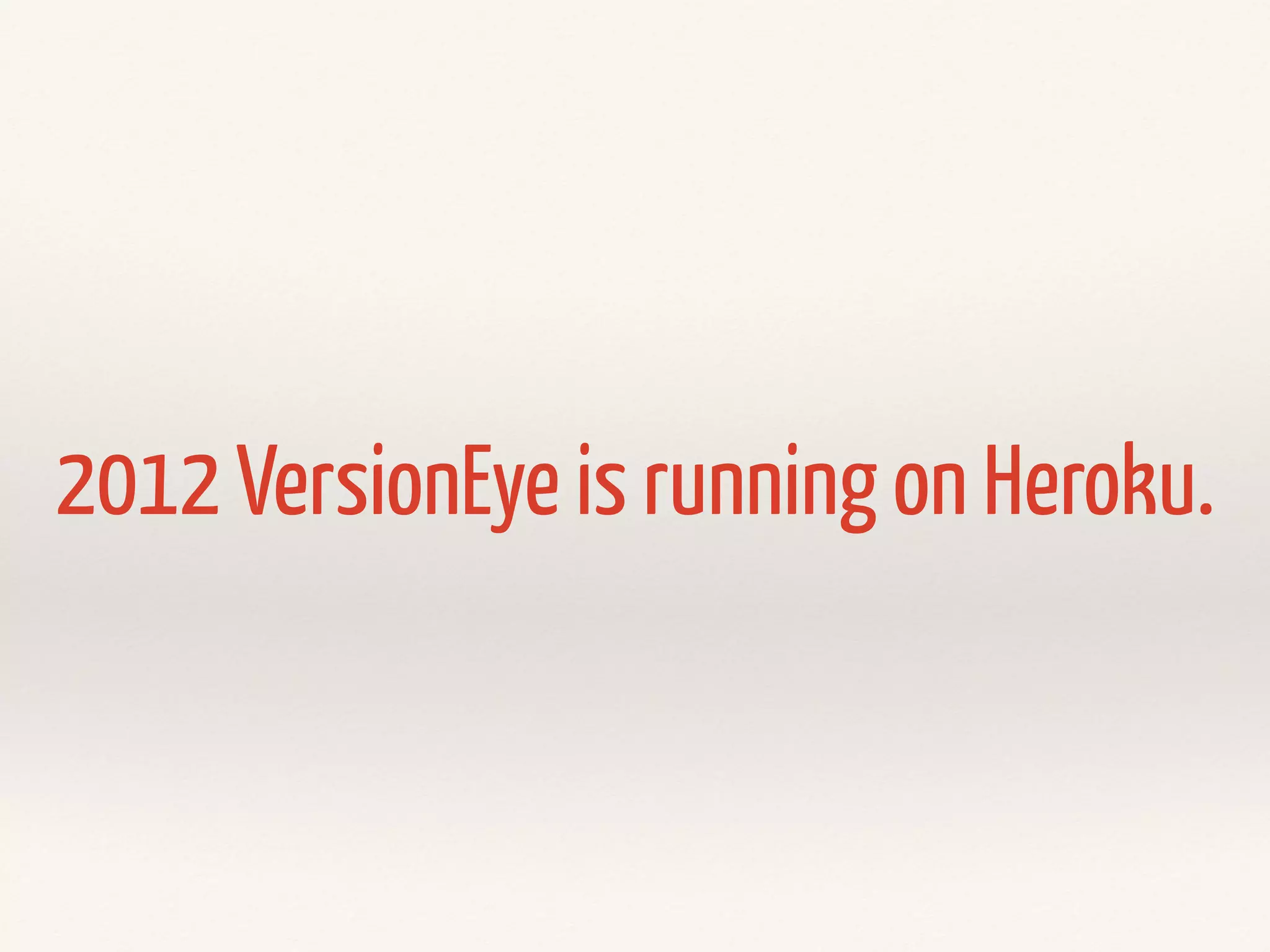

46. 2012 VersionEye is running on Heroku.

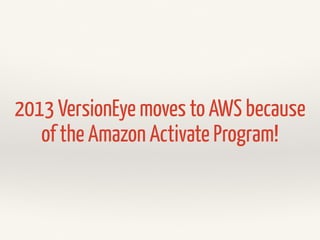

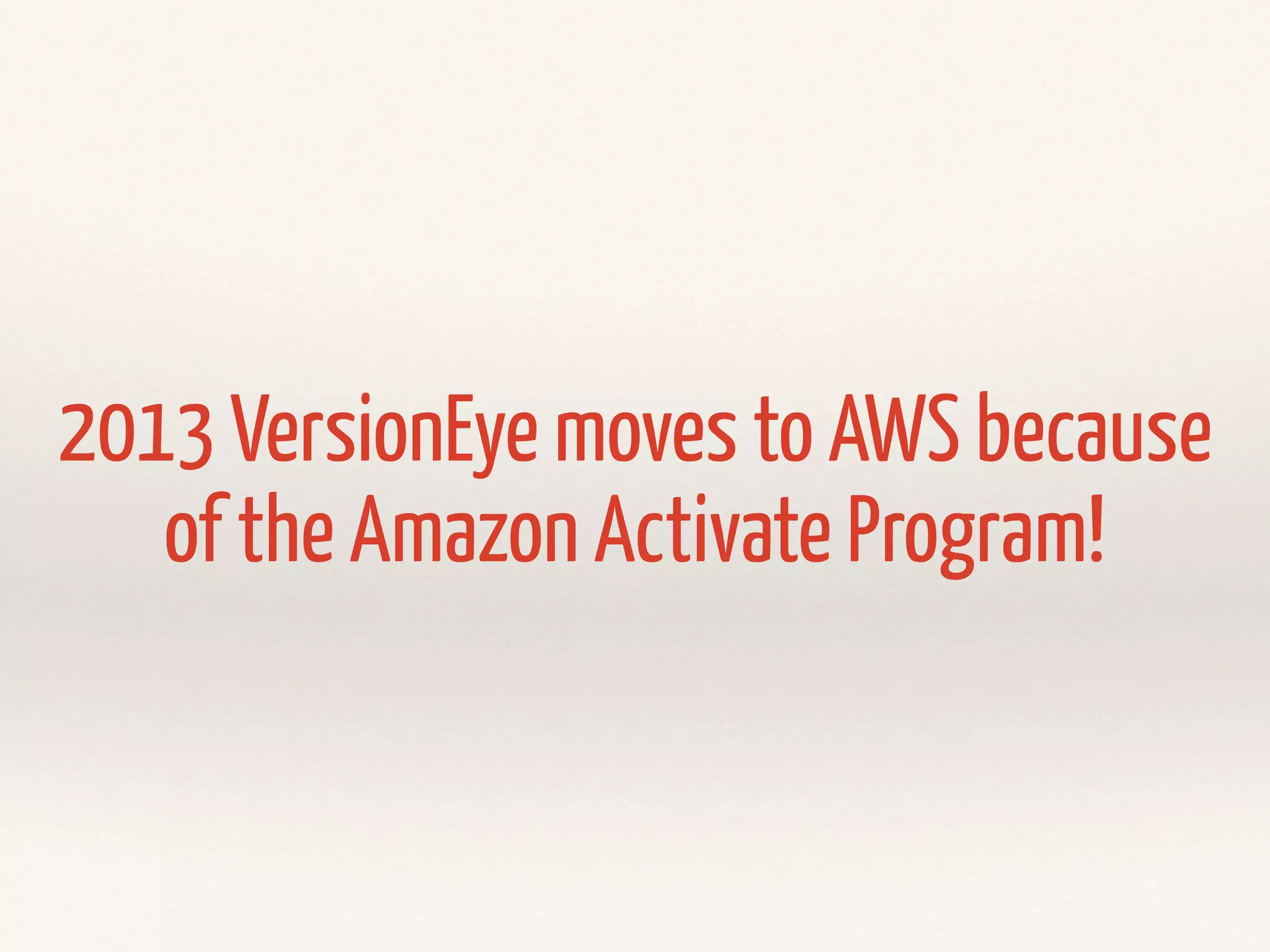

47. 2013 VersionEye moves to AWS because
of the Amazon Activate Program!

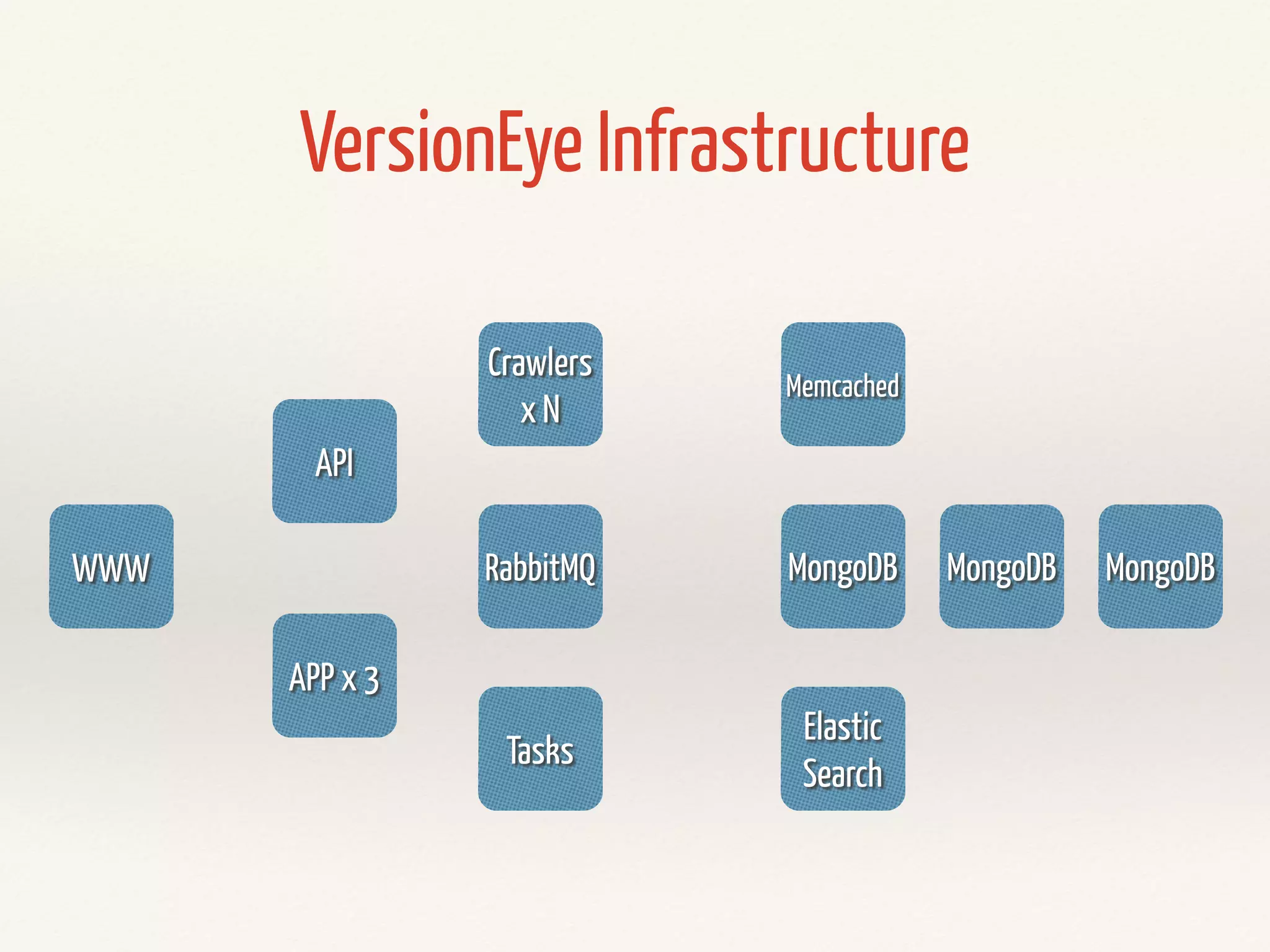

48. WWW
API
APP x 3
RabbitMQ
Tasks
MongoDB MongoDB MongoDB
Elastic
Search
Memcached
Crawlers
x N
VersionEye Infrastructure

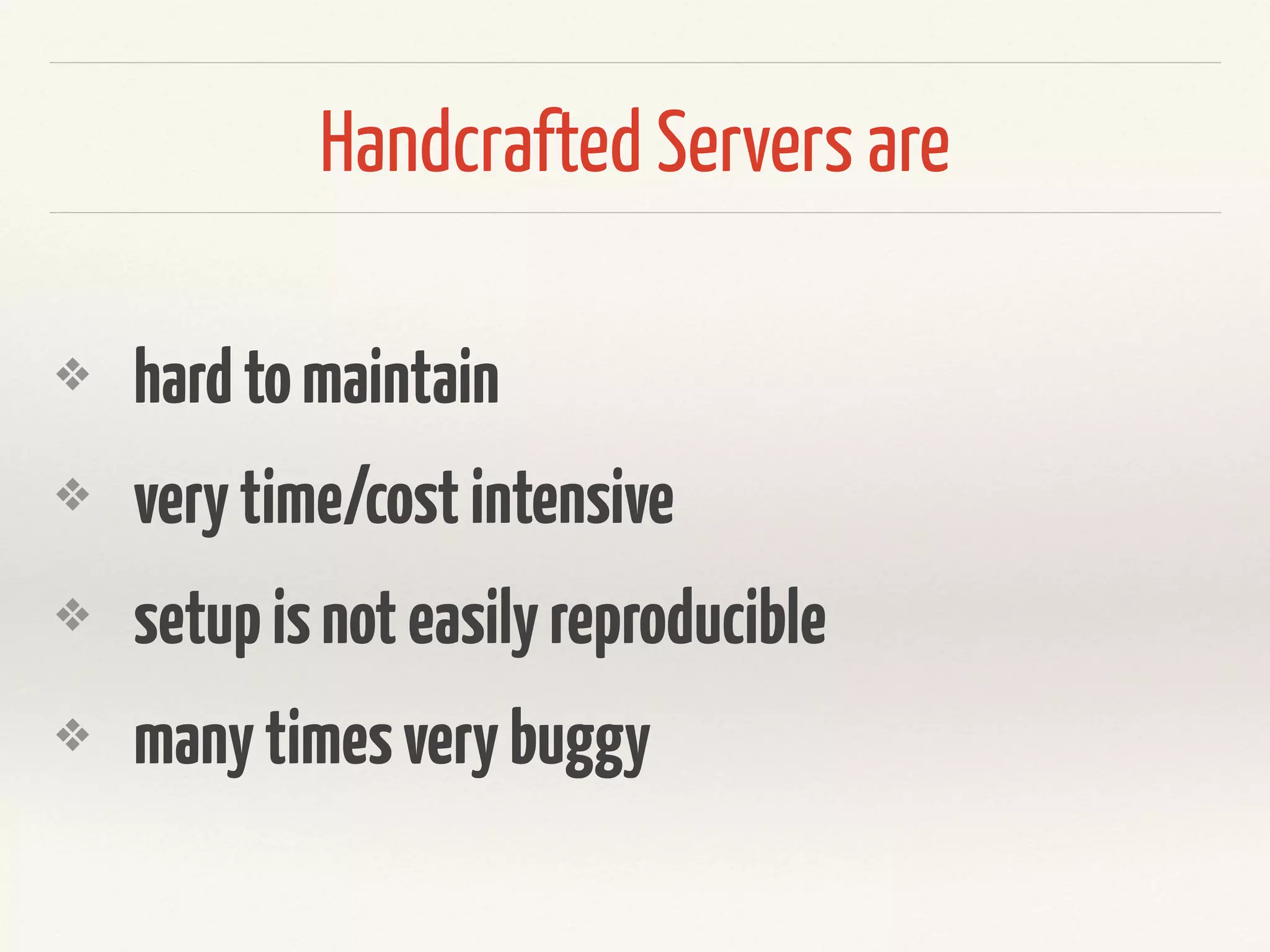

49. Handcrafted Servers are
❖ hardtomaintain
❖ verytime/costintensive
❖ setupisnoteasilyreproducible
❖ manytimesverybuggy

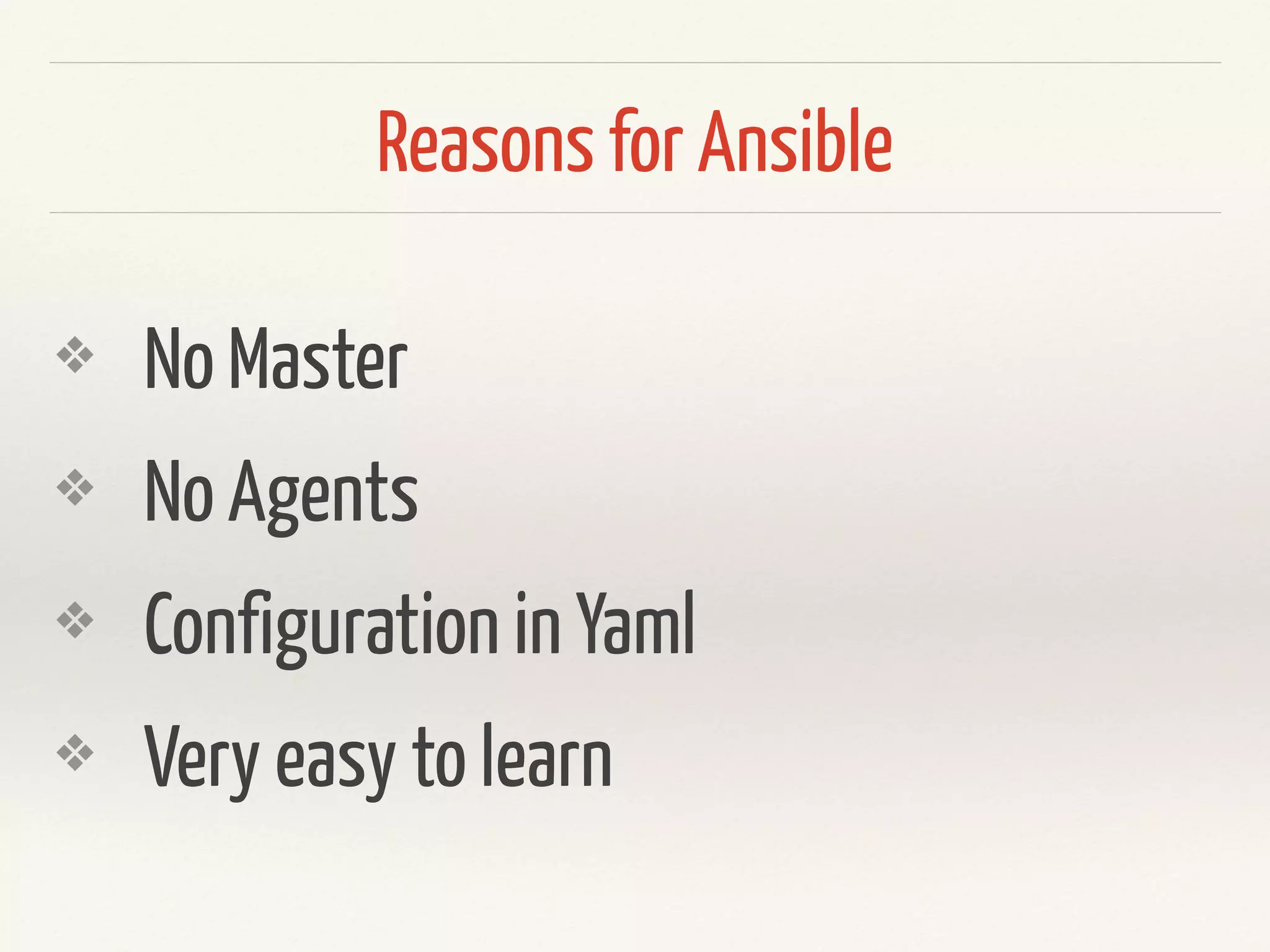

50. Reasons for Ansible
❖ No Master
❖ No Agents
❖ Configuration in Yaml
❖ Very easy to learn

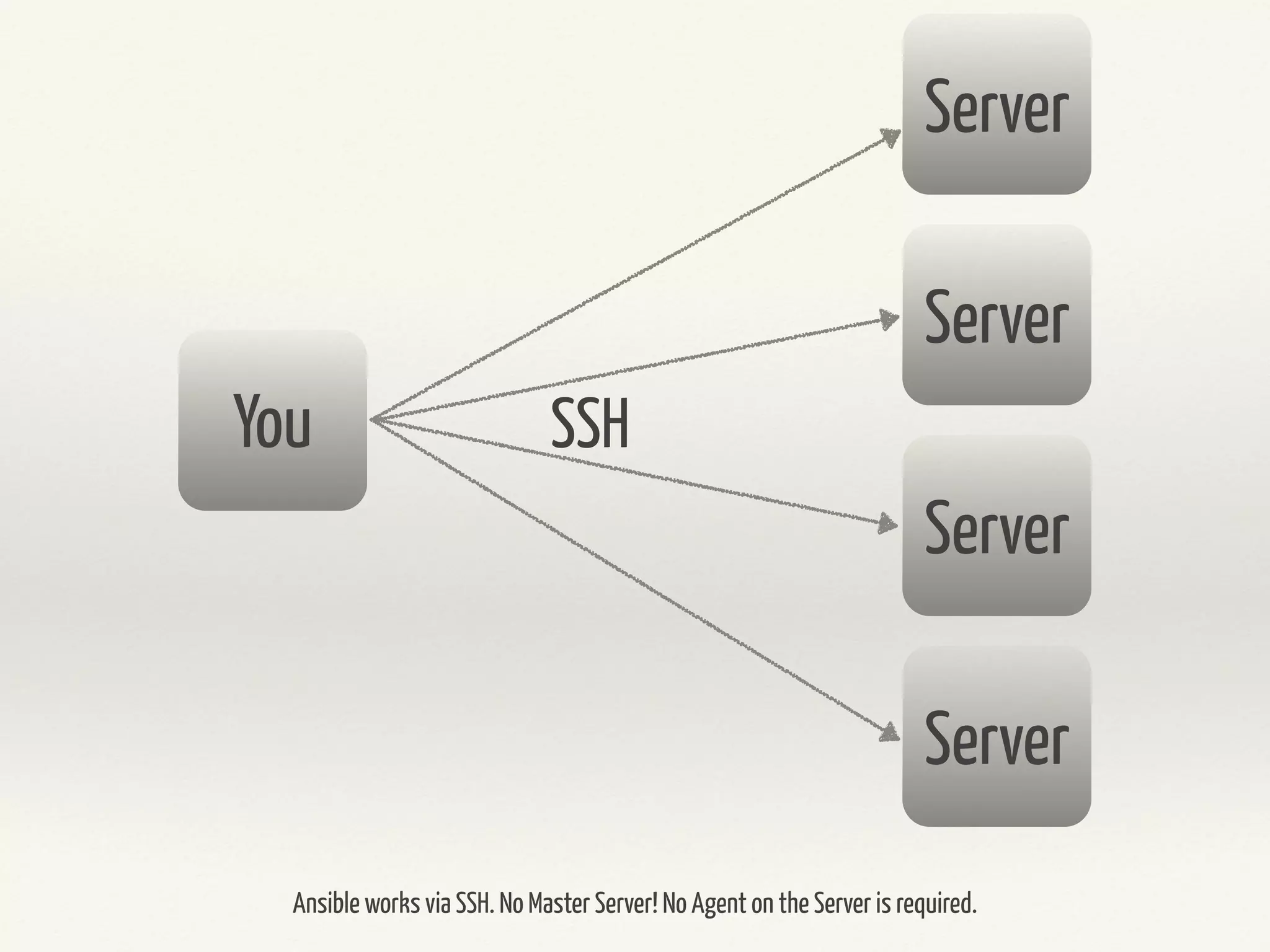

51. Server
Server
Server
Server
You SSH
Ansible works via SSH. No Master Server! No Agent on the Server is required.

52. Installation

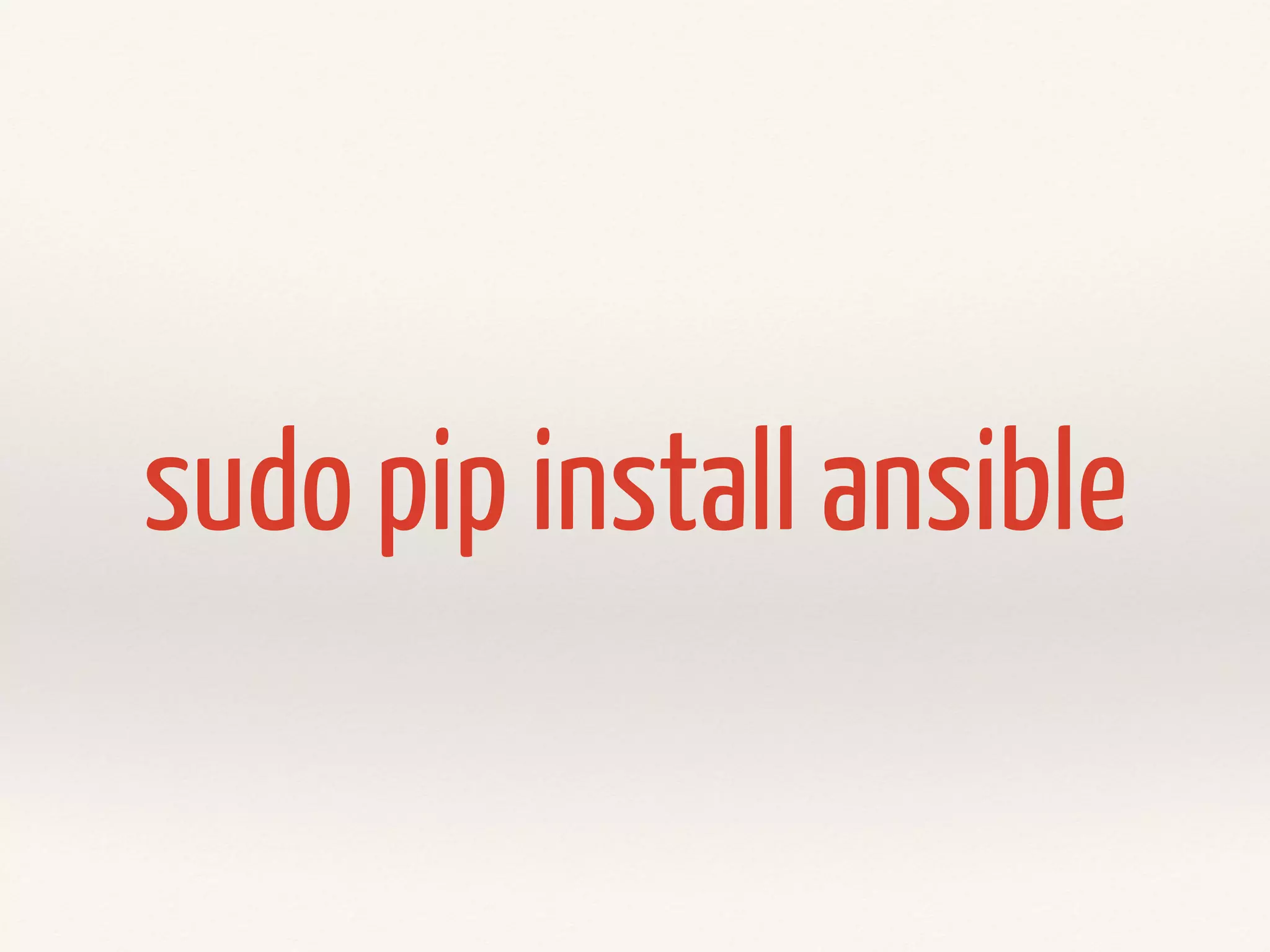

53. sudo pip install ansible

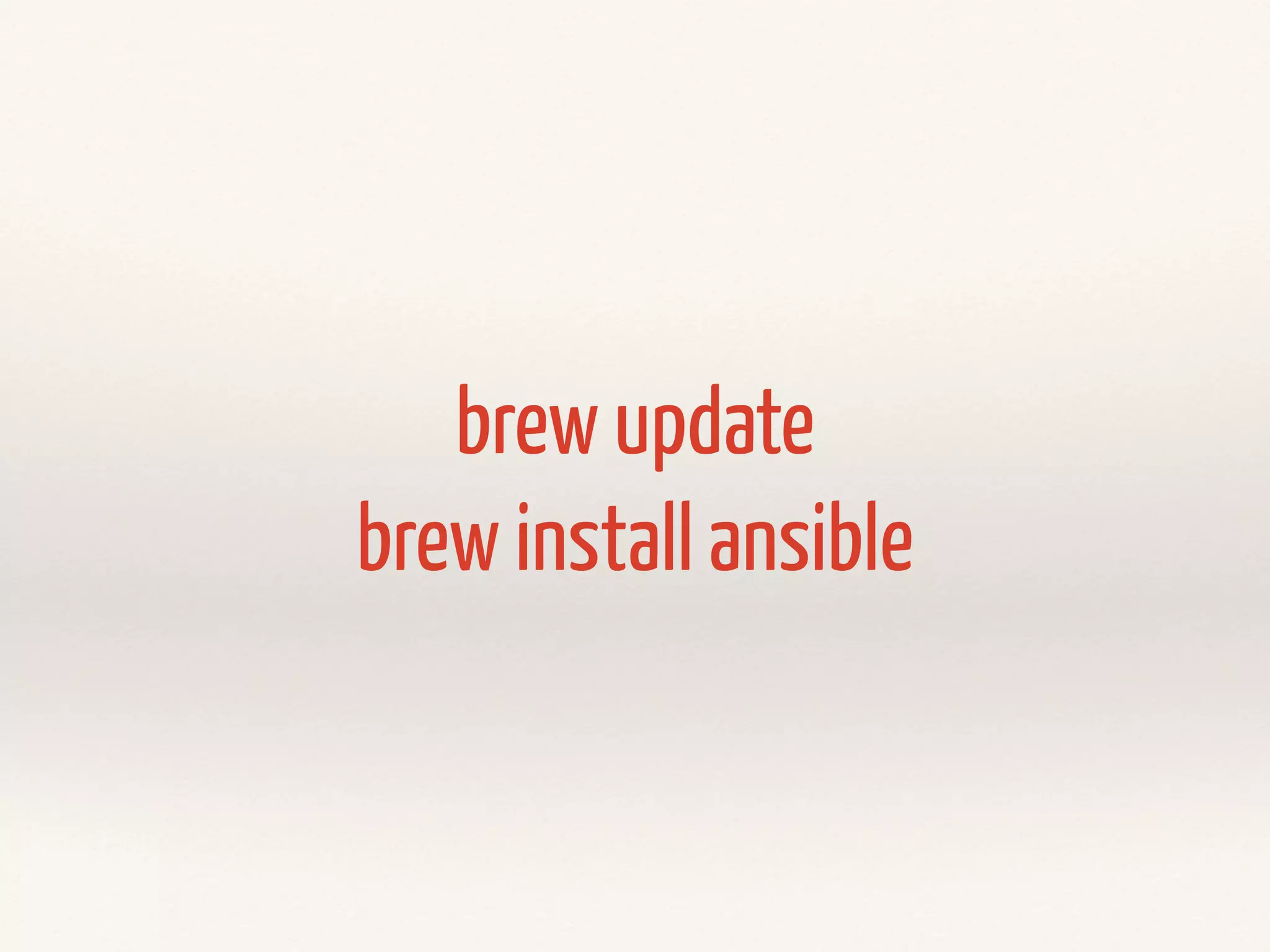

54. brew update
brew install ansible

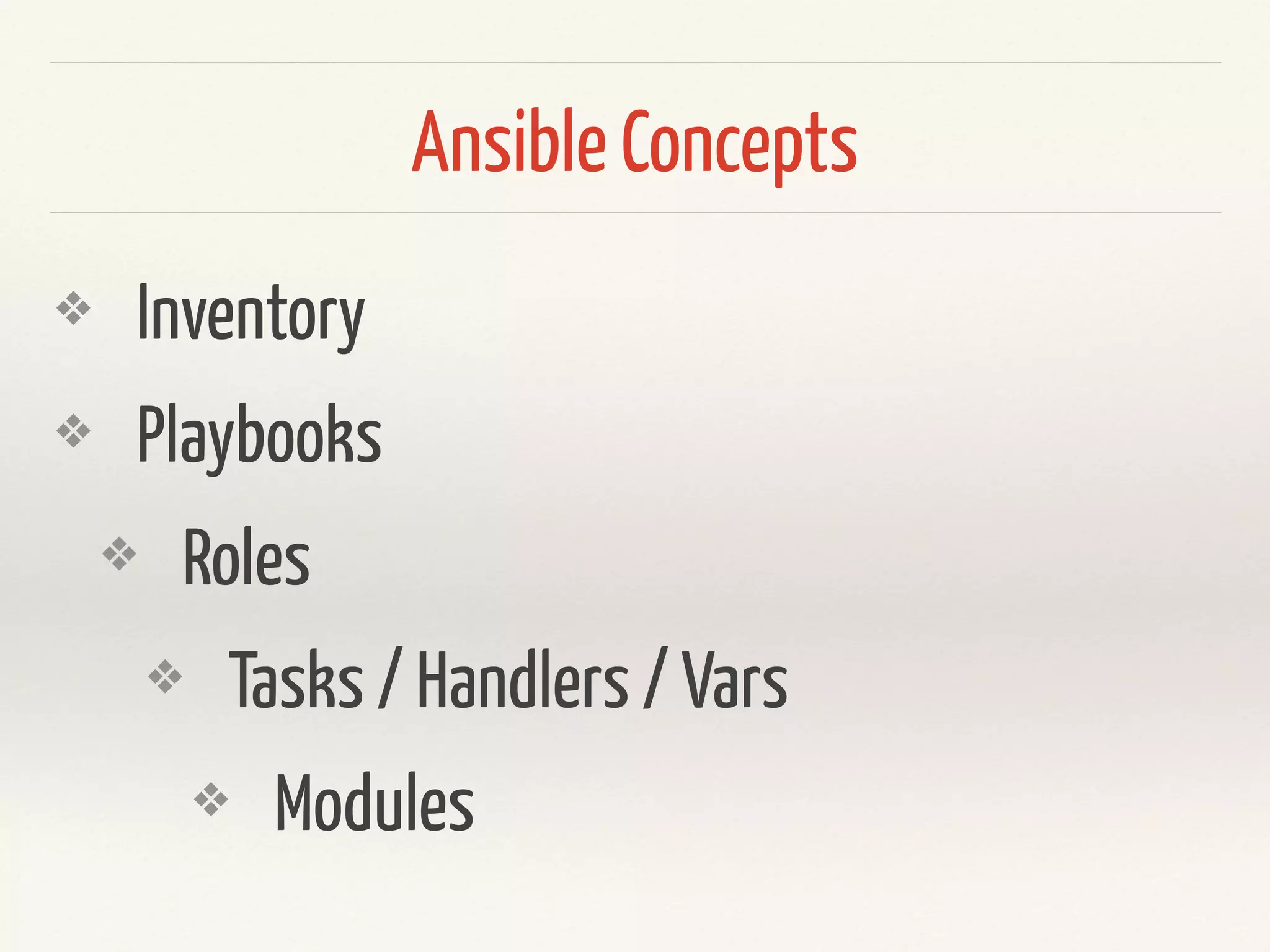

55. Ansible Concepts
❖ Inventory
❖ Playbooks
❖ Roles
❖ Tasks / Handlers / Vars
❖ Modules

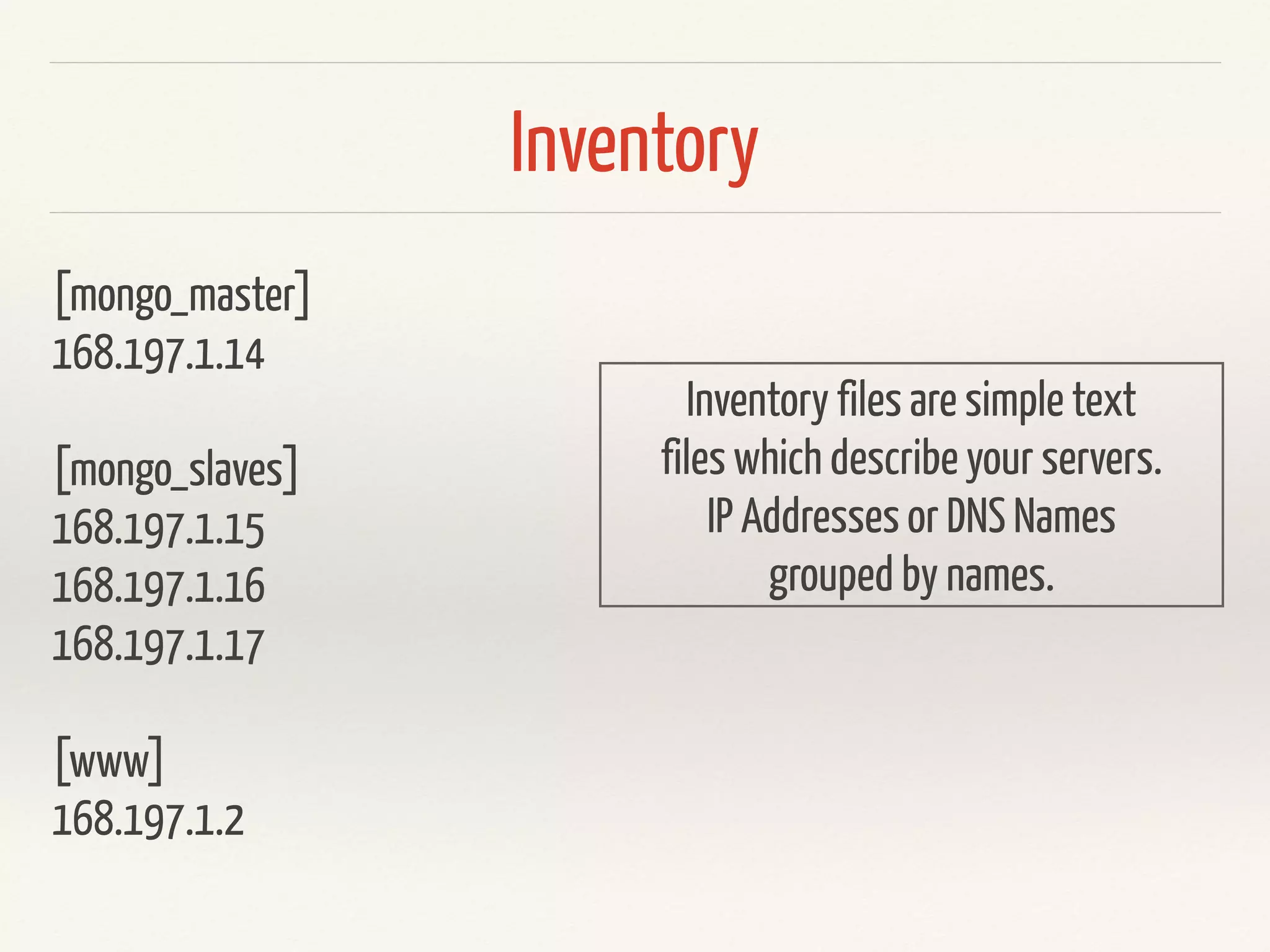

56. Inventory

57. Inventory
[mongo_master]
168.197.1.14
[mongo_slaves]
168.197.1.15
168.197.1.16
168.197.1.17
[www]
168.197.1.2
Inventory files are simple text
files which describe your servers.
IP Addresses or DNS Names
grouped by names.

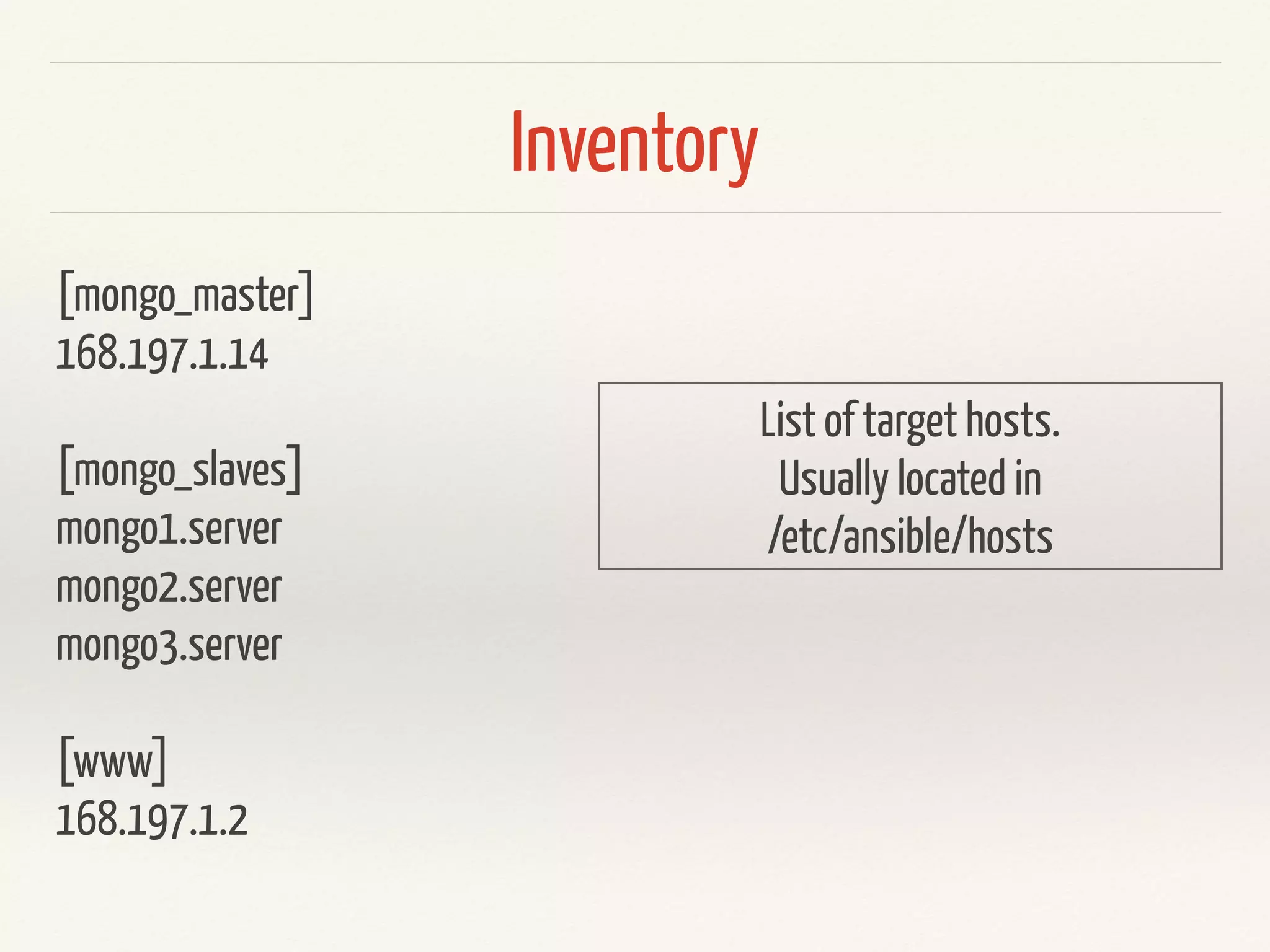

58. Inventory
[mongo_master]
168.197.1.14
[mongo_slaves]
mongo1.server
mongo2.server
mongo3.server
[www]
168.197.1.2
List of target hosts.
Usually located in
/etc/ansible/hosts

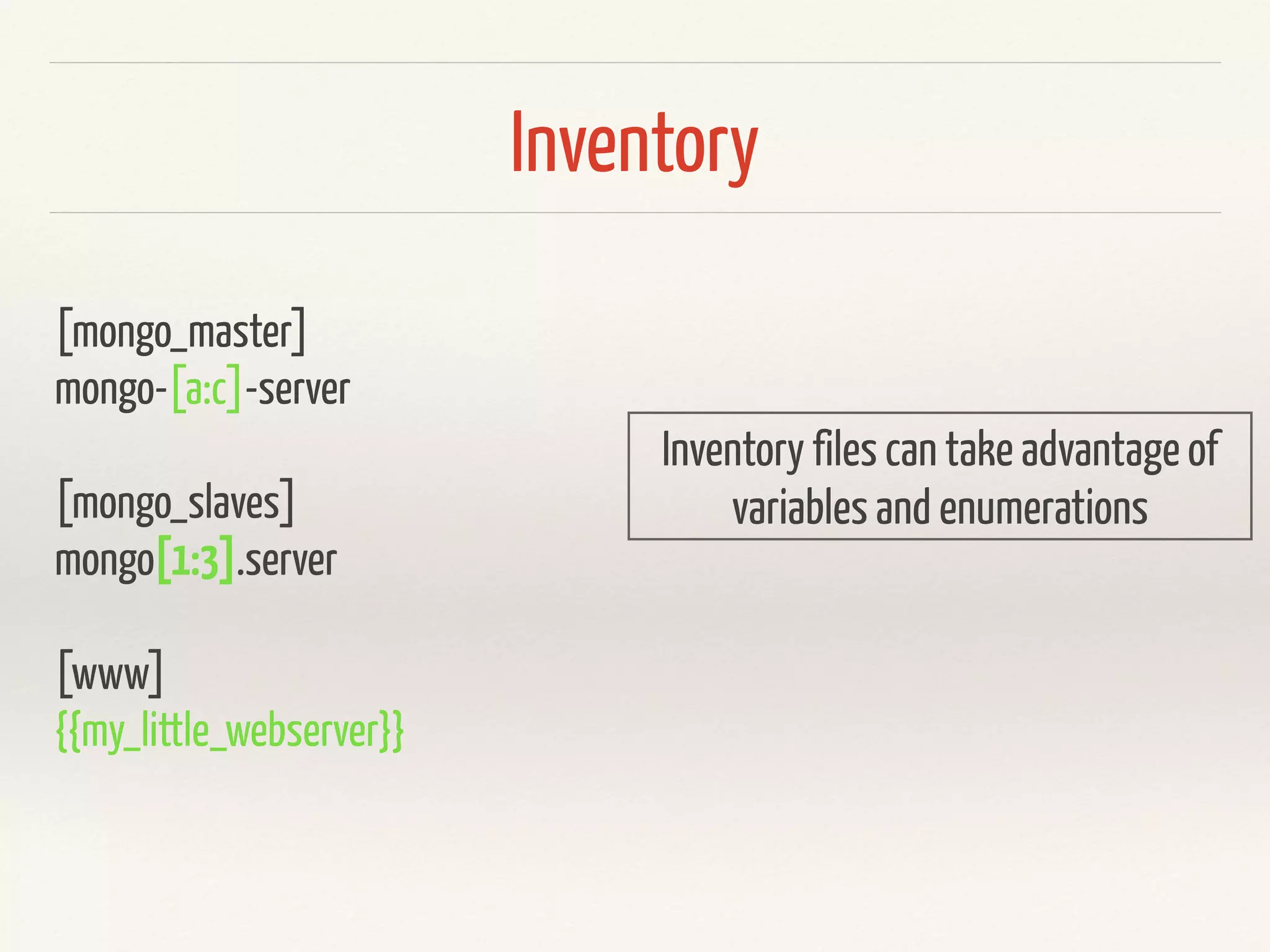

59. Inventory
[mongo_master]
mongo-[a:c]-server
[mongo_slaves]
mongo[1:3].server
[www]
{{my_little_webserver}}
Inventory files can take advantage of
variables and enumerations

60. Playbooks

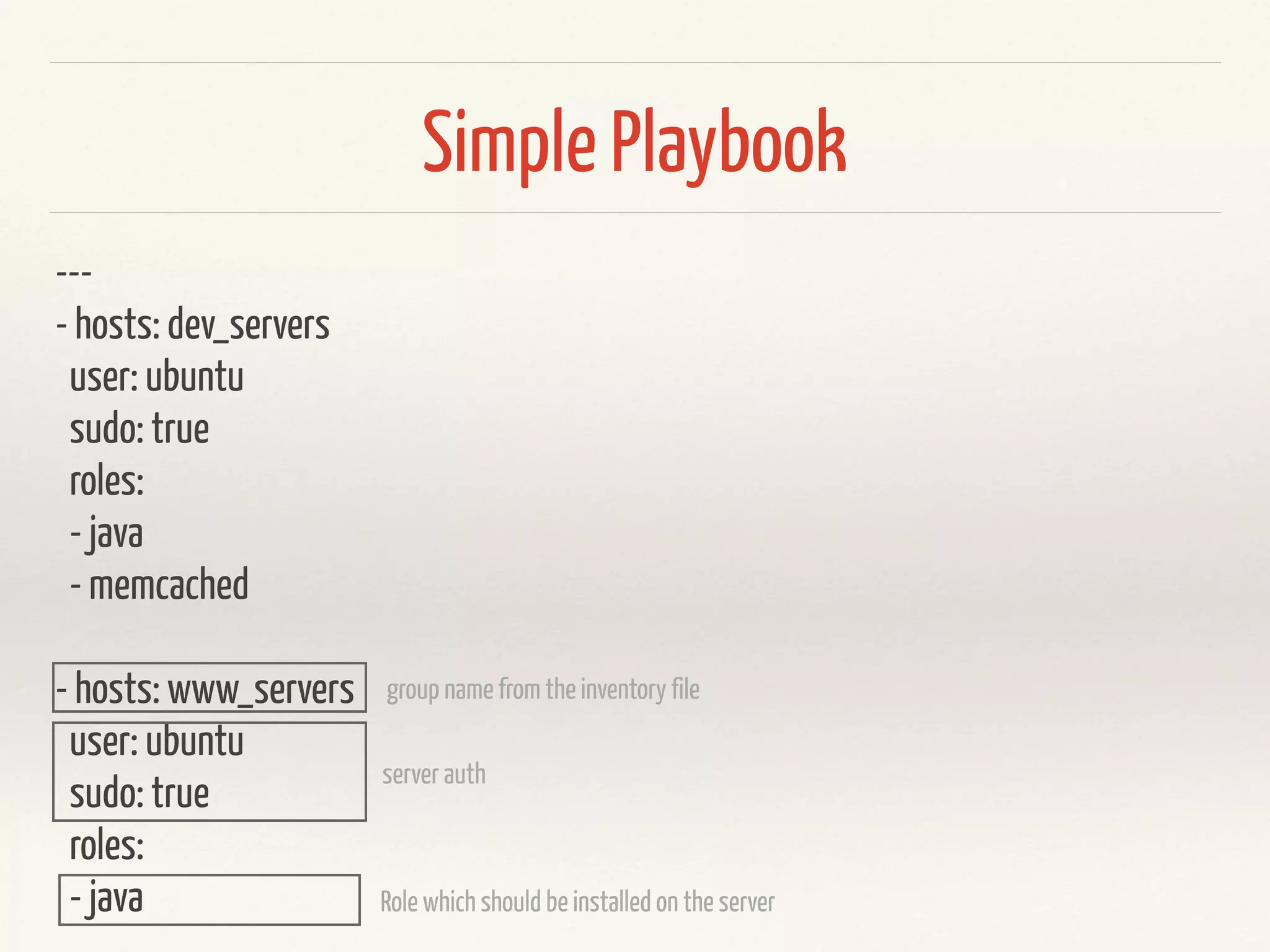

61. Simple Playbook
---
- hosts: dev_servers
user: ubuntu
sudo: true
roles:
- java
- memcached
- hosts: www_servers
user: ubuntu
sudo: true
roles:
- java
group name from the inventory file
server auth
Role which should be installed on the server

62. Roles / Modules

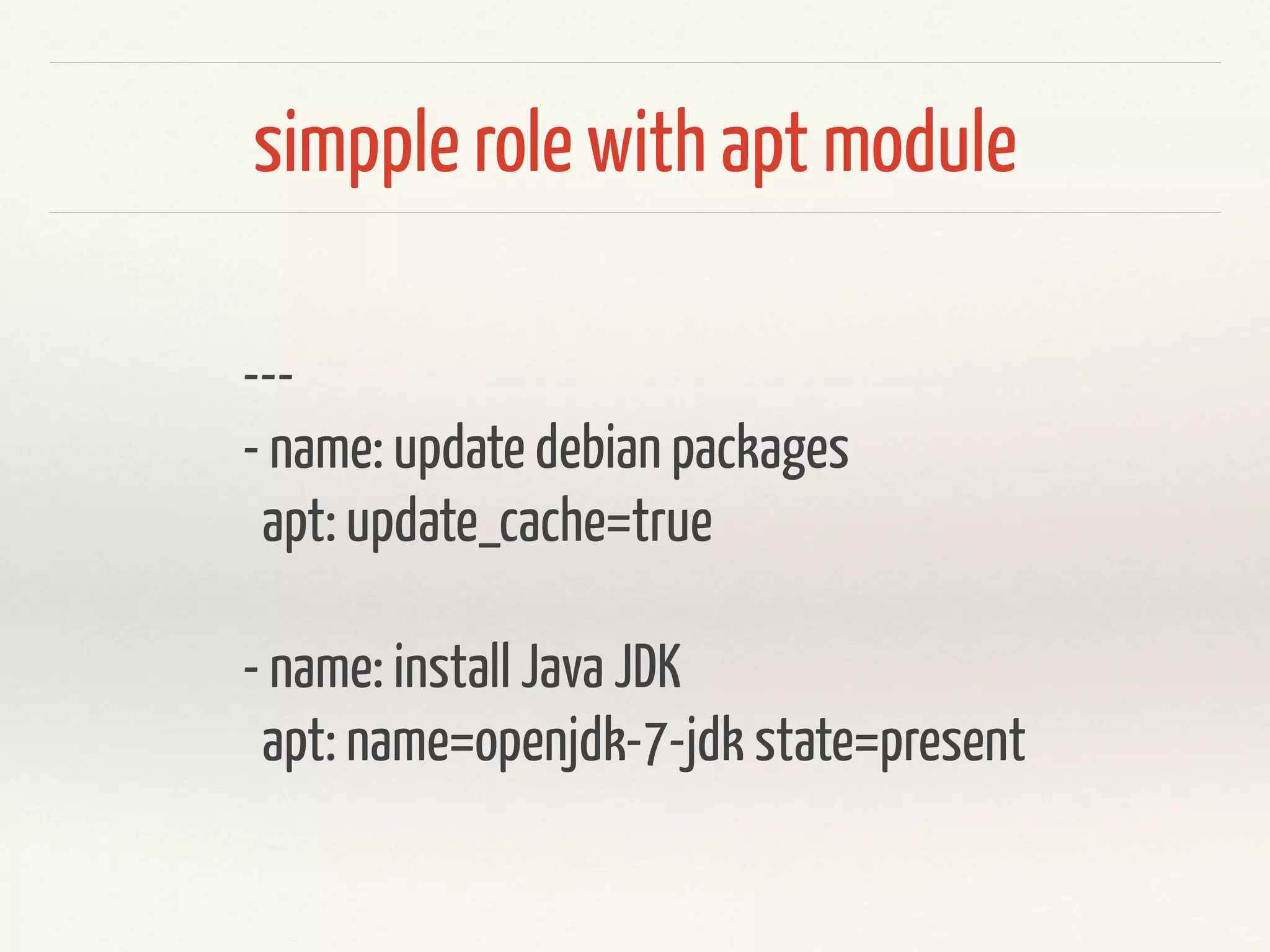

63. simpple role with apt module
---
- name: update debian packages
apt: update_cache=true
- name: install Java JDK
apt: name=openjdk-7-jdk state=present

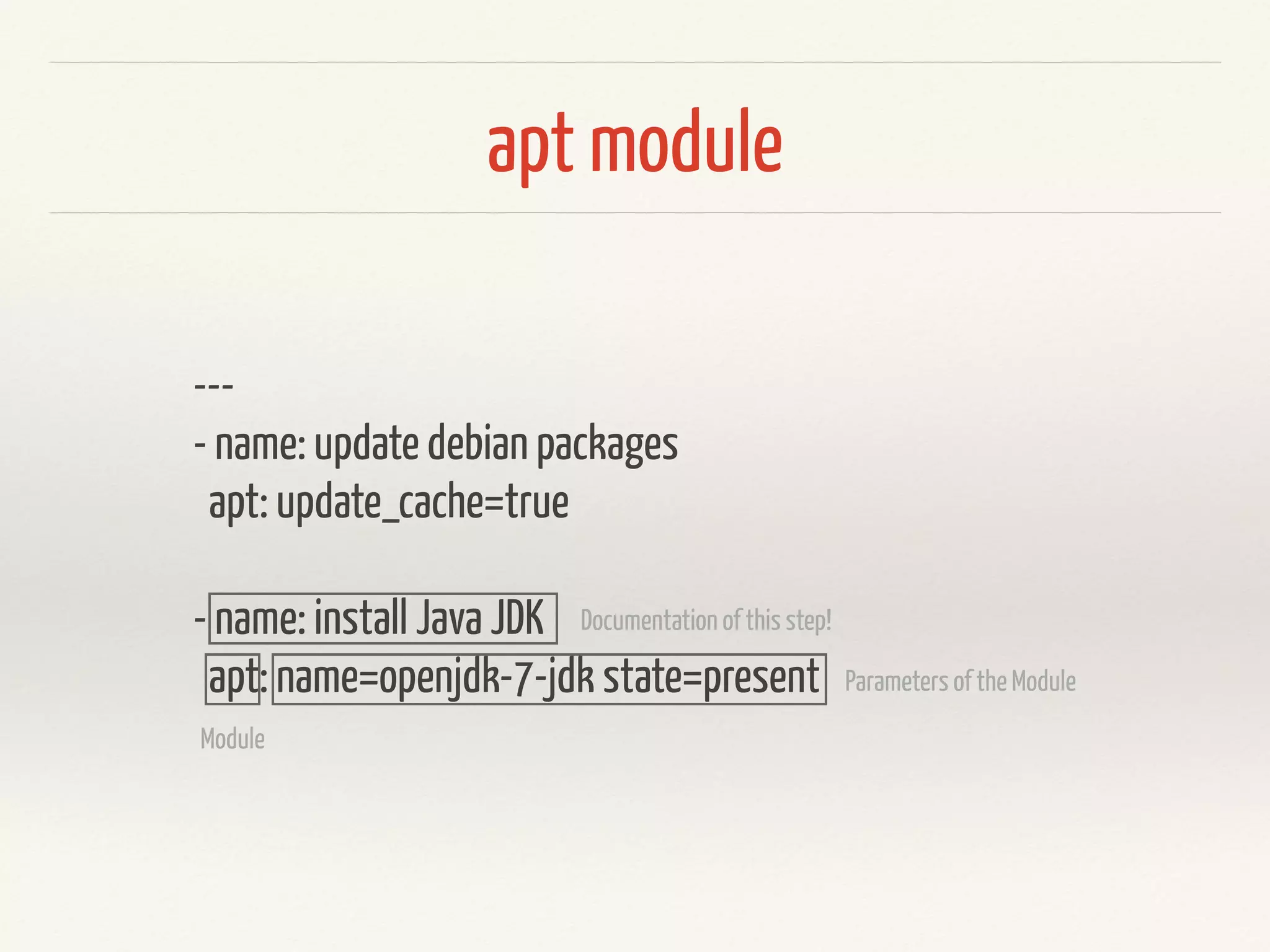

64. apt module
---
- name: update debian packages
apt: update_cache=true
- name: install Java JDK
apt: name=openjdk-7-jdk state=present
Documentation of this step!
Module
Parameters of the Module

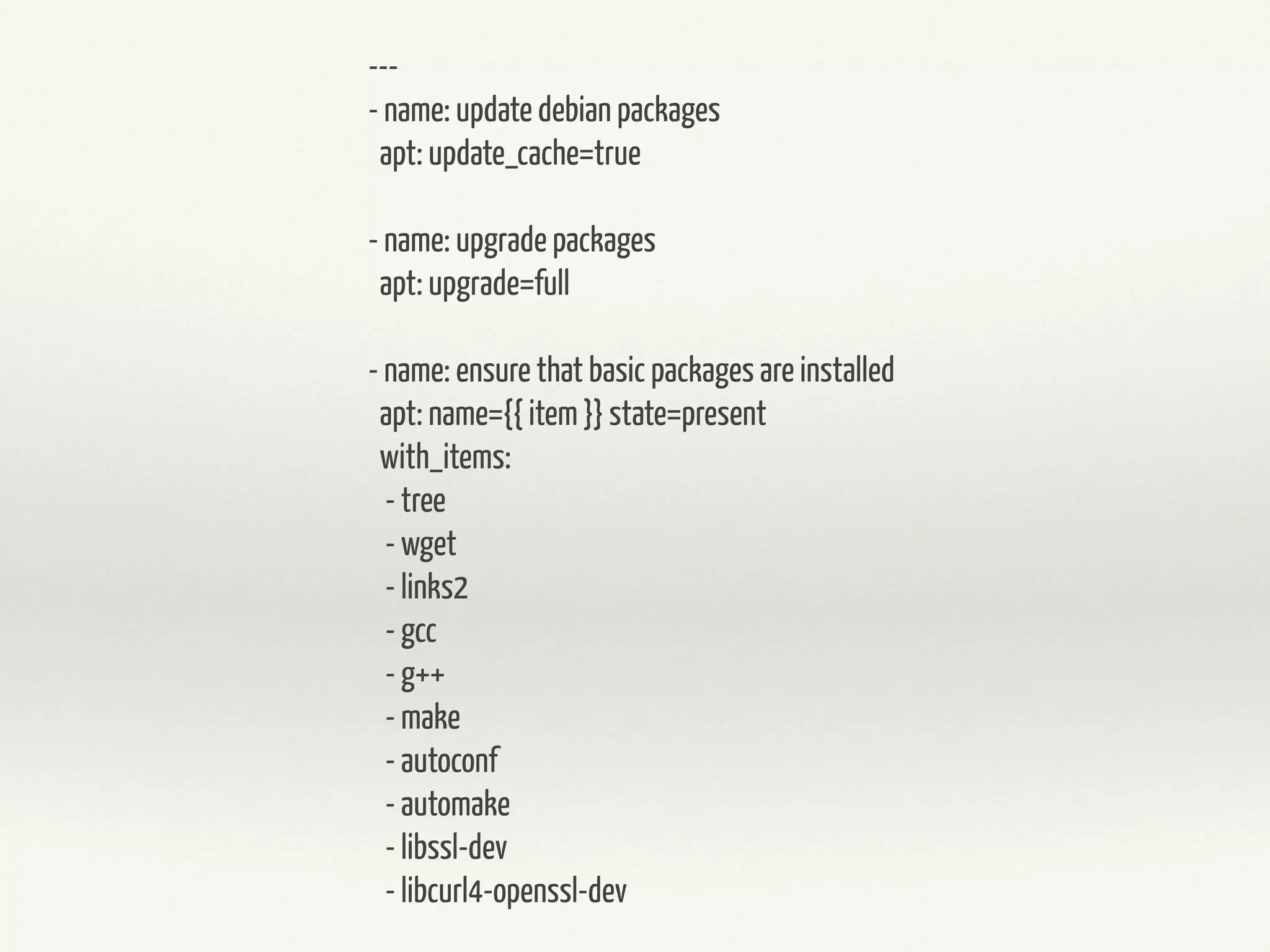

65. ---
- name: update debian packages
apt: update_cache=true
- name: upgrade packages
apt: upgrade=full
- name: ensure that basic packages are installed
apt: name={{ item }} state=present
with_items:
- tree
- wget
- links2
- gcc
- g++
- make
- autoconf
- automake
- libssl-dev
- libcurl4-openssl-dev

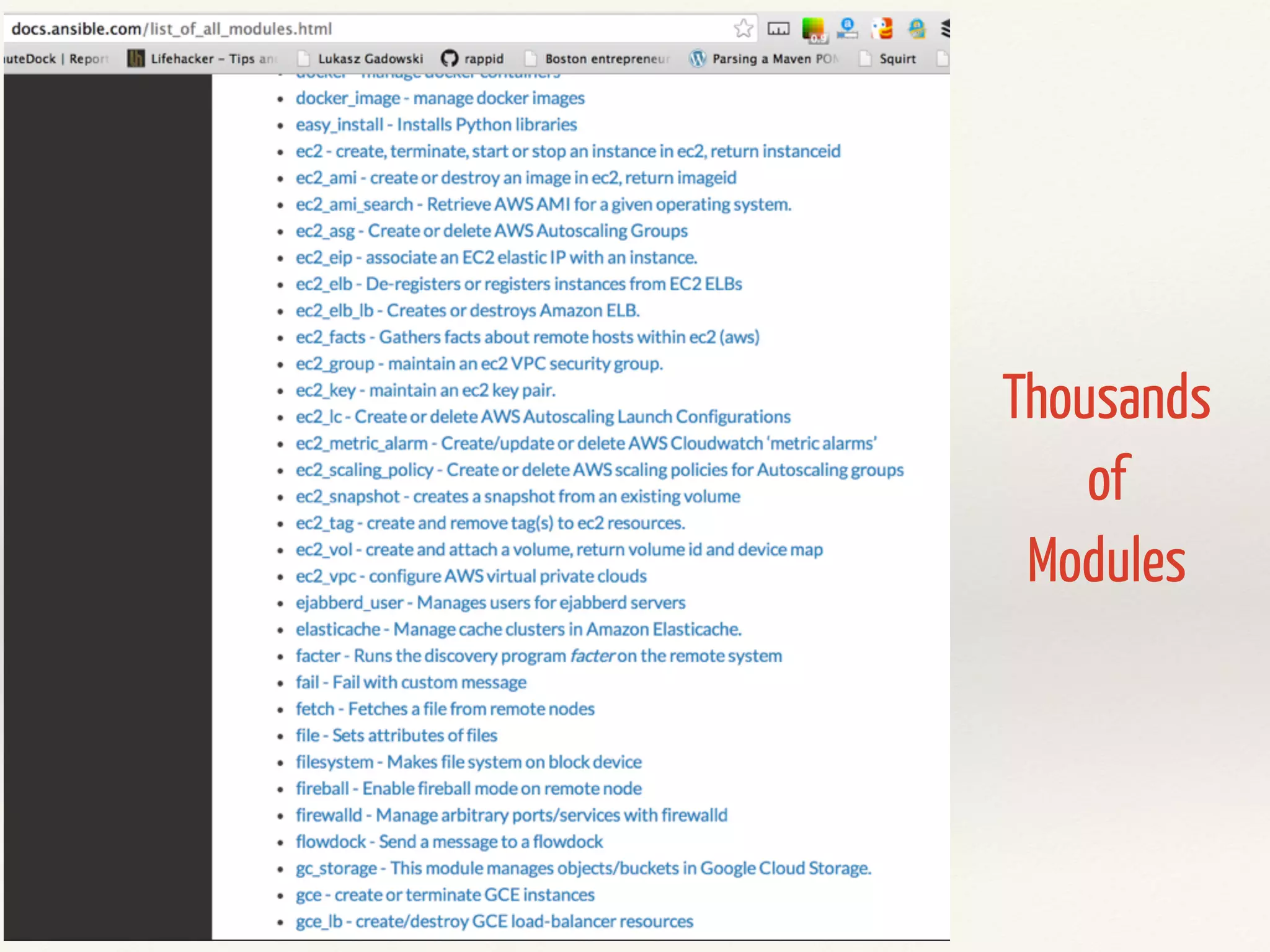

66. Thousands
of
Modules

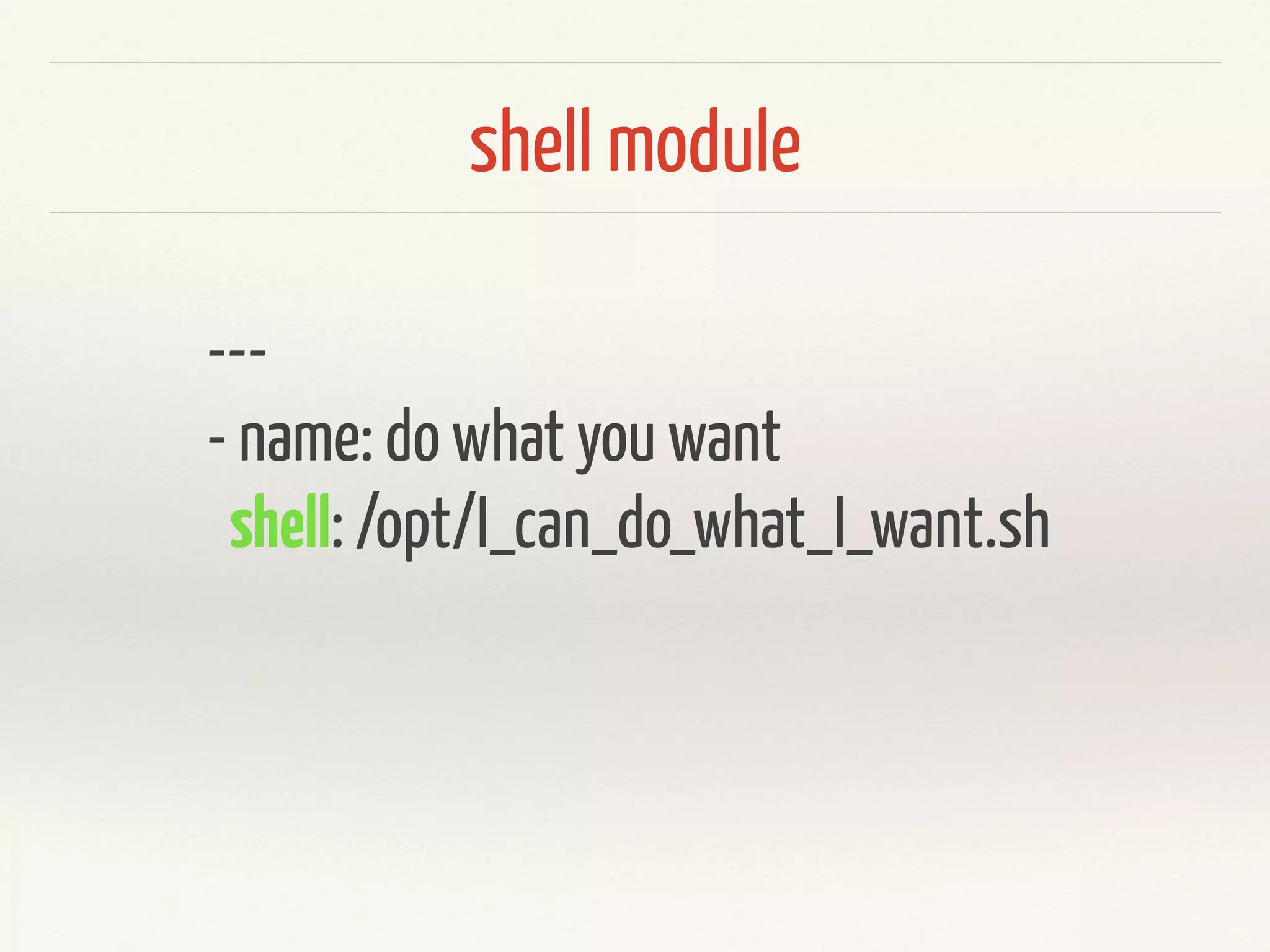

67. shell module
---
- name: do what you want
shell: /opt/I_can_do_what_I_want.sh

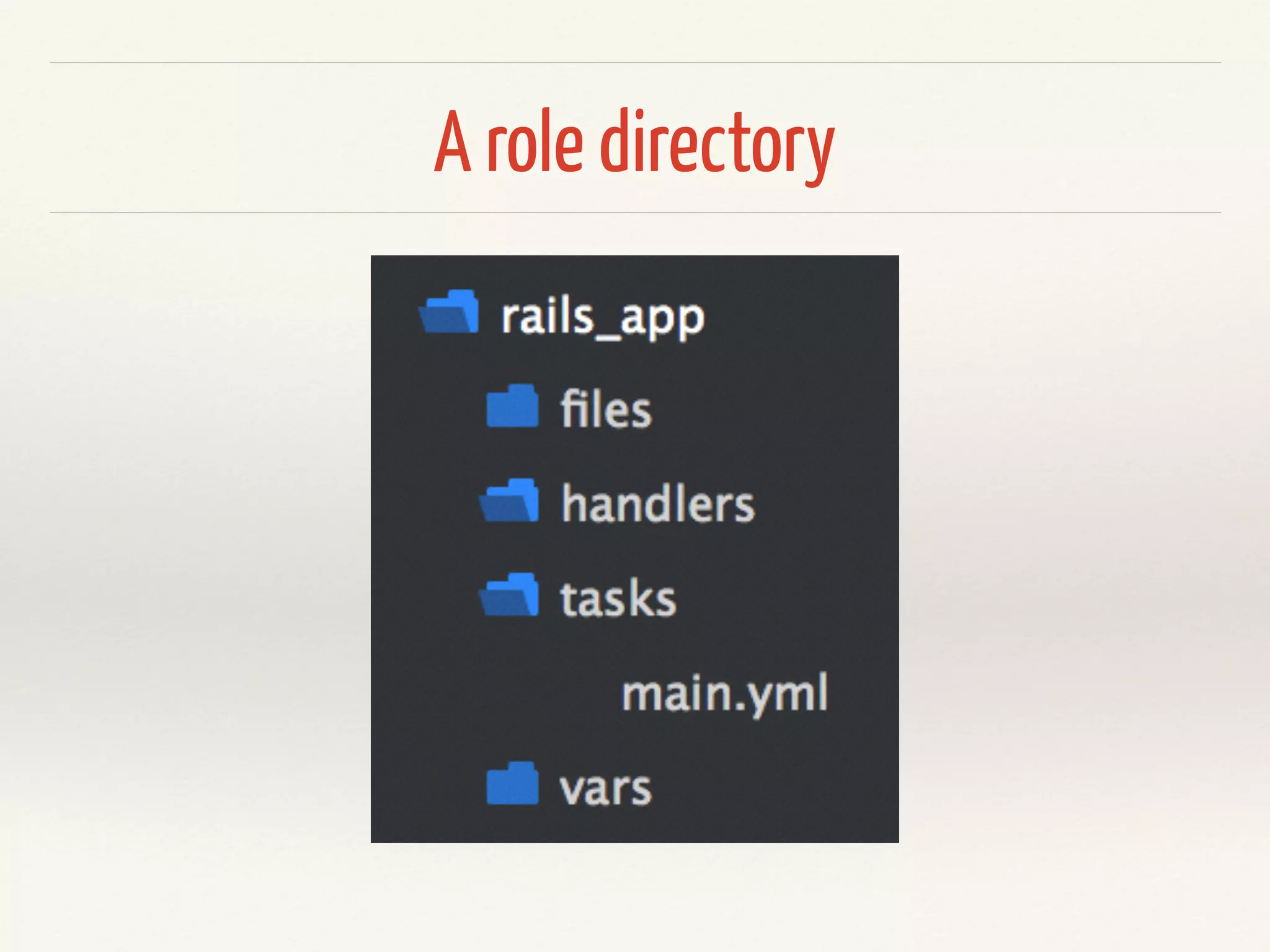

68. A role directory

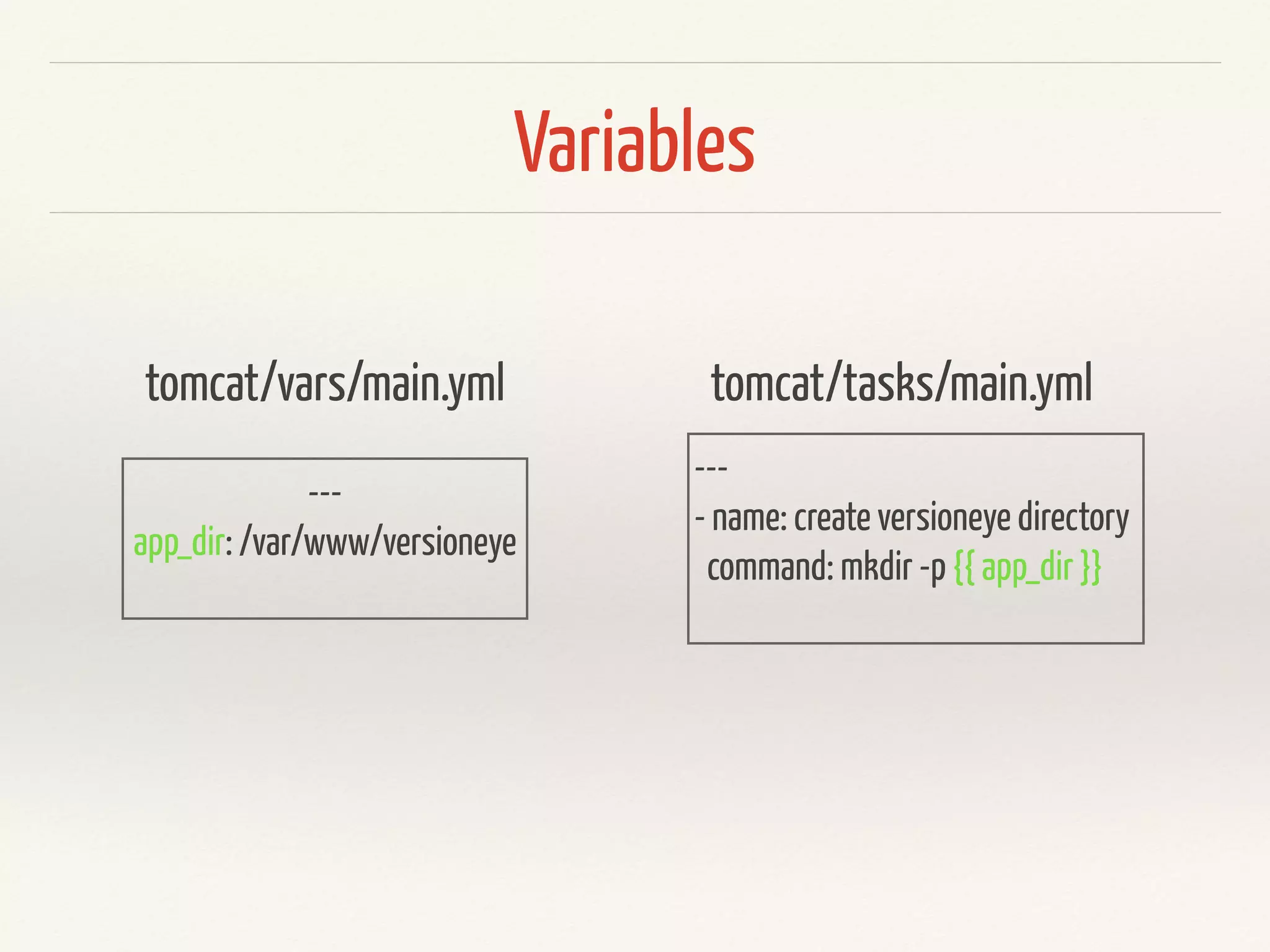

69. Variables
---
app_dir: /var/www/versioneye
tomcat/vars/main.yml
---
- name: create versioneye directory
command: mkdir -p {{ app_dir }}
tomcat/tasks/main.yml

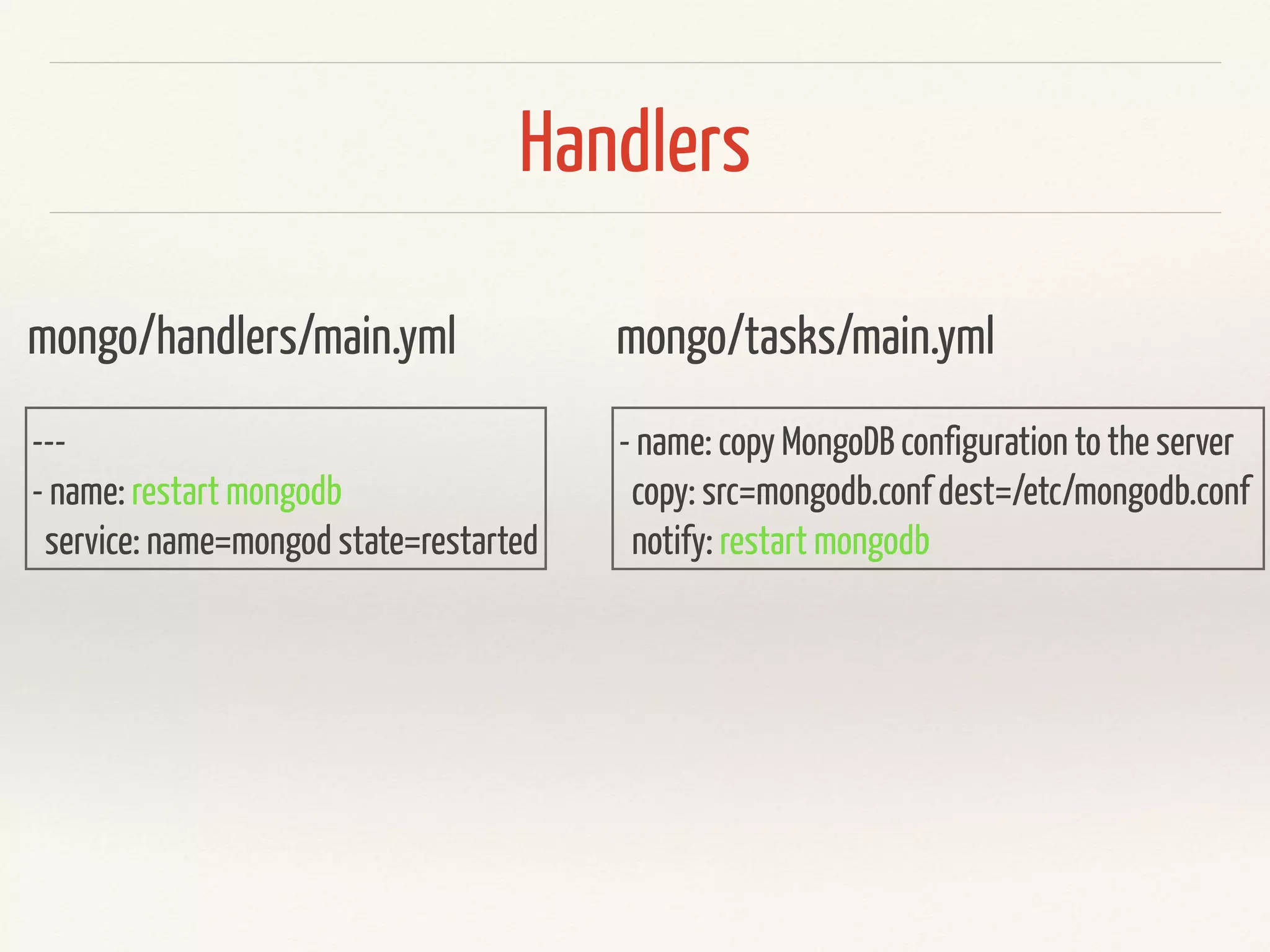

70. Handlers
---
- name: restart mongodb
service: name=mongod state=restarted
mongo/handlers/main.yml
- name: copy MongoDB configuration to the server
copy: src=mongodb.conf dest=/etc/mongodb.conf
notify: restart mongodb
mongo/tasks/main.yml

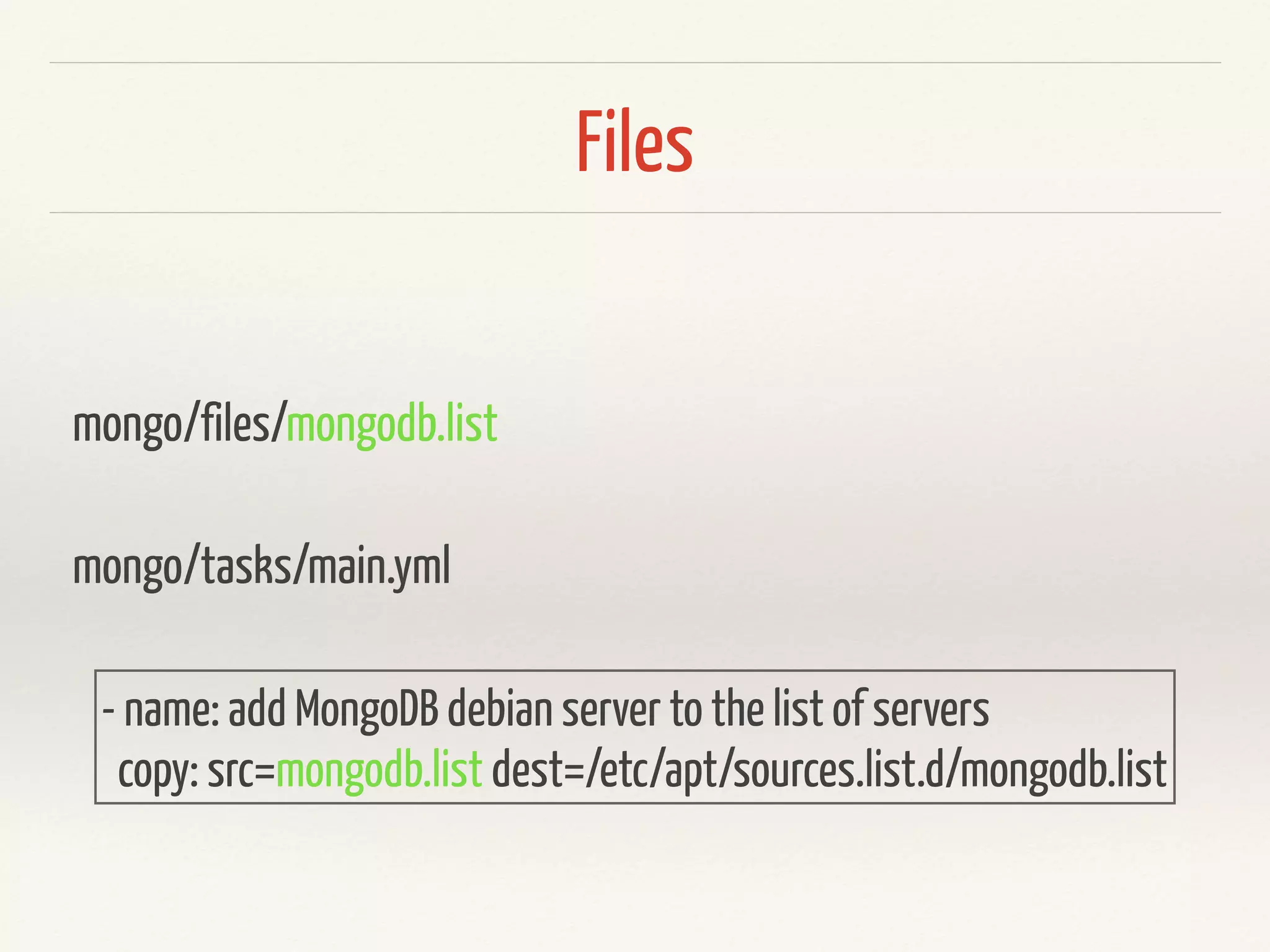

71. Files
mongo/files/mongodb.list
- name: add MongoDB debian server to the list of servers
copy: src=mongodb.list dest=/etc/apt/sources.list.d/mongodb.list
mongo/tasks/main.yml

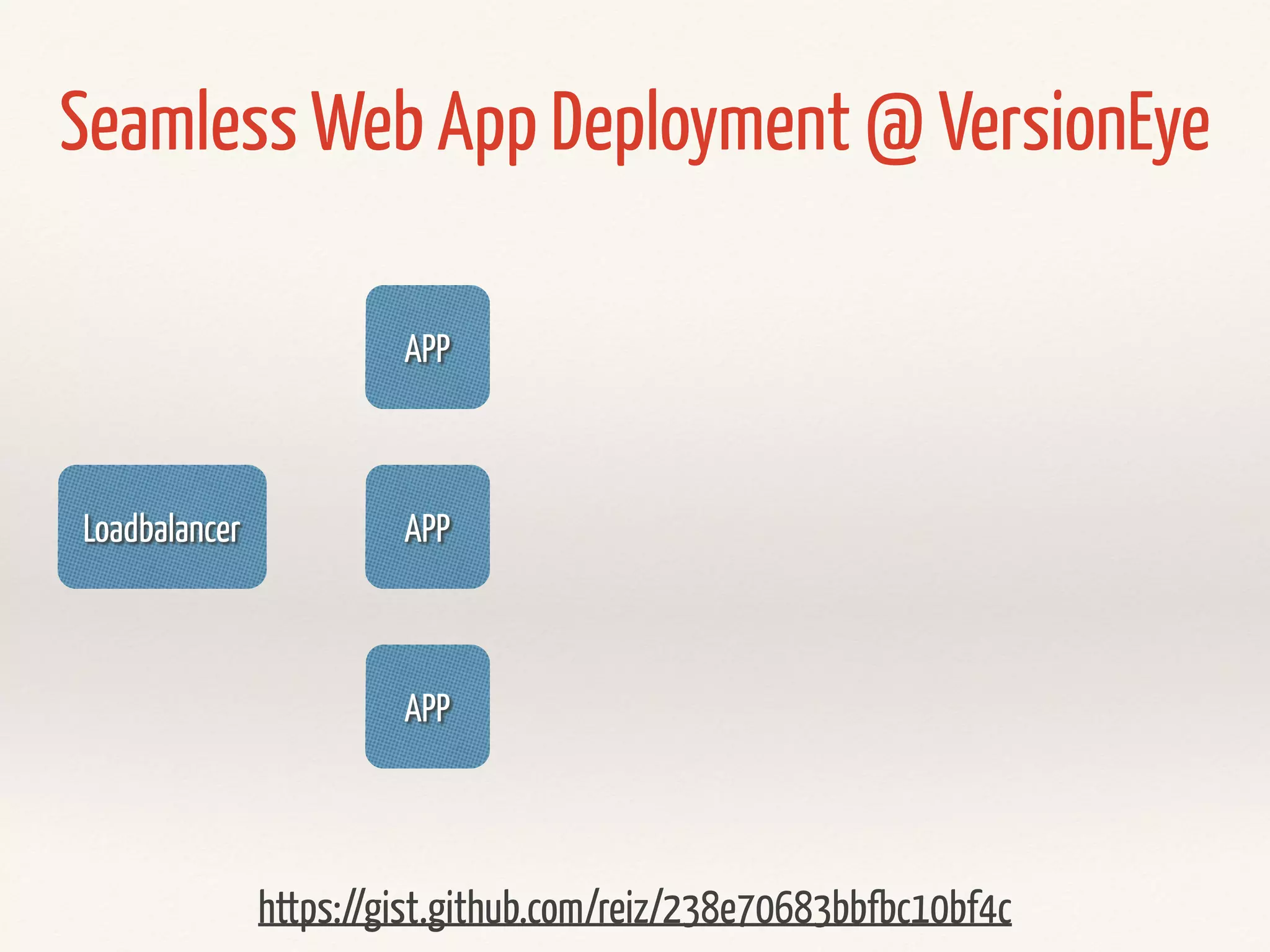

72. Real World Use case

73. Loadbalancer
APP
APP
APP
Seamless Web App Deployment @ VersionEye
https://gist.github.com/reiz/238e70683bbfbc10bf4c

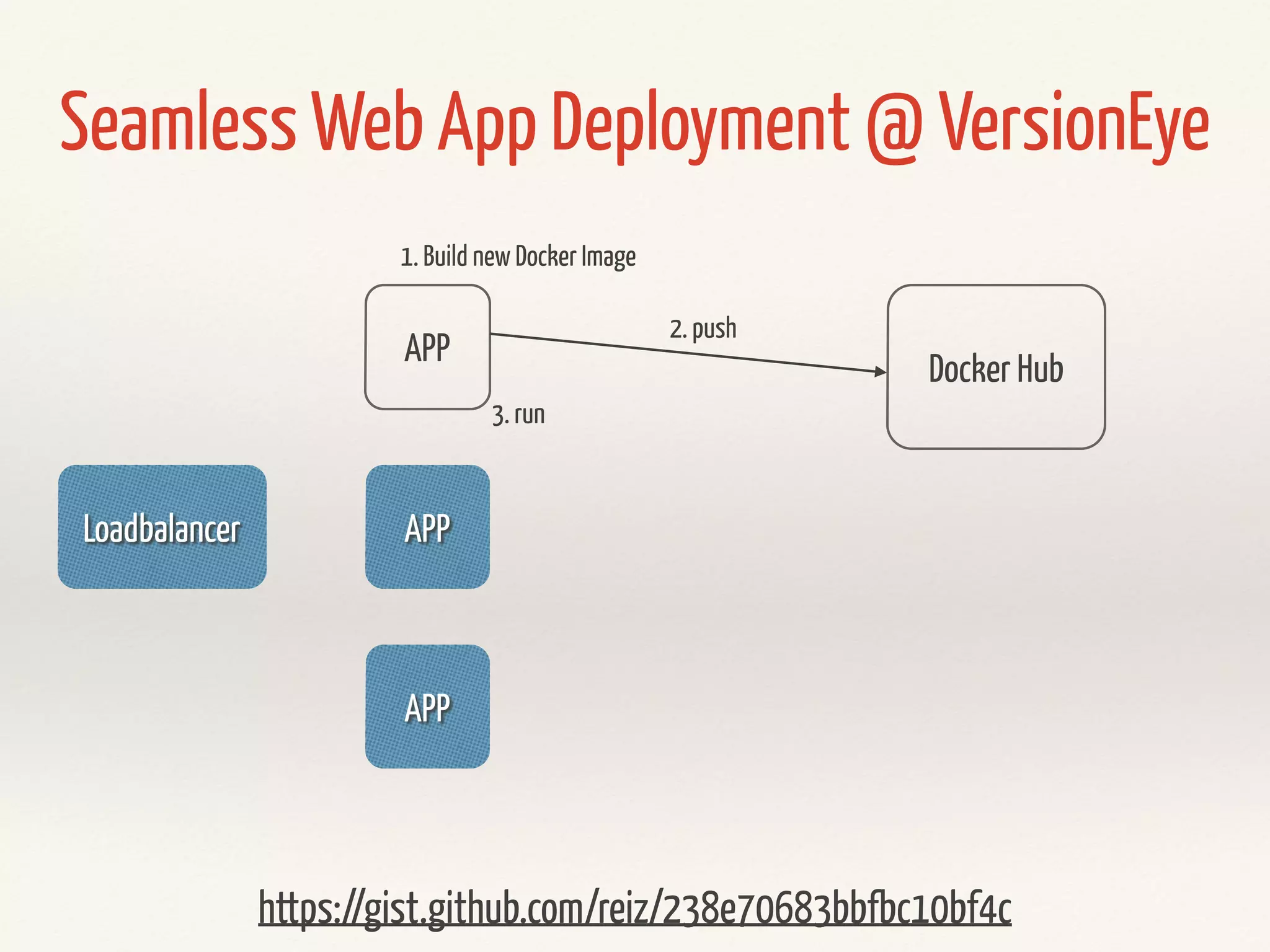

74. Loadbalancer
APP
APP
APP
Docker Hub
1. Build new Docker Image
2. push
3. run
Seamless Web App Deployment @ VersionEye
https://gist.github.com/reiz/238e70683bbfbc10bf4c

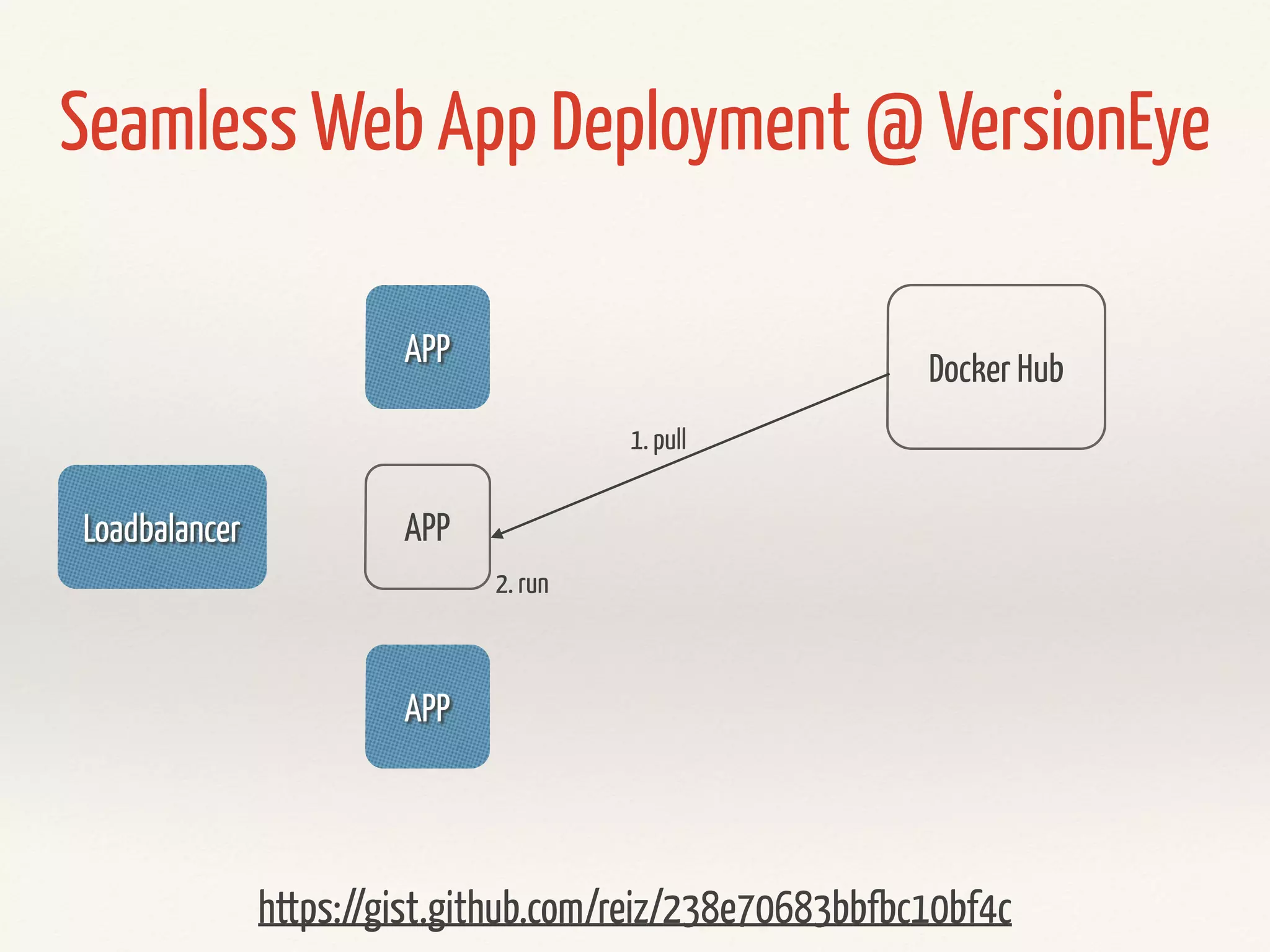

75. Loadbalancer
APP
APP
APP
Docker Hub
1. pull
2. run
Seamless Web App Deployment @ VersionEye
https://gist.github.com/reiz/238e70683bbfbc10bf4c

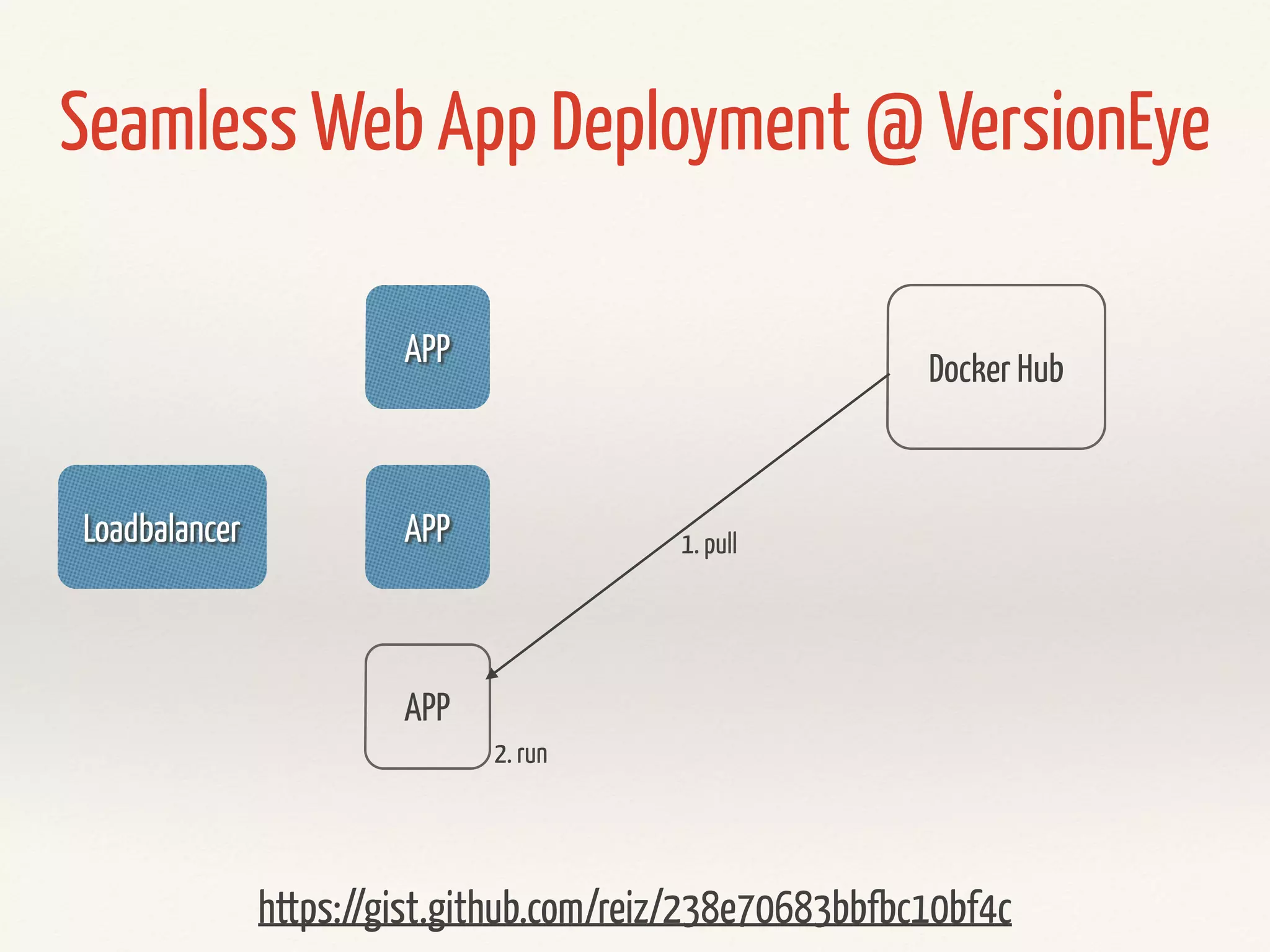

76. Loadbalancer
APP
APP
APP
Seamless Web App Deployment @ VersionEye
Docker Hub
1. pull
2. run
https://gist.github.com/reiz/238e70683bbfbc10bf4c

77. Loadbalancer
APP
APP
APP
Seamless Web App Deployment @ VersionEye
https://gist.github.com/reiz/238e70683bbfbc10bf4c

78. Demo

79. ? ? ?
@RobertReiz
