1. Django and Docker: a marriage
made in heaven
Ken Cochrane
DjangoCon US 2013
1

2. About me
• Ken Cochrane (@KenCochrane)
• Engineer at dotCloud (Corporate sponsor
of Docker)
• Work on Docker and Docker related
projects (index, registry, docs, etc)
• Django user since 0.96.1
2

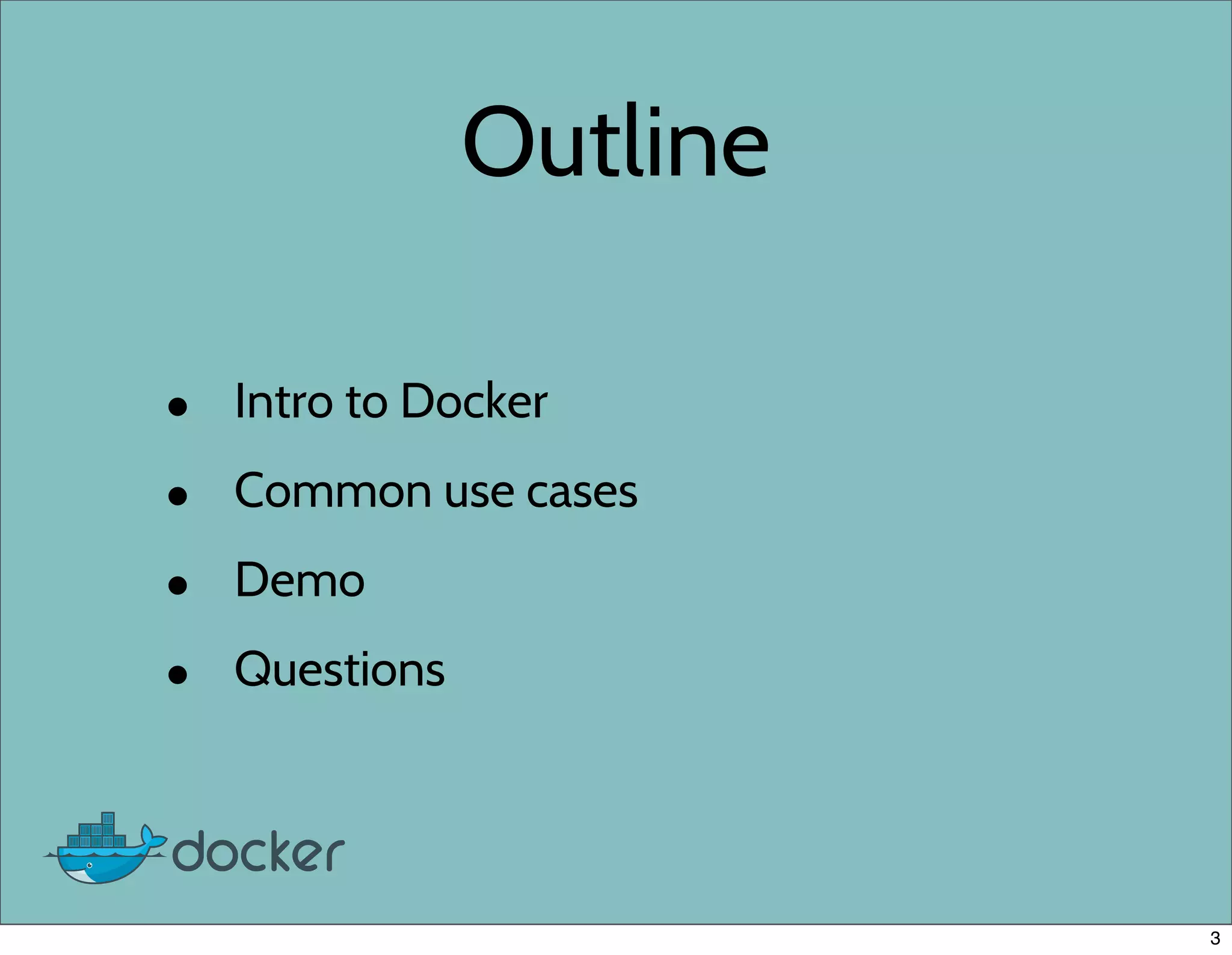

3. Outline
• Intro to Docker
• Common use cases
• Demo
• Questions
3

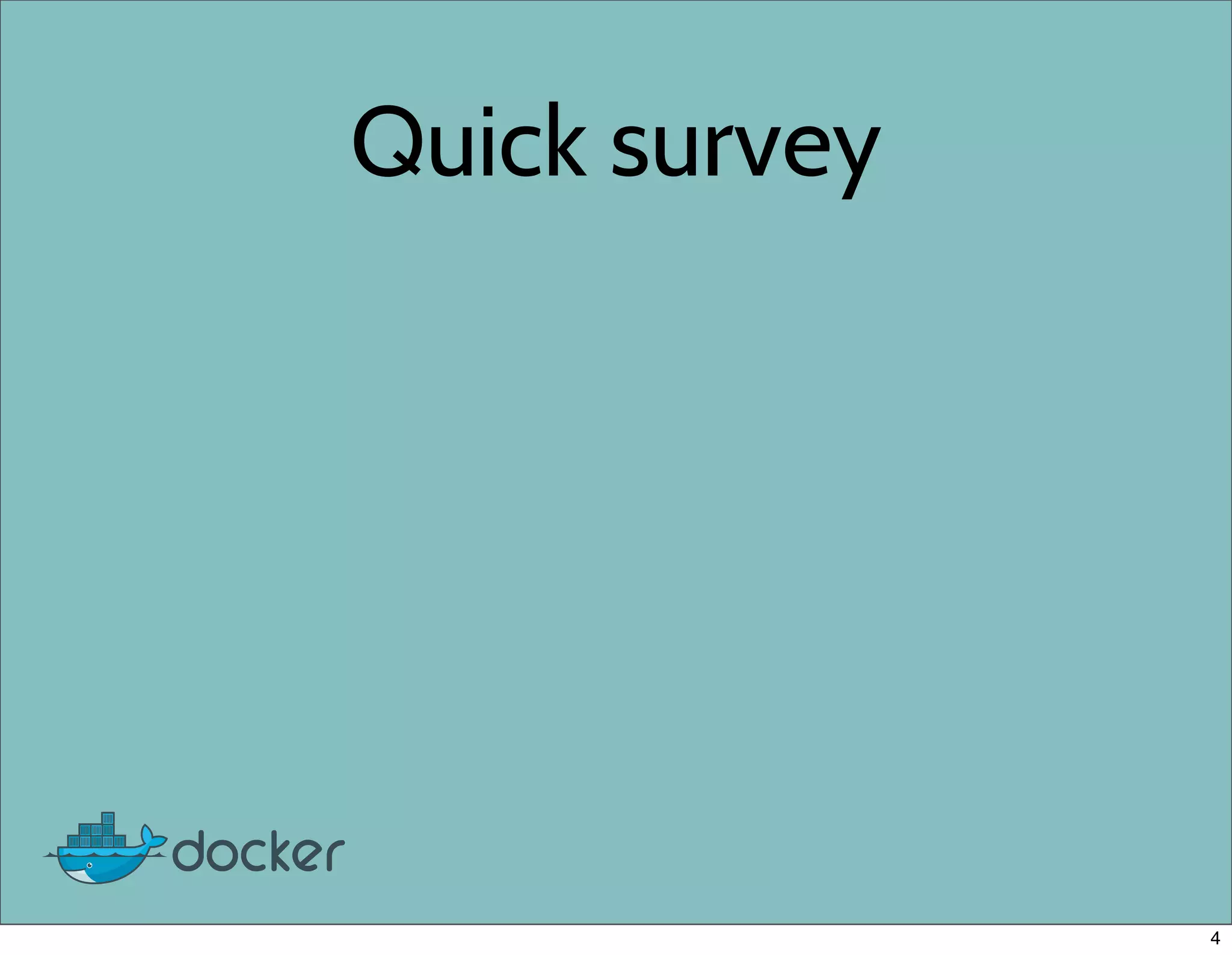

4. Quick survey
4

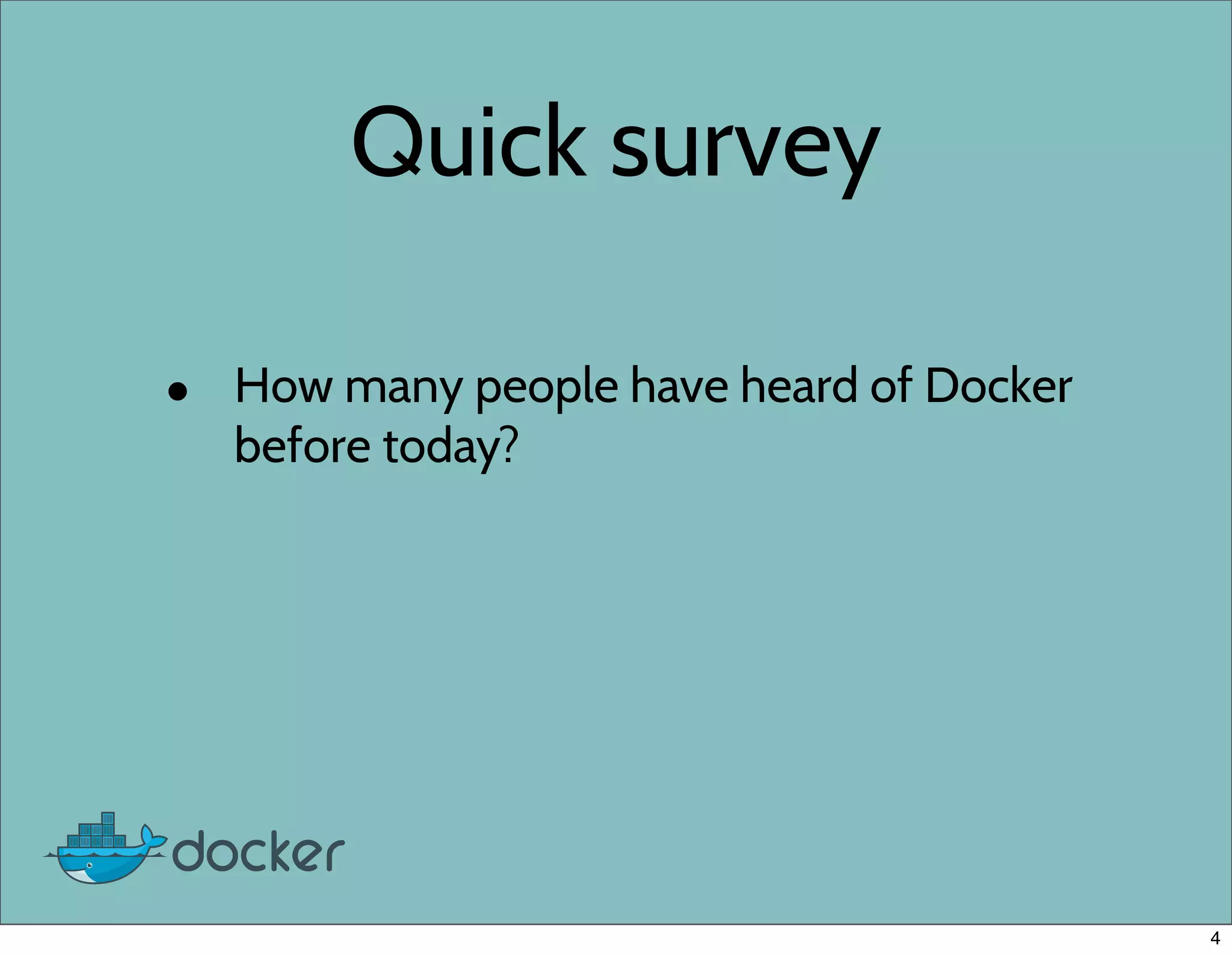

5. Quick survey
• How many people have heard of Docker
before today?
4

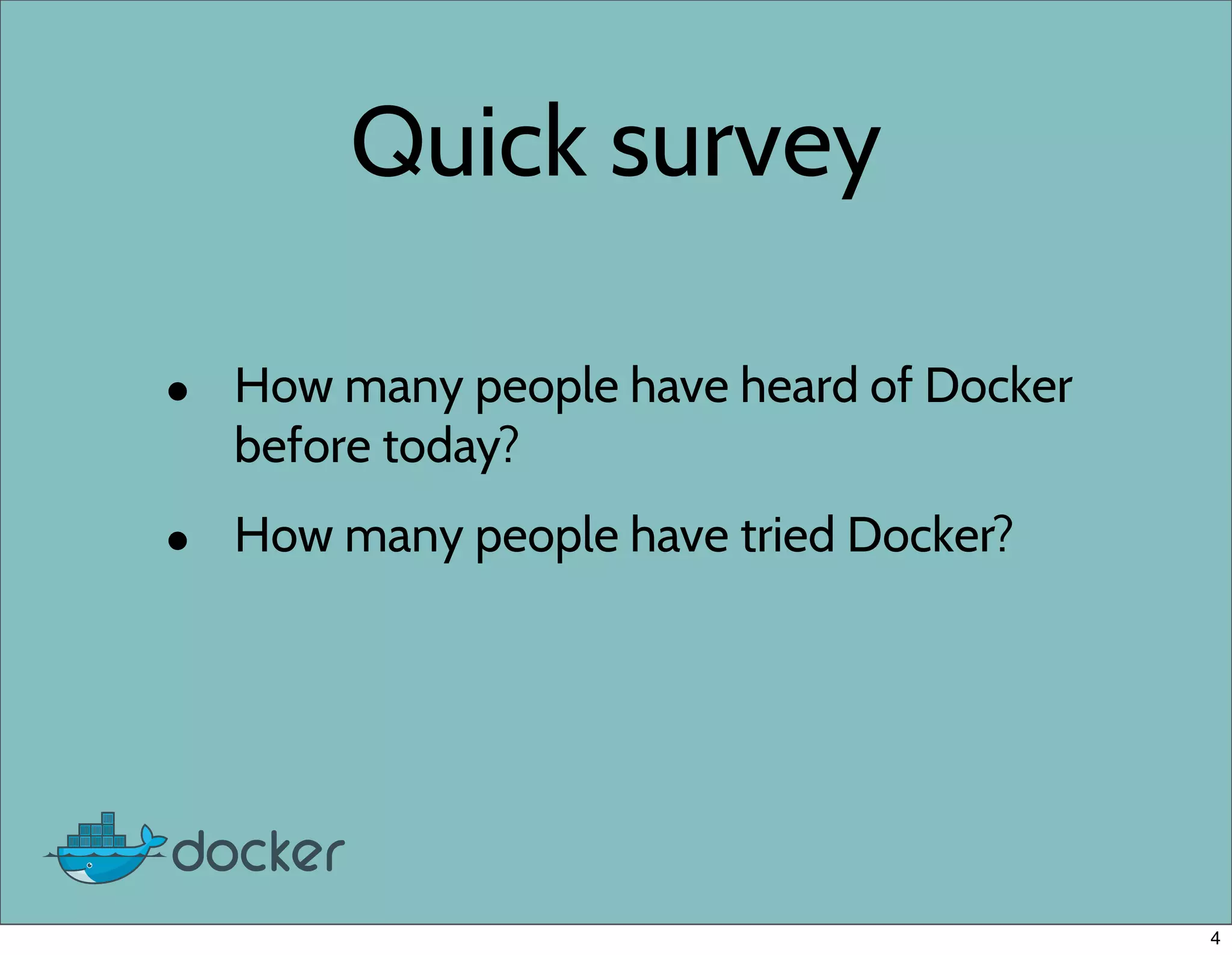

6. Quick survey
• How many people have heard of Docker
before today?
• How many people have tried Docker?
4

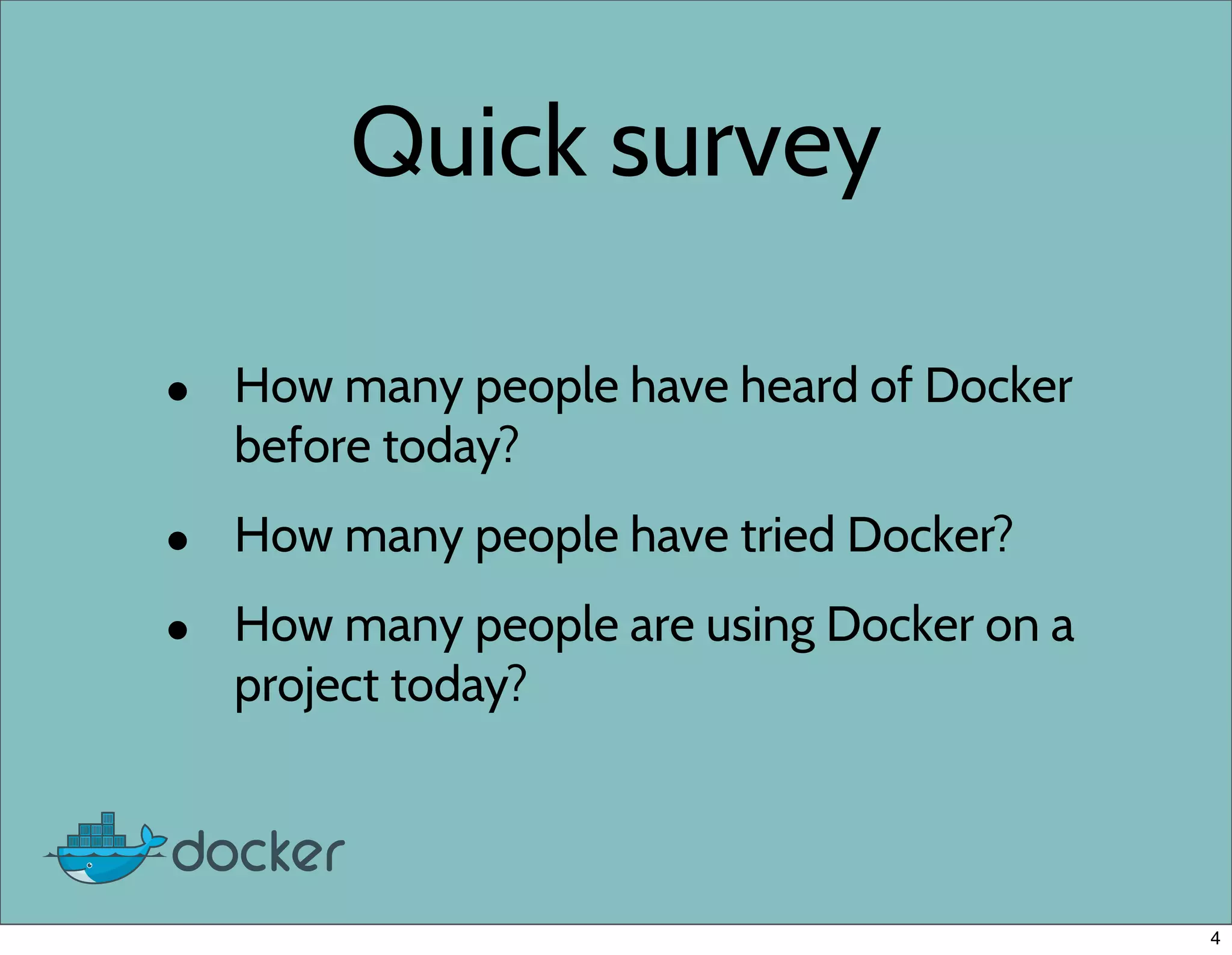

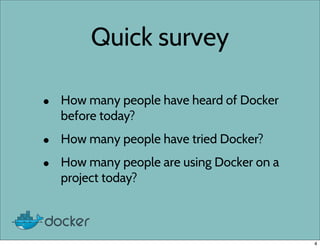

7. Quick survey
• How many people have heard of Docker
before today?
• How many people have tried Docker?
• How many people are using Docker on a
project today?
4

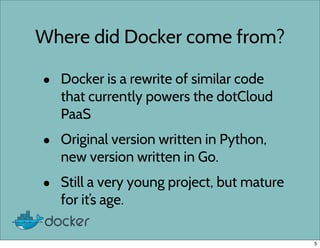

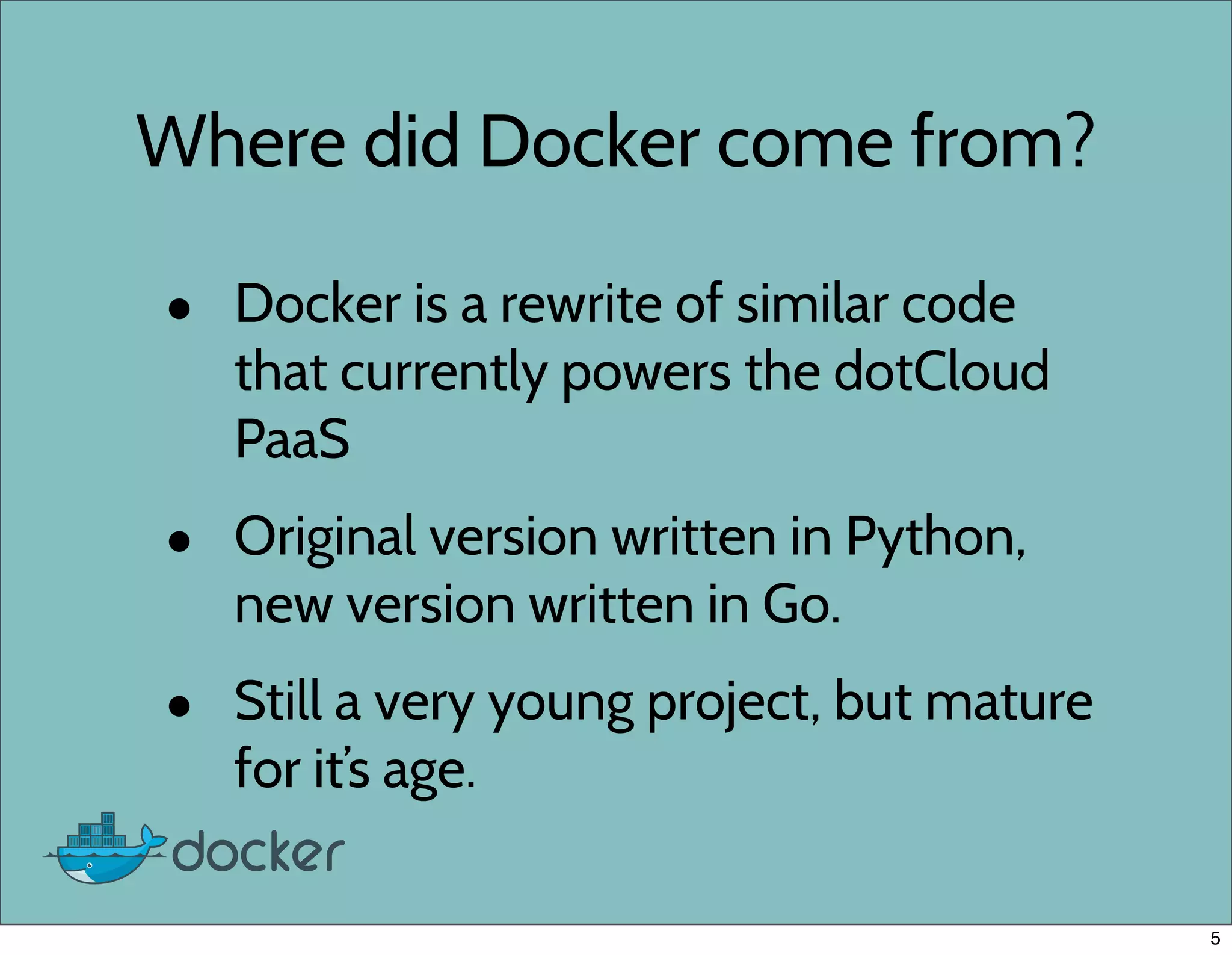

8. Where did Docker come from?
• Docker is a rewrite of similar code
that currently powers the dotCloud
PaaS
• Original version written in Python,
new version written in Go.
• Still a very young project, but mature
for it’s age.
5

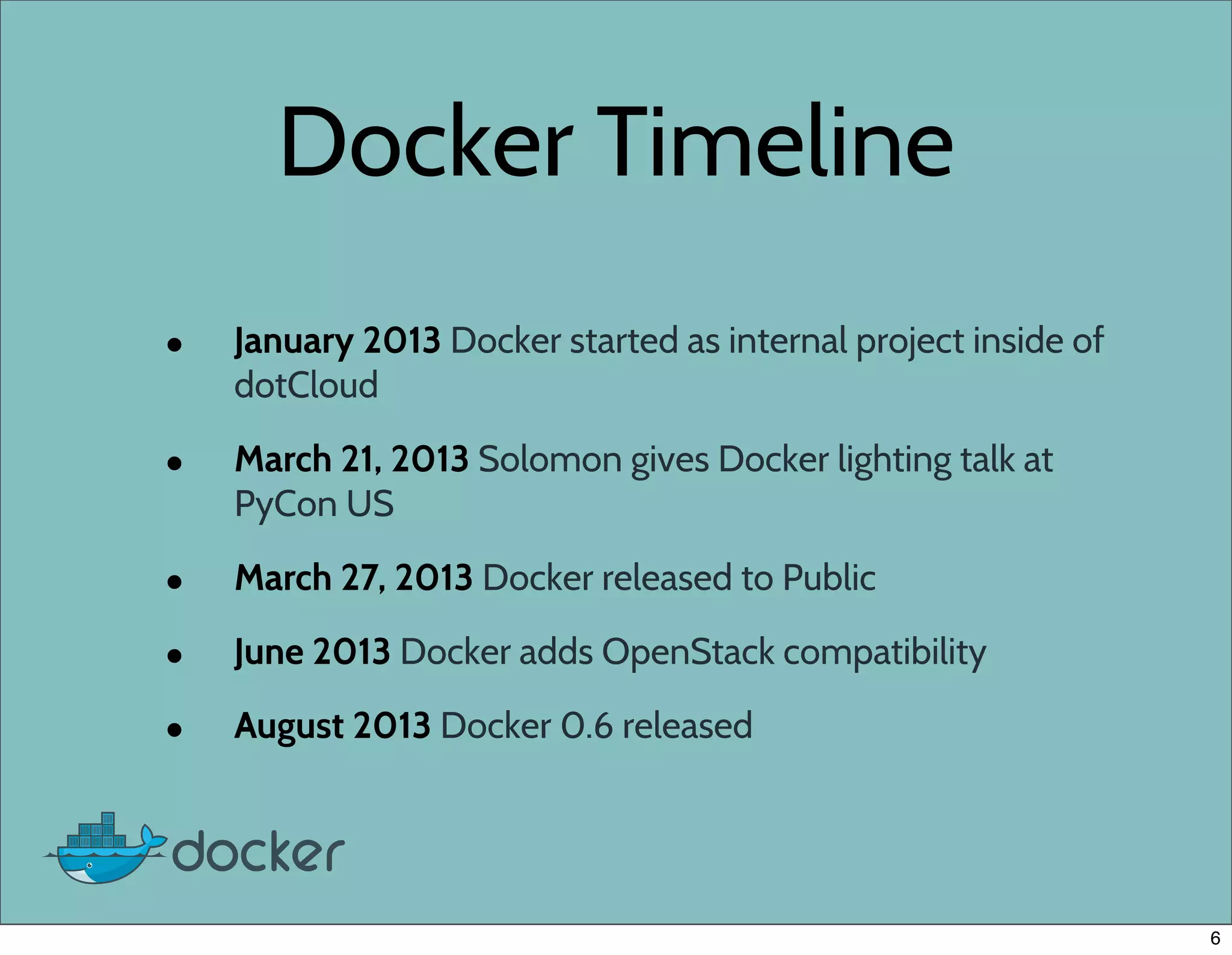

9. Docker Timeline
• January 2013 Docker started as internal project inside of
dotCloud
• March 21, 2013 Solomon gives Docker lighting talk at
PyCon US
• March 27, 2013 Docker released to Public
• June 2013 Docker adds OpenStack compatibility
• August 2013 Docker 0.6 released
6

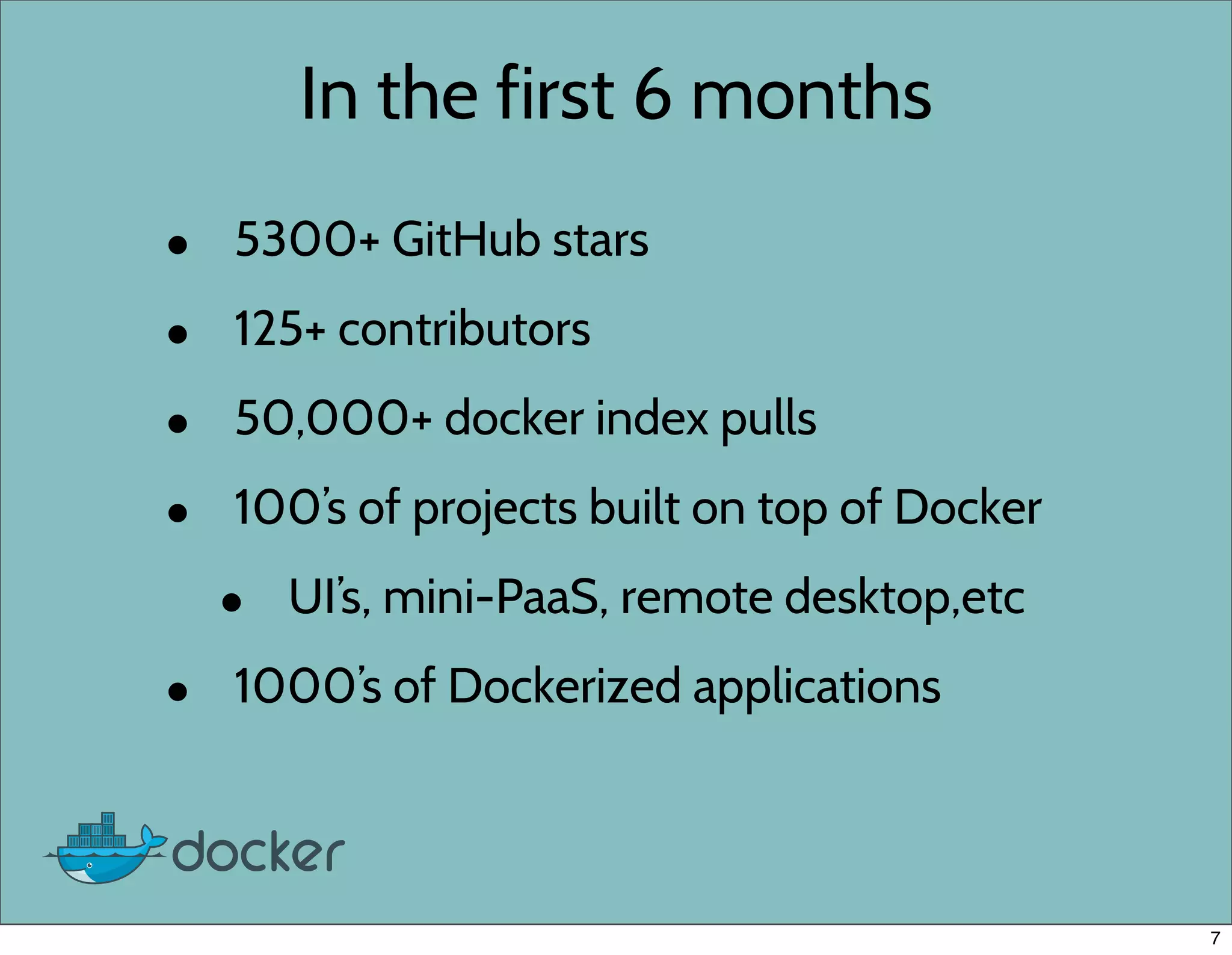

10. In the first 6 months
• 5300+ GitHub stars
• 125+ contributors
• 50,000+ docker index pulls
• 100’s of projects built on top of Docker
• UI’s, mini-PaaS, remote desktop,etc
• 1000’s of Dockerized applications
7

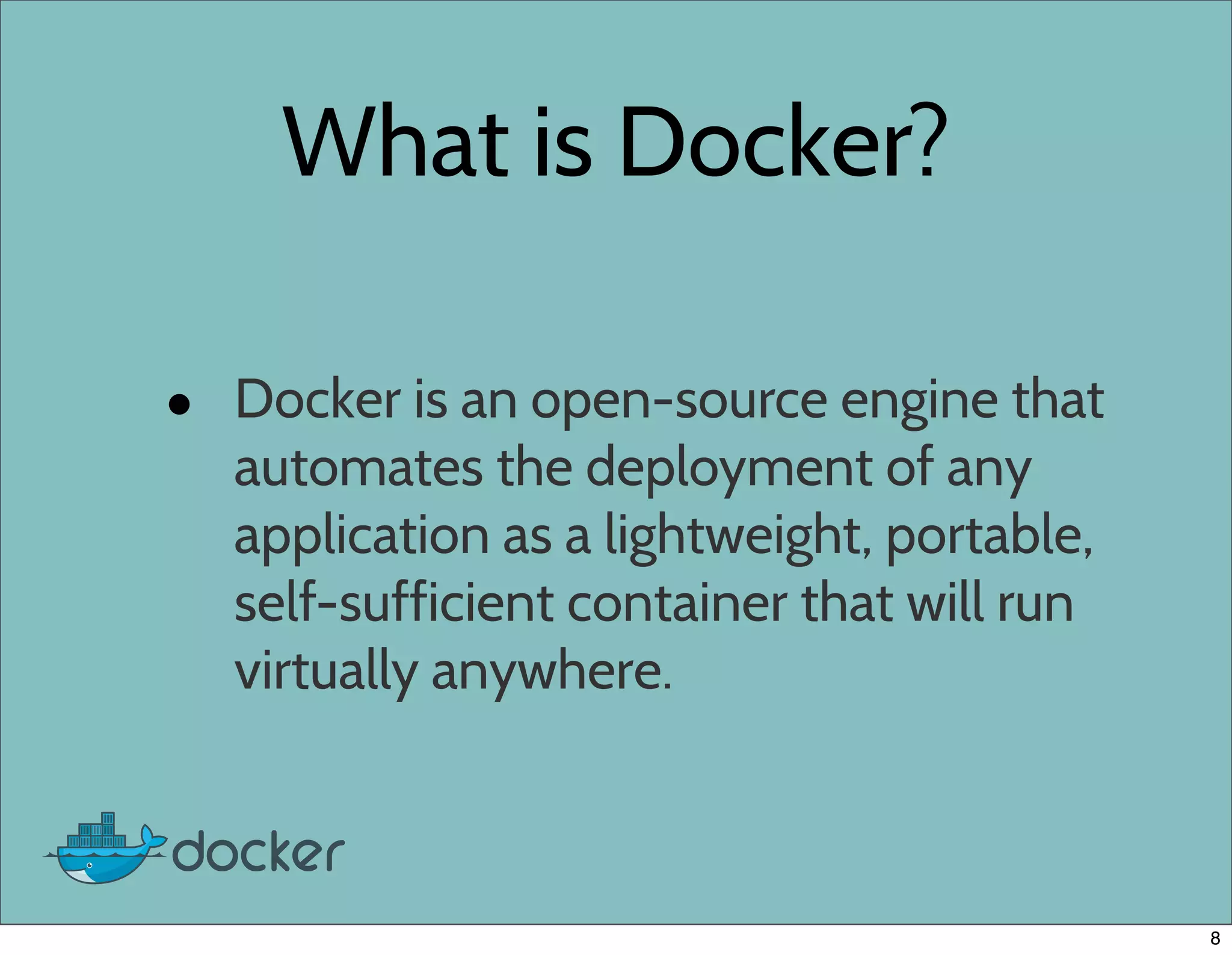

11. What is Docker?
• Docker is an open-source engine that
automates the deployment of any
application as a lightweight, portable,
self-sufficient container that will run
virtually anywhere.
8

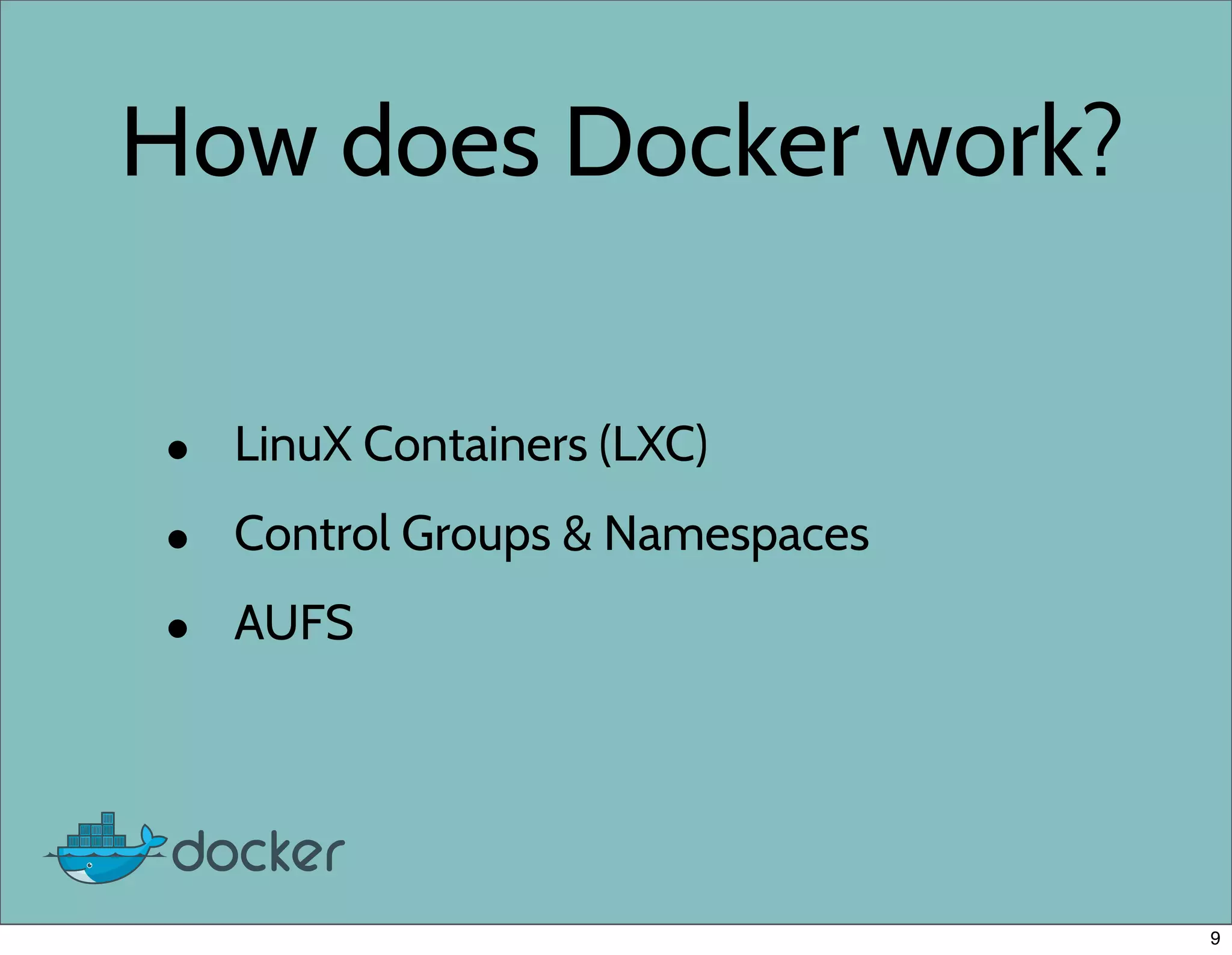

12. How does Docker work?
• LinuX Containers (LXC)
• Control Groups & Namespaces
• AUFS
9

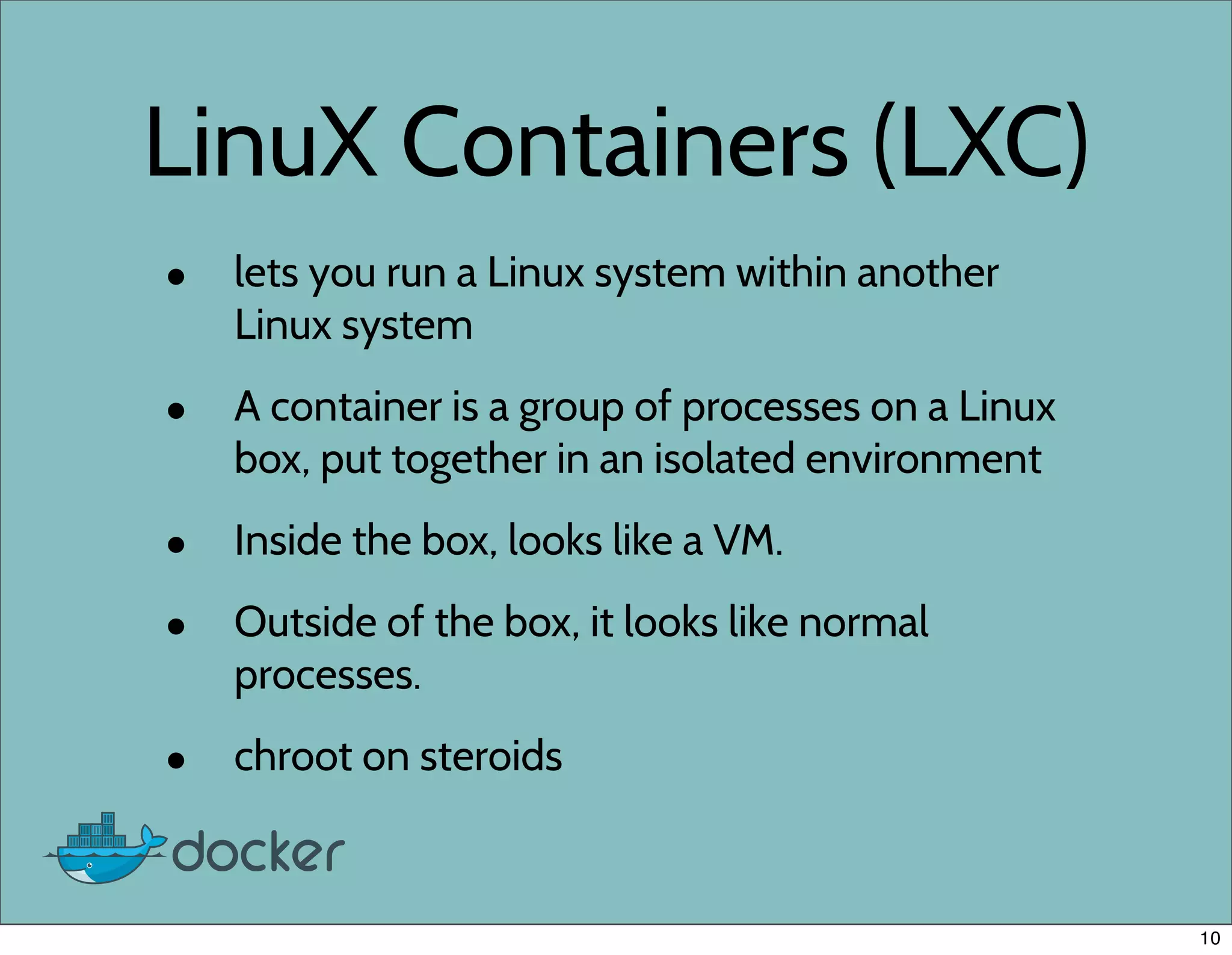

13. LinuX Containers (LXC)
• lets you run a Linux system within another
Linux system
• A container is a group of processes on a Linux
box, put together in an isolated environment
• Inside the box, looks like a VM.
• Outside of the box, it looks like normal
processes.
• chroot on steroids
10

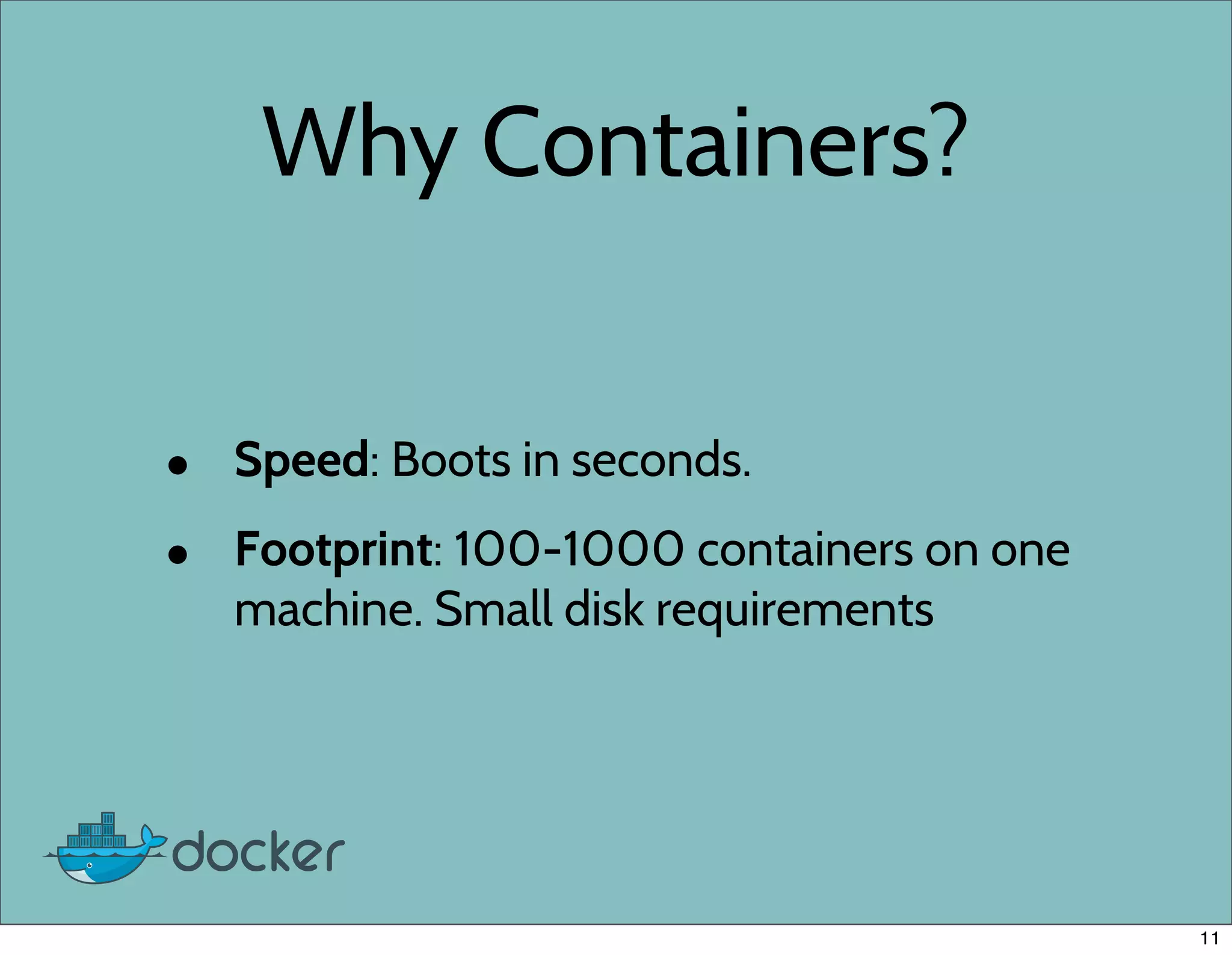

14. Why Containers?
• Speed: Boots in seconds.
• Footprint: 100-1000 containers on one
machine. Small disk requirements
11

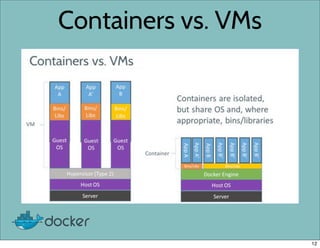

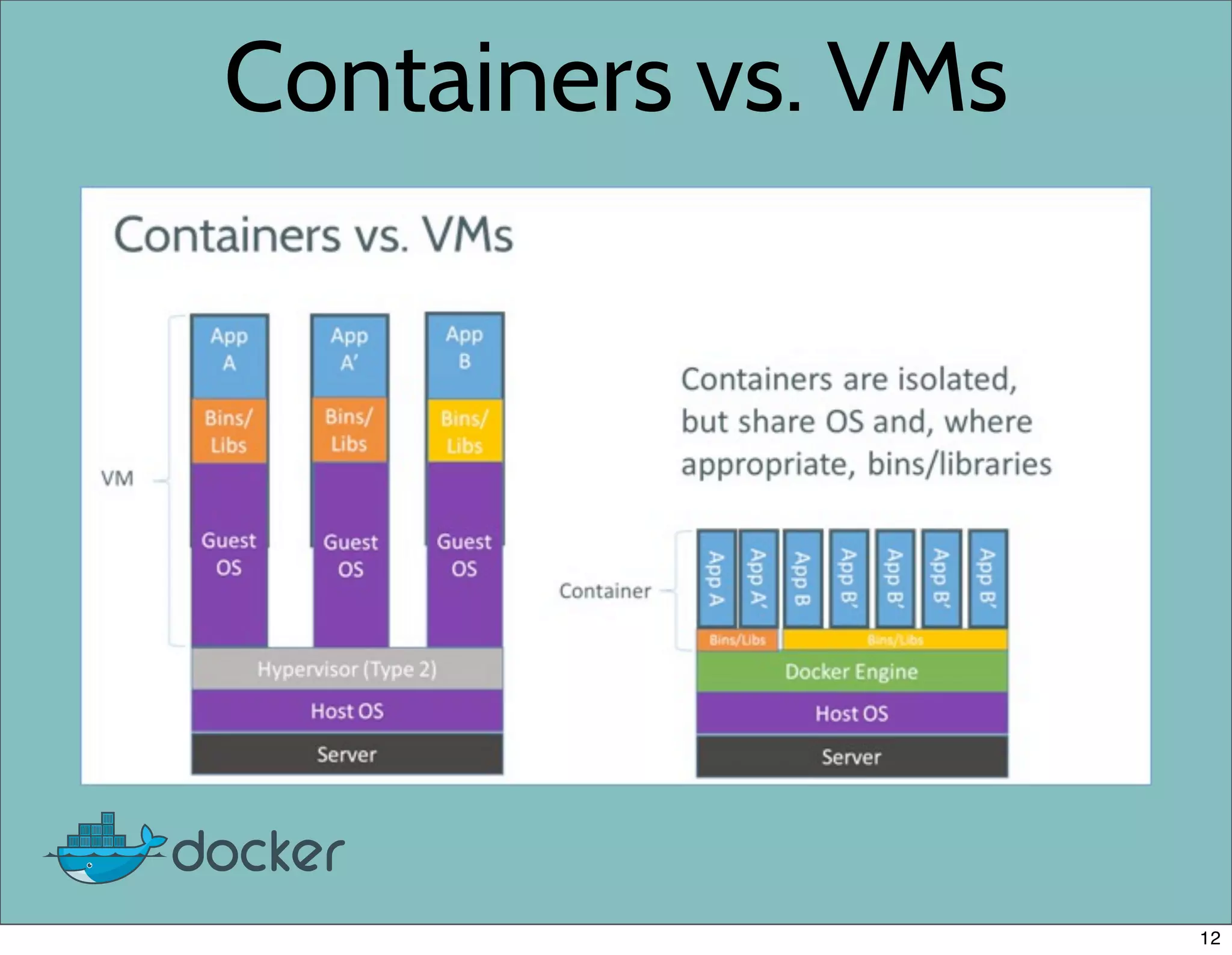

15. Containers vs. VMs
12

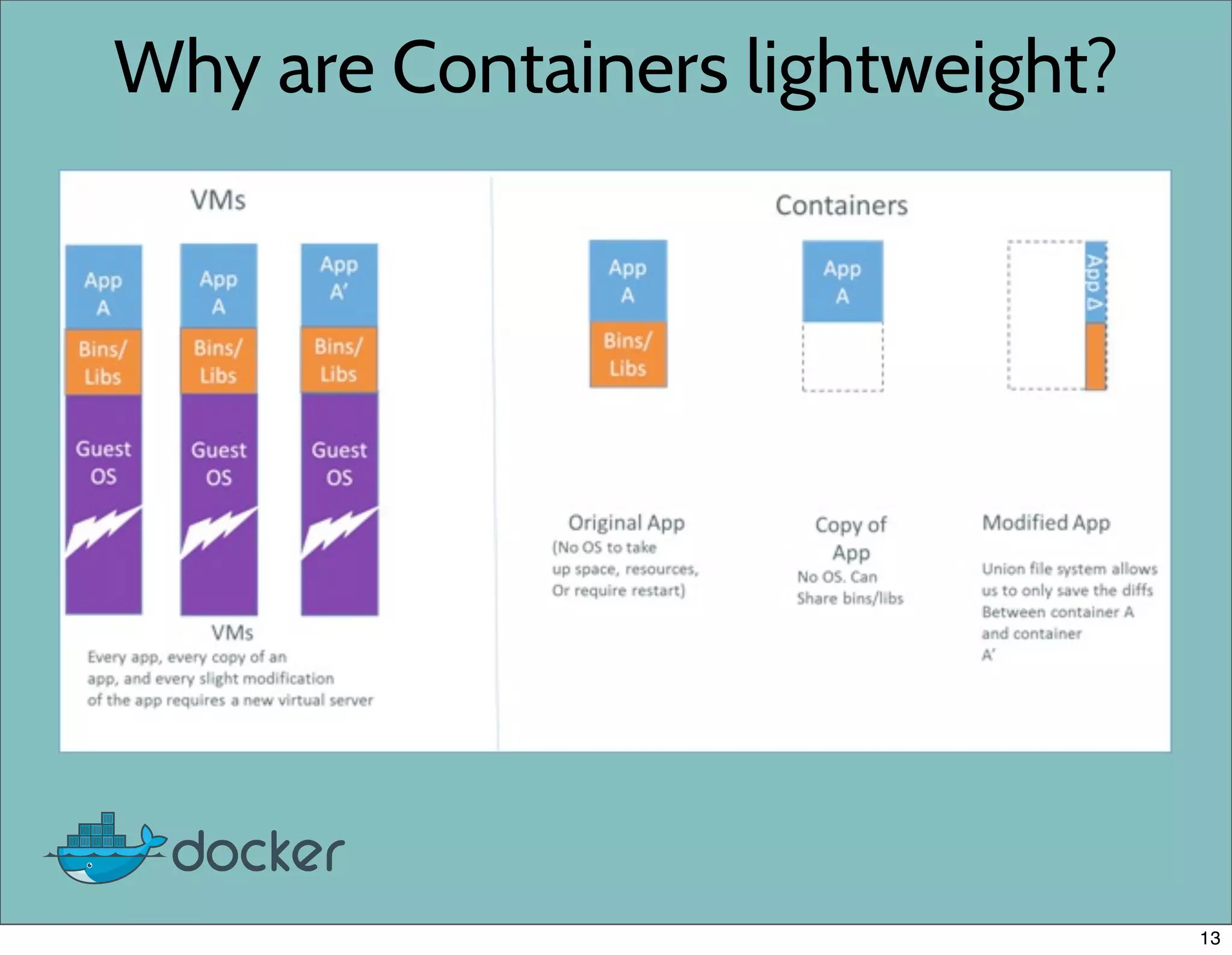

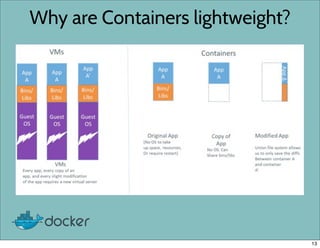

16. Why are Containers lightweight?
13

17. Installing Docker
14

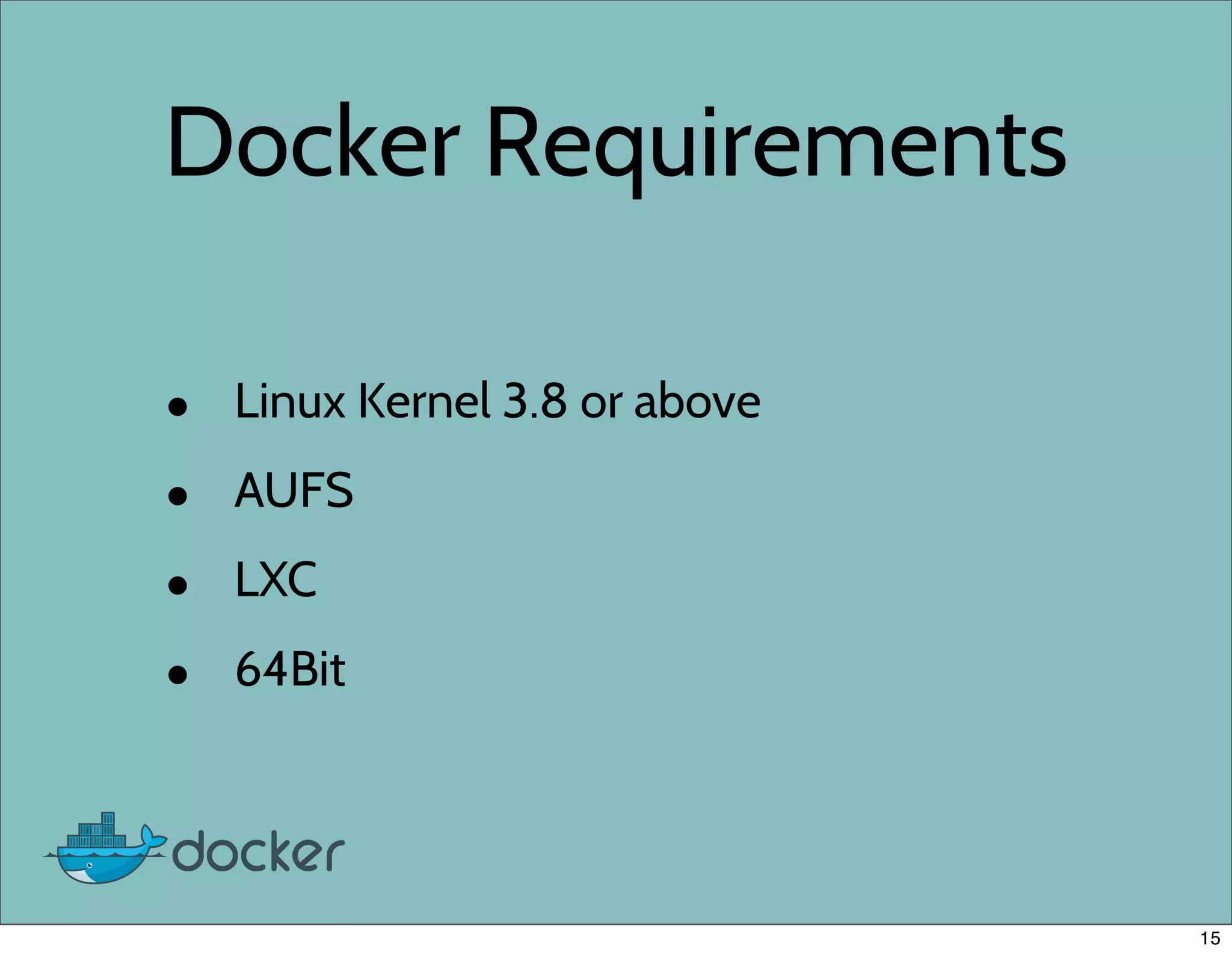

18. Docker Requirements
• Linux Kernel 3.8 or above
• AUFS
• LXC
• 64Bit
15

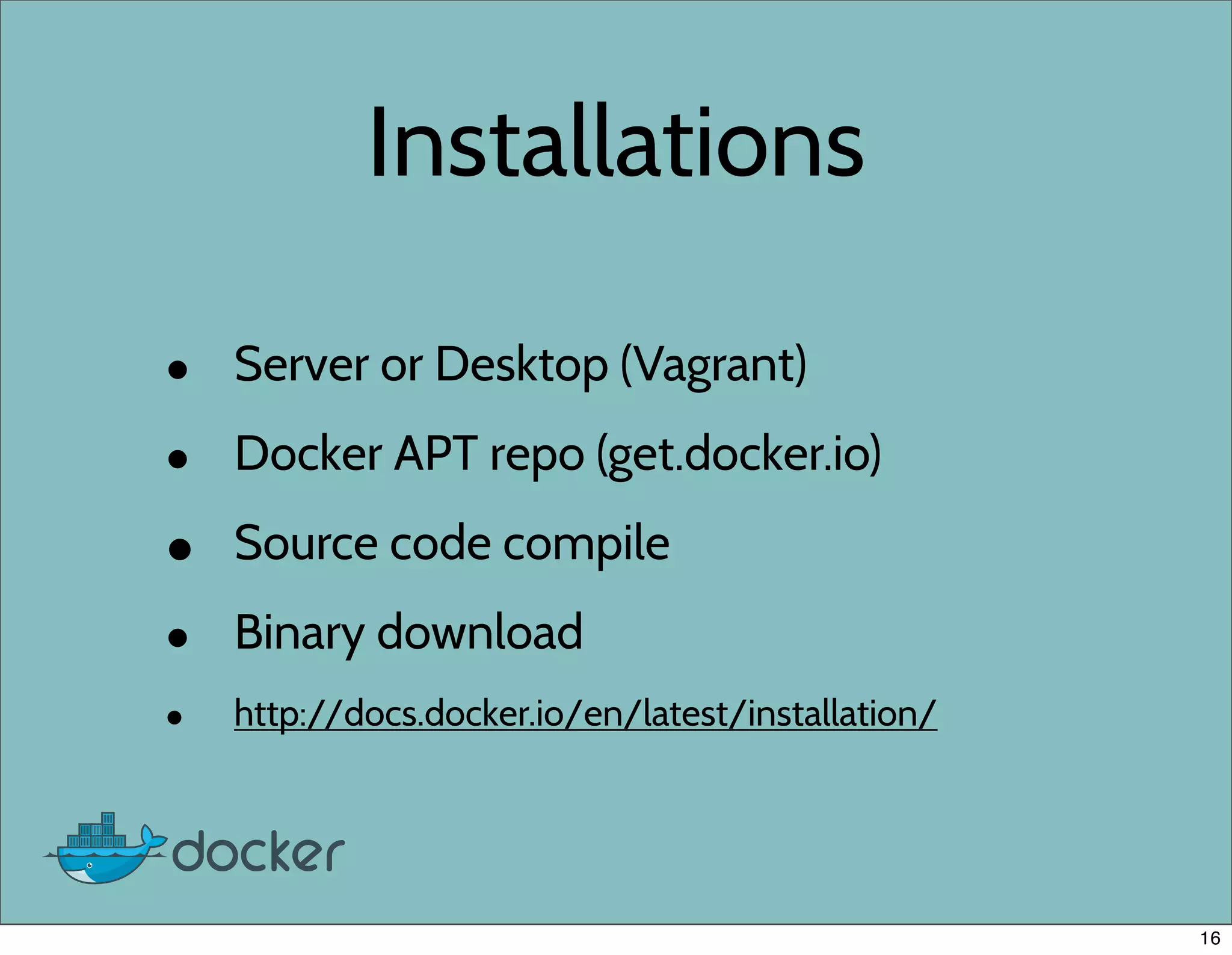

19. Installations
• Server or Desktop (Vagrant)
• Docker APT repo (get.docker.io)
• Source code compile
• Binary download
• http://docs.docker.io/en/latest/installation/
16

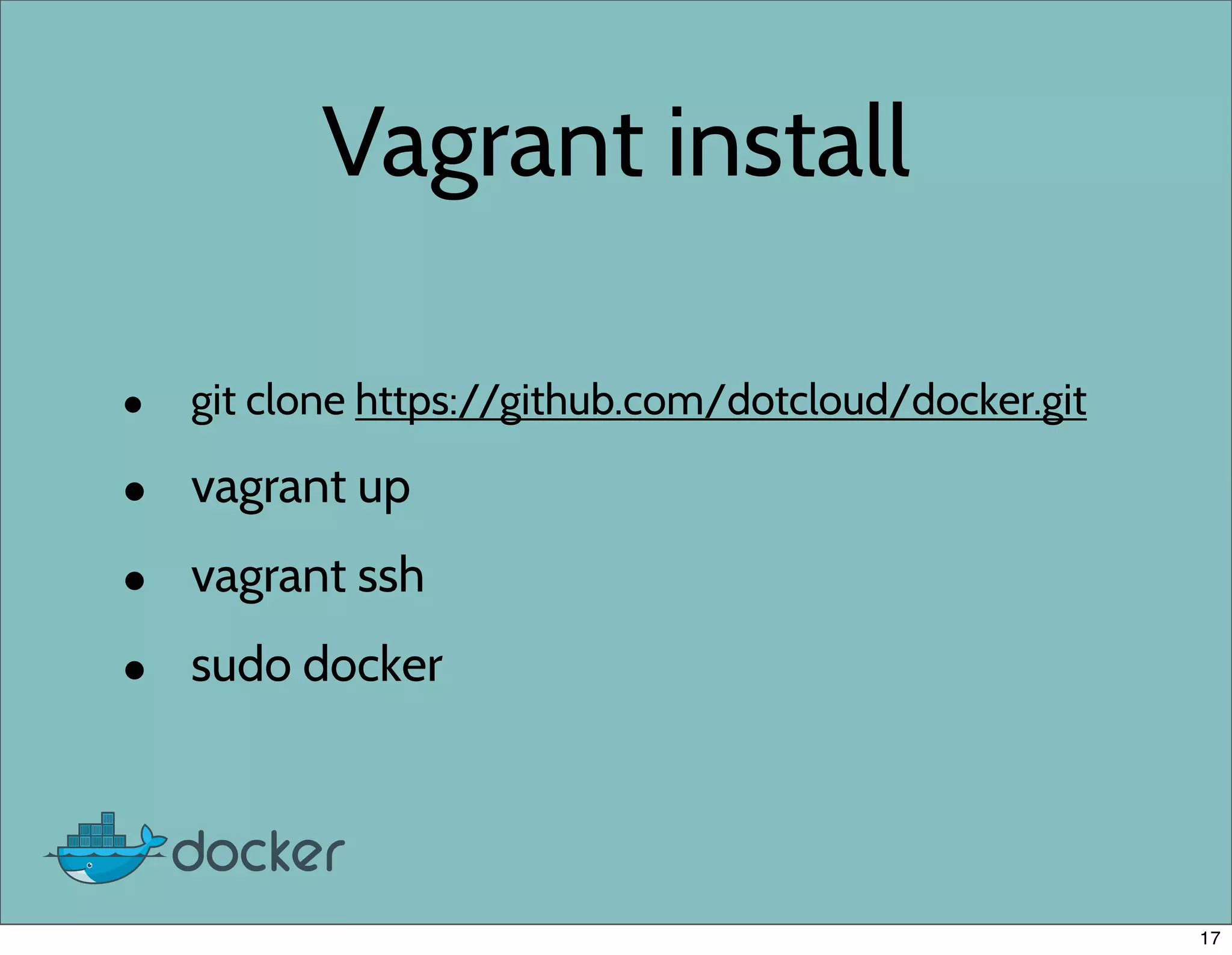

20. Vagrant install
• git clone https://github.com/dotcloud/docker.git
• vagrant up
• vagrant ssh
• sudo docker
17

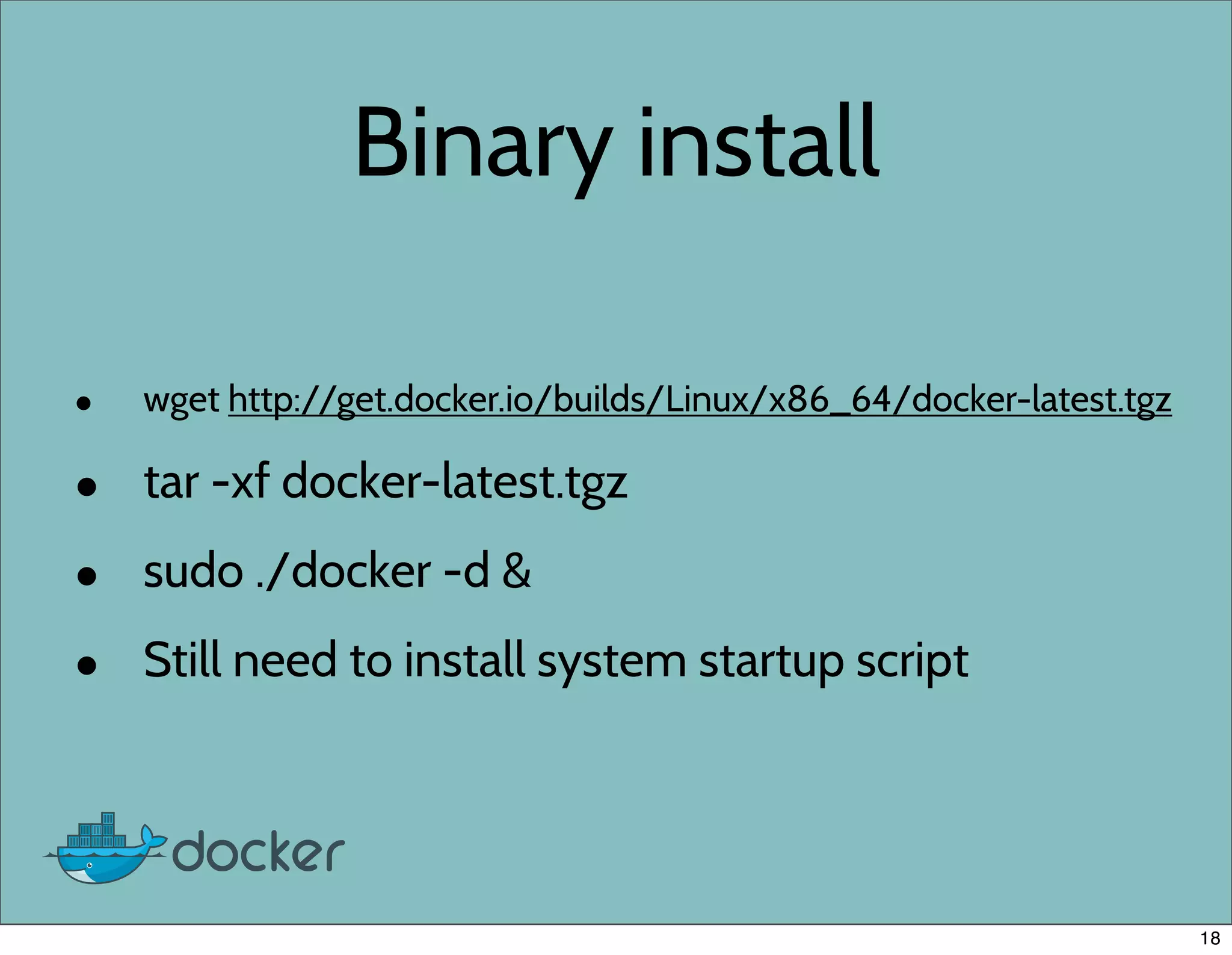

21. Binary install
• wget http://get.docker.io/builds/Linux/x86_64/docker-latest.tgz
• tar -xf docker-latest.tgz
• sudo ./docker -d &
• Still need to install system startup script
18

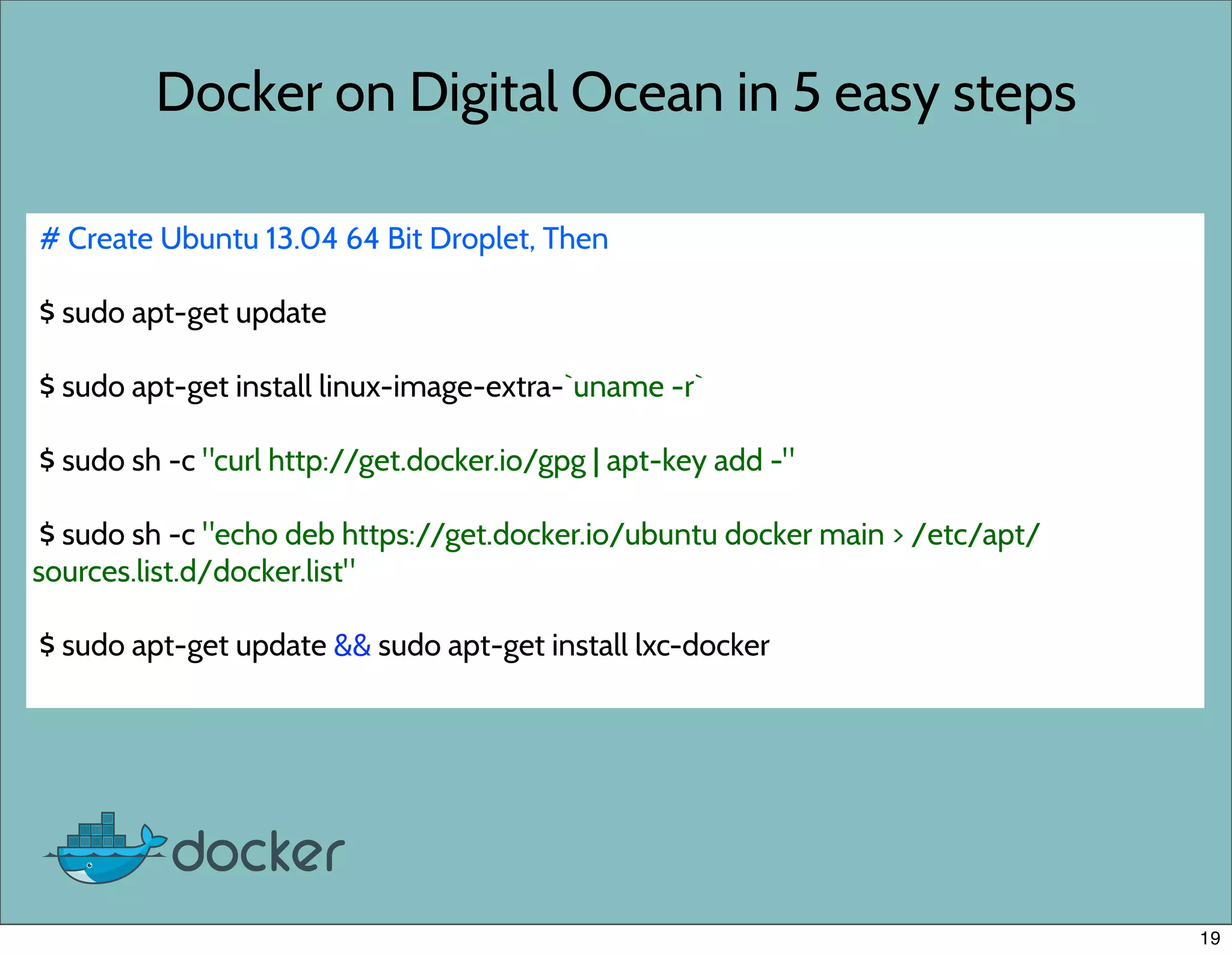

22. Docker on Digital Ocean in 5 easy steps
# Create Ubuntu 13.04 64 Bit Droplet, Then
$ sudo apt-get update
$ sudo apt-get install linux-image-extra-`uname -r`
$ sudo sh -c "curl http://get.docker.io/gpg | apt-key add -"
$ sudo sh -c "echo deb https://get.docker.io/ubuntu docker main > /etc/apt/
sources.list.d/docker.list"
$ sudo apt-get update && sudo apt-get install lxc-docker
19

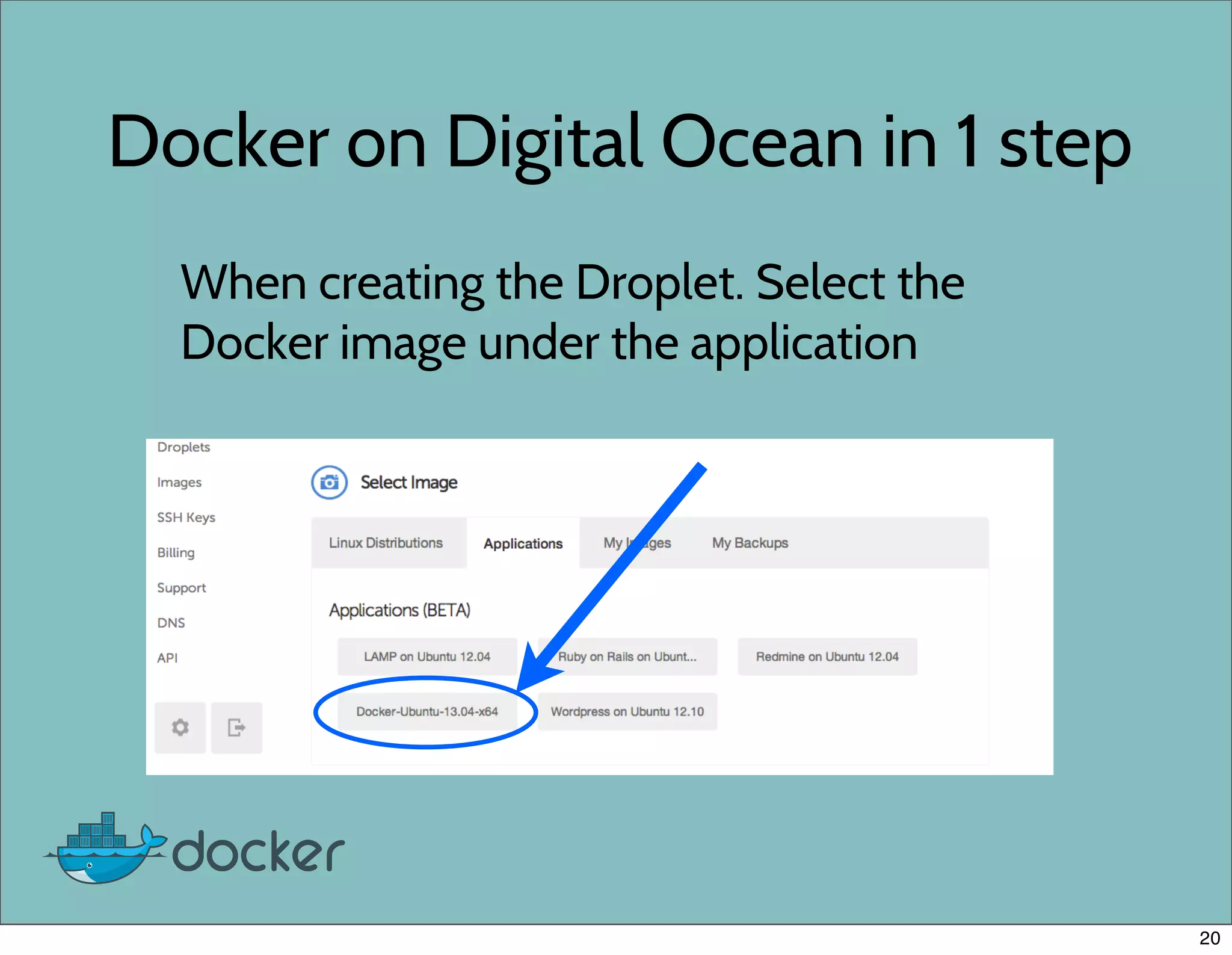

23. Docker on Digital Ocean in 1 step
When creating the Droplet. Select the
Docker image under the application
20

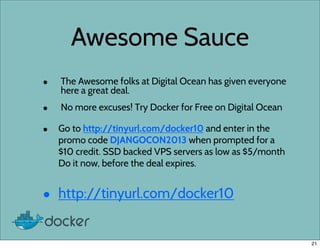

24. Awesome Sauce
• The Awesome folks at Digital Ocean has given everyone
here a great deal.
• No more excuses! Try Docker for Free on Digital Ocean
• Go to http://tinyurl.com/docker10 and enter in the
promo code DJANGOCON2013 when prompted for a
$10 credit. SSD backed VPS servers as low as $5/month
Do it now, before the deal expires.
• http://tinyurl.com/docker10
21

25. Use Cases
22

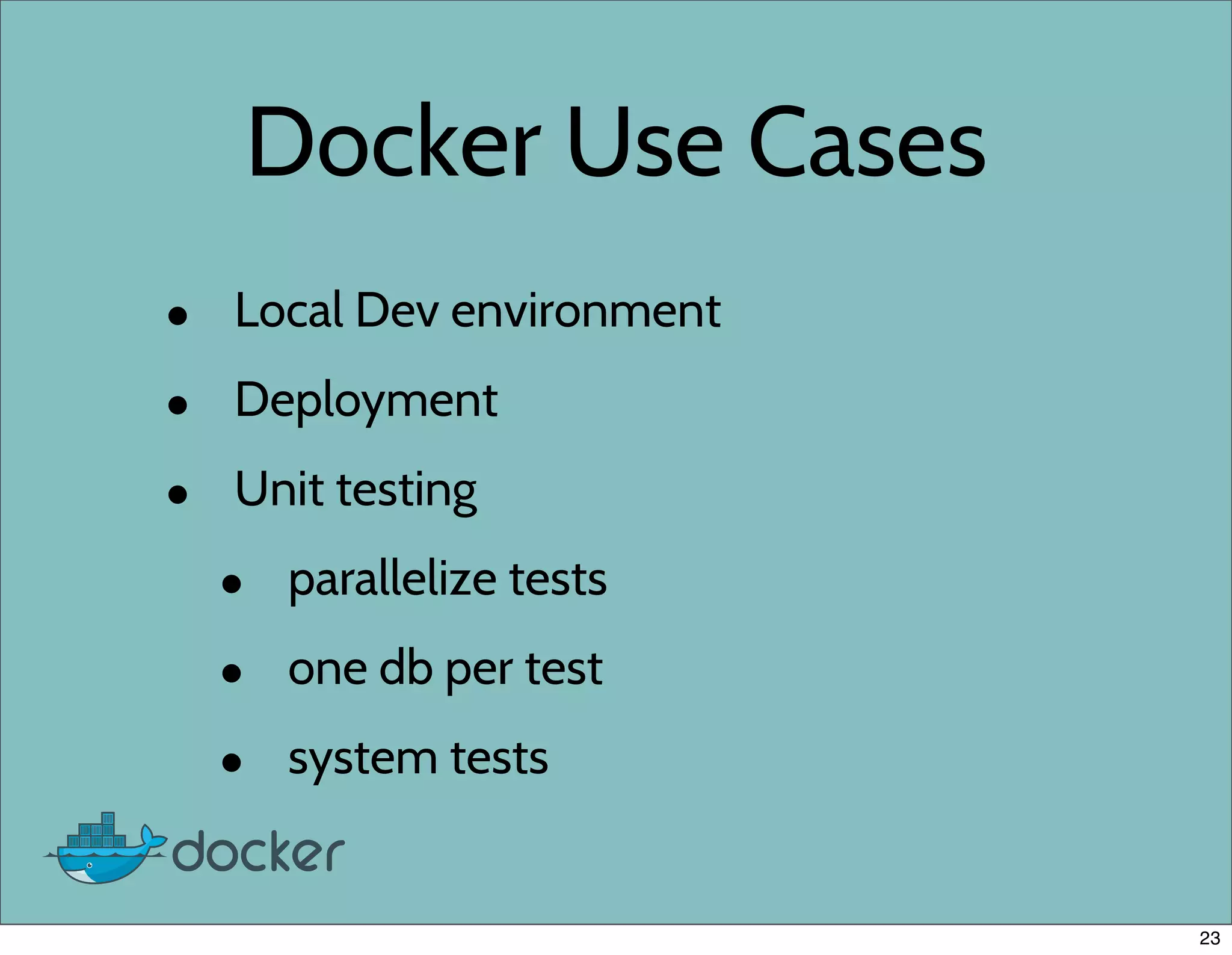

26. Docker Use Cases
• Local Dev environment
• Deployment
• Unit testing
• parallelize tests
• one db per test
• system tests
23

27. Testing
24

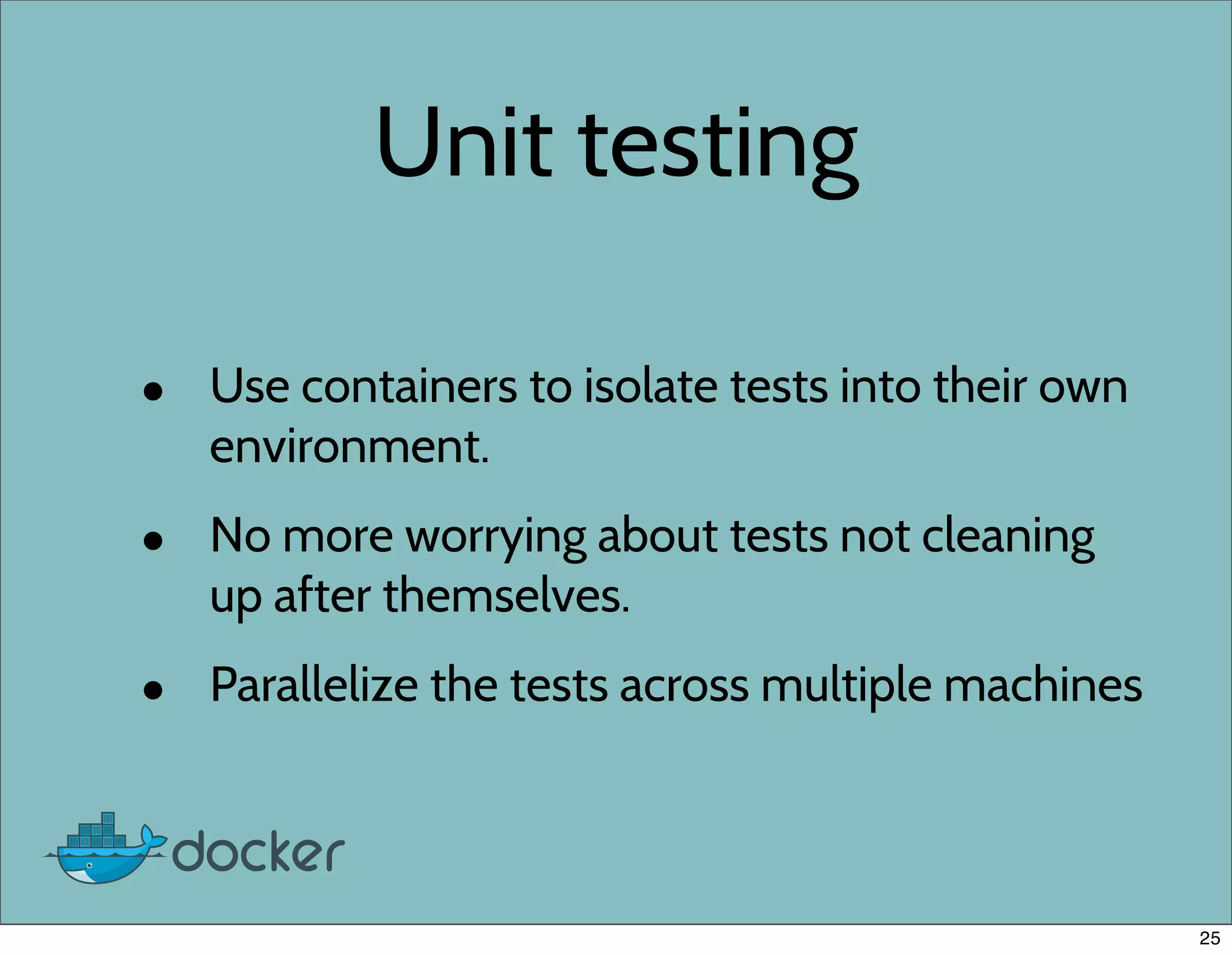

28. Unit testing
• Use containers to isolate tests into their own
environment.
• No more worrying about tests not cleaning
up after themselves.
• Parallelize the tests across multiple machines
25

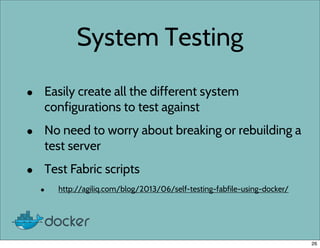

29. System Testing
• Easily create all the different system
configurations to test against
• No need to worry about breaking or rebuilding a
test server
• Test Fabric scripts
• http://agiliq.com/blog/2013/06/self-testing-fabfile-using-docker/
26

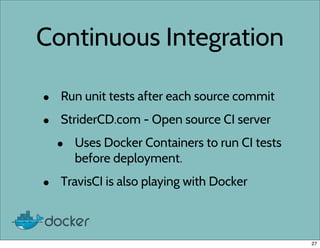

30. Continuous Integration
• Run unit tests after each source commit
• StriderCD.com - Open source CI server
• Uses Docker Containers to run CI tests
before deployment.
• TravisCI is also playing with Docker
27

31. Deployment
28

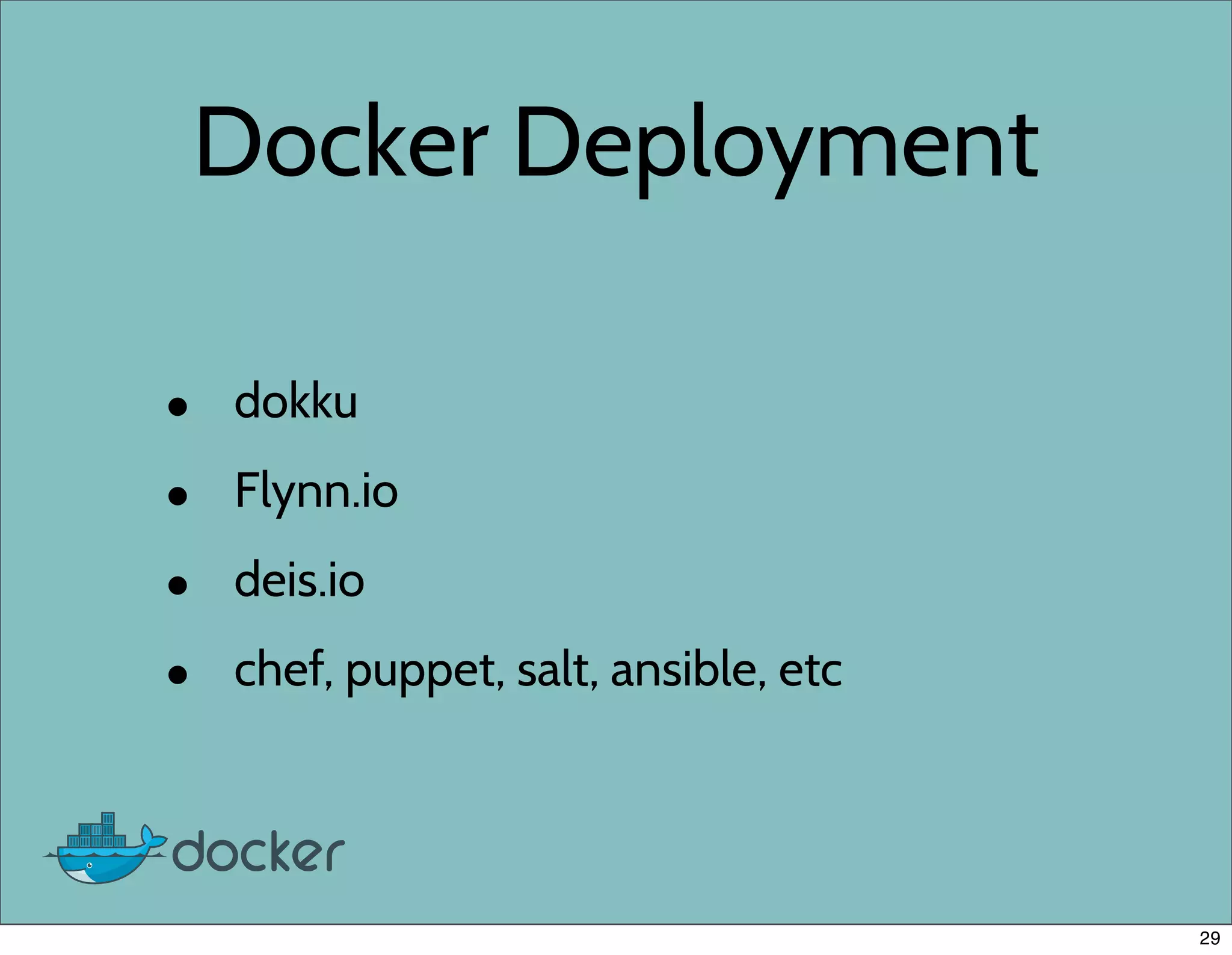

32. Docker Deployment
• dokku
• Flynn.io
• deis.io
• chef, puppet, salt, ansible, etc
29

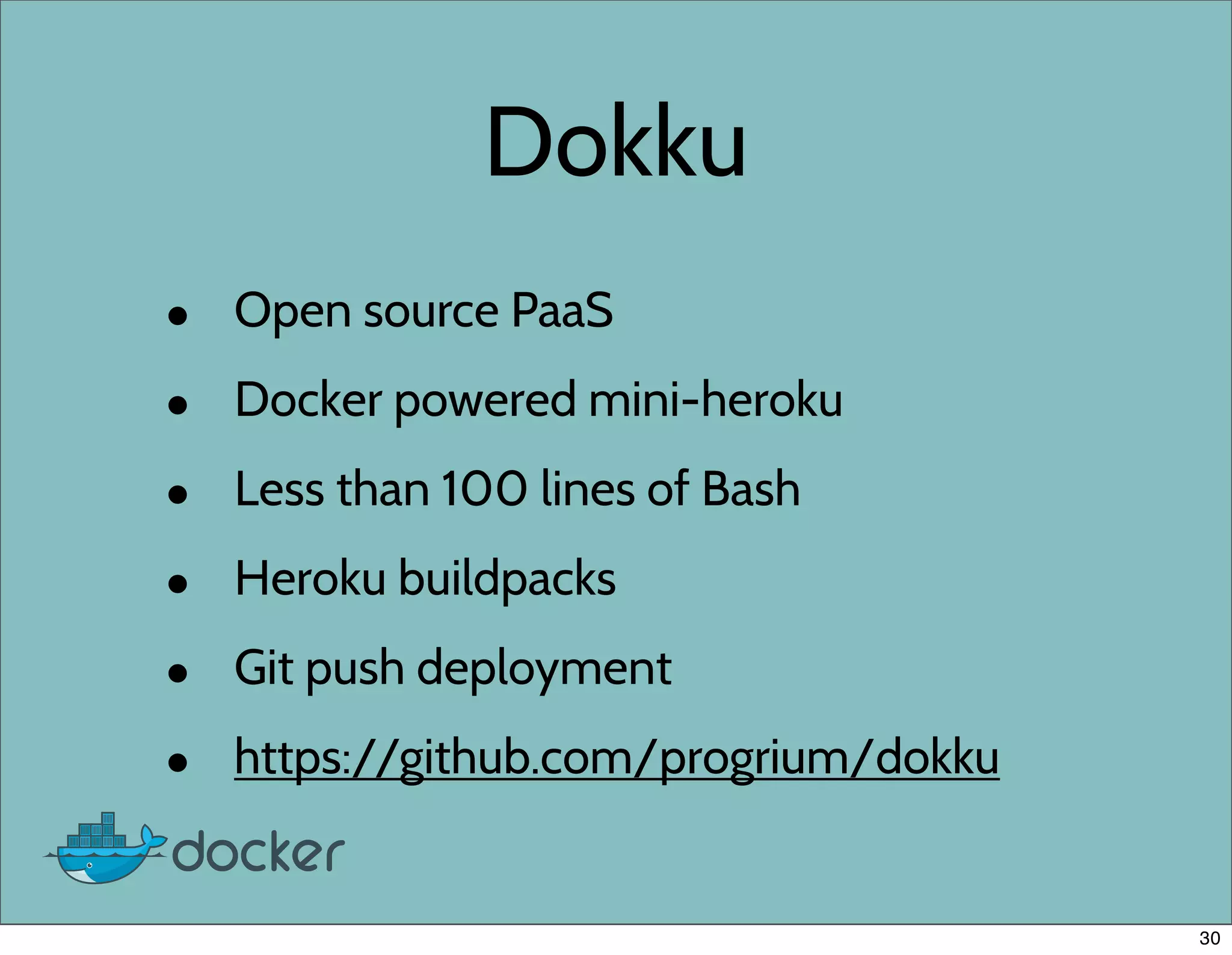

33. Dokku
• Open source PaaS
• Docker powered mini-heroku
• Less than 100 lines of Bash
• Heroku buildpacks
• Git push deployment
• https://github.com/progrium/dokku
30

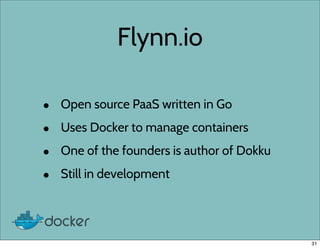

34. Flynn.io
• Open source PaaS written in Go
• Uses Docker to manage containers
• One of the founders is author of Dokku
• Still in development
31

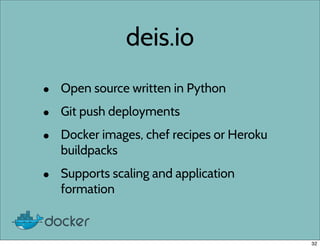

35. deis.io
• Open source written in Python
• Git push deployments
• Docker images, chef recipes or Heroku
buildpacks
• Supports scaling and application
formation
32

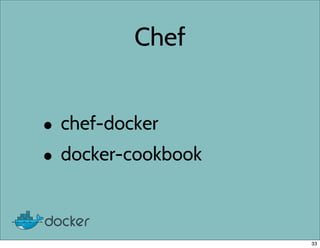

36. Chef
• chef-docker
• docker-cookbook
33

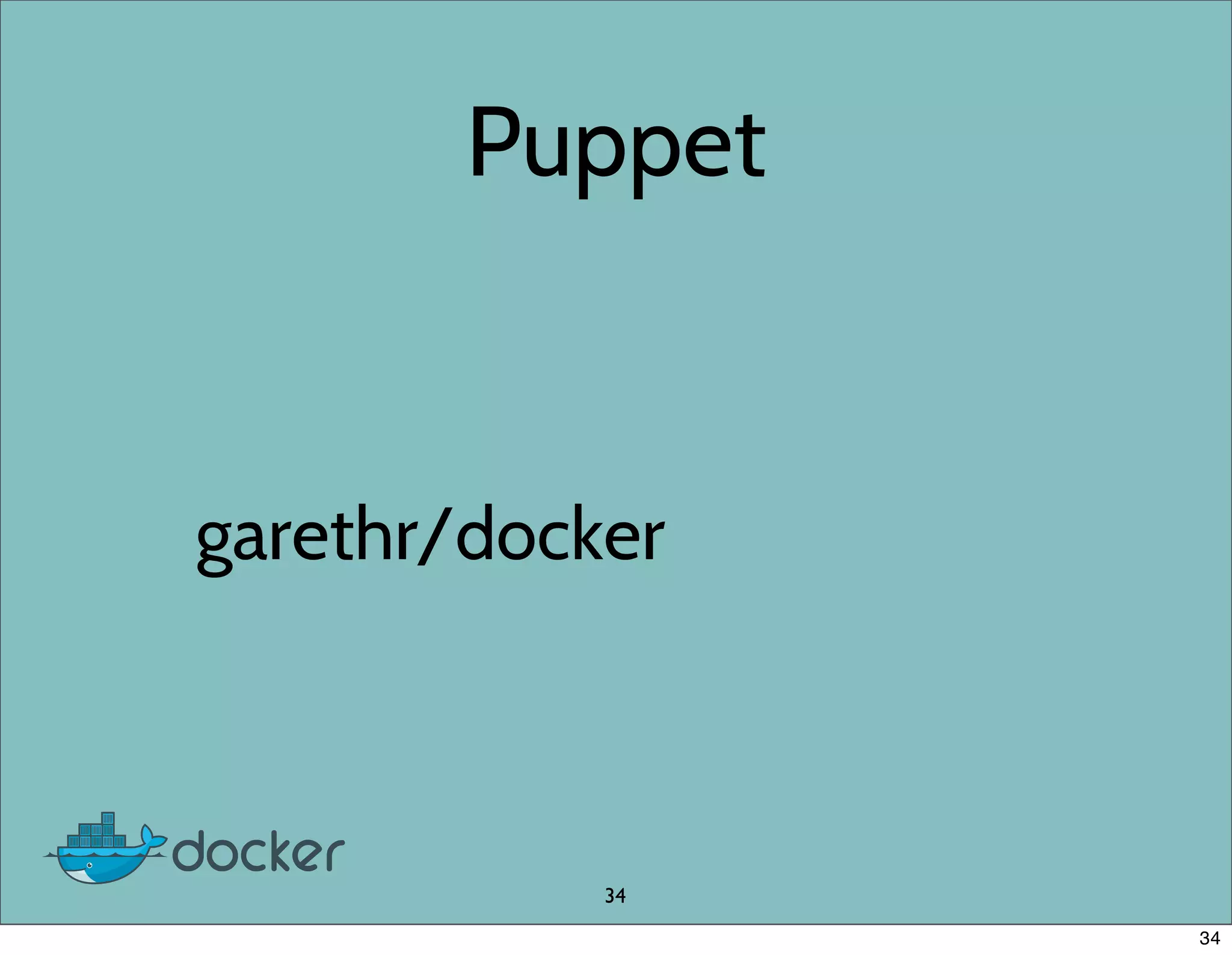

37. Puppet
garethr/docker
34
34

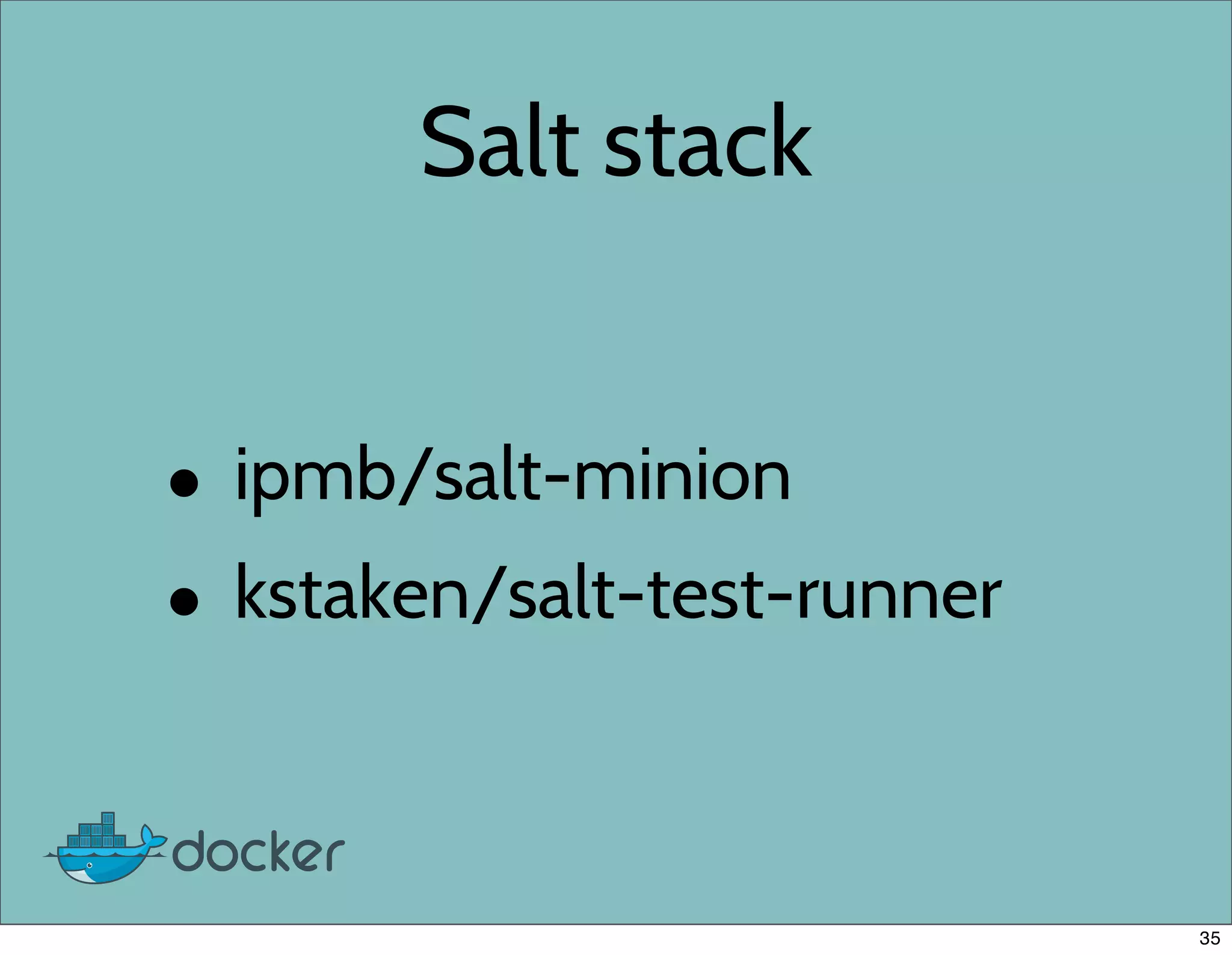

38. Salt stack
• ipmb/salt-minion
• kstaken/salt-test-runner
35

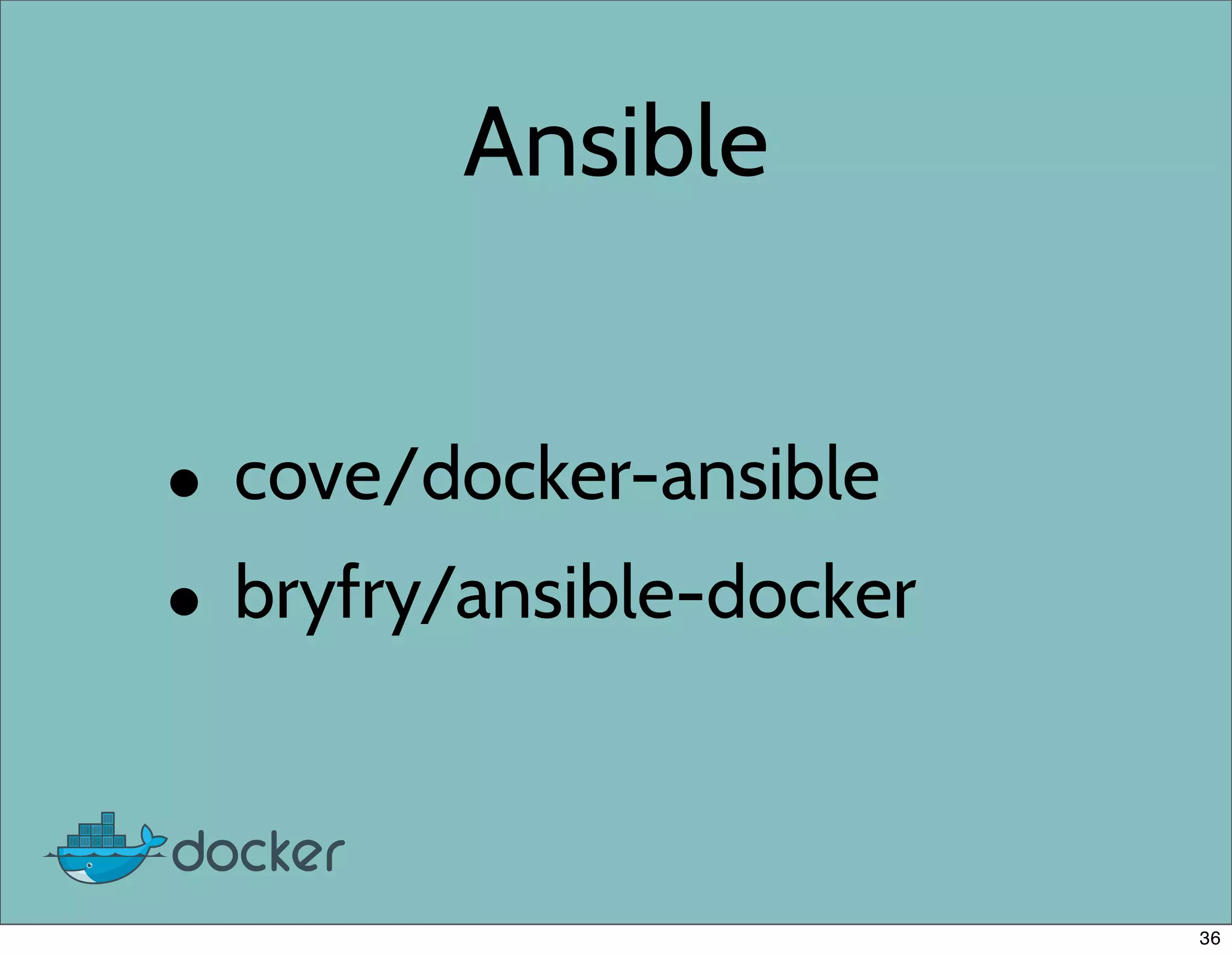

39. Ansible
• cove/docker-ansible
• bryfry/ansible-docker
36

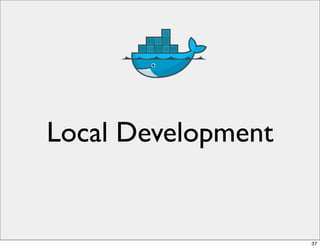

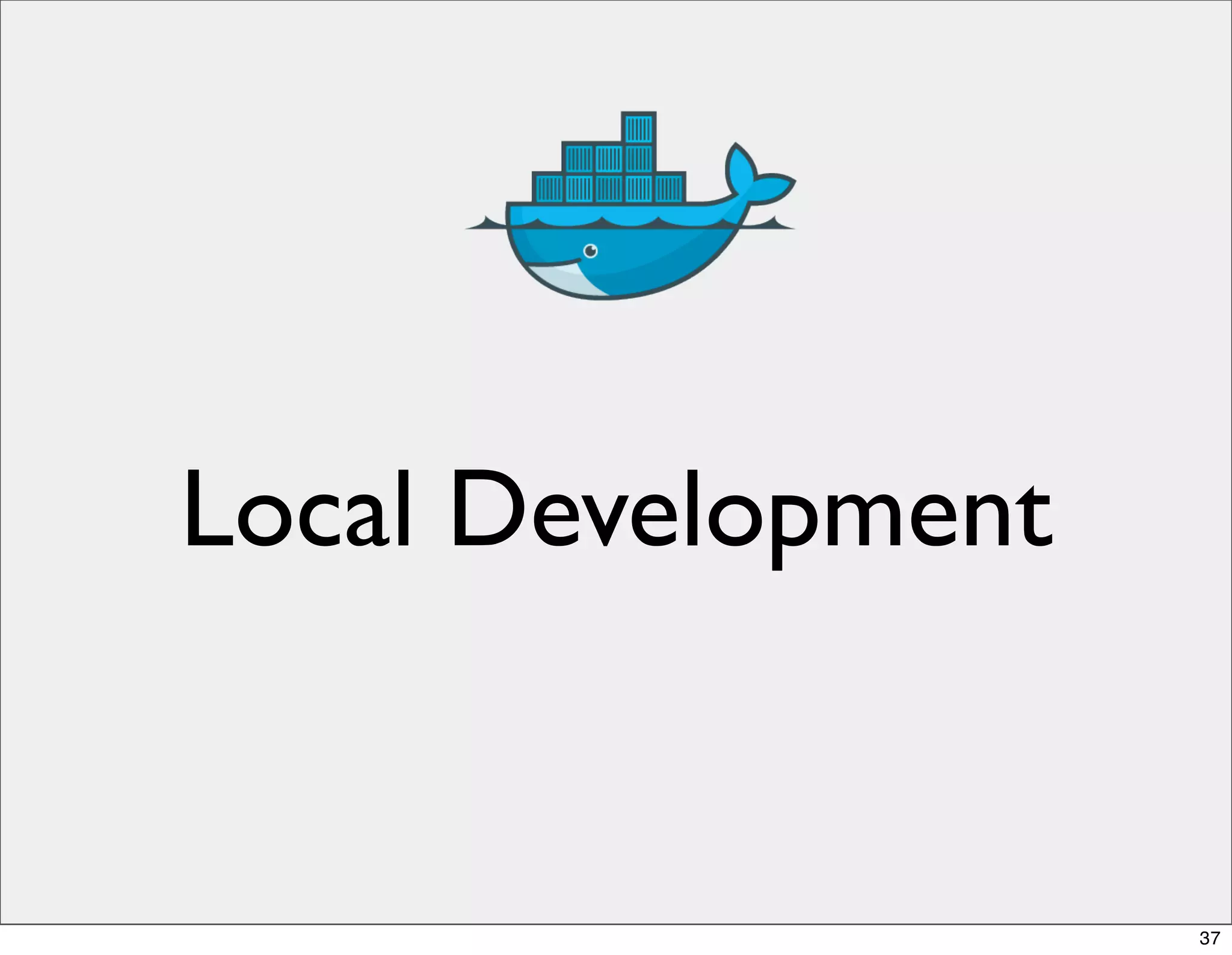

40. Local Development
37

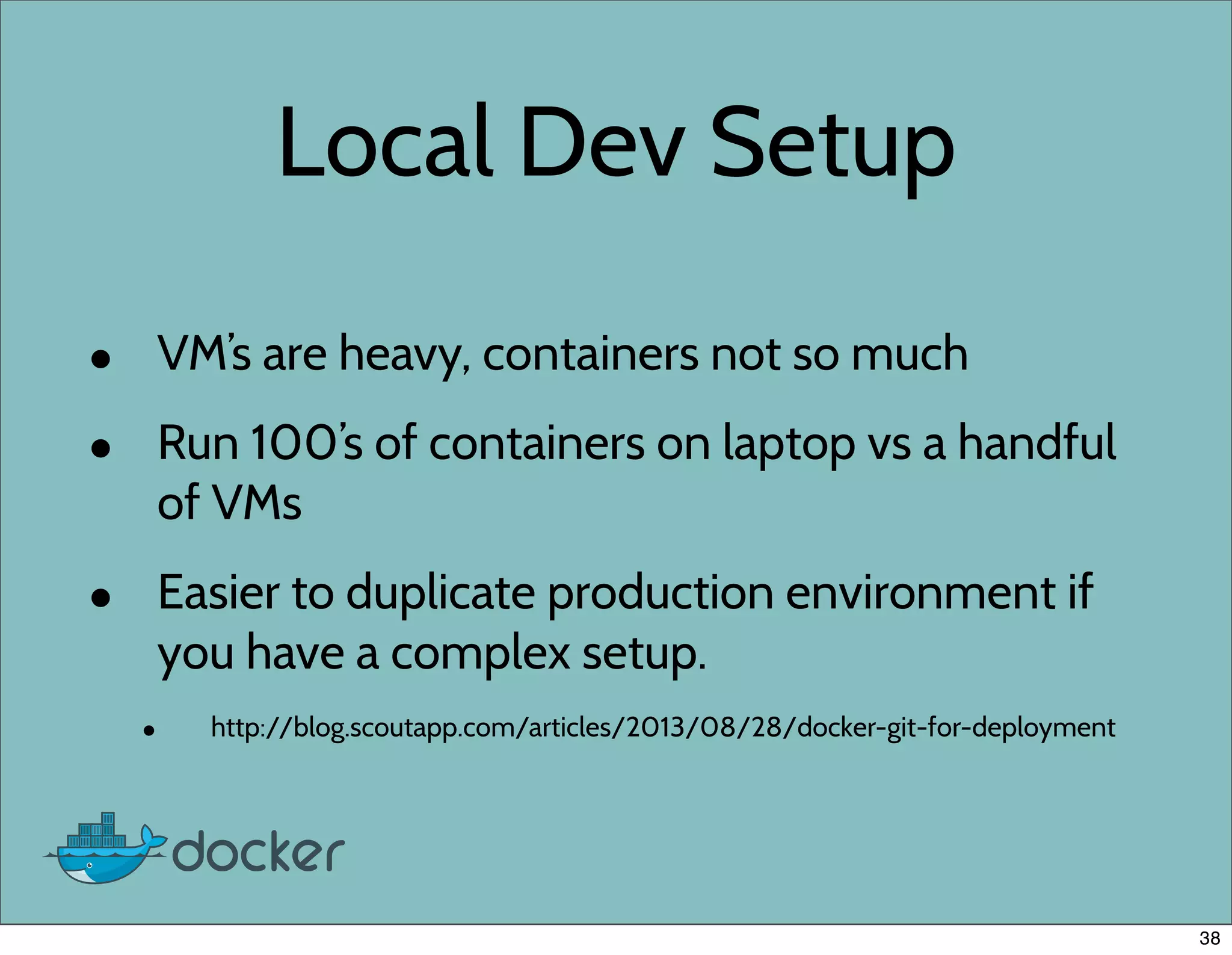

41. Local Dev Setup
• VM’s are heavy, containers not so much
• Run 100’s of containers on laptop vs a handful
of VMs
• Easier to duplicate production environment if
you have a complex setup.
• http://blog.scoutapp.com/articles/2013/08/28/docker-git-for-deployment
38

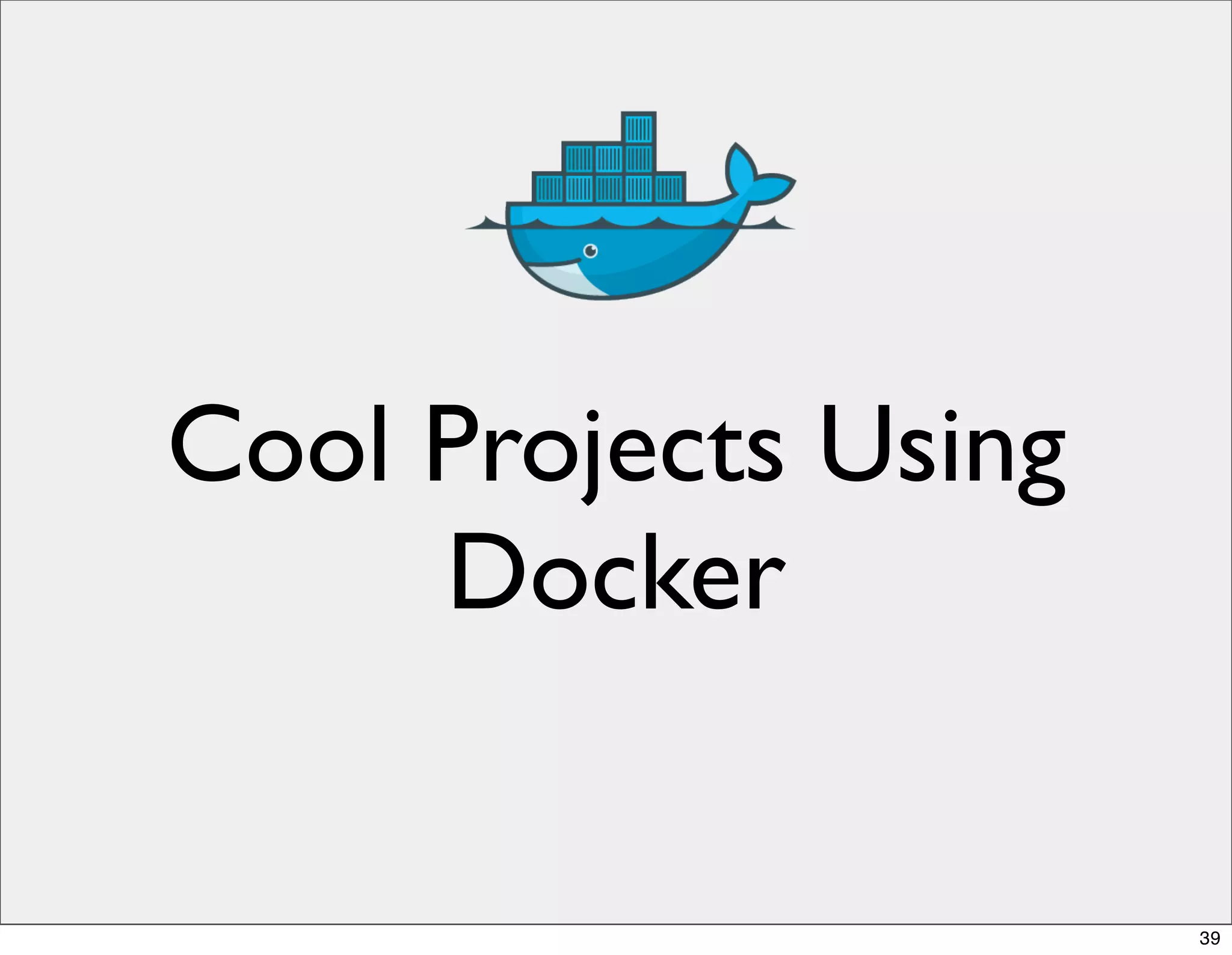

42. Cool Projects Using
Docker
39

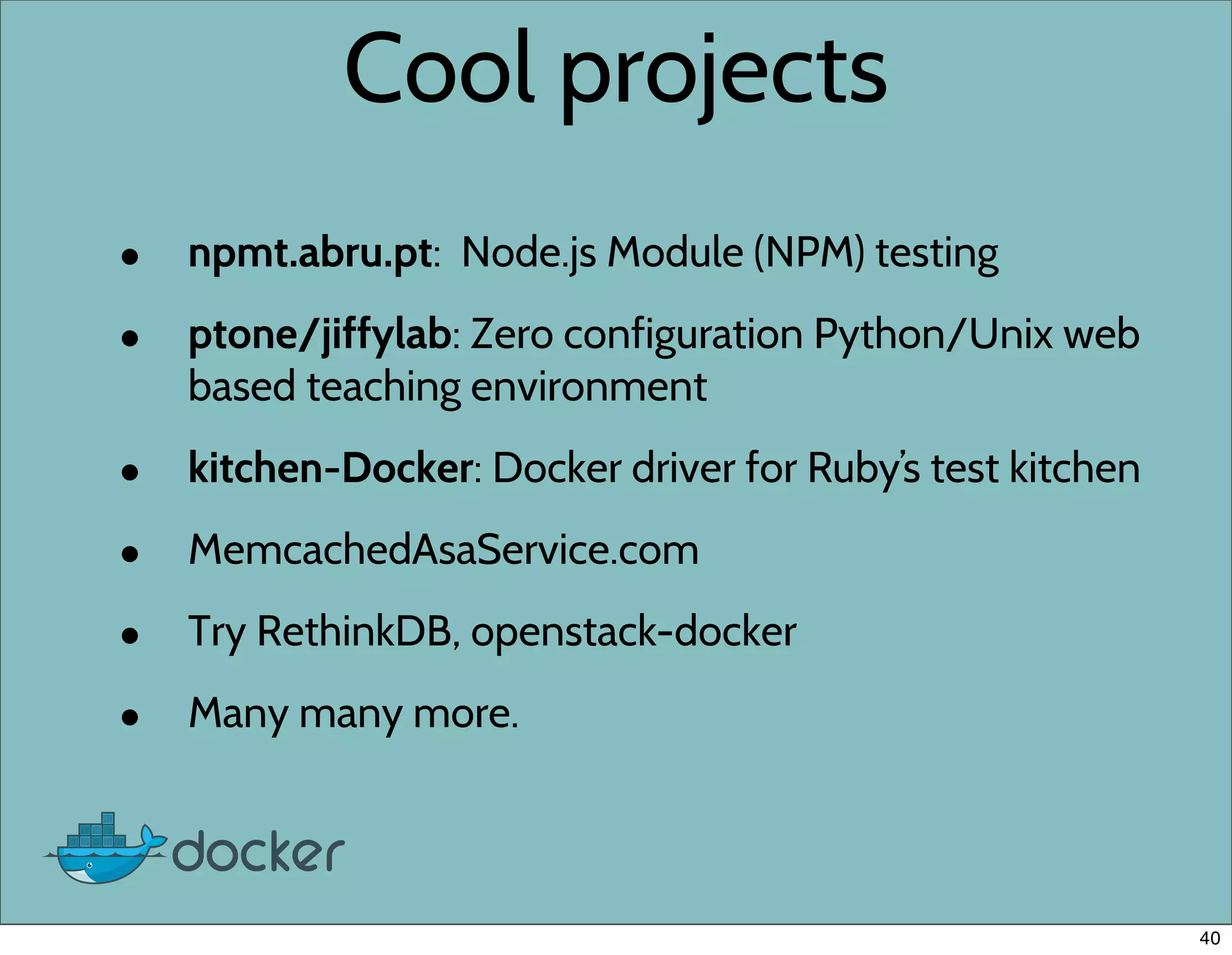

43. Cool projects
• npmt.abru.pt: Node.js Module (NPM) testing
• ptone/jiffylab: Zero configuration Python/Unix web
based teaching environment
• kitchen-Docker: Docker driver for Ruby’s test kitchen
• MemcachedAsaService.com
• Try RethinkDB, openstack-docker
• Many many more.
40

44. npmt.abru.pt
• Autonomously Testing All NPM modules
• One container per module is created then
destroyed when test is finished.
• 39496 modules verified
41

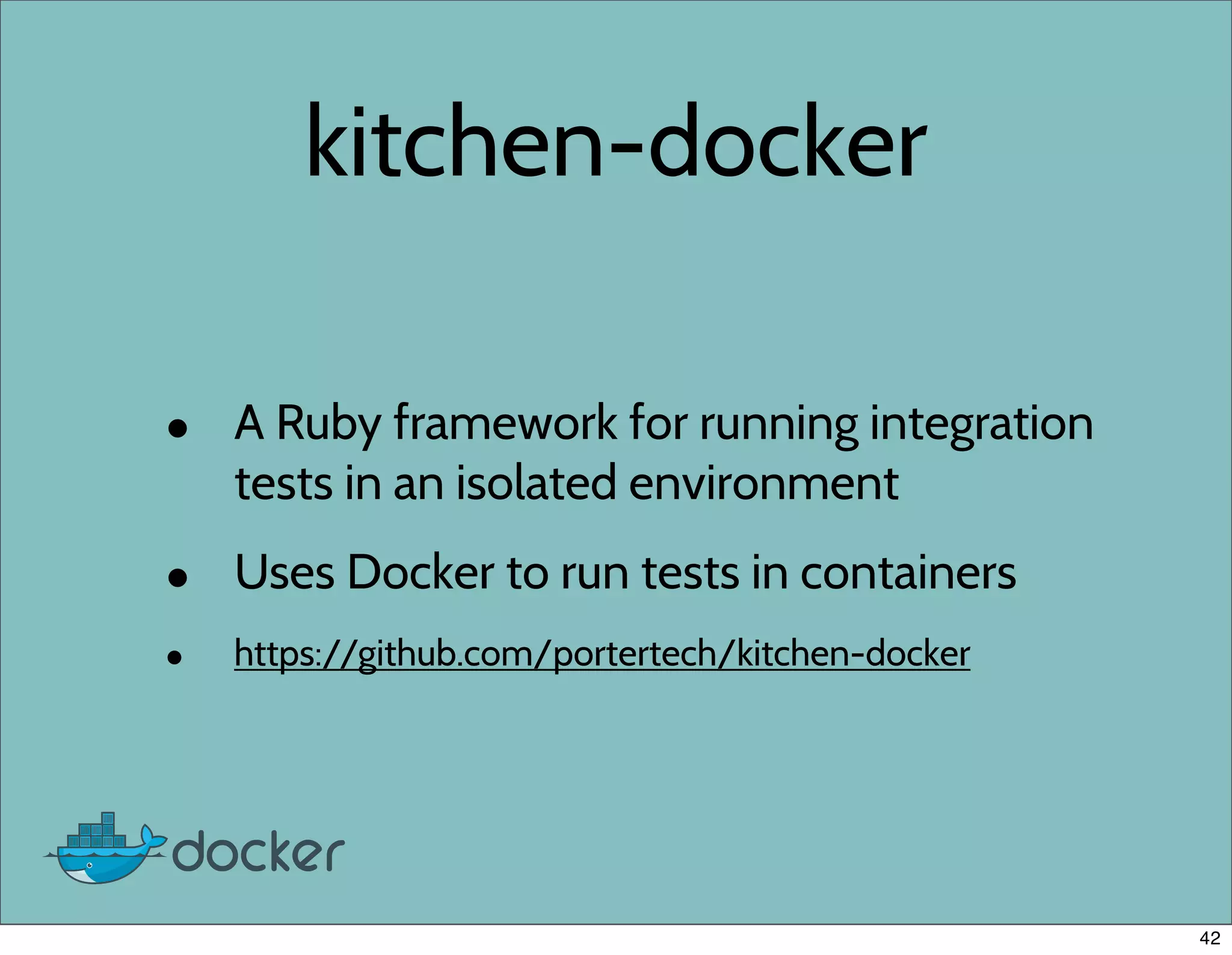

45. kitchen-docker
• A Ruby framework for running integration
tests in an isolated environment
• Uses Docker to run tests in containers
• https://github.com/portertech/kitchen-docker
42

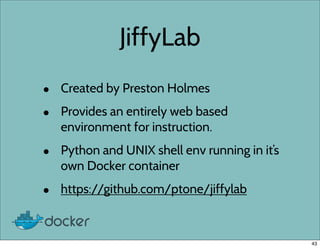

46. JiffyLab
• Created by Preston Holmes
• Provides an entirely web based
environment for instruction.
• Python and UNIX shell env running in it’s
own Docker container
• https://github.com/ptone/jiffylab
43

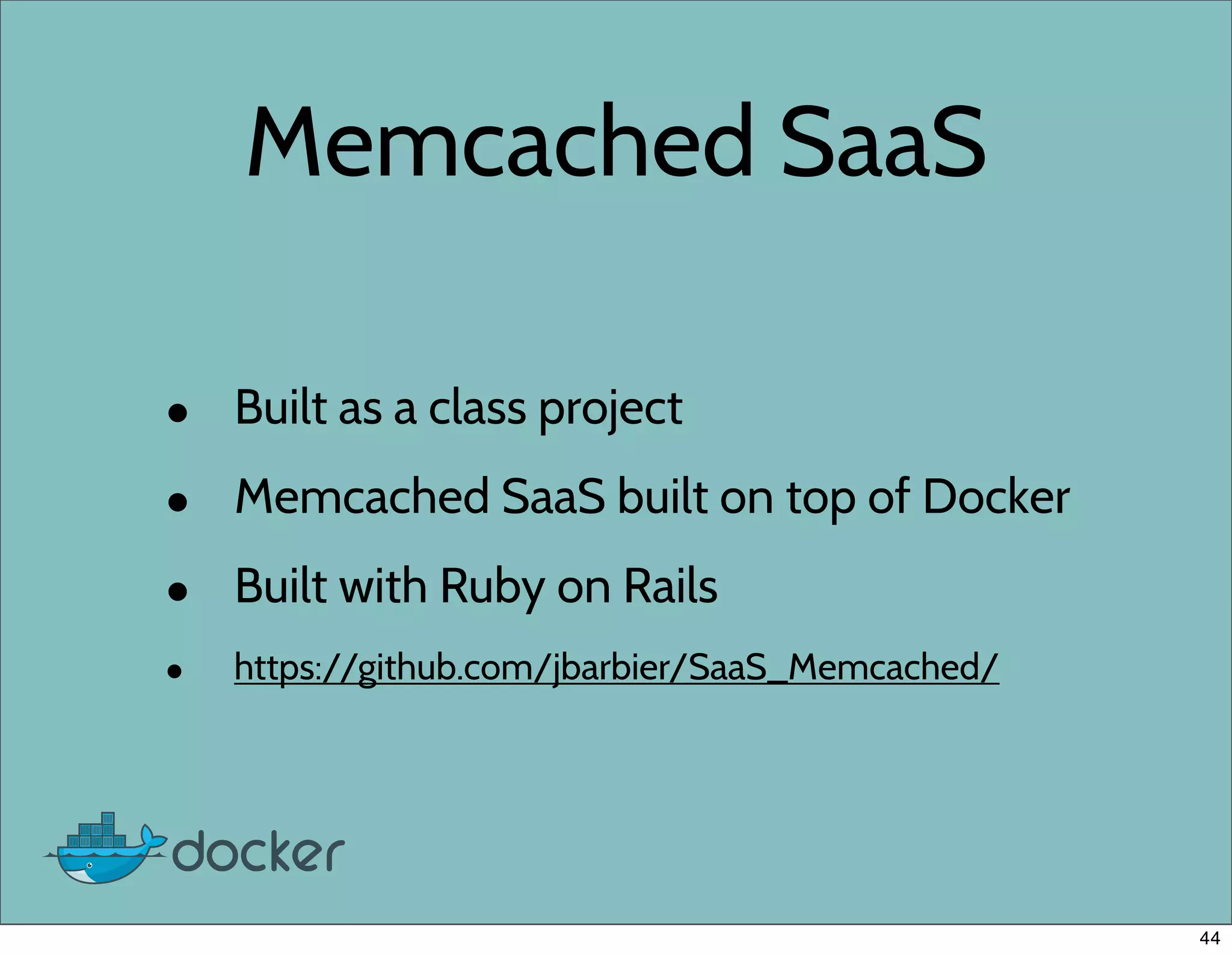

47. Memcached SaaS
• Built as a class project
• Memcached SaaS built on top of Docker
• Built with Ruby on Rails
• https://github.com/jbarbier/SaaS_Memcached/
44

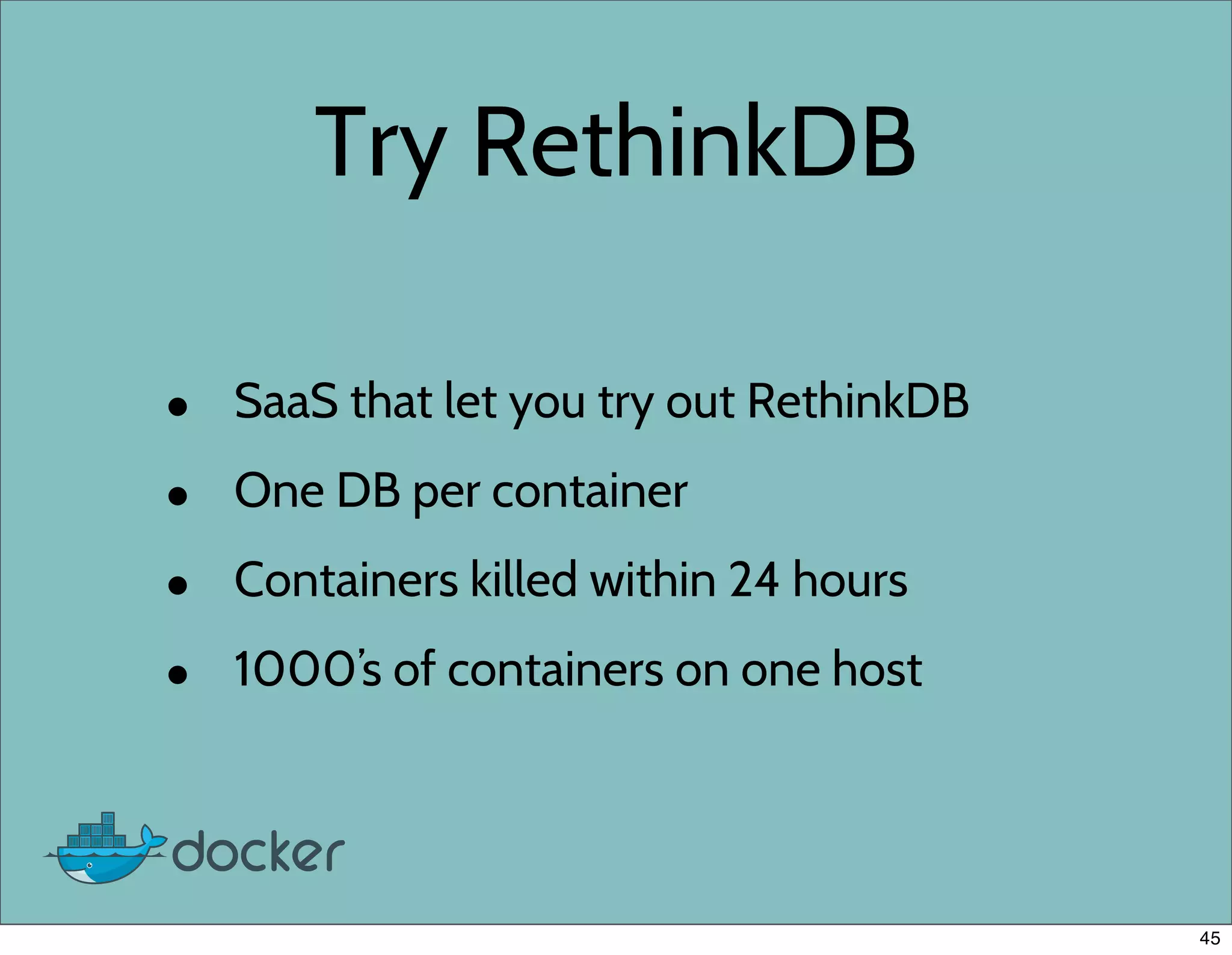

48. Try RethinkDB
• SaaS that let you try out RethinkDB
• One DB per container
• Containers killed within 24 hours
• 1000’s of containers on one host
45

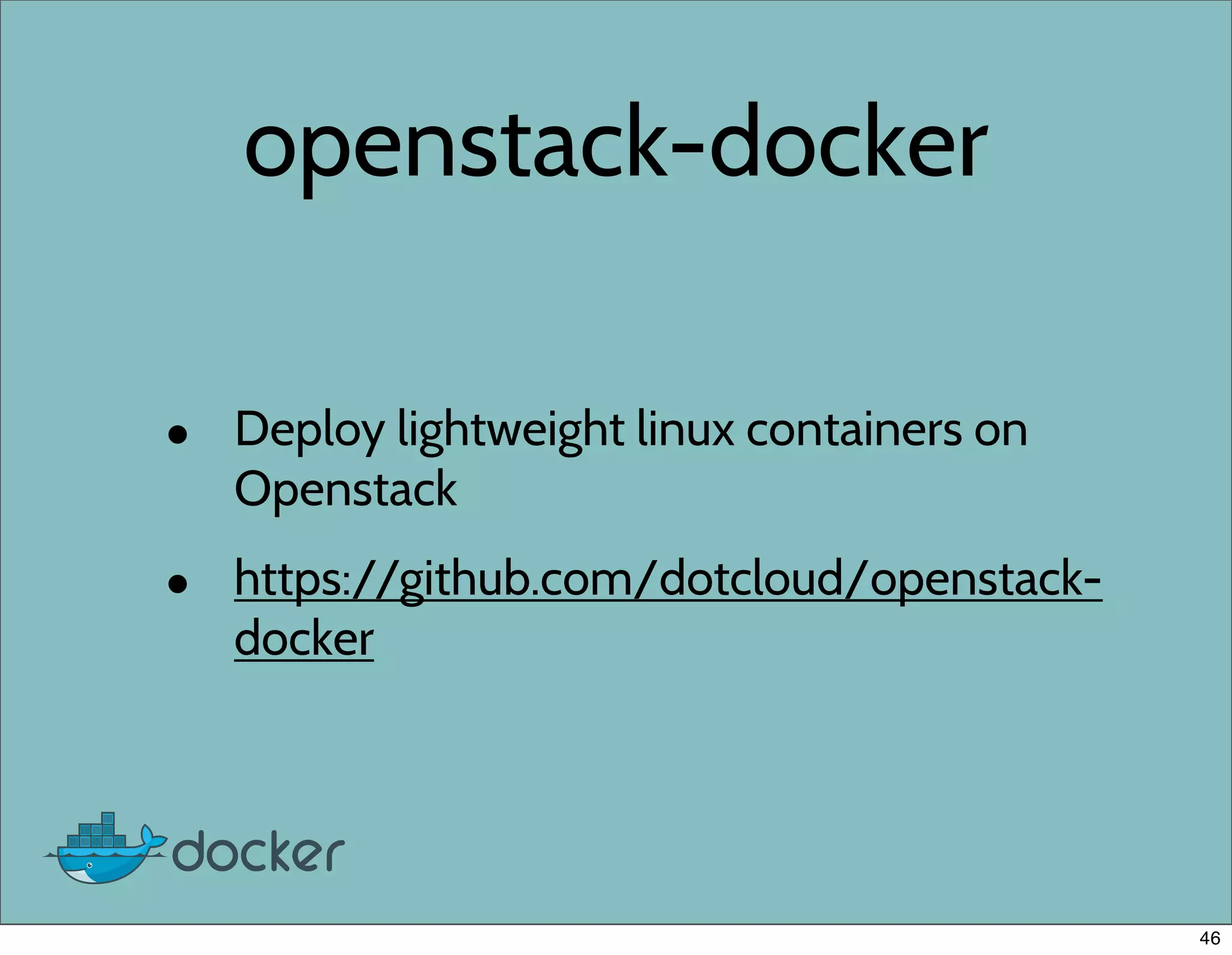

49. openstack-docker
• Deploy lightweight linux containers on
Openstack
• https://github.com/dotcloud/openstack-
docker
46

50. Using Docker
47

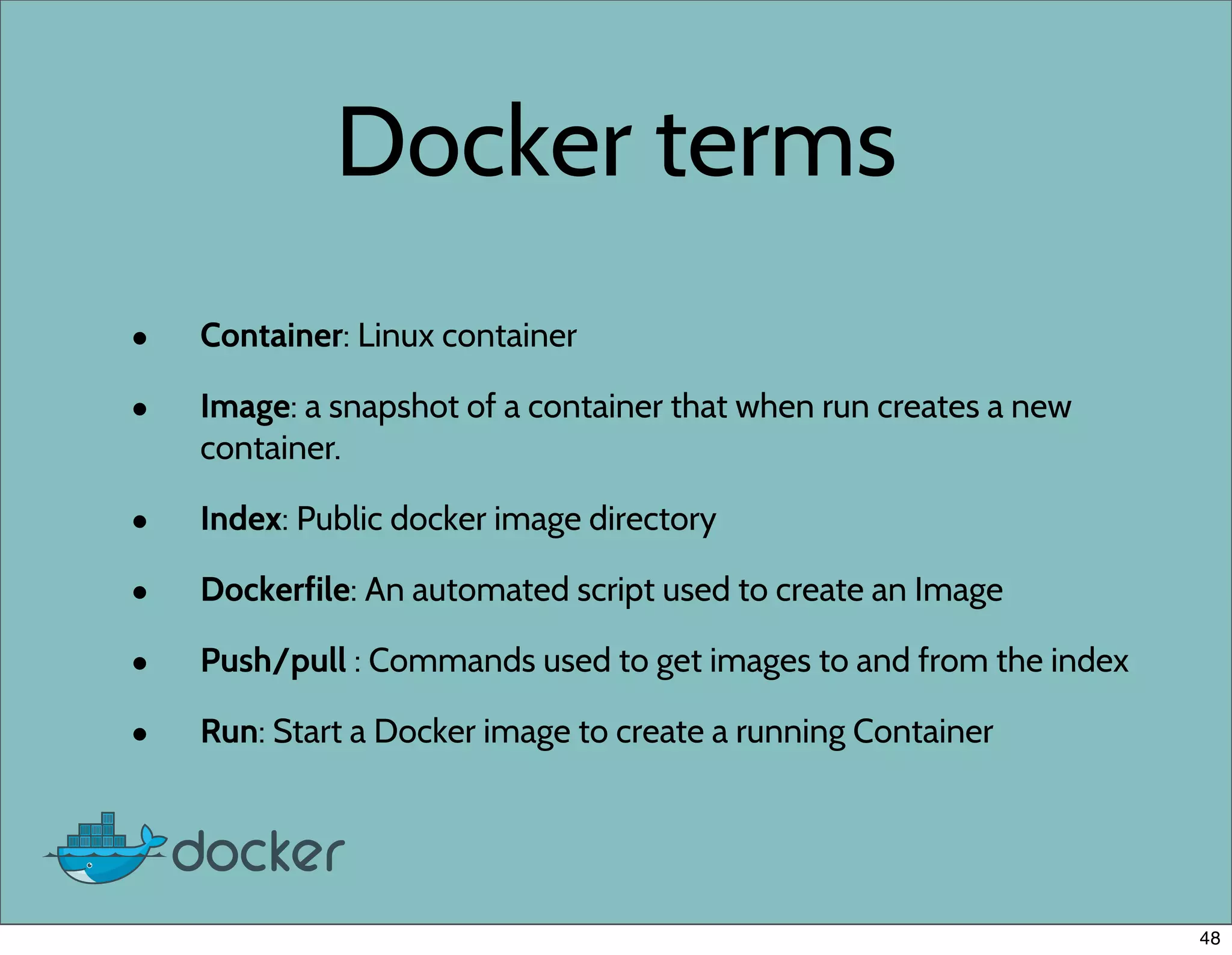

51. Docker terms
• Container: Linux container
• Image: a snapshot of a container that when run creates a new
container.
• Index: Public docker image directory
• Dockerfile: An automated script used to create an Image
• Push/pull : Commands used to get images to and from the index
• Run: Start a Docker image to create a running Container
48

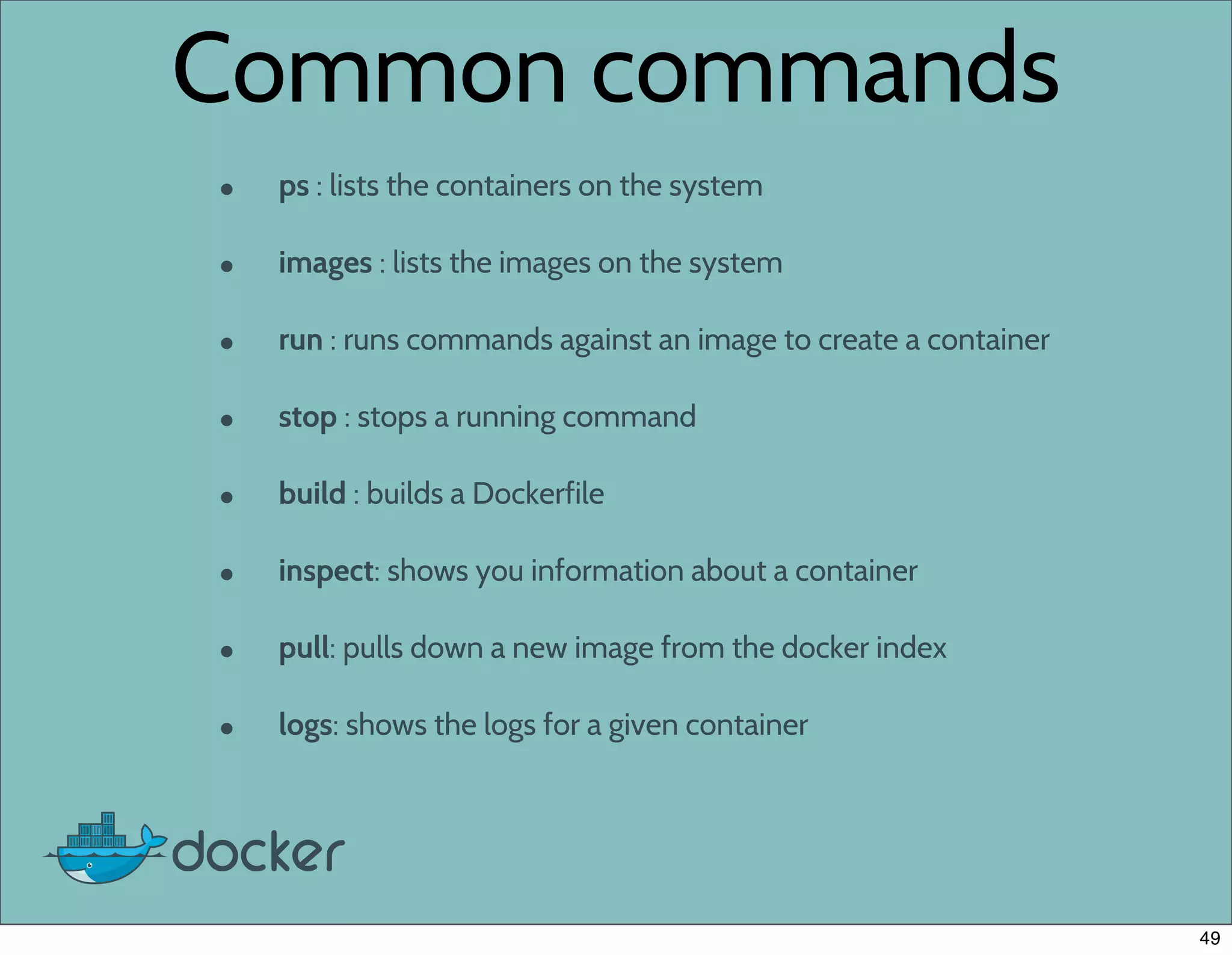

52. Common commands
• ps : lists the containers on the system
• images : lists the images on the system
• run : runs commands against an image to create a container
• stop : stops a running command
• build : builds a Dockerfile
• inspect: shows you information about a container
• pull: pulls down a new image from the docker index
• logs: shows the logs for a given container
49

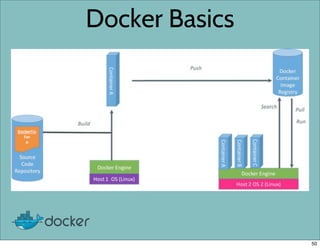

53. Docker Basics
50

54. Changes and Updates
51

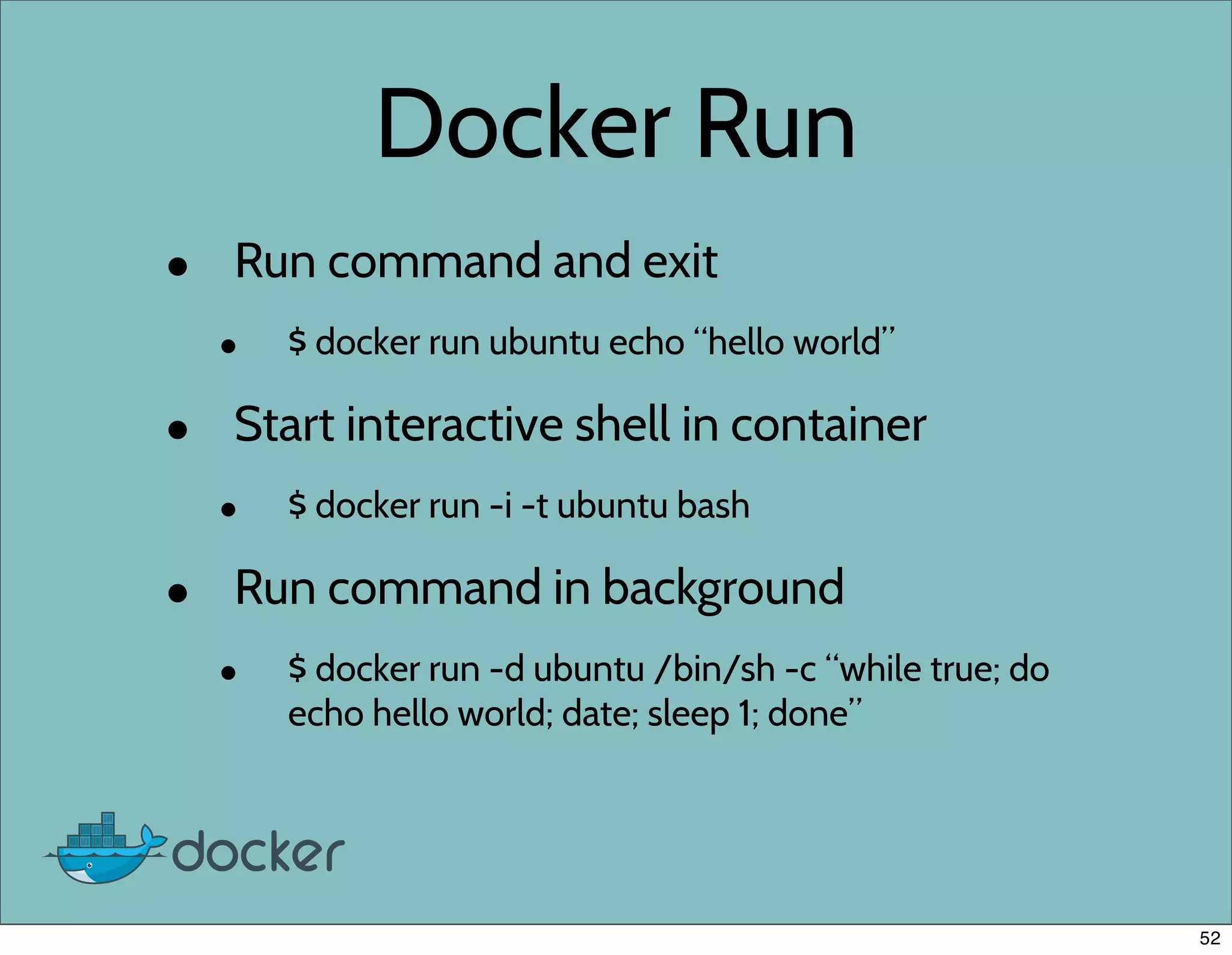

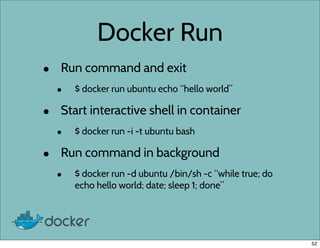

55. Docker Run
• Run command and exit
• $ docker run ubuntu echo “hello world”
• Start interactive shell in container
• $ docker run -i -t ubuntu bash
• Run command in background
• $ docker run -d ubuntu /bin/sh -c “while true; do
echo hello world; date; sleep 1; done”
52

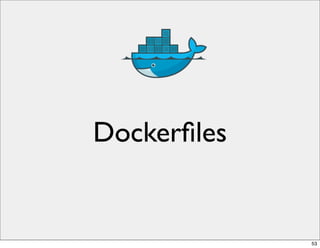

56. Dockerfiles
53

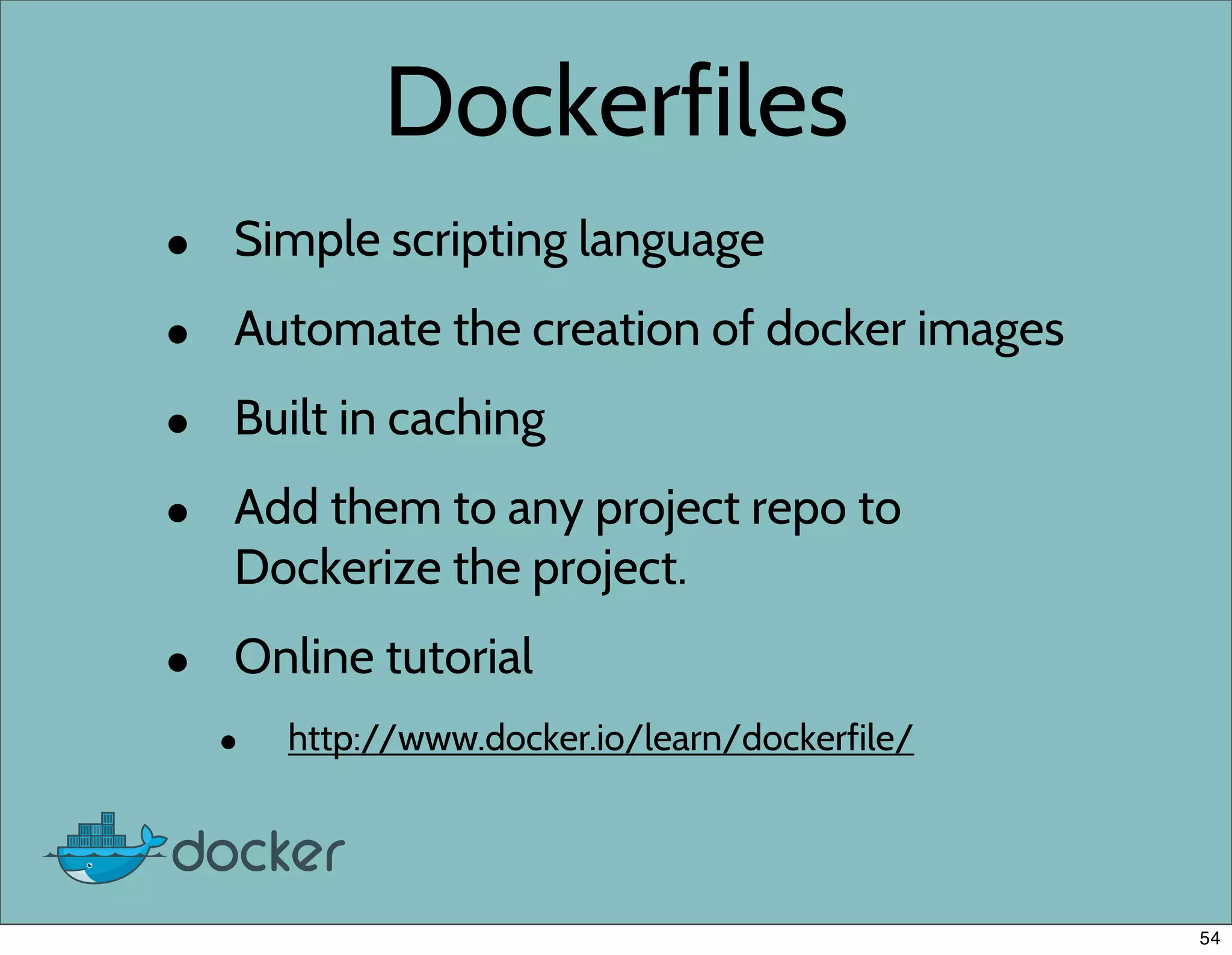

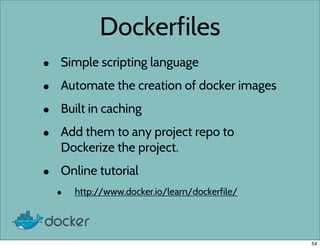

57. Dockerfiles
• Simple scripting language
• Automate the creation of docker images
• Built in caching
• Add them to any project repo to
Dockerize the project.
• Online tutorial
• http://www.docker.io/learn/dockerfile/
54

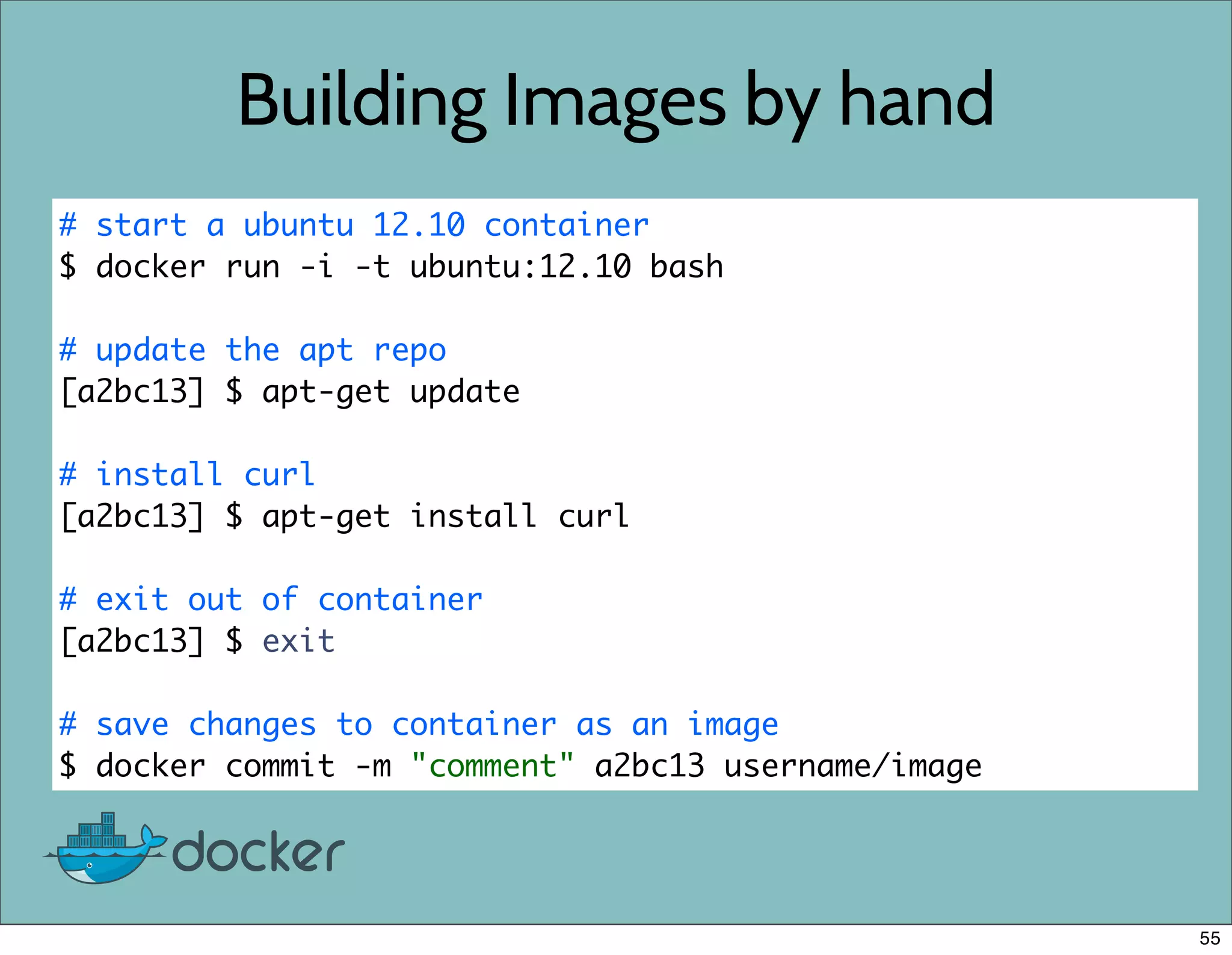

58. Building Images by hand
# start a ubuntu 12.10 container
$ docker run -i -t ubuntu:12.10 bash
# update the apt repo
[a2bc13] $ apt-get update
# install curl
[a2bc13] $ apt-get install curl
# exit out of container
[a2bc13] $ exit
# save changes to container as an image
$ docker commit -m "comment" a2bc13 username/image
55

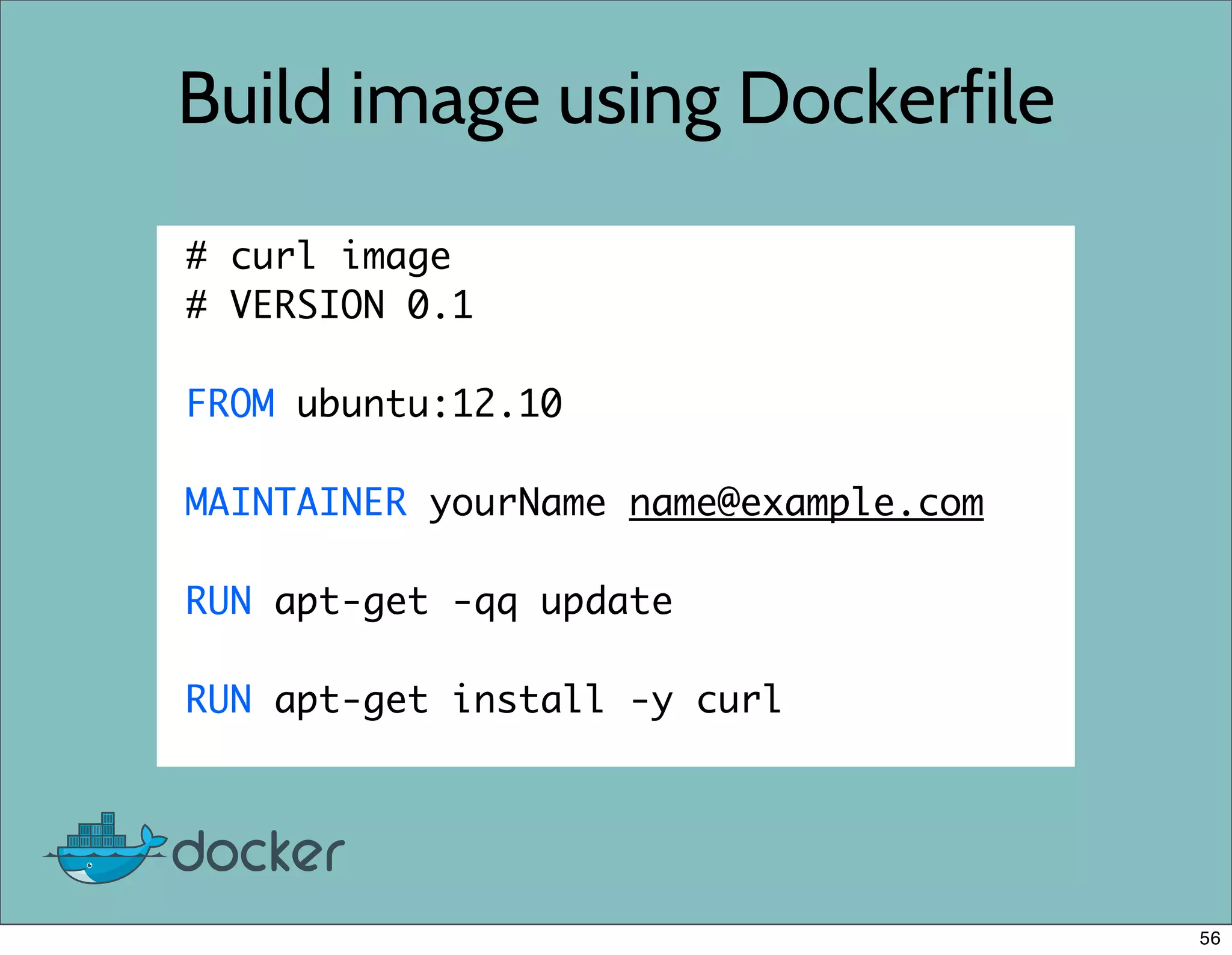

59. Build image using Dockerfile
# curl image
# VERSION 0.1
FROM ubuntu:12.10
MAINTAINER yourName name@example.com
RUN apt-get -qq update
RUN apt-get install -y curl
56

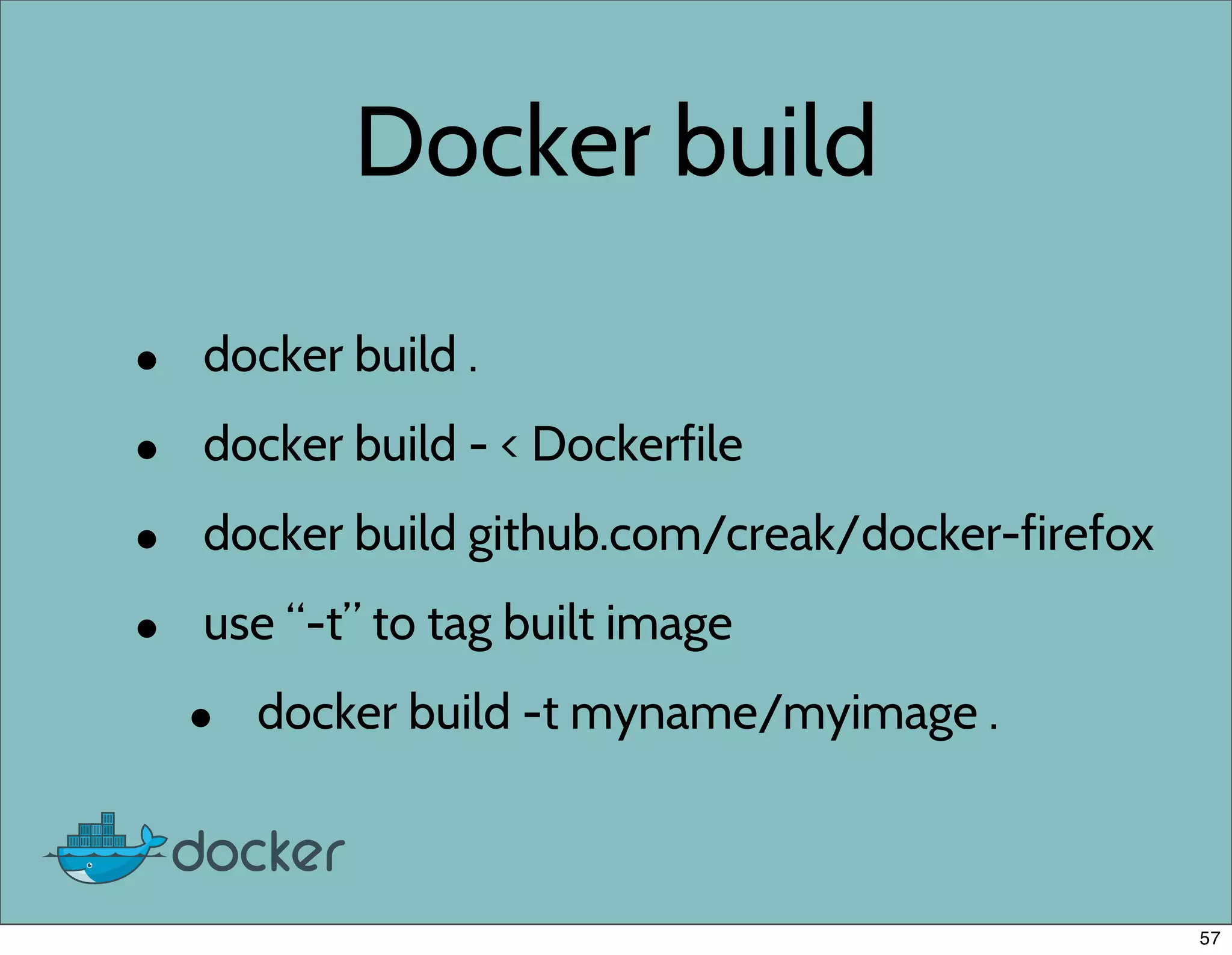

60. Docker build
• docker build .
• docker build - < Dockerfile
• docker build github.com/creak/docker-firefox
• use “-t” to tag built image
• docker build -t myname/myimage .
57

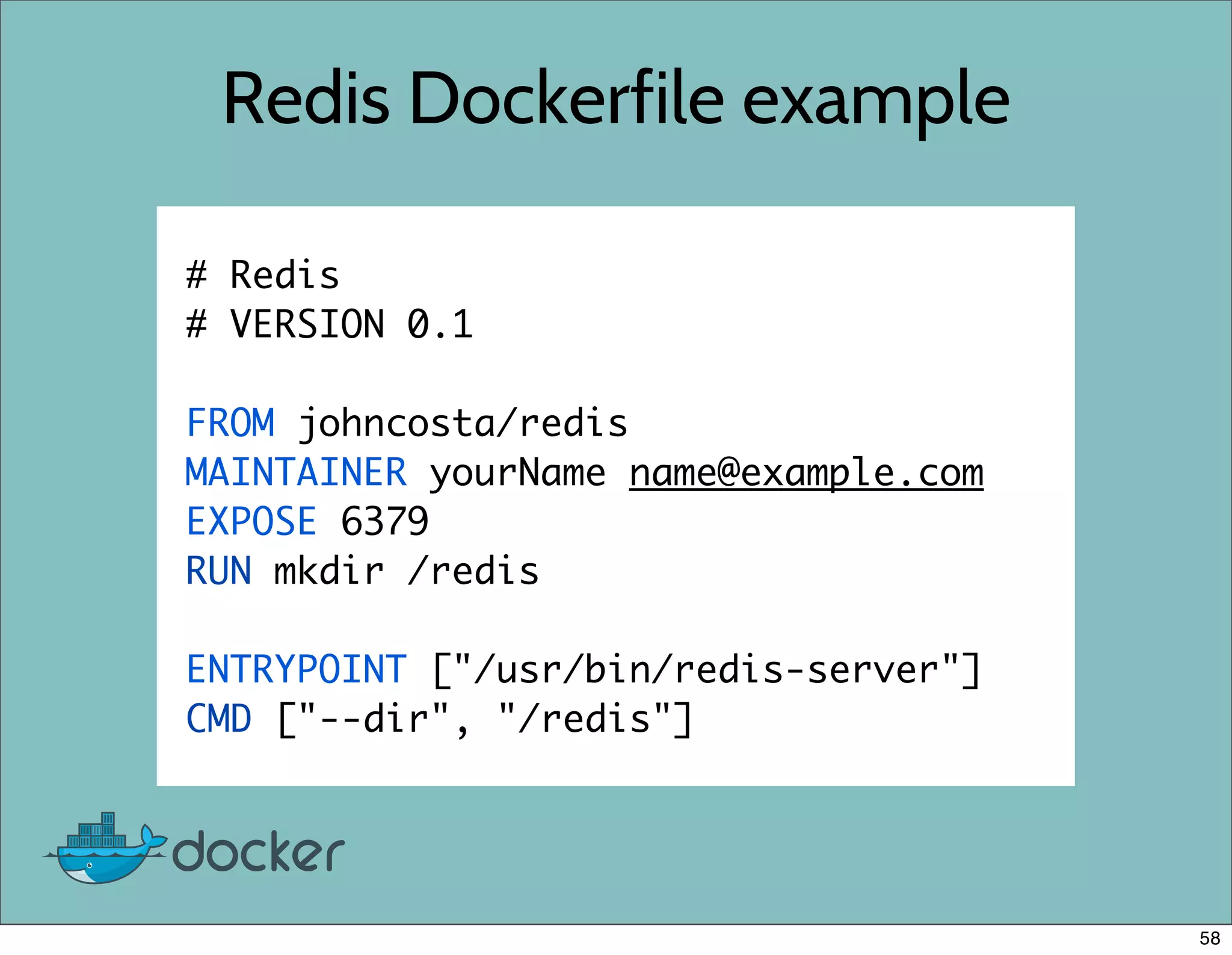

61. Redis Dockerfile example
# Redis
# VERSION 0.1
FROM johncosta/redis
MAINTAINER yourName name@example.com
EXPOSE 6379
RUN mkdir /redis
ENTRYPOINT ["/usr/bin/redis-server"]
CMD ["--dir", "/redis"]
58

62. Docker Index
59

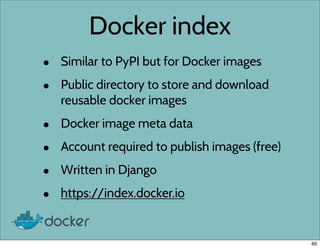

63. Docker index
• Similar to PyPI but for Docker images
• Public directory to store and download
reusable docker images
• Docker image meta data
• Account required to publish images (free)
• Written in Django
• https://index.docker.io
60

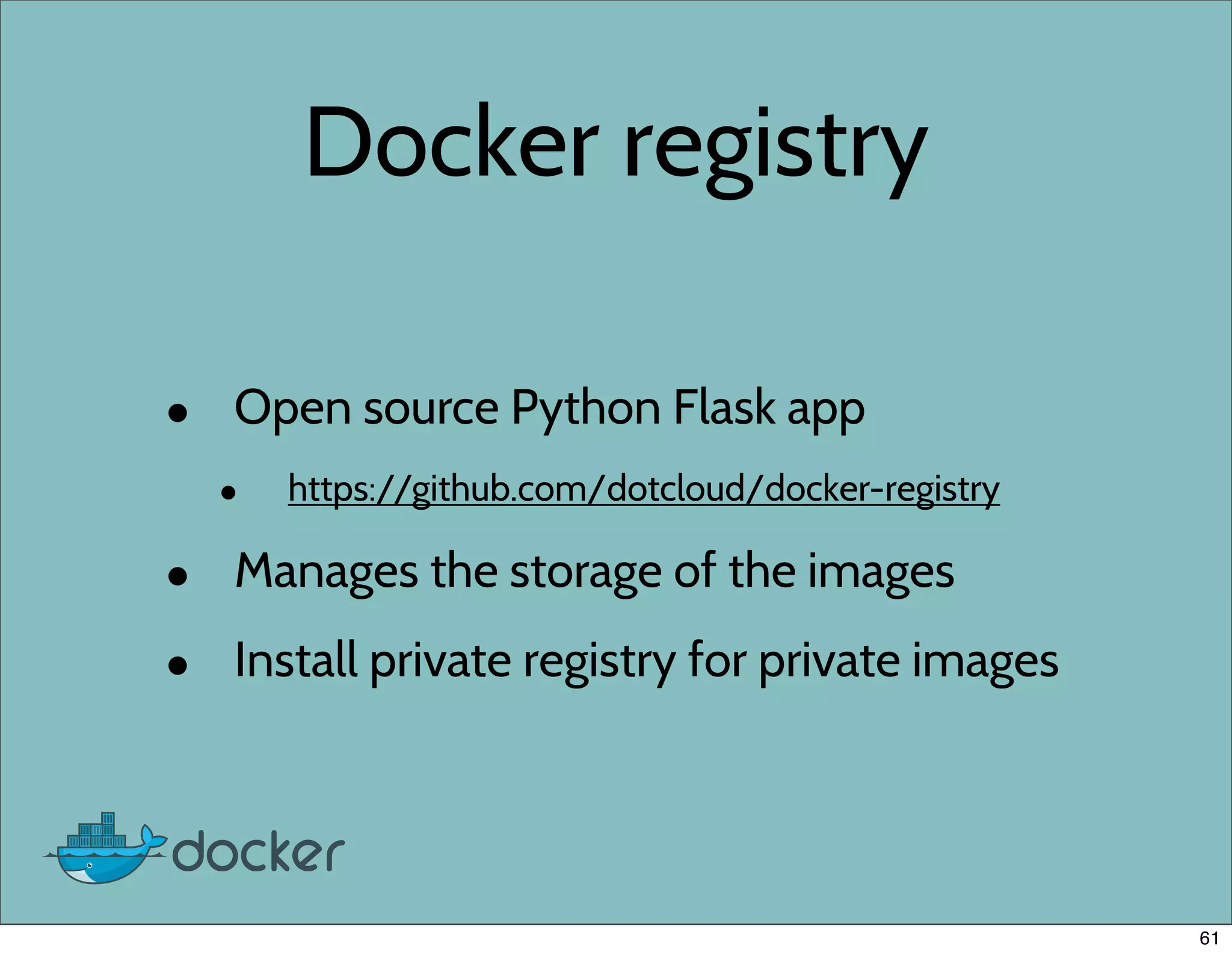

64. Docker registry
• Open source Python Flask app
• https://github.com/dotcloud/docker-registry
• Manages the storage of the images
• Install private registry for private images
61

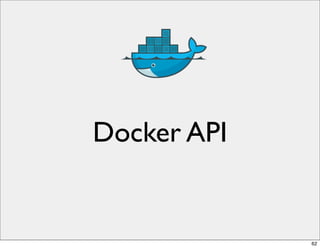

65. Docker API
62

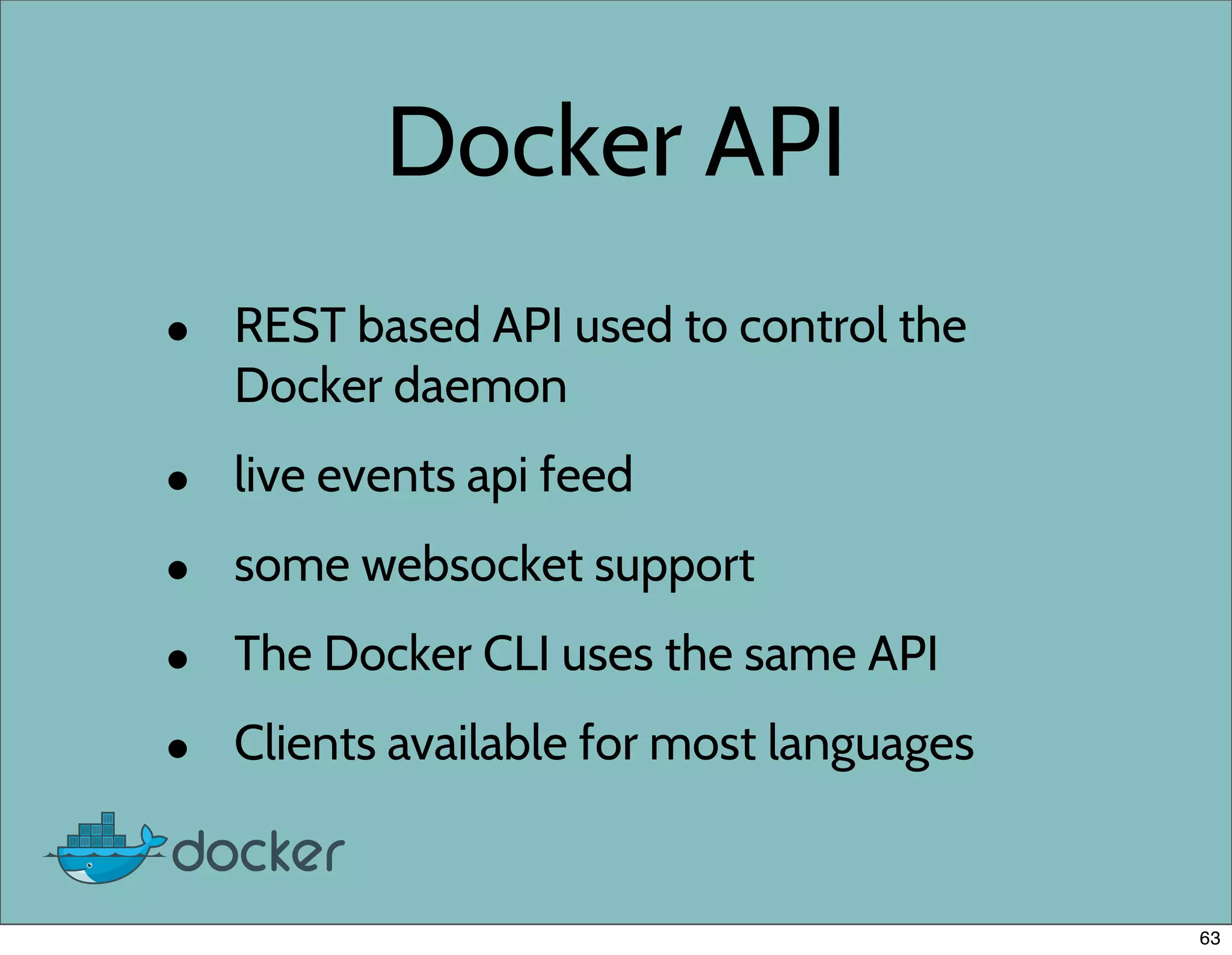

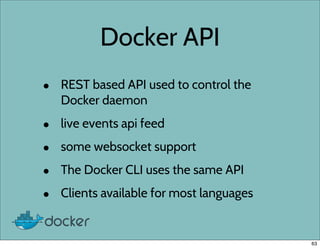

66. Docker API
• REST based API used to control the
Docker daemon
• live events api feed
• some websocket support
• The Docker CLI uses the same API
• Clients available for most languages
63

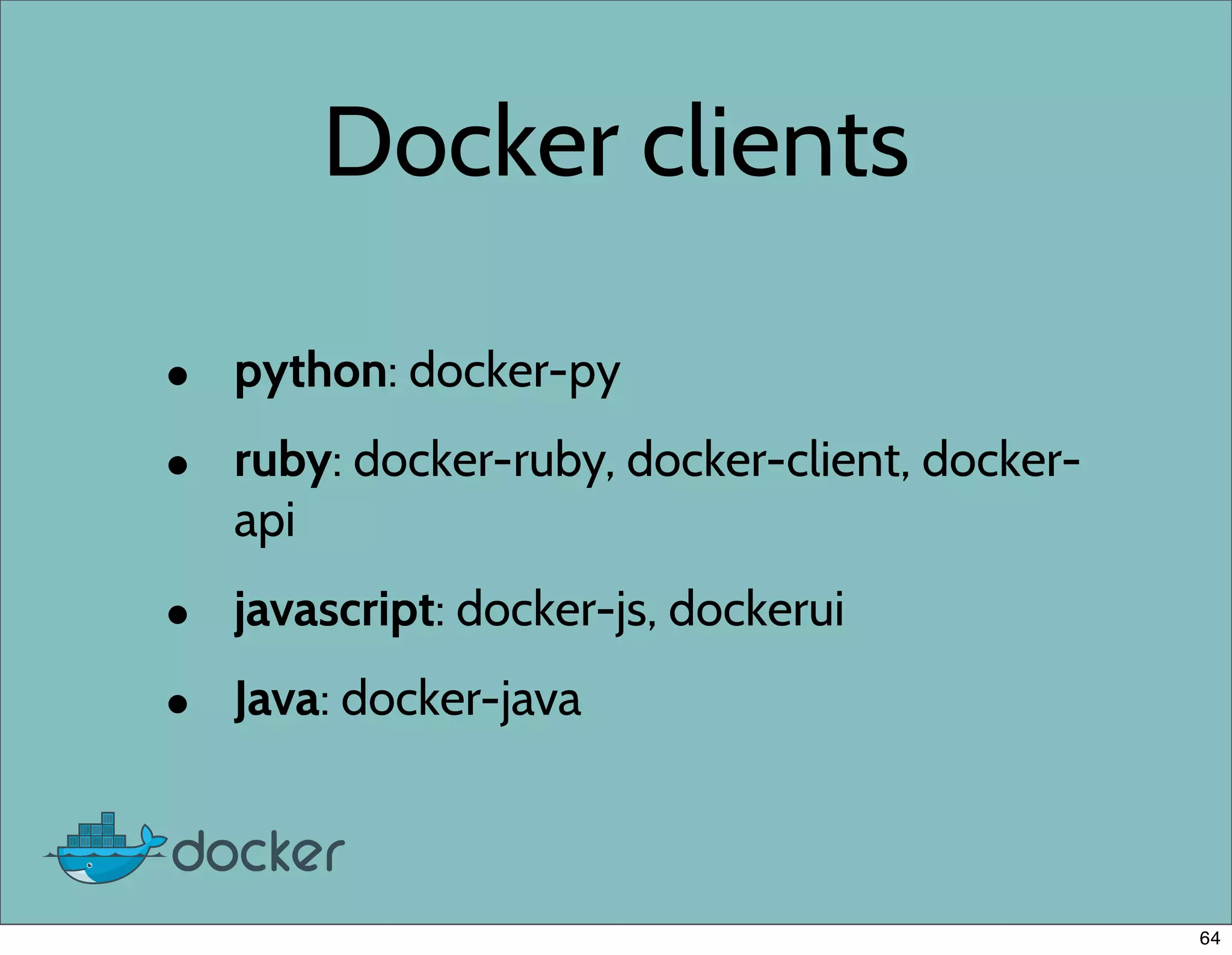

67. Docker clients
• python: docker-py
• ruby: docker-ruby, docker-client, docker-
api
• javascript: docker-js, dockerui
• Java: docker-java
64

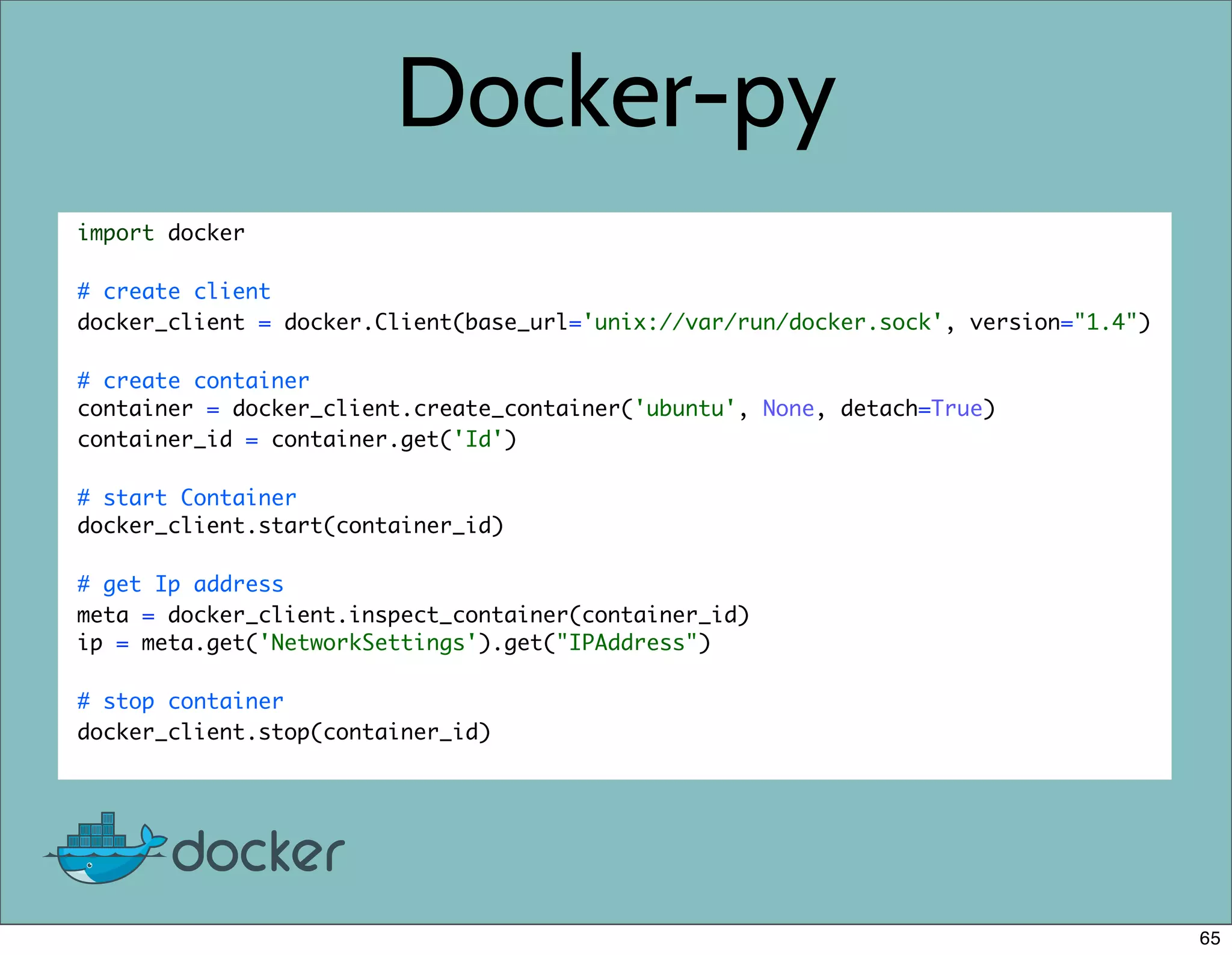

68. Docker-py
import docker
# create client
docker_client = docker.Client(base_url='unix://var/run/docker.sock', version="1.4")
# create container
container = docker_client.create_container('ubuntu', None, detach=True)
container_id = container.get('Id')
# start Container
docker_client.start(container_id)
# get Ip address
meta = docker_client.inspect_container(container_id)
ip = meta.get('NetworkSettings').get("IPAddress")
# stop container
docker_client.stop(container_id)
65

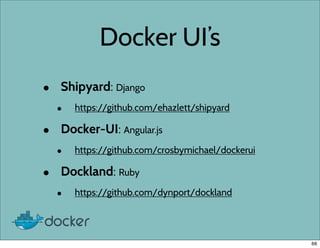

69. Docker UI’s
• Shipyard: Django
• https://github.com/ehazlett/shipyard
• Docker-UI: Angular.js
• https://github.com/crosbymichael/dockerui
• Dockland: Ruby
• https://github.com/dynport/dockland
66

70. Demo
67

71. Coming Soon
68

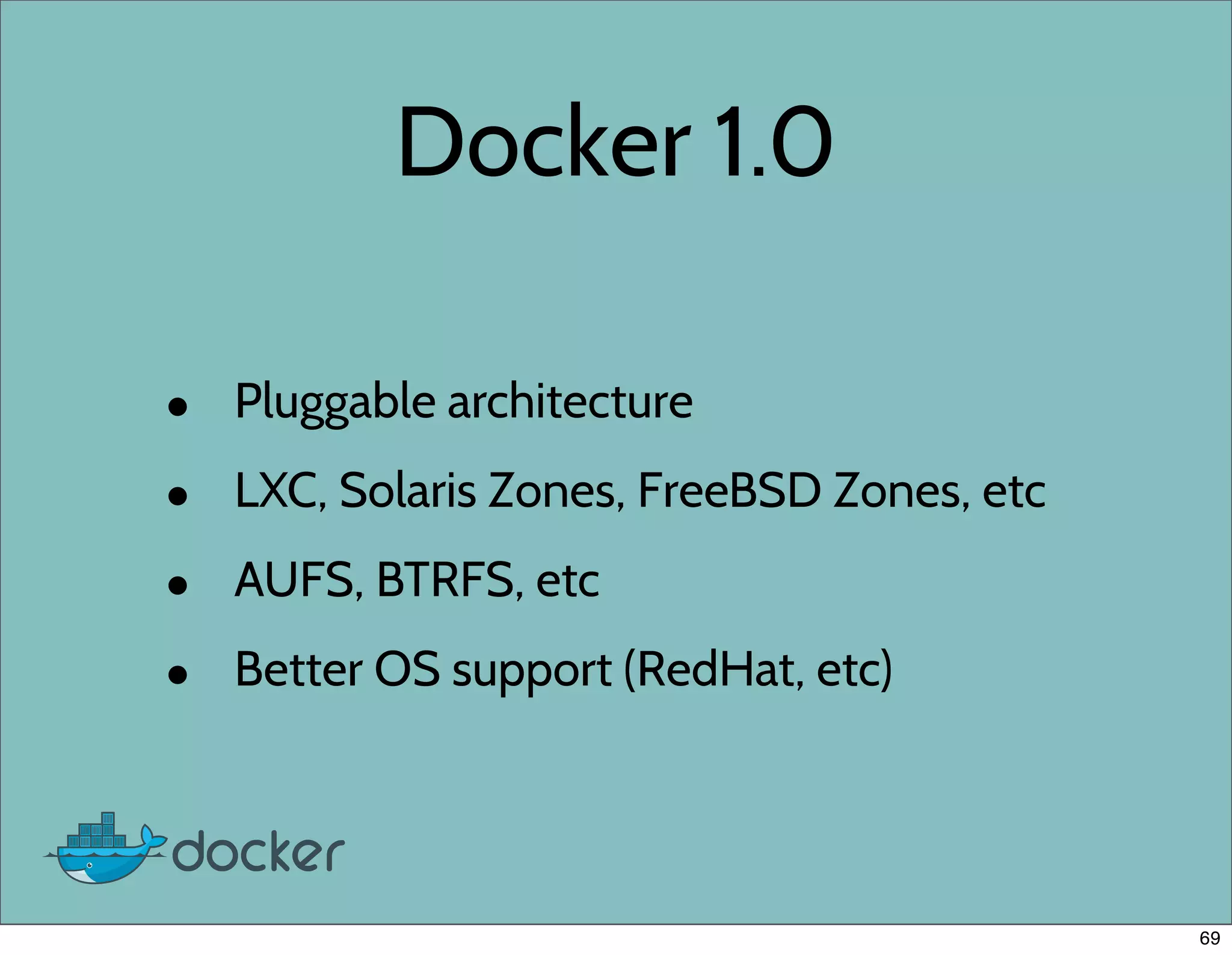

72. Docker 1.0
• Pluggable architecture
• LXC, Solaris Zones, FreeBSD Zones, etc
• AUFS, BTRFS, etc
• Better OS support (RedHat, etc)
69

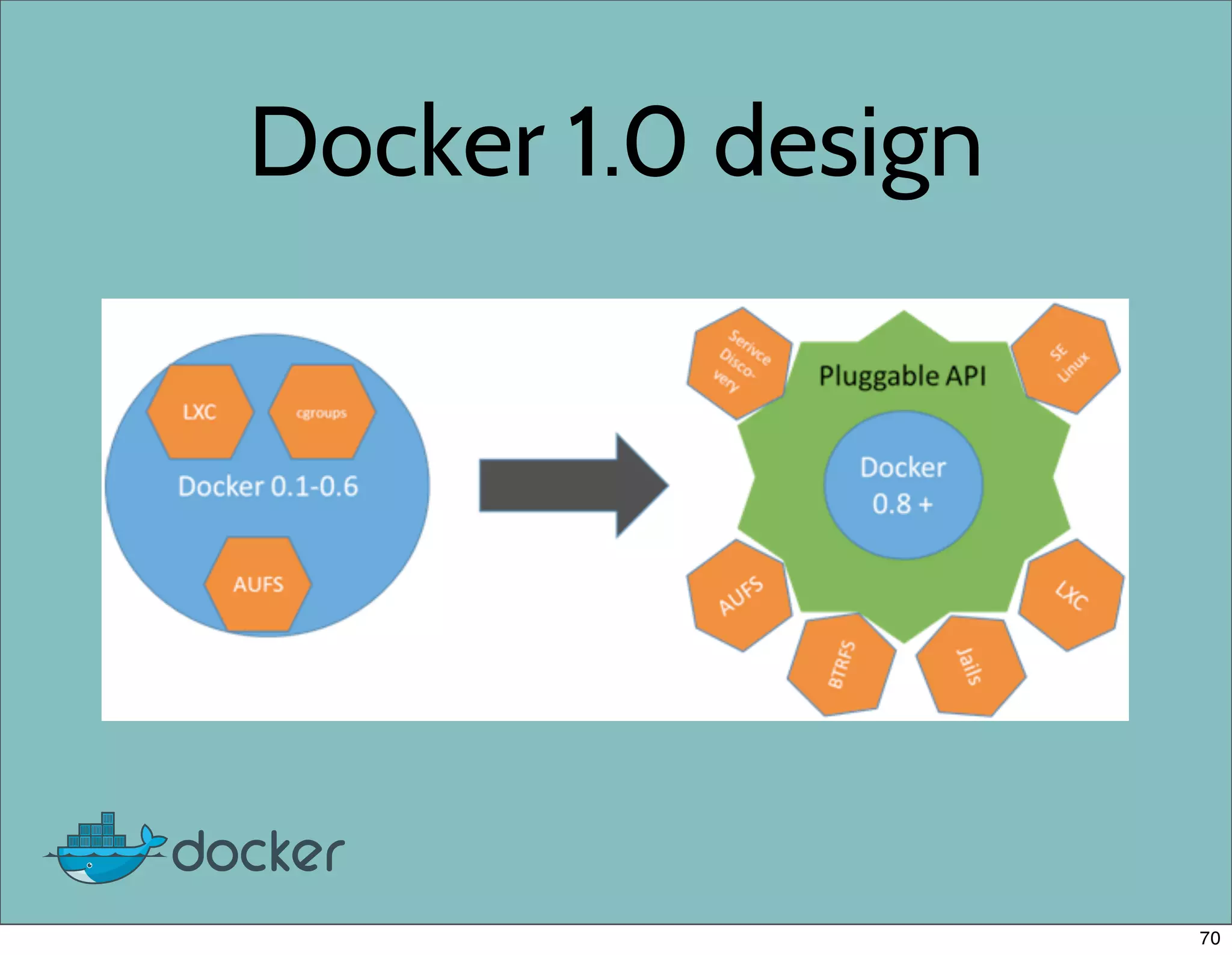

73. Docker 1.0 design
70

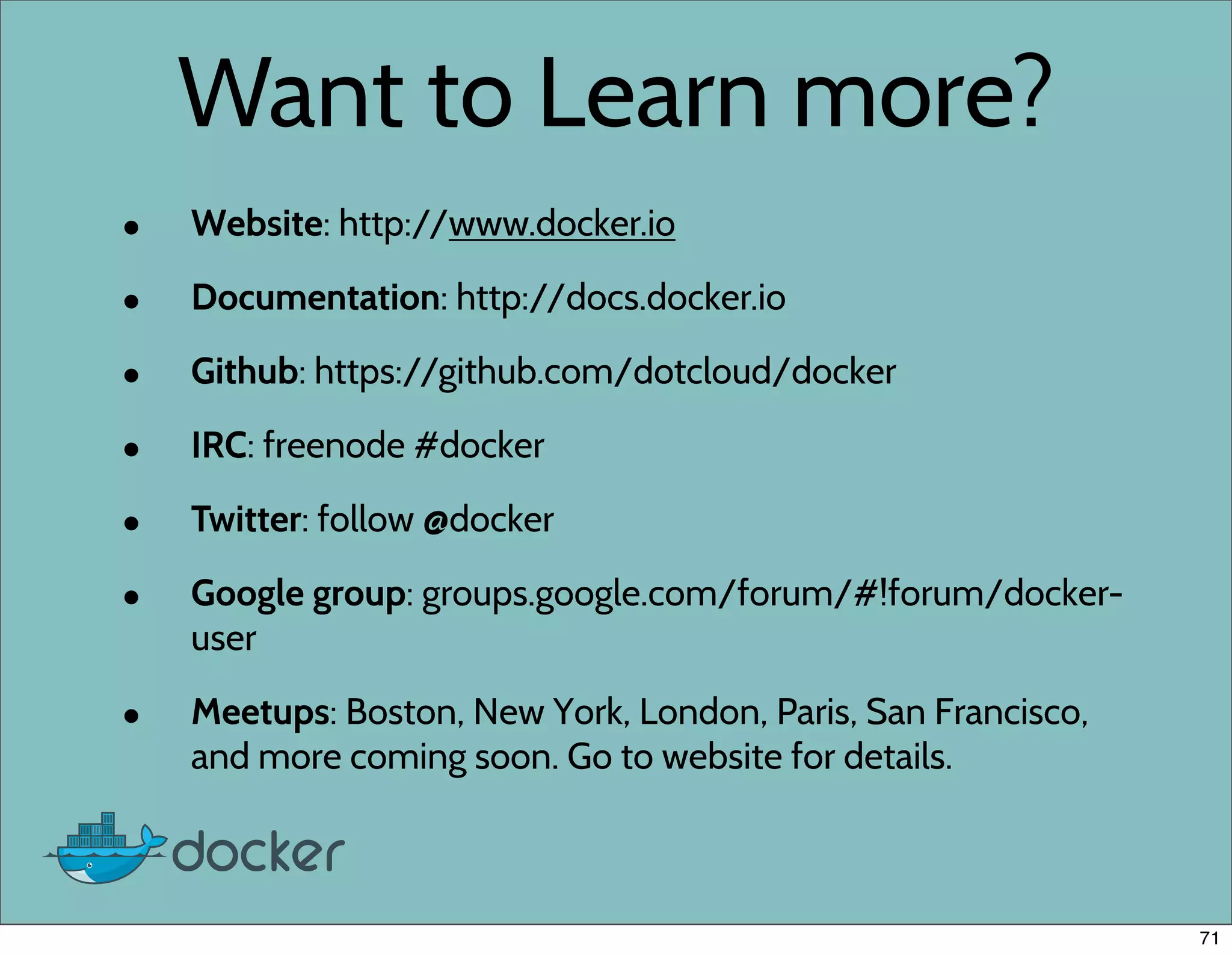

74. Want to Learn more?
• Website: http://www.docker.io
• Documentation: http://docs.docker.io
• Github: https://github.com/dotcloud/docker
• IRC: freenode #docker
• Twitter: follow @docker
• Google group: groups.google.com/forum/#!forum/docker-
user
• Meetups: Boston, New York, London, Paris, San Francisco,
and more coming soon. Go to website for details.
71

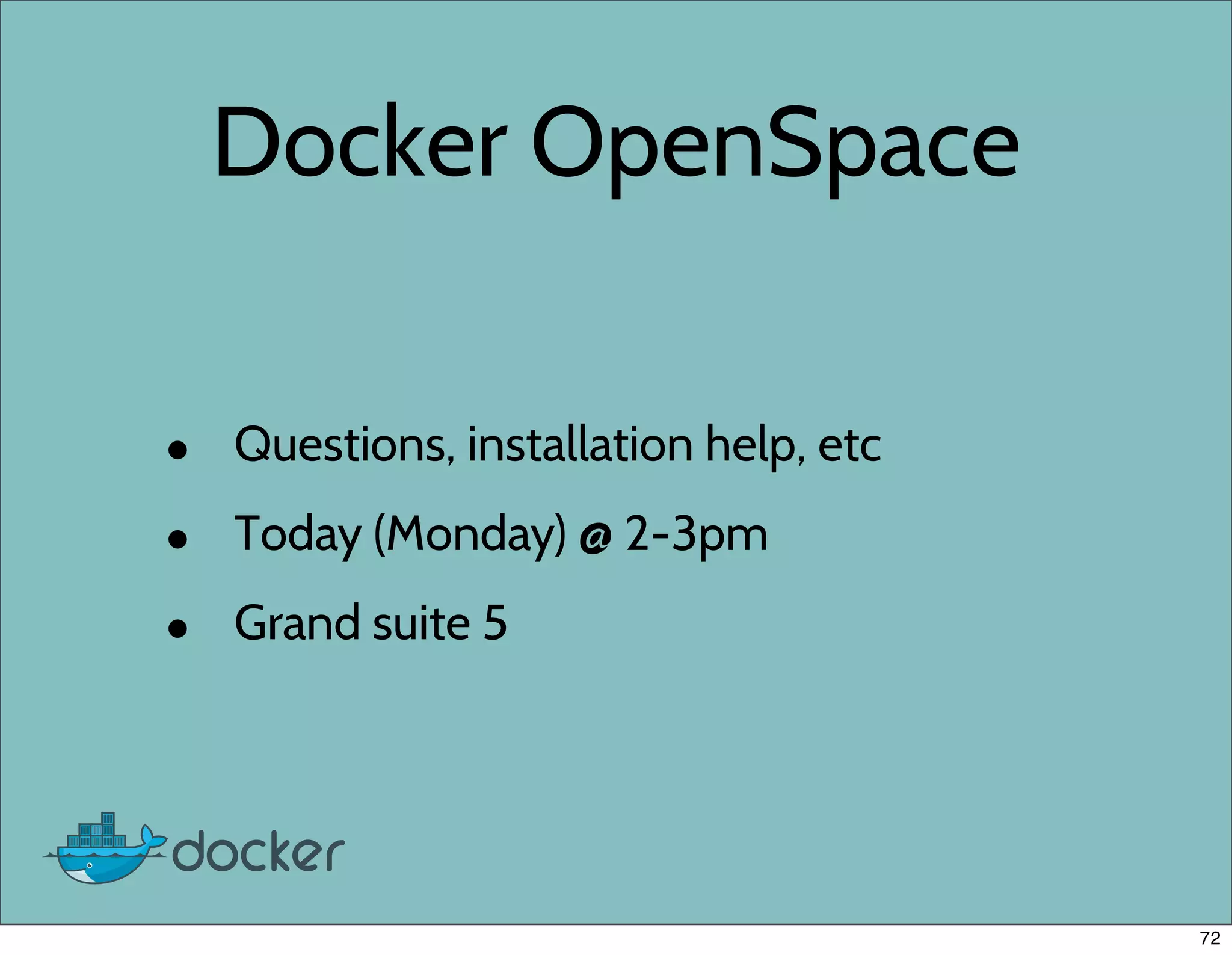

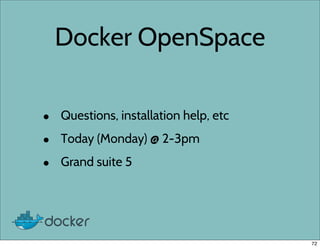

75. Docker OpenSpace
• Questions, installation help, etc
• Today (Monday) @ 2-3pm
• Grand suite 5
72

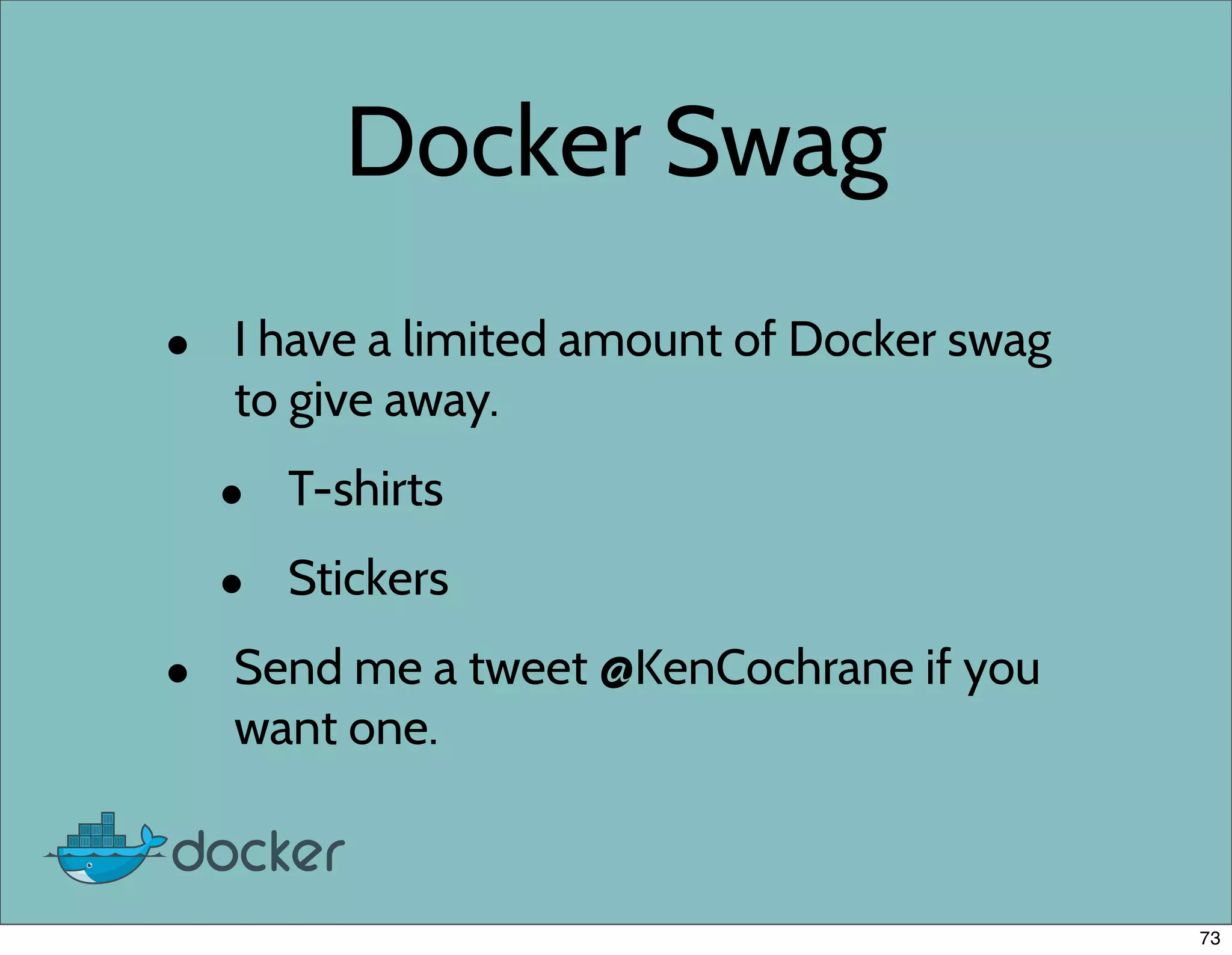

76. Docker Swag
• I have a limited amount of Docker swag
to give away.
• T-shirts
• Stickers
• Send me a tweet @KenCochrane if you
want one.
73

77. Questions?
74

78. Thank you!
@KenCochrane
75
