Service Discovery & Load-Balancing under Docker 1.12.0 @ Docker Meetup #22
Ajeet Singh Raina presented at the Docker Bangalore Meetup on August 20, 2016, discussing service discovery and load-balancing in Docker 1.12. Key topics included the evolution of service discovery, the new Docker Swarm features, and practical examples of creating and inspecting services. The presentation highlighted the benefits of embedded DNS for service discovery and decentralized load balancing in container management.
More Related Content
Similar to Service Discovery & Load-Balancing under Docker 1.12.0 @ Docker Meetup #22
Service Discovery & Load-Balancing under Docker 1.12.0 @ Docker Meetup #22
- 1. Presenter Name :Ajeet Singh Raina Presented Date: Aug 20, 2016 Presented at: Docker Bangalore Meetup #22 Service Discovery & Load-Balancing under Docker 1.12
- 2. 2 ABOUT ME #Contribution: - FrequentBlogger – http://www.collabnix.com - Article Writing @ OSFY India - Dell Community ( Containerizing Dell Legacy Application) #Inside Dell: - Project Lead Engineer(Global Solution Engineering) - Worked in VMware, CGI , Dell R&D - Solaris Lead Engineer ( Wiki Moderator) • (t) – ajeetsraina (f) - Docker Public Group Moderator #Reviewed Publications: - Puppet for Containerization - PowerCLI Cookbook #Technology : Open Source Linux, Docker, Hadoop, Puppet

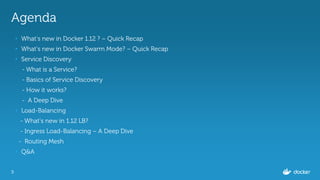

- 3. 3 Agenda • What’s newin Docker 1.12 ? – Quick Recap • What’s new in Docker Swarm Mode? – Quick Recap • Service Discovery - What is a Service? - Basics of Service Discovery - How it works? - A Deep Dive • Load-Balancing - What’s new in 1.12 LB? - Ingress Load-Balancing – A Deep Dive - Routing Mesh • Q&A

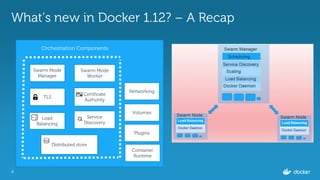

- 4. 4 What’s new inDocker 1.12? – A Recap Swarm Mode Manager TLS Swarm Mode Worker Certificate Authority Load Balancing Service Discovery Distributed store Volumes Networking Plugins Container Runtime Orchestration Components

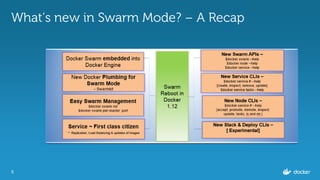

- 5. 5 What’s new inSwarm Mode? – A Recap

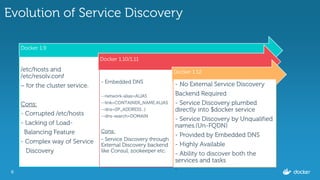

- 6. 6 Evolution of ServiceDiscovery Docker 1.9 /etc/hosts and /etc/resolv.conf ~ for the cluster service. Cons: - Corrupted /etc/hosts - Lacking of Load- Balancing Feature - Complex way of Service Discovery Docker 1.10/1.11 - Embedded DNS --network-alias=ALIAS --link=CONTAINER_NAME:ALIAS --dns=[IP_ADDRESS...] --dns-search=DOMAIN Cons: - Service Discovery through External Discovery backend like Consul, zookeeper etc. Docker 1.12 - No External Service Discovery Backend Required - Service Discovery plumbed directly into $docker service - Service Discovery by Unqualified names.(Un-FQDN) - Provided by Embedded DNS - Highly Available - Ability to discover both the services and tasks -.

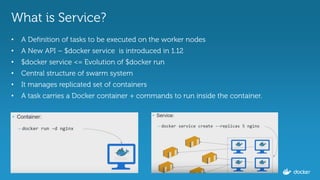

- 7. 7 What is Service? •A Definition of tasks to be executed on the worker nodes • A New API – $docker service is introduced in 1.12 • $docker service <= Evolution of $docker run • Central structure of swarm system • It manages replicated set of containers • A task carries a Docker container + commands to run inside the container.
- 8. 8 Service Discovery helps servicefind and talk to each other Serviceа Serviceb Serviceb Serviceb Serviceb Serviceb Serviceb Serviceb Scaling Scaling

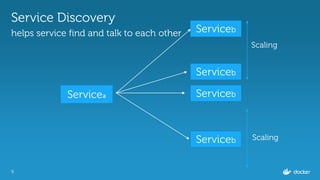

- 9. 9 Service Discovery helps servicefind and talk to each other Serviceа Serviceb Serviceb Serviceb Serviceb Scaling Scaling

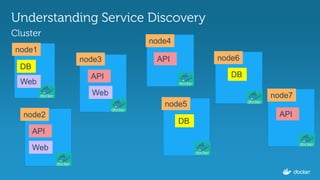

- 10.

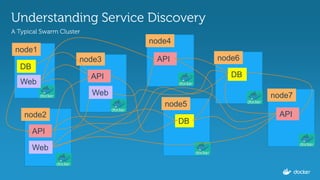

- 11. Understanding Service Discovery ATypical Swarm Cluster node1 node3 node2 node4 node5 node6 node7 DB DB DBAPI API API Web Web Web API

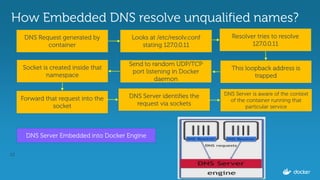

- 12. 12 How Embedded DNSresolve unqualified names? DNS Server Embedded into Docker Engine DNS Request generated by container Resolver tries to resolve 127.0.0.11 This loopback address is trapped Send to random UDP/TCP port listening in Docker daemon Socket is created inside that namespace Forward that request into the socket DNS Server identifies the request via sockets DNS Server is aware of the context of the container running that particular service Looks at /etc/resolv.conf stating 127.0.0.11

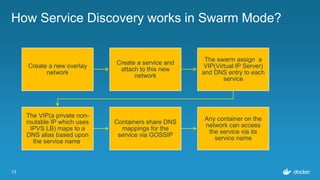

- 13. 13 How Service Discoveryworks in Swarm Mode? Create a new overlay network Create a service and attach to this new network The swarm assign a VIP(Virtual IP Server) and DNS entry to each service The VIP(a private non- routable IP which uses IPVS LB) maps to a DNS alias based upon the service name. Containers share DNS mappings for the service via GOSSIP Any container on the network can access the service via its service name

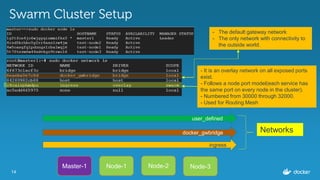

- 14. 14 Swarm Cluster Setup Master-1Node-1 Node-3Node-2 ingress docker_gwbridge user_defined Networks - It is an overlay network on all exposed ports exist. - Follows a node port model(each service has the same port on every node in the cluster). - Numbered from 30000 through 32000. - Used for Routing Mesh - The default gateway network - The only network with connectivity to the outside world.

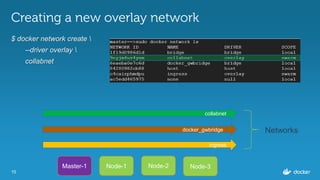

- 15. 15 Creating a newoverlay network $ docker network create --driver overlay collabnet Master-1 ingress docker_gwbridge Node-1 Node-3Node-2 collabnet Networks

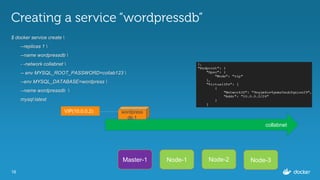

- 16. 16 Creating a service“wordpressdb” $ docker service create --replicas 1 --name wordpressdb - -network collabnet -- env MYSQL_ROOT_PASSWORD=collab123 --env MYSQL_DATABASE=wordpress --name wordpressdb mysql:latest Master-1 Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2)

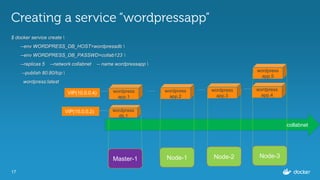

- 17. 17 Creating a service“wordpressapp” $ docker service create --env WORDPRESS_DB_HOST=wordpressdb --env WORDPRESS_DB_PASSWD=collab123 --replicas 5 --network collabnet -- name wordpressapp --publish 80:80/tcp wordpress:latest Master-1 Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2) wordpress app.1 wordpress app.5 wordpress app.4 wordpress app.2 wordpress app.3 VIP(10.0.0.4)

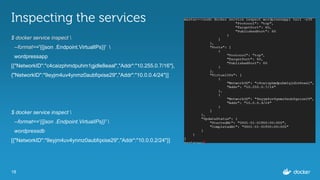

- 18. 18 Inspecting the services $docker service inspect --format=='{{json .Endpoint.VirtualIPs}}' wordpressapp [{"NetworkID":"c4caizphmdpuhm1gjdle8eaal","Addr":"10.255.0.7/16"}, {"NetworkID":"9eyjm4uv4ynmz0aubfqxise29","Addr":"10.0.0.4/24"}] $ docker service inspect --format=='{{json .Endpoint.VirtualIPs}}' wordpressdb [{"NetworkID":"9eyjm4uv4ynmz0aubfqxise29","Addr":"10.0.0.2/24"}]

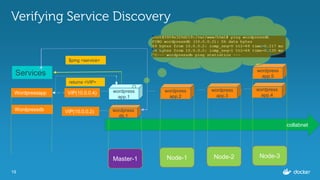

- 19. 19 Verifying Service Discovery Master-1Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2) wordpress app.1 wordpress app.5 wordpress app.4 wordpress app.2 wordpress app.3 VIP(10.0.0.4)Wordpressapp Wordpressdb Services $ping <service> returns <VIP>

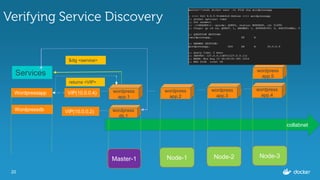

- 20. 20 Verifying Service Discovery Master-1Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2) wordpress app.1 wordpress app.5 wordpress app.4 wordpress app.2 wordpress app.3 VIP(10.0.0.4)Wordpressapp Wordpressdb Services $dig <service> returns <VIP>

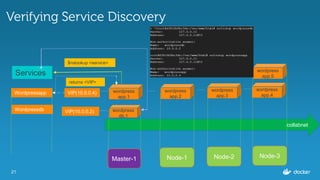

- 21. 21 Verifying Service Discovery Master-1Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2) wordpress app.1 wordpress app.5 wordpress app.4 wordpress app.2 wordpress app.3 VIP(10.0.0.4)Wordpressapp Wordpressdb Services $nslookup <service> returns <VIP>

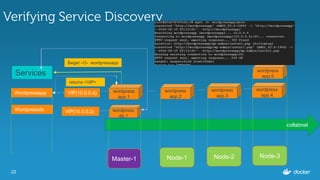

- 22. 22 Verifying Service Discovery Master-1Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2) wordpress app.1 wordpress app.5 wordpress app.4 wordpress app.2 wordpress app.3 VIP(10.0.0.4)Wordpressapp Wordpressdb Services $wget –O- wordpressapp returns <VIP>
- 23. 23 Network - thescope of Service Discoverability Master-1 Node-1 Node-3Node-2 collabnet wordpress db.1 VIP(10.0.0.2) wordpress app.1 wordpress app.5 wordpress app.4 wordpress app.2 wordpress app.3 VIP(10.0.0.4)Wordpressapp Wordpressdb collabnet1 Wordpressdb 1.1 Wordpressdb1 VIP(10.0.1.2) Services
- 24.

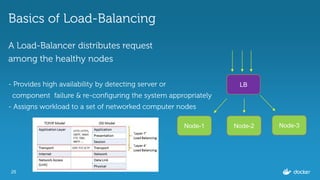

- 25. 25 Basics of Load-Balancing ALoad-Balancer distributes request among the healthy nodes - Provides high availability by detecting server or component failure & re-configuring the system appropriately - Assigns workload to a set of networked computer nodes LB Node-1 Node-3Node-2
- 26. 26 What’s new in1.12 Load-Balancing? • Decentralized, Highly Available – LB instance plumbed into every container instance • Internal Load Balancer – Provided by Embedded DNS • Can be used to discover both service & tasks • VIP based services uses IPVS(IP Virtual Server) – Layer-4 LB • Kernel module ( ip_vs) for LB

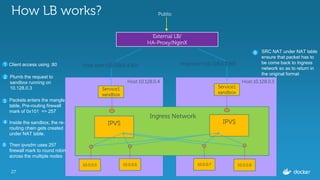

- 27. 27 How LB works? ExternalLB/ HA-Proxy/NginX Host-port:{10.128.0.4:80} Host-port:{10.128.0.3:80} Service1 sandbox IPVS Service1 sandbox IPVS 10.0.0.5 10.0.0.6 10.0.0.7 10.0.0.8 Ingress Network Host:10.128.0.4 Host:10.128.0.3 Public 1 Client access using :80 Plumb the request to sandbox running on 10.128.0.3 2 3 Packets enters the mangle table, Pre-routing firewall mark of 0x101 => 257 Inside the sandbox, the re- routing chain gets created under NAT table. Then ipvsdm uses 257 firewall mark to round robin across the multiple nodes 4 6 5 SRC NAT under NAT table ensure that packet has to be come back to Ingress network so as to return in the original format

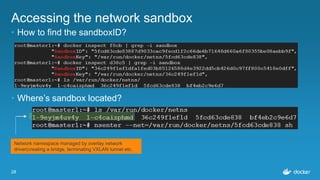

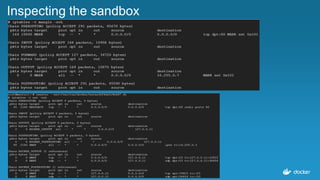

- 28. 28 Accessing the networksandbox • How to find the sandboxID? • Where’s sandbox located? Network namespace managed by overlay network driver(creating a bridge, terminating VXLAN tunnel etc.
- 29.

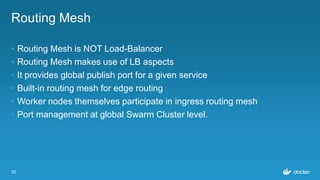

- 30. 30 Routing Mesh • RoutingMesh is NOT Load-Balancer • Routing Mesh makes use of LB aspects • It provides global publish port for a given service • Built-in routing mesh for edge routing • Worker nodes themselves participate in ingress routing mesh • Port management at global Swarm Cluster level.
- 31.
- 32.
