DNS server operations monitoring
it is difficult to monitor the internal operation of a
DNS server
•classic monitoring has a huge performance impact
(on busy DNS servers)
• Example: BIND 9 query-logging via "rndc querylog"
• up to 200% performance loss seen
• speed of the disk storage is the limiting factor
5

Network packet capture
an alternative solution is to look from the outside via a network
traffic capture tool
• no performance impact on the DNS server
• can only observe from the outside (no internal DNS server
events, like cache-events, seen)
• difficult to work with UDP fragments and DNS data in TCP
streams
• Example: Men & Mice DNS Traffic Monitor
• Example: DNS statistics collector (DSC)  
https://www.caida.org/tools/utilities/dsc/
6

dnstap
dnstap is an open protocol to capture and store
DNS server events
• events are recorded inside the server
• fast and lightweight protocol
• non-blocking, designed to have minimal impact
on the DNS servers performance
7

dnstap
8
DNS client
DNS resolver
DNS authoritative
server

dnstap
9

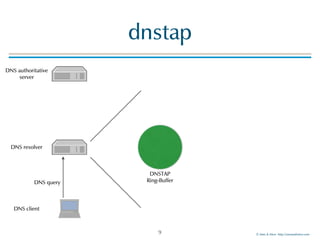

DNS client
DNS resolver
DNS authoritative
server
DNS query
DNSTAP
Ring-Buffer

dnstap
10
DNS client
DNS resolver
DNS authoritative
server
DNS query
DNSTAP
Ring-Buffer
event

dnstap
11
DNS client
DNS resolver
DNS authoritative
server
DNS query
DNSTAP
Ring-Buffer
event
IO
Thread
write to file

dnstap
12
DNS client
DNS resolver
DNS authoritative
server
DNS query
DNSTAP
Ring-Buffer
IO
Thread

dnstap
13
DNS client
DNS resolver
DNS authoritative
server
DNS query
DNSTAP
Ring-Buffer
IO
Thread
event write to file

dnstap
14
DNS client
DNS resolver
DNS authoritative
server
DNS answer
DNSTAP
Ring-Buffer
IO
Thread
DNS answer

dnstap
15
DNS client
DNS resolver
DNS authoritative
server
DNS answer
DNSTAP
Ring-Buffer
IO
Thread
event write to file
DNS answer

dnstap
16
DNS client
DNS resolver
DNS authoritative
server
DNSTAP
Ring-Buffer
IO
Thread
event(s) write to file
DNS queries
one event
lost

dnstap implementations
dnstap has been developed by Farsight Security  
(Paul Vixie and Robert Edmonds)
homepage is http://dnstap.info
• Unbound
• Knot 2.x
• BIND 9.11 (upcoming)
• NSD (planned)
• PowerDNS (planned)
17

using dnstap in your DNS server
dnstap is a compile-time option
• usually not enabled in distribution package code
• requires compilation from source
• can me made available in the Men & Mice build
packages for Unbound and BIND 9 (please let us
know) 
http://packages.menandmice.com/unbound
18

dnstap dependencies
fstrm (Frame Streams data transport protocol)
lightweight protocol to transport frames of data, 
can be used with any data serialisation format that 
produces byte sequences
https://github.com/farsightsec/fstrm
19

dnstap dependencies
Google Protocol Buffers
Protocol buffers are a language-neutral, platform-
neutral extensible mechanism for serialising
structured data.
https://developers.google.com/protocol-buffers/
20

dnstap tools
tools to read DNSTAP data files
•dnstap-golang 
https://github.com/dnstap/golang-dnstap
•dnstap-ldns 
https://github.com/dnstap/dnstap-ldns
•dnstap-read (part of BIND 9.11) 
http://source.isc.org
•Wireshark with dnstap support 
https://github.com/dnstap/wireshark
21

Demo: dnstap with unbound
simple Unbound configuration
server: 
verbosity: 1 
chroot: "" 
username: "" 
logfile: "unbound.log" 
use-syslog: no 
 
remote-control: 
control-enable: yes
dnstap: 
dnstap-enable: yes 
dnstap-socket-path: "/opt/dnstap.unbound" 
dnstap-send-identity: yes 
dnstap-send-version: yes 
dnstap-log-resolver-response-messages: yes 
dnstap-log-client-query-messages: yes
22

catching the DNSTAP stream from the socket and
writing to a file
# fstrm_capture -t protobuf:dnstap.Dnstap  
-u /opt/dnstap.unbound  
-w /opt/dnstap.out  
-ddddd
23
Protobuf information
Unix socket to read
file to write
heavy debug output

reading a DNSTAP data file (overview)
# /usr/local/bin/dnstap-ldns -r /opt/dnstap.out
2015-12-15 17:04:48.672530 CQ ::1 UDP 43b "menandmice.com." IN A 
2015-12-15 17:04:52.704455 CQ ::1 UDP 43b "menandmice.com." IN A 
2015-12-15 17:05:25.255258 CQ ::1 UDP 41b "dnssec.works." IN A 
2015-12-15 17:05:34.783531 CQ ::1 UDP 41b "dnssec.works." IN A 
2015-12-15 17:05:58.998672 CQ ::1 UDP 48b "larger.dnssec.works." IN A 
2015-12-15 17:06:05.958735 CQ ::1 UDP 49b "largerr.dnssec.works." IN A 
2015-12-15 17:06:15.198618 CQ ::1 UDP 49b "largerr.dnssec.works." IN TXT 
2015-12-15 17:06:20.493485 CQ ::1 UDP 48b "larger.dnssec.works." IN TXT
24
file with binary
DNSTAP data
CQ = Client Query
command to read
DNSTAP file

reading a DNSTAP data file (with details)
# /usr/local/bin/dnstap-ldns -y —r /opt/dnstap.out
type: MESSAGE 
identity: "csmobile4.home.strotmann.de" 
version: "unbound 1.5.7" 
message: 
type: CLIENT_QUERY 
query_time: !!timestamp 2015-12-15 17:06:20.493485 
socket_family: INET6 
socket_protocol: UDP 
query_address: ::1 
query_port: 48107 
query_message: | 
;; ->>HEADER<<- opcode: QUERY, rcode: NOERROR, id: 50271 
;; flags: rd ad ; QUERY: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 0 
 
;; QUESTION SECTION: 
;larger.dnssec.works. IN TXT 
 
;; ANSWER SECTION: 
 
;; AUTHORITY SECTION: 
 
;; ADDITIONAL SECTION: 
 
;; EDNS: version 0; flags: do ; udp: 4096
25
file with binary
DNSTAP data
details output as
YAML

simple Knot 2.x configuration
server: 
listen: 0.0.0.0@53 
listen: ::@53
log: 
- target: syslog 
any: info
mod-dnstap: 
- id: capture_all 
sink: /opt/dnstap.knot
template: 
- id: default 
storage: "/opt/knot-dnstap/var/lib/knot" 
global-module: mod-dnstap/capture_all
zone: 
- domain: example.com 
file: "/opt/knot-dnstap/etc/knot/example.com.zone"
Demo: dnstap with knot-dns
26

simple BIND 9.11 resolver configuration
options { 
directory "/opt/bind9-dnstap"; 
dnstap { all; }; // client, auth, resolver, forwarder | query, response 
dnstap-output file "/opt/bind9.tap"; 
dnstap-identity hostname; 
dnstap-version "9.11.devel";
dnssec-validation auto; 
};
Demo: dnstap with BIND
9.11(devel)
27

reading a DNSTAP file with dnstap-read
# dnstap-read /opt/bind9.dtp
15-Dec-2015 18:53:35.467 RQ 2001:503:ba3e::2:30 UDP 40b ./IN/DNSKEY 
15-Dec-2015 18:53:35.503 RR 2001:503:ba3e::2:30 UDP 509b ./IN/NS 
15-Dec-2015 18:53:35.514 RQ 2001:500:2d::d TCP 40b ./IN/DNSKEY 
15-Dec-2015 18:53:35.550 RR 2001:503:ba3e::2:30 TCP 736b ./IN/DNSKEY 
15-Dec-2015 18:53:35.468 RQ 2001:503:ba3e::2:30 UDP 40b ./IN/NS 
15-Dec-2015 18:53:35.503 RR 2001:503:ba3e::2:30 UDP 28b ./IN/DNSKEY 
15-Dec-2015 18:53:35.514 RR 2001:500:2d::d UDP 28b ./IN/DNSKEY 
15-Dec-2015 18:53:35.503 RQ 2001:500:2d::d UDP 40b ./IN/DNSKEY 
15-Dec-2015 18:53:35.534 RR 2001:500:2d::d TCP 736b ./IN/DNSKEY 
15-Dec-2015 18:53:35.503 RQ 2001:503:ba3e::2:30 TCP 40b ./IN/DNSKEY
9.11(devel)
28
RQ: RESOLVER_QUERY
RR: RESOLVER_RESPONSE
CQ: CLIENT_QUERY
CR: CLIENT_RESPONSE
FQ: FORWARDER_QUERY
FR: FORWARDER_RESPONSE
[…]
date and
time
ip address of
remote
machine
transport protcol
(UDP or TCP)
Size of (DNSTAP)
data
domain, class and
record type

reading a DNSTAP file with dnstap-read including packet data
# dnstap-read -p /opt/bind9.dtp
15-Dec-2015 18:53:52.725 RQ 2001:7fe::53 UDP 67b demand.gamma.aridns.net.au/IN/AAAA 
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 23009 
;; flags: cd; QUESTION: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 1 
;; OPT PSEUDOSECTION: 
; EDNS: version: 0, flags: do; udp: 512 
; COOKIE: f7208c0ca722db34 
;demand.gamma.aridns.net.au. IN AAAA 
 
15-Dec-2015 18:53:52.758 RR 2001:7fe::53 UDP 510b demand.delta.aridns.net.au/IN/AAAA 
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 37169 
;; flags: qr cd; QUESTION: 1, ANSWER: 0, AUTHORITY: 13, ADDITIONAL: 1 
;; OPT PSEUDOSECTION: 
; EDNS: version: 0, flags: do; udp: 4096 
;demand.delta.aridns.net.au. IN AAAA
 
;; AUTHORITY SECTION: 
au. 172800 IN NS a.au. 
[…] 
au. 172800 IN NS u.au. 
au. 86400 IN DS 37976 8 1 ACCF50B2687DB697C404163DC1B9A07EE022E794 
au. 86400 IN DS 37976 8 2 EA7CDFAB57E4D9CB5F09BE95EC5EBD4F4A113DFA3F120AC9D6065282 D910B8A5 
au. 86400 IN DS 41491 8 1 C104274A2F94B01DB84E76B298B69A53B3FB4919 
au. 86400 IN DS 41491 8 2 FCAABD135FFD9D1015438FC4AF8ACE4E9D2BEA04748C4DB3975CFD7C ABC30B88 
au. 86400 IN RRSIG DS 8 1 86400 20151225170000 20151215160000 62530 . ccUToKhPaKIGE2O1fJgW/HjPAg/
La2aQUNH1EVMgmTGyynx54IkS3NGY V1+xgqHRyYfp3Zr4lv2MLPC1w4ix+yMuAorPbdOxMDgxS3/D0PM8bTO4 Fs2CHSZ++NGML2WtUP2r8EGVYak+pysUgOBK8DvV8RQK+neXb7eoRwF0
Mag=
9.11(devel)
29

dnstap summary
a new, open standard for DNS server operation
monitoring
• designed for large, busy DNS server
• minimal performance loss
• wide adoption among open source DNS server
implementations
30

don't miss our next webinars
•January 2016 – the DNS server in Windows 2016
Server – a big leap forward (views, response rate
limiting, ACLs and more)
•February 2016 - an Update on DNSSEC and DANE:
new implementations, adoption in the market, new
Internet Standards 
 
Signup @  
https://www.menandmice.com/resources/educational-resources/webinars/
31

Q/A
32
?
2016 Schedule, Slides, Links, Recording and errata
will be published @ 
https://www.menandmice.com/resources/educational-resources/webinars/

DNSTap Webinar

More Related Content

What's hot

Viewers also liked

Similar to DNSTap Webinar

More from Men and Mice

Recently uploaded

DNSTap Webinar
