Ceph is an open source distributed storage system that is highly scalable, self-managing, and provides multiple access methods including block, file, and object storage. It uses CRUSH to intelligently distribute data and replicas across clusters. Ceph Storage Clusters contain OSD, MON, and optionally MDS daemons. OSDs store data objects, MONs maintain cluster maps and state, and MDS provides metadata for CephFS. Ceph can be deployed with CloudStack to provide the backend storage for virtual machine volumes.

1. Andrija Panic™
Cloud Architect
andrija.panic@shapeblue.com
Twitter: @AndrijaRS
Ceph with CloudStack
The Cloud Specialists

2. The Cloud Specialists

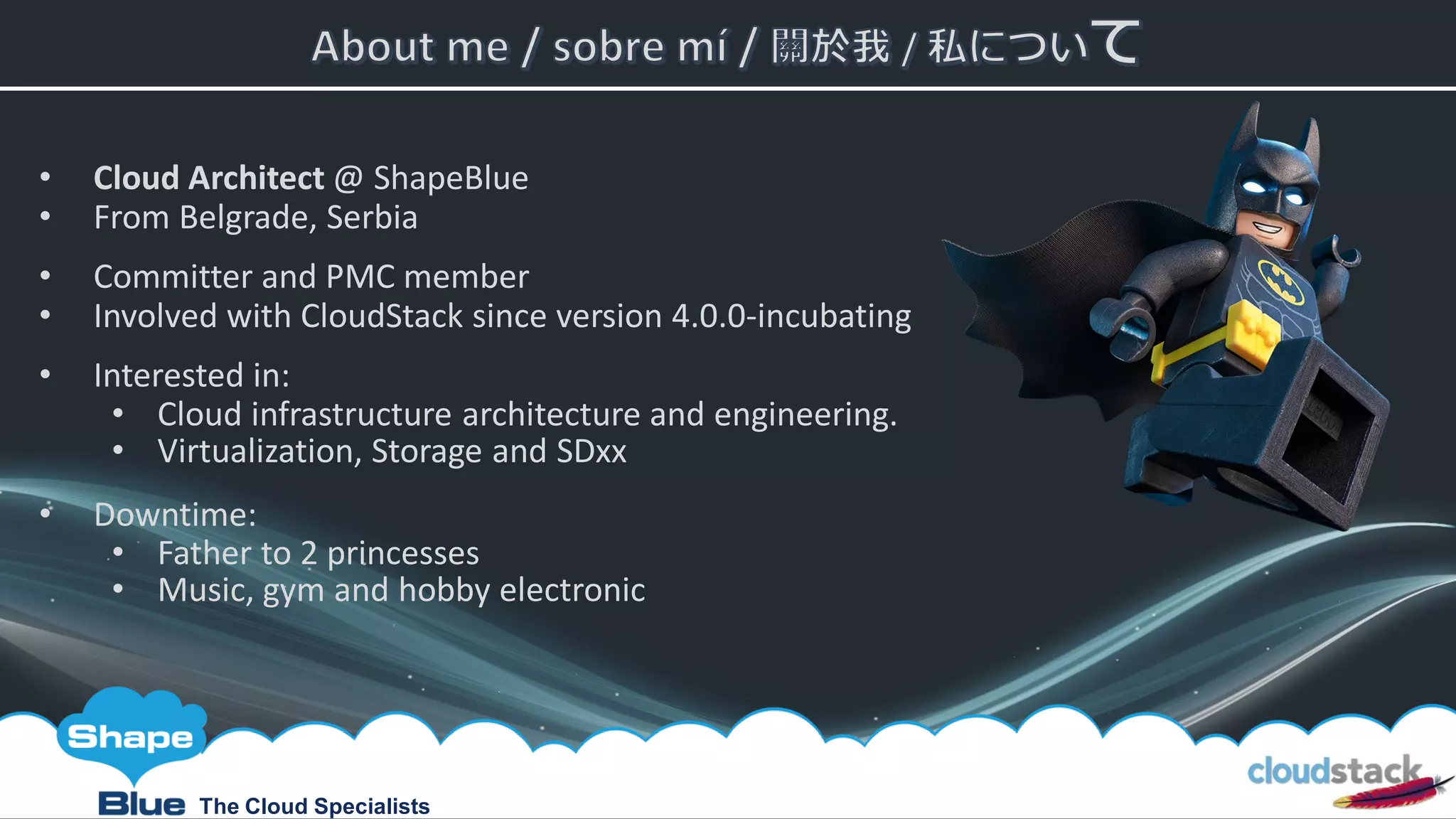

• Cloud Architect @ ShapeBlue
• From Belgrade, Serbia
• Committer and PMC member
• Involved with CloudStack since version 4.0.0-incubating
• Interested in:
• Cloud infrastructure architecture and engineering.
• Virtualization, Storage and SDxx
• Downtime:
• Father to 2 princesses
• Music, gym and hobby electronic

3. The Cloud Specialists

4. The Cloud Specialists

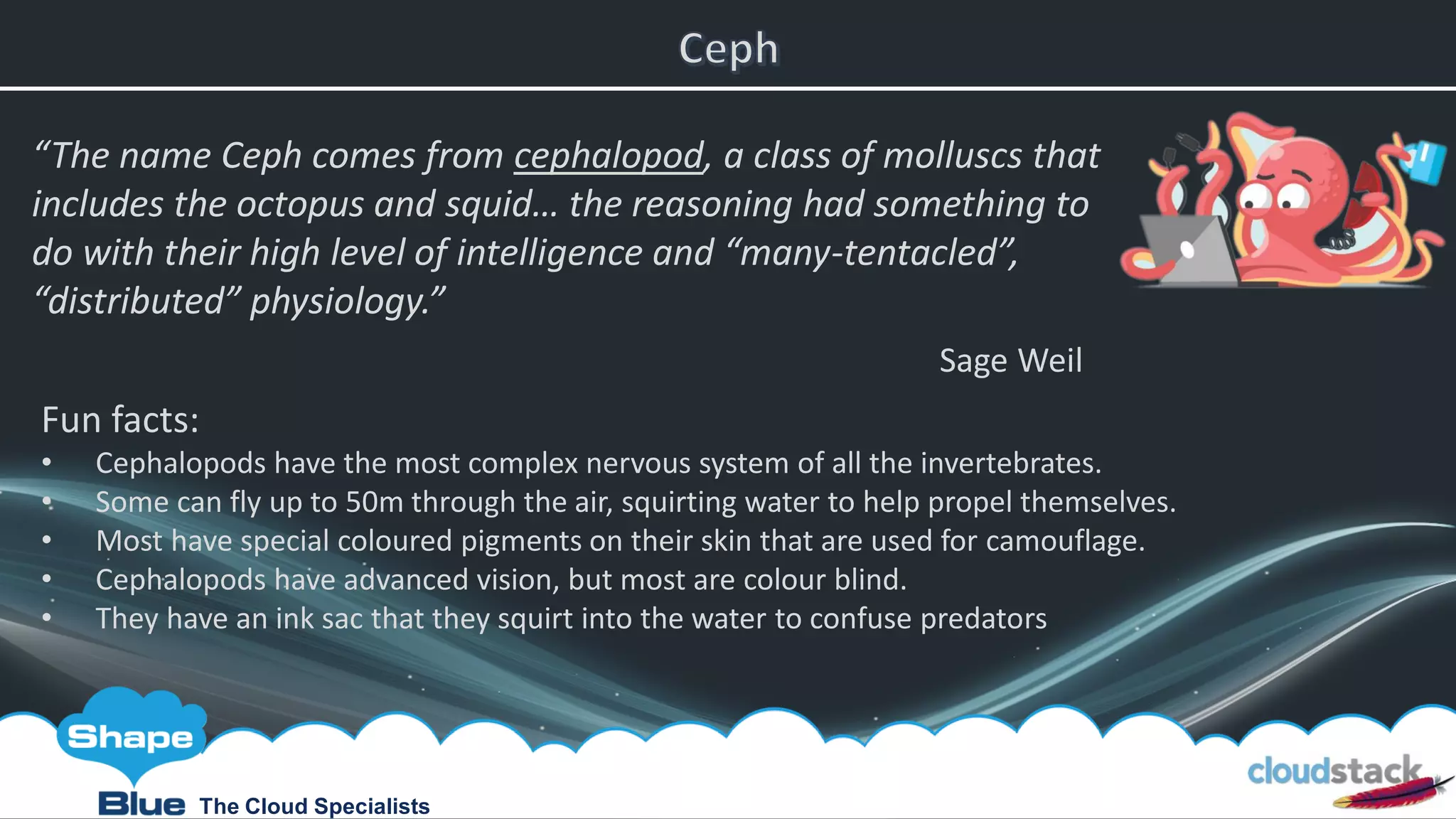

“The name Ceph comes from cephalopod, a class of molluscs that
includes the octopus and squid… the reasoning had something to
do with their high level of intelligence and “many-tentacled”,
“distributed” physiology.”
Sage Weil
Fun facts:
• Cephalopods have the most complex nervous system of all the invertebrates.
• Some can fly up to 50m through the air, squirting water to help propel themselves.
• Most have special coloured pigments on their skin that are used for camouflage.
• Cephalopods have advanced vision, but most are colour blind.
• They have an ink sac that they squirt into the water to confuse predators

5. The Cloud Specialists

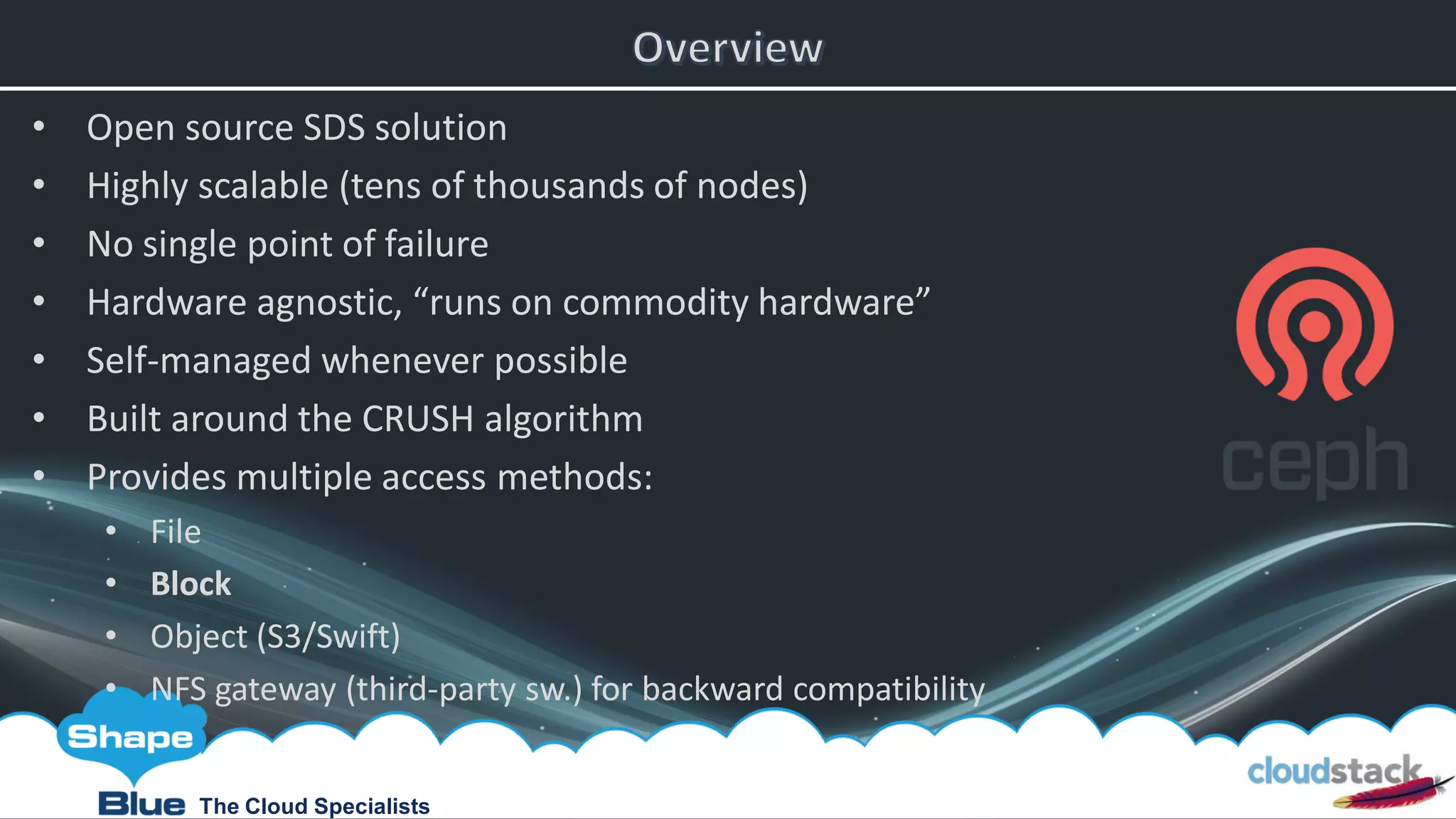

• Open source SDS solution
• Highly scalable (tens of thousands of nodes)
• No single point of failure
• Hardware agnostic, “runs on commodity hardware”
• Self-managed whenever possible
• Built around the CRUSH algorithm
• Provides multiple access methods:
• File
• Block
• Object (S3/Swift)
• NFS gateway (third-party sw.) for backward compatibility

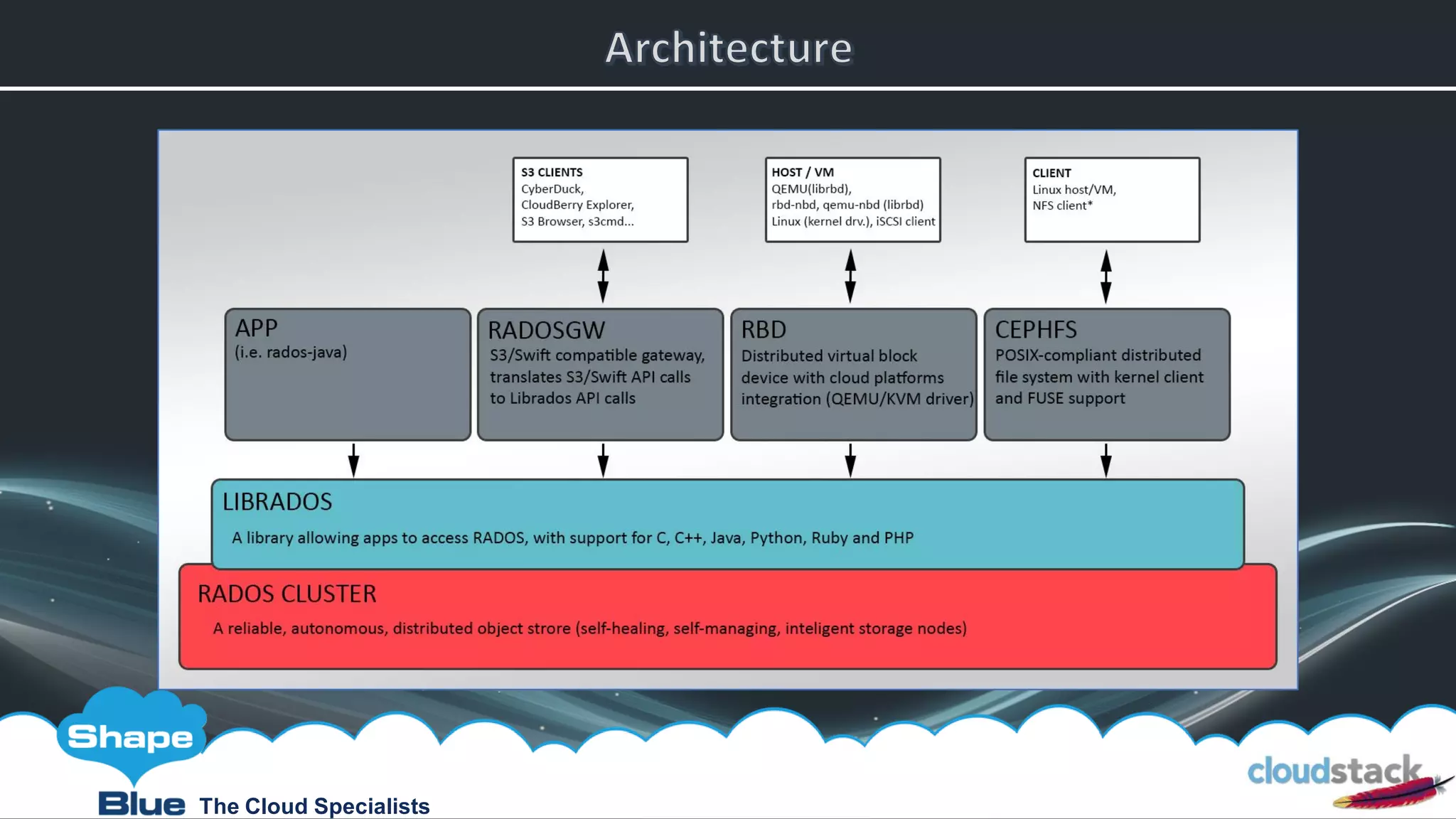

6. The Cloud Specialists

7. The Cloud Specialists

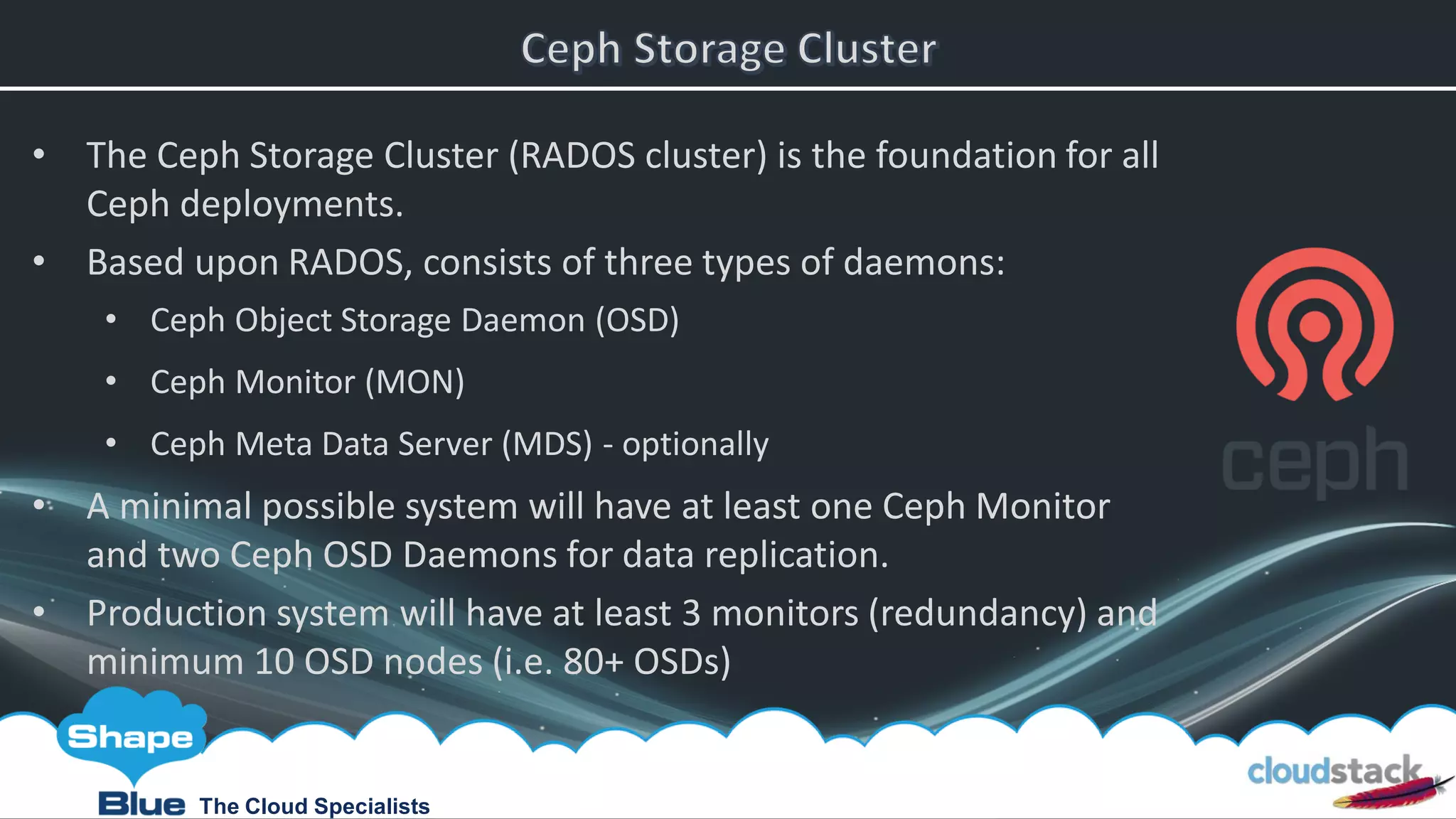

• The Ceph Storage Cluster (RADOS cluster) is the foundation for all
Ceph deployments.
• Based upon RADOS, consists of three types of daemons:
• Ceph Object Storage Daemon (OSD)
• Ceph Monitor (MON)
• Ceph Meta Data Server (MDS) - optionally
• A minimal possible system will have at least one Ceph Monitor
and two Ceph OSD Daemons for data replication.
• Production system will have at least 3 monitors (redundancy) and
minimum 10 OSD nodes (i.e. 80+ OSDs)

8. The Cloud Specialists

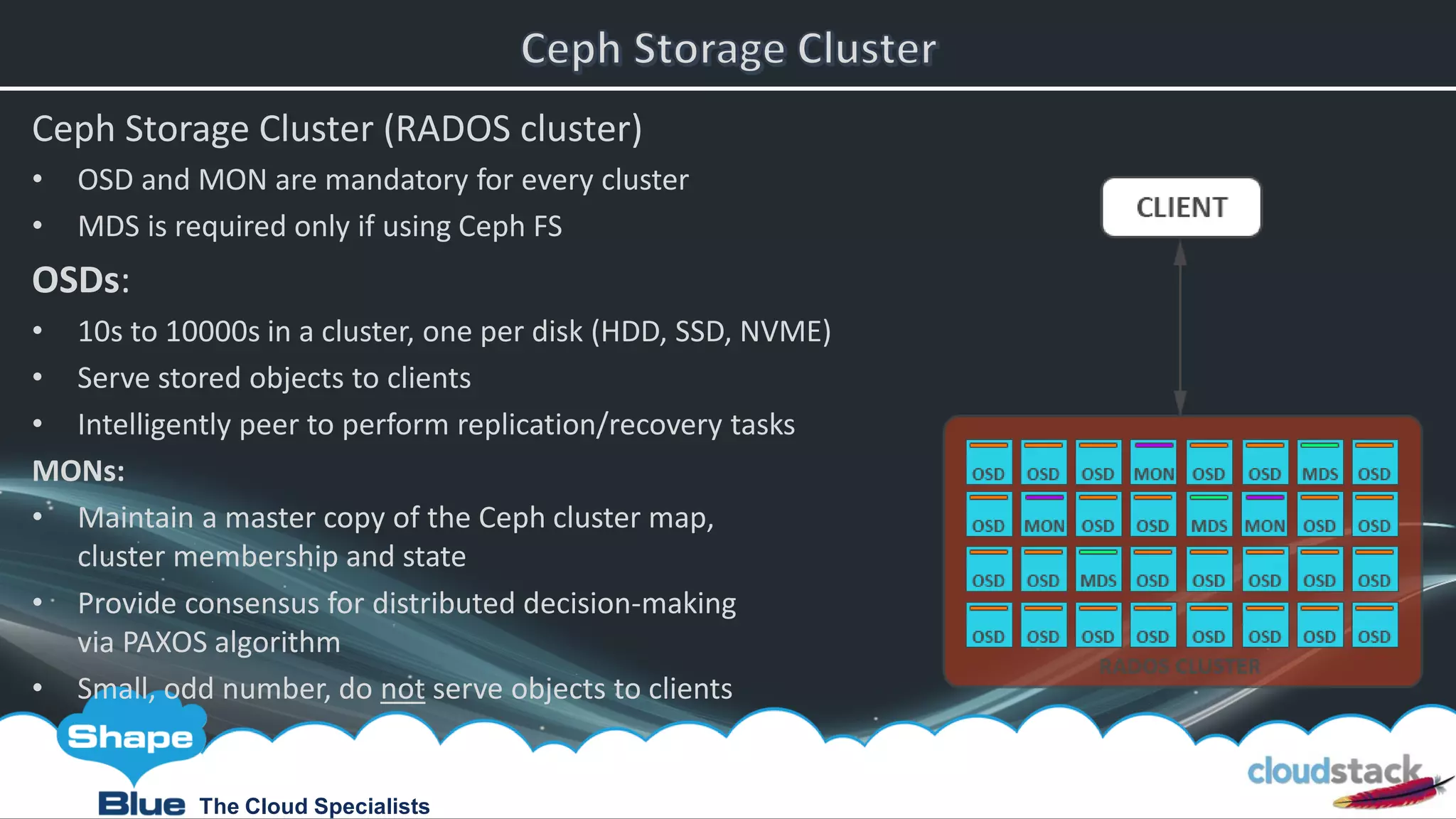

Ceph Storage Cluster (RADOS cluster)
• OSD and MON are mandatory for every cluster
• MDS is required only if using Ceph FS
OSDs:
• 10s to 10000s in a cluster, one per disk (HDD, SSD, NVME)
• Serve stored objects to clients
• Intelligently peer to perform replication/recovery tasks
MONs:
• Maintain a master copy of the Ceph cluster map,
cluster membership and state
• Provide consensus for distributed decision-making
via PAXOS algorithm
• Small, odd number, do not serve objects to clients

9. The Cloud Specialists

10. The Cloud Specialists

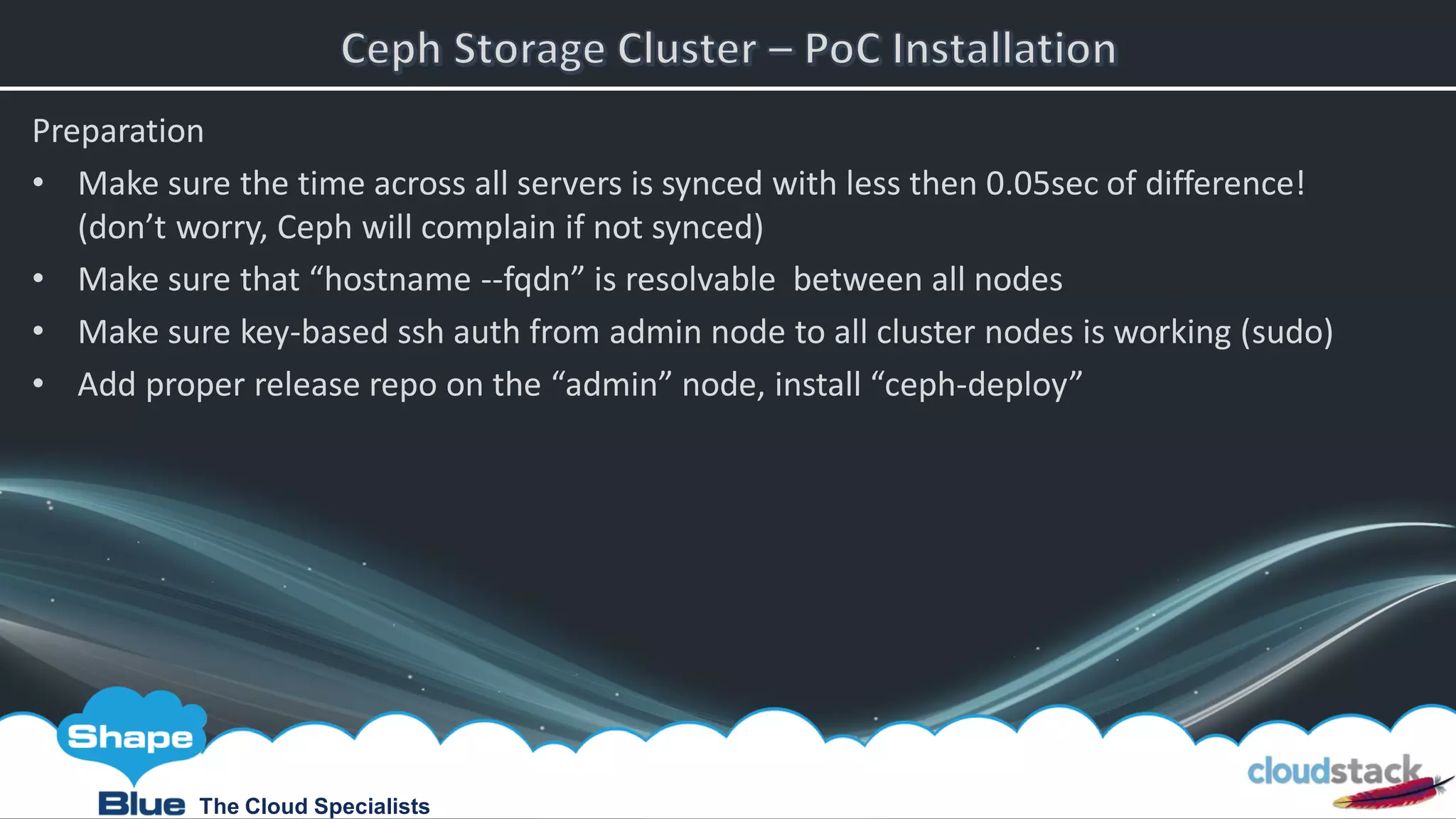

Preparation
• Make sure the time across all servers is synced with less then 0.05sec of difference!
(don’t worry, Ceph will complain if not synced)
• Make sure that “hostname --fqdn” is resolvable between all nodes
• Make sure key-based ssh auth from admin node to all cluster nodes is working (sudo)
• Add proper release repo on the “admin” node, install “ceph-deploy”

11. The Cloud Specialists

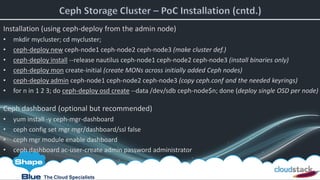

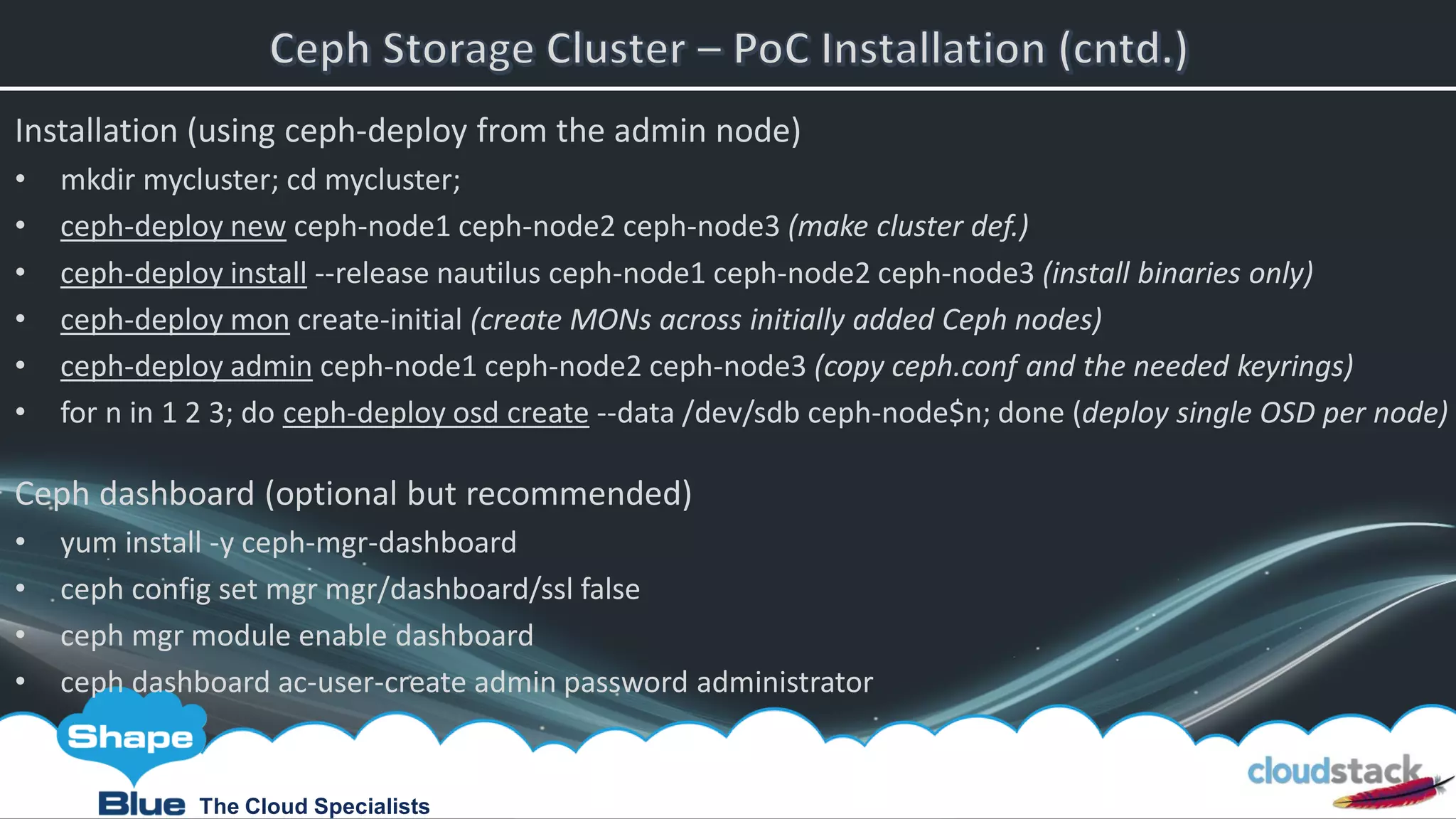

Installation (using ceph-deploy from the admin node)
• mkdir mycluster; cd mycluster;
• ceph-deploy new ceph-node1 ceph-node2 ceph-node3 (make cluster def.)
• ceph-deploy install --release nautilus ceph-node1 ceph-node2 ceph-node3 (install binaries only)
• ceph-deploy mon create-initial (create MONs across initially added Ceph nodes)
• ceph-deploy admin ceph-node1 ceph-node2 ceph-node3 (copy ceph.conf and the needed keyrings)
• for n in 1 2 3; do ceph-deploy osd create --data /dev/sdb ceph-node$n; done (deploy single OSD per node)
Ceph dashboard (optional but recommended)
• yum install -y ceph-mgr-dashboard
• ceph config set mgr mgr/dashboard/ssl false
• ceph mgr module enable dashboard
• ceph dashboard ac-user-create admin password administrator

12. The Cloud Specialists

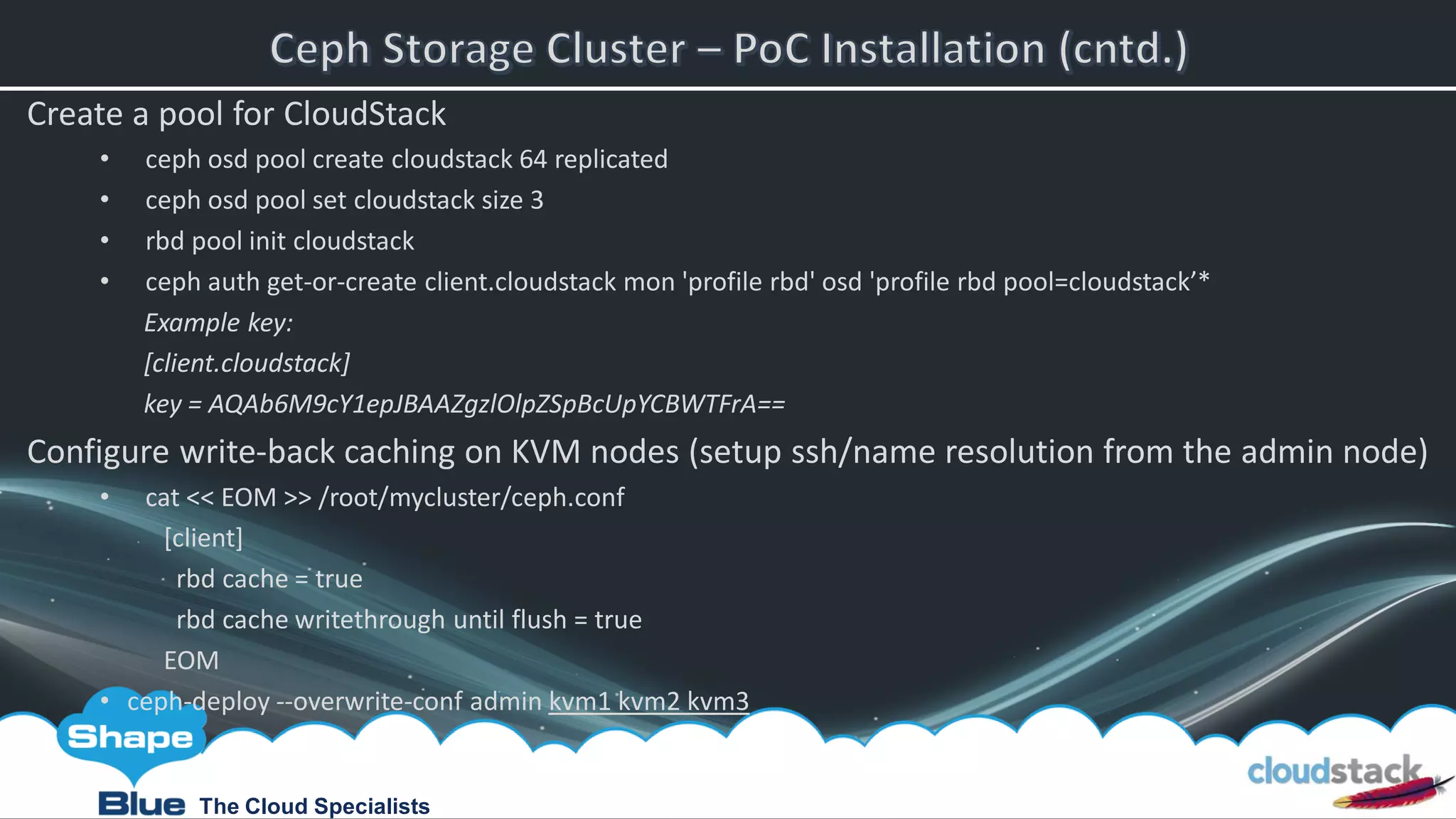

Create a pool for CloudStack
• ceph osd pool create cloudstack 64 replicated
• ceph osd pool set cloudstack size 3
• rbd pool init cloudstack
• ceph auth get-or-create client.cloudstack mon 'profile rbd' osd 'profile rbd pool=cloudstack’*
Example key:
[client.cloudstack]
key = AQAb6M9cY1epJBAAZgzlOlpZSpBcUpYCBWTFrA==
Configure write-back caching on KVM nodes (setup ssh/name resolution from the admin node)
• cat << EOM >> /root/mycluster/ceph.conf
[client]
rbd cache = true
rbd cache writethrough until flush = true
EOM
• ceph-deploy --overwrite-conf admin kvm1 kvm2 kvm3

13. The Cloud Specialists

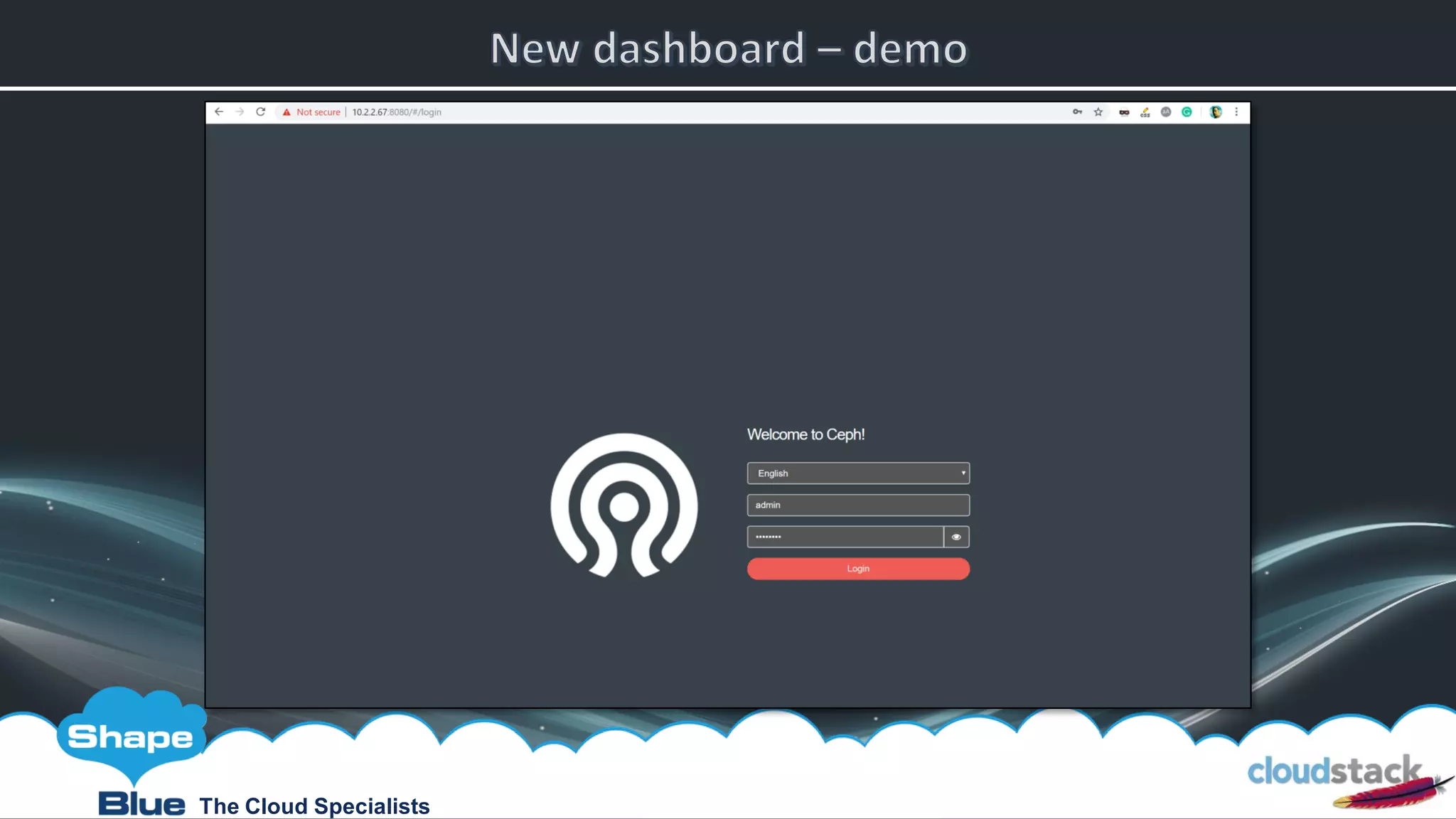

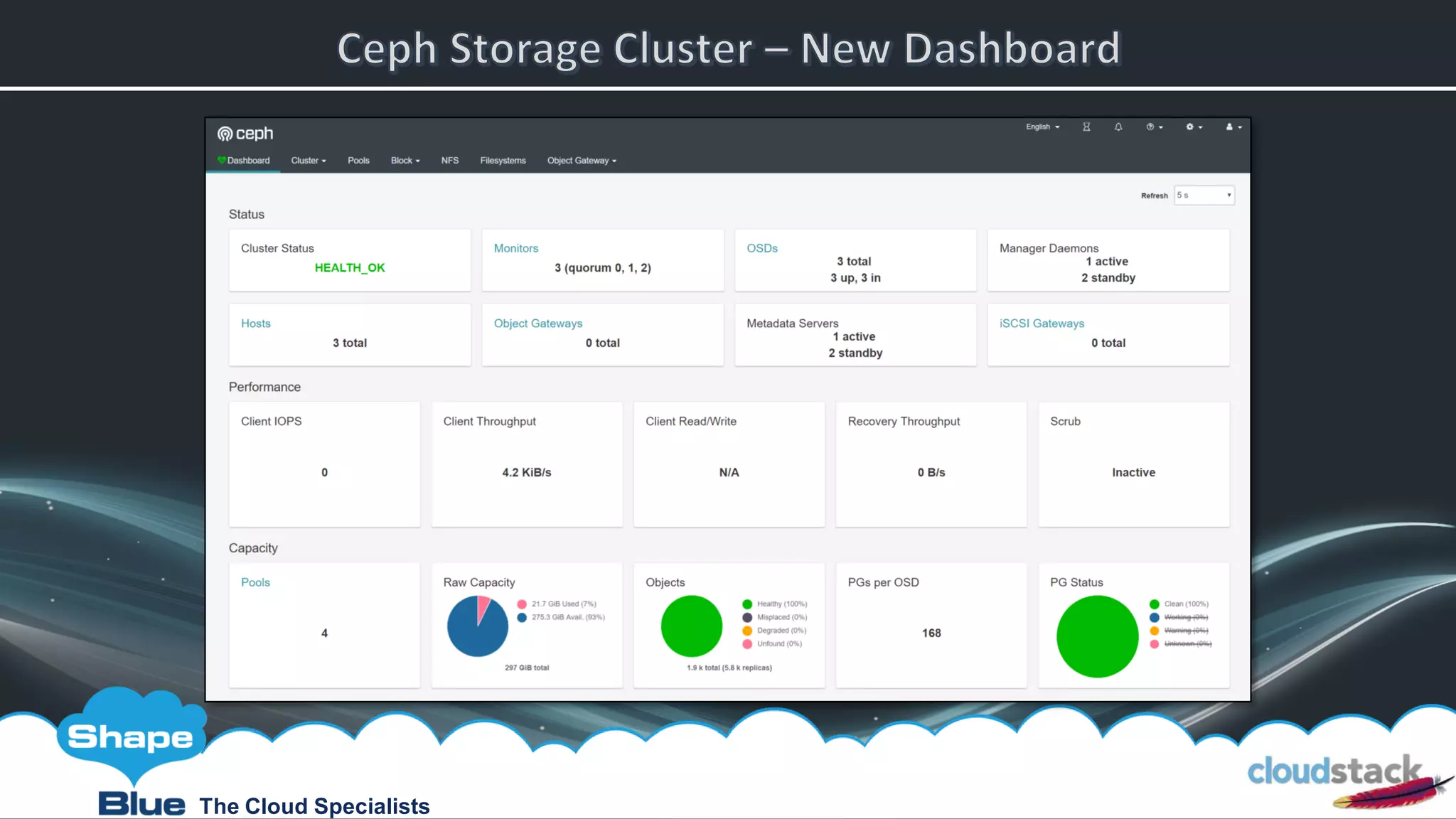

14. The Cloud Specialists

15. The Cloud Specialists

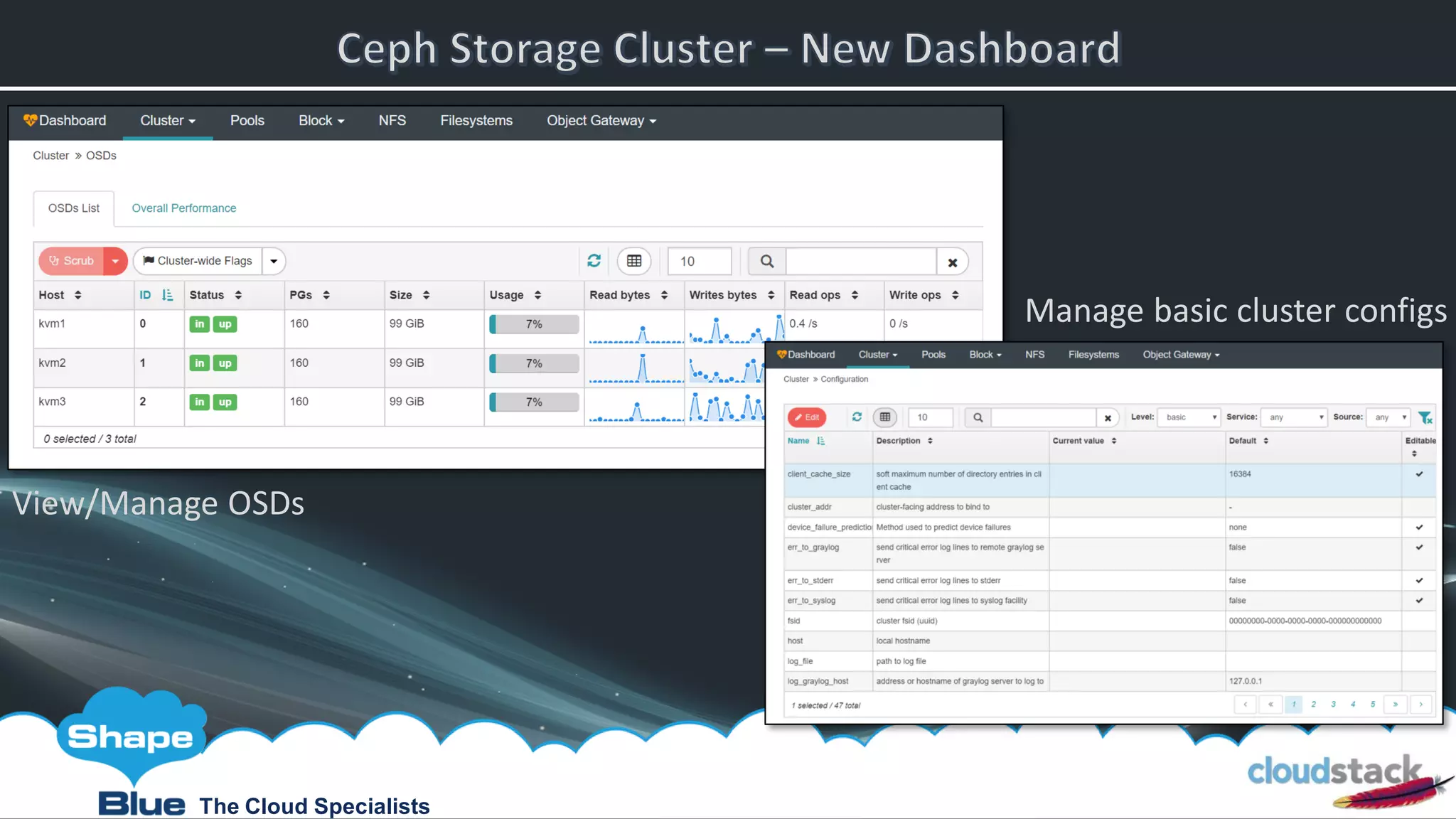

View/Manage OSDs
Manage basic cluster configs

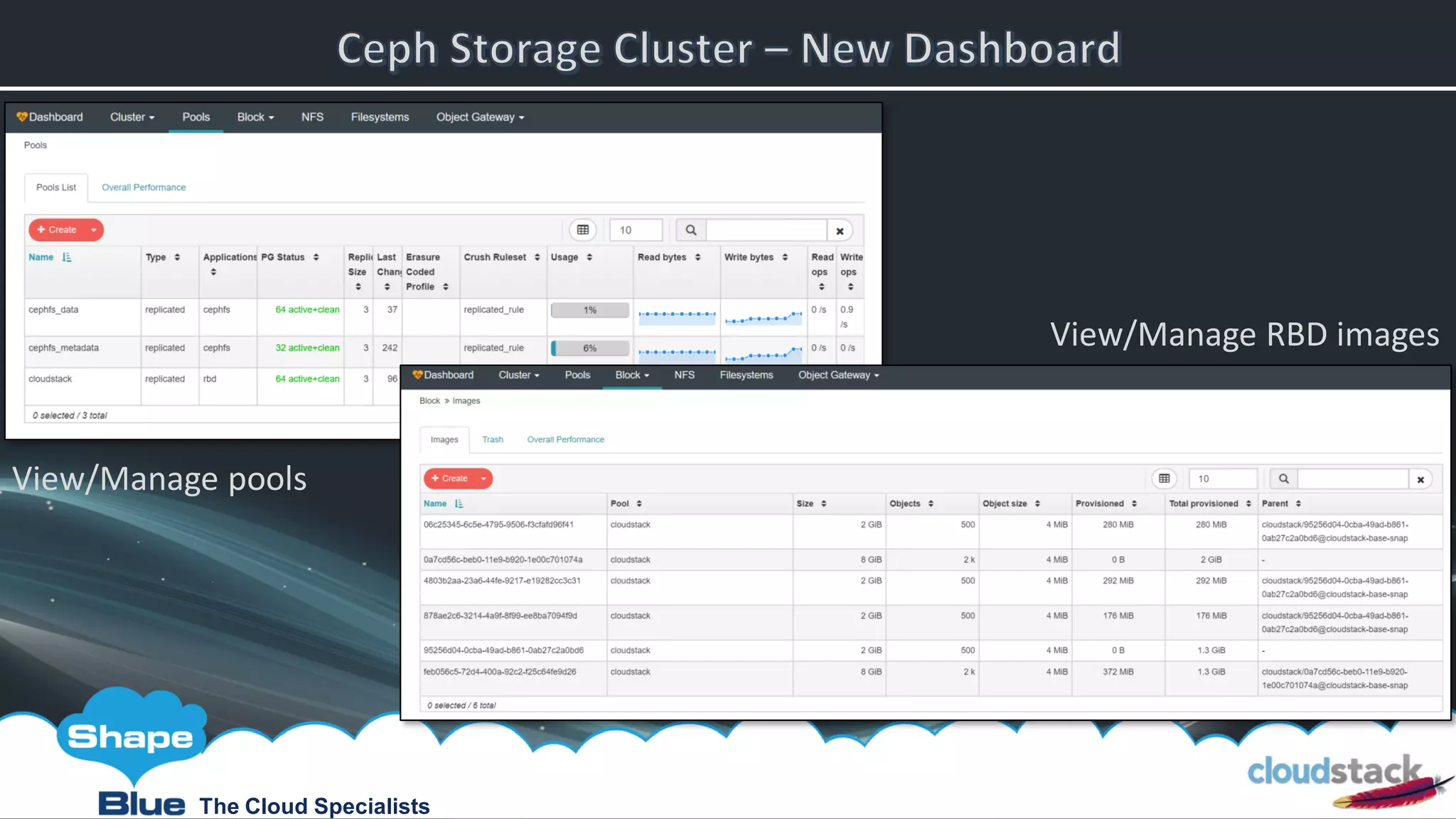

16. The Cloud Specialists
View/Manage pools
View/Manage RBD images

17. The Cloud Specialists

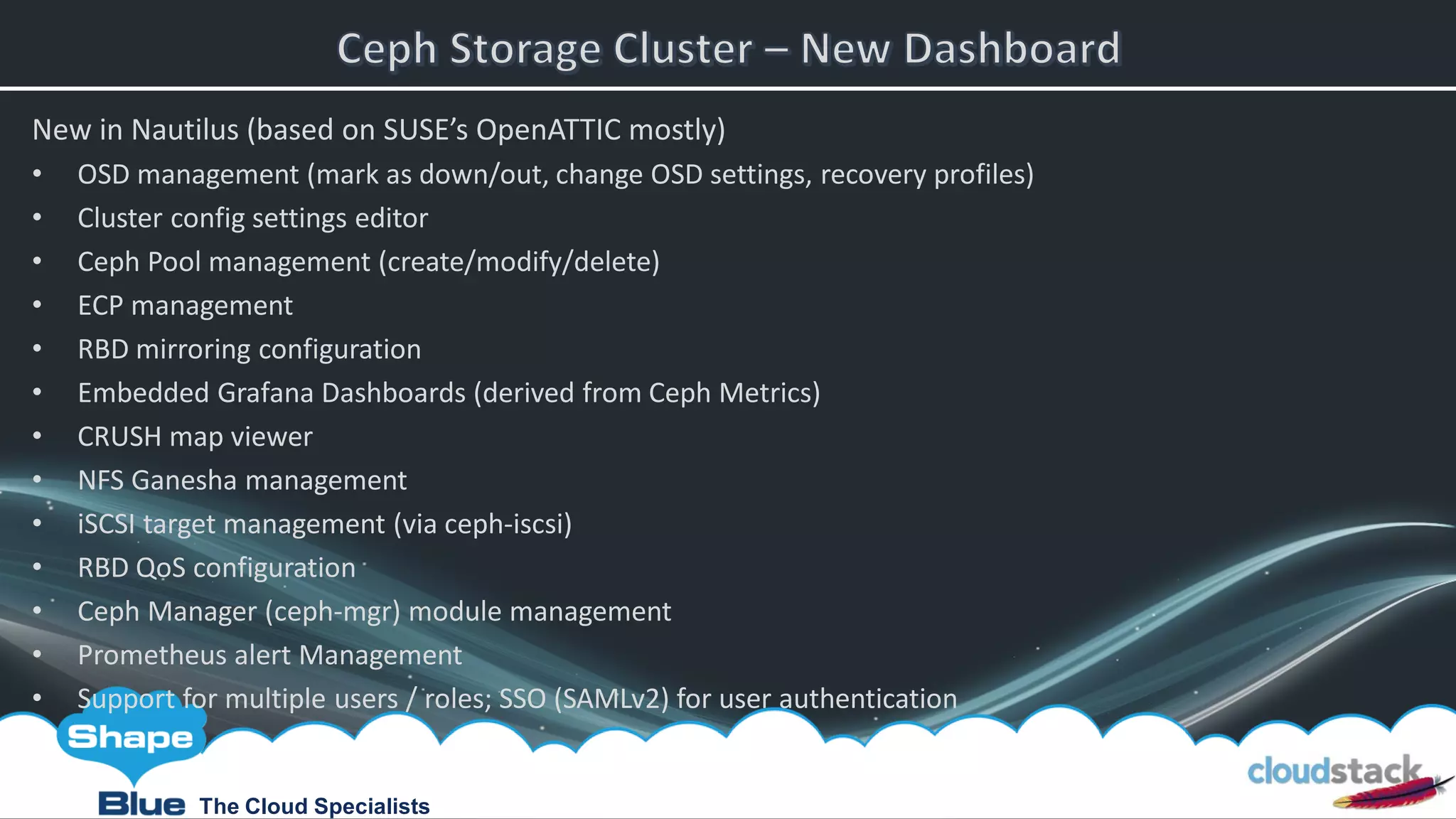

New in Nautilus (based on SUSE’s OpenATTIC mostly)
• OSD management (mark as down/out, change OSD settings, recovery profiles)
• Cluster config settings editor
• Ceph Pool management (create/modify/delete)
• ECP management
• RBD mirroring configuration
• Embedded Grafana Dashboards (derived from Ceph Metrics)
• CRUSH map viewer
• NFS Ganesha management
• iSCSI target management (via ceph-iscsi)
• RBD QoS configuration
• Ceph Manager (ceph-mgr) module management
• Prometheus alert Management
• Support for multiple users / roles; SSO (SAMLv2) for user authentication

18. The Cloud Specialists

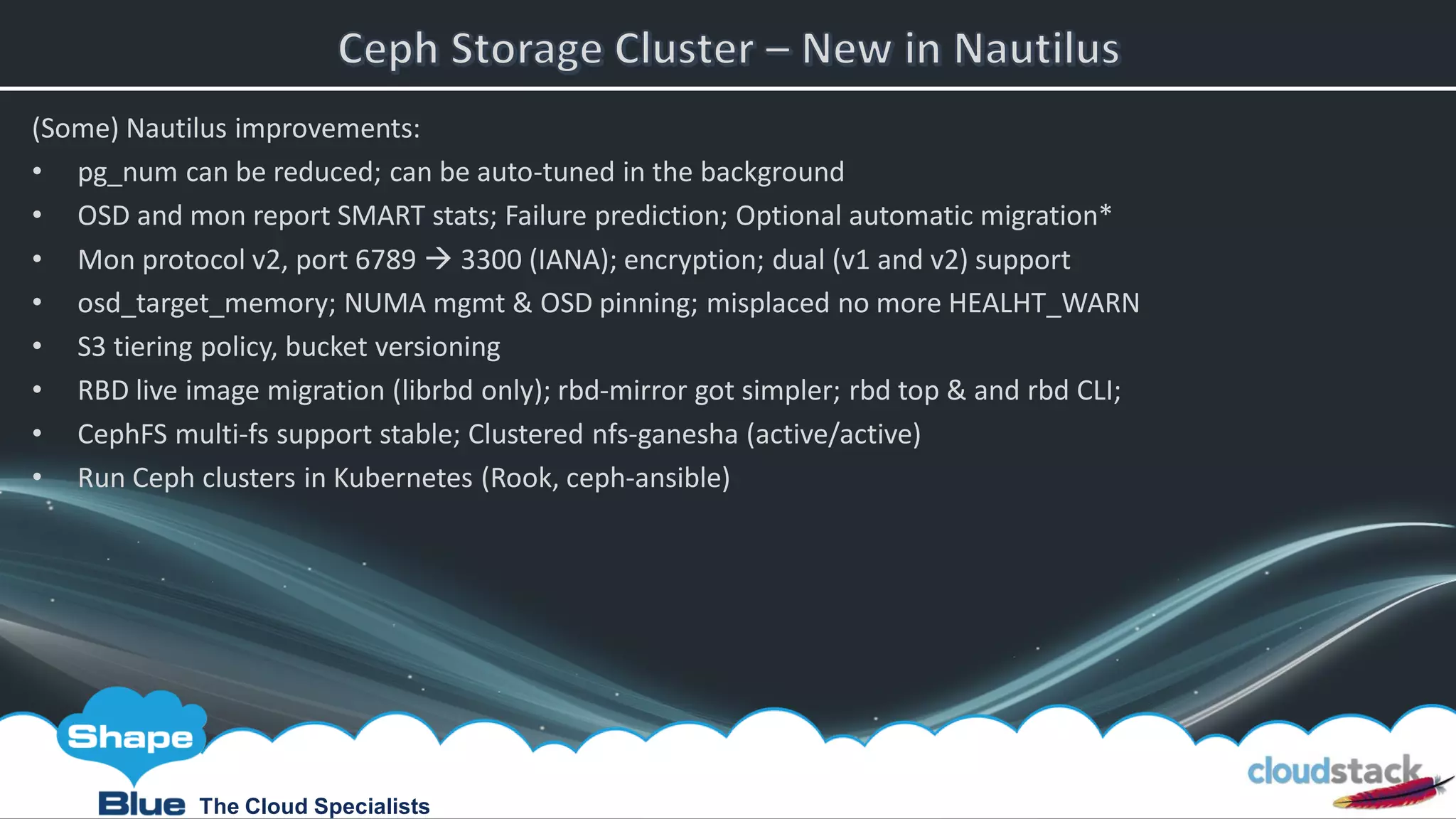

(Some) Nautilus improvements:
• pg_num can be reduced; can be auto-tuned in the background
• OSD and mon report SMART stats; Failure prediction; Optional automatic migration*
• Mon protocol v2, port 6789 → 3300 (IANA); encryption; dual (v1 and v2) support
• osd_target_memory; NUMA mgmt & OSD pinning; misplaced no more HEALHT_WARN
• S3 tiering policy, bucket versioning
• RBD live image migration (librbd only); rbd-mirror got simpler; rbd top & and rbd CLI;
• CephFS multi-fs support stable; Clustered nfs-ganesha (active/active)
• Run Ceph clusters in Kubernetes (Rook, ceph-ansible)

19. The Cloud Specialists

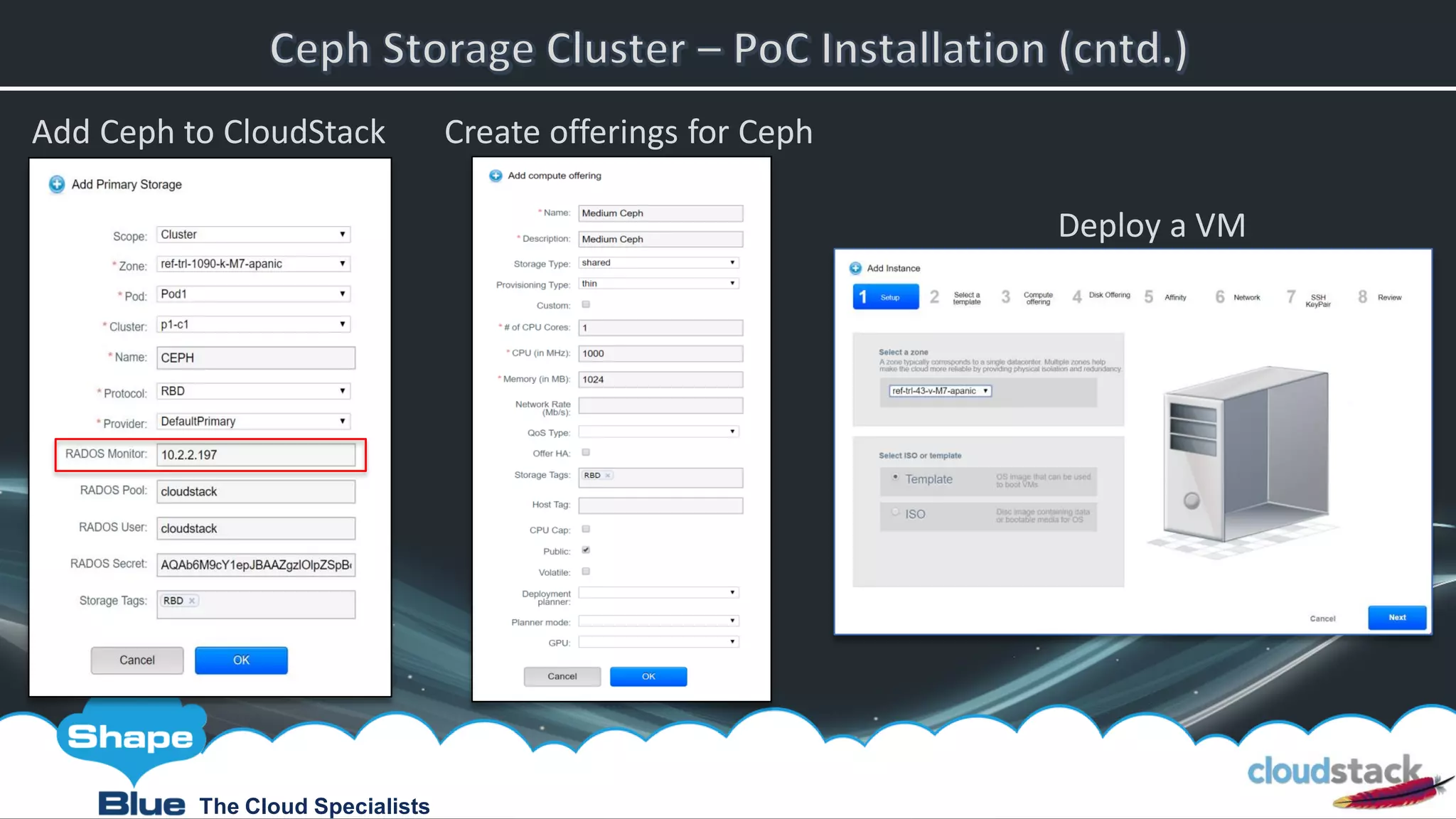

Add Ceph to CloudStack Create offerings for Ceph
- Deploy a VM

20. The Cloud Specialists

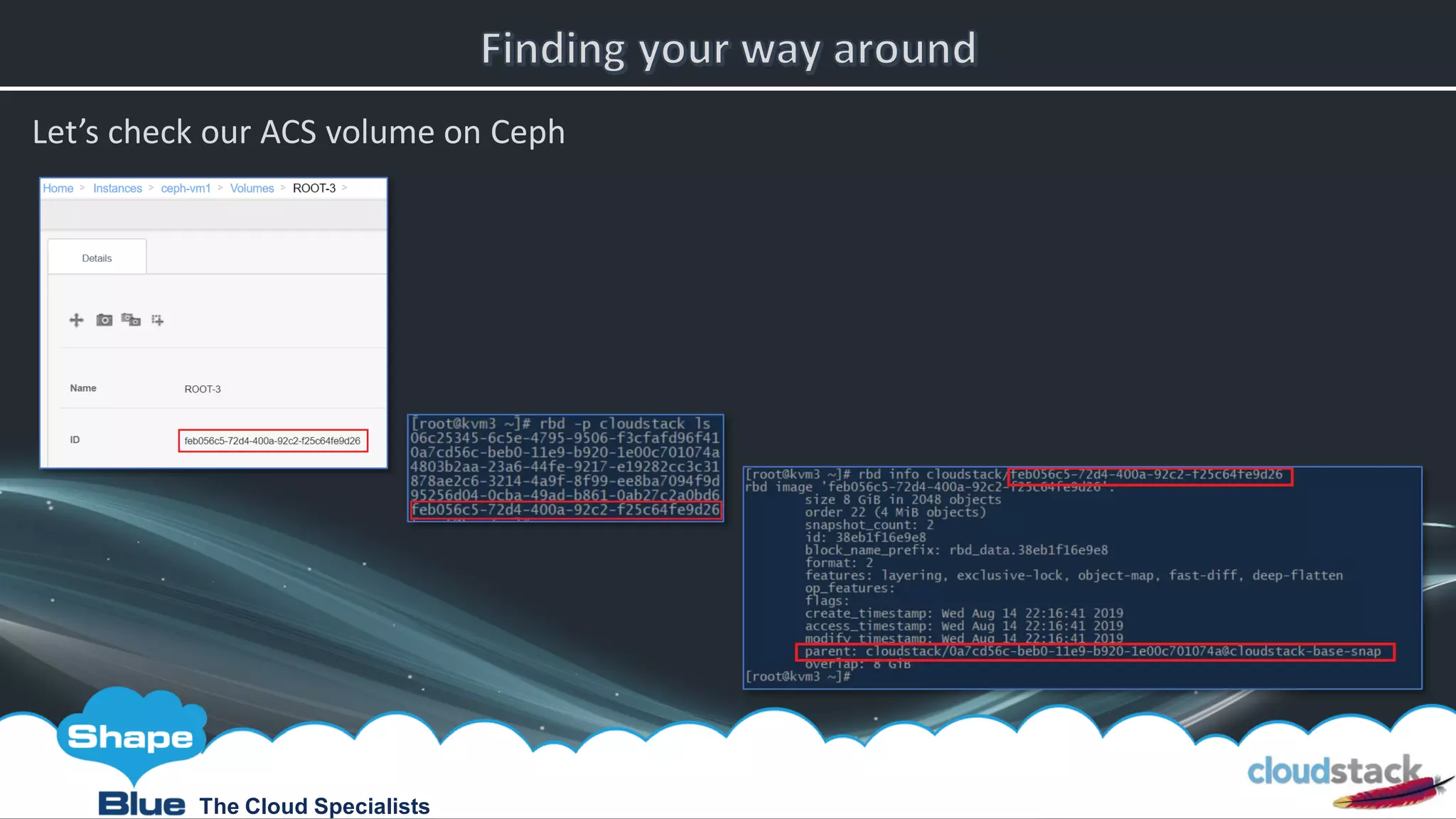

Let’s check our ACS volume on Ceph

21. The Cloud Specialists

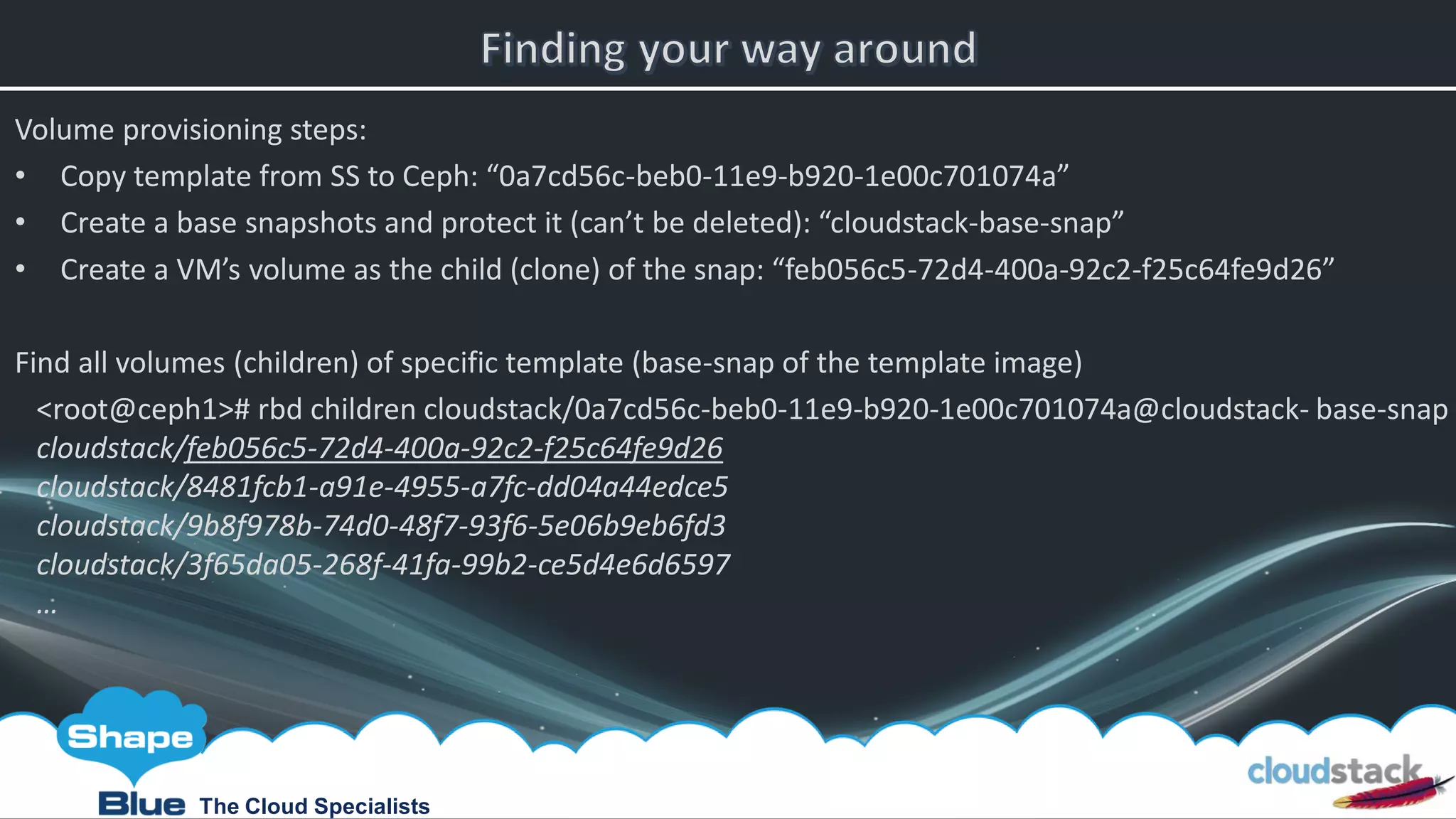

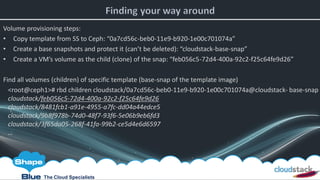

Volume provisioning steps:
• Copy template from SS to Ceph: “0a7cd56c-beb0-11e9-b920-1e00c701074a”
• Create a base snapshots and protect it (can’t be deleted): “cloudstack-base-snap”
• Create a VM’s volume as the child (clone) of the snap: “feb056c5-72d4-400a-92c2-f25c64fe9d26”
Find all volumes (children) of specific template (base-snap of the template image)
<root@ceph1># rbd children cloudstack/0a7cd56c-beb0-11e9-b920-1e00c701074a@cloudstack- base-snap
cloudstack/feb056c5-72d4-400a-92c2-f25c64fe9d26
cloudstack/8481fcb1-a91e-4955-a7fc-dd04a44edce5
cloudstack/9b8f978b-74d0-48f7-93f6-5e06b9eb6fd3
cloudstack/3f65da05-268f-41fa-99b2-ce5d4e6d6597
…

22. The Cloud Specialists

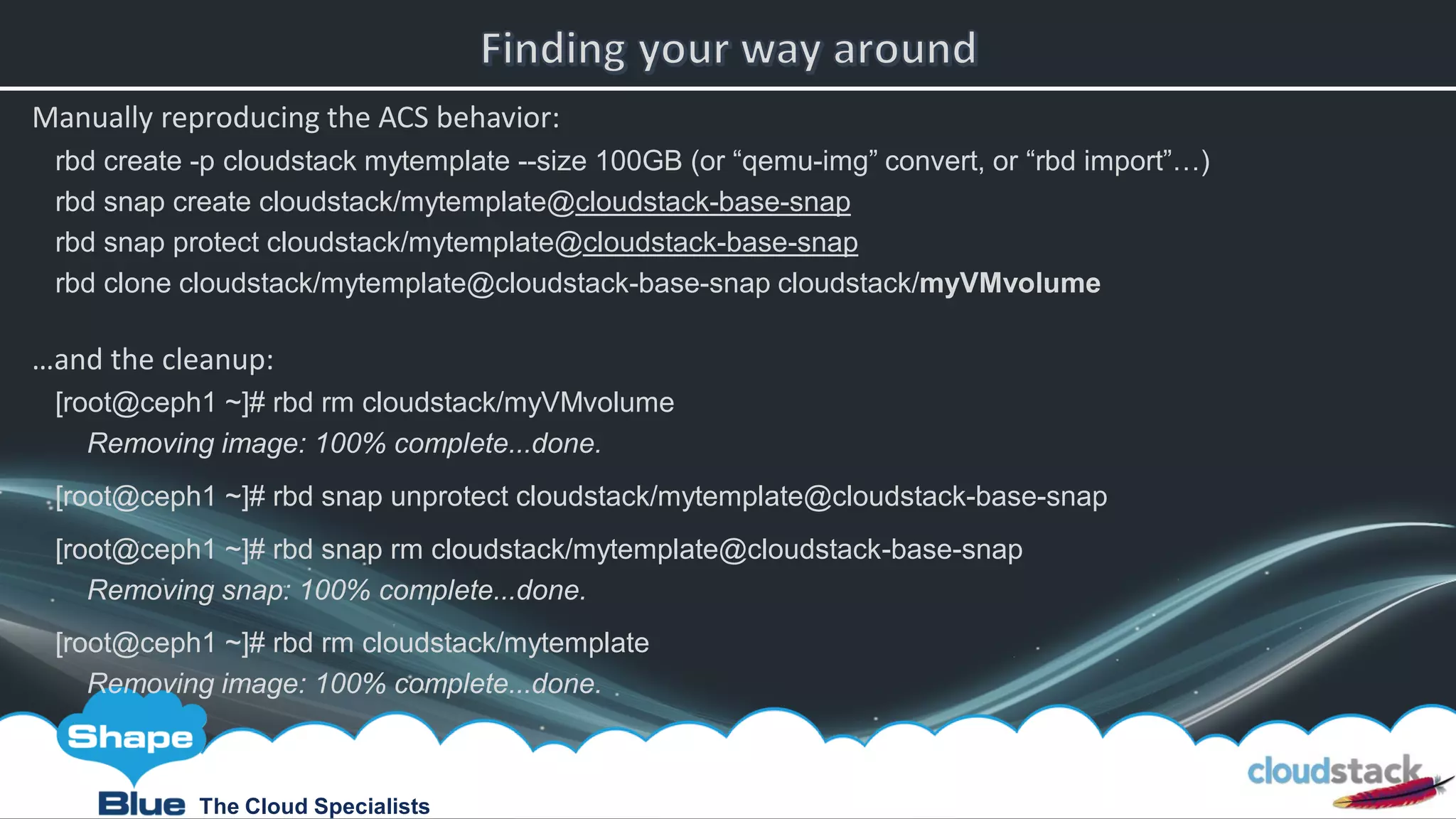

Manually reproducing the ACS behavior:
rbd create -p cloudstack mytemplate --size 100GB (or “qemu-img” convert, or “rbd import”…)
rbd snap create cloudstack/mytemplate@cloudstack-base-snap
rbd snap protect cloudstack/mytemplate@cloudstack-base-snap
rbd clone cloudstack/mytemplate@cloudstack-base-snap cloudstack/myVMvolume
…and the cleanup:
[root@ceph1 ~]# rbd rm cloudstack/myVMvolume
Removing image: 100% complete...done.
[root@ceph1 ~]# rbd snap unprotect cloudstack/mytemplate@cloudstack-base-snap
[root@ceph1 ~]# rbd snap rm cloudstack/mytemplate@cloudstack-base-snap
Removing snap: 100% complete...done.
[root@ceph1 ~]# rbd rm cloudstack/mytemplate
Removing image: 100% complete...done.

23. The Cloud Specialists

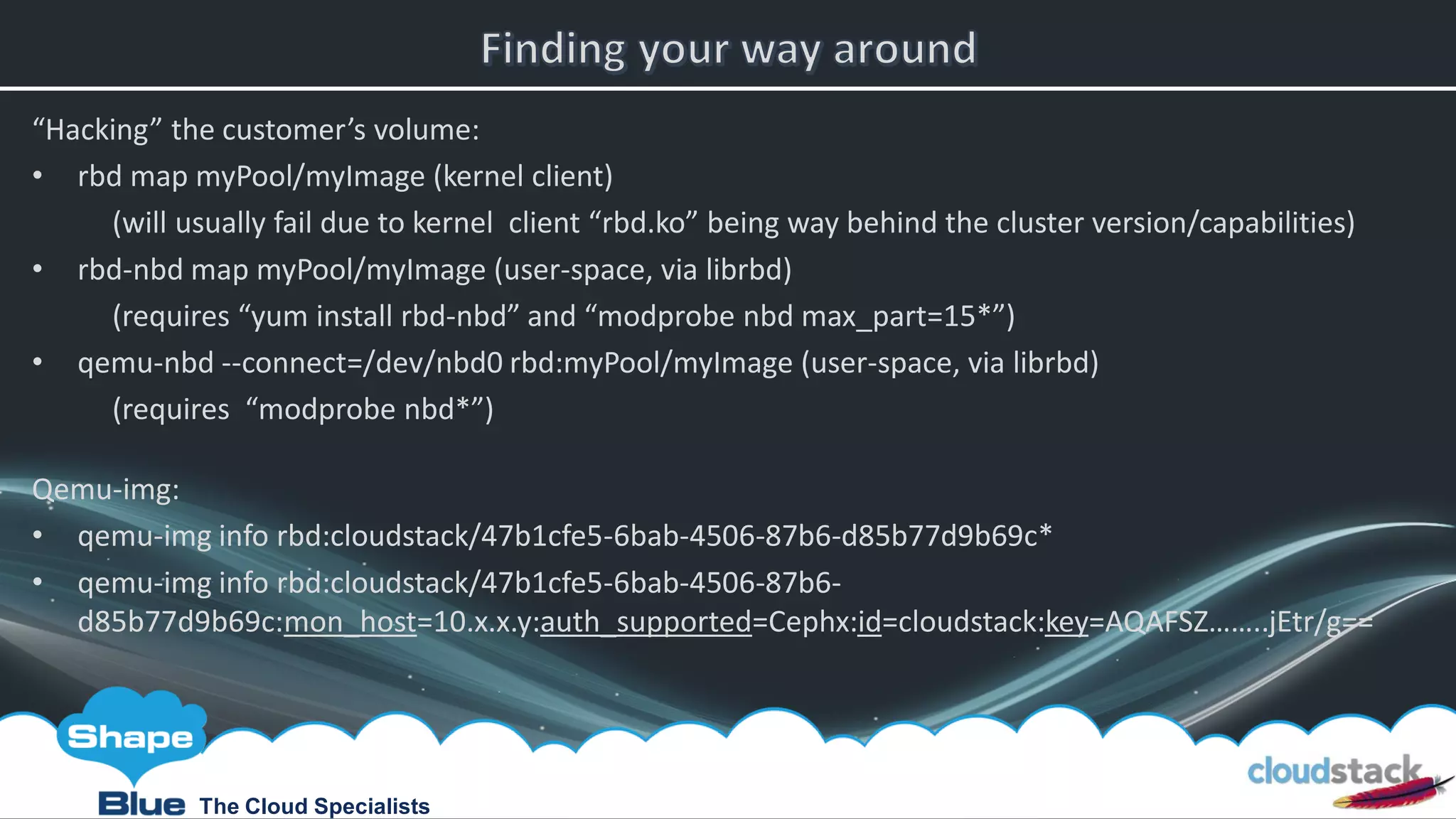

“Hacking” the customer’s volume:
• rbd map myPool/myImage (kernel client)
(will usually fail due to kernel client “rbd.ko” being way behind the cluster version/capabilities)
• rbd-nbd map myPool/myImage (user-space, via librbd)
(requires “yum install rbd-nbd” and “modprobe nbd max_part=15*”)
• qemu-nbd --connect=/dev/nbd0 rbd:myPool/myImage (user-space, via librbd)
(requires “modprobe nbd*”)
Qemu-img:
• qemu-img info rbd:cloudstack/47b1cfe5-6bab-4506-87b6-d85b77d9b69c*
• qemu-img info rbd:cloudstack/47b1cfe5-6bab-4506-87b6-
d85b77d9b69c:mon_host=10.x.x.y:auth_supported=Cephx:id=cloudstack:key=AQAFSZ……..jEtr/g==

24. The Cloud Specialists

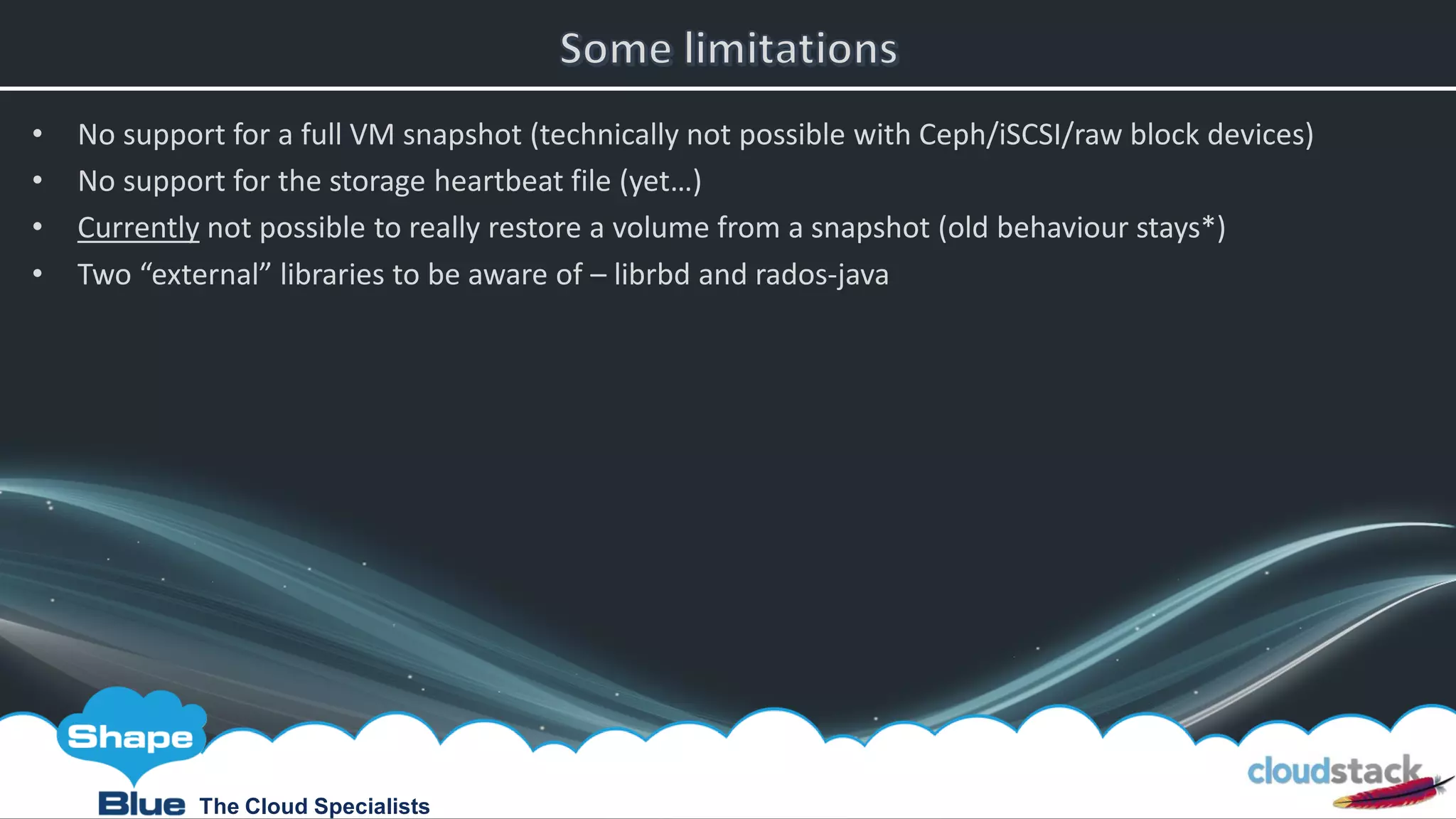

• No support for a full VM snapshot (technically not possible with Ceph/iSCSI/raw block devices)
• No support for the storage heartbeat file (yet…)
• Currently not possible to really restore a volume from a snapshot (old behaviour stays*)
• Two “external” libraries to be aware of – librbd and rados-java

25. The Cloud Specialists

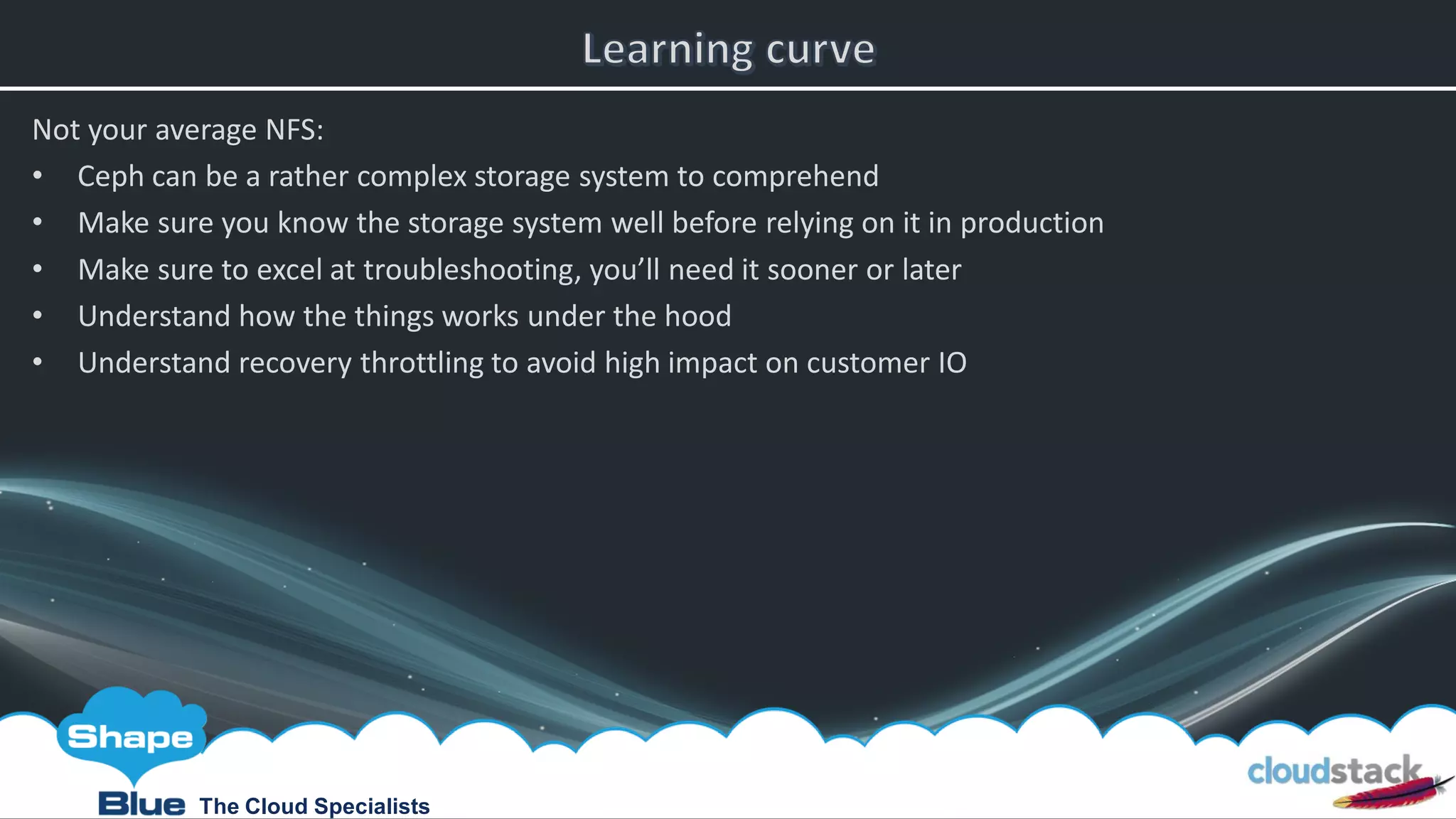

Not your average NFS:
• Ceph can be a rather complex storage system to comprehend
• Make sure you know the storage system well before relying on it in production
• Make sure to excel at troubleshooting, you’ll need it sooner or later
• Understand how the things works under the hood
• Understand recovery throttling to avoid high impact on customer IO

26. The Cloud Specialists

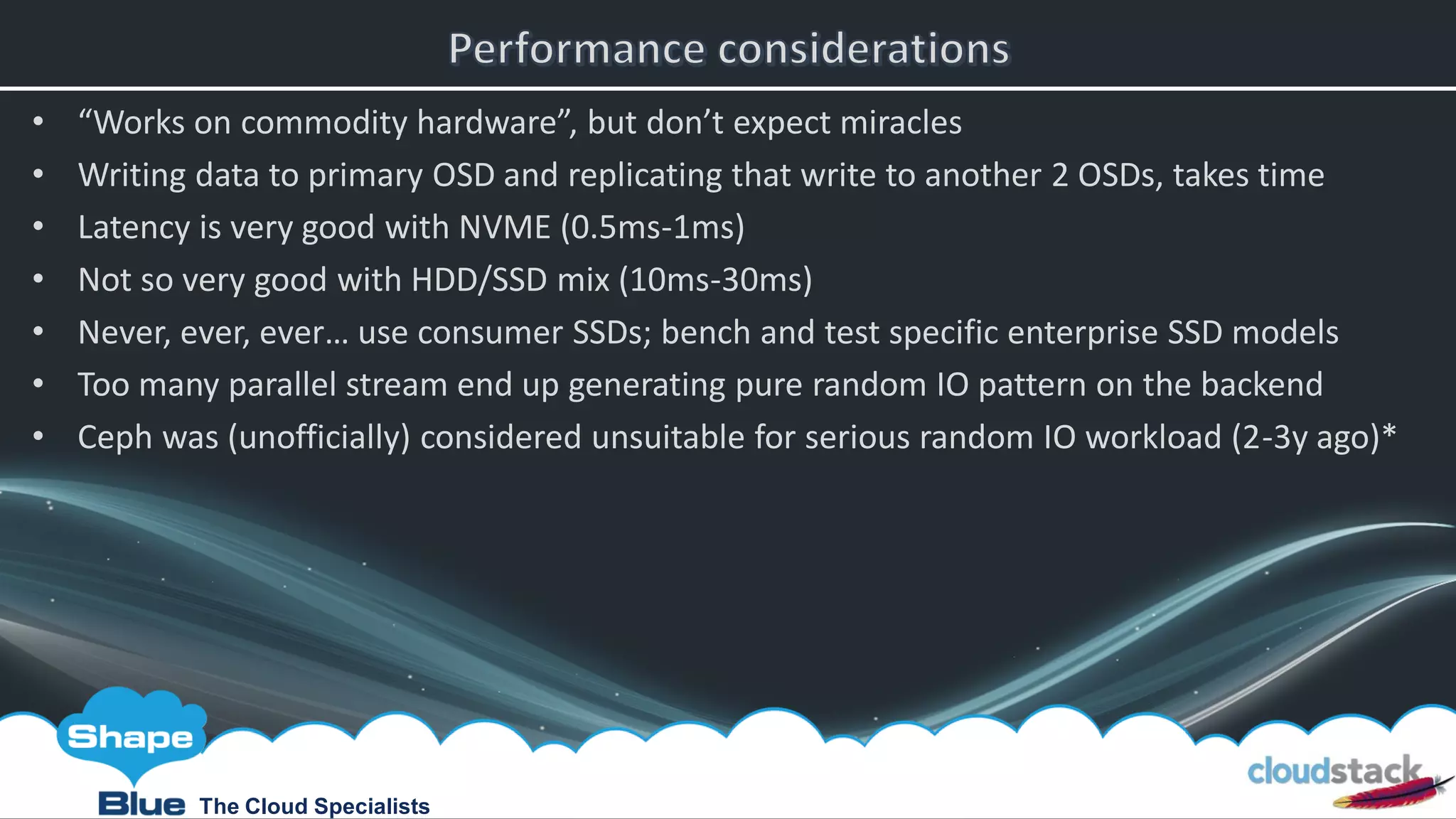

• “Works on commodity hardware”, but don’t expect miracles
• Writing data to primary OSD and replicating that write to another 2 OSDs, takes time
• Latency is very good with NVME (0.5ms-1ms)
• Not so very good with HDD/SSD mix (10ms-30ms)
• Never, ever, ever… use consumer SSDs; bench and test specific enterprise SSD models
• Too many parallel stream end up generating pure random IO pattern on the backend
• Ceph was (unofficially) considered unsuitable for serious random IO workload (2-3y ago)*

27. The Cloud Specialists

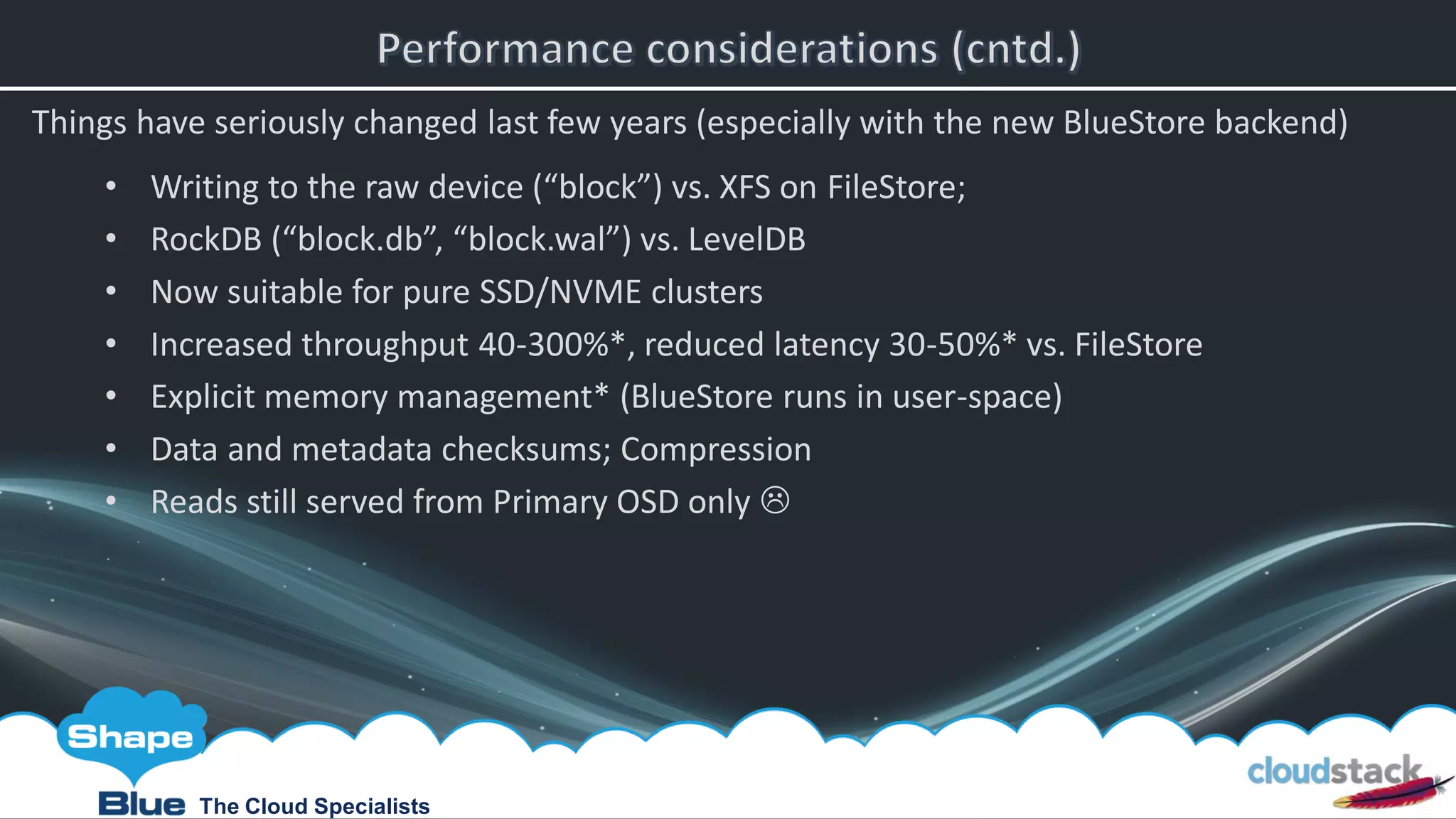

Things have seriously changed last few years (especially with the new BlueStore backend)
• Writing to the raw device (“block”) vs. XFS on FileStore;
• RockDB (“block.db”, “block.wal”) vs. LevelDB
• Now suitable for pure SSD/NVME clusters
• Increased throughput 40-300%*, reduced latency 30-50%* vs. FileStore
• Explicit memory management* (BlueStore runs in user-space)
• Data and metadata checksums; Compression
• Reads still served from Primary OSD only 

28. The Cloud Specialists

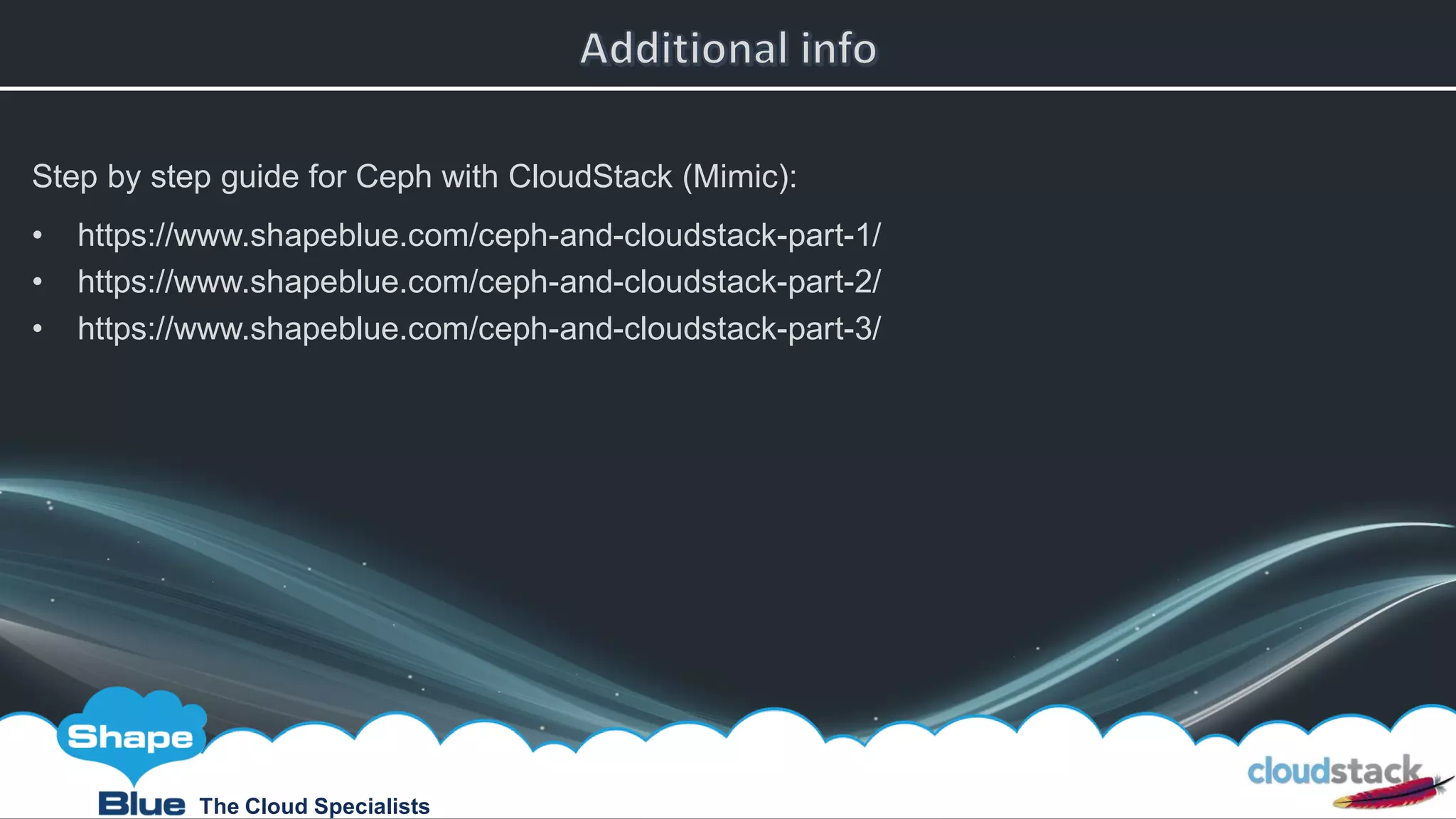

Step by step guide for Ceph with CloudStack (Mimic):
• https://www.shapeblue.com/ceph-and-cloudstack-part-1/
• https://www.shapeblue.com/ceph-and-cloudstack-part-2/
• https://www.shapeblue.com/ceph-and-cloudstack-part-3/
