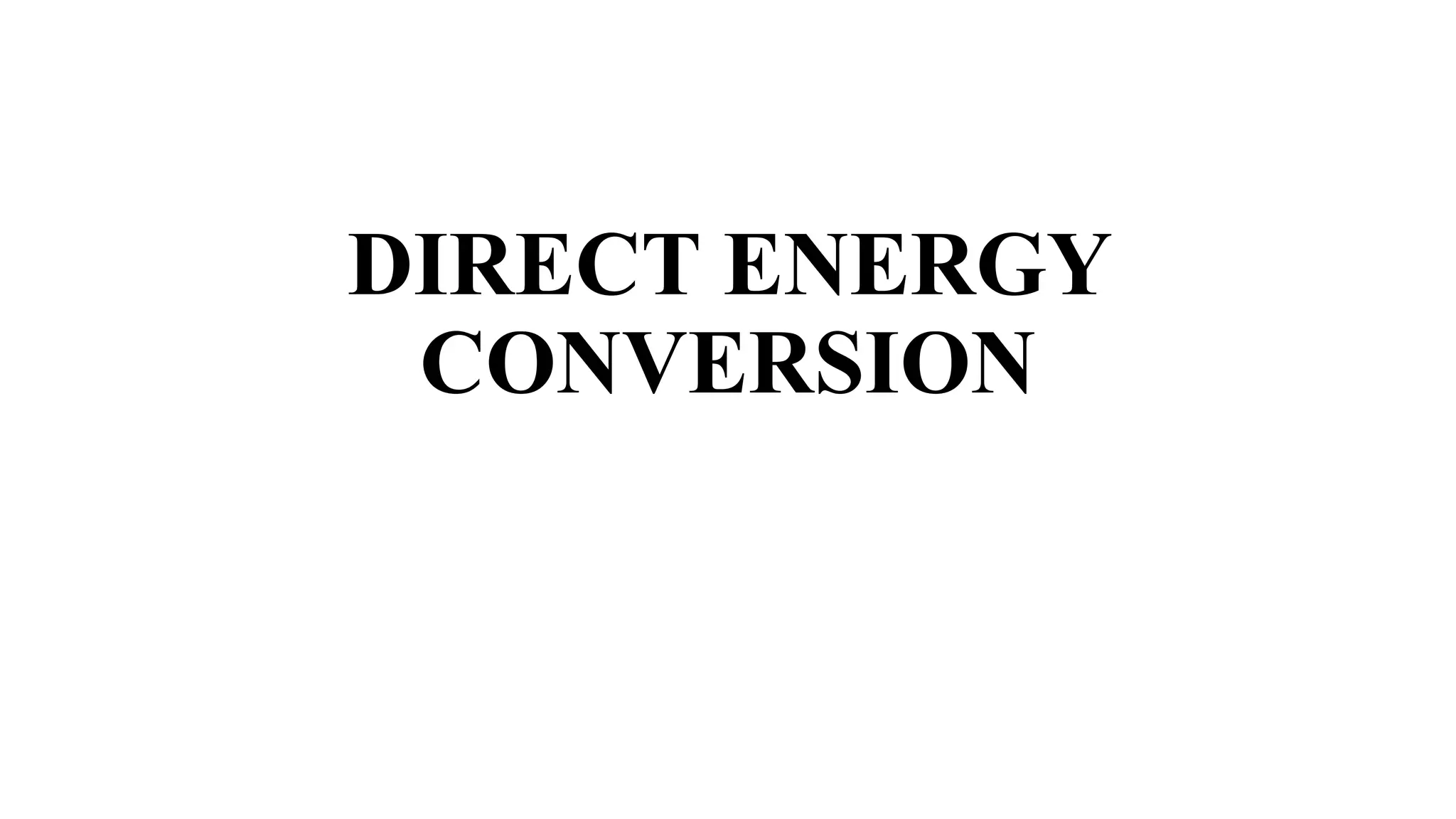

Direct energy conversion involves transforming one form of energy directly into another without intermediate steps. This includes solar cells, fuel cells, and thermoelectric generators. Thermoelectric generators directly convert heat into electricity via the Seebeck effect. Magnetohydrodynamic generators directly convert heat into electricity using electrically conducting fluids like plasma in a magnetic field to generate current via electromagnetic induction. Materials with high Seebeck coefficients, electrical conductivity, and low thermal conductivity are best for thermoelectric generators.
Solar thermal power generation systems use mirrors to collect sunlight and produce steam by solar heat to drive turbines for generating power. This system generates power by rotating turbines like thermal and nuclear power plants, and therefore, is suitable for large-scale power generation.
Solar thermal power generation systems use mirrors to collect sunlight and produce steam by solar heat to drive turbines for generating power. This system generates power by rotating turbines like thermal and nuclear power plants, and therefore, is suitable for large-scale power generation.
