2. syllabus
Resources
Types of wells
Methods of harnessing the energy
Potential in India
Ocean energy
OTEC
Principles utilization
Setting of OTEC plants
Thermodynamic cycles
1/7/2020
unit v geothermal energy,ORO551,annauniversity,ECE,psnacet
2
3. syllabus
Tidal and wave energy
Potential and conversion techniques
Mini hydal power plants and their economics
Direct energy conversion
Need for DEC

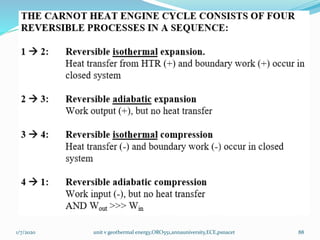

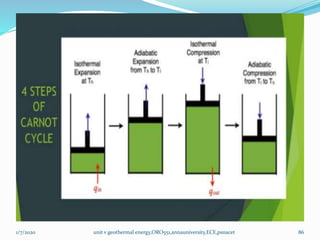

Carnot cycle
Limitations
Principles of DEC
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 3
4. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 4
5. Resources
Hydrothermal convective systems
1.Vapour dominated or dry steam fields
2.liquied dominated system or wet
steam fields
3.hot water fields
Geo pressure resources
Petro thermal or Hot dry rocks(HDR)
Magma resources
Volcanoes
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 5
6. Hydro thermal system
Water is heated by contact with the
hot rock
Vapour dominated system
The water is vaporized into the
steam (200 ^o C)
The pressure 7 kg/cm^3
Steam is the most suitable for use
in turbo electric power plants
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 6
7. Liquid dominated system
The hot water circulating and
trapped underground is at
temperature range of 175^0 to
315^0 Celsius
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 7

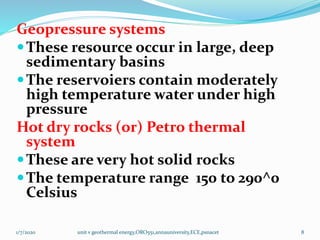

8. Geopressure systems
These resource occur in large, deep
sedimentary basins
The reservoiers contain moderately
high temperature water under high
pressure
Hot dry rocks (or) Petro thermal
system
These are very hot solid rocks
The temperature range 150 to 290^0
Celsius
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 8

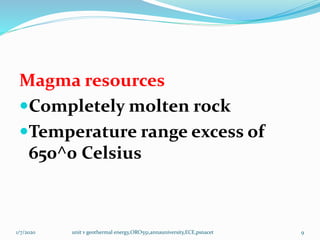

9. Magma resources
Completely molten rock
Temperature range excess of
650^0 Celsius
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 9

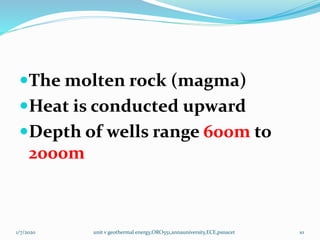

10. The molten rock (magma)
Heat is conducted upward
Depth of wells range 600m to
2000m
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 10

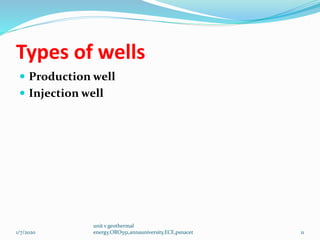

11. Types of wells
Production well
Injection well
1/7/2020
unit v geothermal
energy,ORO551,annauniversity,ECE,psnacet 11

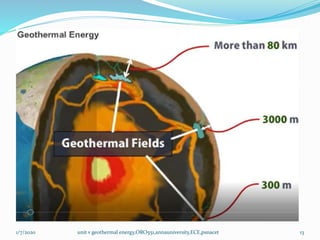

13. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 13

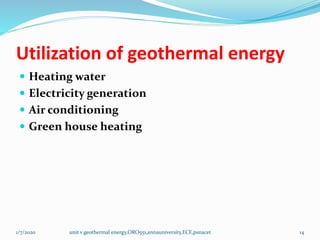

14. Utilization of geothermal energy
Heating water
Electricity generation
Air conditioning
Green house heating
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 14
15. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 15

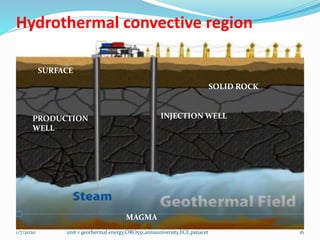

16. Hydrothermal convective region
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 16

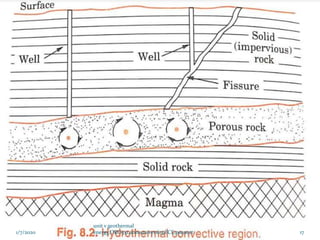

MAGMA
SURFACE
PRODUCTION
WELL
INJECTION WELL
SOLID ROCK

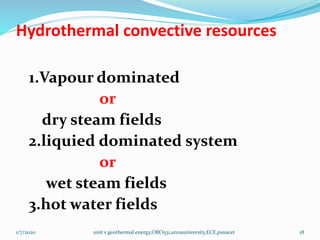

18. Hydrothermal convective resources
1.Vapour dominated
or
dry steam fields
2.liquied dominated system
or
wet steam fields
3.hot water fields
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 18
19. Vapour dominated system
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 19

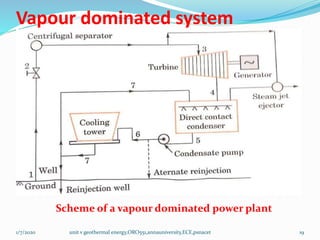

Scheme of a vapour dominated power plant

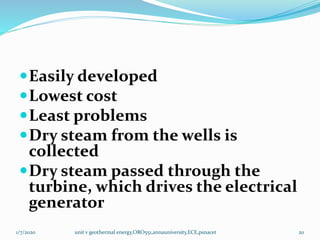

20. Easily developed
Lowest cost
Least problems
Dry steam from the wells is
collected
Dry steam passed through the
turbine, which drives the electrical
generator
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 20
21. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 21

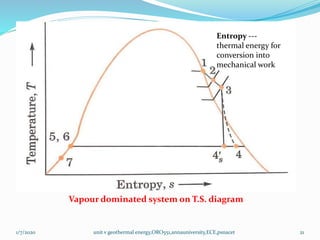

Vapour dominated system on T.S. diagram
Entropy ---
thermal energy for
conversion into
mechanical work

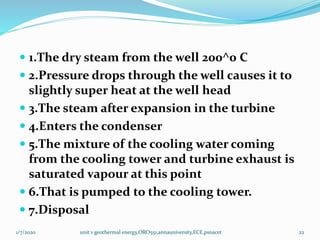

22. 1.The dry steam from the well 200^0 C
2.Pressure drops through the well causes it to
slightly super heat at the well head
3.The steam after expansion in the turbine
4.Enters the condenser
5.The mixture of the cooling water coming
from the cooling tower and turbine exhaust is
saturated vapour at this point
6.That is pumped to the cooling tower.
7.Disposal
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 22

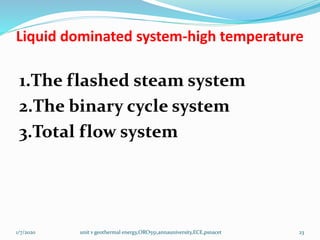

23. Liquid dominated system-high temperature
1.The flashed steam system
2.The binary cycle system
3.Total flow system
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 23
24. The flashed steam system
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 24

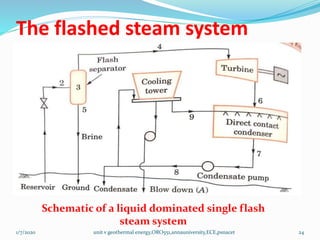

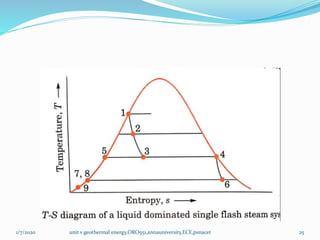

Schematic of a liquid dominated single flash
steam system
25. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 25

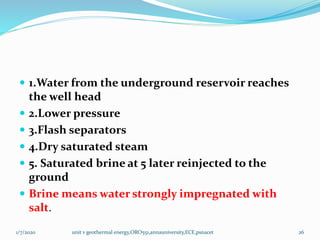

26. 1.Water from the underground reservoir reaches
the well head
2.Lower pressure
3.Flash separators
4.Dry saturated steam
5. Saturated brine at 5 later reinjected to the
ground
Brine means water strongly impregnated with
salt.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 26

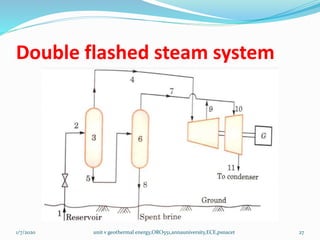

27. Double flashed steam system
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 27

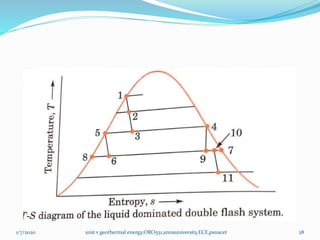

28. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 28

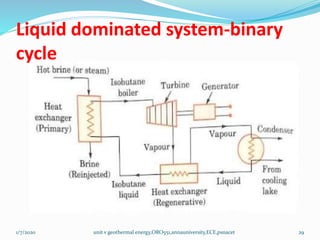

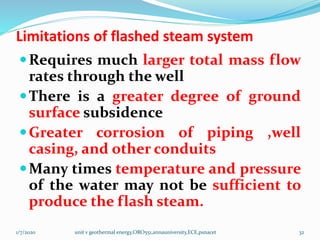

32. Limitations of flashed steam system
Requires much larger total mass flow
rates through the well
There is a greater degree of ground
surface subsidence
Greater corrosion of piping ,well
casing, and other conduits
Many times temperature and pressure
of the water may not be sufficient to
produce the flash steam.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 32

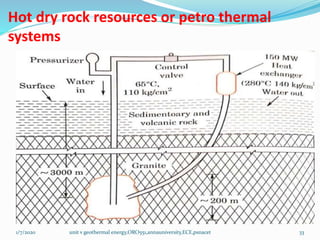

33. Hot dry rock resources or petro thermal
systems
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 33

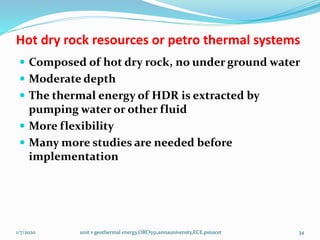

34. Hot dry rock resources or petro thermal systems
Composed of hot dry rock, no under ground water
Moderate depth
The thermal energy of HDR is extracted by
pumping water or other fluid
More flexibility
Many more studies are needed before
implementation
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 34

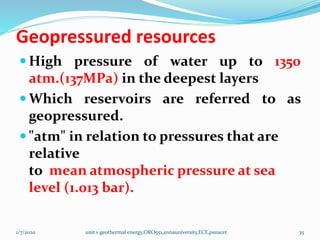

35. Geopressured resources
High pressure of water up to 1350
atm.(137MPa) in the deepest layers
Which reservoirs are referred to as
geopressured.
"atm" in relation to pressures that are
relative
to mean atmospheric pressure at sea
level (1.013 bar).
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 35

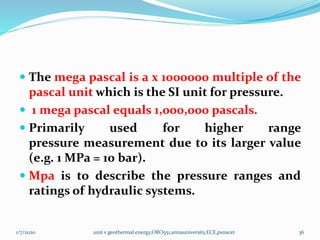

36. The mega pascal is a x 1000000 multiple of the
pascal unit which is the SI unit for pressure.
1 mega pascal equals 1,000,000 pascals.
Primarily used for higher range
pressure measurement due to its larger value
(e.g. 1 MPa = 10 bar).
Mpa is to describe the pressure ranges and
ratings of hydraulic systems.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 36

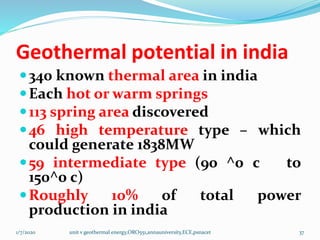

37. Geothermal potential in india
340 known thermal area in india
Each hot or warm springs
113 spring area discovered
46 high temperature type – which
could generate 1838MW
59 intermediate type (90 ^0 c to
150^0 c)
Roughly 10% of total power
production in india
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 37

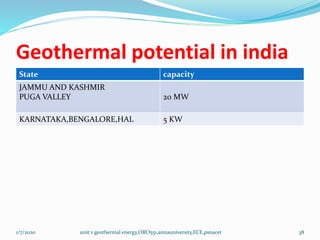

38. Geothermal potential in india
State capacity
JAMMU AND KASHMIR
PUGA VALLEY 20 MW
KARNATAKA,BENGALORE,HAL 5 KW
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 38

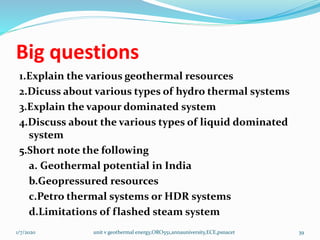

39. Big questions
1.Explain the various geothermal resources
2.Dicuss about various types of hydro thermal systems
3.Explain the vapour dominated system
4.Discuss about the various types of liquid dominated
system
5.Short note the following
a. Geothermal potential in India
b.Geopressured resources
c.Petro thermal systems or HDR systems
d.Limitations of flashed steam system
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 39

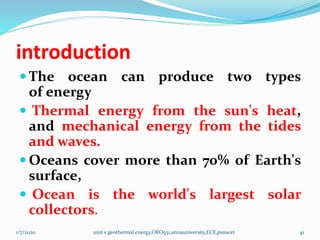

41. introduction
The ocean can produce two types
of energy
Thermal energy from the sun's heat,
and mechanical energy from the tides
and waves.
Oceans cover more than 70% of Earth's
surface,
Ocean is the world's largest solar
collectors.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 41

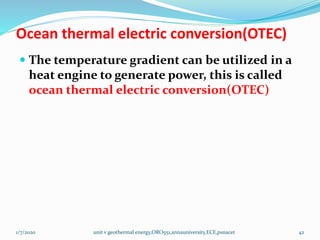

42. Ocean thermal electric conversion(OTEC)
The temperature gradient can be utilized in a
heat engine to generate power, this is called
ocean thermal electric conversion(OTEC)
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 42

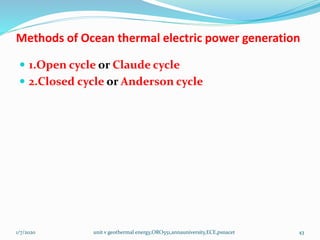

43. Methods of Ocean thermal electric power generation
1.Open cycle or Claude cycle
2.Closed cycle or Anderson cycle
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 43

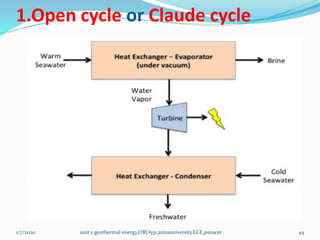

44. 1.Open cycle or Claude cycle
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 44

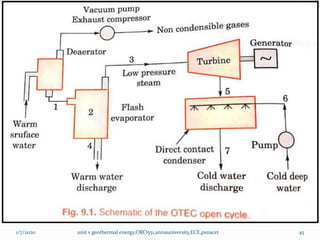

45. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 45

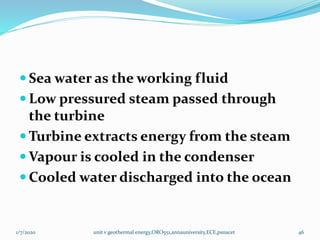

46. Sea water as the working fluid
Low pressured steam passed through
the turbine
Turbine extracts energy from the steam
Vapour is cooled in the condenser
Cooled water discharged into the ocean
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 46

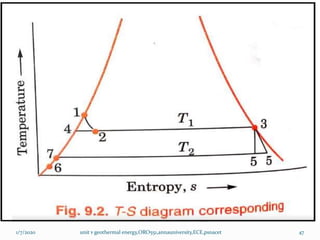

47. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 47

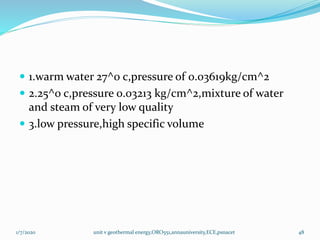

48. 1.warm water 27^0 c,pressure of 0.03619kg/cm^2
2.25^0 c,pressure 0.03213 kg/cm^2,mixture of water
and steam of very low quality
3.low pressure,high specific volume
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 48

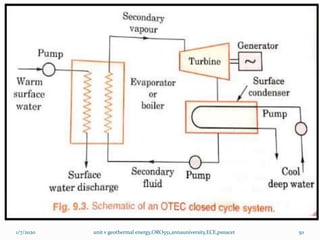

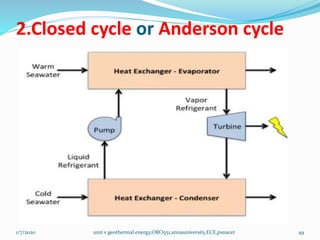

49. 2.Closed cycle or Anderson cycle
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 49
50. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 50

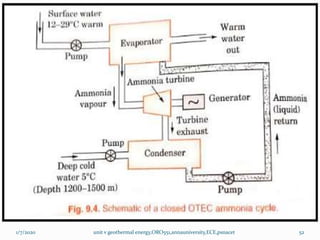

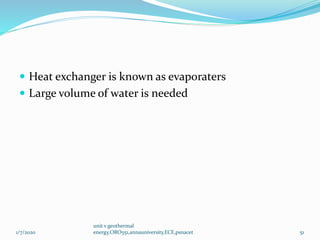

51. Heat exchanger is known as evaporaters
Large volume of water is needed
1/7/2020
unit v geothermal
energy,ORO551,annauniversity,ECE,psnacet 51
52. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 52

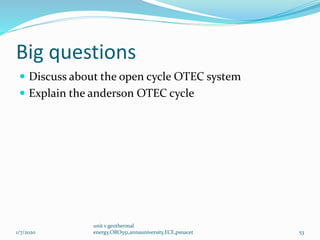

53. Big questions
Discuss about the open cycle OTEC system
Explain the anderson OTEC cycle
1/7/2020
unit v geothermal
energy,ORO551,annauniversity,ECE,psnacet 53

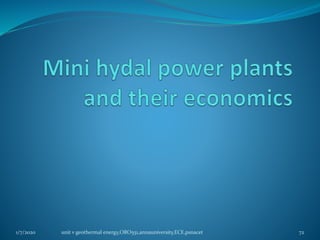

54. Potential and conversion techniques
Mini hydal power plants and their economics
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 54

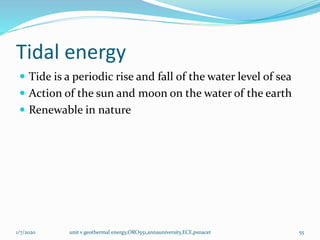

55. Tidal energy
Tide is a periodic rise and fall of the water level of sea
Action of the sun and moon on the water of the earth
Renewable in nature
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 55

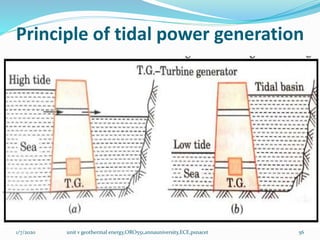

56. Principle of tidal power generation
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 56

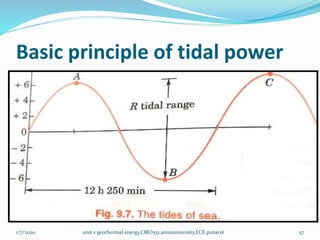

57. Basic principle of tidal power
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 57

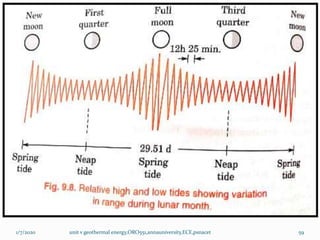

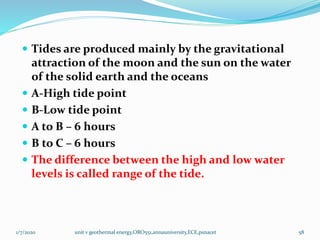

58. Tides are produced mainly by the gravitational
attraction of the moon and the sun on the water
of the solid earth and the oceans
A-High tide point
B-Low tide point
A to B – 6 hours
B to C – 6 hours
The difference between the high and low water
levels is called range of the tide.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 58
59. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 59
60. Components of tidal power plants
The power house
The dam or barrage or basin
Sluice ways from the basins to the sea and vice
versa
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 60

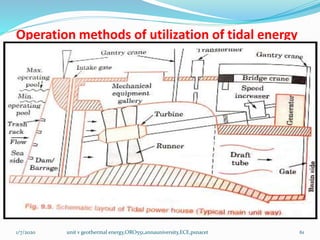

61. Operation methods of utilization of tidal energy
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 61

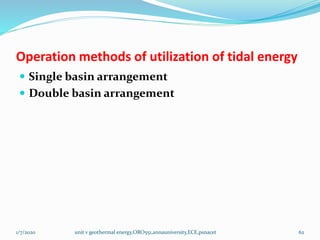

62. Operation methods of utilization of tidal energy
Single basin arrangement
Double basin arrangement
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 62

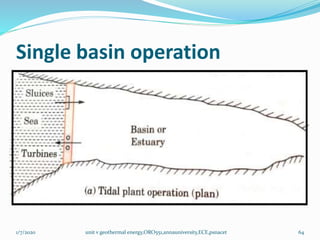

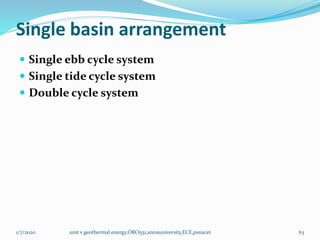

63. Single basin arrangement
Single ebb cycle system
Single tide cycle system
Double cycle system
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 63

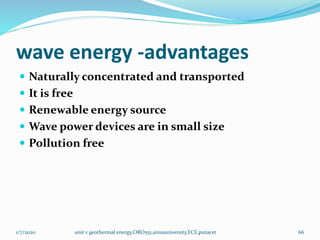

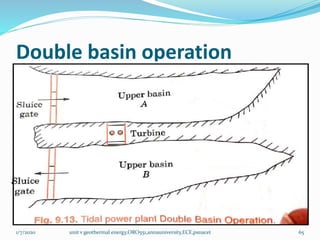

66. wave energy -advantages
Naturally concentrated and transported
It is free
Renewable energy source
Wave power devices are in small size
Pollution free
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 66

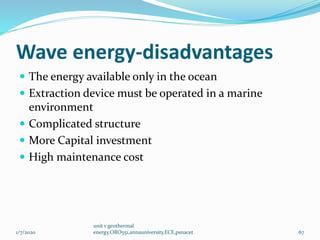

67. Wave energy-disadvantages
The energy available only in the ocean
Extraction device must be operated in a marine
environment
Complicated structure
More Capital investment
High maintenance cost
1/7/2020
unit v geothermal
energy,ORO551,annauniversity,ECE,psnacet 67

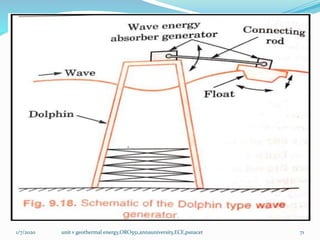

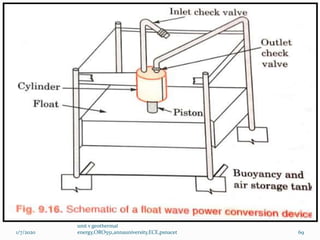

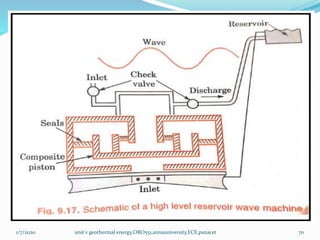

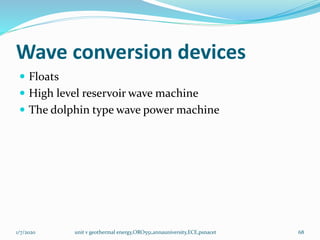

68. Wave conversion devices
Floats
High level reservoir wave machine
The dolphin type wave power machine
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 68

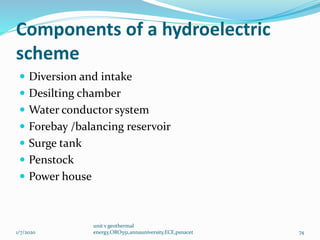

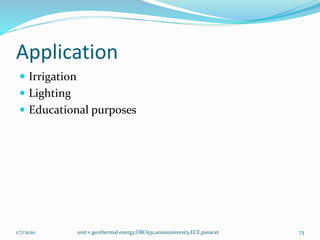

74. Components of a hydroelectric
scheme
Diversion and intake
Desilting chamber
Water conductor system
Forebay /balancing reservoir
Surge tank
Penstock
Power house
1/7/2020
unit v geothermal
energy,ORO551,annauniversity,ECE,psnacet 74
75. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 75

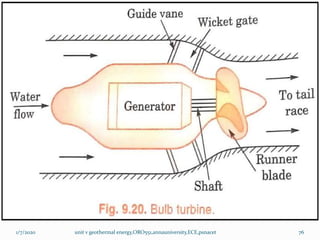

76. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 76

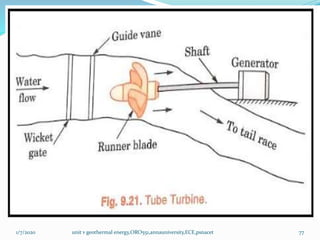

77. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 77
78. Need for DEC
Carnot cycle
Limitations
Principles of DEC
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 78
79. Need for DEC
A direct energy conversion device
converts one form of energy to another
through a single process.
For example, a solar cell is a direct
energy conversion device that converts
optical electromagnetic radiation to
electricity.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 79

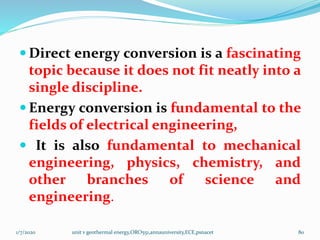

80. Direct energy conversion is a fascinating
topic because it does not fit neatly into a
single discipline.
Energy conversion is fundamental to the
fields of electrical engineering,
It is also fundamental to mechanical
engineering, physics, chemistry, and
other branches of science and
engineering.
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 80

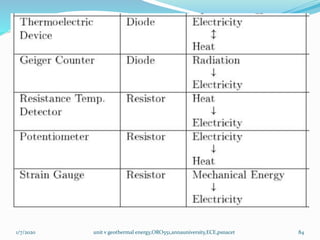

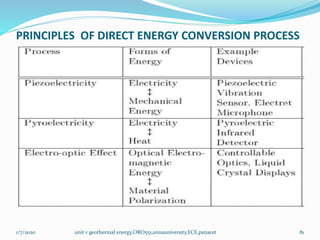

81. PRINCIPLES OF DIRECT ENERGY CONVERSION PROCESS
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 81

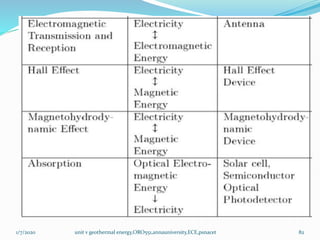

82. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 82

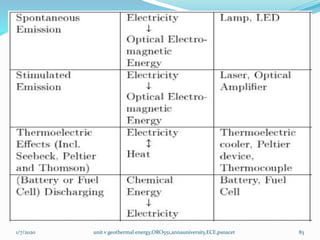

83. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 83
84. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 84
85. Carnot cycle
Sadi Carnot was a French physicist who proposed
an “ideal” cycle for a heat engine in 1824
This would produce the best efficiency since
η = 1 – (QL/QH).
1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 85
86. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 86

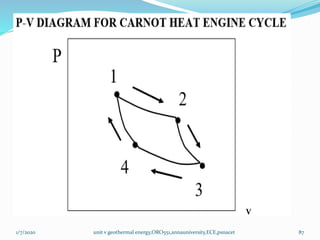

87. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 87
V
88. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 88

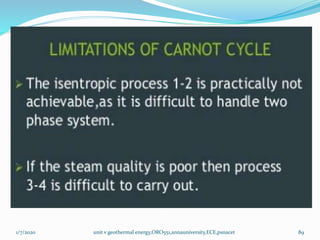

89. 1/7/2020 unit v geothermal energy,ORO551,annauniversity,ECE,psnacet 89

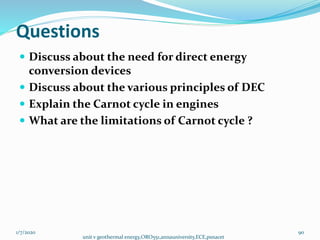

90. Questions
Discuss about the need for direct energy
conversion devices
Discuss about the various principles of DEC
Explain the Carnot cycle in engines
What are the limitations of Carnot cycle ?
1/7/2020
unit v geothermal energy,ORO551,annauniversity,ECE,psnacet
90
