Digital Forensics Assignment One UEL and Unicaf

DFranklin R2104D12054733
Digital Forensics
ASSIGNMENT 1
By Damaine Franklin
R2104D12054733
UNICAF - University of East London
Digital Forensics UEL-CN-7019-46372
Eya Nnabuike Nnaemeka
February 10th
, 2024

Table of Contents
Part 1 – General Knowledge ......................................................................................................................3
Part 2 – Comprehension: Multiple Choice and Short Questions ...........................................................6
Part 2A – Comprehension: Multiple Choice ........................................................................................6
Part 2B – Comprehension: Short Questions.........................................................................................7
Part 3 – Application of Knowledge..........................................................................................................12
Question 1: Legal and Ethical Issues...................................................................................................12
Question 2 – Presentation of Evidence................................................................................................13
Question 3 – Digital Evidence Collection............................................................................................14
Question 4 – Cloud-based digital forensics.........................................................................................17
References..................................................................................................................................................19

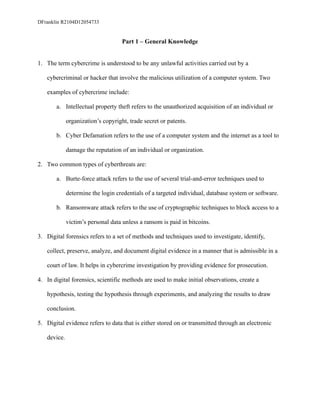

Part 1 – General Knowledge
1. The term cybercrime is understood to be any unlawful activities carried out by a
cybercriminal or hacker that involve the malicious utilization of a computer system. Two
examples of cybercrime include:
a. Intellectual property theft refers to the unauthorized acquisition of an individual or
organization’s copyright, trade secret or patents.
b. Cyber Defamation refers to the use of a computer system and the internet as a tool to
damage the reputation of an individual or organization.
2. Two common types of cyberthreats are:
a. Burte-force attack refers to the use of several trial-and-error techniques used to
determine the login credentials of a targeted individual, database system or software.
b. Ransomware attack refers to the use of cryptographic techniques to block access to a
victim’s personal data unless a ransom is paid in bitcoins.
3. Digital forensics refers to a set of methods and techniques used to investigate, identify,
collect, preserve, analyze, and document digital evidence in a manner that is admissible in a
court of law. It helps in cybercrime investigation by providing evidence for prosecution.
4. In digital forensics, scientific methods are used to make initial observations, create a
hypothesis, testing the hypothesis through experiments, and analyzing the results to draw
conclusion.
5. Digital evidence refers to data that is either stored on or transmitted through an electronic
device.

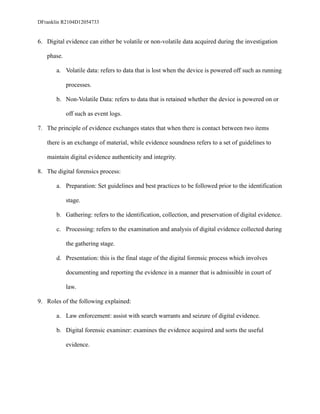

6. Digital evidence can either be volatile or non-volatile data acquired during the investigation
phase.
a. Volatile data: refers to data that is lost when the device is powered off such as running
processes.
b. Non-Volatile Data: refers to data that is retained whether the device is powered on or
off such as event logs.
7. The principle of evidence exchanges states that when there is contact between two items
there is an exchange of material, while evidence soundness refers to a set of guidelines to
maintain digital evidence authenticity and integrity.
8. The digital forensics process:
a. Preparation: Set guidelines and best practices to be followed prior to the identification
stage.
b. Gathering: refers to the identification, collection, and preservation of digital evidence.
c. Processing: refers to the examination and analysis of digital evidence collected during
the gathering stage.
d. Presentation: this is the final stage of the digital forensic process which involves
documenting and reporting the evidence in a manner that is admissible in court of
law.
9. Roles of the following explained:
a. Law enforcement: assist with search warrants and seizure of digital evidence.
b. Digital forensic examiner: examines the evidence acquired and sorts the useful
evidence.

c. Legal expert: provides legal advice to the forensic investigator and all this involve in
the investigation process.
10. Cyber dependent crimes are committed with the use of computers as a tool, while cyber
enable crimes are initially committed without the use of computers but are enabled by
computers in certain circumstances. Two examples of each are hacking, DDoS and fraud,
harassment respectively.
11. The digital forensics report is structured in the following order:
a. Case data
b. Purpose statement
c. Findings
d. Conclusion
12. When a file or folder is deleted from a computer system it is not gone forever. There are
methods and techniques available in Windows, Linux, MAC and android operating systems
to recover deleted files.

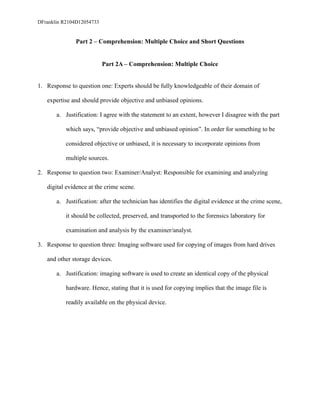

Part 2 – Comprehension: Multiple Choice and Short Questions
Part 2A – Comprehension: Multiple Choice
1. Response to question one: Experts should be fully knowledgeable of their domain of
expertise and should provide objective and unbiased opinions.
a. Justification: I agree with the statement to an extent, however I disagree with the part
which says, “provide objective and unbiased opinion”. In order for something to be
considered objective or unbiased, it is necessary to incorporate opinions from
multiple sources.
2. Response to question two: Examiner/Analyst: Responsible for examining and analyzing
digital evidence at the crime scene.
a. Justification: after the technician has identifies the digital evidence at the crime scene,
it should be collected, preserved, and transported to the forensics laboratory for
examination and analysis by the examiner/analyst.
3. Response to question three: Imaging software used for copying of images from hard drives
and other storage devices.
a. Justification: imaging software is used to create an identical copy of the physical
hardware. Hence, stating that it is used for copying implies that the image file is
readily available on the physical device.

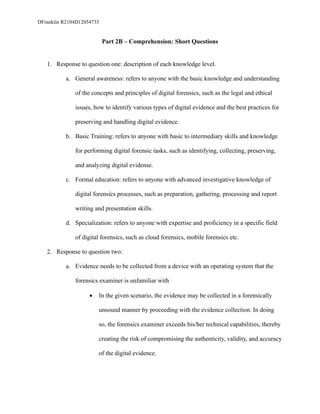

Part 2B – Comprehension: Short Questions
1. Response to question one: description of each knowledge level.
a. General awareness: refers to anyone with the basic knowledge and understanding
of the concepts and principles of digital forensics, such as the legal and ethical
issues, how to identify various types of digital evidence and the best practices for
preserving and handling digital evidence.
b. Basic Training: refers to anyone with basic to intermediary skills and knowledge
for performing digital forensic tasks, such as identifying, collecting, preserving,
and analyzing digital evidense.
c. Formal education: refers to anyone with advanced investigative knowledge of
digital forensics processes, such as preparation, gathering, processing and report
writing and presentation skills.
d. Specialization: refers to anyone with expertise and proficiency in a specific field
of digital forensics, such as cloud forensics, mobile forensics etc.
2. Response to question two:
a. Evidence needs to be collected from a device with an operating system that the
forensics examiner is unfamiliar with
• In the given scenario, the evidence may be collected in a forensically
unsound manner by proceeding with the evidence collection. In doing
so, the forensics examiner exceeds his/her technical capabilities, thereby
creating the risk of compromising the authenticity, validity, and accuracy
of the digital evidence.

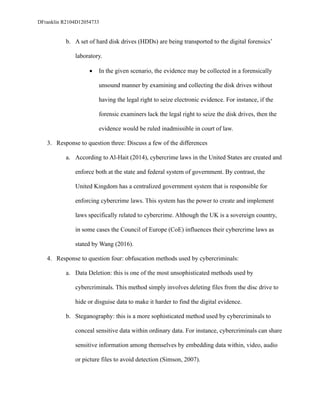

b. A set of hard disk drives (HDDs) are being transported to the digital forensics’
laboratory.
• In the given scenario, the evidence may be collected in a forensically
unsound manner by examining and collecting the disk drives without
having the legal right to seize electronic evidence. For instance, if the
forensic examiners lack the legal right to seize the disk drives, then the
evidence would be ruled inadmissible in court of law.
3. Response to question three: Discuss a few of the differences
a. According to Al-Hait (2014), cybercrime laws in the United States are created and
enforce both at the state and federal system of government. By contrast, the
United Kingdom has a centralized government system that is responsible for
enforcing cybercrime laws. This system has the power to create and implement
laws specifically related to cybercrime. Although the UK is a sovereign country,
in some cases the Council of Europe (CoE) influences their cybercrime laws as
stated by Wang (2016).
4. Response to question four: obfuscation methods used by cybercriminals:
a. Data Deletion: this is one of the most unsophisticated methods used by
cybercriminals. This method simply involves deleting files from the disc drive to
hide or disguise data to make it harder to find the digital evidence.
b. Steganography: this is a more sophisticated method used by cybercriminals to
conceal sensitive data within ordinary data. For instance, cybercriminals can share
sensitive information among themselves by embedding data within, video, audio
or picture files to avoid detection (Simson, 2007).

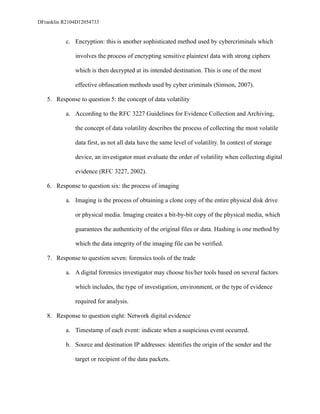

c. Encryption: this is another sophisticated method used by cybercriminals which
involves the process of encrypting sensitive plaintext data with strong ciphers
which is then decrypted at its intended destination. This is one of the most
effective obfuscation methods used by cyber criminals (Simson, 2007).
5. Response to question 5: the concept of data volatility
a. According to the RFC 3227 Guidelines for Evidence Collection and Archiving,
the concept of data volatility describes the process of collecting the most volatile
data first, as not all data have the same level of volatility. In context of storage
device, an investigator must evaluate the order of volatility when collecting digital
evidence (RFC 3227, 2002).
6. Response to question six: the process of imaging
a. Imaging is the process of obtaining a clone copy of the entire physical disk drive
or physical media. Imaging creates a bit-by-bit copy of the physical media, which
guarantees the authenticity of the original files or data. Hashing is one method by
which the data integrity of the imaging file can be verified.
7. Response to question seven: forensics tools of the trade
a. A digital forensics investigator may choose his/her tools based on several factors
which includes, the type of investigation, environment, or the type of evidence
required for analysis.
8. Response to question eight: Network digital evidence
a. Timestamp of each event: indicate when a suspicious event occurred.
b. Source and destination IP addresses: identifies the origin of the sender and the
target or recipient of the data packets.

c. Source and destination IP Addresses: reveals information about the type of traffic
that is being sent and received.
9. Response to question nine: forensic software evidence
a. File Meta-data: reveals data about the author of a file when it was created and last
modified.
b. Volatile data: reveals data about active processes and services in running RAM.
c. User activities: reveals data on user accounts, login/logout timestamps and
account activities.
10. Response to question ten:
a. The examination and analysis of data during a forensic investigation can be done
using various methods. Some of which includes using a write blocker to prevent read-
write access or damage to the digital evidence. Evaluate the order of volatility since
not all data have the same level of volatility. Use a data recovery tool such as autopsy
to examine and recover digital evidence that is relevant to the investigation.
11. Response to question eleven:
a. When writing the digital forensics report, the examiner should ensure that the
findings of the examination and analysis are verifiable and done in an impartial
and objective manner that is void of any forensic confirmation bias.
12. Response to question twelve:
a. It is important that a forensic laboratory follows set requirements and guidelines
to ensure that the analysis and presentation of digital evidence is forensically
sound and admissible in court (Casey, 2011).

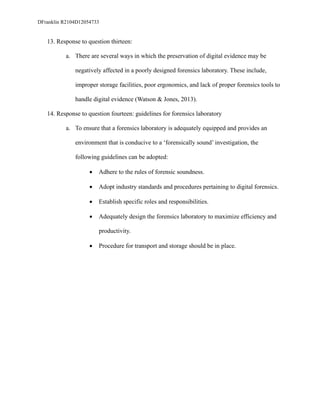

13. Response to question thirteen:
a. There are several ways in which the preservation of digital evidence may be
negatively affected in a poorly designed forensics laboratory. These include,
improper storage facilities, poor ergonomics, and lack of proper forensics tools to
handle digital evidence (Watson & Jones, 2013).
14. Response to question fourteen: guidelines for forensics laboratory
a. To ensure that a forensics laboratory is adequately equipped and provides an
environment that is conducive to a ‘forensically sound’ investigation, the
following guidelines can be adopted:
• Adhere to the rules of forensic soundness.
• Adopt industry standards and procedures pertaining to digital forensics.
• Establish specific roles and responsibilities.
• Adequately design the forensics laboratory to maximize efficiency and
productivity.
• Procedure for transport and storage should be in place.

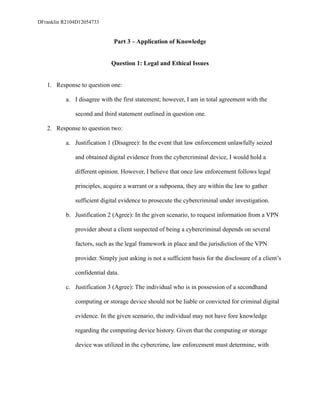

Part 3 – Application of Knowledge
Question 1: Legal and Ethical Issues
1. Response to question one:
a. I disagree with the first statement; however, I am in total agreement with the
second and third statement outlined in question one.
2. Response to question two:
a. Justification 1 (Disagree): In the event that law enforcement unlawfully seized
and obtained digital evidence from the cybercriminal device, I would hold a
different opinion. However, I believe that once law enforcement follows legal
principles, acquire a warrant or a subpoena, they are within the law to gather
sufficient digital evidence to prosecute the cybercriminal under investigation.
b. Justification 2 (Agree): In the given scenario, to request information from a VPN
provider about a client suspected of being a cybercriminal depends on several
factors, such as the legal framework in place and the jurisdiction of the VPN
provider. Simply just asking is not a sufficient basis for the disclosure of a client’s
confidential data.
c. Justification 3 (Agree): The individual who is in possession of a secondhand
computing or storage device should not be liable or convicted for criminal digital
evidence. In the given scenario, the individual may not have fore knowledge
regarding the computing device history. Given that the computing or storage

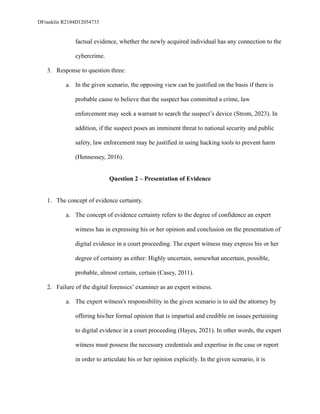

device was utilized in the cybercrime, law enforcement must determine, with

factual evidence, whether the newly acquired individual has any connection to the
cybercrime.
3. Response to question three:
a. In the given scenario, the opposing view can be justified on the basis if there is
probable cause to believe that the suspect has committed a crime, law
enforcement may seek a warrant to search the suspect’s device (Strom, 2023). In
addition, if the suspect poses an imminent threat to national security and public
safety, law enforcement may be justified in using hacking tools to prevent harm
(Hennessey, 2016).
Question 2 – Presentation of Evidence
1. The concept of evidence certainty.
a. The concept of evidence certainty refers to the degree of confidence an expert
witness has in expressing his or her opinion and conclusion on the presentation of
digital evidence in a court proceeding. The expert witness may express his or her
degree of certainty as either: Highly uncertain, somewhat uncertain, possible,
probable, almost certain, certain (Casey, 2011).
2. Failure of the digital forensics’ examiner as an expert witness.
a. The expert witness's responsibility in the given scenario is to aid the attorney by
offering his/her formal opinion that is impartial and credible on issues pertaining
to digital evidence in a court proceeding (Hayes, 2021). In other words, the expert
witness must possess the necessary credentials and expertise in the case or report
in order to articulate his or her opinion explicitly. In the given scenario, it is

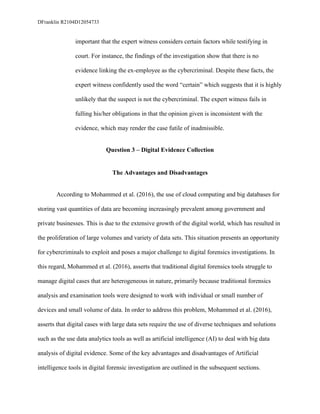

important that the expert witness considers certain factors while testifying in
court. For instance, the findings of the investigation show that there is no
evidence linking the ex-employee as the cybercriminal. Despite these facts, the
expert witness confidently used the word “certain” which suggests that it is highly
unlikely that the suspect is not the cybercriminal. The expert witness fails in
fulling his/her obligations in that the opinion given is inconsistent with the
evidence, which may render the case futile of inadmissible.
Question 3 – Digital Evidence Collection
The Advantages and Disadvantages
According to Mohammed et al. (2016), the use of cloud computing and big databases for
storing vast quantities of data are becoming increasingly prevalent among government and
private businesses. This is due to the extensive growth of the digital world, which has resulted in
the proliferation of large volumes and variety of data sets. This situation presents an opportunity
for cybercriminals to exploit and poses a major challenge to digital forensics investigations. In
this regard, Mohammed et al. (2016), asserts that traditional digital forensics tools struggle to
manage digital cases that are heterogeneous in nature, primarily because traditional forensics
analysis and examination tools were designed to work with individual or small number of
devices and small volume of data. In order to address this problem, Mohammed et al. (2016),
asserts that digital cases with large data sets require the use of diverse techniques and solutions
such as the use data analytics tools as well as artificial intelligence (AI) to deal with big data
analysis of digital evidence. Some of the key advantages and disadvantages of Artificial
intelligence tools in digital forensic investigation are outlined in the subsequent sections.

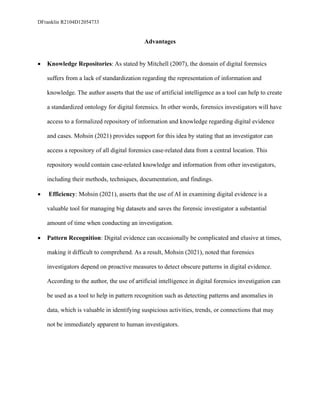

Advantages
• Knowledge Repositories: As stated by Mitchell (2007), the domain of digital forensics
suffers from a lack of standardization regarding the representation of information and
knowledge. The author asserts that the use of artificial intelligence as a tool can help to create
a standardized ontology for digital forensics. In other words, forensics investigators will have
access to a formalized repository of information and knowledge regarding digital evidence
and cases. Mohsin (2021) provides support for this idea by stating that an investigator can
access a repository of all digital forensics case-related data from a central location. This
repository would contain case-related knowledge and information from other investigators,
including their methods, techniques, documentation, and findings.
• Efficiency: Mohsin (2021), asserts that the use of AI in examining digital evidence is a
valuable tool for managing big datasets and saves the forensic investigator a substantial
amount of time when conducting an investigation.
• Pattern Recognition: Digital evidence can occasionally be complicated and elusive at times,
making it difficult to comprehend. As a result, Mohsin (2021), noted that forensics
investigators depend on proactive measures to detect obscure patterns in digital evidence.
According to the author, the use of artificial intelligence in digital forensics investigation can
be used as a tool to help in pattern recognition such as detecting patterns and anomalies in
data, which is valuable in identifying suspicious activities, trends, or connections that may
not be immediately apparent to human investigators.

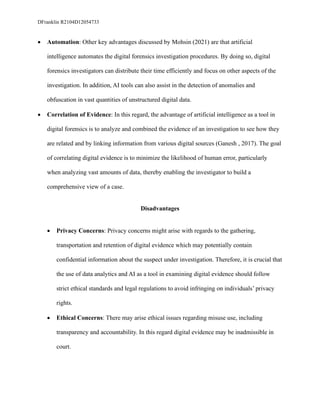

• Automation: Other key advantages discussed by Mohsin (2021) are that artificial
intelligence automates the digital forensics investigation procedures. By doing so, digital
forensics investigators can distribute their time efficiently and focus on other aspects of the
investigation. In addition, AI tools can also assist in the detection of anomalies and
obfuscation in vast quantities of unstructured digital data.
• Correlation of Evidence: In this regard, the advantage of artificial intelligence as a tool in
digital forensics is to analyze and combined the evidence of an investigation to see how they
are related and by linking information from various digital sources (Ganesh , 2017). The goal
of correlating digital evidence is to minimize the likelihood of human error, particularly
when analyzing vast amounts of data, thereby enabling the investigator to build a
comprehensive view of a case.
Disadvantages
• Privacy Concerns: Privacy concerns might arise with regards to the gathering,
transportation and retention of digital evidence which may potentially contain
confidential information about the suspect under investigation. Therefore, it is crucial that
the use of data analytics and AI as a tool in examining digital evidence should follow
strict ethical standards and legal regulations to avoid infringing on individuals’ privacy
rights.
• Ethical Concerns: There may arise ethical issues regarding misuse use, including
transparency and accountability. In this regard digital evidence may be inadmissible in
court.

• Generate Bias Outcome: Errors made by algorithms powered by artificial intelligence
may produce biassed results, which may result in discriminatory consequences, especially
for marginalized groups.
• Generate Fake Evidence. Since artificial intelligence is not self-aware but follows the
programming of a human instructor, issues may arise with regards to generating fake
digital evidence such as images, audio, video, and documents. Additionally, artificial
intelligence tools possess the capability to manipulate or tamper with digital evidence,
thereby compromising its authenticity and integrity.
Question 4 – Cloud-based digital forensics
Comparison Between Digital Forensics and Cloud Forensics
The general process of digital forensics is not the same when dealing with cloud based
digital evidence collection. According to Tidmarsh (2022), cloud computing delivers on demand
services to consumers via the internet. These services include servers, networking hardware,
databases, and various software applications among others. Tidmarsh (2022), explained that the
investigation techniques utilized in cloud environments are significantly different from those
employed in digital forensics.

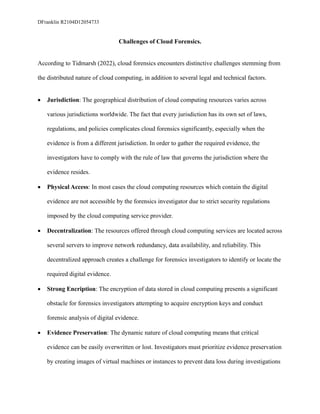

Challenges of Cloud Forensics.
According to Tidmarsh (2022), cloud forensics encounters distinctive challenges stemming from
the distributed nature of cloud computing, in addition to several legal and technical factors.
• Jurisdiction: The geographical distribution of cloud computing resources varies across
various jurisdictions worldwide. The fact that every jurisdiction has its own set of laws,
regulations, and policies complicates cloud forensics significantly, especially when the
evidence is from a different jurisdiction. In order to gather the required evidence, the
investigators have to comply with the rule of law that governs the jurisdiction where the
evidence resides.
• Physical Access: In most cases the cloud computing resources which contain the digital
evidence are not accessible by the forensics investigator due to strict security regulations
imposed by the cloud computing service provider.
• Decentralization: The resources offered through cloud computing services are located across
several servers to improve network redundancy, data availability, and reliability. This
decentralized approach creates a challenge for forensics investigators to identify or locate the
required digital evidence.
• Strong Encription: The encryption of data stored in cloud computing presents a significant
obstacle for forensics investigators attempting to acquire encryption keys and conduct
forensic analysis of digital evidence.
• Evidence Preservation: The dynamic nature of cloud computing means that critical
evidence can be easily overwritten or lost. Investigators must prioritize evidence preservation
by creating images of virtual machines or instances to prevent data loss during investigations

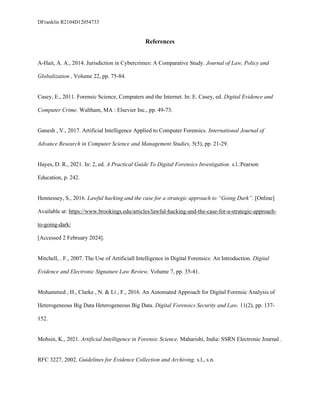

References
A-Hait, A. A., 2014. Jurisdiction in Cybercrimes: A Comparative Study. Journal of Law, Policy and
Globalization , Volume 22, pp. 75-84.
Casey, E., 2011. Forensic Science, Computers and the Internet. In: E. Casey, ed. Digital Evidence and
Computer Crime. Waltham, MA : Elsevier Inc., pp. 49-73.
Ganesh , V., 2017. Artificial Intelligence Applied to Computer Forensics. International Journal of
Advance Research in Computer Science and Management Studies, 5(5), pp. 21-29.
Hayes, D. R., 2021. In: 2, ed. A Practical Guide To Digital Forensics Investigation. s.l.:Pearson
Education, p. 242.
Hennessey, S., 2016. Lawful hacking and the case for a strategic approach to “Going Dark”. [Online]
Available at: https://www.brookings.edu/articles/lawful-hacking-and-the-case-for-a-strategic-approach-
to-going-dark/
[Accessed 2 February 2024].
Mitchell, . F., 2007. The Use of Artificiall Intelligence in Digital Forensics: An Introduction. Digital
Evidence and Electronic Signature Law Review, Volume 7, pp. 35-41.
Mohammed , H., Clarke , N. & Li , F., 2016. An Automated Approach for Digital Forensic Analysis of
Heterogeneous Big Data Heterogeneous Big Data. Digital Forensics Security and Law, 11(2), pp. 137-
152.
Mohsin, K., 2021. Artificial Intelligence in Forensic Science. Maharishi, India: SSRN Electronic Journal .
RFC 3227, 2002. Guidelines for Evidence Collection and Archiving. s.l., s.n.

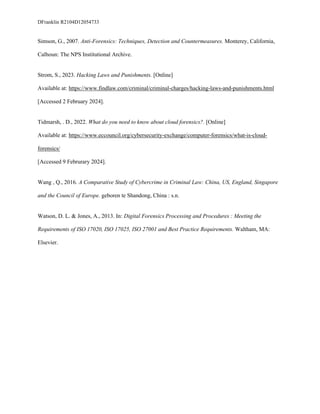

Simson, G., 2007. Anti-Forensics: Techniques, Detection and Countermeasures. Monterey, California,
Calhoun: The NPS Institutional Archive.
Strom, S., 2023. Hacking Laws and Punishments. [Online]
Available at: https://www.findlaw.com/criminal/criminal-charges/hacking-laws-and-punishments.html
[Accessed 2 February 2024].
Tidmarsh, . D., 2022. What do you need to know about cloud forensics?. [Online]
Available at: https://www.eccouncil.org/cybersecurity-exchange/computer-forensics/what-is-cloud-
forensics/
[Accessed 9 Februrary 2024].
Wang , Q., 2016. A Comparative Study of Cybercrime in Criminal Law: China, US, England, Singapore
and the Council of Europe. geboren te Shandong, China : s.n.
Watson, D. L. & Jones, A., 2013. In: Digital Forensics Processing and Procedures : Meeting the
Requirements of ISO 17020, ISO 17025, ISO 27001 and Best Practice Requirements. Waltham, MA:
Elsevier.

Digital Forensics Assignment One UEL and Unicaf

More Related Content

What's hot

Similar to Digital Forensics Assignment One UEL and Unicaf

More from DamaineFranklinMScBE

Recently uploaded

Digital Forensics Assignment One UEL and Unicaf
