Conventions
http://costumepop.com/costume-buzz/12-costume-fails-from-comic-con/
A base layer of rules and
conventions that act as starting
points for HTML, CSS, JavaScript
and ExpressionEngine for
all projects.
•   Basic HTML files & naming conventions
•   PHP for basic templates prior to CMS integration.
•   CSS: Stylesheets, IE-specific, reset, scratch files etc.
•   JavaScript: jQuery, onload triggers, transparency support
•   Other Assets such as folders for images, Flash etc.

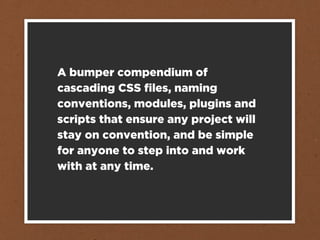

A bumper compendium of
cascading CSS files, naming
conventions, modules, plugins and
scripts that ensure any project will
stay on convention, and be simple
for anyone to step into and work
with at any time.

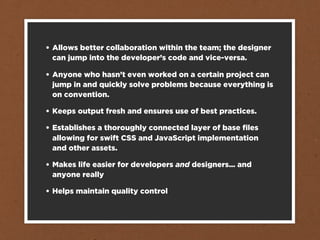

• Allows better collaboration within the team; the designer
  can jump into the developer’s code and vice-versa.

• Anyone who hasn’t even worked on a certain project can
  jump in and quickly solve problems because everything is
  on convention.

• Keeps output fresh and ensures use of best practices.

• Establishes a thoroughly connected layer of base files
  allowing for swift CSS and JavaScript implementation
  and other assets.

• Makes life easier for developers and designers... and
  anyone really

• Helps maintain quality control
Iteration

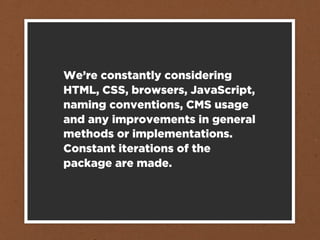

We’re constantly considering
HTML, CSS, browsers, JavaScript,
naming conventions, CMS usage
and any improvements in general
methods or implementations.
Constant iterations of the
package are made.

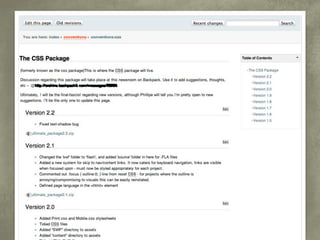

Version control

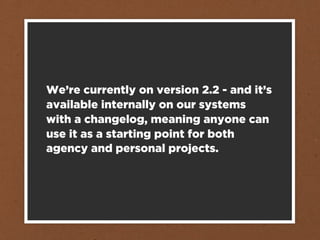

We’re currently on version 2.2 - and it’s
available internally on our systems
with a changelog, meaning anyone can
use it as a starting point for both
agency and personal projects.
Opening the package

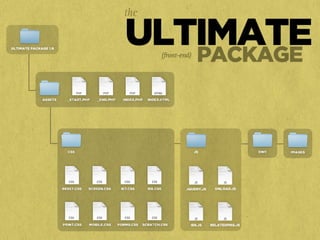

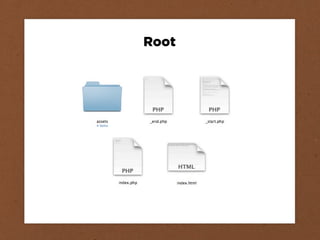

Root

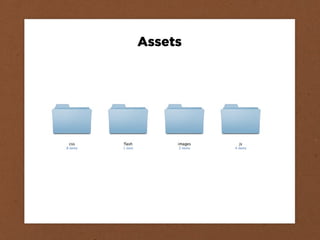

Assets
Stylesheets

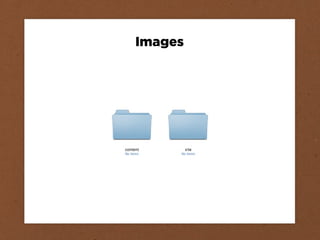

Images
JavaScript
HTML templates

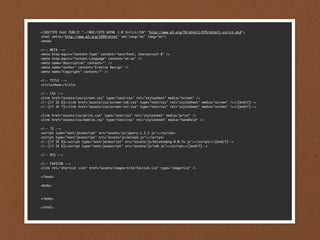

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
<head>

<!-- META -->
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<meta http-equiv="Content-Language" content="en-us" />
<meta name="description" content="" />
<meta name="author" content="Erskine Design" />
<meta name="Copyright" content="" />

<!-- TITLE -->
<title>Home</title>

<!-- CSS -->
<link href="assets/css/screen.css" type="text/css" rel="stylesheet" media="screen" />
<!--[if IE 6]><link href="assets/css/screen-ie6.css" type="text/css" rel="stylesheet" media="screen" /><![endif]-->
<!--[if IE 7]><link href="assets/css/screen-ie7.css" type="text/css" rel="stylesheet" media="screen" /><![endif]-->

<link href="assets/css/print.css" type="text/css" rel="stylesheet" media="print" />
<link href="assets/css/mobile.css" type="text/css" rel="stylesheet" media="handheld" />

<!-- JS    -->
<script    type="text/javascript" src="assets/js/jquery-1.3.2.js"></script>
<script    type="text/javascript" src="assets/js/onload.js"></script>
<!--[if    IE 6]><script type="text/javascript" src="assets/js/belatedpng-0.0.7a.js"></script><![endif]-->
<!--[if    IE 6]><script type="text/javascript" src="assets/js/ie6.js"></script><![endif]-->

<!-- RSS -->

<!-- FAVICON -->
<link rel="shortcut icon" href="assets/images/site/favicon.ico" type="image/ico" />

</head>

<body>



</body>

</html>
PHP templates

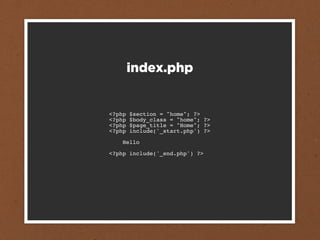

index.php


<?php   $section = "home"; ?>
<?php   $body_class = "home"; ?>
<?php   $page_title = "Home"; ?>
<?php   include('_start.php') ?>

    Hello

<?php include('_end.php') ?>
_start.php (slim version)

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/
xhtml1-strict.dtd">
<html xmlns="http://www.w3.org/1999/xhtml" xml:lang="en" lang="en">
<head>

<!-- META -->
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<meta http-equiv="Content-Language" content="en-us" />
<meta name="description" content="" />
<meta name="author" content="Erskine Design" />
<meta name="Copyright" content="" />

<!-- TITLE -->
<title><?php echo("$page_title"); ?></title>

<!-- CSS -->
<link href="assets/css/screen.css" type="text/css" rel="stylesheet" media="screen" />

<!-- JS -->
<script type="text/javascript" src="assets/js/jquery-1.3.2.js"></script>
<script type="text/javascript" src="assets/js/onload.js"></script>

<!-- RSS -->

<!-- FAVICON -->
<link rel="shortcut icon" href="assets/images/site/favicon.ico" type="image/ico" />

</head>

<body class="<?php echo("$body_class"); ?>">
_start.php




<title><?php echo("$page_title"); ?></title>



<body class="<?php echo("$body_class"); ?>">

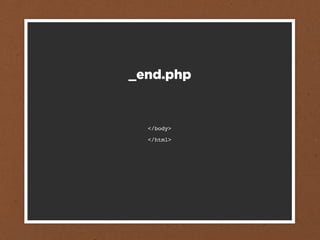

_end.php


  </body>

  </html>
Stylesheets

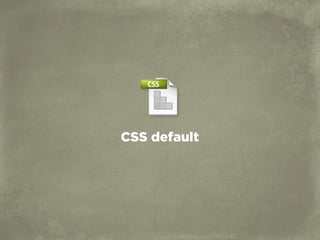

CSS default
/*


    [PROJECT] by ERSKINE DESIGN

    VERSION 1.0


    CONTENTS ----------

        1.BODY

       2.DEFAULT STYLING

       3.HEADINGS

       4.LINKS

       5.IMAGES

       6.LAYOUT

       7.BRANDING/MASTHEAD

       8.NAVIGATION

       9.SITEINFO/FOOTER


       [etc]

*/

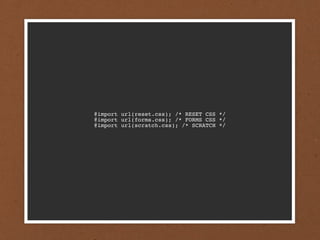

@import url(reset.css); /* RESET CSS */
@import url(forms.css); /* FORMS CSS */
@import url(scratch.css); /* SCRATCH */

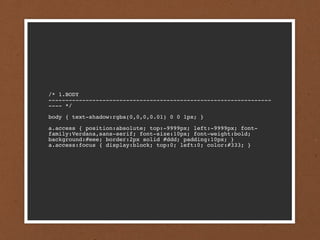

/* 1.BODY
------------------------------------------------------------------
---- */

body { text-shadow:rgba(0,0,0,0.01) 0 0 1px; }

a.access { position:absolute; top:-9999px; left:-9999px; font-
family:Verdana,sans-serif; font-size:10px; font-weight:bold;
background:#eee; border:2px solid #ddd; padding:10px; }
a.access:focus { display:block; top:0; left:0; color:#333; }
CSS reset
/*

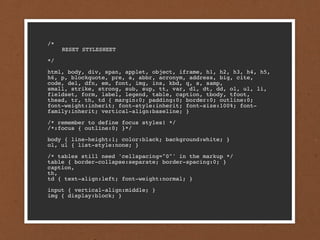

   RESET STYLESHEET

*/

html, body, div, span, applet, object, iframe, h1, h2, h3, h4, h5,
h6, p, blockquote, pre, a, abbr, acronym, address, big, cite,
code, del, dfn, em, font, img, ins, kbd, q, s, samp,
small, strike, strong, sub, sup, tt, var, dl, dt, dd, ol, ul, li,
fieldset, form, label, legend, table, caption, tbody, tfoot,
thead, tr, th, td { margin:0; padding:0; border:0; outline:0;
font-weight:inherit; font-style:inherit; font-size:100%; font-
family:inherit; vertical-align:baseline; }

/* remember to define focus styles! */
/*:focus { outline:0; }*/

body { line-height:1; color:black; background:white; }
ol, ul { list-style:none; }

/* tables still need 'cellspacing="0"' in the markup */
table { border-collapse:separate; border-spacing:0; }
caption,
th,
td { text-align:left; font-weight:normal; }

input { vertical-align:middle; }
img { display:block; }
CSS for IE6 & IE7

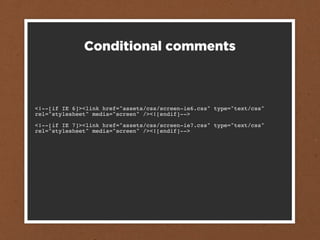

Conditional comments



<!--[if IE 6]><link href="assets/css/screen-ie6.css" type="text/css"
rel="stylesheet" media="screen" /><![endif]-->

<!--[if IE 7]><link href="assets/css/screen-ie7.css" type="text/css"
rel="stylesheet" media="screen" /><![endif]-->
/*

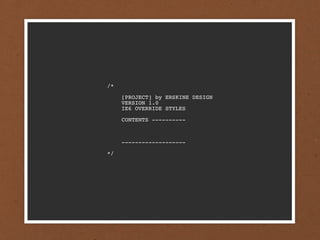

    [PROJECT] by ERSKINE DESIGN

    VERSION 1.0

    IE6 OVERRIDE STYLES


    CONTENTS ----------




    -------------------

*/

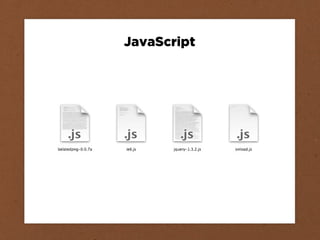

JavaScript
jQuery
belatedPNG

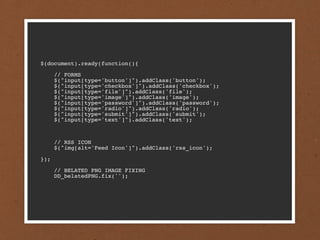

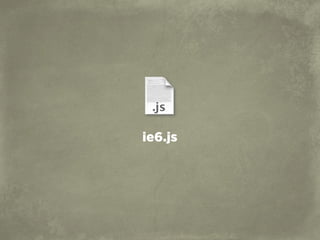

ie6.js
$(document).ready(function(){

      // FORMS
      $("input[type='button']").addClass('button');
      $("input[type='checkbox']").addClass('checkbox');
      $("input[type='file']").addClass('file');
      $("input[type='image']").addClass('image');
      $("input[type='password']").addClass('password');
      $("input[type='radio']").addClass('radio');
      $("input[type='submit']").addClass('submit');
      $("input[type='text']").addClass('text');



      // RSS ICON
      $("img[alt='Feed Icon']").addClass('rss_icon');

});

      // BELATED PNG IMAGE FIXING
      DD_belatedPNG.fix('');

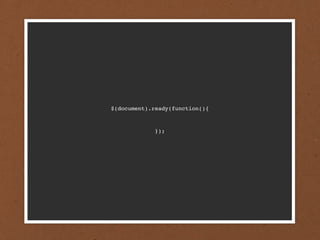

onload.js
$(document).ready(function(){



             });
Content management

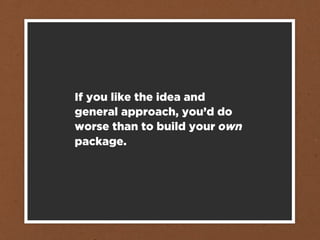

If you like the idea and
general approach, you’d do
worse than to build your own
package.
Our package isn’t publicly
available because it is ours -
bespoke, custom, built especially
for our purposes suiting our needs.

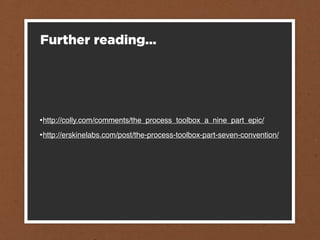

Further reading...




•http://colly.com/comments/the_process_toolbox_a_nine_part_epic/
•http://erskinelabs.com/post/the-process-toolbox-part-seven-convention/

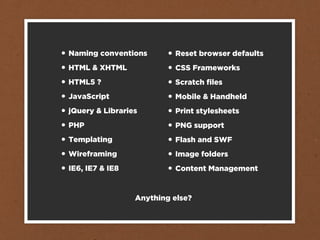

•   Naming conventions       •   Reset browser defaults
•   HTML & XHTML             •   CSS Frameworks
•   HTML5 ?                  •   Scratch files
•   JavaScript               •   Mobile & Handheld
•   jQuery & Libraries       •   Print stylesheets
•   PHP                      •   PNG support
•   Templating               •   Flash and SWF
•   Wireframing              •   Image folders
•   IE6, IE7 & IE8           •   Content Management


                     Anything else?
