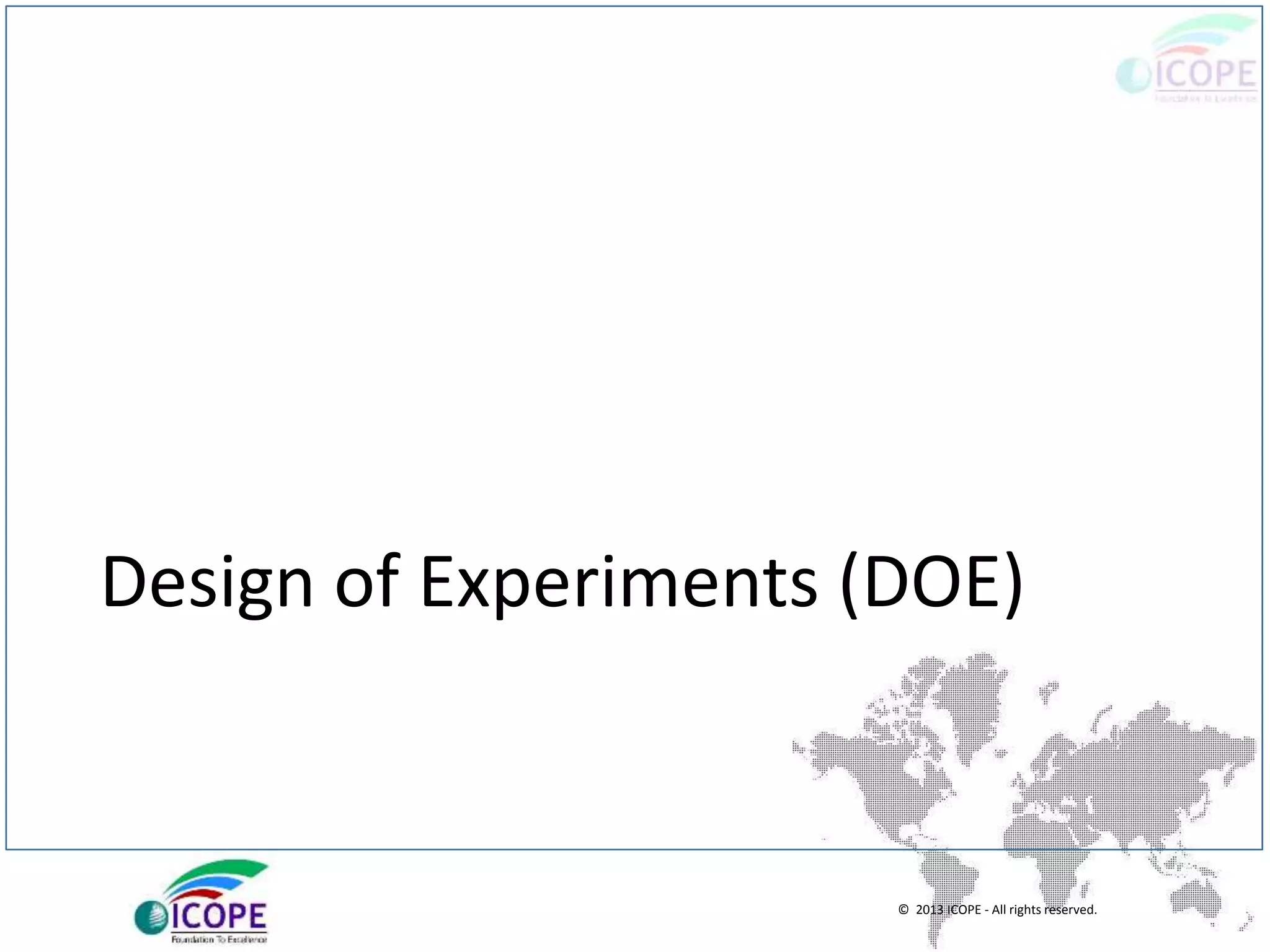

Design of Experiments (DOE)
© 2013 ICOPE - All rights reserved.

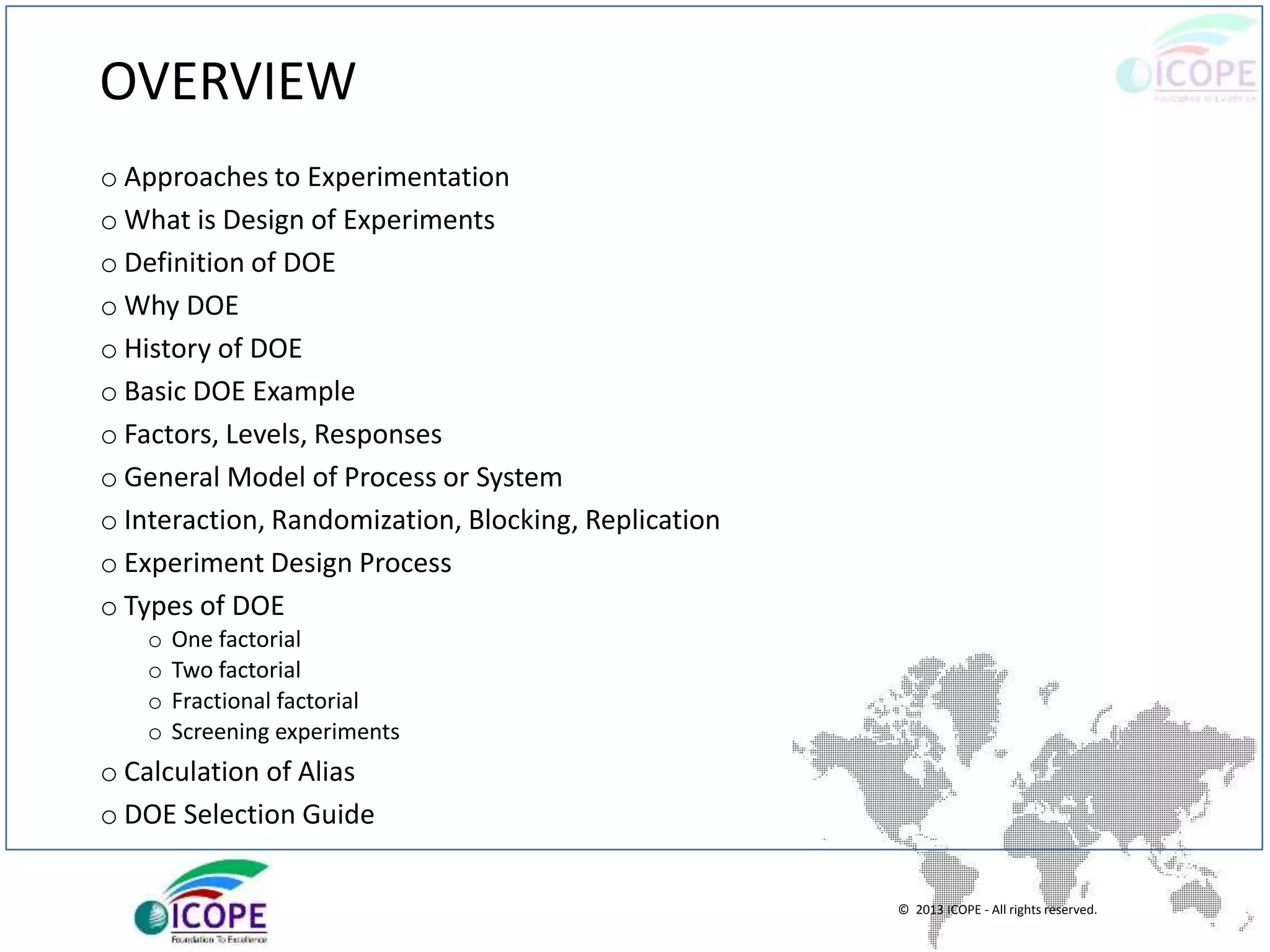

OVERVIEW
o Approaches to Experimentation
o What is Design of Experiments
o Definition of DOE
o Why DOE
o History of DOE
o Basic DOE Example
o Factors, Levels, Responses
o General Model of Process or System
o Interaction, Randomization, Blocking, Replication
o Experiment Design Process
o Types of DOE
o One factorial
o Two factorial
o Fractional factorial
o Screening experiments
o Calculation of Alias

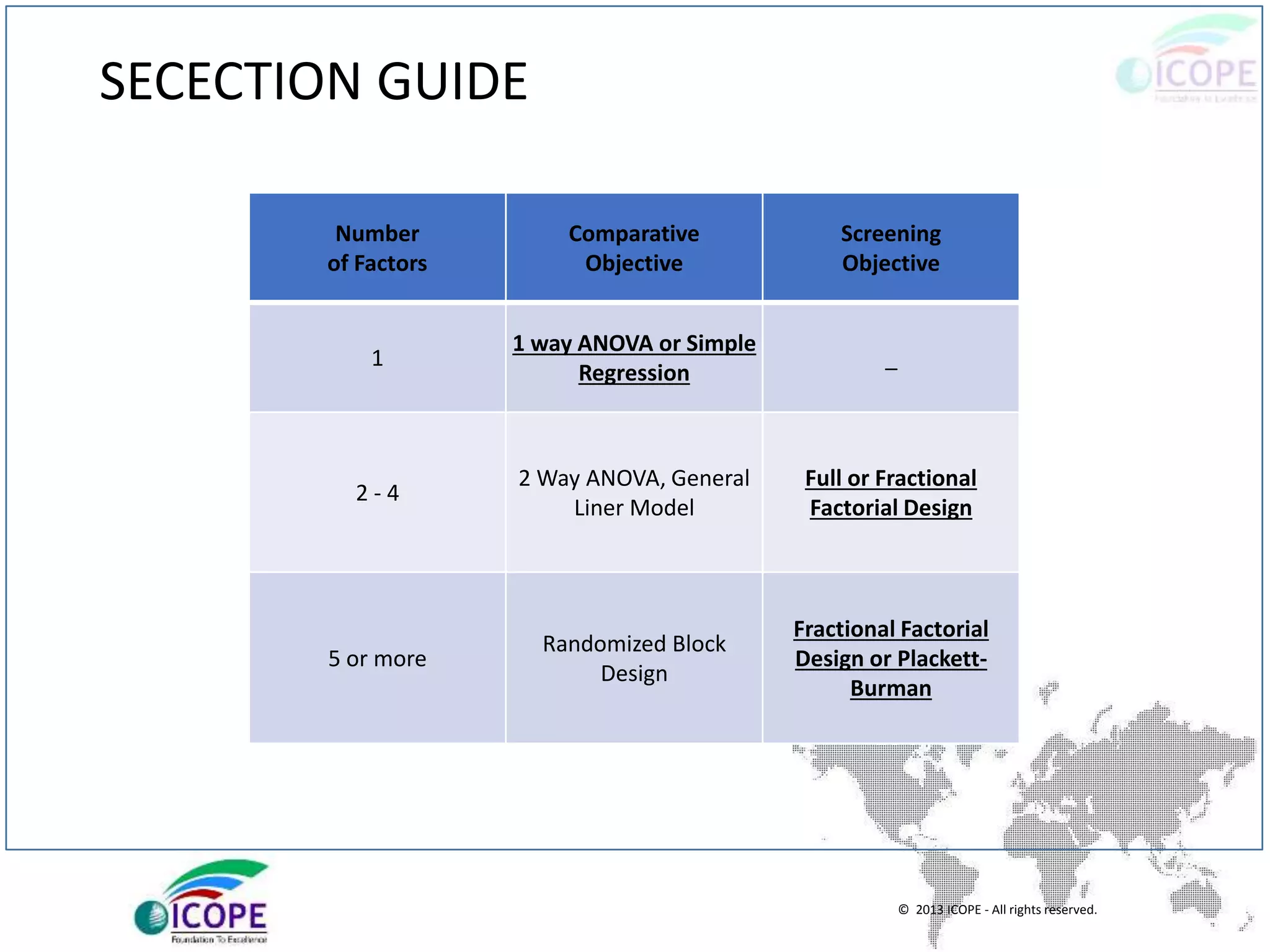

o DOE Selection Guide
© 2013 ICOPE - All rights reserved.

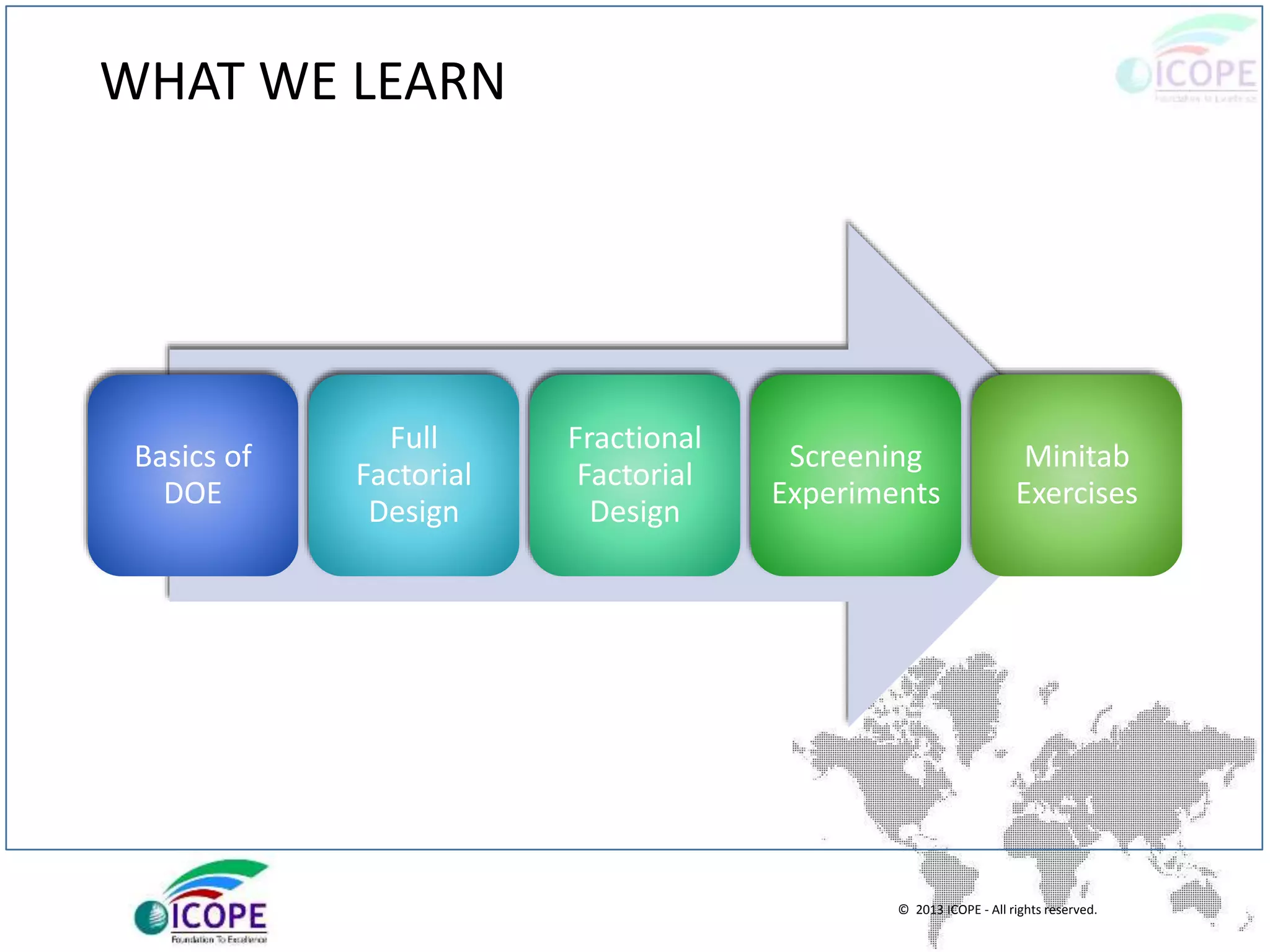

WHAT WE LEARN
Basics of
DOE
Full
Factorial
Design
Fractional
Factorial
Design
Screening
Experiments
Minitab
Exercises
© 2013 ICOPE - All rights reserved.

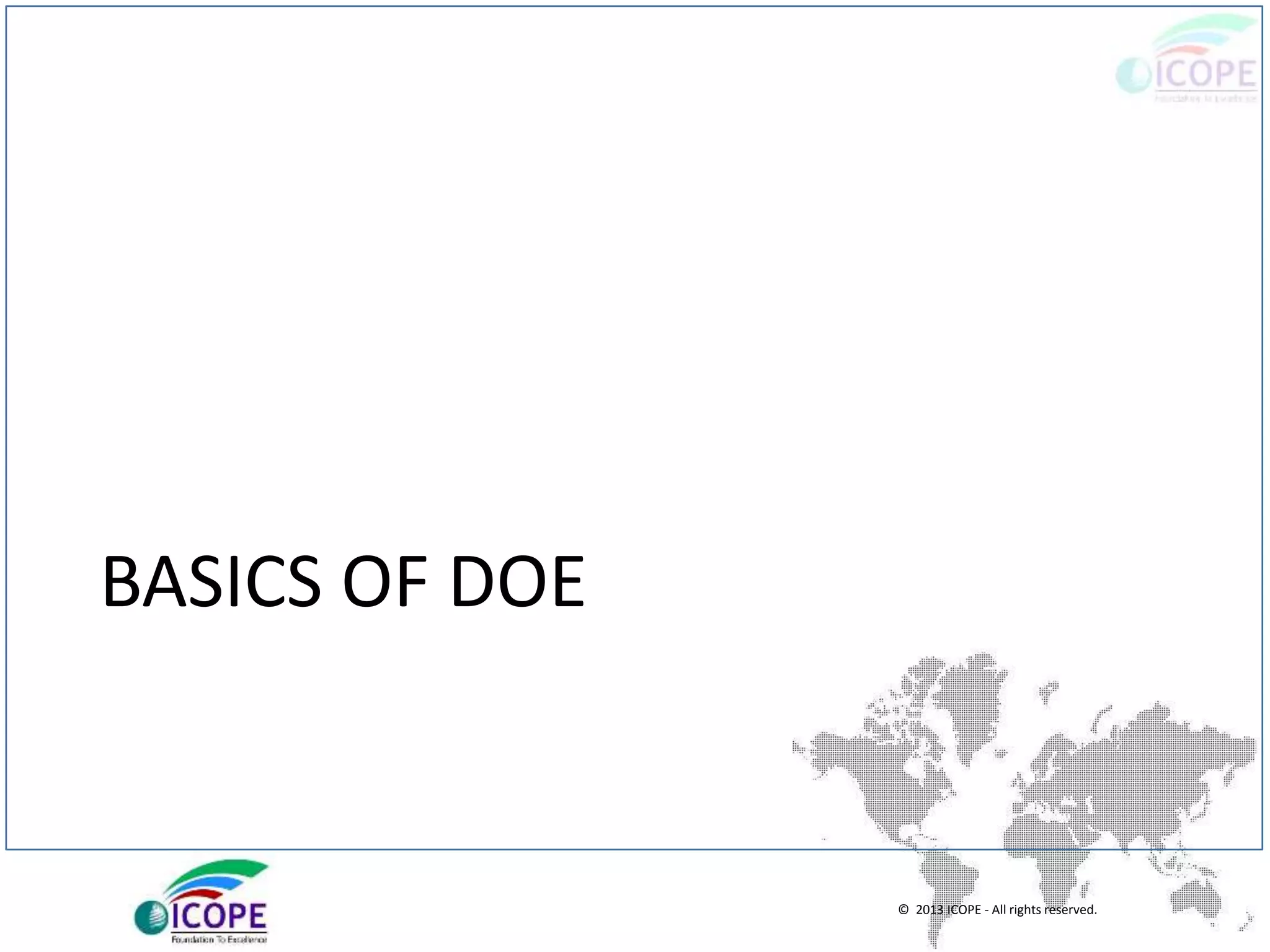

BASICS OF DOE
© 2013 ICOPE - All rights reserved.
APPROACHES TO EXPERIMENTATION
o Trail and Error Method
o One Factor at a Time
o Design of Experiments
© 2013 ICOPE - All rights reserved.
BASICS OF DOE

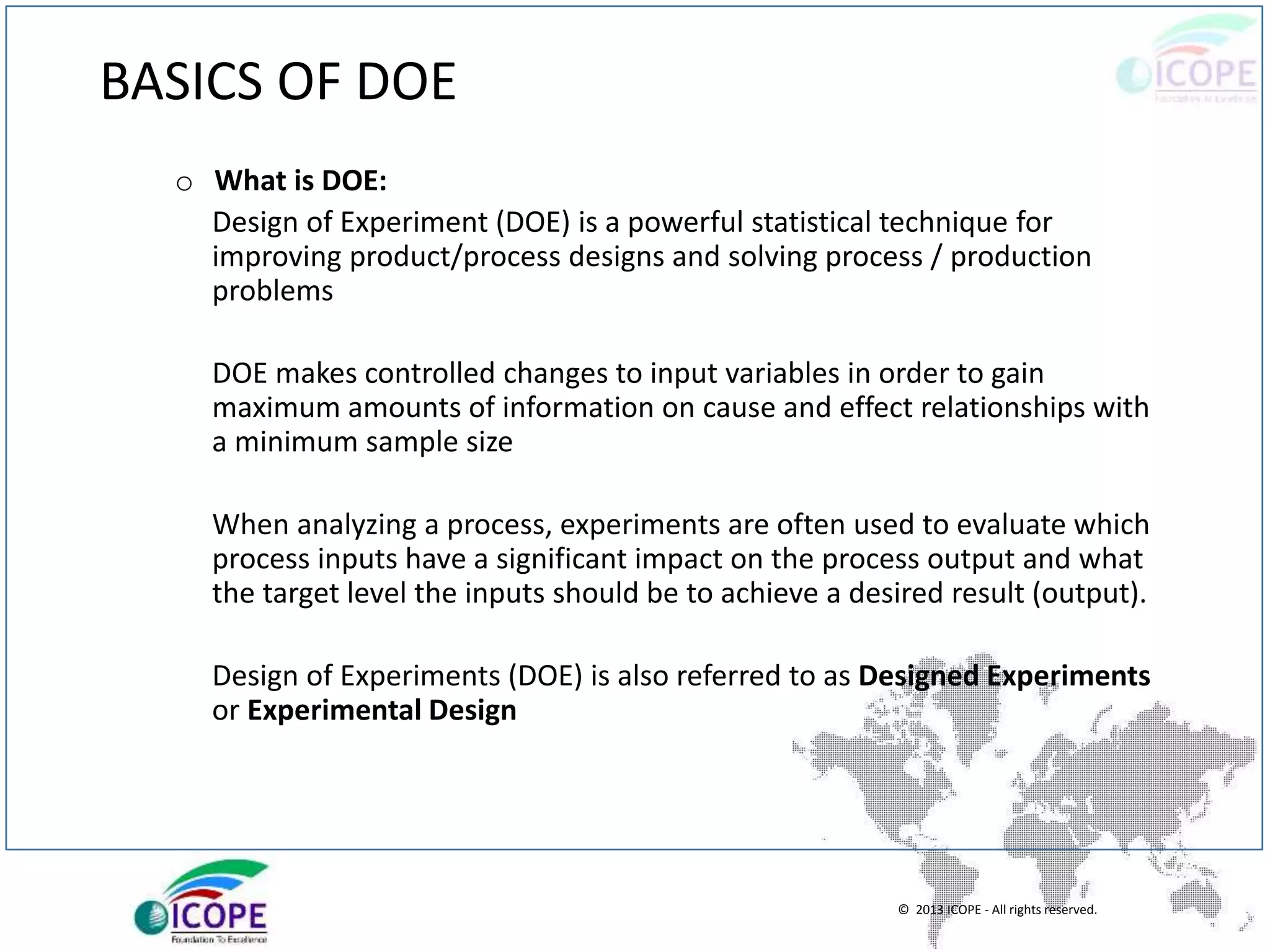

o What is DOE:
Design of Experiment (DOE) is a powerful statistical technique for
improving product/process designs and solving process / production
problems
DOE makes controlled changes to input variables in order to gain
maximum amounts of information on cause and effect relationships with
a minimum sample size
When analyzing a process, experiments are often used to evaluate which
process inputs have a significant impact on the process output and what
the target level the inputs should be to achieve a desired result (output).
Design of Experiments (DOE) is also referred to as Designed Experiments
or Experimental Design
© 2013 ICOPE - All rights reserved.
BASICS OF DOE

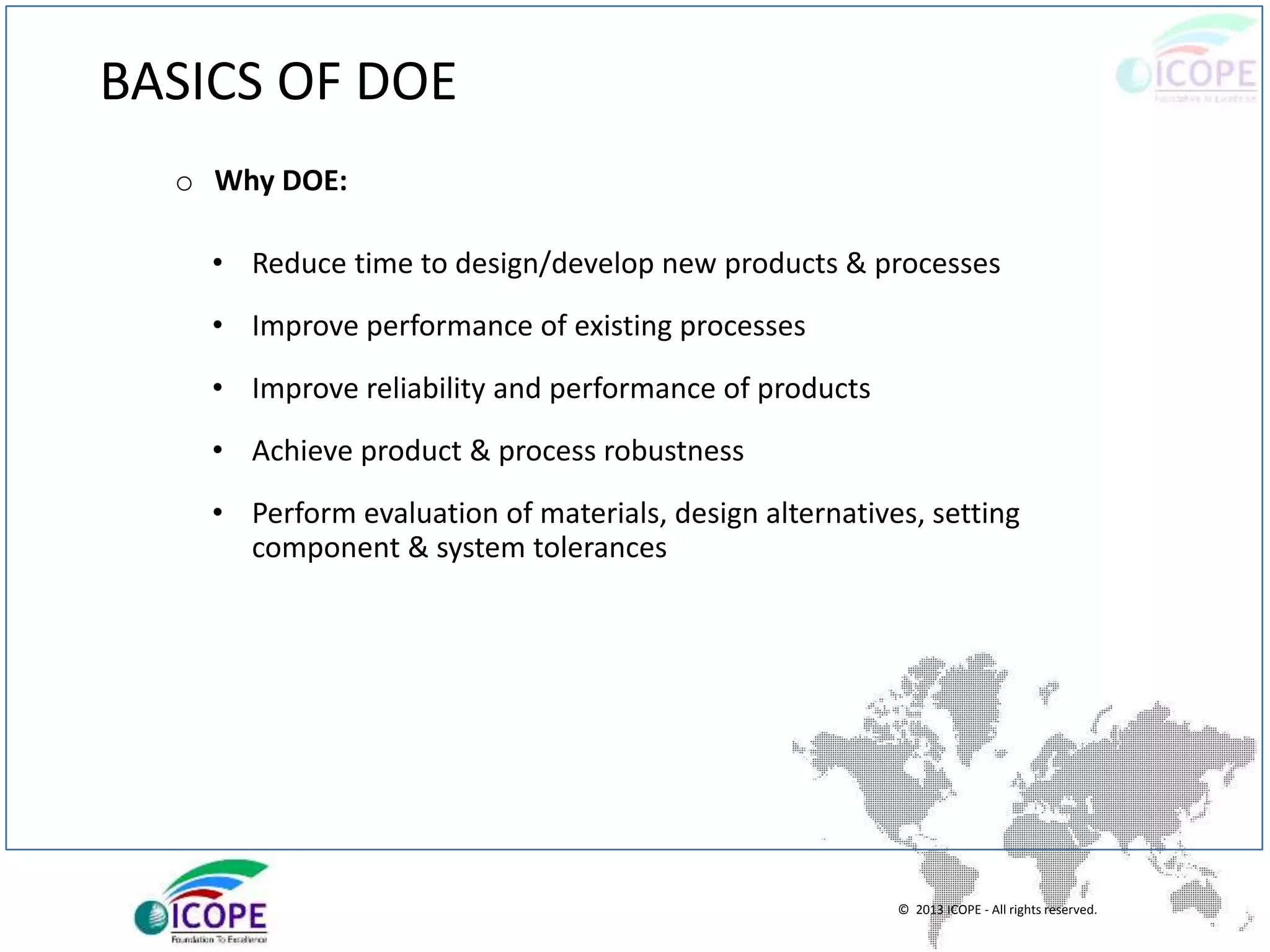

o Why DOE:
• Reduce time to design/develop new products & processes
• Improve performance of existing processes
• Improve reliability and performance of products
• Achieve product & process robustness
• Perform evaluation of materials, design alternatives, setting
component & system tolerances
© 2013 ICOPE - All rights reserved.

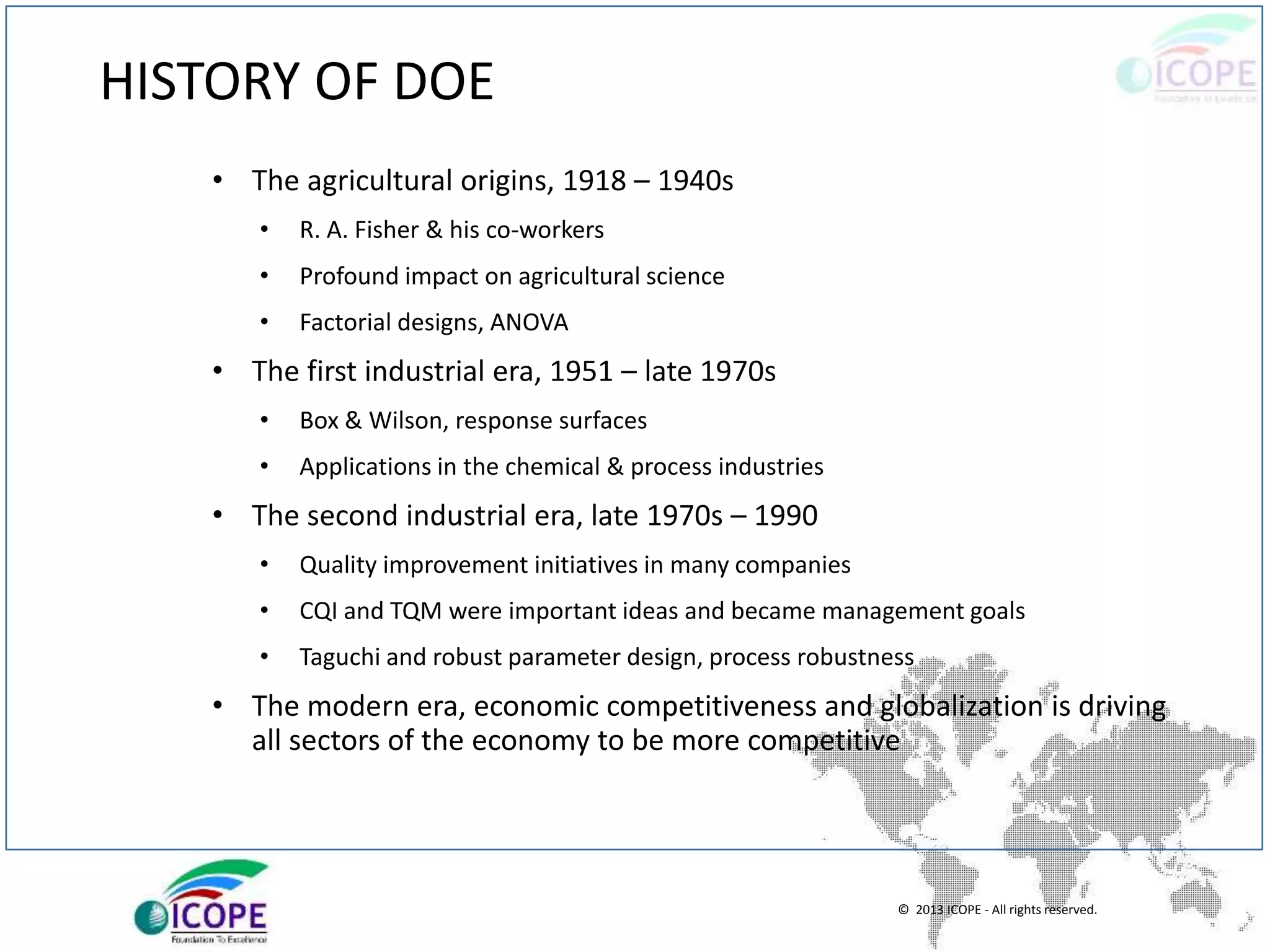

HISTORY OF DOE
• The agricultural origins, 1918 – 1940s
• R. A. Fisher & his co-workers
• Profound impact on agricultural science
• Factorial designs, ANOVA
• The first industrial era, 1951 – late 1970s
• Box & Wilson, response surfaces
• Applications in the chemical & process industries
• The second industrial era, late 1970s – 1990
• Quality improvement initiatives in many companies
• CQI and TQM were important ideas and became management goals
• Taguchi and robust parameter design, process robustness
• The modern era, economic competitiveness and globalization is driving
all sectors of the economy to be more competitive
© 2013 ICOPE - All rights reserved.
DOE EXAMPLE
© 2013 ICOPE - All rights reserved.

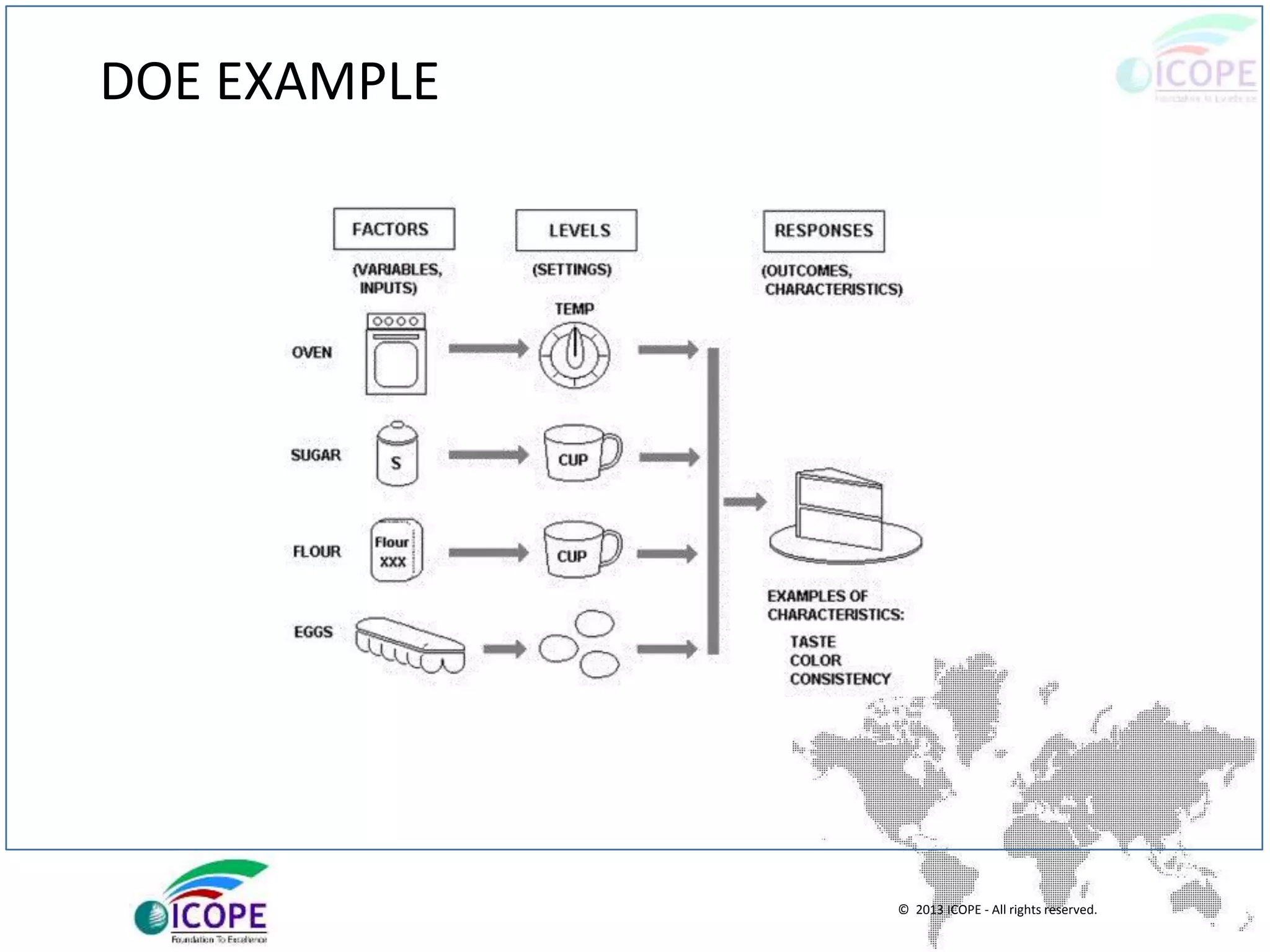

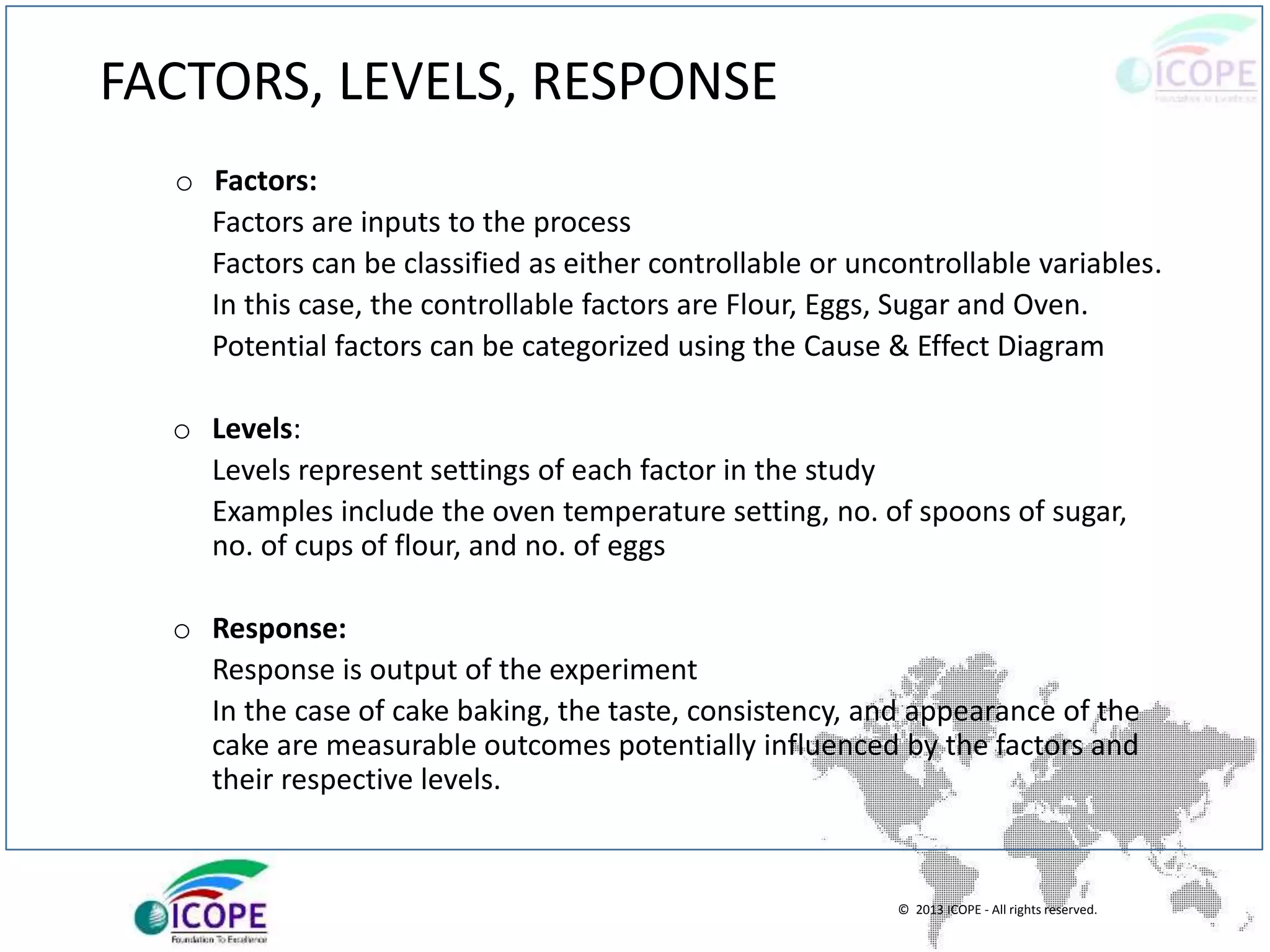

FACTORS, LEVELS, RESPONSE
o Factors:
Factors are inputs to the process
Factors can be classified as either controllable or uncontrollable variables.
In this case, the controllable factors are Flour, Eggs, Sugar and Oven.
Potential factors can be categorized using the Cause & Effect Diagram
o Levels:
Levels represent settings of each factor in the study
Examples include the oven temperature setting, no. of spoons of sugar,
no. of cups of flour, and no. of eggs
o Response:
Response is output of the experiment
In the case of cake baking, the taste, consistency, and appearance of the
cake are measurable outcomes potentially influenced by the factors and
their respective levels.
© 2013 ICOPE - All rights reserved.

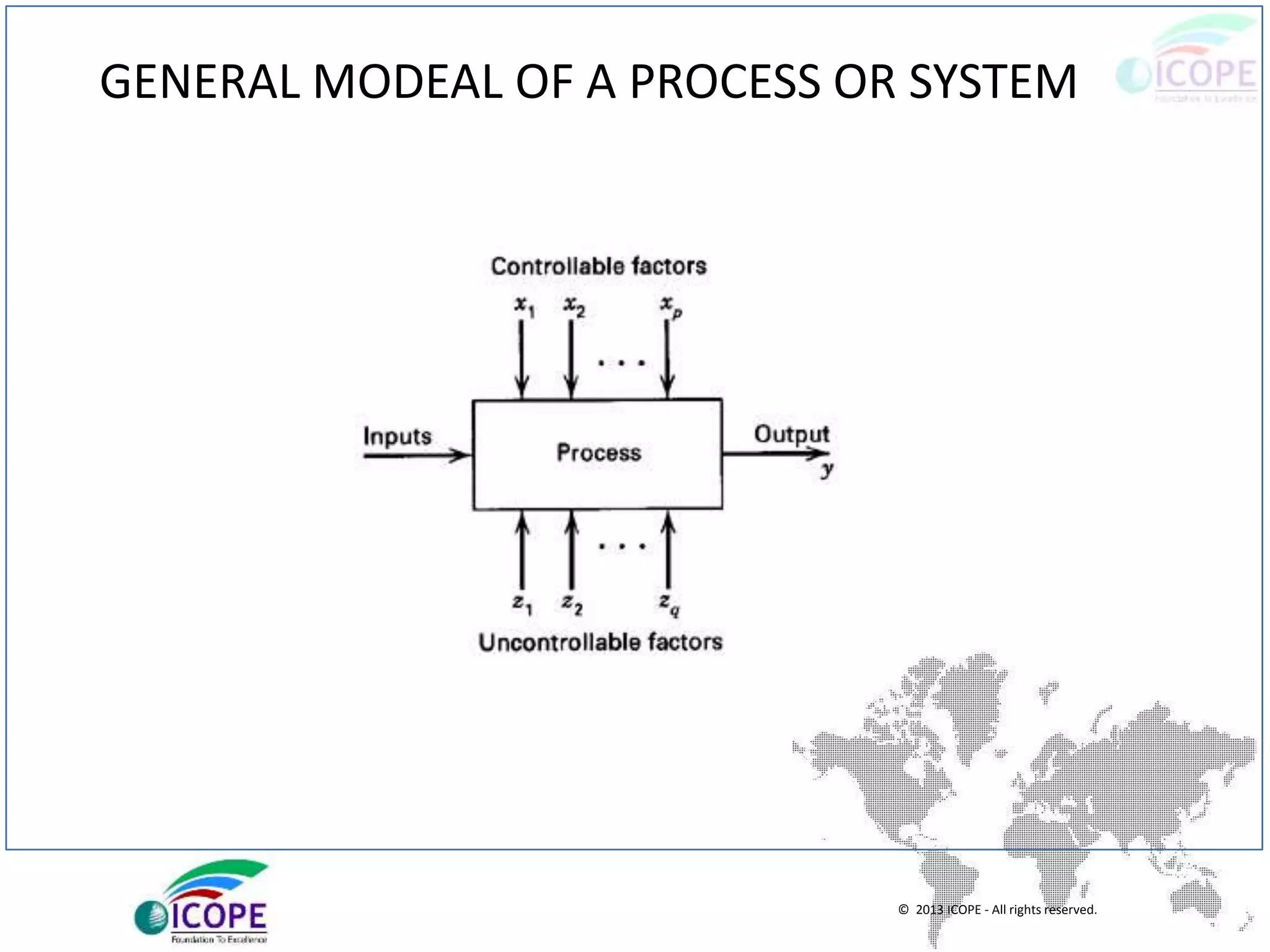

GENERAL MODEAL OF A PROCESS OR SYSTEM
© 2013 ICOPE - All rights reserved.

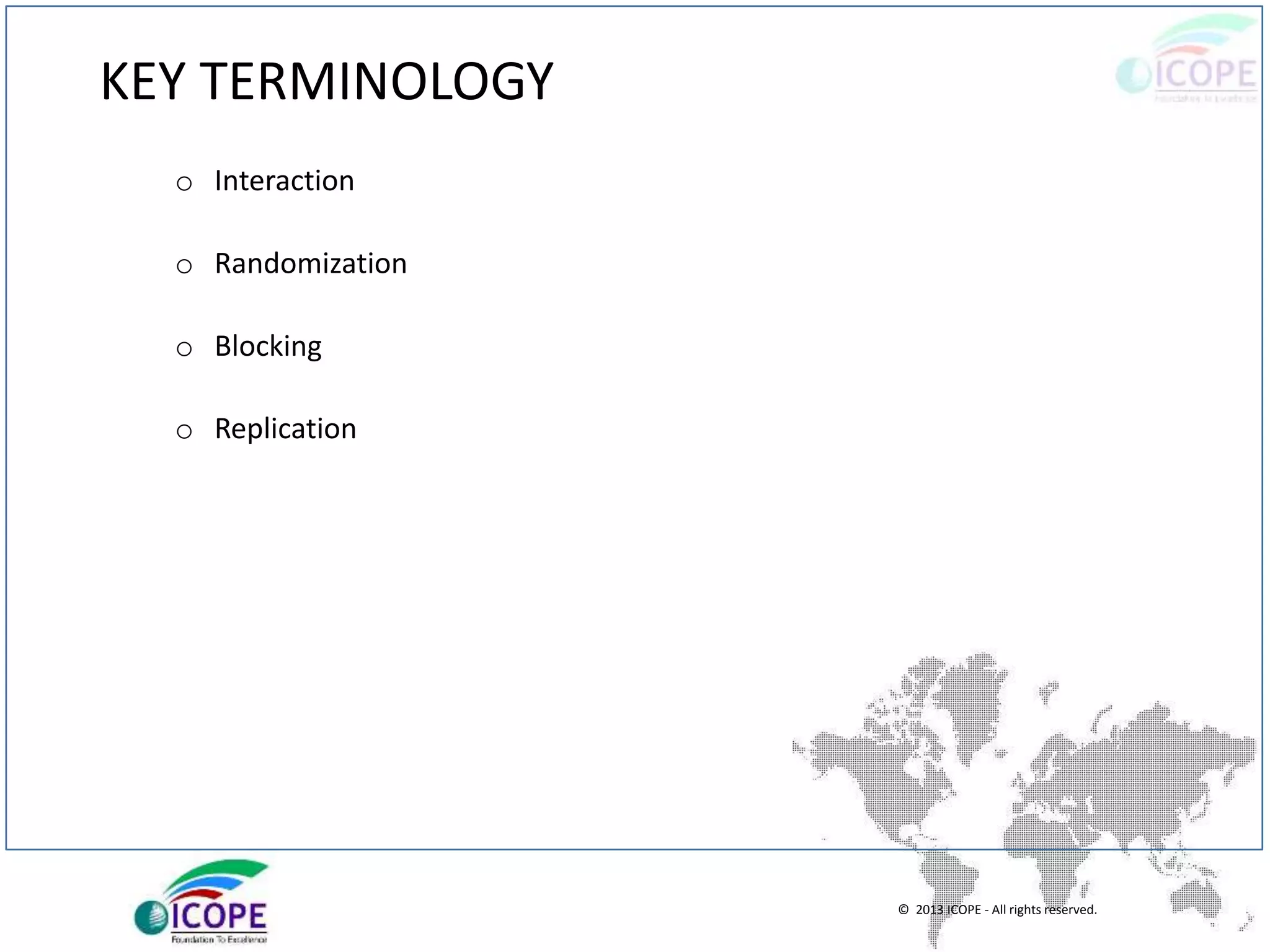

KEY TERMINOLOGY
o Interaction
o Randomization
o Blocking
o Replication
© 2013 ICOPE - All rights reserved.

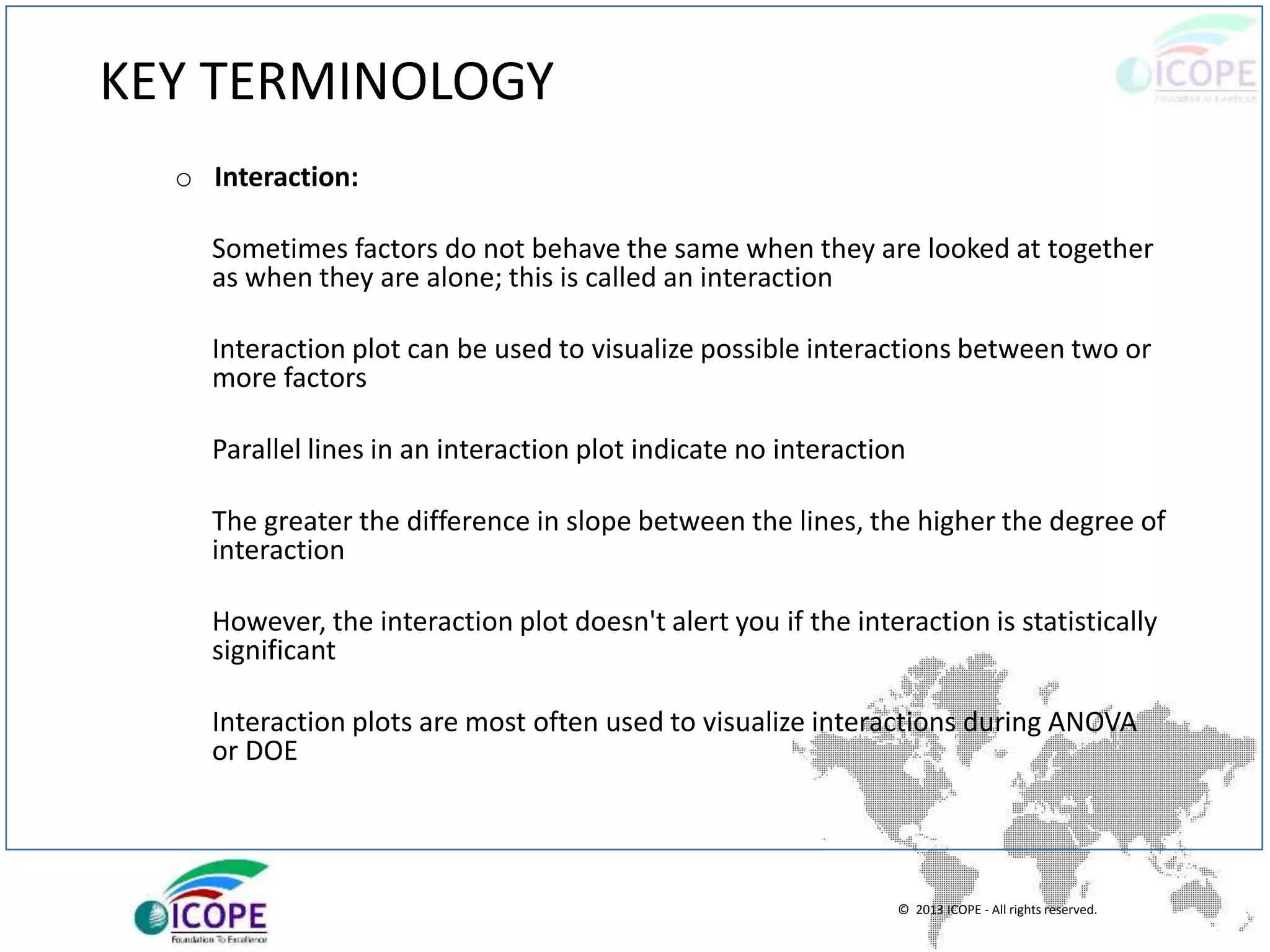

KEY TERMINOLOGY
o Interaction:
Sometimes factors do not behave the same when they are looked at together
as when they are alone; this is called an interaction
Interaction plot can be used to visualize possible interactions between two or
more factors
Parallel lines in an interaction plot indicate no interaction
The greater the difference in slope between the lines, the higher the degree of
interaction
However, the interaction plot doesn't alert you if the interaction is statistically
significant
Interaction plots are most often used to visualize interactions during ANOVA
or DOE
© 2013 ICOPE - All rights reserved.
KEY TERMINOLOGY

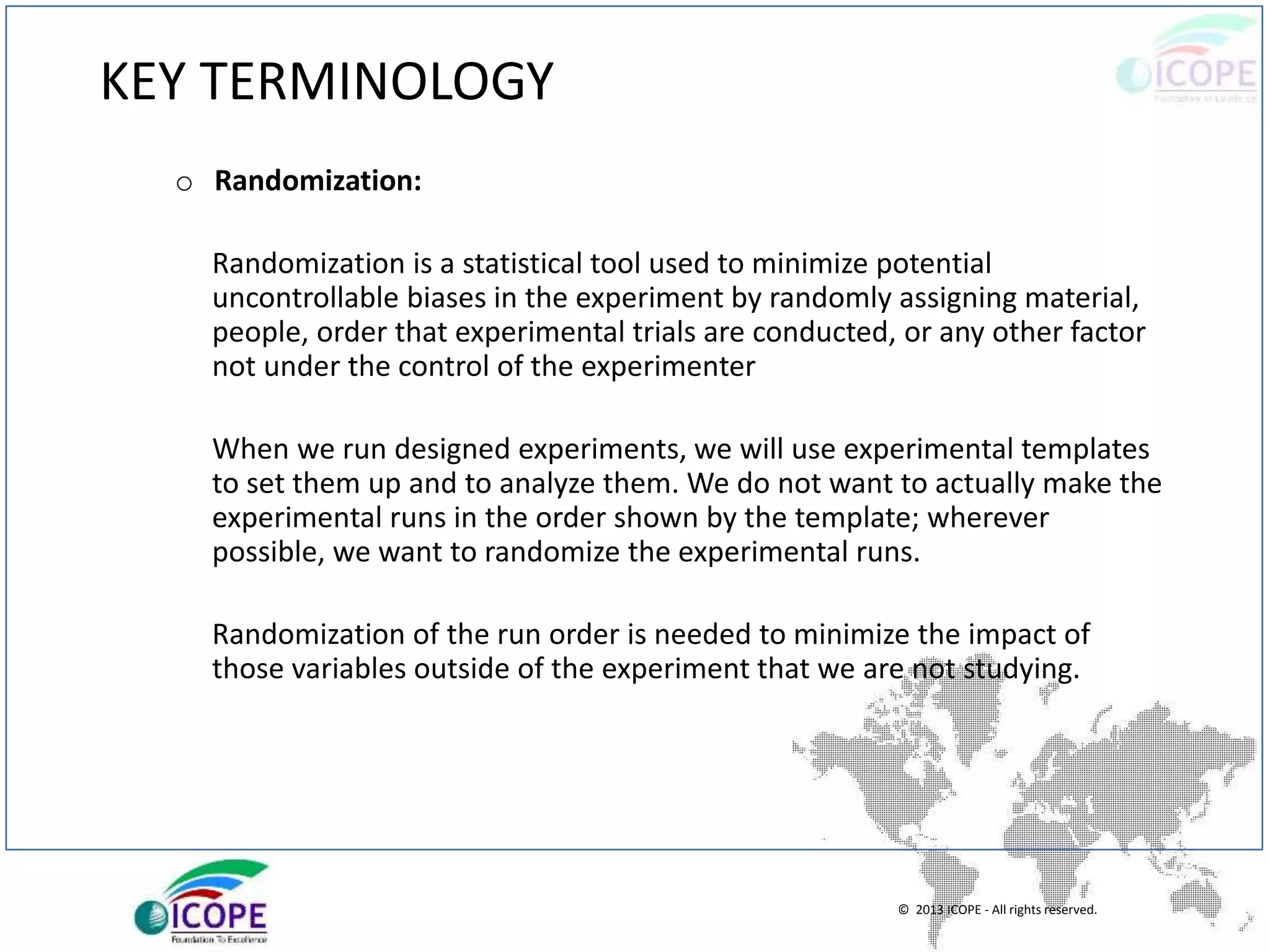

o Randomization:
Randomization is a statistical tool used to minimize potential
uncontrollable biases in the experiment by randomly assigning material,
people, order that experimental trials are conducted, or any other factor
not under the control of the experimenter
When we run designed experiments, we will use experimental templates
to set them up and to analyze them. We do not want to actually make the
experimental runs in the order shown by the template; wherever
possible, we want to randomize the experimental runs.
Randomization of the run order is needed to minimize the impact of
those variables outside of the experiment that we are not studying.
© 2013 ICOPE - All rights reserved.
KEY TERMINOLOGY

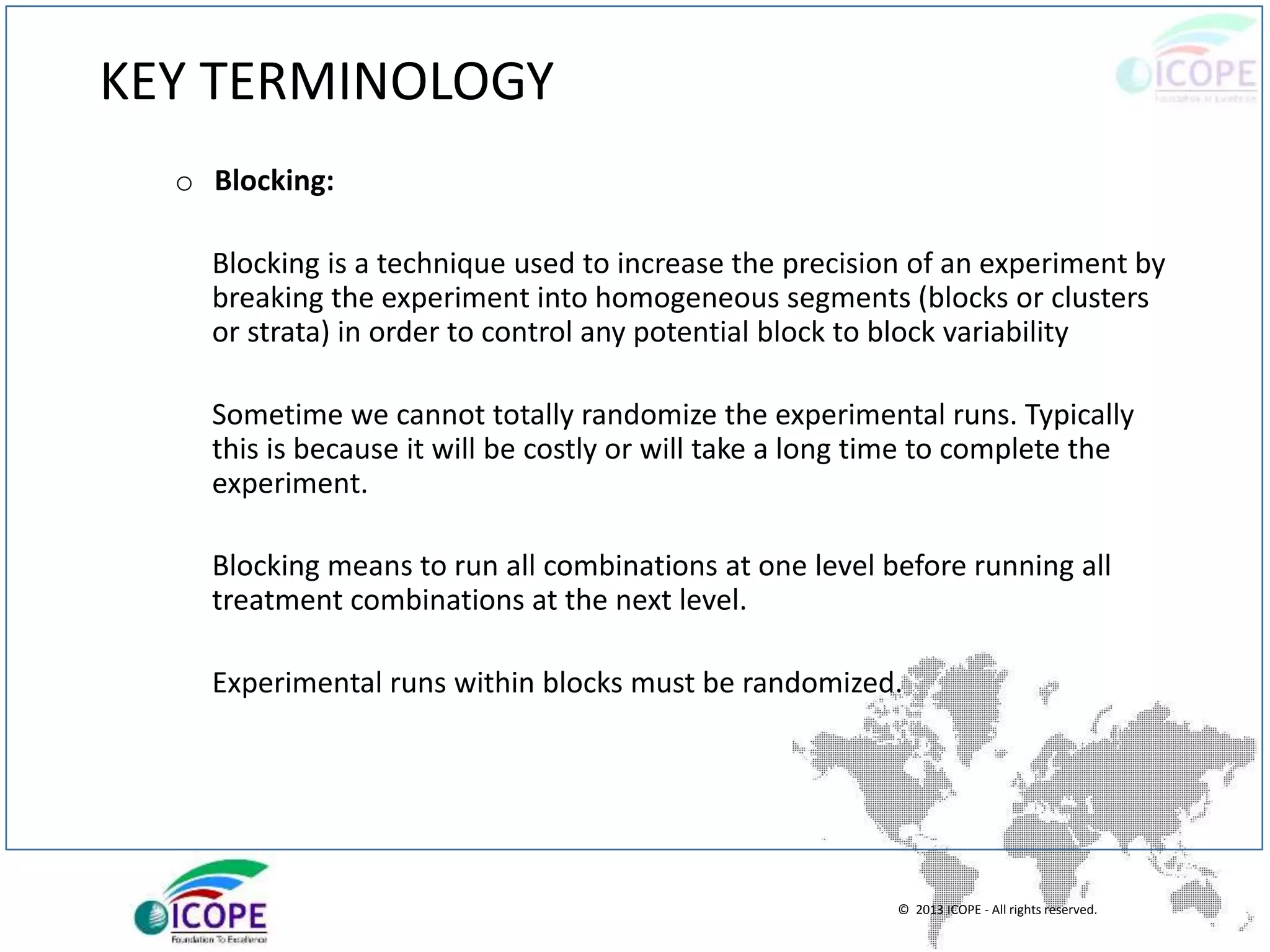

o Blocking:
Blocking is a technique used to increase the precision of an experiment by
breaking the experiment into homogeneous segments (blocks or clusters
or strata) in order to control any potential block to block variability
Sometime we cannot totally randomize the experimental runs. Typically
this is because it will be costly or will take a long time to complete the
experiment.
Blocking means to run all combinations at one level before running all
treatment combinations at the next level.
Experimental runs within blocks must be randomized.
© 2013 ICOPE - All rights reserved.
KEY TERMINOLOGY

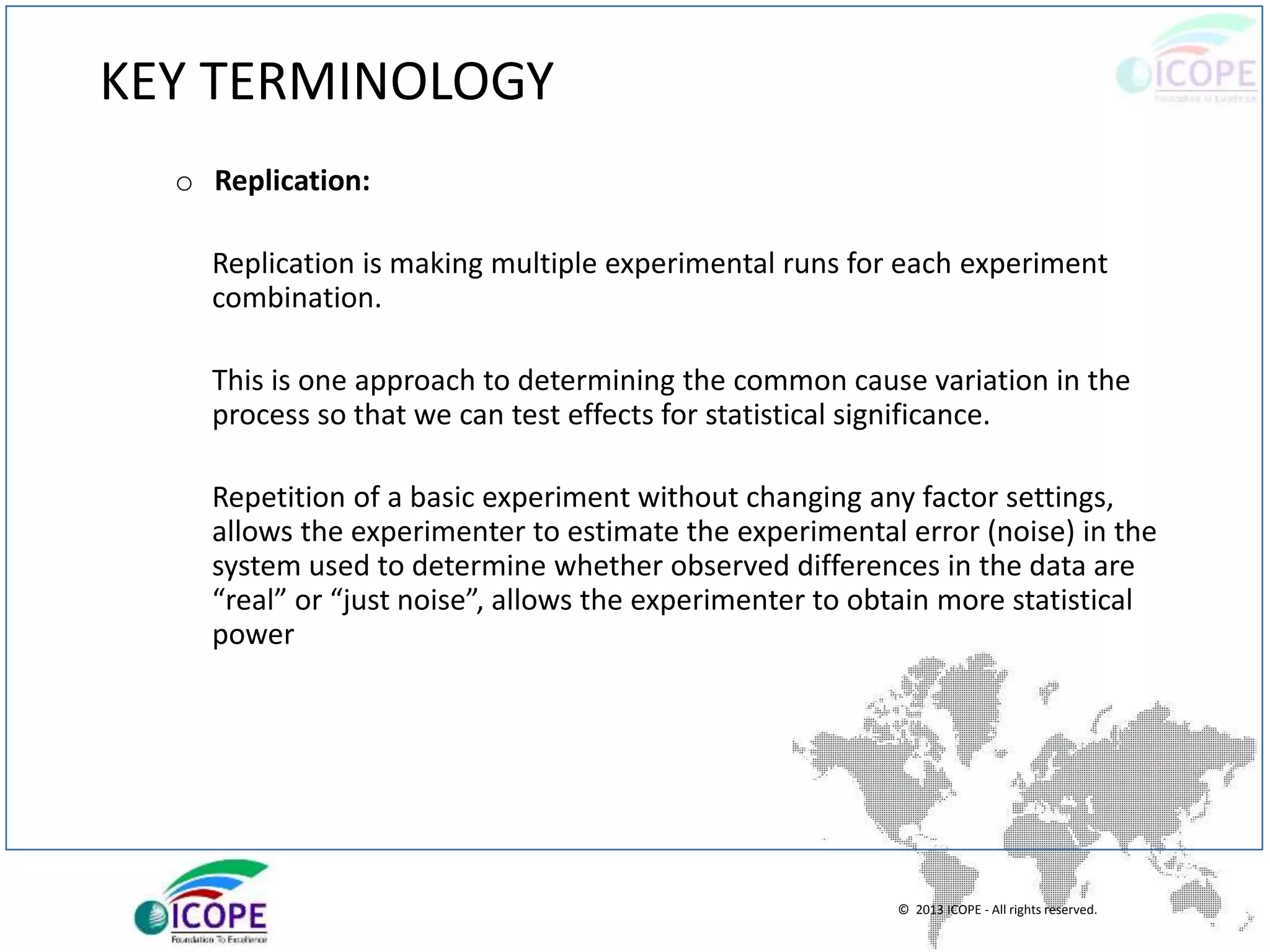

o Replication:
Replication is making multiple experimental runs for each experiment
combination.
This is one approach to determining the common cause variation in the
process so that we can test effects for statistical significance.
Repetition of a basic experiment without changing any factor settings,
allows the experimenter to estimate the experimental error (noise) in the
system used to determine whether observed differences in the data are
“real” or “just noise”, allows the experimenter to obtain more statistical
power
© 2013 ICOPE - All rights reserved.
EXPERIMENT DESIGN PROCESS
© 2013 ICOPE - All rights reserved.

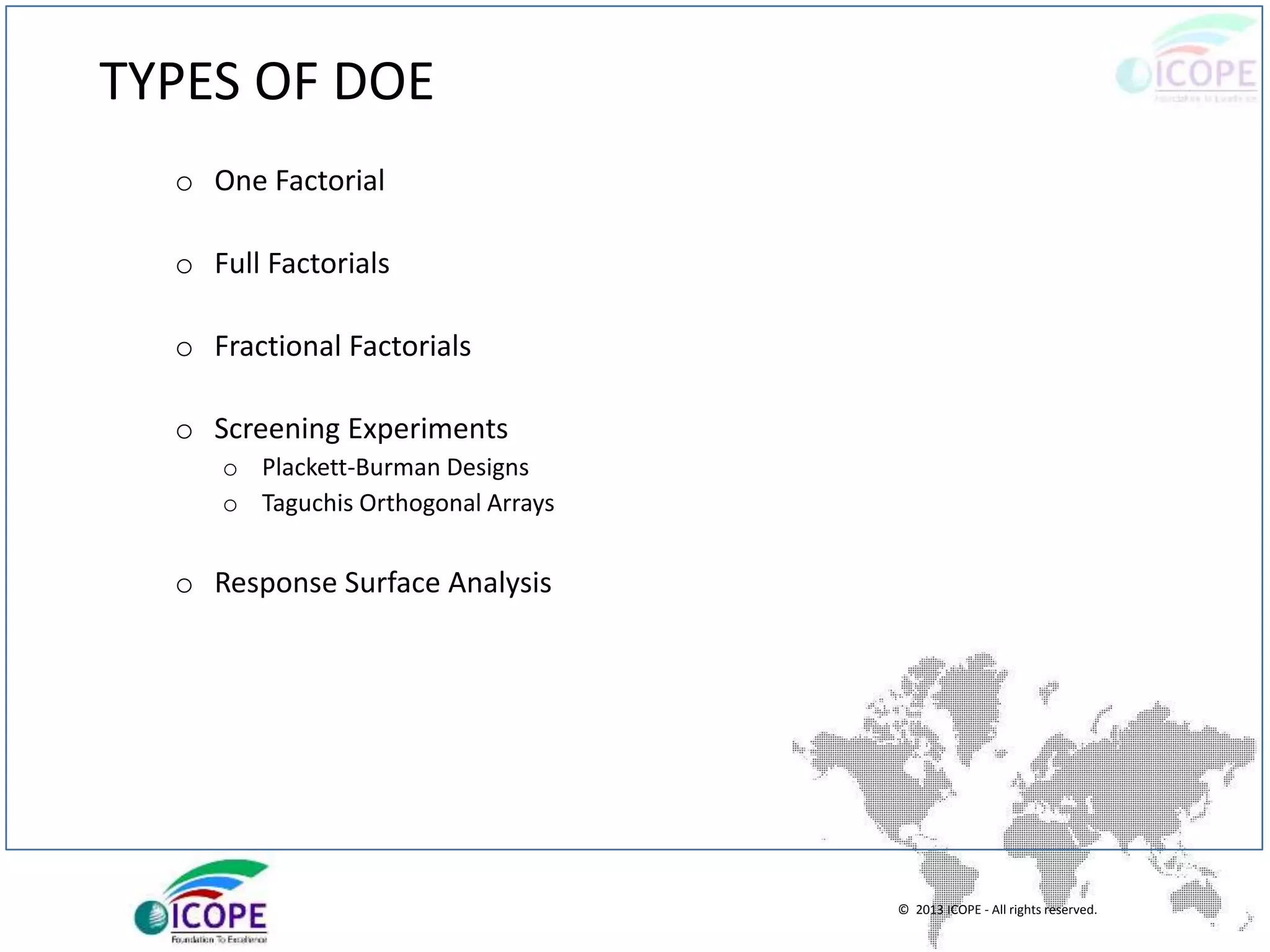

TYPES OF DOE
o One Factorial
o Full Factorials
o Fractional Factorials
o Screening Experiments
o Plackett-Burman Designs
o Taguchis Orthogonal Arrays
o Response Surface Analysis
© 2013 ICOPE - All rights reserved.

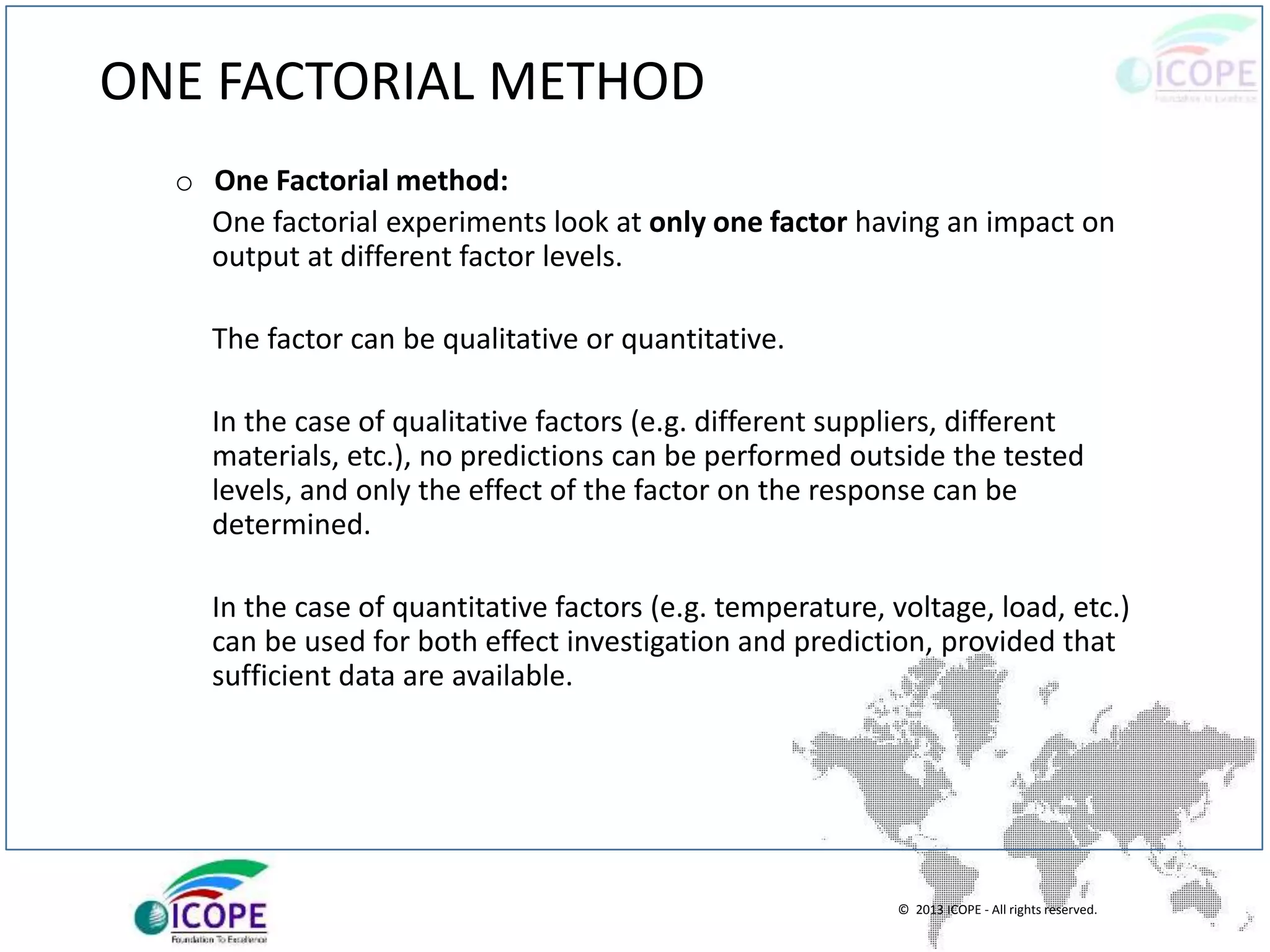

ONE FACTORIAL METHOD
o One Factorial method:
One factorial experiments look at only one factor having an impact on
output at different factor levels.
The factor can be qualitative or quantitative.
In the case of qualitative factors (e.g. different suppliers, different
materials, etc.), no predictions can be performed outside the tested
levels, and only the effect of the factor on the response can be
determined.
In the case of quantitative factors (e.g. temperature, voltage, load, etc.)
can be used for both effect investigation and prediction, provided that
sufficient data are available.
© 2013 ICOPE - All rights reserved.
ONE FACTORIAL METHOD

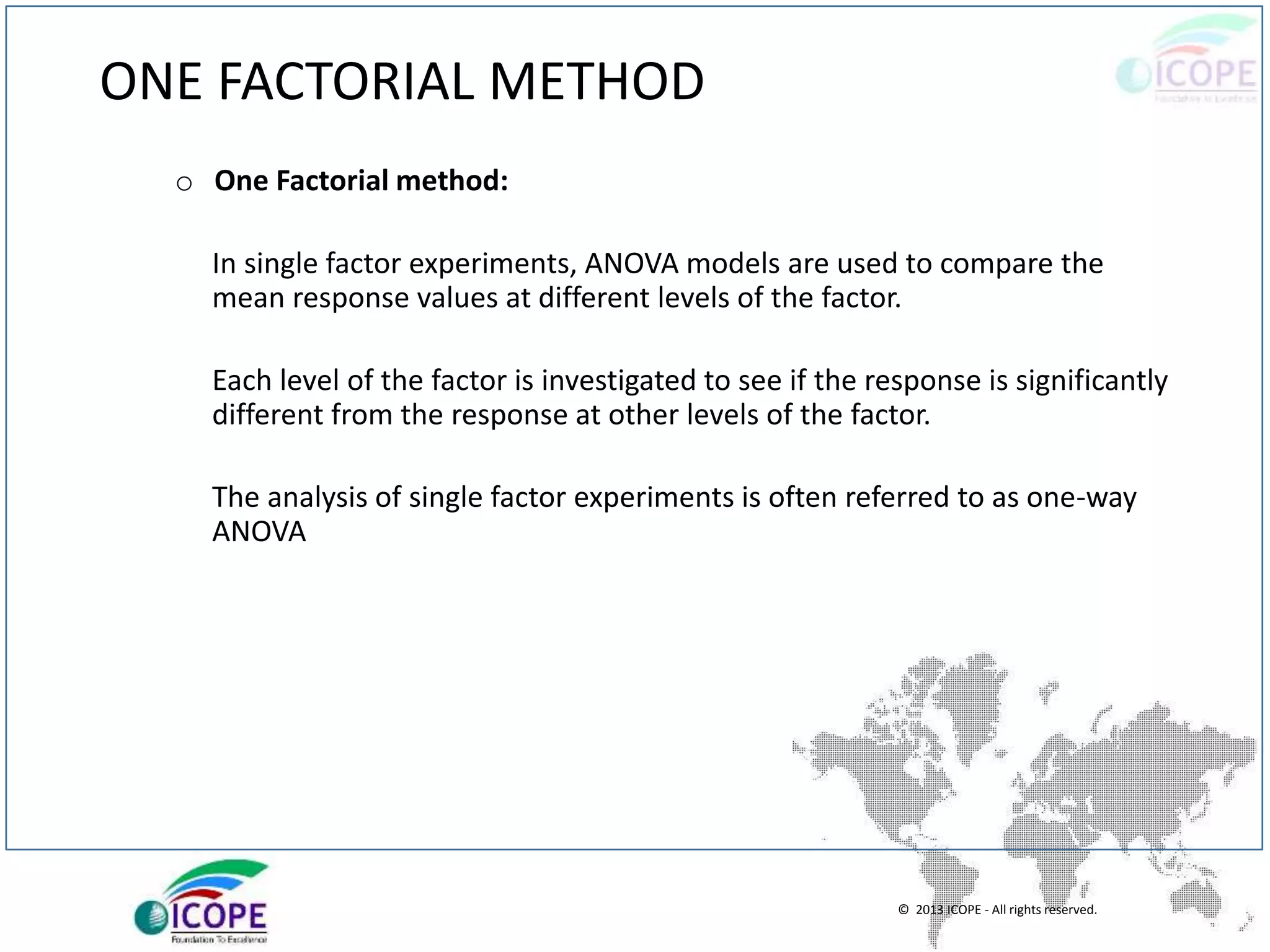

o One Factorial method:
In single factor experiments, ANOVA models are used to compare the
mean response values at different levels of the factor.
Each level of the factor is investigated to see if the response is significantly
different from the response at other levels of the factor.
The analysis of single factor experiments is often referred to as one-way
ANOVA
© 2013 ICOPE - All rights reserved.
ONE FACTORIAL METHOD
o One Factorial method:

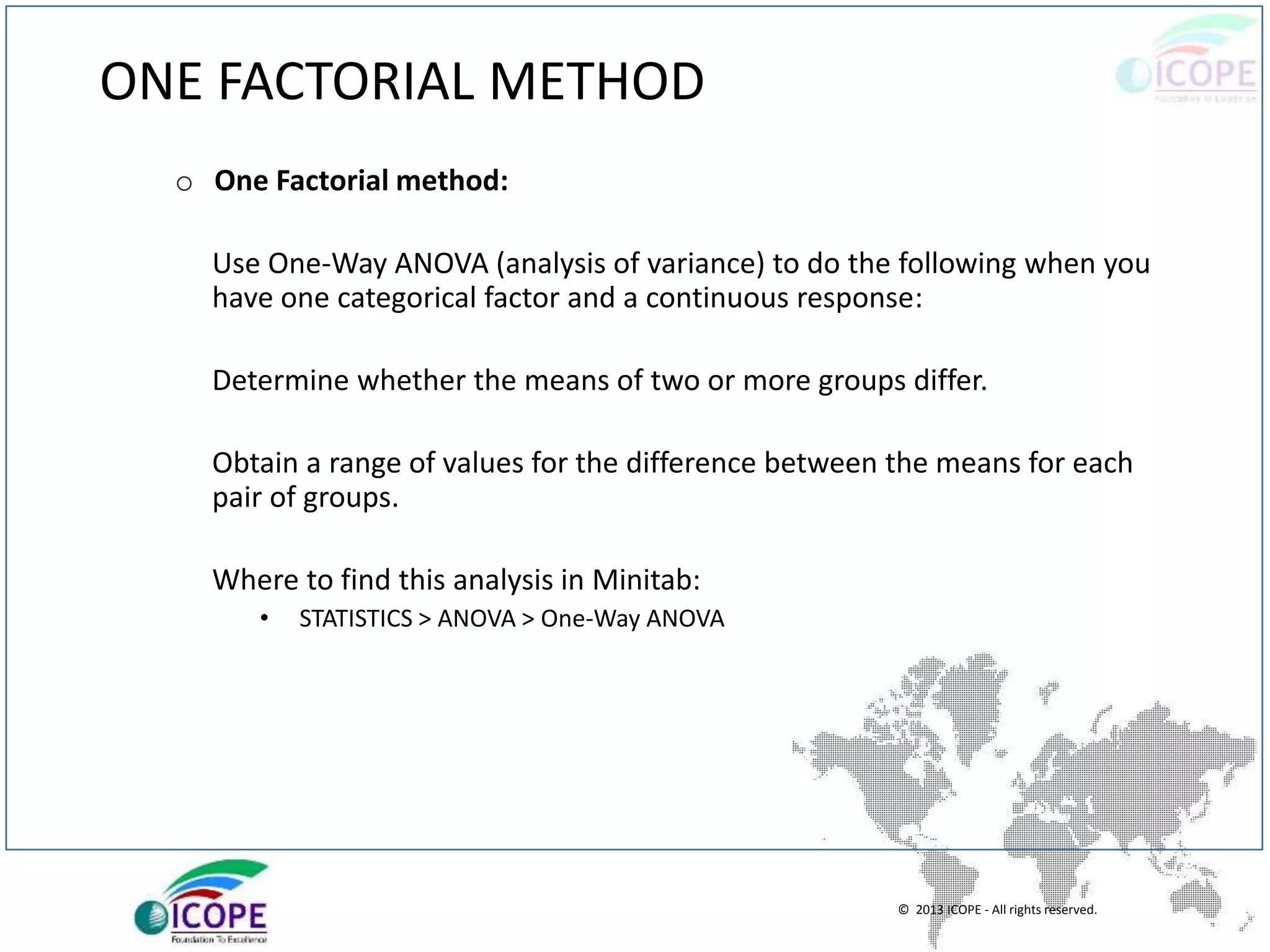

Use One-Way ANOVA (analysis of variance) to do the following when you
have one categorical factor and a continuous response:
Determine whether the means of two or more groups differ.
Obtain a range of values for the difference between the means for each
pair of groups.
Where to find this analysis in Minitab:
• STATISTICS > ANOVA > One-Way ANOVA
© 2013 ICOPE - All rights reserved.

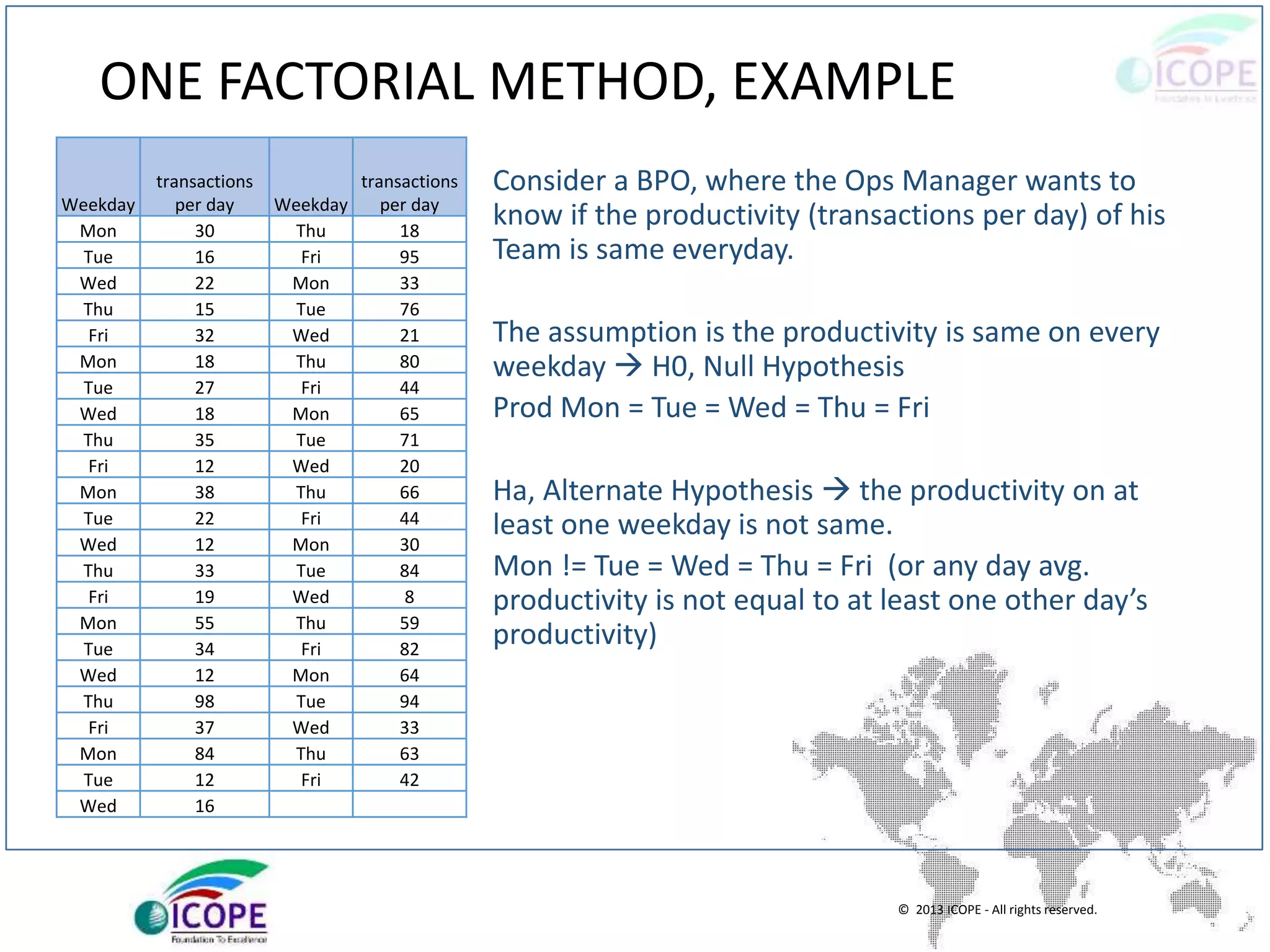

ONE FACTORIAL METHOD, EXAMPLE
Consider a BPO, where the Ops Manager wants to
know if the productivity (transactions per day) of his
Team is same everyday.
The assumption is the productivity is same on every
weekday  H0, Null Hypothesis
Prod Mon = Tue = Wed = Thu = Fri
Ha, Alternate Hypothesis  the productivity on at
least one weekday is not same.
Mon != Tue = Wed = Thu = Fri (or any day avg.
productivity is not equal to at least one other day’s
productivity)
Weekday
transactions
per day Weekday
transactions
per day
Mon 30 Thu 18
Tue 16 Fri 95
Wed 22 Mon 33
Thu 15 Tue 76
Fri 32 Wed 21
Mon 18 Thu 80
Tue 27 Fri 44
Wed 18 Mon 65
Thu 35 Tue 71
Fri 12 Wed 20
Mon 38 Thu 66
Tue 22 Fri 44
Wed 12 Mon 30
Thu 33 Tue 84
Fri 19 Wed 8
Mon 55 Thu 59
Tue 34 Fri 82
Wed 12 Mon 64
Thu 98 Tue 94
Fri 37 Wed 33
Mon 84 Thu 63
Tue 12 Fri 42
Wed 16
© 2013 ICOPE - All rights reserved.

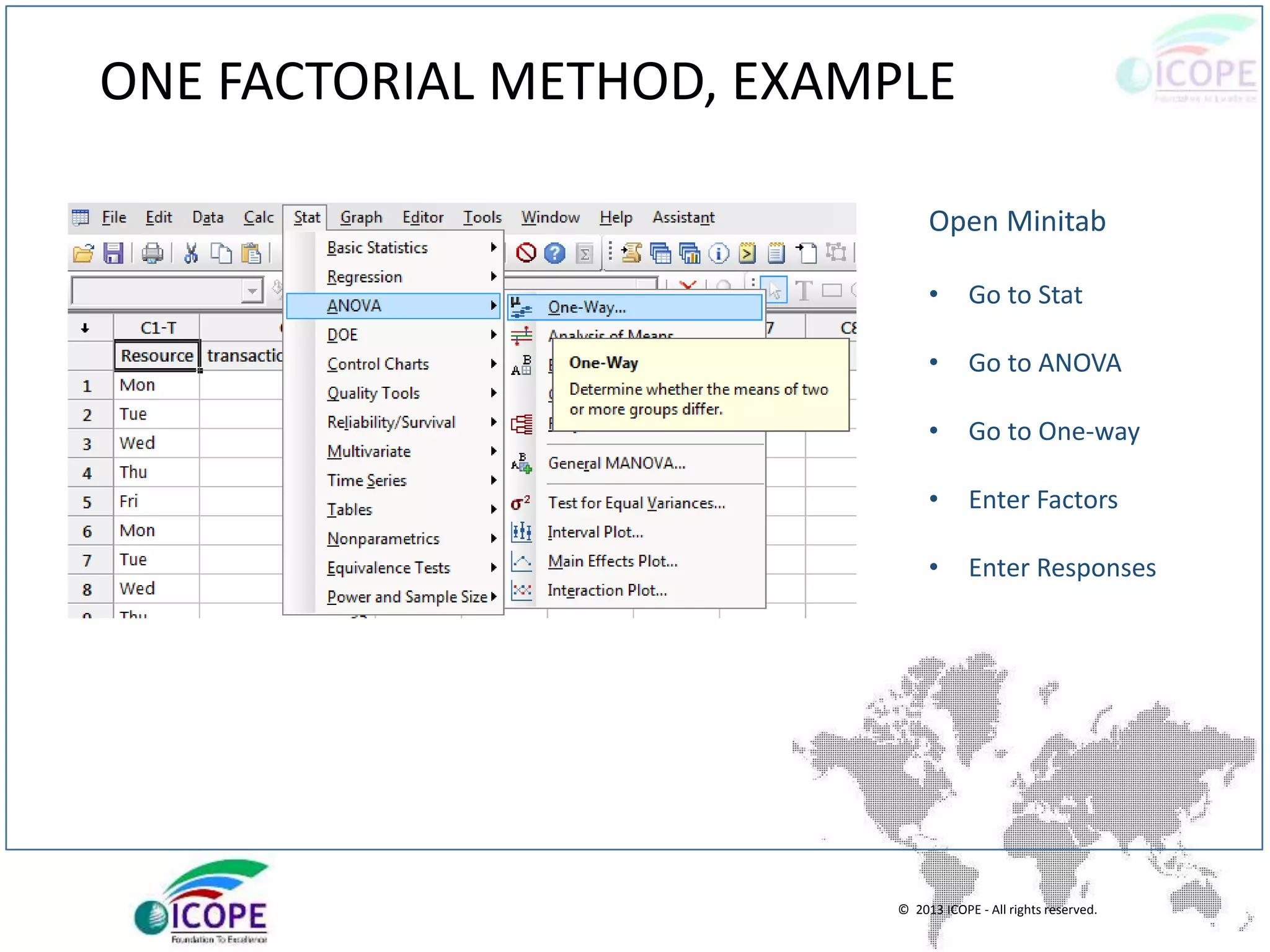

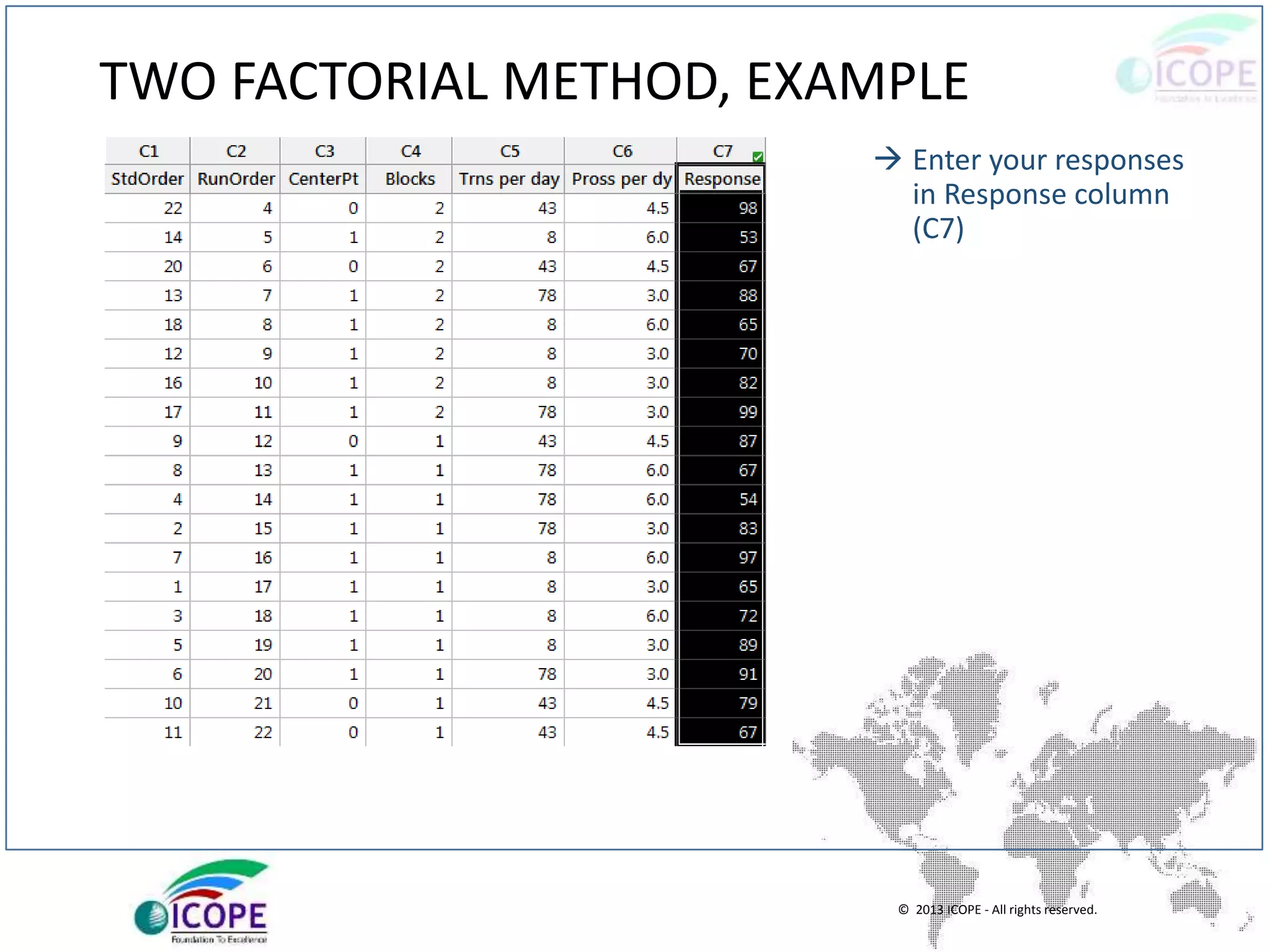

ONE FACTORIAL METHOD, EXAMPLE
Open Minitab
• Go to Stat
• Go to ANOVA
• Go to One-way
• Enter Factors
• Enter Responses
© 2013 ICOPE - All rights reserved.
ONE FACTORIAL METHOD, EXAMPLE

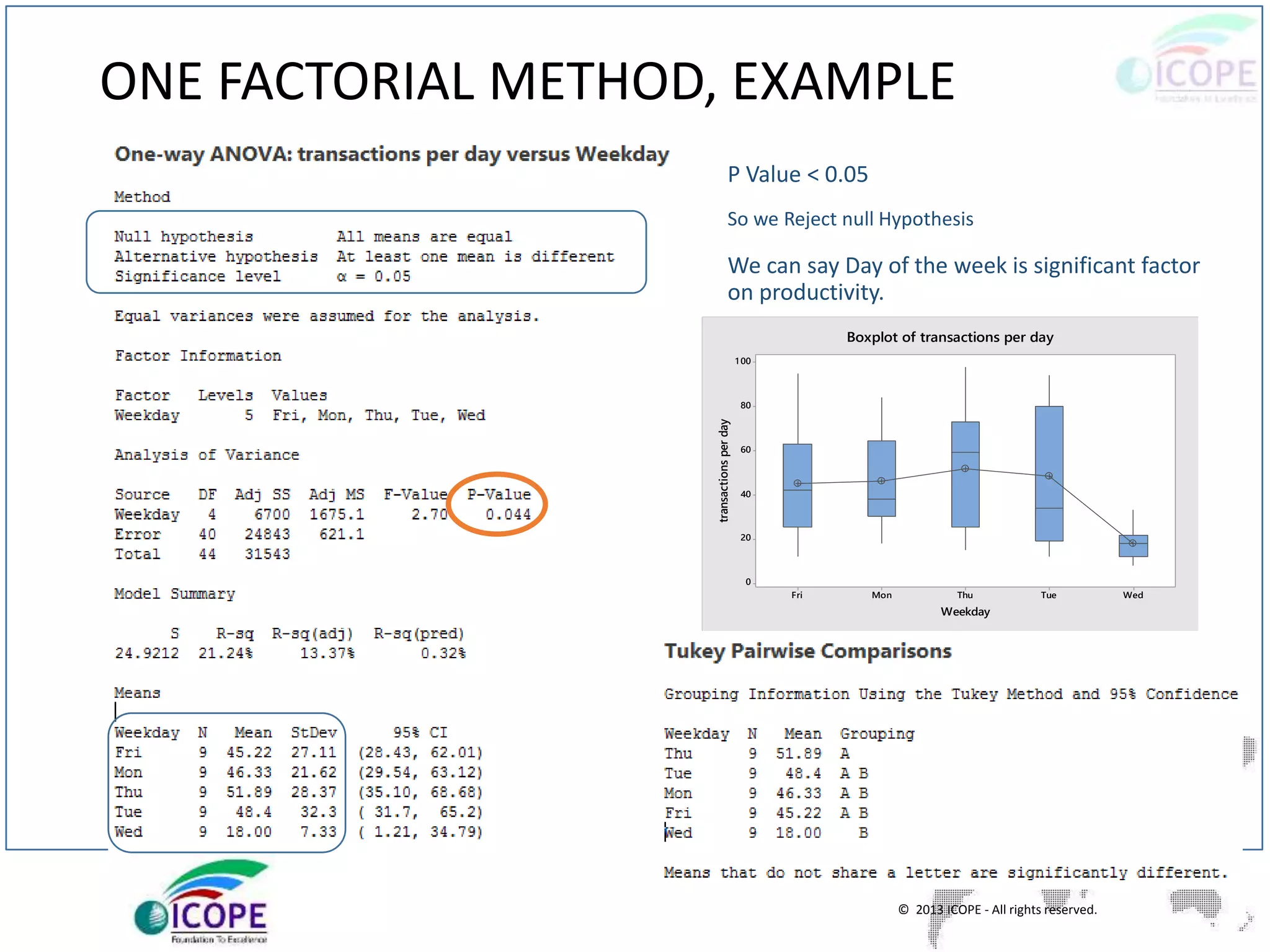

P Value < 0.05
So we Reject null Hypothesis
We can say Day of the week is significant factor
on productivity.
WedTueThuMonFri
100
80
60
40
20
0
Weekday
transactionsperday
Boxplot of transactions per day
© 2013 ICOPE - All rights reserved.

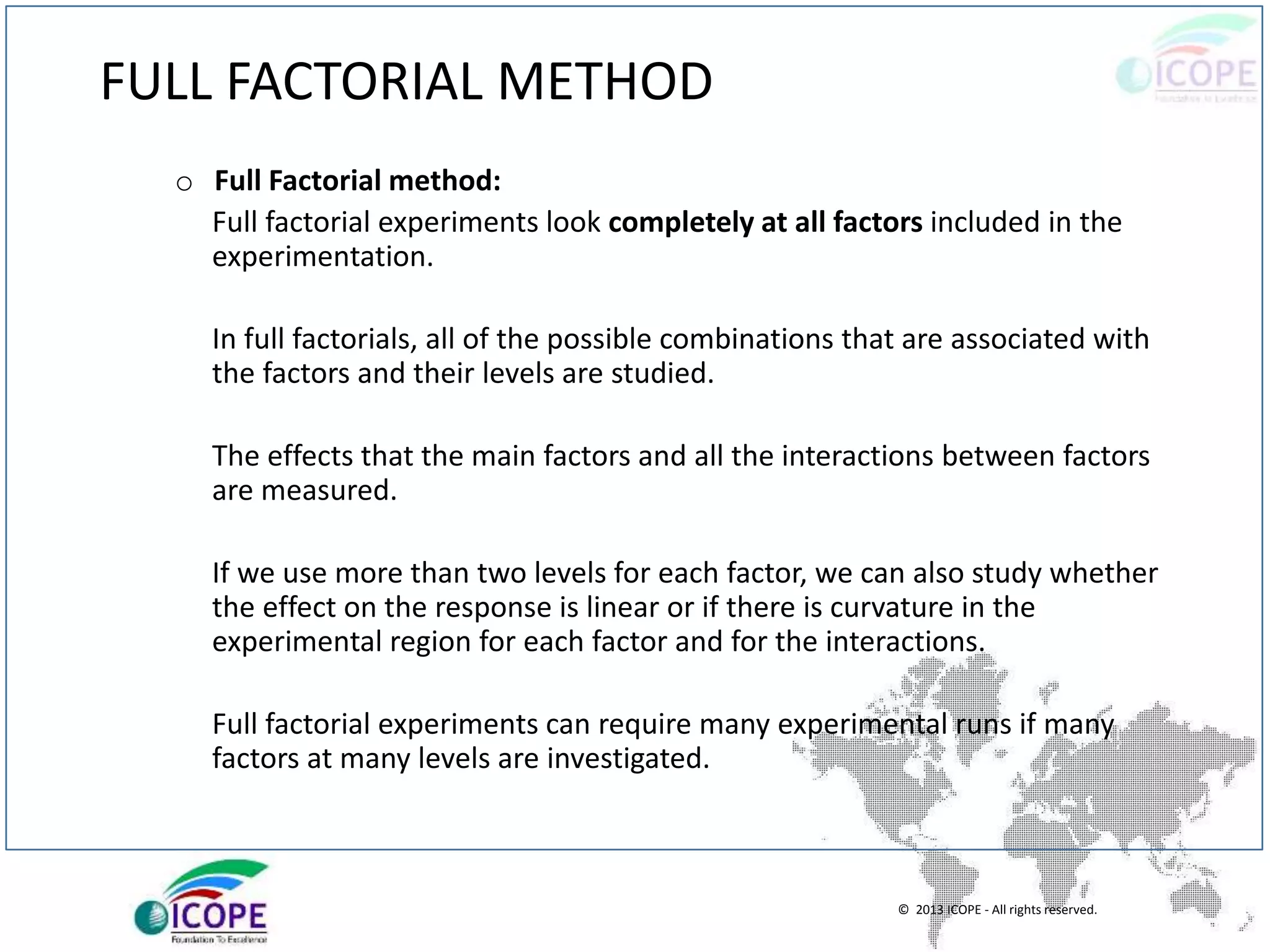

FULL FACTORIAL METHOD
o Full Factorial method:
Full factorial experiments look completely at all factors included in the
experimentation.
In full factorials, all of the possible combinations that are associated with
the factors and their levels are studied.
The effects that the main factors and all the interactions between factors
are measured.
If we use more than two levels for each factor, we can also study whether
the effect on the response is linear or if there is curvature in the
experimental region for each factor and for the interactions.
Full factorial experiments can require many experimental runs if many
factors at many levels are investigated.
© 2013 ICOPE - All rights reserved.

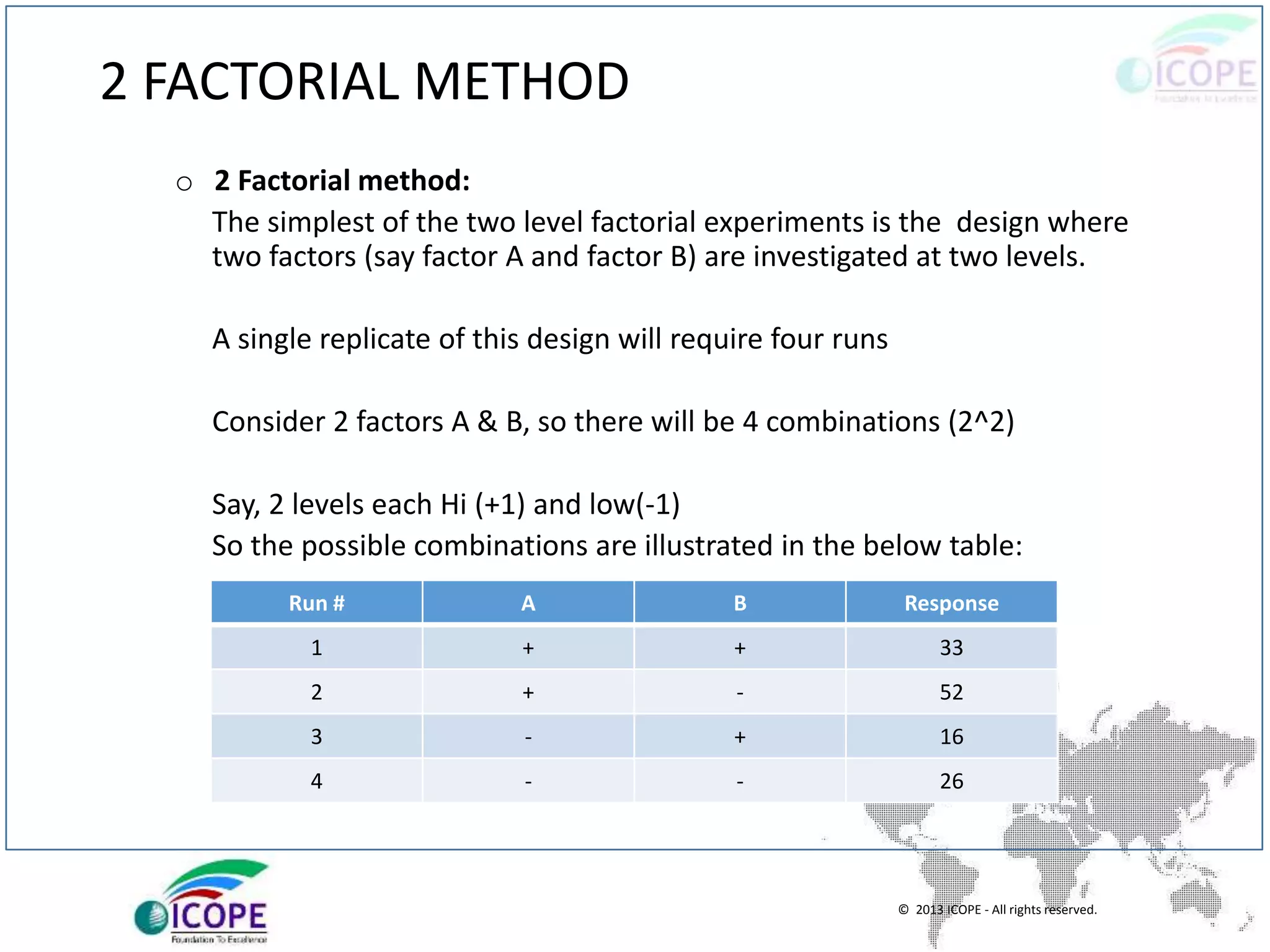

2 FACTORIAL METHOD
o 2 Factorial method:
The simplest of the two level factorial experiments is the design where
two factors (say factor A and factor B) are investigated at two levels.
A single replicate of this design will require four runs
Consider 2 factors A & B, so there will be 4 combinations (2^2)
Say, 2 levels each Hi (+1) and low(-1)
So the possible combinations are illustrated in the below table:
Run # A B Response
1 + + 33
2 + - 52
3 - + 16
4 - - 26
© 2013 ICOPE - All rights reserved.
2 FACTORIAL METHOD
o 2 Factorial method:

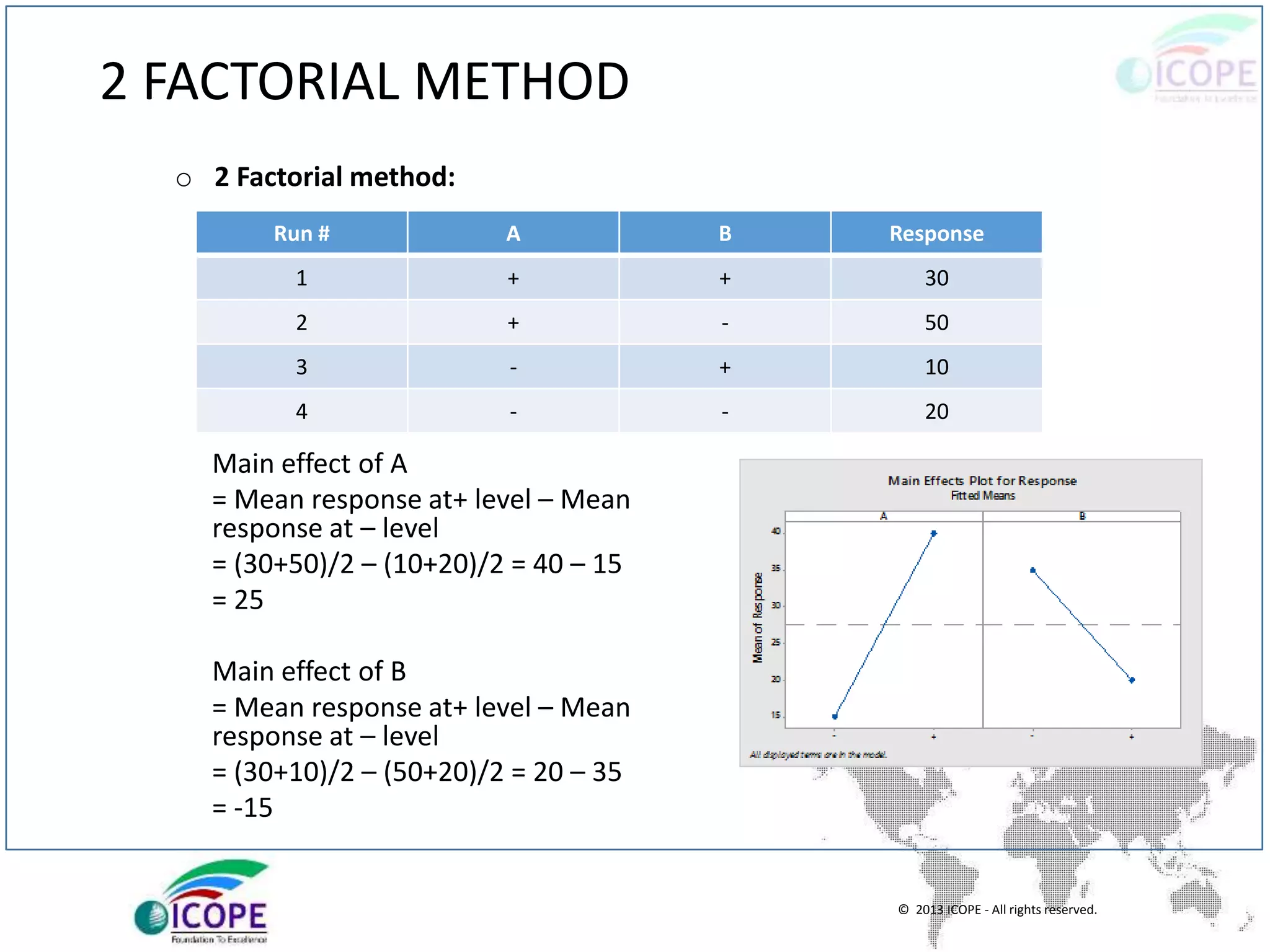

Main effect of A
= Mean response at+ level – Mean
response at – level
= (30+50)/2 – (10+20)/2 = 40 – 15
= 25
Main effect of B
= Mean response at+ level – Mean
response at – level
= (30+10)/2 – (50+20)/2 = 20 – 35
= -15
Run # A B Response
1 + + 30
2 + - 50
3 - + 10
4 - - 20
© 2013 ICOPE - All rights reserved.
2 FACTORIAL METHOD
o 2 Factorial method:

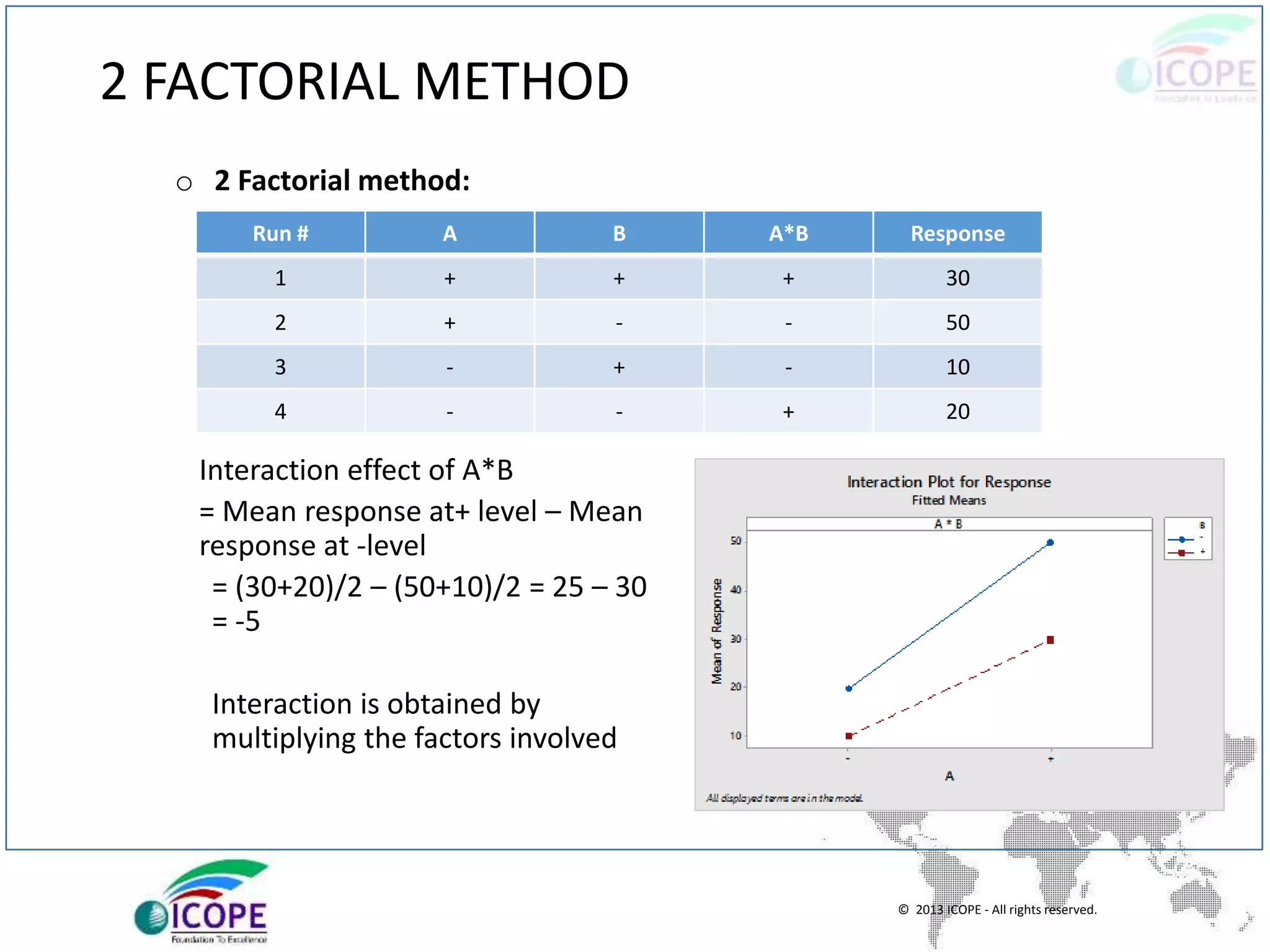

Interaction effect of A*B
= Mean response at+ level – Mean
response at -level
= (30+20)/2 – (50+10)/2 = 25 – 30
= -5
Interaction is obtained by
multiplying the factors involved
Run # A B A*B Response
1 + + + 30
2 + - - 50
3 - + - 10
4 - - + 20
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

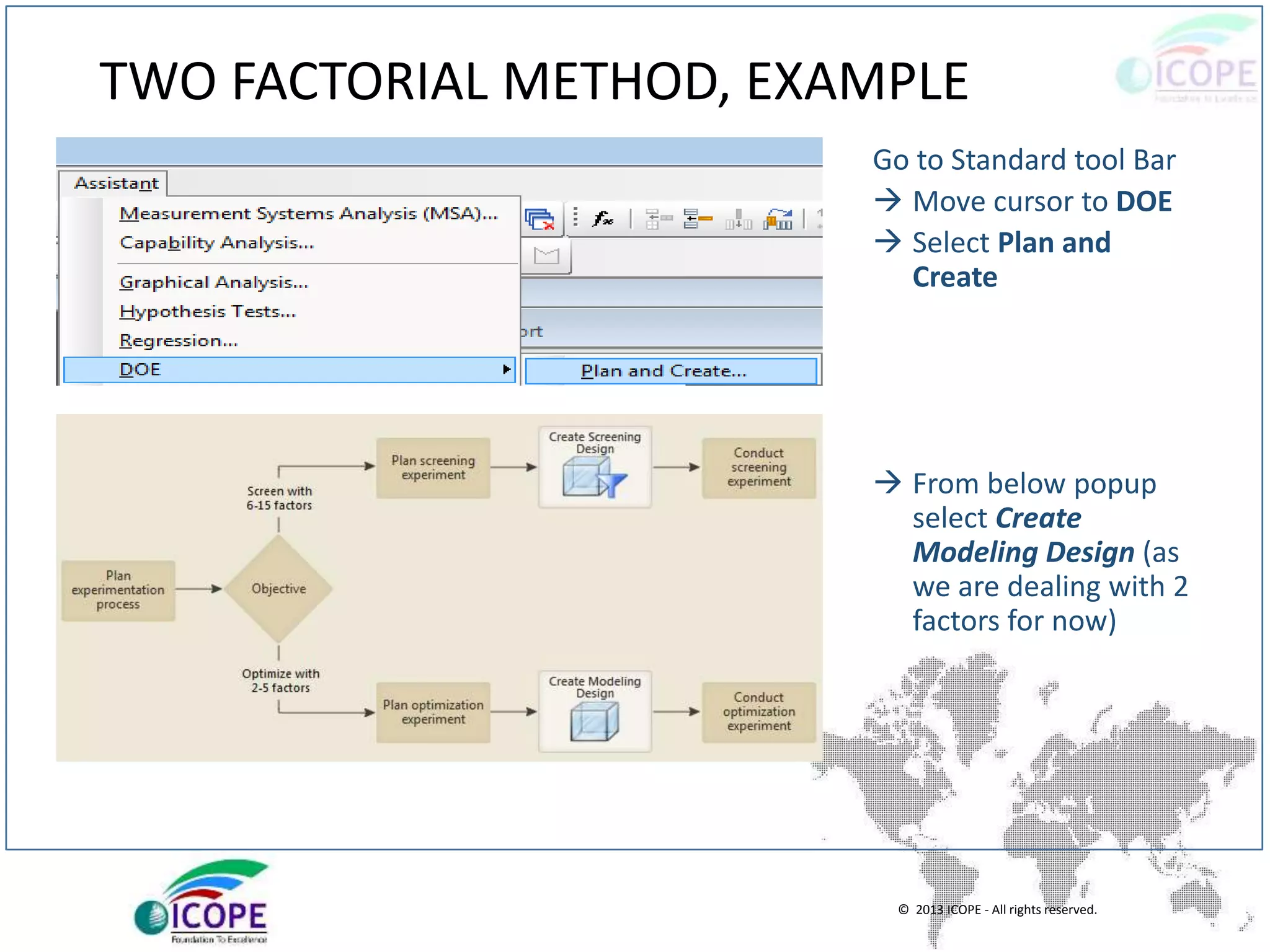

Go to Standard tool Bar
 Move cursor to DOE
 Select Plan and
Create
 From below popup
select Create
Modeling Design (as
we are dealing with 2
factors for now)
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

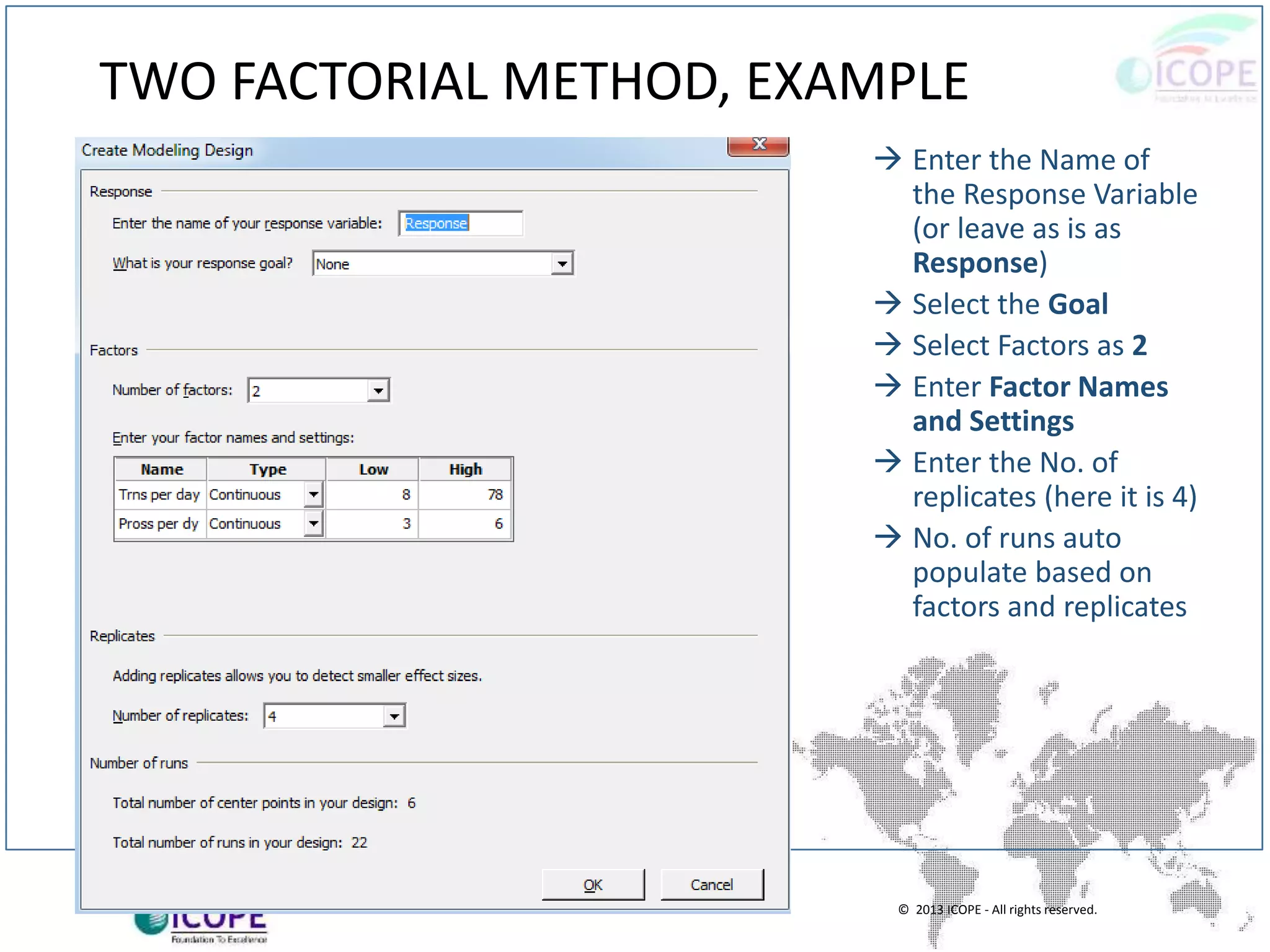

 Enter the Name of
the Response Variable
(or leave as is as
Response)
 Select the Goal
 Select Factors as 2
 Enter Factor Names
and Settings
 Enter the No. of
replicates (here it is 4)
 No. of runs auto
populate based on
factors and replicates
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

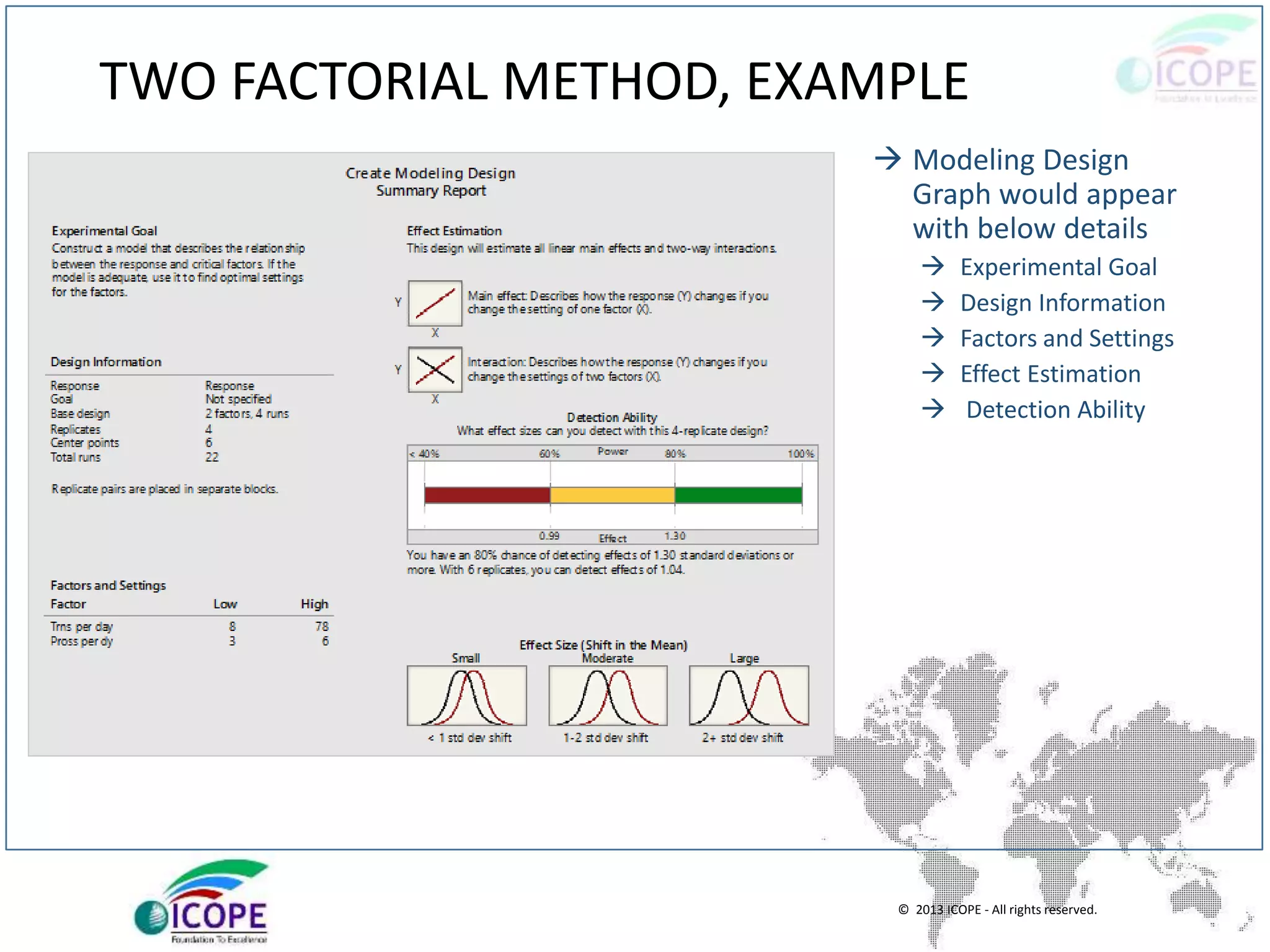

 Modeling Design
Graph would appear
with below details
 Experimental Goal
 Design Information
 Factors and Settings
 Effect Estimation
 Detection Ability
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE
 Enter your responses
in Response column
(C7)
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

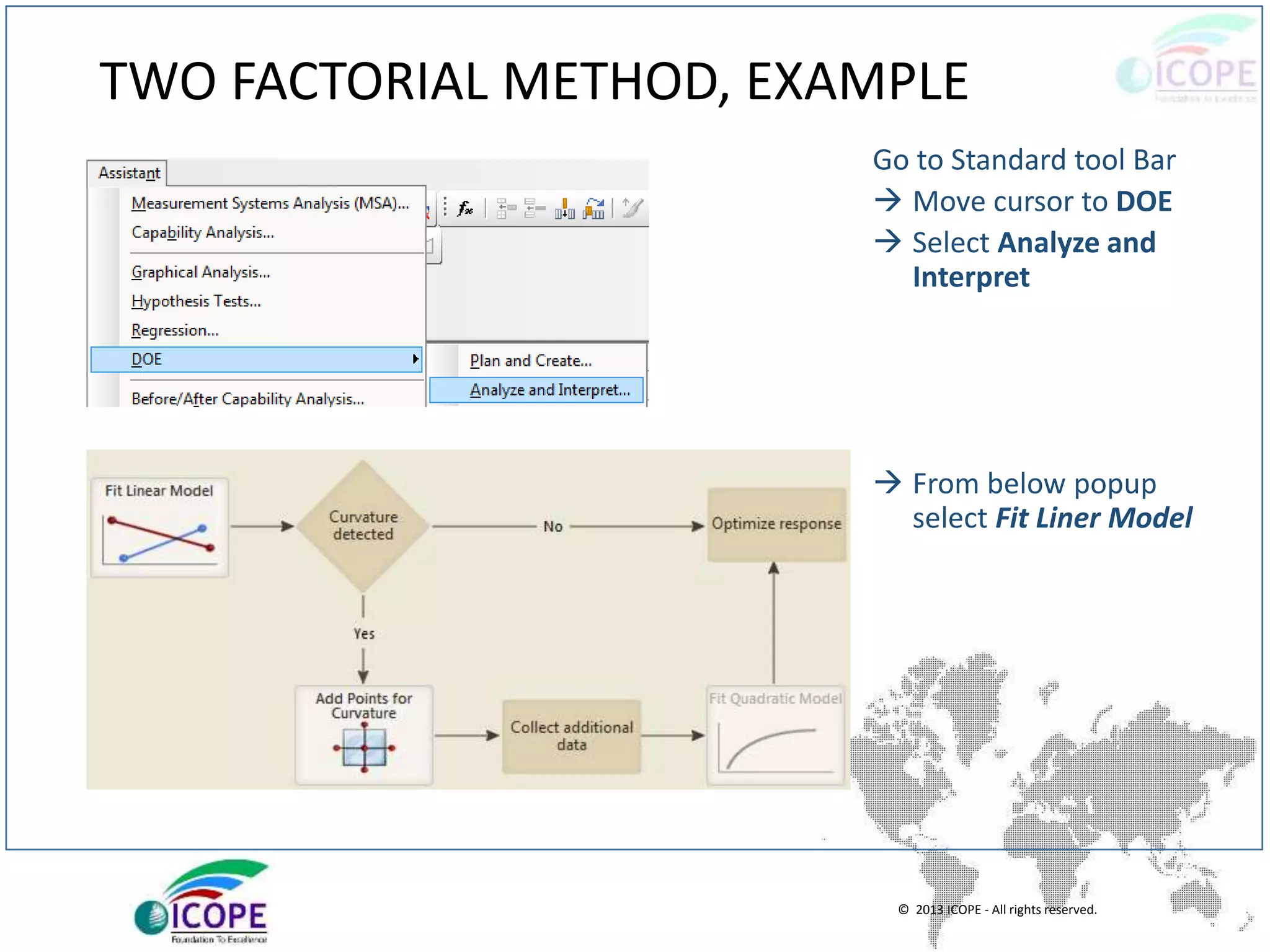

Go to Standard tool Bar
 Move cursor to DOE
 Select Analyze and
Interpret
 From below popup
select Fit Liner Model
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

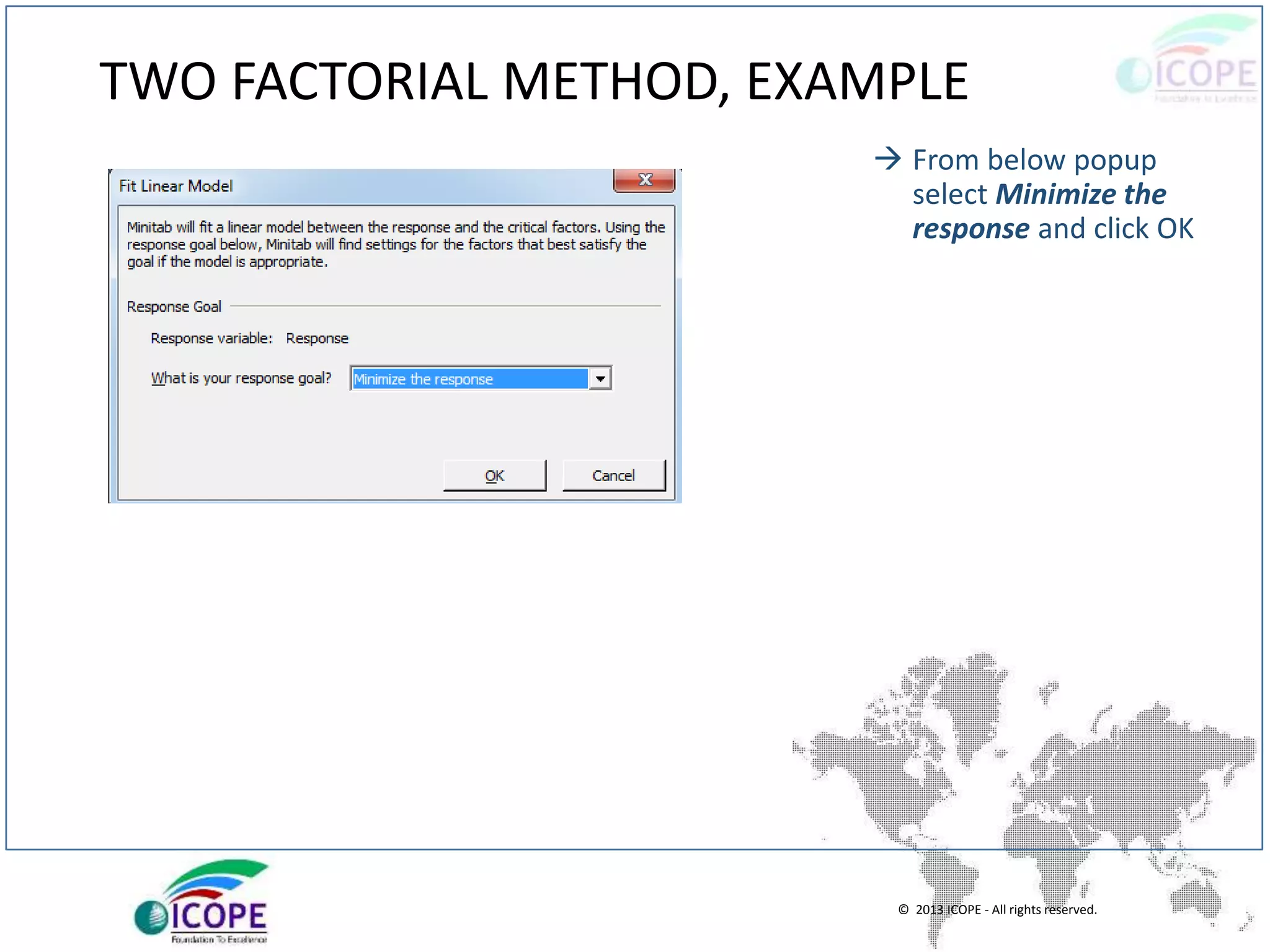

 From below popup
select Minimize the
response and click OK
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

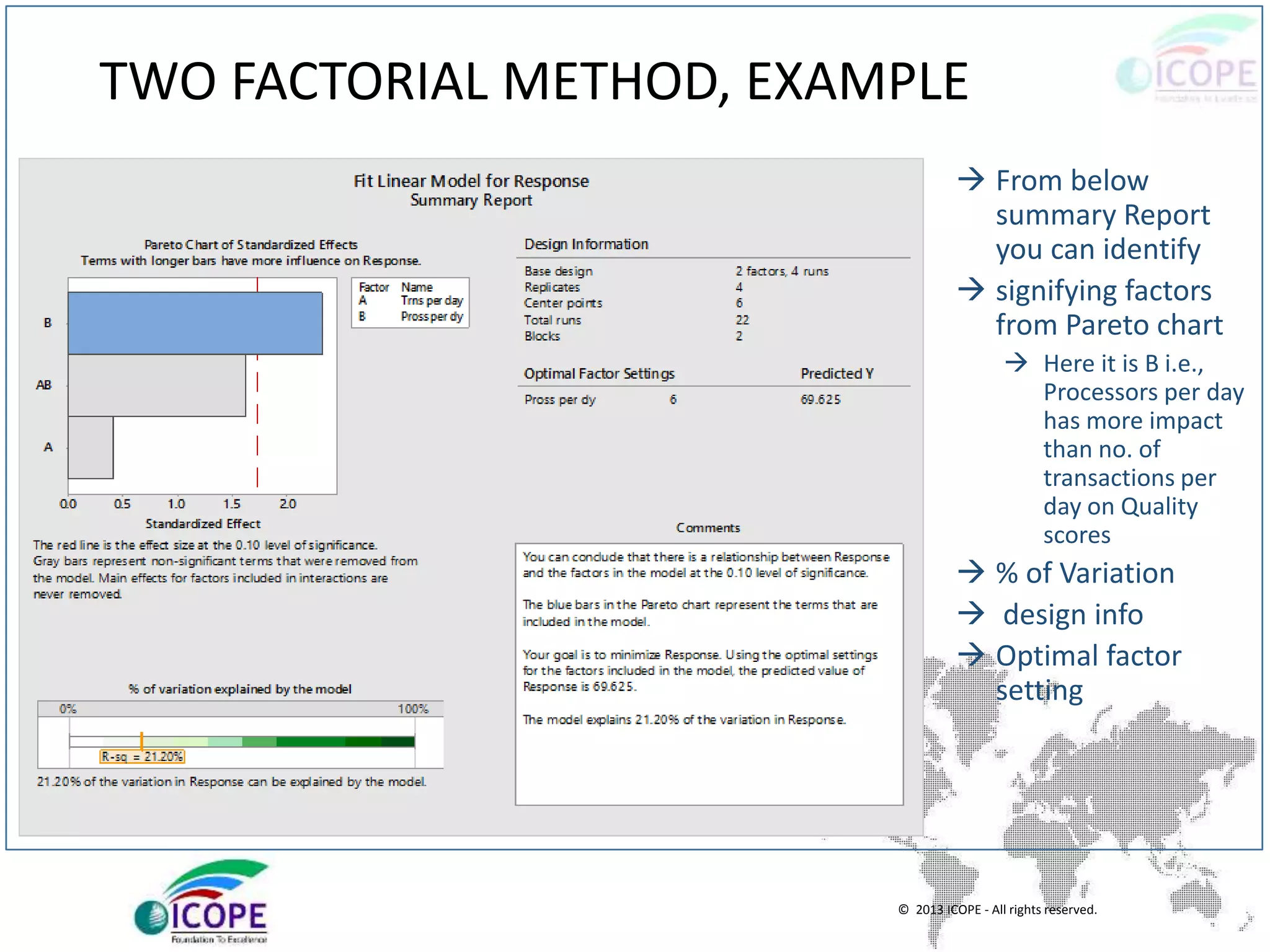

 From below
summary Report
you can identify
 signifying factors
from Pareto chart
 Here it is B i.e.,
Processors per day
has more impact
than no. of
transactions per
day on Quality
scores
 % of Variation
 design info
 Optimal factor
setting
© 2013 ICOPE - All rights reserved.
TWO FACTORIAL METHOD, EXAMPLE

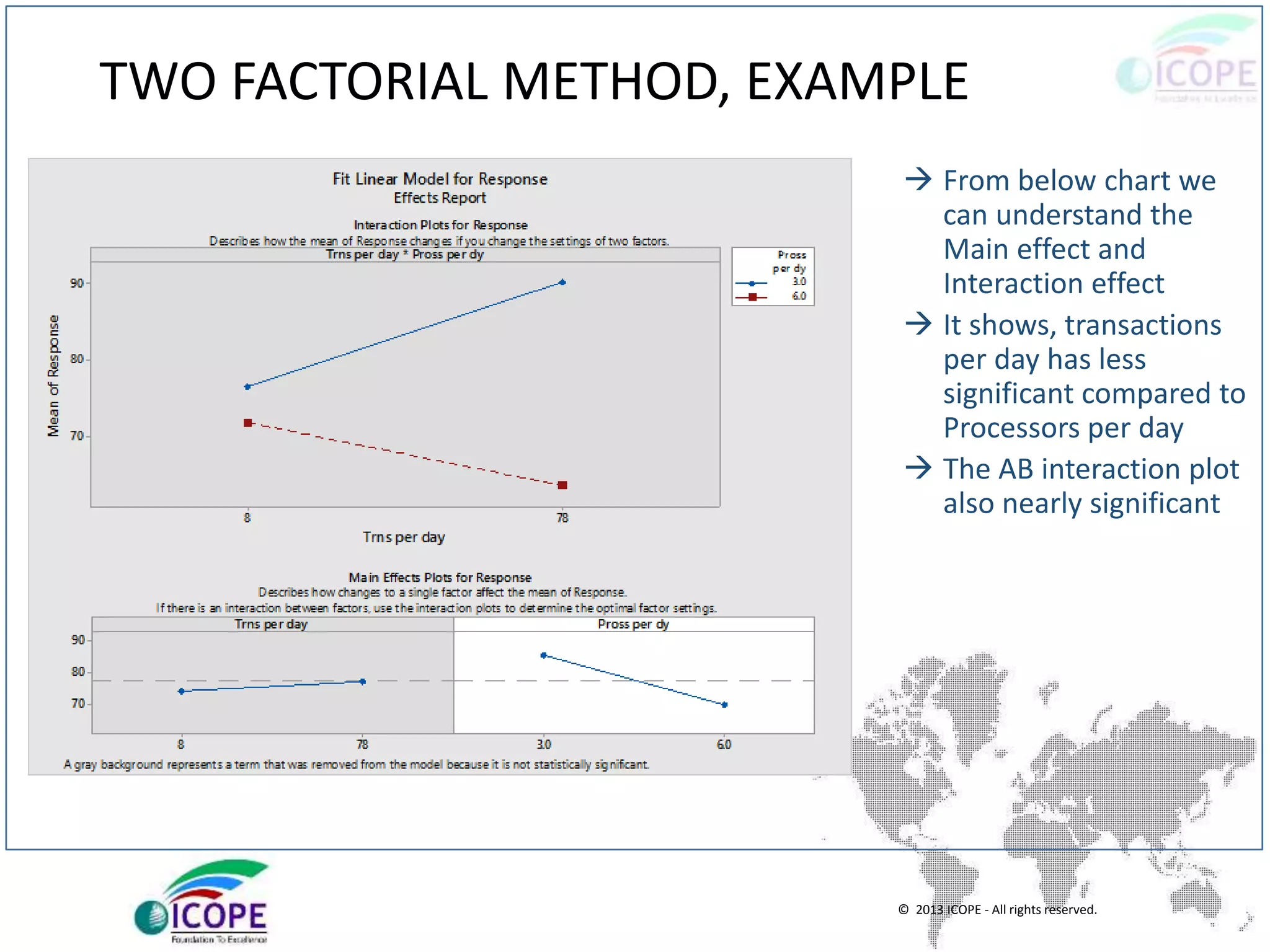

 From below chart we
can understand the
Main effect and
Interaction effect
 It shows, transactions
per day has less
significant compared to
Processors per day
 The AB interaction plot
also nearly significant
© 2013 ICOPE - All rights reserved.
FRACTIONAL FACTORIAL METHOD

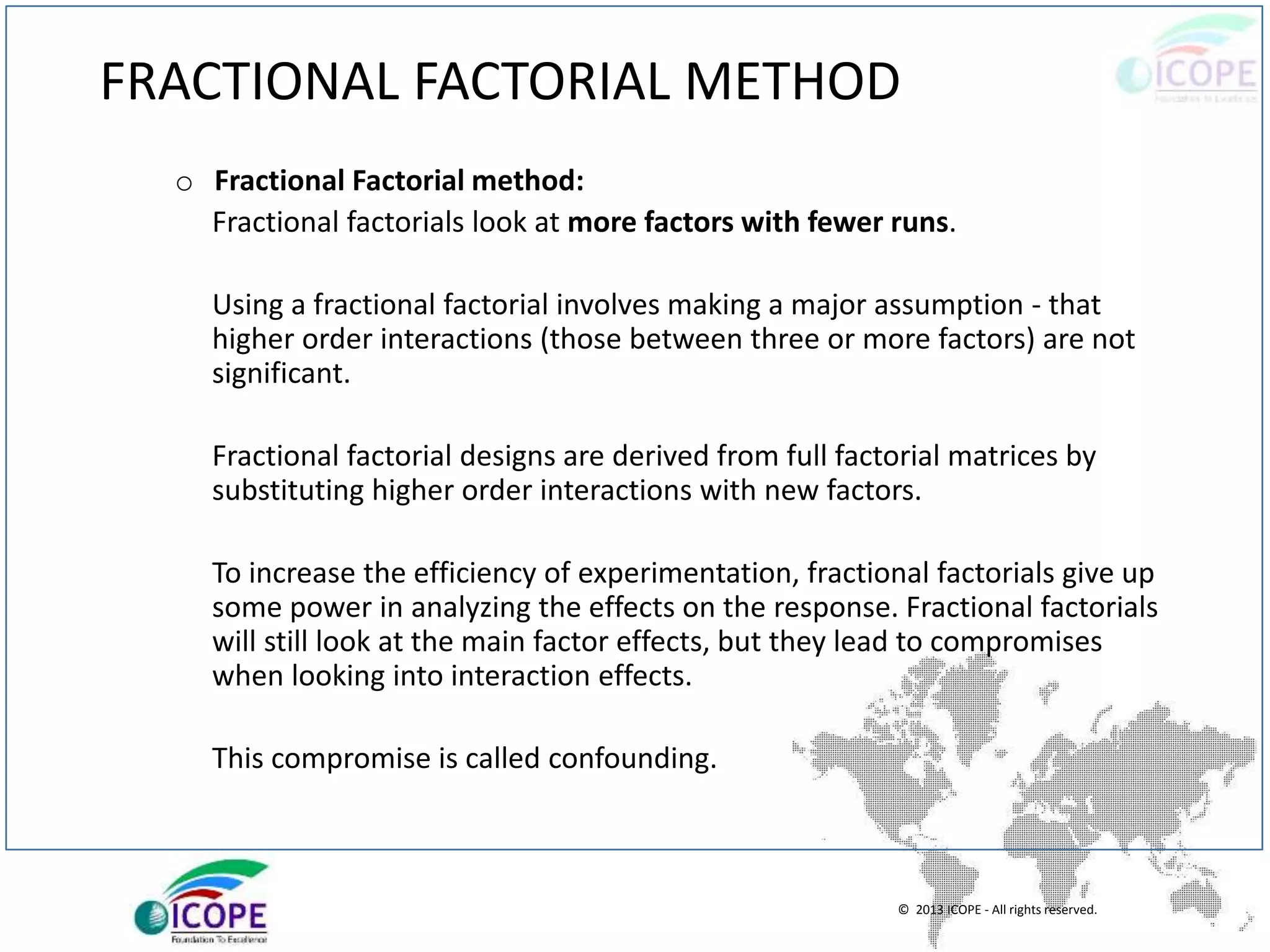

o Fractional Factorial method:
Fractional factorials look at more factors with fewer runs.
Using a fractional factorial involves making a major assumption - that
higher order interactions (those between three or more factors) are not
significant.
Fractional factorial designs are derived from full factorial matrices by
substituting higher order interactions with new factors.
To increase the efficiency of experimentation, fractional factorials give up
some power in analyzing the effects on the response. Fractional factorials
will still look at the main factor effects, but they lead to compromises
when looking into interaction effects.
This compromise is called confounding.
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS

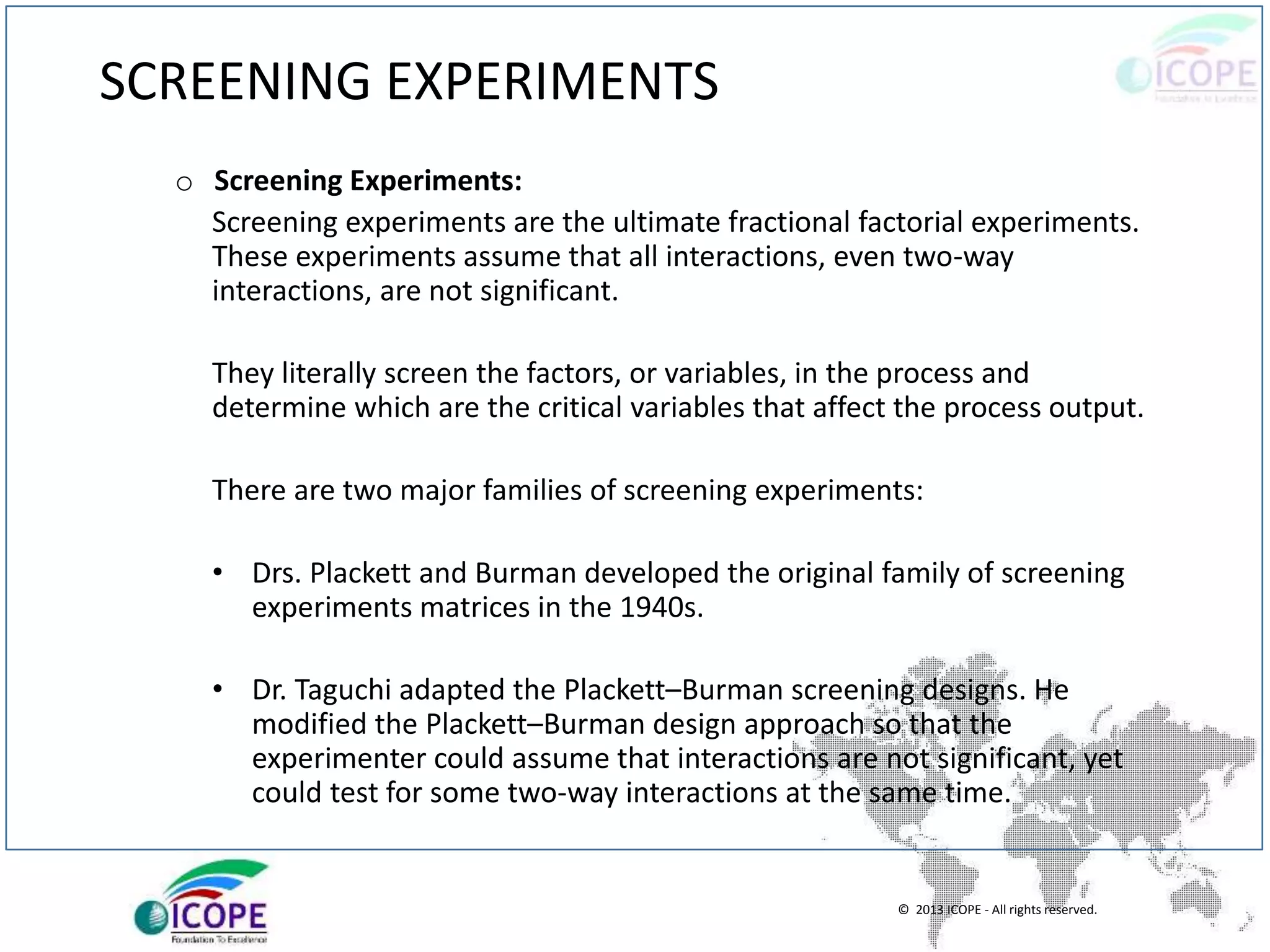

o Screening Experiments:
Screening experiments are the ultimate fractional factorial experiments.
These experiments assume that all interactions, even two-way
interactions, are not significant.
They literally screen the factors, or variables, in the process and
determine which are the critical variables that affect the process output.
There are two major families of screening experiments:
• Drs. Plackett and Burman developed the original family of screening
experiments matrices in the 1940s.
• Dr. Taguchi adapted the Plackett–Burman screening designs. He
modified the Plackett–Burman design approach so that the
experimenter could assume that interactions are not significant, yet
could test for some two-way interactions at the same time.
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE

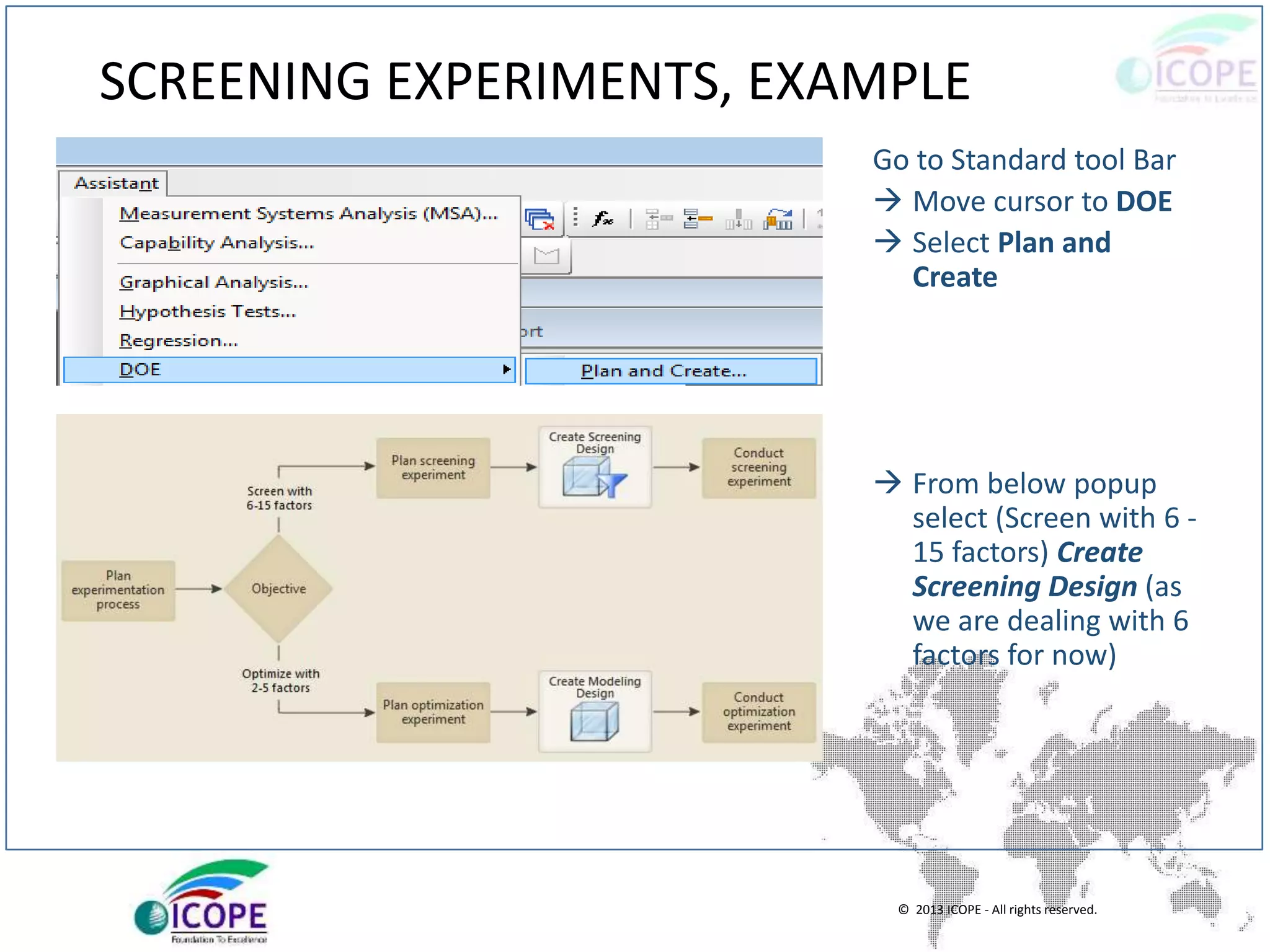

Go to Standard tool Bar
 Move cursor to DOE
 Select Plan and
Create
 From below popup
select (Screen with 6 -
15 factors) Create
Screening Design (as
we are dealing with 6
factors for now)
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE
 Enter the Name of
the Response Variable
(or leave as is as
Response)
 Select Factors as 6
 Enter Factor Names
and Settings
 Select the No. of runs
 Click OK
© 2013 ICOPE - All rights reserved.

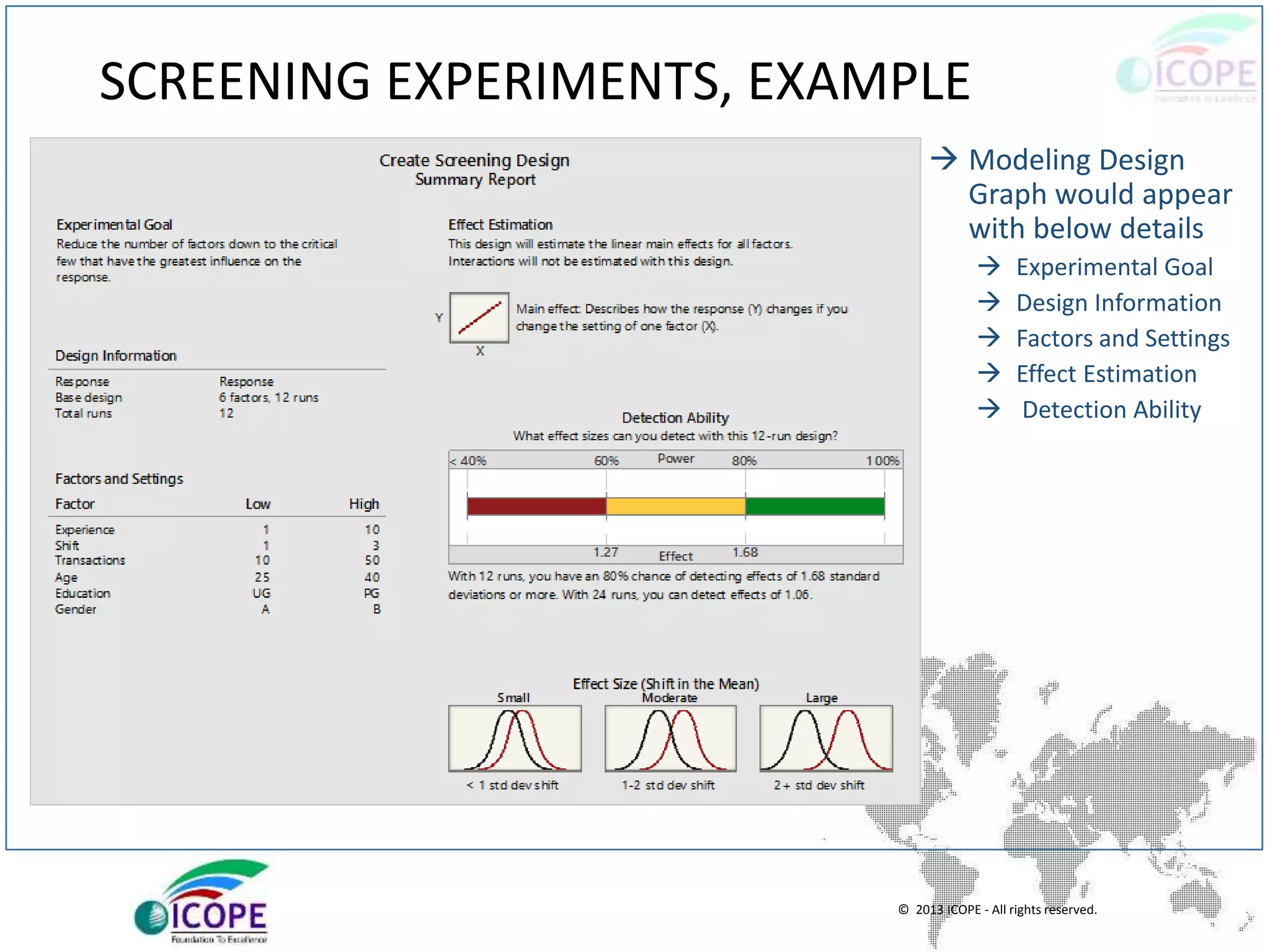

SCREENING EXPERIMENTS, EXAMPLE
 Modeling Design
Graph would appear
with below details
 Experimental Goal
 Design Information
 Factors and Settings
 Effect Estimation
 Detection Ability
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE
 Enter your responses
in Response column
(C11), Quality scores
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE

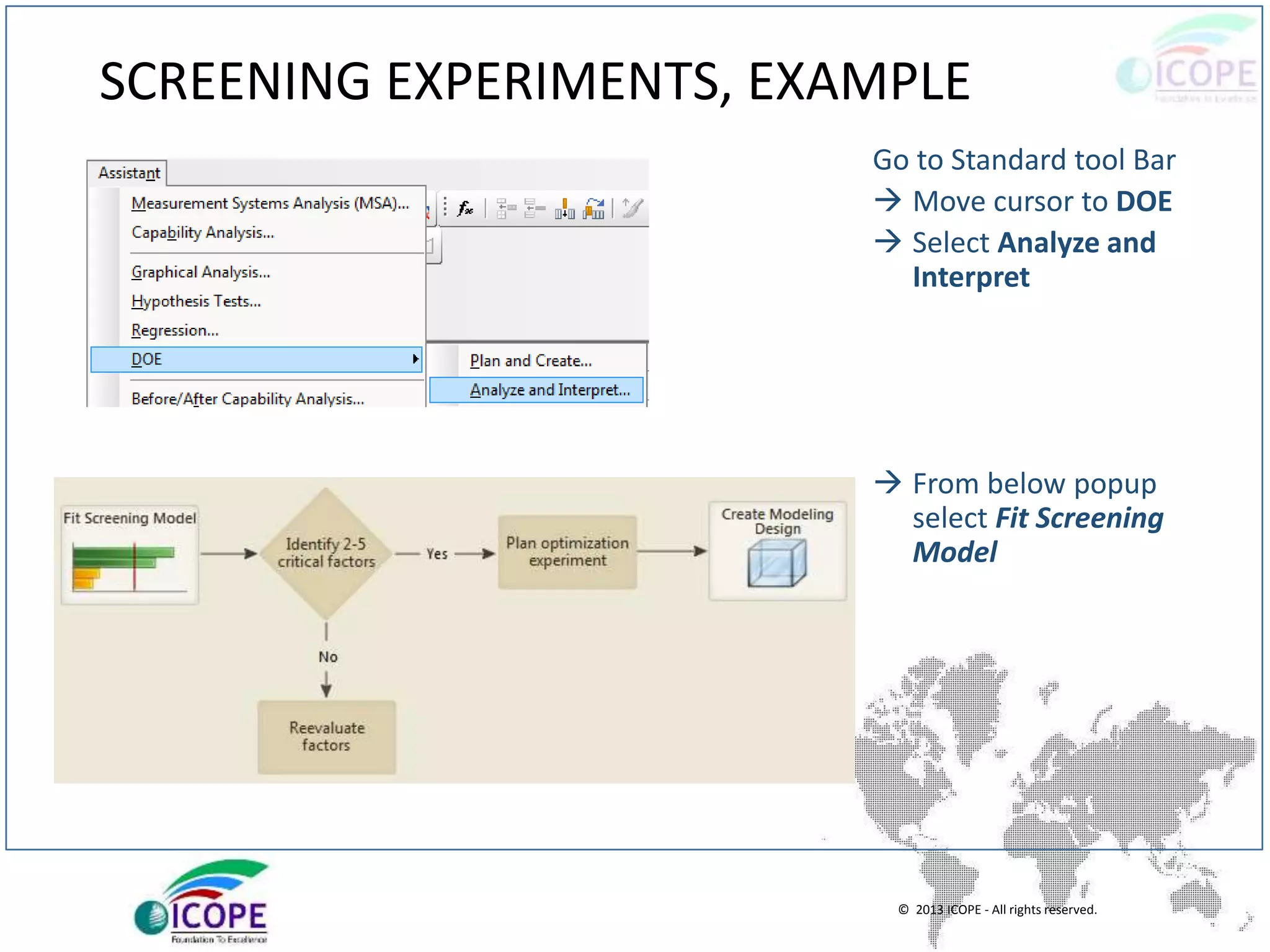

Go to Standard tool Bar
 Move cursor to DOE
 Select Analyze and
Interpret
 From below popup
select Fit Screening
Model
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE

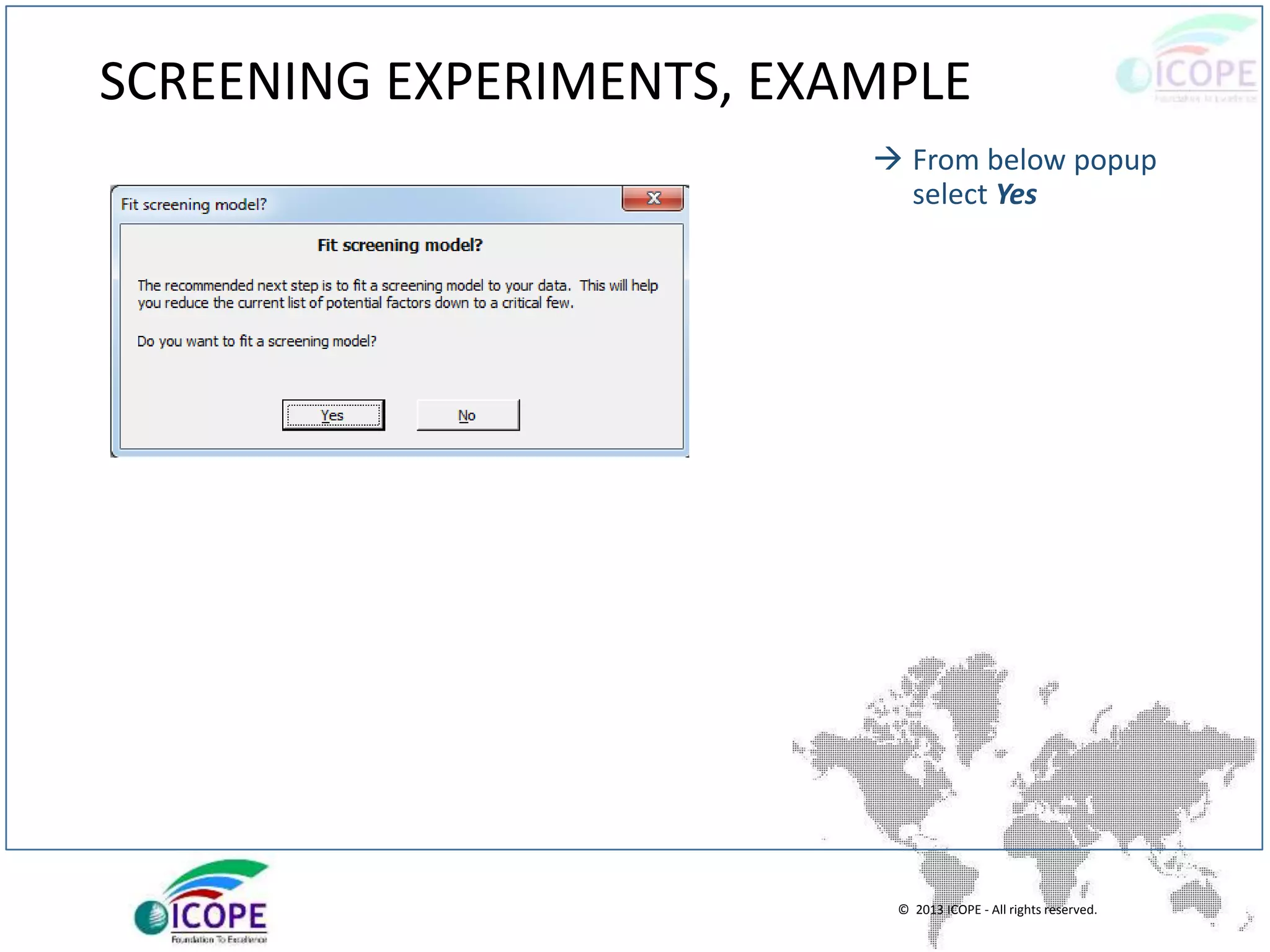

 From below popup
select Yes
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE

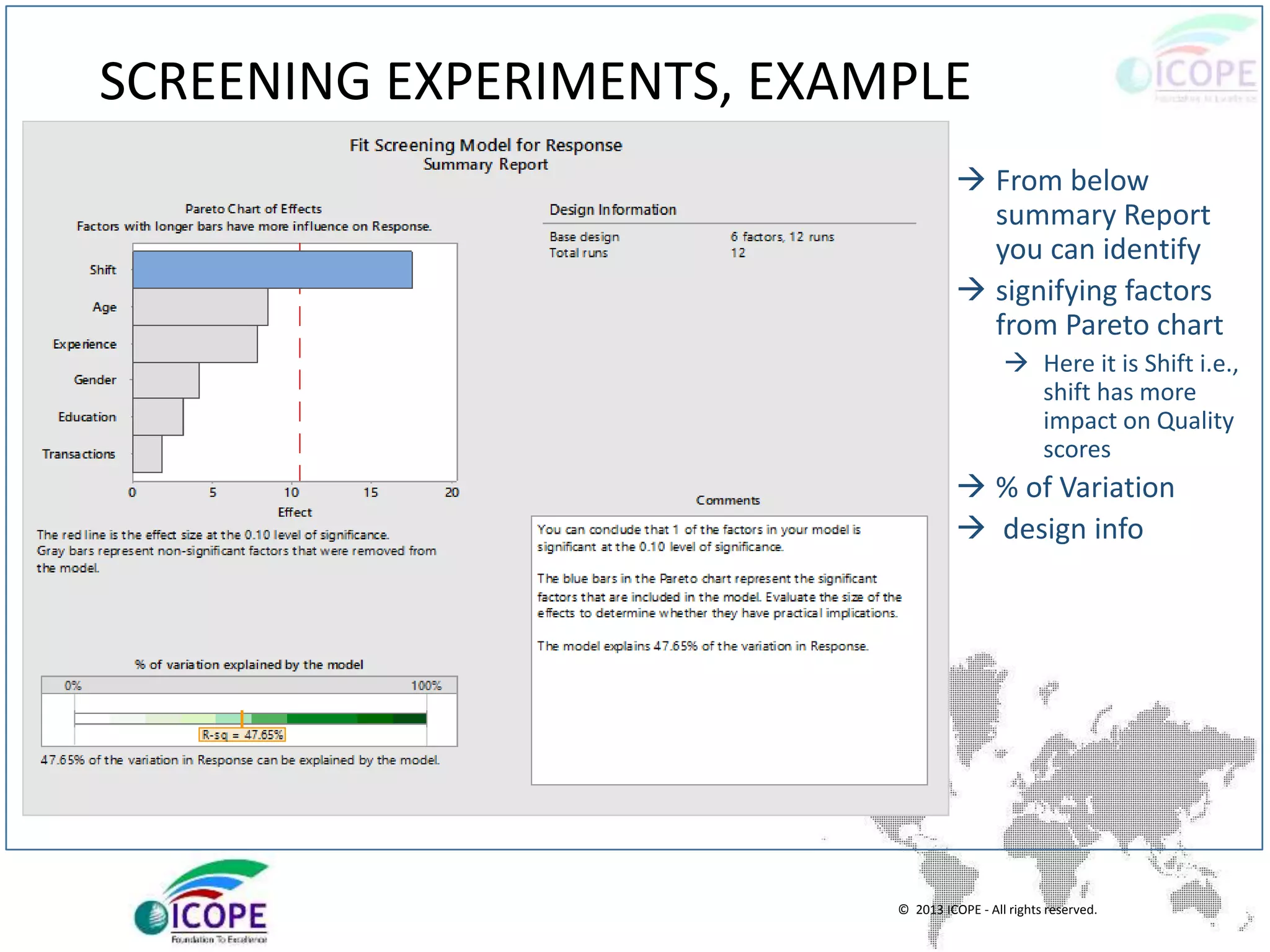

 From below
summary Report
you can identify
 signifying factors
from Pareto chart
 Here it is Shift i.e.,
shift has more
impact on Quality
scores
 % of Variation
 design info
© 2013 ICOPE - All rights reserved.
SCREENING EXPERIMENTS, EXAMPLE

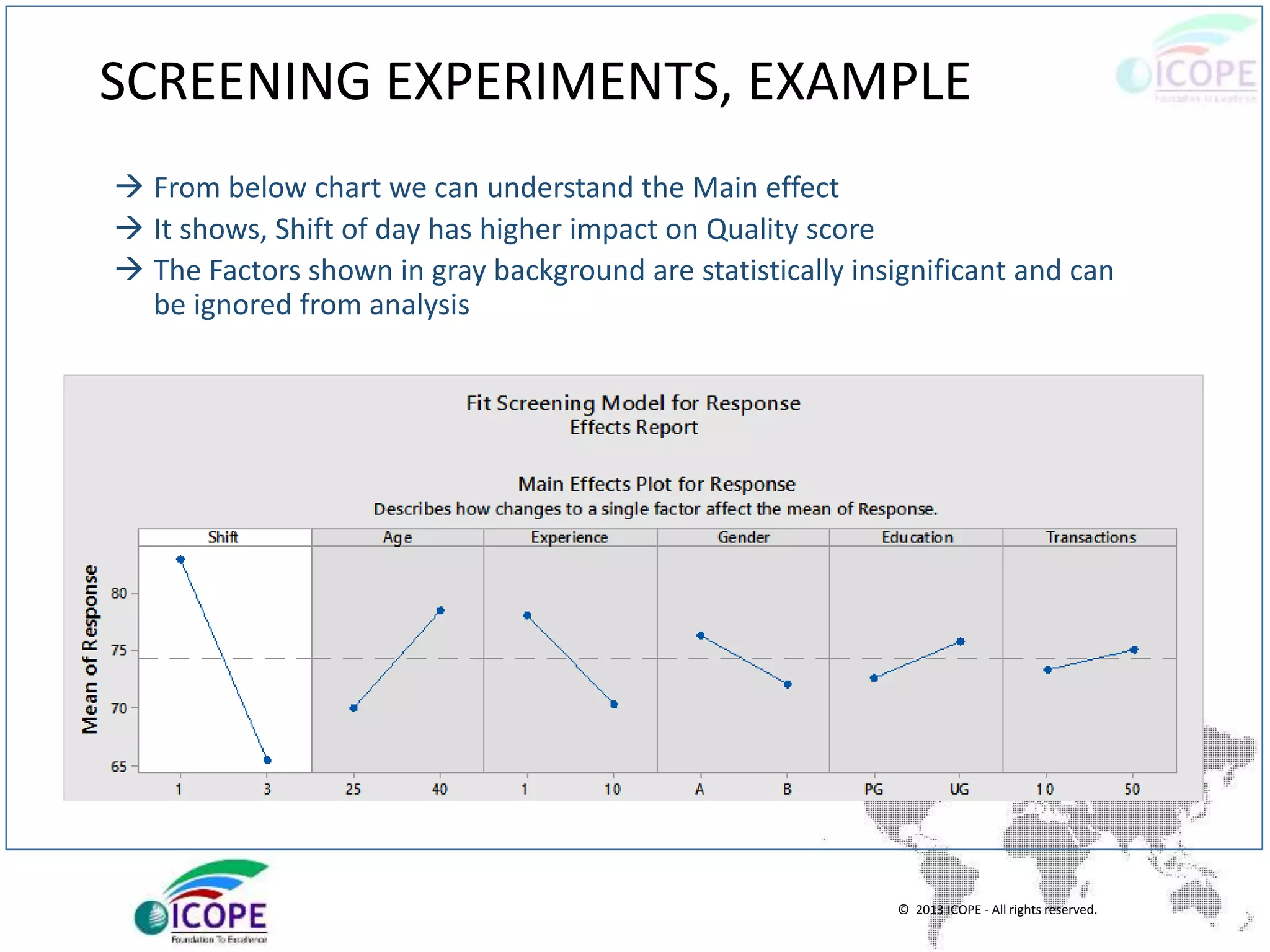

 From below chart we can understand the Main effect
 It shows, Shift of day has higher impact on Quality score
 The Factors shown in gray background are statistically insignificant and can
be ignored from analysis
© 2013 ICOPE - All rights reserved.
RESPONSE SURFACE ANALYSIS

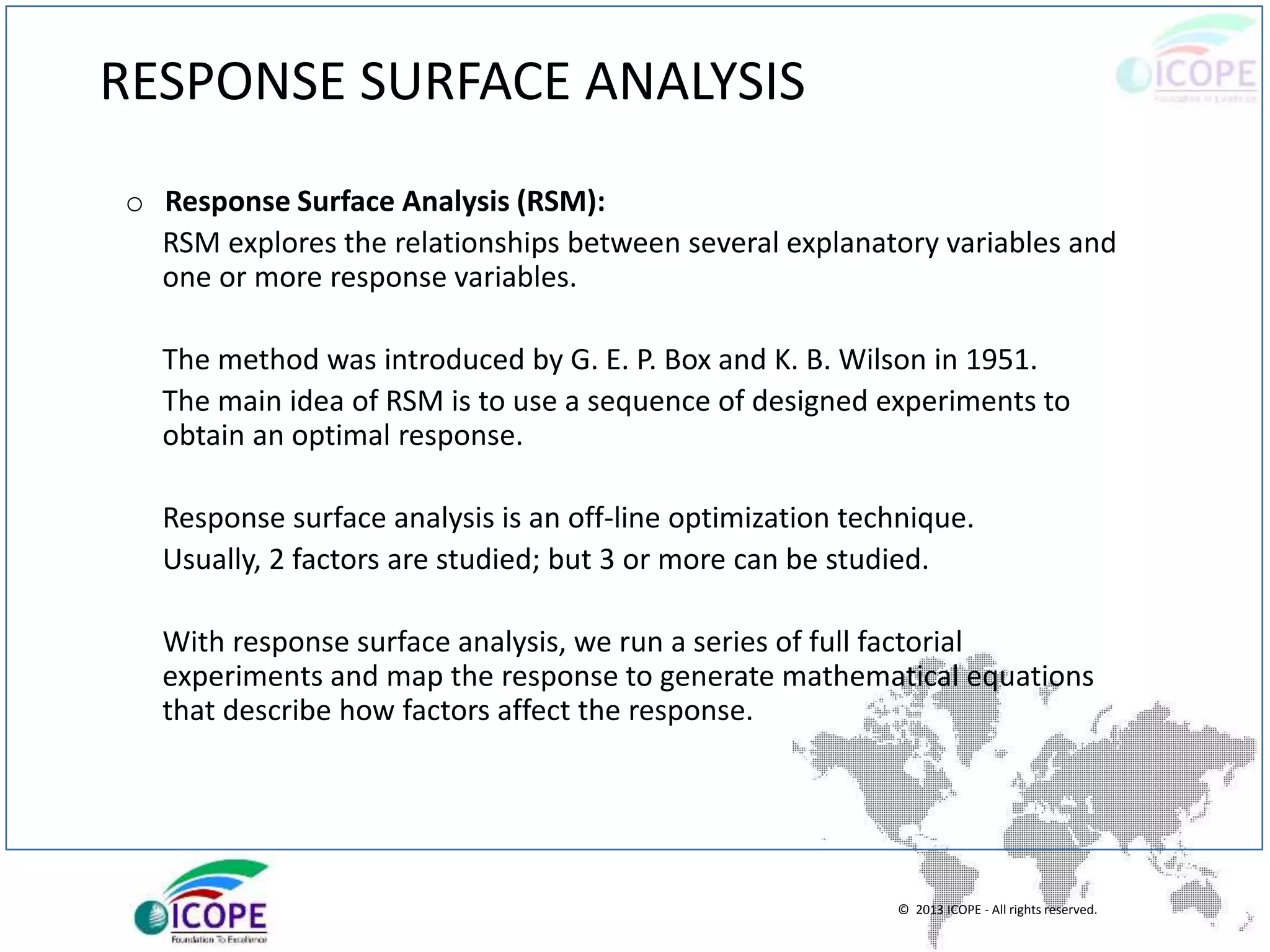

o Response Surface Analysis (RSM):
RSM explores the relationships between several explanatory variables and
one or more response variables.
The method was introduced by G. E. P. Box and K. B. Wilson in 1951.
The main idea of RSM is to use a sequence of designed experiments to
obtain an optimal response.
Response surface analysis is an off-line optimization technique.
Usually, 2 factors are studied; but 3 or more can be studied.
With response surface analysis, we run a series of full factorial
experiments and map the response to generate mathematical equations
that describe how factors affect the response.
© 2013 ICOPE - All rights reserved.
CALCULATION OF ALIAS

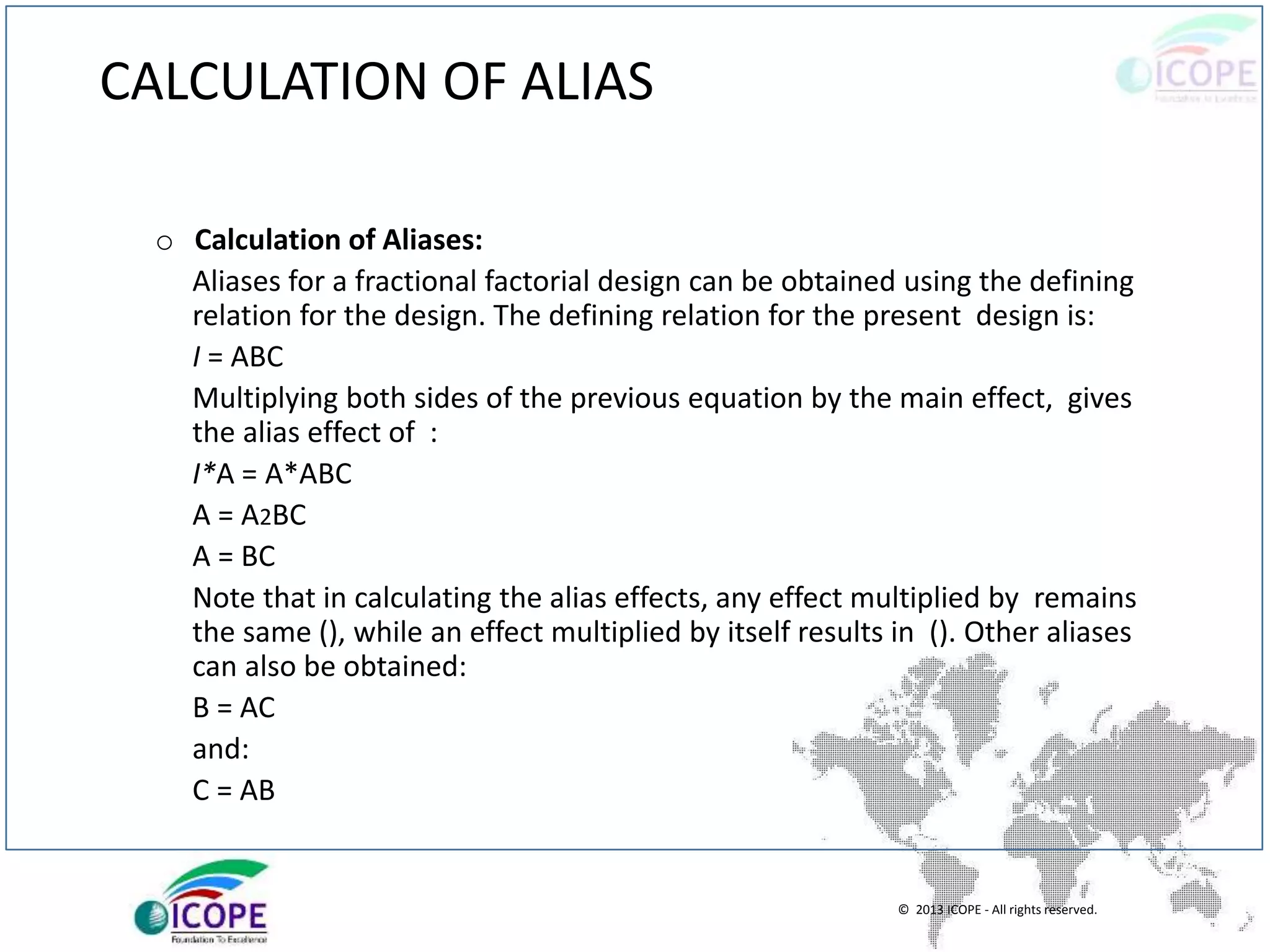

o Calculation of Aliases:
Aliases for a fractional factorial design can be obtained using the defining
relation for the design. The defining relation for the present design is:
I = ABC
Multiplying both sides of the previous equation by the main effect, gives
the alias effect of :
I*A = A*ABC
A = A2BC
A = BC
Note that in calculating the alias effects, any effect multiplied by remains
the same (), while an effect multiplied by itself results in (). Other aliases
can also be obtained:
B = AC
and:
C = AB
© 2013 ICOPE - All rights reserved.
SECECTION GUIDE
Number
of Factors
Comparative
Objective
Screening
Objective
1
1 way ANOVA or Simple
Regression
_
2 - 4
2 Way ANOVA, General
Liner Model
Full or Fractional
Factorial Design
5 or more
Randomized Block
Design
Fractional Factorial
Design or Plackett-
Burman

More Related Content

What's hot

factorial design
factorial designfactorial design
factorial design
Mahesh Marathe

Minitab- A statistical tool
Minitab- A statistical tool Minitab- A statistical tool
Minitab- A statistical tool
Dr-Jitendra Patel

introduction to design of experiments
introduction to design of experimentsintroduction to design of experiments
introduction to design of experiments
Kumar Virendra

Factorial design ,full factorial design, fractional factorial design
Factorial design ,full factorial design, fractional factorial designFactorial design ,full factorial design, fractional factorial design
Factorial design ,full factorial design, fractional factorial design
Sayed Shakil Ahmed

Optimization techniques
Optimization techniques Optimization techniques
Optimization techniques
Dr. Raja Abhilash

Design of Experiments
Design of ExperimentsDesign of Experiments
Design of Experiments
Ronald Shewchuk

Design of experiments-Box behnken design
Design of experiments-Box behnken designDesign of experiments-Box behnken design
Design of experiments-Box behnken design
Gulamhushen Sipai

RESPONSE SURFACE METHODOLOGY.pptx
RESPONSE SURFACE METHODOLOGY.pptxRESPONSE SURFACE METHODOLOGY.pptx
RESPONSE SURFACE METHODOLOGY.pptx
SreeLatha49

Regression
RegressionRegression
Regression
Buddy Krishna

Design of Experiments (Pharma)
Design of Experiments (Pharma)Design of Experiments (Pharma)
Design of Experiments (Pharma)
VaishnaviBhosale6

Anova ppt
Anova pptAnova ppt
Anova ppt
Sravani Ganti

Optimization techniques
Optimization  techniquesOptimization  techniques
Optimization techniques
biniyapatel

Central Composite Design
Central Composite DesignCentral Composite Design
Central Composite Design
Ruchir Shah

Fractional factorial design tutorial
Fractional factorial design tutorialFractional factorial design tutorial
Fractional factorial design tutorial
Gaurav Kr

design of experiments
design of experimentsdesign of experiments
design of experiments
sigma-tau

General Factor Factorial Design
General Factor Factorial DesignGeneral Factor Factorial Design
General Factor Factorial Design
Noraziah Ismail

Applications of sas and minitab in data analysis
Applications of sas and minitab in data analysisApplications of sas and minitab in data analysis
Applications of sas and minitab in data analysis
VeenaV29

factorial design.pptx
factorial design.pptxfactorial design.pptx
factorial design.pptx
SreeLatha98

Optimization techniques in formulation Development Response surface methodol...
Optimization techniques in formulation Development  Response surface methodol...Optimization techniques in formulation Development  Response surface methodol...
Optimization techniques in formulation Development Response surface methodol...
D.R. Chandravanshi

Resource Surface Methology
Resource Surface MethologyResource Surface Methology
Resource Surface Methology
PRATHAMESH REGE


What's hot (20)

factorial design
factorial designfactorial design
factorial design

Minitab- A statistical tool
Minitab- A statistical tool Minitab- A statistical tool
Minitab- A statistical tool

introduction to design of experiments
introduction to design of experimentsintroduction to design of experiments
introduction to design of experiments

Factorial design ,full factorial design, fractional factorial design
Factorial design ,full factorial design, fractional factorial designFactorial design ,full factorial design, fractional factorial design
Factorial design ,full factorial design, fractional factorial design

Optimization techniques
Optimization techniques Optimization techniques
Optimization techniques

Design of Experiments
Design of ExperimentsDesign of Experiments
Design of Experiments

Design of experiments-Box behnken design
Design of experiments-Box behnken designDesign of experiments-Box behnken design
Design of experiments-Box behnken design

RESPONSE SURFACE METHODOLOGY.pptx
RESPONSE SURFACE METHODOLOGY.pptxRESPONSE SURFACE METHODOLOGY.pptx
RESPONSE SURFACE METHODOLOGY.pptx

Regression
RegressionRegression
Regression

Design of Experiments (Pharma)
Design of Experiments (Pharma)Design of Experiments (Pharma)
Design of Experiments (Pharma)

Anova ppt
Anova pptAnova ppt
Anova ppt

Optimization techniques
Optimization  techniquesOptimization  techniques
Optimization techniques

Central Composite Design
Central Composite DesignCentral Composite Design
Central Composite Design

Fractional factorial design tutorial
Fractional factorial design tutorialFractional factorial design tutorial
Fractional factorial design tutorial

design of experiments
design of experimentsdesign of experiments
design of experiments

General Factor Factorial Design
General Factor Factorial DesignGeneral Factor Factorial Design
General Factor Factorial Design

Applications of sas and minitab in data analysis
Applications of sas and minitab in data analysisApplications of sas and minitab in data analysis
Applications of sas and minitab in data analysis

factorial design.pptx
factorial design.pptxfactorial design.pptx
factorial design.pptx

Optimization techniques in formulation Development Response surface methodol...
Optimization techniques in formulation Development  Response surface methodol...Optimization techniques in formulation Development  Response surface methodol...
Optimization techniques in formulation Development Response surface methodol...

Resource Surface Methology
Resource Surface MethologyResource Surface Methology
Resource Surface Methology


Viewers also liked

6 Ways to Manage Your Indian Boss
6 Ways to Manage Your Indian Boss6 Ways to Manage Your Indian Boss
6 Ways to Manage Your Indian Boss
Upendra K

Multiply any four digit number by 11
Multiply any four digit number by 11Multiply any four digit number by 11
Multiply any four digit number by 11
Vedicmaths ofindia

Math Investigation: Pythagorean Theorem
Math Investigation: Pythagorean TheoremMath Investigation: Pythagorean Theorem
Math Investigation: Pythagorean Theorem
Kharelle Mae Naduma

Barriers to Effective Knowledge Management in Schools
Barriers to Effective Knowledge Management in SchoolsBarriers to Effective Knowledge Management in Schools
Barriers to Effective Knowledge Management in Schools
Geraldine Cachero

Philosophies of Knowledge Management in Education
Philosophies of Knowledge Management in EducationPhilosophies of Knowledge Management in Education
Philosophies of Knowledge Management in Education
Geraldine Cachero

Best Practices in Teaching (BPT) Reforms
Best Practices in Teaching (BPT) ReformsBest Practices in Teaching (BPT) Reforms
Best Practices in Teaching (BPT) Reforms
Geraldine Cachero

Educational Knowledge Management Reforms
Educational Knowledge Management ReformsEducational Knowledge Management Reforms
Educational Knowledge Management Reforms
Geraldine Cachero

Triangles (Mathematics 5)
Triangles (Mathematics 5)Triangles (Mathematics 5)
Triangles (Mathematics 5)
Geraldine Cachero

Traffic signs blank
Traffic signs blankTraffic signs blank
Traffic signs blank
giselle_just

Possessive Adjectives (English 5)
Possessive Adjectives (English 5)Possessive Adjectives (English 5)
Possessive Adjectives (English 5)
Geraldine Cachero

Mathematical investigation
Mathematical investigationMathematical investigation
Mathematical investigation
giselle_just

Parallel and Perpendicular (Mathematics 5)
Parallel and Perpendicular (Mathematics 5)Parallel and Perpendicular (Mathematics 5)
Parallel and Perpendicular (Mathematics 5)
Geraldine Cachero

Peer tutoring
Peer tutoringPeer tutoring
Peer tutoring
Geraldine Cachero

Math investigation (STARS)
Math investigation (STARS)Math investigation (STARS)
Math investigation (STARS)
Geraldine Cachero

Barriers to Instructional Strategies for Effective Learning
Barriers to Instructional Strategies for Effective LearningBarriers to Instructional Strategies for Effective Learning
Barriers to Instructional Strategies for Effective Learning
Geraldine Cachero

Coordinates (Mathematics 5)
Coordinates (Mathematics 5)Coordinates (Mathematics 5)
Coordinates (Mathematics 5)
Geraldine Cachero

Philosophies of Instructional Strategies for Effective Learning
Philosophies of Instructional Strategies for Effective LearningPhilosophies of Instructional Strategies for Effective Learning
Philosophies of Instructional Strategies for Effective Learning
Geraldine Cachero


Viewers also liked (17)

6 Ways to Manage Your Indian Boss
6 Ways to Manage Your Indian Boss6 Ways to Manage Your Indian Boss
6 Ways to Manage Your Indian Boss

Multiply any four digit number by 11
Multiply any four digit number by 11Multiply any four digit number by 11
Multiply any four digit number by 11

Math Investigation: Pythagorean Theorem
Math Investigation: Pythagorean TheoremMath Investigation: Pythagorean Theorem
Math Investigation: Pythagorean Theorem

Barriers to Effective Knowledge Management in Schools
Barriers to Effective Knowledge Management in SchoolsBarriers to Effective Knowledge Management in Schools
Barriers to Effective Knowledge Management in Schools

Philosophies of Knowledge Management in Education
Philosophies of Knowledge Management in EducationPhilosophies of Knowledge Management in Education
Philosophies of Knowledge Management in Education

Best Practices in Teaching (BPT) Reforms
Best Practices in Teaching (BPT) ReformsBest Practices in Teaching (BPT) Reforms
Best Practices in Teaching (BPT) Reforms

Educational Knowledge Management Reforms
Educational Knowledge Management ReformsEducational Knowledge Management Reforms
Educational Knowledge Management Reforms

Triangles (Mathematics 5)
Triangles (Mathematics 5)Triangles (Mathematics 5)
Triangles (Mathematics 5)

Traffic signs blank
Traffic signs blankTraffic signs blank
Traffic signs blank

Possessive Adjectives (English 5)
Possessive Adjectives (English 5)Possessive Adjectives (English 5)
Possessive Adjectives (English 5)

Mathematical investigation
Mathematical investigationMathematical investigation
Mathematical investigation

Parallel and Perpendicular (Mathematics 5)
Parallel and Perpendicular (Mathematics 5)Parallel and Perpendicular (Mathematics 5)
Parallel and Perpendicular (Mathematics 5)

Peer tutoring
Peer tutoringPeer tutoring
Peer tutoring

Math investigation (STARS)
Math investigation (STARS)Math investigation (STARS)
Math investigation (STARS)

Barriers to Instructional Strategies for Effective Learning
Barriers to Instructional Strategies for Effective LearningBarriers to Instructional Strategies for Effective Learning
Barriers to Instructional Strategies for Effective Learning

Coordinates (Mathematics 5)
Coordinates (Mathematics 5)Coordinates (Mathematics 5)
Coordinates (Mathematics 5)

Philosophies of Instructional Strategies for Effective Learning
Philosophies of Instructional Strategies for Effective LearningPhilosophies of Instructional Strategies for Effective Learning
Philosophies of Instructional Strategies for Effective Learning


Similar to Design of experiments

Design of experiments formulation development exploring the best practices ...
Design of  experiments  formulation development exploring the best practices ...Design of  experiments  formulation development exploring the best practices ...
Design of experiments formulation development exploring the best practices ...
Maher Al absi

Planning of experiment in industrial research
Planning of experiment in industrial researchPlanning of experiment in industrial research
Planning of experiment in industrial research
pbbharate

PE-2021-306 OVAT and DoE.pptx
PE-2021-306 OVAT and DoE.pptxPE-2021-306 OVAT and DoE.pptx
PE-2021-306 OVAT and DoE.pptx
Martin Madraso

Determination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O RingsDetermination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O Rings
IRJET Journal

Determination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O RingsDetermination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O Rings
IRJET Journal

optimizationtechniques.pptx
optimizationtechniques.pptxoptimizationtechniques.pptx
optimizationtechniques.pptx
Raghul Kalam

design of experiments.ppt
design of experiments.pptdesign of experiments.ppt
design of experiments.ppt
9814857865

Design of experiments
Design of experimentsDesign of experiments
Design of experiments
9814857865

Design of Experiments
Design of ExperimentsDesign of Experiments
Design of Experiments
Dr. Keerti Jain

Planning of the experiments in research
Planning of the experiments in researchPlanning of the experiments in research
Planning of the experiments in research
pbbharate

Introduction to Statistics and Probability:
Introduction to Statistics and Probability:Introduction to Statistics and Probability:
Introduction to Statistics and Probability:
Shrihari Shrihari

A Presentation on Types of Quantitative Research
A Presentation on Types of Quantitative ResearchA Presentation on Types of Quantitative Research
A Presentation on Types of Quantitative Research
FazalHayat12

Scale up & Optimization
Scale up & OptimizationScale up & Optimization
Scale up & Optimization
RashiTrivedi2

mel705-15.ppt
mel705-15.pptmel705-15.ppt
mel705-15.ppt
DrVivekChauhan1

mel705-15.ppt
mel705-15.pptmel705-15.ppt
mel705-15.ppt
Gurumurthy B R

Optimization Seminar.pptx
Optimization Seminar.pptxOptimization Seminar.pptx
Optimization Seminar.pptx
PawanDhamala1

DAE1.pptx
DAE1.pptxDAE1.pptx
DAE1.pptx
AjitSharma188778

Optimization techniques in Pharmaceutical formulation and processing
Optimization techniques in Pharmaceutical formulation and processing Optimization techniques in Pharmaceutical formulation and processing
Optimization techniques in Pharmaceutical formulation and processing
AREEBA SHAFIQ

Optimization final
Optimization finalOptimization final
Optimization final
Suraj Choudhary

Guidelines to Understanding Design of Experiment and Reliability Prediction
Guidelines to Understanding Design of Experiment and Reliability PredictionGuidelines to Understanding Design of Experiment and Reliability Prediction
Guidelines to Understanding Design of Experiment and Reliability Prediction
ijsrd.com


Similar to Design of experiments (20)

Design of experiments formulation development exploring the best practices ...
Design of  experiments  formulation development exploring the best practices ...Design of  experiments  formulation development exploring the best practices ...
Design of experiments formulation development exploring the best practices ...

Planning of experiment in industrial research
Planning of experiment in industrial researchPlanning of experiment in industrial research
Planning of experiment in industrial research

PE-2021-306 OVAT and DoE.pptx
PE-2021-306 OVAT and DoE.pptxPE-2021-306 OVAT and DoE.pptx
PE-2021-306 OVAT and DoE.pptx

Determination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O RingsDetermination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O Rings

Determination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O RingsDetermination of Optimum Parameters Affecting the Properties of O Rings
Determination of Optimum Parameters Affecting the Properties of O Rings

optimizationtechniques.pptx
optimizationtechniques.pptxoptimizationtechniques.pptx
optimizationtechniques.pptx

design of experiments.ppt
design of experiments.pptdesign of experiments.ppt
design of experiments.ppt

Design of experiments
Design of experimentsDesign of experiments
Design of experiments

Design of Experiments
Design of ExperimentsDesign of Experiments
Design of Experiments

Planning of the experiments in research
Planning of the experiments in researchPlanning of the experiments in research
Planning of the experiments in research

Introduction to Statistics and Probability:
Introduction to Statistics and Probability:Introduction to Statistics and Probability:
Introduction to Statistics and Probability:

A Presentation on Types of Quantitative Research
A Presentation on Types of Quantitative ResearchA Presentation on Types of Quantitative Research
A Presentation on Types of Quantitative Research

Scale up & Optimization
Scale up & OptimizationScale up & Optimization
Scale up & Optimization

mel705-15.ppt
mel705-15.pptmel705-15.ppt
mel705-15.ppt

mel705-15.ppt
mel705-15.pptmel705-15.ppt
mel705-15.ppt

Optimization Seminar.pptx
Optimization Seminar.pptxOptimization Seminar.pptx
Optimization Seminar.pptx

DAE1.pptx
DAE1.pptxDAE1.pptx
DAE1.pptx

Optimization techniques in Pharmaceutical formulation and processing
Optimization techniques in Pharmaceutical formulation and processing Optimization techniques in Pharmaceutical formulation and processing
Optimization techniques in Pharmaceutical formulation and processing

Optimization final
Optimization finalOptimization final
Optimization final

Guidelines to Understanding Design of Experiment and Reliability Prediction
Guidelines to Understanding Design of Experiment and Reliability PredictionGuidelines to Understanding Design of Experiment and Reliability Prediction
Guidelines to Understanding Design of Experiment and Reliability Prediction


Recently uploaded

The Ipsos - AI - Monitor 2024 Report.pdf
The  Ipsos - AI - Monitor 2024 Report.pdfThe  Ipsos - AI - Monitor 2024 Report.pdf
The Ipsos - AI - Monitor 2024 Report.pdf
Social Samosa

社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .
NABLAS株式会社

一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理
一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理
一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理
nyfuhyz

[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024
[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024
[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024
Vietnam Cotton & Spinning Association

一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
nyvan3

Template xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptxTemplate xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptx
TeukuEriSyahputra

Sample Devops SRE Product Companies .pdf
Sample Devops SRE  Product Companies .pdfSample Devops SRE  Product Companies .pdf
Sample Devops SRE Product Companies .pdf
Vineet

一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
asyed10

一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理
一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理
一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理
slg6lamcq

一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
taqyea

Jio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdfJio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdf
inaya7568

End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024
Lars Albertsson

A presentation that explain the Power BI Licensing
A presentation that explain the Power BI LicensingA presentation that explain the Power BI Licensing
A presentation that explain the Power BI Licensing
AlessioFois2

writing report business partner b1+ .pdf
writing report business partner b1+ .pdfwriting report business partner b1+ .pdf
writing report business partner b1+ .pdf
VyNguyen709676

一比一原版卡尔加里大学毕业证(uc毕业证)如何办理
一比一原版卡尔加里大学毕业证(uc毕业证)如何办理一比一原版卡尔加里大学毕业证(uc毕业证)如何办理
一比一原版卡尔加里大学毕业证(uc毕业证)如何办理
oaxefes

Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024
ElizabethGarrettChri

一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
bopyb

一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理
一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理
一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理
ywqeos

一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
z6osjkqvd

原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理
原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理 原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理
原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理
tzu5xla


Recently uploaded (20)

The Ipsos - AI - Monitor 2024 Report.pdf
The  Ipsos - AI - Monitor 2024 Report.pdfThe  Ipsos - AI - Monitor 2024 Report.pdf
The Ipsos - AI - Monitor 2024 Report.pdf

社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .社内勉強会資料_Hallucination of LLMs               .
社内勉強会資料_Hallucination of LLMs               .

一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理
一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理
一比一原版(UMN文凭证书)明尼苏达大学毕业证如何办理

[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024
[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024
[VCOSA] Monthly Report - Cotton & Yarn Statistics March 2024

一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理
一比一原版英国赫特福德大学毕业证(hertfordshire毕业证书)如何办理

Template xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptxTemplate xxxxxxxx ssssssssssss Sertifikat.pptx
Template xxxxxxxx ssssssssssss Sertifikat.pptx

Sample Devops SRE Product Companies .pdf
Sample Devops SRE  Product Companies .pdfSample Devops SRE  Product Companies .pdf
Sample Devops SRE Product Companies .pdf

一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理
一比一原版美国帕森斯设计学院毕业证(parsons毕业证书)如何办理

一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理
一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理
一比一原版南十字星大学毕业证(SCU毕业证书)学历如何办理

一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理一比一原版(harvard毕业证书)哈佛大学毕业证如何办理
一比一原版(harvard毕业证书)哈佛大学毕业证如何办理

Jio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdfJio cinema Retention & Engagement Strategy.pdf
Jio cinema Retention & Engagement Strategy.pdf

End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024End-to-end pipeline agility - Berlin Buzzwords 2024
End-to-end pipeline agility - Berlin Buzzwords 2024

A presentation that explain the Power BI Licensing
A presentation that explain the Power BI LicensingA presentation that explain the Power BI Licensing
A presentation that explain the Power BI Licensing

writing report business partner b1+ .pdf
writing report business partner b1+ .pdfwriting report business partner b1+ .pdf
writing report business partner b1+ .pdf

一比一原版卡尔加里大学毕业证(uc毕业证)如何办理
一比一原版卡尔加里大学毕业证(uc毕业证)如何办理一比一原版卡尔加里大学毕业证(uc毕业证)如何办理
一比一原版卡尔加里大学毕业证(uc毕业证)如何办理

Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024Open Source Contributions to Postgres: The Basics POSETTE 2024
Open Source Contributions to Postgres: The Basics POSETTE 2024

一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理
一比一原版(GWU,GW文凭证书)乔治·华盛顿大学毕业证如何办理

一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理
一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理
一比一原版(lbs毕业证书)伦敦商学院毕业证如何办理

一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理
一比一原版英属哥伦比亚大学毕业证(UBC毕业证书)学历如何办理

原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理
原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理 原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理
原版一比一爱尔兰都柏林大学毕业证(UCD毕业证书)如何办理


Design of experiments

  • 1. © 2013 ICOPE - All rights reserved. Design of Experiments (DOE)
  • 2. © 2013 ICOPE - All rights reserved. OVERVIEW o Approaches to Experimentation o What is Design of Experiments o Definition of DOE o Why DOE o History of DOE o Basic DOE Example o Factors, Levels, Responses o General Model of Process or System o Interaction, Randomization, Blocking, Replication o Experiment Design Process o Types of DOE o One factorial o Two factorial o Fractional factorial o Screening experiments o Calculation of Alias o DOE Selection Guide
  • 3. © 2013 ICOPE - All rights reserved. WHAT WE LEARN Basics of DOE Full Factorial Design Fractional Factorial Design Screening Experiments Minitab Exercises
  • 4. © 2013 ICOPE - All rights reserved. BASICS OF DOE
  • 5. © 2013 ICOPE - All rights reserved. APPROACHES TO EXPERIMENTATION o Trail and Error Method o One Factor at a Time o Design of Experiments
  • 6. © 2013 ICOPE - All rights reserved. BASICS OF DOE o What is DOE: Design of Experiment (DOE) is a powerful statistical technique for improving product/process designs and solving process / production problems DOE makes controlled changes to input variables in order to gain maximum amounts of information on cause and effect relationships with a minimum sample size When analyzing a process, experiments are often used to evaluate which process inputs have a significant impact on the process output and what the target level the inputs should be to achieve a desired result (output). Design of Experiments (DOE) is also referred to as Designed Experiments or Experimental Design
  • 7. © 2013 ICOPE - All rights reserved. BASICS OF DOE o Why DOE: • Reduce time to design/develop new products & processes • Improve performance of existing processes • Improve reliability and performance of products • Achieve product & process robustness • Perform evaluation of materials, design alternatives, setting component & system tolerances
  • 8. © 2013 ICOPE - All rights reserved. HISTORY OF DOE • The agricultural origins, 1918 – 1940s • R. A. Fisher & his co-workers • Profound impact on agricultural science • Factorial designs, ANOVA • The first industrial era, 1951 – late 1970s • Box & Wilson, response surfaces • Applications in the chemical & process industries • The second industrial era, late 1970s – 1990 • Quality improvement initiatives in many companies • CQI and TQM were important ideas and became management goals • Taguchi and robust parameter design, process robustness • The modern era, economic competitiveness and globalization is driving all sectors of the economy to be more competitive
  • 9. © 2013 ICOPE - All rights reserved. DOE EXAMPLE
  • 10. © 2013 ICOPE - All rights reserved. FACTORS, LEVELS, RESPONSE o Factors: Factors are inputs to the process Factors can be classified as either controllable or uncontrollable variables. In this case, the controllable factors are Flour, Eggs, Sugar and Oven. Potential factors can be categorized using the Cause & Effect Diagram o Levels: Levels represent settings of each factor in the study Examples include the oven temperature setting, no. of spoons of sugar, no. of cups of flour, and no. of eggs o Response: Response is output of the experiment In the case of cake baking, the taste, consistency, and appearance of the cake are measurable outcomes potentially influenced by the factors and their respective levels.
  • 11. © 2013 ICOPE - All rights reserved. GENERAL MODEAL OF A PROCESS OR SYSTEM
  • 12. © 2013 ICOPE - All rights reserved. KEY TERMINOLOGY o Interaction o Randomization o Blocking o Replication
  • 13. © 2013 ICOPE - All rights reserved. KEY TERMINOLOGY o Interaction: Sometimes factors do not behave the same when they are looked at together as when they are alone; this is called an interaction Interaction plot can be used to visualize possible interactions between two or more factors Parallel lines in an interaction plot indicate no interaction The greater the difference in slope between the lines, the higher the degree of interaction However, the interaction plot doesn't alert you if the interaction is statistically significant Interaction plots are most often used to visualize interactions during ANOVA or DOE
  • 14. © 2013 ICOPE - All rights reserved. KEY TERMINOLOGY o Randomization: Randomization is a statistical tool used to minimize potential uncontrollable biases in the experiment by randomly assigning material, people, order that experimental trials are conducted, or any other factor not under the control of the experimenter When we run designed experiments, we will use experimental templates to set them up and to analyze them. We do not want to actually make the experimental runs in the order shown by the template; wherever possible, we want to randomize the experimental runs. Randomization of the run order is needed to minimize the impact of those variables outside of the experiment that we are not studying.
  • 15. © 2013 ICOPE - All rights reserved. KEY TERMINOLOGY o Blocking: Blocking is a technique used to increase the precision of an experiment by breaking the experiment into homogeneous segments (blocks or clusters or strata) in order to control any potential block to block variability Sometime we cannot totally randomize the experimental runs. Typically this is because it will be costly or will take a long time to complete the experiment. Blocking means to run all combinations at one level before running all treatment combinations at the next level. Experimental runs within blocks must be randomized.
  • 16. © 2013 ICOPE - All rights reserved. KEY TERMINOLOGY o Replication: Replication is making multiple experimental runs for each experiment combination. This is one approach to determining the common cause variation in the process so that we can test effects for statistical significance. Repetition of a basic experiment without changing any factor settings, allows the experimenter to estimate the experimental error (noise) in the system used to determine whether observed differences in the data are “real” or “just noise”, allows the experimenter to obtain more statistical power
  • 17. © 2013 ICOPE - All rights reserved. EXPERIMENT DESIGN PROCESS
  • 18. © 2013 ICOPE - All rights reserved. TYPES OF DOE o One Factorial o Full Factorials o Fractional Factorials o Screening Experiments o Plackett-Burman Designs o Taguchis Orthogonal Arrays o Response Surface Analysis
  • 19. © 2013 ICOPE - All rights reserved. ONE FACTORIAL METHOD o One Factorial method: One factorial experiments look at only one factor having an impact on output at different factor levels. The factor can be qualitative or quantitative. In the case of qualitative factors (e.g. different suppliers, different materials, etc.), no predictions can be performed outside the tested levels, and only the effect of the factor on the response can be determined. In the case of quantitative factors (e.g. temperature, voltage, load, etc.) can be used for both effect investigation and prediction, provided that sufficient data are available.
  • 20. © 2013 ICOPE - All rights reserved. ONE FACTORIAL METHOD o One Factorial method: In single factor experiments, ANOVA models are used to compare the mean response values at different levels of the factor. Each level of the factor is investigated to see if the response is significantly different from the response at other levels of the factor. The analysis of single factor experiments is often referred to as one-way ANOVA
  • 21. © 2013 ICOPE - All rights reserved. ONE FACTORIAL METHOD o One Factorial method: Use One-Way ANOVA (analysis of variance) to do the following when you have one categorical factor and a continuous response: Determine whether the means of two or more groups differ. Obtain a range of values for the difference between the means for each pair of groups. Where to find this analysis in Minitab: • STATISTICS > ANOVA > One-Way ANOVA
  • 22. © 2013 ICOPE - All rights reserved. ONE FACTORIAL METHOD, EXAMPLE Consider a BPO, where the Ops Manager wants to know if the productivity (transactions per day) of his Team is same everyday. The assumption is the productivity is same on every weekday  H0, Null Hypothesis Prod Mon = Tue = Wed = Thu = Fri Ha, Alternate Hypothesis  the productivity on at least one weekday is not same. Mon != Tue = Wed = Thu = Fri (or any day avg. productivity is not equal to at least one other day’s productivity) Weekday transactions per day Weekday transactions per day Mon 30 Thu 18 Tue 16 Fri 95 Wed 22 Mon 33 Thu 15 Tue 76 Fri 32 Wed 21 Mon 18 Thu 80 Tue 27 Fri 44 Wed 18 Mon 65 Thu 35 Tue 71 Fri 12 Wed 20 Mon 38 Thu 66 Tue 22 Fri 44 Wed 12 Mon 30 Thu 33 Tue 84 Fri 19 Wed 8 Mon 55 Thu 59 Tue 34 Fri 82 Wed 12 Mon 64 Thu 98 Tue 94 Fri 37 Wed 33 Mon 84 Thu 63 Tue 12 Fri 42 Wed 16
  • 23. © 2013 ICOPE - All rights reserved. ONE FACTORIAL METHOD, EXAMPLE Open Minitab • Go to Stat • Go to ANOVA • Go to One-way • Enter Factors • Enter Responses
  • 24. © 2013 ICOPE - All rights reserved. ONE FACTORIAL METHOD, EXAMPLE P Value < 0.05 So we Reject null Hypothesis We can say Day of the week is significant factor on productivity. WedTueThuMonFri 100 80 60 40 20 0 Weekday transactionsperday Boxplot of transactions per day
  • 25. © 2013 ICOPE - All rights reserved. FULL FACTORIAL METHOD o Full Factorial method: Full factorial experiments look completely at all factors included in the experimentation. In full factorials, all of the possible combinations that are associated with the factors and their levels are studied. The effects that the main factors and all the interactions between factors are measured. If we use more than two levels for each factor, we can also study whether the effect on the response is linear or if there is curvature in the experimental region for each factor and for the interactions. Full factorial experiments can require many experimental runs if many factors at many levels are investigated.
  • 26. © 2013 ICOPE - All rights reserved. 2 FACTORIAL METHOD o 2 Factorial method: The simplest of the two level factorial experiments is the design where two factors (say factor A and factor B) are investigated at two levels. A single replicate of this design will require four runs Consider 2 factors A & B, so there will be 4 combinations (2^2) Say, 2 levels each Hi (+1) and low(-1) So the possible combinations are illustrated in the below table: Run # A B Response 1 + + 33 2 + - 52 3 - + 16 4 - - 26
  • 27. © 2013 ICOPE - All rights reserved. 2 FACTORIAL METHOD o 2 Factorial method: Main effect of A = Mean response at+ level – Mean response at – level = (30+50)/2 – (10+20)/2 = 40 – 15 = 25 Main effect of B = Mean response at+ level – Mean response at – level = (30+10)/2 – (50+20)/2 = 20 – 35 = -15 Run # A B Response 1 + + 30 2 + - 50 3 - + 10 4 - - 20
  • 28. © 2013 ICOPE - All rights reserved. 2 FACTORIAL METHOD o 2 Factorial method: Interaction effect of A*B = Mean response at+ level – Mean response at -level = (30+20)/2 – (50+10)/2 = 25 – 30 = -5 Interaction is obtained by multiplying the factors involved Run # A B A*B Response 1 + + + 30 2 + - - 50 3 - + - 10 4 - - + 20
  • 29. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE Go to Standard tool Bar  Move cursor to DOE  Select Plan and Create  From below popup select Create Modeling Design (as we are dealing with 2 factors for now)
  • 30. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE  Enter the Name of the Response Variable (or leave as is as Response)  Select the Goal  Select Factors as 2  Enter Factor Names and Settings  Enter the No. of replicates (here it is 4)  No. of runs auto populate based on factors and replicates
  • 31. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE  Modeling Design Graph would appear with below details  Experimental Goal  Design Information  Factors and Settings  Effect Estimation  Detection Ability
  • 32. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE  Enter your responses in Response column (C7)
  • 33. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE Go to Standard tool Bar  Move cursor to DOE  Select Analyze and Interpret  From below popup select Fit Liner Model
  • 34. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE  From below popup select Minimize the response and click OK
  • 35. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE  From below summary Report you can identify  signifying factors from Pareto chart  Here it is B i.e., Processors per day has more impact than no. of transactions per day on Quality scores  % of Variation  design info  Optimal factor setting
  • 36. © 2013 ICOPE - All rights reserved. TWO FACTORIAL METHOD, EXAMPLE  From below chart we can understand the Main effect and Interaction effect  It shows, transactions per day has less significant compared to Processors per day  The AB interaction plot also nearly significant
  • 37. © 2013 ICOPE - All rights reserved. FRACTIONAL FACTORIAL METHOD o Fractional Factorial method: Fractional factorials look at more factors with fewer runs. Using a fractional factorial involves making a major assumption - that higher order interactions (those between three or more factors) are not significant. Fractional factorial designs are derived from full factorial matrices by substituting higher order interactions with new factors. To increase the efficiency of experimentation, fractional factorials give up some power in analyzing the effects on the response. Fractional factorials will still look at the main factor effects, but they lead to compromises when looking into interaction effects. This compromise is called confounding.
  • 38. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS o Screening Experiments: Screening experiments are the ultimate fractional factorial experiments. These experiments assume that all interactions, even two-way interactions, are not significant. They literally screen the factors, or variables, in the process and determine which are the critical variables that affect the process output. There are two major families of screening experiments: • Drs. Plackett and Burman developed the original family of screening experiments matrices in the 1940s. • Dr. Taguchi adapted the Plackett–Burman screening designs. He modified the Plackett–Burman design approach so that the experimenter could assume that interactions are not significant, yet could test for some two-way interactions at the same time.
  • 39. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE Go to Standard tool Bar  Move cursor to DOE  Select Plan and Create  From below popup select (Screen with 6 - 15 factors) Create Screening Design (as we are dealing with 6 factors for now)
  • 40. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE  Enter the Name of the Response Variable (or leave as is as Response)  Select Factors as 6  Enter Factor Names and Settings  Select the No. of runs  Click OK
  • 41. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE  Modeling Design Graph would appear with below details  Experimental Goal  Design Information  Factors and Settings  Effect Estimation  Detection Ability
  • 42. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE  Enter your responses in Response column (C11), Quality scores
  • 43. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE Go to Standard tool Bar  Move cursor to DOE  Select Analyze and Interpret  From below popup select Fit Screening Model
  • 44. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE  From below popup select Yes
  • 45. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE  From below summary Report you can identify  signifying factors from Pareto chart  Here it is Shift i.e., shift has more impact on Quality scores  % of Variation  design info
  • 46. © 2013 ICOPE - All rights reserved. SCREENING EXPERIMENTS, EXAMPLE  From below chart we can understand the Main effect  It shows, Shift of day has higher impact on Quality score  The Factors shown in gray background are statistically insignificant and can be ignored from analysis
  • 47. © 2013 ICOPE - All rights reserved. RESPONSE SURFACE ANALYSIS o Response Surface Analysis (RSM): RSM explores the relationships between several explanatory variables and one or more response variables. The method was introduced by G. E. P. Box and K. B. Wilson in 1951. The main idea of RSM is to use a sequence of designed experiments to obtain an optimal response. Response surface analysis is an off-line optimization technique. Usually, 2 factors are studied; but 3 or more can be studied. With response surface analysis, we run a series of full factorial experiments and map the response to generate mathematical equations that describe how factors affect the response.
  • 48. © 2013 ICOPE - All rights reserved. CALCULATION OF ALIAS o Calculation of Aliases: Aliases for a fractional factorial design can be obtained using the defining relation for the design. The defining relation for the present design is: I = ABC Multiplying both sides of the previous equation by the main effect, gives the alias effect of : I*A = A*ABC A = A2BC A = BC Note that in calculating the alias effects, any effect multiplied by remains the same (), while an effect multiplied by itself results in (). Other aliases can also be obtained: B = AC and: C = AB
  • 49. © 2013 ICOPE - All rights reserved. SECECTION GUIDE Number of Factors Comparative Objective Screening Objective 1 1 way ANOVA or Simple Regression _ 2 - 4 2 Way ANOVA, General Liner Model Full or Fractional Factorial Design 5 or more Randomized Block Design Fractional Factorial Design or Plackett- Burman
