1. ‫اﻟﻤﺒﻨﻲ‬ ‫وﺻﻒ‬:BUILDING NAME:
BUILDING # 05 , JAWAZAT BUILDING
TITLE:
‫اﻟﻠﻮﺣﺔ‬ ‫اﺳﻢ‬:
STRUCTURAL DESIGN CALCULATION
Prepared By: M.O.G. ELMOGHERAH ELHAG
Date: 01-08-2010
Design By: A.S.M. ABDULAH S. BIN‐MAKHASHEN
Checked By: N.M.A. Abdul Nasr Mohd. Ali
Revision 00
Approved By: N.Z.N. Nabil Zaki Nasr

3.
EMERGENCY LODGING CENTER PROJECT – AL SHUMAISI – MAKKAH
STRUCTURAL DESIGN CRITERIA
MATERIAL:
1. Concrete:
Compressive strength of concrete at 28 days for all Ewaa buildings (U.O.N) is 300 kg/cm².
Design mix should exceed 15% more than the required mix (345 kg/m²).
2. Steel:
Yield strength of high tensile deformed bars grade 60 = 4200 kg/m².
3. Structural Steel:
For Metal Structure use steel grade 36, A36 for hot rolled section and grade 50 for built-
up section for bolt use A325 & A490 type for anchor bolt A307, for welding conncection
AWS will be adopted.
4. Solid Slab:
Kindly see the attached sketches
5. Hollow Core Units:
Kindly see the attached sketches
6. Block Wall:
CMU should comply with ASTM C90 Grade N-1 Fc¹ = 70kg/m² at 28 days.
A – LOADING:
A-1 Dead Load:
• Reinforced concrete = 24 kn/m²
• Plain Concrete = 22 kn/m²
• False ceiling = 0.30 kn/m²
• E/M services = 0.15 kn/m²
• CMU 200mm thick = 3.4 kn/m²
• Membrane 5mm = 0.15 kn/m²
• Partitions = 1.0 kn/m²
• Tiles 25mm = 0.6 kn/m²

4.
A-2 Live Load:
• Offices = 2.5 kn/m²
• Store = 5 kn/m²
• File Room/Store = 5 kn/m²
• Accessible Roof = 2 kn/m²
• In Accessible Roof = 1 kn/m²
• E/m Equipment on Roof = 5 kn/m²
• Impact Factor = 10%
• Corridor / Stairs = 5 kn/m²
• Public Area = 5 kn/m²
B- LATERAL FORCES:
- Wind speed 130 KPH exposure C according to ASCE
- Seismic Zone 1 according to UBC 1997
CODES & STANDARDS:
- ACI – 318M – 2005
- PCI design handbook
- UBC 1997
- AISC – AWS
- ASTM for material
SOFTWARE ENGINEERING PROGRAM:
- Staad Pro 2007
- PCA Beam
- PCA Column
- PCA Mats
- SAFE
- PROKON
________________________
Engr. Abdul Naser Mohd. Ali
Head of Structural Design

5. INTRODUCTION

6. BUILDING TITLE: EMERGENCY LODGING CENTER, SHUMASI-MAKKAH
JAWAZAT BUILDING B05
1. INTRODUCTION
1. Design calculation is carried out using computer software
STAAD PRO 2006 and design carried according to
American code ACI – 318-05 and UBC 1997.
2. Different load cases of dead loads, live load, wind,
earthquake and temperature cases are applied.

7. DESIGN CRITERIA

8. BUILDING TITLE: EMERGENCY LODGING CENTER, SHUMASI-MAKKAH
JAWAZAT BUILDING B05
DESIGN CRITERIA
1. 28 Days cylinder compressive strength of concrete
f’c = 30 N/mm2
2. Yield strength of reinforcement fy = 420 N/mm2
3. Allowable soil bearing capacity = 1.5 kg/cm2
4. Live load AS PER GENERAL NOTE DRAWING prepared by
(AL ETQUAN) COSULTANT
5. Basic wind speed = 130 km/h
= 80 mph
6. Seismic zone = 1
7. TEMPRETURE =± 20ºc

9. LOADING

10. BUILDING TITLE: EMERGENCY LODGING CENTER, SHUMASI-MAKKAH
JAWAZAT BUILDING B05
LOADING
A. DEAD LOAD ( D.L )
FOR 200mm HOLLOW CORE SLAB: ROOF SLAB
1. ROOFING Layers = 450 kg/m2
2. Self Weight of 200mm HOLLOW CORE = 200 kg/m2
3. 50MM STRUCTURAL SCREEDE = 125 kg/m2
4. Weight of partitions …………………… = 0.0 kg/m2
5. Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
--------------------
Total D.L. 825 kg/m2
9 kN/m2
FOR 200mm Hollow core slab: FLOOR SLAB
1. Finishing Layers 100MM Thk = 200 kg/m2
2. 50mm structural screed = 125 kg/m2
3. Self weight of 200 mm hollow core = 240 kg/m2
4. Weight of partitions …………………… = 200 kg/m2
5. Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
--------------------
Total D.L. 800 kg/m2
8 kN/m

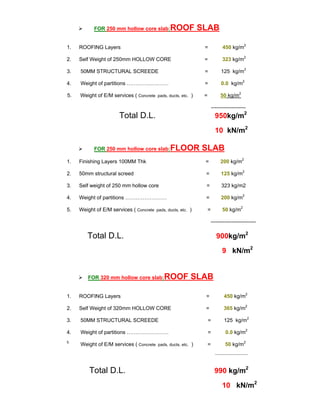

11. FOR 250 mm hollow core slab:ROOF SLAB
1. ROOFING Layers = 450 kg/m2
2. Self Weight of 250mm HOLLOW CORE = 323 kg/m2
3. 50MM STRUCTURAL SCREEDE = 125 kg/m2
4. Weight of partitions …………………… = 0.0 kg/m2
5. Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
--------------------
Total D.L. 950kg/m2
10 kN/m2
FOR 250 mm hollow core slab:FLOOR SLAB
1. Finishing Layers 100MM Thk = 200 kg/m2
2. 50mm structural screed = 125 kg/m2
3. Self weight of 250 mm hollow core = 323 kg/m2
4. Weight of partitions …………………… = 200 kg/m2
5. Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
--------------------------
Total D.L. 900kg/m2
9 kN/m2
FOR 320 mm hollow core slab:ROOF SLAB
1. ROOFING Layers = 450 kg/m2
2. Self Weight of 320mm HOLLOW CORE = 365 kg/m2
3. 50MM STRUCTURAL SCREEDE = 125 kg/m2
4. Weight of partitions …………………… = 0.0 kg/m2
5.
Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
-----------------------------
Total D.L. 990 kg/m2
10 kN/m2

12. FOR 320 mm hollow core slab:FLOOR SLAB
1. Finishing Layers 100MM Thk = 200 kg/m2
2. 50mm structural screed = 125 kg/m2
3. Self weight of 320 mm hollow core = 365 kg/m2
4. Weight of partitions …………………… = 200 kg/m2
5. Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
-------------------------
Total D.L. 940 kg/m2
9.5 kN/m2
FOR 400 mm hollow core slab:ROOF SLAB
1. ROOFING Layers = 450 kg/m2
2. Self Weight of 400mm HOLLOW CORE = 415 kg/m2
3. 50MM STRUCTURAL SCREEDE = 125 kg/m2
4. Weight of partitions …………………… = 0.0 kg/m2
5.
Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
-------------------------------
Total D.L. 1040 kg/m2
10.5 kN/m2
FOR 400 mm hollow core slab:FLOOR SLAB
1. Finishing Layers 100MM Thk = 200 kg/m2
2. 50mm structural screed = 125 kg/m2
3. Self weight of 400 mm hollow core = 415 kg/m2
4. Weight of partitions …………………… = 200 kg/m2
5. Weight of E/M services ( Concrete pads, ducts, etc. ) = 50 kg/m2
------------------------
Total D.L. 990 kg/m2
10 kN/m2

13. BLOCK WALL ON FLOOR/STAIR/TOILET LOAD 14 kN/m
BLOCK WALL ON PARAPET LOAD (external ) 7 kN/m
--------------------
B. LIVE LOAD ( L.L )
1. Live Load on the roof (IN ACCESSIBLE) = 100 KG/M² = 1.5 KN/M²
2. Live Load on the roof (ACCESSIBLE) PARTIALLY
BY E/M = 500 KG/M² = 5KN/M²
3. Live Load on the floor (CORRIDOR & STAIR) = 500 KG/M² = 5.0 KN/M²
4. Live Load on the Offices = 250 KG/M² = 2.5 KN/M²
--------------------
C. WIND LOAD ( W.L ) X – Direction
Z – Direction
Wind speed = 130 kph = 130/1.6 ≈ 80 mph
Exposure – C – At Height = 40 FT ≈ 12 m
P = Design wind pressure as per UBC
P = wsqe IqCC
eC = Combined co-efficient = 1.13 table 16-G
qC = Pressure co-efficient = 0.80 table 16 – H
sq = Wind Stagnation = 0.786 kN/m2
table 16-F(16.4 psf x 0.0479)
wI = Importance factor = 1.15 Table 16-K
P = 1.13 x 0.8 x 0.786 x 1.15 = 0.817 kN/m2
Wind pressure = 1.33 x 0.8
= 1.05kN/m2
=1.0 KN /m2

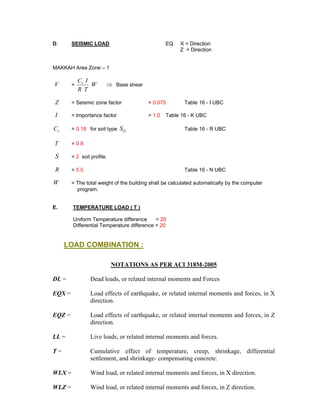

14. D. SEISMIC LOAD EQ X = Direction
Z = Direction
MAKKAH Area Zone – 1
V = ⇒W
TR
ICv
Base shear
Z = Seismic zone factor = 0.075 Table 16 - I UBC
I = Importance factor = 1.0 Table 16 - K UBC
vC = 0.18 for soil type DS Table 16 - R UBC
T = 0.8
S = 2 soil profile.
R = 5.5 Table 16 - N UBC
W = The total weight of the building shall be calculated automatically by the computer
program.
E. TEMPERATURE LOAD ( T )
Uniform Temperature difference = 20
Differential Temperature difference = 20
LOAD COMBINATION :
NOTATIONS AS PER ACI 318M-2005
DL = Dead loads, or related internal moments and Forces
EQX = Load effects of earthquake, or related internal moments and forces, in X
direction.
EQZ = Load effects of earthquake, or related internal moments and forces, in Z
direction.
LL = Live loads, or related internal moments and forces.
T = Cumulative effect of temperature, creep, shrinkage, differential
settlement, and shrinkage- compensating concrete.
WLX = Wind load, or related internal moments and forces, in X direction.
WLZ = Wind load, or related internal moments and forces, in Z direction.

15. LOAD CASES:
1. EQX
2. EQZ
3. WLX
4. WLZ
5. DL
6. LL
7. T
LOAD COMBINATION AS PER ACI 318M-2005.
8. 1.4 DL Eq 9-1 ACI 318: 2005
9. 1.2 DL + 1.2 T + 1.6 LL Eq 9-2 ACI 318: 2005
10. 1.2 DL + 1.0 LL Eq 9-3 ACI 318: 2005
11. 1.2 DL + 0.8 WLX Eq 9-3 ACI 318: 2005
12. 1.2 DL - 0.8 WLX Eq 9-3 ACI 318: 2005
13. 1.2 DL + 0.8 WLZ Eq 9-3 ACI 318: 2005
14. 1.2 DL - 0.8 WLZ Eq 9-3 ACI 318: 2005
15. 1.2 DL + 1.6 WLX + 1.0 LL Eq 9-4 ACI 318: 2005
16. 1.2 DL - 1.6 WLX + 1.0 LL Eq 9-4 ACI 318: 2005
17. 1.2 DL + 1.6 WLZ + 1.0 LL Eq 9-4 ACI 318: 2005
18. 1.2 DL - 1.6 WLZ + 1.0 LL Eq 9-4 ACI 318: 2005
19. 1.2 DL + 1.0 EQX + 1.0 LL Eq 9-5 ACI 318: 2005
20. 1.2 DL - 1.0 EQX + 1.0 LL Eq 9-5 ACI 318: 2005
21. 1.2 DL + 1.0 EQZ + 1.0 LL Eq 9-5 ACI 318: 2005
22. 1.2 DL - 1.0 EQZ + 1.0 LL Eq 9-5 ACI 318: 2005
23. 0.9 DL + 1.6 WLX Eq 9-6 ACI 318: 2005
24. 0.9 DL - 1.6 WLX Eq 9-6 ACI 318: 2005
25. 0.9 DL + 1.6 WLZ Eq 9-6 ACI 318: 2005
26. 0.9 DL - 1.6 WLZ Eq 9-6 ACI 318: 2005
27. 0.9 DL + 1.0 EQX Eq 9-7 ACI 318: 2005
28. 0.9 DL - 1.0 EQX Eq 9-7 ACI 318: 2005
29. 0.9 DL + 1.0 EQZ Eq 9-7 ACI 318: 2005
30. 0.9 DL - 1.0 EQZ Eq 9-7 ACI 318: 2005
