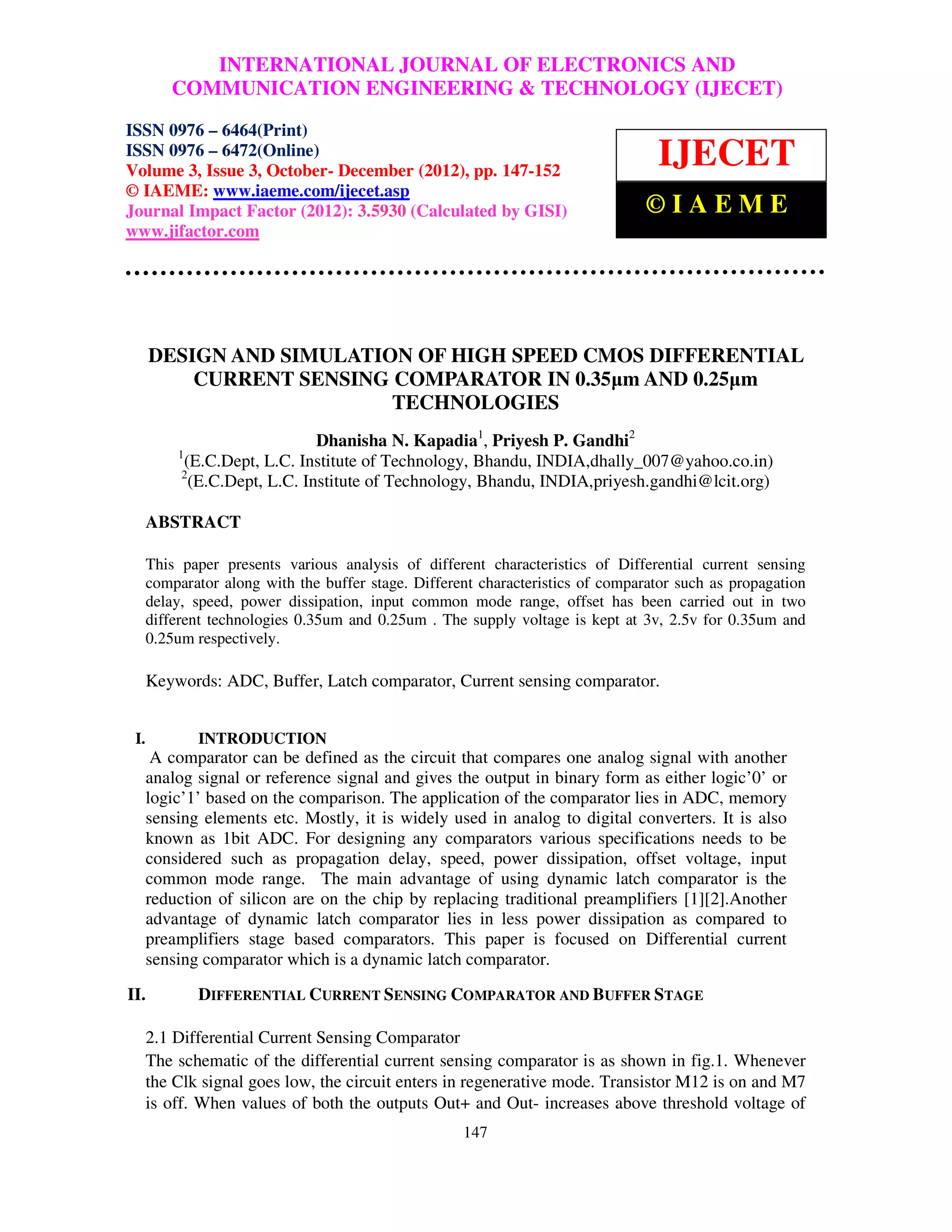

DESIGN AND SIMULATION OF HIGH SPEED CMOS DIFFERENTIAL
CURRENT SENSING COMPARATOR IN 0.35µm AND 0.25µm
TECHNOLOGIES
Dhanisha N. Kapadia1, Priyesh P. Gandhi2
1
(E.C.Dept, L.C. Institute of Technology, Bhandu, INDIA,dhally_007@yahoo.co.in)
2
(E.C.Dept, L.C. Institute of Technology, Bhandu, INDIA,priyesh.gandhi@lcit.org)
ABSTRACT
This paper presents various analysis of different characteristics of Differential current sensing
comparator along with the buffer stage. Different characteristics of comparator such as propagation
delay, speed, power dissipation, input common mode range, offset has been carried out in two
different technologies 0.35um and 0.25um . The supply voltage is kept at 3v, 2.5v for 0.35um and
0.25um respectively.
Keywords: ADC, Buffer, Latch comparator, Current sensing comparator.
I. INTRODUCTION
A comparator can be defined as the circuit that compares one analog signal with another
analog signal or reference signal and gives the output in binary form as either logic’0’ or
logic’1’ based on the comparison. The application of the comparator lies in ADC, memory
sensing elements etc. Mostly, it is widely used in analog to digital converters. It is also
known as 1bit ADC. For designing any comparators various specifications needs to be
considered such as propagation delay, speed, power dissipation, offset voltage, input
common mode range. The main advantage of using dynamic latch comparator is the
reduction of silicon are on the chip by replacing traditional preamplifiers [1][2].Another
advantage of dynamic latch comparator lies in less power dissipation as compared to
preamplifiers stage based comparators. This paper is focused on Differential current
sensing comparator which is a dynamic latch comparator.
II. DIFFERENTIAL CURRENT SENSING COMPARATOR AND BUFFER STAGE
2.1 Differential Current Sensing Comparator
The schematic of the differential current sensing comparator is as shown in fig.1. Whenever
the Clk signal goes low, the circuit enters in regenerative mode. Transistor M12 is on and M7
is off. When values of both the outputs Out+ and Out- increases above threshold voltage of
147

2. International Journal of Electronics and Communication Engineering & Technology (IJECET), ISSN
0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 3, Issue 3, October- December (2012), © IAEME
nMOS M5 and M6, both will start conducting which will connect the outputs with comparing
circuit at the input side. It consumes more power because unless and until final state is
reached both the outputs have to drive common mode currents.
The comparing circuit used at the input side consisting of transistors M1, M2, M3 and M4
are used to transfer the difference of the input voltage into differential currents. During reset
interval, a pass transistor M7 is used to connect both the outputs together

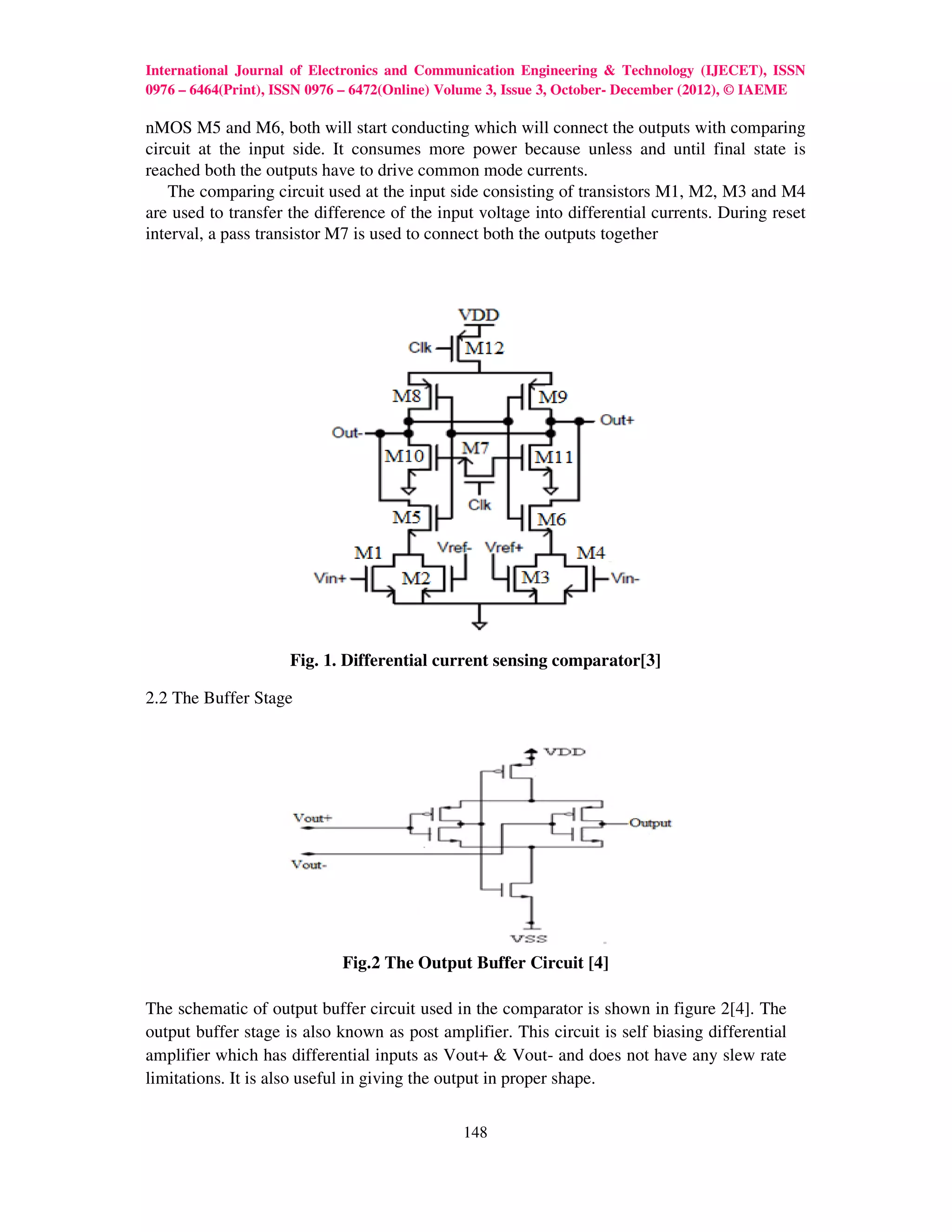

Fig. 1. Differential current sensing comparator[3]
2.2 The Buffer Stage
Fig.2 The Output Buffer Circuit [4]
The schematic of output buffer circuit used in the comparator is shown in figure 2[4]. The
output buffer stage is also known as post amplifier. This circuit is self biasing differential
amplifier which has differential inputs as Vout+ & Vout- and does not have any slew rate
limitations. It is also useful in giving the output in proper shape.
148

3. International Journal of Electronics and Communication Engineering & Technology (IJECET), ISSN
0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 3, Issue 3, October- December (2012), © IAEME
III. DESIGNING OF COMPARATOR
Fig.3 Design of Comparator
The circuit diagram of Differential current sensing comparator along with the buffer stage is
as shown in fig.3. The two outputs Out+ and Out- of differential current sensing comparator
are being converted into single output with the output buffer circuit so that various analysis
can be carried out. Table I given below shows different widths of the transistor to be used
according to the chosen technology. The length for the transistor is 0.35um and 0.25um
respectively for 0.35u and 0.25um technology.
Table 1. CMOS Transistor widths for different technologies
Transistor Technology
0.35um 0.25um
M1,M2,M3,M4,M9 5.5 5
M5,M6,M7,M8,M14,M16,M18 4.5 4
M10,M11,M13,M15,M17 9 8
M12 11 10
IV. SIMULATED RESULTS
The simulated results are obtained for two different technologies 0.35um and 0.25um . In
table II, different voltage values are given for supply voltage VDD and VSS, reference
voltage Vref+ and Vref-, input voltage Vin+ and Vin-.
149

4. International Journal of Electronics and Communication Engineering & Technology (IJECET), ISSN
0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 3, Issue 3, October- December (2012), © IAEME
Table2. CMOS Transistor widths for different technologies
Voltage Technology
Terminals
0.35um 0.25um
Vdd 3v 2.5v
Vss -3v -2.5v
Clkb -3v -2.5v
Vin+ 3v 2.5v
Vin- -3v -2.5v
Vref+ 1.5v 1.25v
Vref- -1.5v -1.25
4.1 Simulated Results in 0.35um Technology

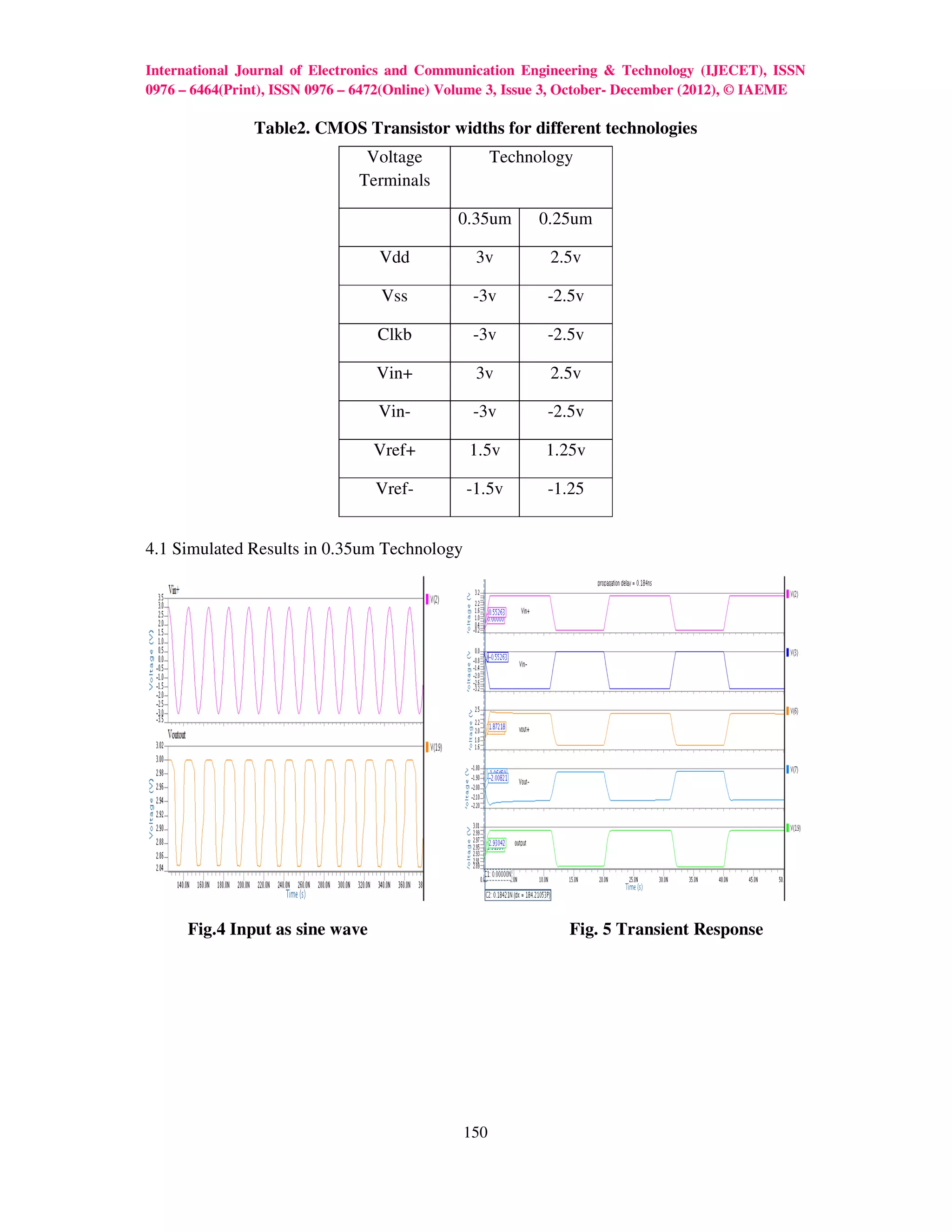

Fig.4 Input as sine wave Fig. 5 Transient Response
150

5. International Journal of Electronics and Communication Engineering & Technology (IJECET), ISSN
0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 3, Issue 3, October- December (2012), © IAEME

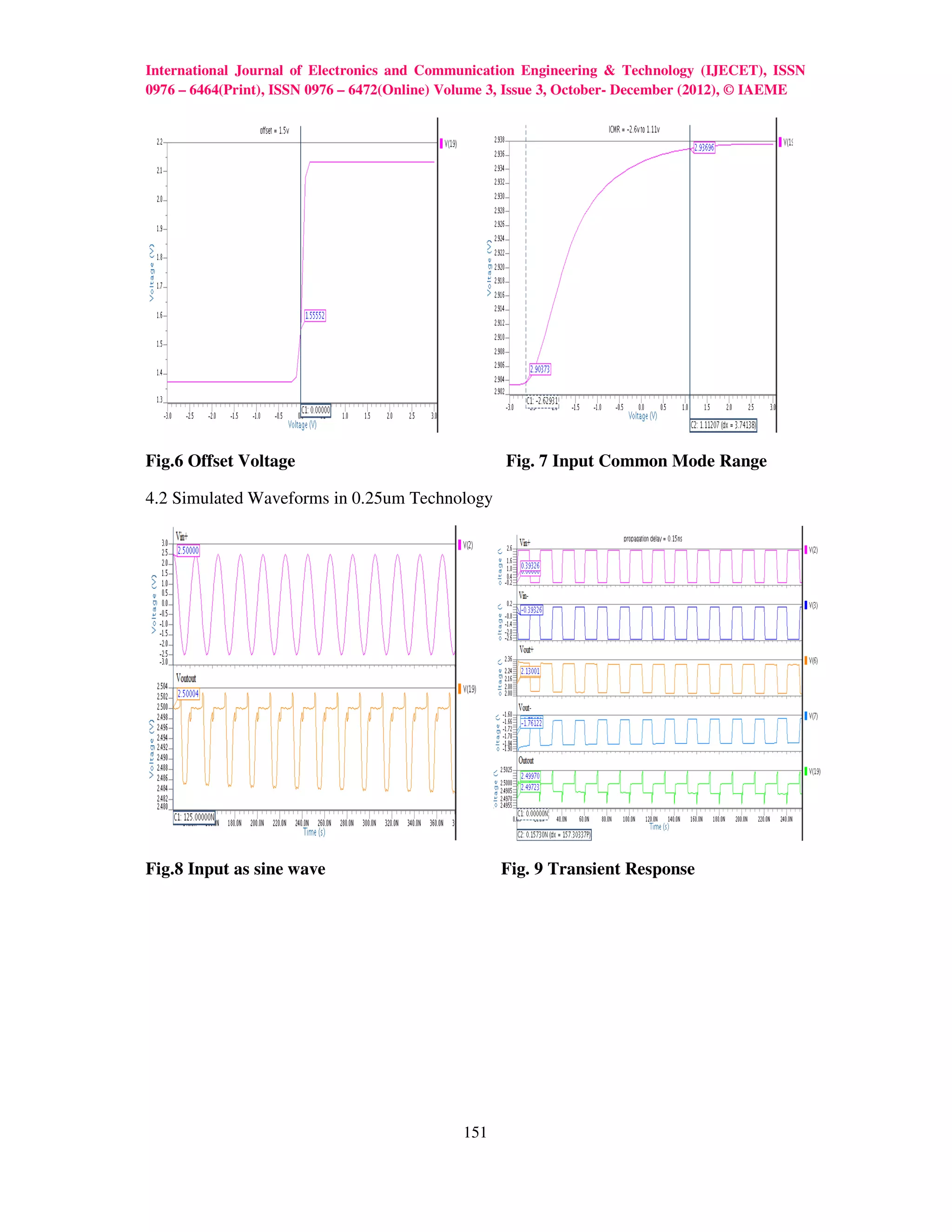

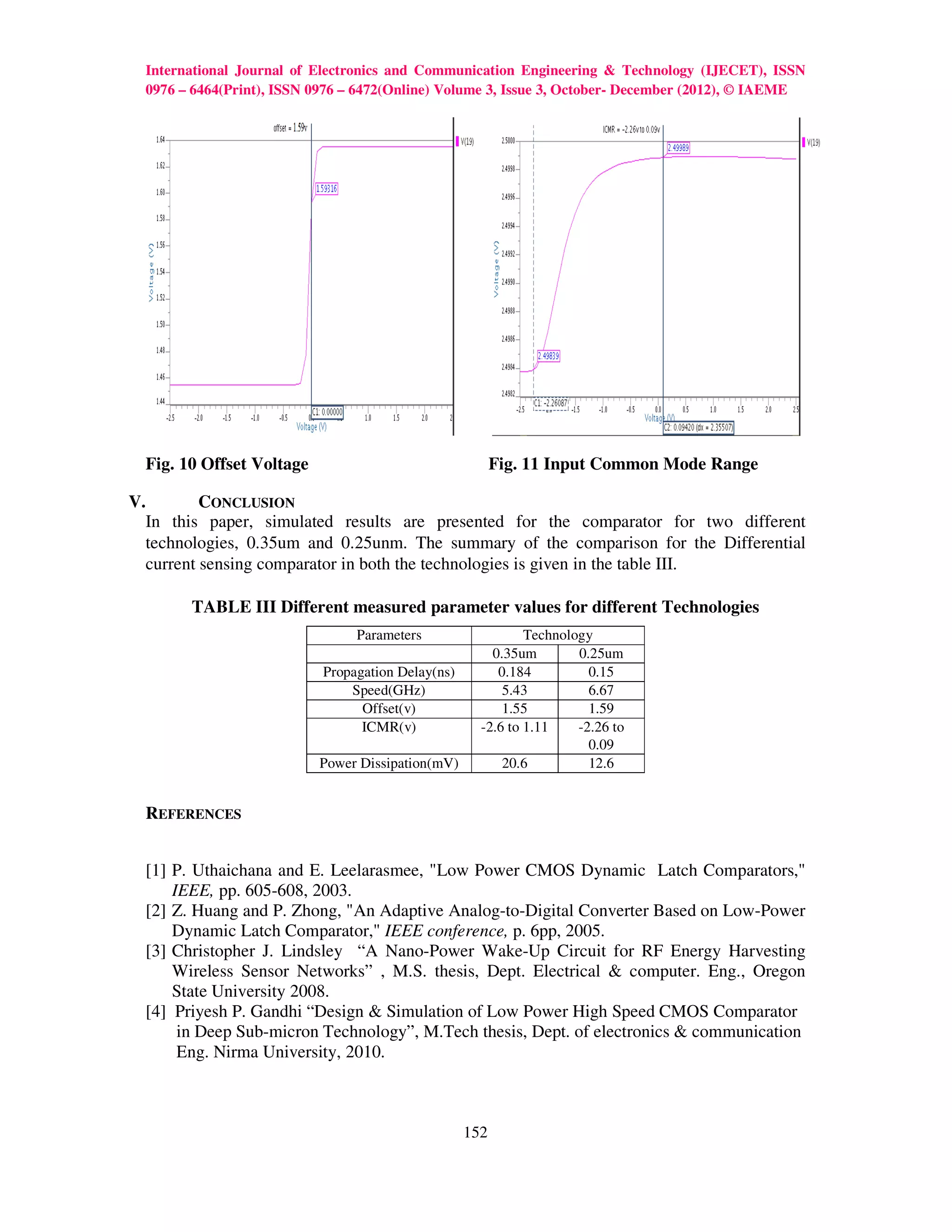

Fig.6 Offset Voltage Fig. 7 Input Common Mode Range
4.2 Simulated Waveforms in 0.25um Technology
Fig.8 Input as sine wave Fig. 9 Transient Response
151

6. International Journal of Electronics and Communication Engineering & Technology (IJECET), ISSN
0976 – 6464(Print), ISSN 0976 – 6472(Online) Volume 3, Issue 3, October- December (2012), © IAEME
Fig. 10 Offset Voltage Fig. 11 Input Common Mode Range
V. CONCLUSION
In this paper, simulated results are presented for the comparator for two different
technologies, 0.35um and 0.25unm. The summary of the comparison for the Differential
current sensing comparator in both the technologies is given in the table III.
TABLE III Different measured parameter values for different Technologies
Parameters Technology
0.35um 0.25um
Propagation Delay(ns) 0.184 0.15
Speed(GHz) 5.43 6.67
Offset(v) 1.55 1.59
ICMR(v) -2.6 to 1.11 -2.26 to
0.09
Power Dissipation(mV) 20.6 12.6
