Data Visualization Tools
- 1. Creating Great Data Visualizations with Low Cost Tools July 26, 2017
- 4. Can be found on the course page! Our Objectives What’s the Purpose of Your Visualization? Eight Principles of Communicating Through Data Choosing a Visualization Is Excel Right for Your Needs? Data Visualization Specialists Other Options INTRODUCTION

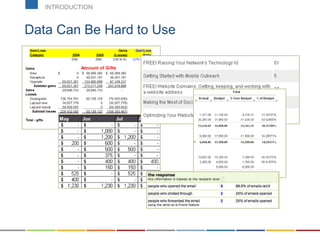

- 5. Data Can Be Hard to Use INTRODUCTION

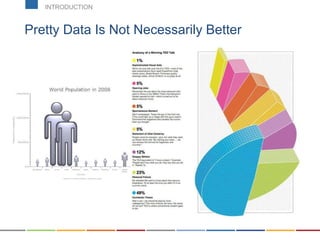

- 6. Pretty Data Is Not Necessarily Better INTRODUCTION

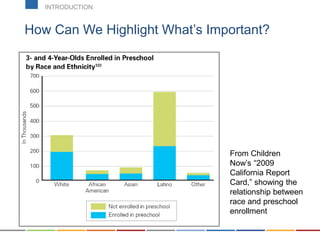

- 7. How Can We Highlight What’s Important? From Children Now’s “2009 California Report Card,” showing the relationship between race and preschool enrollment INTRODUCTION
- 8. What’s The Purpose of Your Visualization?1

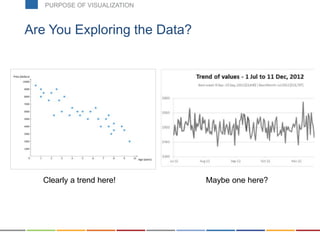

- 9. Are You Exploring the Data? Clearly a trend here! Maybe one here? PURPOSE OF VISUALIZATION

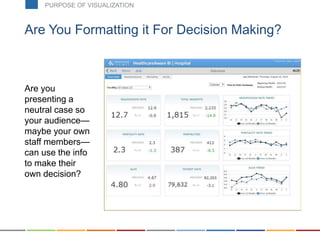

- 10. Are You Formatting it For Decision Making? Are you presenting a neutral case so your audience— maybe your own staff members— can use the info to make their own decision? PURPOSE OF VISUALIZATION

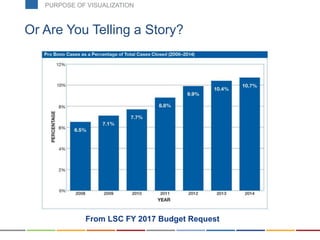

- 11. Or Are You Telling a Story? From LSC FY 2017 Budget Request PURPOSE OF VISUALIZATION
- 12. Eight Principles of Communicating Through Data2
- 13. 1. Define What Question You’re Answering “Is the organization improving on this metric?” “How do these demographics compare to last year?” “Are these results unusual?” EIGHT PRINCIPLES
- 14. Don’t just pull data off the internet without being sure of their source. Include the source in your visualization. Don’t combine data from different sources into one data set. 2. Use Accurate Data 98.7% of all facts on the Internet are completely accurate Source: The Internet EIGHT PRINCIPLES

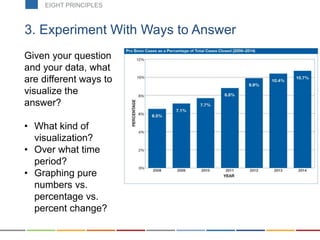

- 15. 3. Experiment With Ways to Answer Given your question and your data, what are different ways to visualize the answer? • What kind of visualization? • Over what time period? • Graphing pure numbers vs. percentage vs. percent change? EIGHT PRINCIPLES

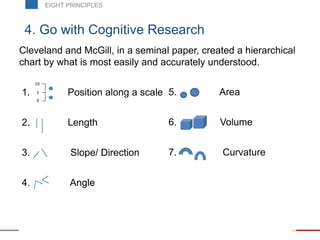

- 16. 1. Position along a scale 2. Length 3. Slope/ Direction 4. Angle 4. Go with Cognitive Research Cleveland and McGill, in a seminal paper, created a hierarchical chart by what is most easily and accurately understood. 10 5 0 5. Area 6. Volume 7. Curvature EIGHT PRINCIPLES

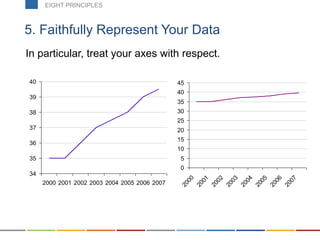

- 17. 34 35 36 37 38 39 40 2000 2001 2002 2003 2004 2005 2006 2007 5. Faithfully Represent Your Data 0 5 10 15 20 25 30 35 40 45 2000 2001 2002 2003 2004 2005 2006 2007 In particular, treat your axes with respect. EIGHT PRINCIPLES

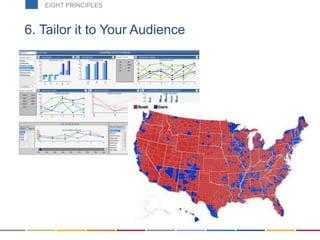

- 18. 6. Tailor it to Your Audience EIGHT PRINCIPLES

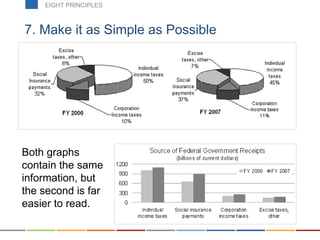

- 19. 7. Make it as Simple as Possible Both graphs contain the same information, but the second is far easier to read. EIGHT PRINCIPLES

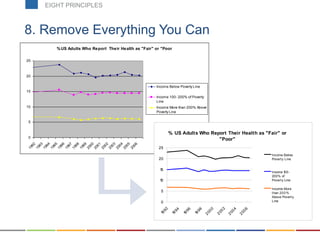

- 20. 8. Remove Everything You Can %US Adults Who Report Their Health as "Fair" or "Poor 0 5 10 15 20 25 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 Income Below Poverty Line Income 100- 200% of Poverty Line Income More than 200% Above Poverty Line % US Adults Who Report Their Health as "Fair" or "Poor" 0 5 10 15 20 25 1992 1994 1996 1998 2000 2002 2004 2006 Income Below Poverty Line Income 100- 200% of Poverty Line Income More than 200% Above Poverty Line EIGHT PRINCIPLES
- 21. Choosing the Visualization for Your Purpose3
- 22. Simple Numbers CHOOSING YOUR VISUALIZATION Legal Aid Foundation of Los Angeles Annual Report

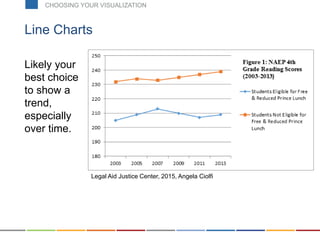

- 23. Line Charts Likely your best choice to show a trend, especially over time. Legal Aid Justice Center, 2015, Angela Ciolfi CHOOSING YOUR VISUALIZATION

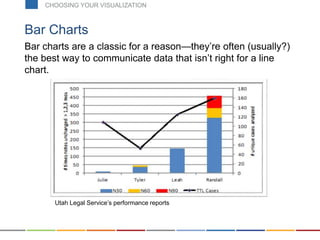

- 24. Bar charts are a classic for a reason—they’re often (usually?) the best way to communicate data that isn’t right for a line chart. Bar Charts Utah Legal Service’s performance reports CHOOSING YOUR VISUALIZATION

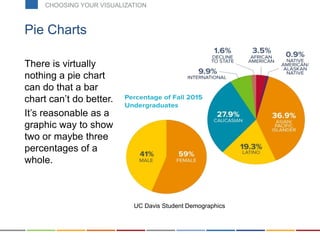

- 25. There is virtually nothing a pie chart can do that a bar chart can’t do better. It’s reasonable as a graphic way to show two or maybe three percentages of a whole. Pie Charts UC Davis Student Demographics CHOOSING YOUR VISUALIZATION
- 26. There’s nothing wrong with a simple table of numbers, especially when communicating with a more sophisticated audience. Tables CHOOSING YOUR VISUALIZATION

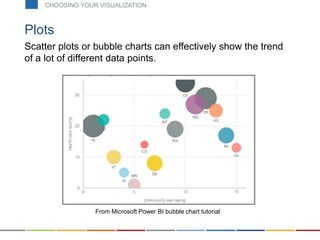

- 27. Scatter plots or bubble charts can effectively show the trend of a lot of different data points. Plots From Microsoft Power BI bubble chart tutorial CHOOSING YOUR VISUALIZATION

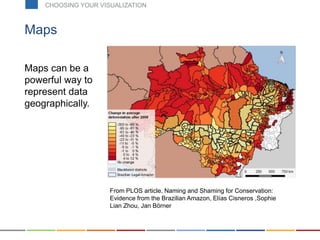

- 28. Maps can be a powerful way to represent data geographically. Maps From PLOS article, Naming and Shaming for Conservation: Evidence from the Brazilian Amazon, Elías Cisneros ,Sophie Lian Zhou, Jan Börner CHOOSING YOUR VISUALIZATION

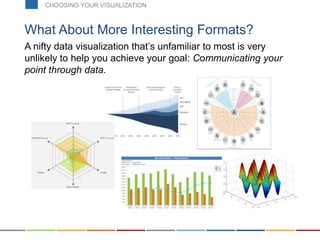

- 29. A nifty data visualization that’s unfamiliar to most is very unlikely to help you achieve your goal: Communicating your point through data. What About More Interesting Formats? CHOOSING YOUR VISUALIZATION
- 30. Will Excel Work for Your Needs?4
- 31. Microsoft Excel Part of the Microsoft Office Suite. $0-$30 per license for nonprofits on TechSoup. Installed on Windows, Mac, or online. WILL EXCEL WORK FOR YOU?
- 32. Nearly any kind of static chart in any format is possible … if you know how to find it. Highly Customizable WILL EXCEL WORK FOR YOU?

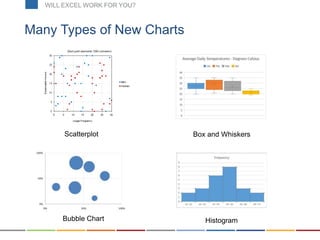

- 33. Scatterplot Many Types of New Charts Bubble Chart Box and Whiskers Histogram WILL EXCEL WORK FOR YOU?

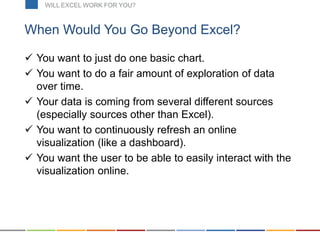

- 34. You want to just do one basic chart. You want to do a fair amount of exploration of data over time. Your data is coming from several different sources (especially sources other than Excel). You want to continuously refresh an online visualization (like a dashboard). You want the user to be able to easily interact with the visualization online. When Would You Go Beyond Excel? WILL EXCEL WORK FOR YOU?

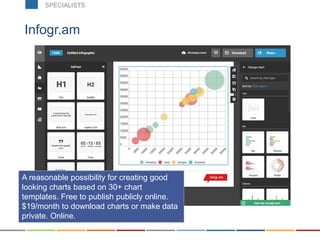

- 36. Infogr.am A reasonable possibility for creating good looking charts based on 30+ chart templates. Free to publish publicly online. $19/month to download charts or make data private. Online. SPECIALISTS

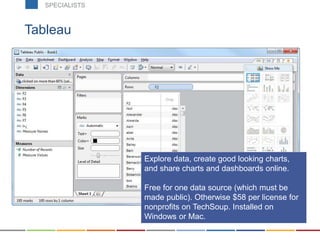

- 37. Tableau Download at www.tableau.com Explore data, create good looking charts, and share charts and dashboards online. Free for one data source (which must be made public). Otherwise $58 per license for nonprofits on TechSoup. Installed on Windows or Mac. SPECIALISTS

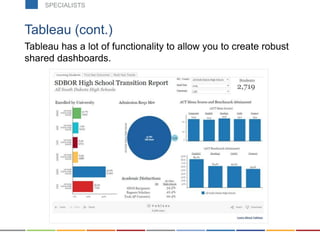

- 38. Tableau has a lot of functionality to allow you to create robust shared dashboards. Tableau (cont.) SPECIALISTS

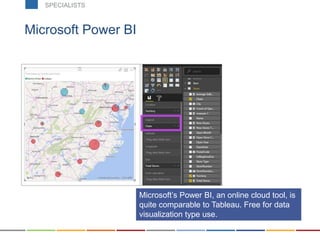

- 39. Microsoft Power BI Microsoft’s Power BI, an online cloud tool, is quite comparable to Tableau. Free for data visualization type use. SPECIALISTS

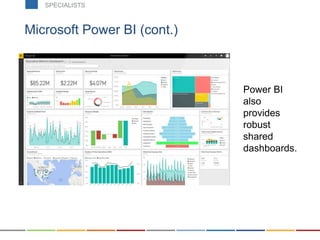

- 40. Microsoft Power BI (cont.) Power BI also provides robust shared dashboards. SPECIALISTSSPECIALISTS

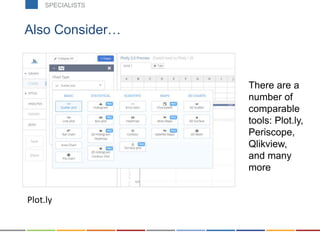

- 41. Also Consider… There are a number of comparable tools: Plot.ly, Periscope, Qlikview, and many more Plot.ly SPECIALISTSSPECIALISTS
- 43. Other Options6

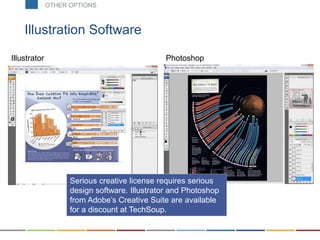

- 44. Illustration Software Illustrator Photoshop Serious creative license requires serious design software. Illustrator and Photoshop from Adobe’s Creative Suite are available for a discount at TechSoup. OTHER OPTIONSOTHER OPTIONS

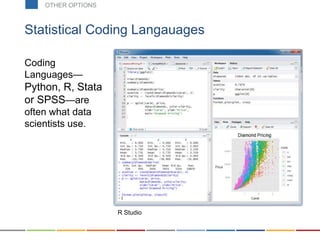

- 45. Coding Languages— Python, R, Stata or SPSS—are often what data scientists use. Statistical Coding Langauages R Studio SPECIALISTSOTHER OPTIONS
- 46. If you’re considering complex online visualizations, there are a number of charting coding libraries—such as D3 or Vega— to speed up the process. Online Coding Libraries Vega SPECIALISTSOTHER OPTIONS

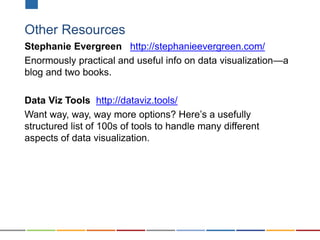

- 48. Stephanie Evergreen http://stephanieevergreen.com/ Enormously practical and useful info on data visualization—a blog and two books. Data Viz Tools http://dataviz.tools/ Want way, way, way more options? Here’s a usefully structured list of 100s of tools to handle many different aspects of data visualization. Other Resources
