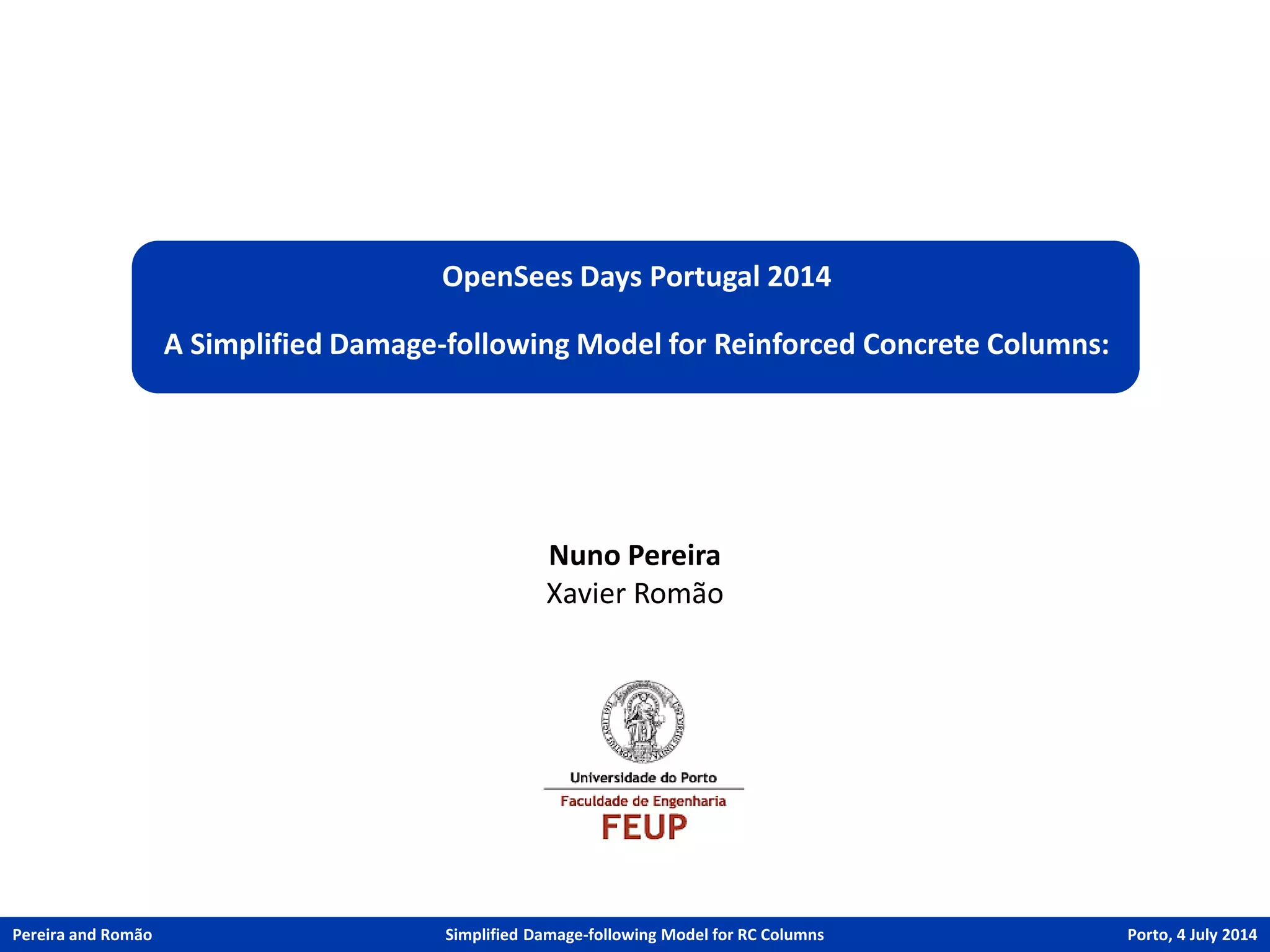

- 1. OpenSees Days Portugal2014 A Simplified Damage-following Model for Reinforced Concrete Columns: Nuno Pereira Xavier Romão Pereira and Romão Simplified Damage-following Model for RC Columns Porto,4 July2014

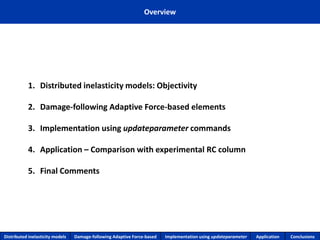

- 2. Overview 1.Distributed inelasticitymodels: Objectivity 2.Damage-following Adaptive Force-based elements 3.Implementation using updateparametercommands 4.Application –Comparison with experimental RC column 5.Final Comments Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions
- 3. Inelastic Beam-Column elements oConcentrated Inelasticity Model –Plastic Spring (Moment-Rotation Spring, Interfaces) oDistributed Inelasticity Model with Moment –Curvature relations for Sections oDistributed Inelasticity Model with Fiber or Layer Sections Rodrigues, 2012 Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions

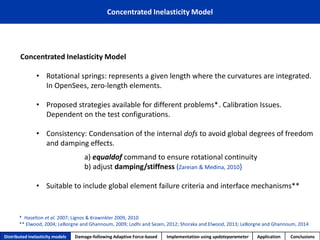

- 4. Concentrated Inelasticity Model Concentrated Inelasticity Model •Rotational springs: represents a given length where the curvatures are integrated. In OpenSees, zero-length elements. •Proposed strategies available for different problems*). Calibration Issues. Dependent on the test configurations. •Consistency: Condensation of the internal dofsto avoid global degrees of freedom and damping effects. a) equaldofcommand to ensure rotational continuity b) adjust damping/stiffness(Zareian& Medina, 2010) •Suitable to include global element failure criteria and interface mechanisms** Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions * Haseltonet al. 2007; Lignos& Krawinkler2009, 2010 ** Elwood, 2004; LeBorgneand Ghannoum, 2009; Lodhiand Sezen, 2012; Shorakaand Elwood, 2013; LeBorgneand Ghannoum, 2014

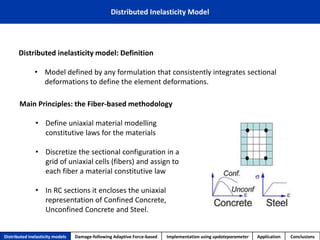

- 5. Distributed Inelasticity Model Distributed inelasticity model: Definition •Model defined by any formulation that consistently integrates sectional deformations to define the element deformations. Main Principles: the Fiber-based methodology •Define uniaxial material modelling constitutive laws for the materials •Discretize the sectional configuration in a grid of uniaxial cells (fibers) and assign to each fiber a material constitutive law •In RC sections it encloses the uniaxial representation of Confined Concrete, Unconfined Concrete and Steel. Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions
- 6. Distributed Inelasticity Model–Strain Localization Strain localization –physical viewpoint •Experimental failures of concrete samples show a localization of deformations, both in tension (crack) and in compression (damage zone). •Size dependency. Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Adapted from Borges et al.2004
- 7. Strain localization -Objectivityin Softening Response Objectivity: account for numerical localization issues SofteningSectional Behaviour HardeningSectionalBehaviour •The selection of the number of IPs along with adequate integration schemes needs to ensure objectivity in the response The strains concentrate at the integration point location subjected to the highest bending moment. The damage zone is related to the correspondent integration weight Increased accuracy with higher number of IPs * Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions * See Calabrese et al.2010 Damage/Characteristic length (Physical -Ldamage) = Localization length (Numerical –ω1)

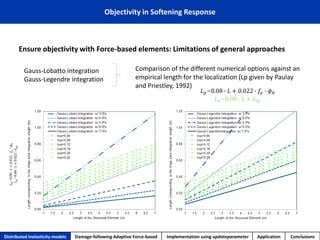

- 8. Ensure objectivity withForce-based elements: Limitations of general approaches 퐿푝=0.08∙퐿+0.022∙푓푦∙휙푏 퐿푝=0.08∙퐿+0.022∙휆푠푝 Objectivity in Softening Response Gauss-Lobatto integration Gauss-Legendre integration Comparison of the different numerical options against an empirical length for the localization (Lp given by Paulay and Priestley, 1992) 퐿푝=0.08∙퐿+0.022∙푓푦∙휙푏 퐿푝=0.08∙퐿+휆푠푝 Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions

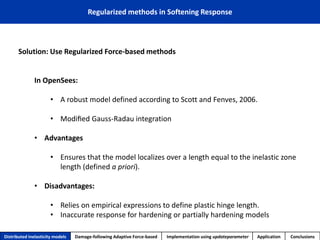

- 9. Solution: Use RegularizedForce-based methods In OpenSees: •A robust model defined according to Scott and Fenves, 2006. •Modified Gauss-Radauintegration •Advantages •Ensures that the model localizes over a length equal to the inelastic zone length (defined a priori). •Disadvantages: •Relies on empirical expressions to define plastic hinge length. •Inaccurate response for hardening or partially hardening models Regularized methods in Softening Response Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions

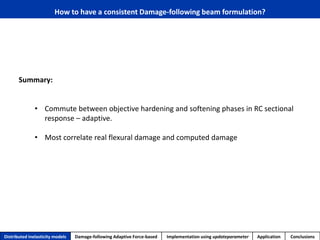

- 10. How to havea consistent Damage-following beam formulation? Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Summary: •Commute between objective hardening and softening phases in RC sectional response –adaptive. •Most correlate real flexural damage and computed damage

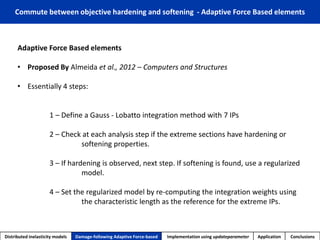

- 11. Adaptive Force Basedelements •Proposed By Almeidaet al., 2012 –Computers and Structures •Essentially 4 steps: 1 –Define a Gauss -Lobattointegration method with 7 IPs 2 –Check at each analysis step if the extreme sections have hardening or softening properties. 3 –If hardening is observed, next step. If softening is found, use a regularized model. 4 –Set the regularized model by re-computing the integration weights using the characteristic length as the reference for the extreme IPs. Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Commute between objective hardening and softening -Adaptive Force Based elements

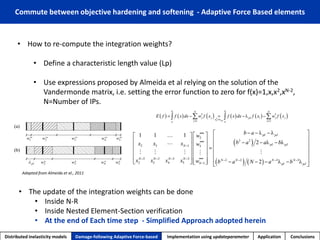

- 12. •How to re-computethe integration weights? •Define a characteristic length value (Lp) •Use expressions proposed by Almeida et al relying on the solution of the Vandermondematrix, i.e. setting the error function to zero for f(x)=1,x,x2,xN-2, N=Number of IPs. Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Commute between objective hardening and softening -Adaptive Force Based elements Adapted from Almeida et al., 2011 •The update of the integration weights can be done •Inside N-R •Inside Nested Element-Section verification •At the end of Each time step -Simplified Approach adopted herein

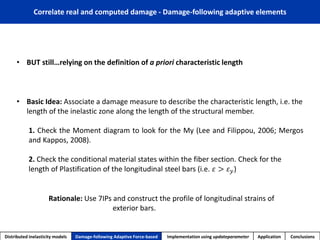

- 13. Correlate real andcomputed damage -Damage-following adaptive elements Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions •Basic Idea: Associate a damage measure to describe the characteristic length, i.e. the length of the inelastic zone along the length of the structural member. 1.ChecktheMomentdiagramtolookfortheMy(LeeandFilippou,2006;MergosandKappos,2008). 2.Check the conditional material states within the fiber section. Check for the length of Plastification of the longitudinal steel bars (i.e.휀>휀푦) Rationale:Use 7IPs and construct the profile of longitudinal strains of exterior bars. •BUT still…relying on the definition of a priori characteristic length

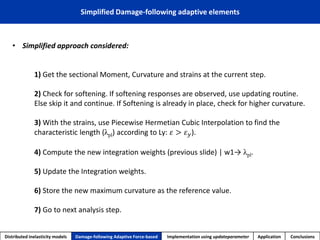

- 14. •Simplified approach considered: 1) Get the sectional Moment, Curvature and strains at the current step. 2) Check for softening. If softening responses are observed, use updating routine. Else skip it and continue. If Softening is already in place, check for higher curvature. 3) With the strains, use Piecewise Hermetian Cubic Interpolation to find the characteristic length (λpl)according to Ly: 휀>휀푦). 4) Compute thenewintegration weights (previous slide) | w1→λpl. 5) UpdatetheIntegrationweights. 6)Storethenewmaximumcurvatureas thereferencevalue. 7)Goto nextanalysisstep. Simplified Damage-following adaptive elements Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions
- 15. •Tools: Make useof OpenSees framework flexibility •All done in tcl. •Starts with a low order integration schemebut defining the weights and positions corresponding to Gauss Lobatto integration. •Sets the integration weights as parameters (can be changed during the analysis) •Uses eleResponse recorders to get the flexure response at the extreme sections at the current step –Moment, Curvature, strains. •Verify if softening has started or after that if the current curvature is higher than the previous maximum value. If so, compute the λpl and the new ω**. •Use updateparameterto redefine the integration weights. Implementation of the simplified modelling strategy Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions

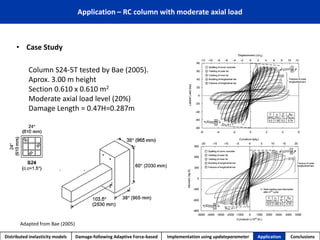

- 16. Distributed inelasticity models Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Application –RC column with moderate axial load Column S24-5T tested by Bae (2005). Aprox. 3.00 m height Section 0.610 x 0.610 m2 Moderate axial load level (20%) Damage Length = 0.47H=0.287m •Case Study Adapted from Bae (2005)

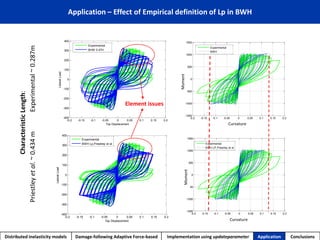

- 17. Application – Effectof Empirical definition of Lp in BWH Distributed inelasticity models Damage-following Adaptive Force-based Implementation using updateparameter Application Conclusions Characteristic Length: Priestley et al. ~ 0.434 m Experimental ~ 0.287m -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -1500 -1000 -500 0 500 1000 1500 Top Displacement Lateral Load Experimental BWH LP,Priestley et al -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -400 -300 -200 -100 0 100 200 300 400 Top Displacement Lateral Load Experimental BHW 0.47H -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -400 -300 -200 -100 0 100 200 300 400 Top Displacement Lateral Load Experimental BWH Lp,Priestley et al -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -1500 -1000 -500 0 500 1000 1500 Top Displacement Lateral Load Experimental BWH Curvature Curvature Moment Moment Element issues

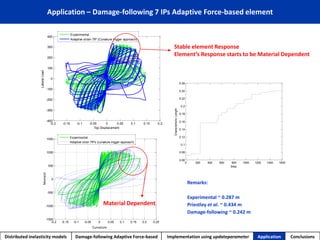

- 18. Application – Damage-following7 IPs Adaptive Force-based element Distributed inelasticity models Damage-following Adaptive Force-based Implementation using updateparameter Application Conclusions 0 200 400 600 800 1000 1200 1400 1600 0.06 0.08 0.1 0.12 0.14 0.16 0.18 0.2 0.22 0.24 0.26 Step Characteristic Length -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -400 -300 -200 -100 0 100 200 300 400 Top Displacement Lateral Load Experimental Adaptive strain 7IP (Curvature trigger approach) -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 0.25 -1500 -1000 -500 0 500 1000 1500 Top Displacement Lateral Load Experimental Adaptive stran 7IPs (curvature trigger approach) Remarks: Experimental ~ 0.287 m Priestley et al. ~ 0.434 m Damage-following ~ 0.242 m Material Dependent Stable element Response Element’s Response starts to be Material Dependent Curvature Moment

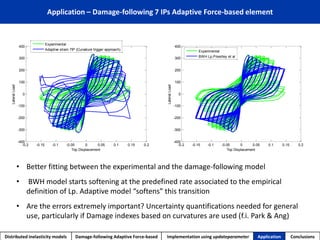

- 19. Application – Damage-following7 IPs Adaptive Force-based element Distributed inelasticity models Damage-following Adaptive Force-based Implementation using updateparameter Application Conclusions -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -400 -300 -200 -100 0 100 200 300 400 Top Displacement Lateral Load Experimental Adaptive strain 7IP (Curvature trigger approach) -0.2 -0.15 -0.1 -0.05 0 0.05 0.1 0.15 0.2 -400 -300 -200 -100 0 100 200 300 400 Top Displacement Lateral Load Experimental BWH Lp,Priestley et al • Better fitting between the experimental and the damage-following model • BWH model starts softening at the predefined rate associated to the empirical definition of Lp. Adaptive model “softens” this transition • Are the errors extremely important? Uncertainty quantifications needed for general use, particularly if Damage indexes based on curvatures are used (f.i. Park & Ang)

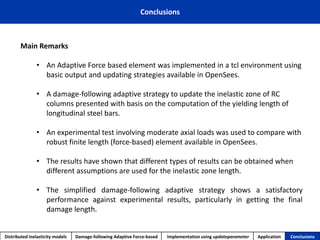

- 20. Conclusions Distributed inelasticitymodels Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Main Remarks •An Adaptive Force based element was implemented in a tcl environment using basic output and updating strategies available in OpenSees. •A damage-following adaptive strategy to update the inelastic zone of RC columns presented with basis on the computation of the yielding length of longitudinal steel bars. •An experimental test involving moderate axial loads was used to compare with robust finite length (force-based) element available in OpenSees. •The results have shown that different types of results can be obtained when different assumptions are used for the inelastic zone length. •Thesimplifieddamage-followingadaptivestrategyshowsasatisfactoryperformanceagainstexperimentalresults,particularlyingettingthefinaldamagelength.

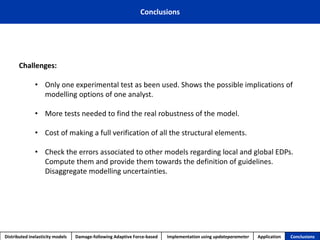

- 21. Conclusions Distributed inelasticitymodels Damage-following Adaptive Force-based Implementation usingupdateparameter Application Conclusions Challenges: •Only one experimental test as been used. Shows the possible implications of modelling options of one analyst. •More tests needed to find the real robustness of the model. •Cost of making a full verification of all the structural elements. •Check the errors associated to other models regarding local and global EDPs. Compute them and provide them towards the definition of guidelines. Disaggregate modelling uncertainties.
