1. Dr. Michel Helmy
Marketing Manager – Acute Therapies
South East Europe, Middle East & Africa
CRRT Workshop
CRRT
Therapy Overview I
CRRTCRRT
Therapy Overview ITherapy Overview I

2. © 2012 – Michel Helmy 2
Continuous Renal Replacement Therapy
Also known as “slow CContinuous RRenal RReplacement TTherapy”.
DefinitionDefinition
“Any extracorporeal blood purification therapy
intended to substitute for impaired renal function
over an extended period of time and applied for or
aimed at being applied for 24 hours/day24 hours/day.”
R. Bellomo, C Ronco and R. Mehta, Nomenclature for Continuous Renal
Replacement Therapies, AJKD, Vol 28, November 1996

3. © 2008, Gambro 3
Renal Replacement – Why?
Removal of
waste products
(solutes)
Removal
of fluid
Regulation
electrolytes
(solutes)
Regulation
acid-base
balance
(solutes)

4. © 2012 – Michel Helmy 4
Removal of
waste products
(solutes)
Removal
of fluid
Regulation
Electrolytes
(solutes)
Regulation
acid-base
balance
(solutes)
Prevent further
kidney damage
Renal
Recovery
Hemodynamically
safe
Why Continuous Renal Replacement?

5. © 2012 – Michel Helmy 5
Day of treatment
0
20
40
60
80
100
120
140
1 2 3 4 5 6 7 8 9 10 11 12 13 14
BUN (mg %)
CRRT IHD
Comparison between HD and CRRT
During iHD, serum levels of uremic toxins fall quickly but increase again quickly after the treatment. This saw-
tooth urea profile cause significant changes in the serum osmolality –especially in the first treatment- and can
result in a disequilibrium syndrome and additional fluid shift into the extra-vascular space.
In CRRT, the serum urea levels fall more slowly but continuously and can be maintained at a constant low
level so disequilibrium syndrome can be avoided.

6. © 2012 – Michel Helmy
Why Choose CRRT?
• Slow, gentle and continuous
• Well tolerated by hemodynamically unstable patient
• Prevent further damage to kidney tissue
• Promote healing and renal recovery
• Regulates electrolytes, acid-base balance
• Removes large amounts of fluid and waste products over time
• Allow other supportive measures, i.e., nutrition
CRRT closely mimics the native kidney.
Bellomo, Ronco. Continous hemofiltration in the intensive care unit. Crit Care, 2000; 4(6)

7. © 2012 – Michel Helmy 7
Therapy Indications
WH0 ? … is our patientWH0 ?WH0 ? … is our patient

8. © 2012 – Michel Helmy 8
Indications for CRRT in the ICU
(General Principals)
A
E
I
O
U
Bruce A. Molitoris. Critical Care Nephrology 2005. 151-154
Each illness that will be mentioned fits in at least one of these 5 principles, but mostly more.
Sometimes an illness will cover all of them.
Acidosis (Diseases with metabolic acidosis due to acid-base imbalance)
E.g. in ARF, ARDS, Sepsis
Electrolytes Imbalance (diseases with Electrolyte imbalance)
E.g. in ARF, ARDS, Sepsis, MOF
Intoxications (water soluble toxins)
E..g in Rhabdomyolysis
Overload (Fluid management in diseases with volume overload)
E.g. in CHF, ARDS, Burns
Uraemia (ARF)

9. © 2012 – Michel Helmy 9
Clinical Indications .
Renal Indications
• ARF with oliguria or anuria
• Azotemia (a medical condition
characterized by abnormal levels of urea,
creatinine, various body waste
compounds, and other nitrogen-rich
compounds in the blood as a result of
insufficient filtering of the blood by the
kidneys)
• Volume overload
• Tumor lysis syndrome
• Sepsis
• Cerebral edema
Non-renal Indications
• Drug overdose
• Metabolic disorders (Lactic acidosis)
• Crush Injuries / Rhabdomyolosis
(Myocyte “muscle” Necrosis)
Disintegration of striated/skeletal muscle Muscular
cell components, myoglobin, released into circulation
Resulting in electrolyte imbalance, hypovolemia, met.
acidosis, coagulopathies, myoglobinuric RF
• Sepsis
• ARDS
• Fluid overload (e.g. 2ndry to CHF)
• Bellomo, Ronco. Continous hemofiltration in the intensive care unit. Crit Care, 2000; 4(6)
• Schetz. Kidney International. 1999; 56:72. 88 – 94
• Meyer, M. 2000 RRT; Critical Care Clin. 16 (1). 29

10. © 2012 – Michel Helmy 10
Clinical Indications .
Renal Replacement vs. Renal Support
Renal Replacements
• Life threatening indications:
• Hyperkalemia
(K>6.5 mmol/l)
• Acidemia
(pH<7.1) due to metabolic acidosis
• Pulmonary edema
• Uremic complications (e.g. pericarditis)
• Solute control
• Fluid removal
• Regulation of acid-base
• Regulation of electrolytes
Renal Support
• Nutrition
• Fluid removal in CHF
• Cytokine manipulation (sepsis)
• Cancer chemotherapy
• Respiratory acidosis in ARDS
• Fluid management in MOF
R.L. Metha. Blood Purification 2001; 19: 227-232

11. © 2012 – Michel Helmy 11

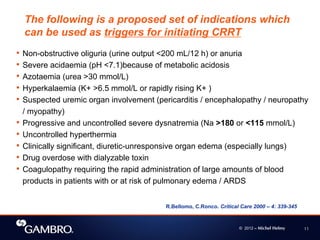

• Non-obstructive oliguria (urine output <200 mL/12 h) or anuria
• Severe acidaemia (pH <7.1)because of metabolic acidosis
• Azotaemia (urea >30 mmol/L)
• Hyperkalaemia (K+ >6.5 mmol/L or rapidly rising K+ )
• Suspected uremic organ involvement (pericarditis / encephalopathy / neuropathy
/ myopathy)
• Progressive and uncontrolled severe dysnatremia (Na >180 or <115 mmol/L)
• Uncontrolled hyperthermia
• Clinically significant, diuretic-unresponsive organ edema (especially lungs)
• Drug overdose with dialyzable toxin
• Coagulopathy requiring the rapid administration of large amounts of blood
products in patients with or at risk of pulmonary edema / ARDS
The following is a proposed set of indications which
can be used as triggers for initiating CRRT
R.Bellomo, C.Ronco. Critical Care 2000 – 4: 339-345

12. © 2012 – Michel Helmy 12
Indications generally used to start renal replacement therapy
in standard clinical practice in patients with AKI
Biochemical indications
• Refractory hyperkalaemia > 6.5 mmol/l
• serum urea > 30 mmol/l
• Refractory metabolic acidosis pH ≤ 7.1
• Refractory electrolyte abnormalities:
• hyponatraemia or hypernatraemia and hypercalcaemia
• Tumor lysis syndrome with hyperuricaemia and hyperphosphataemia
• Urea cycle defects, and organic acidurias resulting in hyperammonaemia, methymalonic acidaemia
Clinical indications
• Urine output < 0.3 ml/kg for 24 h or absolute anuria for 12 h
• AKI with multiple organ failure
• Refractory volume overload
• End organ damage: pericarditis, encephalopathy, neuropathy, myopathy, uraemic bleeding
• Create intravascular space for plasma and other blood product infusions and nutrition
• Severe poisoning or drug overdose

13. © 2012 – Michel Helmy 13
Role of CRRT in ARF
Removal of toxins (urea, creatinine)
Regulate electrolyte and water balance
Regulate acid-base balance
Prevent further damage to the kidney tissues
Promote healing and renal recovery

14. © 2012 – Michel Helmy
Role of CRRT in CHF
Maintain 24/7 fluid balance (All CRRT therapies)
• Reduce ascites and peripheral edema
• Relieve Pulmonary edema
Normalize cardiac filling pressures
Maintain 24/7 Electrolyte and acid/base balance (CVVHD,
CVVHDF)
• - Dialytic control of electrolytes
• - Delivery of bicarbonate or lactate buffer
Possibly prevent further renal damage or prolong renal
Insufficiency
Possibly reduce length of stay
Refractory Congestive Heart Failure: Overview and Application of Extracorporeal Ultrafiltration, Paul Blake and Emil P.
Paganini, Advances in RRT, Vol 3, No2 (April), 1996: pp 166-173

15. © 2012 – Michel Helmy 15
Role of CRRT in Sepsis
Removal of middle to large molecule septic mediators by
convection and adsorption including TNF-α, IL-1, IL-6 and IL-8
through:
Removal of excess fluid and waste products
Maintenance of acid-base balance
Improve cardiovascular hemodynamic → removal of
cardiodepressants (caused by inflammatory mediators)
Thermoregulation
Bruce A. Molitoris. Critical Care Nephrology 2005. 28-34

16. © 2012 – Michel Helmy 16
Role of CRRT for Rhabdomyolysis
Maintain fluid, electrolyte, acid/base balance.
Prevent further damage to kidney tissue
Removal of small to middle protein molecules - 17,000 Dalton
through convection
• May cause nuisance BLD alarms
Example of reduction of
pigmentation In Ultra-
Filtration fluid over 3 days
of treatment

17. © 2012 – Michel Helmy 17
Role of CRRT in Intoxications
Removal of small molecules by Dialysis
• Dialysate up to 4l/h
• Optional replacement up to 500ml/h
Duration: depends on clearance of toxic medication
