1. 1. Draw a network for the Project. Determine the critical path.
Activity A B C D E F G
Precedence None A None C A B,D E,F
Durations
( Day)
10 15 10 23 3 12 15

2. 2. Draw a network for the Project. Determine the critical path.
Activity A B C D E G H I J K L
Precedence None None None A A B B D,E C H,J G,I,K
Durations
( Day)
2 2 2 3 4 7 6 4 10 3 4

3. 3. Draw a network for the Project. Determine the critical path.
Activity A B C D E F G H S J K T M
Precedence None None A A B B B C D,E F H H,S,J J
Durations
( Day)
2 3 3 2 4 3 9 3 4 2 1 6 1

4. 4. Draw a network for the Project. Determine the critical path.
Activity A B C D E F G H I J K
Precedence NO NO NO NO A,B A,B D
C,D,
F
C,D,
F
E,H G,I
Durations
( Day)
7 13 5 2 9 5 9 3 10 4 8

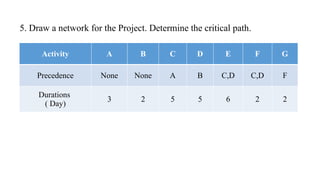

5. 5. Draw a network for the Project. Determine the critical path.
Activity A B C D E F G
Precedence None None A B C,D C,D F
Durations
( Day)
3 2 5 5 6 2 2

6. 6. Draw a network for the Project. Determine the critical path.
Activity A B C D E F G H I J
Precedence NO A A A B D B C,D F H,F
Durations
( Day)
2 3 4 5 7 4 6 3 3 2

7. Activity ES EF LS LF TF CP
