This document summarizes a presentation on CRISPR/Cas genome editing. It defines CRISPR/Cas as a type of genetic engineering that uses artificially engineered nucleases to make specific cuts in DNA. It describes the CRISPR/Cas system's origins and components, including Cas9, guide RNA, and PAM sequences. Applications discussed include genome editing in animals and plants, as well as concerns over off-target effects. Companies offering CRISPR services or kits are also mentioned.

1. S. Mohammadpour
PhD student in Molecular Genetic
Supervised by: Dr. Goodarzi
University of science and research
Shiraz Iran
January 2016

2. Outlines:
1. Definition
2. CRISPR/Cas system
3. Applications
4. News and concerns
2
S.Mohammadpour

3. 3
Genome editing, or genome editing with engineered
nucleases (GEEN)
•Is a type of genetic engineering
•DNA is inserted, replaced, or removed from a genome
•Uses artificially engineered nucleases, or "molecular scissors."
•Creates specific double-strand breaks (DSBs) at desired locations
in the genome
•Cell’s endogenous mechanisms repairs the induced break by
(HDR) and (NHEJ)
S.Mohammadpour

4. 365 days: Nature’s 10
Ten people who mattered this year.
18 December 2013
FENG ZHANG: DNA’s master editor
Borrowing from bacteria, a biologist helps to create a
powerful tool for customizing DNA.
By Daniel Cressey
4
S.Mohammadpour

5. 5
About Feng Zhang…
Born: 1982
Nationality: American
Fields: Neuroscience, Bioengineering
Institutions: MIT, Broad Institute, Alma mater, Harvard University,
Stanford University
Academic advisors: Karl Deisseroth
Known for: Optogenetics, CRISPR
Notable awards: Alan T. Waterman Award, National Institutes of
Health Director's Pioneer Award, Perl-UNC Neuroscience Prize,
Jacob Heskel Gabbay Award in Biotechnology and Medicine,
Tsuneko & Reiji Okazaki Award
S.Mohammadpour

6. 6
S.Mohammadpour

7. • First described (1987)
• 48% bacteria; 84% archaea
•Short Regularly Spaced Repeats (SRSR) (2000)
• Renamed CRISPR (2002)
• A prokaryotic adaptive immune system (2005-12)
• Identify Cas 9 (2012)
• Genome Engineering by CRISPR/Cas system (2013)
CRISPR
Clustered Regularly Interspaced Short Palindromic Repeats
7
S.Mohammadpour

8. CRISPR/Cas9 nomenclature
CRISPR: Clustered Regularly Interspaced Palindromic Repeats
Cas9: CRISPR associated protein 9
a nuclease, an enzyme specialized for cutting DNA Cas1..Cas10 exist
gRNA: guide RNA
a construct/chimera of CRISPR RNA (crRNA) and trans-activating CRISPR RNA
(tracrRNA)
PAM: protospacer adjacent motif with sequence
NGG (any, guanine, guanine)
8
S.Mohammadpour

9. CRISPR/Cas mechanism in bacteria
9
S.Mohammadpour

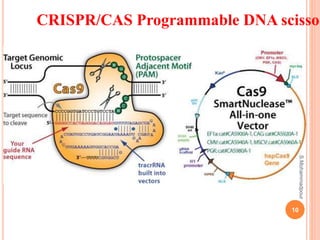

10. CRISPR/CAS Programmable DNA scissor
10
S.Mohammadpour

11. Delivery to cells in humans
lentivirus vectors
Via stem cells
Via liposomes
Off-target effects and
unintended DNA cleavage
paired nickases
(single-strand DNA break)
double-nicking
Check with whole genome sequencing
modified Cas9 variants
paired nicking
modified sgRNAs
Variable DNA cleavage
efficiencies
CRISPER/CAS Problems
11
S.Mohammadpour

12. Application examples
Source: Hsu, Lander, Zhang: Development and Applications of CRISPR-Cas9 for Genome
Engineering; Cell 157, June 5, 2014
12
S.Mohammadpour

13. 13
Application examples
Genome-wide inactivation of porcine endogenous retroviruses (PERVs)
George Church, Department of Genetics, Harvard Medical School, Boston, MA, USA.Oct
2015.
Generation of gene -target dogs using CRISPR/Cas9 system
Xiang Gao, CAS Key Laboratory of Regenerative Biology, South China Institute for Stem
Cell. Oct 2015.
S.Mohammadpour

14. Organisms that have been modified using
the CRISPR–Cas9 system
14
S.Mohammadpour

15. 15
CRISPR in Zhang Lab
1-Development and Applications of CRISPR-Cas9 for Genome Engineering. (2014).
2-Improved vectors and genome-wide libraries for CRISPR screening. (2014).
3-Efficient CRISPR-Cas9-mediated genome editing in Plasmodium falciparum.Wagner. (2014).
4-CRISPR-mediated direct mutation of cancer genes in the mouse liver. (2014).
5-CRISPR-Cas9 Knockin Mice for Genome Editing and Cancer Modeling. Platt. (2014)
6-In vivo interrogation of gene function in the mammalian brain using CRISPR-Cas9. (2014).
7- Genome Engineering Using CRISPR-Cas9 System. (2014).
8- Genome-scale transcriptional activation by an engineered CRISPR-Cas9 complex. (2014).
9- Genome-wide CRISPR Screen in a Mouse Model of Tumor Growth and Metastasis. (2014).
10-CRISPR germline engineering-the community speaks. (2015).
11- High-throughput functional genomics using CRISPR-Cas9. (2015).
12- CRISPR/Cas9 cleavage of viral DNA efficiently suppresses hepatitis B virus. (2015).
13- Sequence determinants of improved CRISPR sgRNA design. (2015).
14- CRISPR-Cas9: Prospects and Challenges. (2015).
15- A Genome-wide CRISPR Screen in Primary Immune Cells to Dissect Regulatory Networks.
(2015).
16- BCL11A enhancer dissection by Cas9-mediated in situ saturating mutagenesis. (2015).
17- Cpf1 Is a Single RNA-Guided Endonuclease of a Class 2 CRISPR-Cas System. (2015).
18- Orthogonal gene knockout and activation with a catalytically active Cas9 nuclease. (2015).
S.Mohammadpour

16. 16
Baby Design Companies
S.Mohammadpour

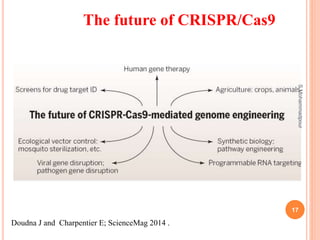

17. The future of CRISPR/Cas9
Doudna J and Charpentier E; ScienceMag 2014 .
17
S.Mohammadpour

18. Software and databases
18
S.Mohammadpour

19. Companies offering CRISPR/Cas9 services
19
S.Mohammadpour

20. Companies
20
S.Mohammadpour

21. 21
S.Mohammadpour

22. 22
S.Mohammadpour

23. 23
Do-it-yourself CRISPR genome editing kits bring
genetic engineering to your kitchen bench
• LOZ BLAIN, NOVEMBER 11, 2015
The Open Discovery Institute
(ODIN)
Josiah Zayner
S.Mohammadpour

24. 24
S.Mohammadpour

25. 25
“The Human SPIRIT Has No Gene”
THANK YOU!S.Mohammadpour
