Continuous Delivery with TFS msbuild msdeploy
- 1. With msbuild and msdeploy Continuous Deployment Delivery -----------

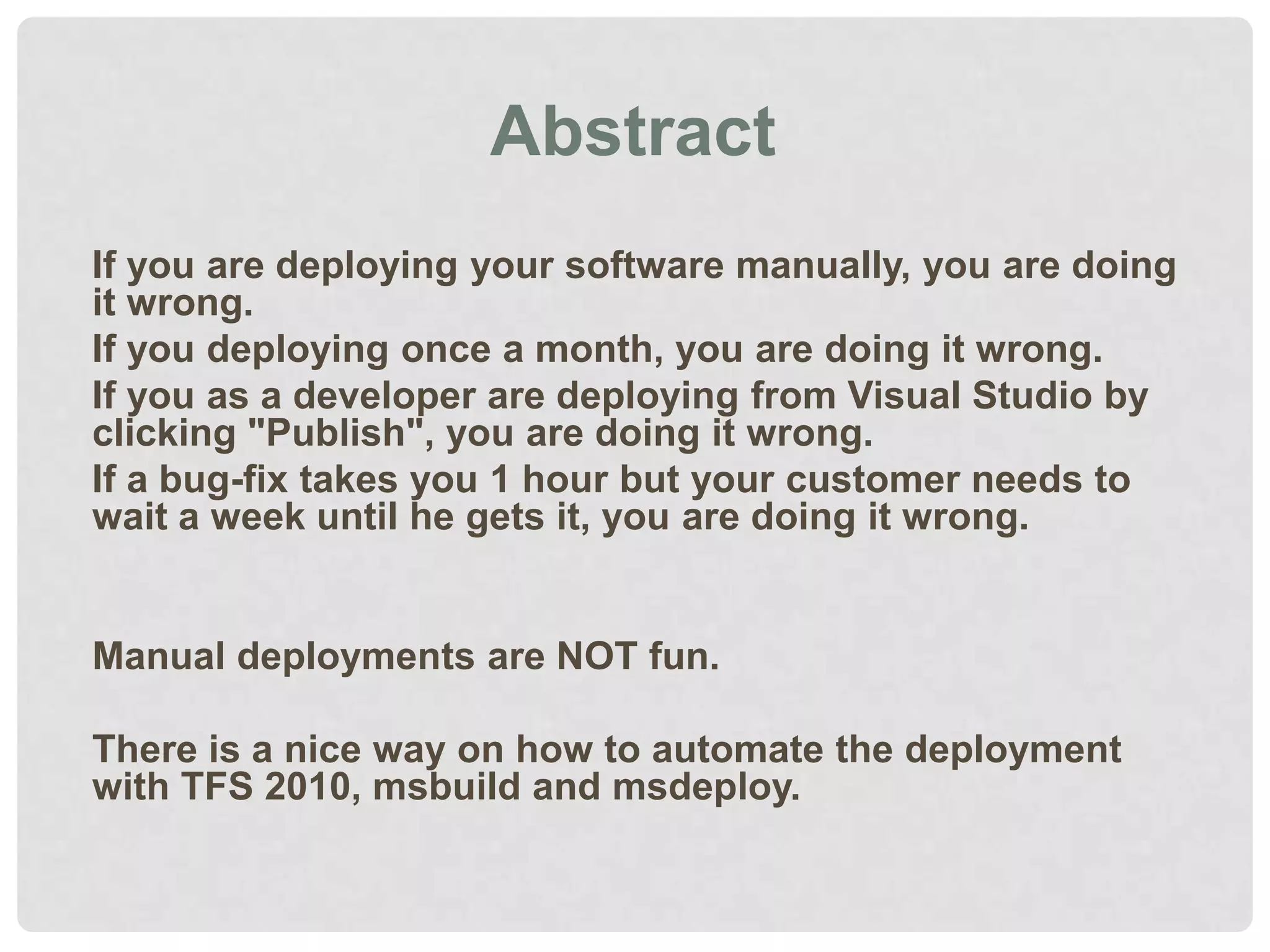

- 2. Abstract If you are deploying your software manually, you are doing it wrong. If you deploying once a month, you are doing it wrong. If you as a developer are deploying from Visual Studio by clicking "Publish", you are doing it wrong. If a bug-fix takes you 1 hour but your customer needs to wait a week until he gets it, you are doing it wrong. Manual deployments are NOT fun. There is a nice way on how to automate the deployment with TFS 2010, msbuild and msdeploy.

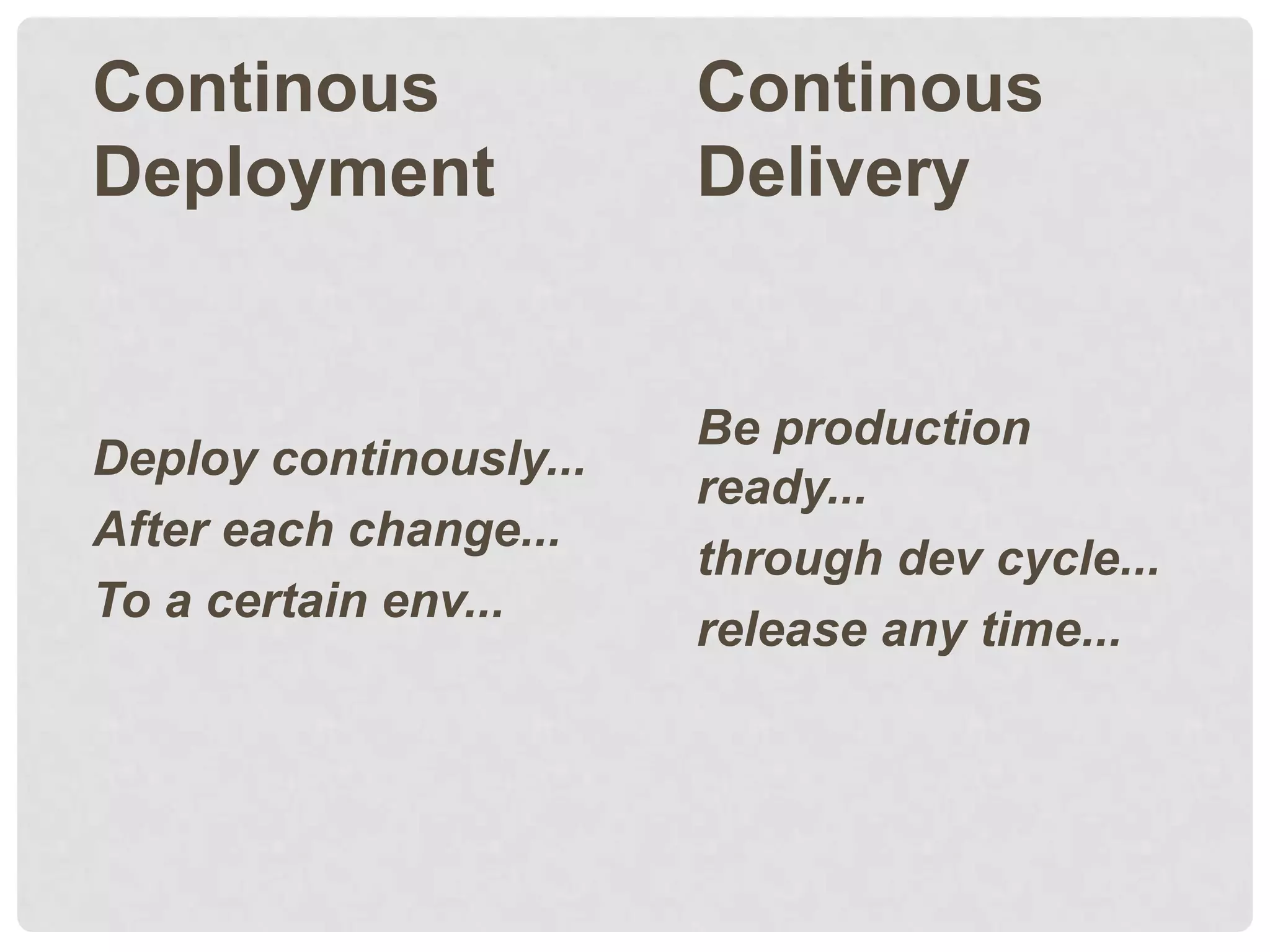

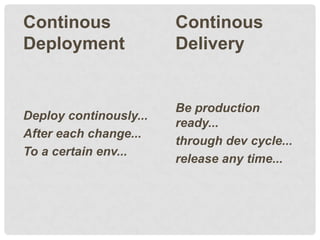

- 5. Continous Deployment Deploy continously... After each change... To a certain env... Continous Delivery Be production ready... through dev cycle... release any time...
- 6. Peter Gfader Australia (my fun) Italy (my country) German (my language) blog.gfader.com (my findings) @peitor (my conversations) www.SSW.com.au (my company)
- 7. Deployment Agenda Pain Goals How To Start from scratch Existing System Best Practices

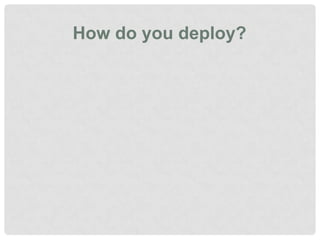

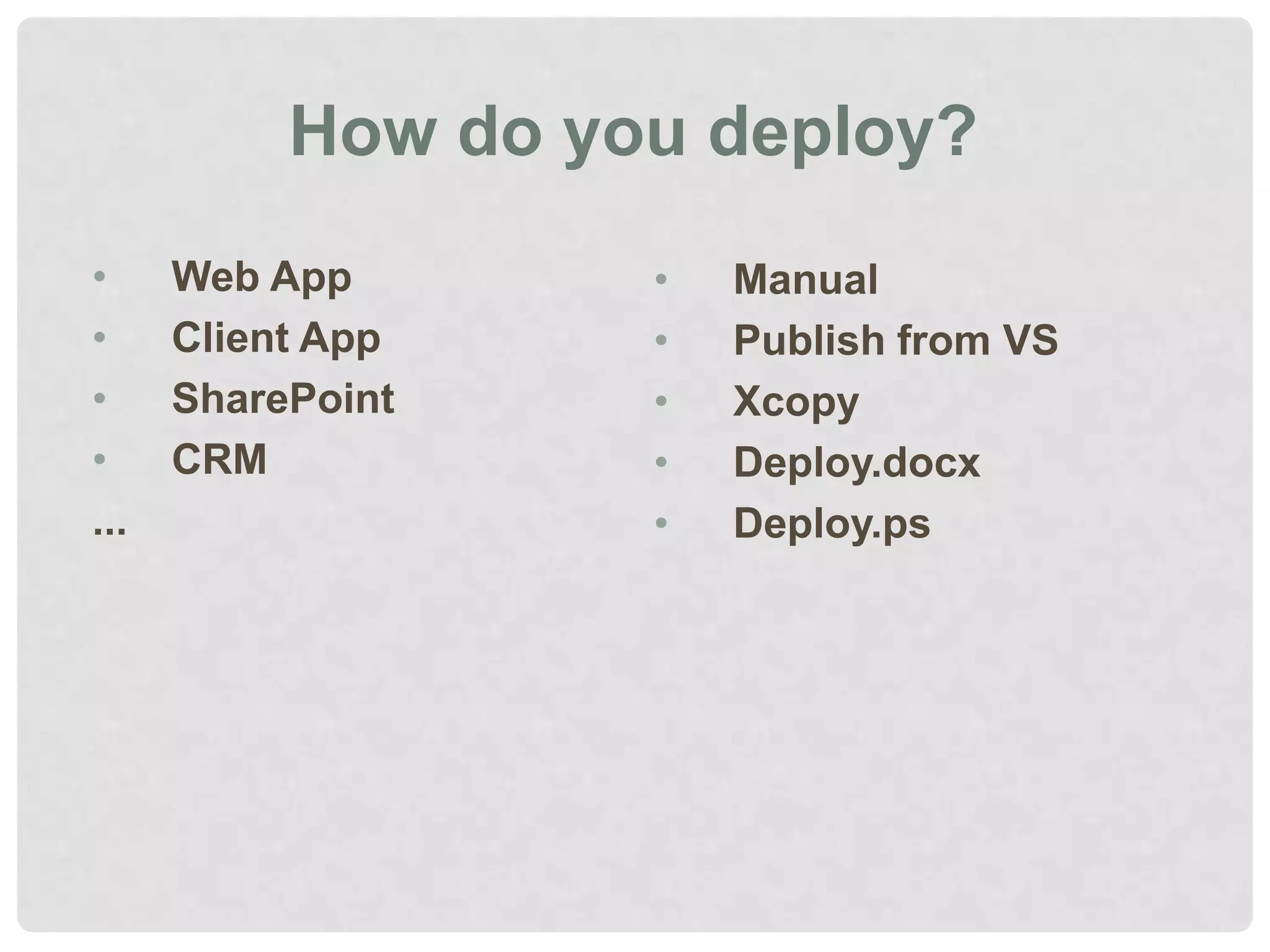

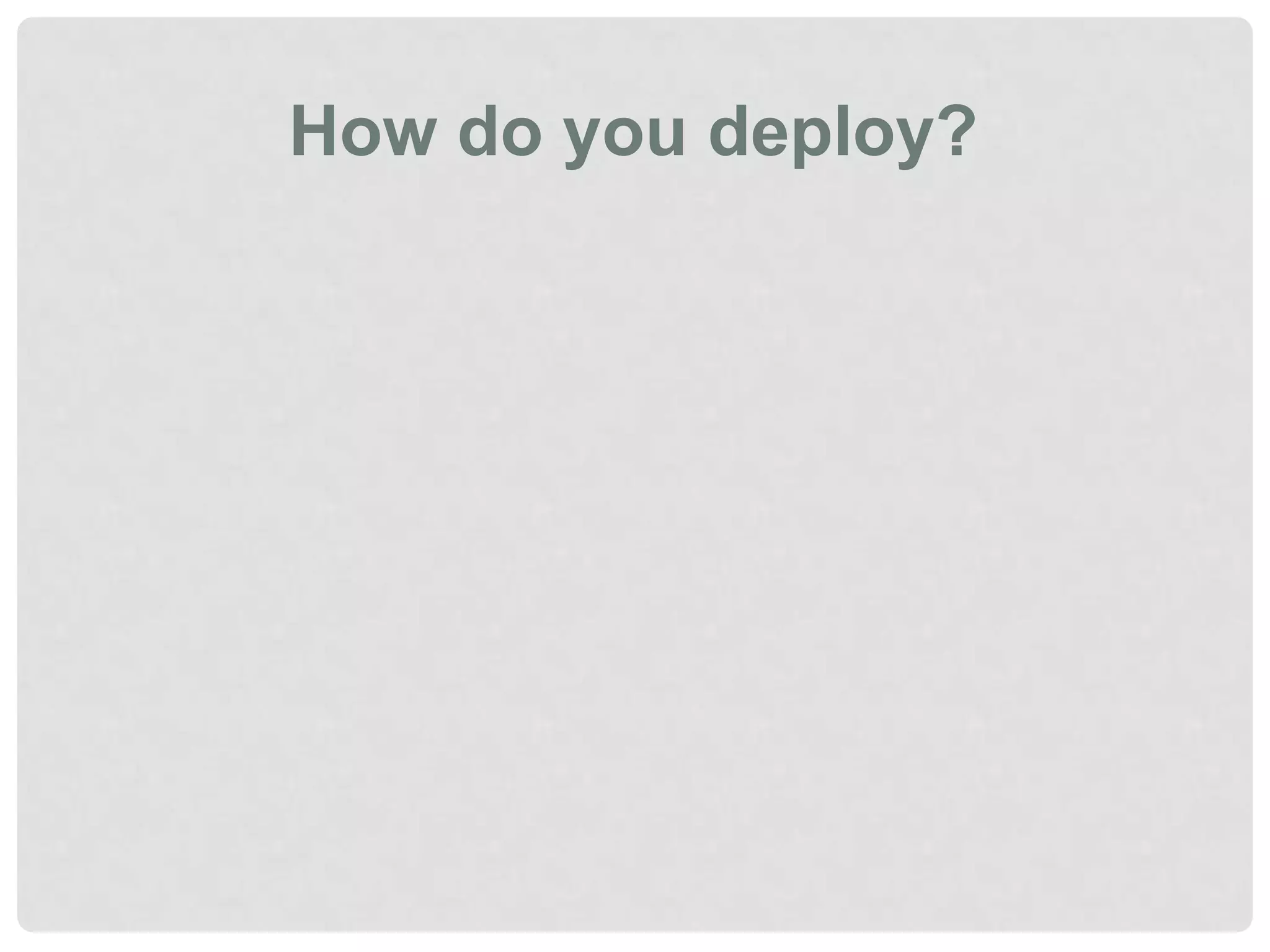

- 8. How do you deploy?

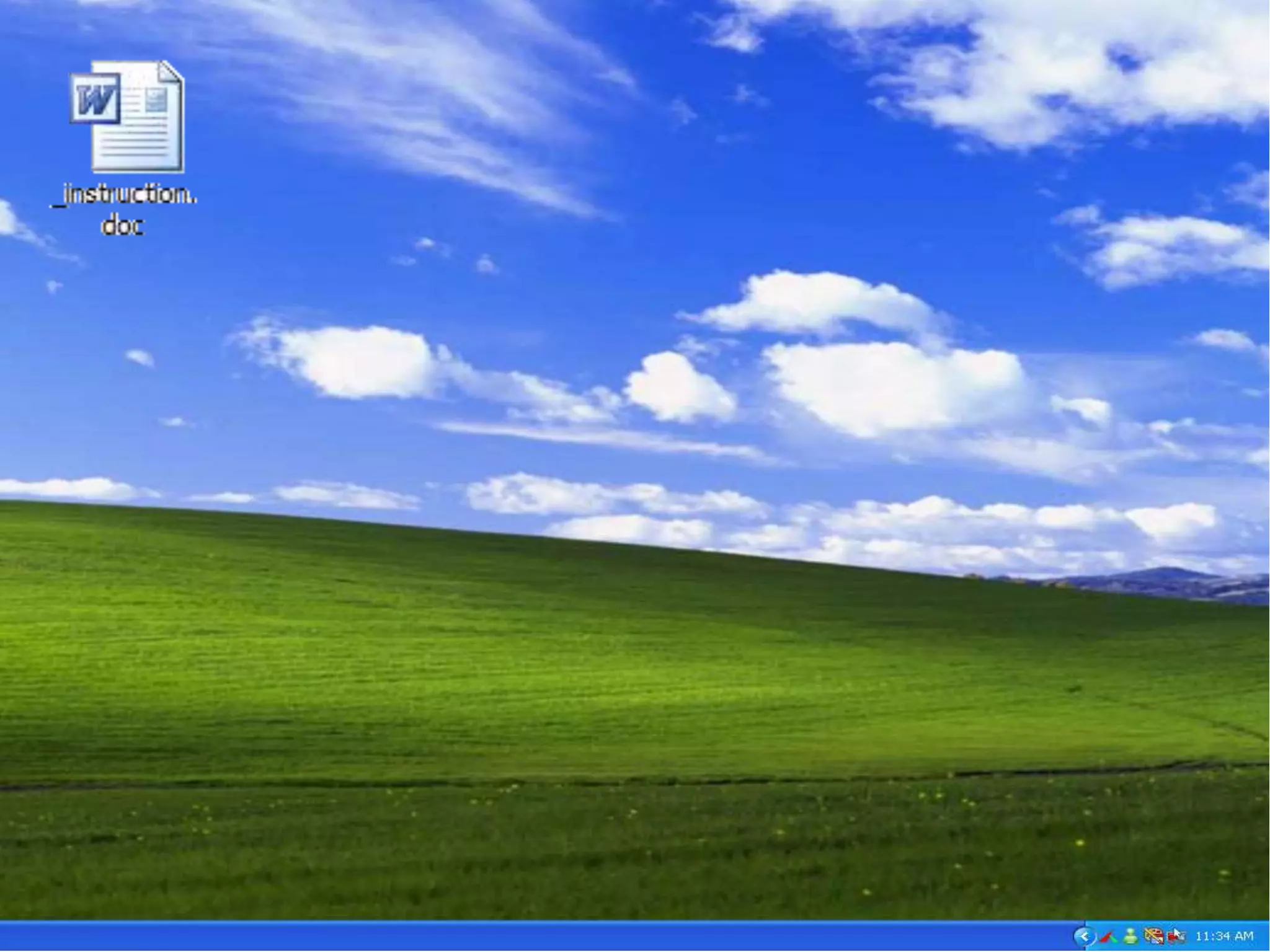

- 10. Client App
- 11. SharePoint
- 13. Publish from VS
- 14. Xcopy
- 15. Deploy.docx

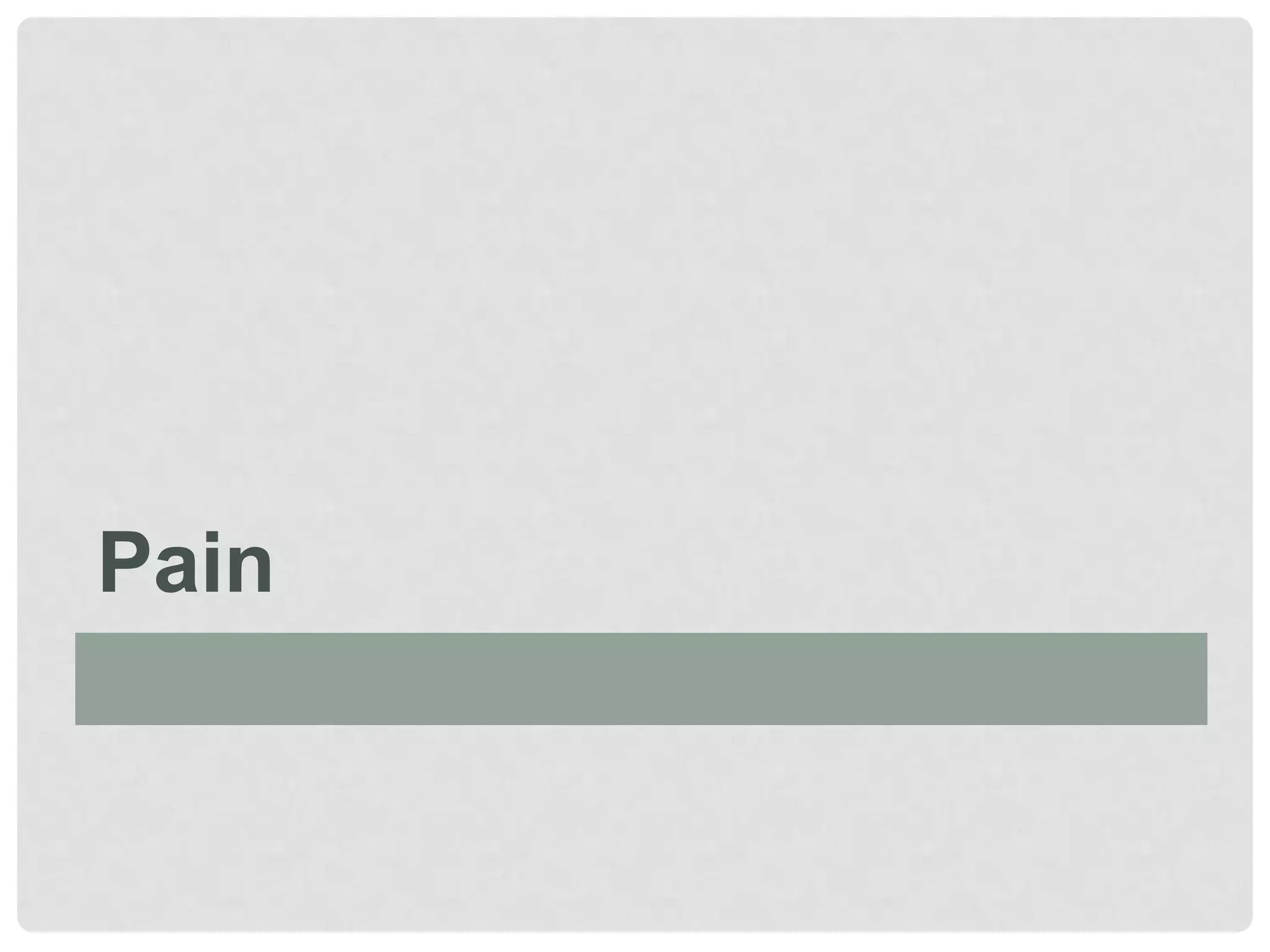

- 17. Pain

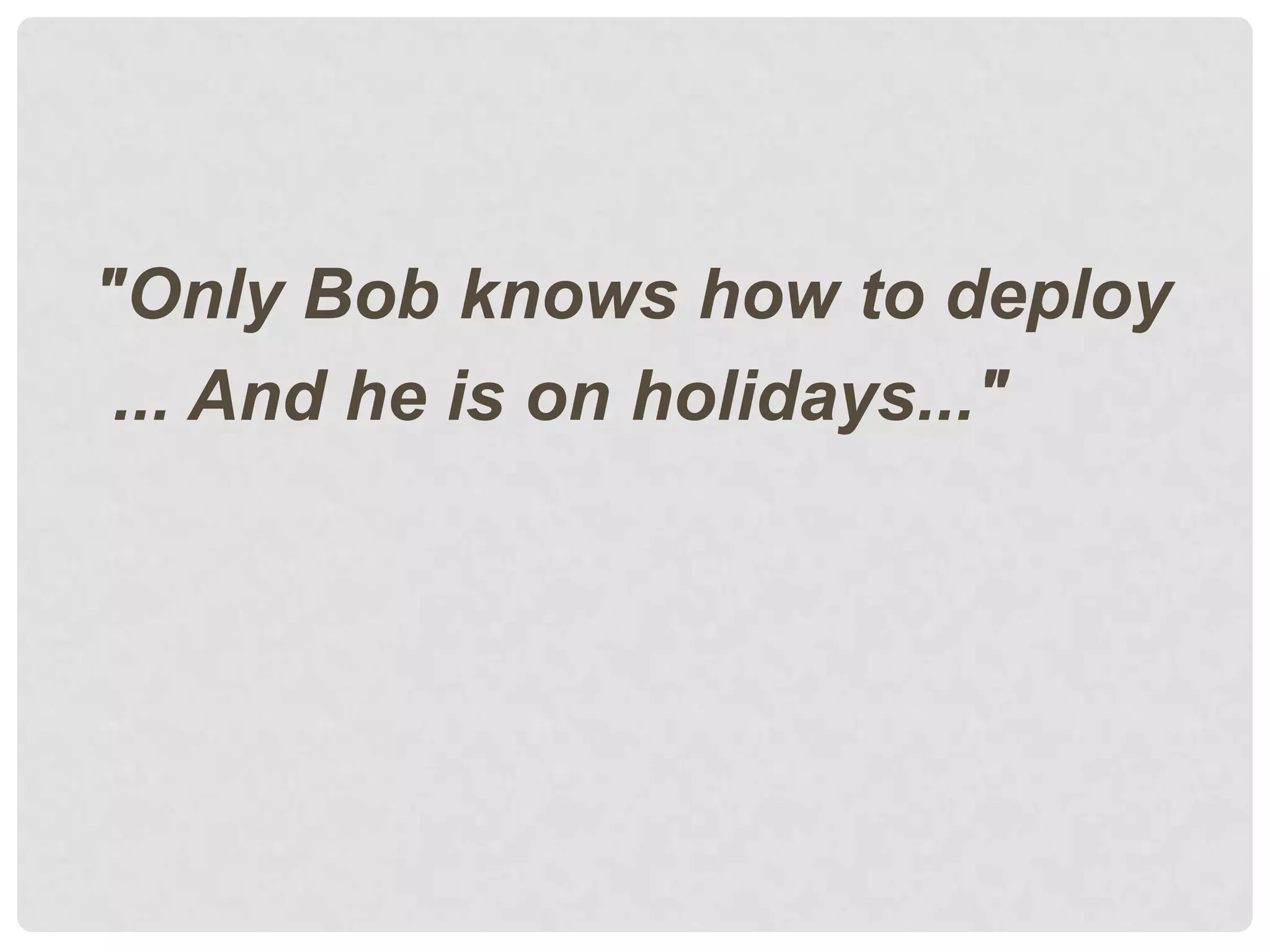

- 18. "Only Bob knows how to deploy ... And he is on holidays..."
- 20. Manual deployments are error prone Deployment Instructions.docx
- 21. Manual deployments take hours instead of minutes or seconds Deployment Instructions.docx
- 22. Manual deployments take hours instead of minutes or seconds Long feedback cycle We want fail fast Deployment Instructions.docx

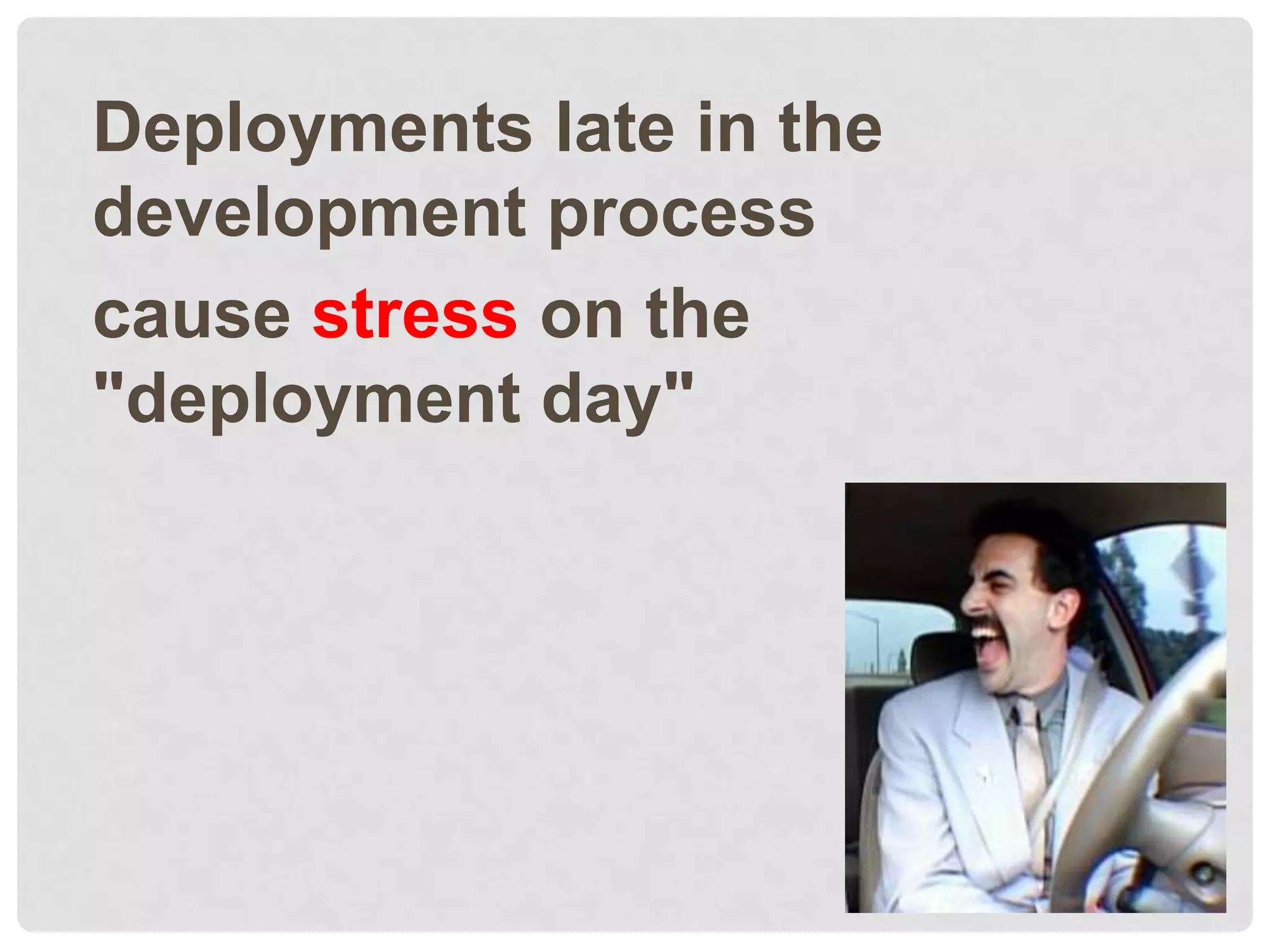

- 23. Deployments late in the development process cause stress on the "deployment day"

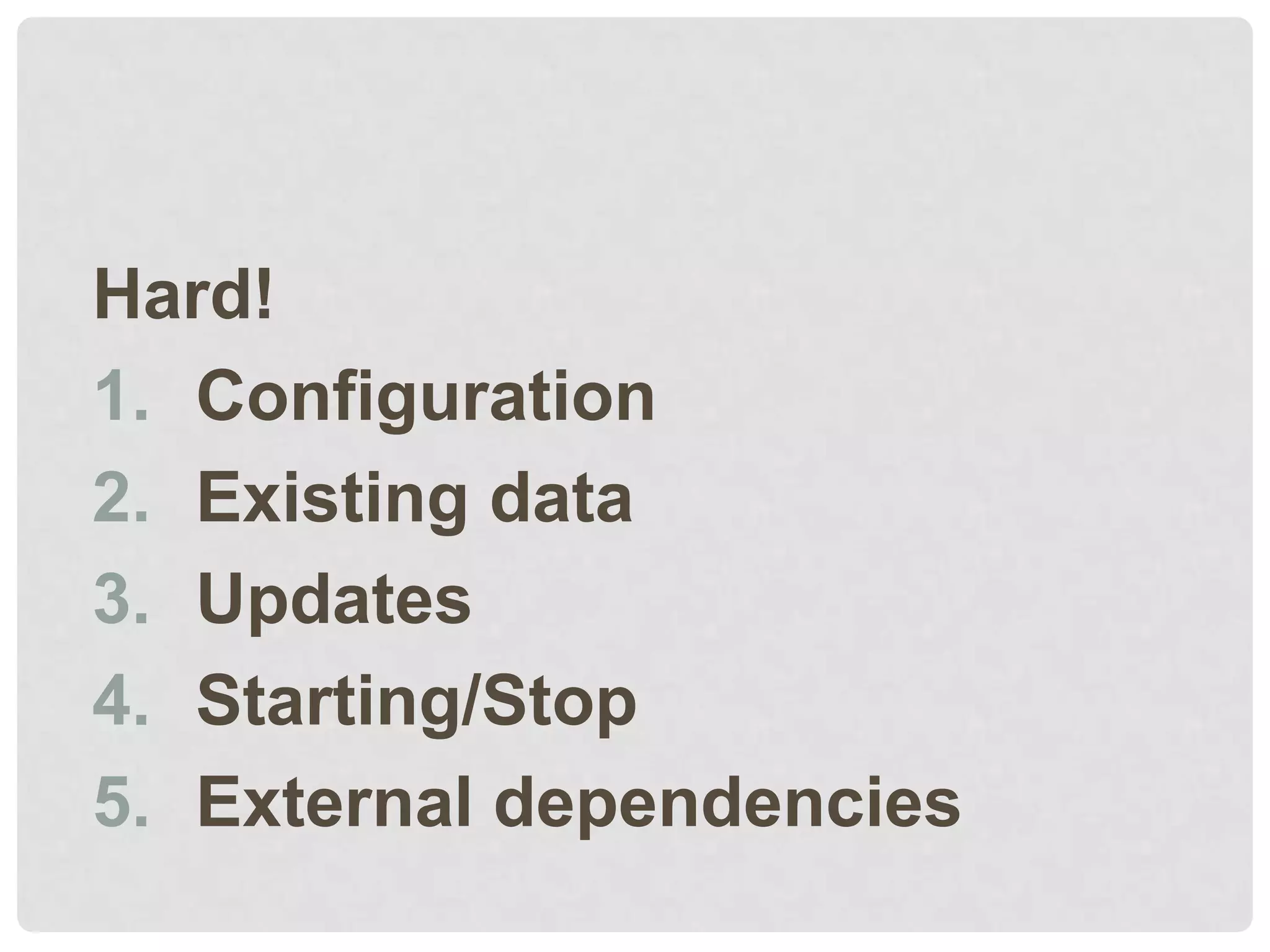

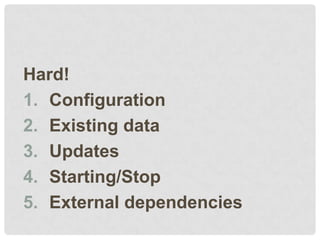

- 24. Hard! Configuration Existing data Updates Starting/Stop External dependencies

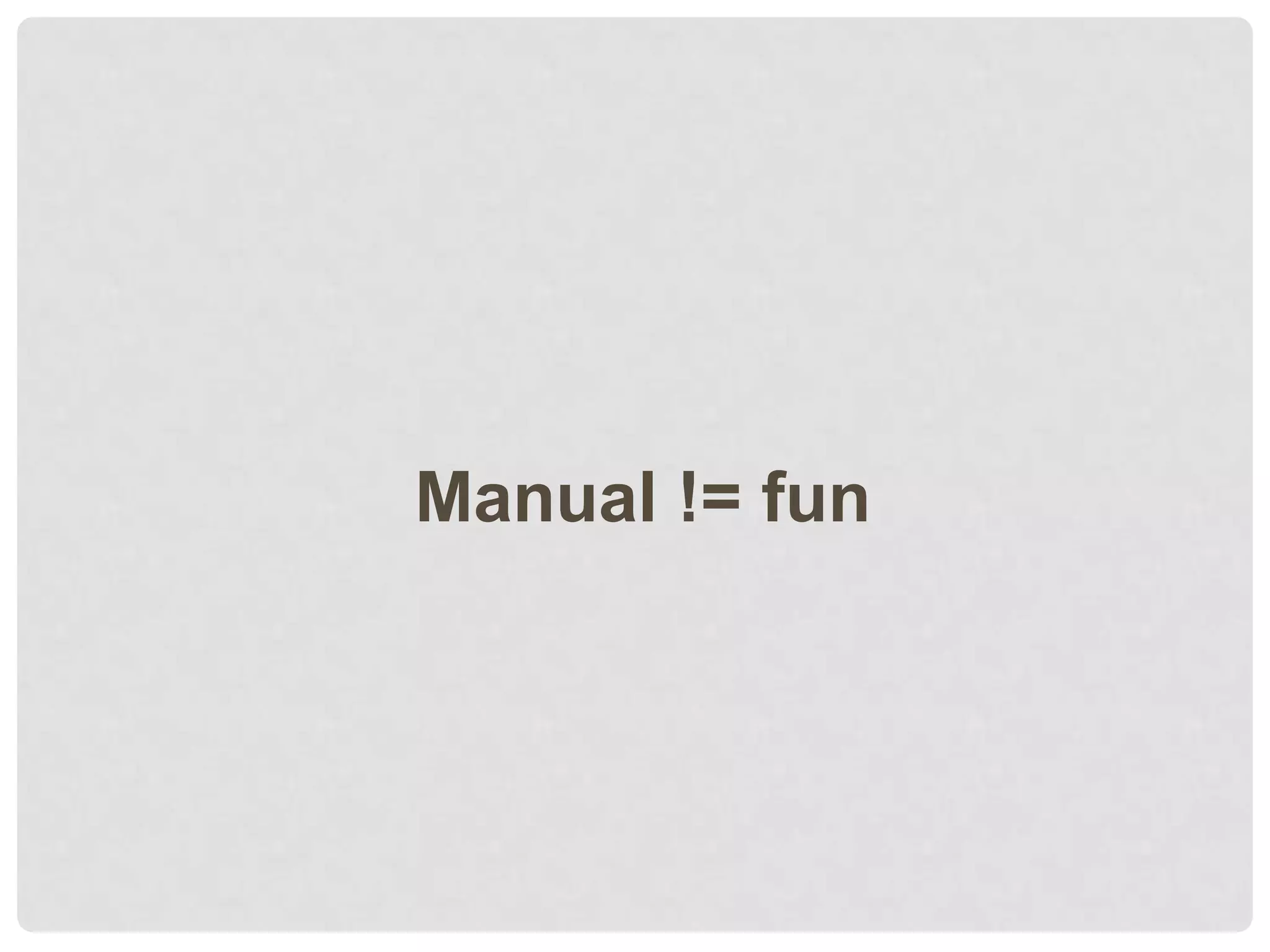

- 25. Manual != fun
- 27. Goals

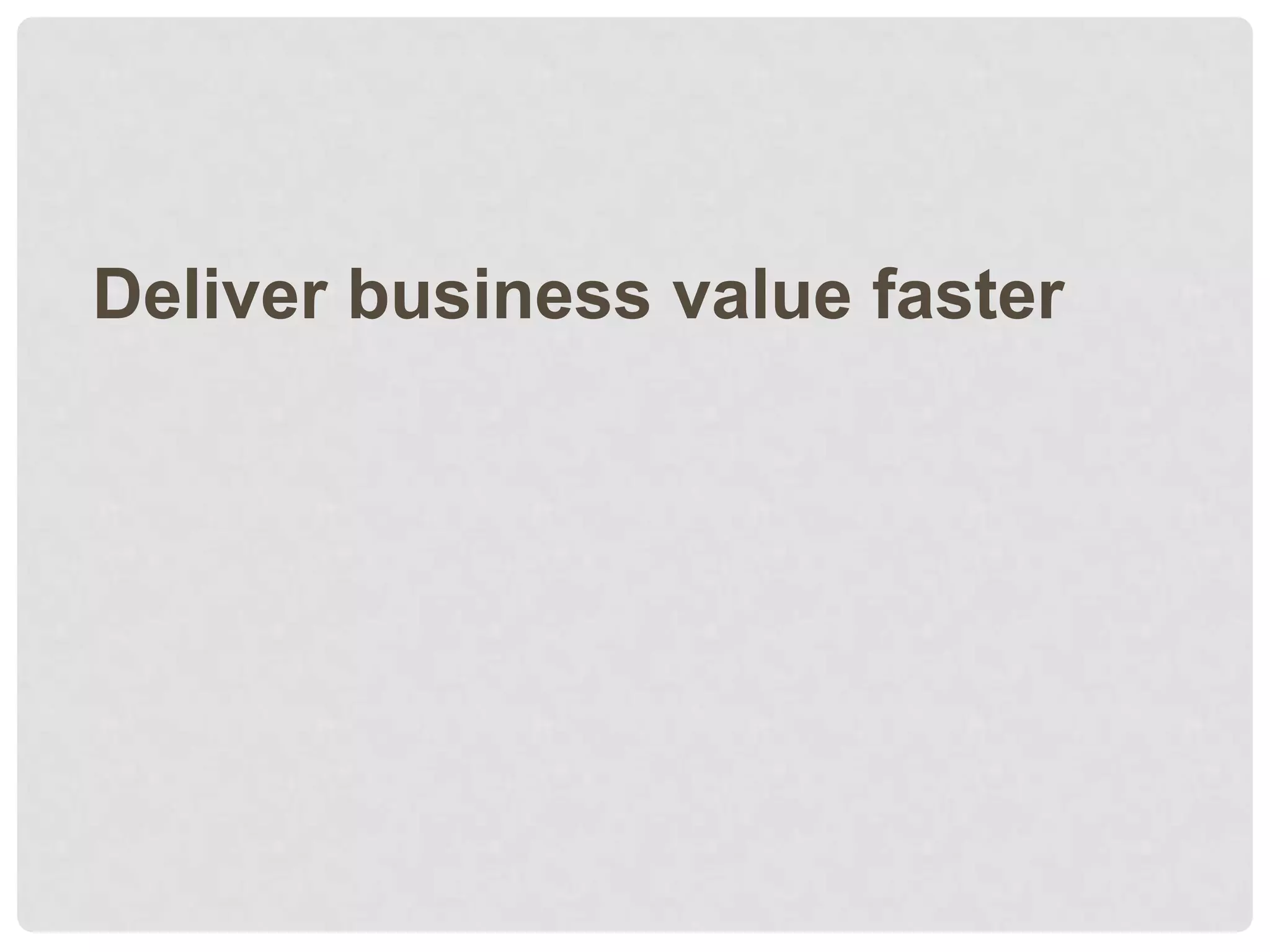

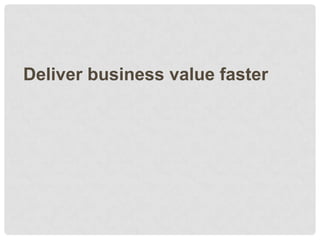

- 28. Deliver business value faster

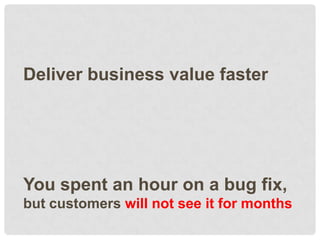

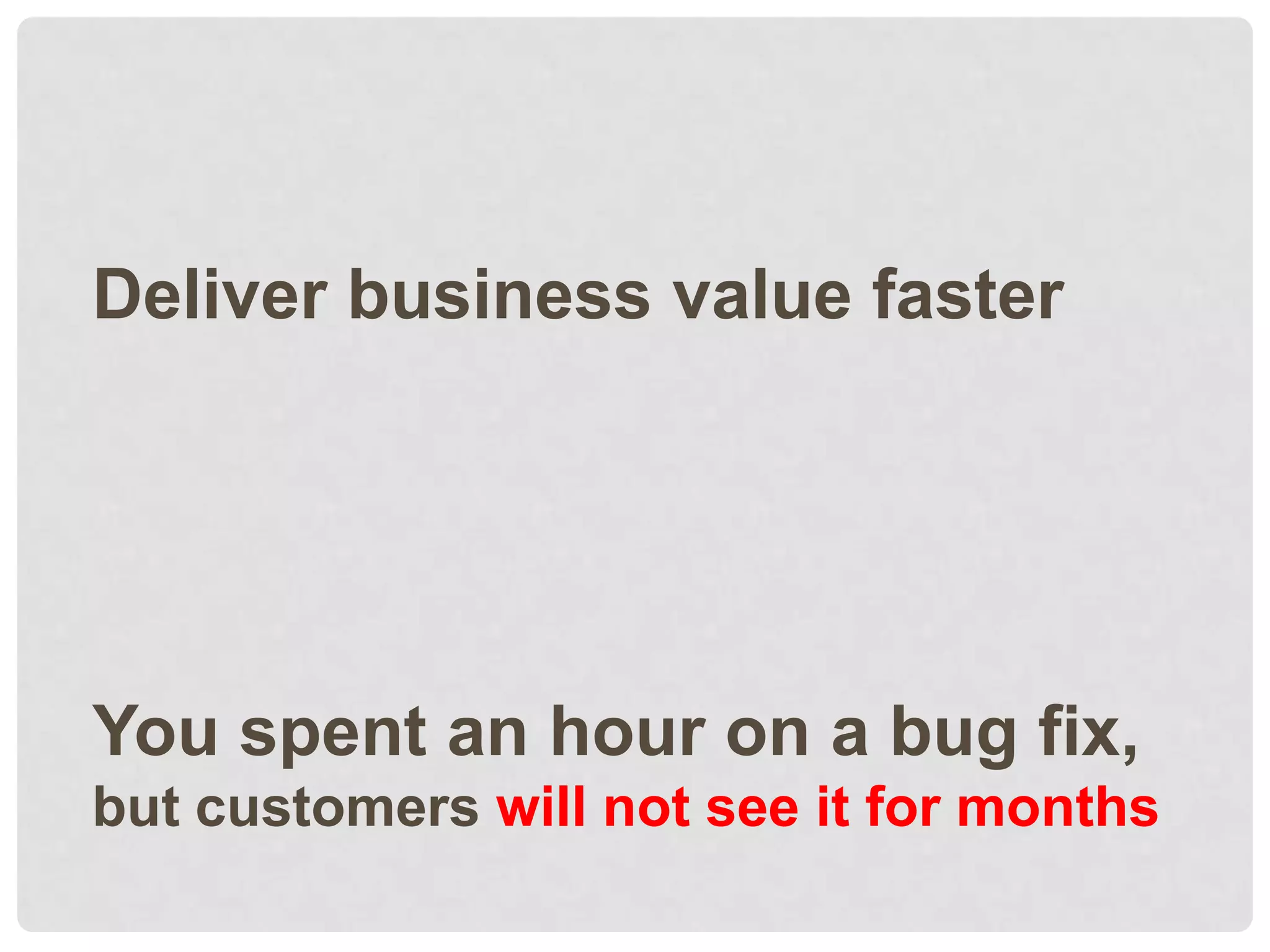

- 29. Deliver business value faster You spent an hour on a bug fix, but customers will not see it for months

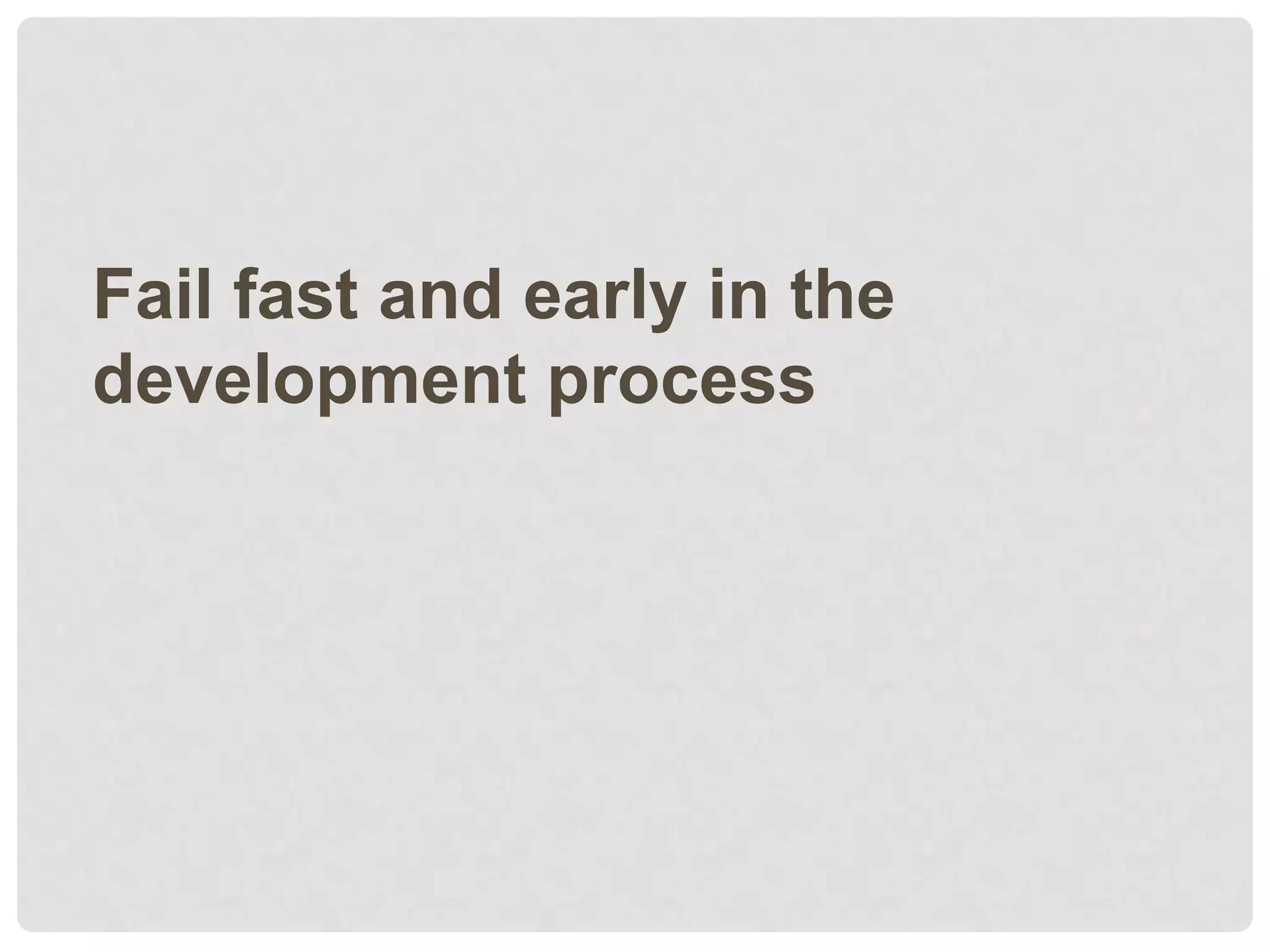

- 31. Fail fast and early in the development process

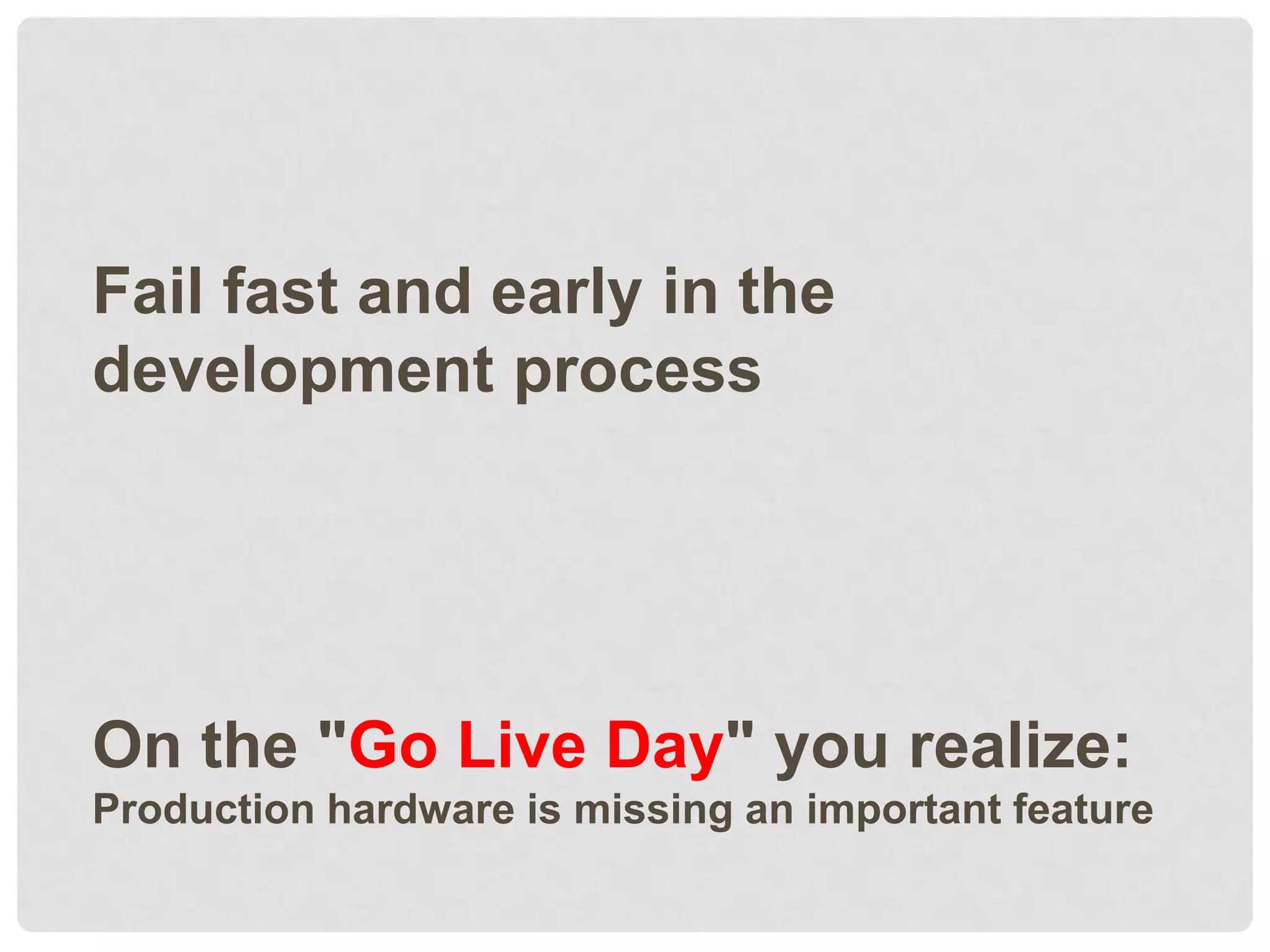

- 32. Fail fast and early in the development process On the "Go Live Day" you realize: Production hardware is missing an important feature

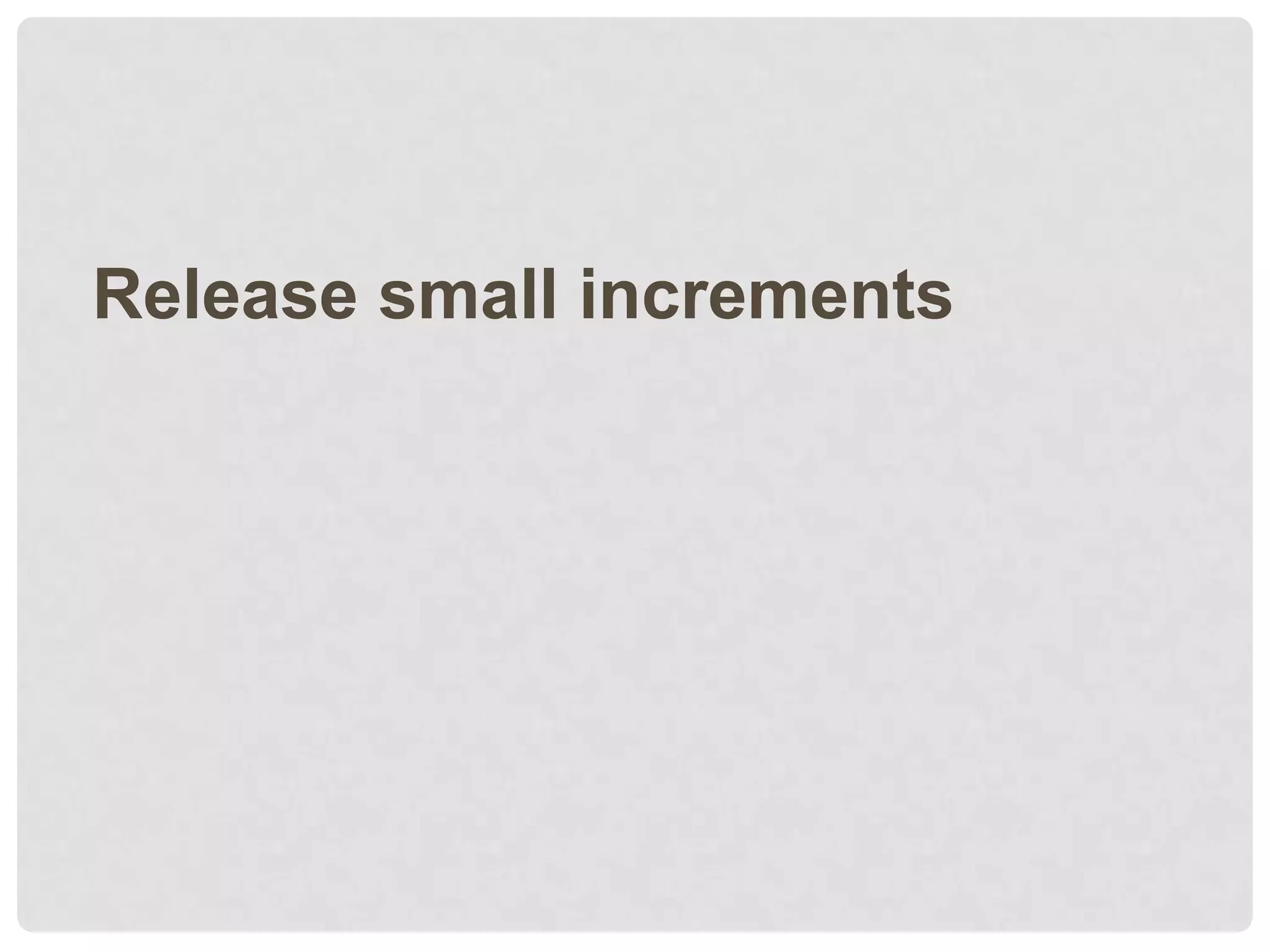

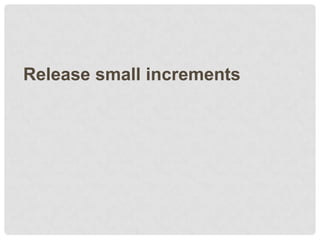

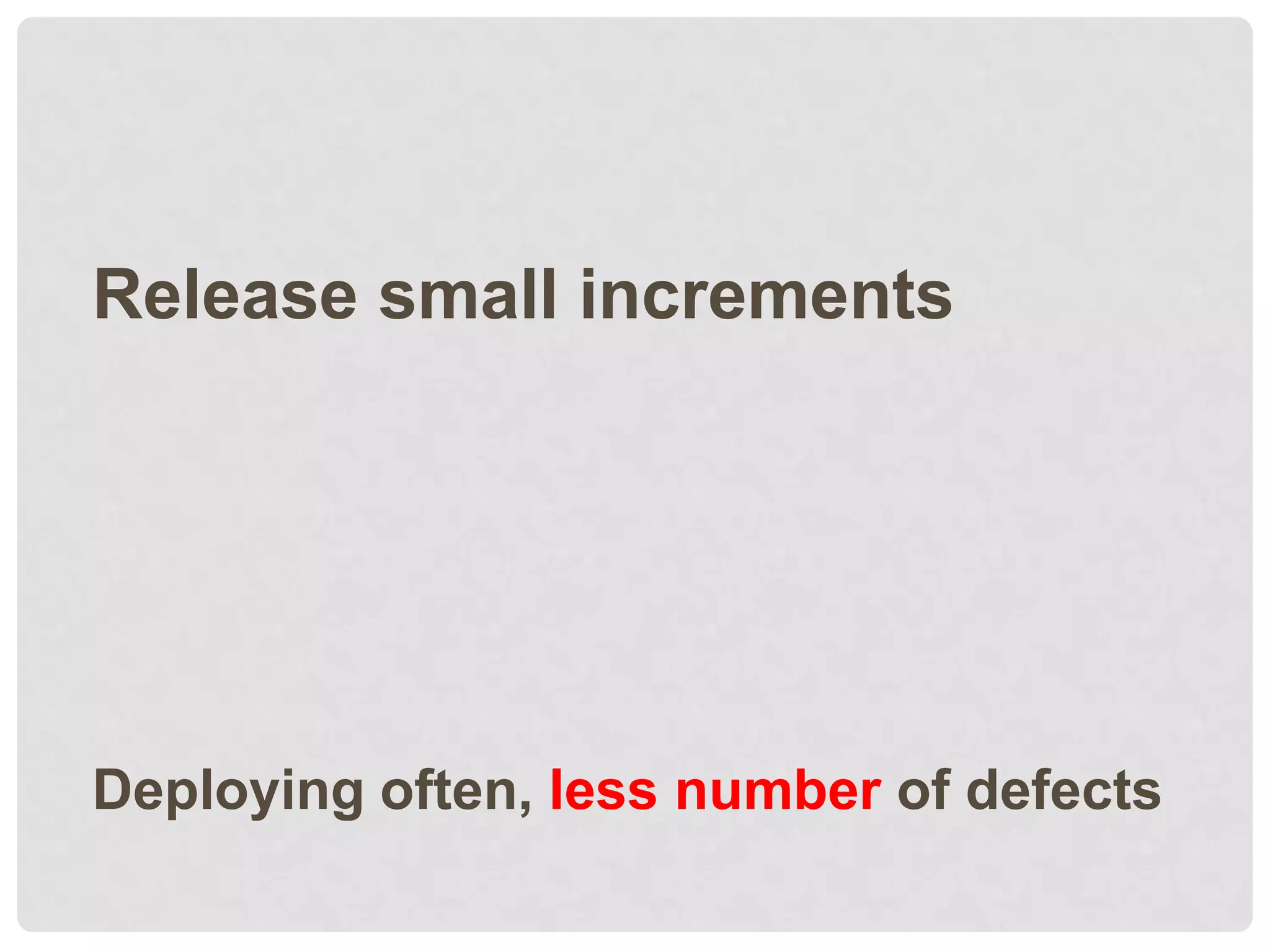

- 34. Release small increments Deploying often, less number of defects

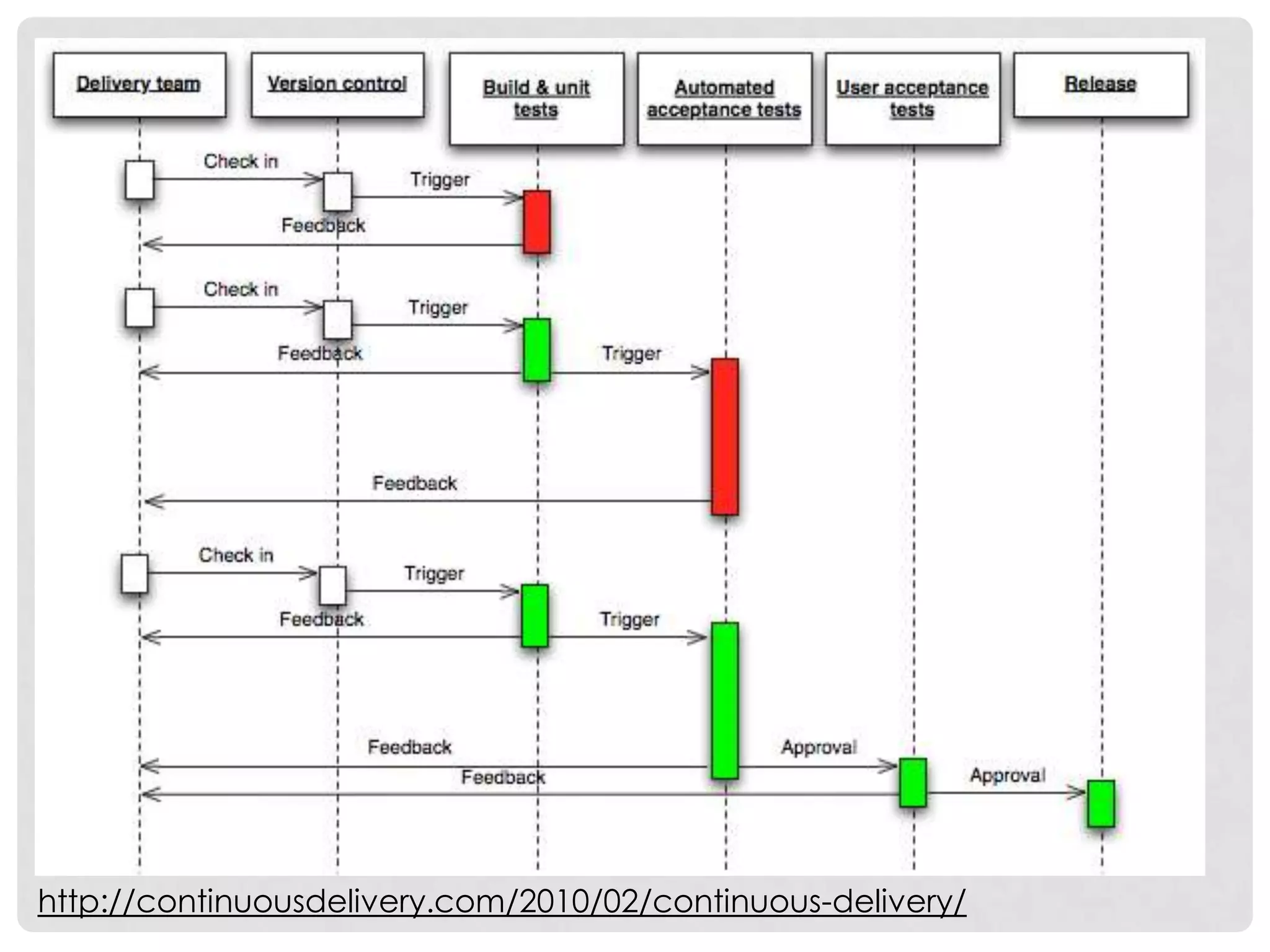

- 35. Start from scratch http://continuousdelivery.com/2010/02/continuous-delivery/
- 36. This is the hard part, but some rules of thumb How To

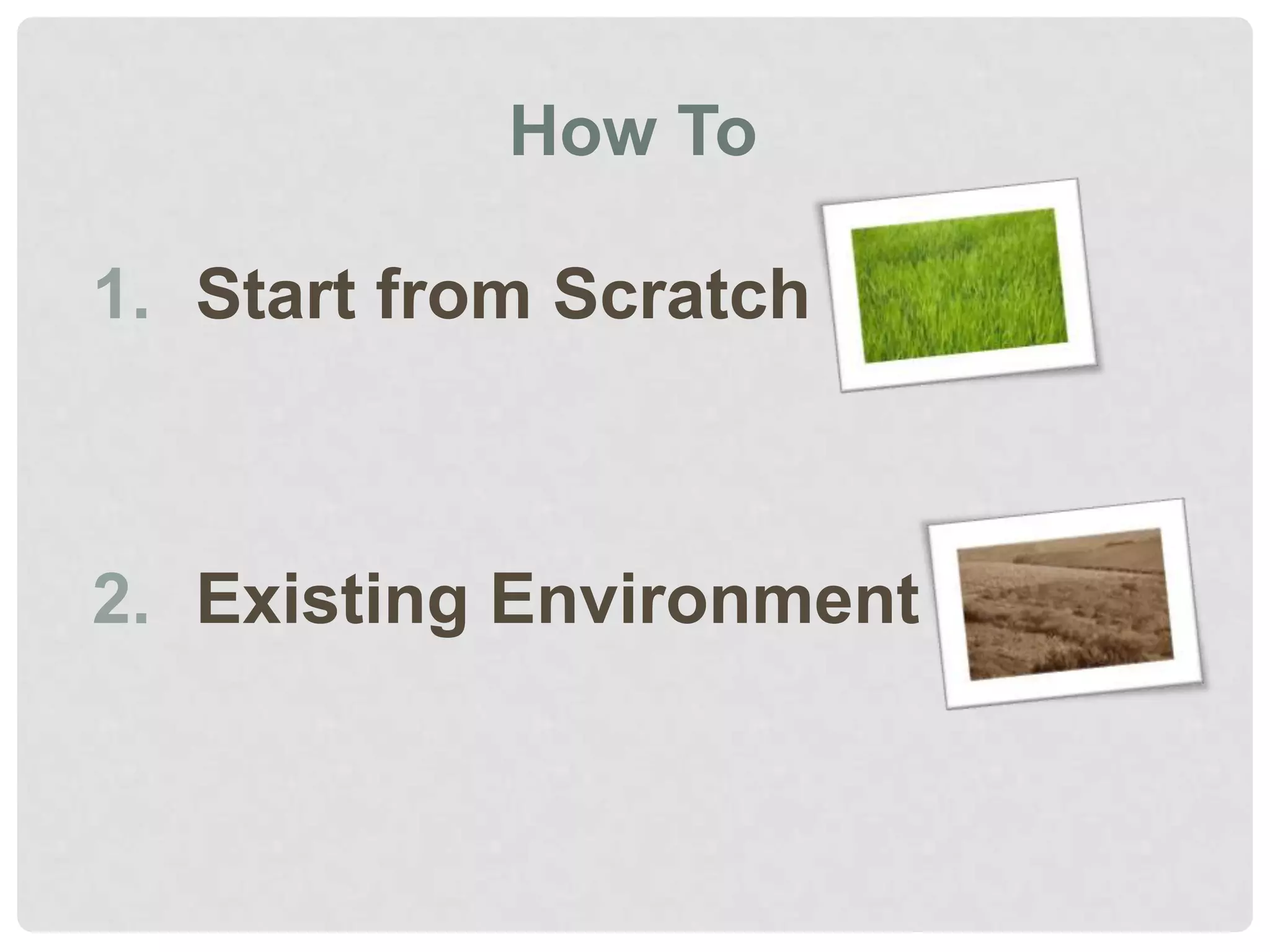

- 37. How To Start from Scratch Existing Environment

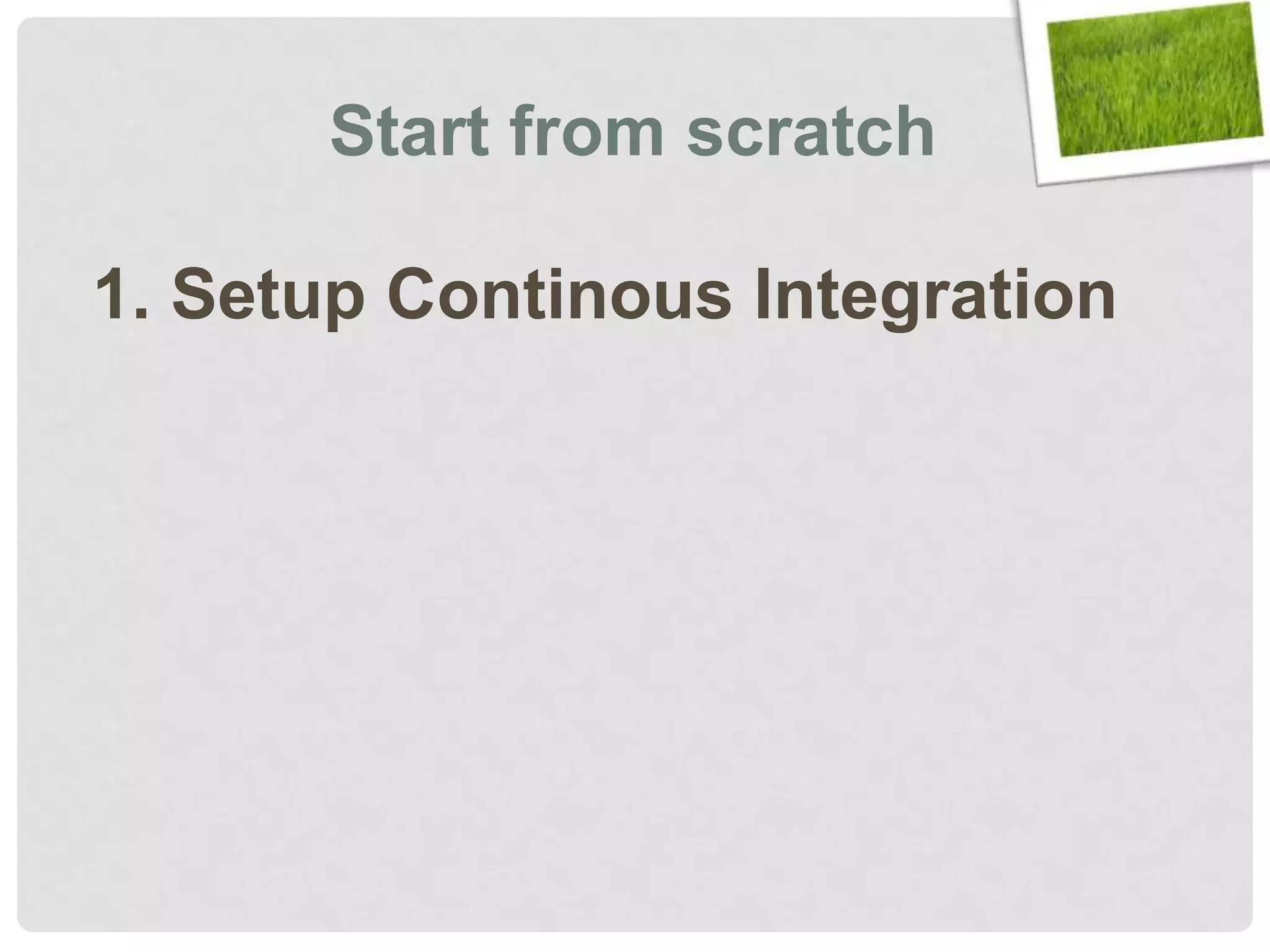

- 39. Start from scratch 1. Setup Continous Integration
- 40. Start from scratch 1. Setup Continous Integration CI tools TFS TeamCity CruiseControl.NET

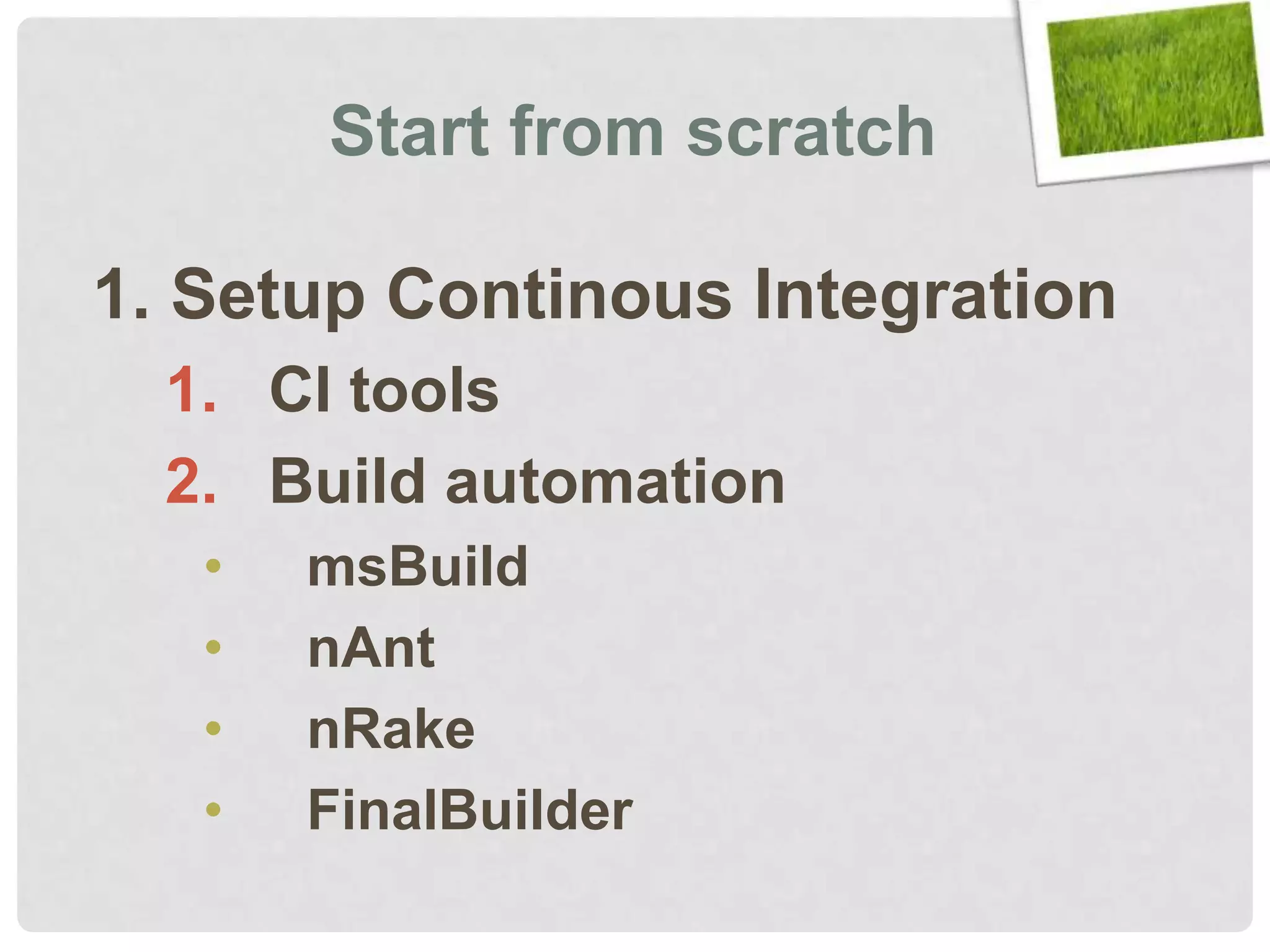

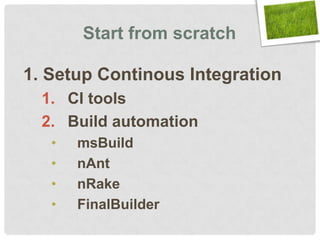

- 41. Start from scratch 1. Setup Continous Integration CI tools Build automation msBuild nAnt nRake FinalBuilder

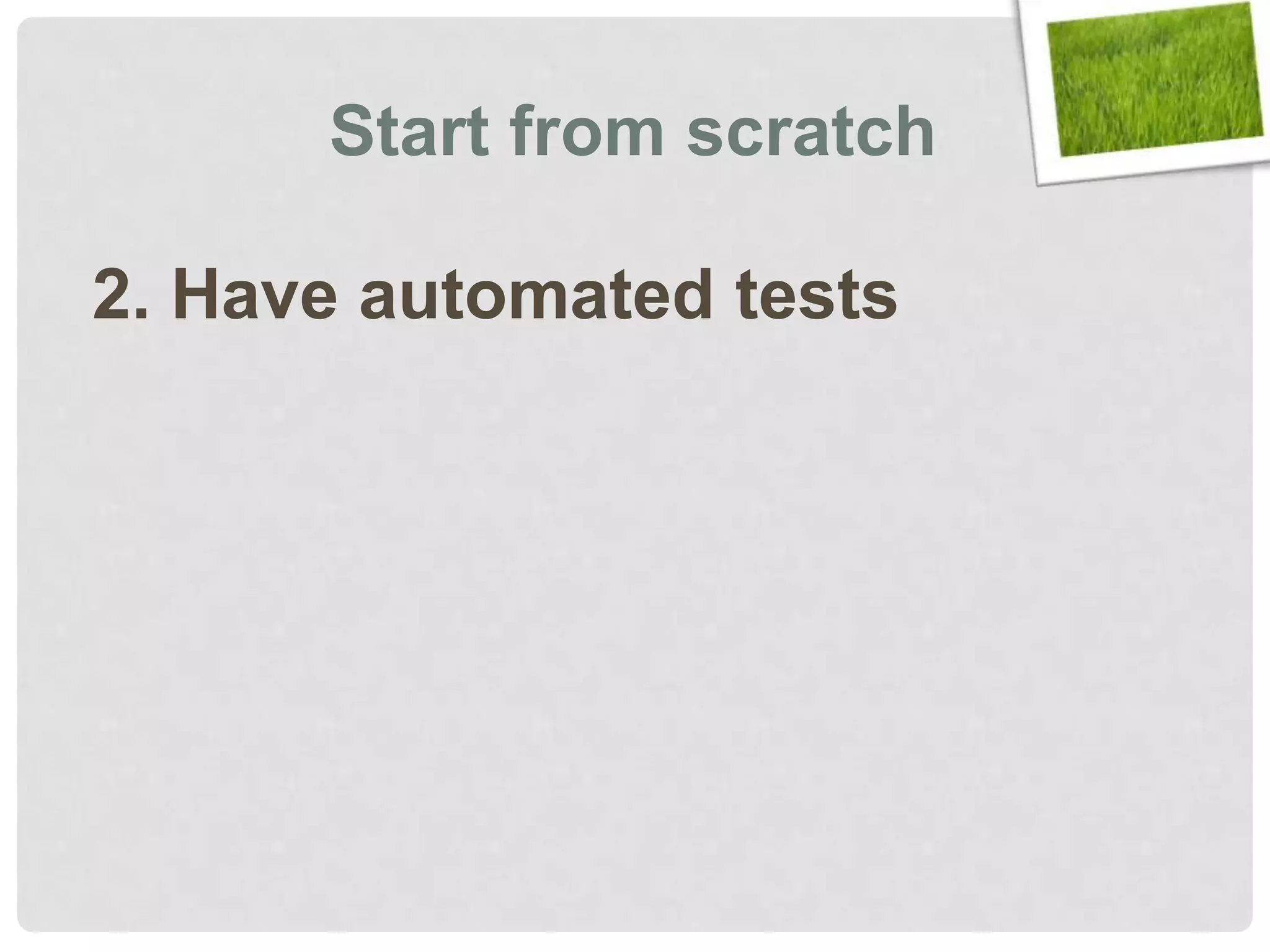

- 42. Start from scratch 2. Have automated tests

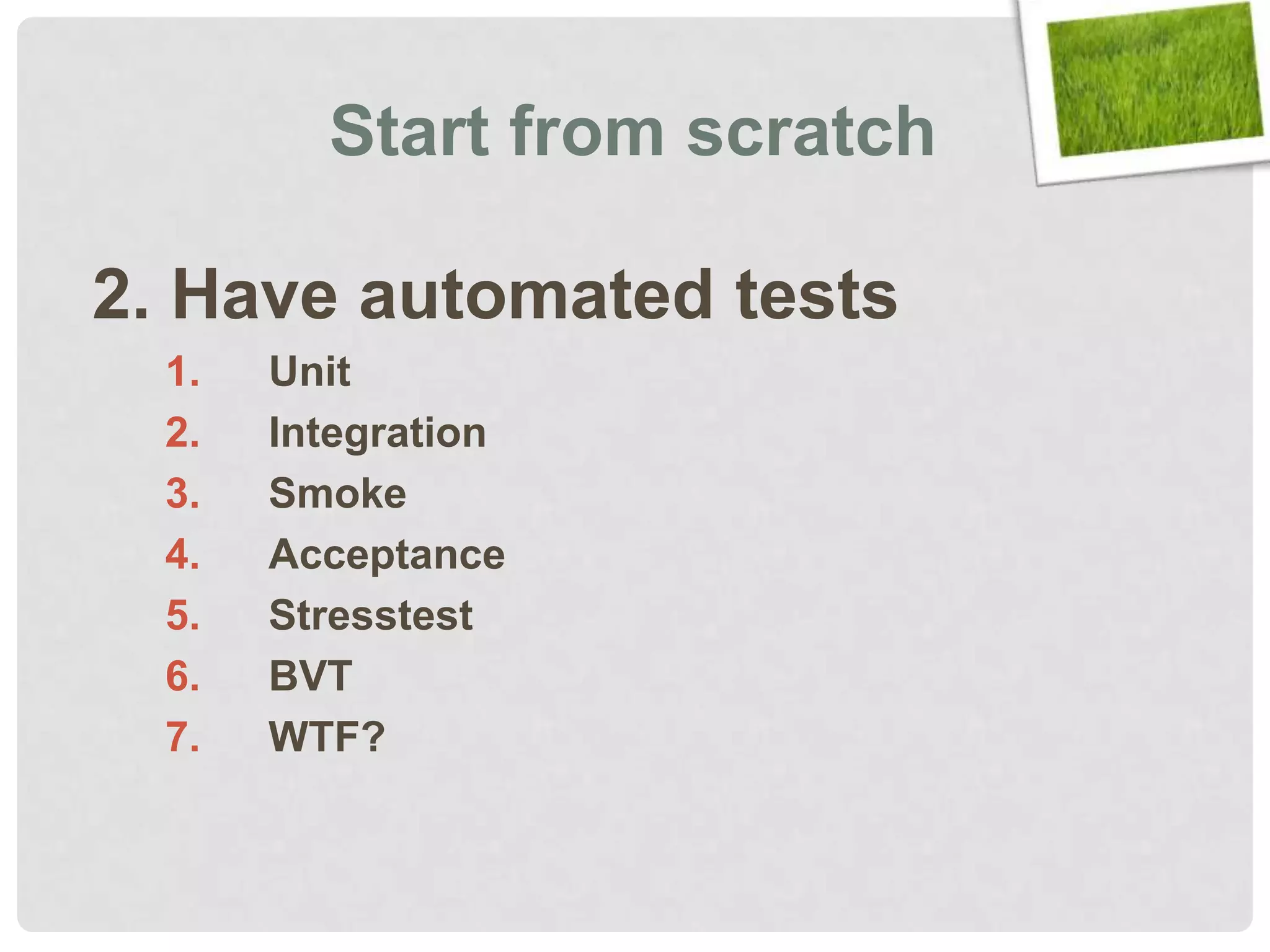

- 43. Start from scratch 2. Have automated tests Unit Integration Smoke Acceptance Stresstest BVT WTF?

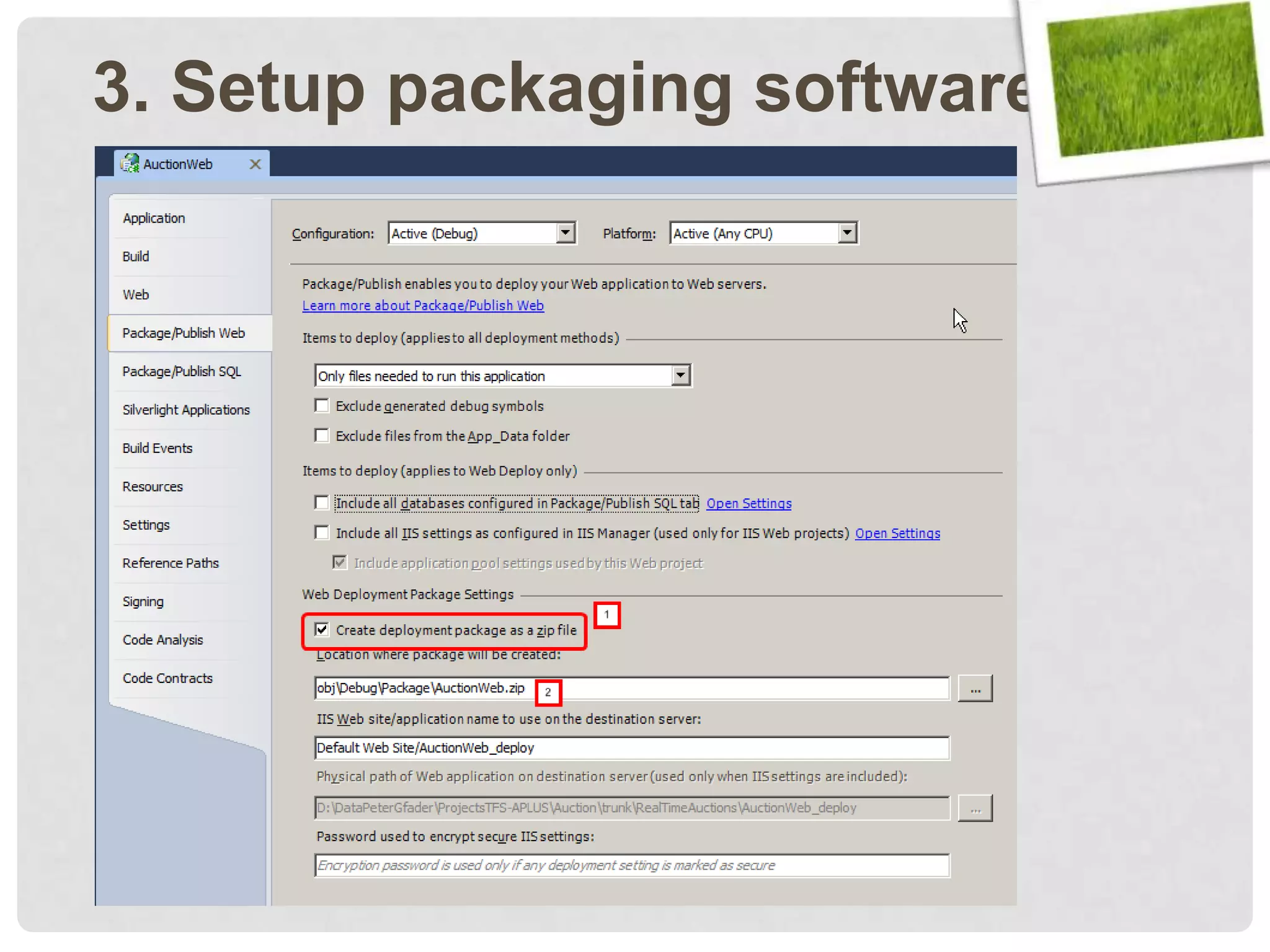

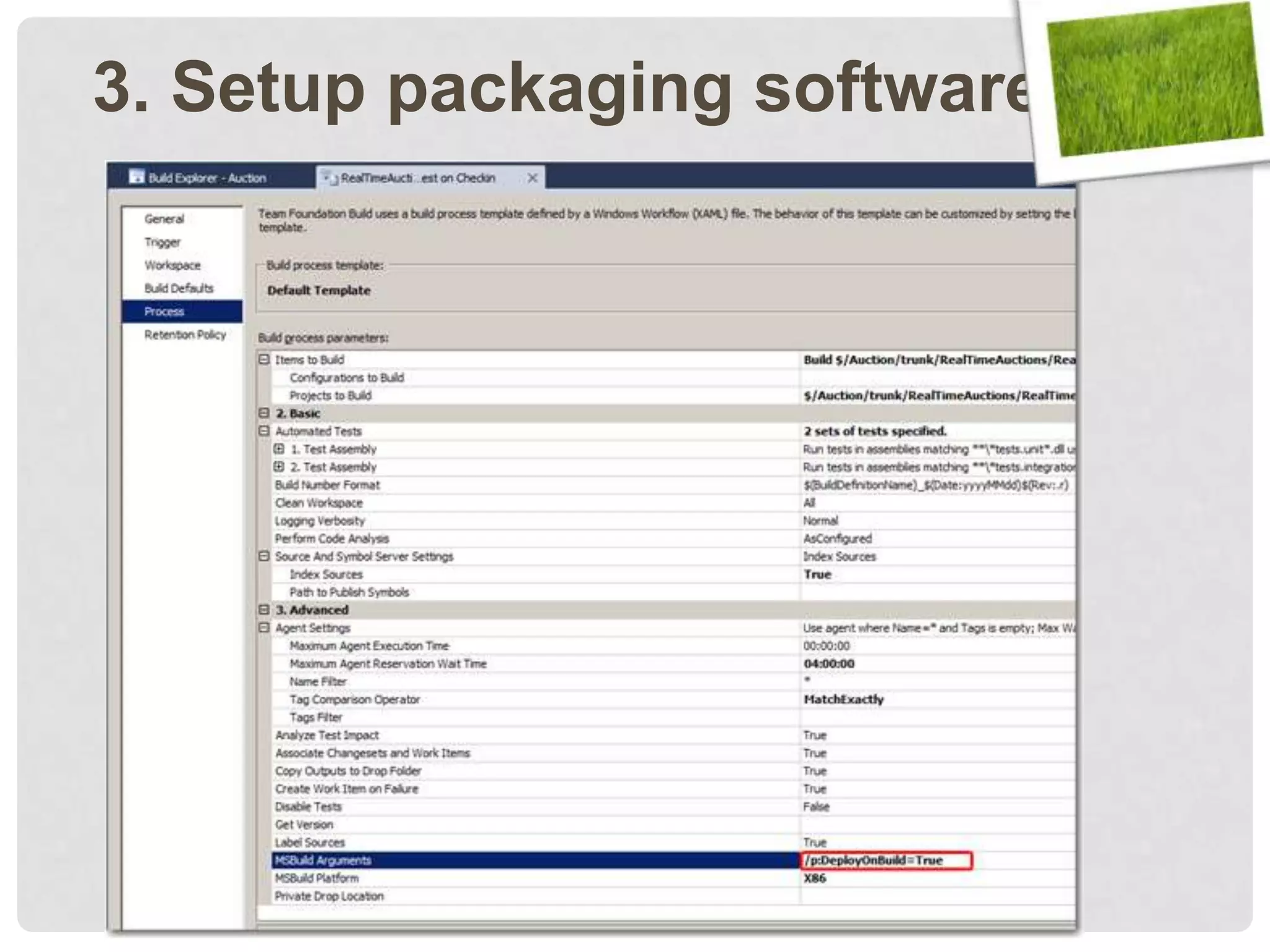

- 44. 3. Setup packaging software
- 45. 3. Setup packaging software
- 46. 3. Setup packaging software

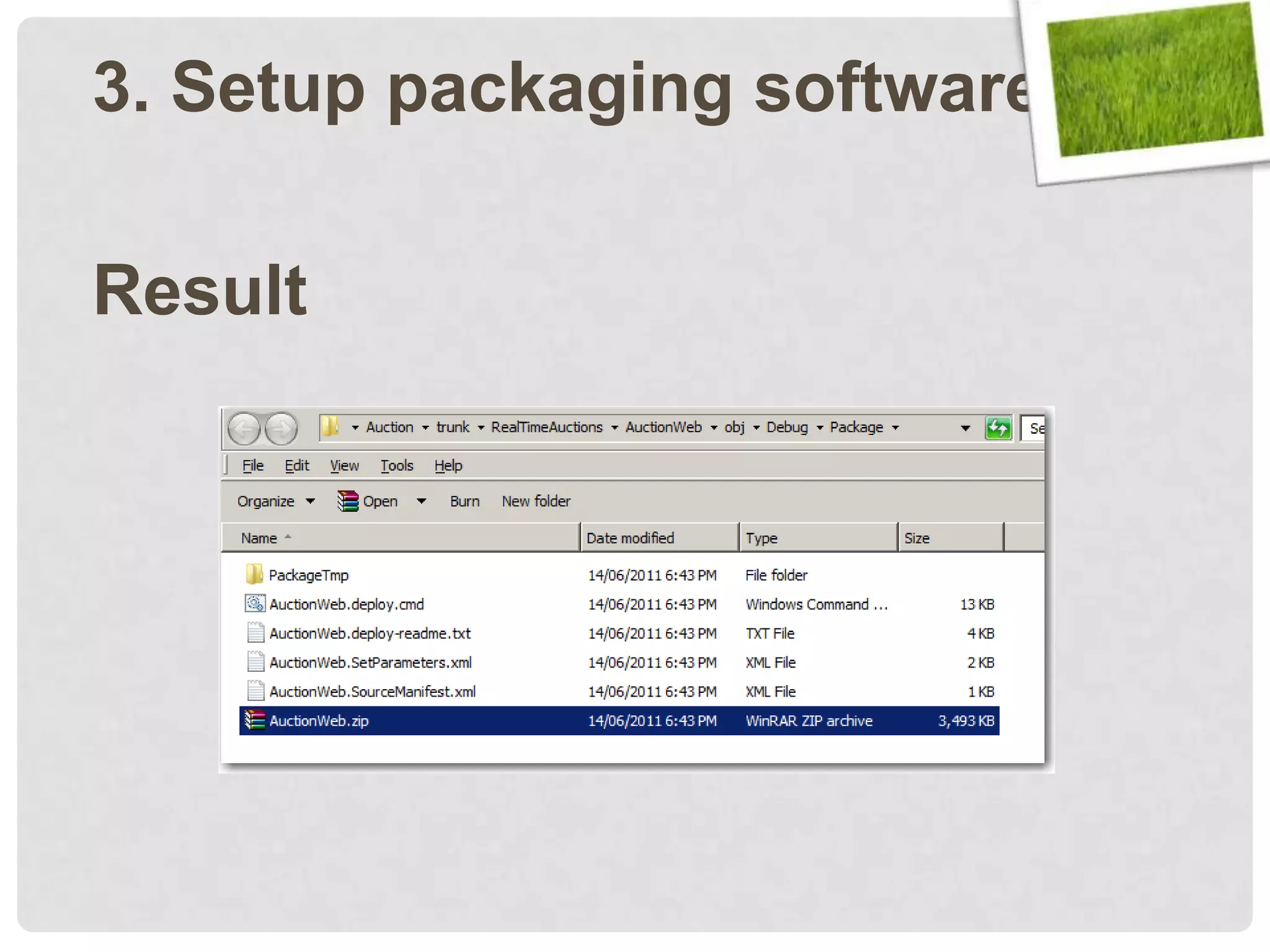

- 47. 3. Setup packaging software Result

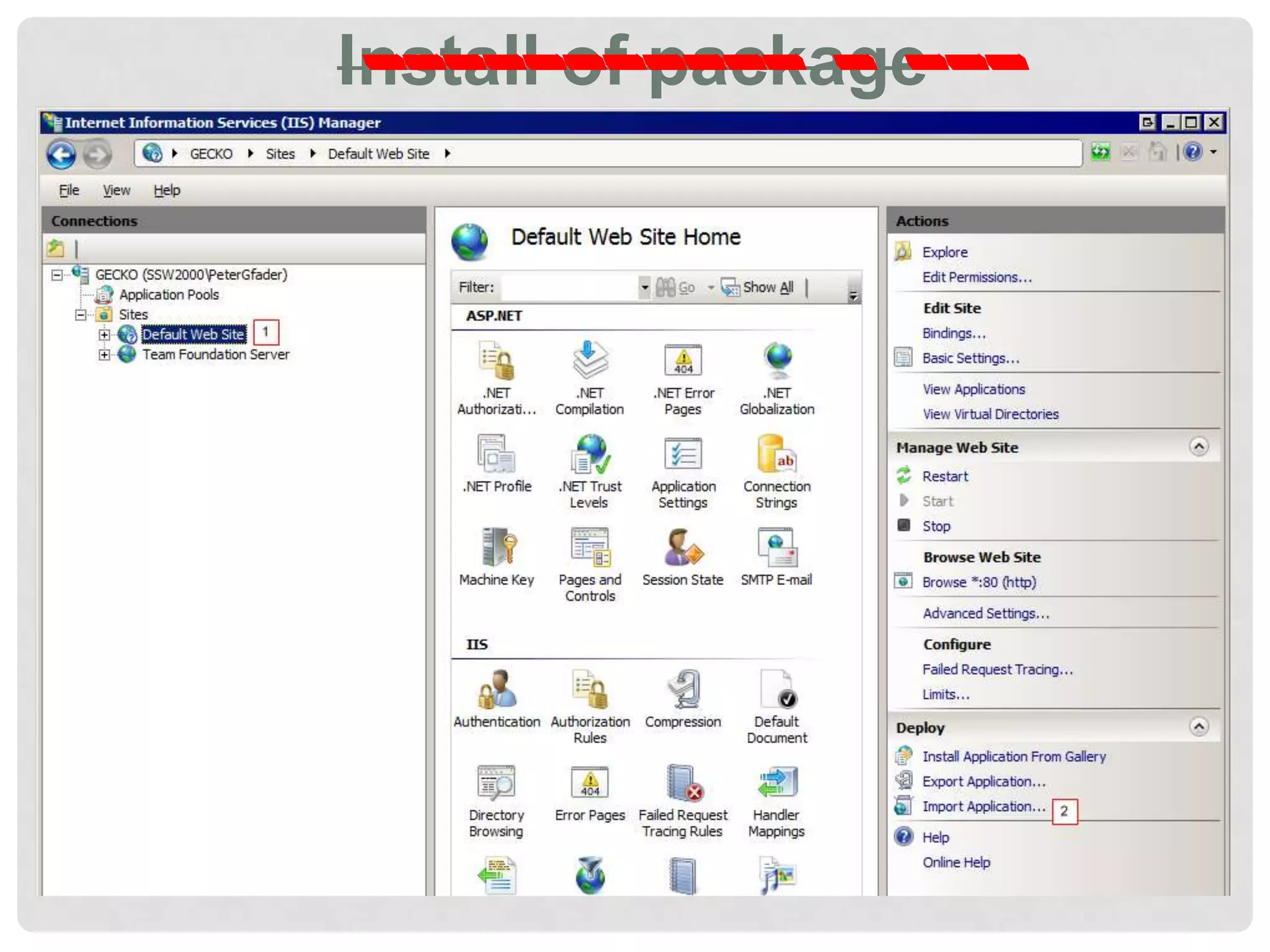

- 48. Install of package ----------- - ---

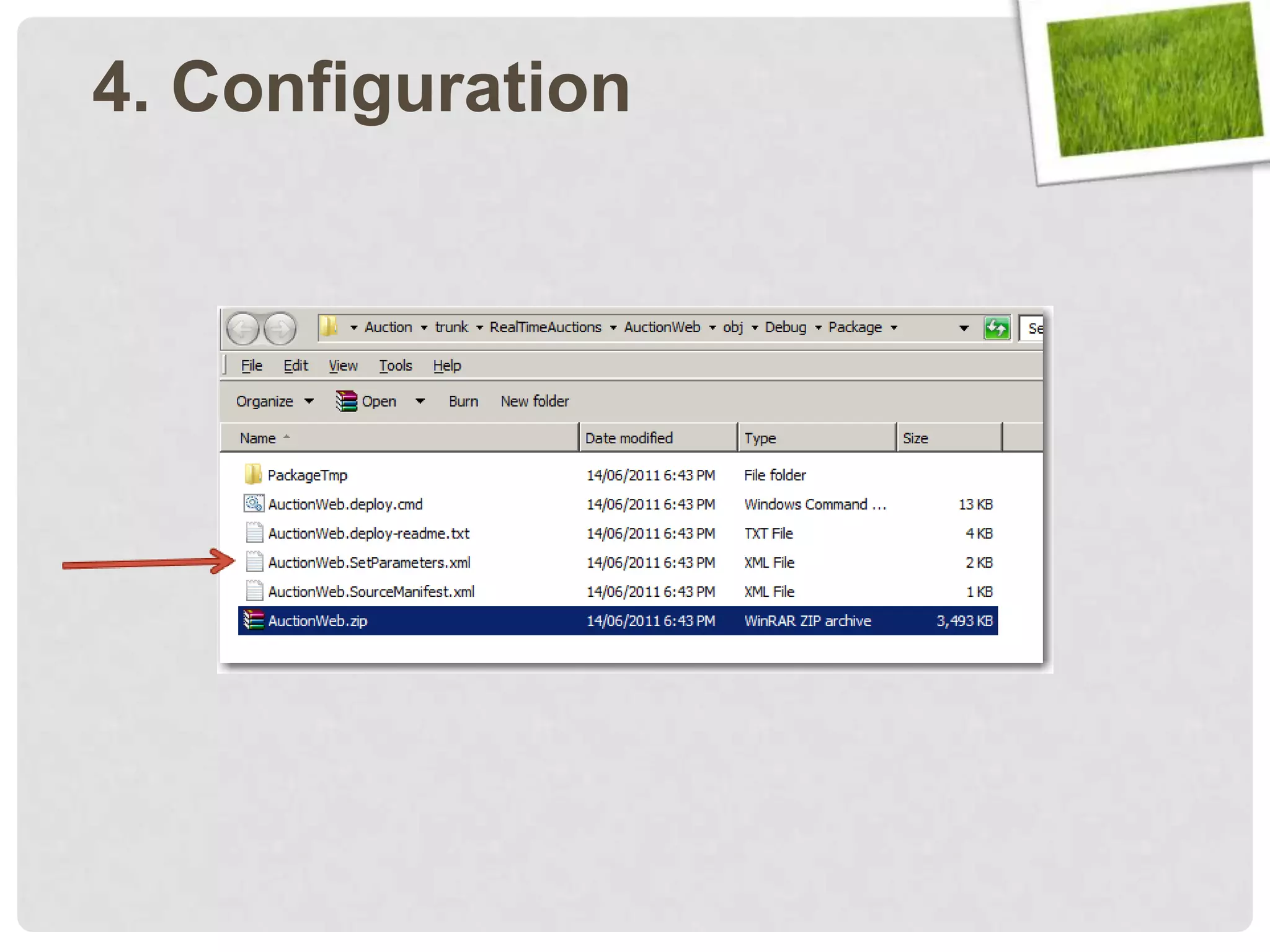

- 49. 4. Configuration

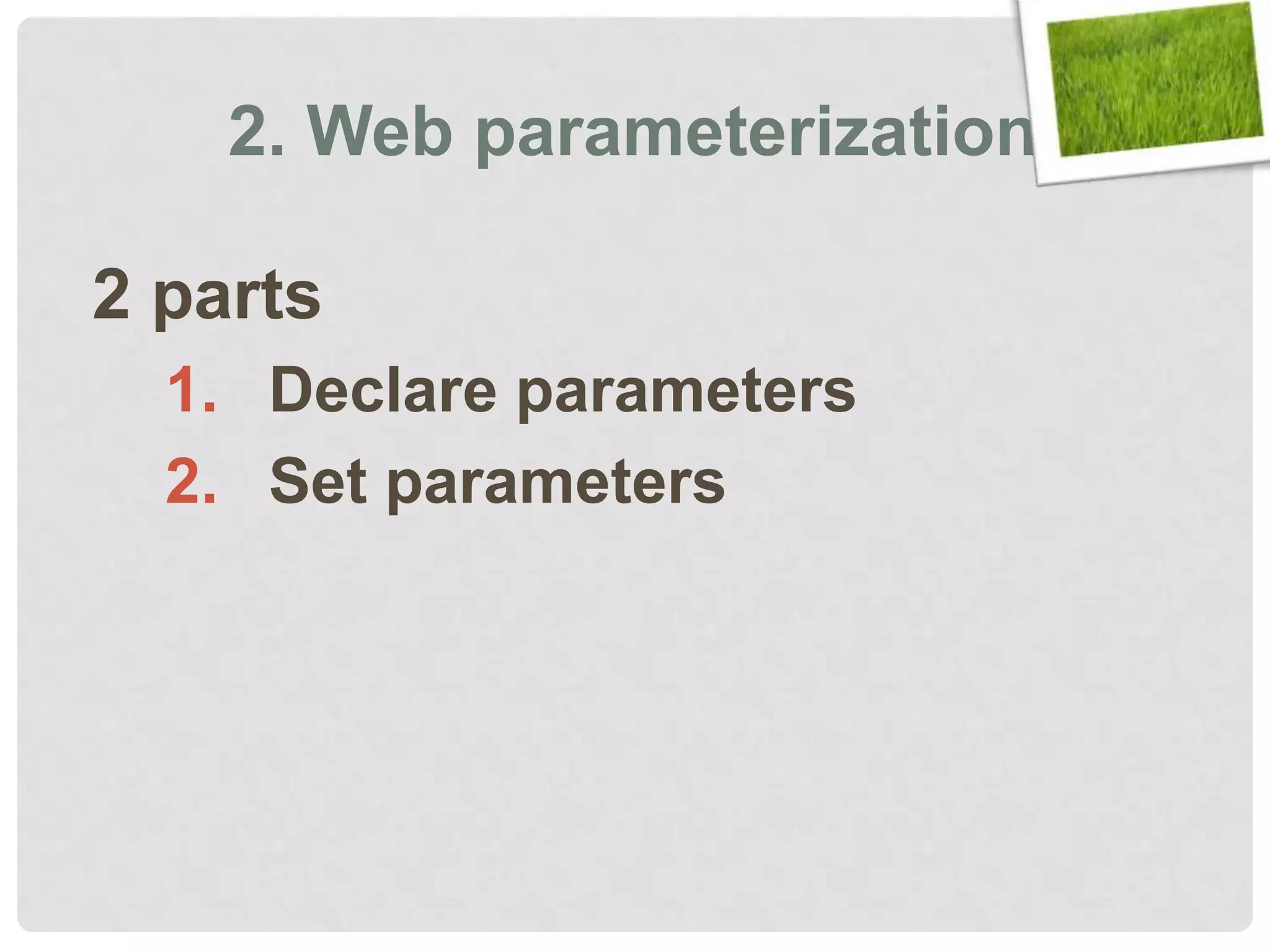

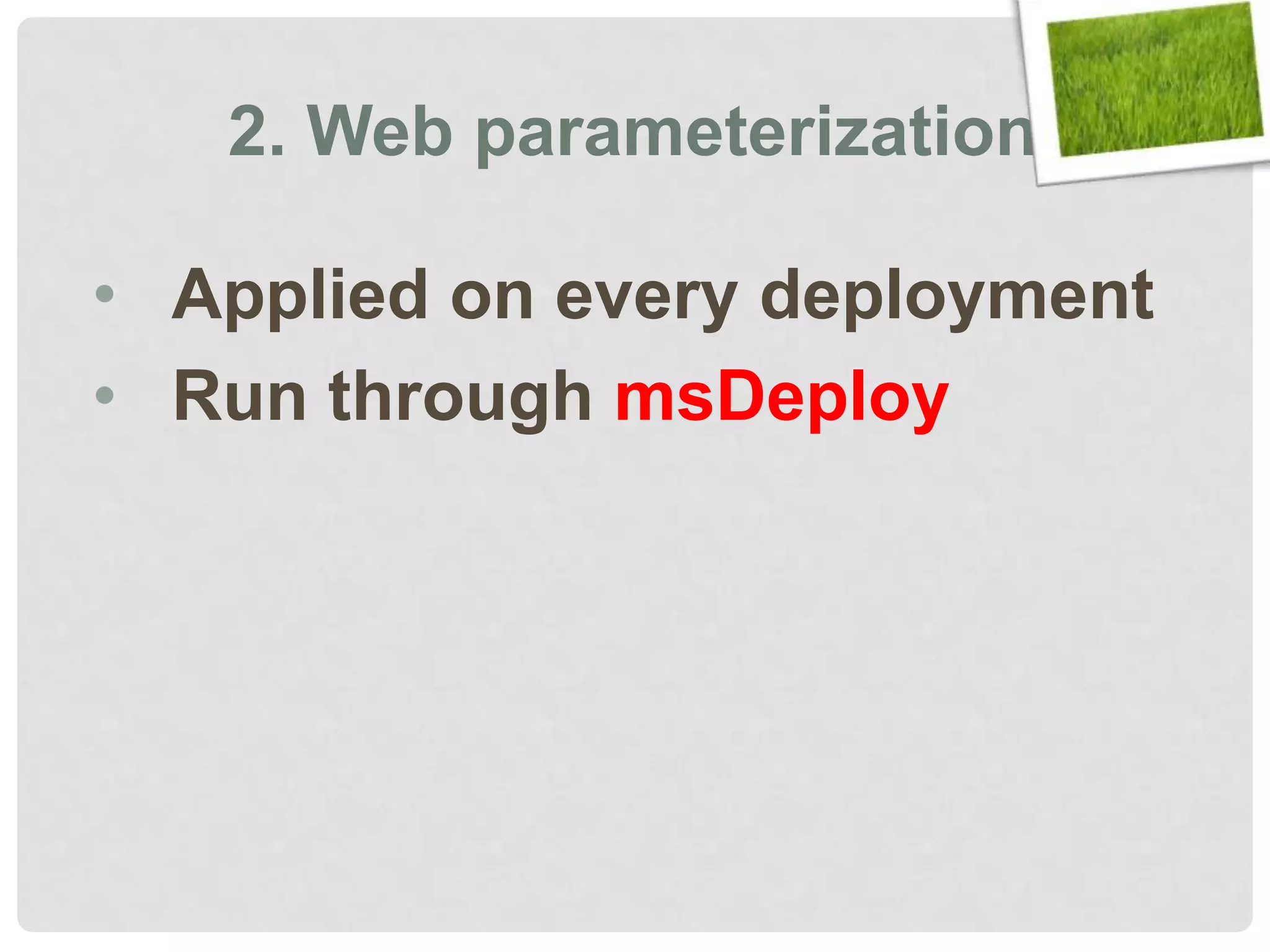

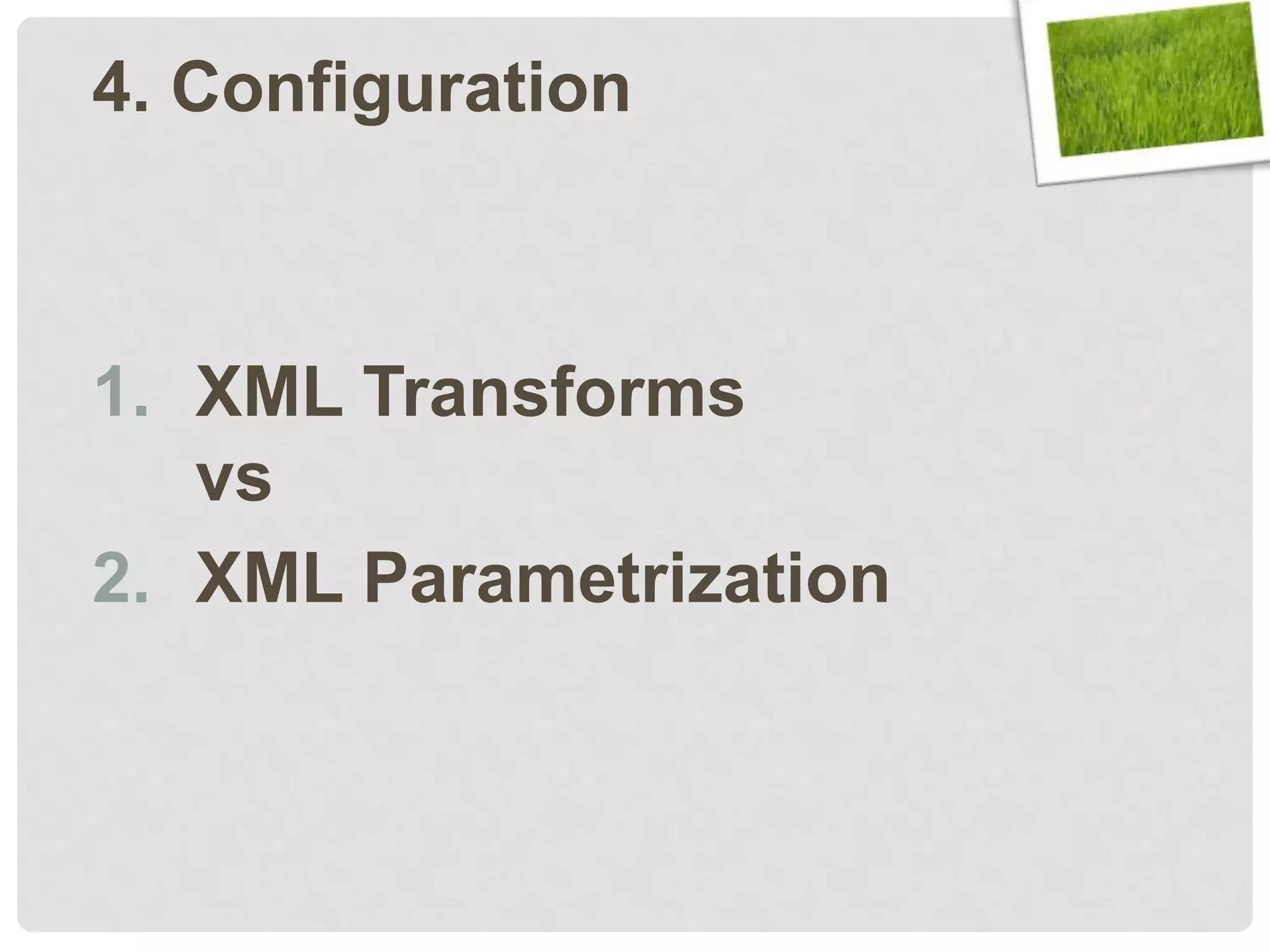

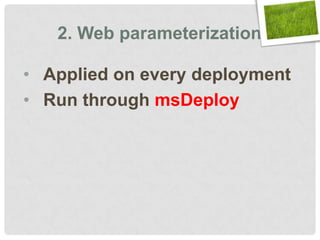

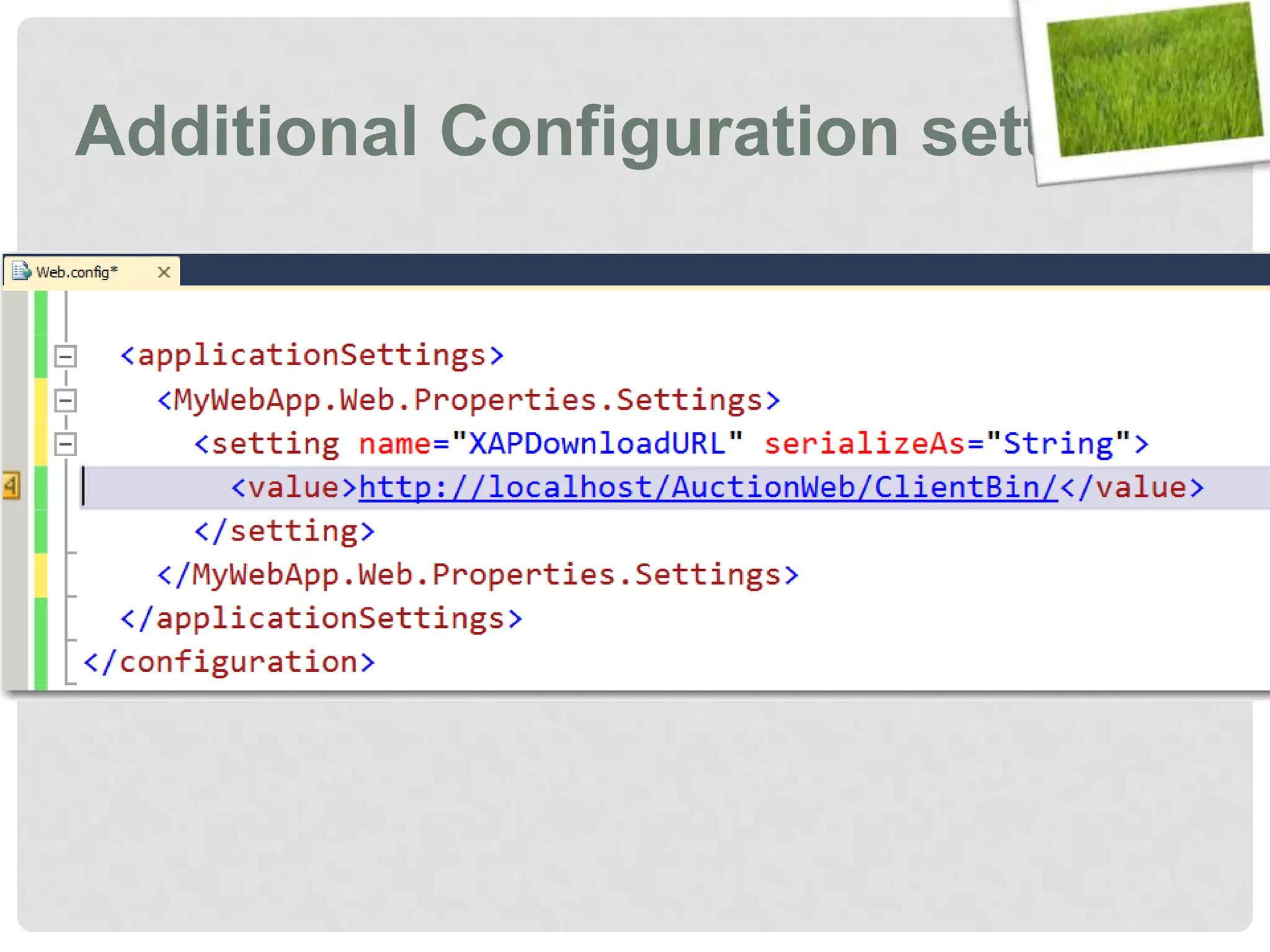

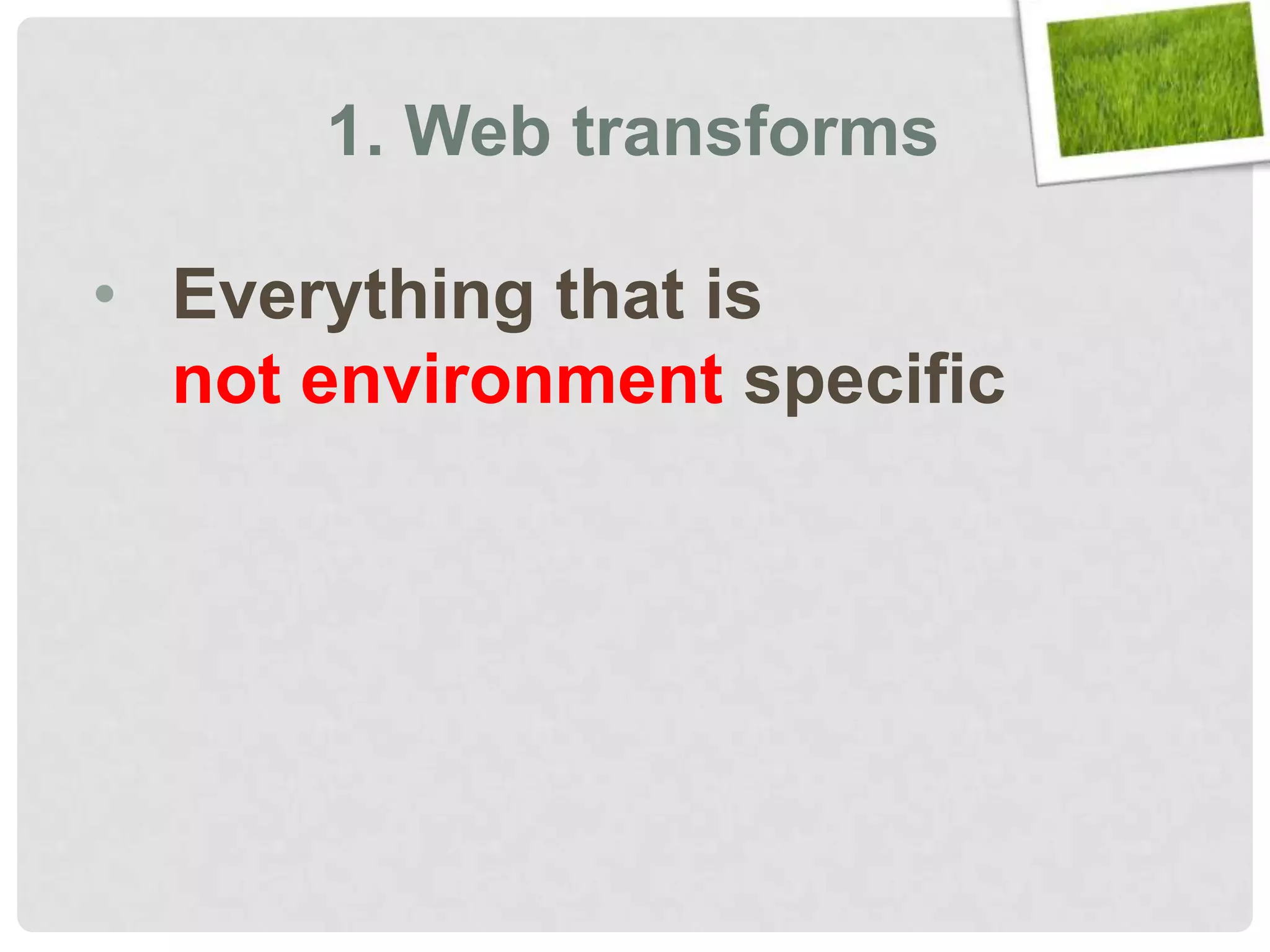

- 50. 4. Configuration XML Transforms vs XML Parametrization

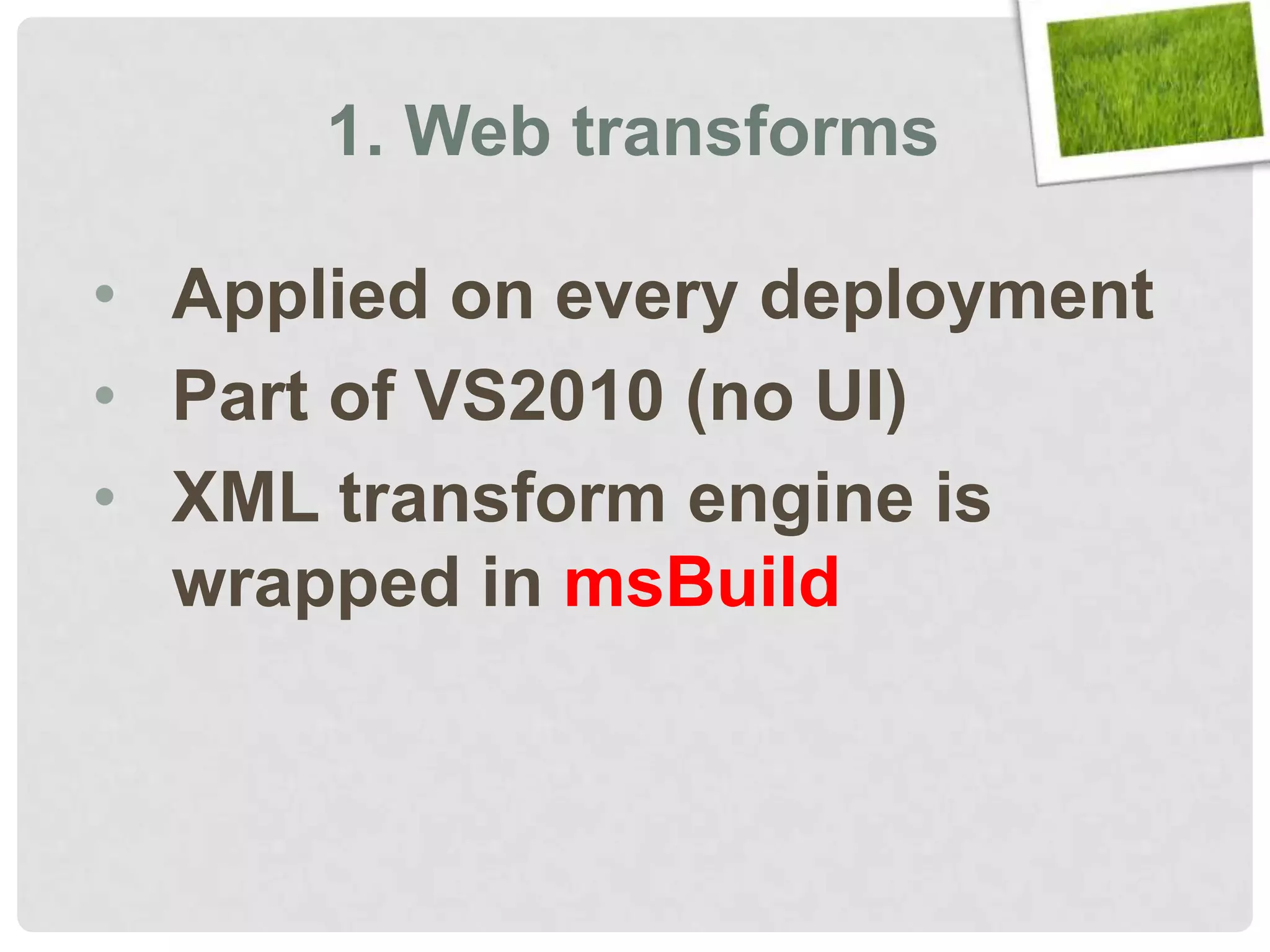

- 52. Part of VS2010 (no UI)

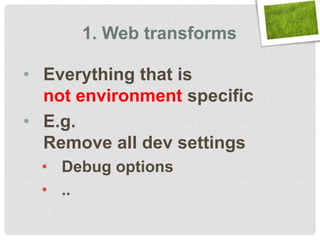

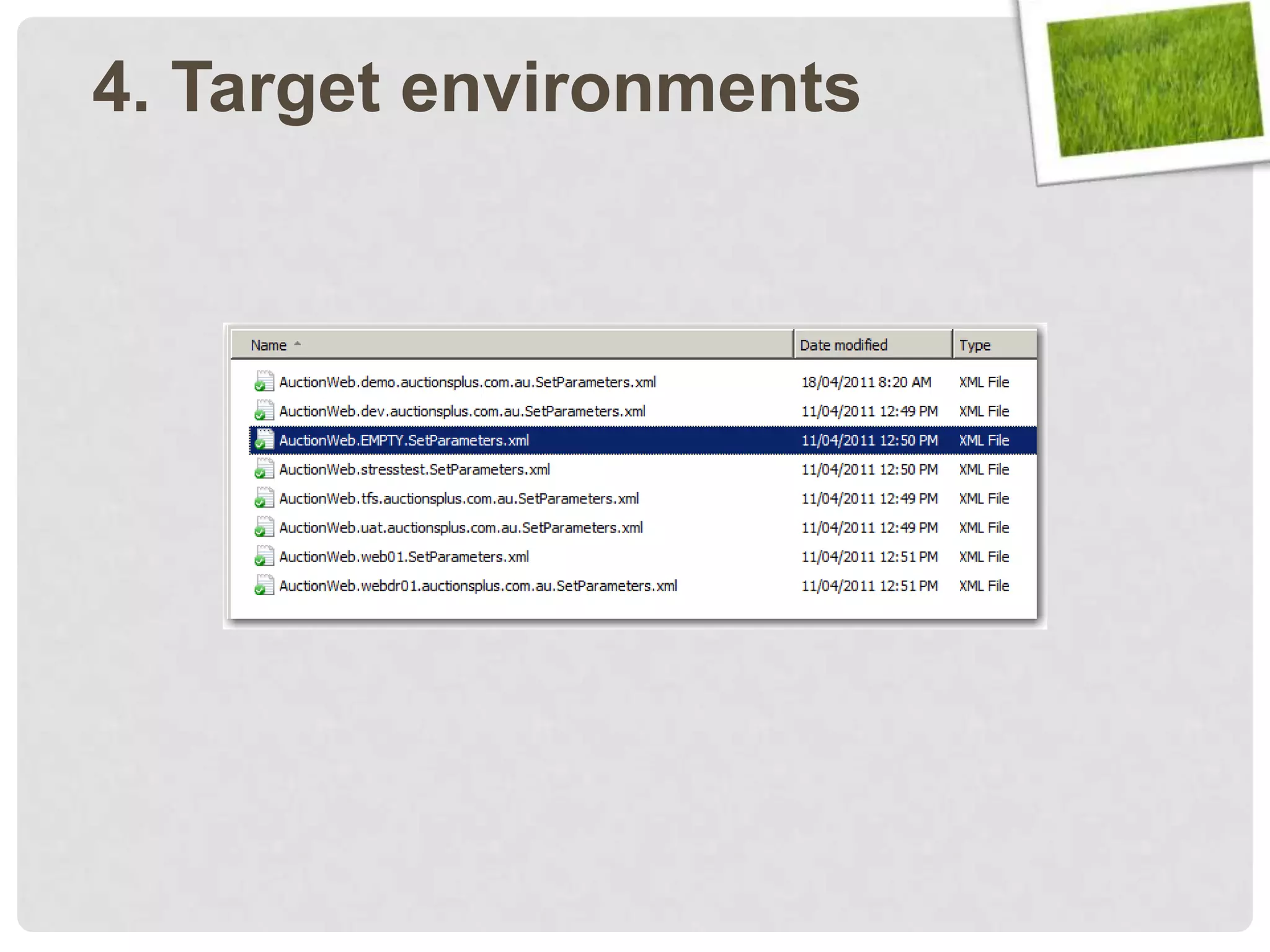

- 54. E.g.Remove all dev settingsDebug options ..

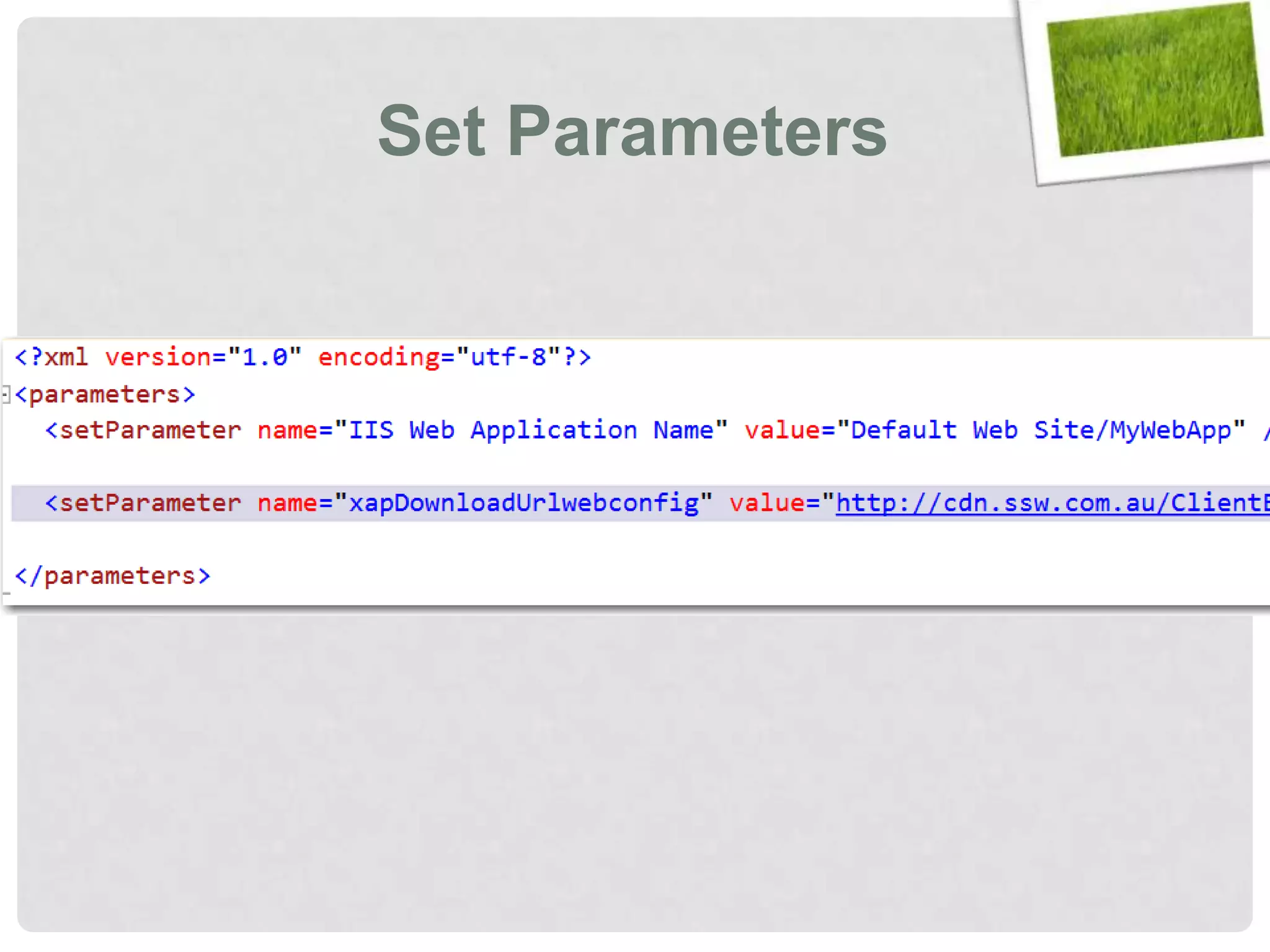

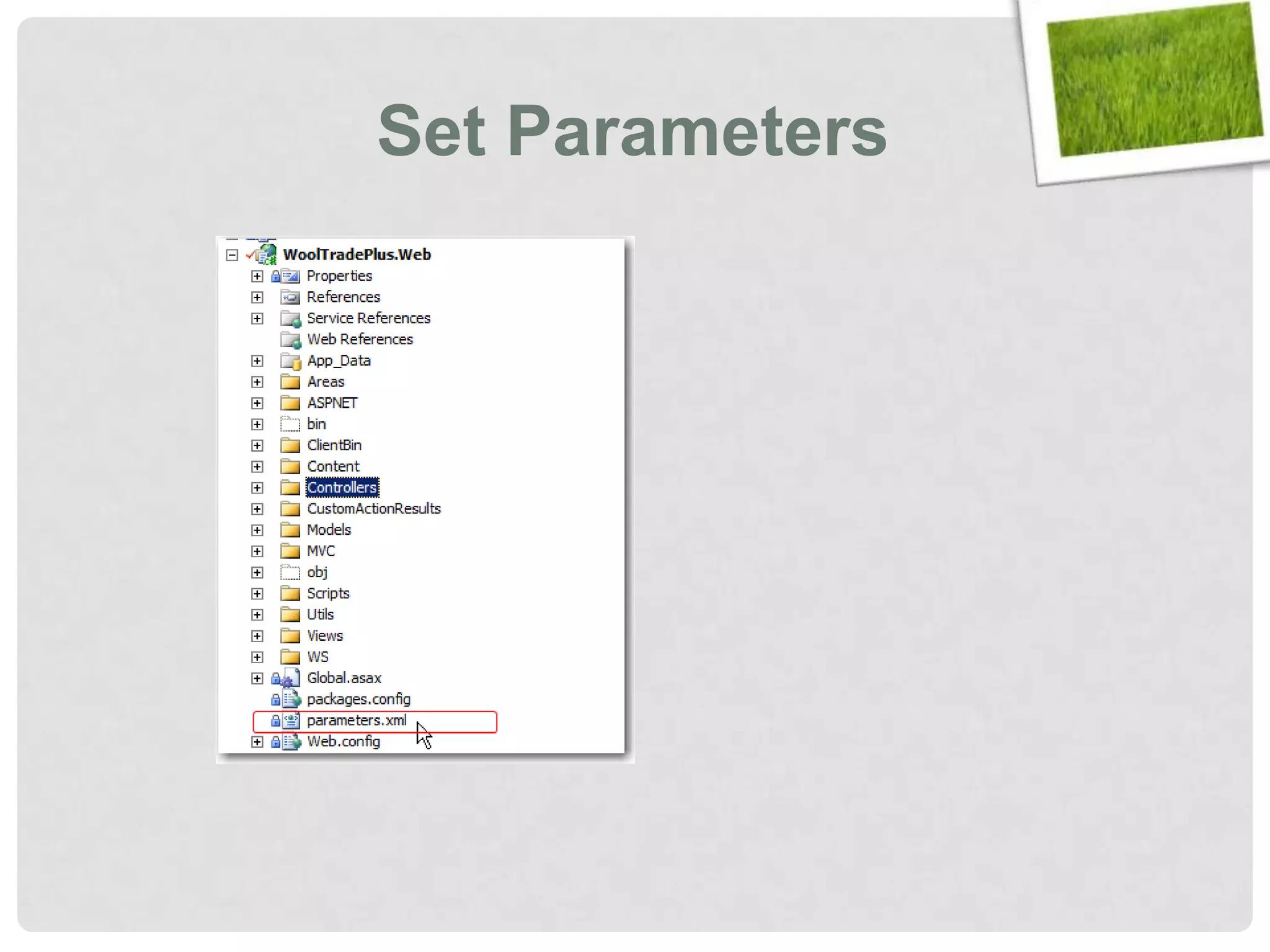

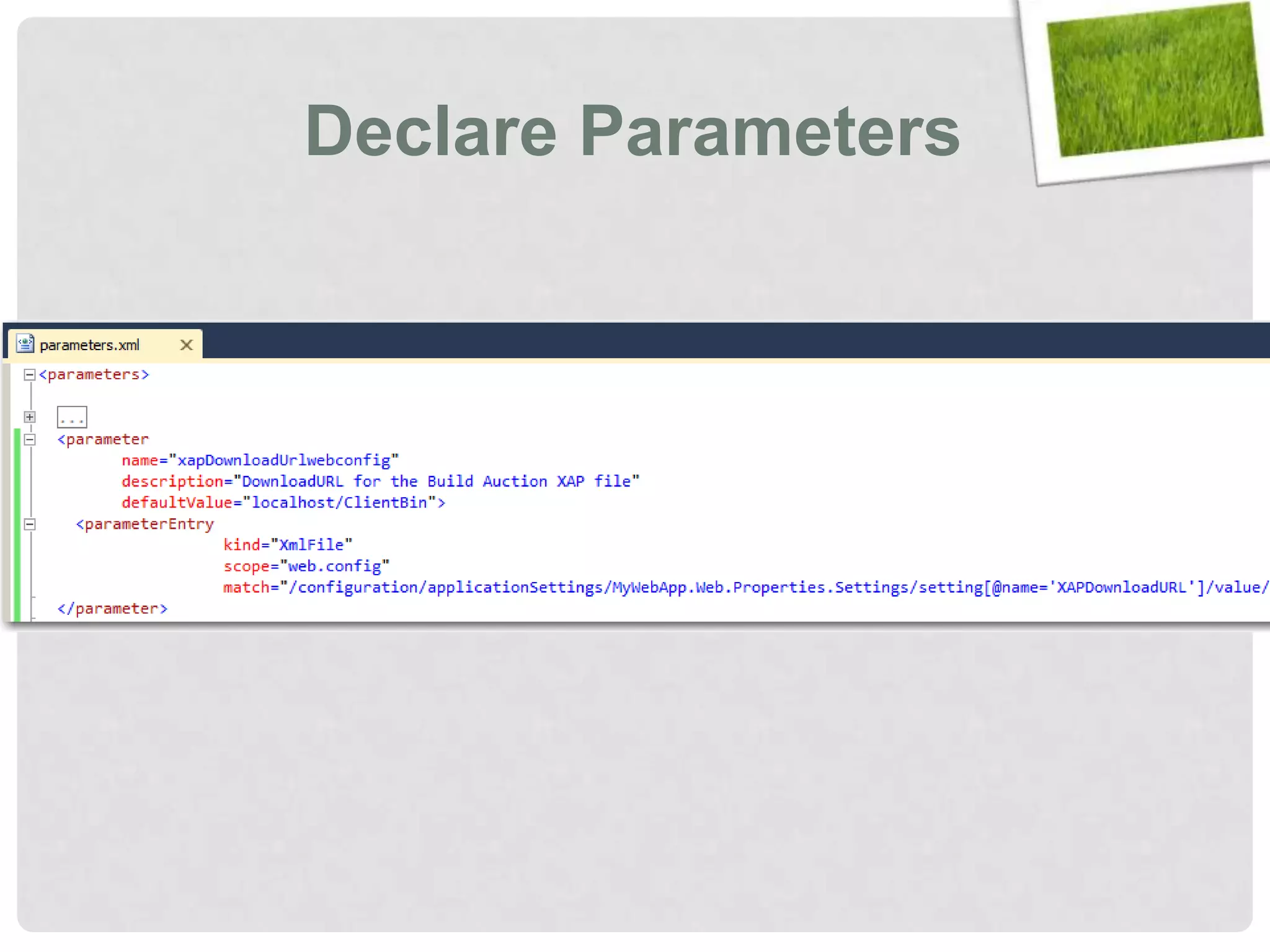

- 59. Set Parameters
- 60. Set Parameters

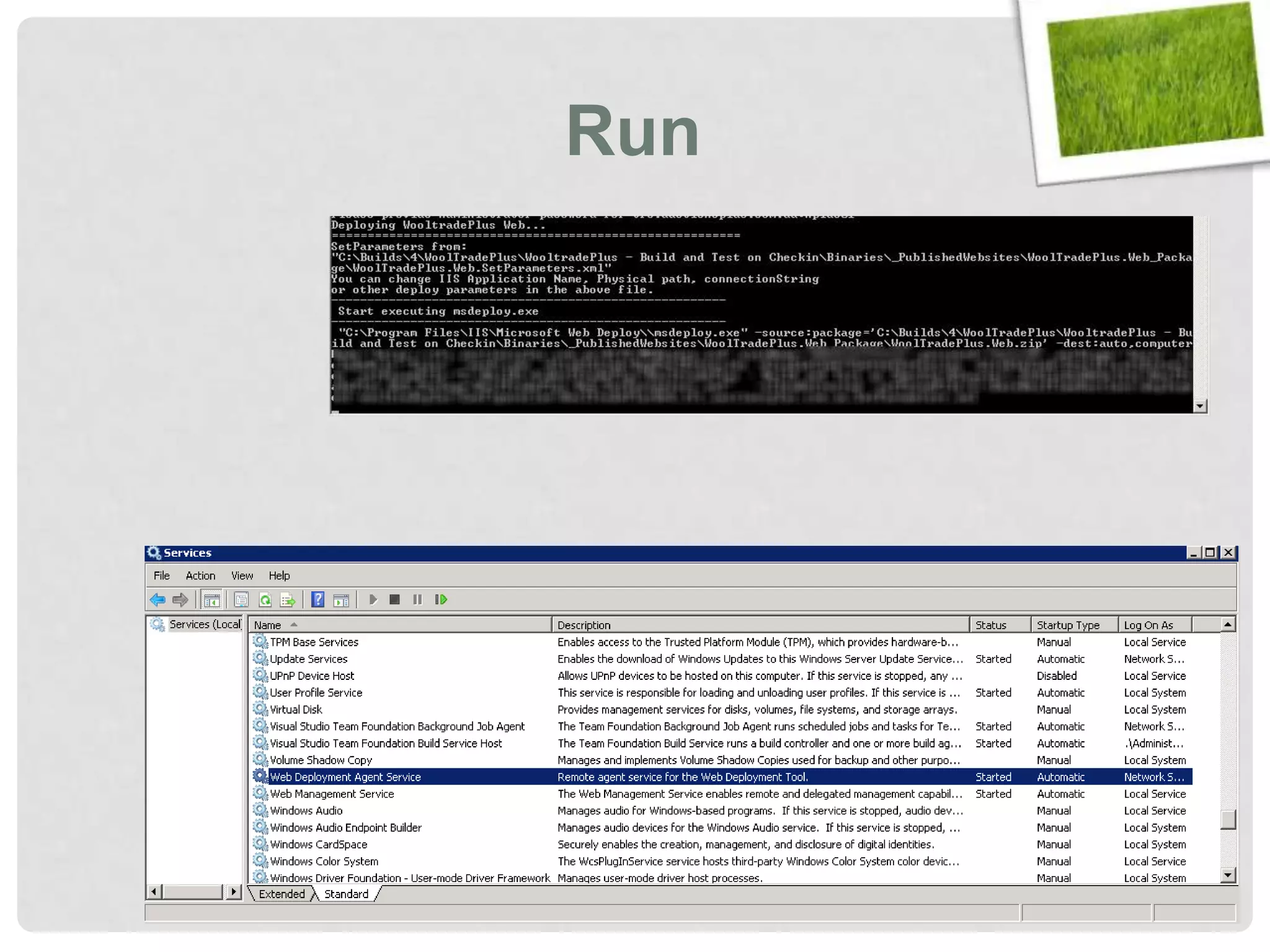

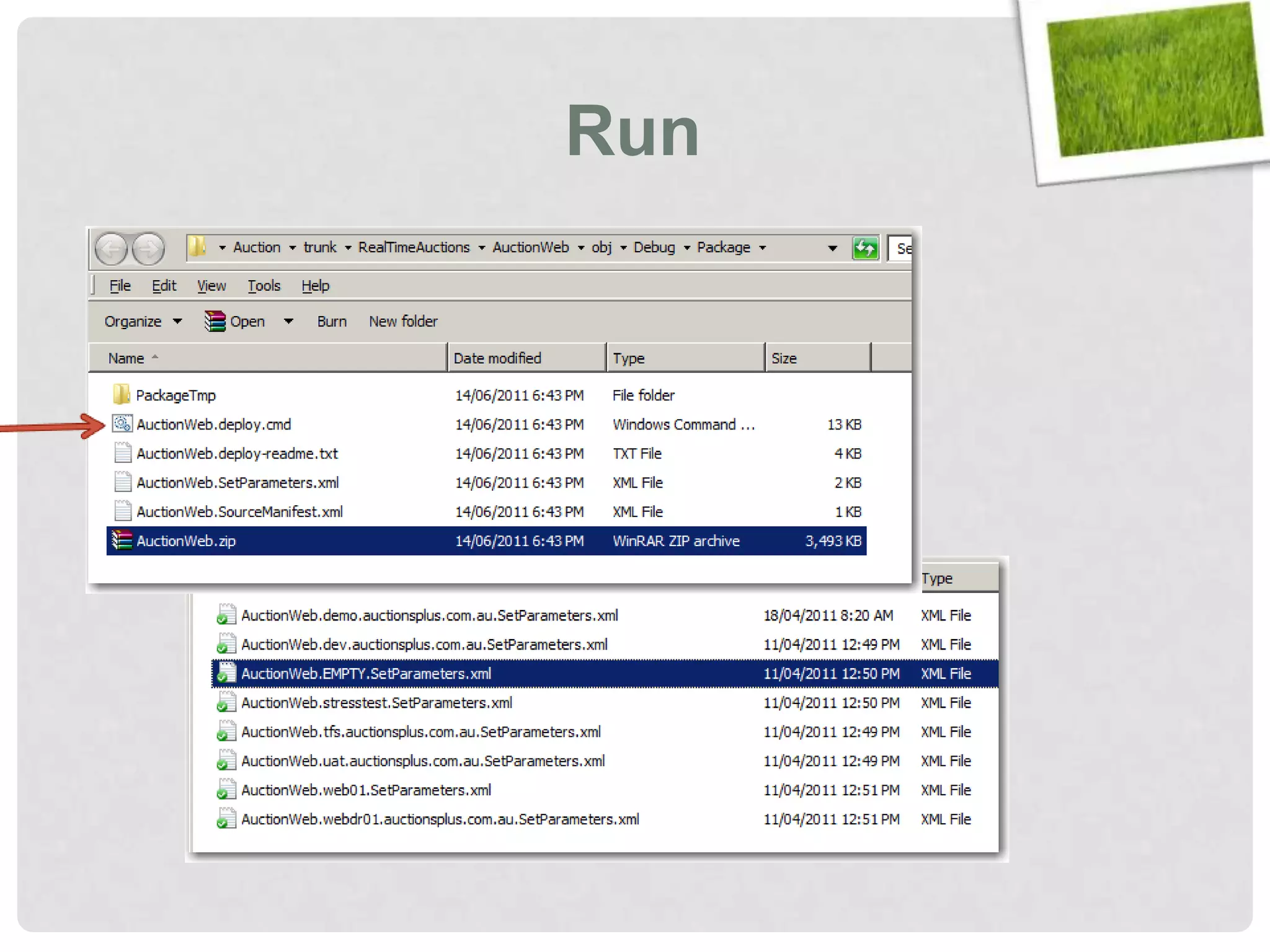

- 62. Run
- 63. Run
- 64. Existing Environment Deployment Instructions.docx
- 65. Existing Environment Document your manual deployment process Software artefacts Configuration artefacts Target environment(s)

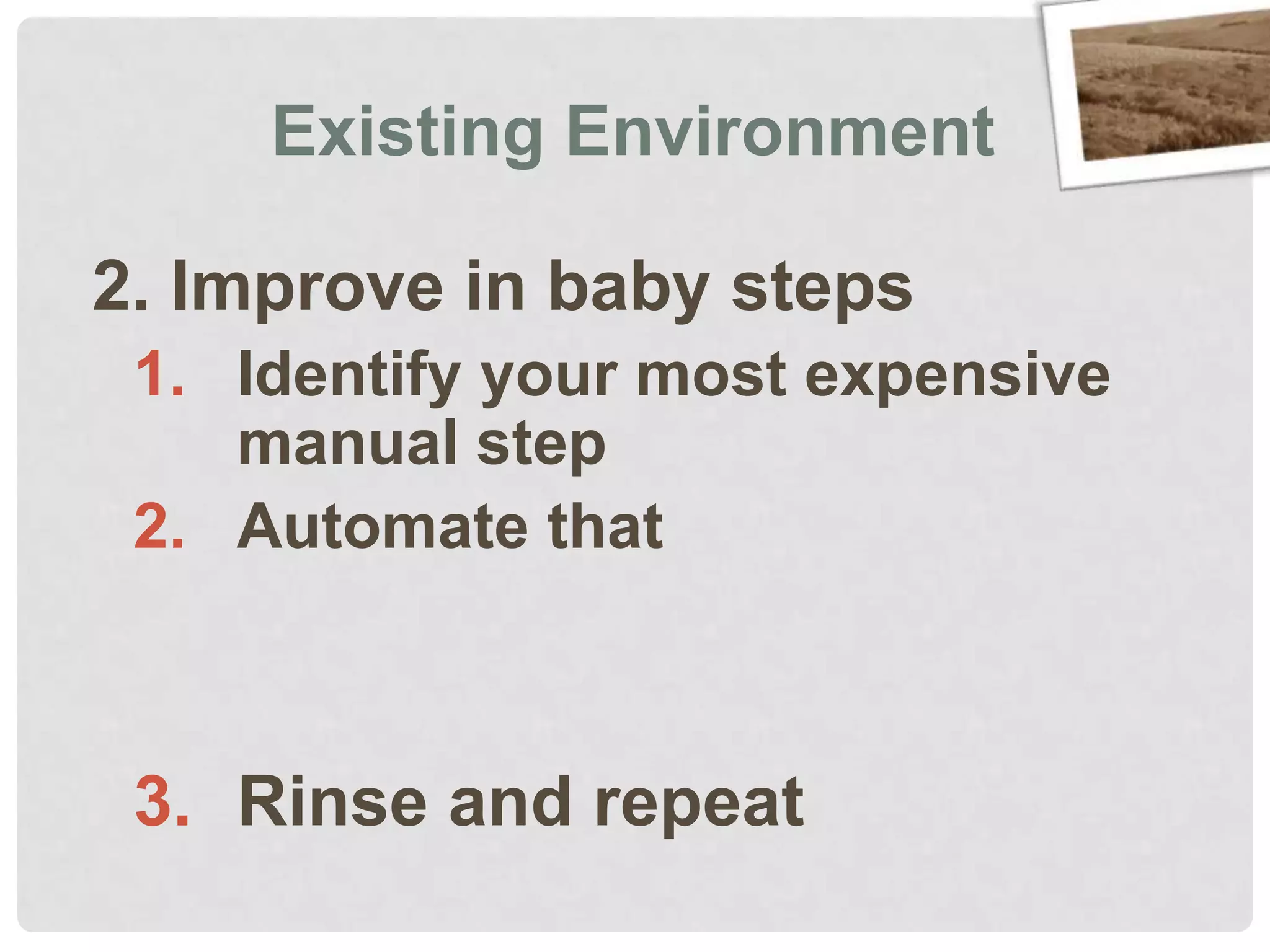

- 67. Existing Environment 2. Improve in baby steps Identify your most expensive manual step Automate that Rinse and repeat
- 68. Existing Environment Everyone should work together

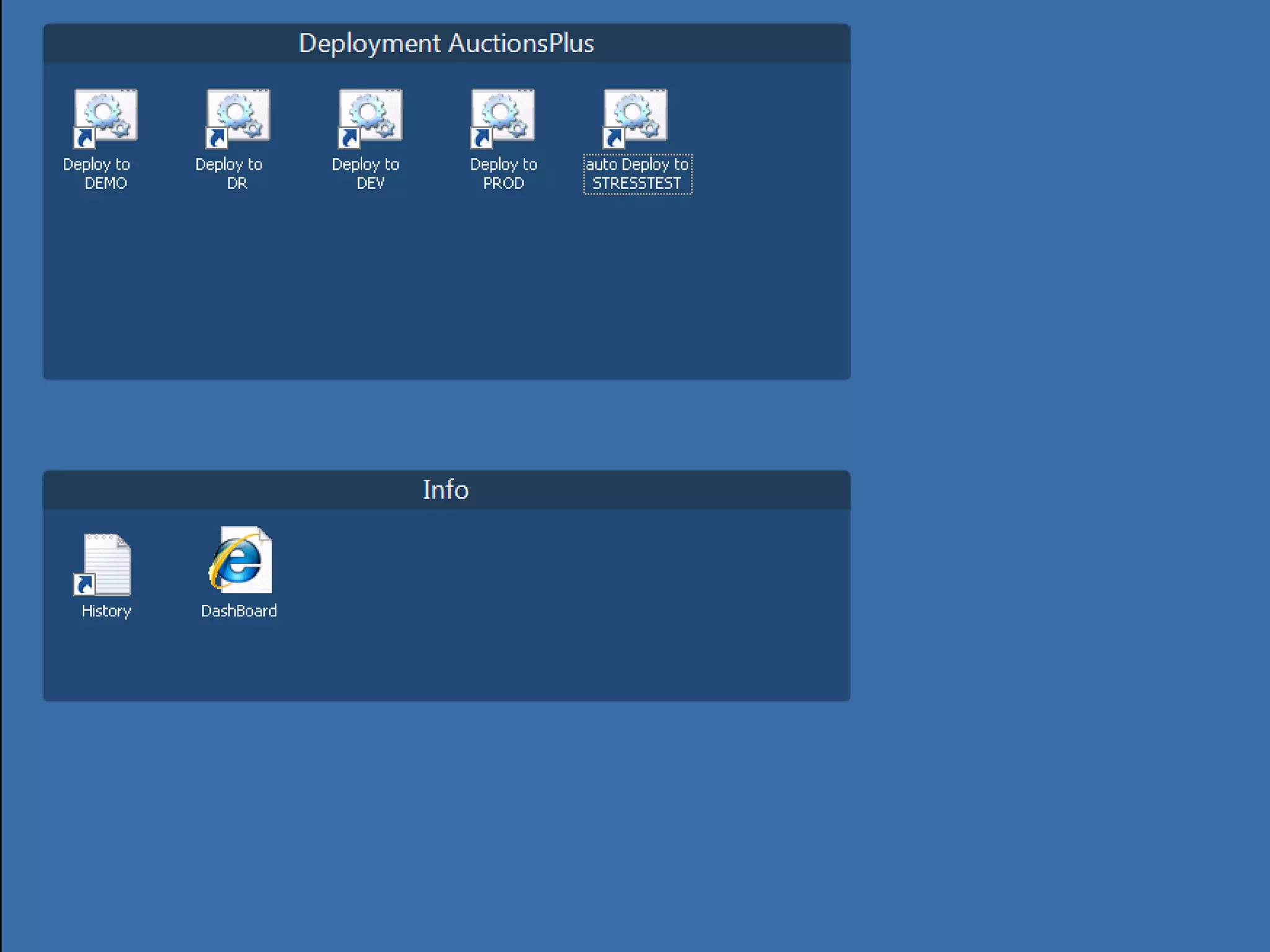

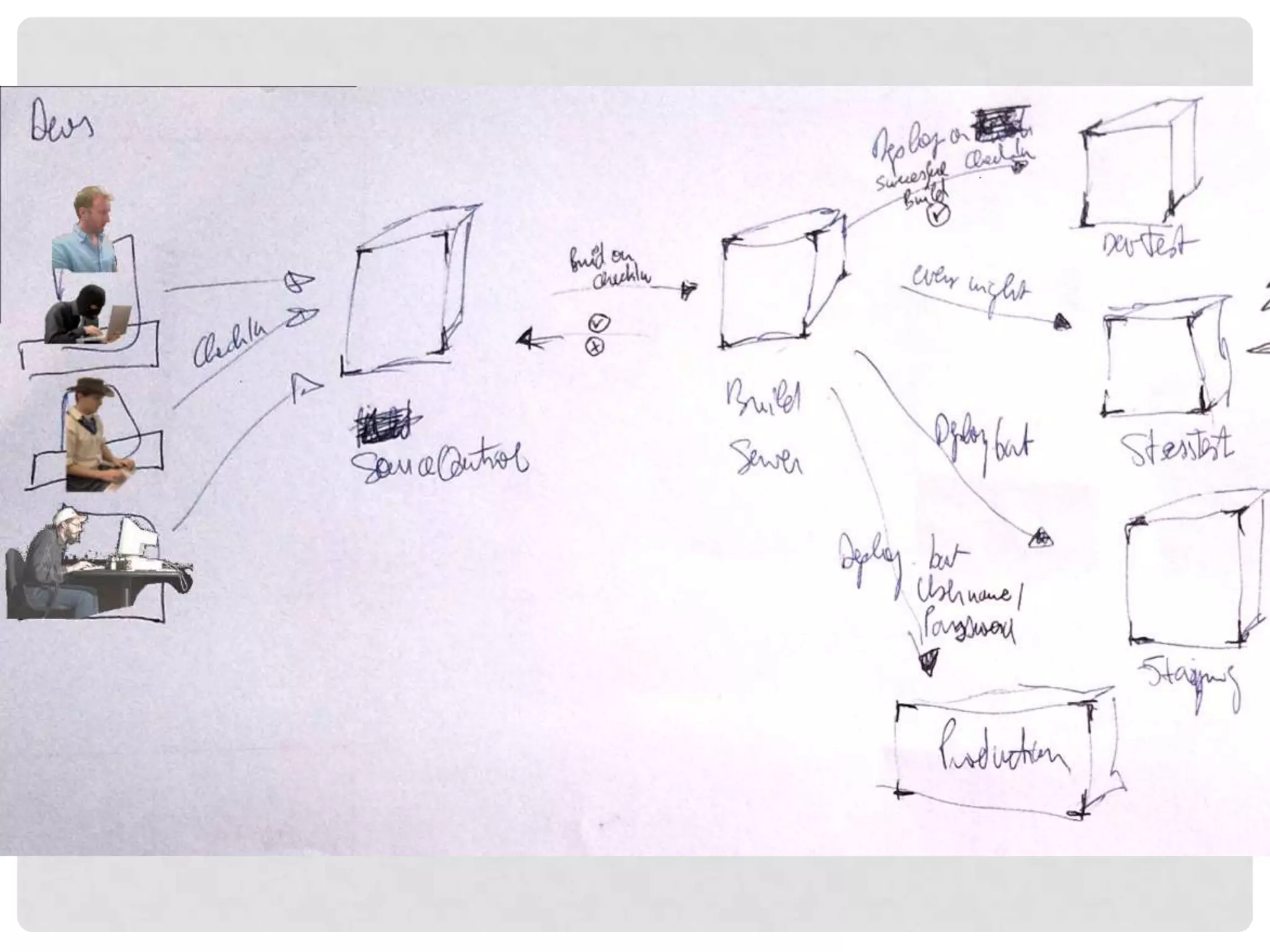

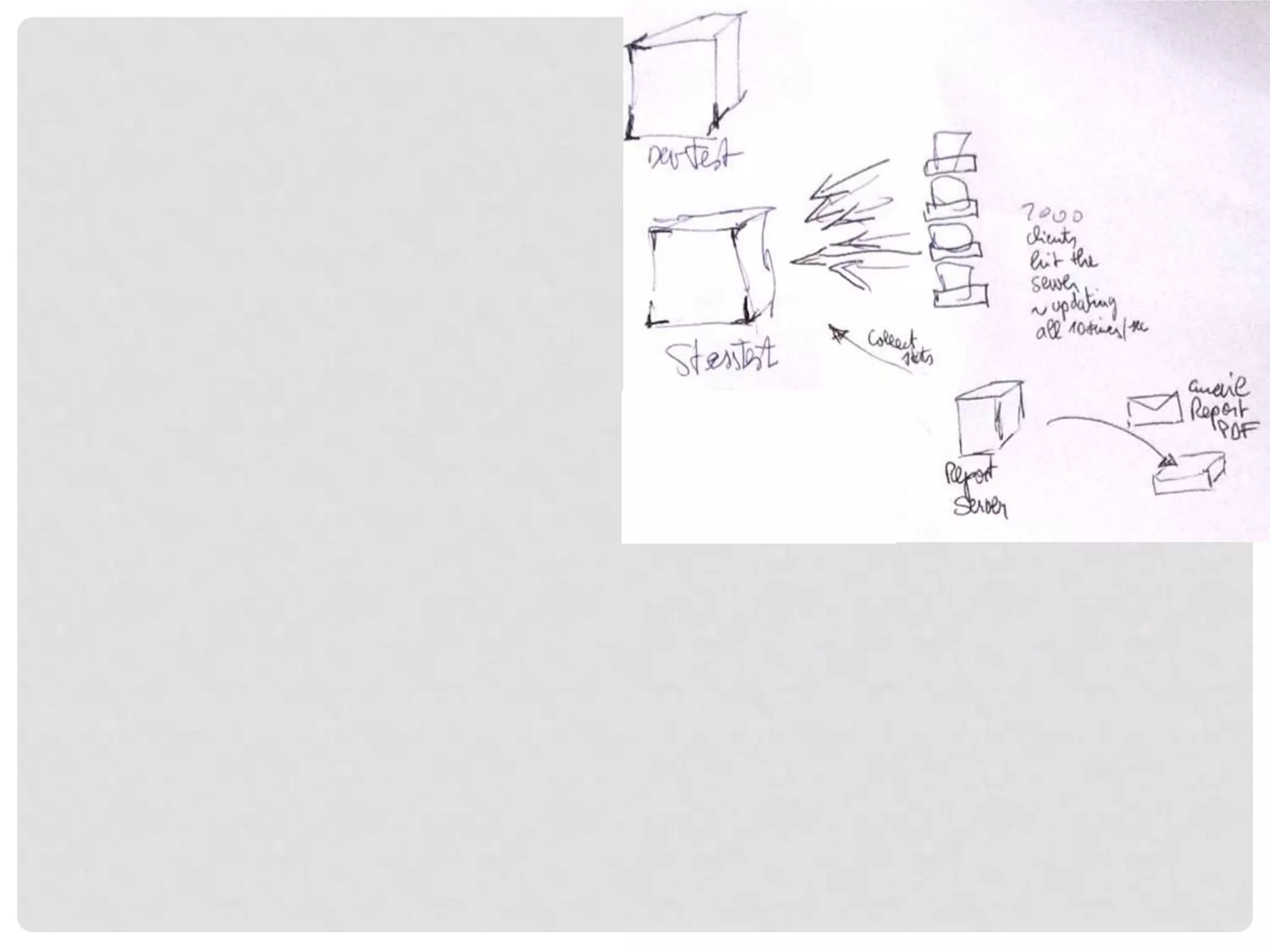

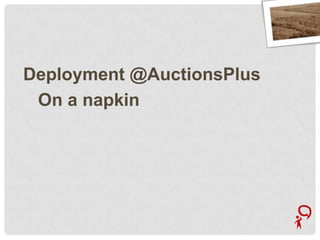

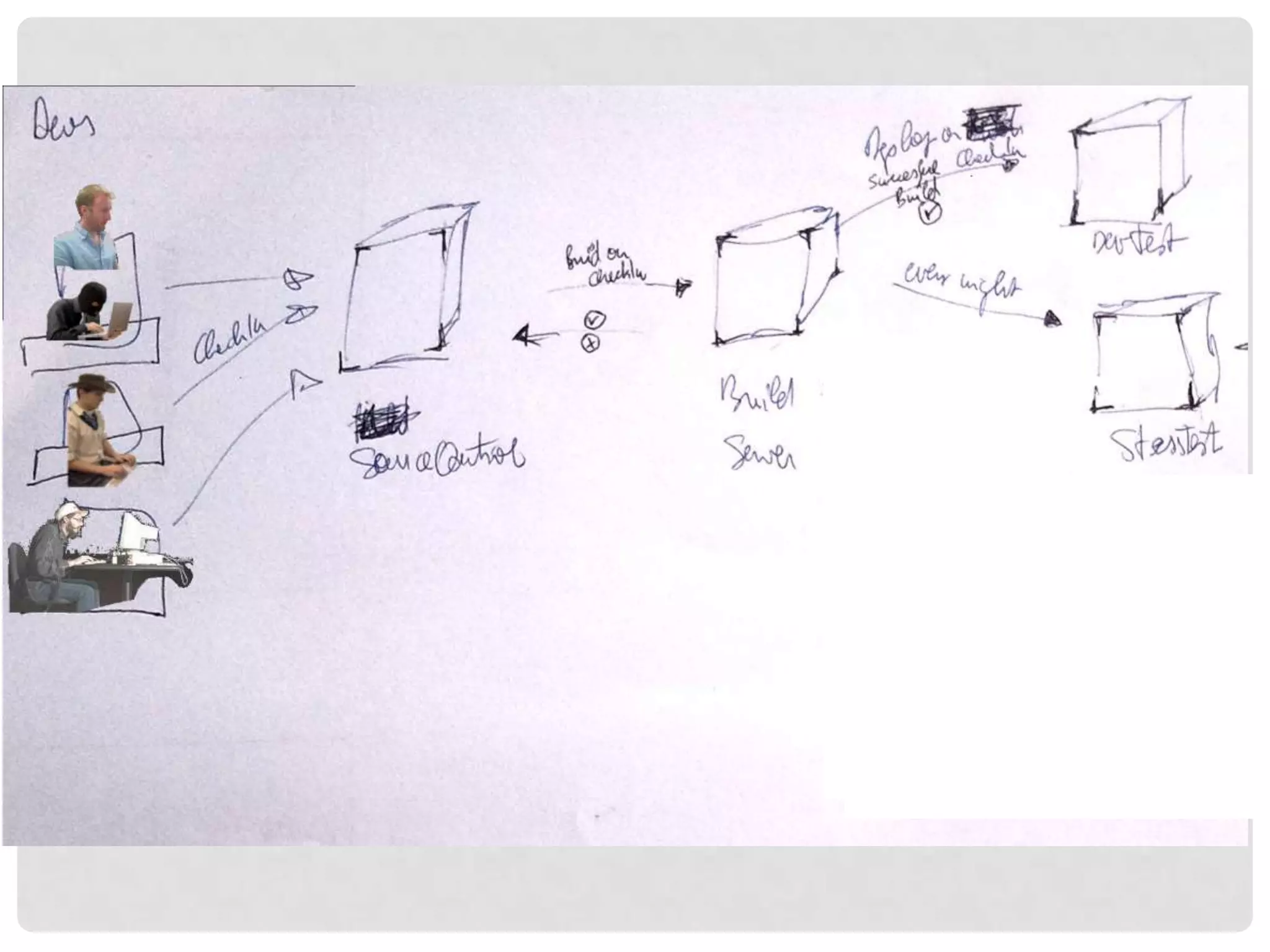

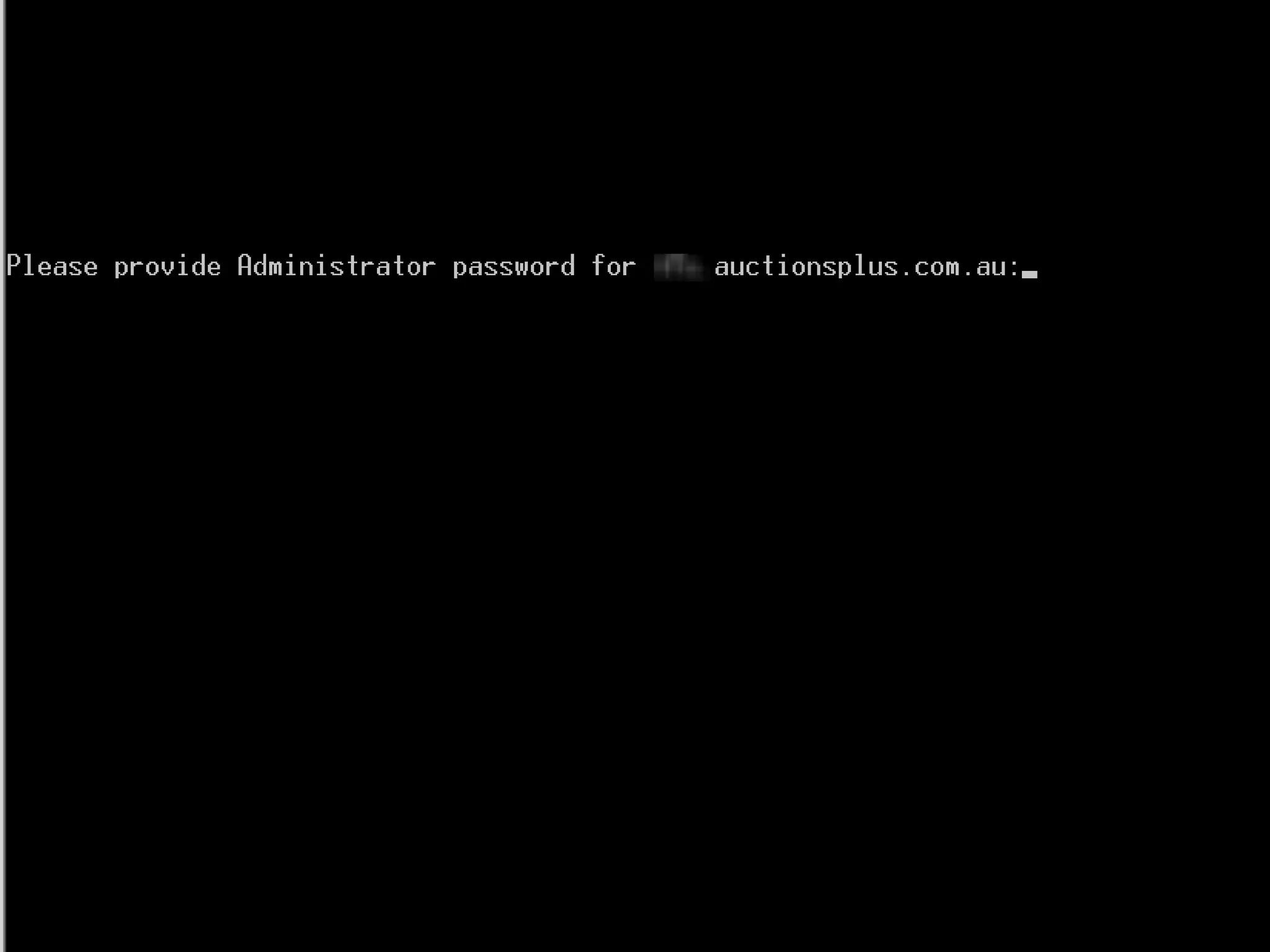

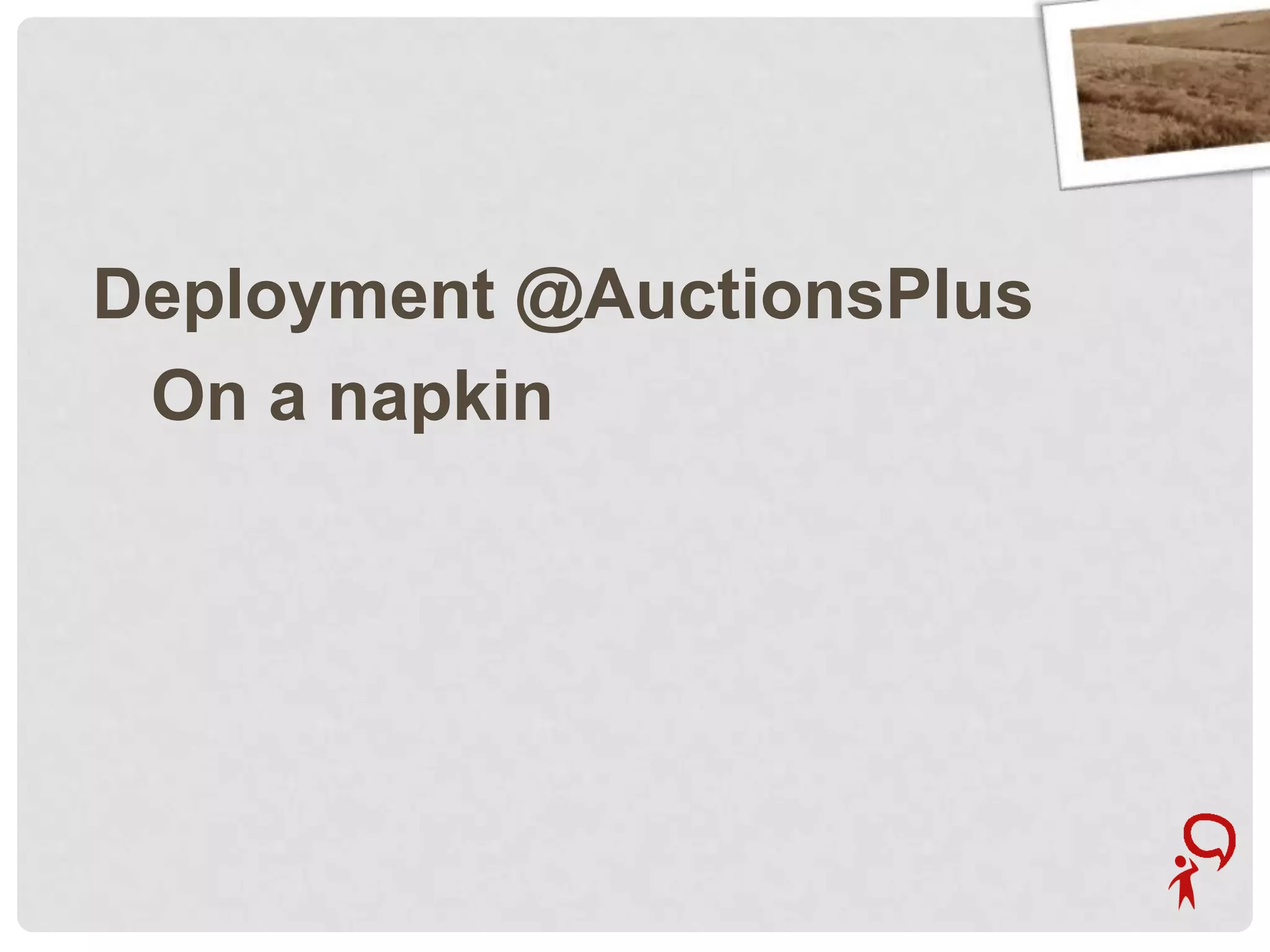

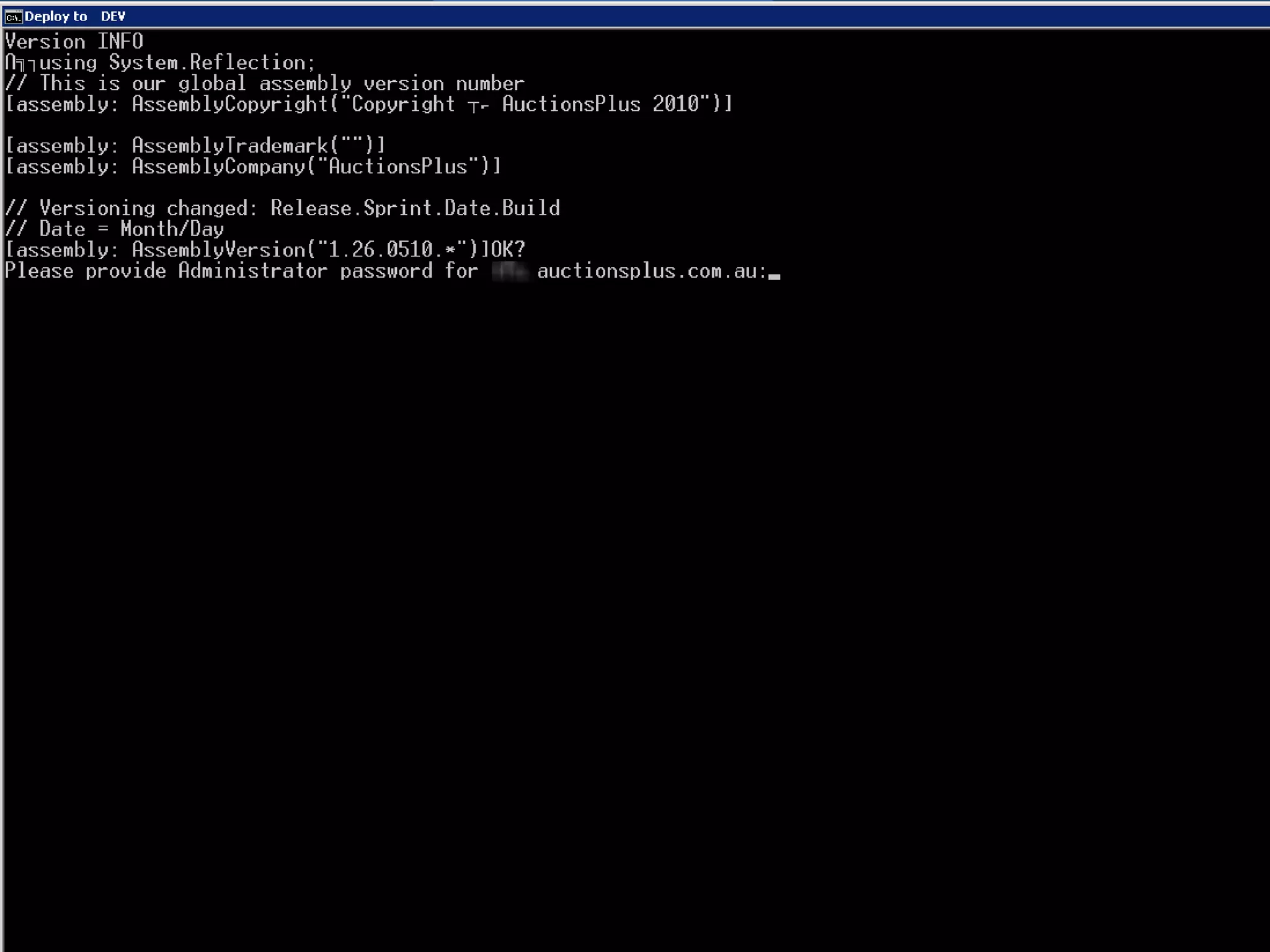

- 69. Deployment @AuctionsPlus On a napkin
- 74. Automated Deployment Wed night @Sydney .NET UG
- 77. Best practices
- 79. Deploy early Deployment is never easy, so try to deploy as soon as possible to remove all roadblocks

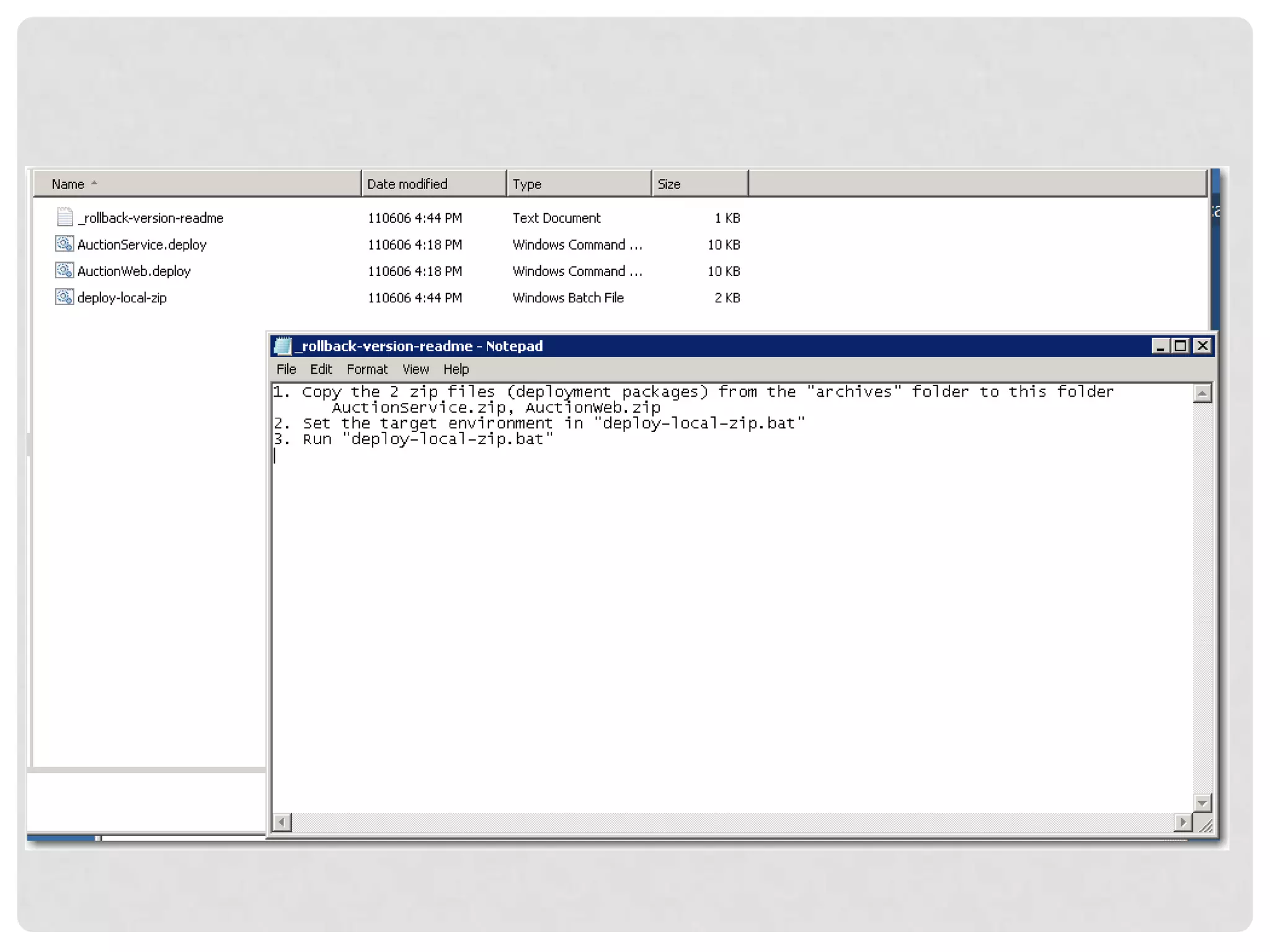

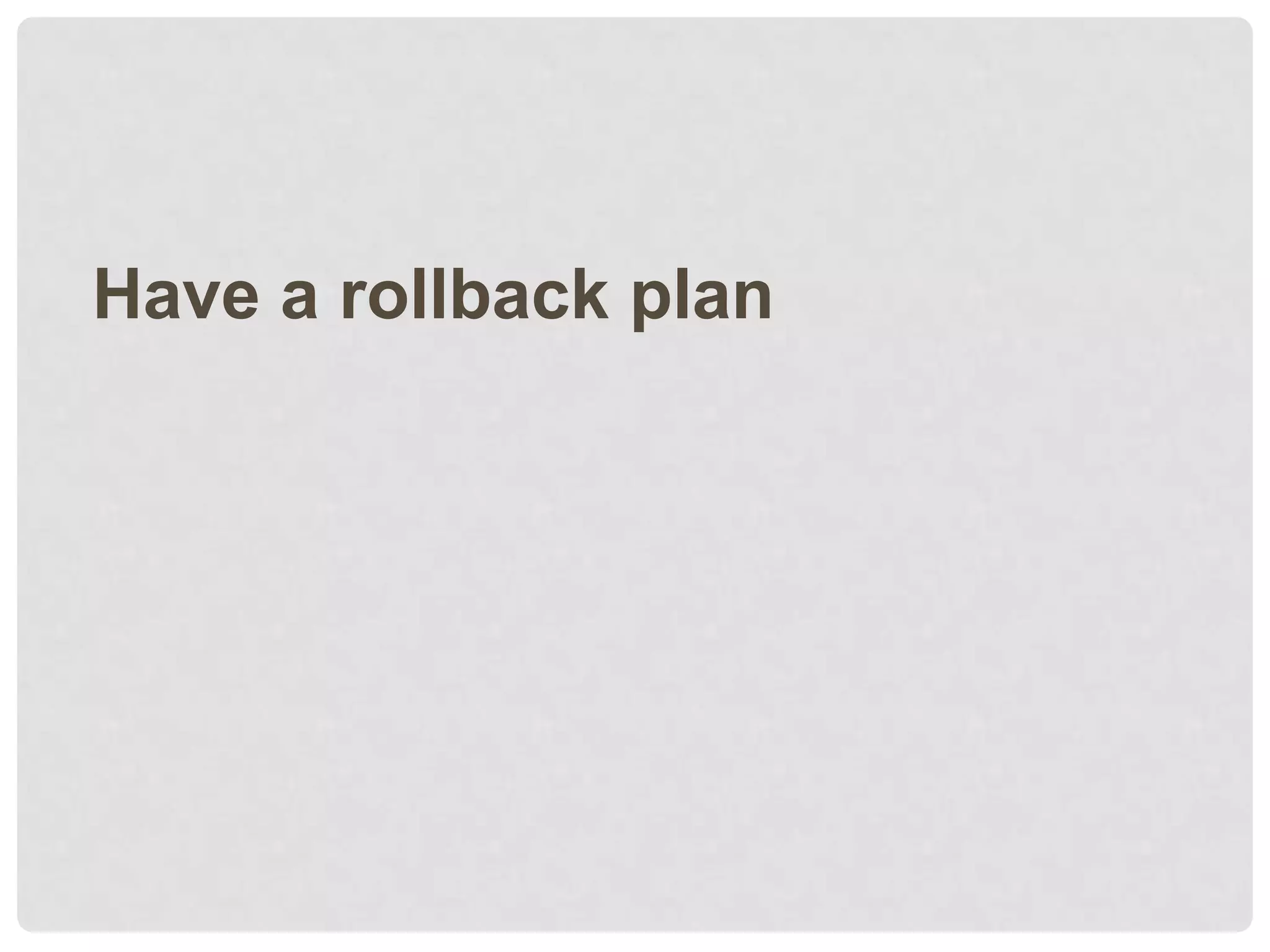

- 81. Have a rollback plan

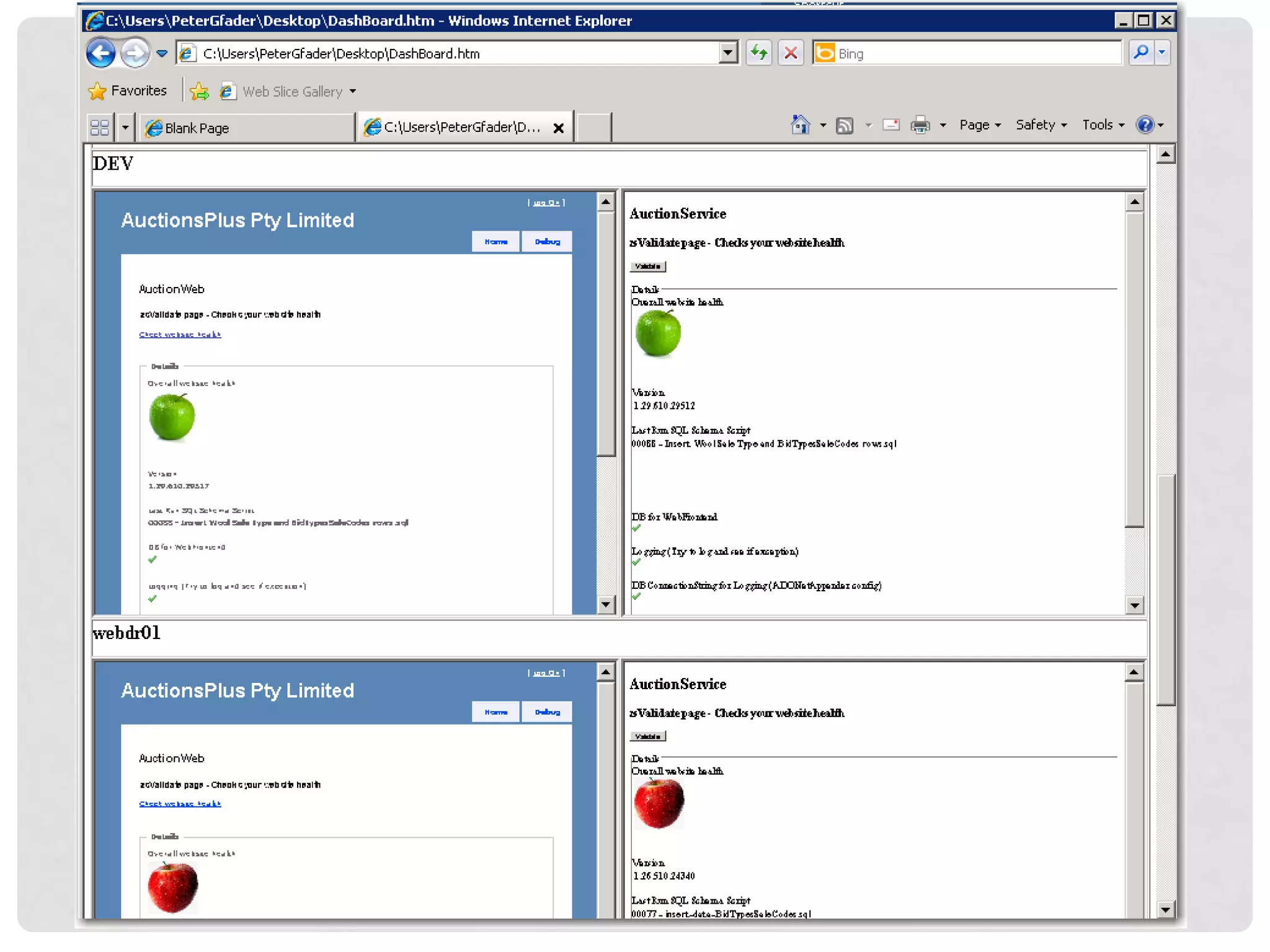

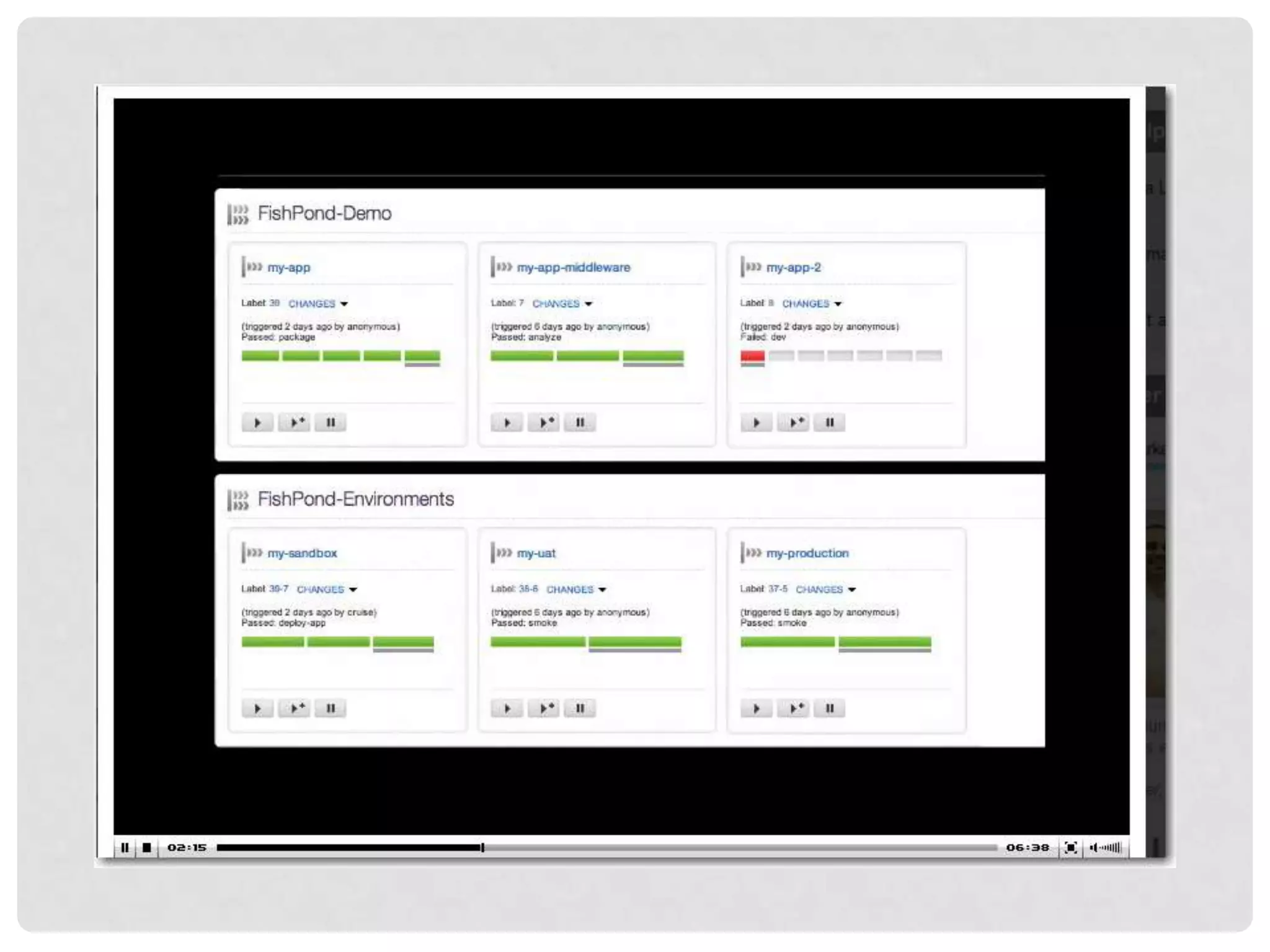

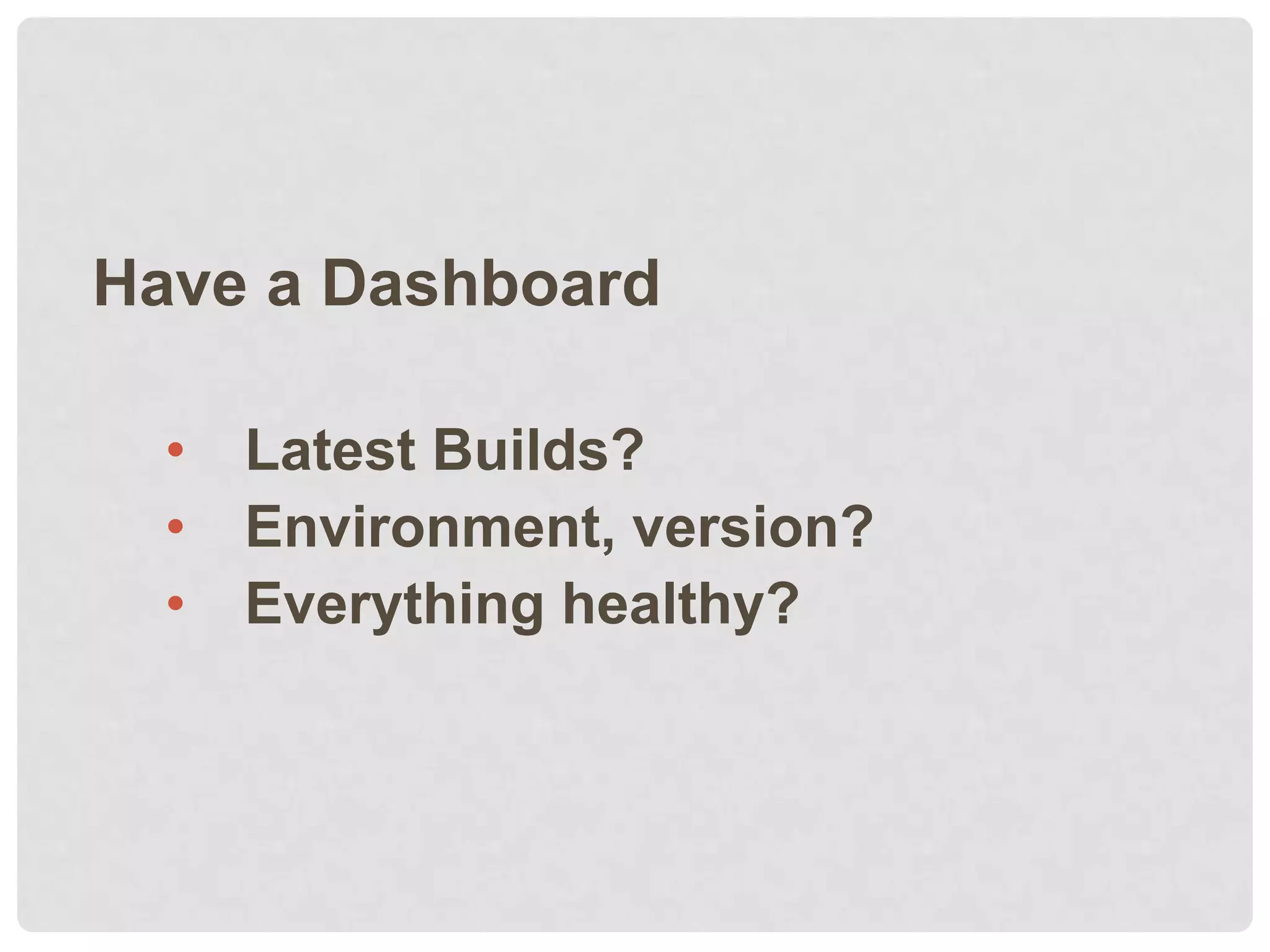

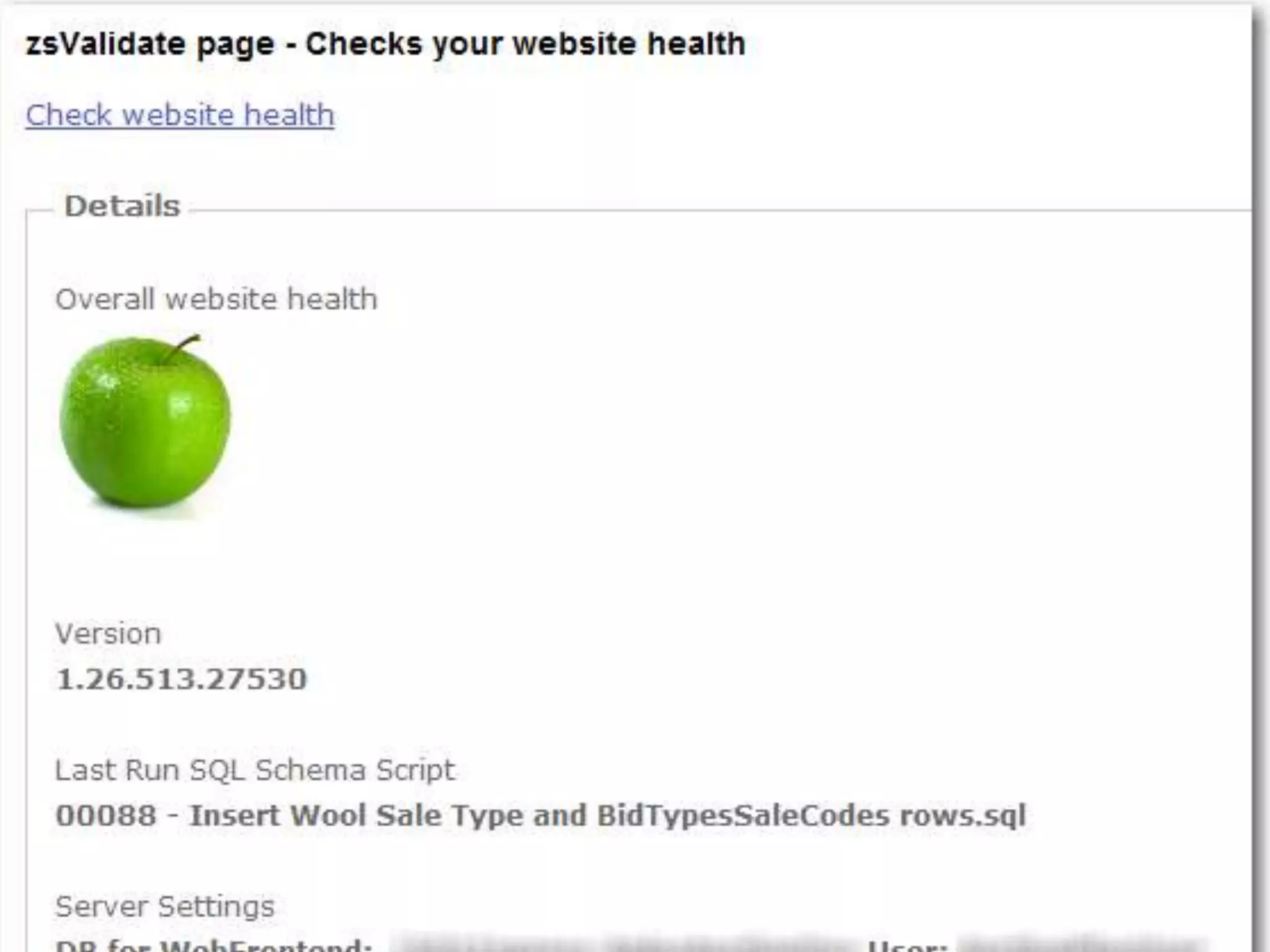

- 83. Have a Dashboard Latest Builds? Environment, version? Everything healthy?
- 86. Have a guinea pig AB testing

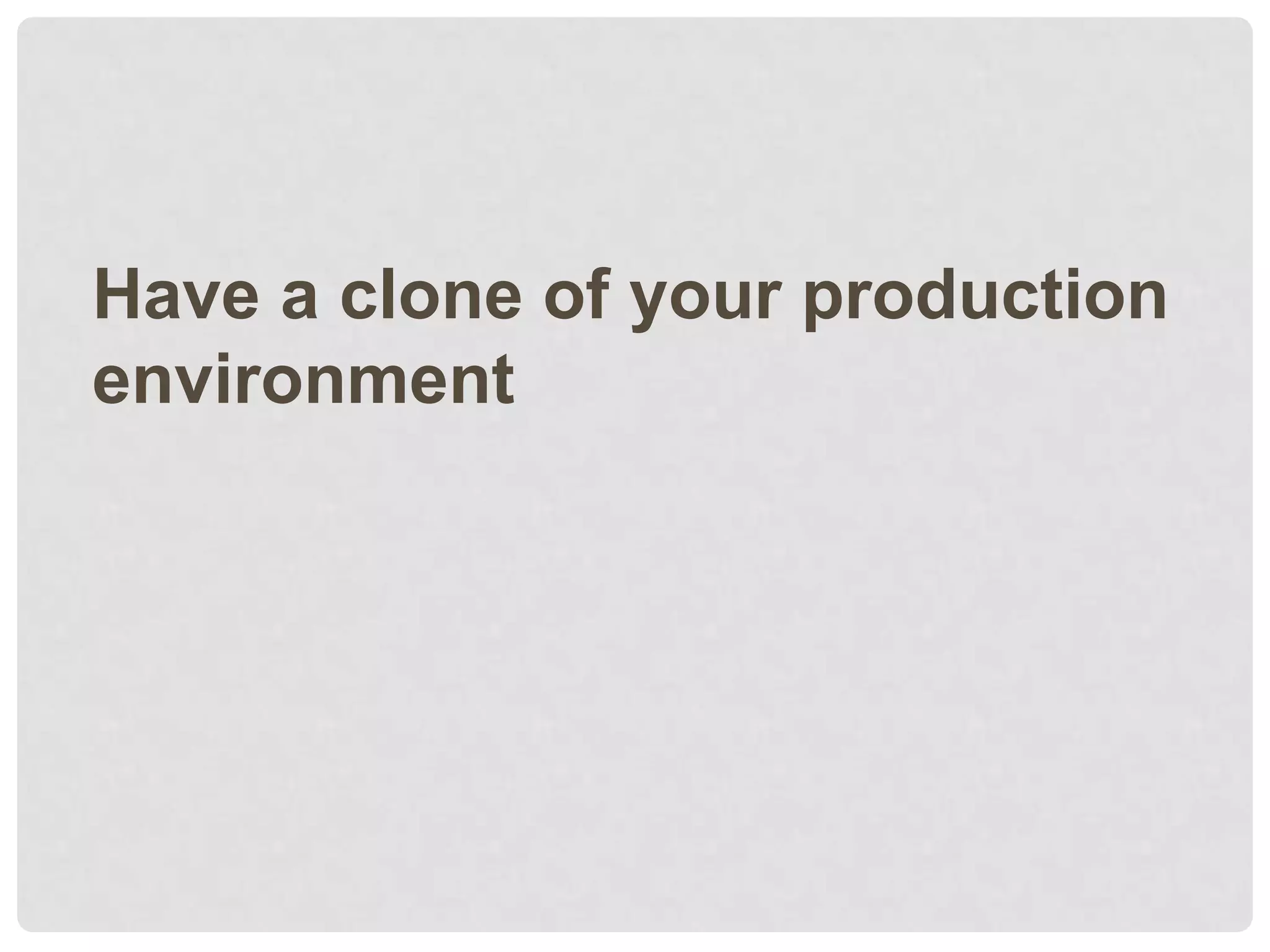

- 87. Have a clone of your production environment

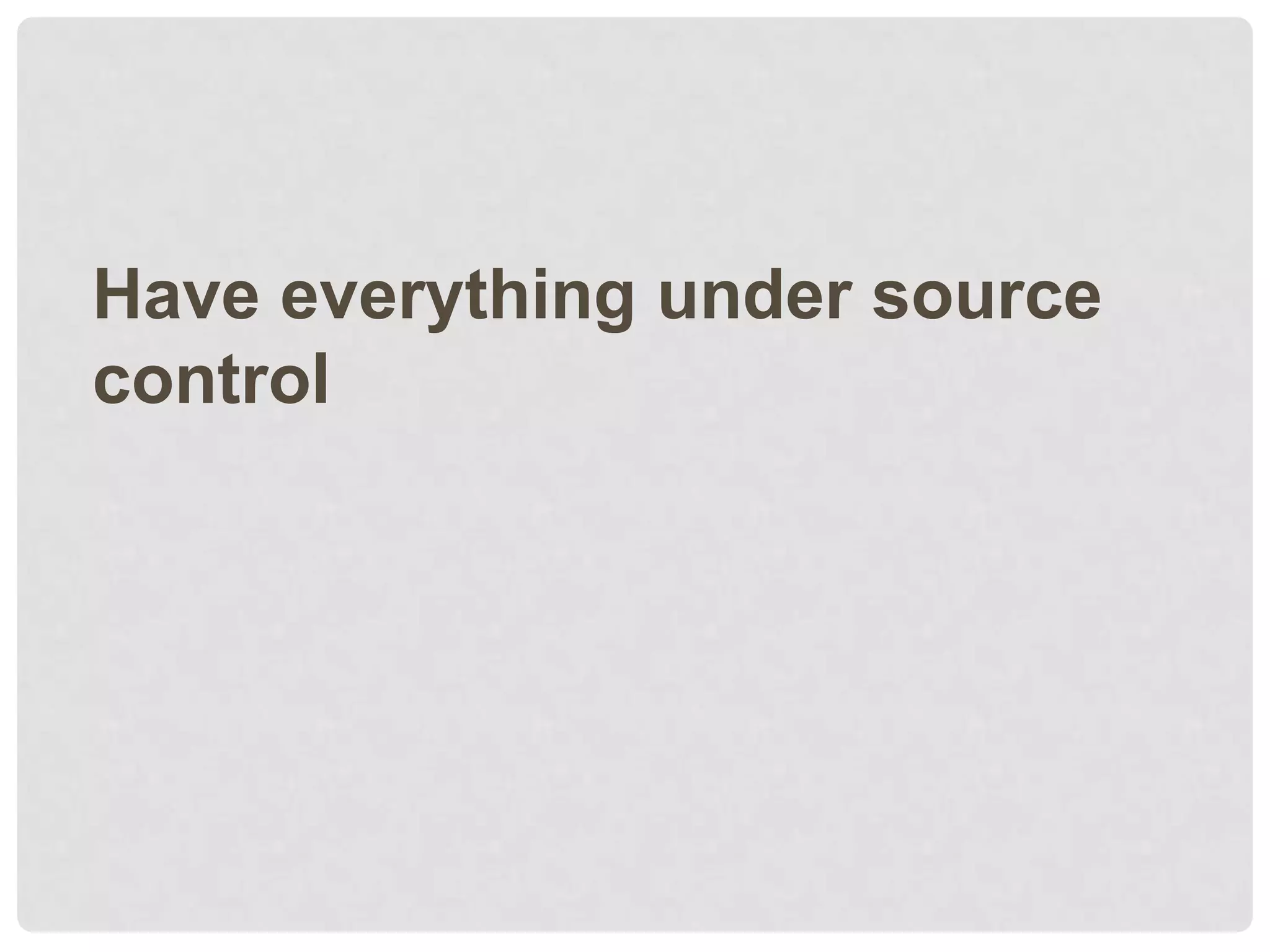

- 88. Have everything under source control

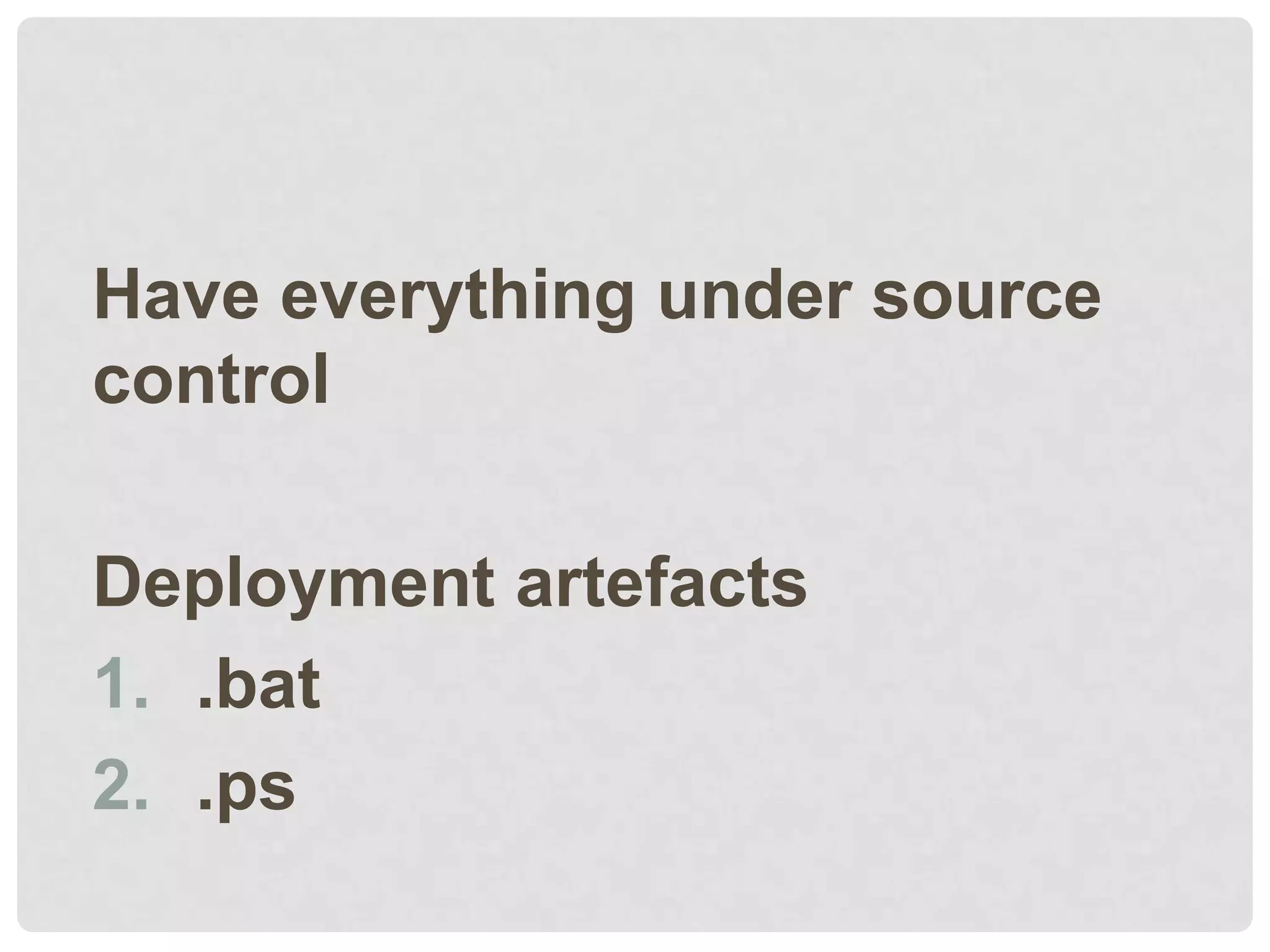

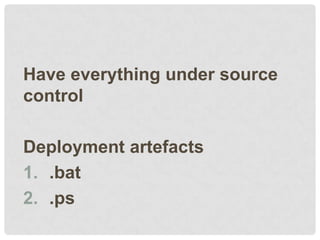

- 89. Have everything under source control Deployment artefacts .bat .ps

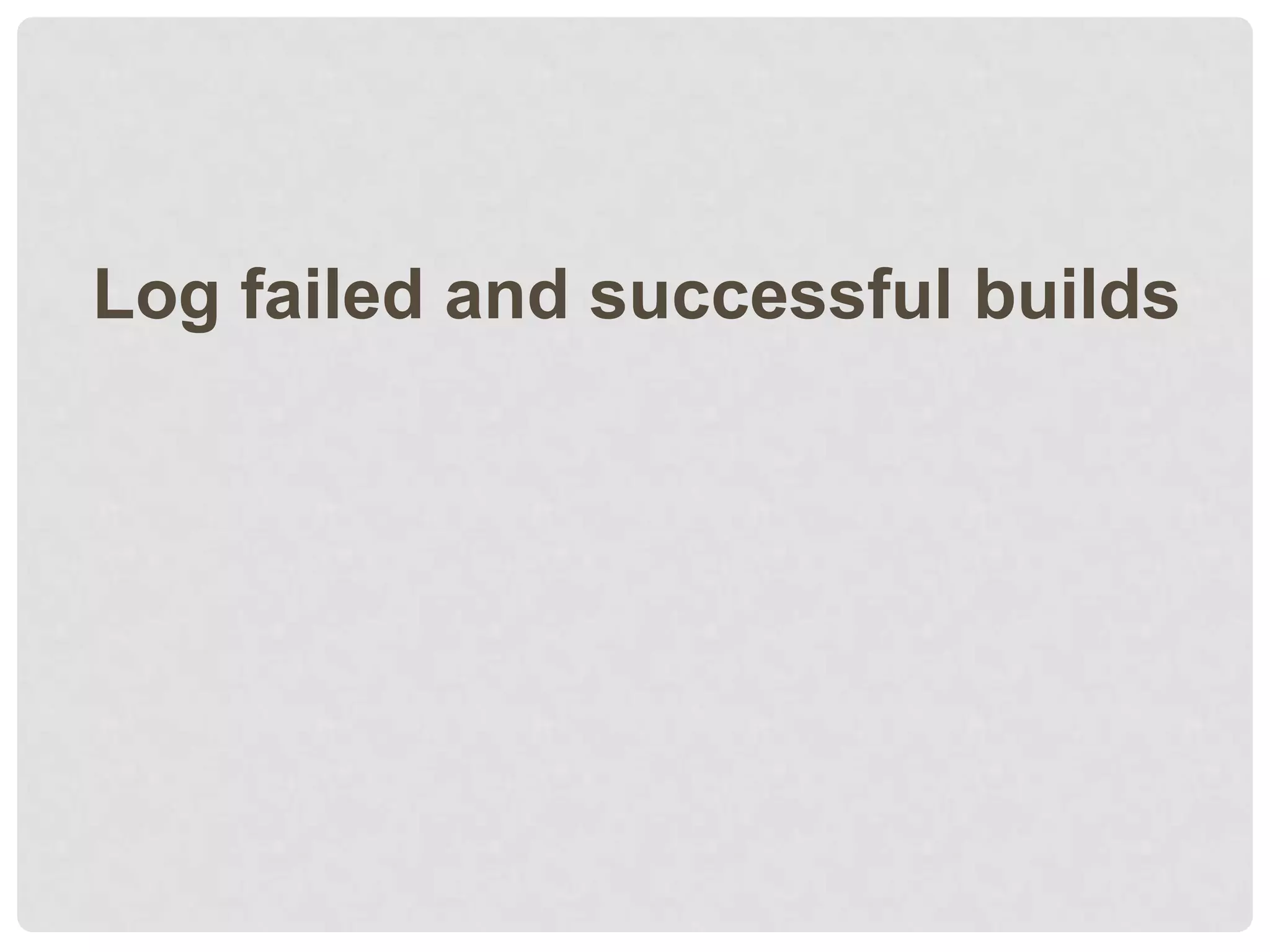

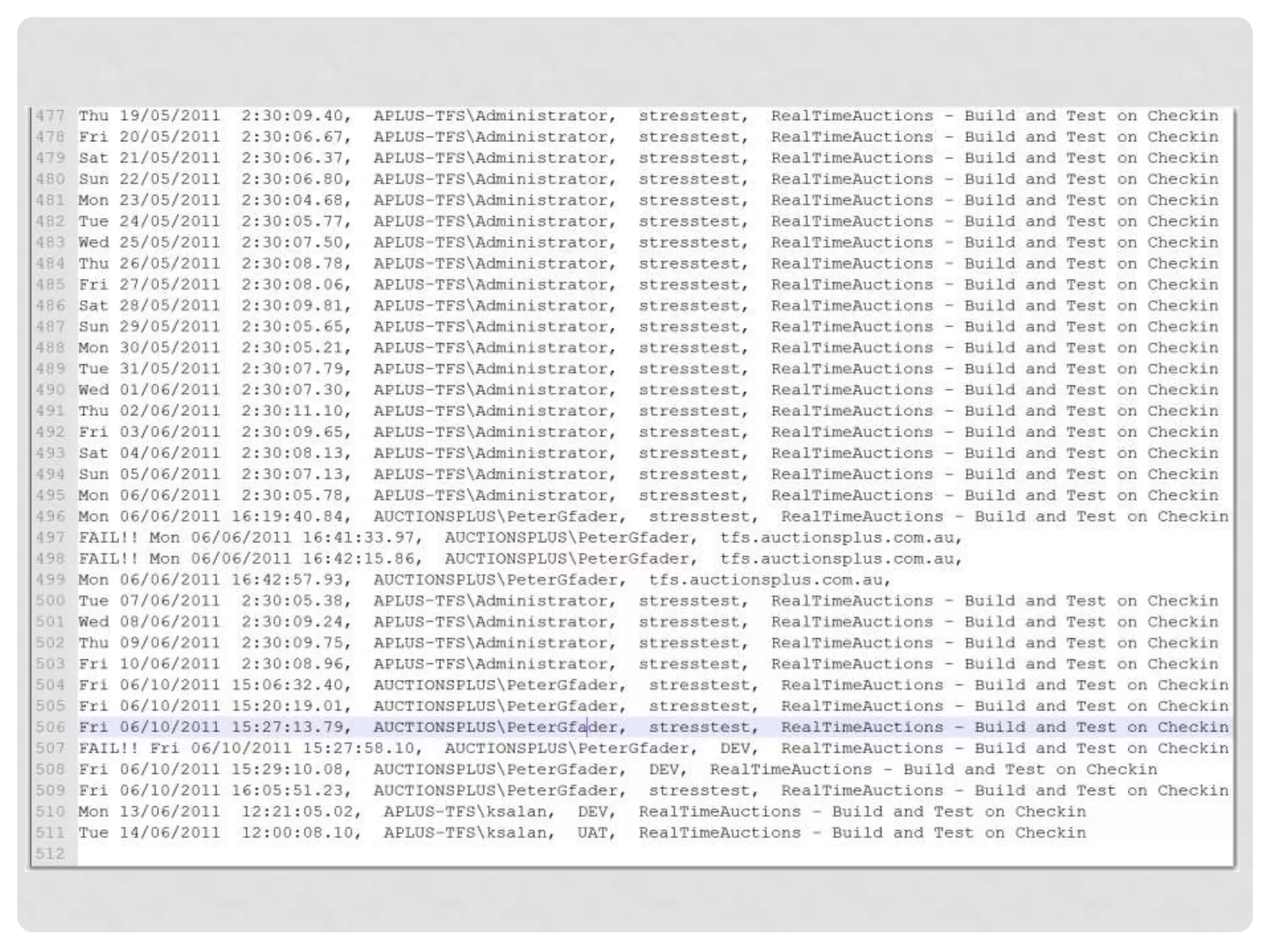

- 90. Log failed and successful builds

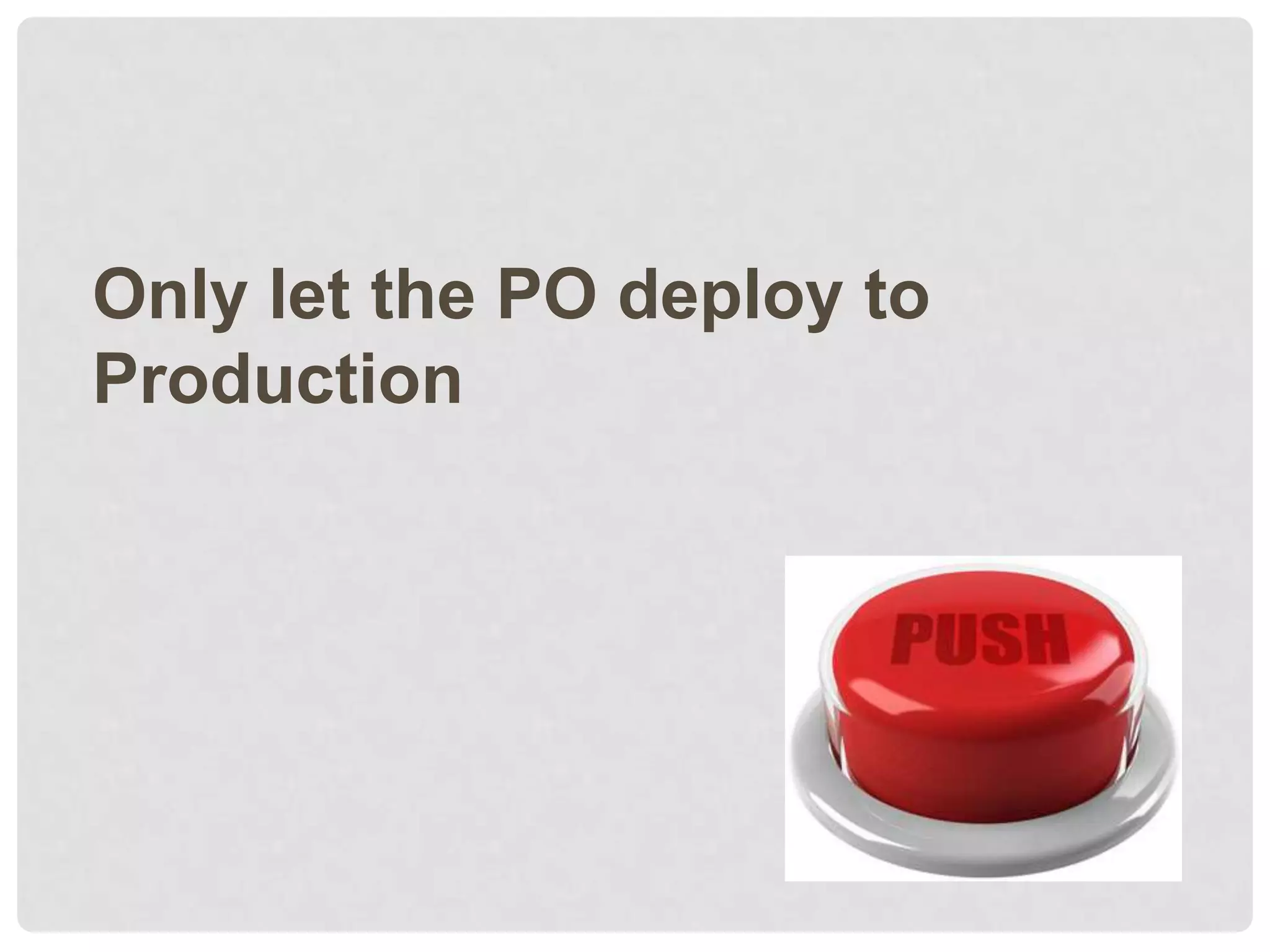

- 92. Only let the PO deploy to Production
- 94. Automate Automate Automate Automate Automate Automate Automate Automate Automate

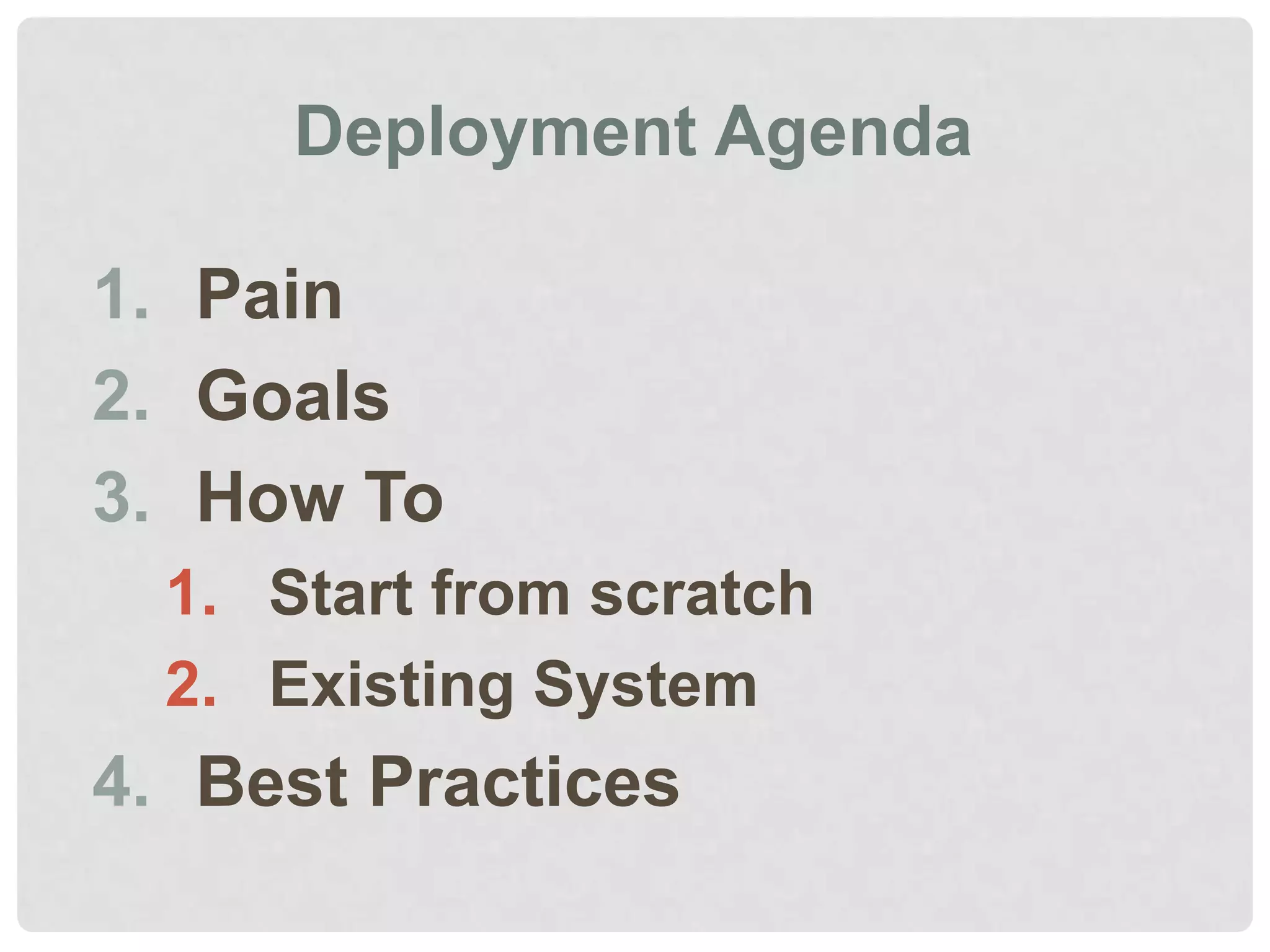

- 97. Deployment Agenda Pain Goals How To Start from scratch Existing System Best Practices

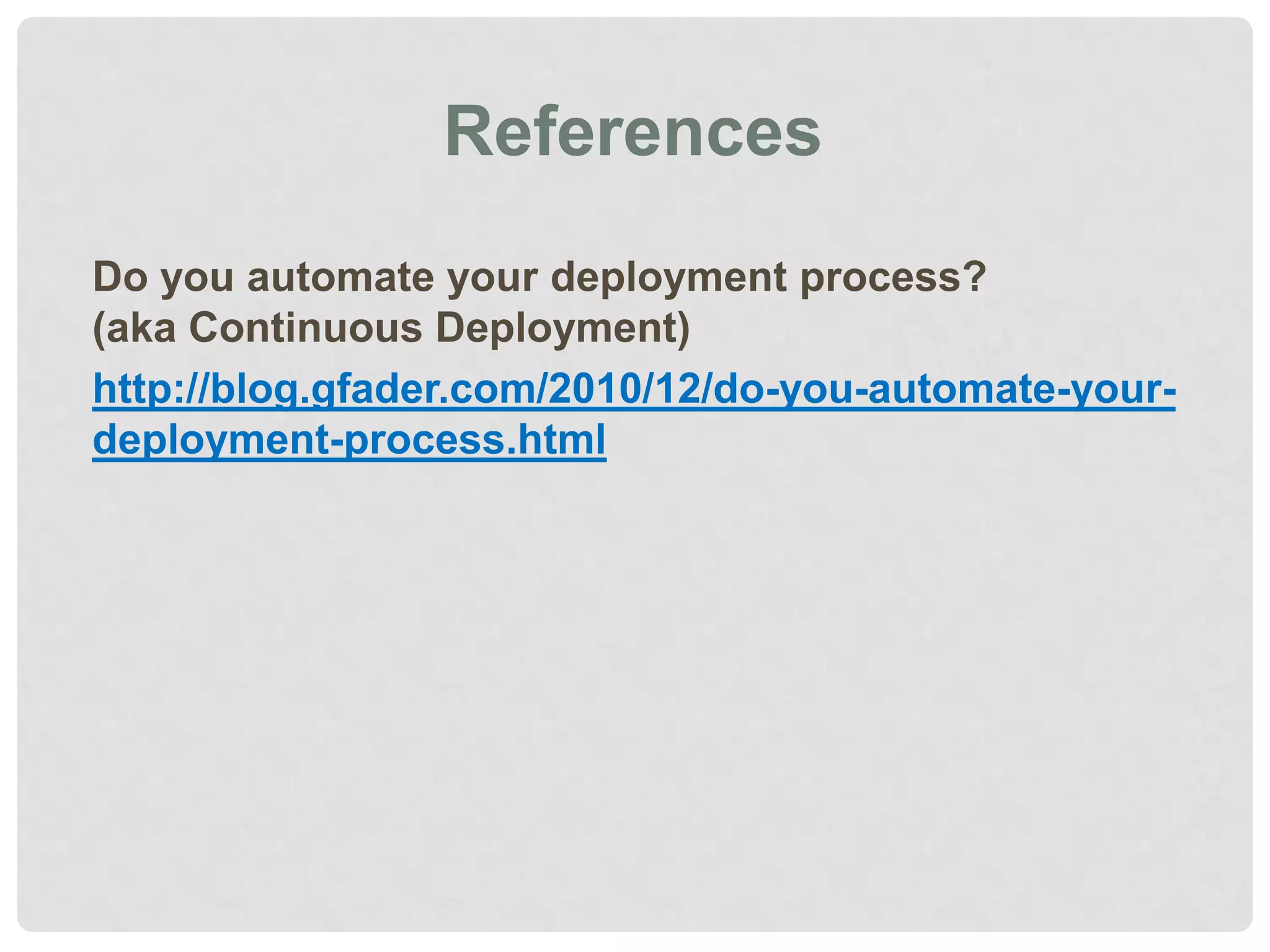

- 98. References Do you automate your deployment process? (aka Continuous Deployment) http://blog.gfader.com/2010/12/do-you-automate-your-deployment-process.html

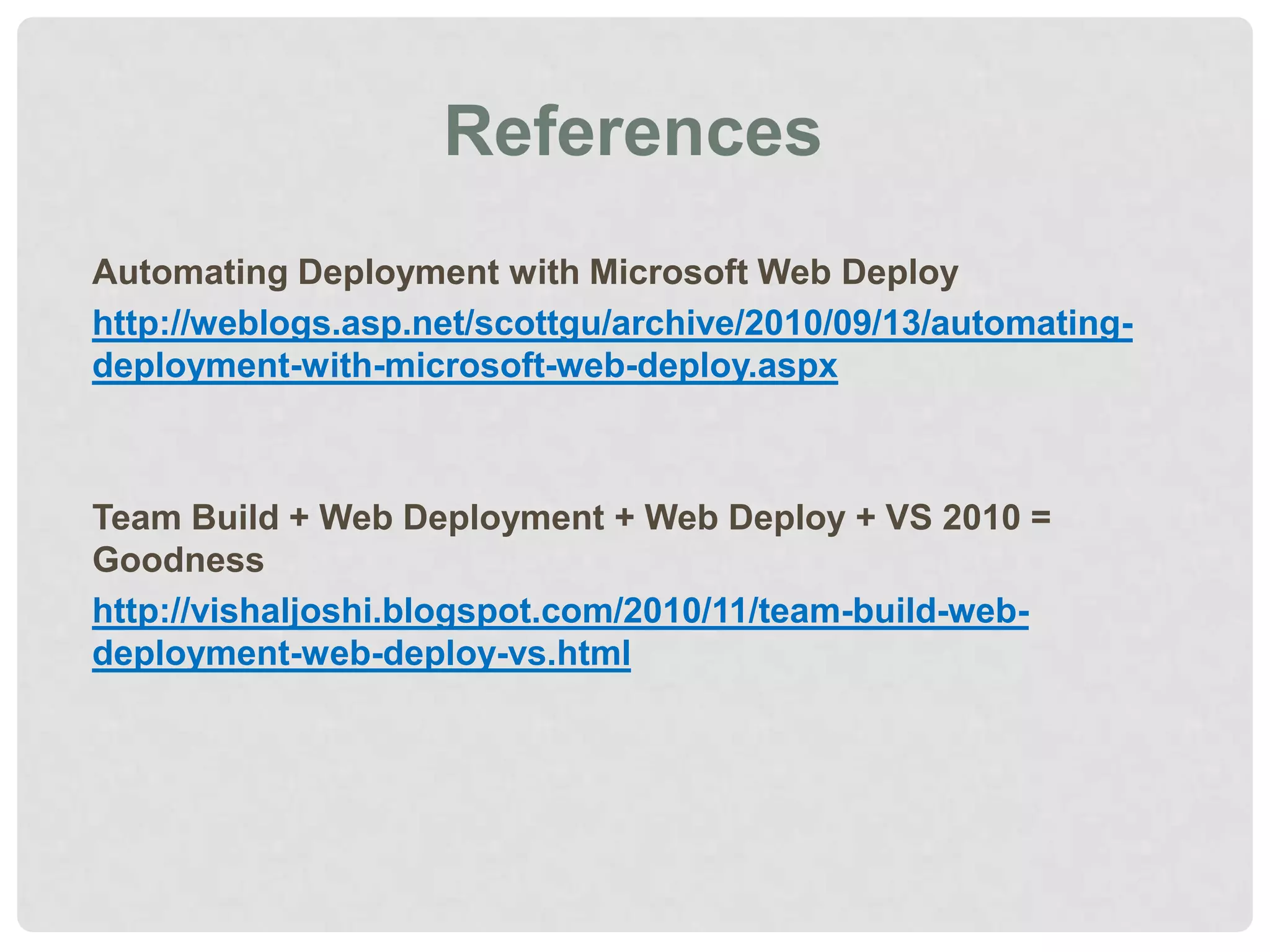

- 99. References Automating Deployment with Microsoft Web Deploy http://weblogs.asp.net/scottgu/archive/2010/09/13/automating-deployment-with-microsoft-web-deploy.aspx Team Build + Web Deployment + Web Deploy + VS 2010 = Goodness http://vishaljoshi.blogspot.com/2010/11/team-build-web-deployment-web-deploy-vs.html

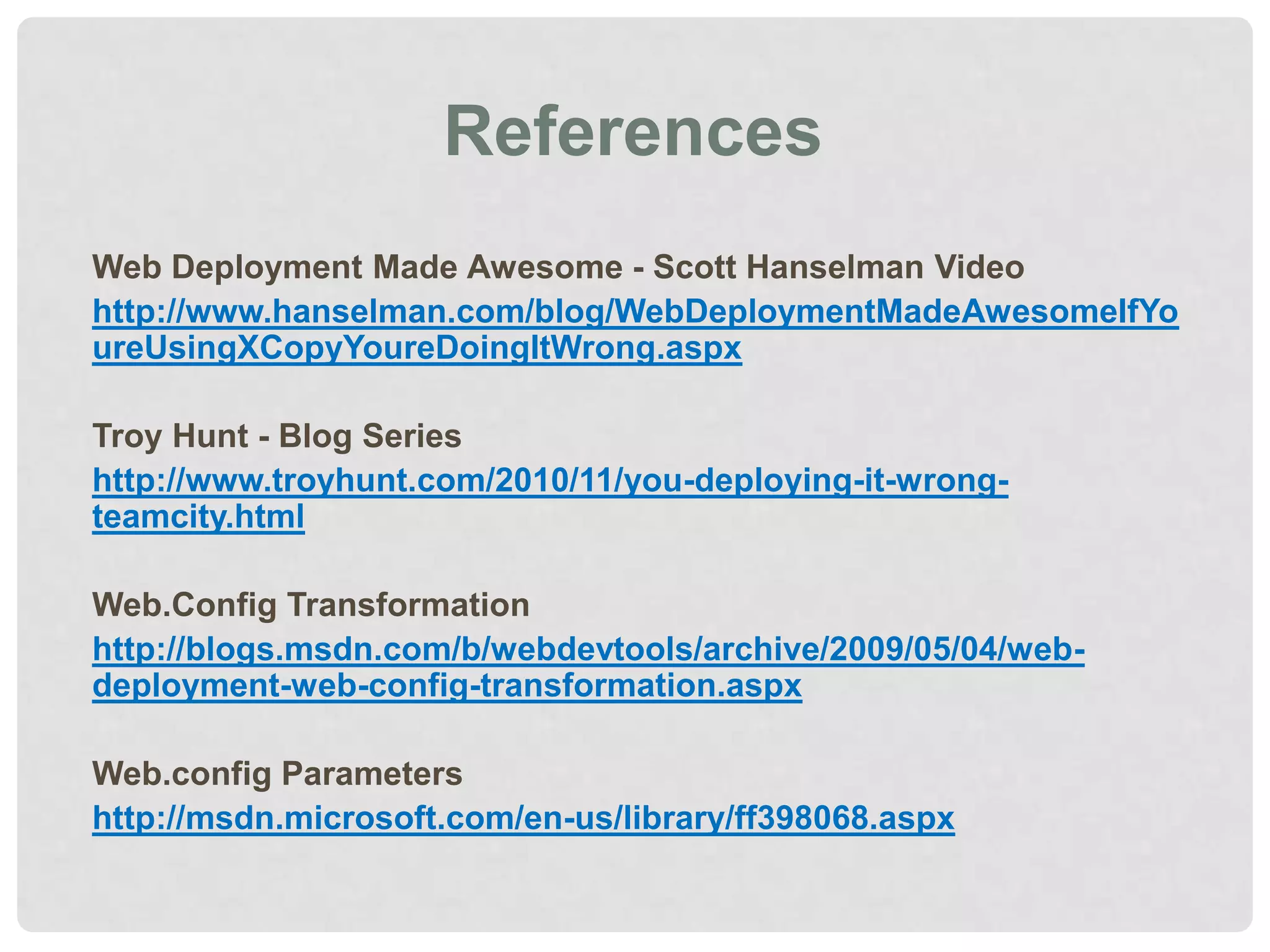

- 100. References Web Deployment Made Awesome - Scott Hanselman Video http://www.hanselman.com/blog/WebDeploymentMadeAwesomeIfYoureUsingXCopyYoureDoingItWrong.aspx Troy Hunt - Blog Series http://www.troyhunt.com/2010/11/you-deploying-it-wrong-teamcity.html Web.Config Transformation http://blogs.msdn.com/b/webdevtools/archive/2009/05/04/web-deployment-web-config-transformation.aspx Web.config Parameters http://msdn.microsoft.com/en-us/library/ff398068.aspx

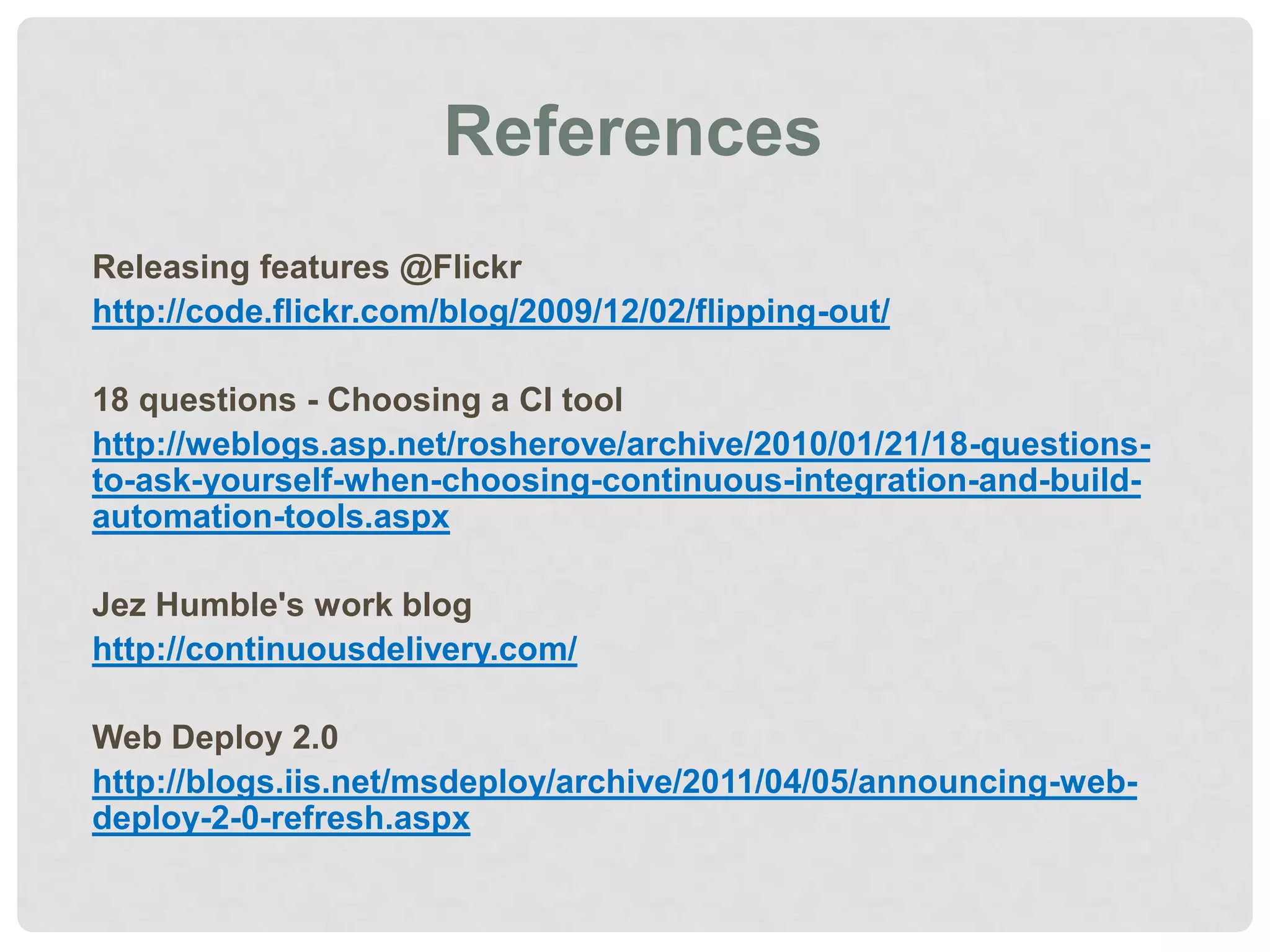

- 101. References Releasing features @Flickr http://code.flickr.com/blog/2009/12/02/flipping-out/ 18 questions - Choosing a CI tool http://weblogs.asp.net/rosherove/archive/2010/01/21/18-questions-to-ask-yourself-when-choosing-continuous-integration-and-build-automation-tools.aspx Jez Humble's work blog http://continuousdelivery.com/ Web Deploy 2.0 http://blogs.iis.net/msdeploy/archive/2011/04/05/announcing-web-deploy-2-0-refresh.aspx

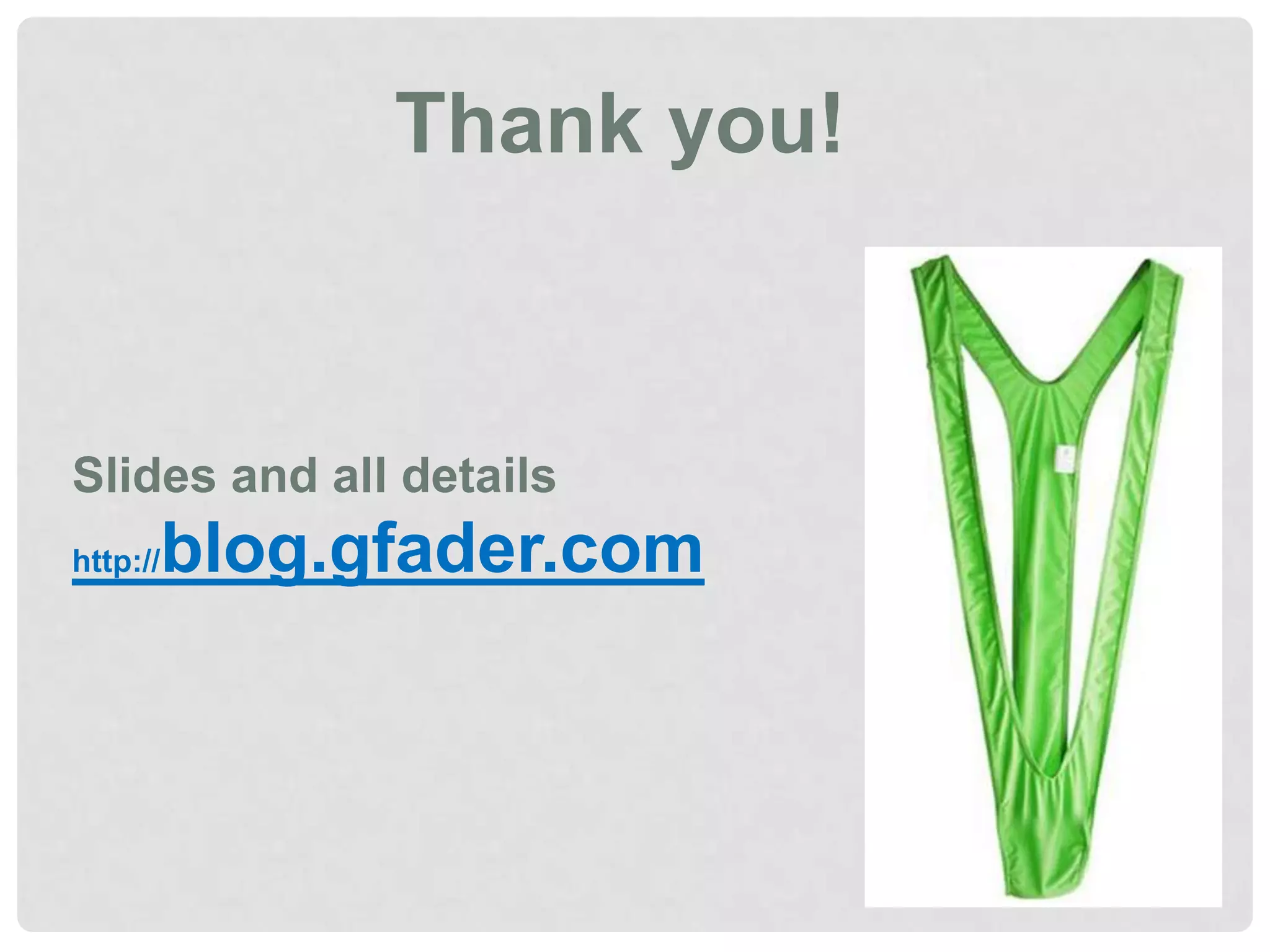

- 102. Thank you! Slides and all detailshttp://blog.gfader.com
Editor's Notes
- Continuous Delivery with TFS, msbuild and msdeployFeel free to copy and use.Drop me a note before though: peter@gfader.com http://blog.gfader.com/
- If you are at the stage where you actually have to think about deployment, that is a Success!There are heaps of projects that didn't get so far .... and I was working on some...
- Continuous Delivery"Keeping systems production-ready throughout development, so that they can be released to users at any time" Continuous Deployment"Deploy continuously to a certain environment"
- From VS: PublishDocx
- From VS: PublishDocx
- Deployment is hard, because of configuration and starting/stopping of external dependencies (web-servers, DBs, queues, external services, …)(web-servers, DBs, queues, external services, …)
- Small feedback cycle
- Small feedback cycle
- Less number of defects
- Less number of defects
- Goal of tests: Is application production-ready?
- I have VS2010 + TFS as build server + a website hosted on DiscountASPhttp://twitter-fish.com/http://twitter-fish.com/Latest/

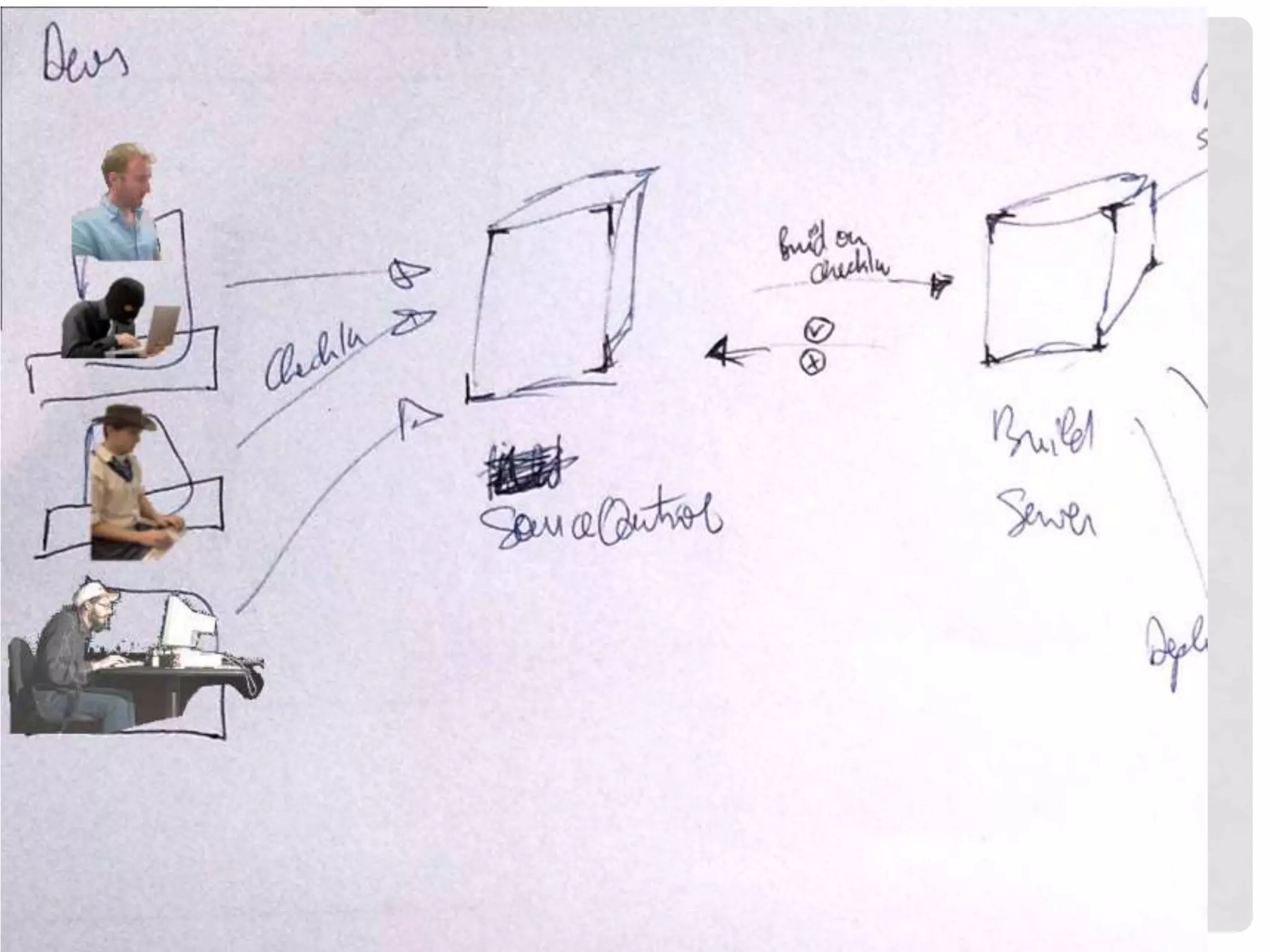

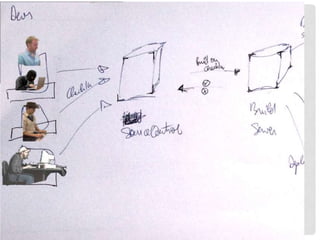

- Devs check in code to Version control, The automated CI system monitors changes in source control and gets changes. Build and runs all tests. Results are posted back on a portalCI tools are the triggers that listen to various “events’ in the network (a check-in to source control, for example could be a trigger. You can configure these tools to do a few simple things when an event happens. One of those things can be to invoke one of the tools in the previous list. Some of the CI tools, though, include a few simple built in build atomation power (such as built in MSBuild support, or running tests)
- Devs check in code to Version control, The automated CI system monitors changes in source control and gets changes. Build and runs all tests. Results are posted back on a portalCI tools are the triggers that listen to various “events’ in the network (a check-in to source control, for example could be a trigger. You can configure these tools to do a few simple things when an event happens. One of those things can be to invoke one of the tools in the previous list. Some of the CI tools, though, include a few simple built in build atomation power (such as built in MSBuild support, or running tests)
- Devs check in code to Version control, The automated CI system monitors changes in source control and gets changes. Build and runs all tests. Results are posted back on a portalCI tools are the triggers that listen to various “events’ in the network (a check-in to source control, for example could be a trigger. You can configure these tools to do a few simple things when an event happens. One of those things can be to invoke one of the tools in the previous list. Some of the CI tools, though, include a few simple built in build atomation power (such as built in MSBuild support, or running tests)
- In your Build definitionGo to “Process” -> “Advanced” -> “MSBuild arguments” and enter:a. /p:DeployOnBuild=Trueb. /p:DeployTarget=MsDeployPublish/p:Configuration=Release/p:CreatePackageOnPublish=True /p:DeployIisAppPath=[TwitterFish]/p:MsDeployServiceUrl=https://[DiscountAspSERVER]:8172/msdeploy.axd/p:AllowUntrustedCertificate=True
- Or use VS2010http://kb.discountasp.net/KB/a792/how-do-i-deploy-visual-studio-2010-web-application.aspx
- Tell MSDEPLOY this is a config setting
- Tell MSDEPLOY this is a config setting
- Identifysoftware artefactsconfiguration artefactstarget environment(s)
- (Dev's, Ops, DBAs)
- Deployment is never easy, so try to deploy as soon as possible to remove all roadblocksJuval Löwy encourages the build master to deploy after a couple of days after the project start.
- Even with automated tests and UAT there can always slip through a broken release...
- Which version of your software is installed in which environment
- Deploy to a staging environment, once 100% happy deploy to productionNew Zealand is Facebook guinea pig
- Have a clone of your production environment where you deploy and test your software
- Deployment artefacts. Trace changes, have history, evolution of code
- Deployment artefacts. Trace changes, have history, evolution of code
- Authorization
- http://twitter.com/#!/DEVOPS_BORAT/status/65880152705470464
- http://twitter.com/#!/DEVOPS_BORAT/status/65880152705470464
