1. The methodologies to adopt for successfully
implementing DevOps in your organization
Continuous
everything
Andrea Tino (Software Development Engineer)

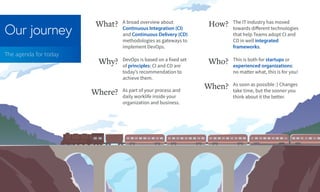

2. Our journey
The agenda for today
A broad overview about
Continuous Integration (CI)
and Continuous Delivery (CD)
methodologies as gateways to
implement DevOps.
What? The IT Industry has moved
towards different technologies
that help Teams adopt CI and
CD in well integrated
frameworks.
How?
DevOps is based on a fixed set
of principles: CI and CD are
today’s recommendation to
achieve them.
Why?
As part of your process and
daily worklife inside your
organization and business.
Where?
As soon as possible :) Changes
take time, but the sooner you
think about it the better.
When?
This is both for startups or
experienced organizations:
no matter what, this is for you!
Who?

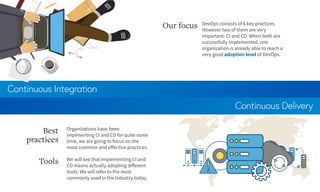

3. Continuous Integration
Continuous Delivery
DevOps consists of 6 key practices.
However two of them are very
important: CI and CD. When both are
successfully implemented, one
organization is already able to reach a
very good adoption level of DevOps.
Our focus
Organizations have been
implmenting CI and CD for quite some
time, we are going to focus on the
most common and effective practices.
Best
practices
We will see that implementing CI and
CD means actually adopting different
tools. We will refer to the most
commonly used in the Industry today.
Tools

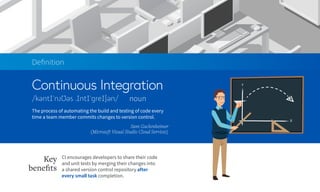

4. Continuous Integration
Definition
noun
The process of automating the build and testing of code every
time a team member commits changes to version control.
Sam Guckenheimer
(Microsoft Visual Studio Cloud Services)
CI encourages developers to share their code
and unit tests by merging their changes into
a shared version control repository after
every small task completion.
Key
benefits

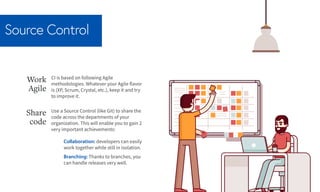

5. Source Control
CI is based on following Agile
methodologies. Whatever your Agile flavor
is (XP, Scrum, Crystal, etc.), keep it and try
to improve it.
Work
Agile
Use a Source Control (like Git) to share the
code across the departments of your
organization. This will enable you to gain 2
very important achievements:
Share
code
Collaboration: developers can easily
work together while still in isolation.
Branching: Thanks to branches, you
can handle releases very well.

6. Commit often
Do not pile up stuff and commit large amount of code
changes. Instead, commit small changes.
What
It’s not because we like the feeling of committing stuff...
(well certainly some of us do). It’s more for the
following points:
Why
Risk of regressions: The smaller a change is, the
lower the risk to introduce regressions in the
codebase.
Bug fixing: If a commit introduces a regression, it
is easier to identify that commit. Also, the
regression can be caught up earlier and
addressed faster.

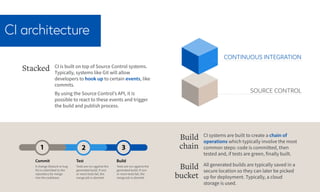

7. CI architecture
CONTINUOUS INTEGRATION
SOURCE CONTROL
Commit
A change (feature or bug
fix) is submitted to the
repository for merge
into the codebase.
Test
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Build
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
CI is built on top of Source Control systems.
Typically, systems like Git will allow
developers to hook up to certain events, like
commits.
By using the Source Control’s API, it is
possible to react to these events and trigger
the build and publish process.
Stacked
CI systems are built to create a chain of
operations which typically involve the most
common steps: code is committed, then
tested and, if tests are green, finally built.
Build
chain
All generated builds are typically saved in a
secure location so they can later be picked
up for deployment. Typically, a cloud
storage is used.
Build
bucket

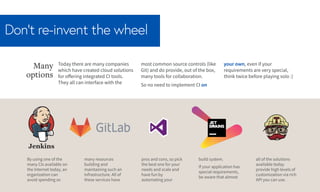

8. Don’t re-invent the wheel
Today there are many companies
which have created cloud solutions
for offering integrated CI tools.
They all can interface with the
Many
options
most common source controls (like
Git) and do provide, out of the box,
many tools for collaboration.
So no need to implement CI on
your own, even if your
requirements are very special,
think twice before playing solo :)
By using one of the
many CIs available on
the Internet today, an
organization can
avoid spending so
many resources
building and
maintaining such an
infrastructure. All of
these services have
pros and cons, so pick
the best one for your
needs and scale and
have fun by
automating your
build system.
If your application has
special requirements,
be aware that almost
all of the solutions
available today
provide high levels of
customization via rich
API you can use.

9. Continuous Delivery
Definition
noun
The process to build, test and release from a build to a
pre-production environment.
Sam Guckenheimer
(Microsoft Visual Studio Cloud Services)
Without Continuous Delivery, software release cycles
were previously a bottleneck for application and
operation teams. Manual processes led to unreliable
releases that produced delays and errors.
Improved
process

10. CD architecture
SOURCE CONTROL
CONTINUOUS INTEGRATION
CONTINUOUS DELIVERY
CD is built on top of CI. As soon as CI is
over, a new build is available. The build is
published.
Nothing happens to Production
environments, if the build is picked-up for
release, the process of approving it is fully
manual.
On top
Commit
A change (feature or bug
fix) is submitted to the
repository for merge
into the codebase.
Test
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Build
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Stage to PPE
Build is deployed into a
pre-production environ-
ment and published for
download.
In order to test the
product E2E, it is useful to
automate the deployment
into a non-production
environment acting as a
safe playground.
Pre
production

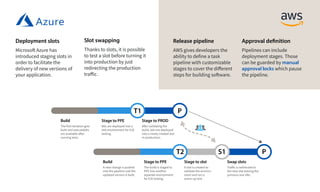

11. PS1T2
Build
A new change is pushed
into the pipeline and the
updated version is built.
Stage to PPE
The build is staged to
PPE into another
separate environment
for E2E testing.
Swap slots
Traffic is redirected to
the new slot leaving the
previous one idle.
Stage to slot
A slot is created to
validate the environ-
ment and run a
warm-up test.
PT1
Build
The first iteration gets
built and executables
are available after
running tests.
Stage to PPE
Bits are deployed into a
test environment for E2E
testing.
Stage to PROD
After validating the
build, bits are deployed
into a newly created slot
in production.
Approval definition
Pipelines can include
deployment stages. Those
can be guarded by manual
approval locks which pause
the pipeline.
Release pipeline
AWS gives developers the
ability to define a task
pipeline with customizable
stages to cover the different
steps for building software.
Slot swapping
Thanks to slots, it is possible
to test a slot before turning it
into production by just
redirecting the production
traffic.
Deployment slots
Microsoft Azure has
introduced staging slots in
order to facilitate the
delivery of new versions of
your application.

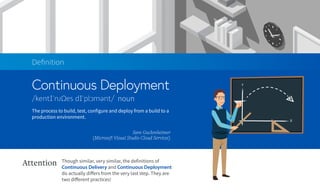

12. Continuous Deployment
Definition
noun
The process to build, test, configure and deploy from a build to a
production environment.
Sam Guckenheimer
(Microsoft Visual Studio Cloud Services)
Though similar, very similar, the definitions of
Continuous Delivery and Continuous Deployment
do actually differs from the very last step. They are
two different practices!
Attention

13. CDp architecture
SOURCE CONTROL
CONTINUOUS INTEGRATION
CONTINUOUS DELIVERY
CONTINUOUS DEPLOYMENT
CDp is the last step in the release pipeline.
If present, it is built on top of CD.
The foundamental point is that the
process is fully automated. As soon as the
build is emitted and passes all tests,
customers will have immediate access to
it in their Production environments.
Final
stage
Commit
A change (feature or bug
fix) is submitted to the
repository for merge
into the codebase.
Test
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Build
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Stage to PPE
Build is deployed into a
pre-production environ-
ment and published for
download.
Stage to PROD
Build is deployed
directly to production
into the customer’s live
environment.

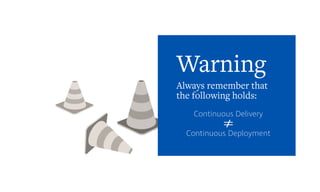

14. Warning
Continuous Delivery
Continuous Deployment
Always remember that
the following holds:

15. Commit
A change (feature or bug
fix) is submitted to the
repository for merge
into the codebase.
Test
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Build
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Stage to PPE
Build is deployed into a
pre-production environ-
ment and published for
download.
Stage to PROD
Build is deployed
directly to production
into the customer’s live
environment.
Cont. Integration Cont.
Delivery
Deployment
Continuous Delivery
The deployment must wait a
manual approval process to
grant permission.
Continuous Deployment
As soon as the build is
available, the release
definition deploys it to
Production.
Automatically
triggered as
build is over.The way the
deployment is
triggered is the key
point which
differentiates the two
practices.
In CD, deployment to
DevOps
Continuum
production is done
manually over
permission granting.
In CDp this happens
automatically and the
buid goes straight
into Production!

16. Fast deployment rollback
Everything can go wrong, if it does, a
process for rolling back a deployment to
the last stable build must be in place.
E2E automation
Having E2E tests is important so that
high critical user scenarios are tested.
Code coverage
Good testing is a must. Ensuring all code
paths are also covered is important to
have a good guarantee the product is
high-severity bug-free.
Continuous Deployment is a risky practice
because builds get deployed straight into
production.
An organization must be prepared to
make this step, and some key
requirements can help you understand
whether you are ready to implement CDp:
Be aware

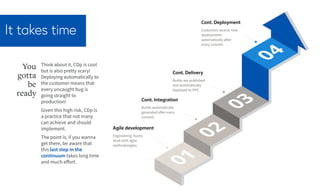

17. It takes time
Cont. Delivery
Builds are published
and automatically
deployed to PPE.
Cont. Deployment
Customers receive new
deployments
automatically after
every commit.
Cont. Integration
Builds automatically
generated after every
commit.
Agile development
Engineering Teams
work with Agile
methodologies.
Think about it, CDp is cool
but is also pretty scary!
Deploying automatically to
the customer means that
every uncaught bug is
going straight to
production!
Given this high risk, CDp is
a practice that not many
can achieve and should
implement.
The point is, if you wanna
get there, be aware that
this last step in the
continuum takes long time
and much effort.
You
gotta
be
ready

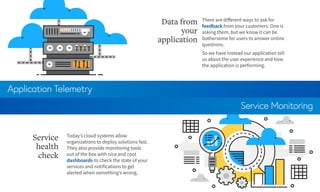

18. Application Telemetry
Service Monitoring
There are different ways to ask for
feedback from your customers. One is
asking them, but we know it can be
bothersome for users to answer online
questions.
So we have instead our application tell
us about the user experience and how
the application is performing.
Data from
your
application
Today’s cloud systems allow
organizations to deploy solutions fast.
They also provide monitoring tools
out of the box with nice and cool
dashboards to check the state of your
services and notifications to get
alerted when something’s wrong.
Service
health
check

19. Why should I be so
concerned about
Telemetry?
Q
“You don’t go to the
Cloud without some
good Telemetry. It would
basically be suicide!”
A
A manager I heard in office the year we were
launching our solution to the Cloud

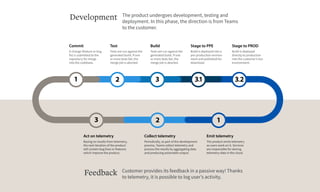

20. Commit
A change (feature or bug
fix) is submitted to the
repository for merge
into the codebase.
Emit telemetry
The product emits telemetry
as users work on it. Services
are responsible for storing
telemetry data in the cloud.
Collect telemetry
Periodically, as part of the development
process, Teams collect telemetry and
process the results by aggregating data
and producing actionable output.
Act on telemetry
Basing on results from telemetry,
the next iteration of the product
will contain bug fixes or features
which improve the product.
Test
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Build
Tests are run against the
generated build. If one
or more tests fail, the
merge job is aborted.
Stage to PPE
Build is deployed into a
pre-production environ-
ment and published for
download.
Stage to PROD
Build is deployed
directly to production
into the customer’s live
environment.
Customer provides its feedback in a passive way! Thanks
to telemetry, it is possible to log user’s activity.
Feedback
The product undergoes development, testing and
deployment. In this phase, the direction is from Teams
to the customer.
Development

21. The End
Thank you
This work is licensed under a
Creative Commons
Attribution-NonCommercial-NoDerivatives
4.0 International License
Cover: Continuous Office
This work includes artworks
designed by Freepik.com.
April 2018
v1.0
Keywords
#devops #continuum #agile
#techtalk #microsoft
#continuous-integration
#continuous-delivery
#continuous-deployment
Presentation info
Duration: 30 mins.
Background: Technical
Audience: Developers and
operations
This work includes artworks
designed by Shutterstock.com.
Conference KMD Copenhagen May 2018, hosted by:
Andrea Tino
Software Development Engineer
Twitter:
E-Mail:
@_atino
andrea.tino@microsoft.com
