Continuous Integration (CI) is a software development practice that enables frequent integration of team members' work, verified through automated builds to quickly identify integration errors. Key features of CI include automated testing, inspection, deployment, and effective feedback communication to mitigate project risks and enhance software quality. By adopting CI practices, teams can improve project visibility, reduce manual processes, and confidently deliver working software efficiently.

1. Continuous Integration
Hugo

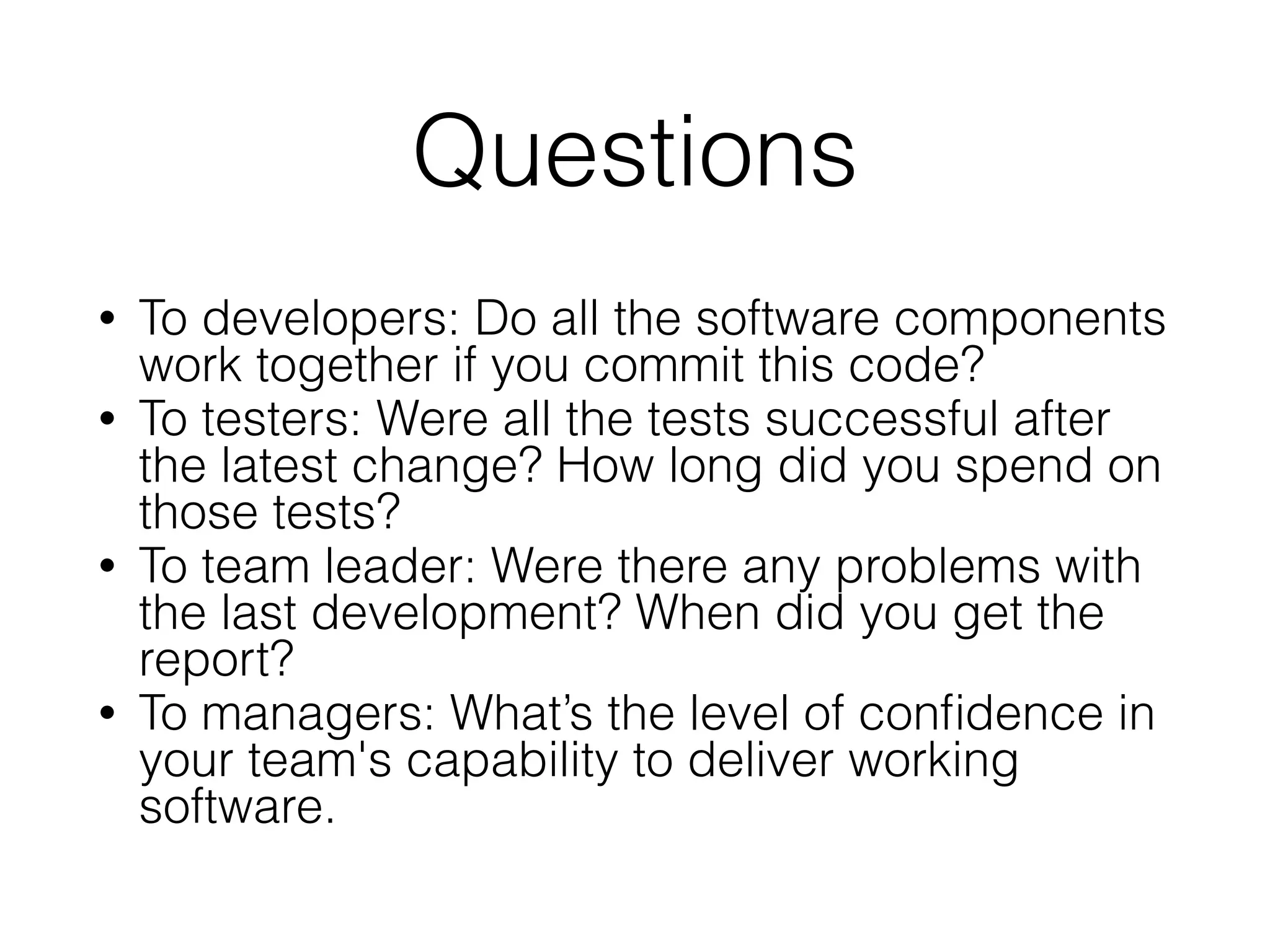

2. Questions
• To developers: Do all the software components
work together if you commit this code?
• To testers: Were all the tests successful after
the latest change? How long did you spend on
those tests?
• To team leader: Were there any problems with
the last development? When did you get the
report?
• To managers: What’s the level of confidence in
your team's capability to deliver working
software.

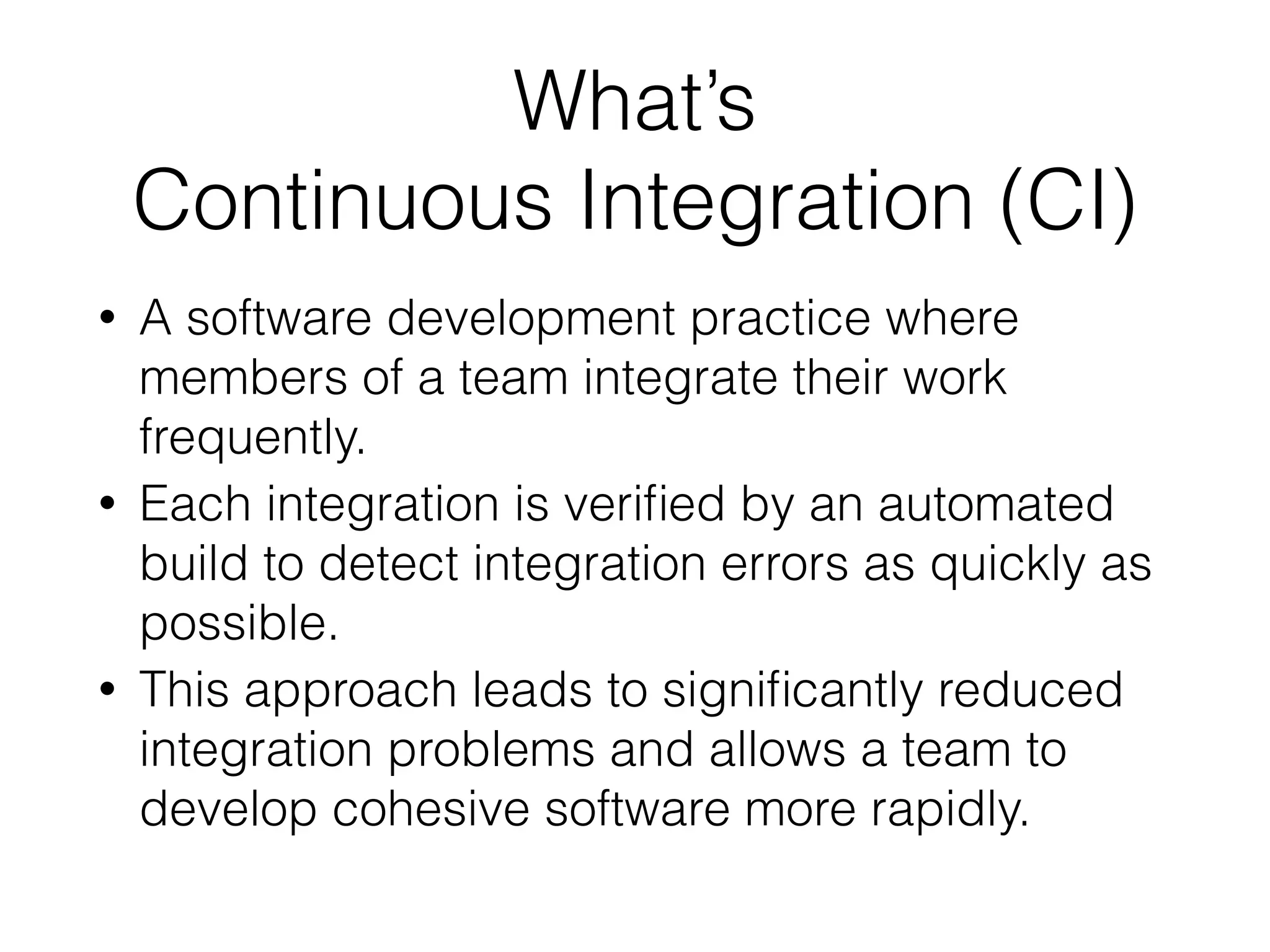

3. What’s
Continuous Integration (CI)
• A software development practice where
members of a team integrate their work
frequently.
• Each integration is verified by an automated
build to detect integration errors as quickly as
possible.
• This approach leads to significantly reduced
integration problems and allows a team to
develop cohesive software more rapidly.

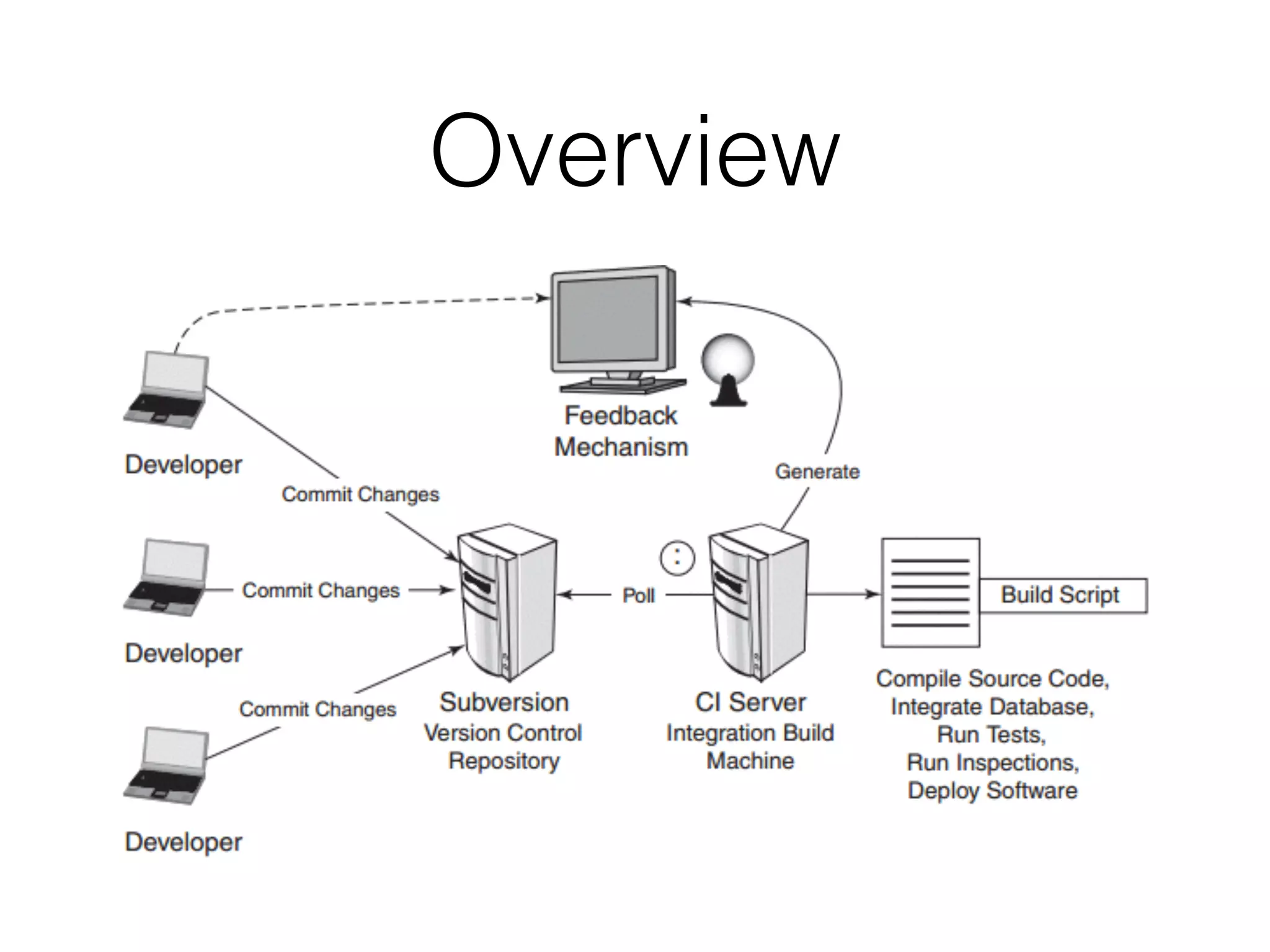

4. Overview

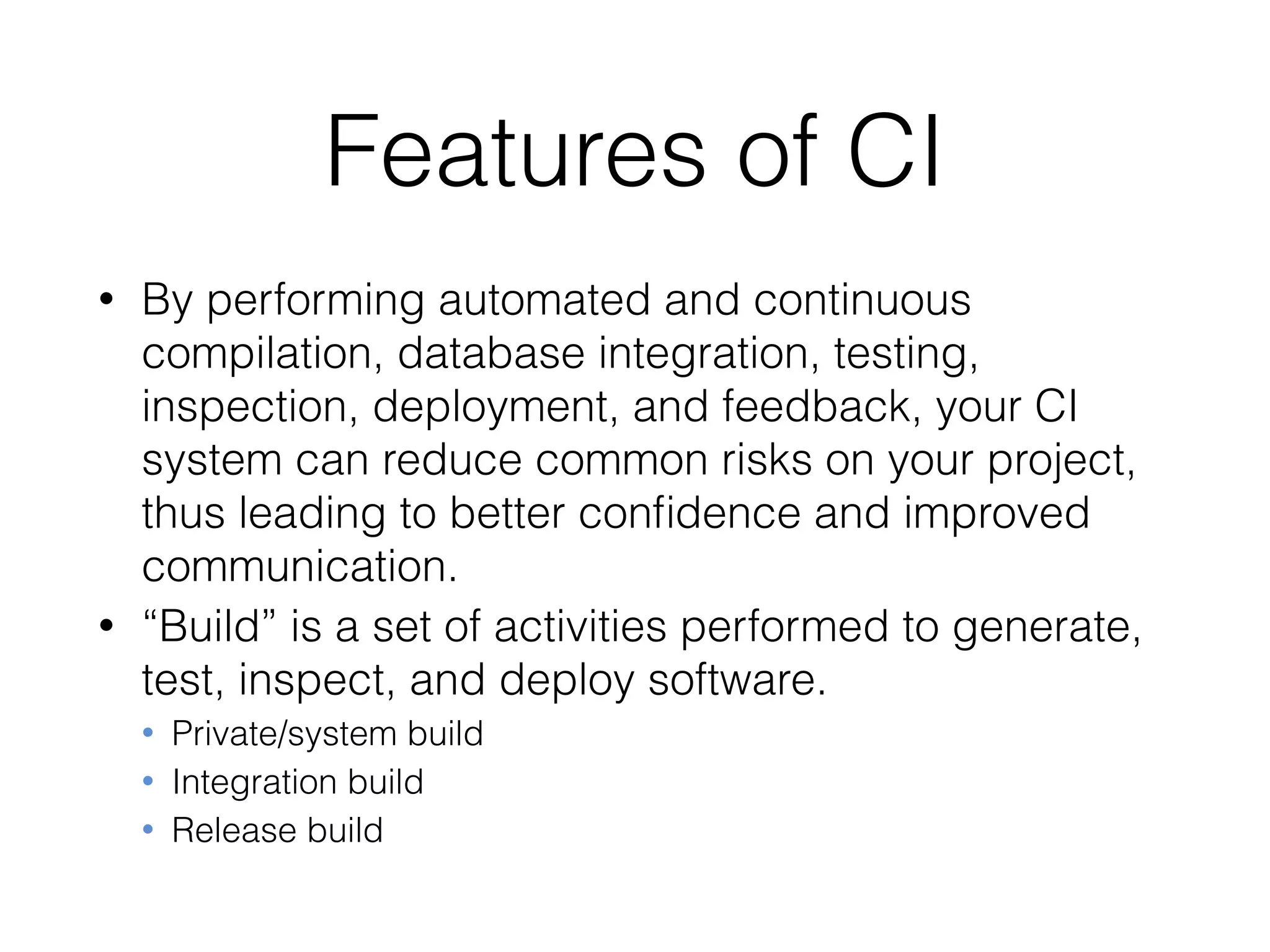

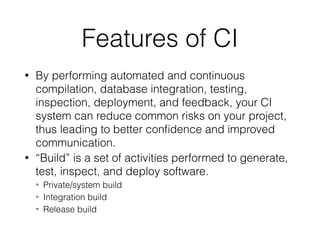

5. Features of CI
• By performing automated and continuous
compilation, database integration, testing,
inspection, deployment, and feedback, your CI
system can reduce common risks on your project,
thus leading to better confidence and improved
communication.
• “Build” is a set of activities performed to generate,
test, inspect, and deploy software.
• Private/system build
• Integration build
• Release build

6. Testing (Dynamic Analysis)
• Automate unit tests
• Automate component tests
• Automate system tests
• Automate functional tests
• Categorize developer tests
• Run faster tests first
• Write tests for defects
• Make component tests repeatable
• Limit test cases to one assert

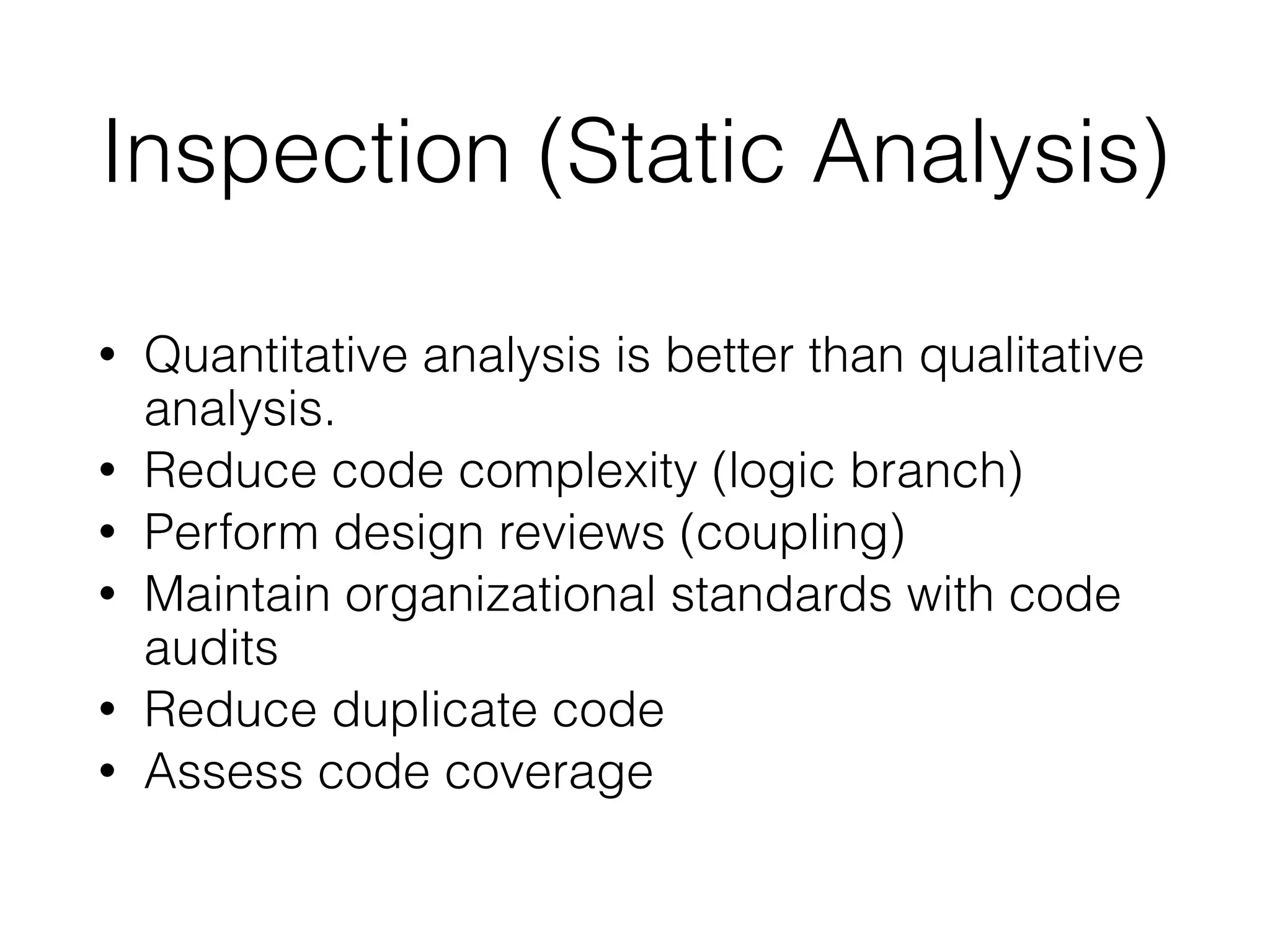

7. Inspection (Static Analysis)
• Quantitative analysis is better than qualitative
analysis.
• Reduce code complexity (logic branch)
• Perform design reviews (coupling)
• Maintain organizational standards with code
audits
• Reduce duplicate code
• Assess code coverage

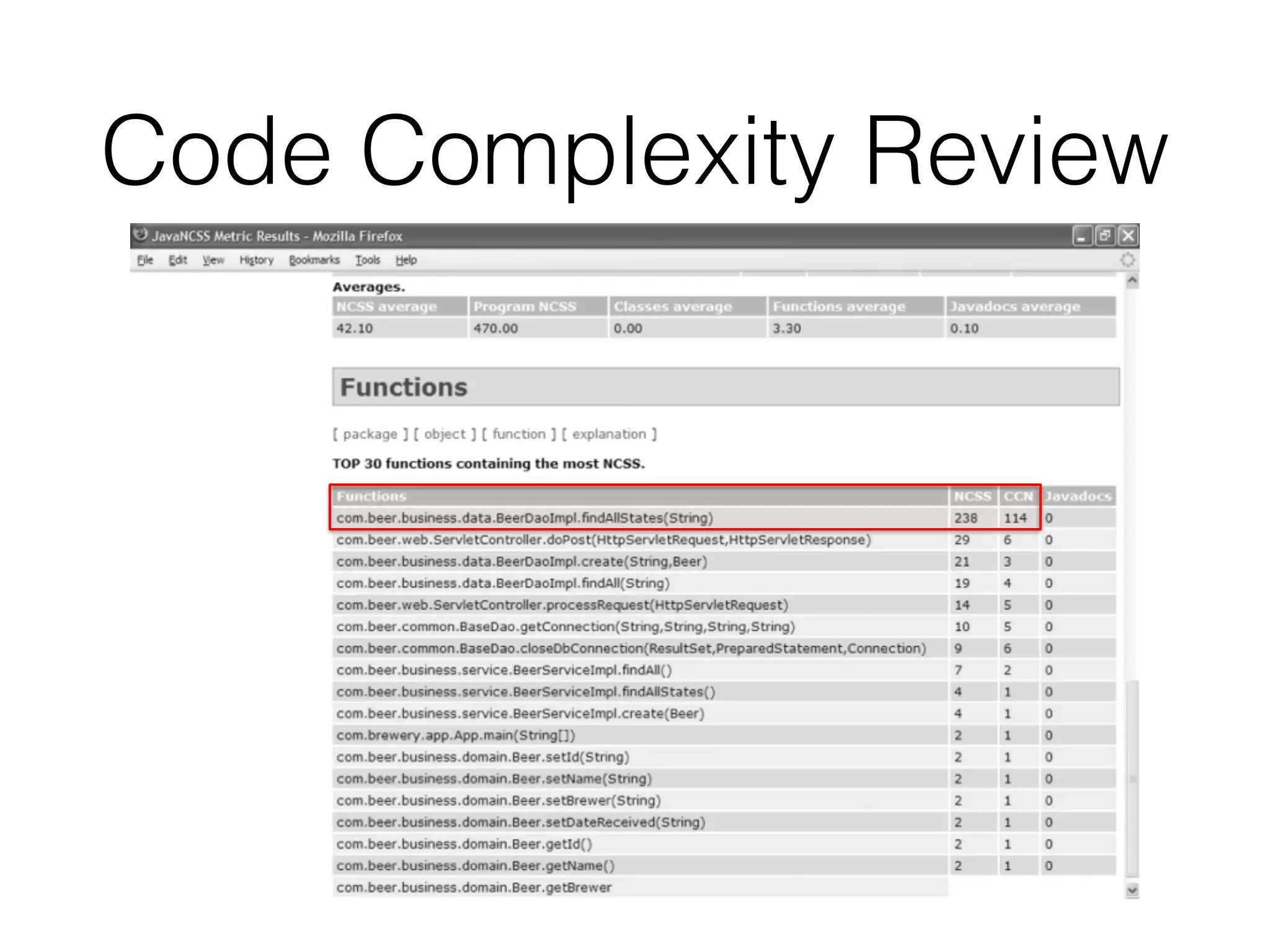

8. Code Complexity Review

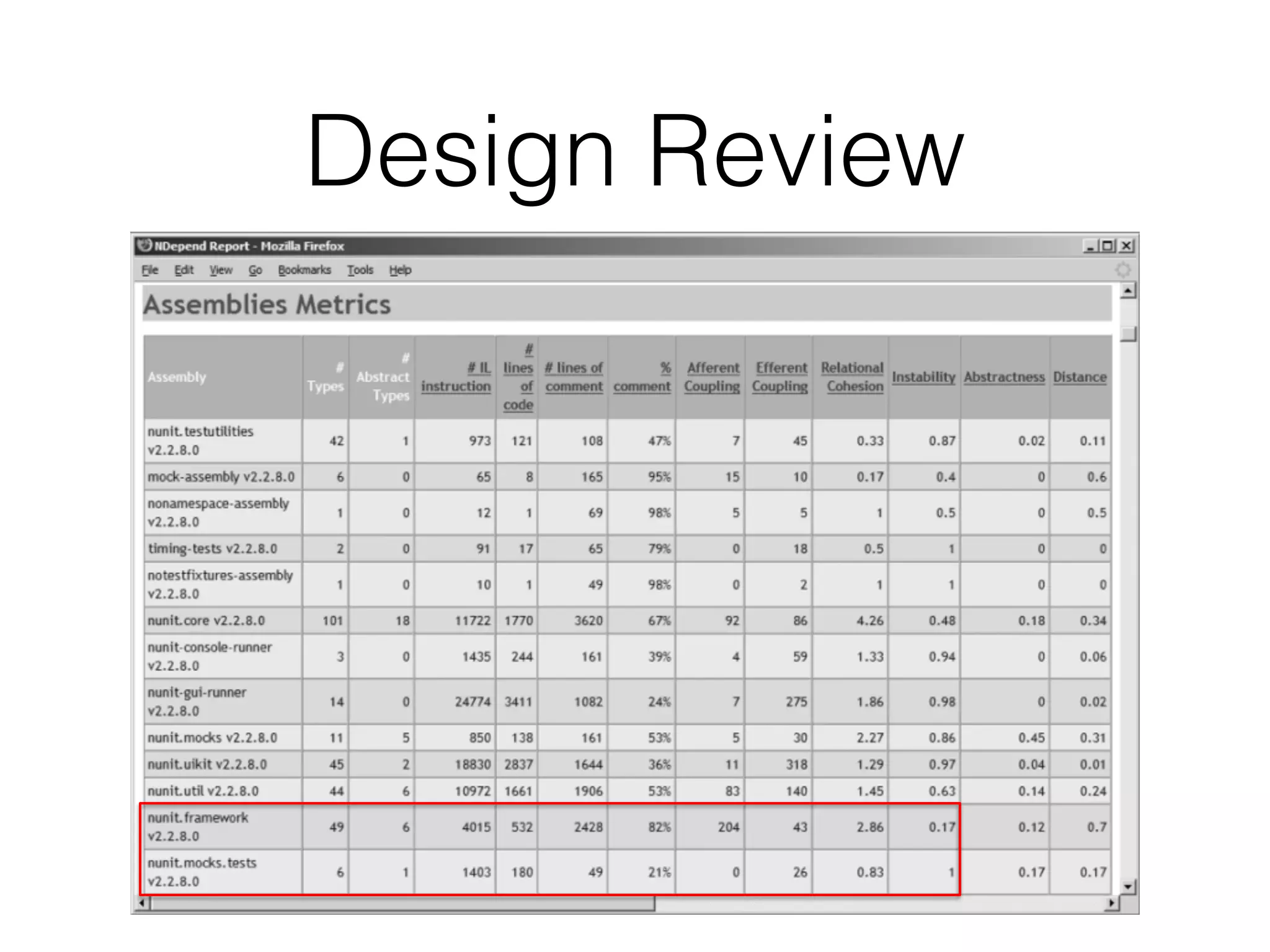

9. Design Review

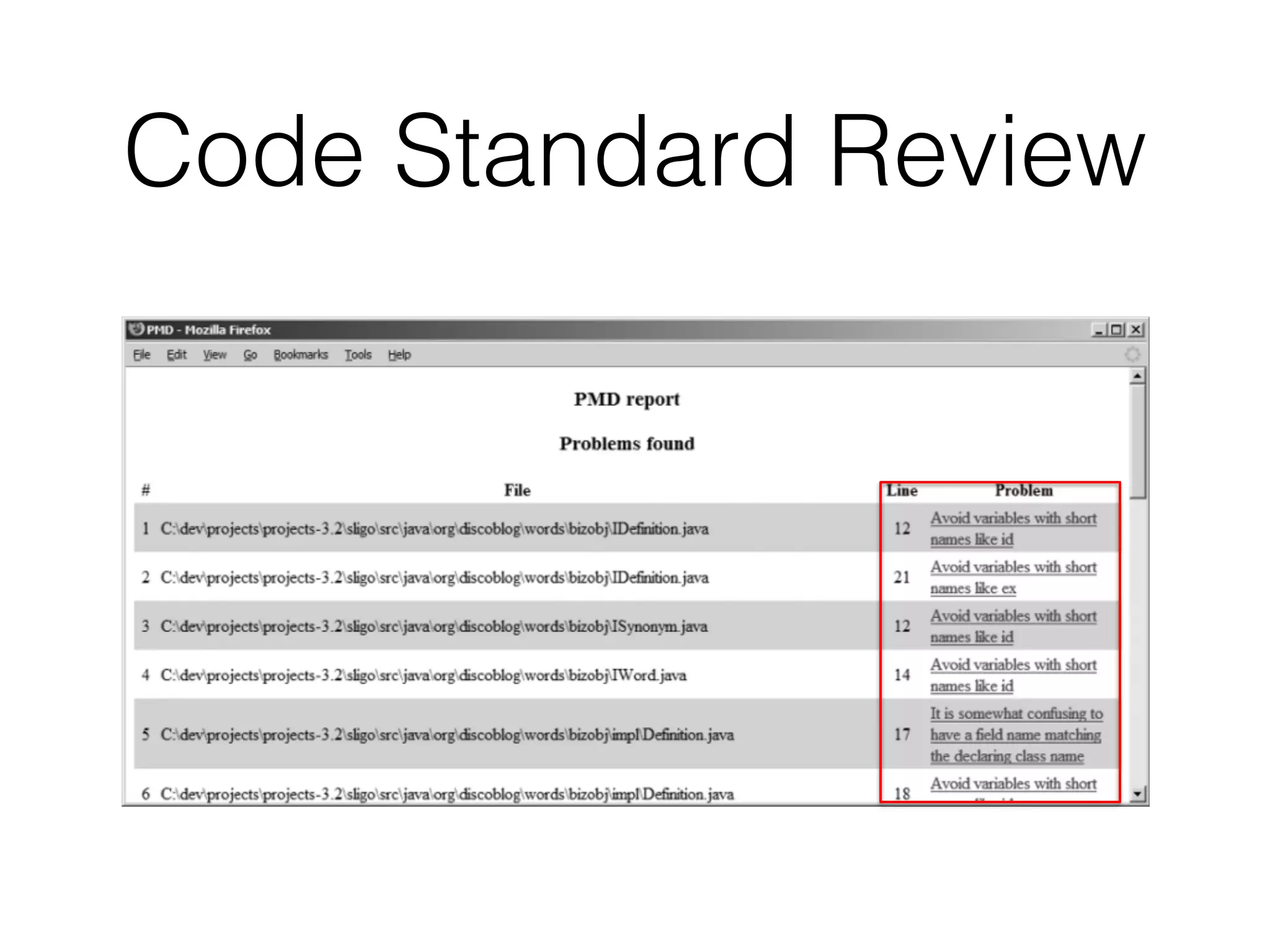

10. Code Standard Review

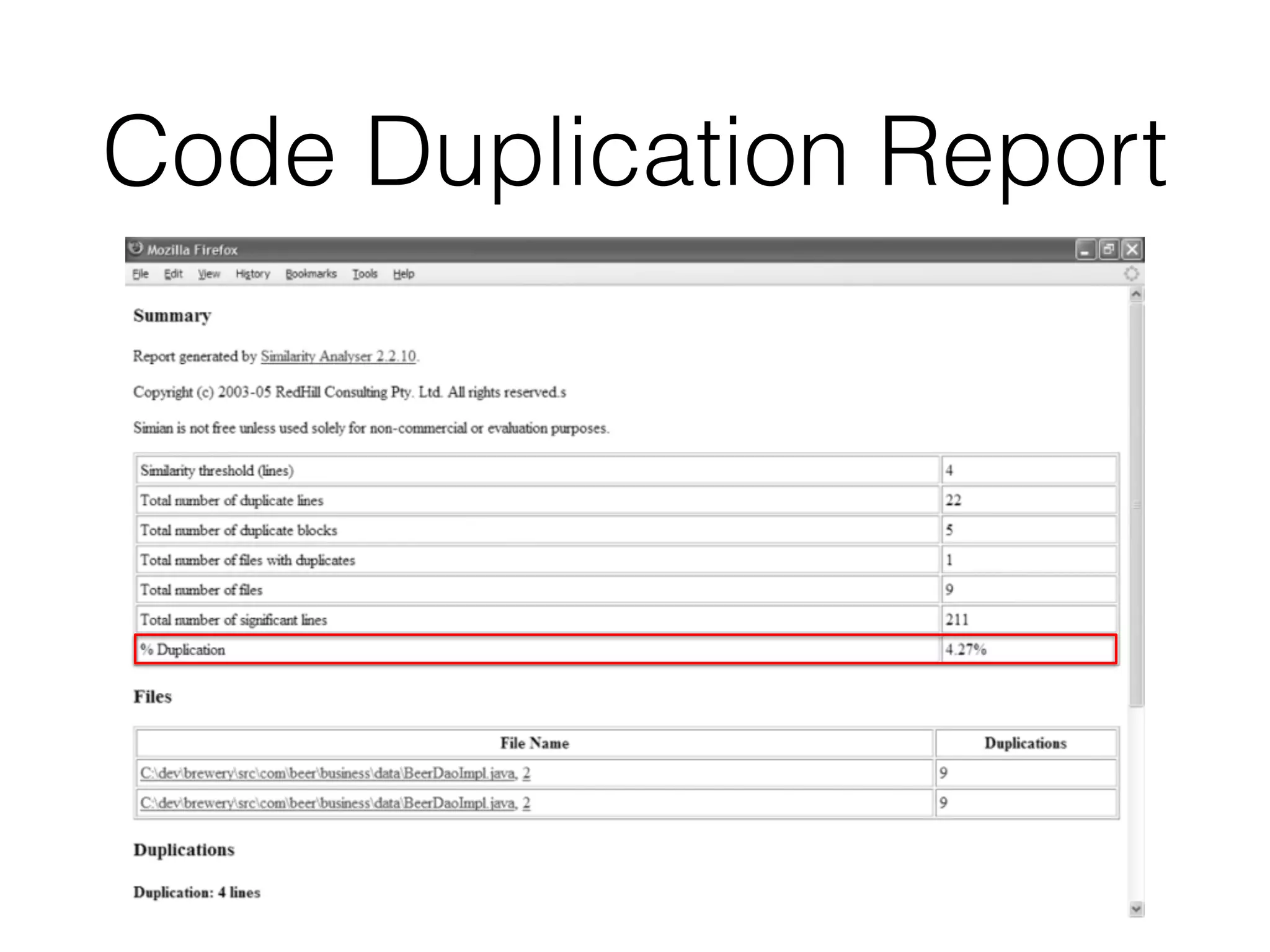

11. Code Duplication Report

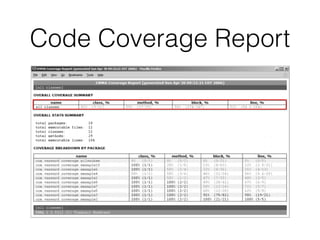

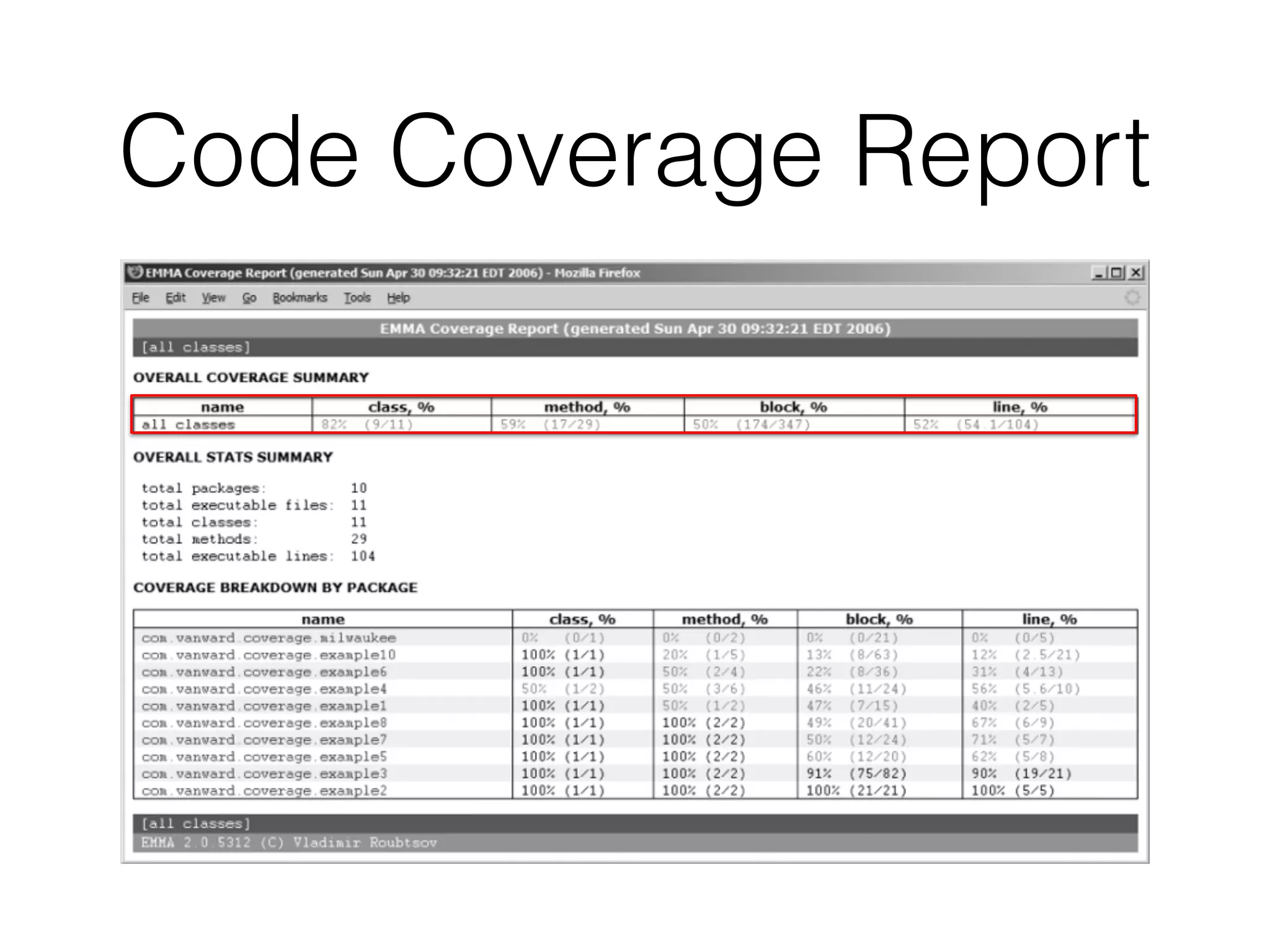

12. Code Coverage Report

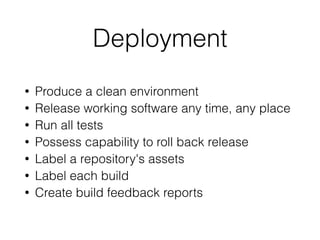

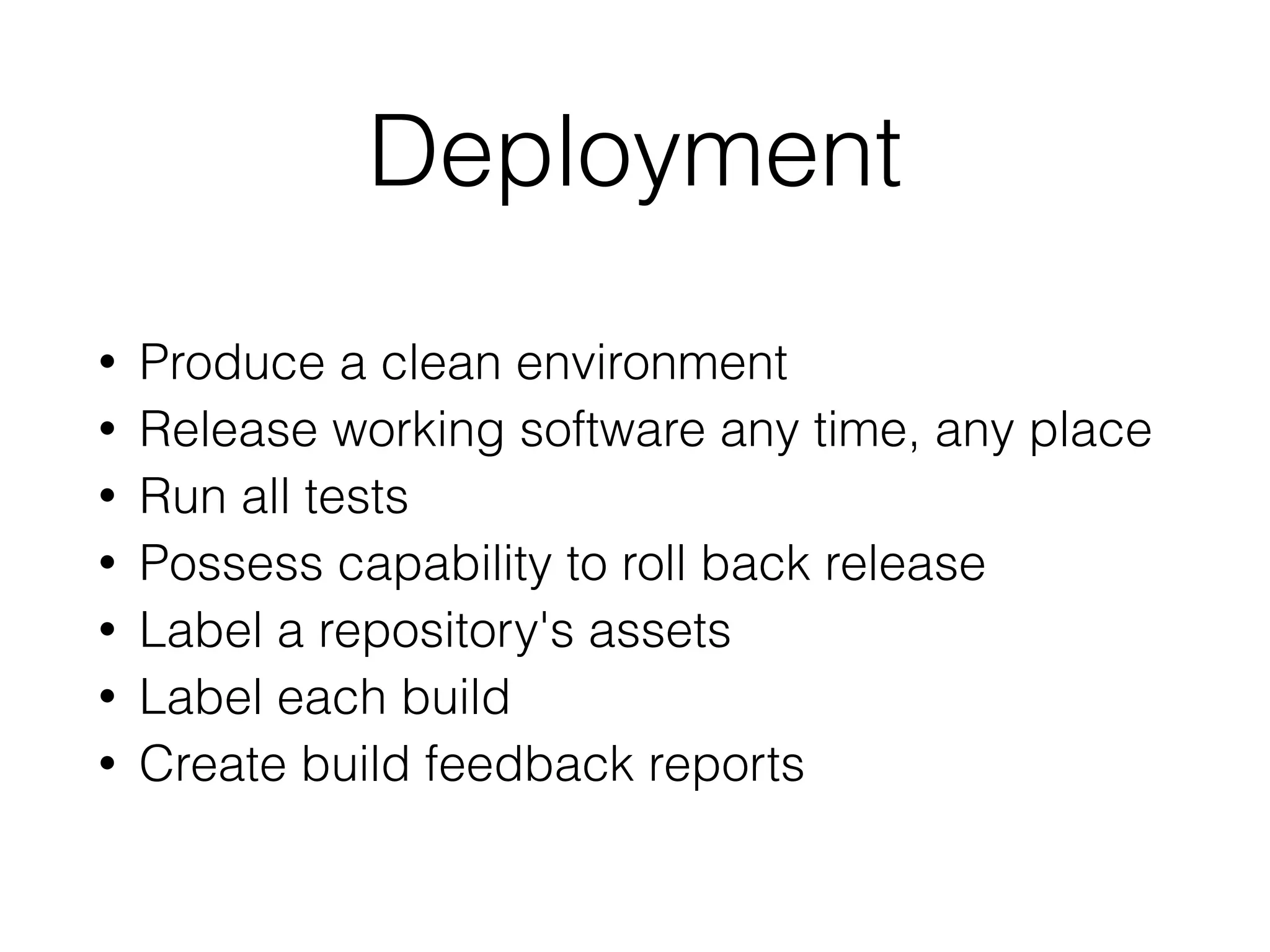

13. Deployment
• Produce a clean environment
• Release working software any time, any place
• Run all tests
• Possess capability to roll back release
• Label a repository's assets
• Label each build
• Create build feedback reports

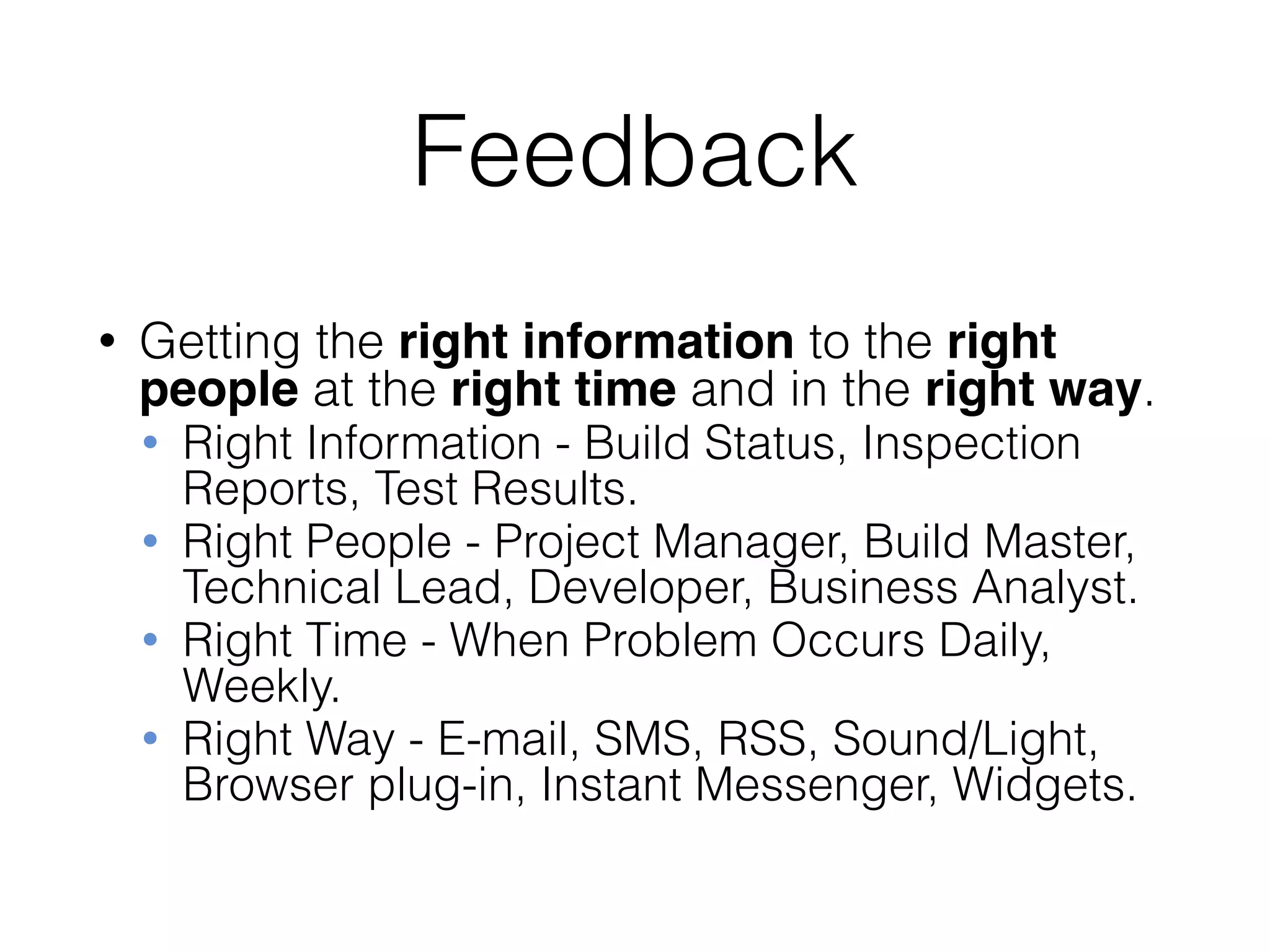

14. Feedback
• Getting the right information to the right
people at the right time and in the right way.
• Right Information - Build Status, Inspection
Reports, Test Results.
• Right People - Project Manager, Build Master,
Technical Lead, Developer, Business Analyst.
• Right Time - When Problem Occurs Daily,
Weekly.
• Right Way - E-mail, SMS, RSS, Sound/Light,
Browser plug-in, Instant Messenger, Widgets.

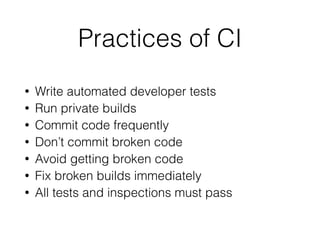

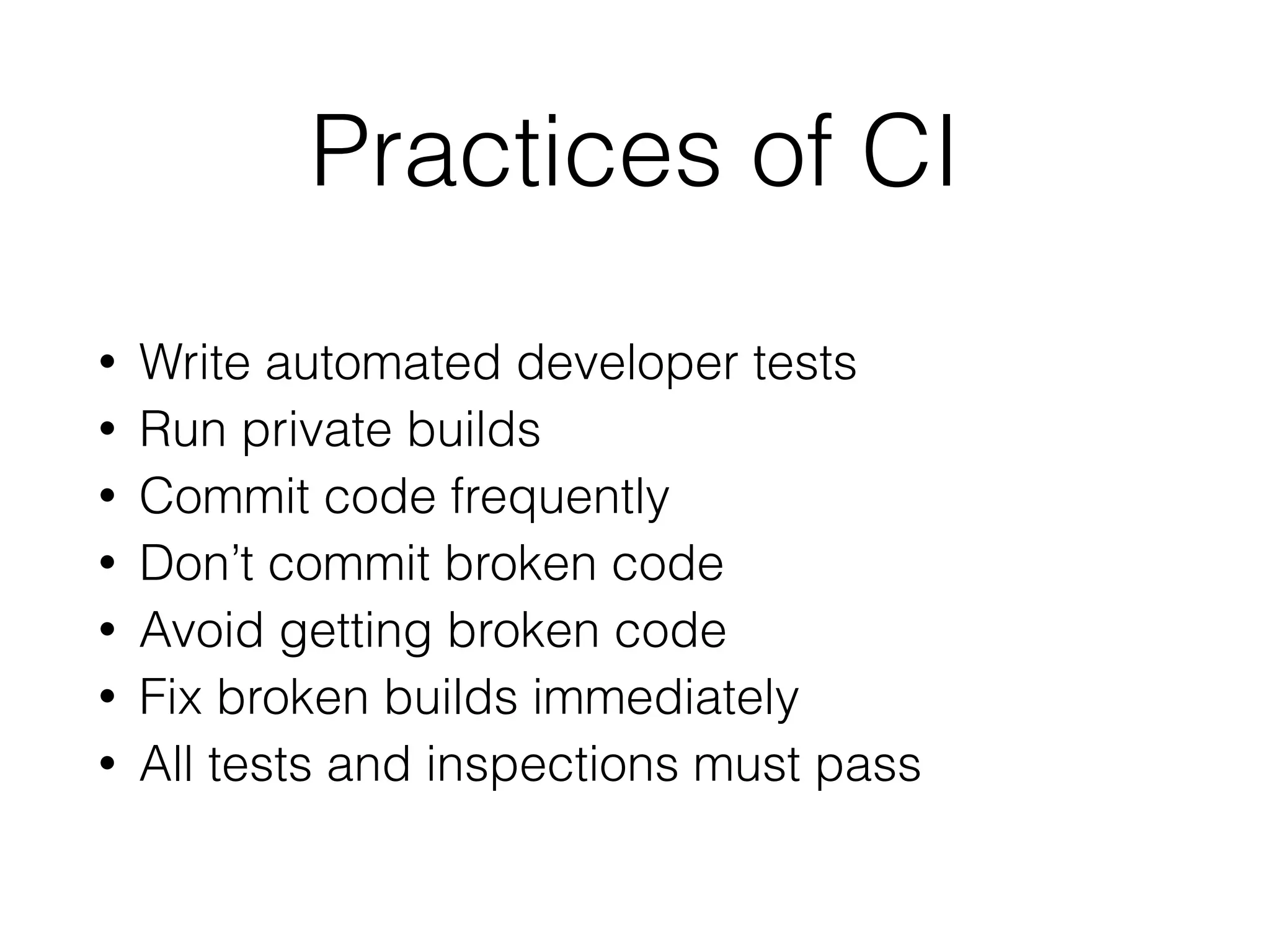

15. Practices of CI
• Write automated developer tests
• Run private builds
• Commit code frequently
• Don’t commit broken code
• Avoid getting broken code
• Fix broken builds immediately
• All tests and inspections must pass

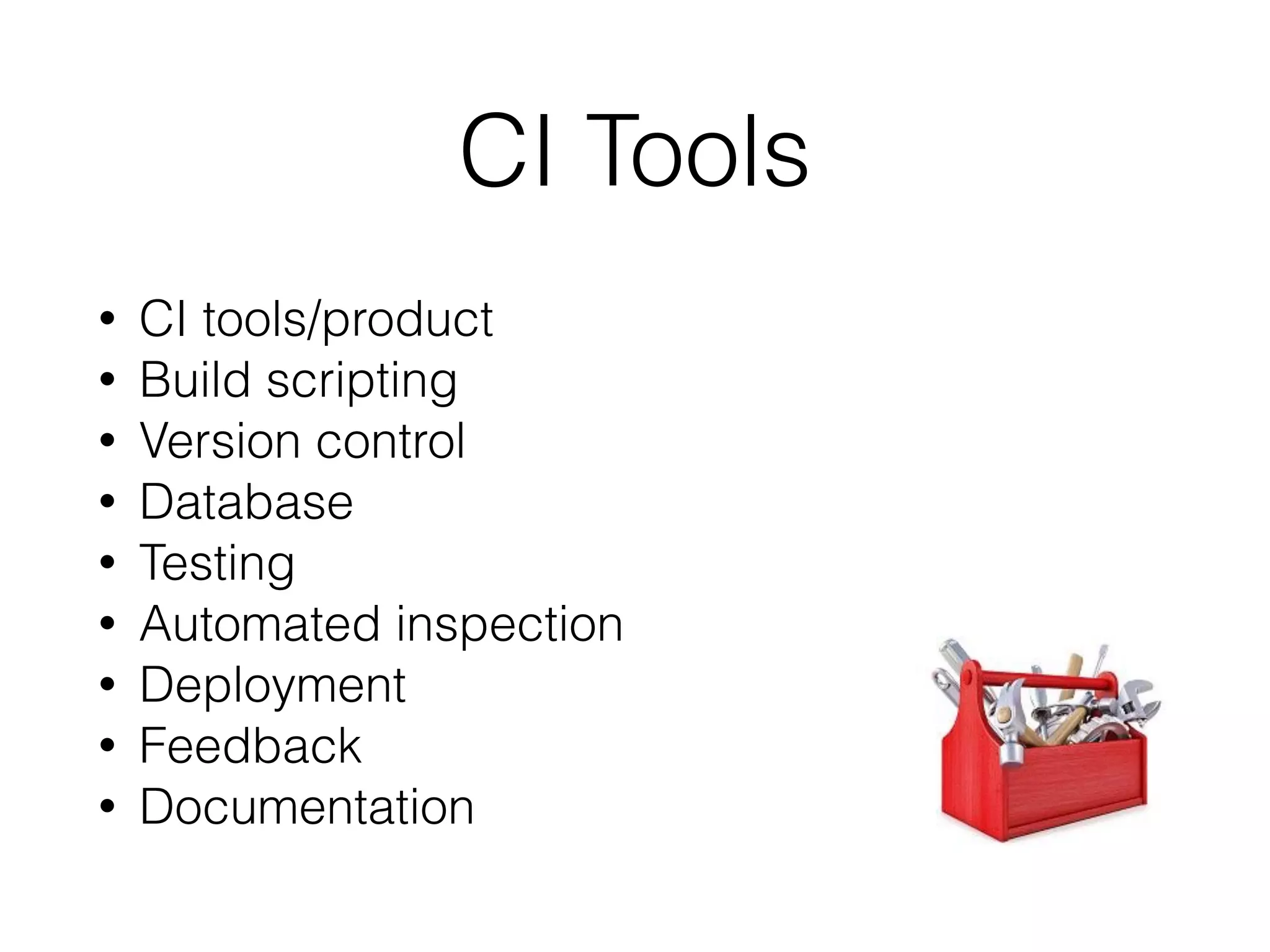

16. CI Tools
• CI tools/product
• Build scripting
• Version control
• Database
• Testing
• Automated inspection
• Deployment
• Feedback
• Documentation

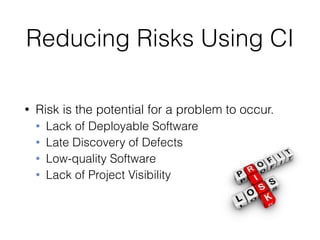

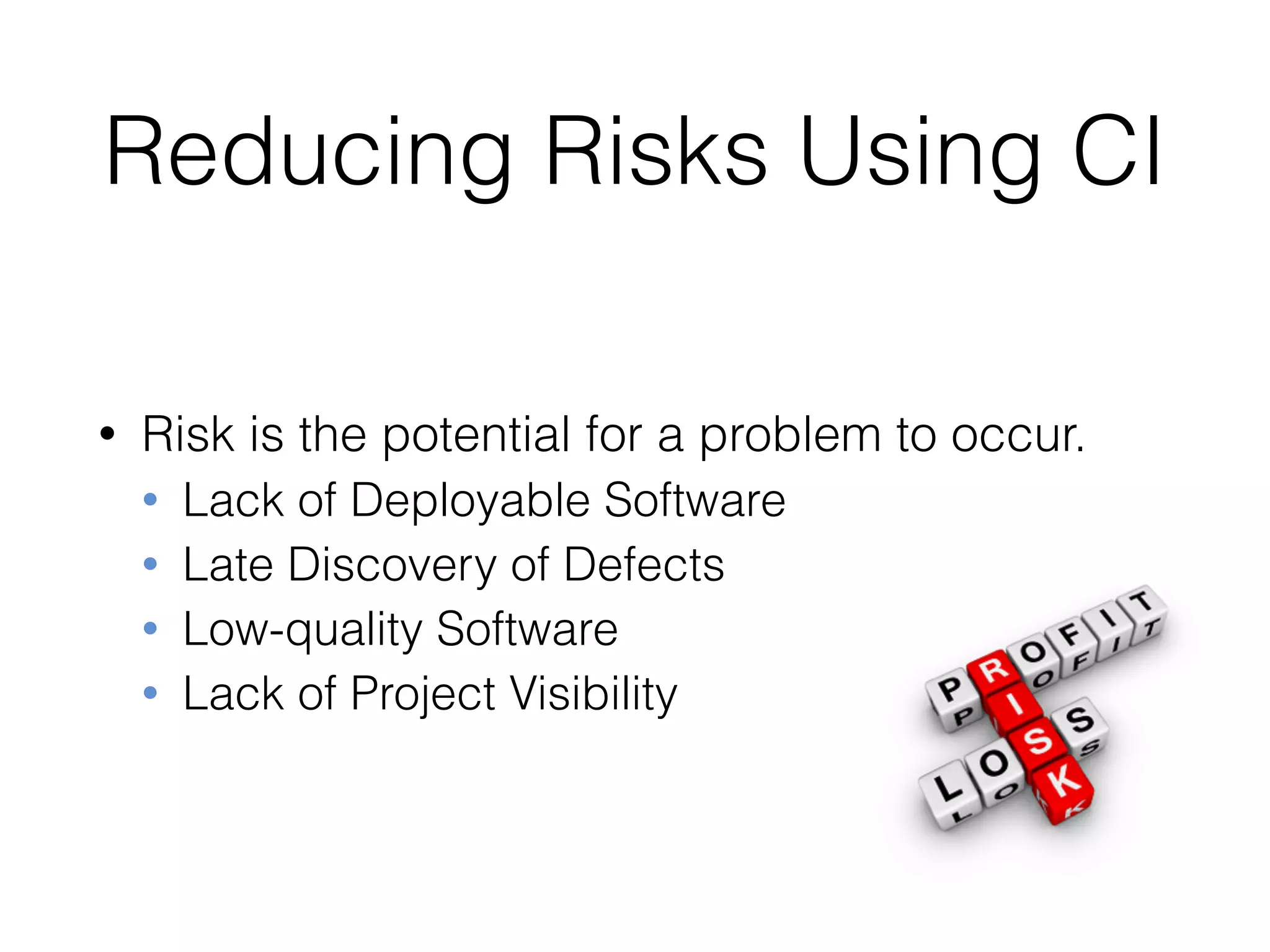

17. Reducing Risks Using CI
• Risk is the potential for a problem to occur.
• Lack of Deployable Software
• Late Discovery of Defects
• Low-quality Software
• Lack of Project Visibility

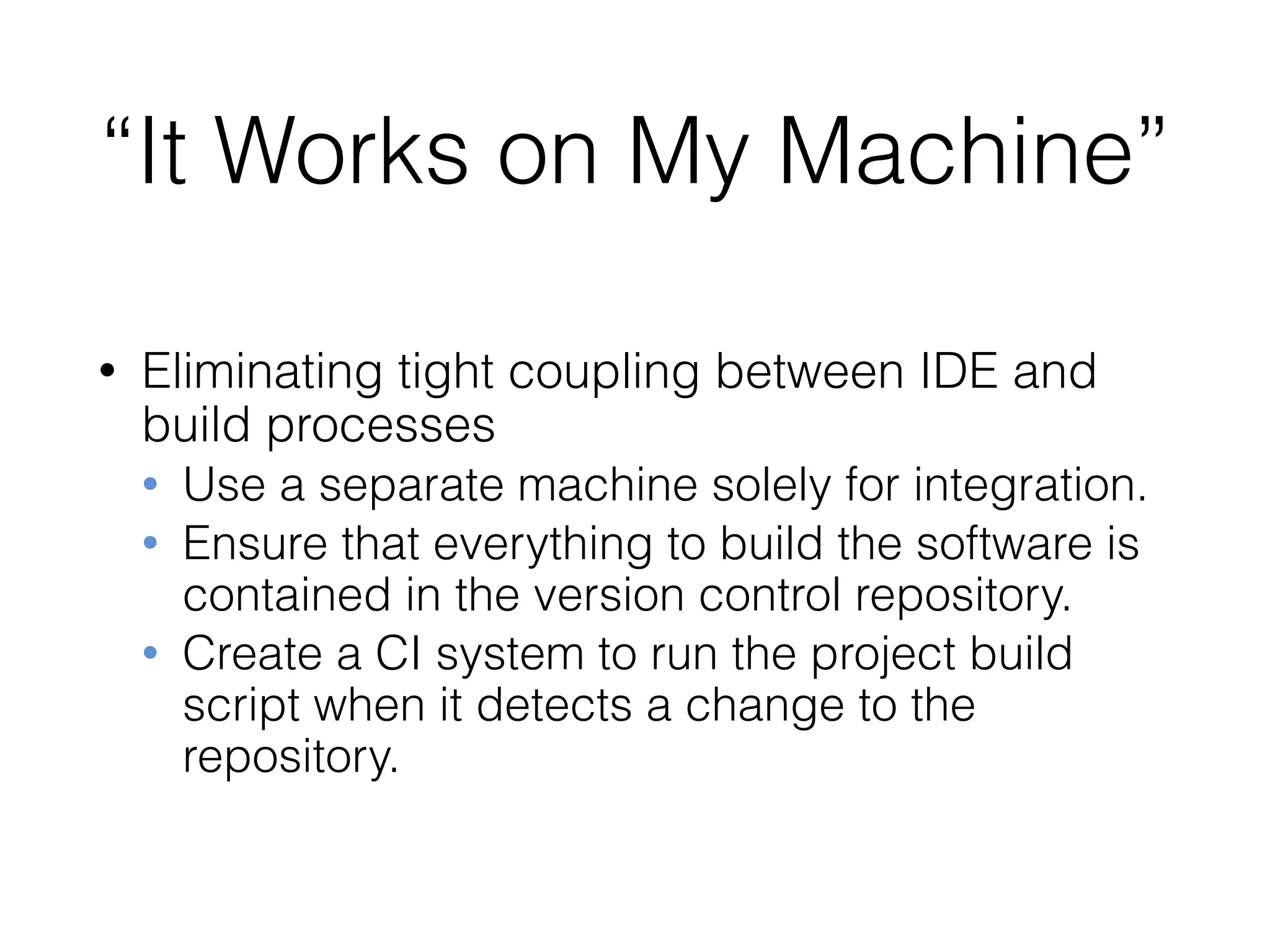

18. “It Works on My Machine”
• Eliminating tight coupling between IDE and
build processes
• Use a separate machine solely for integration.
• Ensure that everything to build the software is
contained in the version control repository.
• Create a CI system to run the project build
script when it detects a change to the
repository.

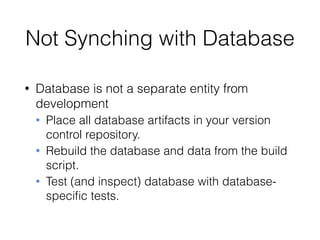

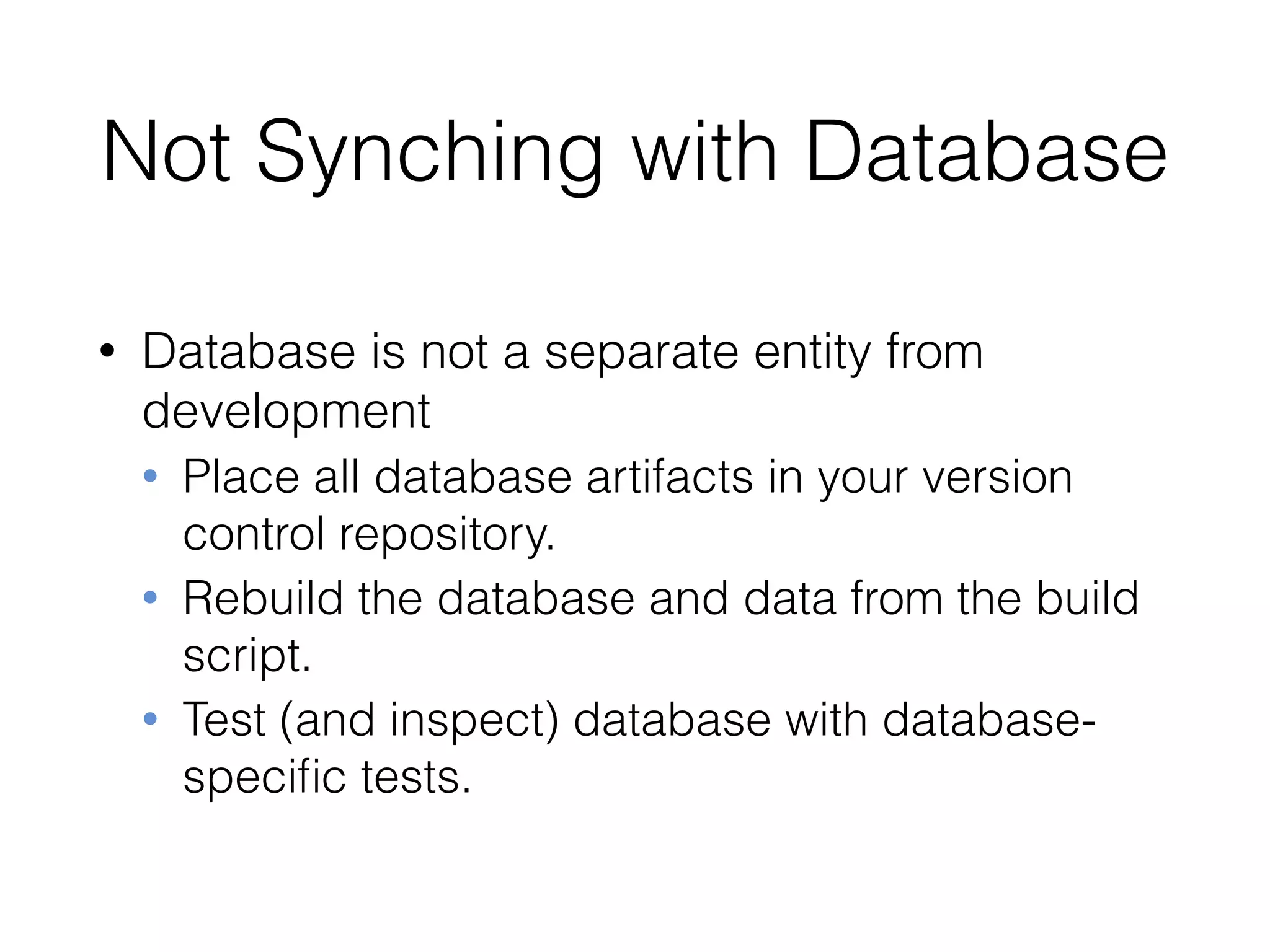

19. Not Synching with Database
• Database is not a separate entity from
development
• Place all database artifacts in your version
control repository.
• Rebuild the database and data from the build
script.
• Test (and inspect) database with database-
specific tests.

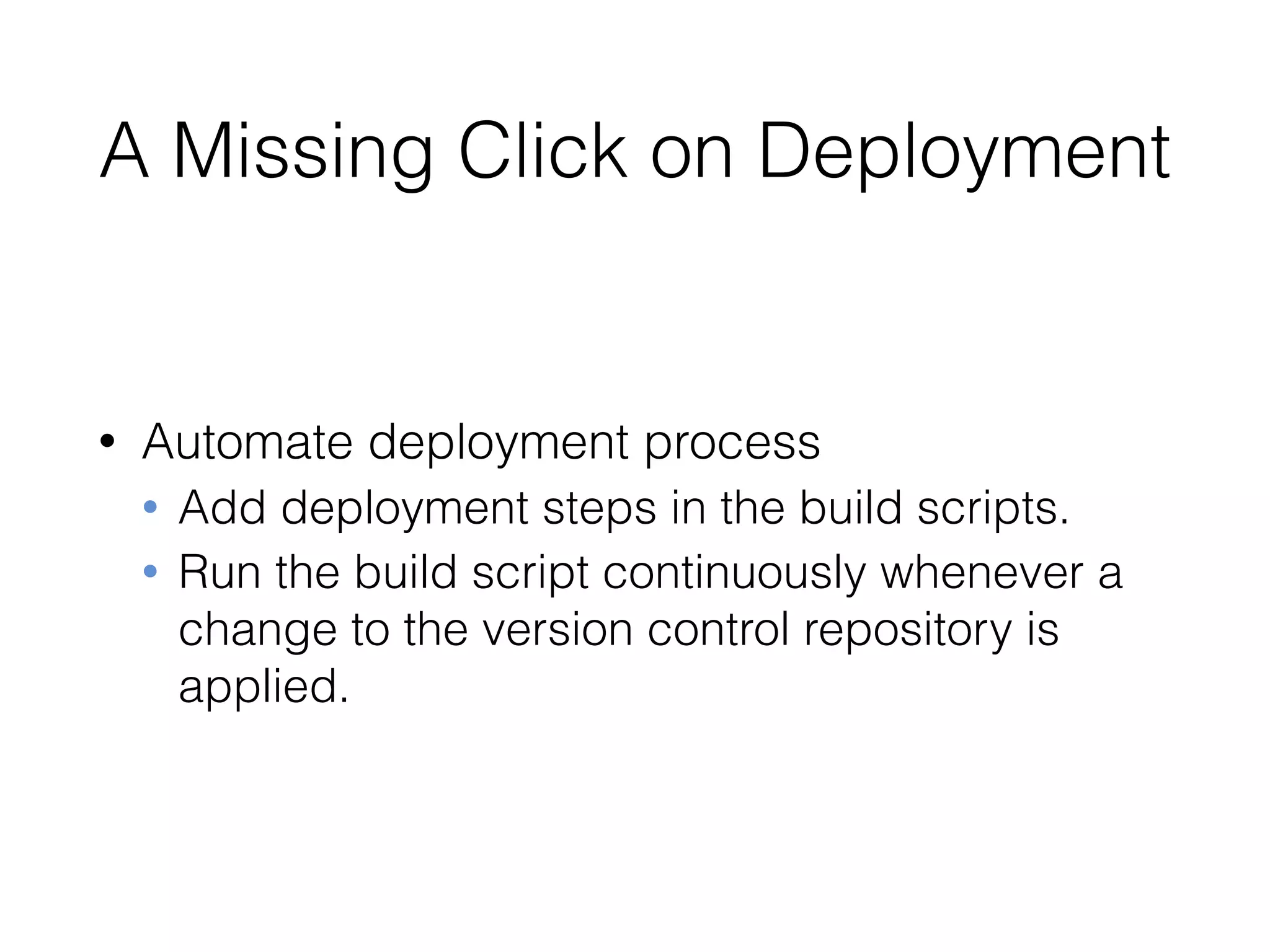

20. A Missing Click on Deployment
• Automate deployment process
• Add deployment steps in the build scripts.
• Run the build script continuously whenever a
change to the version control repository is
applied.

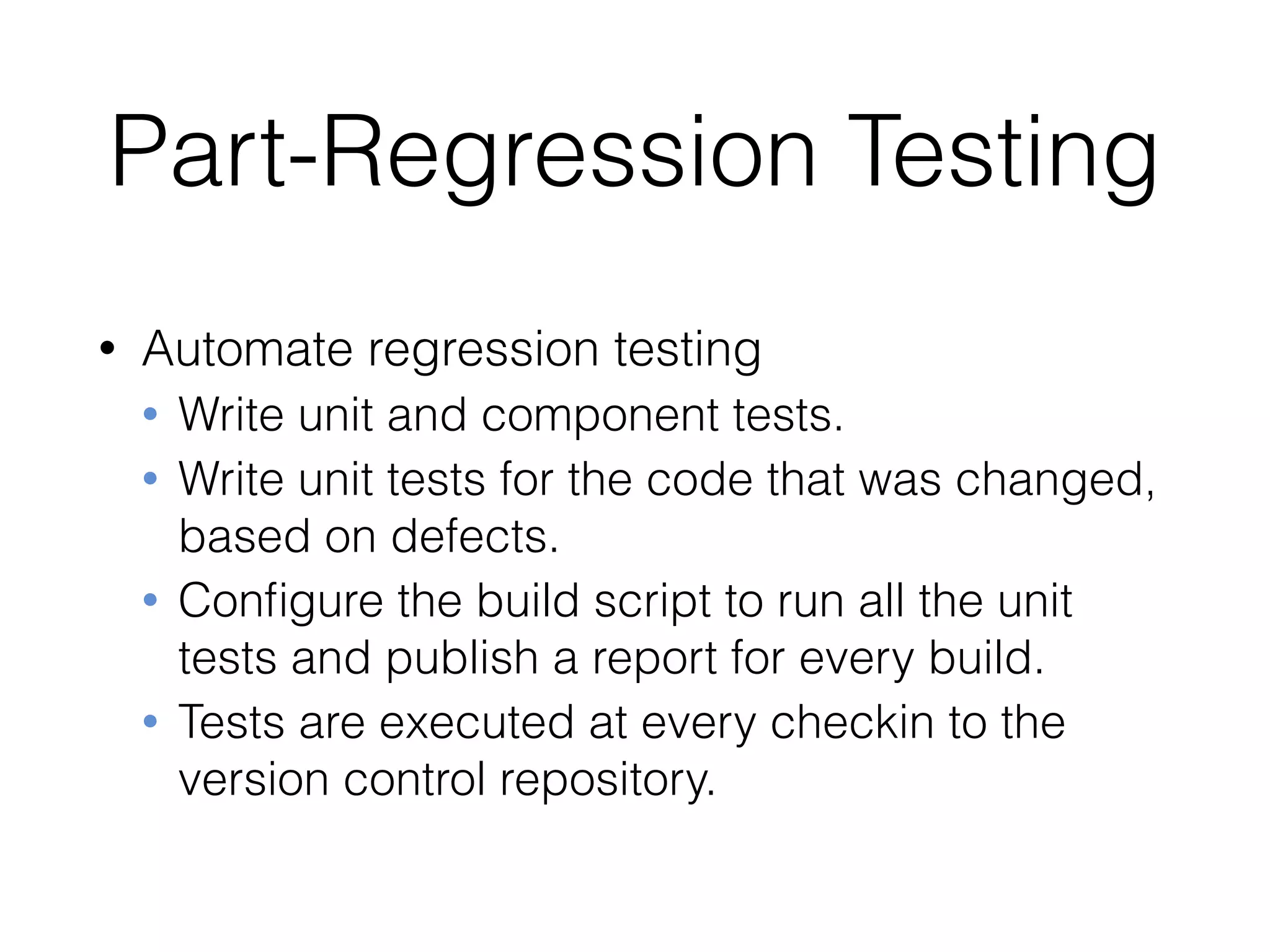

21. Part-Regression Testing
• Automate regression testing
• Write unit and component tests.
• Write unit tests for the code that was changed,
based on defects.
• Configure the build script to run all the unit
tests and publish a report for every build.
• Tests are executed at every checkin to the
version control repository.

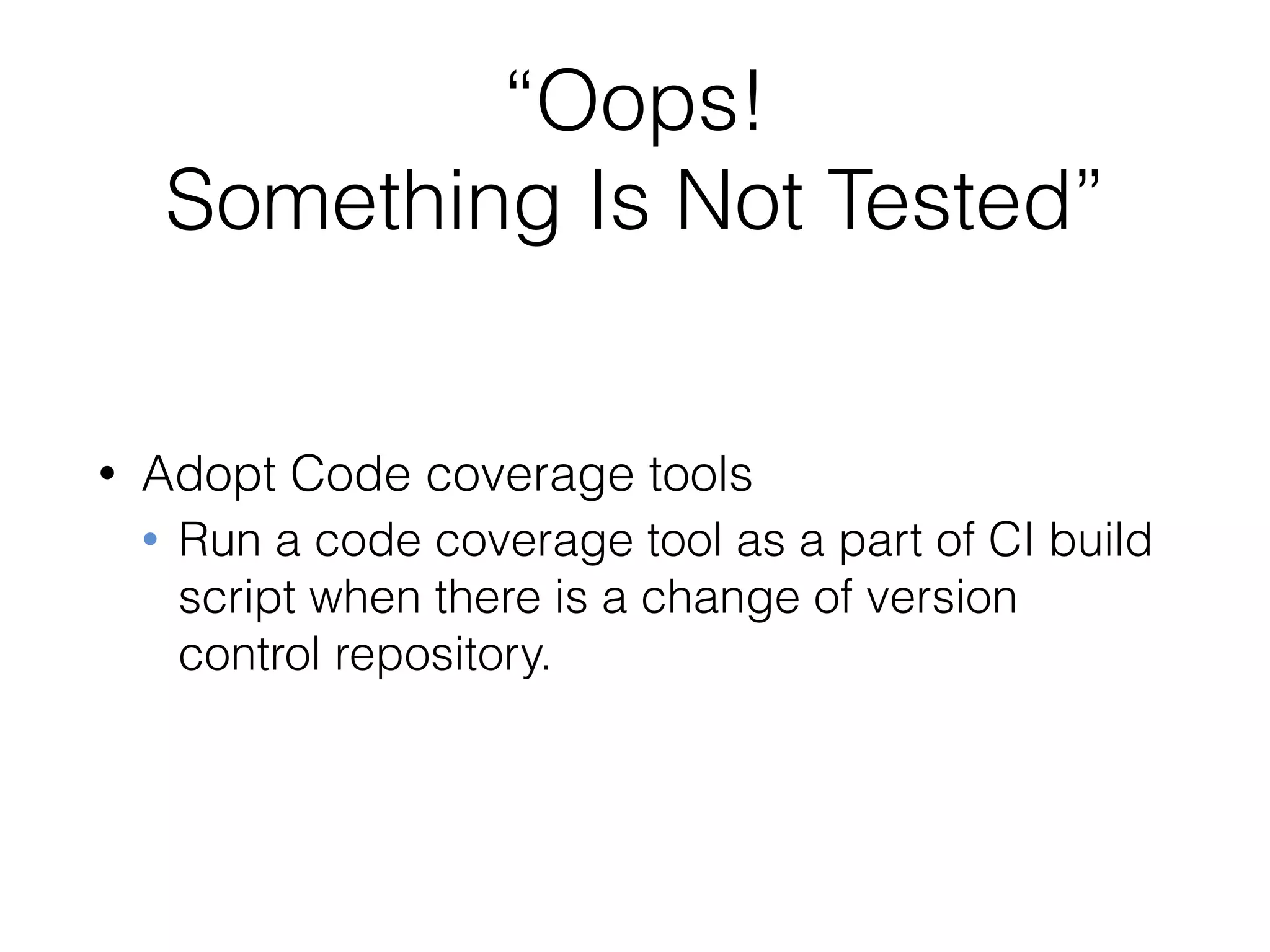

22. “Oops!
Something Is Not Tested”
• Adopt Code coverage tools
• Run a code coverage tool as a part of CI build
script when there is a change of version
control repository.

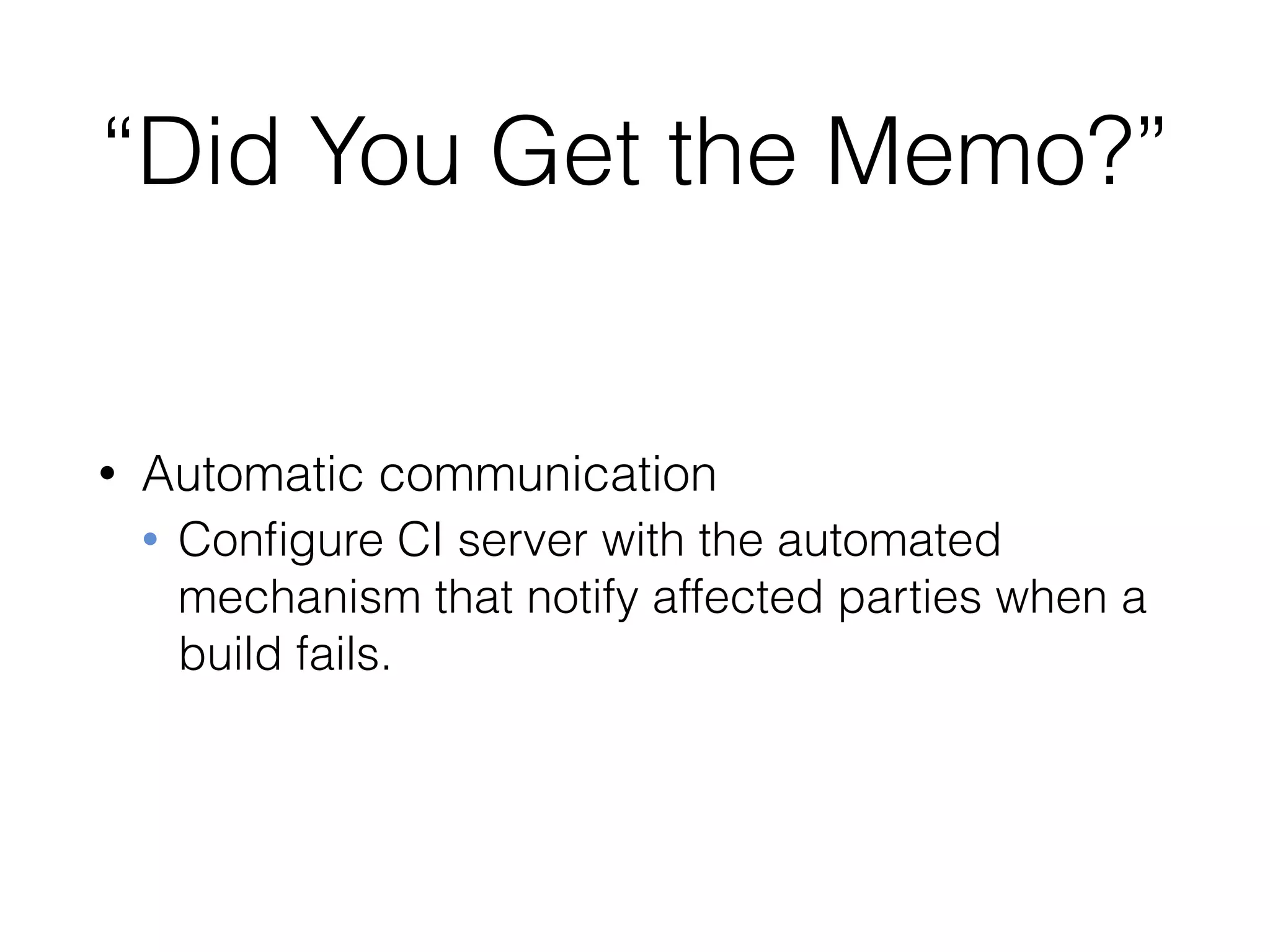

23. “Did You Get the Memo?”
• Automatic communication
• Configure CI server with the automated
mechanism that notify affected parties when a
build fails.

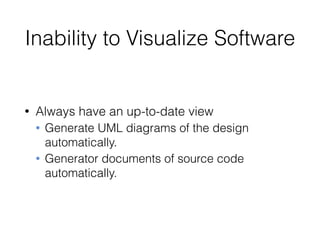

24. Inability to Visualize Software
• Always have an up-to-date view
• Generate UML diagrams of the design
automatically.
• Generator documents of source code
automatically.

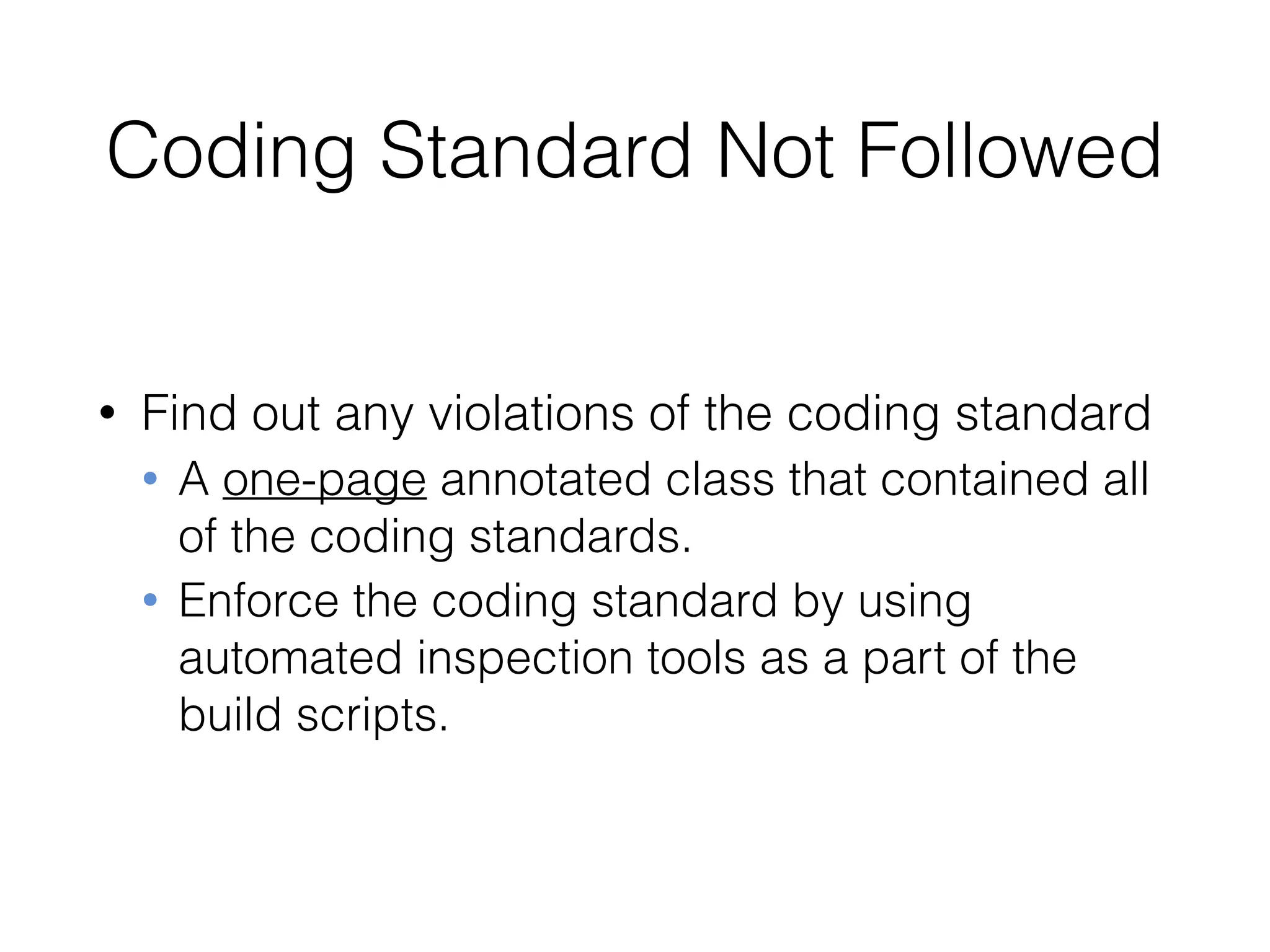

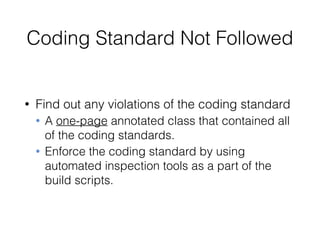

25. Coding Standard Not Followed
• Find out any violations of the coding standard
• A one-page annotated class that contained all
of the coding standards.
• Enforce the coding standard by using
automated inspection tools as a part of the
build scripts.

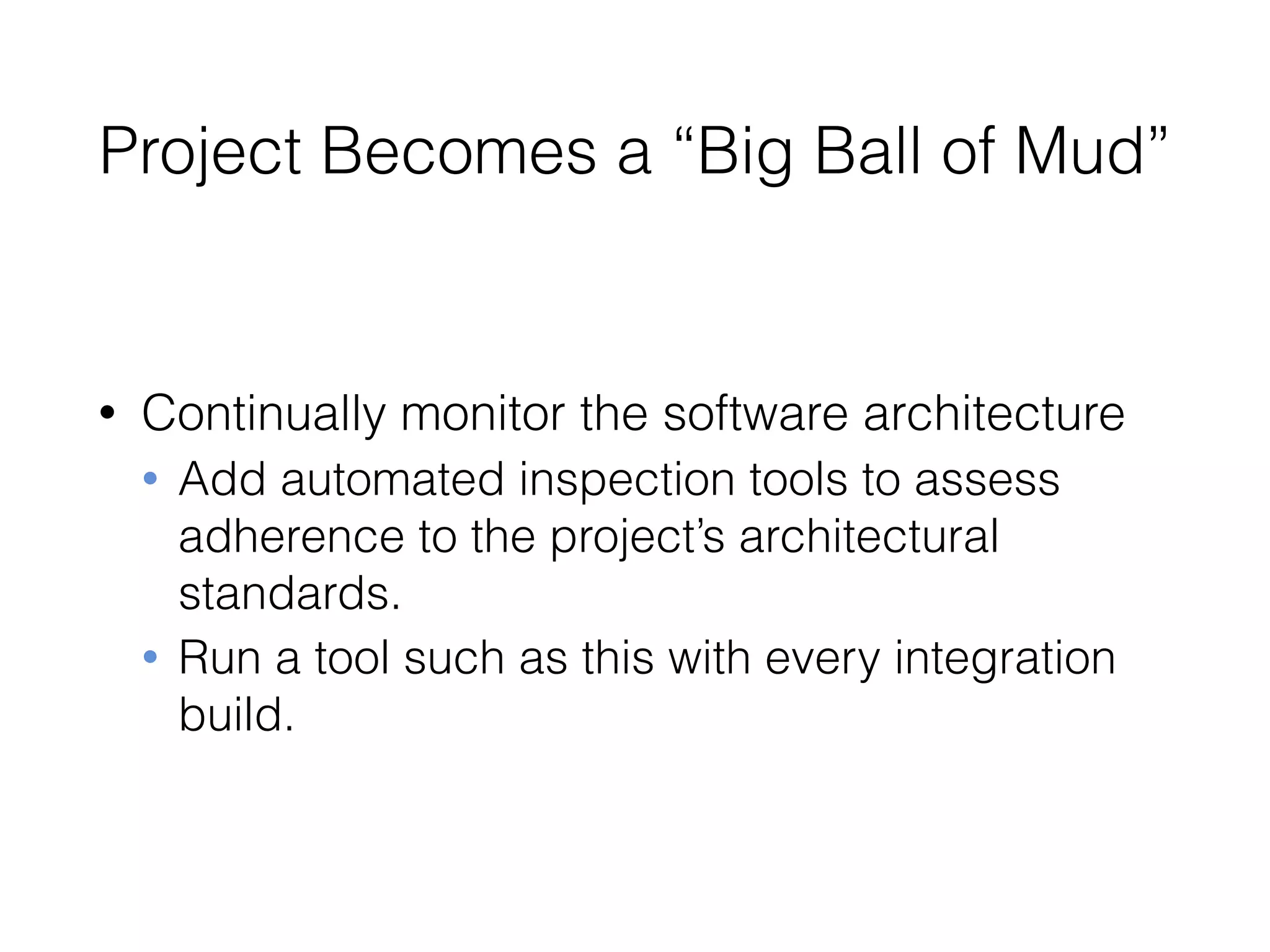

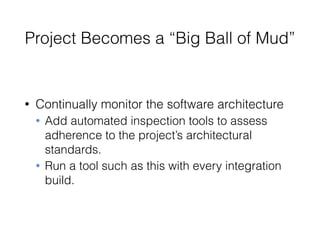

26. Project Becomes a “Big Ball of Mud”
• Continually monitor the software architecture
• Add automated inspection tools to assess
adherence to the project’s architectural
standards.
• Run a tool such as this with every integration
build.

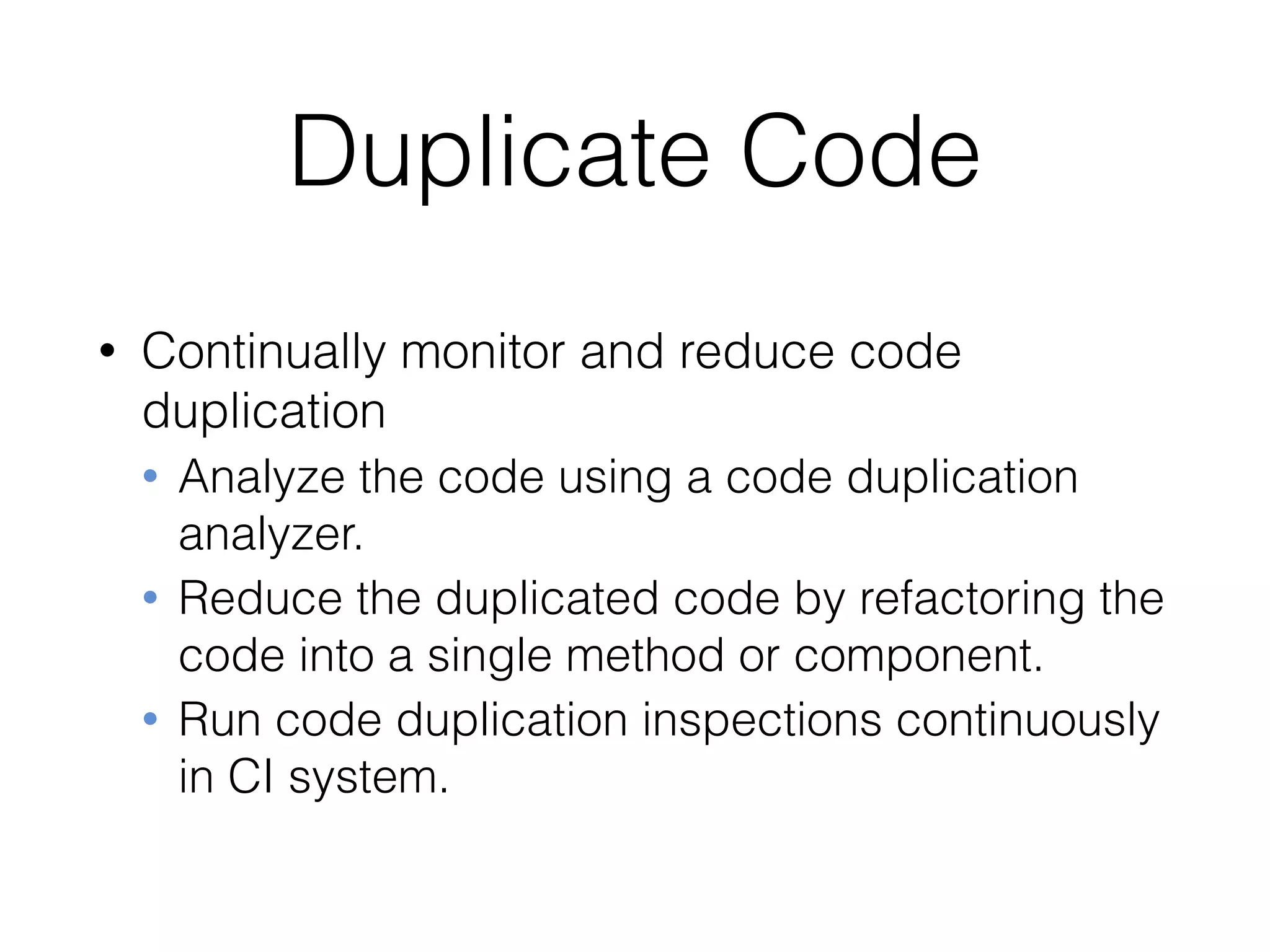

27. Duplicate Code
• Continually monitor and reduce code
duplication
• Analyze the code using a code duplication
analyzer.
• Reduce the duplicated code by refactoring the
code into a single method or component.
• Run code duplication inspections continuously
in CI system.

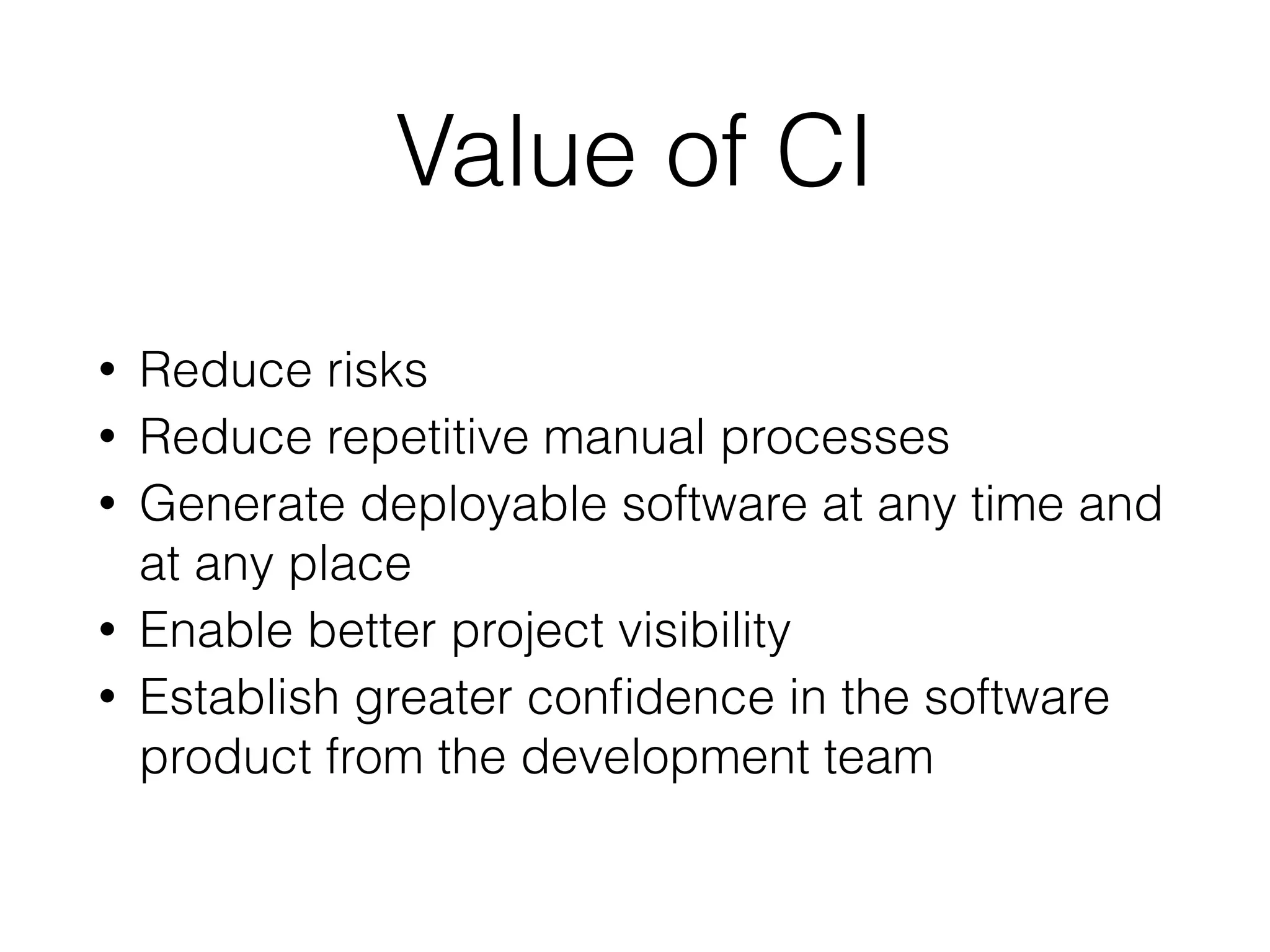

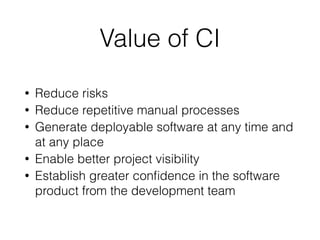

28. Value of CI
• Reduce risks
• Reduce repetitive manual processes
• Generate deployable software at any time and
at any place
• Enable better project visibility
• Establish greater confidence in the software
product from the development team
