This document discusses continuous delivery in an open source project. It begins with an introduction of the speaker and then discusses various tools used in the continuous delivery process like Travis CI for continuous integration. It outlines the build pipeline for the project including deploying to Bintray and updating GitHub pages. It also covers code quality tools like Codecov and promoting the project on the internet through blogs, conferences and other forums.

1. Continuous Delivery w
projekcie Open Source
Marcin Stachniuk
@MarcinStachniuk
mstachniuk.blogspot.com
DevCrowd 22.04.2017

2. O mnie
● Marcin Stachniuk
● Twitter: @MarcinStachniuk
● Blog: mstachniuk.blogspot.com
● WrocJUG
● Recenzent książki Practical Unit Testing
● Speker na konferencjach: 33rd degree 4
charity, dbconf.pl, warsjawa.pl,
devcrowd.pl, chamberconf.pl,
careercon.pl, itcareersummit.pl
● Mockito release tools team member
● Chorąży na ChamberConf

3. Java Web Start

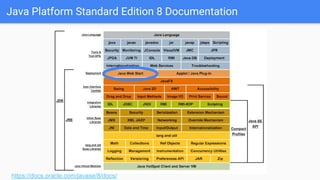

4. Java Platform Standard Edition 8 Documentation
https://docs.oracle.com/javase/8/docs/

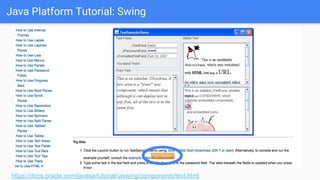

5. Java Platform Tutorial: Swing
https://docs.oracle.com/javase/tutorial/uiswing/components/text.html

6. Problem solution

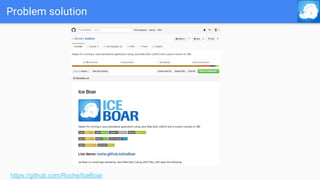

7. Problem solution
https://github.com/Roche/IceBoar

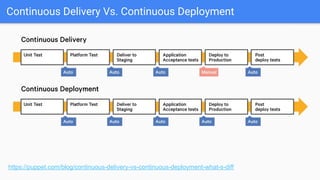

8. Continuous Delivery Vs. Continuous Deployment

9. Continuous Delivery Vs. Continuous Deployment
https://puppet.com/blog/continuous-delivery-vs-continuous-deployment-what-s-diff

10. Inspiration
JDD2014: Continuous Delivery: Capitalizing High Quality Automated Tests (Sz. Faber)
https://www.youtube.com/watch?v=Lda4RuQDQN0

11. Build Pipeline

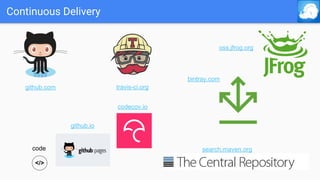

12. Continuous Delivery
</>

13. Continuous Delivery
</>
code
github.io
github.com travis-ci.org
codecov.io
bintray.com
oss.jfrog.org
search.maven.org

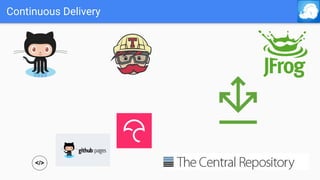

14. Continuous Delivery
</>

15. Continuous Delivery
</>
1 git push

16. Continuous Delivery
</>
1 git push
2 webhook
build

17. Continuous Delivery
</>
1 git push
2 webhook
build
3 deploy
release
snapshot

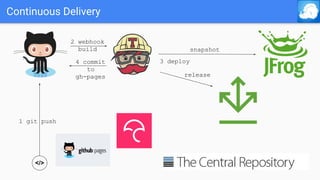

18. Continuous Delivery
</>
1 git push
2 webhook
build
3 deploy
release
snapshot
4 commit
to
gh-pages

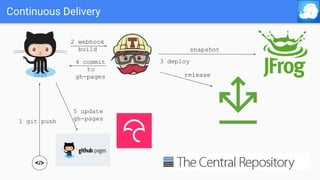

19. Continuous Delivery
</>
1 git push
2 webhook
build
3 deploy
release
snapshot
4 commit
to
gh-pages
5 update
gh-pages

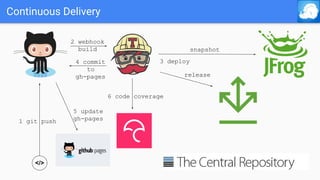

20. Continuous Delivery
</>
1 git push
2 webhook
build
3 deploy
release
snapshot
6 code coverage
4 commit
to
gh-pages
5 update
gh-pages

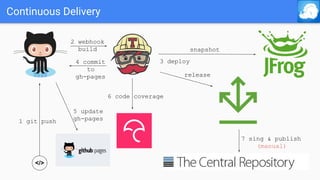

21. Continuous Delivery
</>
1 git push
2 webhook
build
3 deploy
release
snapshot
6 code coverage
7 sing & publish
(manual)
4 commit
to
gh-pages
5 update
gh-pages

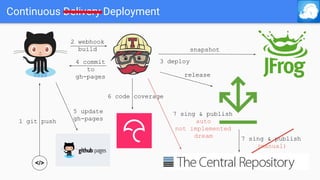

22. Continuous Delivery Deployment
</>
1 git push
2 webhook
build
3 deploy
release
snapshot
6 code coverage
7 sing & publish
(manual)
4 commit
to
gh-pages
5 update
gh-pages
7 sing & publish
auto
not implemented
dream

23. Continuous Integration

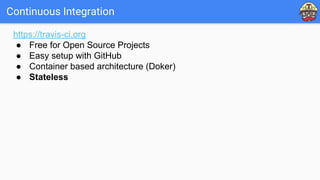

24. Continuous Integration
https://travis-ci.org
● Free for Open Source Projects
● Easy setup with GitHub
● Container based architecture (Doker)
● Stateless

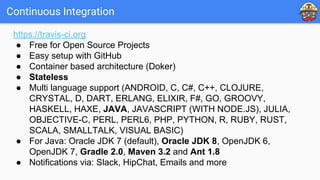

25. Continuous Integration
https://travis-ci.org
● Free for Open Source Projects
● Easy setup with GitHub
● Container based architecture (Doker)
● Stateless
● Multi language support (ANDROID, C, C#, C++, CLOJURE,
CRYSTAL, D, DART, ERLANG, ELIXIR, F#, GO, GROOVY,
HASKELL, HAXE, JAVA, JAVASCRIPT (WITH NODE.JS), JULIA,
OBJECTIVE-C, PERL, PERL6, PHP, PYTHON, R, RUBY, RUST,
SCALA, SMALLTALK, VISUAL BASIC)
● For Java: Oracle JDK 7 (default), Oracle JDK 8, OpenJDK 6,
OpenJDK 7, Gradle 2.0, Maven 3.2 and Ant 1.8
● Notifications via: Slack, HipChat, Emails and more

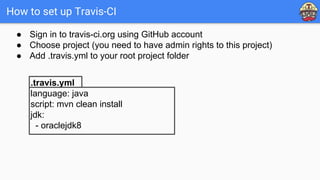

26. How to set up Travis-CI
.travis.yml
language: java
script: mvn clean install
jdk:
- oraclejdk8
● Sign in to travis-ci.org using GitHub account
● Choose project (you need to have admin rights to this project)
● Add .travis.yml to your root project folder

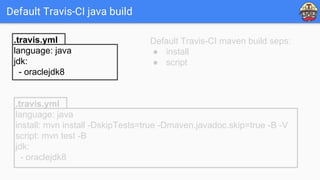

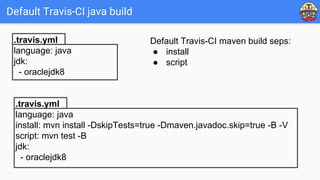

27. Default Travis-CI java build
.travis.yml
language: java
jdk:
- oraclejdk8
.travis.yml
language: java
install: mvn install -DskipTests=true -Dmaven.javadoc.skip=true -B -V
script: mvn test -B
jdk:
- oraclejdk8
Default Travis-CI maven build seps:
● install
● script

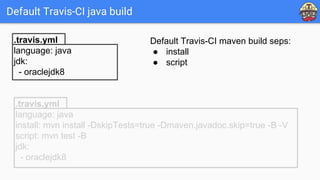

28. Default Travis-CI java build
.travis.yml
language: java
jdk:
- oraclejdk8
.travis.yml
language: java
install: mvn install -DskipTests=true -Dmaven.javadoc.skip=true -B -V
script: mvn test -B
jdk:
- oraclejdk8
Default Travis-CI maven build seps:
● install
● script

29. Default Travis-CI java build
.travis.yml
language: java
jdk:
- oraclejdk8
.travis.yml
language: java
install: mvn install -DskipTests=true -Dmaven.javadoc.skip=true -B -V
script: mvn test -B
jdk:
- oraclejdk8
Default Travis-CI maven build seps:
● install
● script

30. Store sensitive data (passwords) on travis-ci
<settings ...>
<servers>
<server>
<id>bintray-stachnim-IceBoar</id>
<username>${env.CI_DEPLOY_USERNAME}</username>
<password>${env.CI_DEPLOY_PASSWORD}</password>
</server>
settings.xml

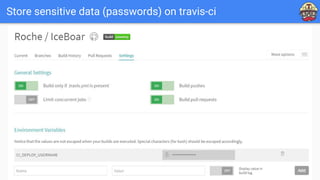

31. Store sensitive data (passwords) on travis-ci

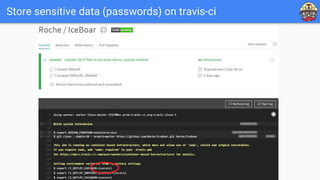

32. Store sensitive data (passwords) on travis-ci

33. Current IceBoar Build in nutshell
#!/bin/bash
set -ev
if [ "${TRAVIS_PULL_REQUEST}" = "false" ];
then
cd ice-boar && mvn clean deploy --settings …
else
cd ice-boar && mvn clean install && ...
fi
build-travis.sh
language: java
script: ./build-travis.sh
jdk:
- oraclejdk8
.travis.yml

34. Continuous Delivery

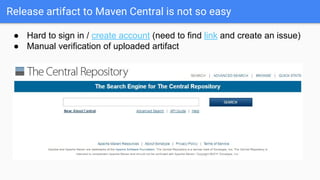

35. Release artifact to Maven Central is not so easy
● Hard to sign in / create account (need to find link and create an issue)
● Manual verification of uploaded artifact

36. Release artifact to Maven Central is not so easy
Complicated Requirements:
● Supply Javadoc and Sources
● Sign Files with GPG/PGP
● Sufficient Metadata (pom file)
● Correct Coordinates (groupId, artifactId, version)
● Project Name, Description and URL
● License Information
● Developer Information
● SCM Information

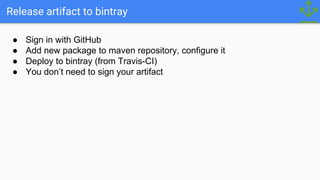

37. Release artifact to bintray
● Sign in with GitHub
● Add new package to maven repository, configure it
● Deploy to bintray (from Travis-CI)
● You don’t need to sign your artifact

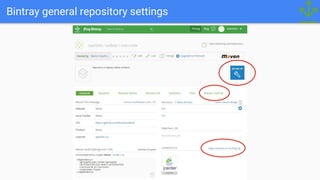

38. Bintray general repository settings

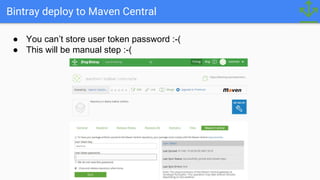

39. Bintray deploy to Maven Central
● You can’t store user token password :-(
● This will be manual step :-(

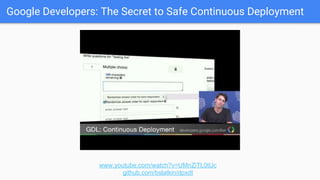

40. Google Developers: The Secret to Safe Continuous Deployment
www.youtube.com/watch?v=UMnZiTL0tUc
github.com/bslatkin/dpxdt

41. Code Quality

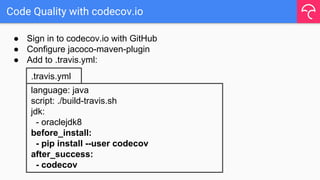

42. Code Quality with codecov.io
● Sign in to codecov.io with GitHub
● Configure jacoco-maven-plugin
● Add to .travis.yml:
language: java
script: ./build-travis.sh
jdk:
- oraclejdk8
before_install:
- pip install --user codecov
after_success:
- codecov
.travis.yml

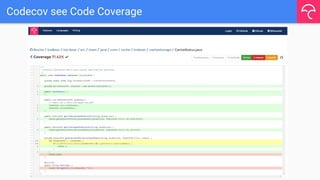

43. Codecov see Code Coverage

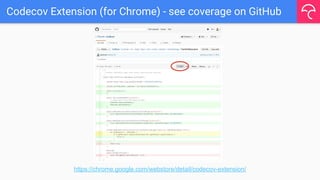

44. Codecov Extension (for Chrome) - see coverage on GitHub
https://chrome.google.com/webstore/detail/codecov-extension/

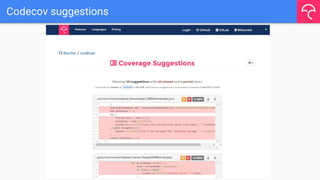

45. Codecov suggestions

46. IceBoar build in details

47. IceBoar project structure in details
Roche/IceBoar pom.xml (project name: ice-boar-build)
ice-boar (without reference to parent pom)
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing

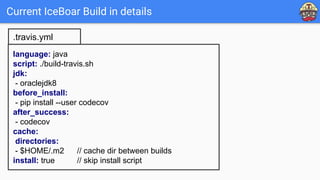

48. Current IceBoar Build in details
language: java
script: ./build-travis.sh
jdk:
- oraclejdk8
before_install:
- pip install --user codecov
after_success:
- codecov
cache:
directories:
- $HOME/.m2 // cache dir between builds
install: true // skip install script
.travis.yml

49. Current IceBoar Build in details
#!/bin/bash
set -ev
if [ "${TRAVIS_PULL_REQUEST}" = "false" ]; then
...
else
cd ice-boar
mvn clean install
cd ..
mvn clean install -U
fi
build-travis.sh
set -ev
-e fail fast
-v print all lines in
the script before
executing them

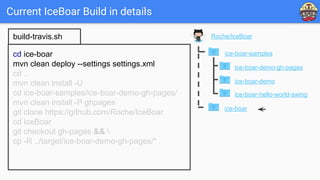

50. Current IceBoar Build in details
cd ice-boar
mvn clean deploy --settings settings.xml
cd ..
mvn clean install -U
cd ice-boar-samples/ice-boar-demo-gh-pages/
mvn clean install -P ghpages
git clone https://github.com/Roche/IceBoar
cd IceBoar
git checkout gh-pages &&
cp -R ../target/ice-boar-demo-gh-pages/* .
build-travis.sh Roche/IceBoar
ice-boar
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing

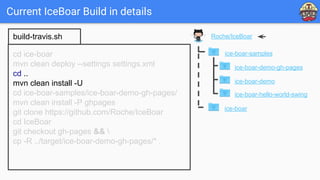

51. Current IceBoar Build in details
cd ice-boar
mvn clean deploy --settings settings.xml
cd ..
mvn clean install -U
cd ice-boar-samples/ice-boar-demo-gh-pages/
mvn clean install -P ghpages
git clone https://github.com/Roche/IceBoar
cd IceBoar
git checkout gh-pages &&
cp -R ../target/ice-boar-demo-gh-pages/* .
build-travis.sh Roche/IceBoar
ice-boar
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing

52. Current IceBoar Build in details
cd ice-boar
mvn clean deploy --settings settings.xml
cd ..
mvn clean install -U
cd ice-boar-samples/ice-boar-demo-gh-pages/
mvn clean install -P ghpages
git clone https://github.com/Roche/IceBoar
cd IceBoar
git checkout gh-pages &&
cp -R ../target/ice-boar-demo-gh-pages/* .
build-travis.sh Roche/IceBoar
ice-boar
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing

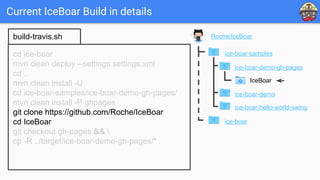

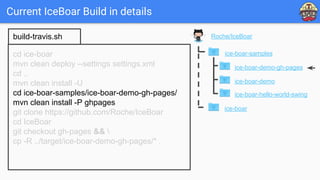

53. Current IceBoar Build in details
cd ice-boar
mvn clean deploy --settings settings.xml
cd ..
mvn clean install -U
cd ice-boar-samples/ice-boar-demo-gh-pages/
mvn clean install -P ghpages
git clone https://github.com/Roche/IceBoar
cd IceBoar
git checkout gh-pages &&
cp -R ../target/ice-boar-demo-gh-pages/* .
build-travis.sh Roche/IceBoar
ice-boar
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing
IceBoar

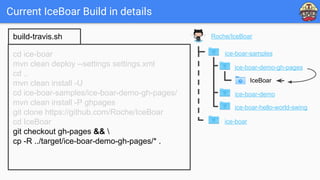

54. Current IceBoar Build in details
cd ice-boar
mvn clean deploy --settings settings.xml
cd ..
mvn clean install -U
cd ice-boar-samples/ice-boar-demo-gh-pages/
mvn clean install -P ghpages
git clone https://github.com/Roche/IceBoar
cd IceBoar
git checkout gh-pages &&
cp -R ../target/ice-boar-demo-gh-pages/* .
build-travis.sh Roche/IceBoar
ice-boar
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing
IceBoar

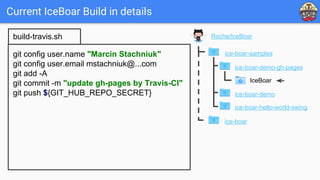

55. Current IceBoar Build in details
git config user.name "Marcin Stachniuk"
git config user.email mstachniuk@...com
git add -A
git commit -m "update gh-pages by Travis-CI"
git push ${GIT_HUB_REPO_SECRET}
build-travis.sh Roche/IceBoar
ice-boar
ice-boar-samples
ice-boar-demo-gh-pages
ice-boar-demo
ice-boar-hello-world-swing
IceBoar

56. Nice badges

57. Nice badges
shields.io

58. Promotion in the
Internet

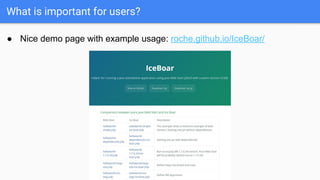

59. What is important for users?
● Nice demo page with example usage: roche.github.io/IceBoar/

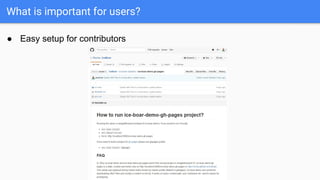

60. What is important for users?
● Easy setup for contributors

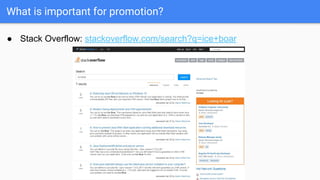

61. What is important for promotion?
● Stack Overflow: stackoverflow.com/search?q=ice+boar

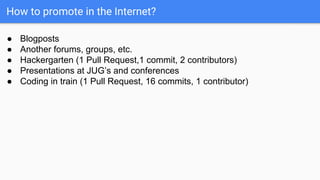

62. How to promote in the Internet?
● Blogposts
● Another forums, groups, etc.
● Hackergarten (1 Pull Request,1 commit, 2 contributors)
● Presentations at JUG’s and conferences
● Coding in train (1 Pull Request, 16 commits, 1 contributor)

63. Alternatives

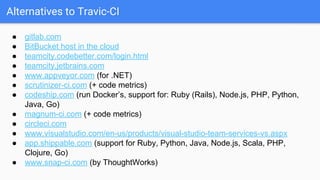

64. Alternatives to Travic-CI
● gitlab.com
● BitBucket host in the cloud
● teamcity.codebetter.com/login.html
● teamcity.jetbrains.com
● www.appveyor.com (for .NET)
● scrutinizer-ci.com (+ code metrics)
● codeship.com (run Docker’s, support for: Ruby (Rails), Node.js, PHP, Python,
Java, Go)
● magnum-ci.com (+ code metrics)
● circleci.com
● www.visualstudio.com/en-us/products/visual-studio-team-services-vs.aspx
● app.shippable.com (support for Ruby, Python, Java, Node.js, Scala, PHP,
Clojure, Go)
● www.snap-ci.com (by ThoughtWorks)

65. Alternatives for codecov.io
● coveralls.io
● nemo.sonarqube.org (BETA - need to write an e-mail on e-mail list for account)
● sonar.qatools.ru
● coverity.com (for: C, C++, C#, Java)
● www.codacy.com (for Scala, Ruby, Java, JavaScript, Python, Php)

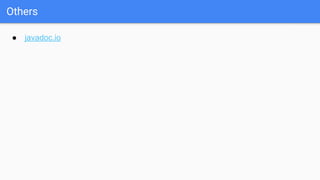

66. Others
● javadoc.io

67. Bonus

68. LuxLekarz - LuxMed + ZnanyLekarz
github.com/mstachniuk/LuxLekarz

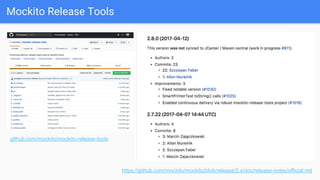

69. Mockito Release Tools
github.com/mockito/mockito-release-tools
https://github.com/mockito/mockito/blob/release/2.x/doc/release-notes/official.md

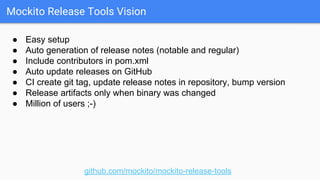

70. Mockito Release Tools Vision
github.com/mockito/mockito-release-tools
● Easy setup
● Auto generation of release notes (notable and regular)
● Include contributors in pom.xml
● Auto update releases on GitHub
● CI create git tag, update release notes in repository, bump version
● Release artifacts only when binary was changed
● Million of users ;-)

71. Questions
?

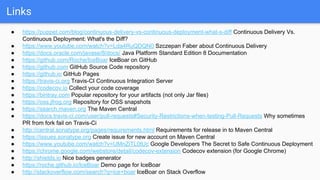

72. Links
● https://puppet.com/blog/continuous-delivery-vs-continuous-deployment-what-s-diff Continuous Delivery Vs.
Continuous Deployment: What's the Diff?
● https://www.youtube.com/watch?v=Lda4RuQDQN0 Szczepan Faber about Continuous Delivery
● https://docs.oracle.com/javase/8/docs/ Java Platform Standard Edition 8 Documentation
● https://github.com/Roche/IceBoar IceBoar on GitHub
● https://github.com GitHub Source Code repository
● https://github.io GitHub Pages
● https://travis-ci.org Travis-CI Continuous Integration Server
● https://codecov.io Collect your code coverage
● https://bintray.com Popular repository for your artifacts (not only Jar files)
● https://oss.jfrog.org Repository for OSS snapshots
● https://search.maven.org The Maven Central
● https://docs.travis-ci.com/user/pull-requests#Security-Restrictions-when-testing-Pull-Requests Why sometimes
PR from fork fail on Travis-Ci
● http://central.sonatype.org/pages/requirements.html Requirements for release in to Maven Central
● https://issues.sonatype.org Create issue for new account on Maven Central
● https://www.youtube.com/watch?v=UMnZiTL0tUc Google Developers The Secret to Safe Continuous Deployment
● https://chrome.google.com/webstore/detail/codecov-extension Codecov extension (for Google Chrome)
● http://shields.io Nice badges generator
● https://roche.github.io/IceBoar Demo page for IceBoar
● http://stackoverflow.com/search?q=ice+boar IceBoar on Stack Overflow

73. Continuous Delivery w
projekcie Open Source
Marcin Stachniuk
@MarcinStachniuk
mstachniuk.blogspot.com
DevCrowd 22.04.2017 Dziękuję!
