How we integrate & deploy Mobile Apps with Travis CI

How we integrate & deploy
Mobile Apps with Travis CI
Marcio Klepacz, iOS Engineering @ GetYourGuide
CocoaHeads Berlin 2015

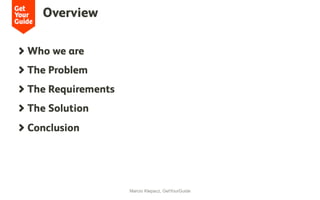

Overview
  Who we are
  The Problem
  The Requirements
  The Solution
  Conclusion
Marcio Klepacz, GetYourGuide

GetYourGuide Offers the Largest Travel
Activities Inventory Worldwide
800+
10,600+5,300+
800+
4,000+
2,000+

Repetitive
  Manual
  We want to automate that
  Fit our workflow
Developer Happiness
😄
Develop
😊

Run
Tests
😐
Configure
😒

Build
😠

Write
release
notes
😤

Upload,
notify
users,
etc.

Requirements
  Automatically build and test on push
  Fit into gitflow workflow (feature, develop and
release) branch
  Produce binaries that can be tested (downloaded)

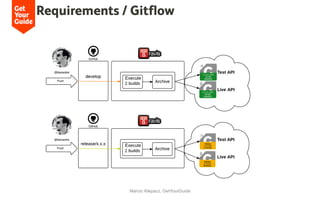

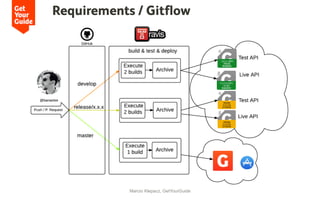

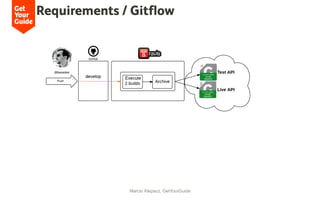

Requirements / Gitflow

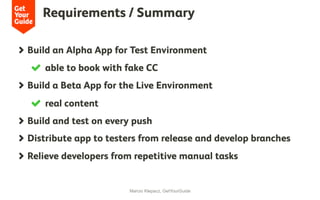

Requirements / Summary
  Build an Alpha App for Test Environment
  able to book with fake CC
  Build a Beta App for the Live Environment
  real content
  Build and test on every push
  Distribute app to testers from release and develop branches
  Relieve developers from repetitive manual tasks

Xcode
Server
Jenkins
Ship.io
Travis
CI

iOS
and

Android

❌
✅
✅

✅

Ac,ons

speciﬁc
to

branches

✅

✅

✅

✅

Build
on

push

✅

✅

✅

✅

Big

community

✅

✅

❌

✅

Hosted
❌

❌

✅

✅

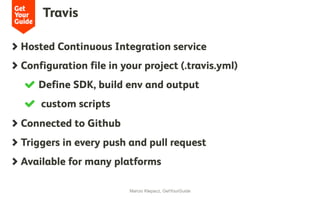

Travis
  Hosted Continuous Integration service
  Configuration file in your project (.travis.yml)
  Define SDK, build env and output
  custom scripts
  Connected to Github
  Triggers in every push and pull request
  Available for many platforms

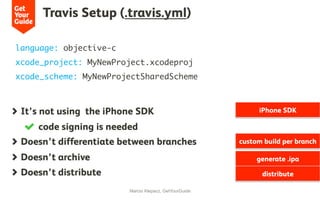

Travis Setup (.travis.yml)
  It’s not using the iPhone SDK
  code signing is needed
  Doesn’t differentiate between branches
  Doesn’t archive
  Doesn’t distribute
language: objective-c
xcode_project: MyNewProject.xcodeproj
xcode_scheme: MyNewProjectSharedScheme
iPhone SDK
custom build per branch
generate .ipa
distribute

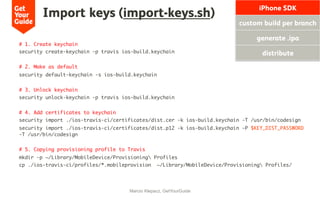

Import keys (import-keys.sh)
# 1. Create keychain
security create-keychain -p travis ios-build.keychain
# 2. Make as default
security default-keychain -s ios-build.keychain
# 3. Unlock keychain
security unlock-keychain -p travis ios-build.keychain
# 4. Add certificates to keychain
security import ./ios-travis-ci/certificates/dist.cer -k ios-build.keychain -T /usr/bin/codesign
security import ./ios-travis-ci/certificates/dist.p12 -k ios-build.keychain -P $KEY_DIST_PASSWORD
-T /usr/bin/codesign
# 5. Copying provisioning profile to Travis
mkdir -p ~/Library/MobileDevice/Provisioning Profiles
cp ./ios-travis-ci/profiles/*.mobileprovision ~/Library/MobileDevice/Provisioning Profiles/
iPhone SDK
generate .ipa
distribute

Import keys (import-keys.sh)
# 1. Create keychain
security create-keychain -p travis ios-build.keychain
# 2. Make as default
security default-keychain -s ios-build.keychain
# 3. Unlock keychain
security unlock-keychain -p travis ios-build.keychain
# 4. Add certificates to keychain
security import ./ios-travis-ci/certificates/dist.cer -k ios-build.keychain -T /usr/bin/codesign
security import ./ios-travis-ci/certificates/dist.p12 -k ios-build.keychain -P $KEY_DIST_PASSWORD
-T /usr/bin/codesign
# 5. Copying provisioning profile to Travis
mkdir -p ~/Library/MobileDevice/Provisioning Profiles
cp ./ios-travis-ci/profiles/*.mobileprovision ~/Library/MobileDevice/Provisioning Profiles/
⛔️️
iPhone SDK
generate .ipa
distribute

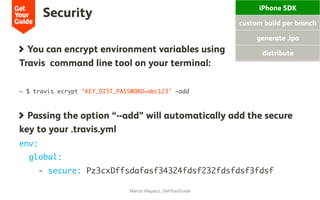

Security
  You can encrypt environment variables using
Travis command line tool on your terminal:
~ $ travis ecrypt ‘KEY_DIST_PASSWORD=abc123’ –add
  Passing the option “--add” will automatically add the secure
key to your .travis.yml
env:
global:
- secure: Pz3cxDffsdafasf34324fdsf232fdsfdsf3fdsf

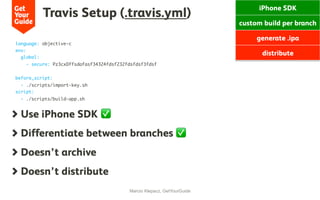

iPhone SDK
generate .ipa
distribute

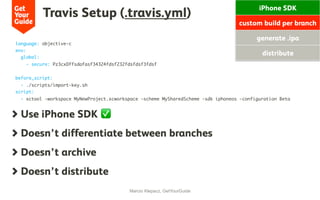

  Use iPhone SDK ✅
  Doesn’t differentiate between branches
env:
global:
before_script:
- ./scripts/import-key.sh
script:
- xctool -workspace MyNewProject.xcworkspace -scheme MySharedScheme -sdk iphoneos -configuration Beta
iPhone SDK
generate .ipa
distribute

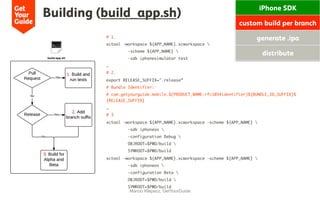

Building (build_app.sh)
# 1.
xctool -workspace ${APP_NAME}.xcworkspace
-scheme ${APP_NAME}
-sdk iphonesimulator test
…
# 2.
export RELEASE_SUFFIX=".release”
# Bundle Identifier:
# com.getyourguide.mobile.$(PRODUCT_NAME:rfc1034identifier)${BUNDLE_ID_SUFFIX}$
{RELEASE_SUFFIX}
…
# 3
xctool -workspace ${APP_NAME}.xcworkspace -scheme ${APP_NAME}
-sdk iphoneos
-configuration Debug
OBJROOT=$PWD/build
SYMROOT=$PWD/build
xctool -workspace ${APP_NAME}.xcworkspace -scheme ${APP_NAME}
-sdk iphoneos
-configuration Beta
OBJROOT=$PWD/build
SYMROOT=$PWD/build
iPhone SDK
generate .ipa
distribute

  Differentiate between branches ✅
env:
global:
before_script:
script:
- ./scripts/build-app.sh
iPhone SDK
generate .ipa
distribute

# 1.
xcrun -sdk iphoneos PackageApplication
-v ”$BUILD_DIR/$APP_NAME.app"
-o ”$BUILD_DIR/$APP_NAME.ipa"
--sign "$DEVELOPER_NAME"
--embed ”$PROVISIONING_PROFILE"
…
# 2.
release_notes=`git log --since=1.week --pretty=format:"%an - %s"`
curl
-F status="2"
-F notify="0"
-F release_type="2"
-F notes="$release_notes"
-F notes_type="0"
-F "ipa=@$outputdir/$APP_NAME.ipa"
-F "mobileprovision=@$provisioning_profile"
-H "X-HockeyAppToken: ${HOCKEY_APP_TOKEN}"
https://rink.hockeyapp.net/api/2/apps/upload # Uploading to HockeyApp

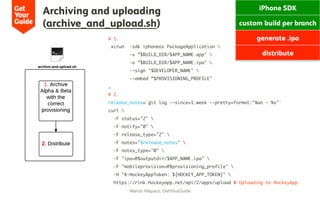

Archiving and uploading
(archive_and_upload.sh)

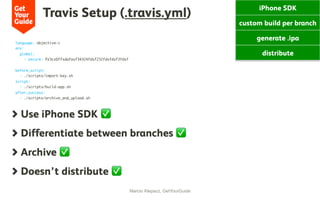

iPhone SDK
generate .ipa
distribute

  Differentiate between branches ✅
  Archive ✅
  Doesn’t distribute ✅
env:
global:
before_script:
script:
- ./scripts/build-app.sh
after_success:
- ./scripts/archive_and_upload.sh
iPhone SDK
generate .ipa
distribute

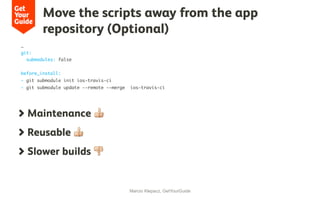

Move the scripts away from the app
repository (Optional)
  Maintenance 👍
  Reusable 👍
  Slower builds 👎
…
git:
submodules: false
before_install:
- git submodule init ios-travis-ci
- git submodule update --remote --merge ios-travis-ci

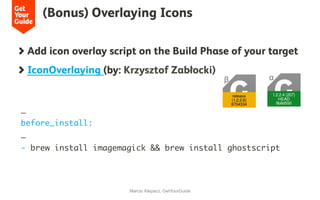

(Bonus) Overlaying Icons
  Add icon overlay script on the Build Phase of your target
IconOverlaying (by: Krzysztof Zabłocki)
…
before_install:
…
- brew install imagemagick && brew install ghostscript

Conclusion
  Automate tasks
  App is distributed
  No manual configuration
  Different actions between branches
  5 different apps to test concurrently
(@banaslee’s phone)

Thanks for your time
@marciok and marcio@getyourguide.com

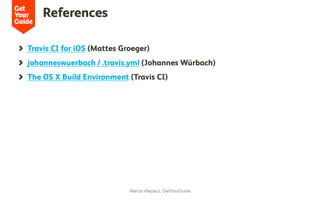

References
Travis CI for iOS (Mattes Groeger)
johanneswuerbach / .travis.yml (Johannes Würbach)
The OS X Build Environment (Travis CI)
