1. Gradle: Build tool that rocks
with DSL
Rajmahendra Hegde
JUGChennai Founder & Lead
rajmahendra@gmail.com
tweet: @rajonjava

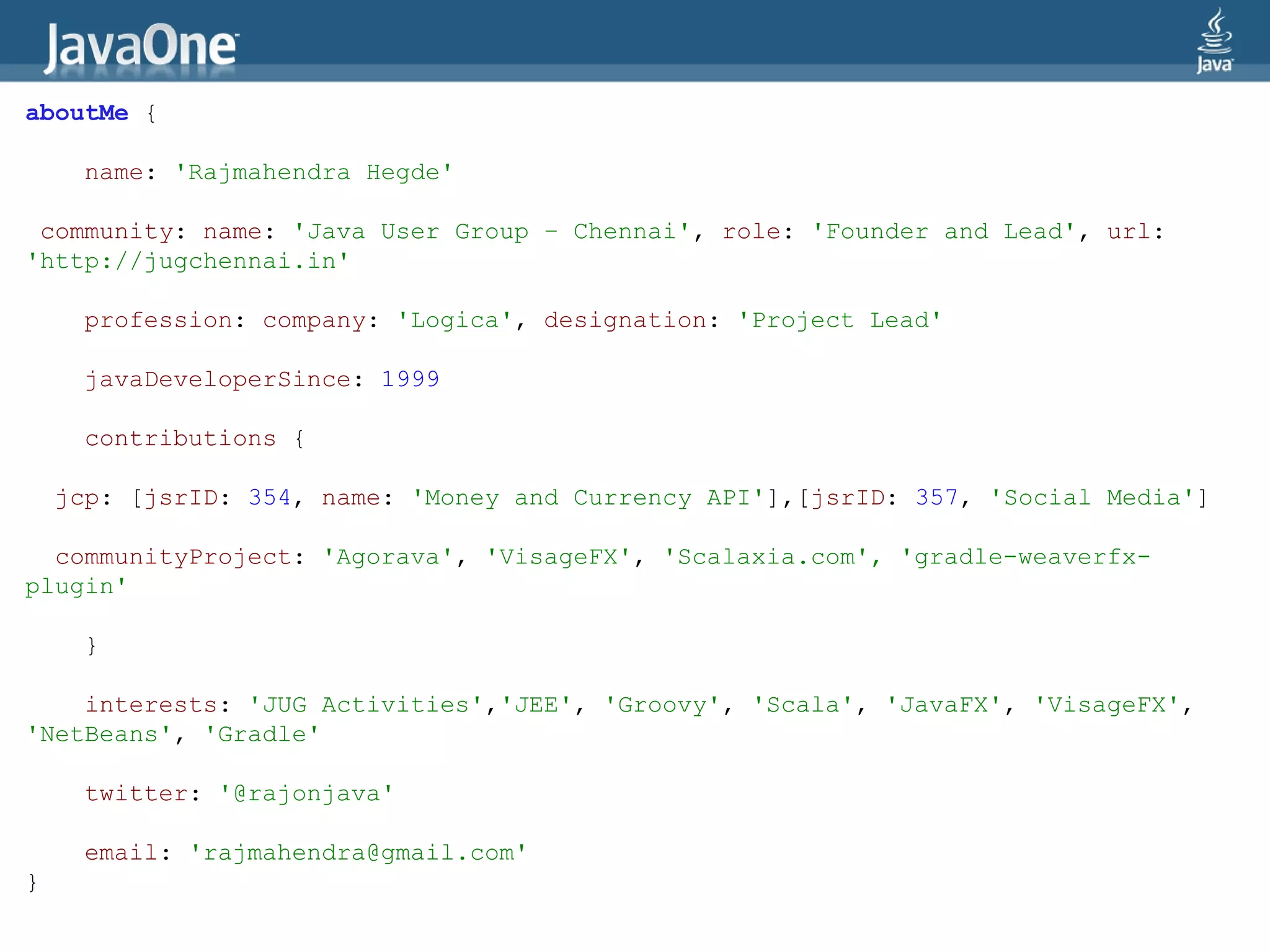

2. aboutMe {
name: 'Rajmahendra Hegde'
community: name: 'Java User Group – Chennai', role: 'Founder and Lead', url:
'http://jugchennai.in'
profession: company: 'Logica', designation: 'Project Lead'
javaDeveloperSince: 1999
contributions {
jcp: [jsrID: 354, name: 'Money and Currency API'],[jsrID: 357, 'Social Media']
communityProject: 'Agorava', 'VisageFX', 'Scalaxia.com', 'gradle-weaverfx-
plugin'
}
interests: 'JUG Activities','JEE', 'Groovy', 'Scala', 'JavaFX', 'VisageFX',
'NetBeans', 'Gradle'
twitter: '@rajonjava'
email: 'rajmahendra@gmail.com'
}

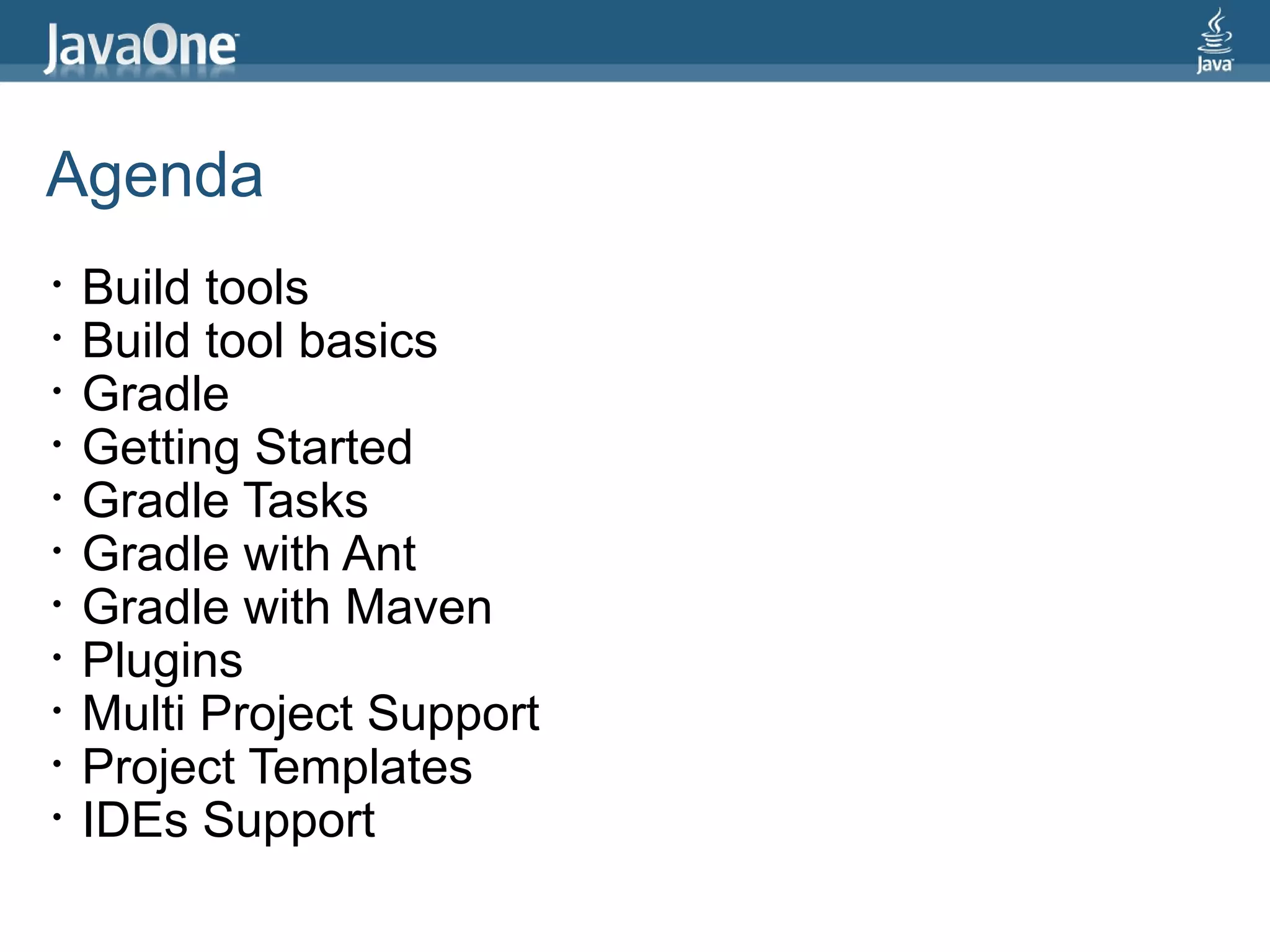

3. Agenda
• Build tools
• Build tool basics
• Gradle
• Getting Started
• Gradle Tasks
• Gradle with Ant
• Gradle with Maven
• Plugins
• Multi Project Support
• Project Templates
• IDEs Support

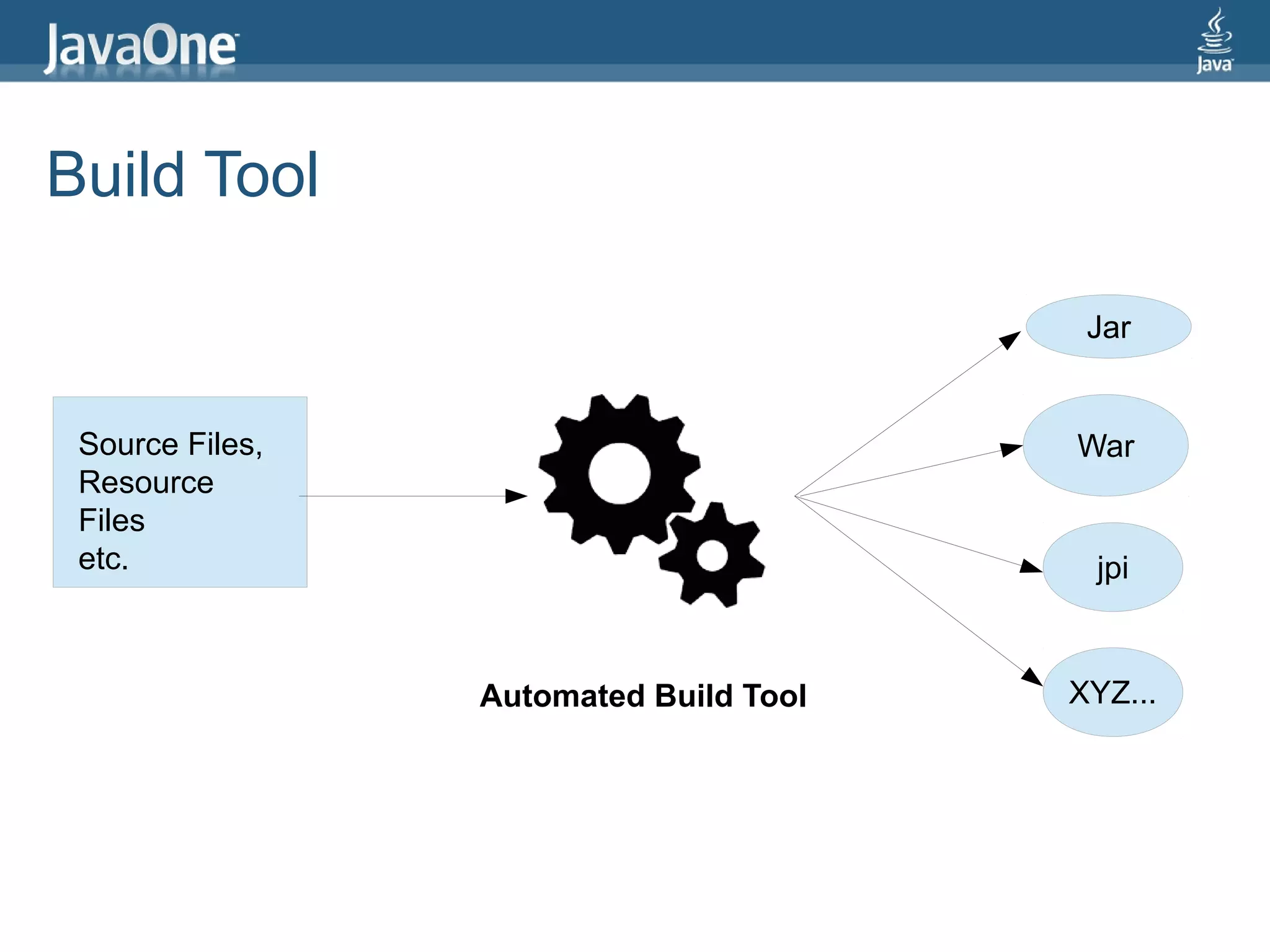

4. Build Tool
Jar
Source Files, War
Resource
Files
etc. jpi
Automated Build Tool XYZ...

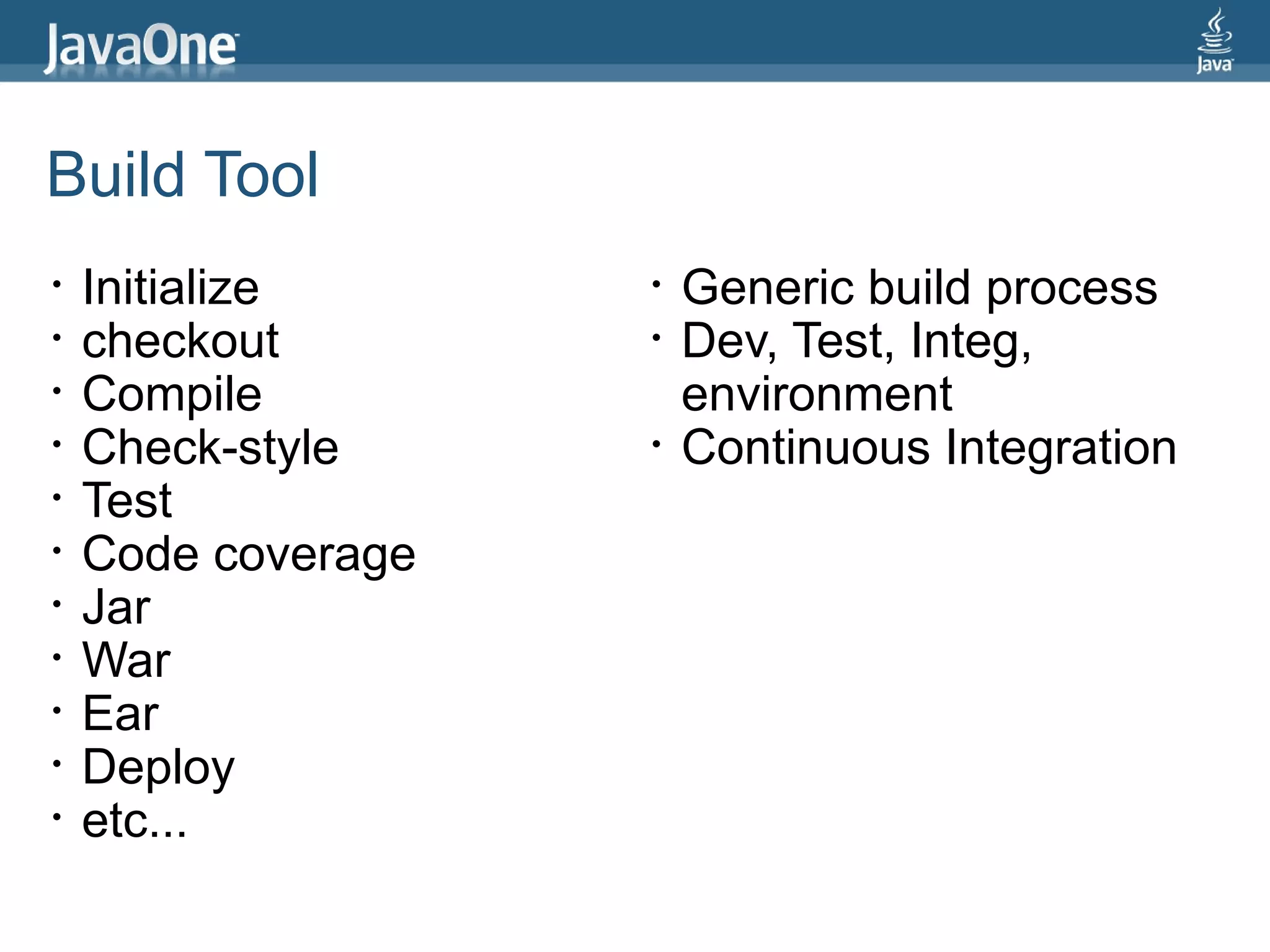

5. Build Tool
• Initialize • Generic build process
• checkout • Dev, Test, Integ,
• Compile environment
• Check-style • Continuous Integration
• Test
• Code coverage
• Jar
• War
• Ear
• Deploy
• etc...

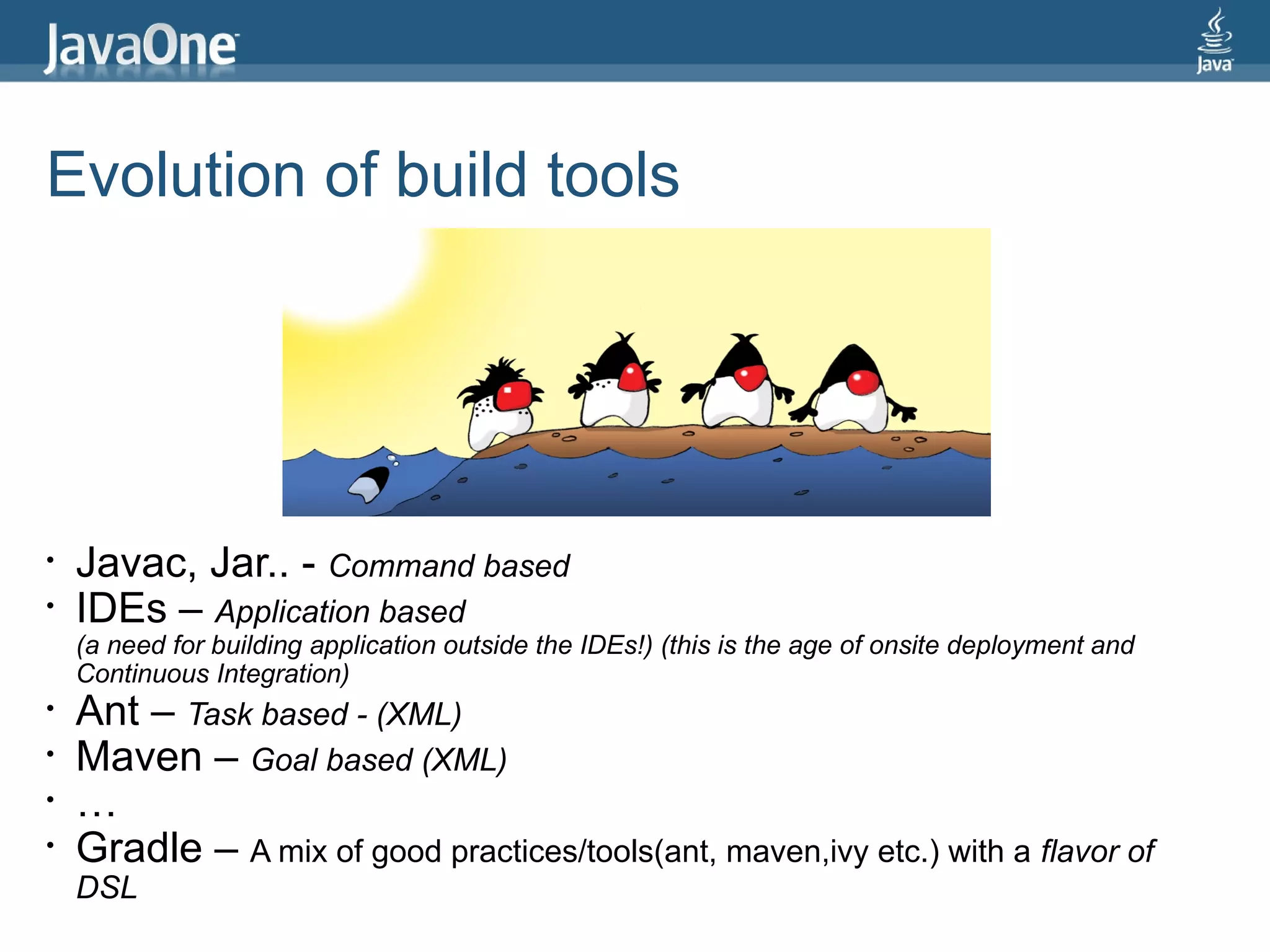

6. Evolution of build tools
• Javac, Jar.. - Command based
• IDEs – Application based
(a need for building application outside the IDEs!) (this is the age of onsite deployment and
Continuous Integration)
• Ant – Task based - (XML)
• Maven – Goal based (XML)
• …
• Gradle – A mix of good practices/tools(ant, maven,ivy etc.) with a flavor of
DSL

7. Build Tools

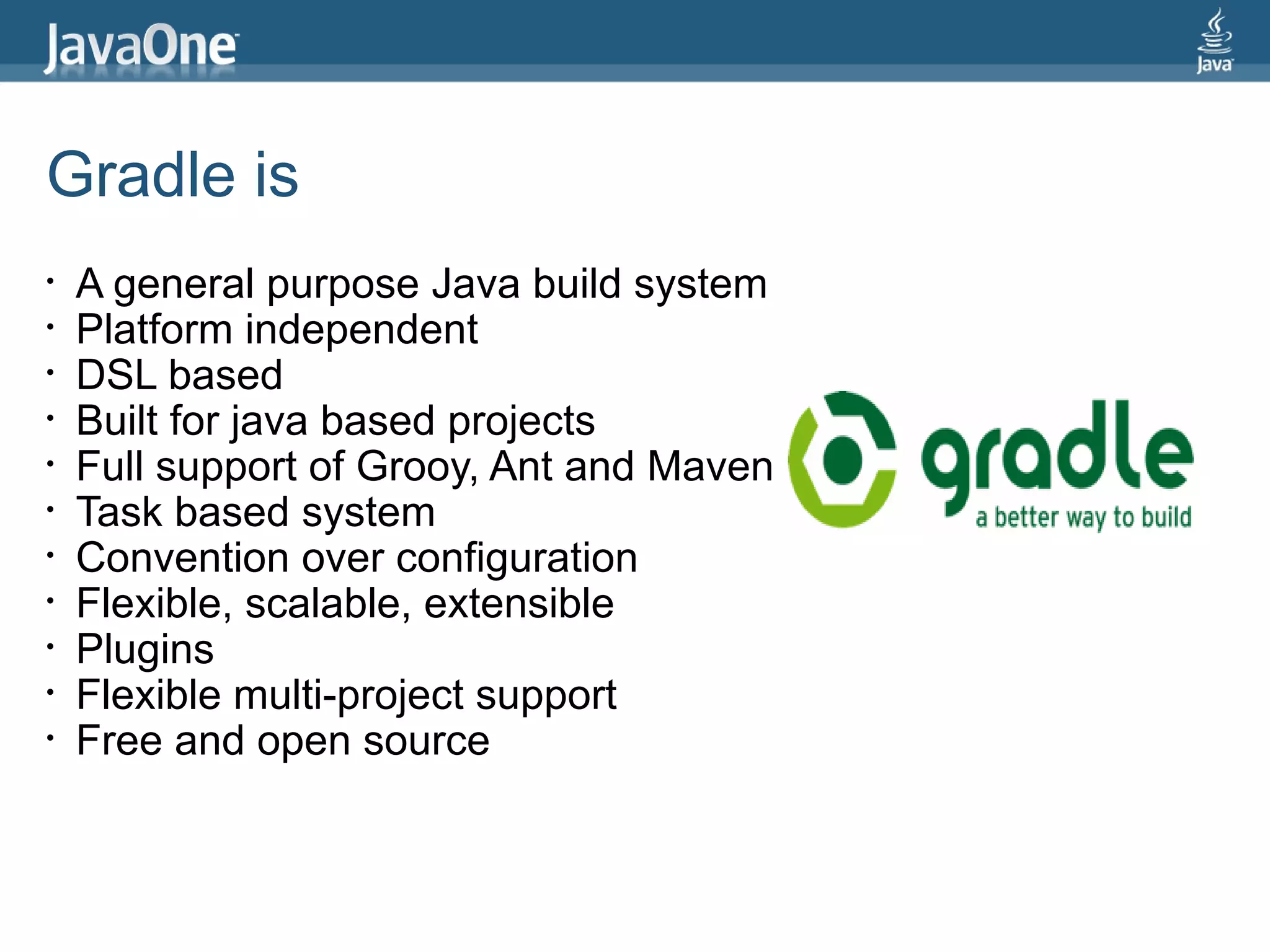

8. Gradle is
• A general purpose Java build system
• Platform independent
• DSL based
• Built for java based projects
• Full support of Grooy, Ant and Maven
• Task based system
• Convention over configuration
• Flexible, scalable, extensible
• Plugins
• Flexible multi-project support
• Free and open source

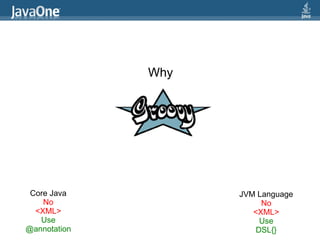

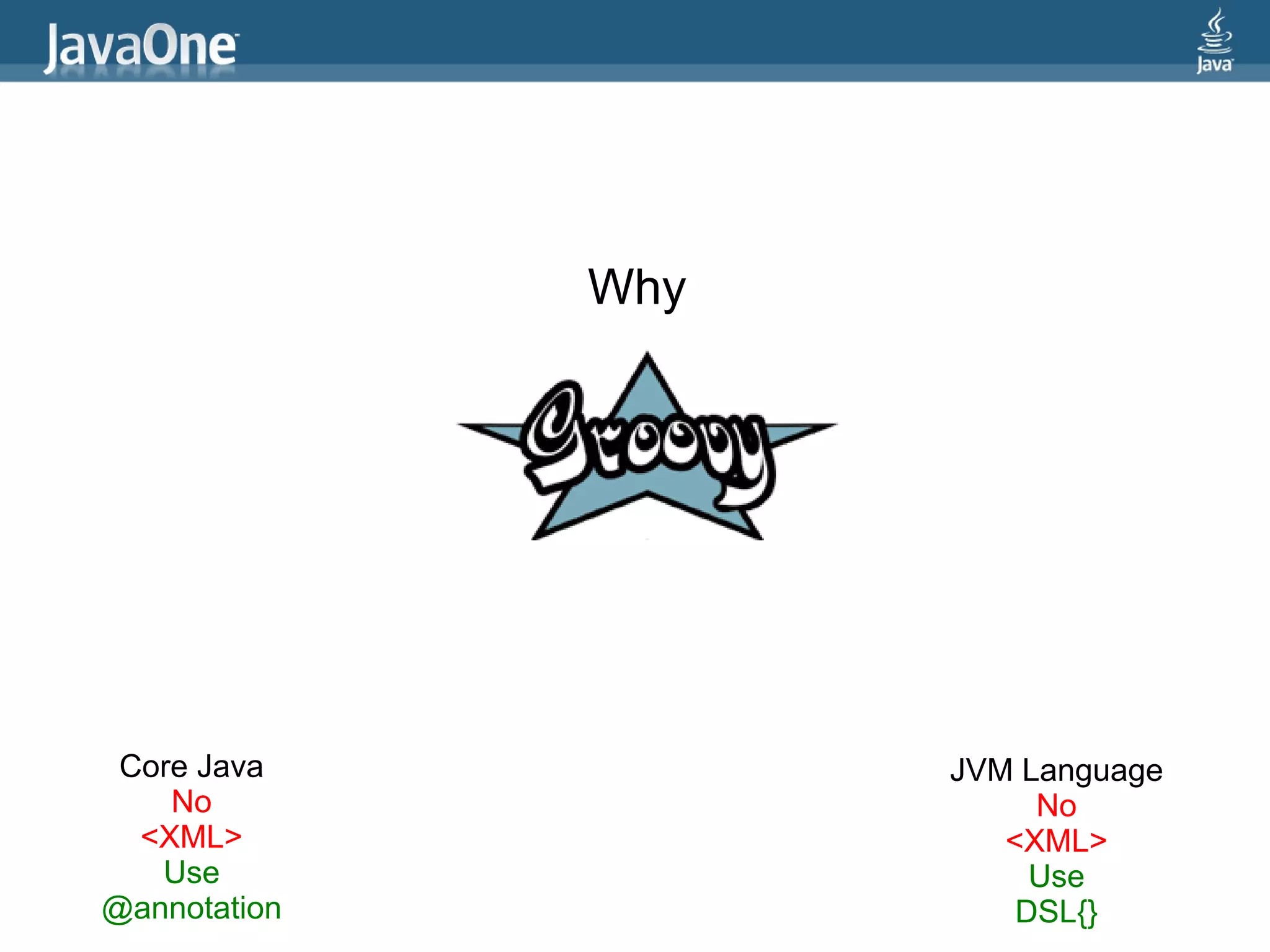

9. Why
Core Java JVM Language
No No
<XML> <XML>
Use Use
@annotation DSL{}

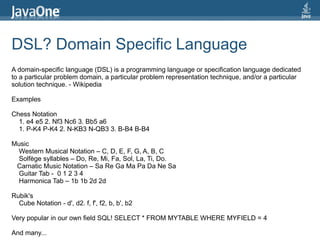

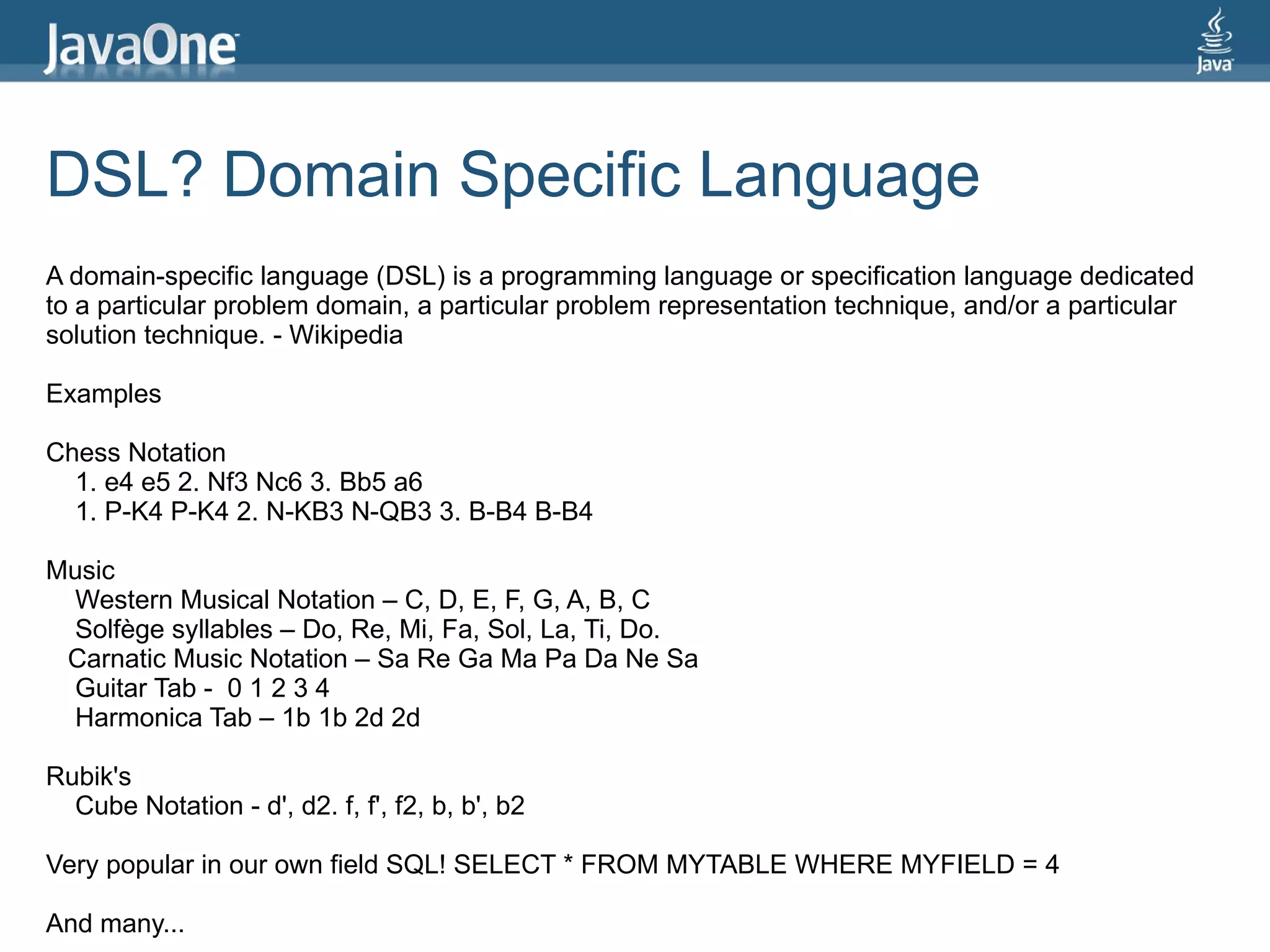

10. DSL? Domain Specific Language
A domain-specific language (DSL) is a programming language or specification language dedicated
to a particular problem domain, a particular problem representation technique, and/or a particular
solution technique. - Wikipedia
Examples
Chess Notation
1. e4 e5 2. Nf3 Nc6 3. Bb5 a6
1. P-K4 P-K4 2. N-KB3 N-QB3 3. B-B4 B-B4
Music
Western Musical Notation – C, D, E, F, G, A, B, C
Solfège syllables – Do, Re, Mi, Fa, Sol, La, Ti, Do.
Carnatic Music Notation – Sa Re Ga Ma Pa Da Ne Sa
Guitar Tab - 0 1 2 3 4
Harmonica Tab – 1b 1b 2d 2d
Rubik's
Cube Notation - d', d2. f, f', f2, b, b', b2
Very popular in our own field SQL! SELECT * FROM MYTABLE WHERE MYFIELD = 4
And many...

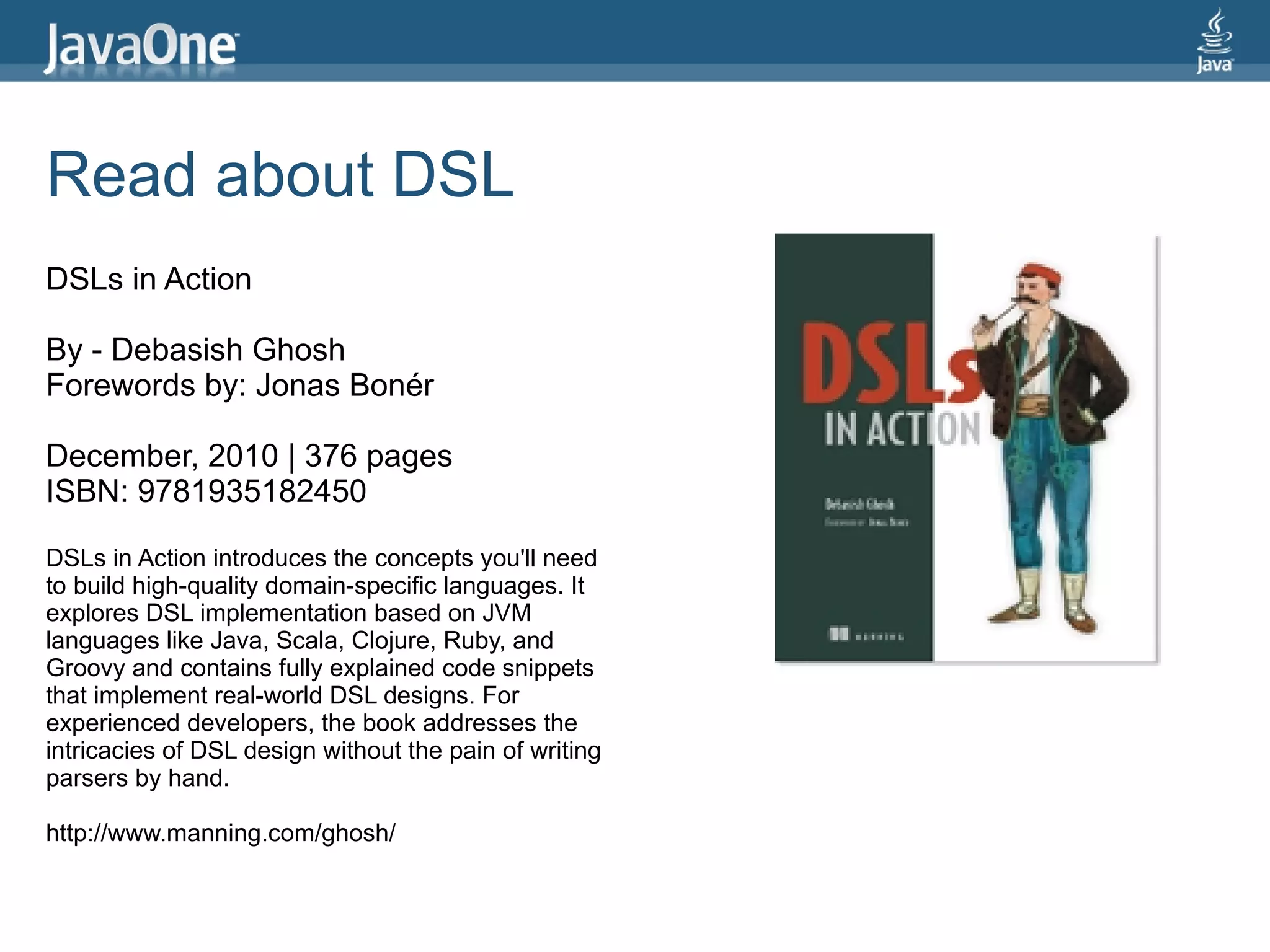

11. Read about DSL
DSLs in Action
By - Debasish Ghosh
Forewords by: Jonas Bonér
December, 2010 | 376 pages
ISBN: 9781935182450
DSLs in Action introduces the concepts you'll need
to build high-quality domain-specific languages. It
explores DSL implementation based on JVM
languages like Java, Scala, Clojure, Ruby, and
Groovy and contains fully explained code snippets
that implement real-world DSL designs. For
experienced developers, the book addresses the
intricacies of DSL design without the pain of writing
parsers by hand.
http://www.manning.com/ghosh/

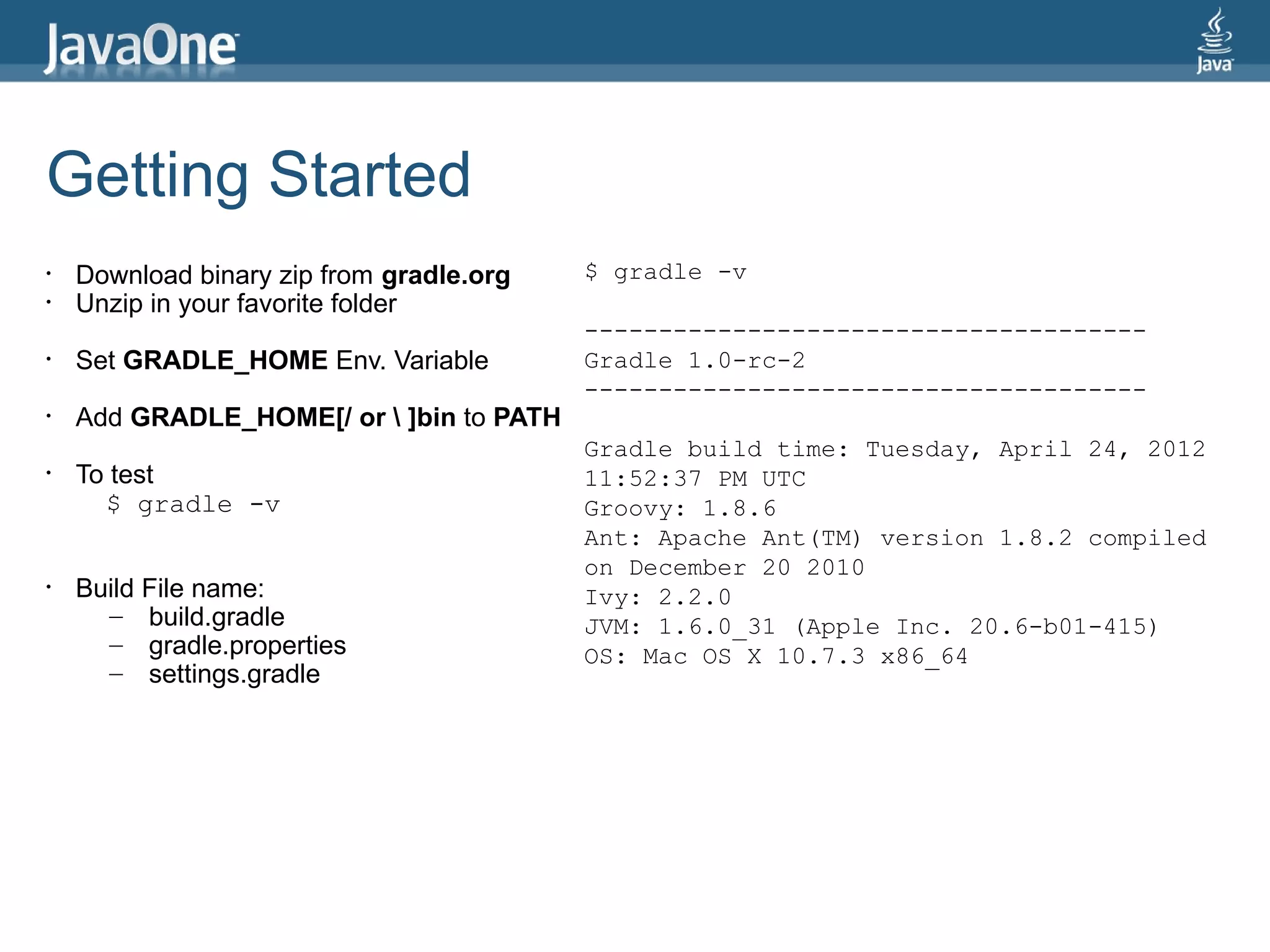

12. Getting Started
• Download binary zip from gradle.org $ gradle -v
• Unzip in your favorite folder
--------------------------------------
• Set GRADLE_HOME Env. Variable Gradle 1.0-rc-2
--------------------------------------
• Add GRADLE_HOME[/ or ]bin to PATH
Gradle build time: Tuesday, April 24, 2012
• To test 11:52:37 PM UTC
$ gradle -v Groovy: 1.8.6
Ant: Apache Ant(TM) version 1.8.2 compiled
on December 20 2010
• Build File name: Ivy: 2.2.0
– build.gradle JVM: 1.6.0_31 (Apple Inc. 20.6-b01-415)
– gradle.properties OS: Mac OS X 10.7.3 x86_64
– settings.gradle

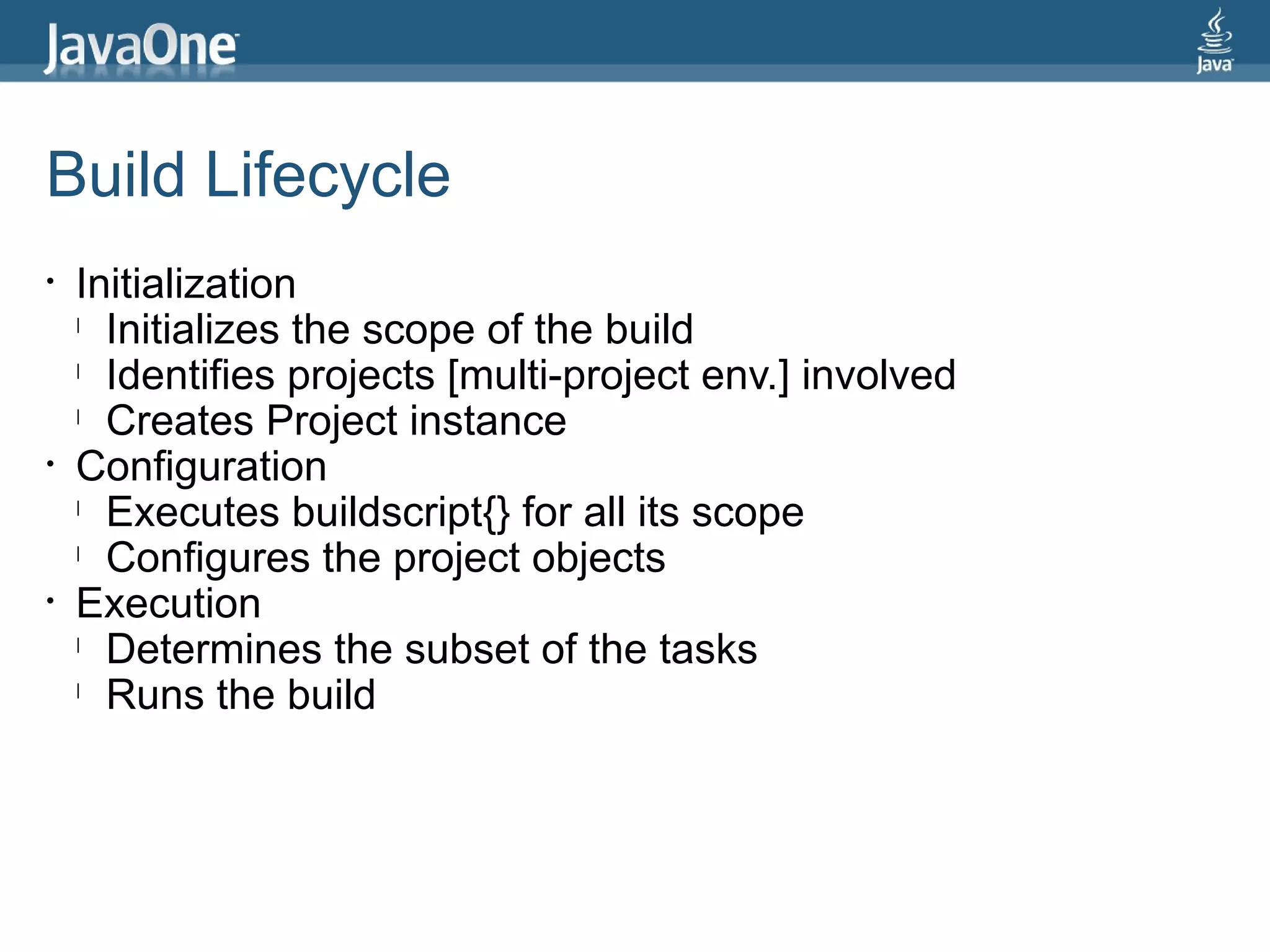

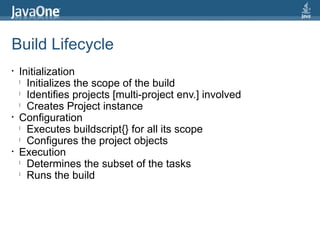

13. Build Lifecycle
• Initialization
l
Initializes the scope of the build
l
Identifies projects [multi-project env.] involved
l
Creates Project instance
• Configuration
l
Executes buildscript{} for all its scope
l
Configures the project objects
• Execution
l
Determines the subset of the tasks
l
Runs the build

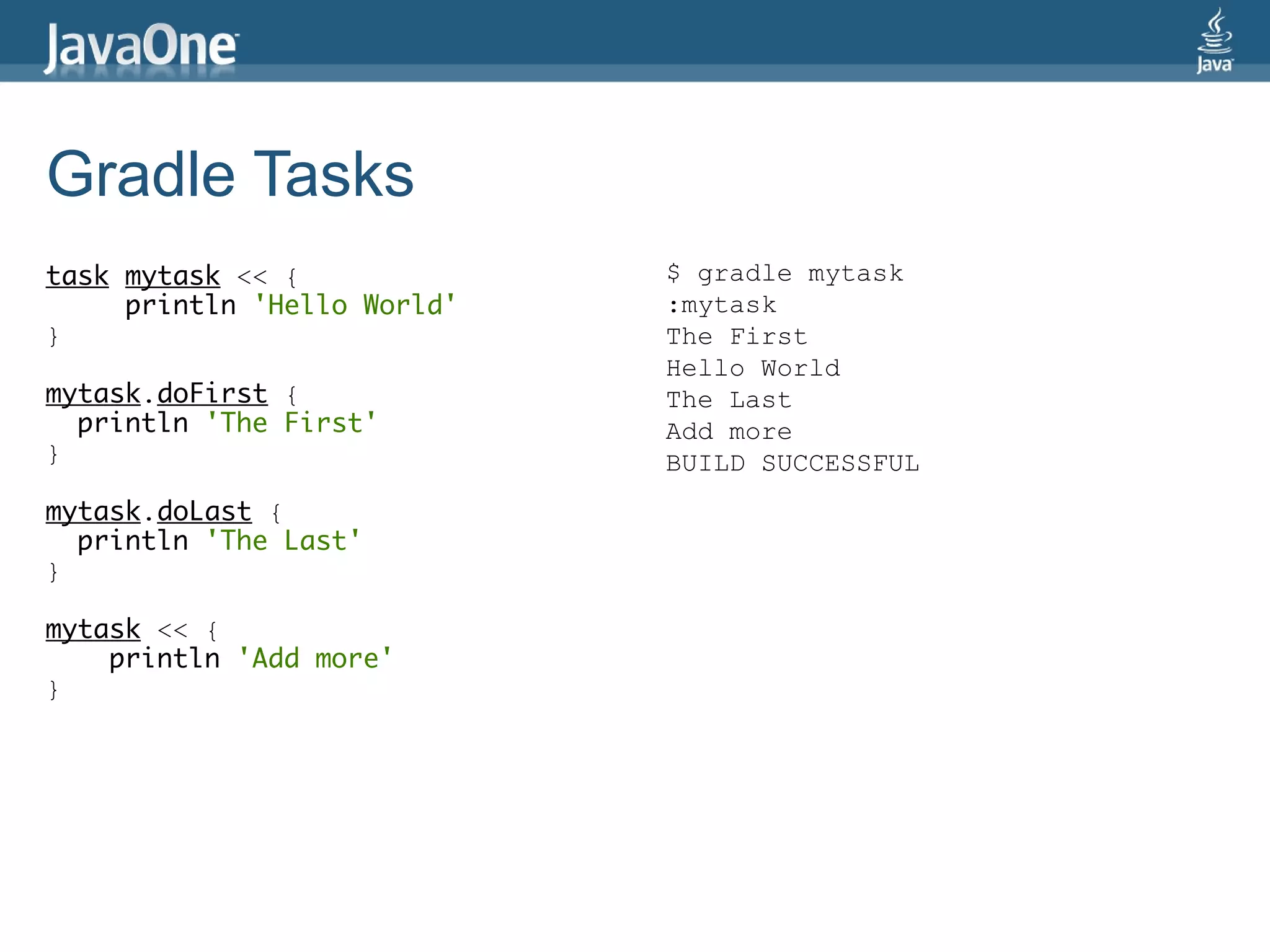

14. Gradle Tasks
task mytask << { $ gradle mytask
println 'Hello World' :mytask
} The First
Hello World
mytask.doFirst { The Last
println 'The First' Add more
} BUILD SUCCESSFUL
mytask.doLast {
println 'The Last'
}
mytask << {
println 'Add more'
}

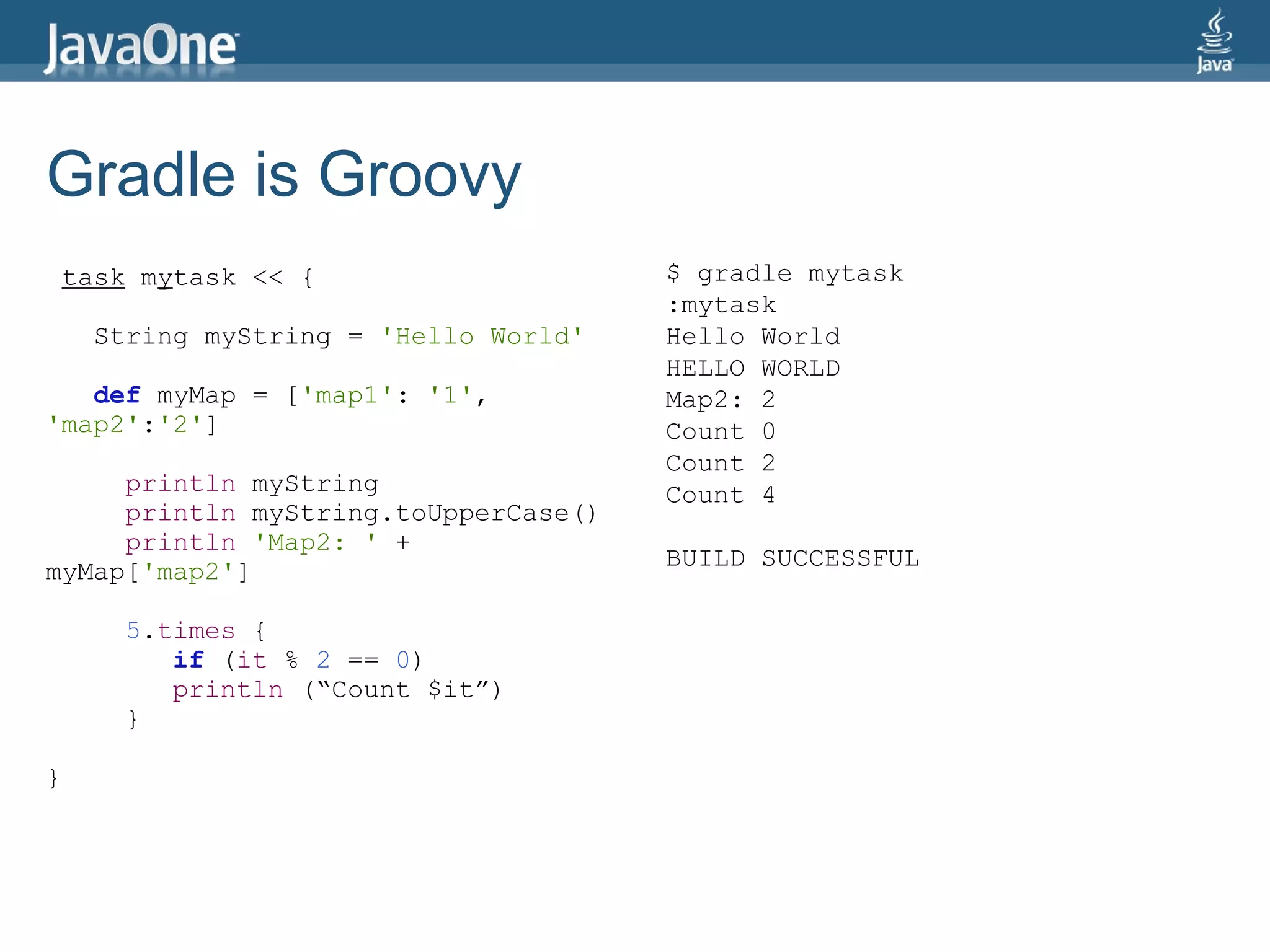

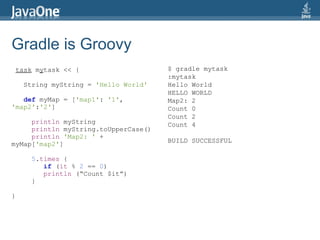

15. Gradle is Groovy
task mytask << { $ gradle mytask
:mytask
String myString = 'Hello World' Hello World
HELLO WORLD
def myMap = ['map1': '1', Map2: 2
'map2':'2'] Count 0
Count 2
println myString Count 4
println myString.toUpperCase()
println 'Map2: ' +
BUILD SUCCESSFUL
myMap['map2']
5.times {
if (it % 2 == 0)
println (“Count $it”)
}
}

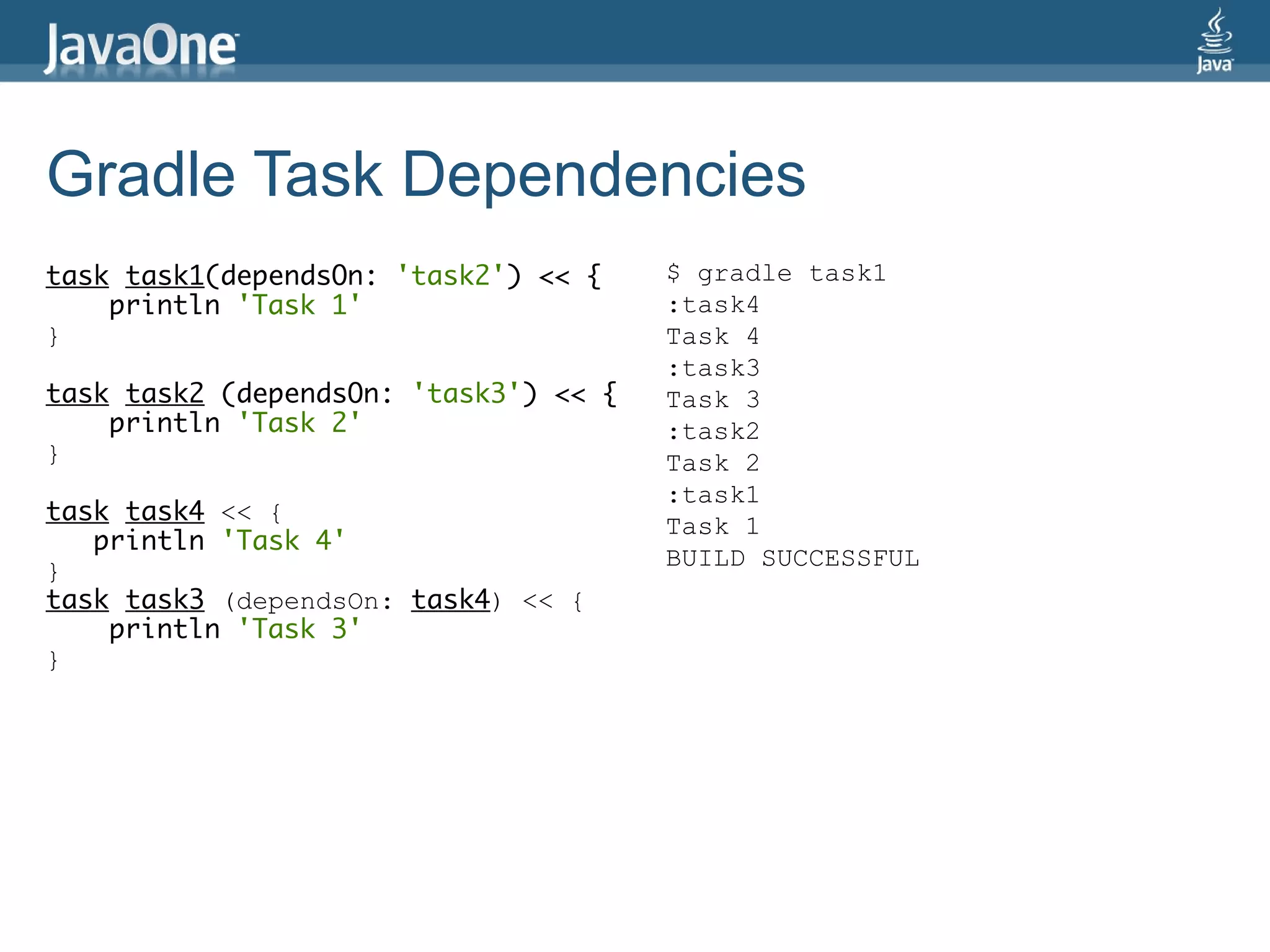

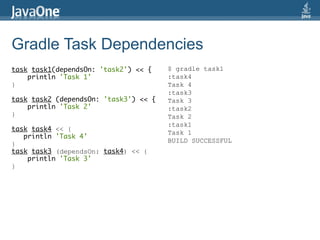

16. Gradle Task Dependencies
task task1(dependsOn: 'task2') << { $ gradle task1
println 'Task 1' :task4
} Task 4
:task3
task task2 (dependsOn: 'task3') << { Task 3
println 'Task 2' :task2
} Task 2
:task1
task task4 << {
Task 1
println 'Task 4'
BUILD SUCCESSFUL
}
task task3 (dependsOn: task4) << {
println 'Task 3'
}

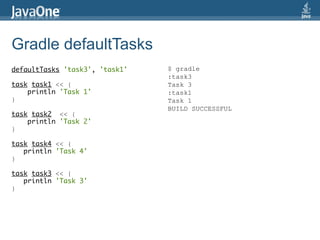

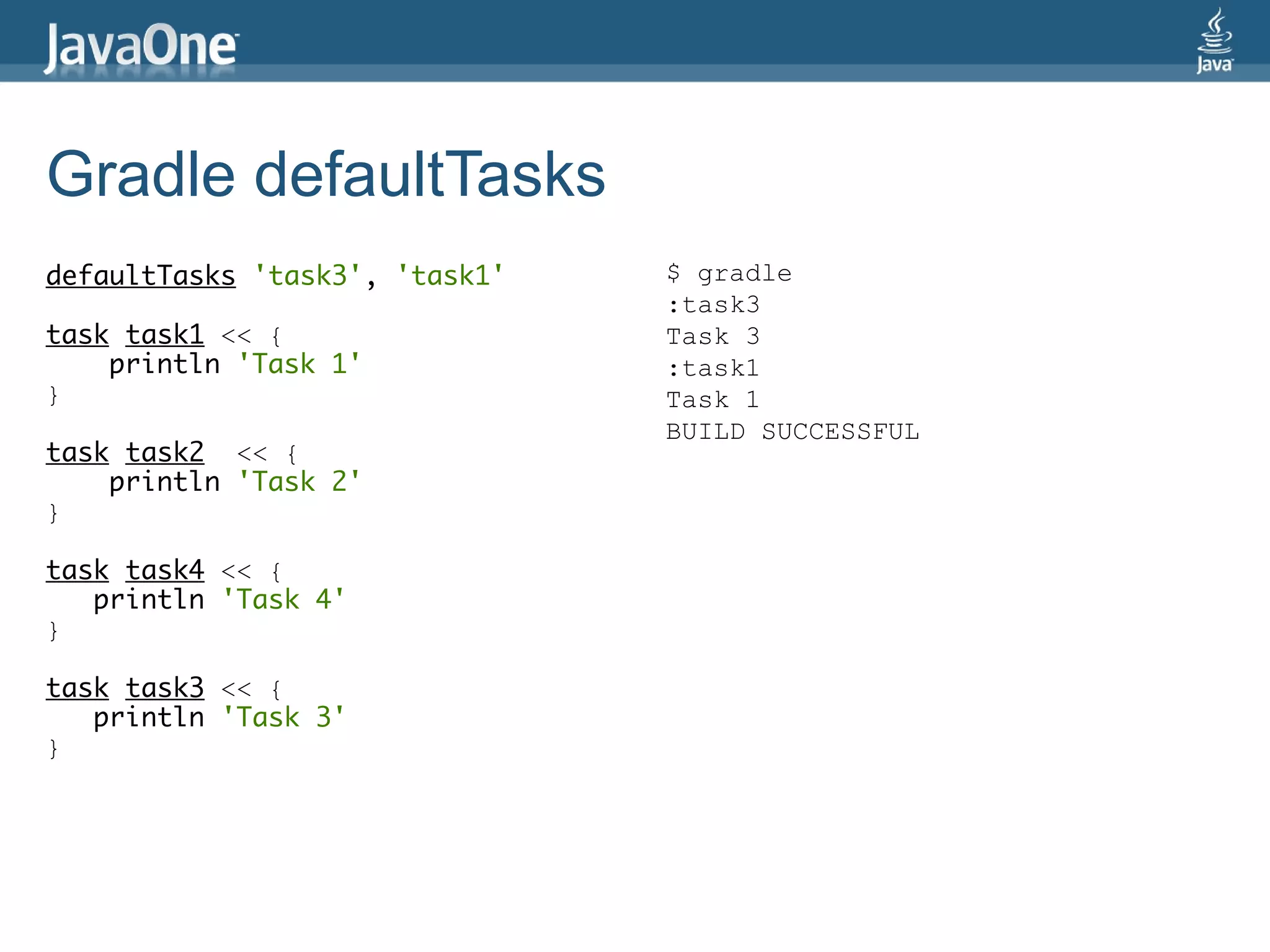

17. Gradle defaultTasks
defaultTasks 'task3', 'task1' $ gradle
:task3
task task1 << { Task 3
println 'Task 1' :task1
} Task 1
BUILD SUCCESSFUL
task task2 << {
println 'Task 2'
}
task task4 << {
println 'Task 4'
}
task task3 << {
println 'Task 3'
}

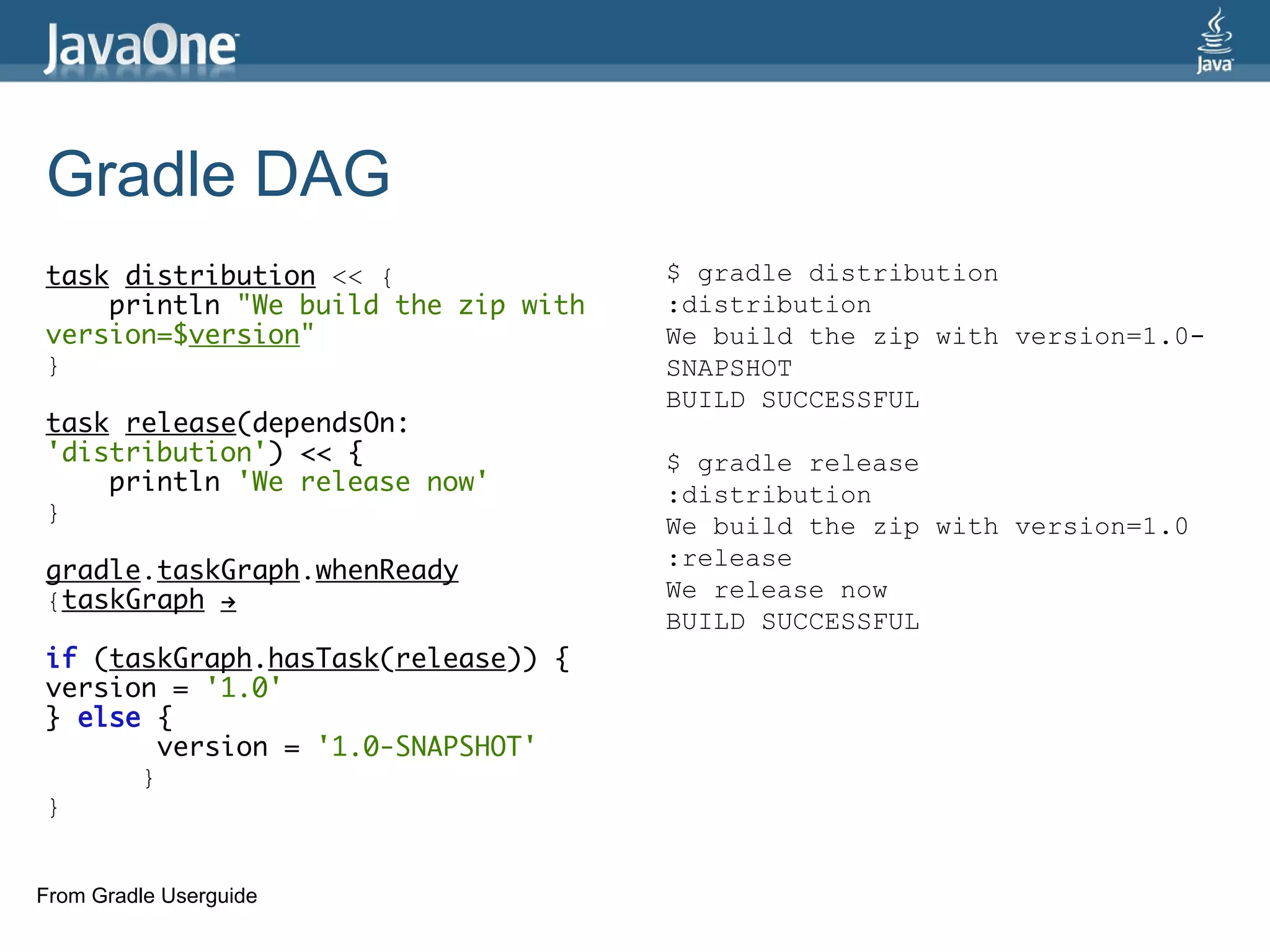

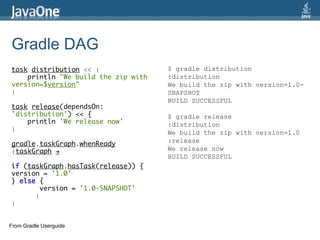

18. Gradle DAG
task distribution << { $ gradle distribution
println "We build the zip with :distribution
version=$version" We build the zip with version=1.0-
} SNAPSHOT
BUILD SUCCESSFUL
task release(dependsOn:
'distribution') << { $ gradle release
println 'We release now' :distribution
}
We build the zip with version=1.0
:release
gradle.taskGraph.whenReady
{taskGraph → We release now
BUILD SUCCESSFUL
if (taskGraph.hasTask(release)) {
version = '1.0'
} else {
version = '1.0-SNAPSHOT'
}
}
From Gradle Userguide

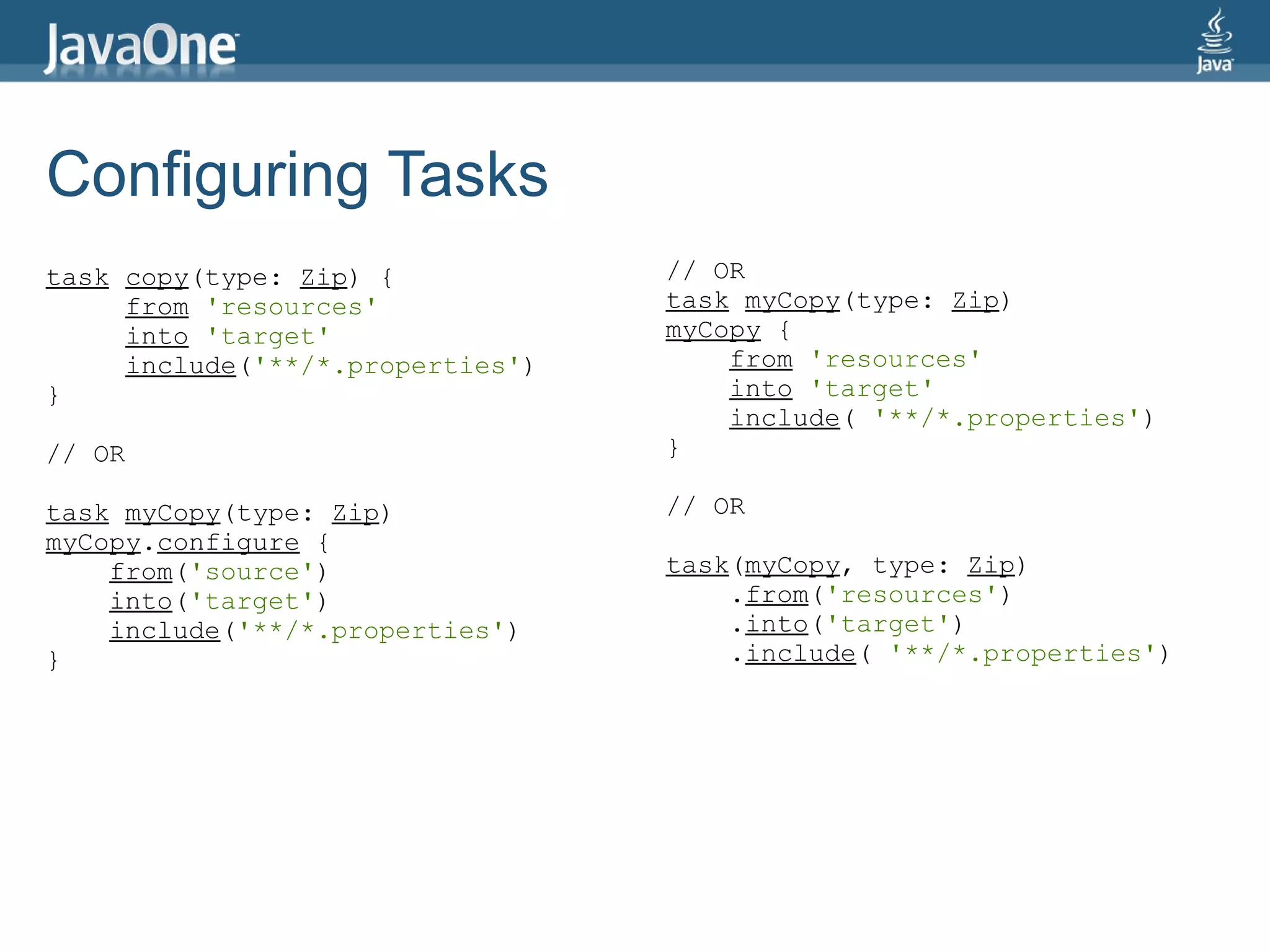

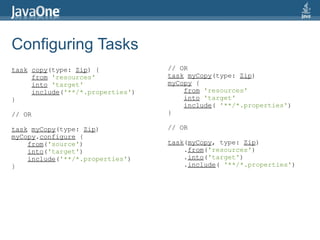

19. Configuring Tasks
task copy(type: Zip) { // OR
from 'resources' task myCopy(type: Zip)
into 'target' myCopy {
include('**/*.properties') from 'resources'
} into 'target'
include( '**/*.properties')
// OR }
task myCopy(type: Zip) // OR
myCopy.configure {
from('source') task(myCopy, type: Zip)
into('target') .from('resources')
include('**/*.properties') .into('target')
} .include( '**/*.properties')

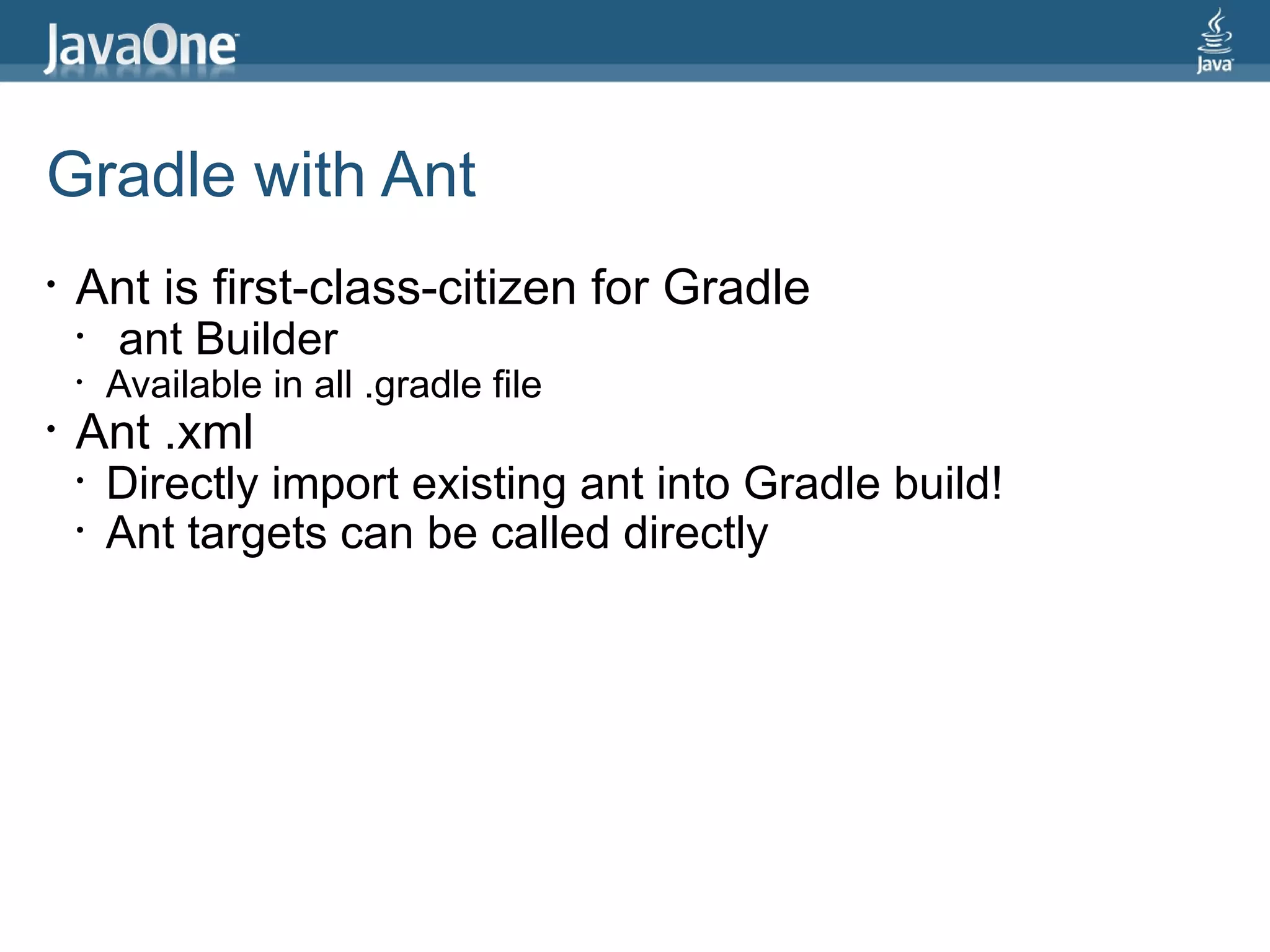

20. Gradle with Ant
• Ant is first-class-citizen for Gradle
• ant Builder
• Available in all .gradle file
• Ant .xml
• Directly import existing ant into Gradle build!
• Ant targets can be called directly

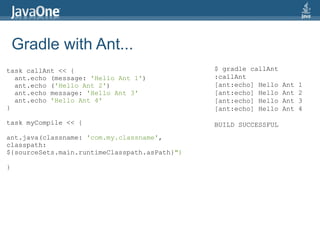

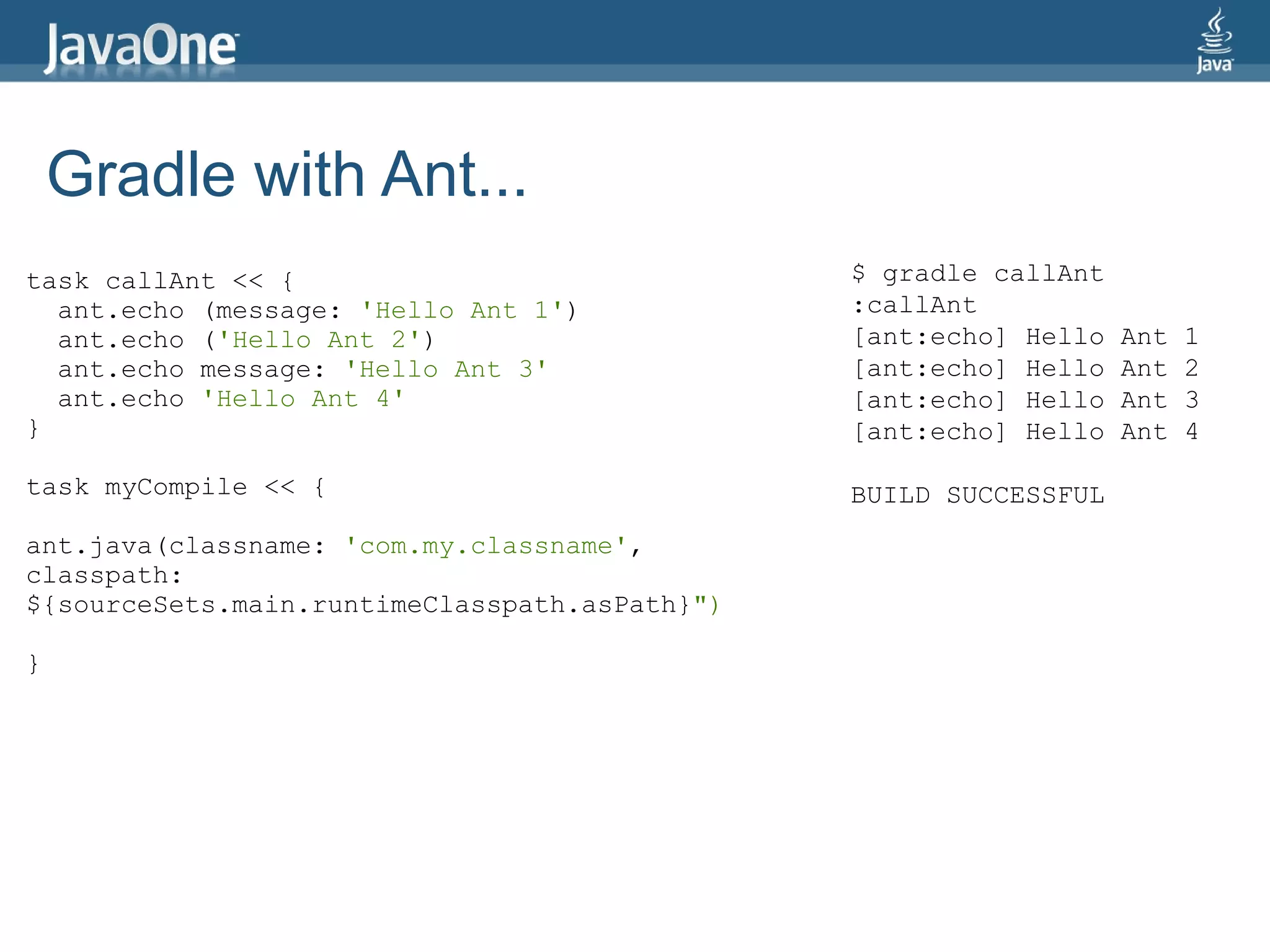

21. Gradle with Ant...
task callAnt << { $ gradle callAnt
ant.echo (message: 'Hello Ant 1') :callAnt
ant.echo ('Hello Ant 2') [ant:echo] Hello Ant 1
ant.echo message: 'Hello Ant 3' [ant:echo] Hello Ant 2
ant.echo 'Hello Ant 4' [ant:echo] Hello Ant 3
} [ant:echo] Hello Ant 4
task myCompile << { BUILD SUCCESSFUL
ant.java(classname: 'com.my.classname',
classpath:
${sourceSets.main.runtimeClasspath.asPath}")
}

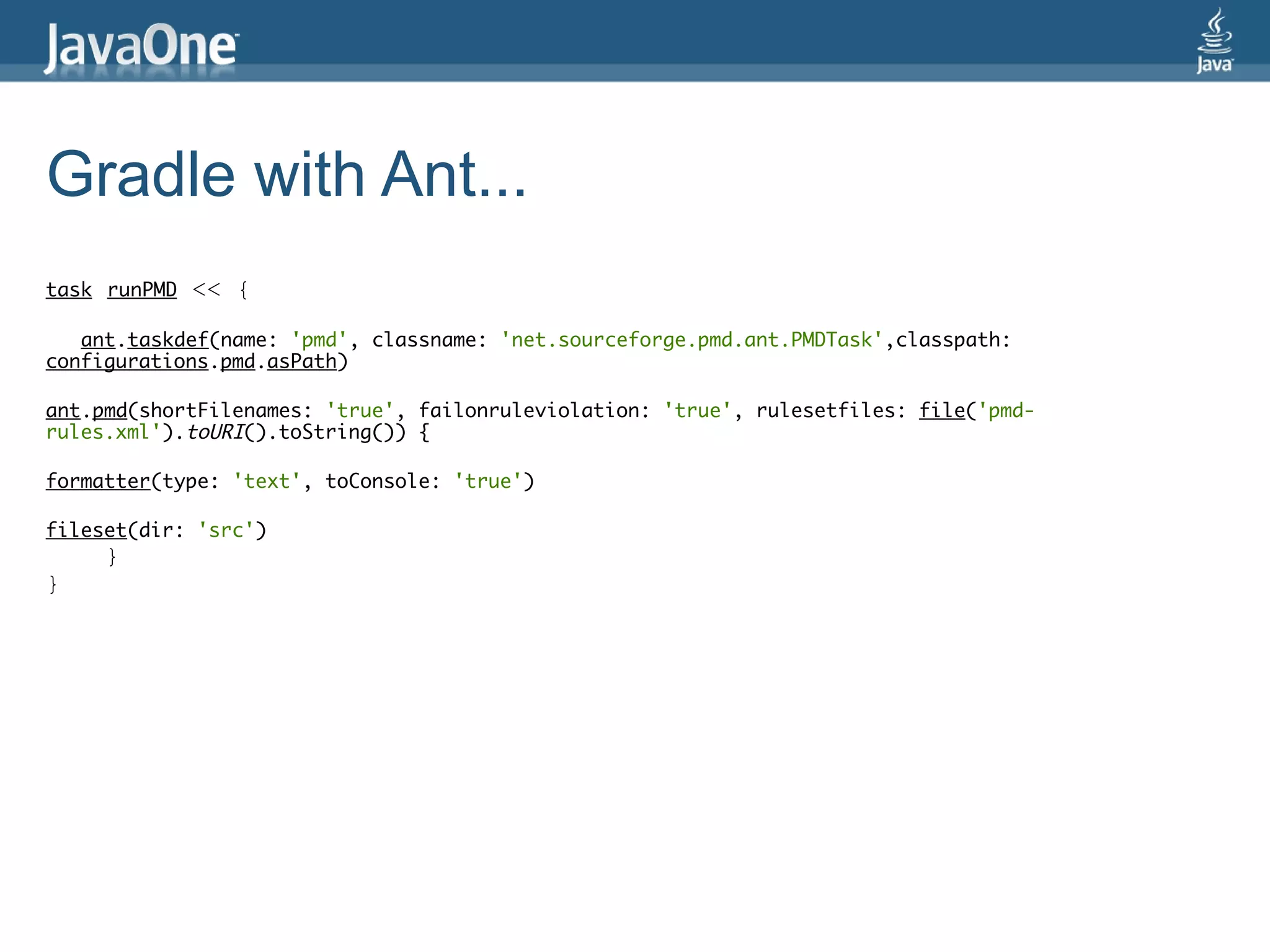

22. Gradle with Ant...
task runPMD << {
ant.taskdef(name: 'pmd', classname: 'net.sourceforge.pmd.ant.PMDTask',classpath:
configurations.pmd.asPath)
ant.pmd(shortFilenames: 'true', failonruleviolation: 'true', rulesetfiles: file('pmd-
rules.xml').toURI().toString()) {
formatter(type: 'text', toConsole: 'true')
fileset(dir: 'src')
}
}

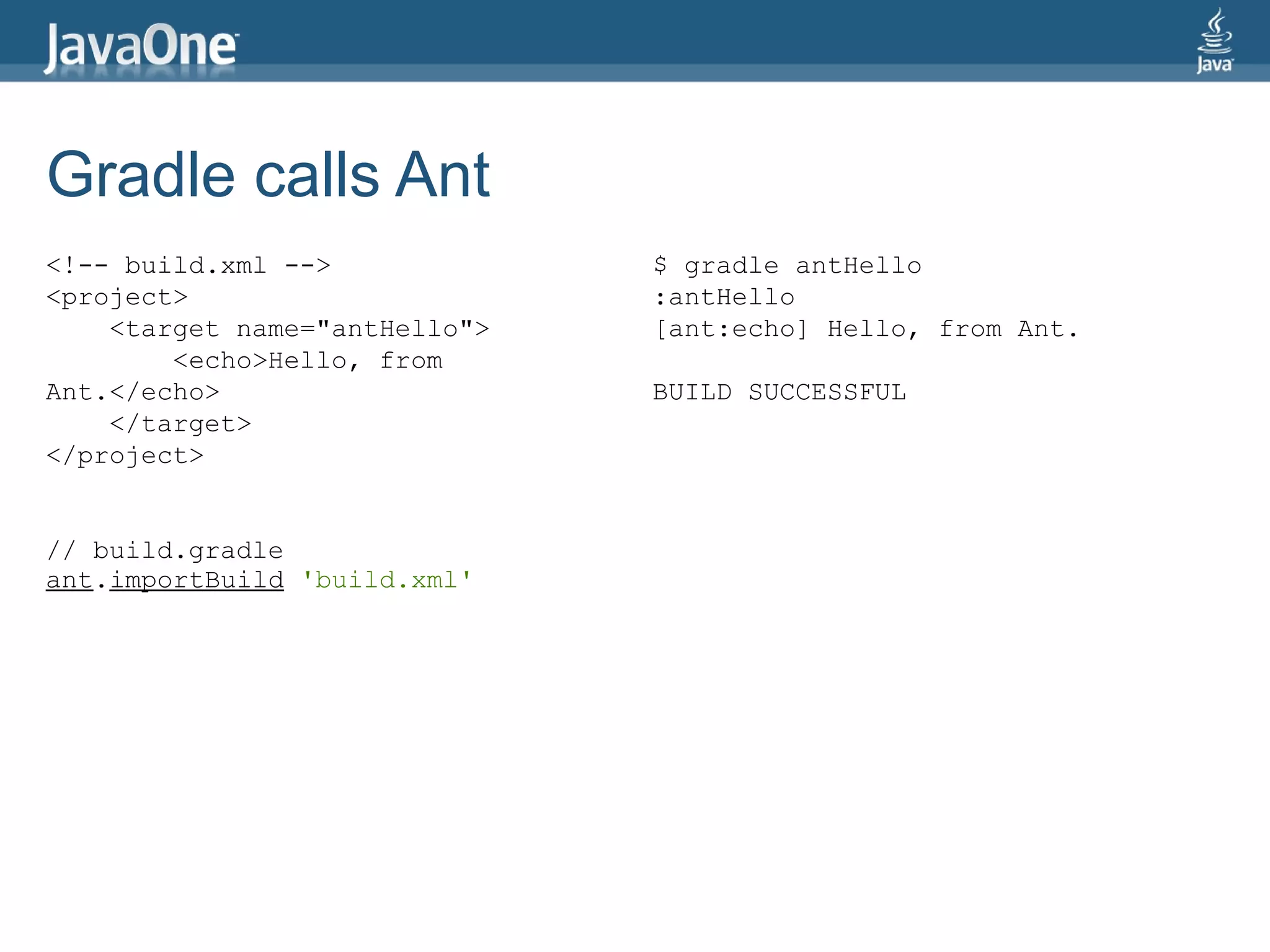

23. Gradle calls Ant
<!-- build.xml --> $ gradle antHello
<project> :antHello
<target name="antHello"> [ant:echo] Hello, from Ant.
<echo>Hello, from
Ant.</echo> BUILD SUCCESSFUL
</target>
</project>
// build.gradle
ant.importBuild 'build.xml'

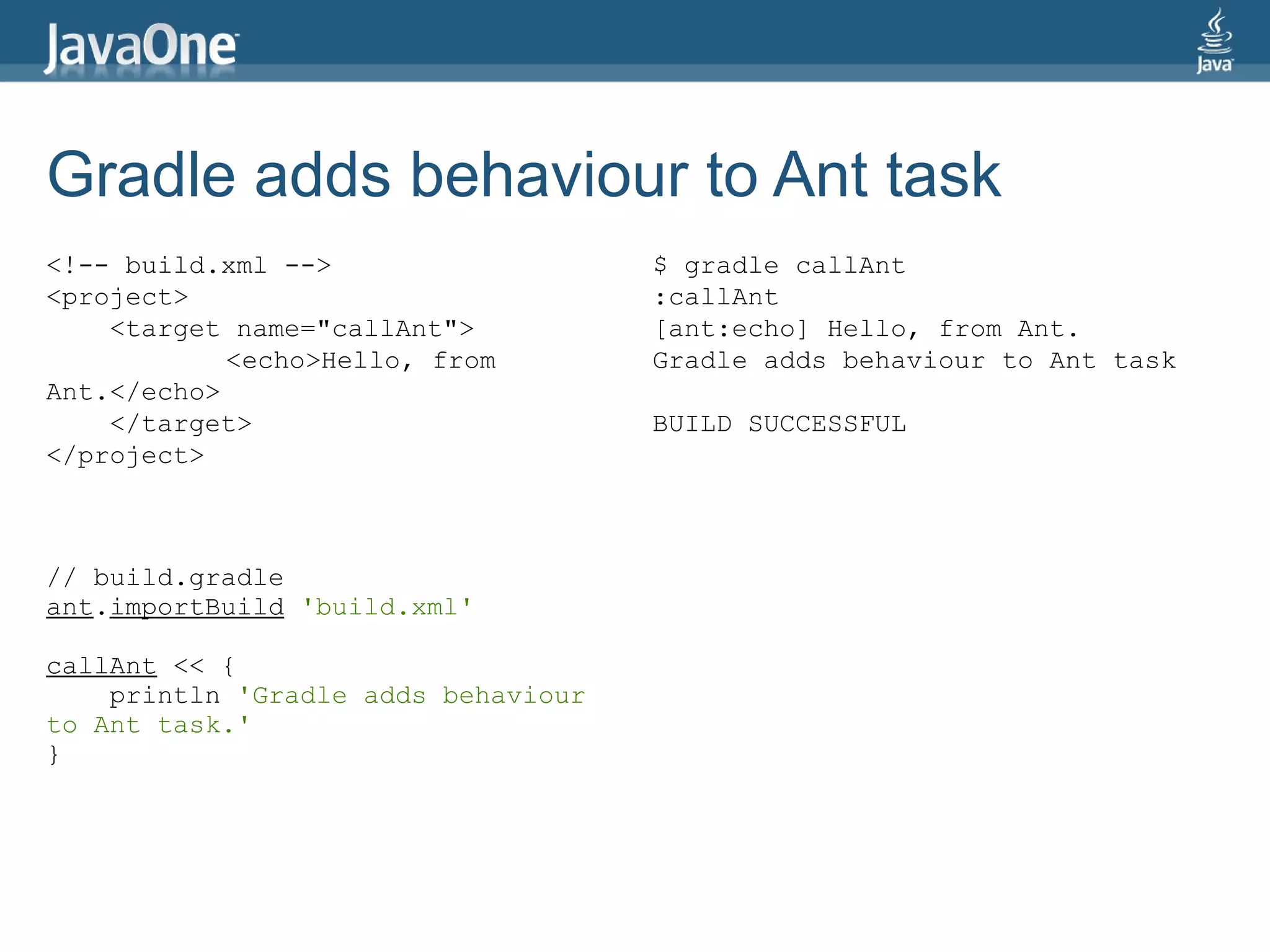

24. Gradle adds behaviour to Ant task
<!-- build.xml --> $ gradle callAnt
<project> :callAnt
<target name="callAnt"> [ant:echo] Hello, from Ant.
<echo>Hello, from Gradle adds behaviour to Ant task
Ant.</echo>
</target> BUILD SUCCESSFUL
</project>
// build.gradle
ant.importBuild 'build.xml'
callAnt << {
println 'Gradle adds behaviour
to Ant task.'
}

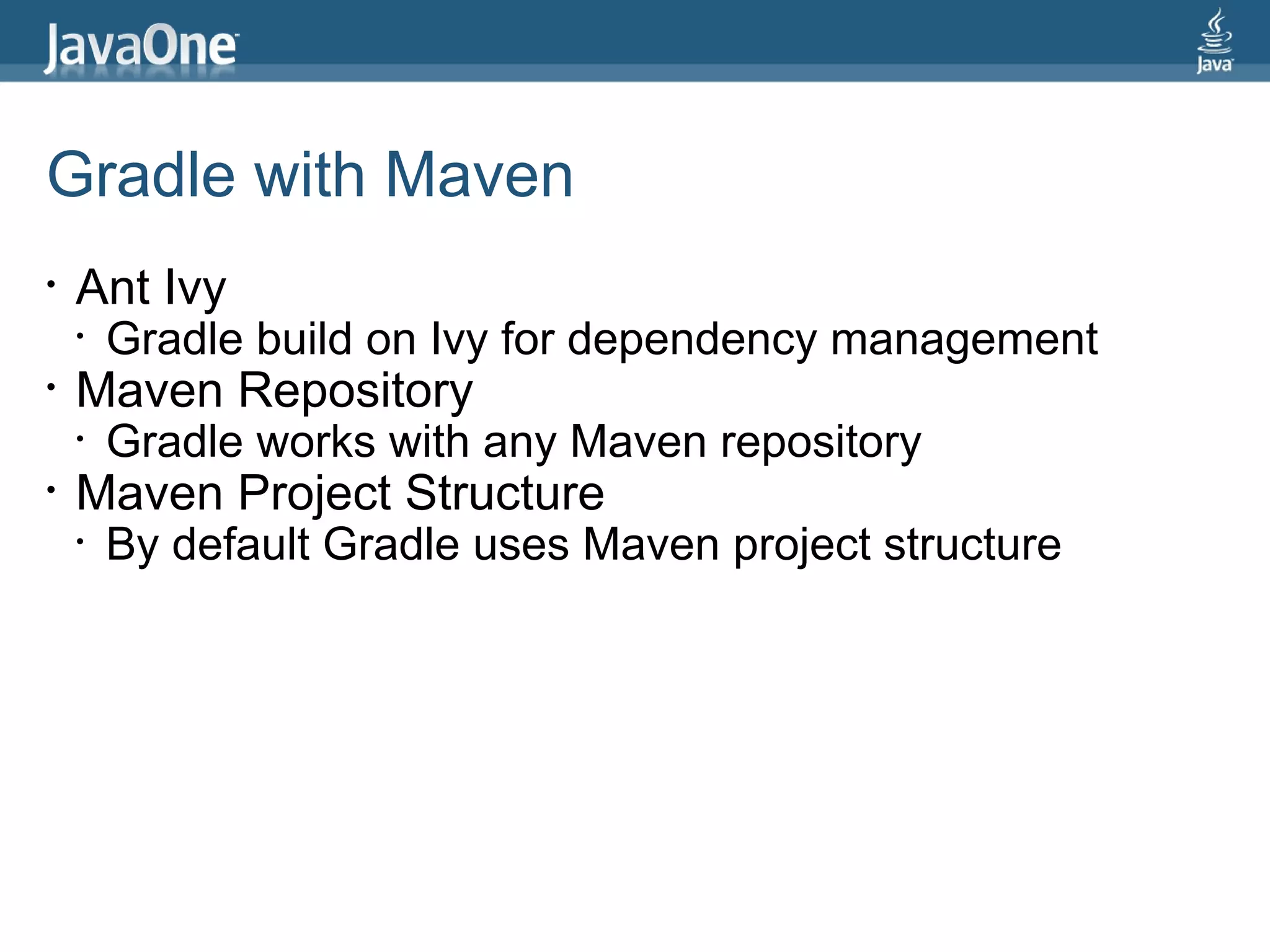

25. Gradle with Maven
• Ant Ivy
• Gradle build on Ivy for dependency management
• Maven Repository
• Gradle works with any Maven repository
• Maven Project Structure
• By default Gradle uses Maven project structure

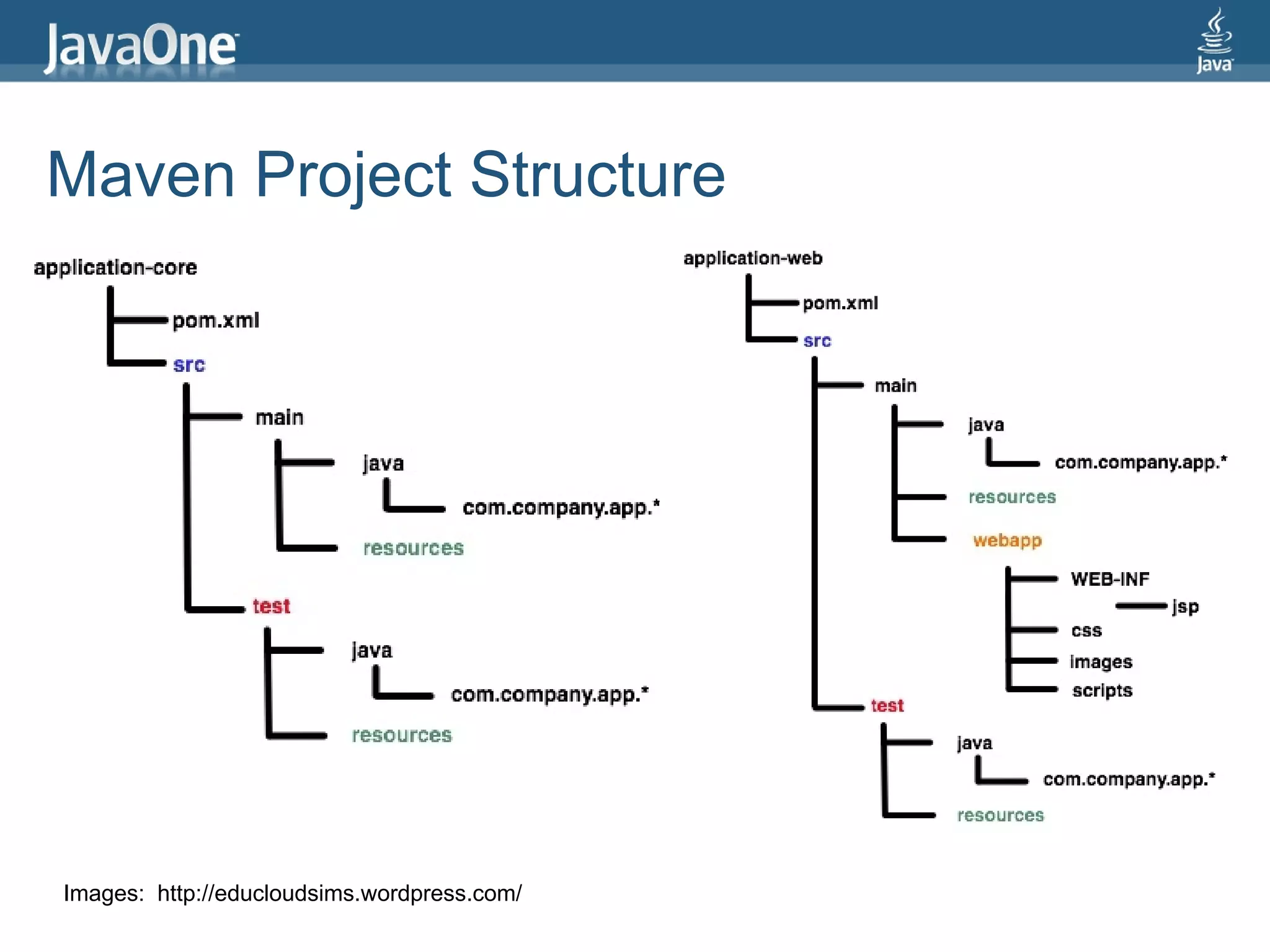

26. Maven Project Structure
Images: http://educloudsims.wordpress.com/

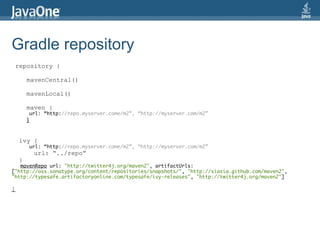

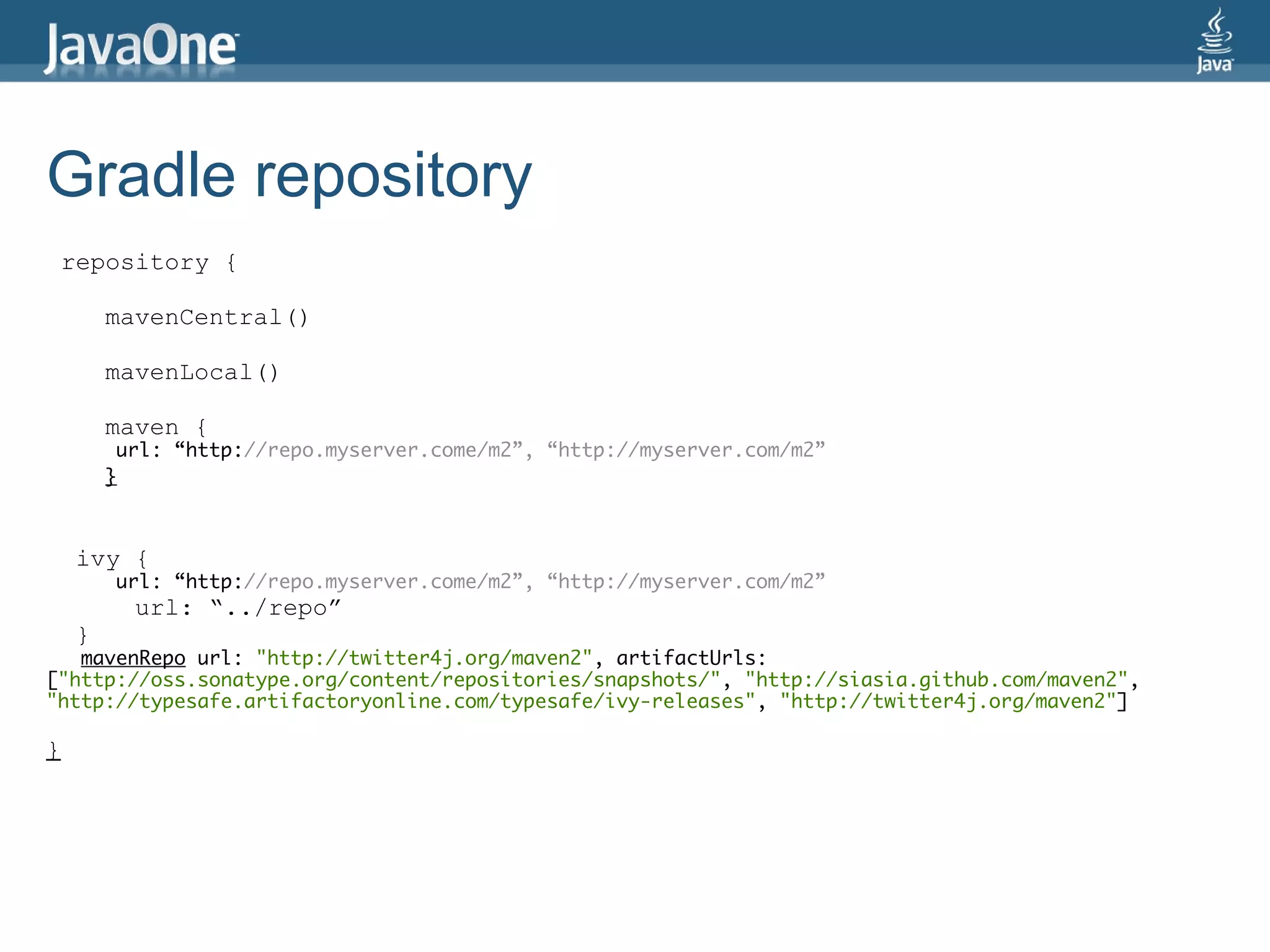

27. Gradle repository
repository {
mavenCentral()
mavenLocal()
maven {
url: “http://repo.myserver.come/m2”, “http://myserver.com/m2”
}
ivy {
url: “http://repo.myserver.come/m2”, “http://myserver.com/m2”
url: “../repo”
}
mavenRepo url: "http://twitter4j.org/maven2", artifactUrls:
["http://oss.sonatype.org/content/repositories/snapshots/", "http://siasia.github.com/maven2",
"http://typesafe.artifactoryonline.com/typesafe/ivy-releases", "http://twitter4j.org/maven2"]
}

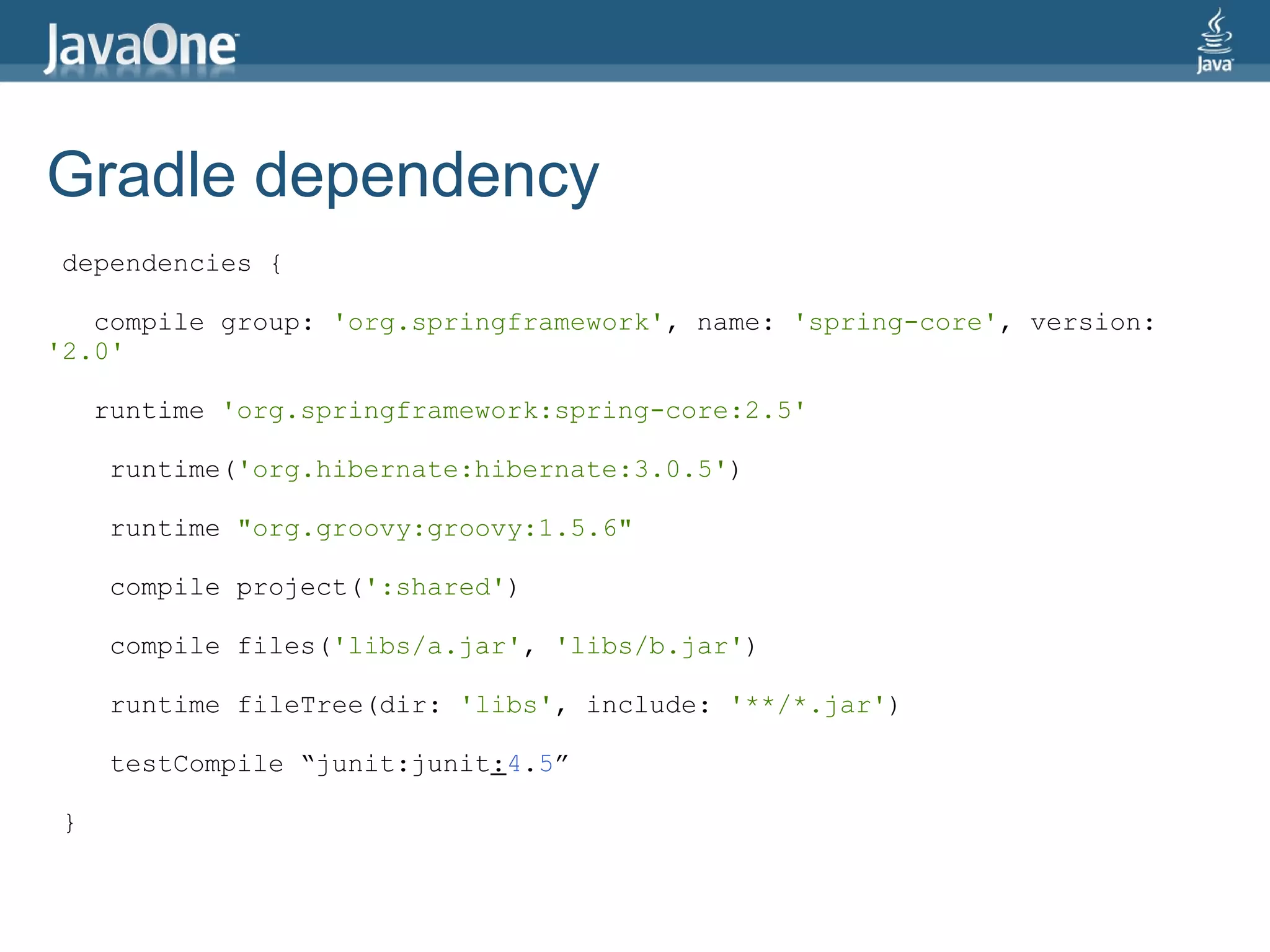

28. Gradle dependency
dependencies {
compile group: 'org.springframework', name: 'spring-core', version:
'2.0'
runtime 'org.springframework:spring-core:2.5'
runtime('org.hibernate:hibernate:3.0.5')
runtime "org.groovy:groovy:1.5.6"
compile project(':shared')
compile files('libs/a.jar', 'libs/b.jar')
runtime fileTree(dir: 'libs', include: '**/*.jar')
testCompile “junit:junit:4.5”
}

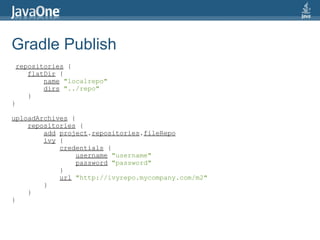

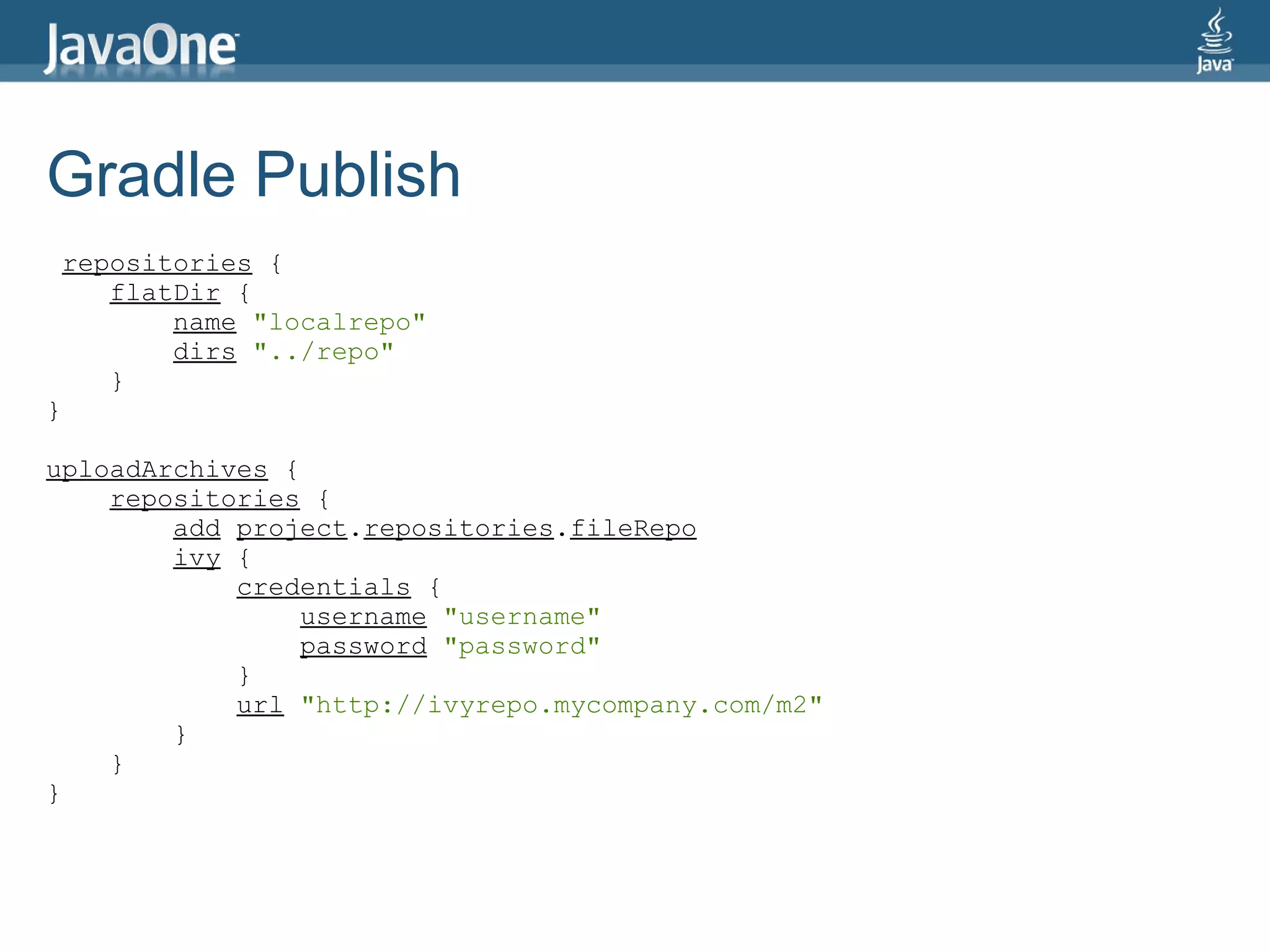

29. Gradle Publish
repositories {
flatDir {
name "localrepo"
dirs "../repo"
}
}
uploadArchives {
repositories {
add project.repositories.fileRepo
ivy {
credentials {
username "username"
password "password"
}
url "http://ivyrepo.mycompany.com/m2"
}
}
}

30. Plugin Support

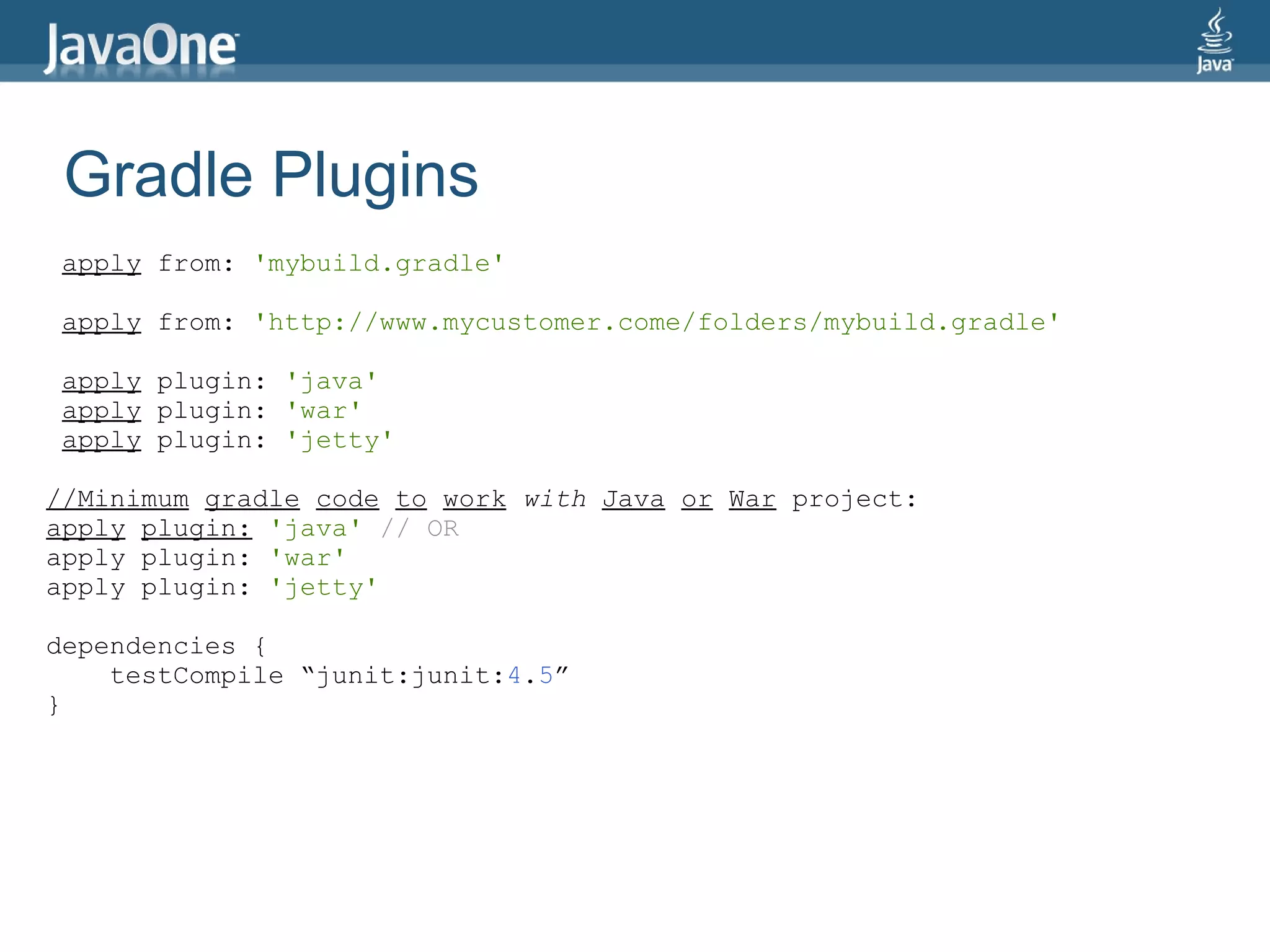

31. Gradle Plugins
apply from: 'mybuild.gradle'
apply from: 'http://www.mycustomer.come/folders/mybuild.gradle'
apply plugin: 'java'
apply plugin: 'war'
apply plugin: 'jetty'
//Minimum gradle code to work with Java or War project:
apply plugin: 'java' // OR
apply plugin: 'war'
apply plugin: 'jetty'
dependencies {
testCompile “junit:junit:4.5”
}

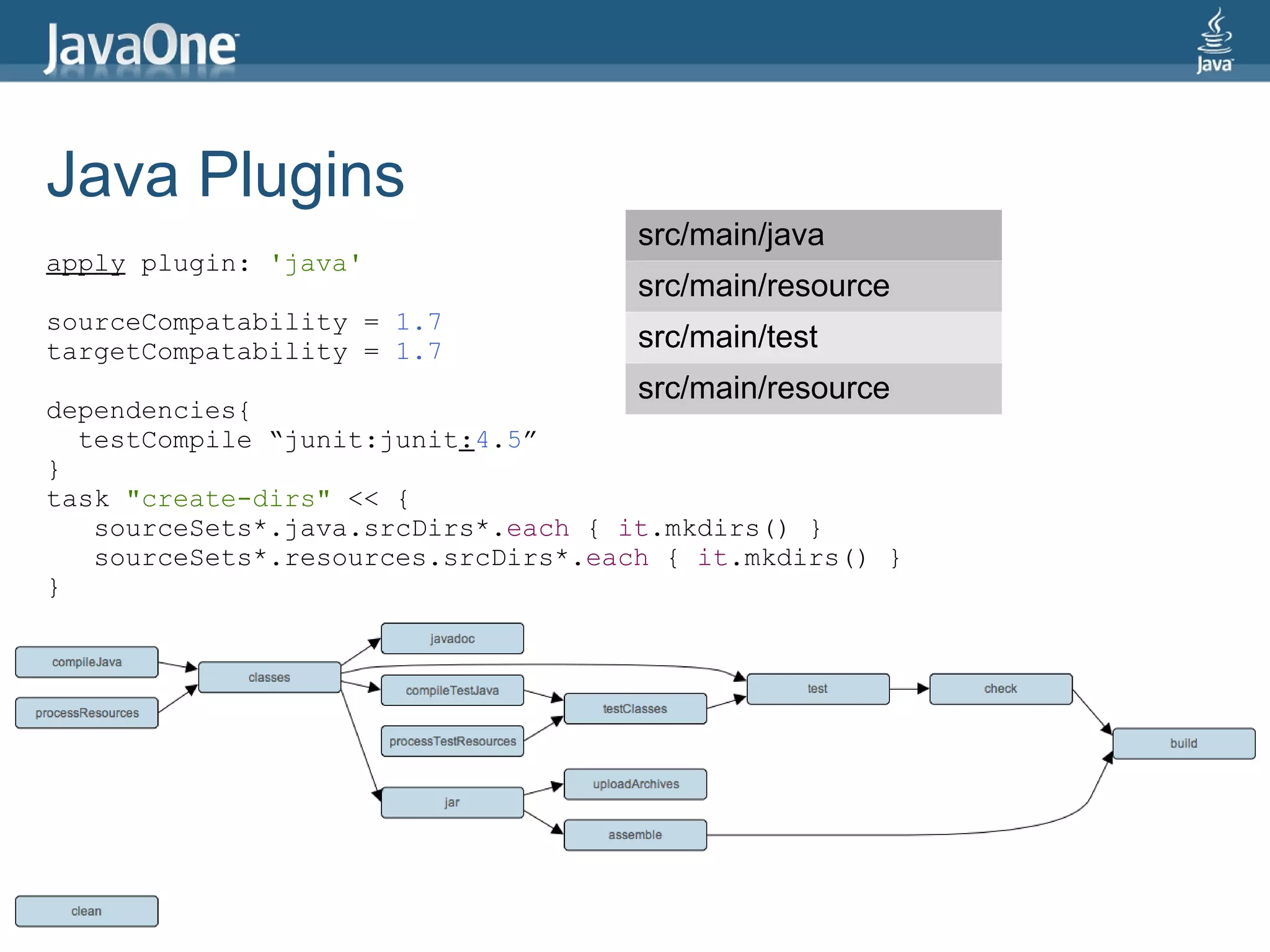

32. Java Plugins
src/main/java
apply plugin: 'java'
src/main/resource
sourceCompatability = 1.7
targetCompatability = 1.7 src/main/test
src/main/resource
dependencies{
testCompile “junit:junit:4.5”
}
task "create-dirs" << {
sourceSets*.java.srcDirs*.each { it.mkdirs() }
sourceSets*.resources.srcDirs*.each { it.mkdirs() }
}

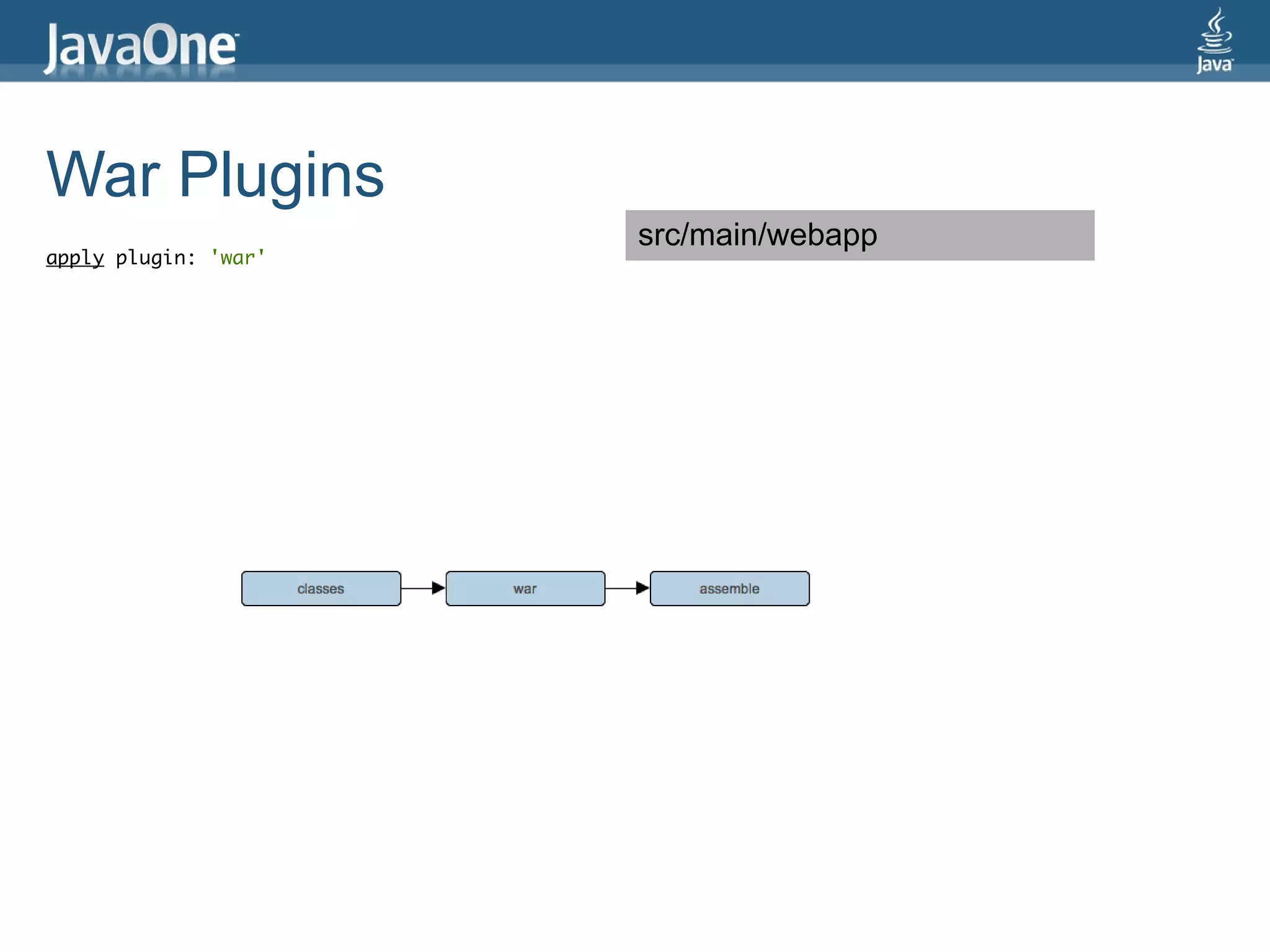

33. War Plugins
src/main/webapp
apply plugin: 'war'

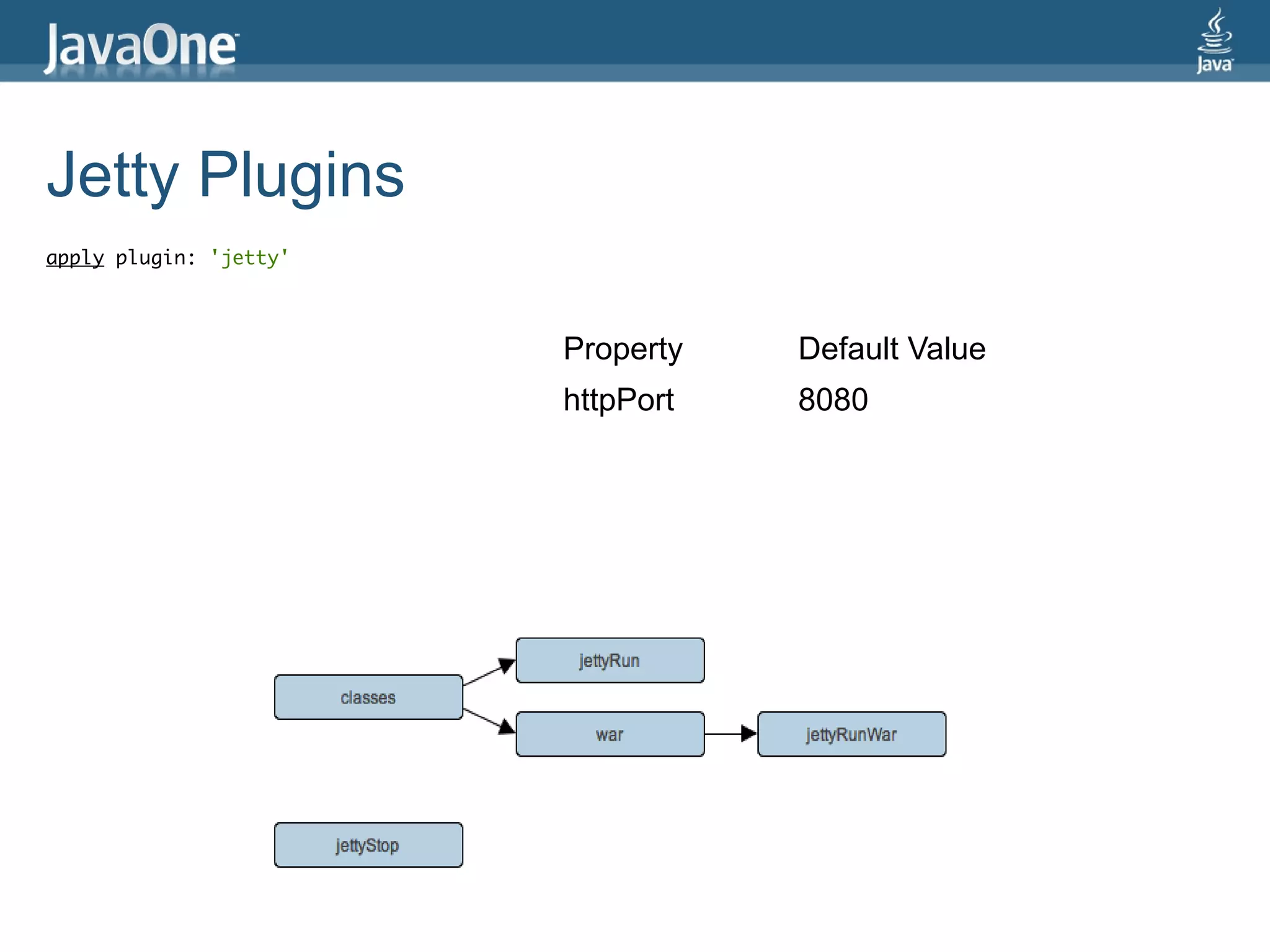

34. Jetty Plugins
apply plugin: 'jetty'
Property Default Value
httpPort 8080

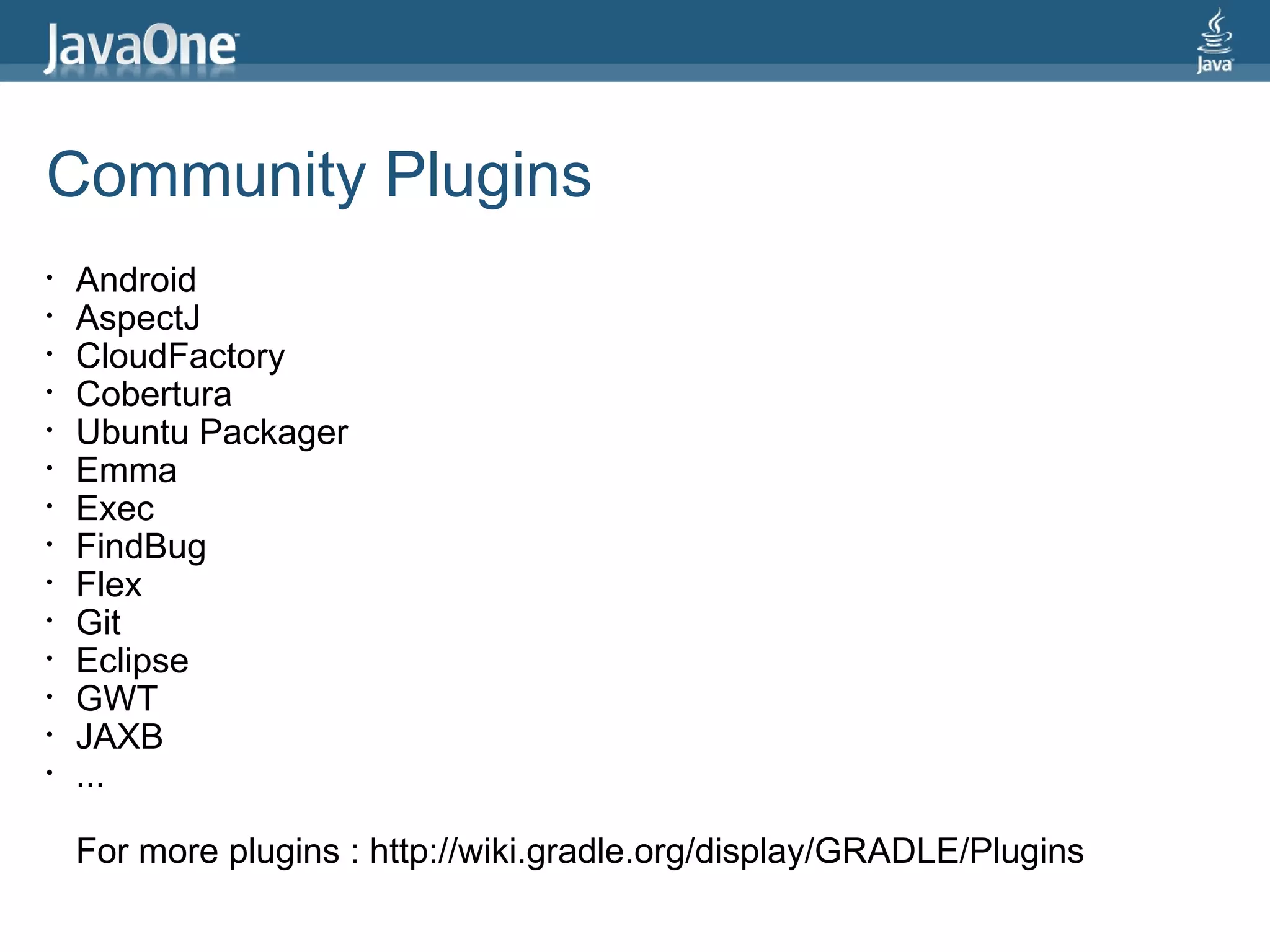

35. Community Plugins
• Android
• AspectJ
• CloudFactory
• Cobertura
• Ubuntu Packager
• Emma
• Exec
• FindBug
• Flex
• Git
• Eclipse
• GWT
• JAXB
• ...
For more plugins : http://wiki.gradle.org/display/GRADLE/Plugins

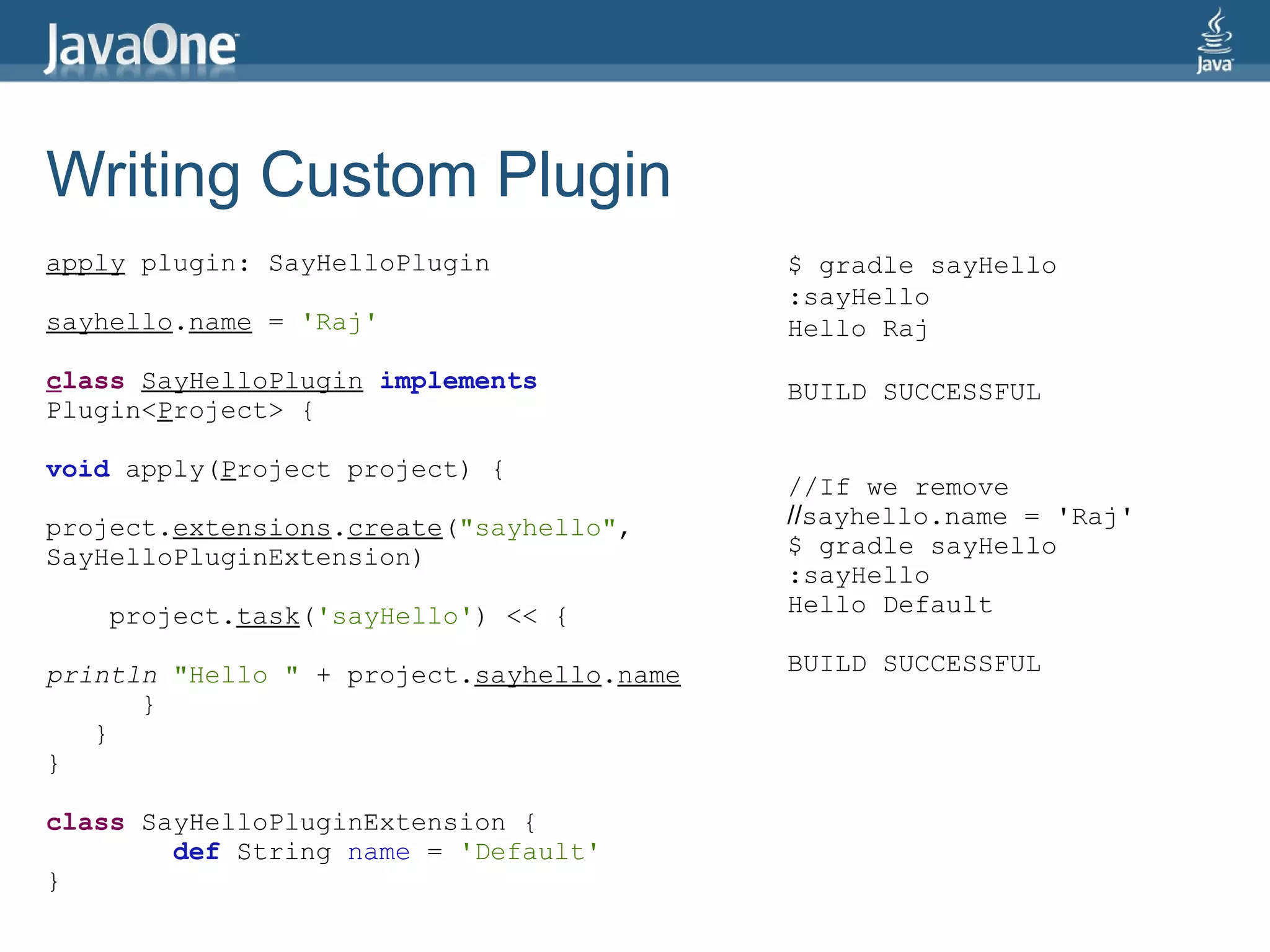

36. Writing Custom Plugin
apply plugin: SayHelloPlugin $ gradle sayHello
:sayHello
sayhello.name = 'Raj' Hello Raj
class SayHelloPlugin implements BUILD SUCCESSFUL
Plugin<Project> {
void apply(Project project) {
//If we remove
project.extensions.create("sayhello", //sayhello.name = 'Raj'
SayHelloPluginExtension) $ gradle sayHello
:sayHello
project.task('sayHello') << { Hello Default
println "Hello " + project.sayhello.name BUILD SUCCESSFUL
}
}
}
class SayHelloPluginExtension {
def String name = 'Default'
}

37. Multi Project Support

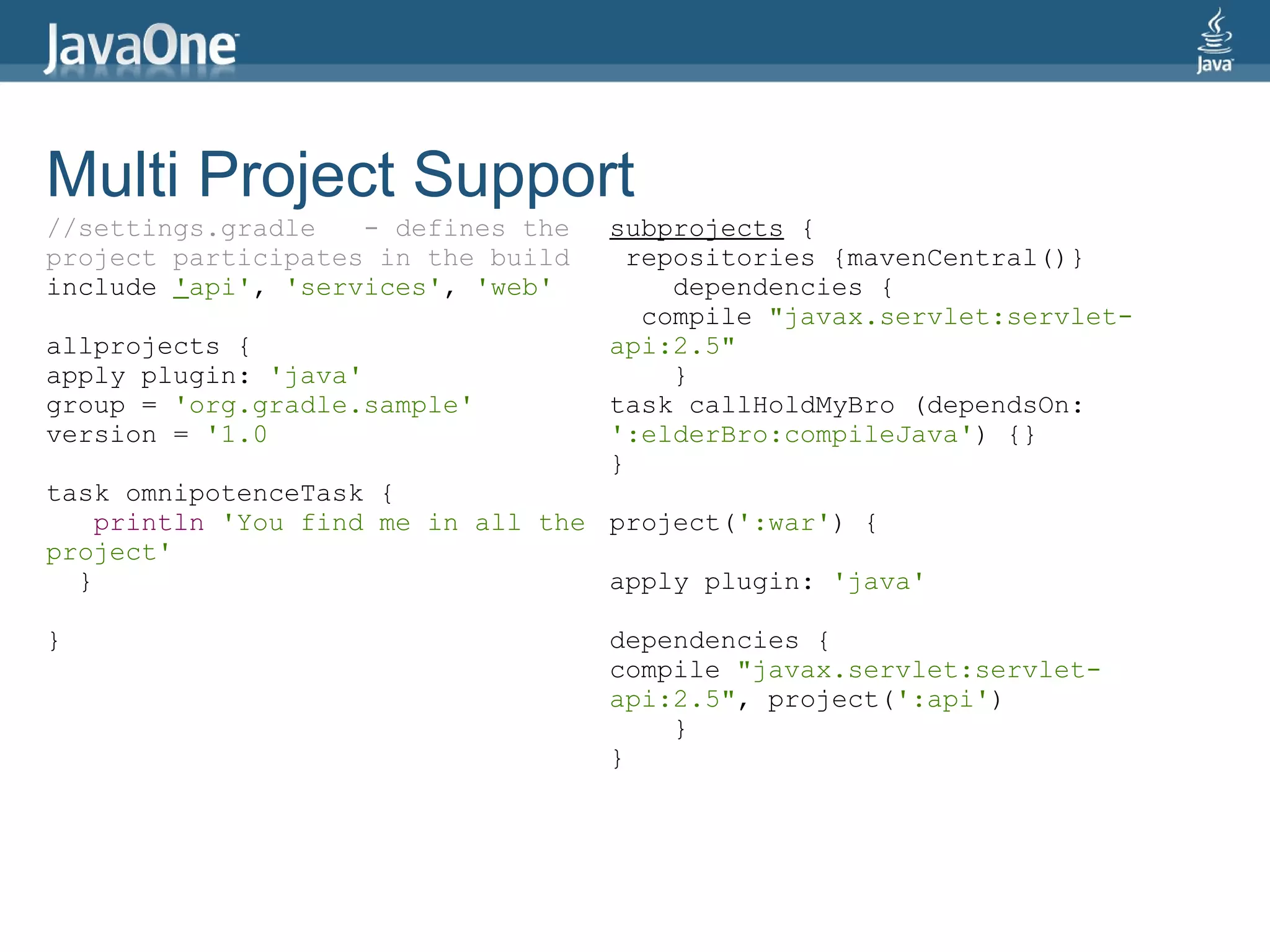

38. Multi Project Support
//settings.gradle - defines the subprojects {
project participates in the build repositories {mavenCentral()}
include 'api', 'services', 'web' dependencies {
compile "javax.servlet:servlet-
allprojects { api:2.5"
apply plugin: 'java' }
group = 'org.gradle.sample' task callHoldMyBro (dependsOn:
version = '1.0 ':elderBro:compileJava') {}
}
task omnipotenceTask {
println 'You find me in all the project(':war') {
project'
} apply plugin: 'java'
} dependencies {
compile "javax.servlet:servlet-
api:2.5", project(':api')
}
}

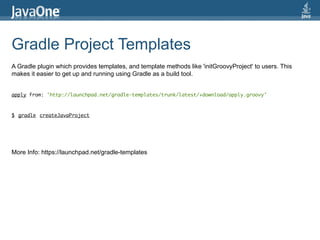

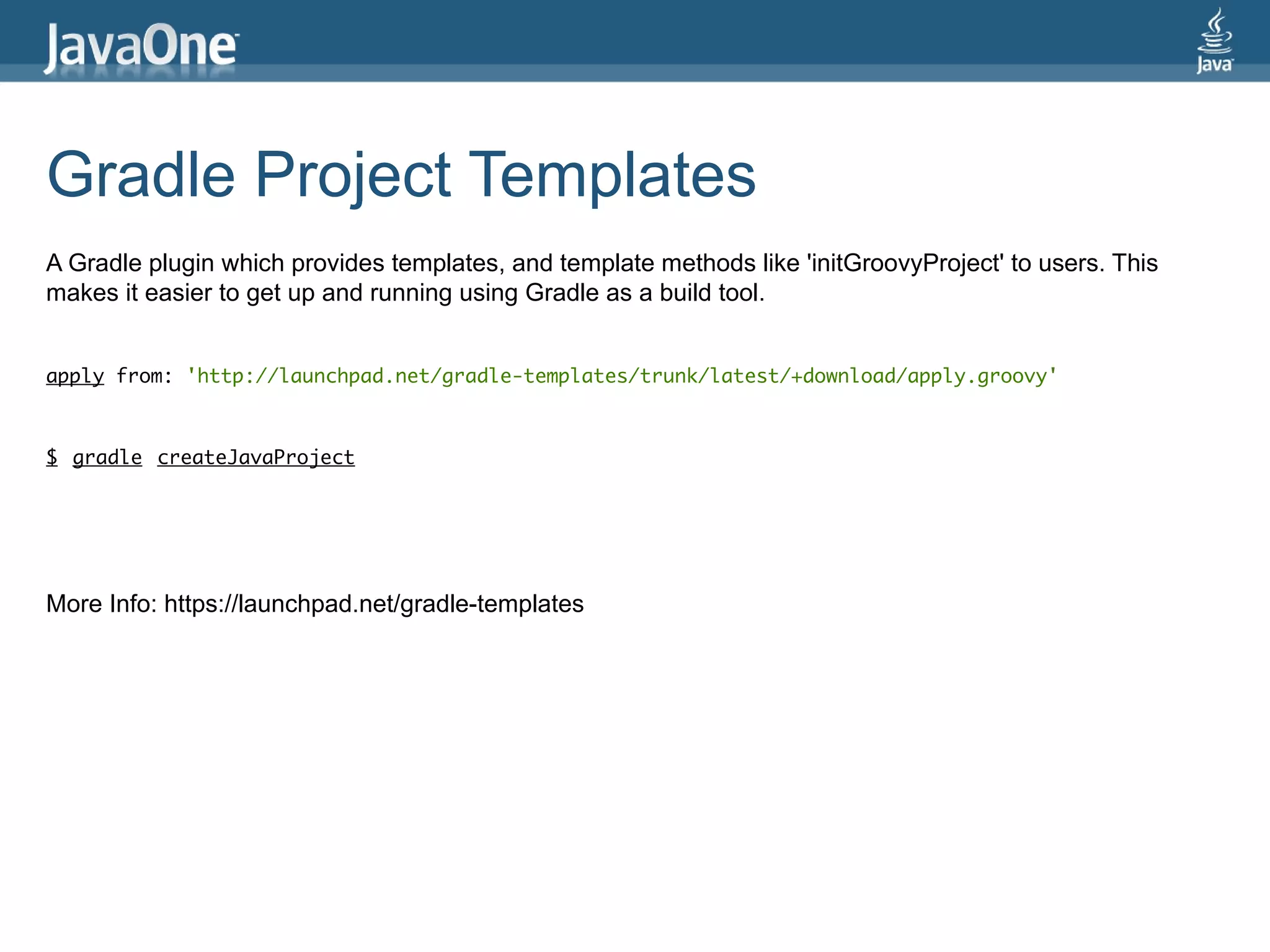

39. Gradle Project Templates
A Gradle plugin which provides templates, and template methods like 'initGroovyProject' to users. This
makes it easier to get up and running using Gradle as a build tool.
apply from: 'http://launchpad.net/gradle-templates/trunk/latest/+download/apply.groovy'
$ gradle createJavaProject
More Info: https://launchpad.net/gradle-templates

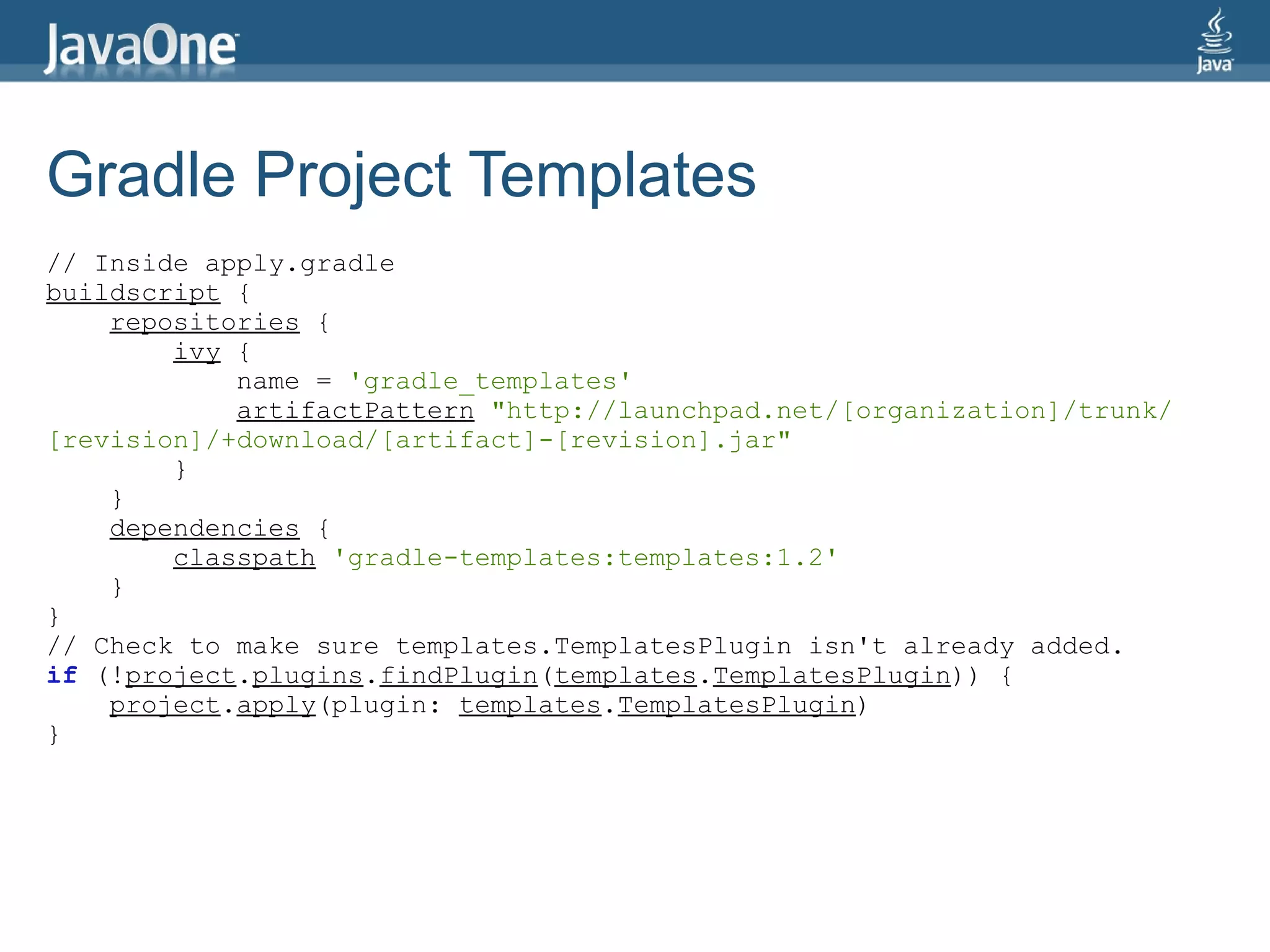

40. Gradle Project Templates
// Inside apply.gradle
buildscript {
repositories {
ivy {
name = 'gradle_templates'
artifactPattern "http://launchpad.net/[organization]/trunk/
[revision]/+download/[artifact]-[revision].jar"
}
}
dependencies {
classpath 'gradle-templates:templates:1.2'
}
}
// Check to make sure templates.TemplatesPlugin isn't already added.
if (!project.plugins.findPlugin(templates.TemplatesPlugin)) {
project.apply(plugin: templates.TemplatesPlugin)
}

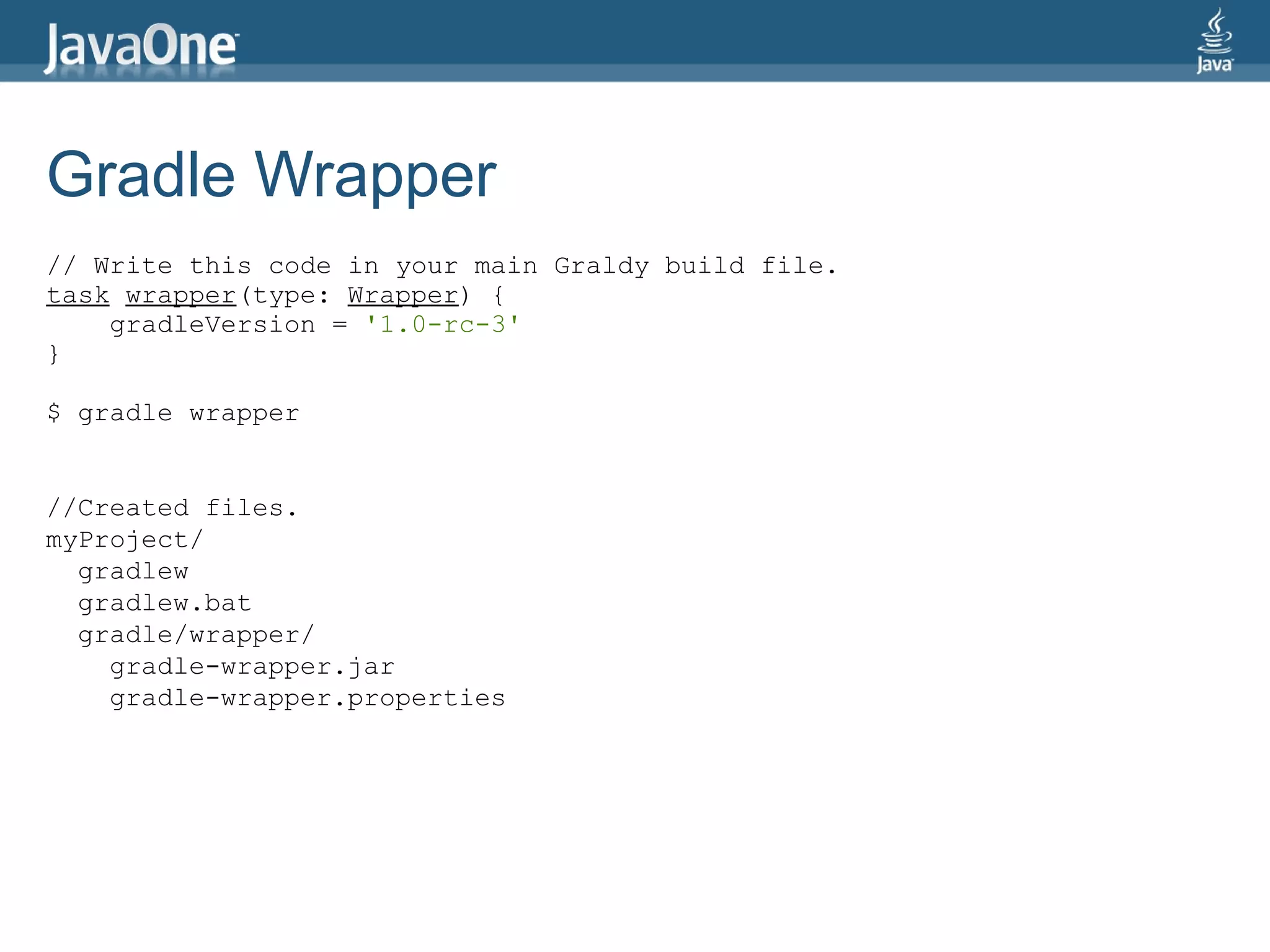

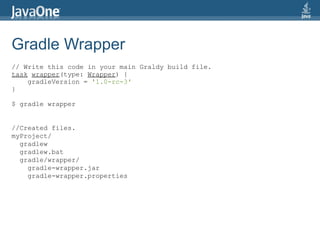

41. Gradle Wrapper
// Write this code in your main Graldy build file.
task wrapper(type: Wrapper) {
gradleVersion = '1.0-rc-3'
}
$ gradle wrapper
//Created files.
myProject/
gradlew
gradlew.bat
gradle/wrapper/
gradle-wrapper.jar
gradle-wrapper.properties

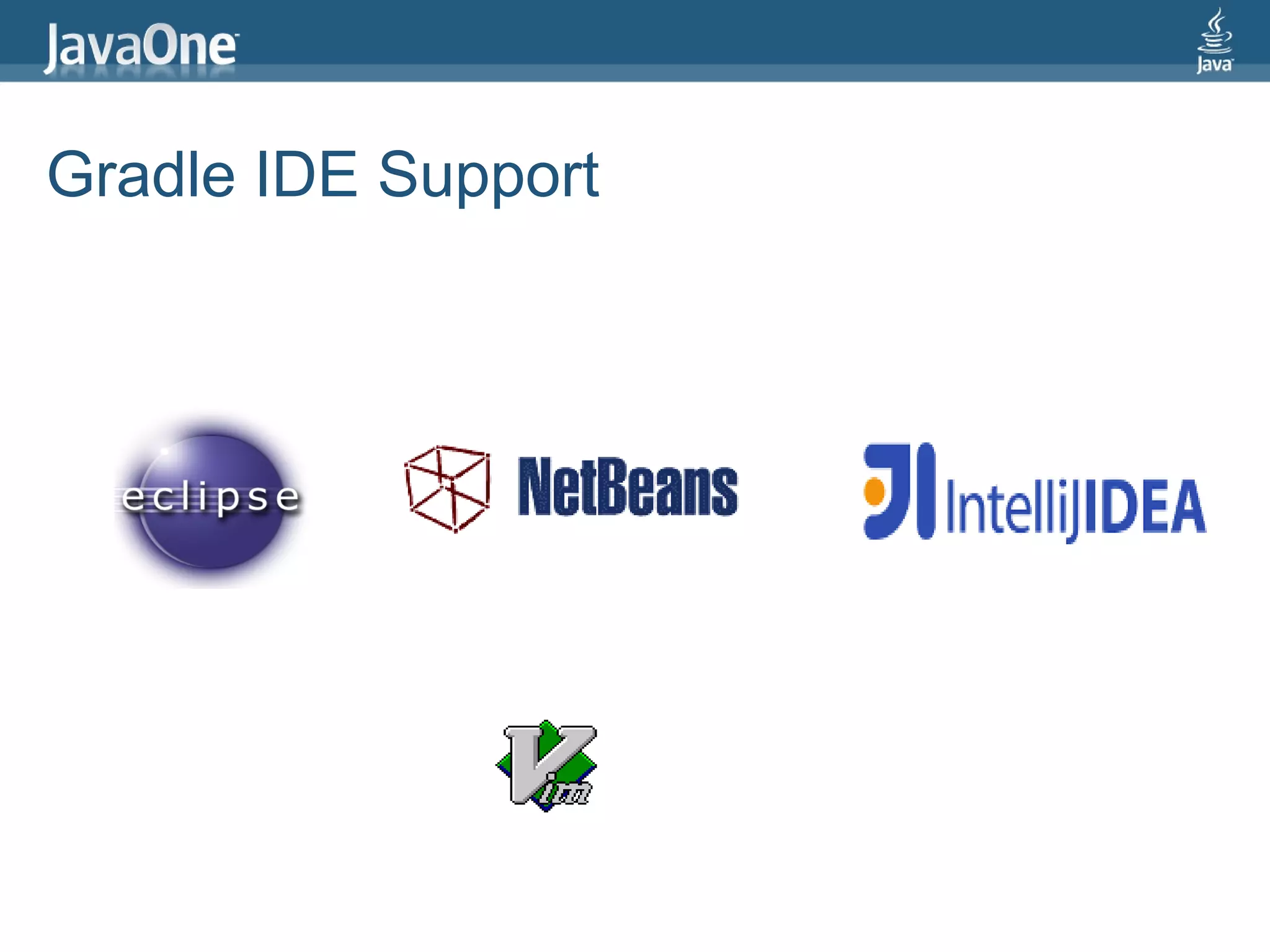

42. Gradle IDE Support

43. Reference
• http://gradle.orga
• http://gradle.org/overview
• http://gradle.org/documentation
• http://gradle.org/roadmap
• http://docs.codehaus.org/display/GRADLE/Cookbook
http://www.gradle.org/tooling
http://gradle.org/contribute

44. Q&A

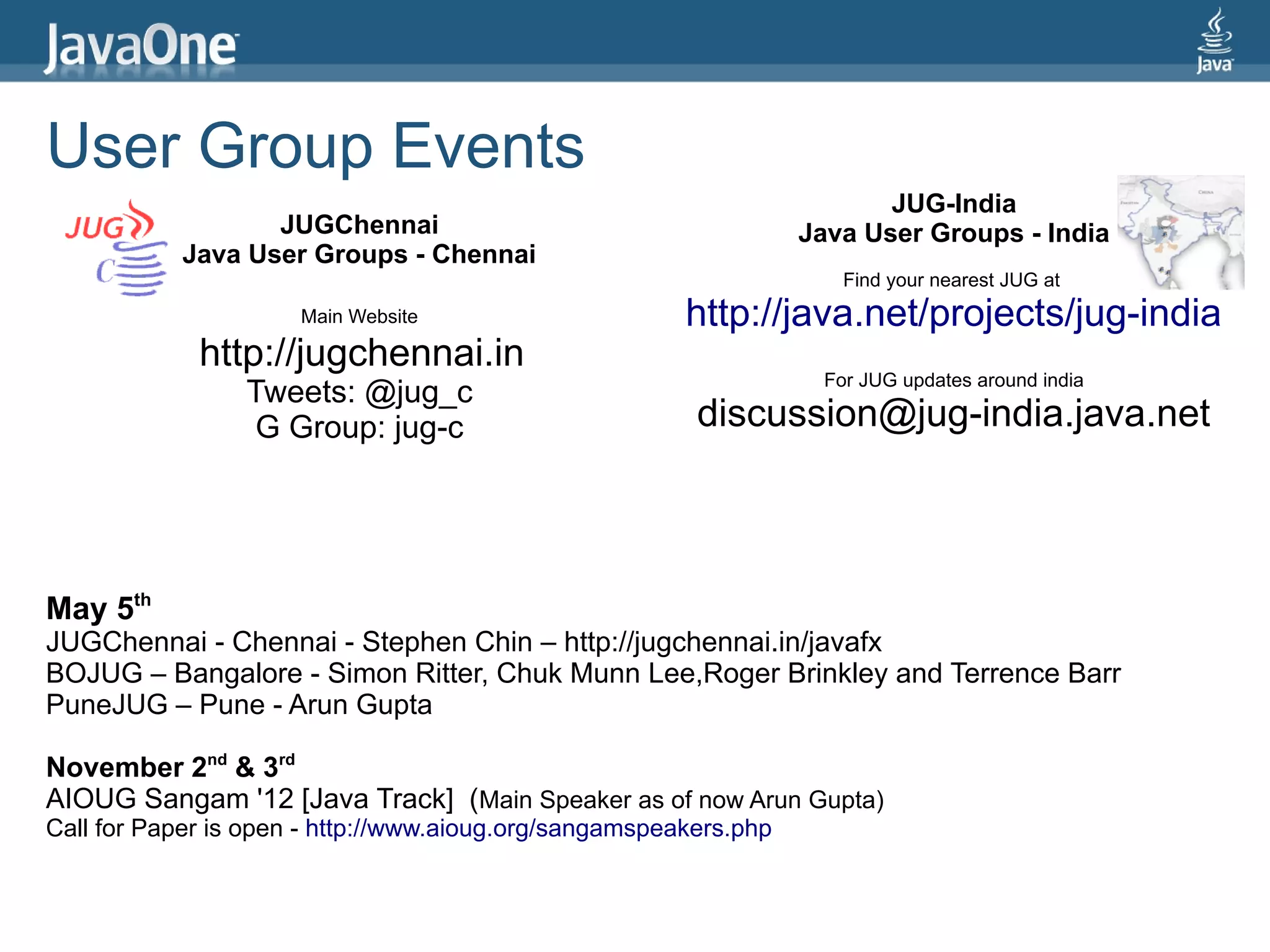

45. User Group Events
JUG-India
JUGChennai Java User Groups - India
Java User Groups - Chennai
Find your nearest JUG at
Main Website http://java.net/projects/jug-india
http://jugchennai.in
For JUG updates around india
Tweets: @jug_c
G Group: jug-c discussion@jug-india.java.net
May 5th
JUGChennai - Chennai - Stephen Chin – http://jugchennai.in/javafx
BOJUG – Bangalore - Simon Ritter, Chuk Munn Lee,Roger Brinkley and Terrence Barr
PuneJUG – Pune - Arun Gupta
November 2nd & 3rd
AIOUG Sangam '12 [Java Track] (Main Speaker as of now Arun Gupta)
Call for Paper is open - http://www.aioug.org/sangamspeakers.php

46. Rajmahendra Hegde
rajmahendra@gmail.com
tweet: @rajonjava
