How we integrate & deploy Mobile Apps with Travis CI part 2

How we integrate & deploy
Mobile Apps with Travis CI
Marcio Klepacz, iOS Engineering @ GetYourGuide
Mobile Warsaw, Poland 2015

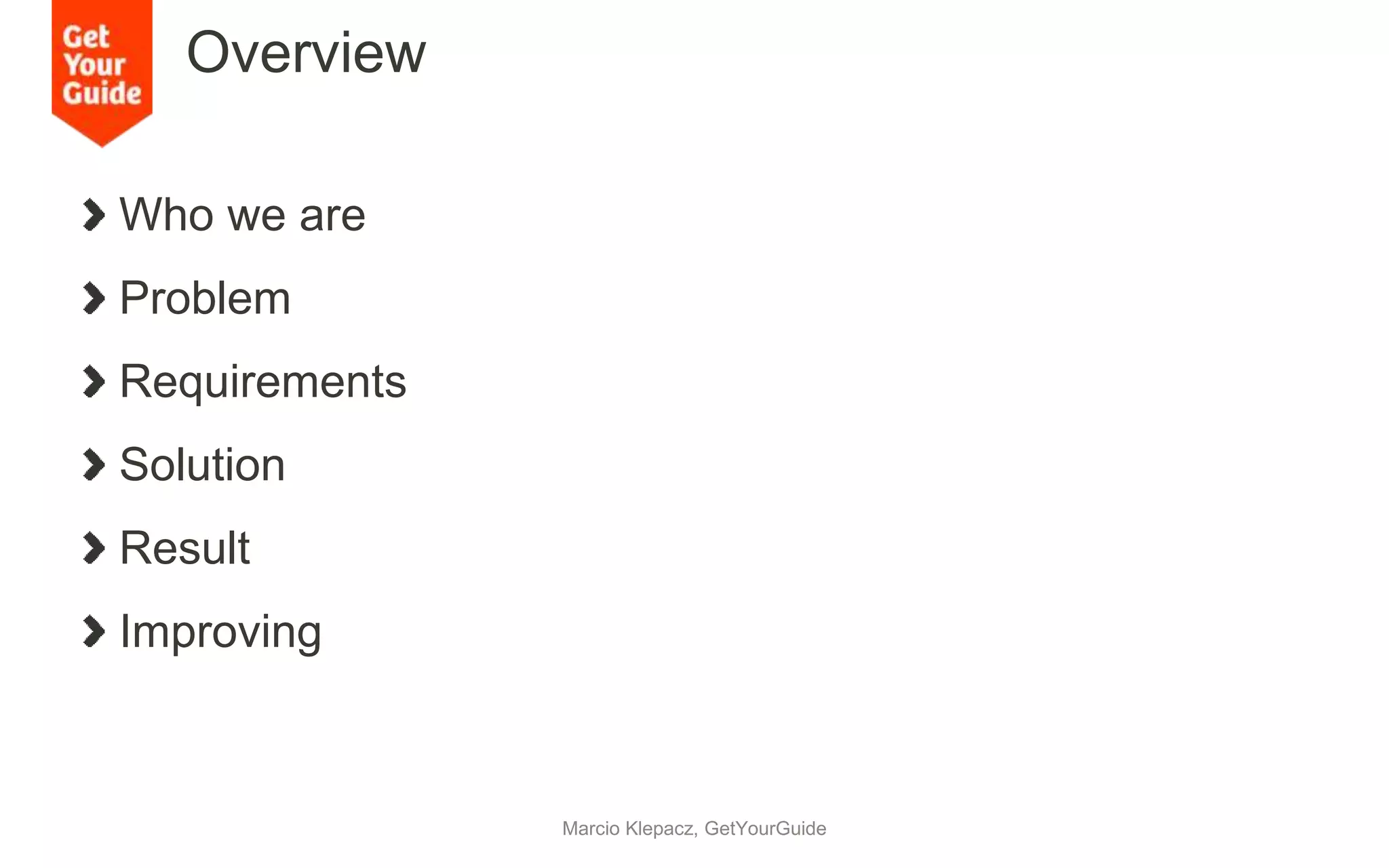

Overview
Who we are
Problem
Requirements
Solution
Result
Improving
Marcio Klepacz, GetYourGuide

GetYourGuide Offers the Largest Travel
Activities Inventory Worldwide
800+
10,600+5,300+
800+
4,000+
2,000+

Repetitive
Manual
We want to automate that
Fit our workflow
Developer Happiness
😄
Develop
😊
Run
Tests
😐
Configure
😒
Build
😠
Write
release
notes
😤
Upload,
notify
users,
etc.

Requirements
Automatically build and test on push
Fit into gitflow workflow (feature, develop and
release) branch
Produce binaries that can be tested (downloaded)

Requirements / Gitflow

Requirements / Summary
Build an Alpha App with Test Environment
Able to book with dummy credit card
Build a Beta App with the Live Environment
Real content
Build and test on every push
Distribute app to testers from release and develop branches
Relieve developers from repetitive manual tasks

Xcode
Server
Jenkins Ship.io Travis CI Circle CI
iOS and
Android
✘ ✔︎ ✔︎ ✔︎ ✔︎
Actions
specific to
branches
✔︎ ✔︎ ✔︎ ✔︎
✔︎
Build on
push
✔︎ ✔︎ ✔︎ ✔︎ ✔︎
Big
community
✔︎ ✔︎ ✘ ✔︎ ✘
Hosted ✘ ✘ ✔︎ ✔︎ ✔︎

Travis
Hosted Continuous Integration service
Configuration file in your project (.travis.yml)
Define SDK, build env and output
custom scripts
Connected to Github
Triggers in every push and pull request
Available for many platforms

Travis Setup (.travis.yml)
It’s not using the iPhone SDK
code signing is needed
Doesn’t differentiate between branches
Doesn’t archive
Doesn’t distribute
language: objective-c
xcode_project: MyNewProject.xcodeproj
xcode_scheme: MyNewProjectSharedScheme
iPhone SDK
custom build per branch
generate .ipa
distribute

Import keys (import-keys.sh)
# 1. Create keychain
security create-keychain -p travis ios-build.keychain
# 2. Make as default
security default-keychain -s ios-build.keychain
# 3. Unlock keychain
security unlock-keychain -p travis ios-build.keychain
# 4. Add certificates to keychain
security import ./ios-travis-ci/certificates/dist.cer -k ios-build.keychain -T /usr/bin/codesign
security import ./ios-travis-ci/certificates/dist.p12 -k ios-build.keychain -P $KEY_DIST_PASSWORD -T /usr/bin/codesign
# 5. Copying provisioning profile to Travis
mkdir -p ~/Library/MobileDevice/Provisioning Profiles
cp ./ios-travis-ci/profiles/*.mobileprovision ~/Library/MobileDevice/Provisioning Profiles/
iPhone SDK
generate .ipa
distribute

Import keys (import-keys.sh)
# 1. Create keychain
security create-keychain -p travis ios-build.keychain
# 2. Make as default
security default-keychain -s ios-build.keychain
# 3. Unlock keychain
security unlock-keychain -p travis ios-build.keychain
# 4. Add certificates to keychain
security import ./ios-travis-ci/certificates/dist.cer -k ios-build.keychain -T /usr/bin/codesign
security import ./ios-travis-ci/certificates/dist.p12 -k ios-build.keychain -P $KEY_DIST_PASSWORD -T /usr/bin/codesign
# 5. Copying provisioning profile to Travis
mkdir -p ~/Library/MobileDevice/Provisioning Profiles
cp ./ios-travis-ci/profiles/*.mobileprovision ~/Library/MobileDevice/Provisioning Profiles/
⛔️
️
iPhone SDK
generate .ipa
distribute

Security
You can encrypt environment variables using
Travis command line tool on your terminal:
~ $ travis encrypt ‘KEY_DIST_PASSWORD=abc123’ –add
Passing the option “--add” will automatically add the secure
key to your .travis.yml
env:
global:
- secure: Pz3cxDffsdafasf34324fdsf232fdsfdsf3fdsf
iPhone SDK
generate .ipa
distribute

Use iPhone SDK ✅
Doesn’t differentiate between branches
Doesn’t archive
env:
global:
before_script:
- ./scripts/import-key.sh
script:
- xctool -workspace MyNewProject.xcworkspace -scheme MySharedScheme -sdk iphoneos -configuration Beta
iPhone SDK
generate .ipa
distribute

Building (build_app.sh)
# 1.
xctool -workspace ${APP_NAME}.xcworkspace
-scheme ${APP_NAME}
-sdk iphonesimulator test
…
# 2.
export RELEASE_SUFFIX=".release”
# Bundle Identifier:
#
com.getyourguide.mobile.$(PRODUCT_NAME:rfc1034identifier)${BUNDLE_ID_SUFFIX}${RELEASE_
SUFFIX}
…
# 3
xctool -workspace ${APP_NAME}.xcworkspace -scheme ${APP_NAME}
-sdk iphoneos
-configuration ${APP_BUILD_CONFIG}
OBJROOT=$PWD/build
SYMROOT=$PWD/build
iPhone SDK
generate .ipa
distribute

Use iPhone SDK ✅
Differentiate between branches ✅
Doesn’t archive
…
global:
matrix:
- APP_BUILD_CONFIG=Debug
- APP_BUILD_CONFIG=Beta
before_script:
script:
- ./scripts/build-app.sh
iPhone SDK
generate .ipa
distribute

# 1.
xcrun -sdk iphoneos PackageApplication
-v ”$BUILD_DIR/$APP_NAME.app"
-o ”$BUILD_DIR/$APP_NAME.ipa"
--sign "$DEVELOPER_NAME"
--embed ”$PROVISIONING_PROFILE"
…
# 2.
release_notes=`git log --since=1.week --pretty=format:"%an - %s"`
curl
-F status="2"
-F notify="0"
-F release_type="2"
-F notes="$release_notes"
-F notes_type="0"
-F "ipa=@$outputdir/$APP_NAME.ipa"
-F "mobileprovision=@$provisioning_profile"
-H "X-HockeyAppToken: ${HOCKEY_APP_TOKEN}"
https://rink.hockeyapp.net/api/2/apps/upload # Uploading to HockeyApp
Archiving and uploading
(archive_and_upload.sh)
iPhone SDK
generate .ipa
distribute

Use iPhone SDK ✅
Differentiate between branches ✅
Archive ✅
Distribute ✅
env:
global:
before_script:
script:
- ./scripts/build-app.sh
after_success:
- ./scripts/archive_and_upload.sh
iPhone SDK
generate .ipa
distribute

Move the scripts away from the app
repository (Optional)
Maintenance 👍
Reusable 👍
Slower builds 👎
…
git:
submodules: false
before_install:
- git submodule init ios-travis-ci
- git submodule update --remote --merge ios-travis-ci

Result
Automate tasks
App is distributed
No manual configuration
Different actions between branches
5 different apps to test concurrently
(@banaslee’s phone)

Some pain left
Provisioning profile included on project 👎
Very long shell script files 👎
Can’t scale 👎
Very Travis dependent👎

Fastlane by @KrauseFx
Lets you define and run your deployment
pipelines for different environments.
Ruby gem
Powerful toolchain
Automates certificates and
prov.profile installs
Flexible
Open source

Fastlane / Example
# ../fastlane/Fastfile
#...
lane :deploy do
# Installing certificates
cert( development: true, username: "cibot@getyourguide.com")
# Fetching and installing proviosning profiles
sigh( adhoc: true, force: true, filename: "myFile.mobileprovision")
# Build project
gym( scheme: "MyApp", workspace: "MyApp.xcworkspace", configuration: ENV["APP_BUILD_CONFIG"])
# Shipping
hockey( api_token: '...', ipa: './app.ipa', notes: "Changelog")
end
#...

Fastlane / Example .travis.yml
env:
global:
script:
- bundle exec fastlane deploy
Scalable 👍
Faster 👍
Focused on Apple environment 👎

Thanks for your time
@marciok and marcio@getyourguide.com

References
Travis CI for iOS - Mattes Groeger
johanneswuerbach / .travis.yml - Johannes Würbach
The OS X Build Environment - Travis CI
Fastlane - Felix Krause
