1. The Sandbox Theory
How Easily Manage Your Dev Environment and
Not Be Buried in Dependency Configuration
in The Microservice World
Shestakov Illia, Senior Programmer

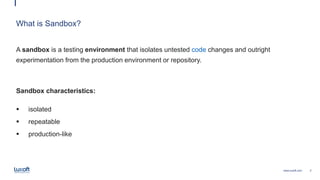

2. 2www.luxoft.com
What is Sandbox?
A sandbox is a testing environment that isolates untested code changes and outright
experimentation from the production environment or repository.
Sandbox characteristics:
 isolated
 repeatable
 production-like

3. 3www.luxoft.com
No Sandbox
at all
?
Sandbox Evolution

4. 4www.luxoft.com

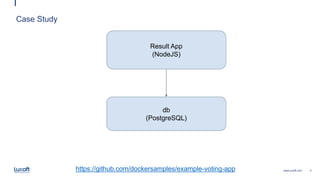

Case Study
Result App
(NodeJS)
db
(PostgreSQL)
https://github.com/dockersamples/example-voting-app

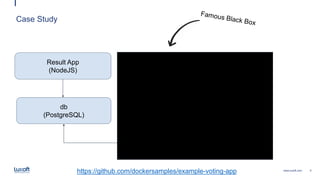

5. 5www.luxoft.com
Case Study
Result App
(NodeJS)
db
(PostgreSQL)
Worker
(C#)
Voting App
(Python)
PubSub
(Redis)
https://github.com/dockersamples/example-voting-app

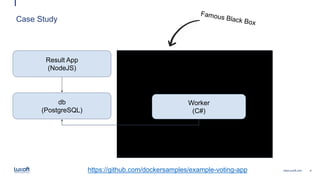

6. 6www.luxoft.com
Voting App
(Python)
PubSub
(Redis)
Case Study
Result App
(NodeJS)
db
(PostgreSQL)
Worker
(C#)
https://github.com/dockersamples/example-voting-app

7. 7www.luxoft.com

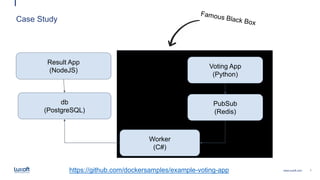

Case Study
Result App
(NodeJS)
db
(PostgreSQL)
Worker
(C#)
Voting App
(Python)
PubSub
(Redis)
https://github.com/dockersamples/example-voting-app

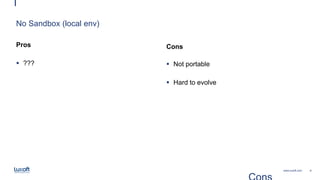

8. 8www.luxoft.com
No Sandbox (local env)
Pros
 ???
Cons
 Not portable
 Hard to evolve

9. 9www.luxoft.com

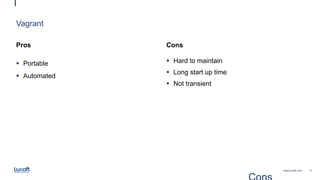

Vagrant
Pros
 Portable
 Automated
Cons
 Hard to maintain
 Long start up time
 Not transient

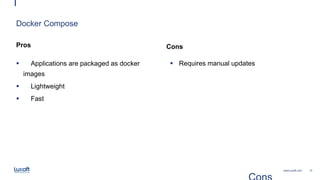

10. 10www.luxoft.com
Docker Compose
Pros
 Applications are packaged as docker
images
 Lightweight
 Fast
Cons
 Requires manual updates

11. 11www.luxoft.com
Carnotzet

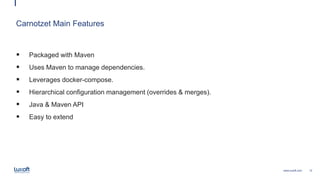

12. 12www.luxoft.com
Carnotzet Main Features
 Packaged with Maven
 Uses Maven to manage dependencies.
 Leverages docker-compose.
 Hierarchical configuration management (overrides & merges).
 Java & Maven API
 Easy to extend

13. 13www.luxoft.com

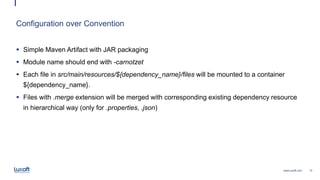

Configuration over Convention
 Simple Maven Artifact with JAR packaging
 Module name should end with -carnotzet
 Each file in src/main/resources/${dependency_name}/files will be mounted to a container
${dependency_name}.
 Files with .merge extension will be merged with corresponding existing dependency resource
in hierarchical way (only for .properties, .json)

14. 14www.luxoft.com

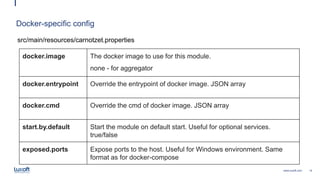

Docker-specific config
src/main/resources/carnotzet.properties
docker.image The docker image to use for this module.
none - for aggregator
docker.entrypoint Override the entrypoint of docker image. JSON array
docker.cmd Override the cmd of docker image. JSON array
start.by.default Start the module on default start. Useful for optional services.
true/false
exposed.ports Expose ports to the host. Useful for Windows environment. Same
format as for docker-compose

15. 15www.luxoft.com

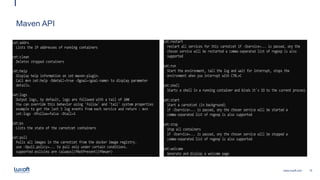

Maven API

16. 16www.luxoft.com
Java API
Creating runtime
Waiting for log entries

17. 17www.luxoft.com

18. 18www.luxoft.com

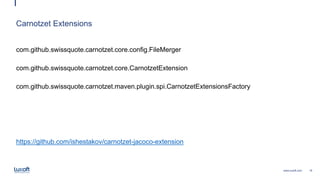

Carnotzet Extensions
com.github.swissquote.carnotzet.core.config.FileMerger
com.github.swissquote.carnotzet.core.CarnotzetExtension
com.github.swissquote.carnotzet.maven.plugin.spi.CarnotzetExtensionsFactory
https://github.com/ishestakov/carnotzet-jacoco-extension

19. 19www.luxoft.com

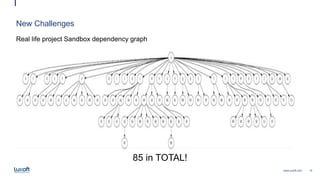

85 in TOTAL!
New Challenges
Real life project Sandbox dependency graph

20. 20www.luxoft.com
Q&A?
Q&A?

21. Thank You!
https://github.com/swissquote/carnotzet
https://swissquote.github.io/carnotzet/
https://github.com/ishestakov/carnotzet-jacoco-extension
