1. Hands on the Gradle
Painless Android builds
© 2011 Matthias Käppler
Qype GmbH
S

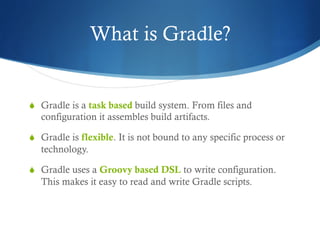

2. What is Gradle?
S Gradle is a task based build system. From files and
configuration it assembles build artifacts.
S Gradle is flexible. It is not bound to any specific process or
technology.
S Gradle uses a Groovy based DSL to write configuration.
This makes it easy to read and write Gradle scripts.

3. The Gradle manifesto
S „Build scripts are code.“
S Don‘t expect, allow.
S Don‘t re-invent, re-use.
S Don‘t inherit, inject.
S Scale to the complexity of a problem.
– „Make the impossible possible, the possible easy, and the
easy elegant.“

4. Gradle vs. Maven
<build>
<plugins>
<plugin>
<artifactId>maven-antrun-plugin</artifactId>
<executions>
<execution>
<phase>install</phase>
<goals>
<goal>run</goal>
</goals>
<configuration>
<tasks>
<echo message="what’s with the bloat?" />
</tasks>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>

5. Gradle vs. Maven (cont.)
println "dunno, must be a Maven thing."

6. Gradle vs. Maven (cont.)
S Maven is declarative.
Gradle is imperative.
S Maven is verbose.
Gradle is concise.
S Maven assumes Maven.
Gradle doesn‘t.
S Maven scales poorly to simple problems.
Gradle scales with the complexity of a problem.

7. Gradle vs. Maven (cont.)
S Maven has a rich plug-in ecosystem.
Gradle still needs to catch-up here.
S Maven has very good IDE support.
Gradle has... IDE support.
S Maven has project archetypes.
Gradle doesn‘t.

8. How is Gradle used?
$ls
build/ build.gradle ...
...
$gradle tasks
$gradle clean build
$gradle androidInstall androidInstrument

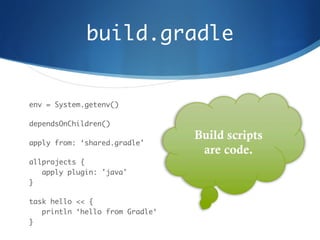

9. build.gradle
env = System.getenv()
dependsOnChildren()
apply from: ‘shared.gradle'
allprojects {
apply plugin: 'java'
}
task hello << {
println ‘hello from Gradle‘
}

10. Demo
Move along, nothing to see here.

11. More about tasks
S There are different ways how tasks can be used or exposed
in a build script:
1 – by writing them
2 – through project.ant
3 – by applying a plug-in

12. Writing tasks
task hello << {
4.times { println ‘hello from Gradle‘ }
}
hello.dependsOn initLang
hello.someProperty = 1

13. Writing tasks (cont.)
project.task(‘hello‘, dependsOn: ‘initLang‘)
greeter = { println it }
hello.doLast greeter.curry(‘hello from Gradle‘)

14. Ant tasks
S Ant tasks are first class citizens in Gradle. You access them
through Groovy‘s AntBuilder DSL.
myProp = ant.properties["my.prop"]
ant.copy {
from zipTree("/path/to/lib.jar")
into "$buildDir/extracted-classes"
exclude "com.example/**"
}

15. Plug-ins
S Most of Gradle‘s functionality comes from plug-ins. This helps in
keeping the core Gradle APIs lean and clean.
apply plugin: 'java'
apply plugin: 'maven'
...
$gradle clean install

16. Plug-ins (cont.)
S Writing Gradle plug-ins is very simple. Check this out.
class MyPlugin implements Plugin<Project> {
def apply(Project project) {
project.task(‘hello‘) << {
println ‘hello, people‘
}
}
}

17. Dependencies
S Gradle doesn‘t define ist own dependency management system.
Instead, it builds on Apache Ivy.
repositories {
mavenCentral()
mavenRepo urls: "http://my.repo.com"
flatDir dirs: "libs"
}

18. Dependencies (cont.)
S Dependencies are grouped into configurations. A configuration is
simply a set of files bound to a name.
dependencies {
compile "commons-lang:commons-lang:2.5"
compile fileTree(dir: "libs", include: "*.jar")
testCompile "junit:junit:4.8.2"
}

19. Android
S There‘s a Gradle plug-in for Android.
https://github.com/jvoegele/gradle-android-plugin

20. Setting it up
S Now:
buildscript {
repositories {
mavenRepo(urls: 'http://jvoegele.com/maven2/‘)
}
dependencies {
classpath 'com.jvoegele.gradle.plugins:android-plugin:0.9.8‘
}
}
apply plugin: com.jvoegele.gradle.plugins.android.AndroidPlugin
S Soon:
apply plugin: 'android'

21. What‘s in store
S The plug-in adds the following tasks:
S :androidProcessResources
S :androidPackage
S :androidInstall
S :androidInstrument
S [:proguard]
$gradle clean andInstall :test-proj:andInstr

22. Instrumentation tests
androidInstrument {
runners {
run testpackage: "unit", with: "com.my.UnitTestRunner",
name: "instrumentation-unit-tests"
run annotation: "android.test.suitebuilder.annotation.Smoke"
run with: "com.my.OtherTestRunner”, options: "…”
}
}

23. Thanks
Thanks for listening!

24. Android in Practice
Charlie Collins, Michael Galpin, Matthias Käppler
• Real world practical recipes
• Focus on intermediate to professional developers
• Two chapters on testing and build automation
Summer 2011
MEAP edition available
http://manning.com/collins
