Computer function-and-interconnection 3
- 1. Top Level View of Computer Function and Interconnection
- 6. Computer Components: Top Level View

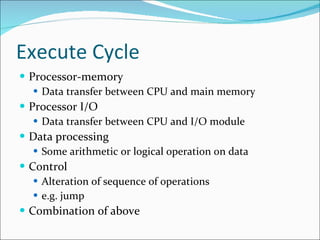

- 10. Example of Program Execution
- 11. Instruction Cycle State Diagram

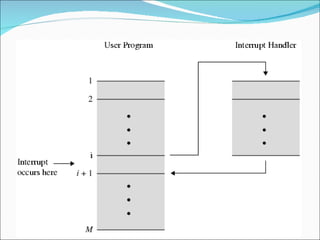

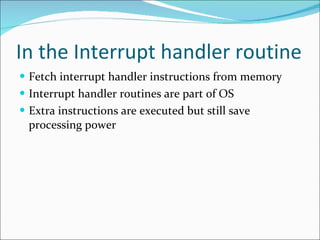

- 17. Transfer of Control via Interrupts
- 18. Instruction Cycle with Interrupts Hanggan d2 lng report ko mwaah

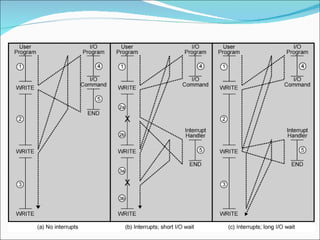

- 19. Program Timing Short I/O Wait
- 20. Program Timing Long I/O Wait
- 21. Instruction Cycle (with Interrupts) - State Diagram
- 24. Multiple Interrupts - Sequential

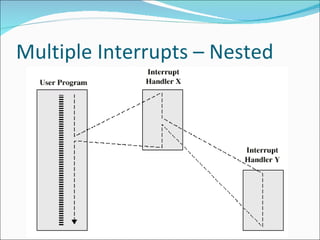

- 25. Multiple Interrupts – Nested
- 26. Time Sequence of Multiple Interrupts
- 28. Computer Modules

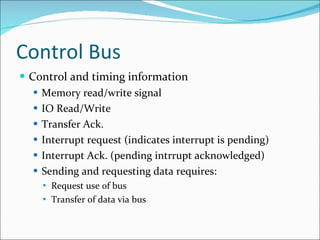

- 40. Physical Realization of Bus Architecture
