Compiler Design Introduction
The document provides an overview of compiler design and the various phases involved in compiling a program from a high-level language to machine code. It describes the six main phases as lexical analysis, syntax analysis, semantic analysis, intermediate code generation, code optimization, and code generation. It explains the functions of each phase and how the output of one phase feeds into the next until an optimized machine code is produced for execution.
More Related Content
Similar to Compiler Design Introduction
Compiler Design Introduction
- 1. Compiler - Introduction Dr.P. KUPPUSAMY Professor P.Kuppusamy - Compiler Design
- 2. Compiler • A compileris a set of computer programs (software tool) that translates statements written in high-level programming language into lower level (machine) language. • Example. • C, C++, Java Compiler Error messages Source Program Target (Object Code) Program P.Kuppusamy - Compiler Design
- 3. Why Should WeStudy Compiler Design? • A computer professional knows only about high-level programming and computer hardware. • The compiler connects these two components as a translator. • Hence, Software Professionals should understand compilation techniques for understanding how programming languages and computers hang together. P.Kuppusamy - Compiler Design
- 4. Applications of CompilerTechnology • Parsers for HTML in web browser • Interpreters for javascript/flash • Machine code generation for high level languages • Software testing • Program optimization • Malicious code detection • Design of new computer architectures • Compiler-in-the-loop hardware development • Hardware synthesis: VHDL (VHSIC (Very High-Speed Integrated Circuit) Hardware Description Language) to RTL (register-transfer level) translation • Compiled simulation • Used to simulate designs written in VHDL • No interpretation of design which increases the speed P.Kuppusamy - Compiler Design
- 5. Complexity of CompilerTechnology • A compiler is the most complex system software. • Writing the compiler is a substantial exercise in software engineering. • The complexity is based on mapping a programmer’s requirements (in a HLL program) to architectural details. • It uses algorithms and techniques from computer science. • Translates intricate theory into practical that enables tool building. P.Kuppusamy - Compiler Design
- 6. Nature of CompilerAlgorithms • Draws results from mathematical logic, lattice theory, linear algebra, probability, etc. • type checking, static analysis, dependence analysis and Loop parallelization, cache analysis, etc. • Makes practical application of • Greedy algorithms - register allocation • Heuristic search - list scheduling • Graph algorithms - dead code elimination (Unused code in program), register allocation • Dynamic programming - instruction selection • Optimization techniques - instruction scheduling • Finite automata - lexical analysis • Pushdown automata - parsing • Fixed point algorithms - data-flow analysis • Complex data structures - symbol tables, parse trees, data dependence graphs P.Kuppusamy - Compiler Design

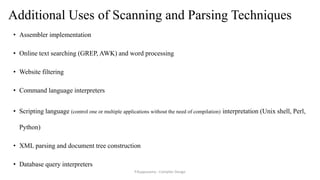

- 7. Additional Uses ofScanning and Parsing Techniques • Assembler implementation • Online text searching (GREP, AWK) and word processing • Website filtering • Command language interpreters • Scripting language (control one or multiple applications without the need of compilation) interpretation (Unix shell, Perl, Python) • XML parsing and document tree construction • Database query interpreters P.Kuppusamy - Compiler Design

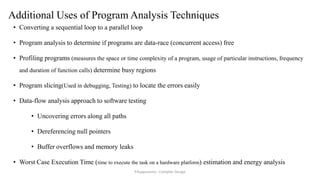

- 8. Additional Uses ofProgram Analysis Techniques • Converting a sequential loop to a parallel loop • Program analysis to determine if programs are data-race (concurrent access) free • Profiling programs (measures the space or time complexity of a program, usage of particular instructions, frequency and duration of function calls) determine busy regions • Program slicing(Used in debugging, Testing) to locate the errors easily • Data-flow analysis approach to software testing • Uncovering errors along all paths • Dereferencing null pointers • Buffer overflows and memory leaks • Worst Case Execution Time (time to execute the task on a hardware platform) estimation and energy analysis P.Kuppusamy - Compiler Design
- 9. TRANSLATOR • A translatoris a program that takes as input a program written in one language and produces as output a program in another language. • Translator performs the error-detection. • Ex: Compiler, Interpreter • Important role of translator are: 1. Translating the HLL program input into an equivalent Machine Language program. 2. Providing diagnostic (error) messages wherever the programmer violates specification of the HLL. P.Kuppusamy - Compiler Design
- 10. (Programming) Language processingsystem To create an executable target program, several components are required Collect the source Program ( modules, macros, etc.) Preprocessor Linker / Loader Assembler Target Assembly Program Target machine code Compiler Relocatable machine code Modified Source Program Source Program Library files Relocatable object files P.Kuppusamy - Compiler Design
- 11. Preprocessor • A preprocessorproduce input to compilers. • It perform the following functions. 1. Macro processing: A preprocessor may allow a user to define macros that are short hands for longer constructs. Ex. #define PI 3.14 2. File inclusion: A preprocessor may include header files into the program text. Ex. #include <stdio.h>, #include “customize.h" 3. Rational preprocessor: These preprocessors augment (change) older languages with more modern flow-of control and data structuring facilities. 4. Language Extensions: These preprocessors attempt to add capabilities to the language by certain amounts to build-in macro. Preprocessor Modified Source Program Source Program P.Kuppusamy - Compiler Design
- 12. Structure of Compiler •Translates a program written in (HLL) the source program into an equivalent program in (MLL) the target program. • An important part of a compiler is error showing to the programmer. Compiler Error messages Source Program Target Program Input Output Target Assembly Program Compiler Modified Source Program P.Kuppusamy - Compiler Design
- 13. Execution process ofsource program in Compiler • Executing a program written in High Level programming language is basically of two parts. • The source program must be translated into a object program initially. • Then the results object program is loaded into a memory is executed. Source Program Compiler Obj (Target) Program Input Memory (Target Program) Output P.Kuppusamy - Compiler Design
- 14. ASSEMBLER • Difficult towrite or read programs in machine language for professionals. • So, mnemonic (symbols) are used for each machine instruction, which would subsequently translate into machine language. Such a mnemonic machine language is called an assembly language. • Assembler translates the assembly language in to machine language. The input to an assembler program is called source program, the output is a machine language translation (Relocatable machine code / object program). • The object code that not only contains machine level instructions but also information about hardware registers, memory address of segment of the run-time memory (RAM), information about system resources, read-write permissions, etc. • If a program can get executed into loading in any portion of the RAM to run is called as relocatable. otherwise not relocatable code. Assembler Target Assembly Program Relocatable machine code P.Kuppusamy - Compiler Design

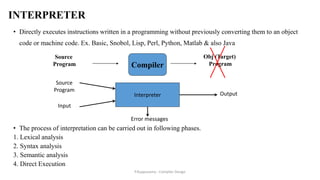

- 15. INTERPRETER • Directly executesinstructions written in a programming without previously converting them to an object code or machine code. Ex. Basic, Snobol, Lisp, Perl, Python, Matlab & also Java • The process of interpretation can be carried out in following phases. 1. Lexical analysis 2. Syntax analysis 3. Semantic analysis 4. Direct Execution Interpreter Source Program Input Output Error messages Source Program Compiler Obj (Target) Program P.Kuppusamy - Compiler Design

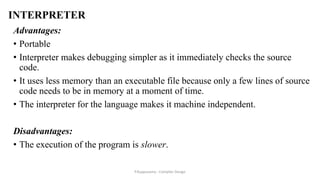

- 16. INTERPRETER Advantages: • Portable • Interpretermakes debugging simpler as it immediately checks the source code. • It uses less memory than an executable file because only a few lines of source code needs to be in memory at a moment of time. • The interpreter for the language makes it machine independent. Disadvantages: • The execution of the program is slower. P.Kuppusamy - Compiler Design

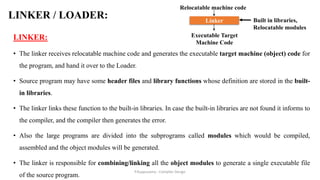

- 17. LINKER / LOADER: LINKER: •The linker receives relocatable machine code and generates the executable target machine (object) code for the program, and hand it over to the Loader. • Source program may have some header files and library functions whose definition are stored in the built- in libraries. • The linker links these function to the built-in libraries. In case the built-in libraries are not found it informs to the compiler, and the compiler then generates the error. • Also the large programs are divided into the subprograms called modules which would be compiled, assembled and the object modules will be generated. • The linker is responsible for combining/linking all the object modules to generate a single executable file of the source program. Linker Executable Target Machine Code Relocatable machine code Built in libraries, Relocatable modules P.Kuppusamy - Compiler Design

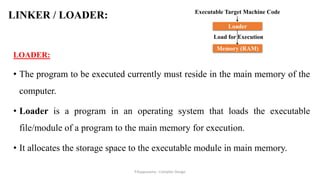

- 18. LINKER / LOADER: LOADER: •The program to be executed currently must reside in the main memory of the computer. • Loader is a program in an operating system that loads the executable file/module of a program to the main memory for execution. • It allocates the storage space to the executable module in main memory. Loader Load for Execution Executable Target Machine Code Memory (RAM) P.Kuppusamy - Compiler Design

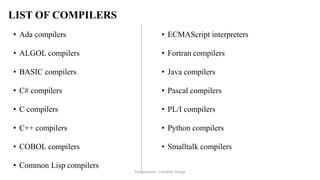

- 19. LIST OF COMPILERS •Ada compilers • ALGOL compilers • BASIC compilers • C# compilers • C compilers • C++ compilers • COBOL compilers • Common Lisp compilers • ECMAScript interpreters • Fortran compilers • Java compilers • Pascal compilers • PL/I compilers • Python compilers • Smalltalk compilers P.Kuppusamy - Compiler Design

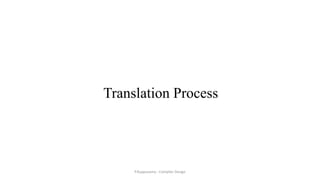

- 20. Translation Process P.Kuppusamy -Compiler Design

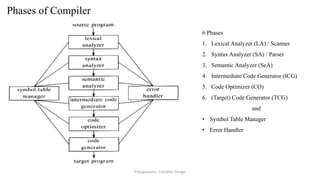

- 21. Phases of Compiler 6Phases 1. Lexical Analyzer (LA) / Scanner 2. Syntax Analyzer (SA) / Parser 3. Semantic Analyzer (SeA) 4. Intermediate Code Generator (ICG) 5. Code Optimizer (CO) 6. (Target) Code Generator (TCG) and • Symbol Table Manager • Error Handler P.Kuppusamy - Compiler Design

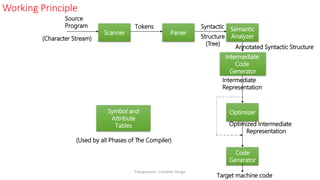

- 22. Working Principle Scanner Parser Semantic Analyzer Code Generator Optimizer Source ProgramTokens Syntactic Structure (Tree) Symbol and Attribute Tables (Used by all Phases of The Compiler) (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design

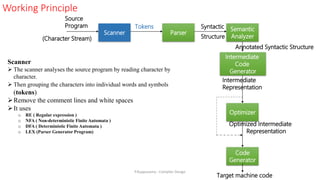

- 23. Scanner The scanneranalyses the source program by reading character by character. Then grouping the characters into individual words and symbols (tokens) Remove the comment lines and white spaces It uses o RE ( Regular expression ) o NFA ( Non-deterministic Finite Automata ) o DFA ( Deterministic Finite Automata ) o LEX (Parser Generator Program) Working Principle Scanner Parser Semantic Analyzer Code Generator Optimizer Source Program Tokens Syntactic Structure (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design

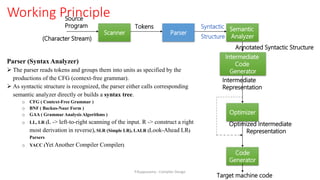

- 24. Working Principle Parser (SyntaxAnalyzer) The parser reads tokens and groups them into units as specified by the productions of the CFG (context-free grammar). As syntactic structure is recognized, the parser either calls corresponding semantic analyzer directly or builds a syntax tree. o CFG ( Context-Free Grammar ) o BNF ( Backus-Naur Form ) o GAA ( Grammar Analysis Algorithms ) o LL, LR (L -> left-to-right scanning of the input. R -> construct a right most derivation in reverse), SLR (Simple LR), LALR (Look-Ahead LR) Parsers o YACC (Yet Another Compiler Compiler) Scanner Parser Semantic Analyzer Code Generator Optimizer Source Program Tokens Syntactic Structure (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design

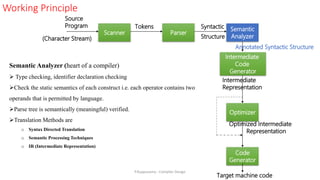

- 25. Semantic Analyzer (heartof a compiler) Type checking, identifier declaration checking Check the static semantics of each construct i.e. each operator contains two operands that is permitted by language. Parse tree is semantically (meaningful) verified. Translation Methods are o Syntax Directed Translation o Semantic Processing Techniques o IR (Intermediate Representation) Working Principle Scanner Parser Semantic Analyzer Code Generator Optimizer Source Program Tokens Syntactic Structure (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design

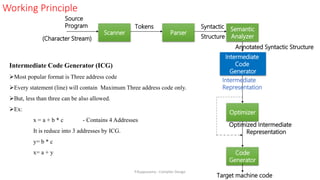

- 26. Intermediate Code Generator(ICG) Most popular format is Three address code Every statement (line) will contain Maximum Three address code only. But, less than three can be also allowed. Ex: x = a + b * c - Contains 4 Addresses It is reduce into 3 addresses by ICG. y= b * c x= a + y Working Principle Scanner Parser Semantic Analyzer Code Generator Optimizer Source Program Tokens Syntactic Structure (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design
- 27. Optimizer The IRcode is analyzed and transformed(optimized) into functionally equivalent but reduce the number of lines. The output runs faster and needs less space. Working Principle Scanner Parser Semantic Analyzer Code Generator Optimizer Source Program Tokens Syntactic Structure (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design
- 28. Code Generator • Convertthe optimized intermediate code into machine code i.e. transform a code which an assembler can understand. • Ex. mul a, b mov a, x Working Principle Scanner Parser Semantic Analyzer Code Generator Optimizer Source Program Tokens Syntactic Structure (Character Stream) Intermediate Representation Target machine code Intermediate Code Generator Annotated Syntactic Structure Optimized Intermediate Representation P.Kuppusamy - Compiler Design

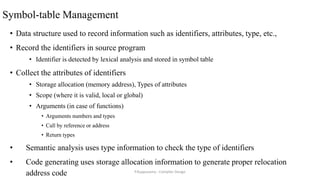

- 29. Symbol-table Management • Datastructure used to record information such as identifiers, attributes, type, etc., • Record the identifiers in source program • Identifier is detected by lexical analysis and stored in symbol table • Collect the attributes of identifiers • Storage allocation (memory address), Types of attributes • Scope (where it is valid, local or global) • Arguments (in case of functions) • Arguments numbers and types • Call by reference or address • Return types • Semantic analysis uses type information to check the type of identifiers • Code generating uses storage allocation information to generate proper relocation address code P.Kuppusamy - Compiler Design
- 30. Error Detection andReporting • Lexical phase: could not form any token • Syntax and semantic analysis handle a large fraction of errors • Syntax phase: tokens violate structure rules (i.e. expressions, statements) • Semantic phase: no meaning of operations • Add an array name and a procedure name P.Kuppusamy - Compiler Design

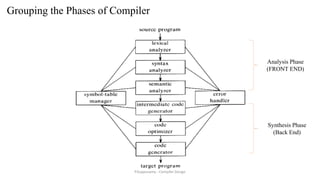

- 31. Grouping the Phasesof Compiler Analysis Phase (FRONT END) Synthesis Phase (Back End) P.Kuppusamy - Compiler Design
- 32. Grouping the Phasesof Compiler 6 Phases divided into 2 groups. • First three phases: analysis portion • Analysis determines the operations implied by the source program which are recorded in a tree structure i.e. Analyze the source program • Last three phases: synthesis portion • Synthesis takes the tree structure and translates the operations into the target program i.e. Synthesize the machine language program P.Kuppusamy - Compiler Design

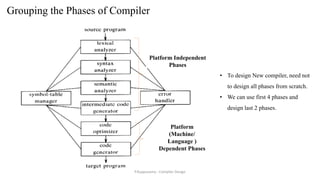

- 33. Grouping the Phasesof Compiler Platform Independent Phases Platform (Machine/ Language ) Dependent Phases • To design New compiler, need not to design all phases from scratch. • We can use first 4 phases and design last 2 phases. P.Kuppusamy - Compiler Design

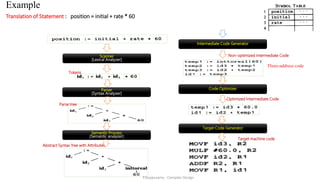

- 34. Example Translation of Statement: position = initial + rate * 60 Scanner [Lexical Analyzer] Parser [Syntax Analyzer] Semantic Process [Semantic analyzer] Intermediate Code Generator Code Optimizer Tokens Parse tree Abstract Syntax Tree with Attributes Non-optimized Intermediate Code Optimized Intermediate Code Target Code Generator Target machine code Three-address code P.Kuppusamy - Compiler Design

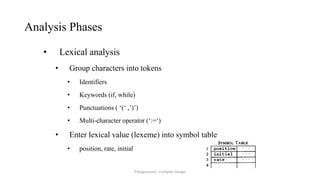

- 35. Analysis Phases • Lexicalanalysis • Group characters into tokens • Identifiers • Keywords (if, while) • Punctuations ( ‘(‘ ,’)’) • Multi-character operator (‘:=‘) • Enter lexical value (lexeme) into symbol table • position, rate, initial P.Kuppusamy - Compiler Design

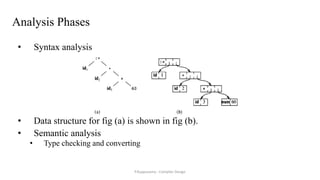

- 36. Analysis Phases • Syntaxanalysis • Data structure for fig (a) is shown in fig (b). • Semantic analysis • Type checking and converting P.Kuppusamy - Compiler Design
- 37. Synthesis Phase Intermediate CodeGeneration • Represent the source program for an abstract machine code • Should be easy to produce • Should be easy to translate into target program • Three-address code (at most three operands) • temp2:=id3 * temp1 • every memory location can act like a register • temp2 BX • BX is known as the base register. Code Optimization • Improve the intermediate code • Faster-running machine code temp1 :=id3*60.0 id1:=id2+temp1 Code Generation • Generate relocation machine code or assembly code MOVF id3, R2 MULF #60.0, R2 MOVF id2, R1 ADDF R2, R1 MOVF R1, id1 P.Kuppusamy - Compiler Design

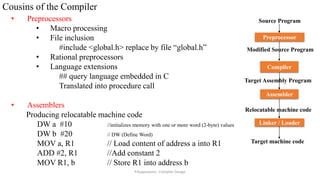

- 38. Cousins of theCompiler • Preprocessors • Macro processing • File inclusion #include <global.h> replace by file “global.h” • Rational preprocessors • Language extensions ## query language embedded in C Translated into procedure call • Assemblers Producing relocatable machine code DW a #10 //initializes memory with one or more word (2-byte) values DW b #20 // DW (Define Word) MOV a, R1 // Load content of address a into R1 ADD #2, R1 //Add constant 2 MOV R1, b // Store R1 into address b Preprocessor Linker / Loader Assembler Target Assembly Program Target machine code Compiler Relocatable machine code Modified Source Program Source Program P.Kuppusamy - Compiler Design

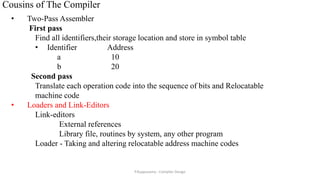

- 39. Cousins of TheCompiler • Two-Pass Assembler First pass Find all identifiers,their storage location and store in symbol table • Identifier Address a 10 b 20 Second pass Translate each operation code into the sequence of bits and Relocatable machine code • Loaders and Link-Editors Link-editors External references Library file, routines by system, any other program Loader - Taking and altering relocatable address machine codes P.Kuppusamy - Compiler Design

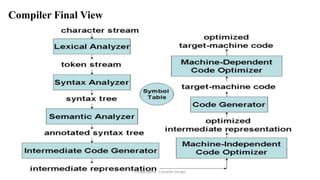

- 40. Compiler Final View P.Kuppusamy- Compiler Design

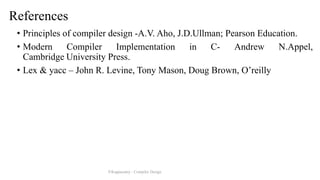

- 41. References • Principles ofcompiler design -A.V. Aho, J.D.Ullman; Pearson Education. • Modern Compiler Implementation in C- Andrew N.Appel, Cambridge University Press. • Lex & yacc – John R. Levine, Tony Mason, Doug Brown, O’reilly P.Kuppusamy - Compiler Design
