The document outlines the operating instructions for a micro optical fiber spectrometer system that meets various national and international standards. It details the system's specifications, including its compact design, high-speed data acquisition capabilities, and spectral characteristics. Additionally, it describes the components such as the combined flash xenon lamp light source and standard reflector used in the system.

1. Micro Optical Fiber
Spectrometer System
Chapter 1 Summarize
(大标题，居中小三加粗，尽量在新一页，用 Chapter 区分)
1. Operating instruction （一级标题，左对齐小四加粗）
According to the requirements of CIE, IESNA and the National’s standard, this
system is a multi-measurement mode spectrophotometer system which can realize
B-β, A-α and C-γ etc through rotating lamps and lanterns.
It test Spatial, light intensity distribution curves on any cross section (can be shown
under the rectangular coordinate system or polar coordinate system), spatial
iso-intensity curve. (正文，段首顶格左对齐 10 号，段落之间空行)
1.1 Explosive material （二级标题，左对齐五号加粗）
According to the requirements of CIE, IESNA and the National’s standard, this
Brochure
Global Office of Lisun Electronics Inc.
http://www.Lisungroup.com
Lisun Group (Hong Kong) Limited
Add: Room C, 15/F Hua Chiao Commercial Center, 678 Nathan Road, Mongkok, KL, HK
Tel: 00852-68852050 Fax: 00852-30785638
Email: SalesHK@Lisungroup.com
Lisun Electronics (Shanghai) Co., Ltd
Add: 113-114, No. 1 Building, Nanxiang Zhidi Industry Park, No. 1101, Huyi Road, Jiading
District, Shanghai, 201802, China
Tel: +86(21)5108 3341 Fax: +86(21)5108 3342
Email: SalesSH@Lisungroup.com
Lisun Electronics Inc. (USA)
Add: 445 S. Figueroa Street, Los Angeless, CA 90071, U.S.A.
Email: Sales@Lisungroup.com
Lisun China Factory
Add: NO. 37, Xiangyuan Road, Hangzhou City, Zhejiang Province, China
Tel: +86-189-1799-6096
Email: Engineering@Lisungroup.com
Lead in CFL & LED Test Instruments
Rev. 201609001
(LMS-7000S System)

2. Lisun Electronics Inc. Sales@Lisungroup.com www.Lisungroup.com
-Page 1 -

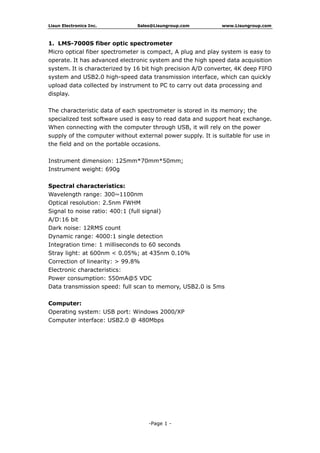

1. LMS-7000S fiber optic spectrometer
Micro optical fiber spectrometer is compact, A plug and play system is easy to
operate. It has advanced electronic system and the high speed data acquisition
system. It is characterized by 16 bit high precision A/D converter, 4K deep FIFO
system and USB2.0 high-speed data transmission interface, which can quickly
upload data collected by instrument to PC to carry out data processing and
display.
The characteristic data of each spectrometer is stored in its memory; the
specialized test software used is easy to read data and support heat exchange.
When connecting with the computer through USB, it will rely on the power
supply of the computer without external power supply. It is suitable for use in
the field and on the portable occasions.
Instrument dimension: 125mm*70mm*50mm;
Instrument weight: 690g
Spectral characteristics:
Wavelength range: 300~1100nm
Optical resolution: 2.5nm FWHM
Signal to noise ratio: 400:1 (full signal)
A/D:16 bit
Dark noise: 12RMS count
Dynamic range: 4000:1 single detection
Integration time: 1 milliseconds to 60 seconds
Stray light: at 600nm < 0.05%; at 435nm 0.10%
Correction of linearity: > 99.8%
Electronic characteristics:
Power consumption: 550mA@5 VDC
Data transmission speed: full scan to memory, USB2.0 is 5ms
Computer:
Operating system: USB port: Windows 2000/XP
Computer interface: USB2.0 @ 480Mbps

3. Lisun Electronics Inc. Sales@Lisungroup.com www.Lisungroup.com
-Page 2 -

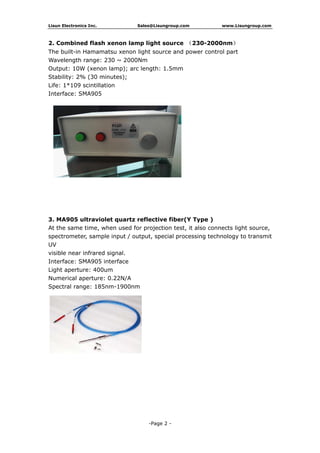

2. Combined flash xenon lamp light source （230-2000nm）
The built-in Hamamatsu xenon light source and power control part
Wavelength range: 230 ~ 2000Nm
Output: 10W (xenon lamp); arc length: 1.5mm
Stability: 2% (30 minutes);
Life: 1*109 scintillation
Interface: SMA905
3. MA905 ultraviolet quartz reflective fiber(Y Type )
At the same time, when used for projection test, it also connects light source,
spectrometer, sample input / output, special processing technology to transmit
UV
visible near infrared signal.
Interface: SMA905 interface
Light aperture: 400um
Numerical aperture: 0.22N/A
Spectral range: 185nm-1900nm

4. Lisun Electronics Inc. Sales@Lisungroup.com www.Lisungroup.com
-Page 3 -
4. Standard reflector (polytetrafluoroethylene coating)
Reflectivity: > 93% (380~780nm); the other wave bands are in reflectivity of
88%;
the diameter is in 30mm.
5. Reflection test bracket
For a fixed immersed fiber, upper and lower distance adjustable, solid chassis.
The optical fiber is fixed, and after completing the baseline calibration, and then
the
position is unchanged, and the data test is accurate.
