1. Coming to Terms with
OOP in Drupal
Chris Tankersley
php[world] 2016
php[world] 2016 1

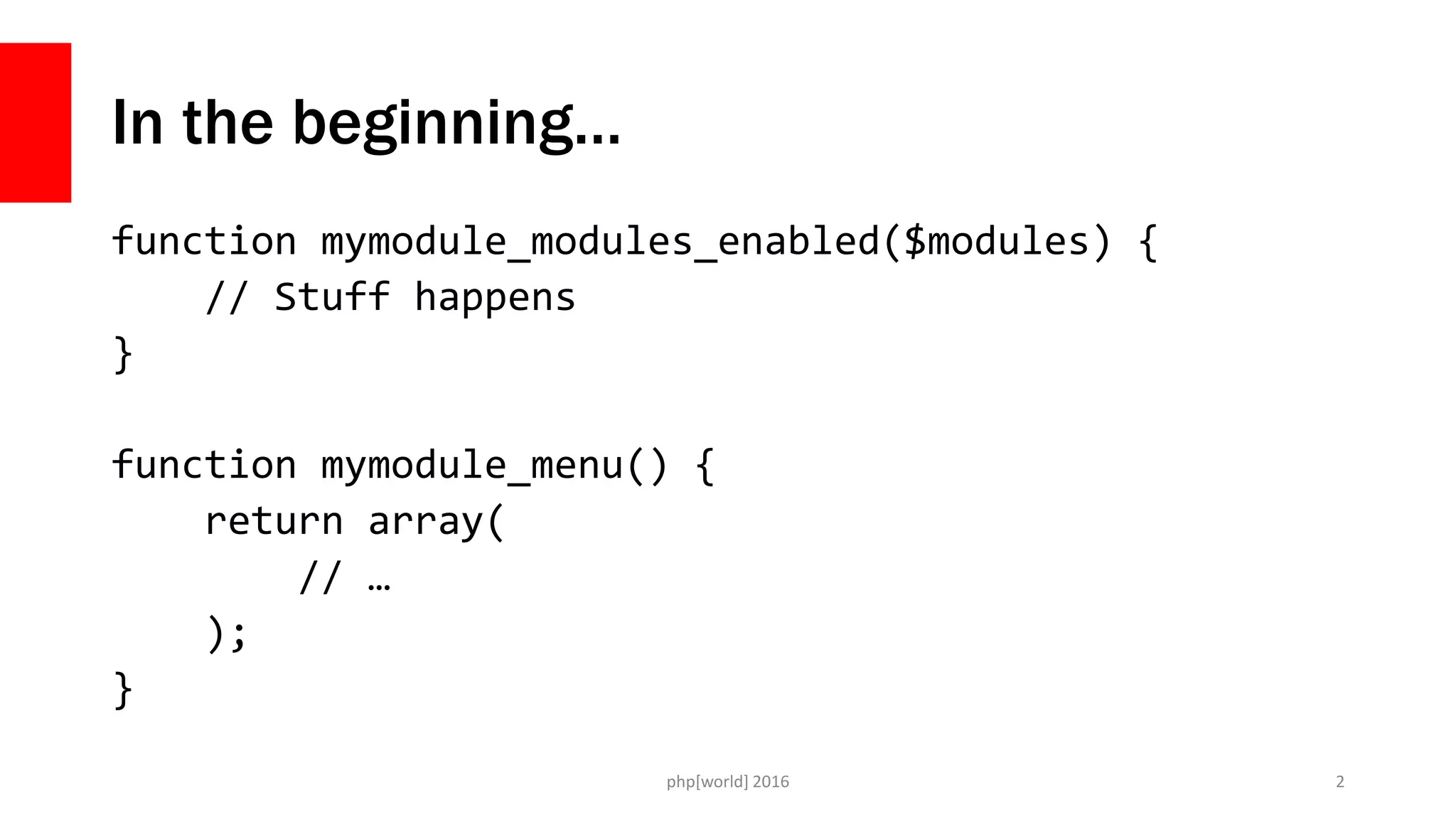

2. In the beginning…
function mymodule_modules_enabled($modules) {
// Stuff happens
}
function mymodule_menu() {
return array(
// …
);
}
php[world] 2016 2

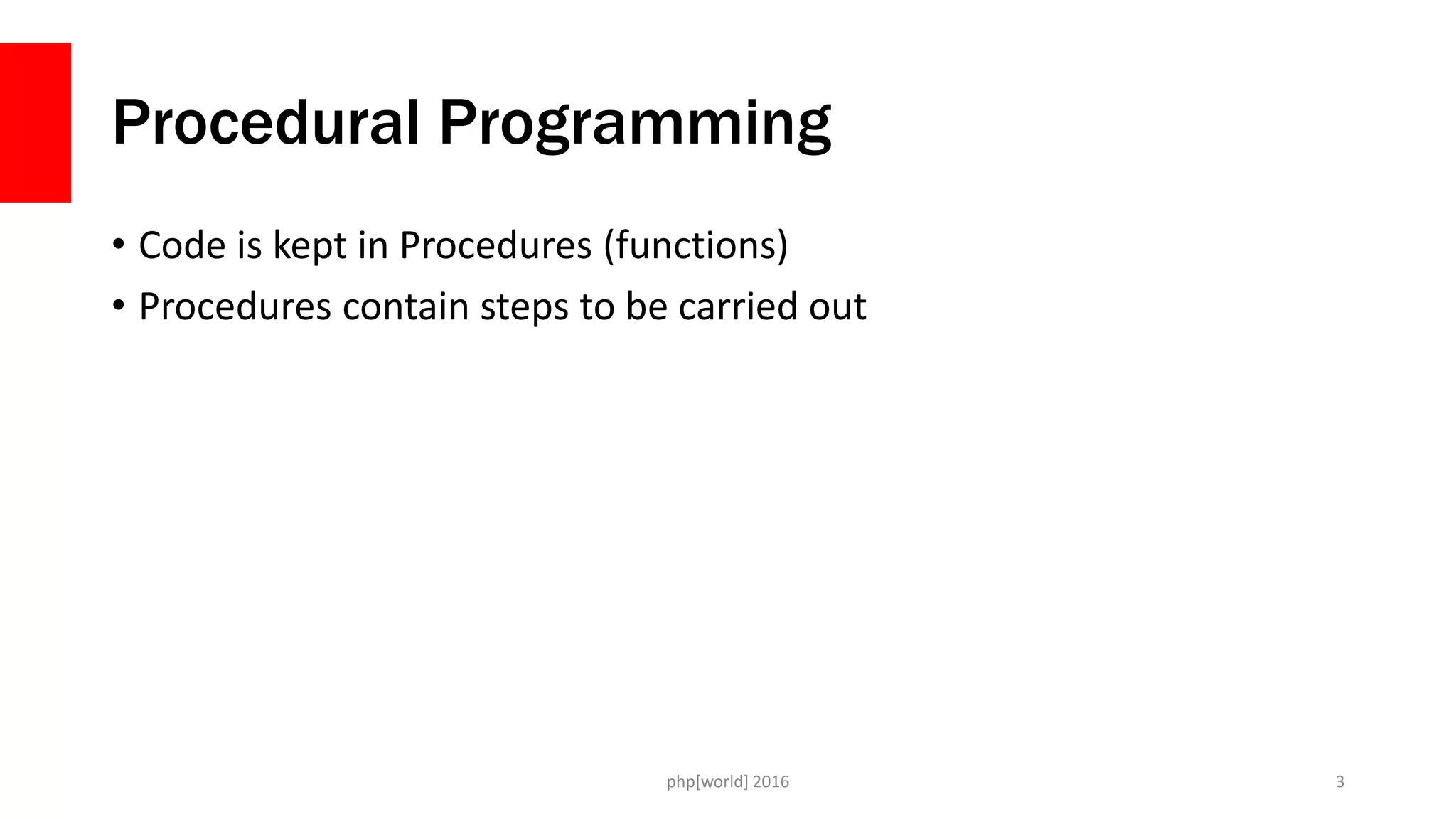

3. Procedural Programming
• Code is kept in Procedures (functions)
• Procedures contain steps to be carried out
php[world] 2016 3

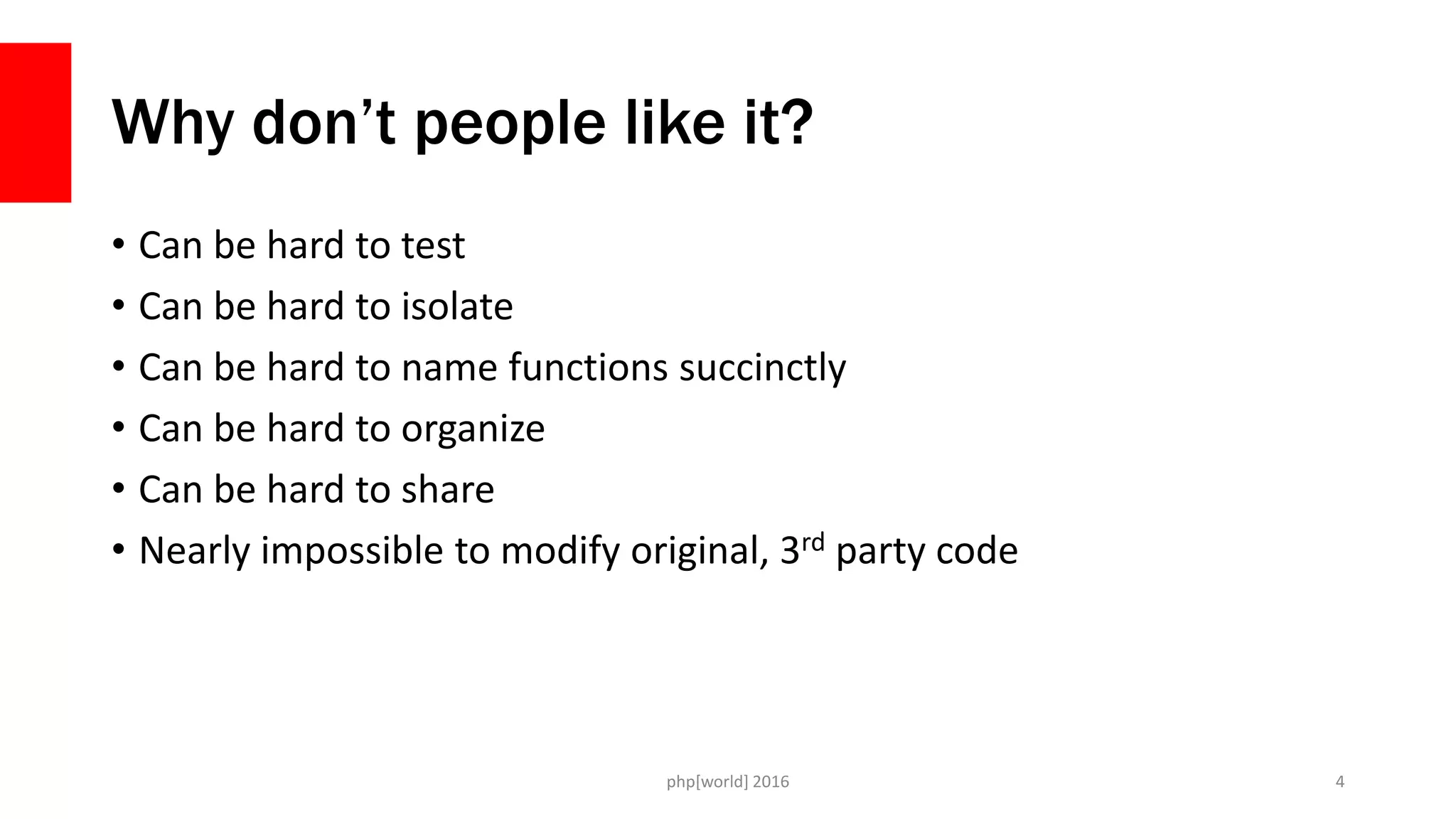

4. Why don’t people like it?
• Can be hard to test
• Can be hard to isolate
• Can be hard to name functions succinctly
• Can be hard to organize
• Can be hard to share
• Nearly impossible to modify original, 3rd party code
php[world] 2016 4

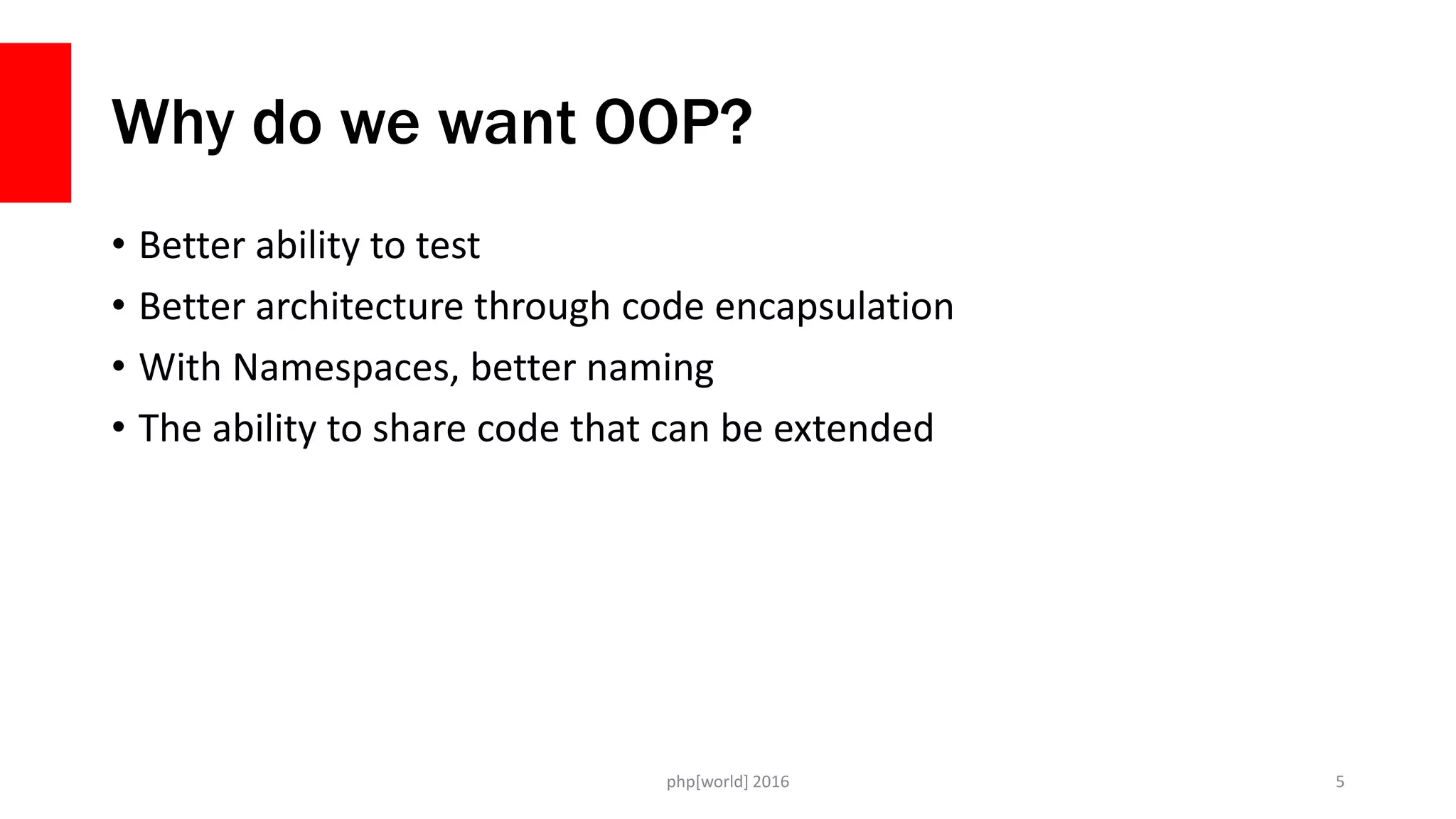

5. Why do we want OOP?
• Better ability to test
• Better architecture through code encapsulation
• With Namespaces, better naming
• The ability to share code that can be extended
php[world] 2016 5

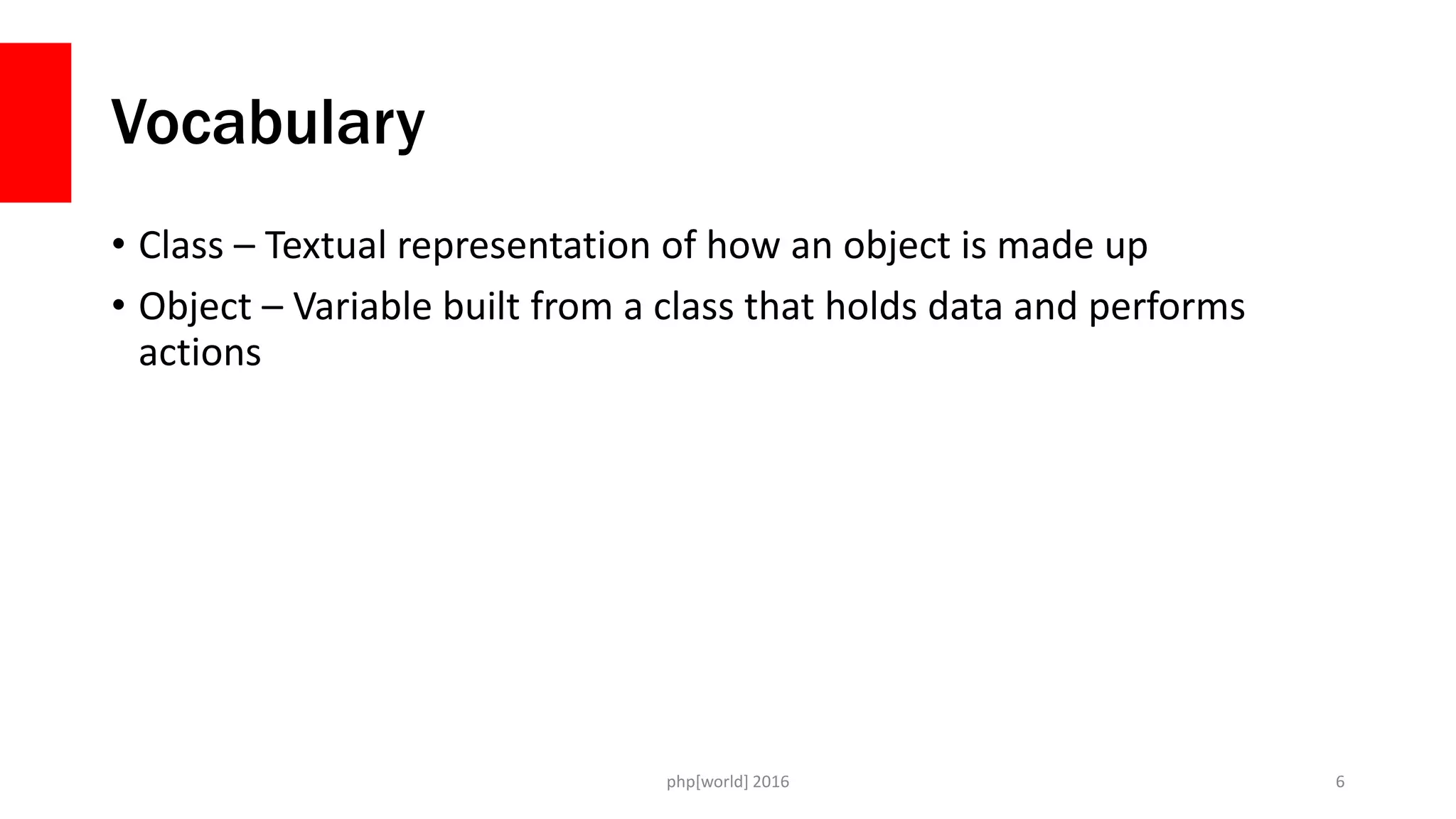

6. Vocabulary
• Class – Textual representation of how an object is made up
• Object – Variable built from a class that holds data and performs
actions
php[world] 2016 6

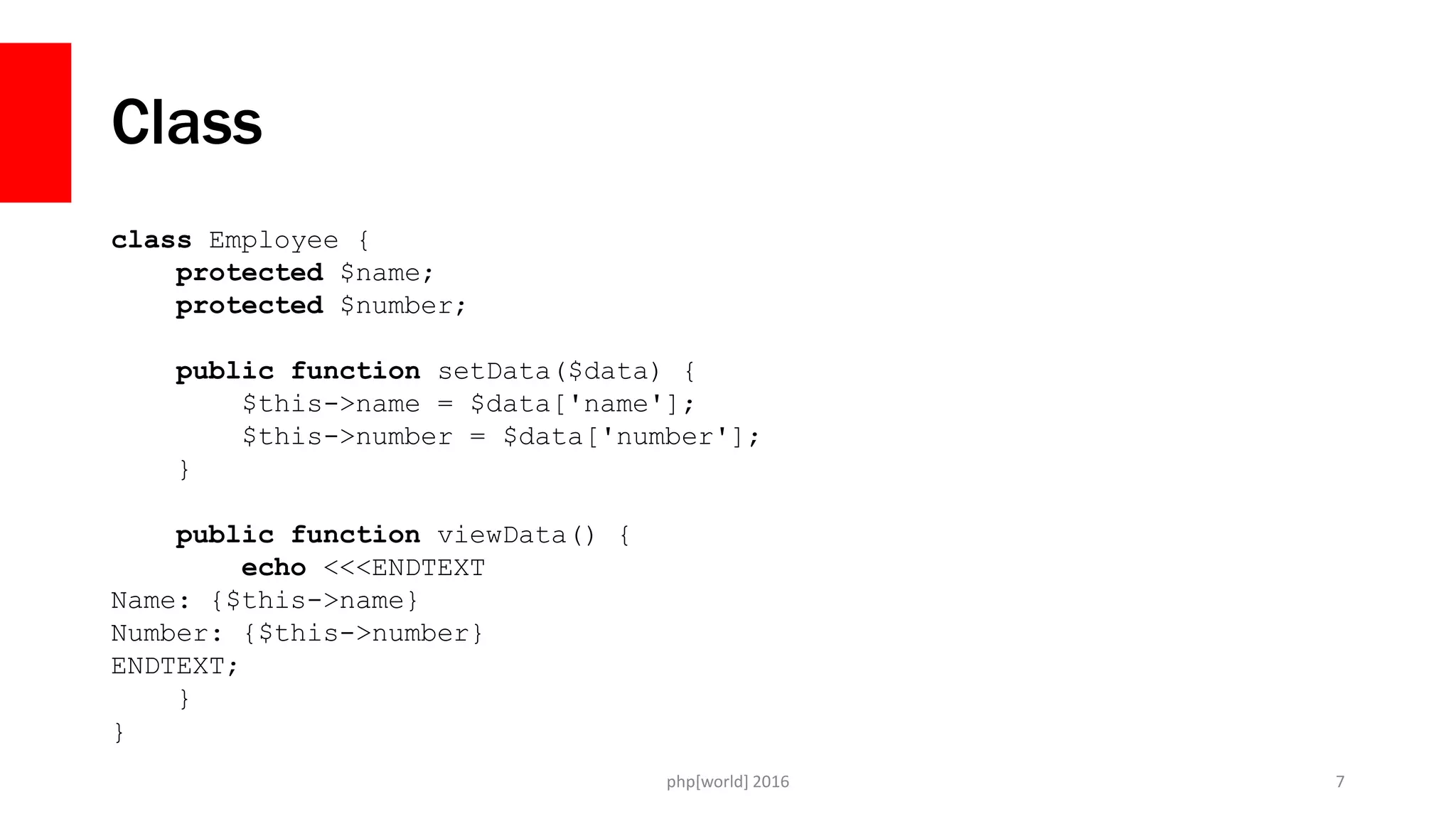

7. php[world] 2016 7
Class
class Employee {
protected $name;
protected $number;
public function setData($data) {
$this->name = $data['name'];
$this->number = $data['number'];
}
public function viewData() {
echo <<<ENDTEXT
Name: {$this->name}
Number: {$this->number}
ENDTEXT;
}
}

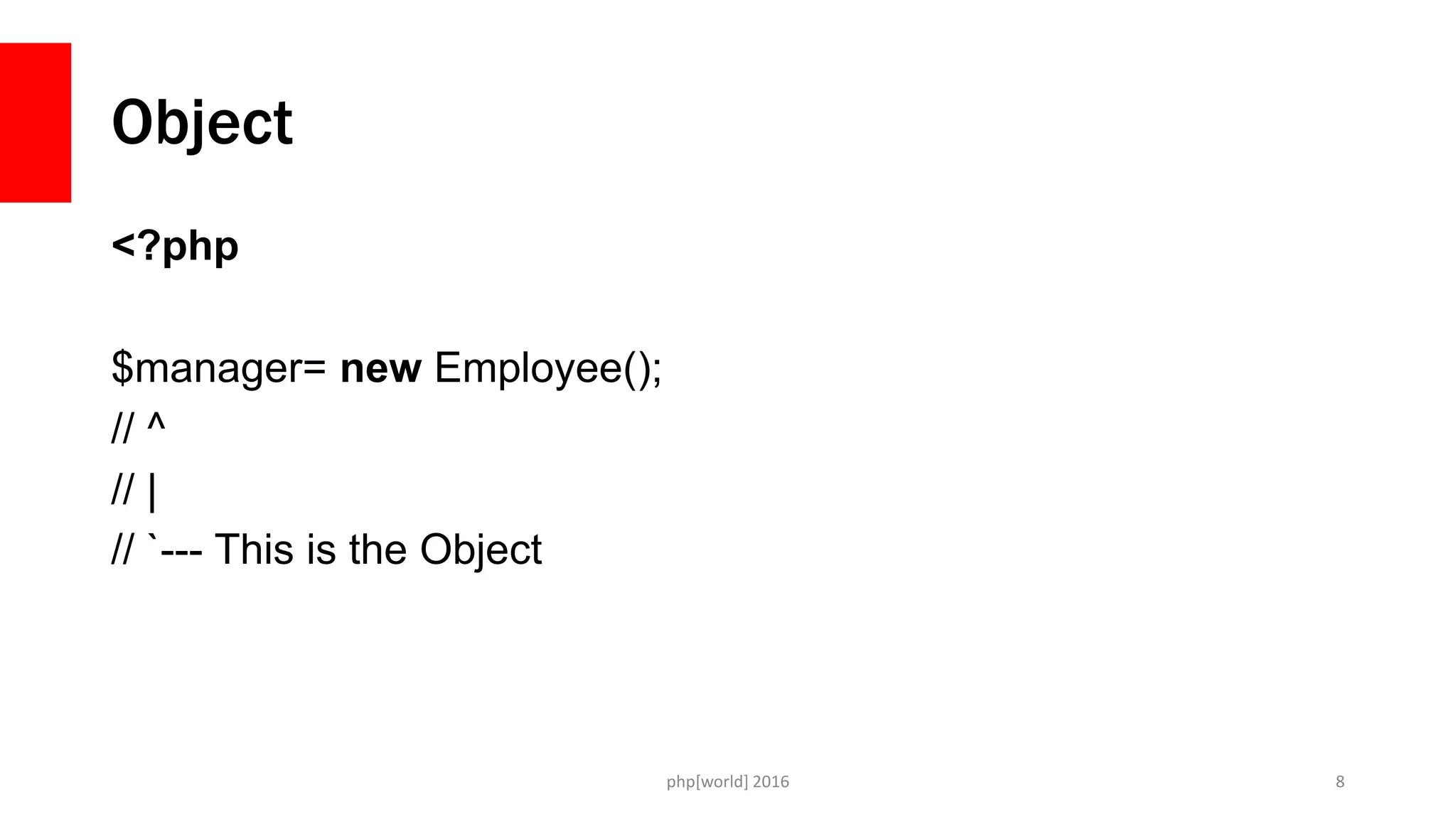

8. Object
<?php
$manager= new Employee();
// ^
// |
// `--- This is the Object
php[world] 2016 8

9. php[world] 2016 9
Methods and Properties
class Employee {
protected $name; // This is a property
protected $number;
// This is a Method
public function setData($data) {
$this->name = $data['name'];
$this->number = $data['number'];
}
public function viewData() {
echo <<<ENDTEXT
Name: {$this->name}
Number: {$this->number}
ENDTEXT;
}
}

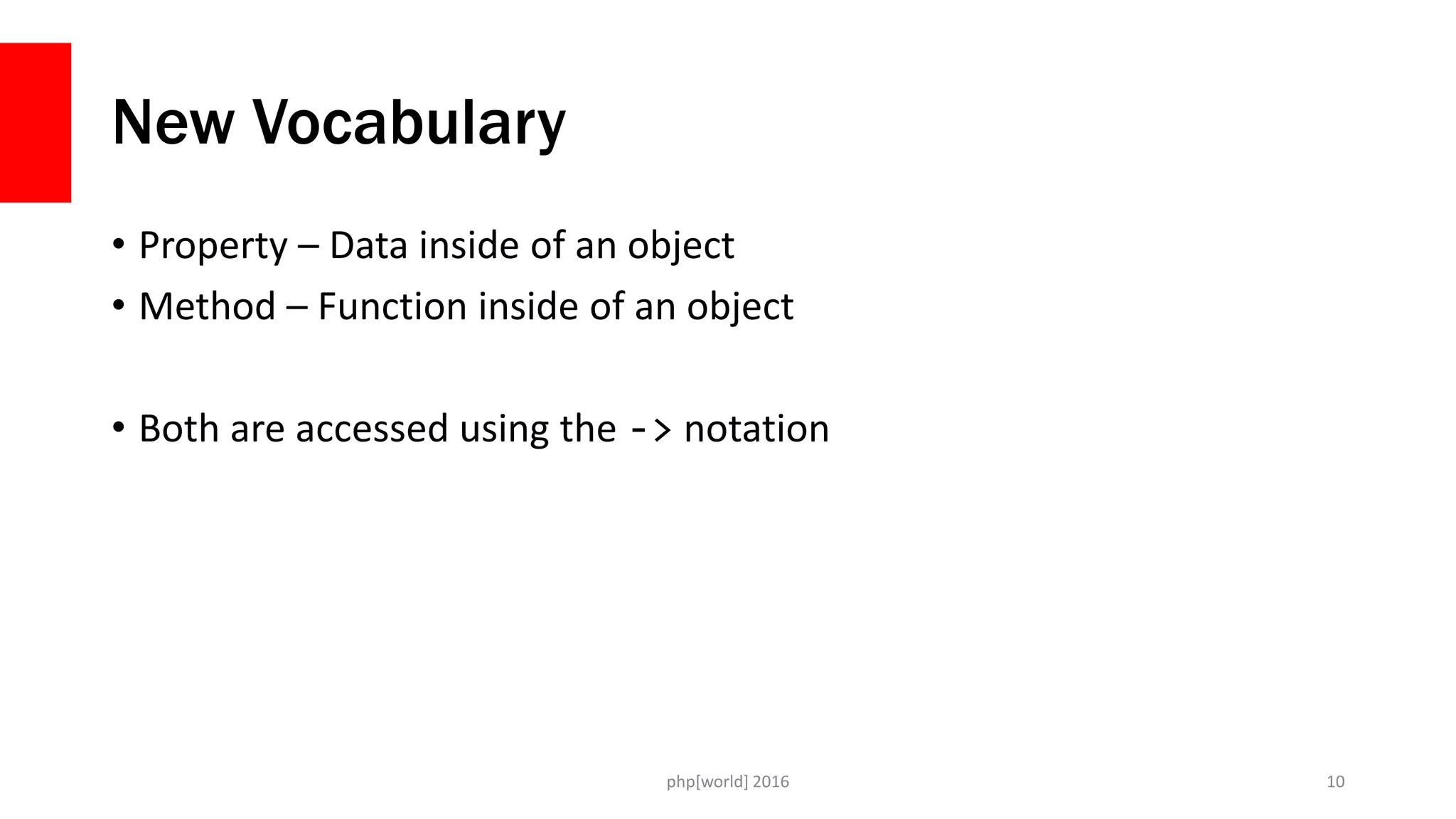

10. New Vocabulary
• Property – Data inside of an object
• Method – Function inside of an object
• Both are accessed using the -> notation
php[world] 2016 10

11. Visibility
• Public – Anyone can access the property/method
• Protected – Only the class, or child classes, can access
• Private – Only the class itself can access
php[world] 2016 11

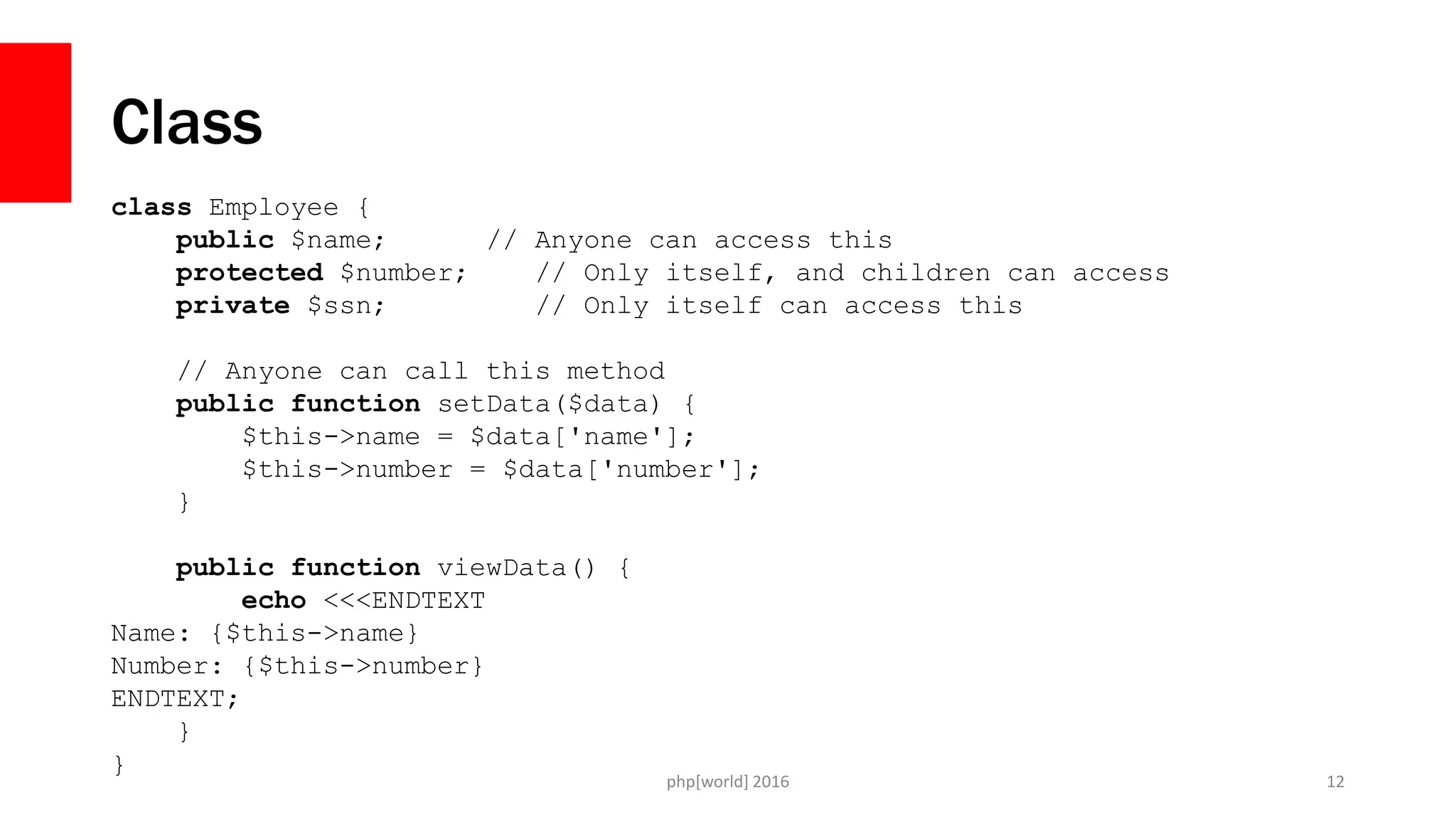

12. php[world] 2016 12
Class
class Employee {
public $name; // Anyone can access this
protected $number; // Only itself, and children can access
private $ssn; // Only itself can access this
// Anyone can call this method
public function setData($data) {
$this->name = $data['name'];
$this->number = $data['number'];
}
public function viewData() {
echo <<<ENDTEXT
Name: {$this->name}
Number: {$this->number}
ENDTEXT;
}
}

13. Object
<?php
$manager= new Employee();
$manager->name = ‘Bob’;
$manager->number = 1234;
// PHP Fatal error: Cannot access protected
property Employee::$number
php[world] 2016 13

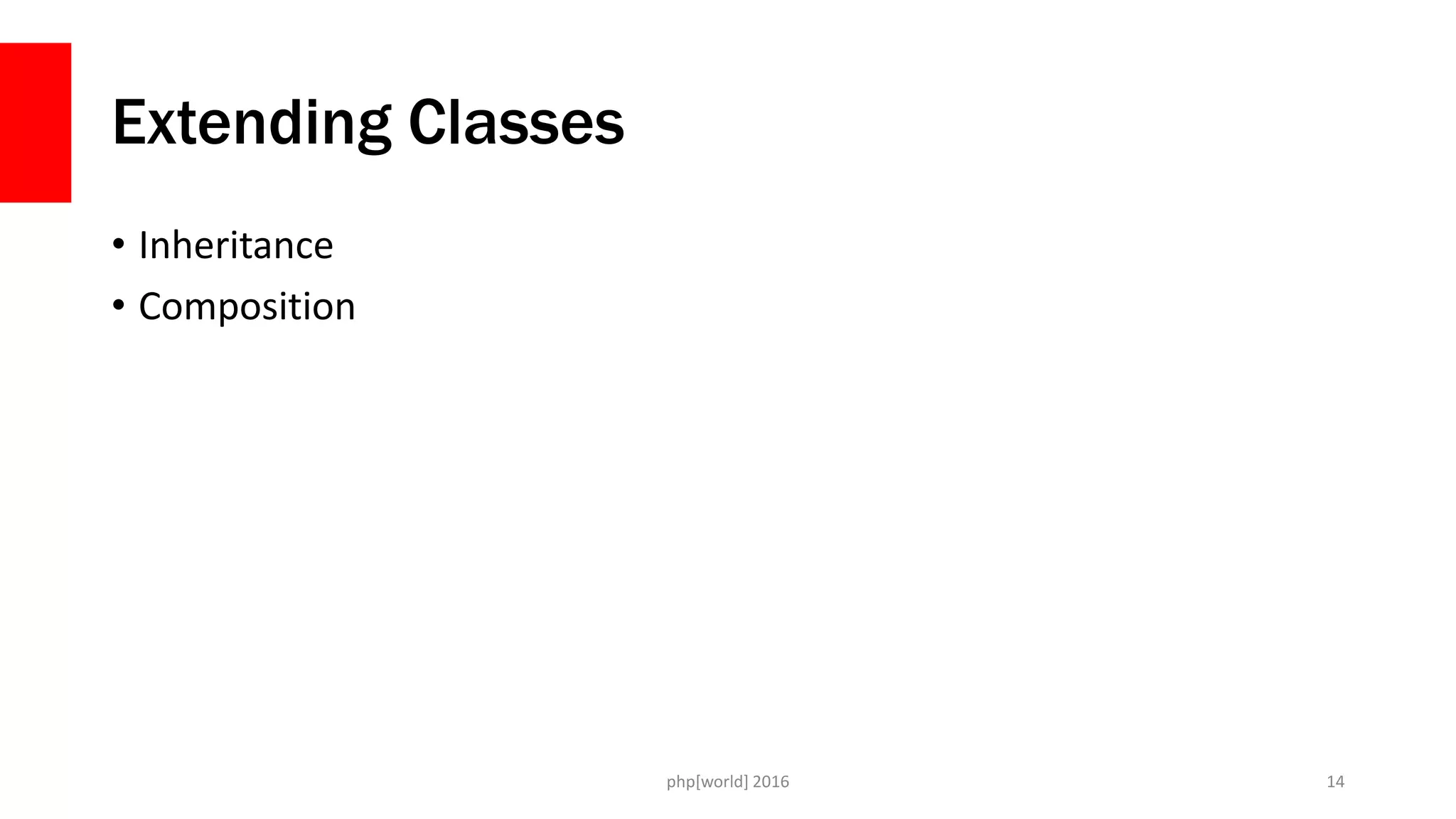

14. Extending Classes
• Inheritance
• Composition
php[world] 2016 14

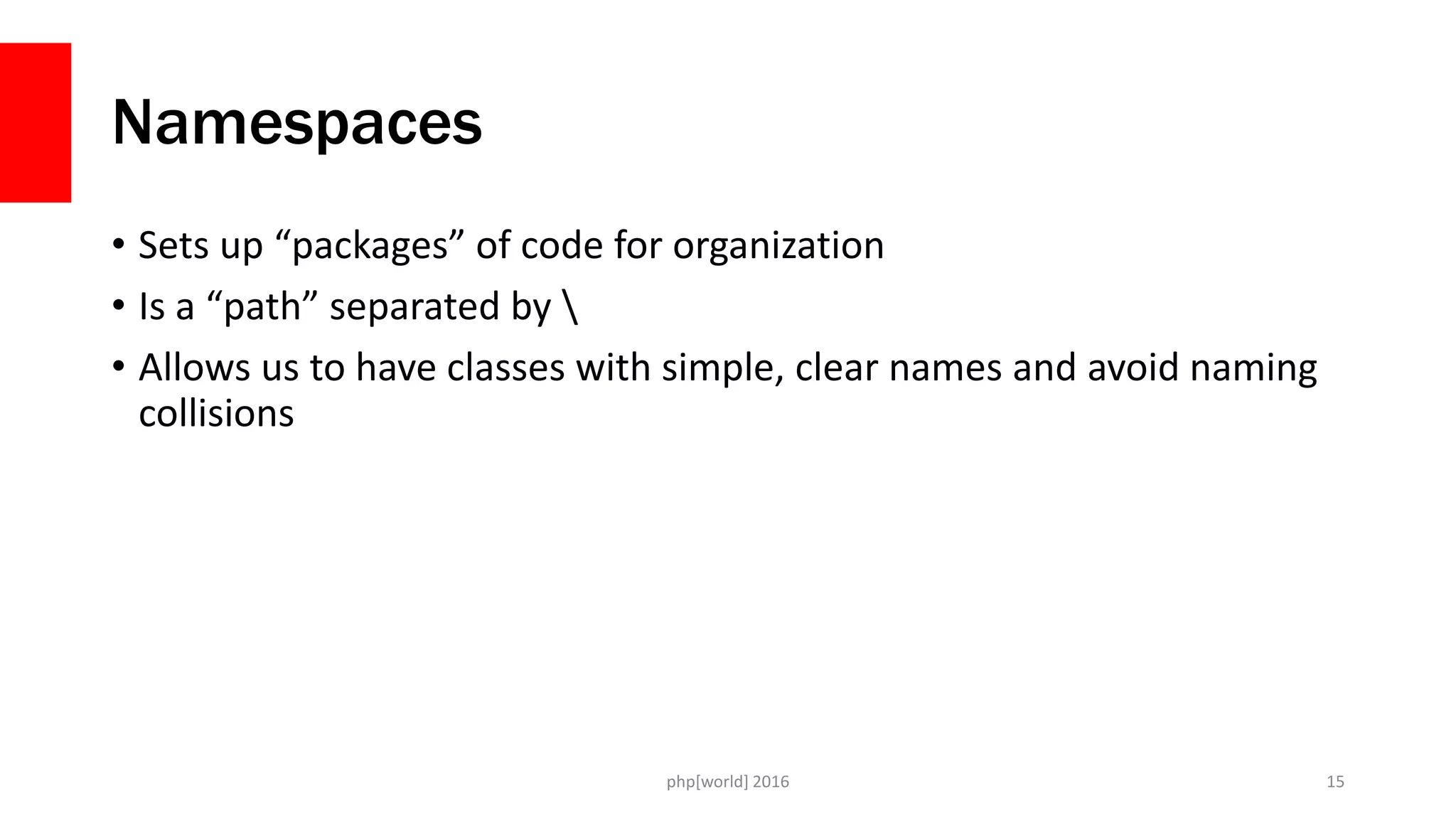

15. Namespaces
• Sets up “packages” of code for organization
• Is a “path” separated by
• Allows us to have classes with simple, clear names and avoid naming
collisions
php[world] 2016 15

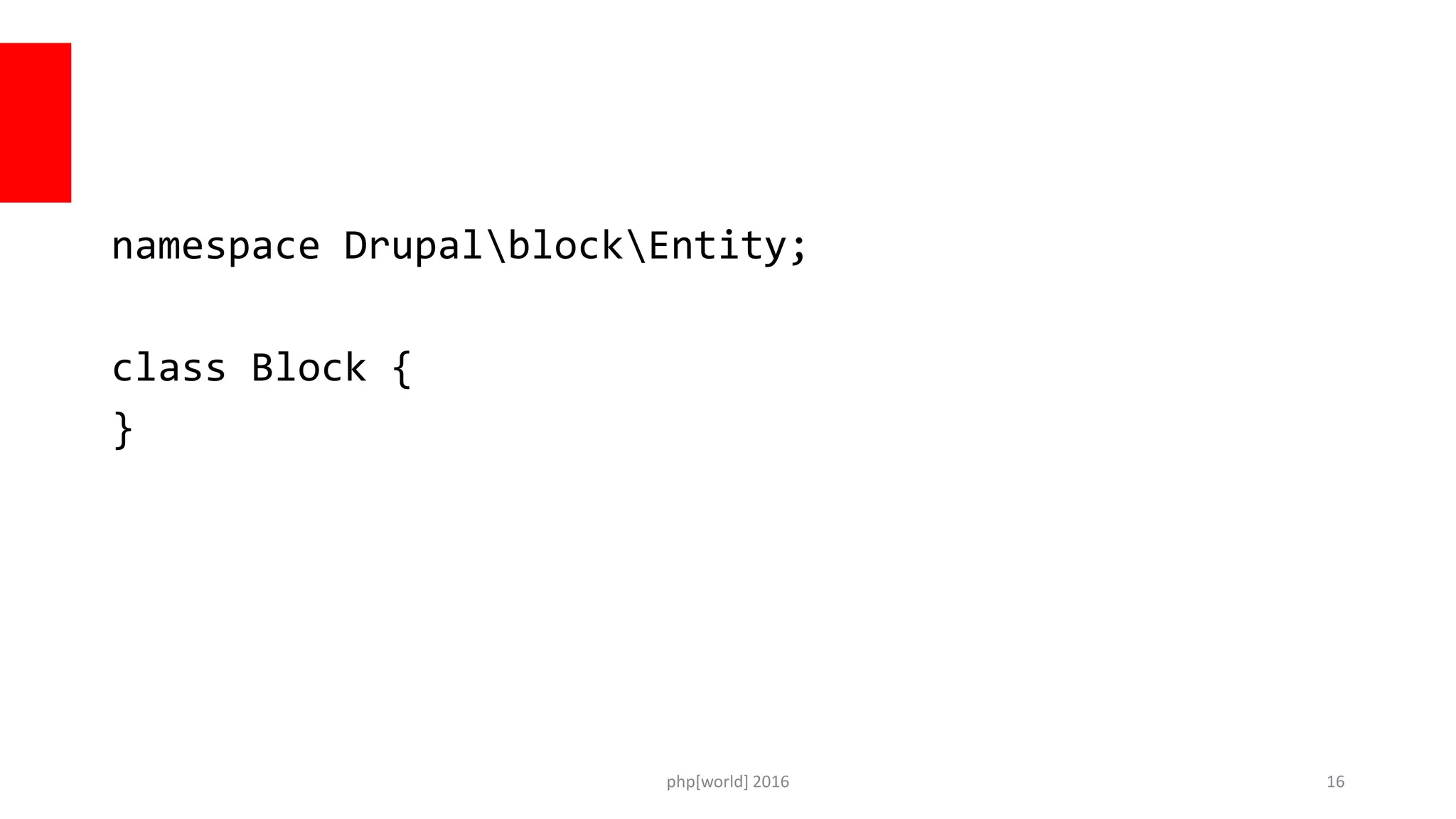

16. namespace DrupalblockEntity;
class Block {
}
php[world] 2016 16

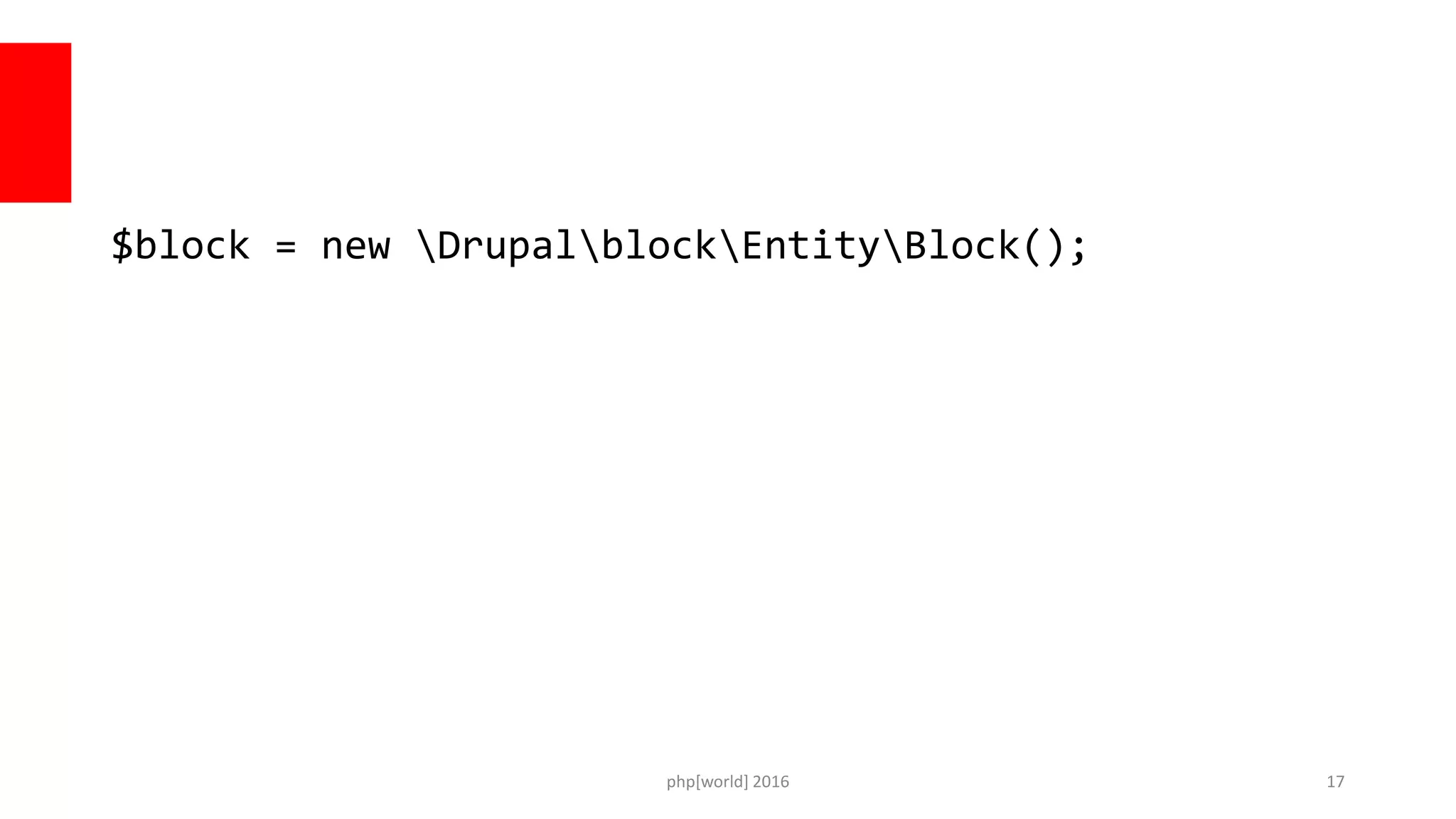

17. $block = new DrupalblockEntityBlock();
php[world] 2016 17

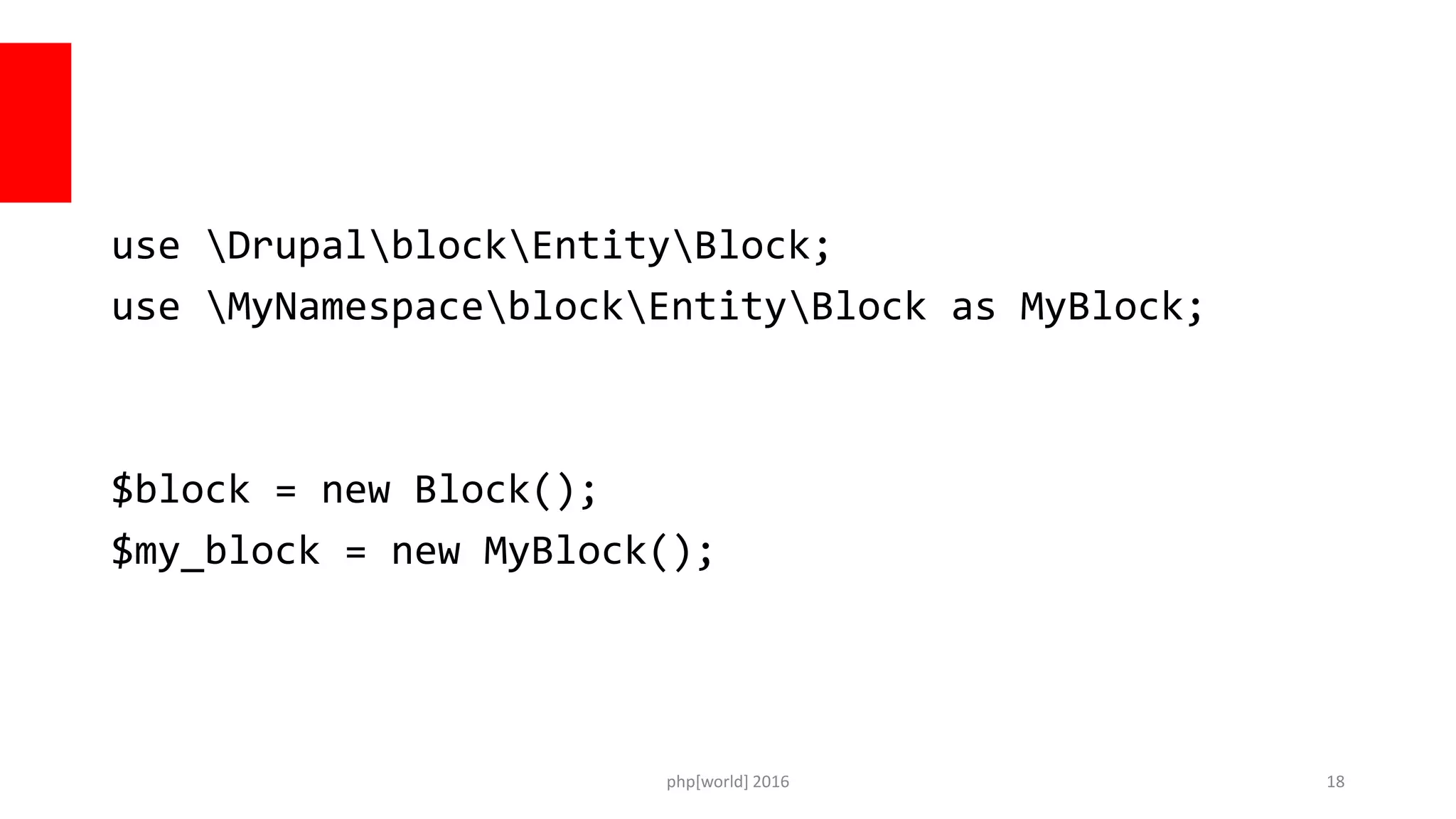

18. use DrupalblockEntityBlock;
use MyNamespaceblockEntityBlock as MyBlock;
$block = new Block();
$my_block = new MyBlock();
php[world] 2016 18

19. Inheritance
php[world] 2016 19

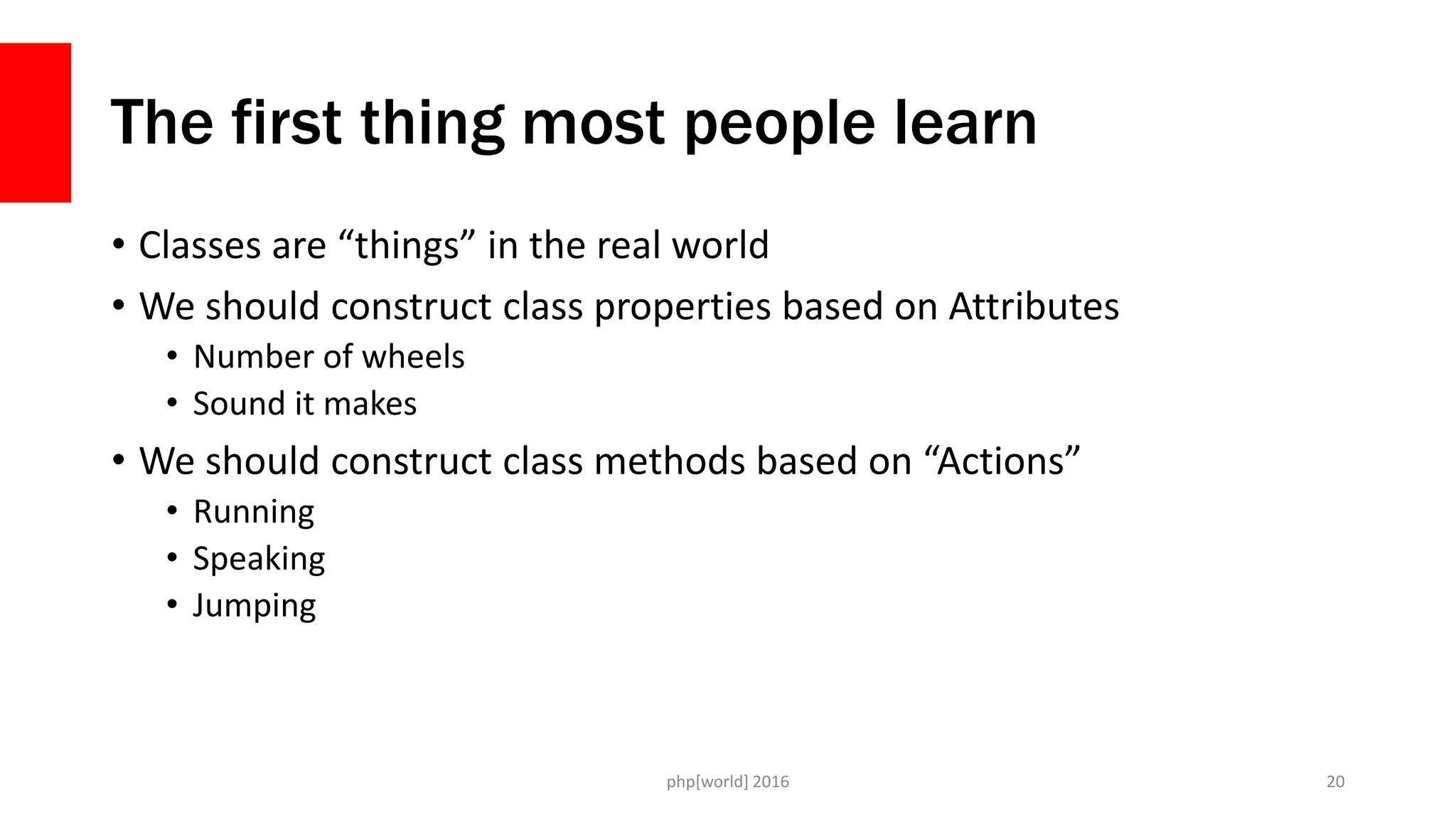

20. The first thing most people learn
• Classes are “things” in the real world
• We should construct class properties based on Attributes
• Number of wheels
• Sound it makes
• We should construct class methods based on “Actions”
• Running
• Speaking
• Jumping
php[world] 2016 20

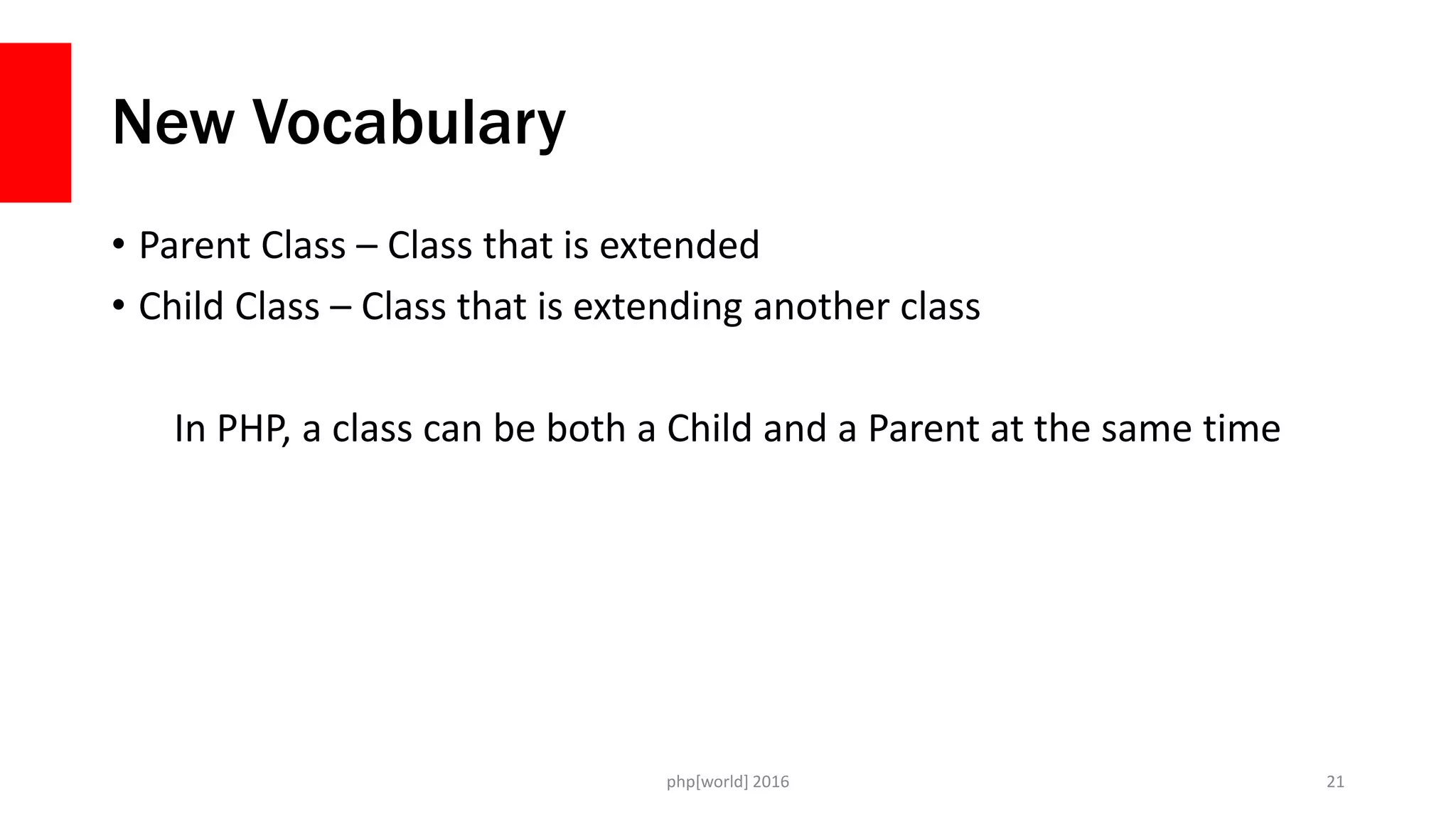

21. New Vocabulary
• Parent Class – Class that is extended
• Child Class – Class that is extending another class
In PHP, a class can be both a Child and a Parent at the same time
php[world] 2016 21

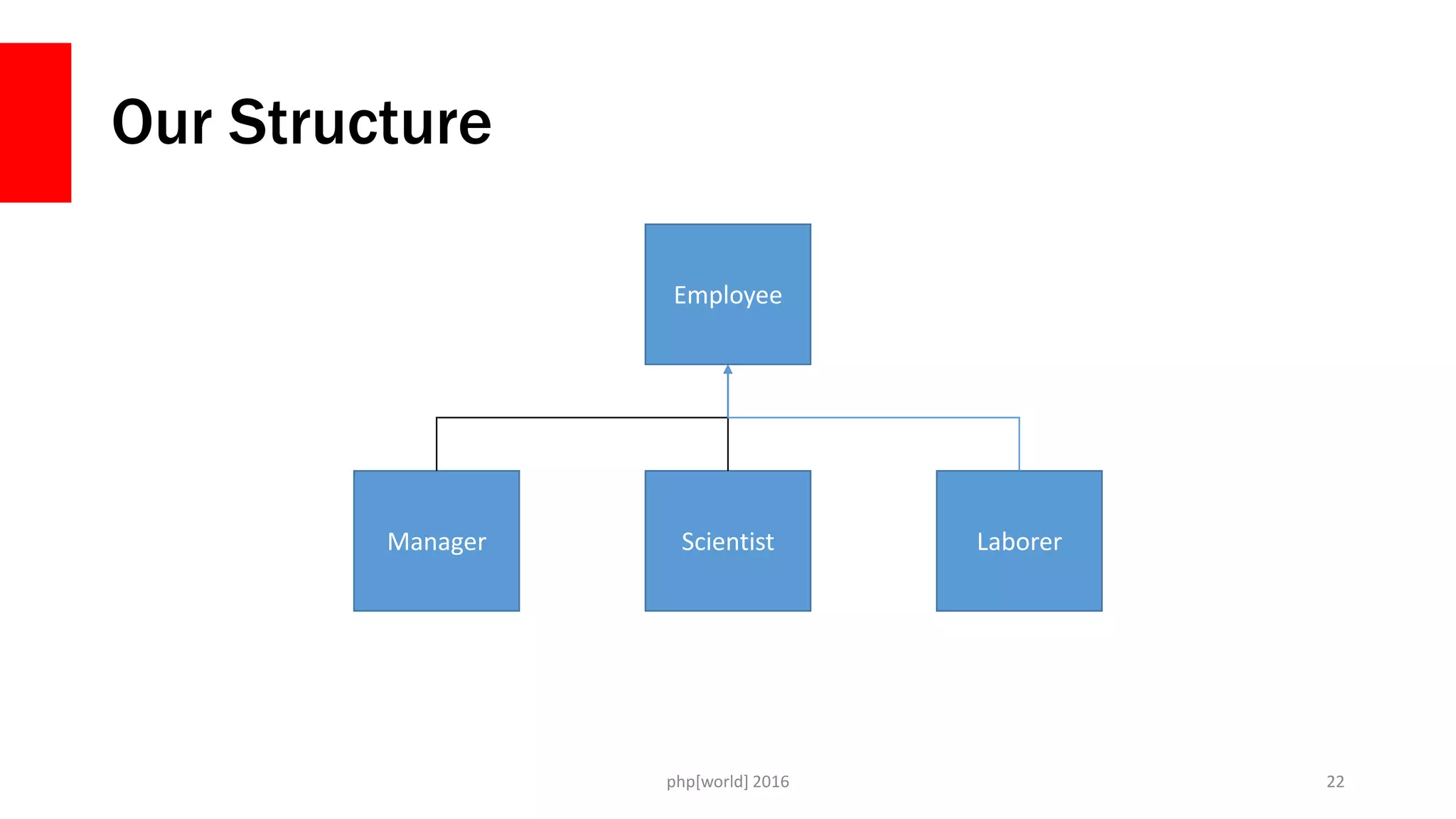

22. Our Structure
php[world] 2016 22
Employee
Manager Scientist Laborer

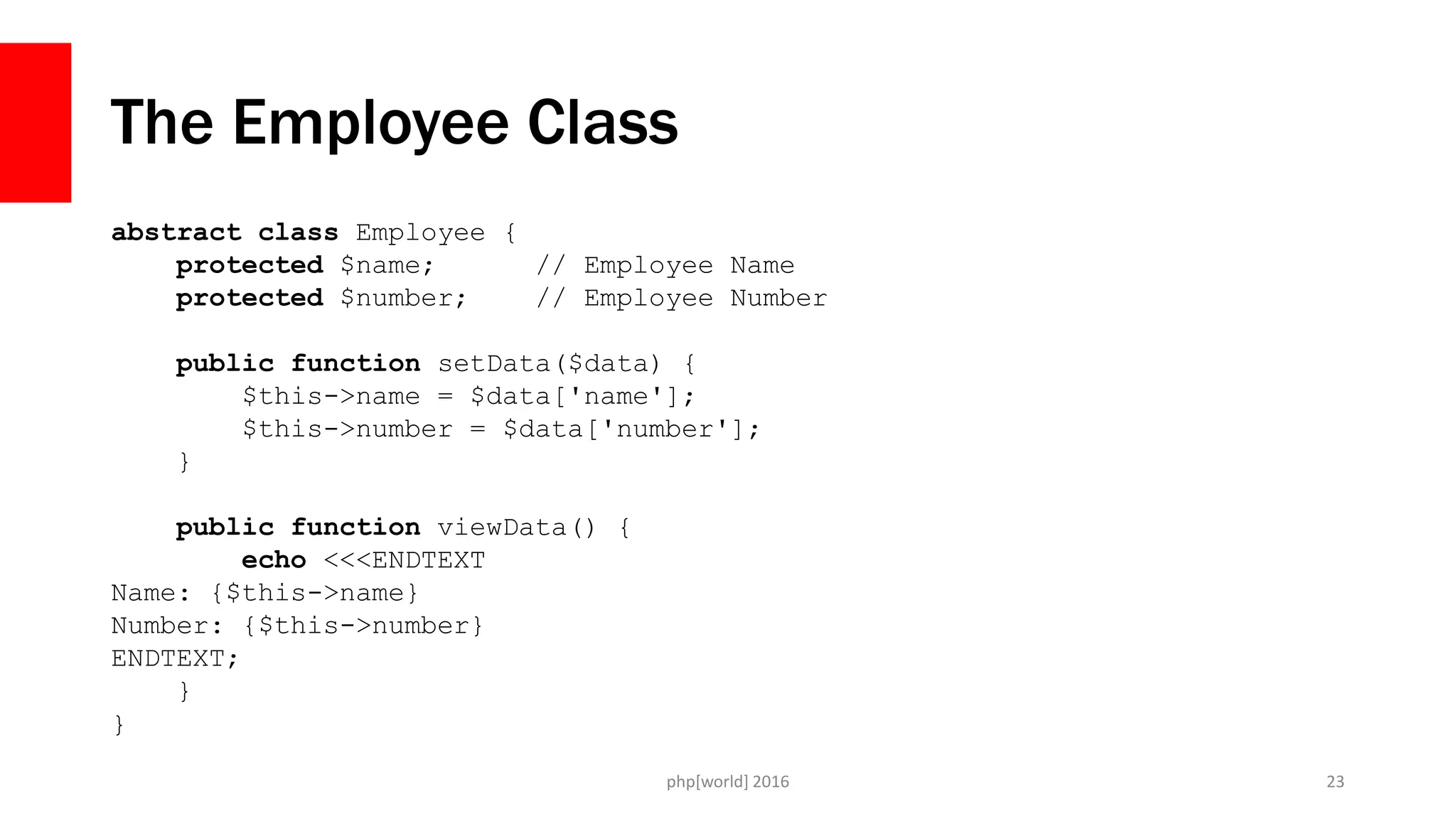

23. The Employee Class
php[world] 2016 23
abstract class Employee {
protected $name; // Employee Name
protected $number; // Employee Number
public function setData($data) {
$this->name = $data['name'];
$this->number = $data['number'];
}
public function viewData() {
echo <<<ENDTEXT
Name: {$this->name}
Number: {$this->number}
ENDTEXT;
}
}

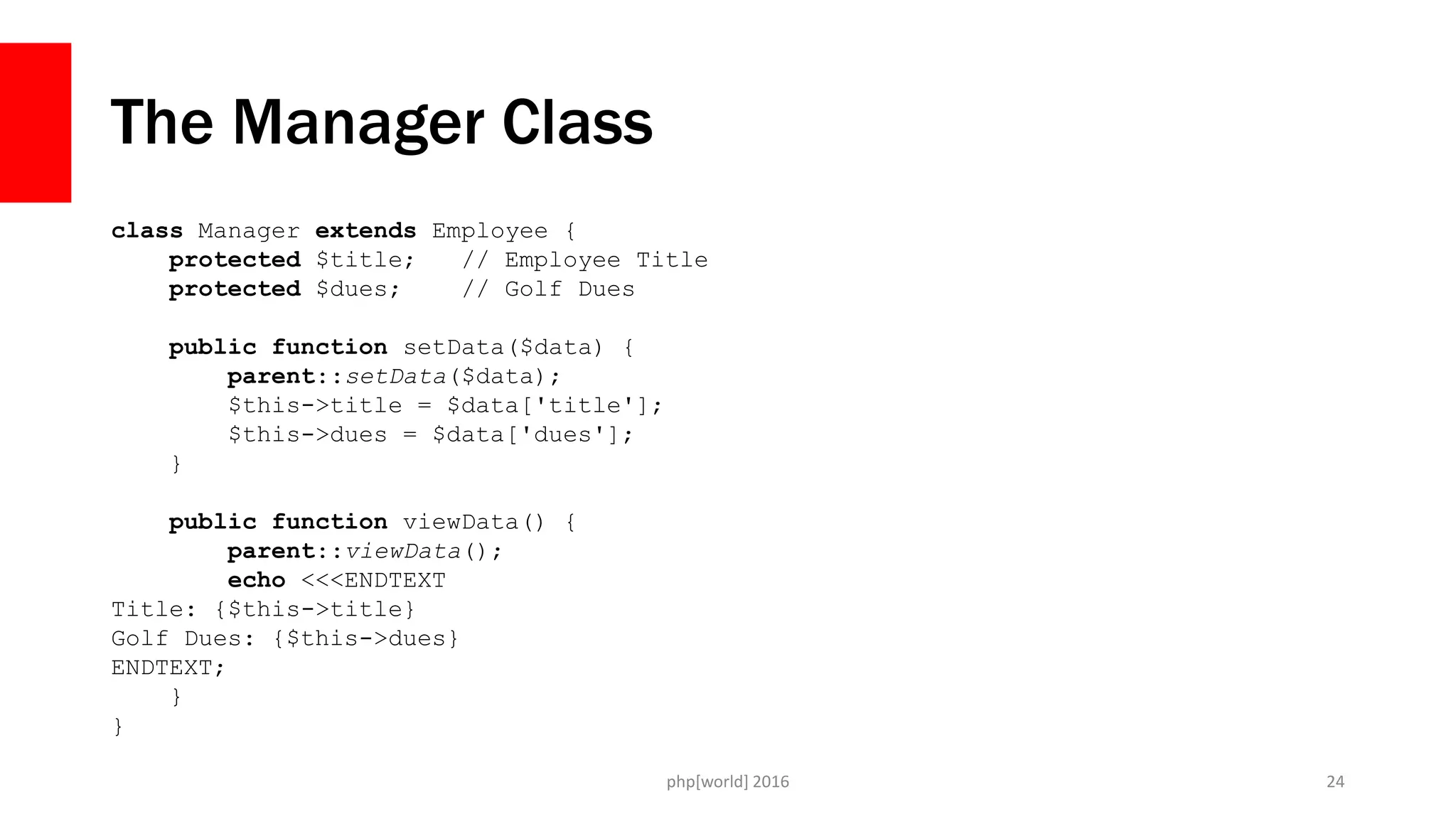

24. The Manager Class
php[world] 2016 24
class Manager extends Employee {
protected $title; // Employee Title
protected $dues; // Golf Dues
public function setData($data) {
parent::setData($data);
$this->title = $data['title'];
$this->dues = $data['dues'];
}
public function viewData() {
parent::viewData();
echo <<<ENDTEXT
Title: {$this->title}
Golf Dues: {$this->dues}
ENDTEXT;
}
}

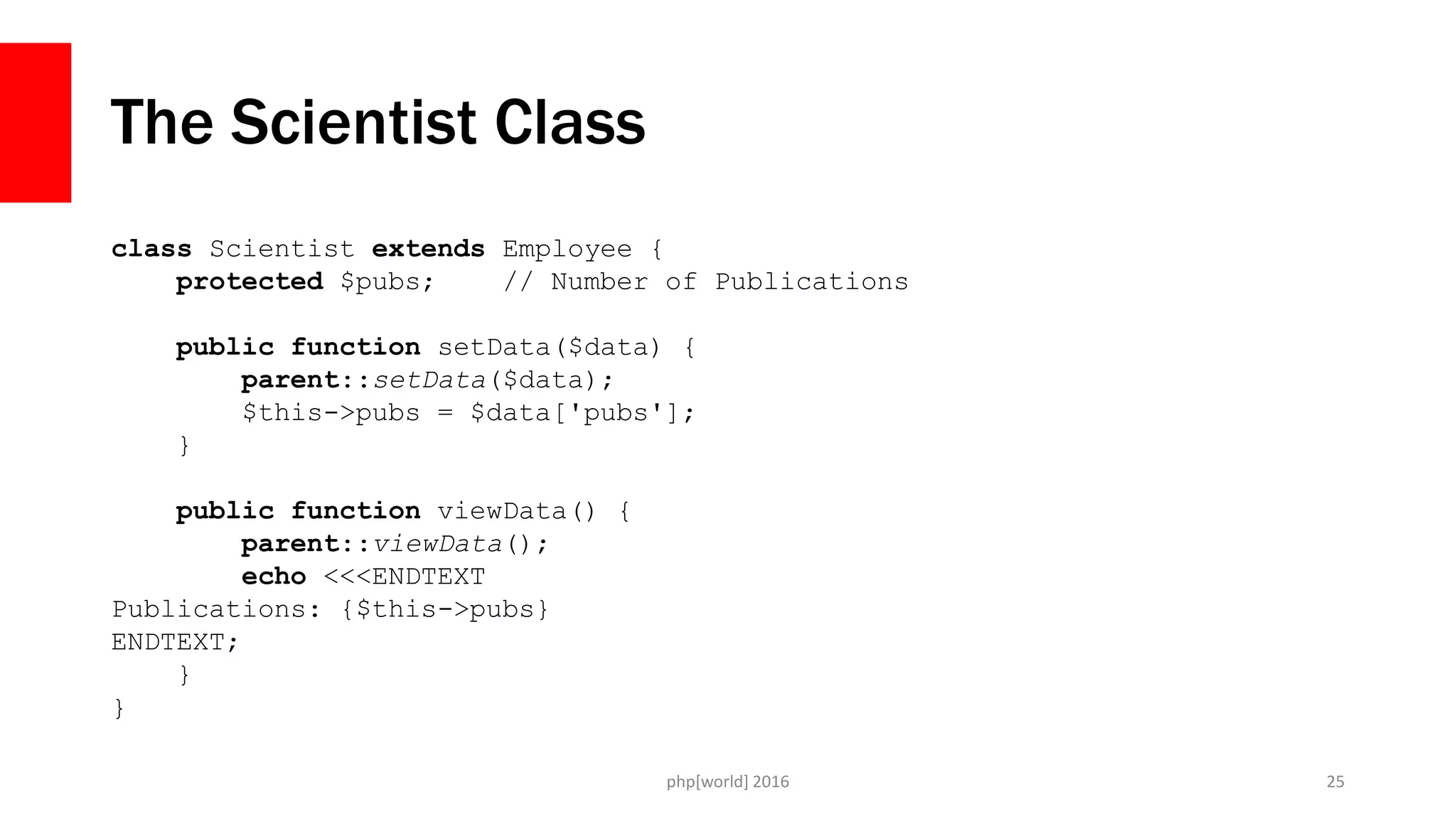

25. The Scientist Class
php[world] 2016 25
class Scientist extends Employee {
protected $pubs; // Number of Publications
public function setData($data) {
parent::setData($data);
$this->pubs = $data['pubs'];
}
public function viewData() {
parent::viewData();
echo <<<ENDTEXT
Publications: {$this->pubs}
ENDTEXT;
}
}

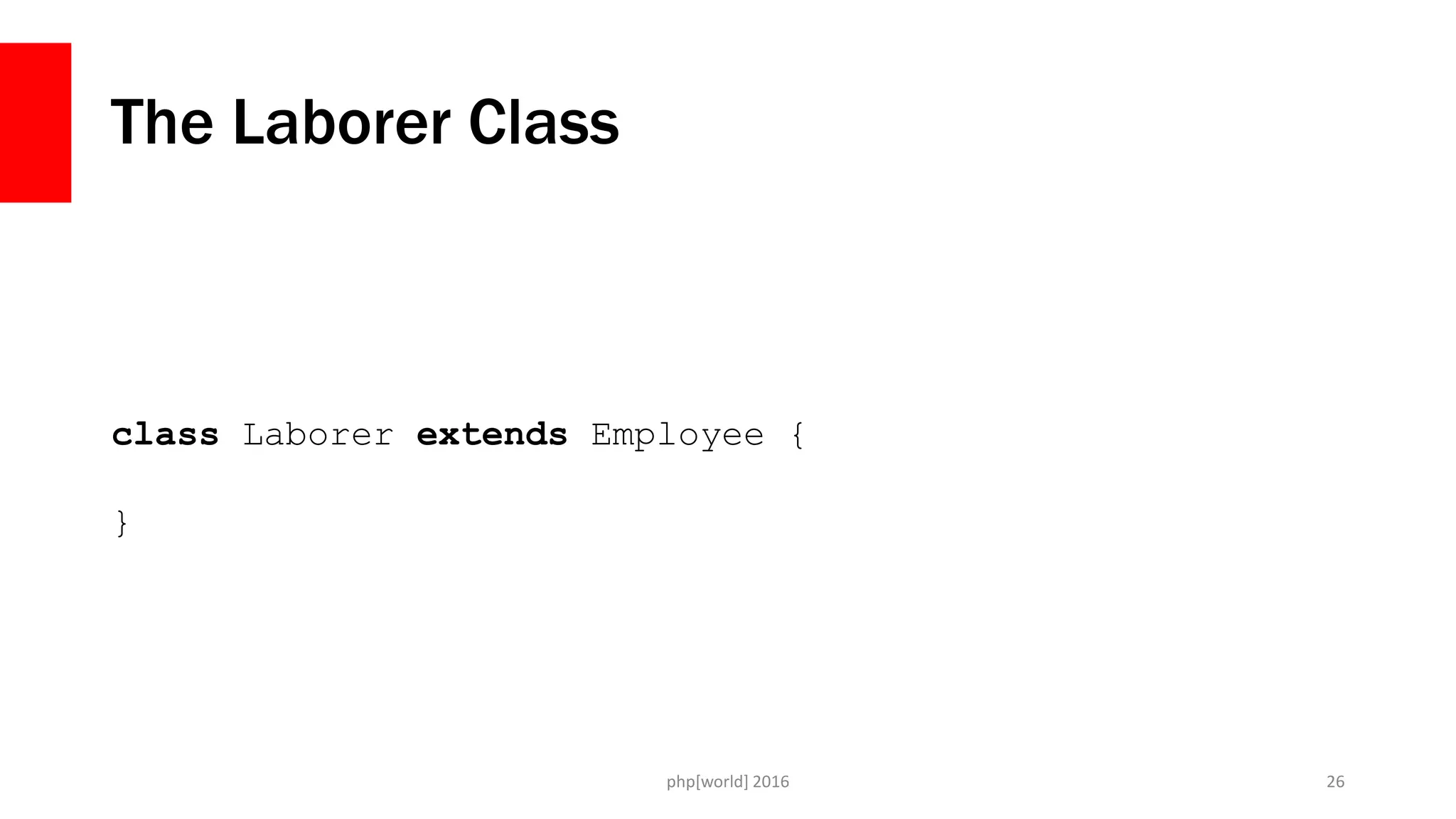

26. The Laborer Class
php[world] 2016 26
class Laborer extends Employee {
}

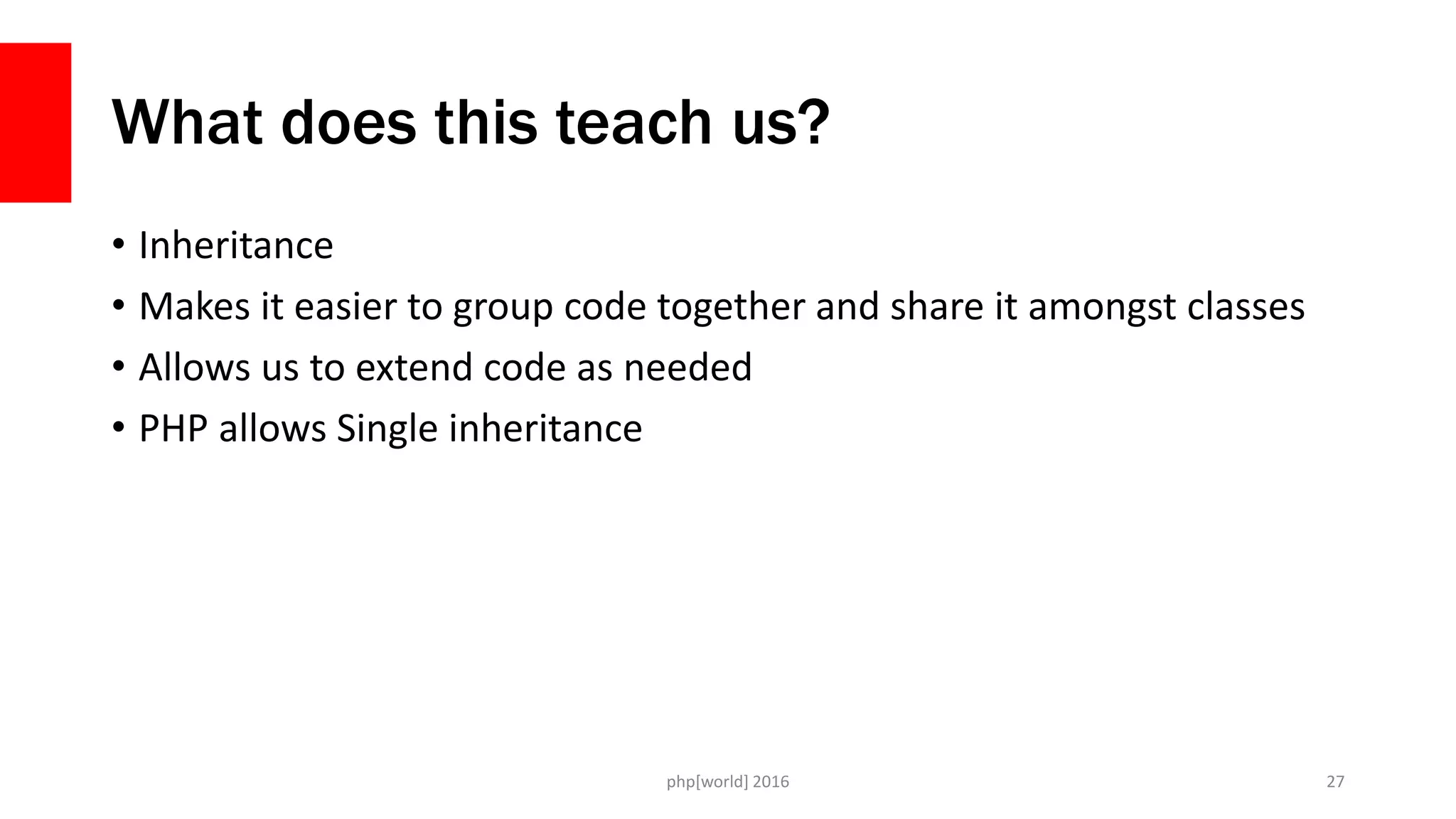

27. What does this teach us?
• Inheritance
• Makes it easier to group code together and share it amongst classes
• Allows us to extend code as needed
• PHP allows Single inheritance
php[world] 2016 27

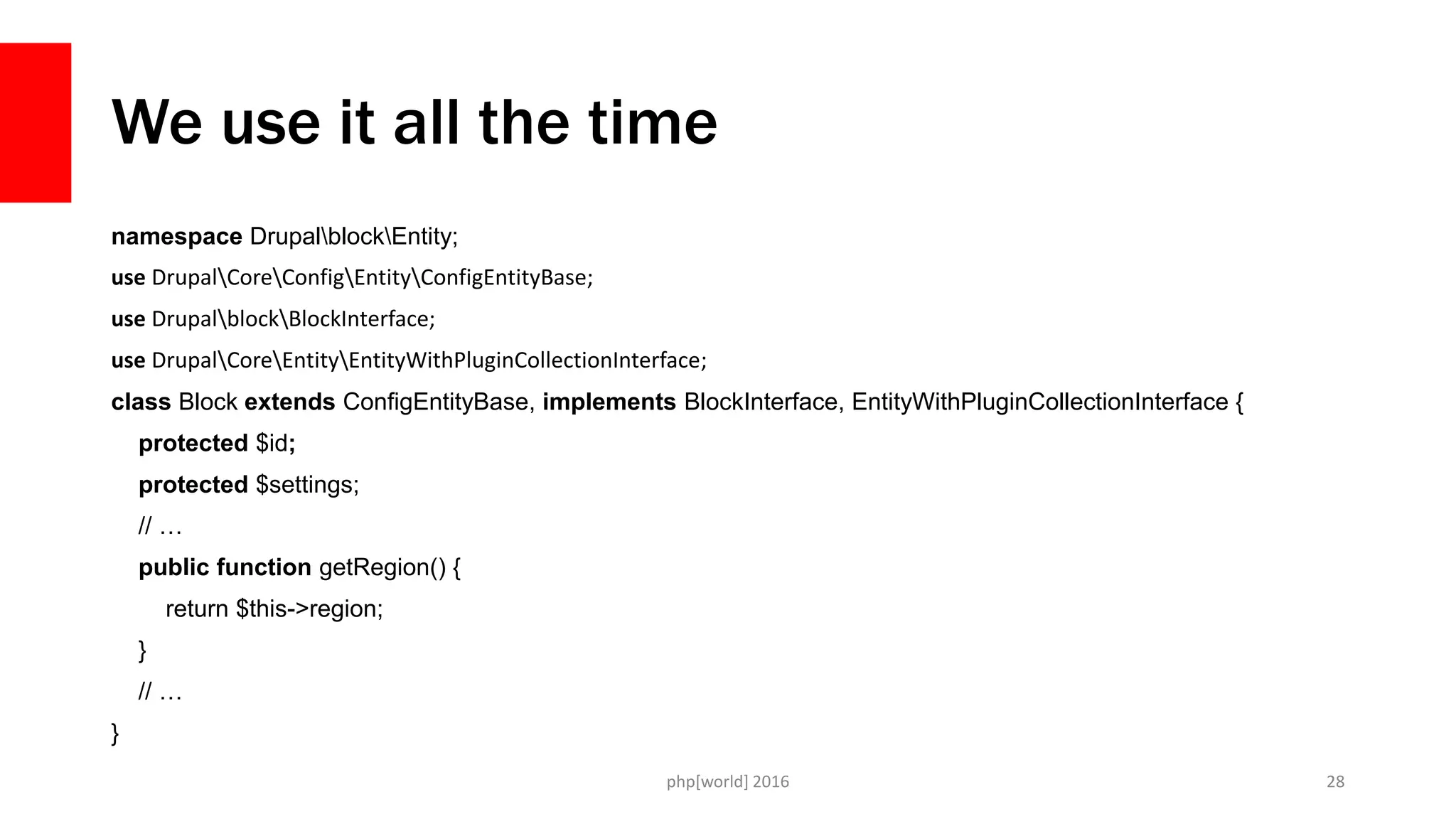

28. We use it all the time
namespace DrupalblockEntity;
use DrupalCoreConfigEntityConfigEntityBase;
use DrupalblockBlockInterface;
use DrupalCoreEntityEntityWithPluginCollectionInterface;
class Block extends ConfigEntityBase, implements BlockInterface, EntityWithPluginCollectionInterface {
protected $id;
protected $settings;
// …
public function getRegion() {
return $this->region;
}
// …
}
php[world] 2016 28

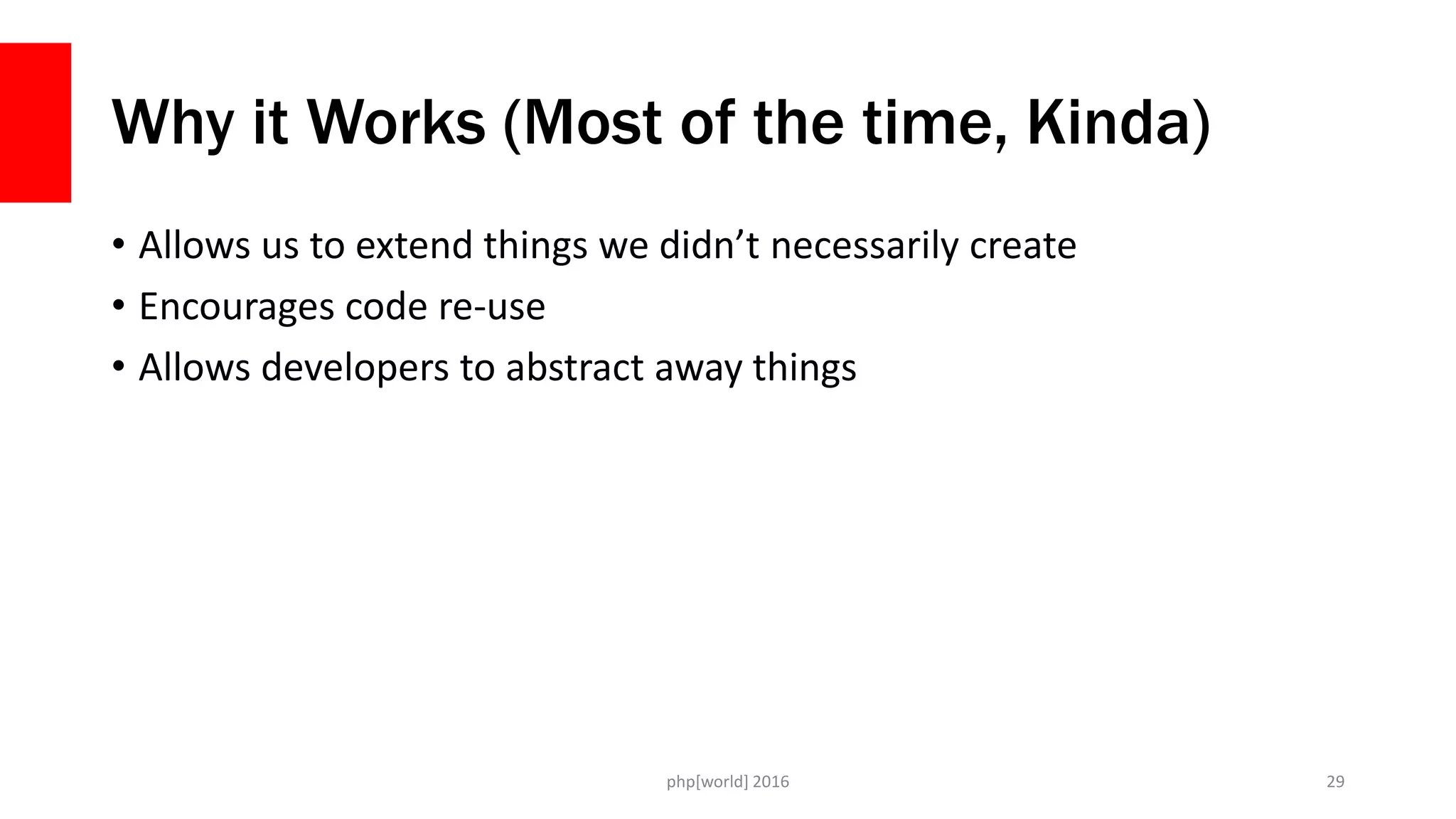

29. Why it Works (Most of the time, Kinda)
• Allows us to extend things we didn’t necessarily create
• Encourages code re-use
• Allows developers to abstract away things
php[world] 2016 29

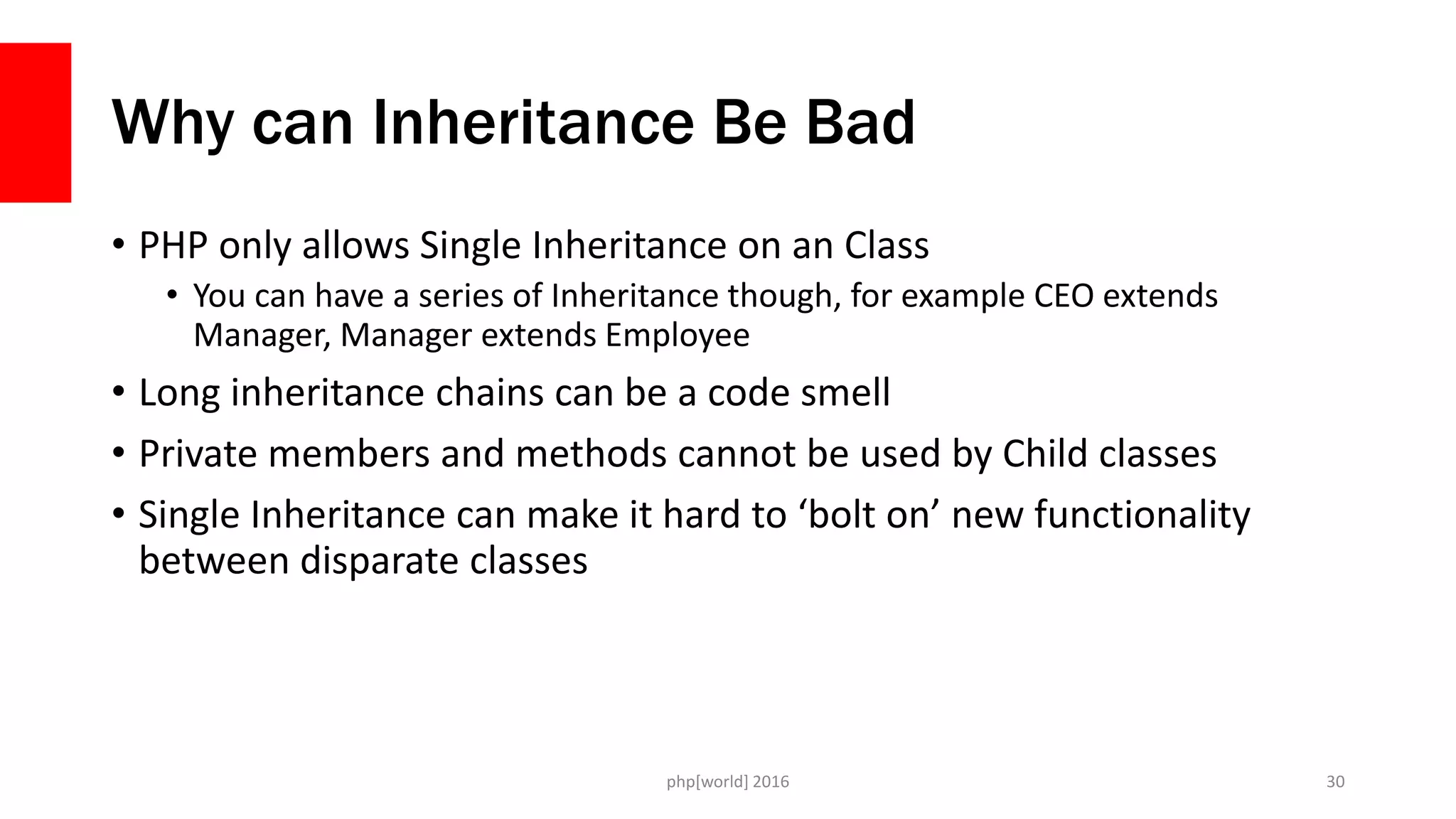

30. Why can Inheritance Be Bad
• PHP only allows Single Inheritance on an Class
• You can have a series of Inheritance though, for example CEO extends
Manager, Manager extends Employee
• Long inheritance chains can be a code smell
• Private members and methods cannot be used by Child classes
• Single Inheritance can make it hard to ‘bolt on’ new functionality
between disparate classes
php[world] 2016 30

31. Composition
php[world] 2016 31

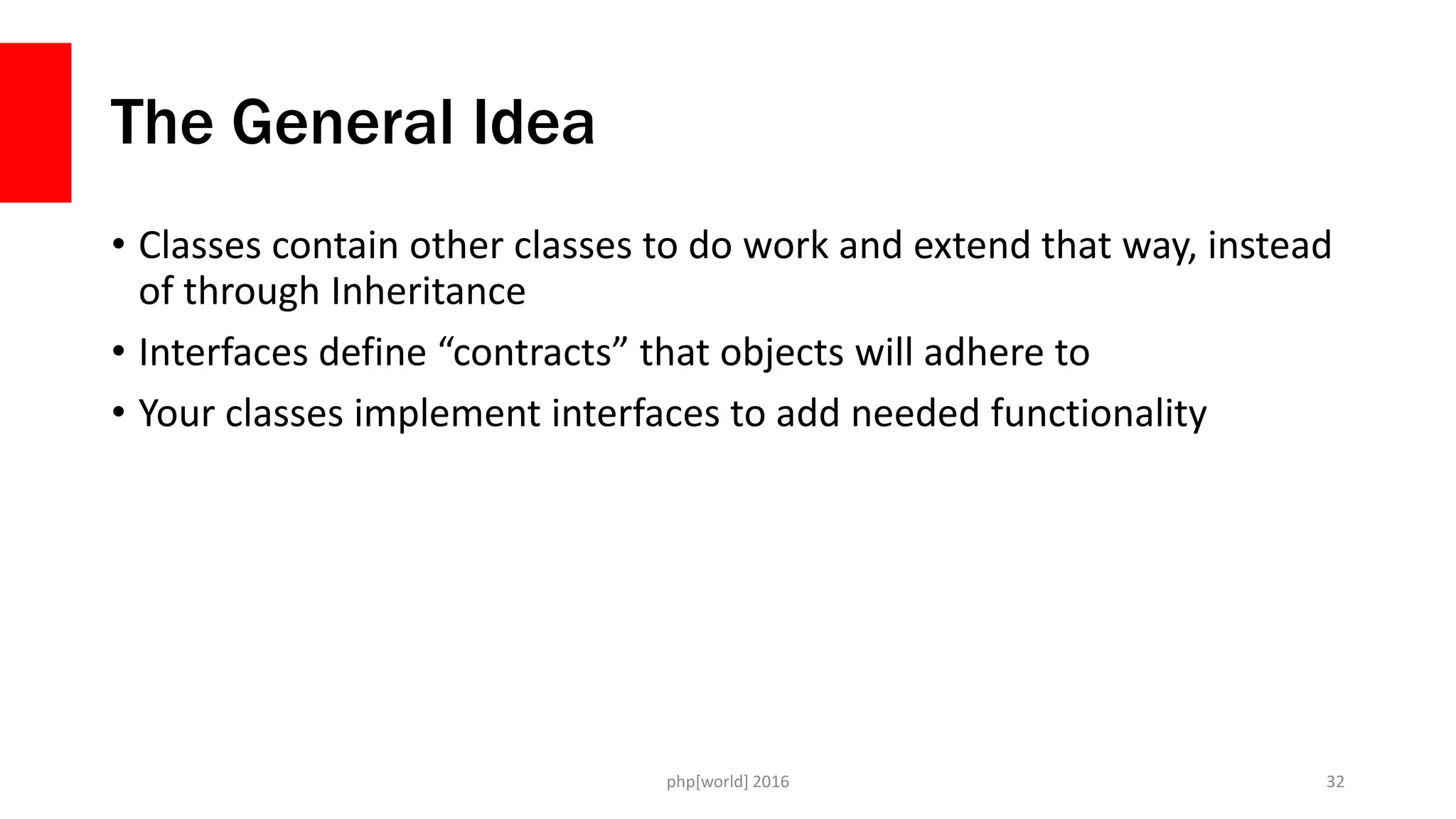

32. The General Idea
• Classes contain other classes to do work and extend that way, instead
of through Inheritance
• Interfaces define “contracts” that objects will adhere to
• Your classes implement interfaces to add needed functionality
php[world] 2016 32

33. Interfaces
interface EmployeeInterface {
protected $name;
protected $number;
public function getName();
public function setName($name);
public function getNumber();
public function setNumber($number);
}
interface ManagerInterface {
protected $golfHandicap;
public function getHandicap();
public function setHandicap($handicap);
}
php[world] 2016 33

34. Interface Implementation
class Employee implements EmployeeInterface {
public function getName() {
return $this->name;
}
public function setName($name) {
$this->name = $name;
}
}
class Manager implements EmployeeInterface, ManagerInterface {
// defines the employee getters/setters as well
public function getHandicap() {
return $this->handicap;
}
public function setHandicap($handicap) {
$this->handicap = $handicap;
}
}
php[world] 2016 34

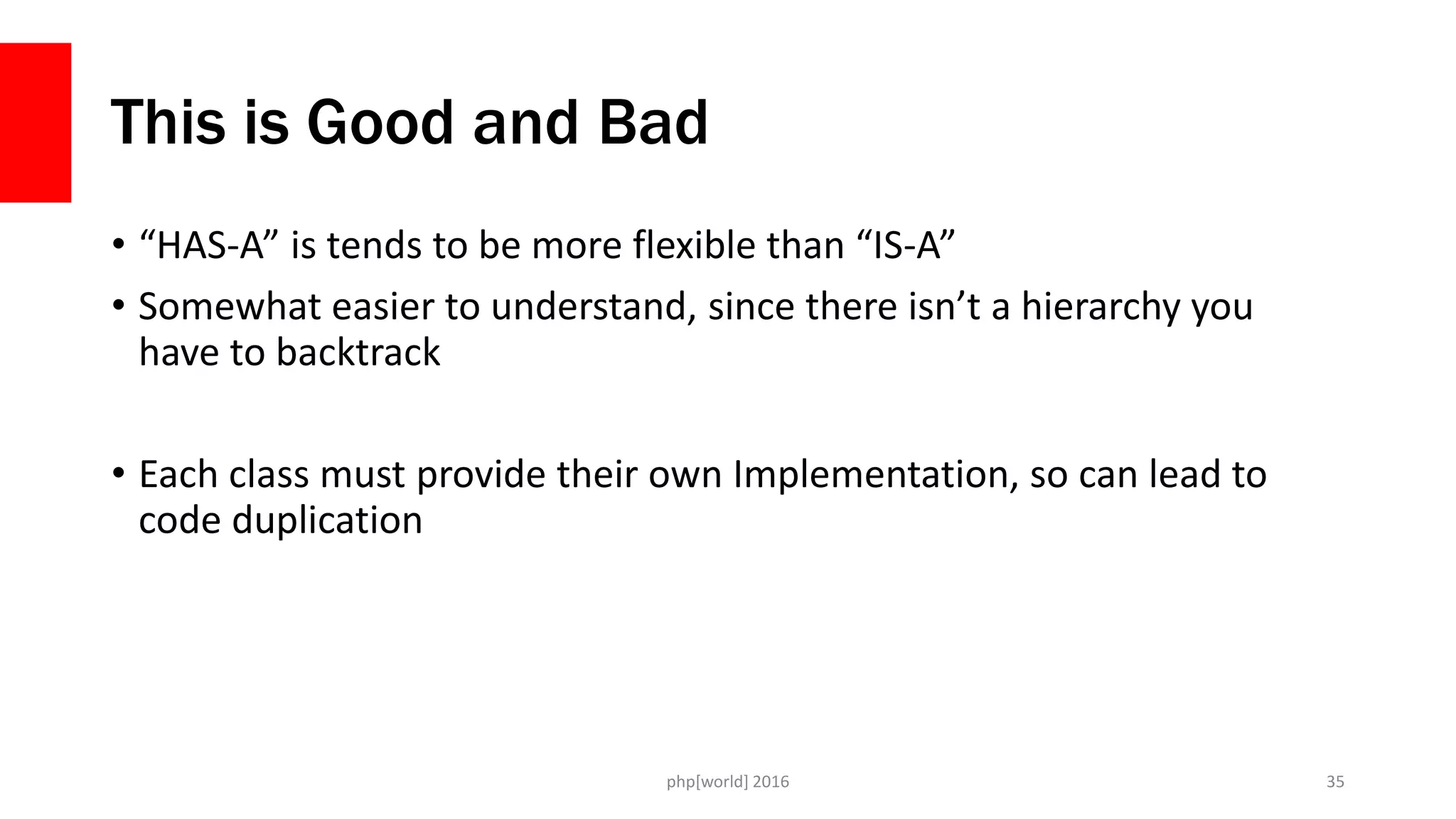

35. This is Good and Bad
• “HAS-A” is tends to be more flexible than “IS-A”
• Somewhat easier to understand, since there isn’t a hierarchy you
have to backtrack
• Each class must provide their own Implementation, so can lead to
code duplication
php[world] 2016 35

36. Traits
• Allows small blocks of code to be defined that can be used by many
classes
• Useful when abstract classes/inheritance would be cumbersome
• My Posts and Pages classes shouldn’t need to extend a Slugger class just to
generate slugs.
php[world] 2016 36

37. Avoid Code-Duplication with Traits
trait EmployeeTrait {
public function getName() {
return $this->name;
}
public function setName($name) {
$this->name = $name;
}
}
class Employee implements EmployeeInterface {
use EmployeeTrait;
}
class Manager implements EmployeeInterface, ManagerInterface {
use EmployeeTrait;
use ManagerTrait;
}
php[world] 2016 37

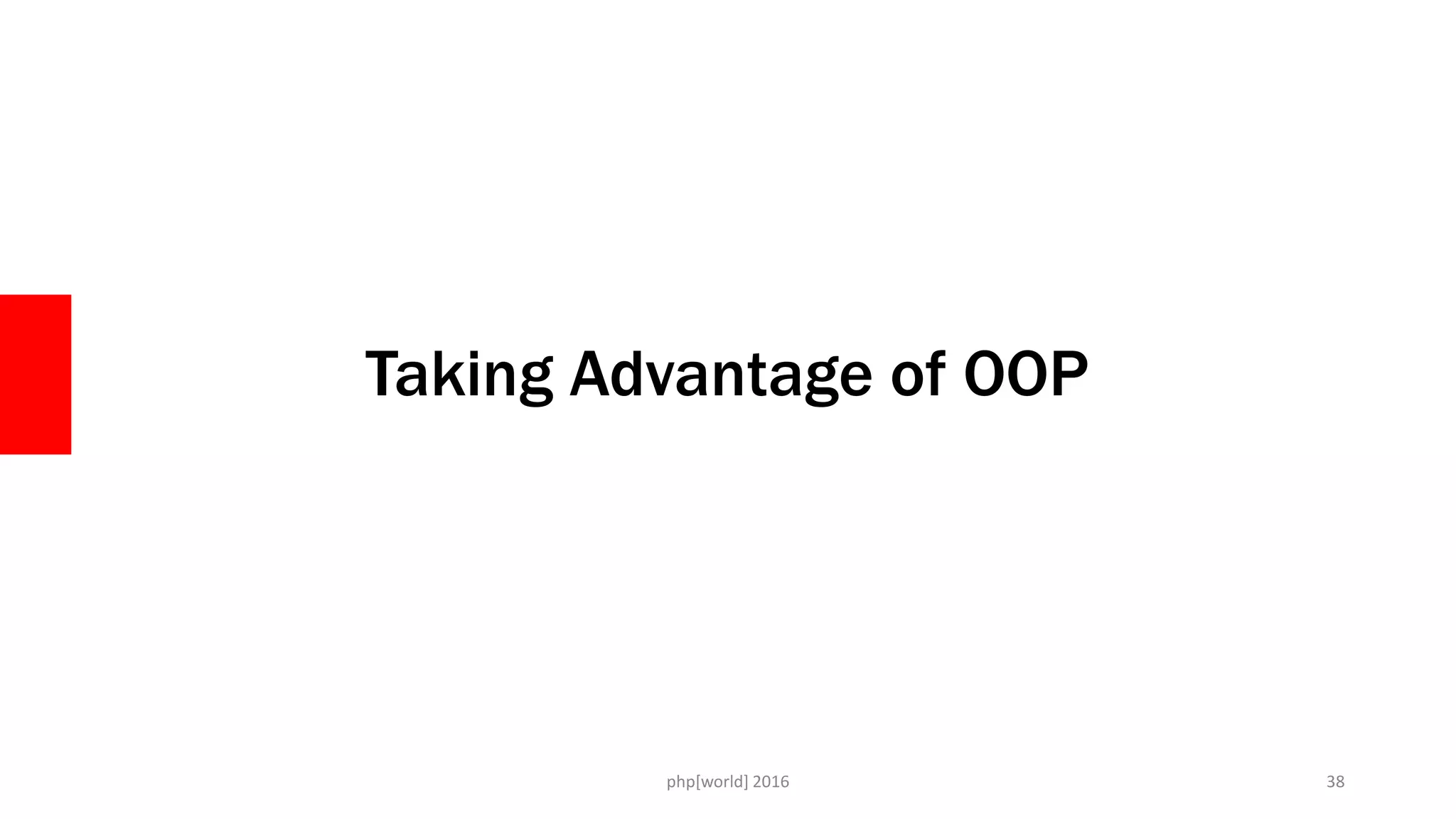

38. Taking Advantage of OOP
php[world] 2016 38

39. Coupling
php[world] 2016 39

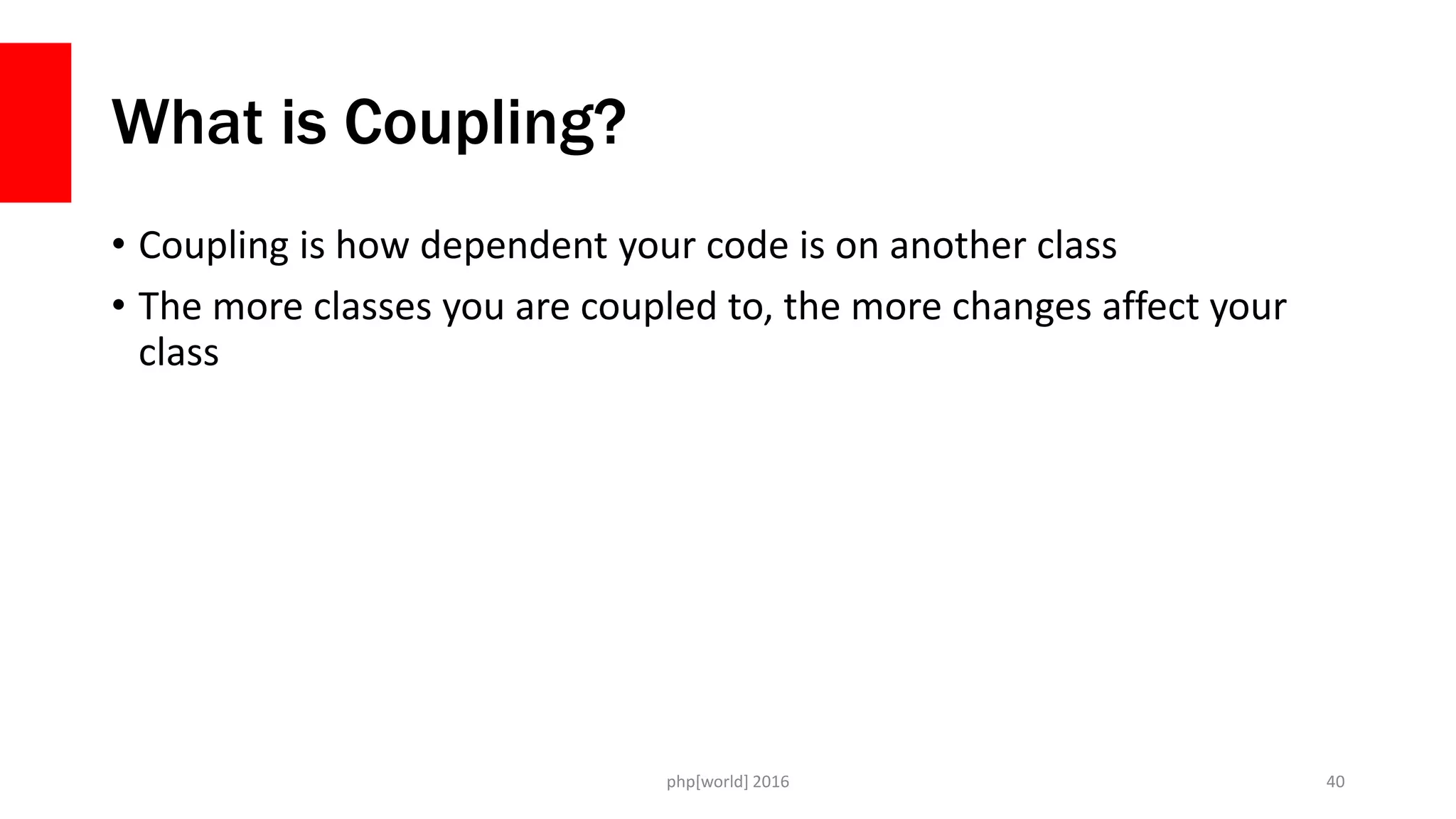

40. What is Coupling?
• Coupling is how dependent your code is on another class
• The more classes you are coupled to, the more changes affect your
class
php[world] 2016 40

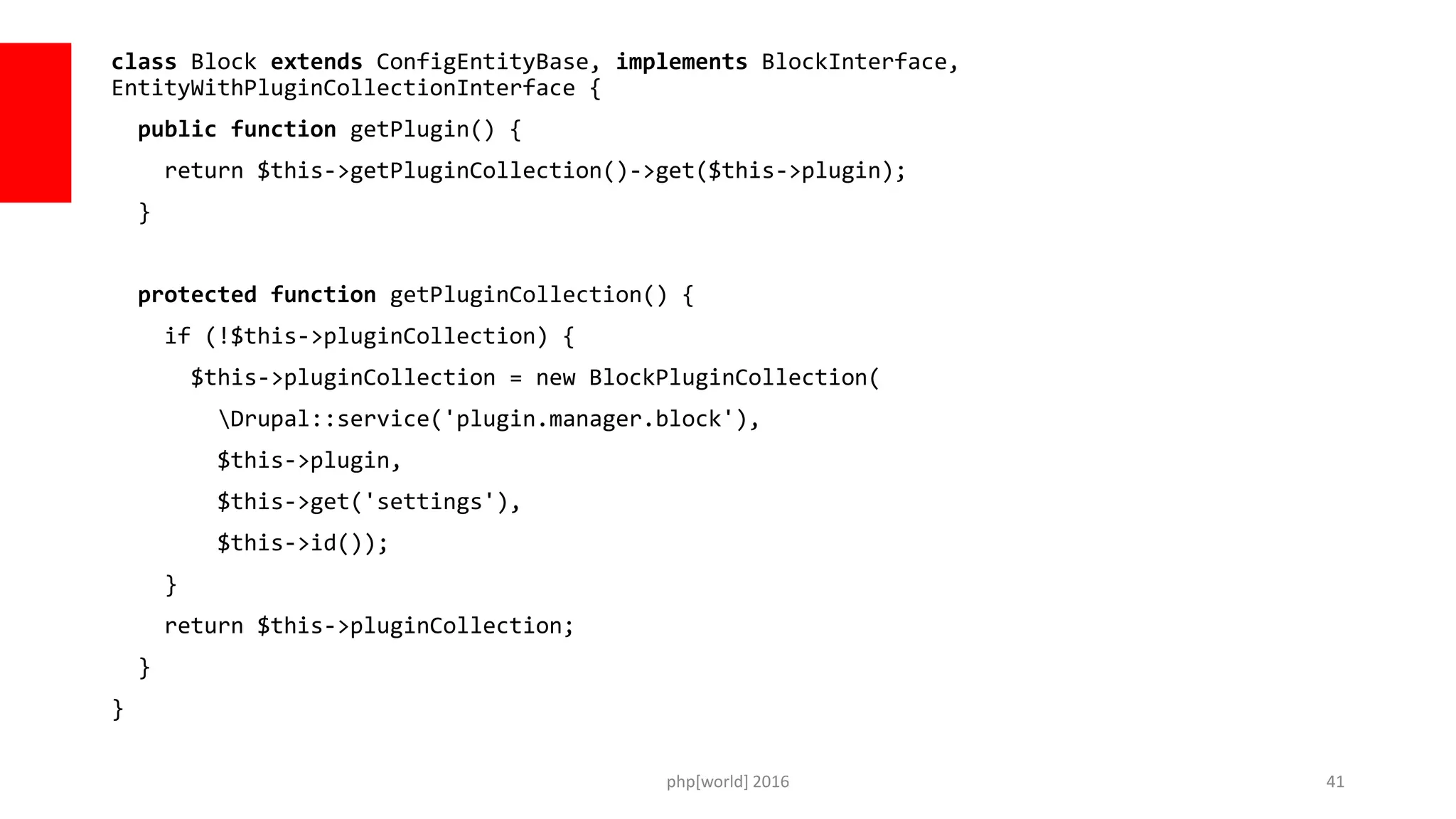

41. class Block extends ConfigEntityBase, implements BlockInterface,
EntityWithPluginCollectionInterface {
public function getPlugin() {
return $this->getPluginCollection()->get($this->plugin);
}
protected function getPluginCollection() {
if (!$this->pluginCollection) {
$this->pluginCollection = new BlockPluginCollection(
Drupal::service('plugin.manager.block'),
$this->plugin,
$this->get('settings'),
$this->id());
}
return $this->pluginCollection;
}
}
php[world] 2016 41

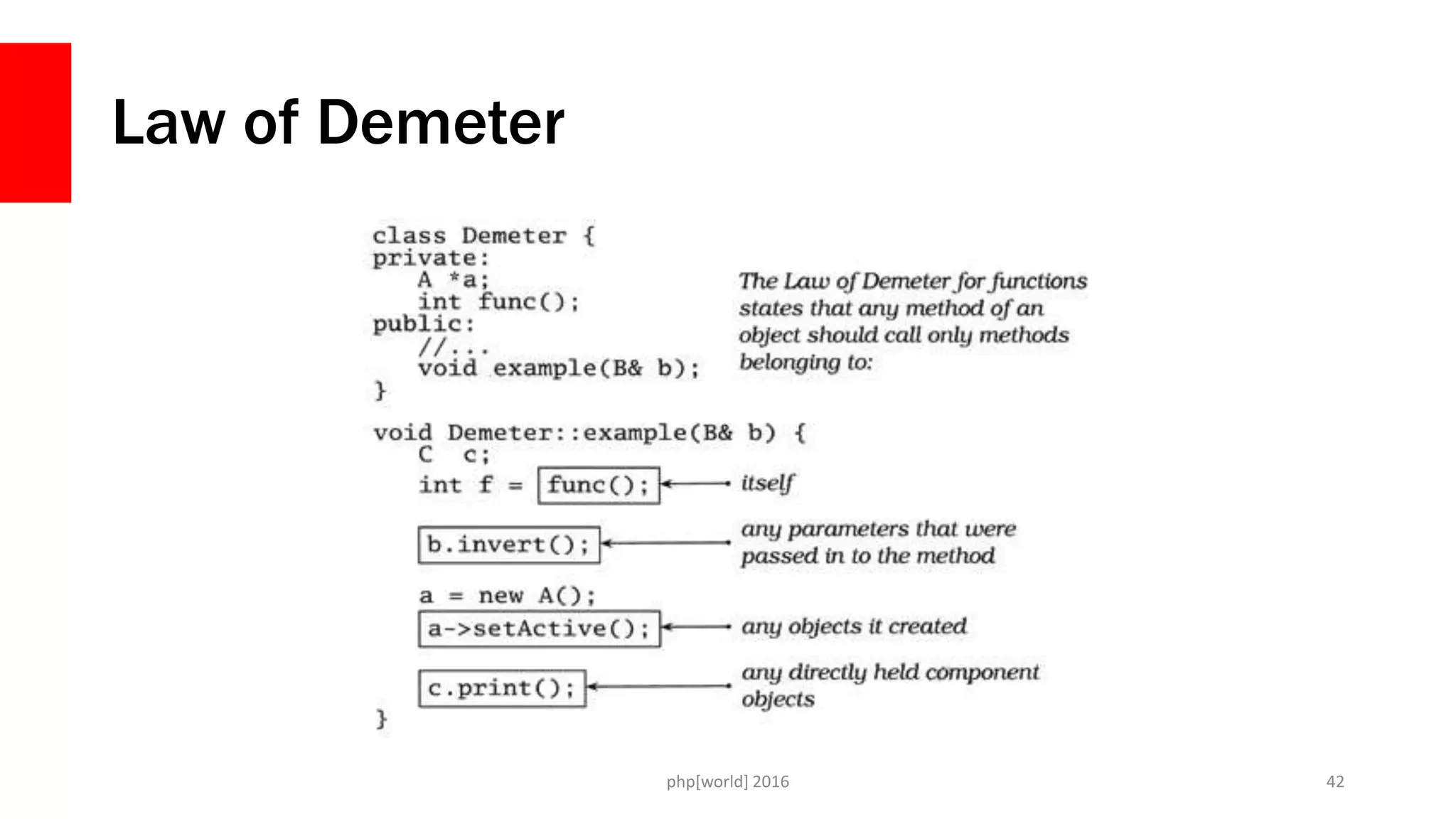

42. Law of Demeter
php[world] 2016 42

43. Dependency Injection
php[world] 2016 43

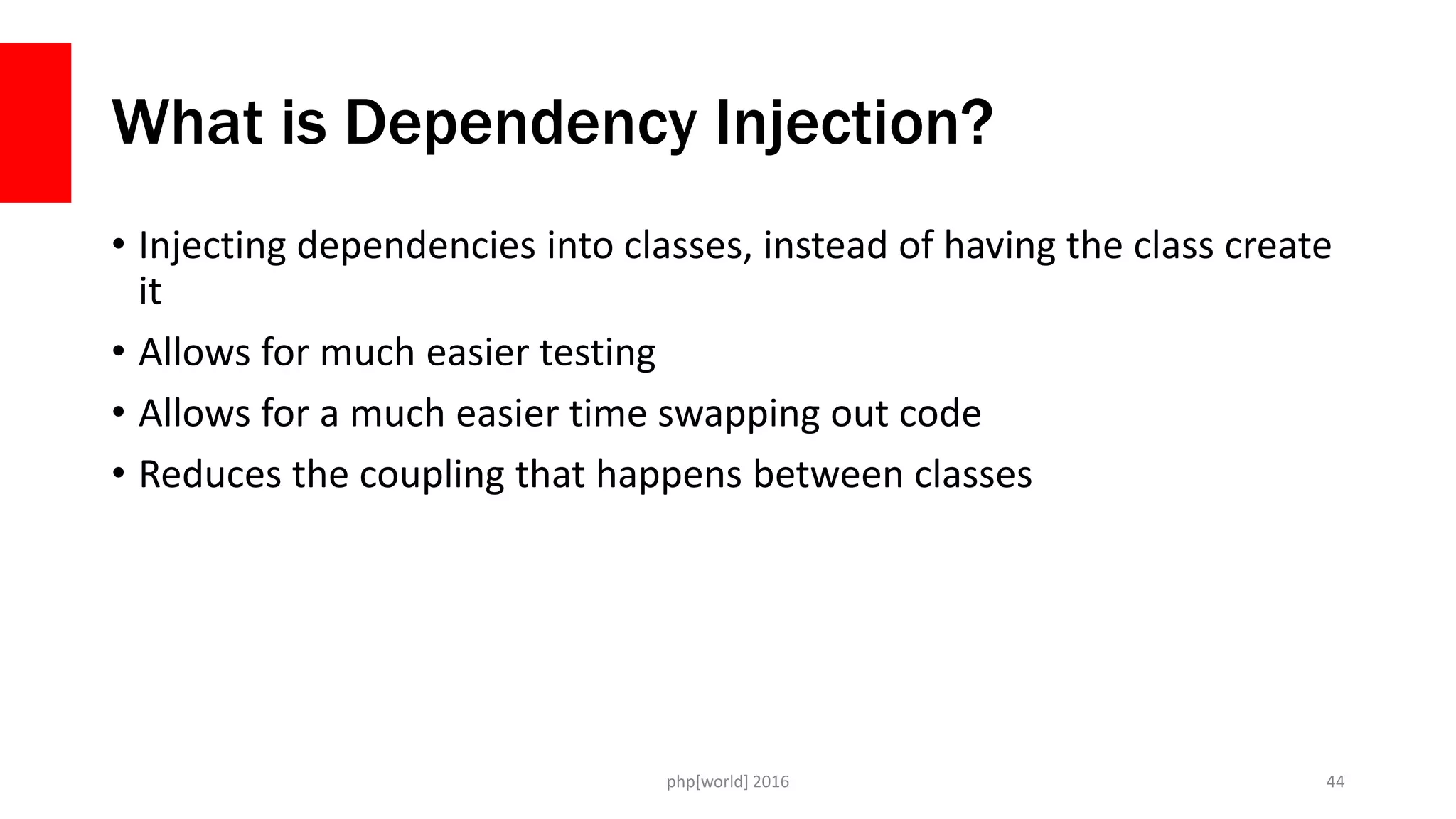

44. What is Dependency Injection?
• Injecting dependencies into classes, instead of having the class create
it
• Allows for much easier testing
• Allows for a much easier time swapping out code
• Reduces the coupling that happens between classes
php[world] 2016 44

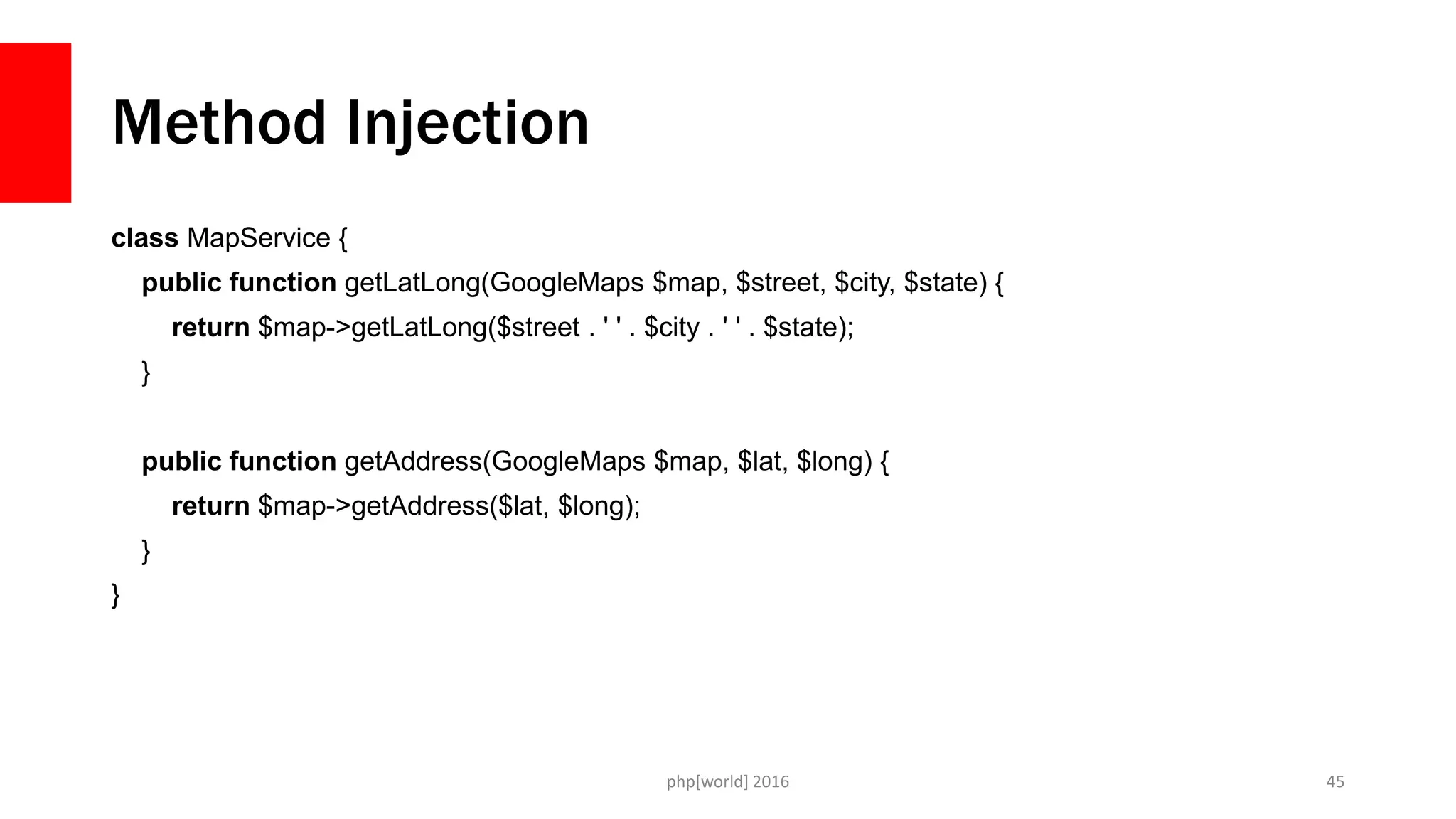

45. Method Injection
class MapService {
public function getLatLong(GoogleMaps $map, $street, $city, $state) {
return $map->getLatLong($street . ' ' . $city . ' ' . $state);
}
public function getAddress(GoogleMaps $map, $lat, $long) {
return $map->getAddress($lat, $long);
}
}
php[world] 2016 45

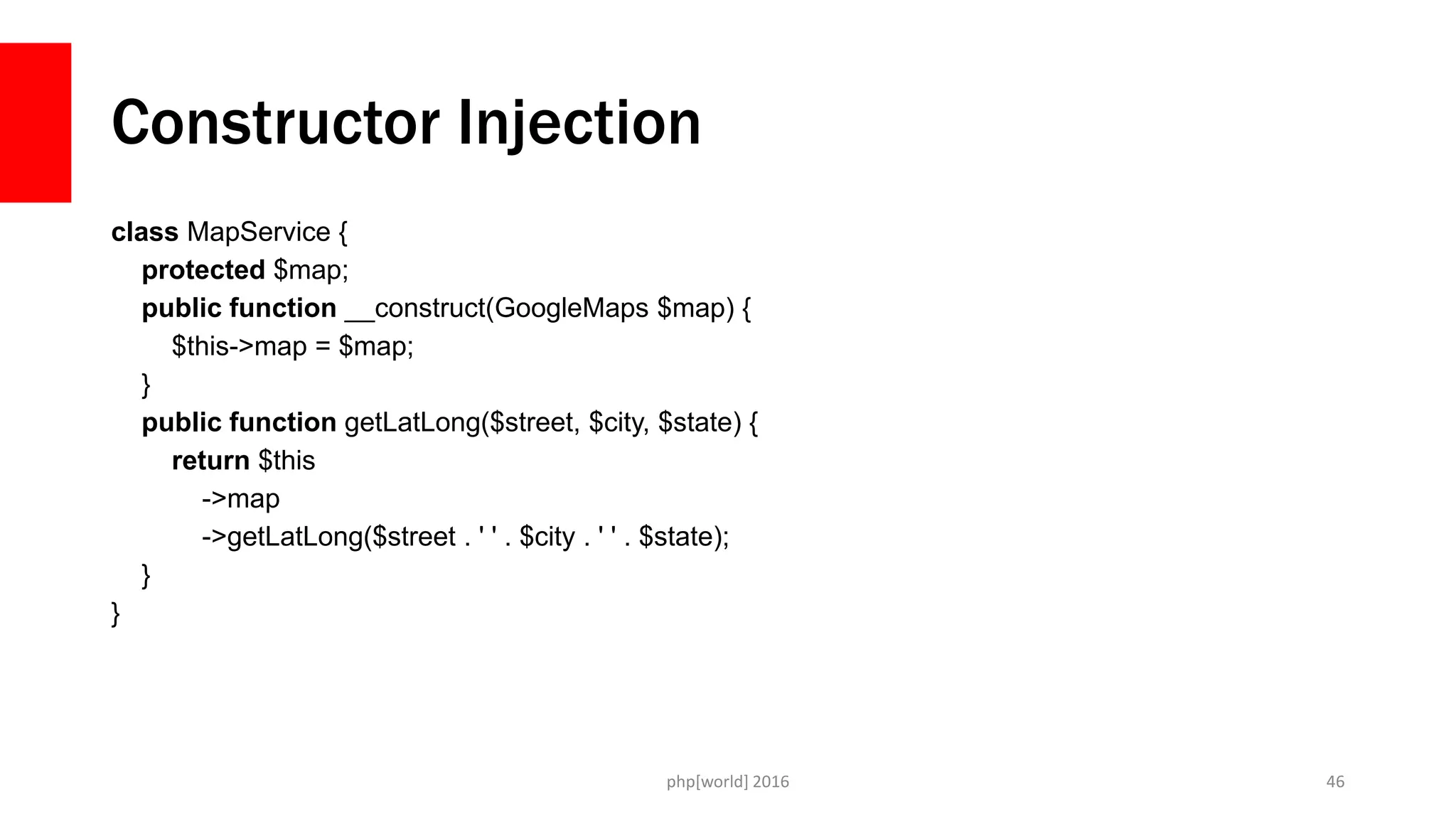

46. Constructor Injection
class MapService {
protected $map;
public function __construct(GoogleMaps $map) {
$this->map = $map;
}
public function getLatLong($street, $city, $state) {
return $this
->map
->getLatLong($street . ' ' . $city . ' ' . $state);
}
}
php[world] 2016 46

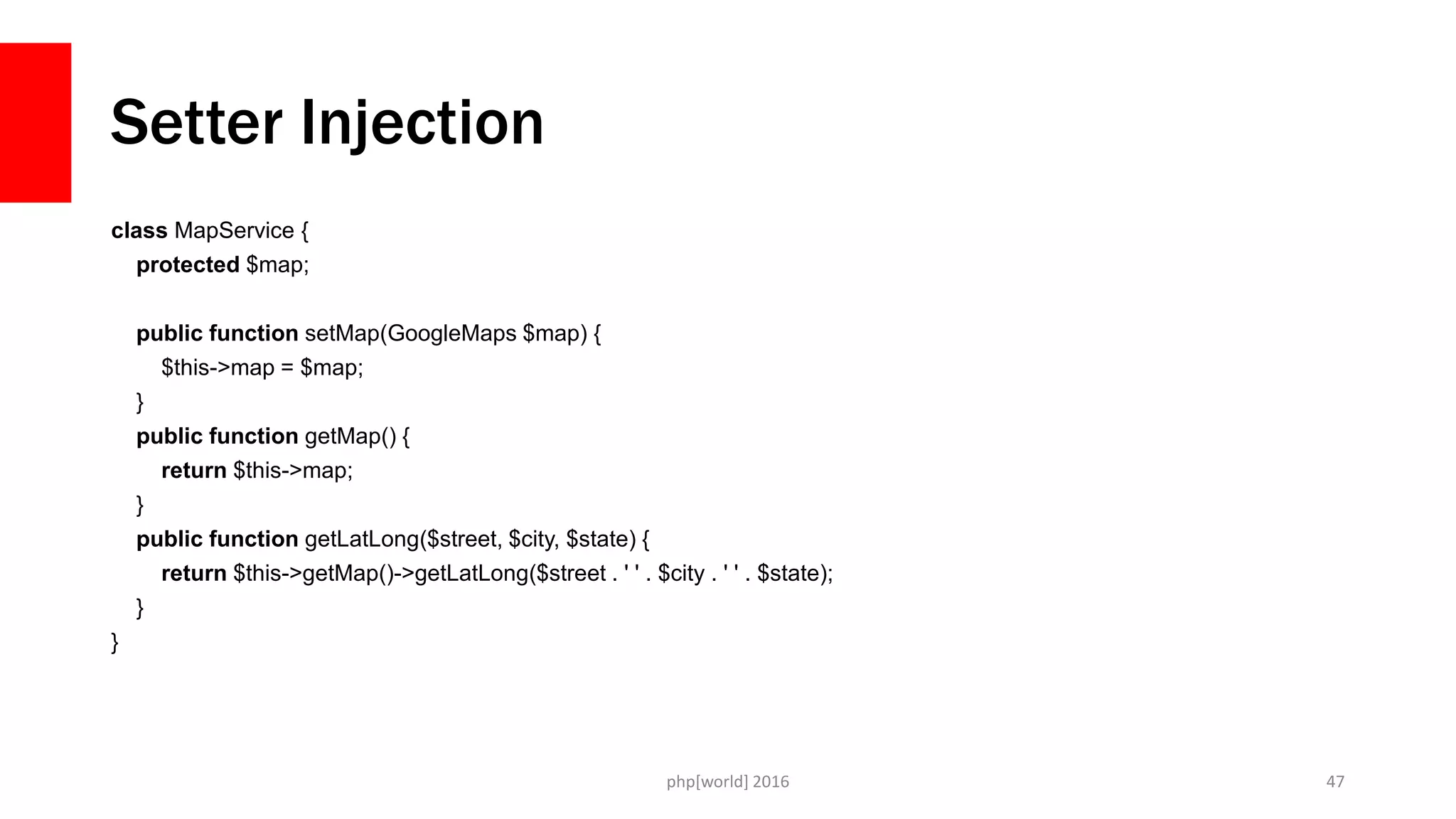

47. Setter Injection
class MapService {
protected $map;
public function setMap(GoogleMaps $map) {
$this->map = $map;
}
public function getMap() {
return $this->map;
}
public function getLatLong($street, $city, $state) {
return $this->getMap()->getLatLong($street . ' ' . $city . ' ' . $state);
}
}
php[world] 2016 47

48. Single Responsibility Principle
php[world] 2016 48

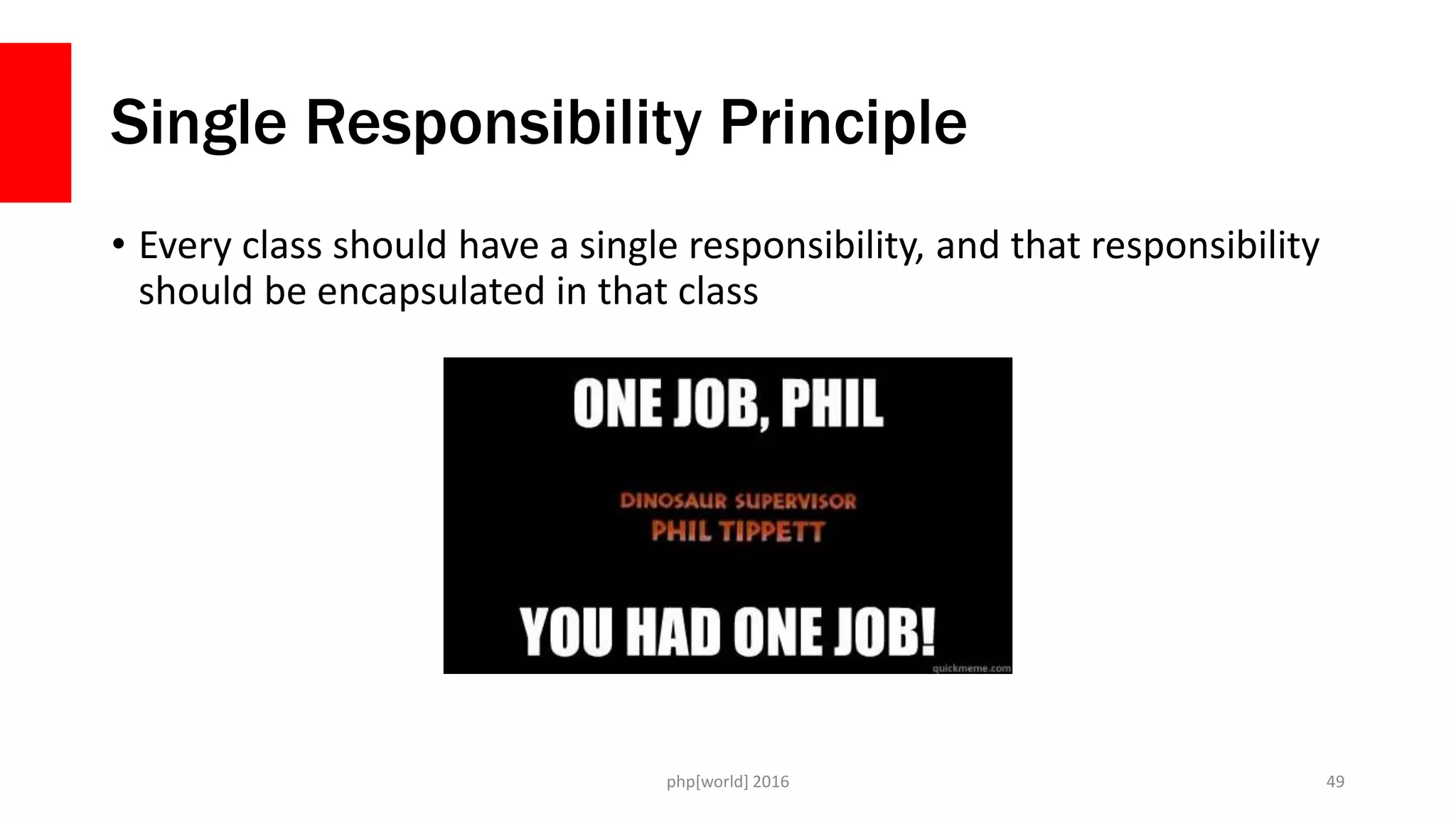

49. Single Responsibility Principle
• Every class should have a single responsibility, and that responsibility
should be encapsulated in that class
php[world] 2016 49

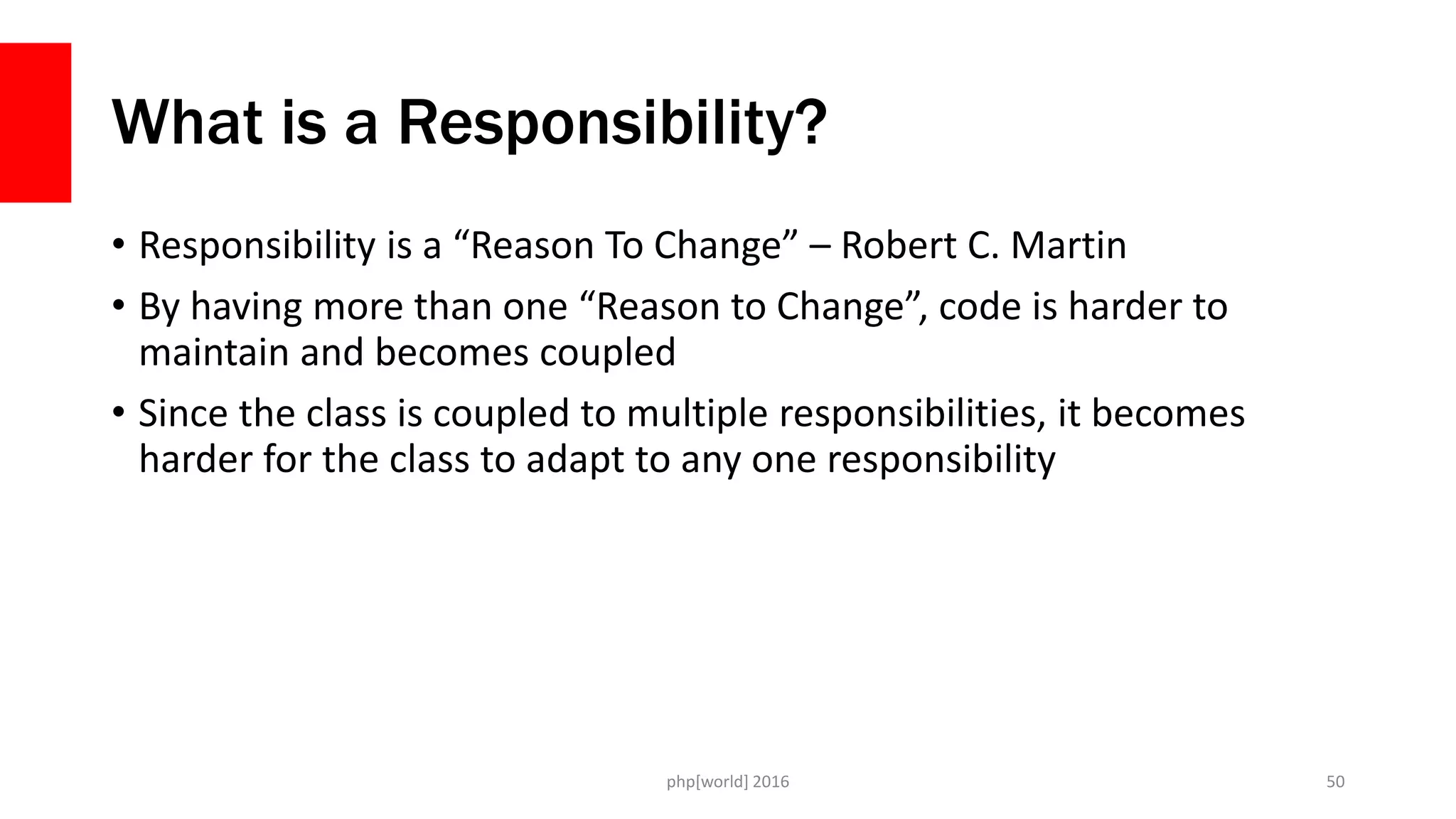

50. What is a Responsibility?
• Responsibility is a “Reason To Change” – Robert C. Martin
• By having more than one “Reason to Change”, code is harder to
maintain and becomes coupled
• Since the class is coupled to multiple responsibilities, it becomes
harder for the class to adapt to any one responsibility
php[world] 2016 50

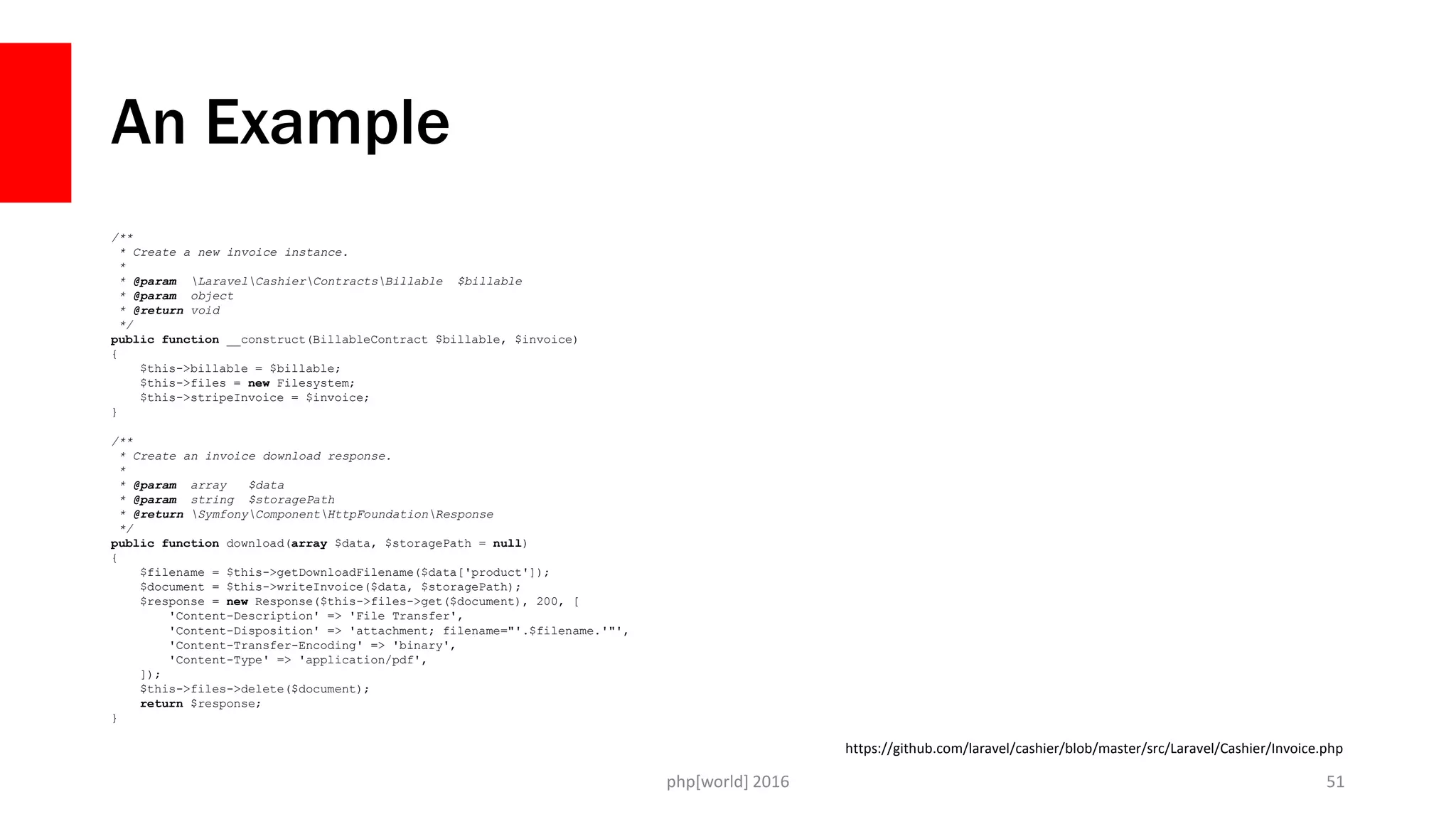

51. An Example
/**
* Create a new invoice instance.
*
* @param LaravelCashierContractsBillable $billable
* @param object
* @return void
*/
public function __construct(BillableContract $billable, $invoice)
{
$this->billable = $billable;
$this->files = new Filesystem;
$this->stripeInvoice = $invoice;
}
/**
* Create an invoice download response.
*
* @param array $data
* @param string $storagePath
* @return SymfonyComponentHttpFoundationResponse
*/
public function download(array $data, $storagePath = null)
{
$filename = $this->getDownloadFilename($data['product']);
$document = $this->writeInvoice($data, $storagePath);
$response = new Response($this->files->get($document), 200, [
'Content-Description' => 'File Transfer',
'Content-Disposition' => 'attachment; filename="'.$filename.'"',
'Content-Transfer-Encoding' => 'binary',
'Content-Type' => 'application/pdf',
]);
$this->files->delete($document);
return $response;
}
php[world] 2016 51
https://github.com/laravel/cashier/blob/master/src/Laravel/Cashier/Invoice.php

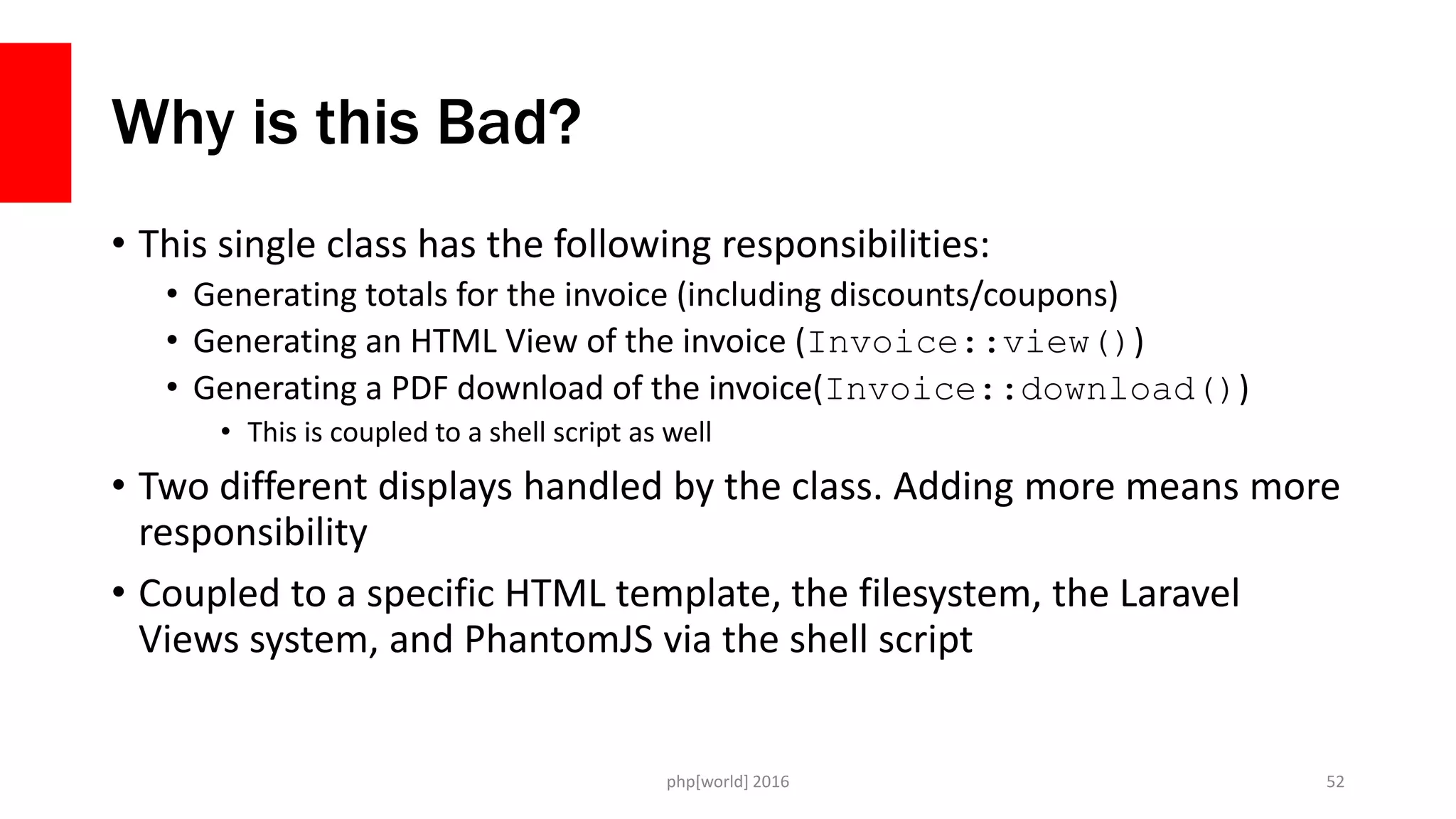

52. Why is this Bad?
• This single class has the following responsibilities:
• Generating totals for the invoice (including discounts/coupons)
• Generating an HTML View of the invoice (Invoice::view())
• Generating a PDF download of the invoice(Invoice::download())
• This is coupled to a shell script as well
• Two different displays handled by the class. Adding more means more
responsibility
• Coupled to a specific HTML template, the filesystem, the Laravel
Views system, and PhantomJS via the shell script
php[world] 2016 52

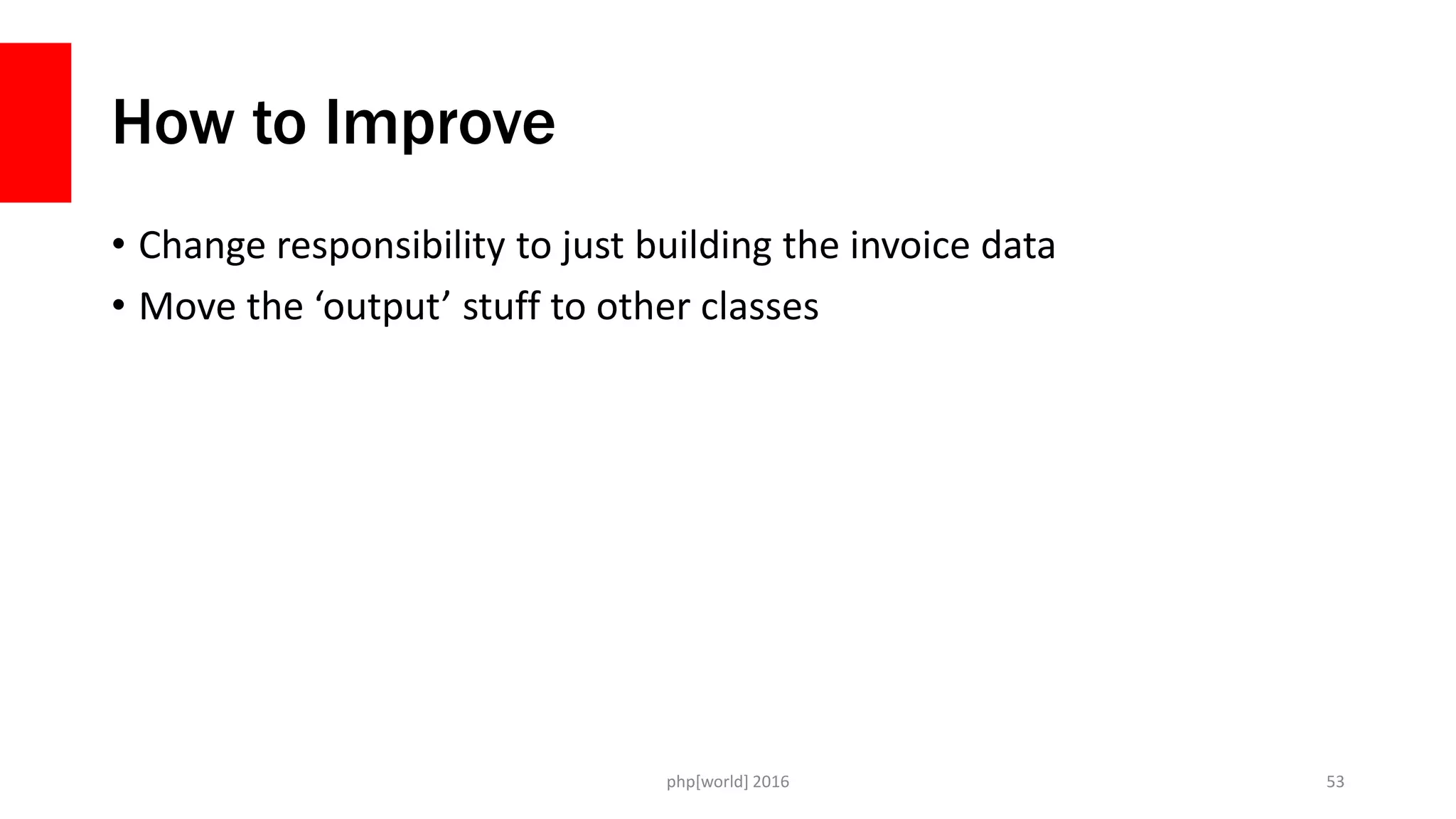

53. How to Improve
• Change responsibility to just building the invoice data
• Move the ‘output’ stuff to other classes
php[world] 2016 53

54. Unit Testing
php[world] 2016 54

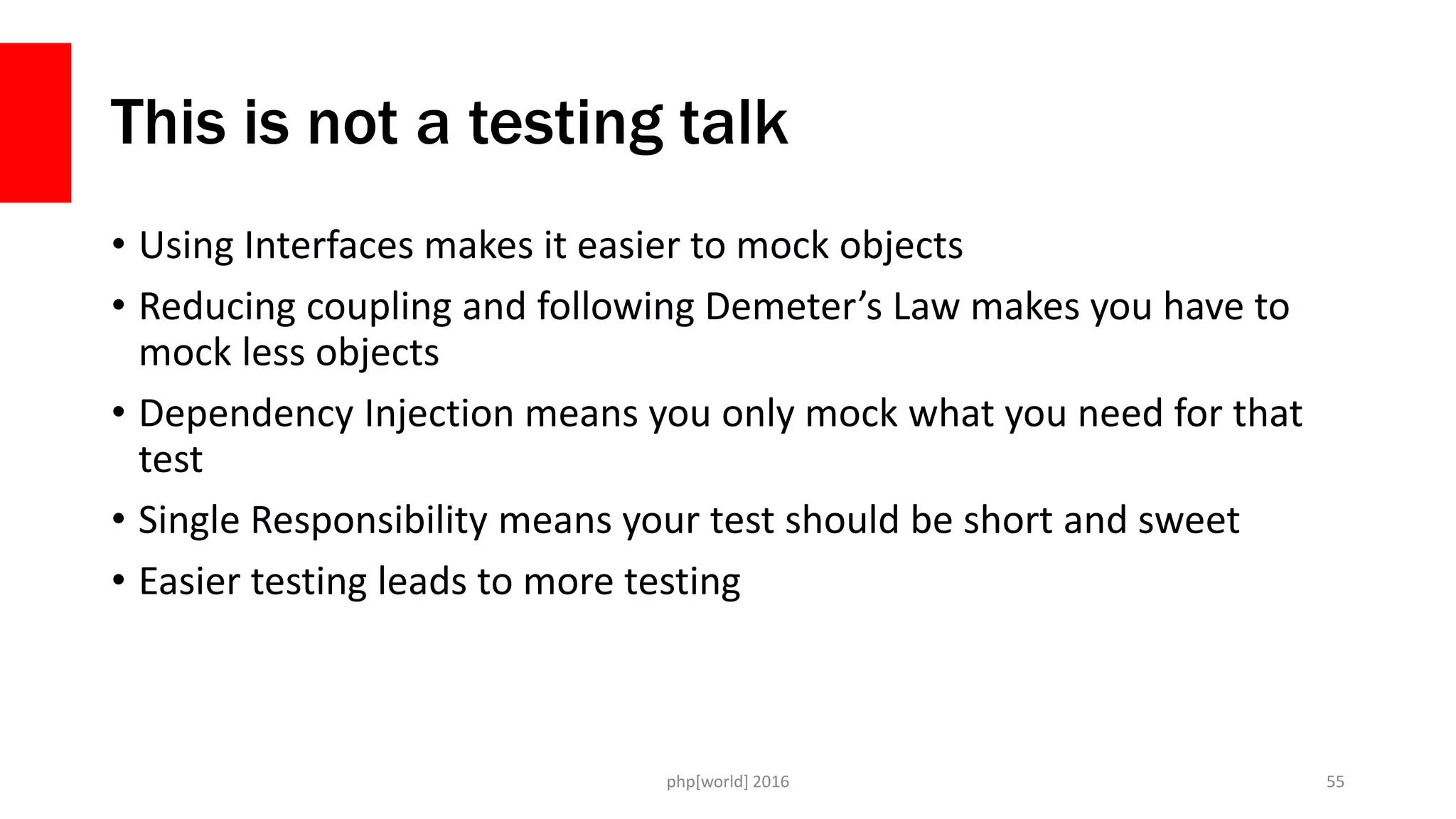

55. This is not a testing talk
• Using Interfaces makes it easier to mock objects
• Reducing coupling and following Demeter’s Law makes you have to
mock less objects
• Dependency Injection means you only mock what you need for that
test
• Single Responsibility means your test should be short and sweet
• Easier testing leads to more testing
php[world] 2016 55

56. Additional Resources
• Clean Code – Robert C. Martin
• PHP Objects, Patterns, and Practice – Matt Zandstra
php[world] 2016 56

57. Thank You!
• Software Engineer, InQuest
• Co-Host of “Jerks Talk Games”
• http://jerkstalkgames.com
• Author of “Docker for Developers”
• https://leanpub.com/dockerfordevs
• http://ctankersley.com
• chris@ctankersley.com
• @dragonmantank
php[world] 2016 57
